1. Louisville User Group Meeting April 25, 2012 Lori Pieper Maximize WebFOCUS Performance with Hyperstage

2. Agenda  The “Big Data” Business Challenge  Pivoting Your Perspective  Introducing WebFOCUS Hyperstage  How does it work?  So what’s the big deal?  Demonstration  Wrap Up and Q&A

3. Copyright 2007, Information Builders. Slide 3 The “Big Data”Business Challenge

4. Copyright 2007, Information Builders. Slide 4 Traditional Data Warehousing  Labor intensive, heavy indexing, aggregations and partitioning  Hardware intensive: massive storage; big servers  Expensive and complex More Data, More Data Sources More Kinds of Output Needed by More Users, More Quickly Limited Resources and Budget 010101010101010101010101010 1 0101010101010101010101010 01010101010101010101 01 1 10 101 10 01 0 1 10 01 1 0 10 1 0 101 1 1 0 0 10 101 10 01 0 1 10 01 1 0 10 1 0 101 01 010 0 1 0 101 01 1 1010 0101 1 01 0 10 101 10 01 0 1 10 01 1 0 10 1 0 101 1 0 010101010101010101010 1010 01010101010101010101010101 01 1 101 10 0 101 1010 10 1 101 010 0 0 10 1 0 01 0 0 Real time data Multiple databases External Sources Data Warehousing Challenges

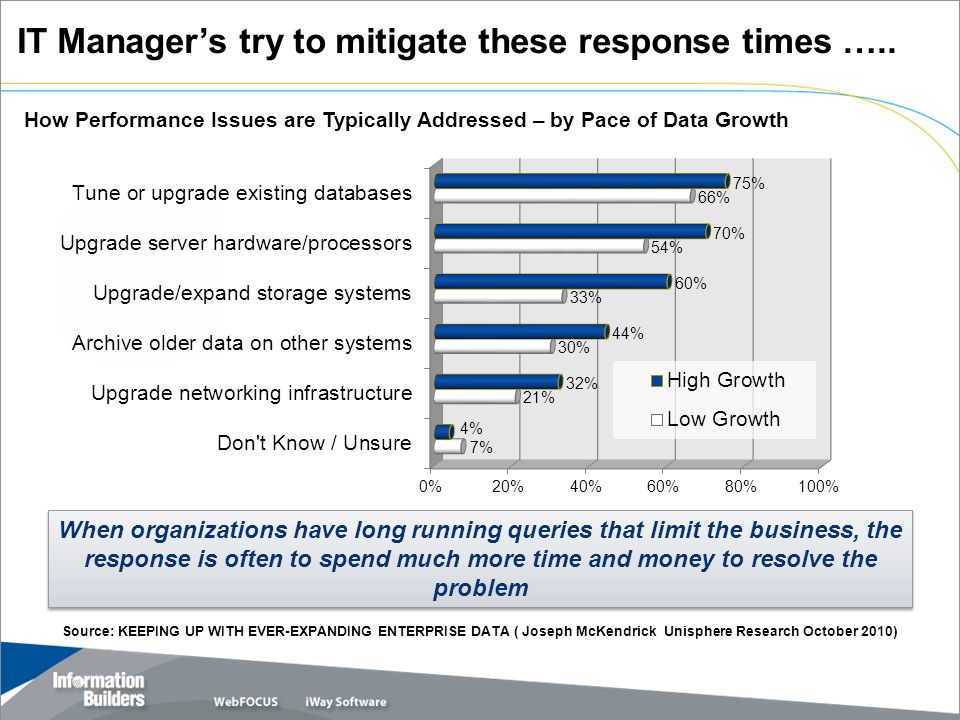

5. Source: KEEPING UP WITH EVER-EXPANDING ENTERPRISE DATA ( Joseph McKendrick Unisphere Research October 2010) How Performance Issues are Typically Addressed – by Pace of Data Growth When organizations have long running queries that limit the business, the response is often to spend much more time and money to resolve the problem IT Manager’s try to mitigate these response times …..

6. Limitations of “Traditional” Solutions Adding indexes:  Increases disk space requirements  Sum of index space requirements can even exceed the source DB  Index Management  Increases load times to build the index  Predefines a fixed access path  Reports run slow if you haven’t “anticipated” the reporting needs correctly

7. Limitations of “Traditional” Solutions Building OLAP Cubes:  Cube technology has limited scalability  Number of dimensions is limited  Amount of data is limited  Cube technology is difficult to update (add Dimension)  Usually requires a complete rebuild  Cube builds are typically slow  New design results in a new cube  Reports run slow if you haven’t “anticipated” the reporting needs correctly

8. Copyright 2007, Information Builders. Slide 8 Pivoting Your Perspective: Turn Row-based into Column-based

9. Row-based databases are ubiquitous because so many of our most important business systems are transactional. Row-oriented databases are well suited for transactional environments, such as a call center where a customer’s entire record is required when their profile is retrieved and/or when fields are frequently updated. The Ubiquity of Rows … But - Disk I/O becomes a substantial limiting factor since a row-oriented design forces the database to retrieve all column data for any query. 30 columns 50 millions Rows Why is Row-based Limiting for Analytics?

10. Row Oriented ( 1, Smith, New York, 50000; 2, Jones, New York, 65000; 3, Fraser, Boston, 40000; 4, Fraser, Boston, 70000 )  Works well if all the columns are needed for every query.  Efficient for transactional processing if all the data for the row is available  Works well with aggregate results (sum, count, avg. )  Only columns that are relevant need to be touched  Consistent performance with any database design  Allows for very efficient compression Column Oriented ( 1, 2, 3, 4; Smith, Jones, Fraser, Fraser; New York, New York, Boston, Boston, 50000, 65000, 40000, 70000 ) Why is Column-based Perfect for Analytics? Employee Id 1 2 3 Name Smith Jones Fraser Location New York Boston Sales 50,000 65,000 40,000 4FraserBoston70,000

11. Employee Id 1 2 3 Name Smith Jones Fraser Location New York Boston Sales 50,000 65,000 40,000 1SmithNew York50,000 2JonesNew York65,000 3FraserBoston40,000 1 2 3 SmithNew York50,000 JonesNew York65,000 Data stored in rows FraserBoston40,000 Data stored in columns Why is Column-based Perfect for Analytics? 4FraserBoston70,000 4FraserBoston70,0004FraserBoston70,000

12. Copyright 2007, Information Builders. Slide 12 Introducing Hyperstage

13. Hyperstage is a high performance analytic data store designed to handle business-driven queries on large volumes of data—with minimal IT intervention—achieving outstanding query performance, with less hardware, no database tuning and easy migration. Introducing WebFOCUS Hyperstage ….

14. Easy to implement and manage, Hyperstage provides the answers to your business users’ needs at a price you can afford. Introducing WebFOCUS Hyperstage …. But really… What is it?

15. Hyperstage combines a columnar database with intelligence we call the Knowledge Grid to deliver fast query responses. Introducing WebFOCUS Hyperstage …. How is it architected? Hyperstage Engine Knowledge Grid Compressor Bulk Loader Unmatched Administrative Simplicity: No indexes No data partitioning No materialized views

16. Hyperstage adds data compression of 10:1 to 40:1 so you can manage large amounts of data using much smaller disk footprint. Introducing WebFOCUS Hyperstage …. How is it architected? Hyperstage Engine Knowledge Grid Compressor Bulk Loader Powerful Data compression: Store terabytes of data with only gigabytes of disk space

17. Hyperstage adds a bulk loader plus an easy to use extraction and load tool, called HyperCopy, making data loading a breeze. Introducing WebFOCUS Hyperstage …. How is it architected? Hyperstage Engine Knowledge Grid Compressor Bulk Loader Includes embedded ETL: Easy and seamless migration of existing analytical databases No change in query or application required

18. Copyright 2007, Information Builders. Slide 18 How Does it Work?

19. Smarter Architecture  No maintenance  No query planning  No partition schemes  Easy “load and go” Data Packs – data stored in manageably sized, highly compressed data packs Knowledge Grid – statistics and metadata “describing” the super-compressed data Column Orientation WebFOCUS Hyperstage Engine Data compressed using algorithms tailored to data type How does it work?

20. 64K Data Packs  Each data pack contains 65, 536 data values  Compression is applied to each individual data pack  The compression algorithm varies depending on data type and data distribution Compression  Results vary depending on the distribution of data among data packs  A typical overall compression ratio seen in the field is 10:1  Some customers have seen results have been as high as 40:1 Patent Pending Compression Algorithms 64K Data Packs and Compression Data Organization and the Knowledge Grid ….

21. This knowledge grid layer = 1% of the compressed volume Data Pack Nodes (DPN) A separate DPN is created for every data pack created in the database to store basic statistical information Character Maps (CMAPs) Every Data Pack that contains text creates a matrix that records the occurrence of every possible ASCII character Histograms Histograms are created for every Data Pack that contains numeric data and creates 1024 MIN-MAX intervals. Pack-to-Pack Nodes (PPN) PPNs track relationships between Data Packs when tables are joined. Query performance gets better as the database is used.

22. salaryagejobcity Completely Irrelevant Suspect All values match SELECT count(*) FROM employees WHERE salary > 50000 AND age < 65 AND job = ‘Shipping’ AND city = ‘Louisville’; WebFOCUS Hyperstage Example: Query and Knowledge Grid

23. salaryagejobcity 1.Find the Data Packs with salary > 50000 SELECT count(*) FROM employees WHERE salary > 50000 AND age < 65 AND job = ‘Shipping’ AND city = ‘Louisville’; WebFOCUS Hyperstage Example: salary > 50000 Completely Irrelevant All values match Suspect

24. salaryagejobcity 1.Find the Data Packs with salary > 50000 2.Find the Data Packs that contain age < 65 SELECT count(*) FROM employees WHERE salary > 50000 AND age < 65 AND job = ‘Shipping’ AND city = ‘Louisville’; WebFOCUS Hyperstage Example: age<65 Completely Irrelevant Suspect All values match

25. salaryagejobcity 1.Find the Data Packs with salary > 50000 2.Find the Data Packs that contain age < 65 3.Find the Data Packs that have job = ‘shipping’ SELECT count(*) FROM employees WHERE salary > 50000 AND age < 65 AND job = ‘Shipping’ AND city = ‘Louisville’; WebFOCUS Hyperstage Example: job = ‘shipping’ Completely Irrelevant Suspect All values match

26. salaryagejobcity 1.Find the Data Packs with salary > 50000 2.Find the Data Packs that contain age < 65 3.Find the Data Packs that have job = ‘shipping’ 4.Find the Data Packs that have city = ‘Louisville’ SELECT count(*) FROM employees WHERE salary > 50000 AND age < 65 AND job = ‘Shipping’ AND city = ‘Louisville’; WebFOCUS Hyperstage Example: city = ‘Louisville’ Completely Irrelevant Suspect All values match

27. salarycity All packs ignored All packs ignored All packs ignored 1.Find the Data Packs with salary > 50000 2.Find the Data Packs that contain age < 65 3.Find the Data Packs that have job = ‘shipping’ 4.Find the Data Packs that have city = ‘Louisville’ 5.Eliminate All rows that have been flagged as irrelevant SELECT count(*) FROM employees WHERE salary > 50000 AND age < 65 AND job = ‘Shipping’ AND city = ‘Louisville’; WebFOCUS Hyperstage Example: Eliminate Pack Rows Completely Irrelevant Suspect All values match agejob

28. salarycity All packs ignored Only this pack will be de-compressed All packs ignored All packs ignored 1.Find the Data Packs with salary > 50000 2.Find the Data Packs that contain age < 65 3.Find the Data Packs that have job = ‘shipping’ 4.Find the Data Packs that have city = ‘Louisville’ 5.Eliminate All rows that have been flagged as irrelevant 6.Finally we identify the pack that needs to be decompressed SELECT count(*) FROM employees WHERE salary > 50000 AND age < 65 AND job = ‘Shipping’ AND city = ‘Louisville’; WebFOCUS Hyperstage Example: Decompress and scan Completely Irrelevant Suspect All values match agejob

29. Copyright 2007, Information Builders. Slide 29 Hyperstage – So what’s the big deal?

30. WebFOCUS Hyperstage The Big Deal…  No indexes  No partitions  No views  No materialized aggregates  Value proposition  Low IT overhead  Reduced I/O = faster response times  Ease of implementation  Fast time to market  Less Hardware  Lower TCO “Load and Go”

31. Some Real World Results  Insurance Company  Query performance issues with SQL Server - Insurance claims analysis  Compression achieved 40:1  Most queries running 3X faster in Hyperstage  Large Bank  Query performance issues with SQL Server - Web traffic analysis  Compression achieved 10:1  Queries that ran for 10 to 15 mins in SQL Server ran in sub-seconds in Hyperstage  Government Application  Query performance issues with Oracle – Federal Loan/Grant Tracking  Compression achieved 15:1  Queries that ran for 10 to 15 minutes in Oracle ran in 30 seconds in Hyperstage 31

32. Copyright 2007, Information Builders. Slide 32 Demonstration …

33. Q&A Copyright 2007, Information Builders. Slide 33
