1. Macromolecular Crystallography and Structural Genomics – Recent Trends Prof. D. Velmurugan Department of Crystallography and Biophysics University of Madras Guindy Campus, Chennai – 25.

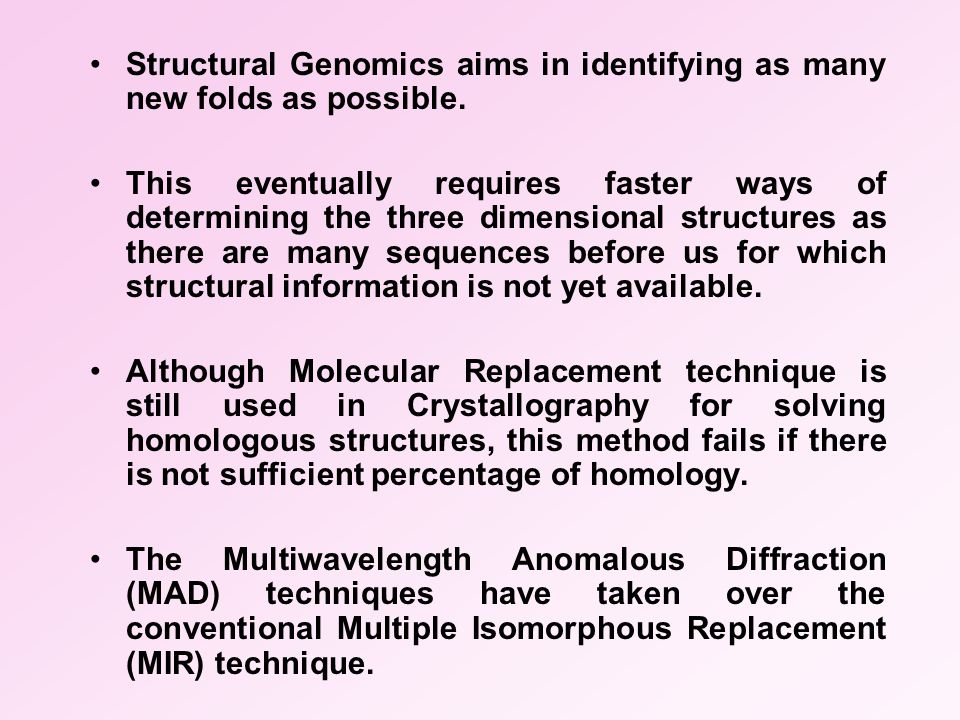

2. Structural Genomics aims in identifying as many new folds as possible. This eventually requires faster ways of determining the three dimensional structures as there are many sequences before us for which structural information is not yet available. Although Molecular Replacement technique is still used in Crystallography for solving homologous structures, this method fails if there is not sufficient percentage of homology. The Multiwavelength Anomalous Diffraction (MAD) techniques have taken over the conventional Multiple Isomorphous Replacement (MIR) technique.

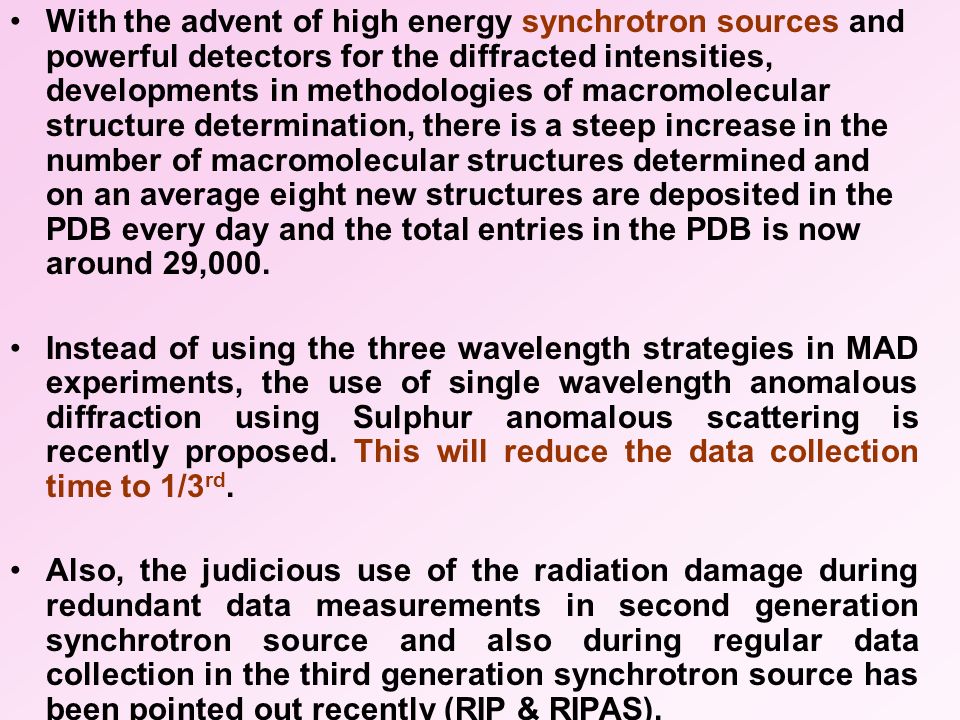

3. With the advent of high energy synchrotron sources and powerful detectors for the diffracted intensities, developments in methodologies of macromolecular structure determination, there is a steep increase in the number of macromolecular structures determined and on an average eight new structures are deposited in the PDB every day and the total entries in the PDB is now around 29,000. Instead of using the three wavelength strategies in MAD experiments, the use of single wavelength anomalous diffraction using Sulphur anomalous scattering is recently proposed. This will reduce the data collection time to 1/3 rd. Also, the judicious use of the radiation damage during redundant data measurements in second generation synchrotron source and also during regular data collection in the third generation synchrotron source has been pointed out recently (RIP & RIPAS).

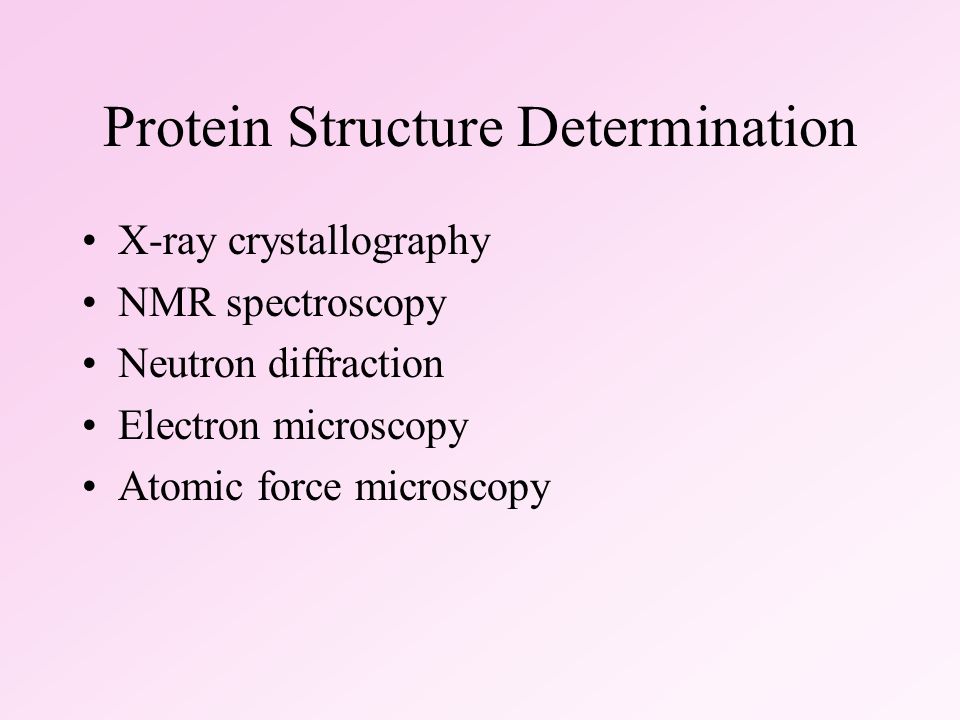

4. Protein Structure Determination X-ray crystallography NMR spectroscopy Neutron diffraction Electron microscopy Atomic force microscopy

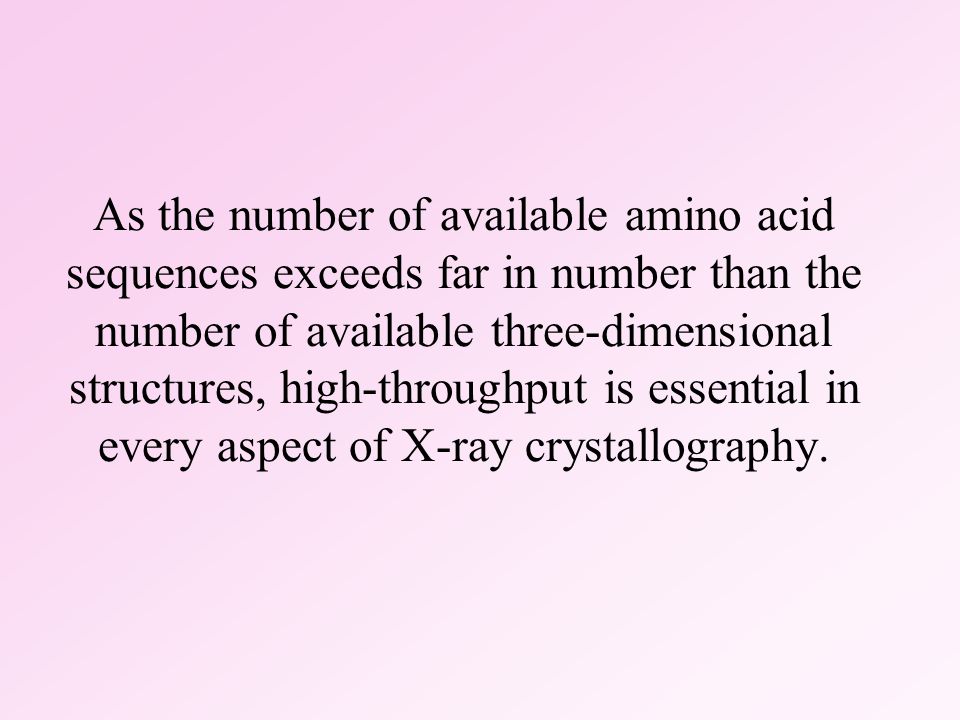

5. As the number of available amino acid sequences exceeds far in number than the number of available three-dimensional structures, high-throughput is essential in every aspect of X-ray crystallography.

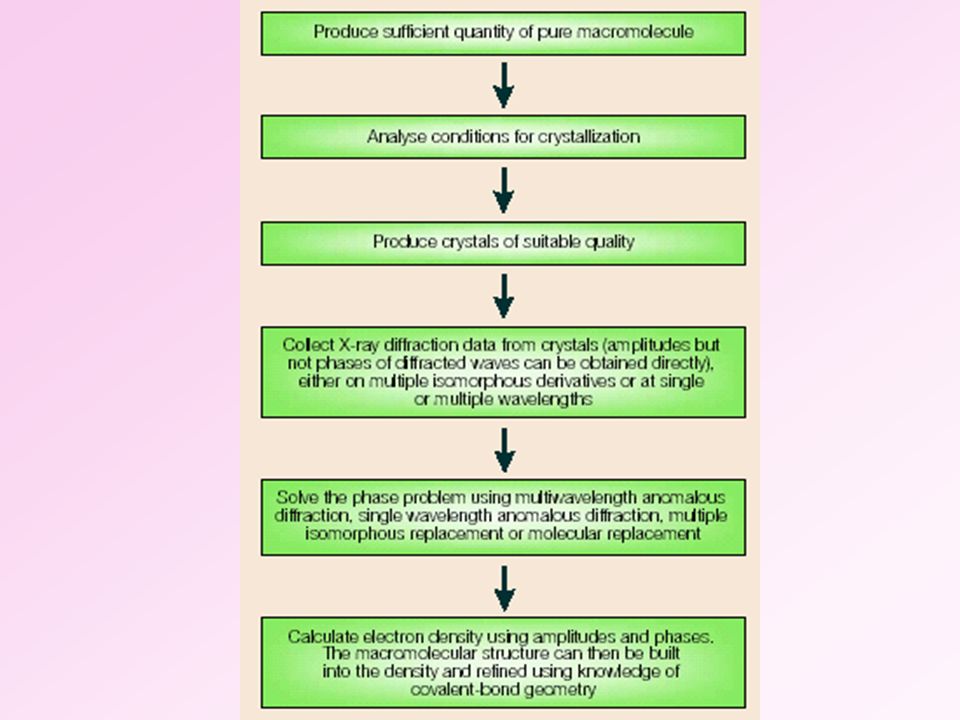

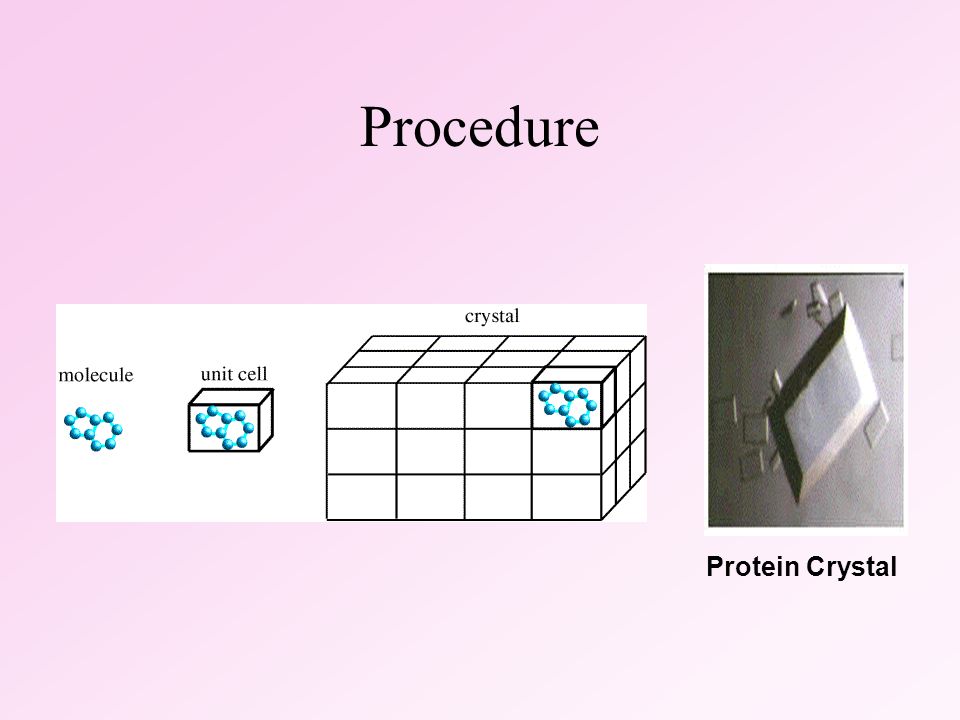

7. Procedure Protein Crystal

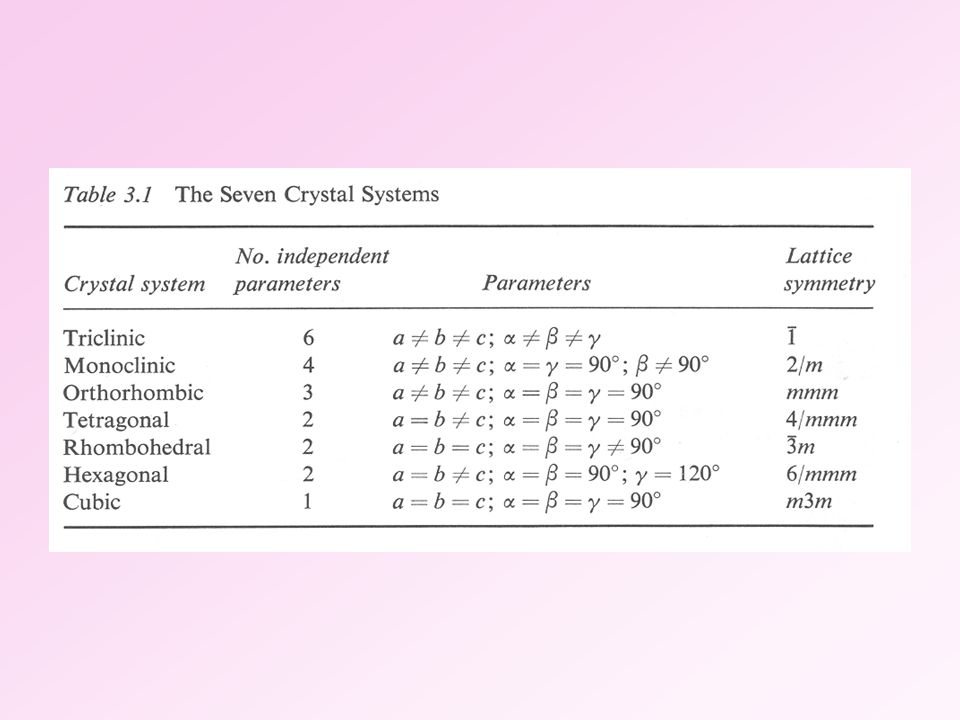

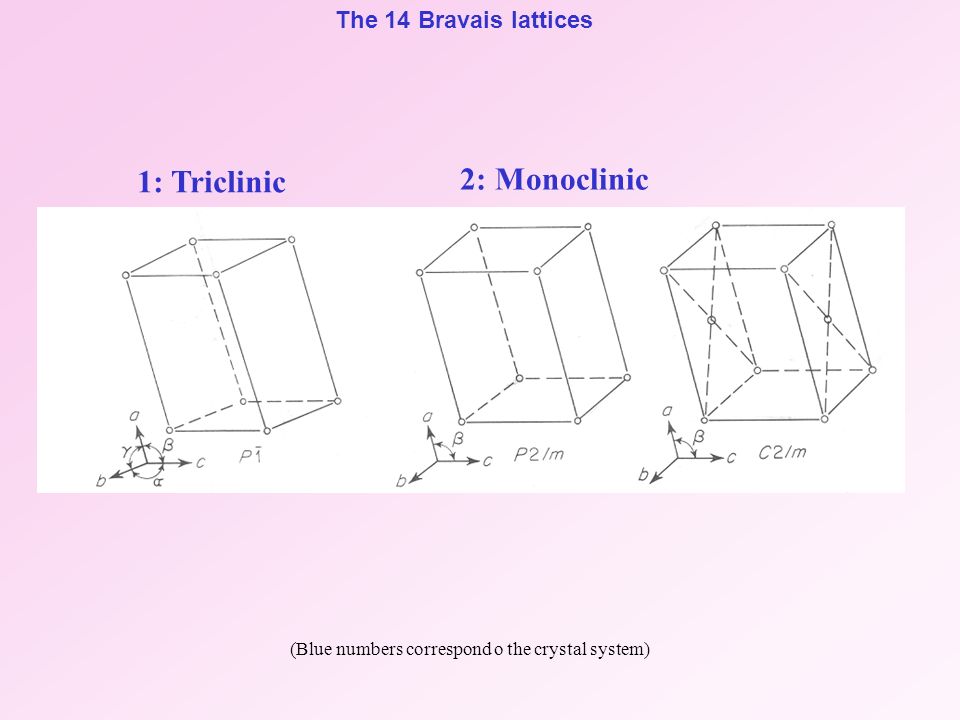

9. The 14 Bravais lattices 1: Triclinic 2: Monoclinic (Blue numbers correspond o the crystal system)

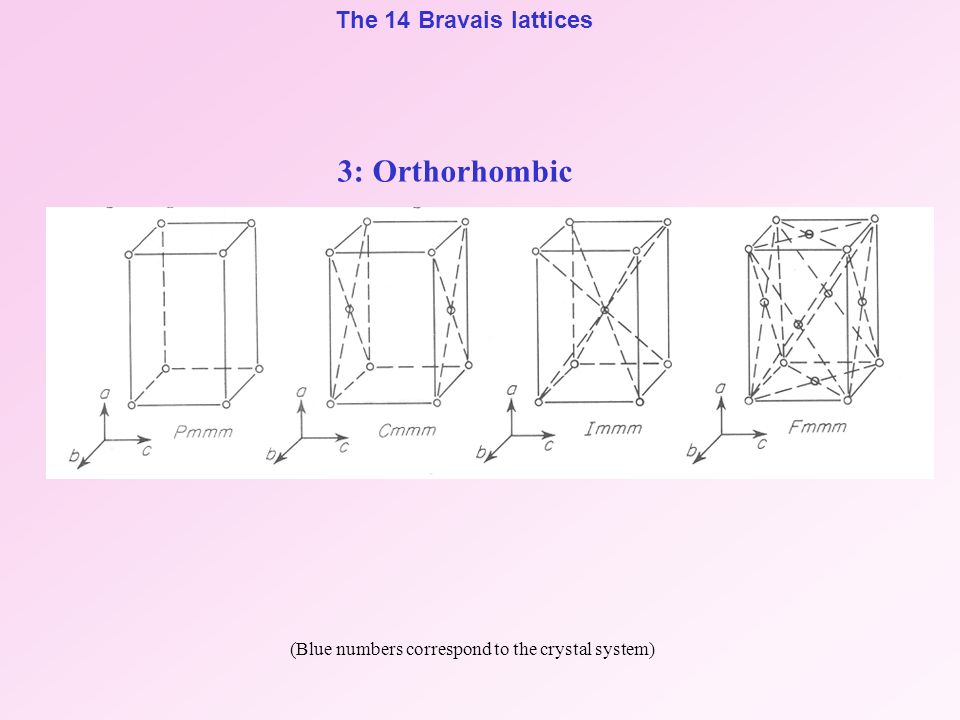

10. The 14 Bravais lattices 3: Orthorhombic (Blue numbers correspond to the crystal system)

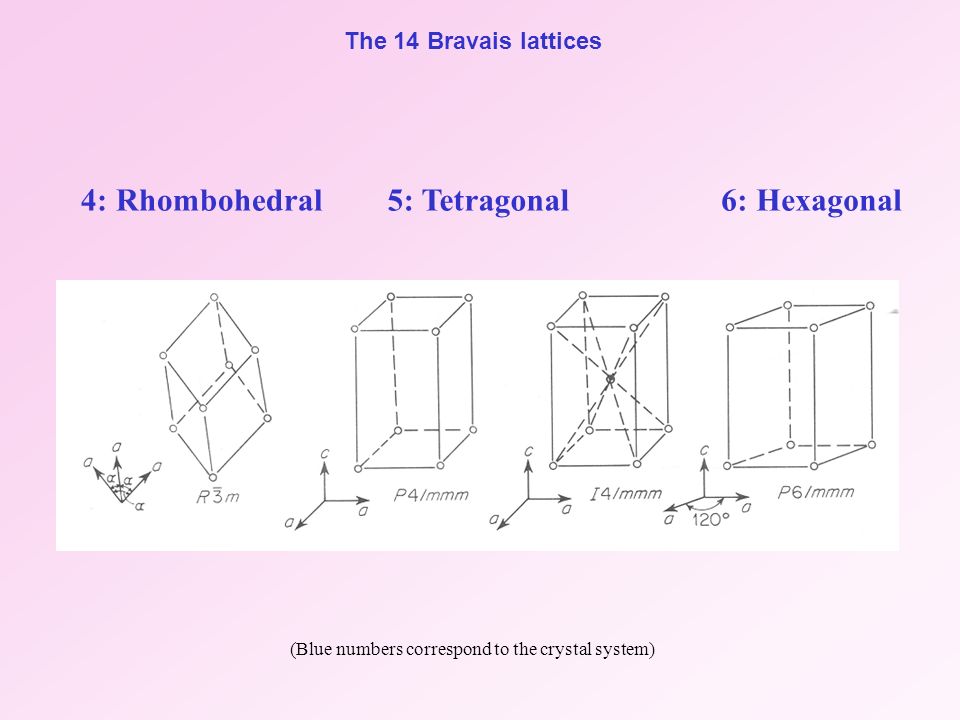

11. The 14 Bravais lattices 4: Rhombohedral5: Tetragonal6: Hexagonal (Blue numbers correspond to the crystal system)

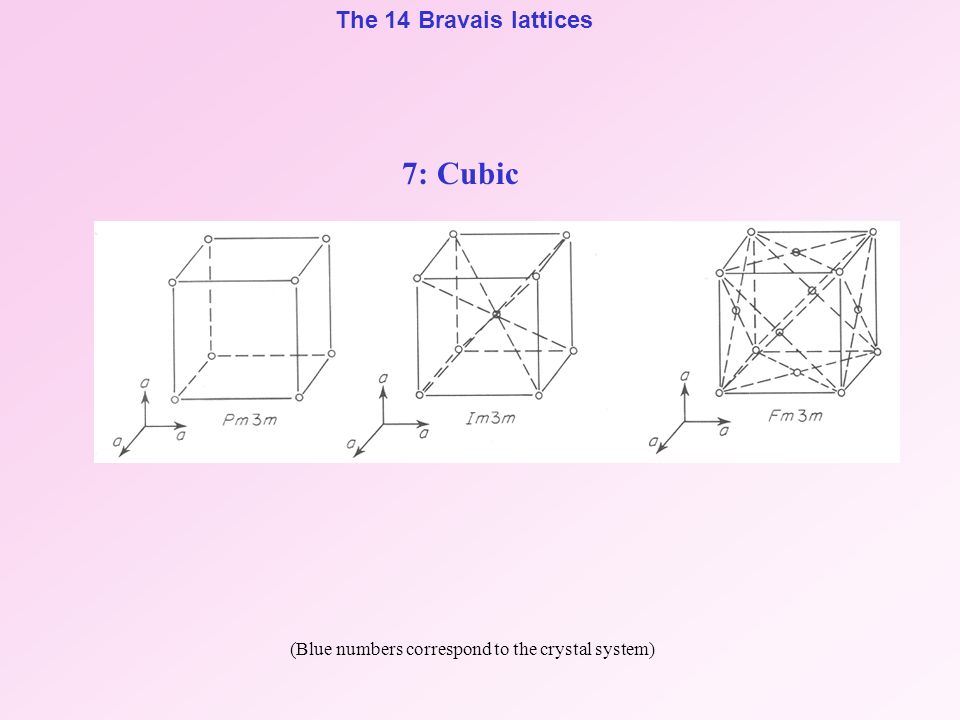

12. The 14 Bravais lattices 7: Cubic (Blue numbers correspond to the crystal system)

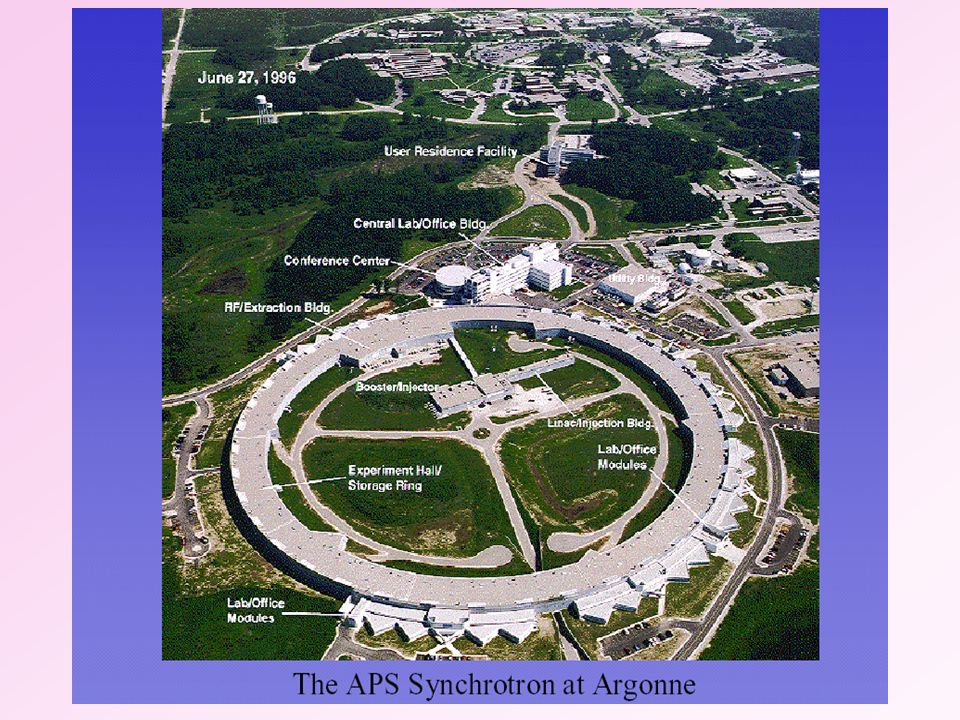

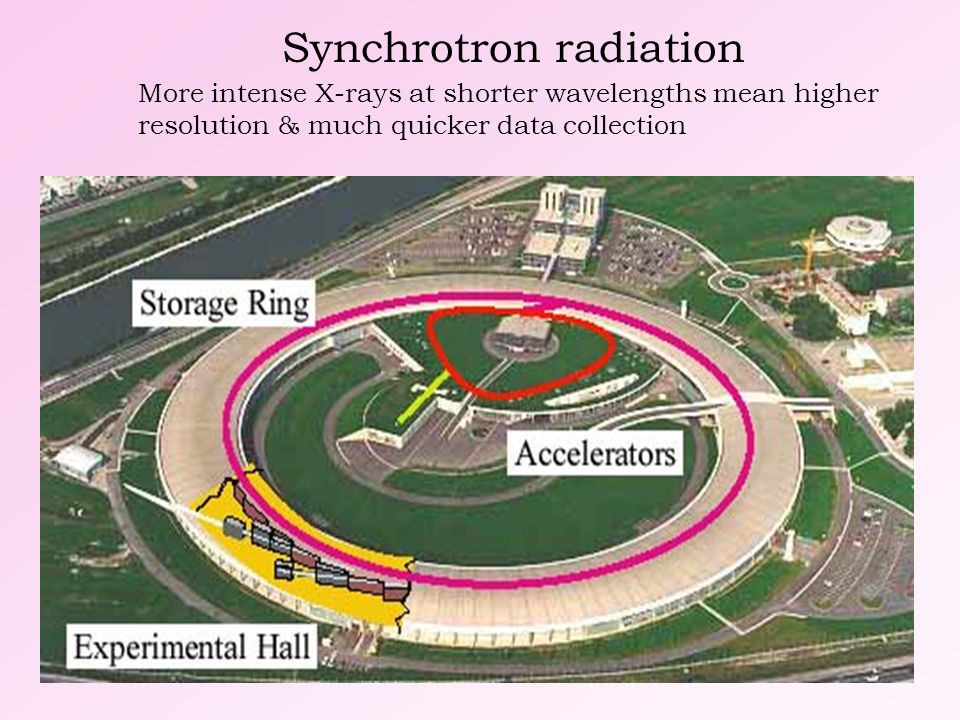

15. Synchrotron radiation More intense X-rays at shorter wavelengths mean higher resolution & much quicker data collection

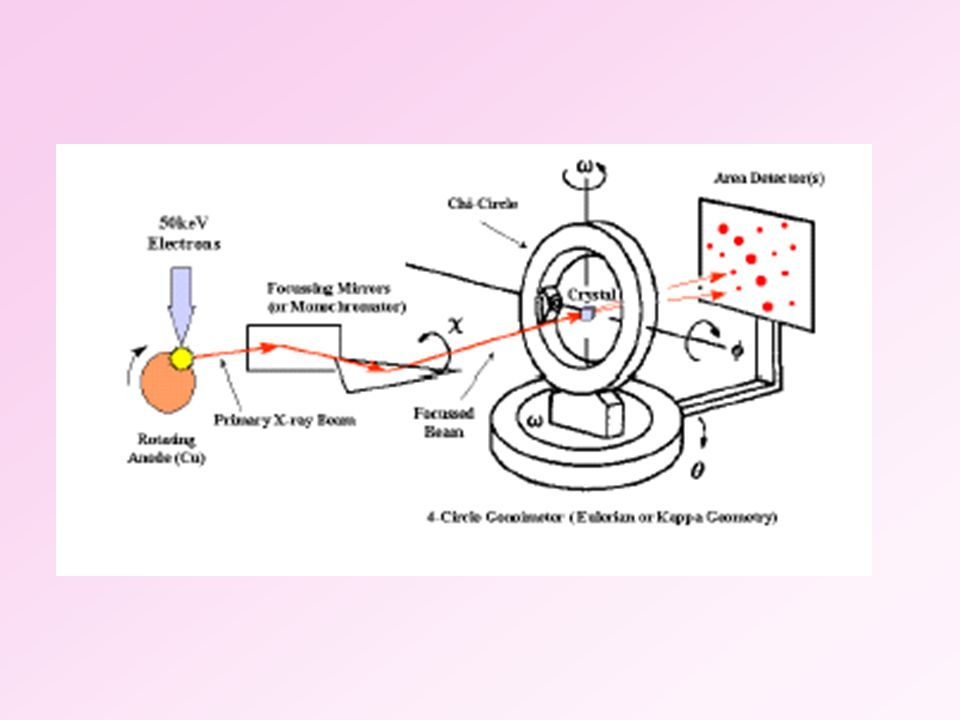

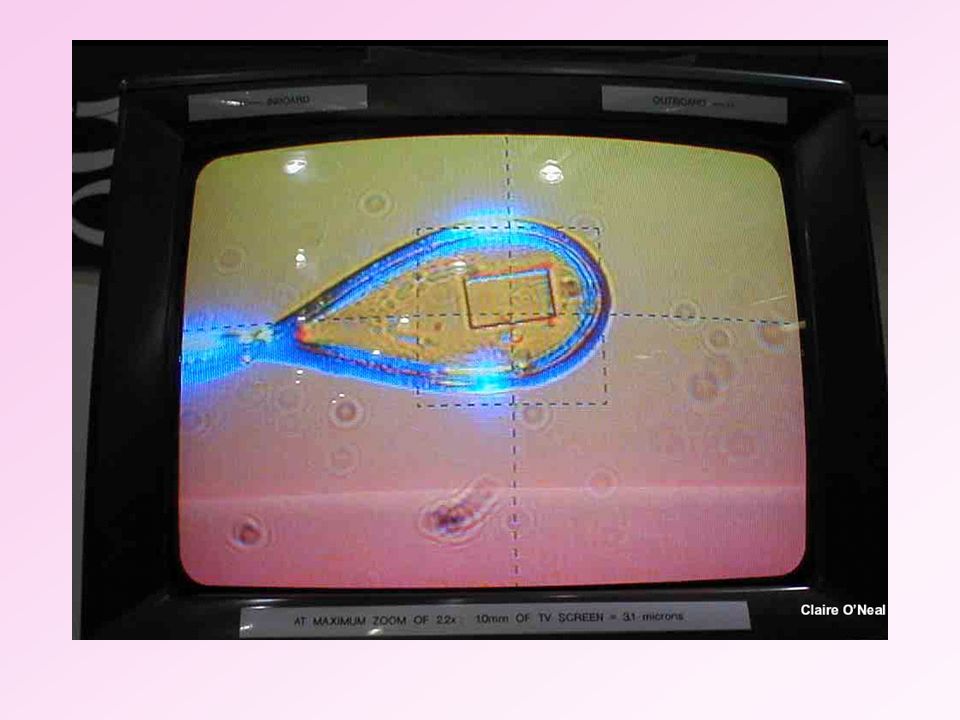

18. Diffraction Apparatus

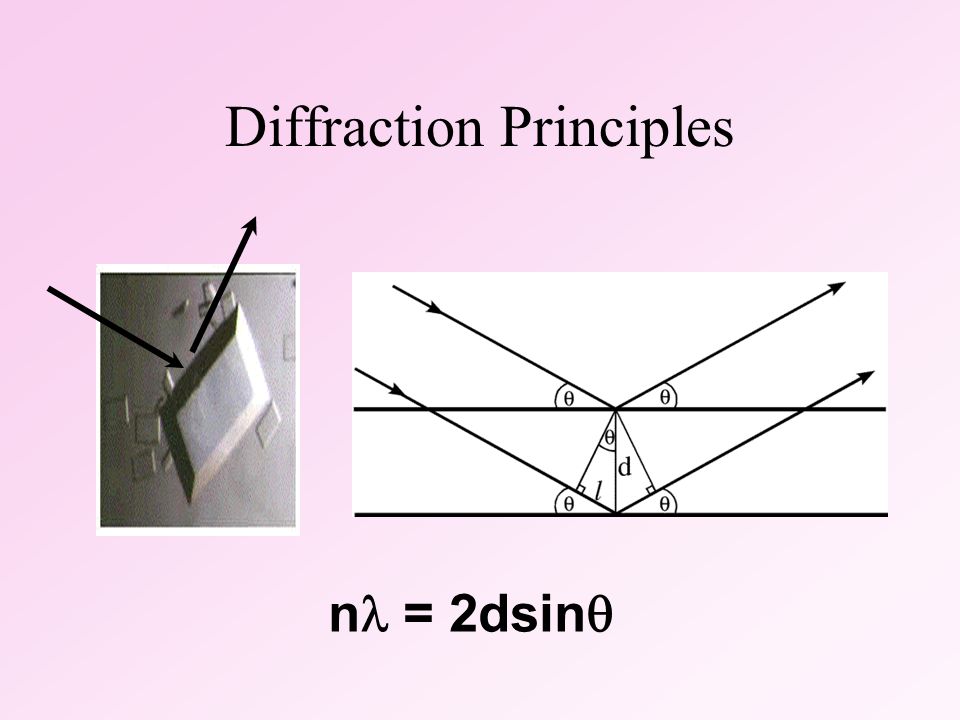

19. Diffraction Principles n  = 2dsin 

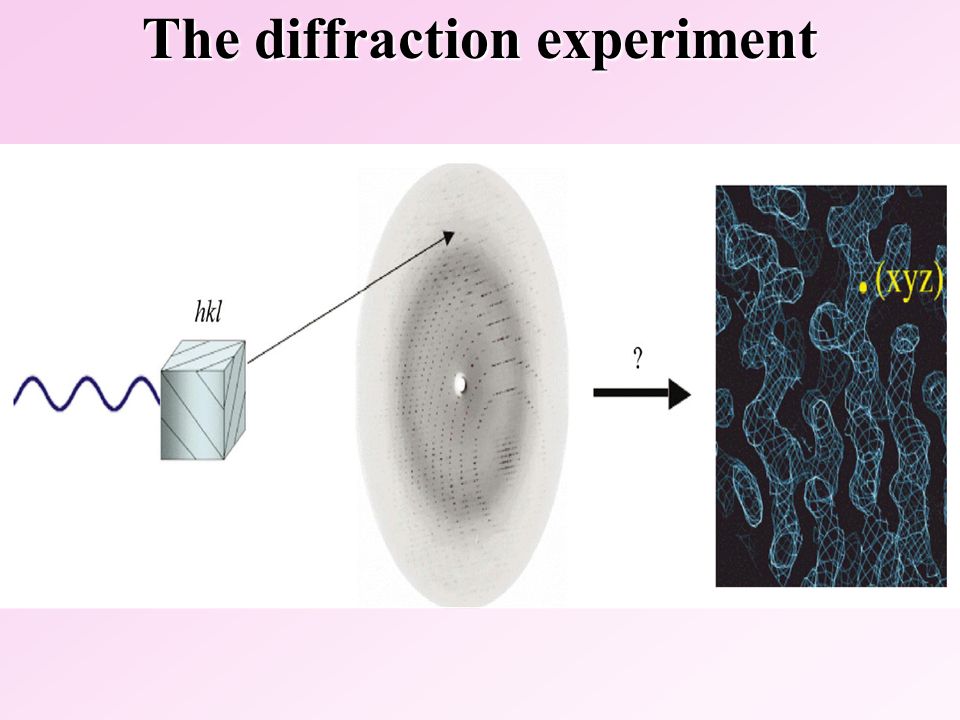

20. The diffraction experiment

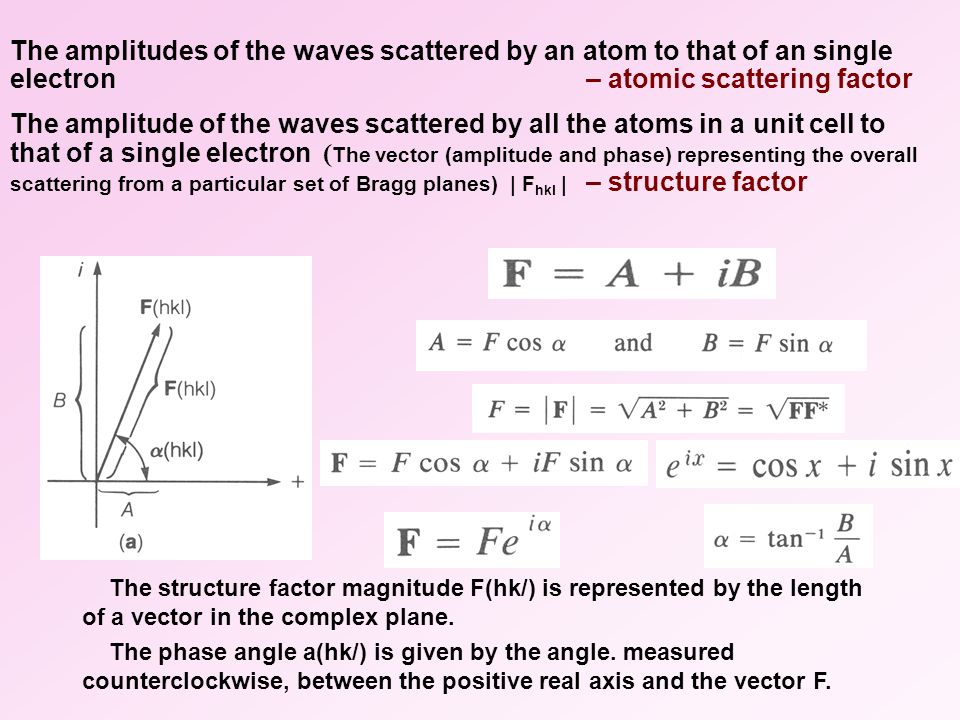

21. The structure factor magnitude F(hk/) is represented by the length of a vector in the complex plane. The phase angle a(hk/) is given by the angle. measured counterclockwise, between the positive real axis and the vector F. The amplitudes of the waves scattered by an atom to that of an single electron – atomic scattering factor The amplitude of the waves scattered by all the atoms in a unit cell to that of a single electron ( The vector (amplitude and phase) representing the overall scattering from a particular set of Bragg planes) | F hkl | – structure factor

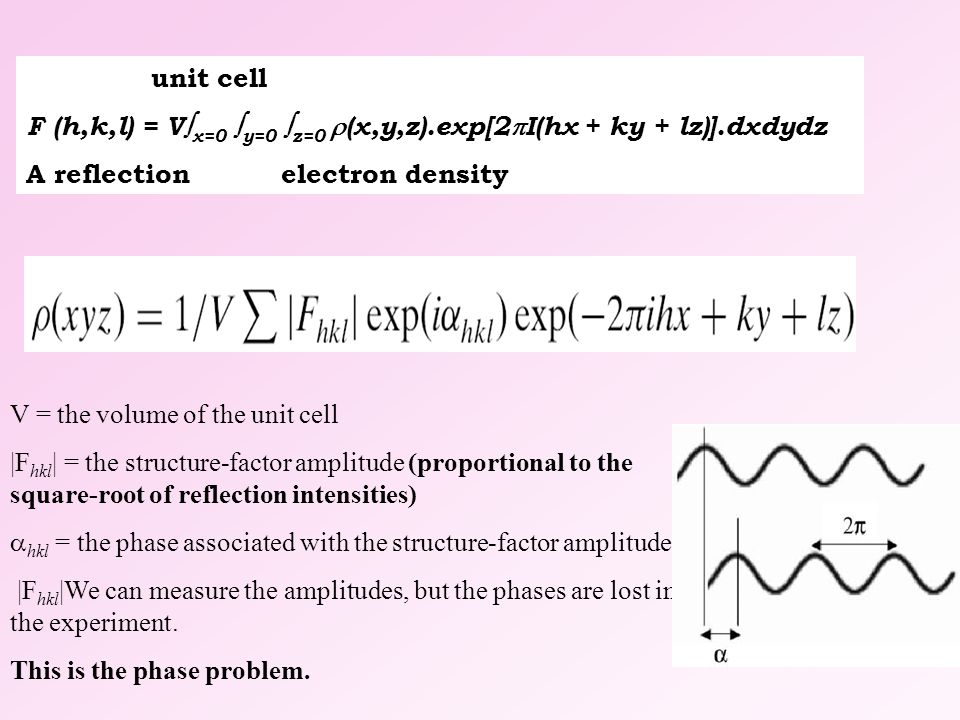

22. V = the volume of the unit cell |F hkl | = the structure-factor amplitude (proportional to the square-root of reflection intensities)  hkl = the phase associated with the structure-factor amplitude |F hkl |We can measure the amplitudes, but the phases are lost in the experiment. This is the phase problem. unit cell F (h,k,l) = V  x=0  y=0  z=0  (x,y,z).exp[2  I(hx + ky + lz)].dxdydz A reflection electron density

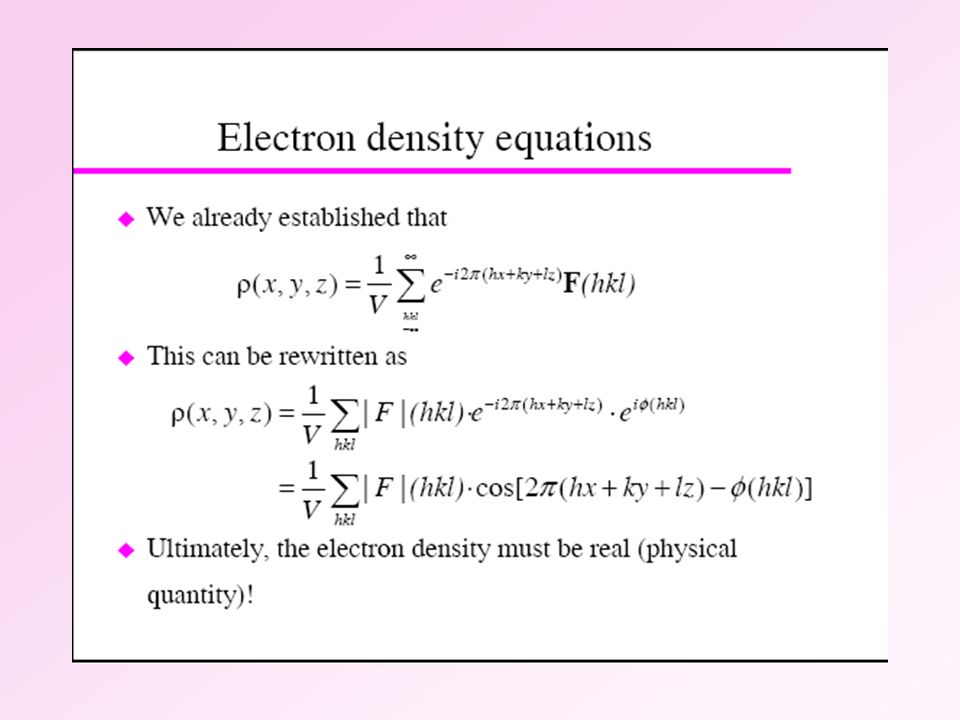

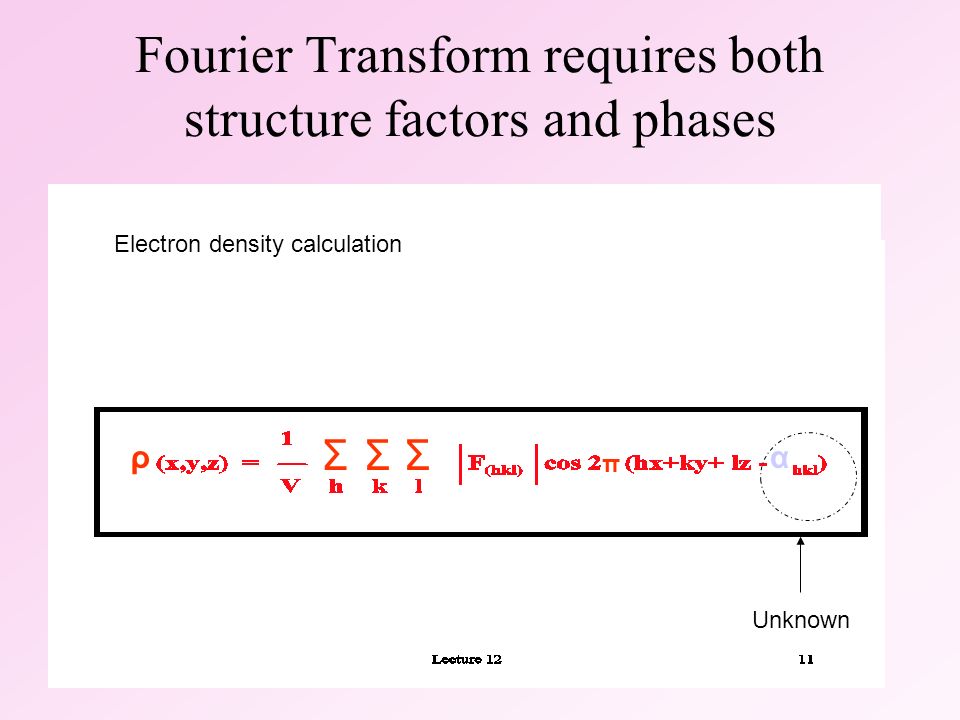

24. Fourier Transform requires both structure factors and phases ΣΣΣ π αρ Unknown Electron density calculation

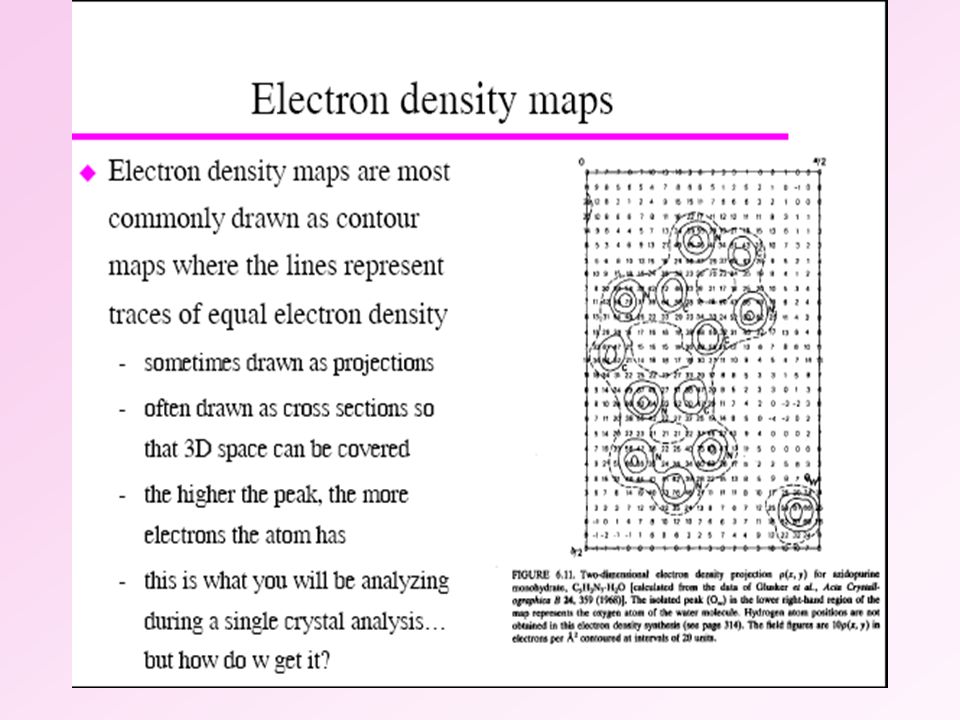

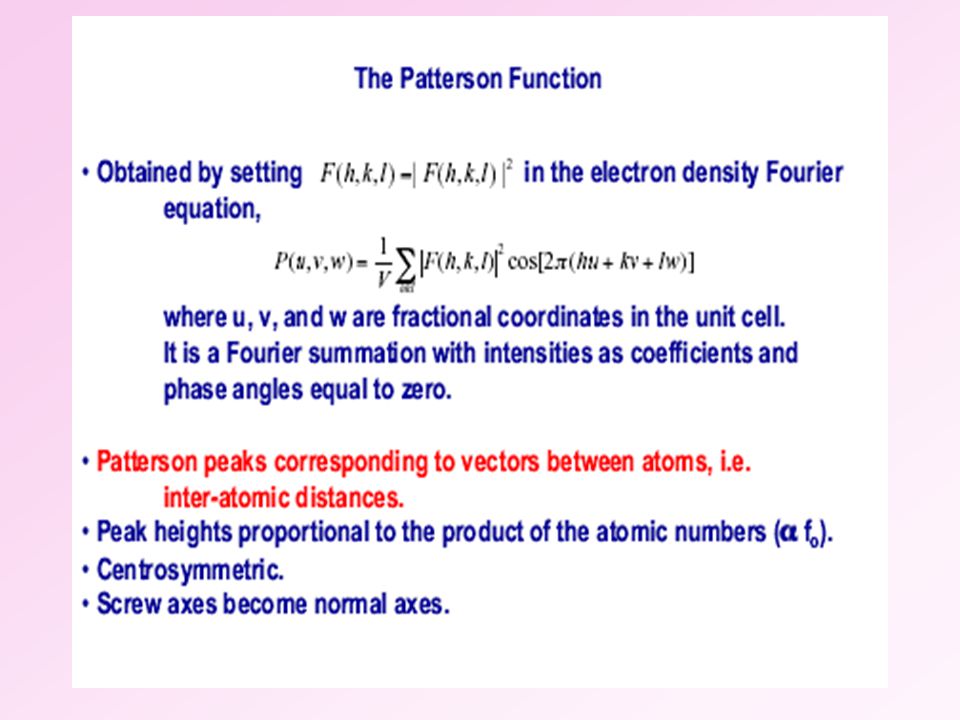

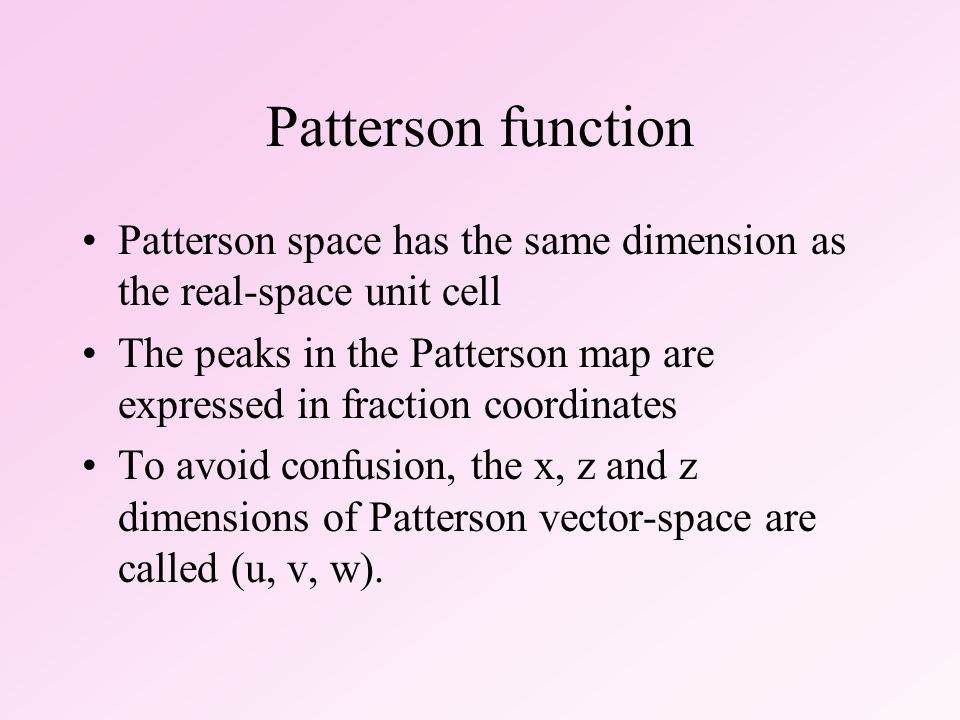

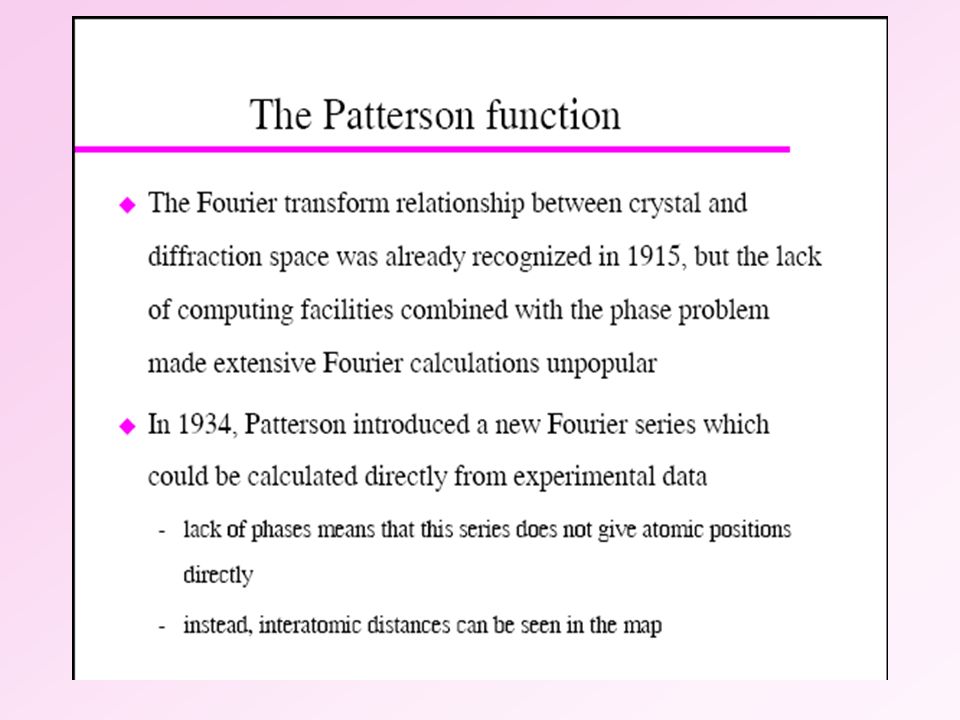

28. Patterson function Patterson space has the same dimension as the real-space unit cell The peaks in the Patterson map are expressed in fraction coordinates To avoid confusion, the x, z and z dimensions of Patterson vector-space are called (u, v, w).

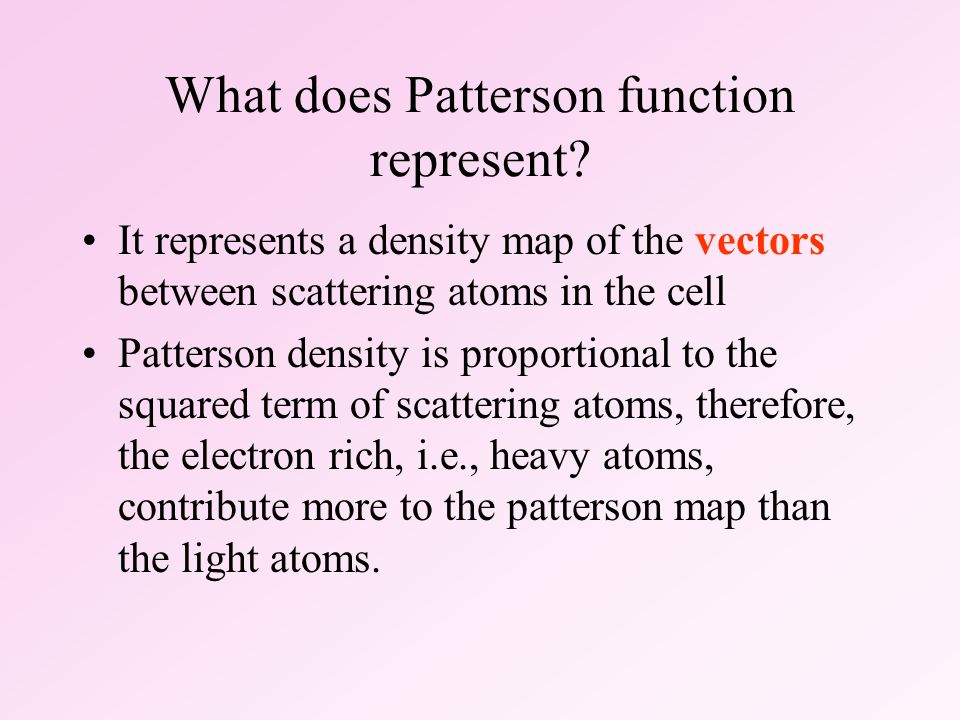

29. What does Patterson function represent? It represents a density map of the vectors between scattering atoms in the cell Patterson density is proportional to the squared term of scattering atoms, therefore, the electron rich, i.e., heavy atoms, contribute more to the patterson map than the light atoms.

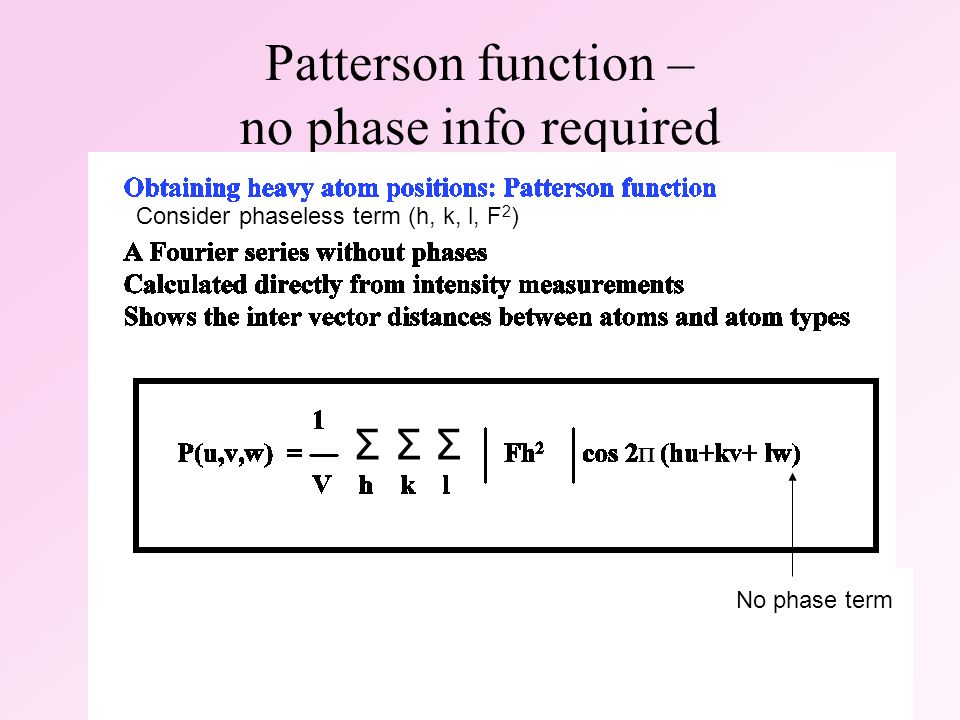

30. Patterson function – no phase info required  ΣΣΣ Consider phaseless term (h, k, l, F 2 ) No phase term

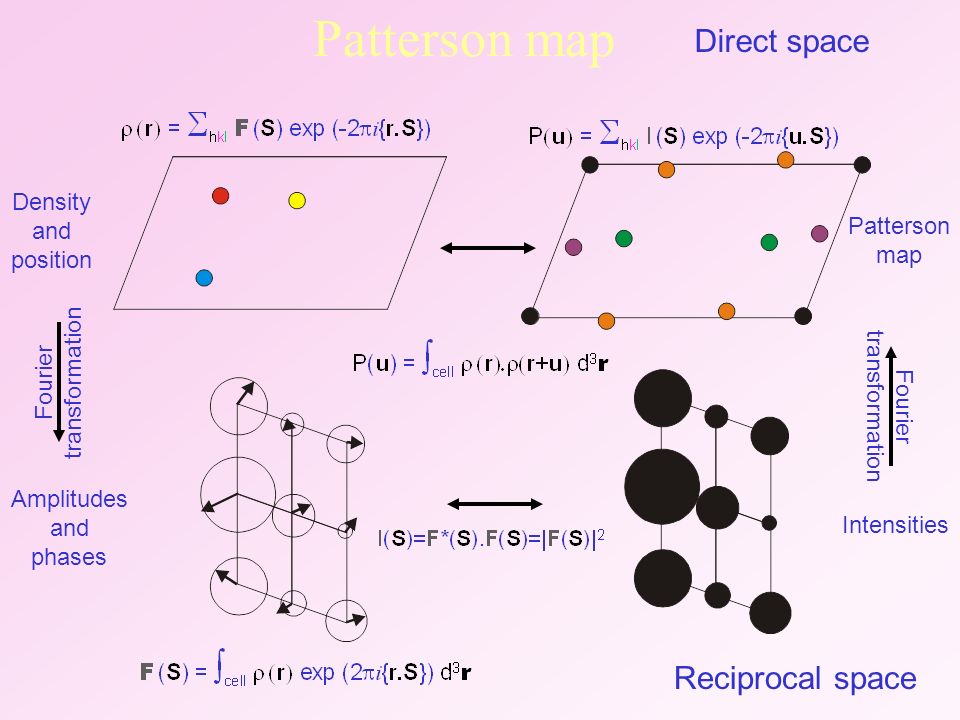

31. Patterson map Fourier transformation Reciprocal space Direct space Density and position Amplitudes and phases Fourier transformation Intensities Patterson map

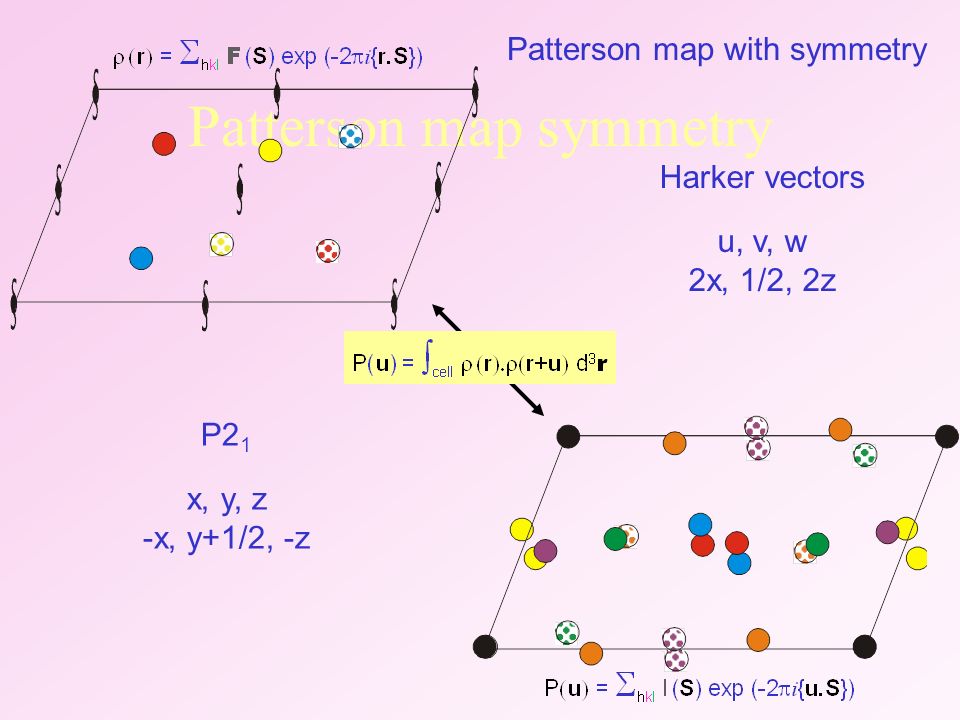

32. Patterson map symmetry P2 1 x, y, z -x, y+1/2, -z Patterson map with symmetry Harker vectors u, v, w 2x, 1/2, 2z

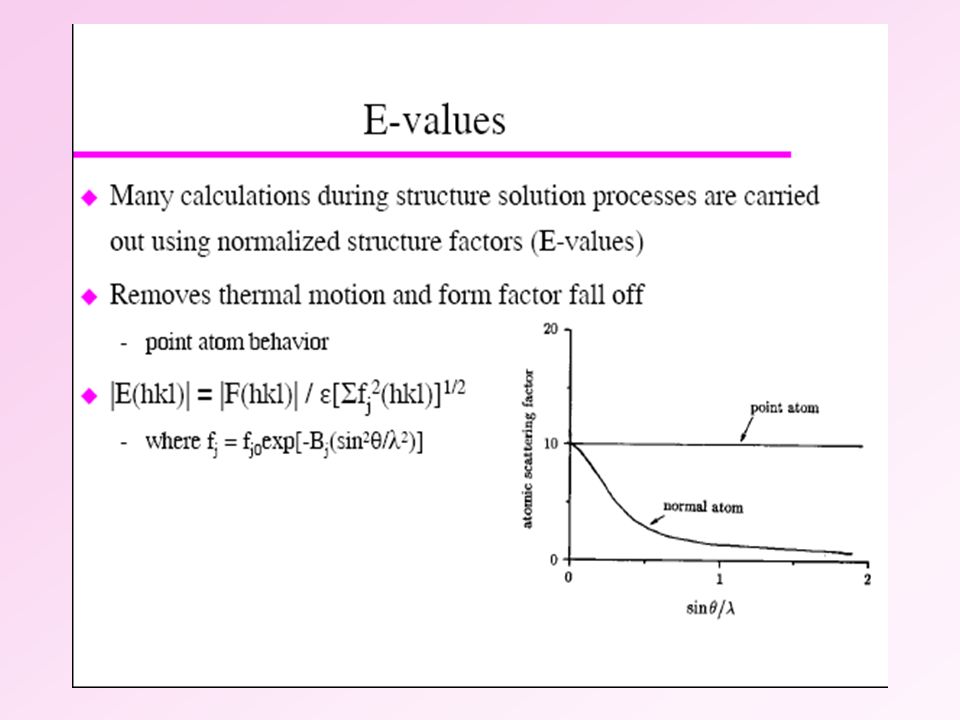

35. Diffracting a Cat Diffraction data with phase information Real Diffraction Data

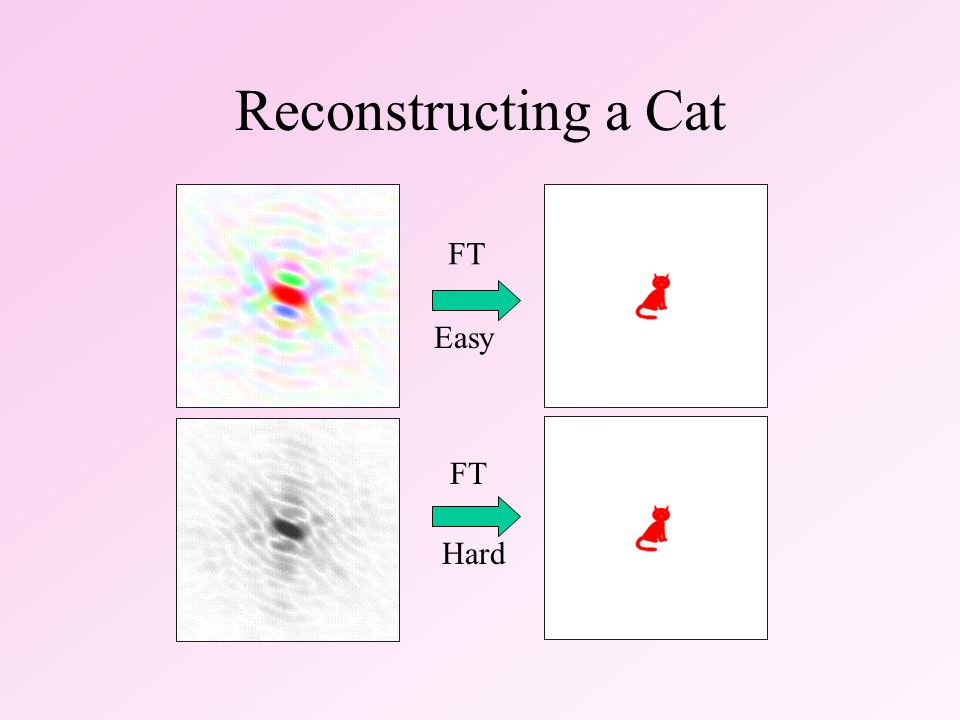

36. Reconstructing a Cat FT Easy Hard

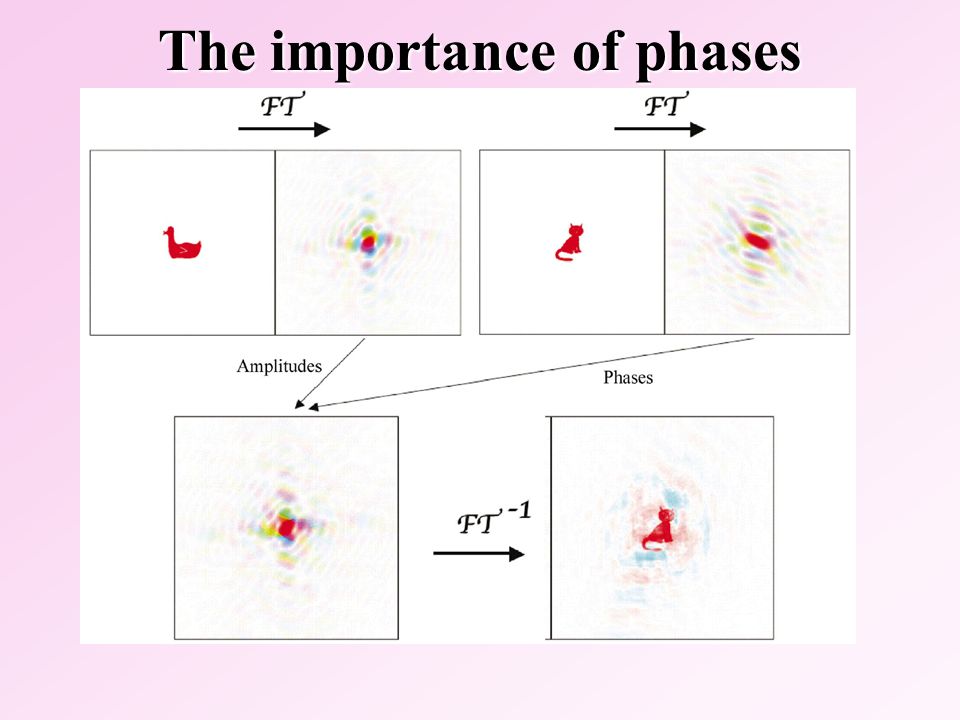

37. The importance of phases

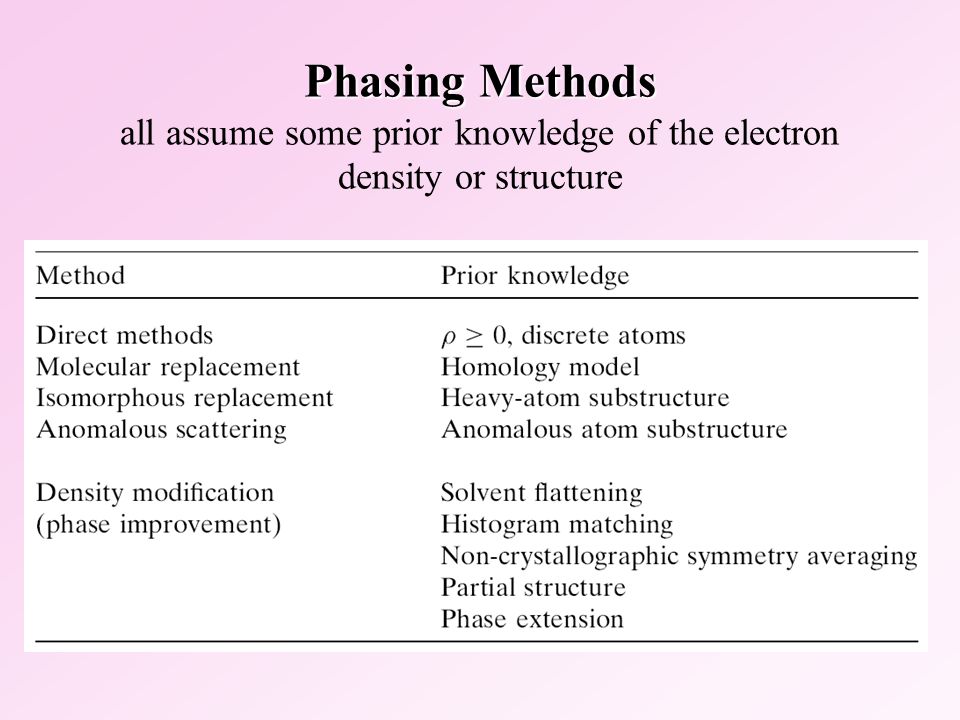

38. Phasing Methods Phasing Methods all assume some prior knowledge of the electron density or structure

39. The Phase Problem Diffraction data only records intensity, not phase information (half the information is missing) To reconstruct the image properly you need to have the phases (even approx.) –Guess the phases (molecular replacement) –Search phase space (direct methods) –Bootstrap phases (isomorphous replacement) –Uses differing wavelengths (anomolous disp.)

40. Acronyms for phasing techniques MR SIR MIR SIRAS MIRAS MAD SAD

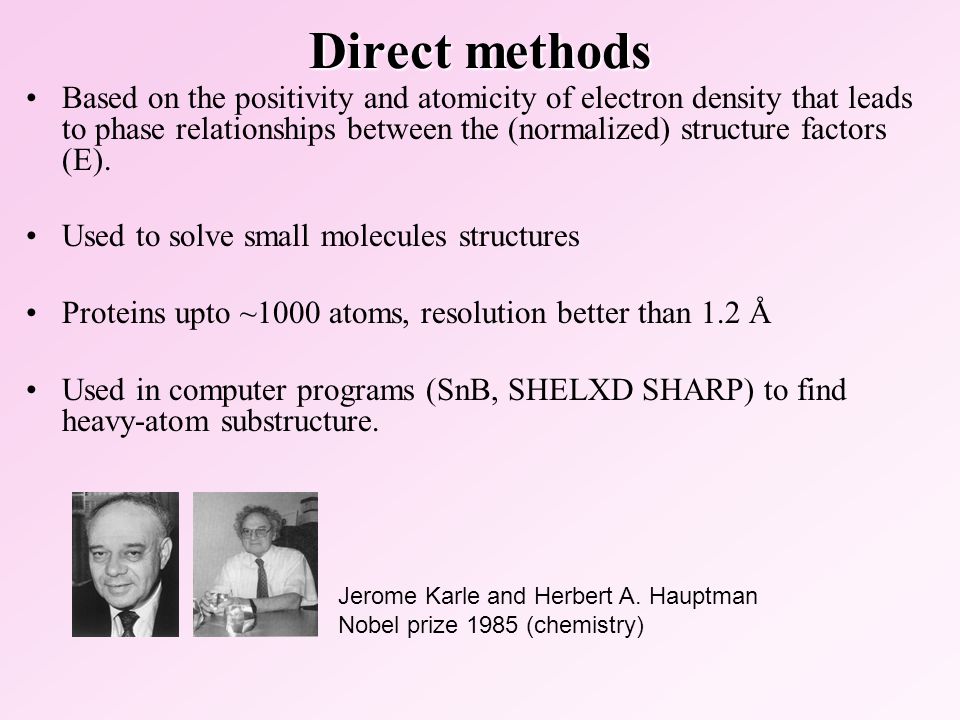

41. Direct methods Based on the positivity and atomicity of electron density that leads to phase relationships between the (normalized) structure factors (E). Used to solve small molecules structures Proteins upto ~1000 atoms, resolution better than 1.2 Å Used in computer programs (SnB, SHELXD SHARP) to find heavy-atom substructure. Jerome Karle and Herbert A. Hauptman Nobel prize 1985 (chemistry)

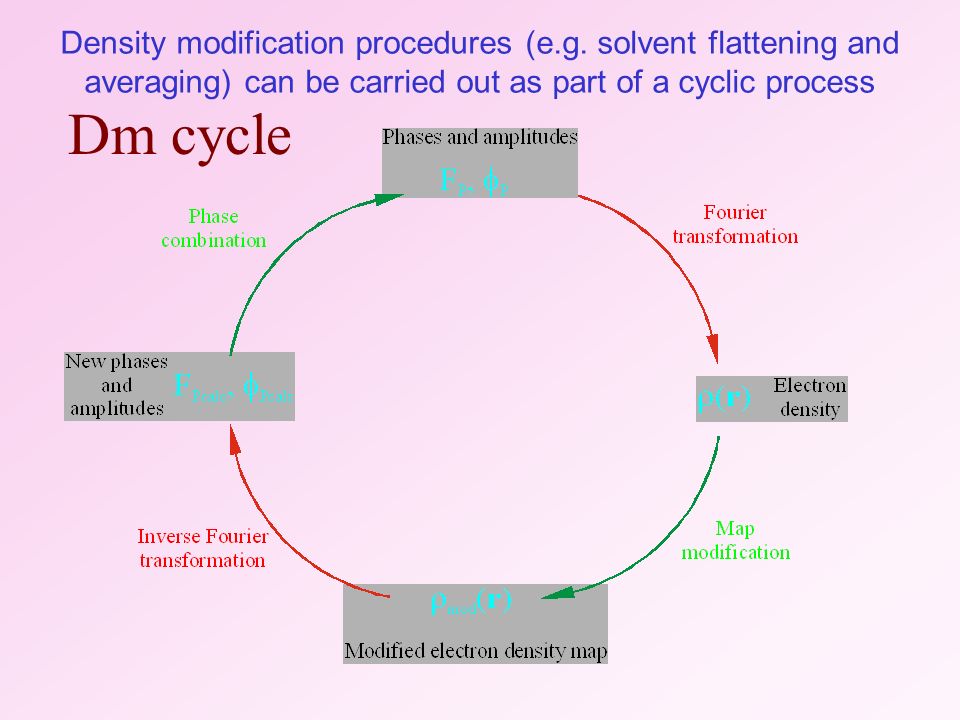

42. Dm cycle Density modification procedures (e.g. solvent flattening and averaging) can be carried out as part of a cyclic process

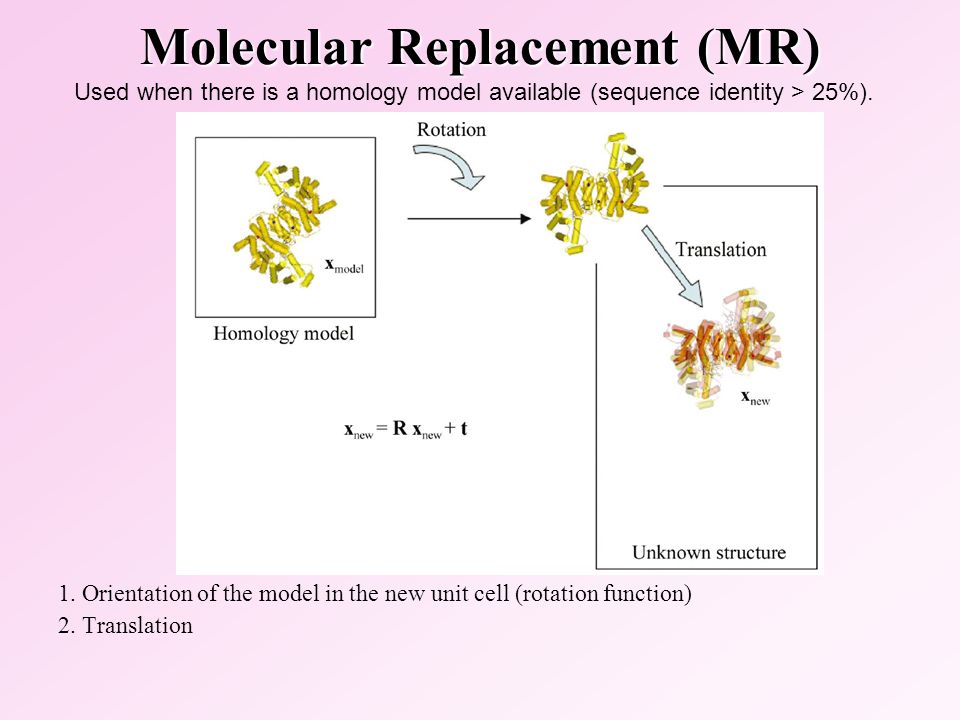

43. Molecular Replacement (MR) 1. Orientation of the model in the new unit cell (rotation function) 2. Translation Used when there is a homology model available (sequence identity > 25%).

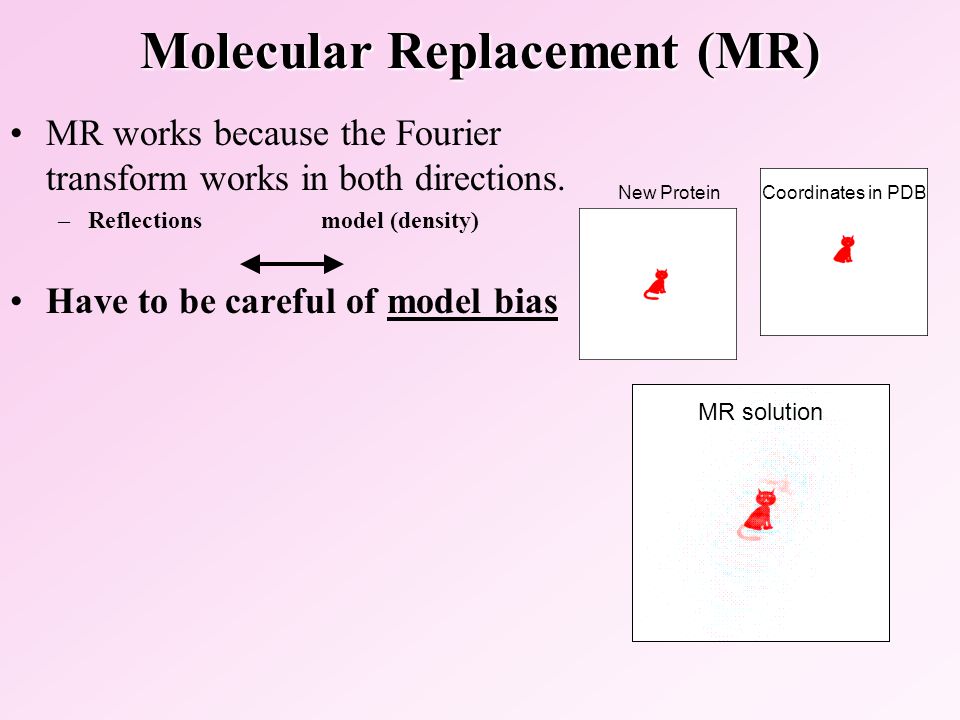

44. Molecular Replacement (MR) MR works because the Fourier transform works in both directions. –Reflections model (density) Have to be careful of model bias New ProteinCoordinates in PDB MR solution

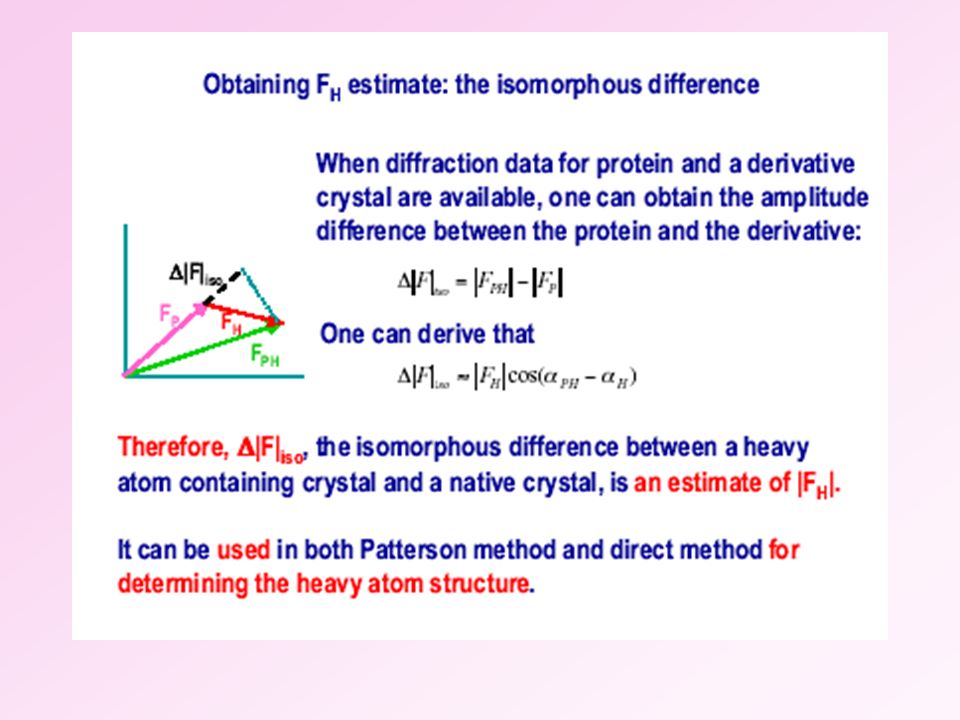

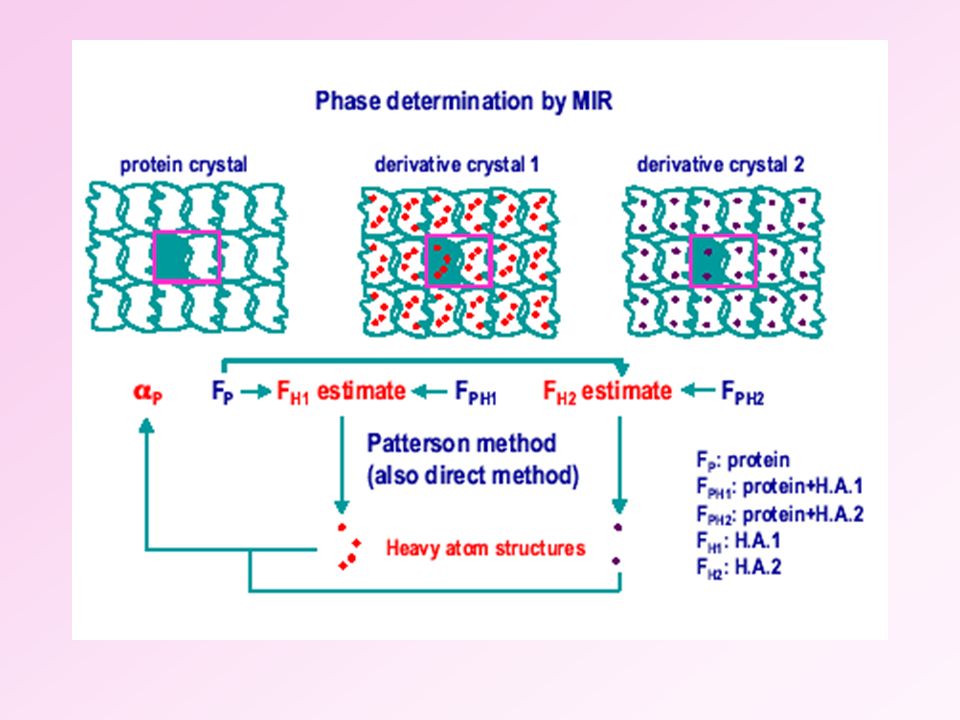

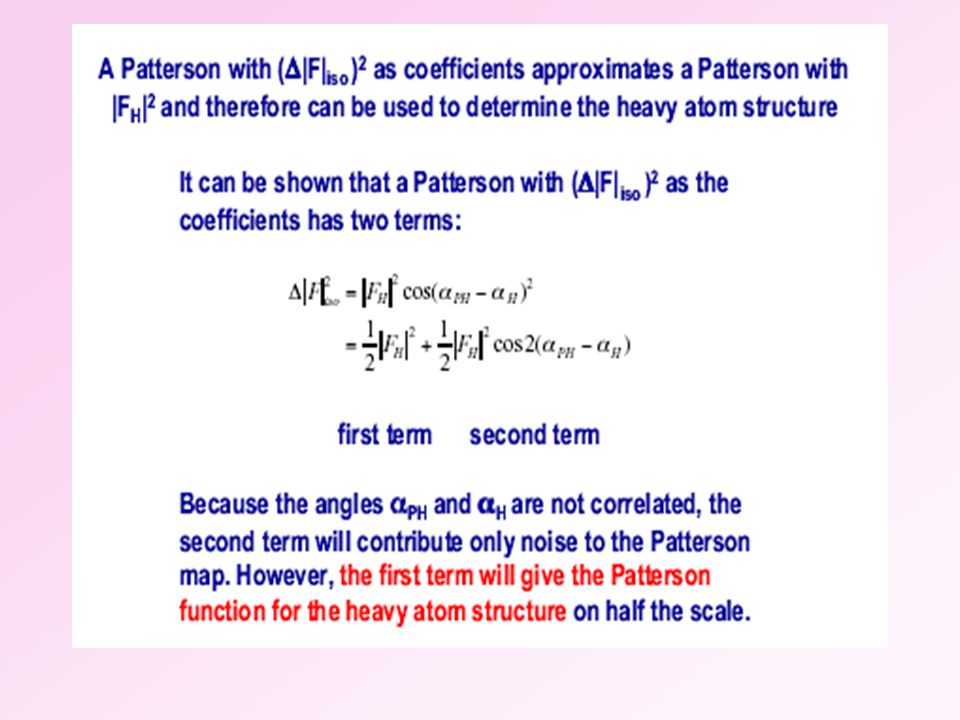

45. Isomorphous replacement Why isomorphous replacement, making heavy atom derivatives? –Phase determination Calculating F H F H = F PH -F P If HA position is known, FH can be calculated from ρ(x H, y H, z H ) by inverse FT HA position determination – Patterson function

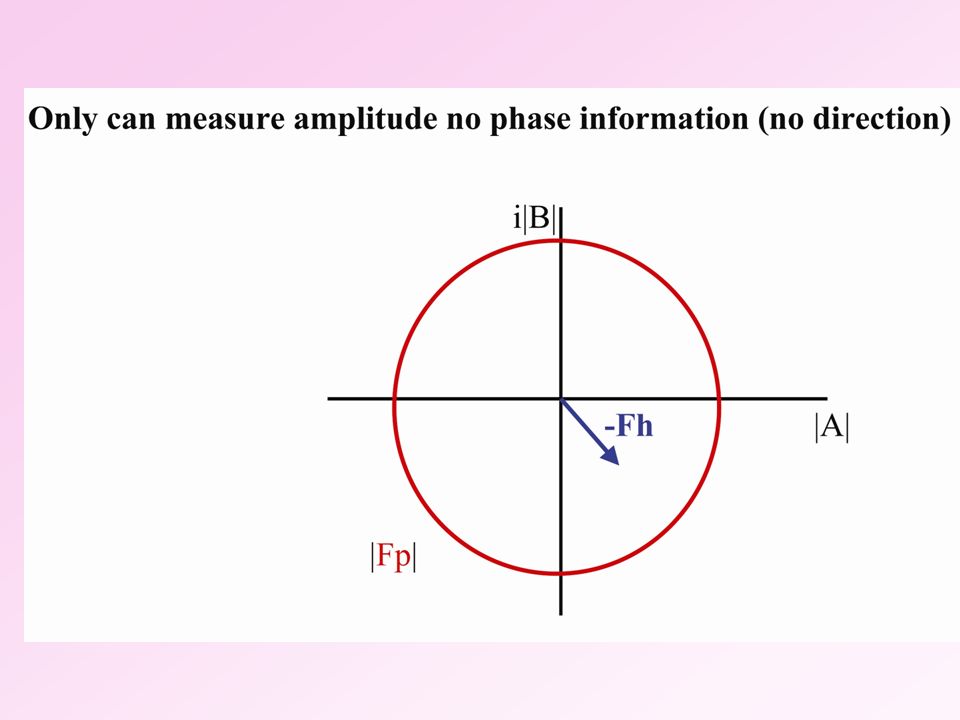

49. HA shifts F P by F H

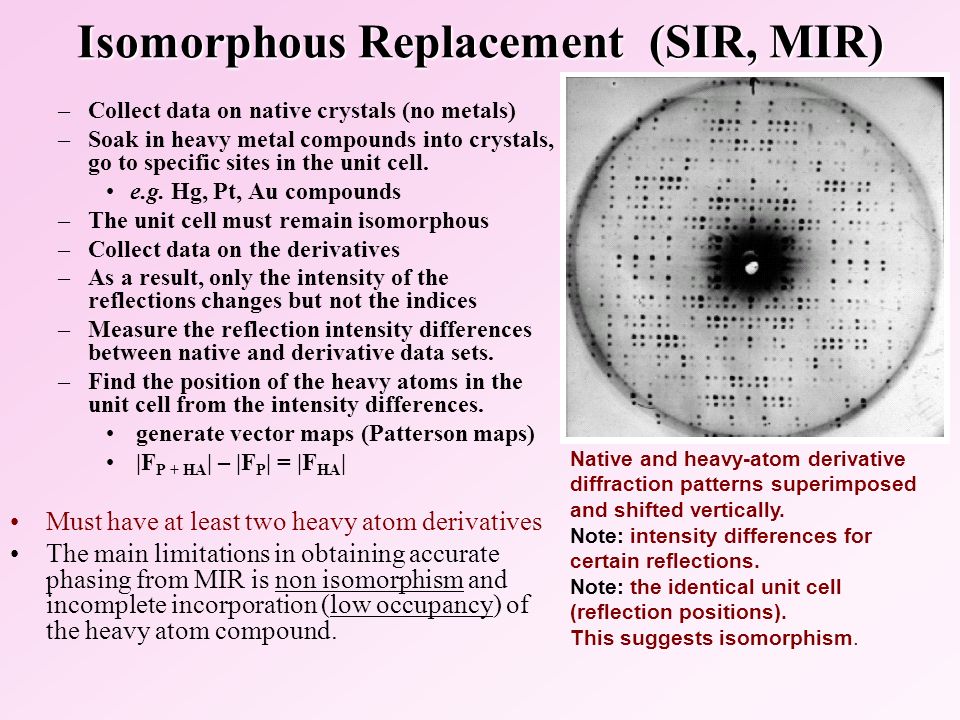

50. Isomorphous Replacement (SIR, MIR) –Collect data on native crystals (no metals) –Soak in heavy metal compounds into crystals, go to specific sites in the unit cell. e.g. Hg, Pt, Au compounds –The unit cell must remain isomorphous –Collect data on the derivatives –As a result, only the intensity of the reflections changes but not the indices –Measure the reflection intensity differences between native and derivative data sets. –Find the position of the heavy atoms in the unit cell from the intensity differences. generate vector maps (Patterson maps) |F P + HA | – |F P | = |F HA | Must have at least two heavy atom derivatives The main limitations in obtaining accurate phasing from MIR is non isomorphism and incomplete incorporation (low occupancy) of the heavy atom compound. Native and heavy-atom derivative diffraction patterns superimposed and shifted vertically. Note: intensity differences for certain reflections. Note: the identical unit cell (reflection positions). This suggests isomorphism.

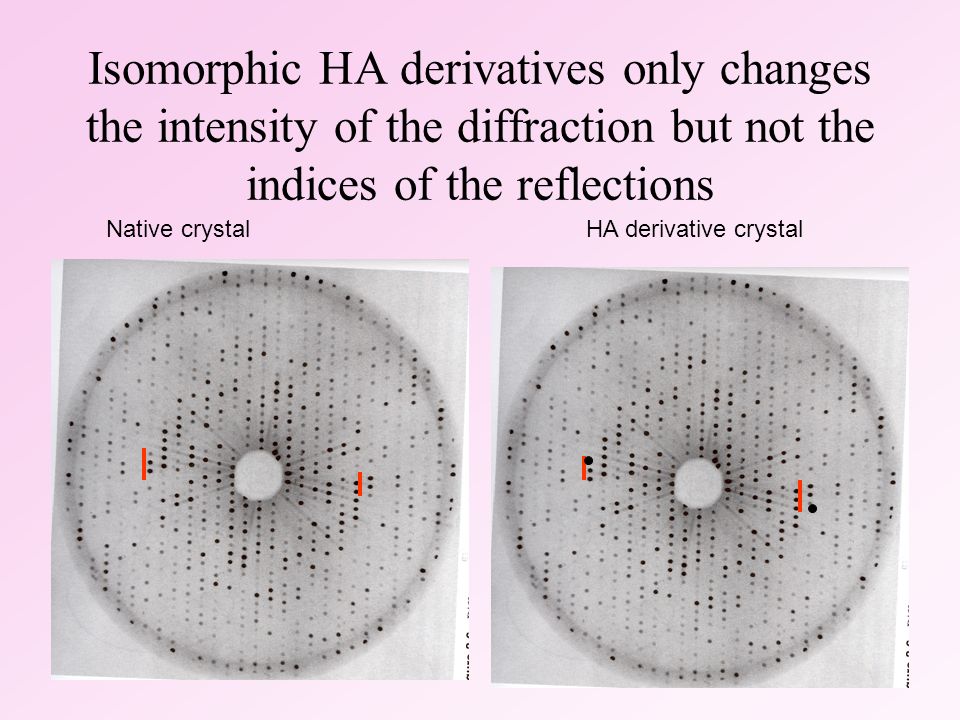

51. Isomorphic HA derivatives only changes the intensity of the diffraction but not the indices of the reflections Native crystalHA derivative crystal

52. Harker diagram Once we have an heavy atom structure  H (r), we can use this to calculate F H (S). In turn, this allows us to calculate phases for F P and F PH for each reflection. Harker construction for SIR The phase probability distribution shows that SIR results in a phase ambiguity

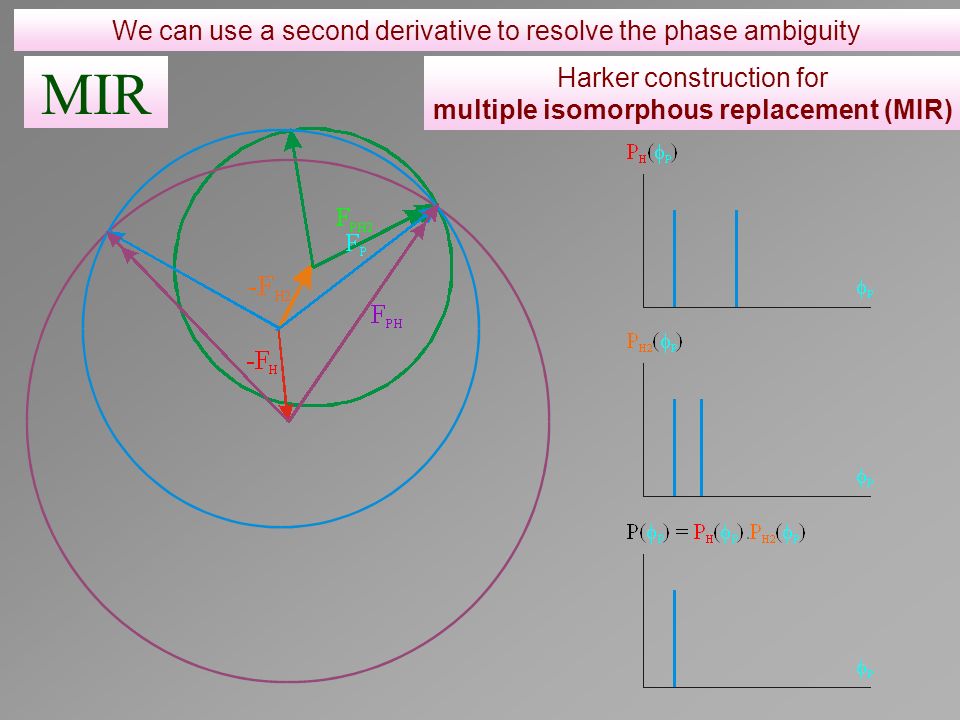

55. MIR We can use a second derivative to resolve the phase ambiguity Harker construction for multiple isomorphous replacement (MIR)

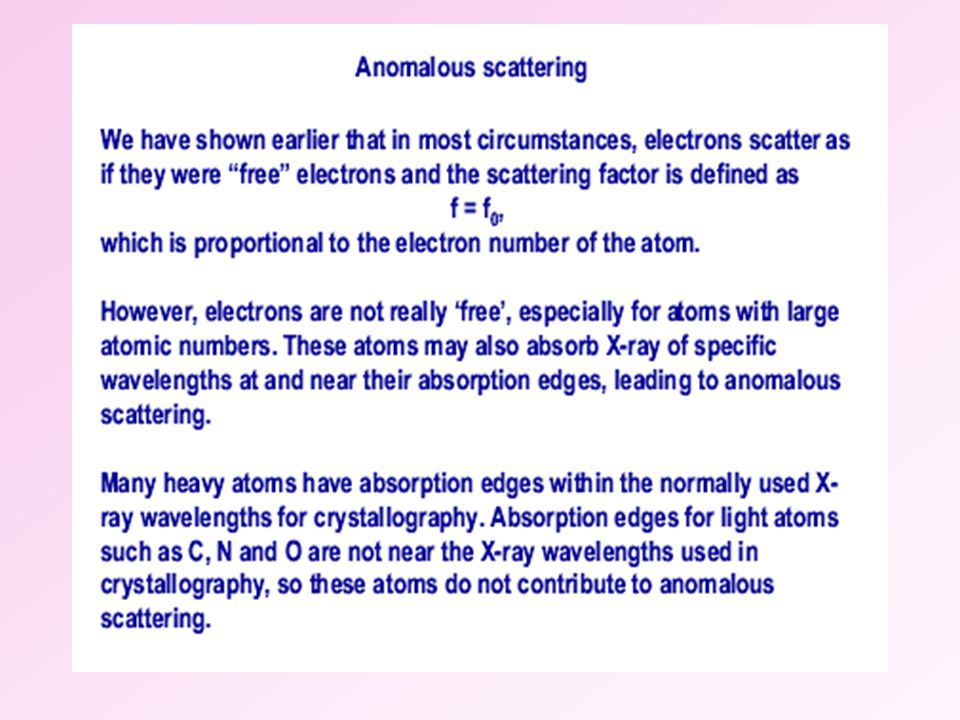

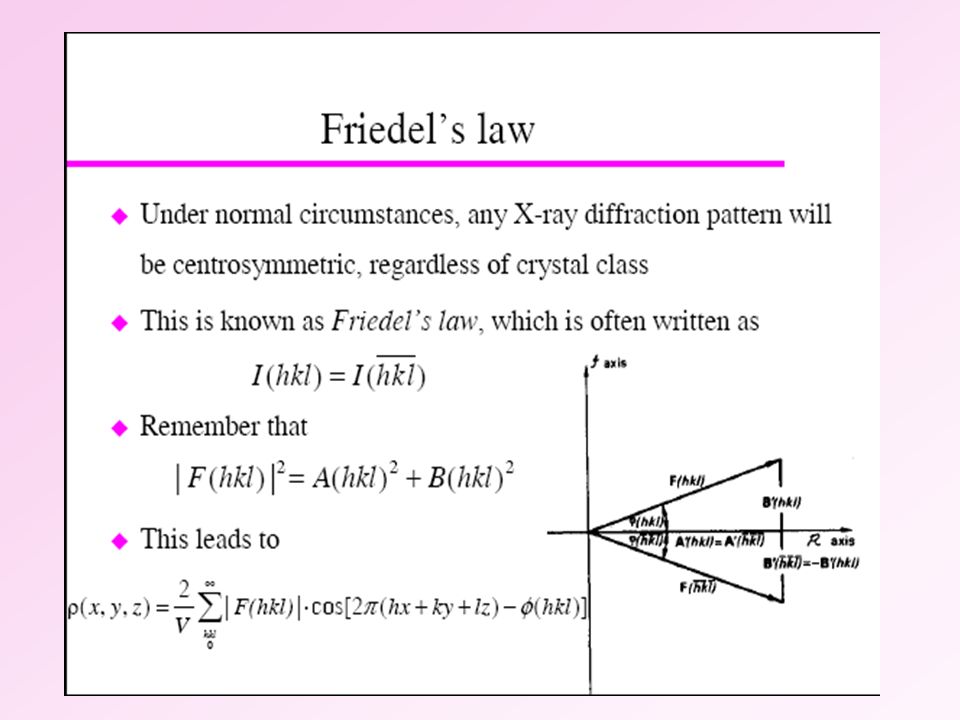

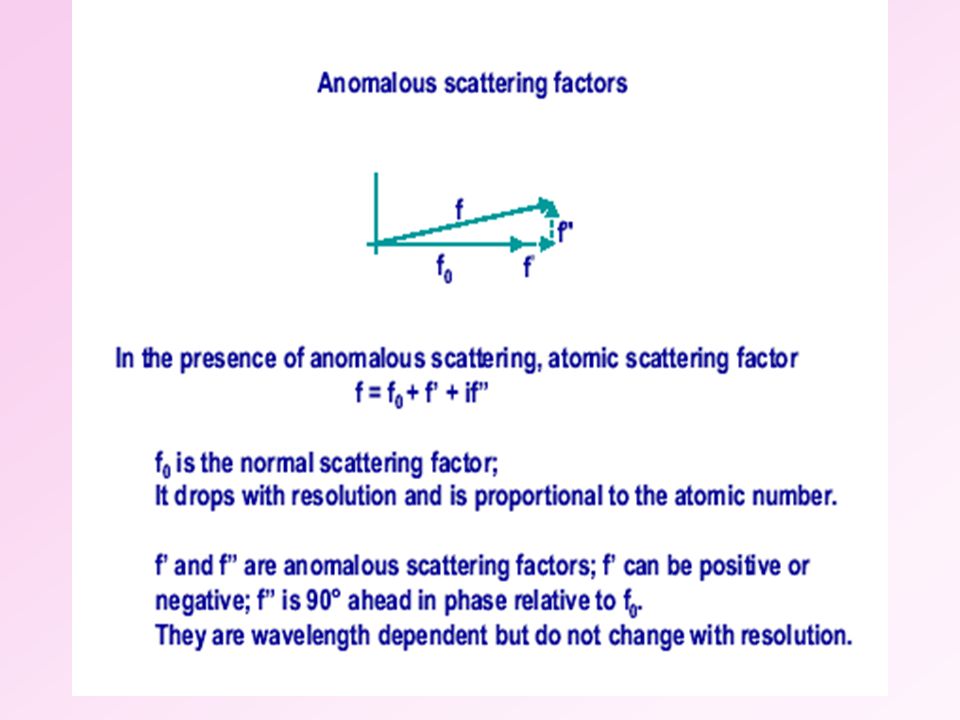

58. AS Anomalous scattering leads to a breakdown of Friedel‘s law

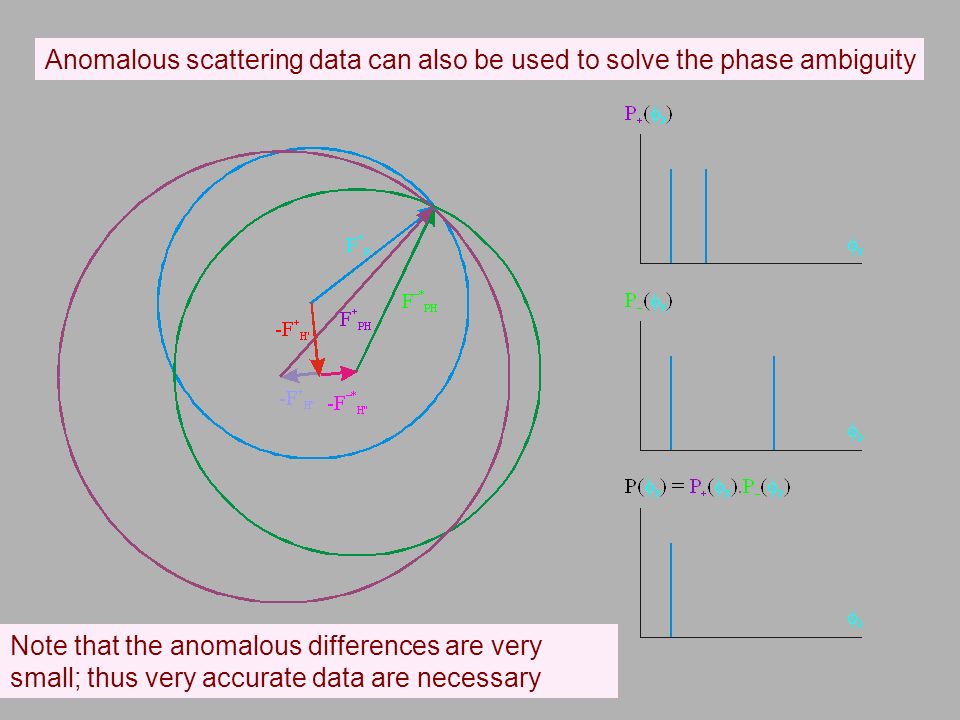

59. Anomalous scattering data can also be used to solve the phase ambiguity Note that the anomalous differences are very small; thus very accurate data are necessary

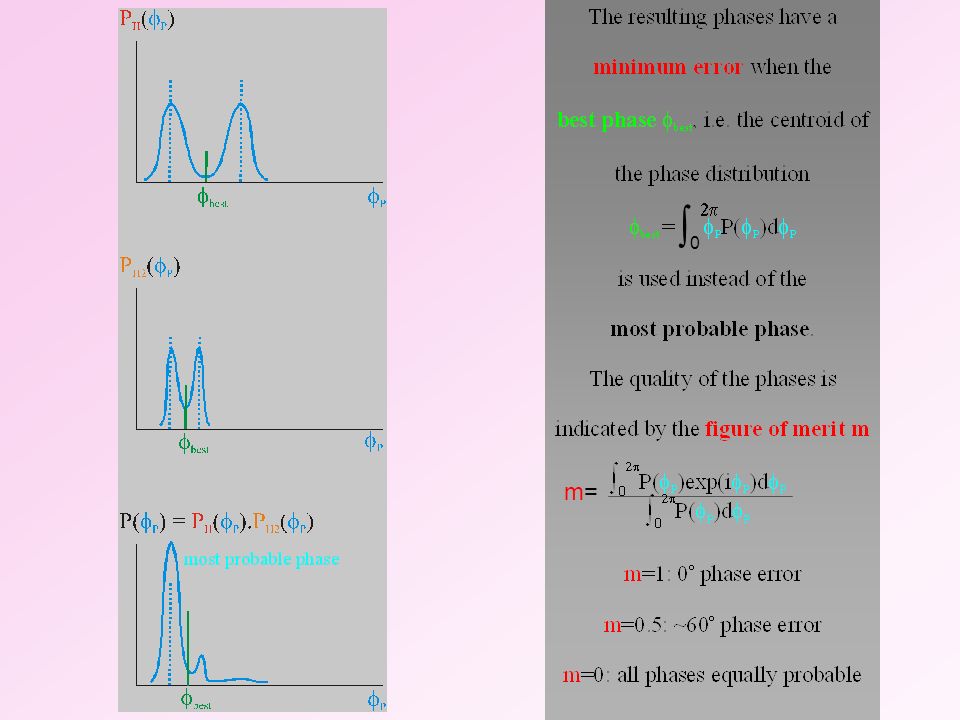

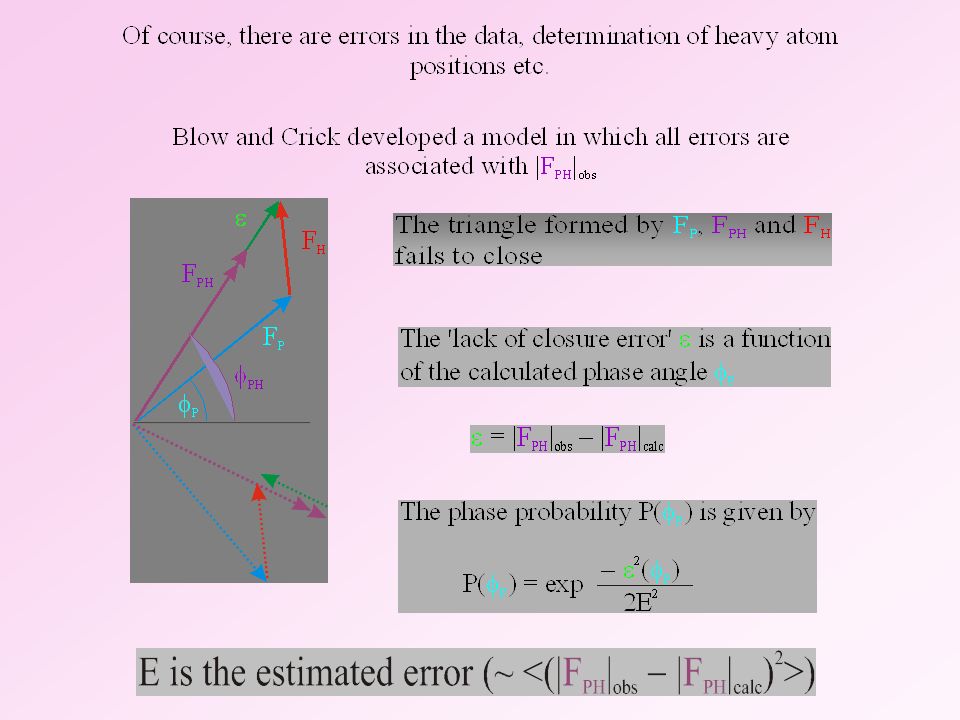

61.  0  m=m=

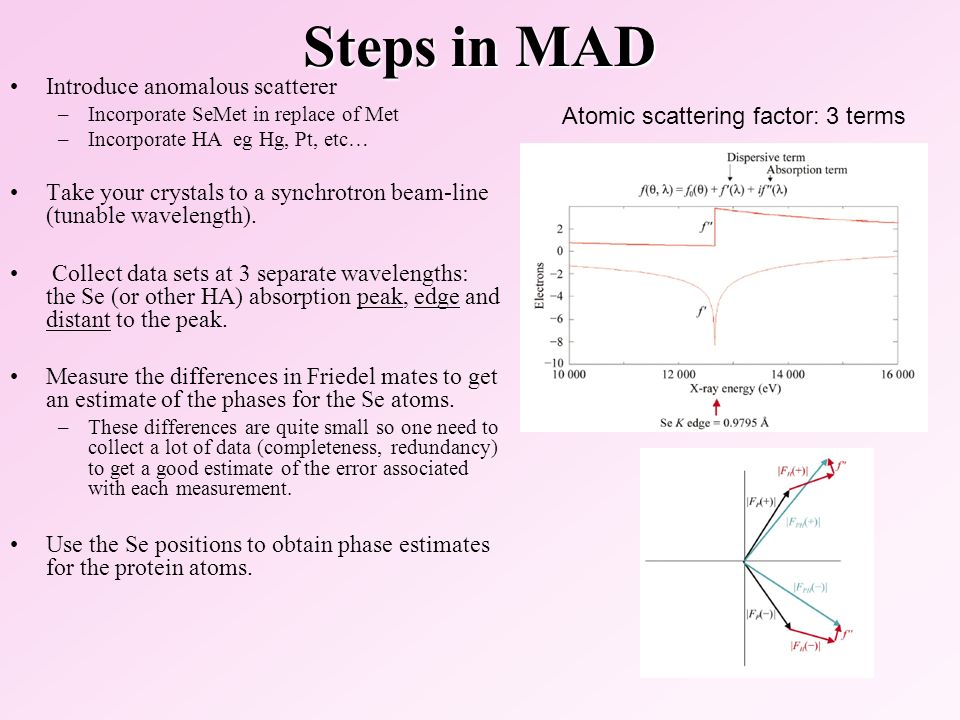

62. Steps in MAD Introduce anomalous scatterer –Incorporate SeMet in replace of Met –Incorporate HA eg Hg, Pt, etc… Take your crystals to a synchrotron beam-line (tunable wavelength). Collect data sets at 3 separate wavelengths: the Se (or other HA) absorption peak, edge and distant to the peak. Measure the differences in Friedel mates to get an estimate of the phases for the Se atoms. –These differences are quite small so one need to collect a lot of data (completeness, redundancy) to get a good estimate of the error associated with each measurement. Use the Se positions to obtain phase estimates for the protein atoms. Atomic scattering factor: 3 terms

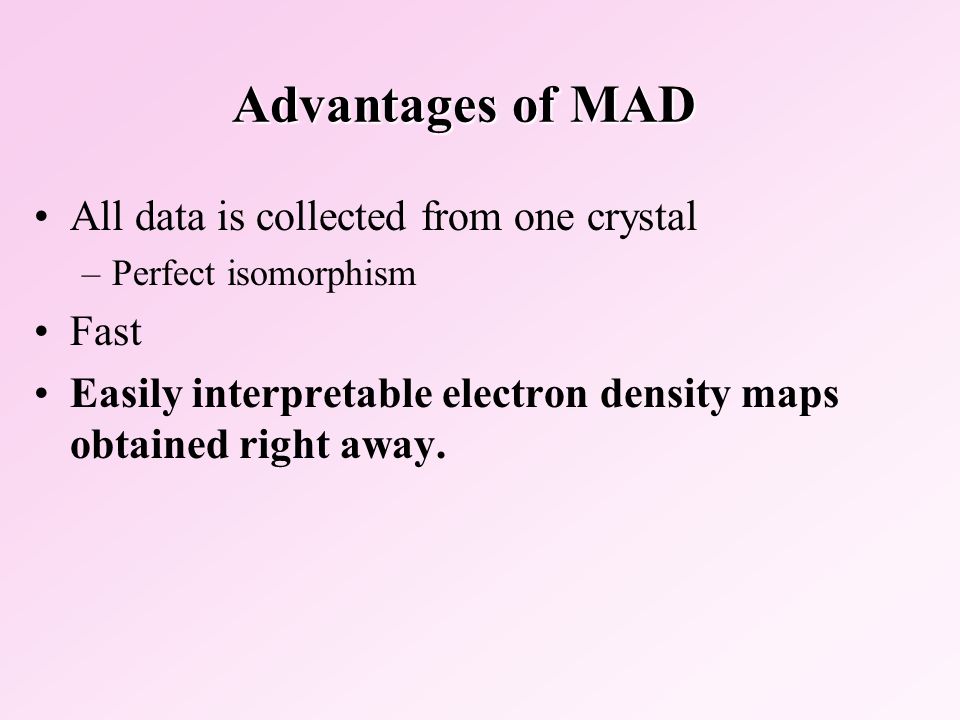

63. Advantages of MAD All data is collected from one crystal –Perfect isomorphism Fast Easily interpretable electron density maps obtained right away.

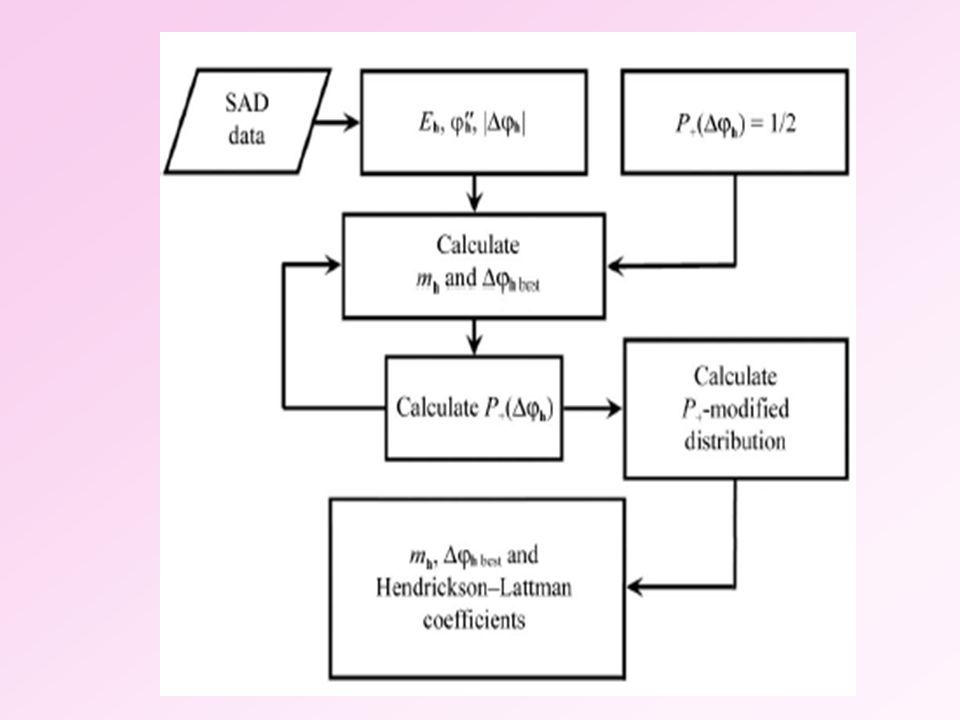

64. SAD Single-wavelength anomalous diffraction (SAD) phasing has become increasingly popular in protein crystallography. Two main steps – 1) obtaining the initial phases 2) improving the electron density map calculated with initial phases. The essential point is to break the intrinsic phase ambiguity. Two kinds of phase information enables the discrimination of phase doublets from SAD data prior to density modification.  From heavy atoms (expressed by Sim distribution)  From direct methods phase relationships (expressed by Cochran distribution)

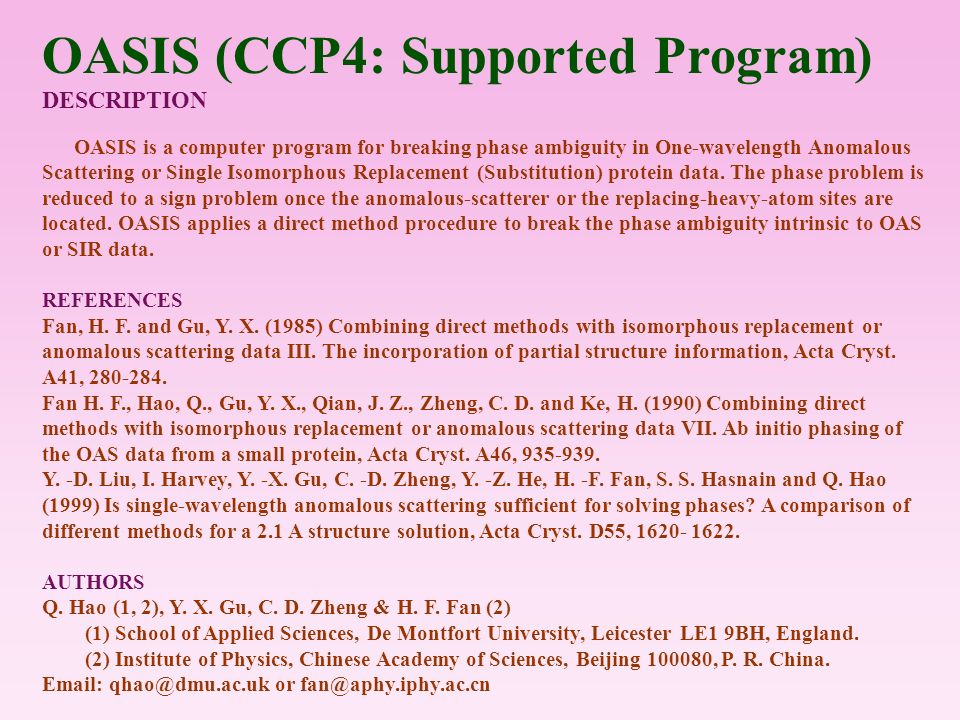

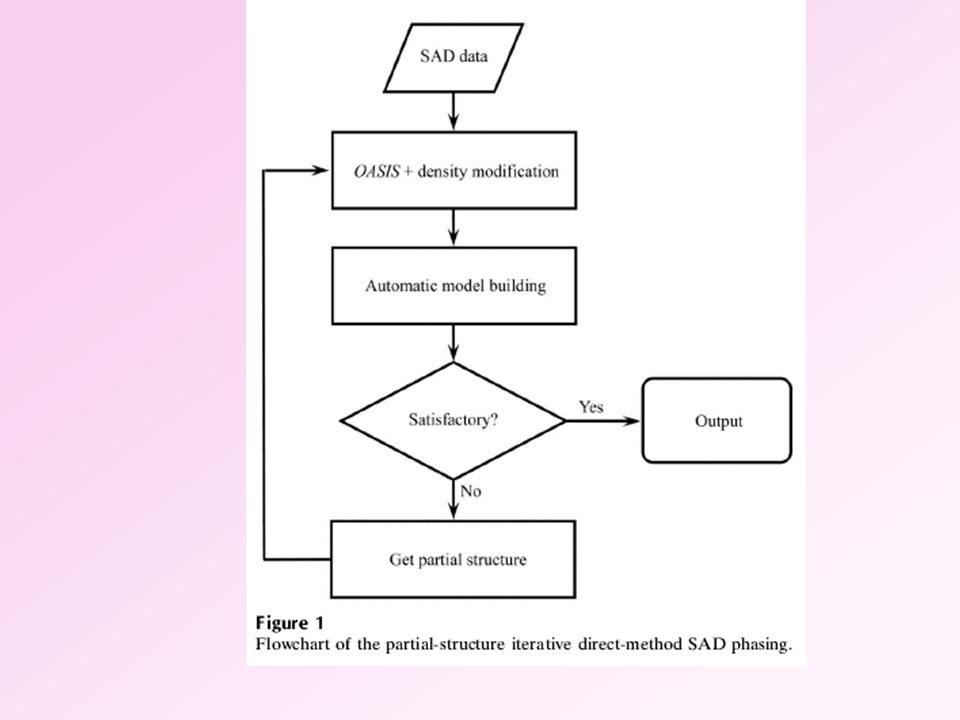

67. OASIS (CCP4: Supported Program) DESCRIPTION OASIS is a computer program for breaking phase ambiguity in One-wavelength Anomalous Scattering or Single Isomorphous Replacement (Substitution) protein data. The phase problem is reduced to a sign problem once the anomalous-scatterer or the replacing-heavy-atom sites are located. OASIS applies a direct method procedure to break the phase ambiguity intrinsic to OAS or SIR data. REFERENCES Fan, H. F. and Gu, Y. X. (1985) Combining direct methods with isomorphous replacement or anomalous scattering data III. The incorporation of partial structure information, Acta Cryst. A41, 280-284. Fan H. F., Hao, Q., Gu, Y. X., Qian, J. Z., Zheng, C. D. and Ke, H. (1990) Combining direct methods with isomorphous replacement or anomalous scattering data VII. Ab initio phasing of the OAS data from a small protein, Acta Cryst. A46, 935-939. Y. -D. Liu, I. Harvey, Y. -X. Gu, C. -D. Zheng, Y. -Z. He, H. -F. Fan, S. S. Hasnain and Q. Hao (1999) Is single-wavelength anomalous scattering sufficient for solving phases? A comparison of different methods for a 2.1 A structure solution, Acta Cryst. D55, 1620- 1622. AUTHORS Q. Hao (1, 2), Y. X. Gu, C. D. Zheng & H. F. Fan (2) (1) School of Applied Sciences, De Montfort University, Leicester LE1 9BH, England. (2) Institute of Physics, Chinese Academy of Sciences, Beijing 100080, P. R. China. Email: qhao@dmu.ac.uk or fan@aphy.iphy.ac.cn

68. The first example of solving an unknown protein by direct- method phasing of the 2.1 Å OAS data Rusticyanin, MW: 16.8 kDa; SG: P2 1 ; a=32.43, b=60.68, c=38.01Å ;  =107.82 o ; Anomalous scatterer: Cu Rusticyanin, MW: 16.8 kDa; SG: P2 1 ; a=32.43, b=60.68, c=38.01Å ;  =107.82 o ; Anomalous scatterer: Cu Mlphare + dm Oasis + dm OAS distribution Sim distribution Cochran distribution Solvent flattening OAS distribution Sim distribution Solvent flattening

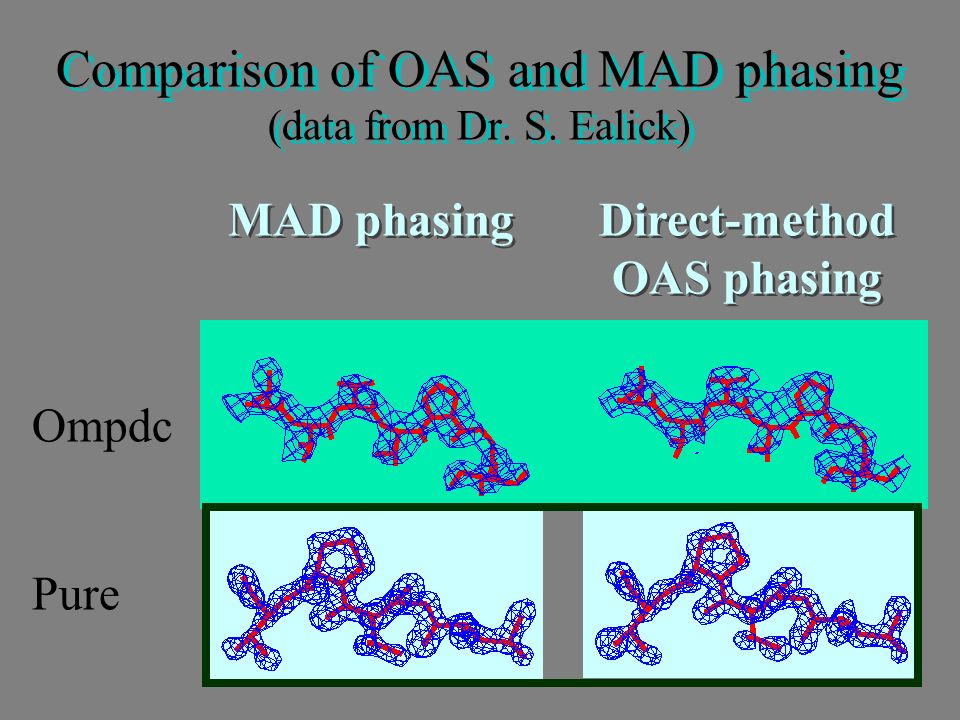

69. MAD phasing Direct-method OAS phasing MAD phasing Direct-method OAS phasing Ompdc Pure Comparison of OAS and MAD phasing (data from Dr. S. Ealick)

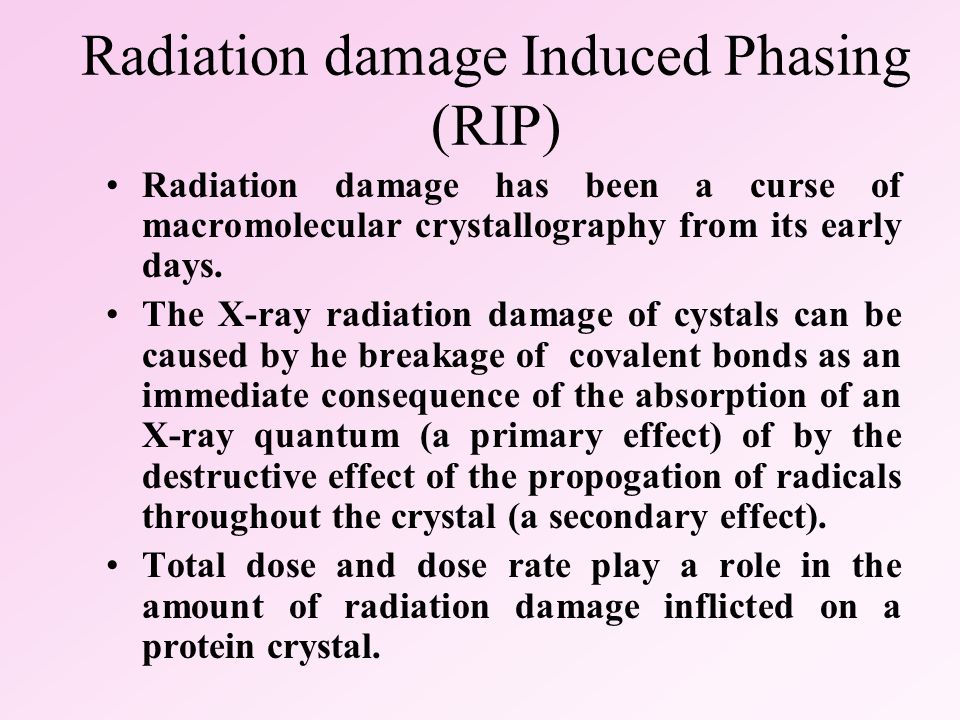

70. Radiation damage Induced Phasing (RIP) Radiation damage has been a curse of macromolecular crystallography from its early days. The X-ray radiation damage of cystals can be caused by he breakage of covalent bonds as an immediate consequence of the absorption of an X-ray quantum (a primary effect) of by the destructive effect of the propogation of radicals throughout the crystal (a secondary effect). Total dose and dose rate play a role in the amount of radiation damage inflicted on a protein crystal.

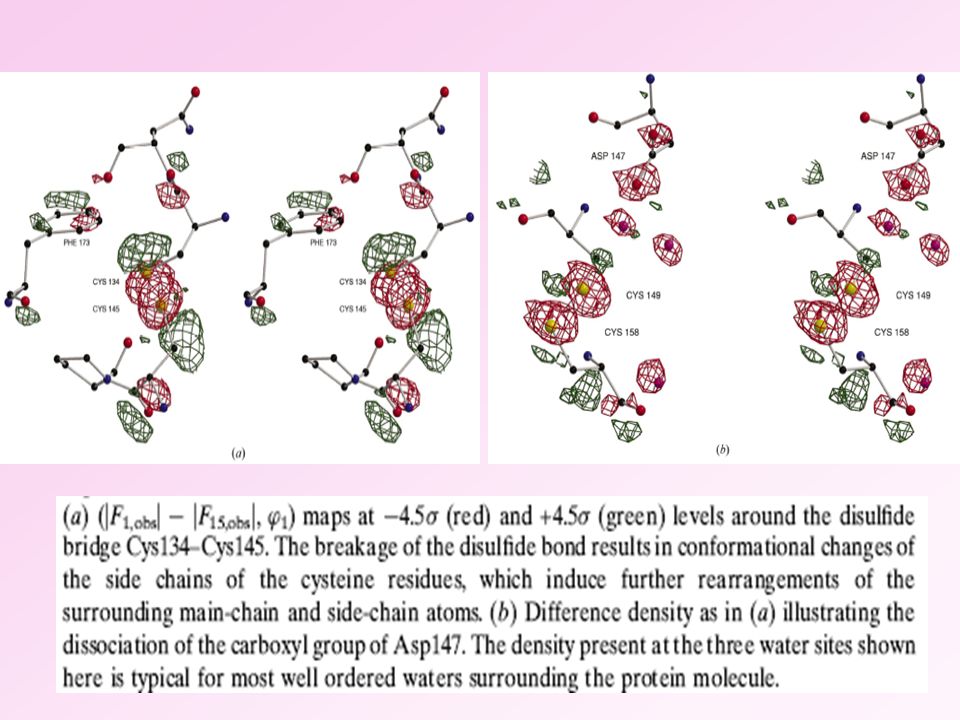

71. The most pronounced structural changes observed were disulphide-bond breakage and associated main-chain and side-chain movements as well as decarboxylation of aspartate and glutamate residues. The structural changes induced on the sulphur atoms were successfully used to obtain high-quality phase estimates through an RIP (Radiation damage Induced Phasing) procedure.

73. Substructure solution and phasing procedure using a combination of anomalous scattering and radiation damage induced isomorphous differences. RIPAS strategy is beneficial for both locating the substructure and subsequent phasing. Radiation damage Induced Phasing with Anomalous Scattering (RIPAS)

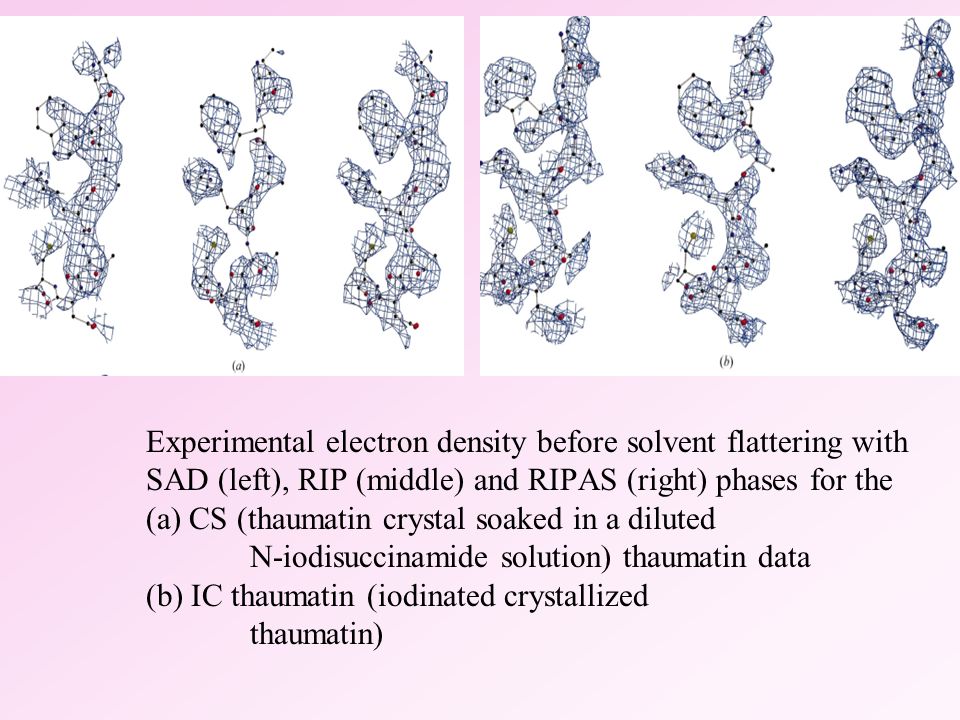

74. Experimental electron density before solvent flattering with SAD (left), RIP (middle) and RIPAS (right) phases for the (a) CS (thaumatin crystal soaked in a diluted N-iodisuccinamide solution) thaumatin data (b) IC thaumatin (iodinated crystallized thaumatin)

75. Methods of phase improvement Solvent Flattening Histogram matching Non-crystallographic symmetry (NCS) Averaging these methods can result in dramatic improvements in the clarity of the electron density map. It is not always (!) possible to recognise features in a first electron density map. There are however ways of improving the map (phases):

76. 1. Solvent flattening. Protein crystals contain large amounts of solvent; this will in general be disordered, and so will not contribute to the crystal diffraction. By knowing the protein content of the crystal, it is therefore possible to determine the threshold density below which is noise; points with density below the threshold are set to a suitable average value. This is particularly useful for locating molecular boundaries. 2. Averaging. If the asymmetric unit possesses more than one molecule, the equivalencing of the various copies can lead to dramatic improvement in the map and the phases.

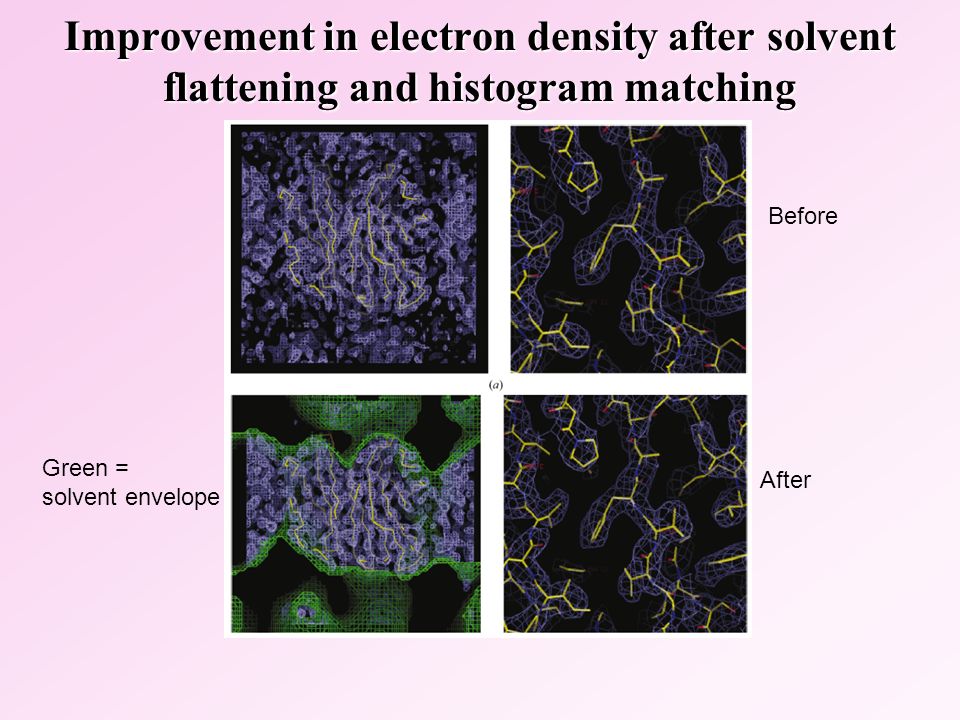

77. Improvement in electron density after solvent flattening and histogram matching Before After Green = solvent envelope

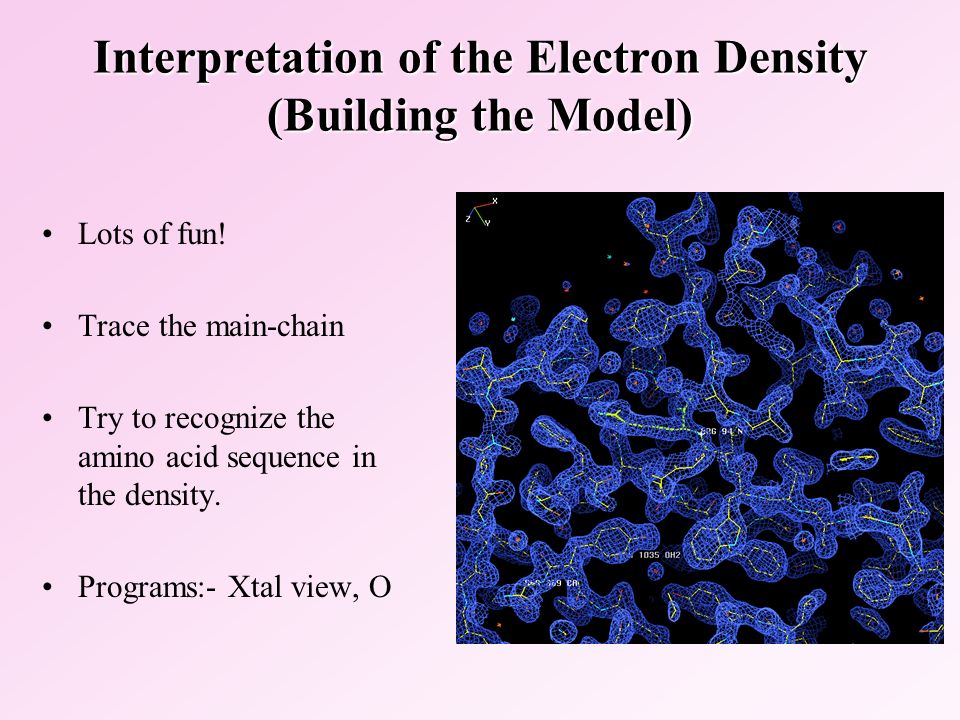

78. Interpretation of the Electron Density (Building the Model) Lots of fun! Trace the main-chain Try to recognize the amino acid sequence in the density. Programs:- Xtal view, O

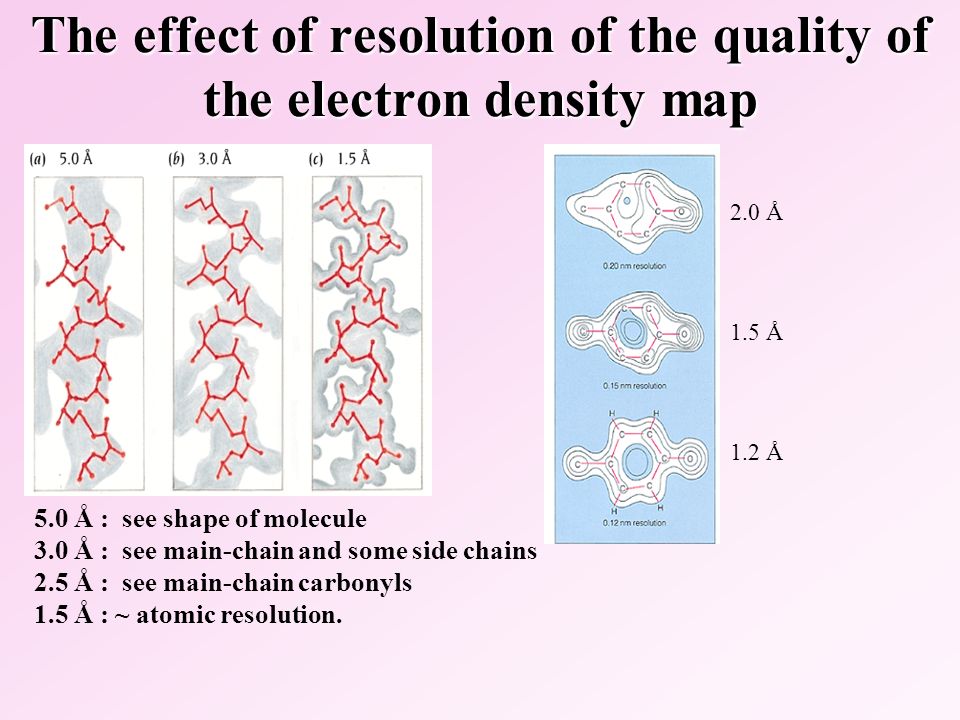

79. The effect of resolution of the quality of the electron density map 2.0 Å 1.5 Å 1.2 Å 5.0 Å : see shape of molecule 3.0 Å : see main-chain and some side chains 2.5 Å : see main-chain carbonyls 1.5 Å : ~ atomic resolution.

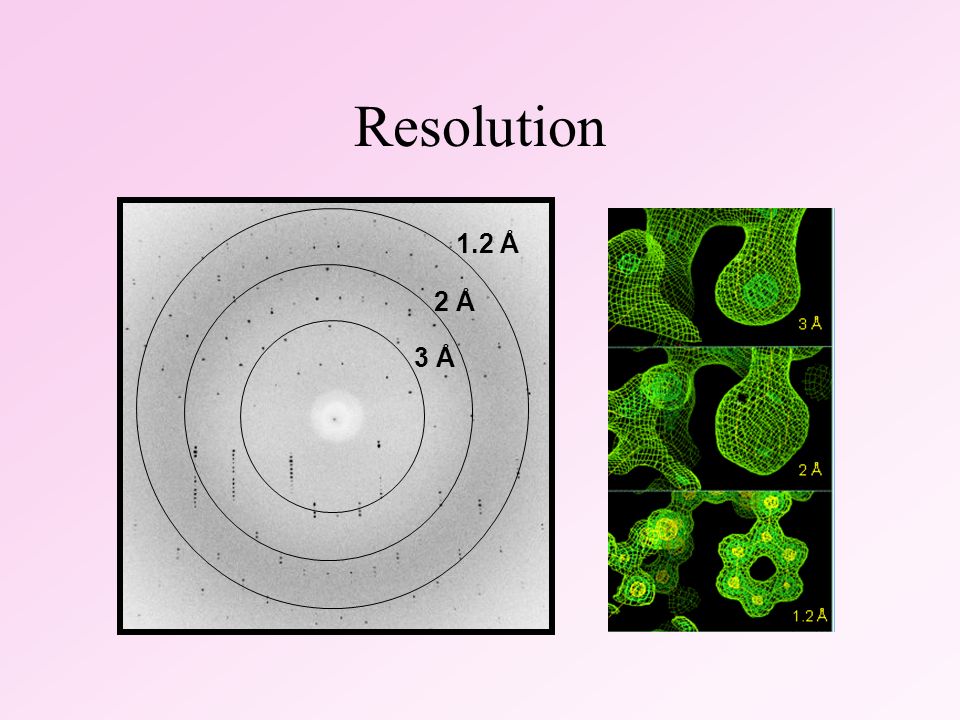

80. Resolution 1.2 Å 2 Å 3 Å

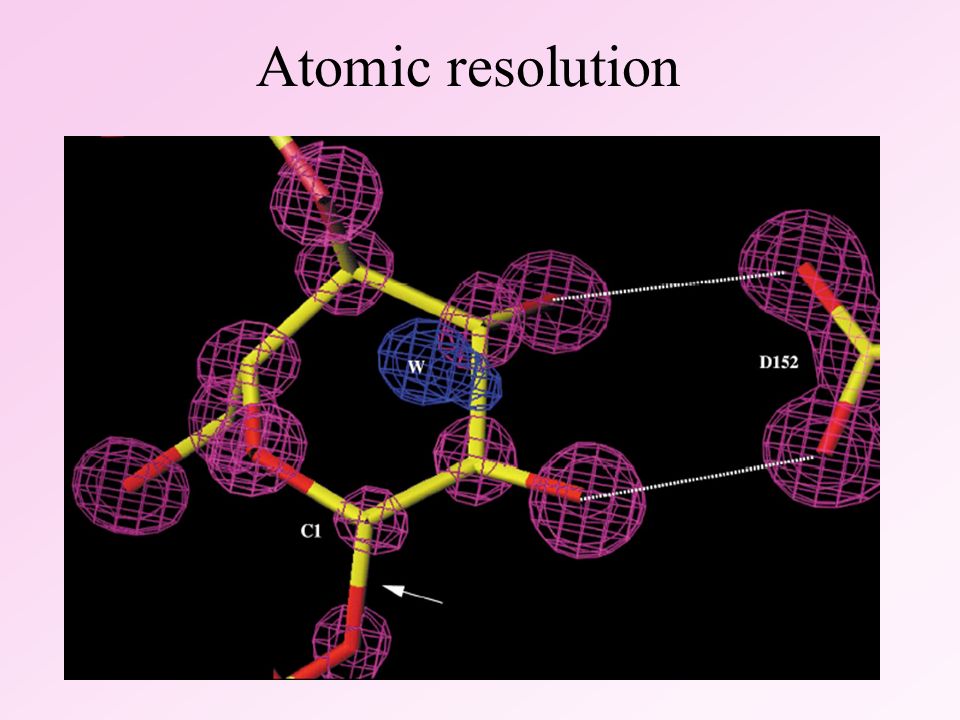

81. Atomic resolution

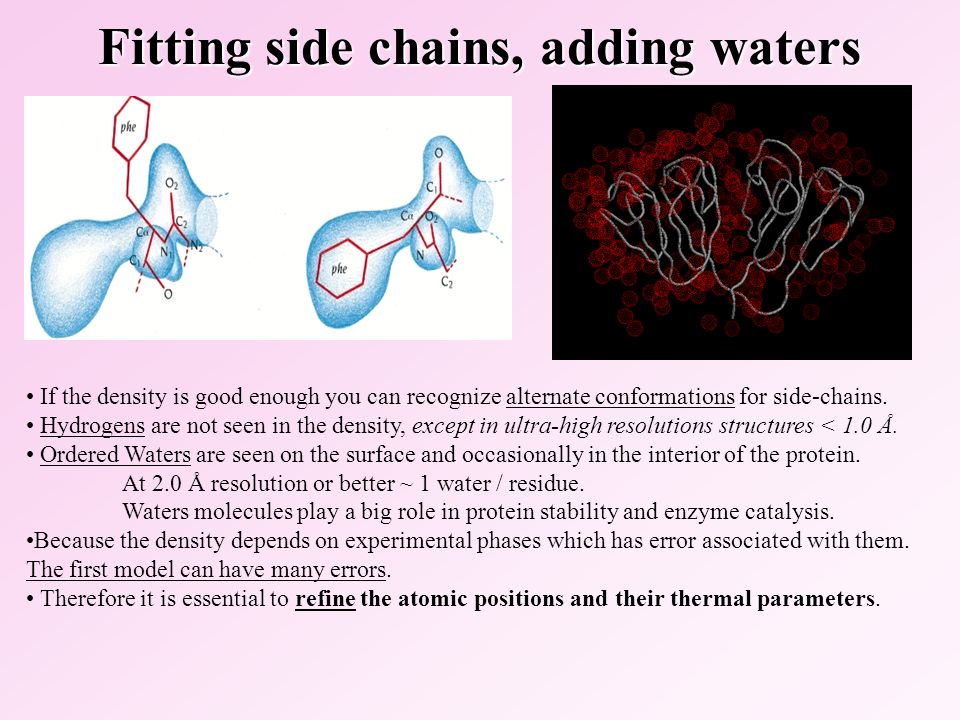

82. Fitting side chains, adding waters If the density is good enough you can recognize alternate conformations for side-chains. Hydrogens are not seen in the density, except in ultra-high resolutions structures < 1.0 Å. Ordered Waters are seen on the surface and occasionally in the interior of the protein. At 2.0 Å resolution or better ~ 1 water / residue. Waters molecules play a big role in protein stability and enzyme catalysis. Because the density depends on experimental phases which has error associated with them. The first model can have many errors. Therefore it is essential to refine the atomic positions and their thermal parameters.

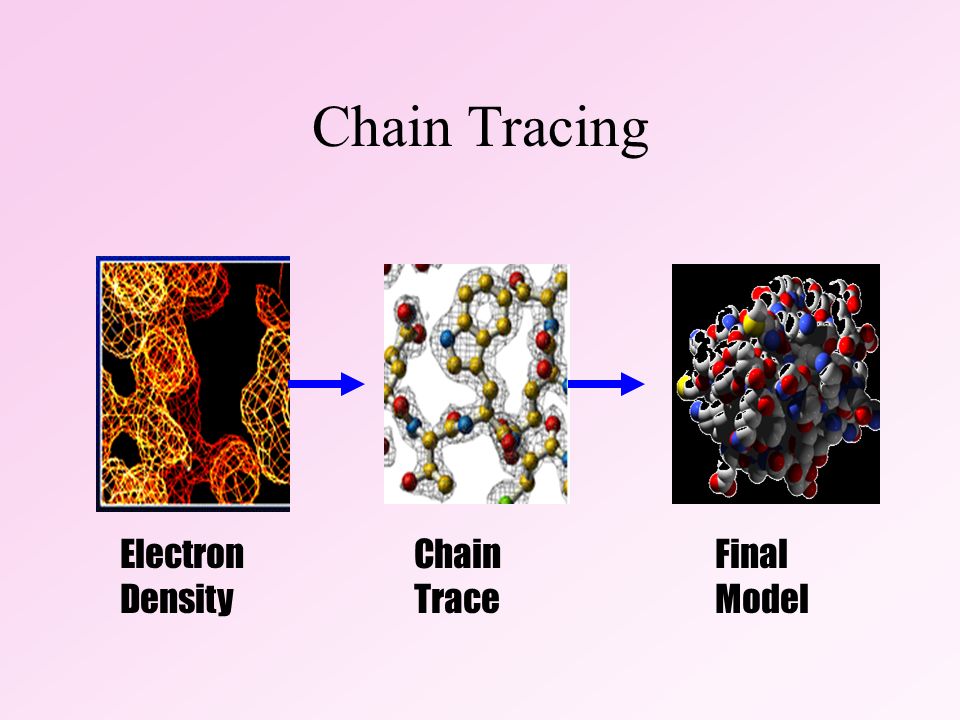

83. Electron Chain Final Density Trace Model Chain Tracing

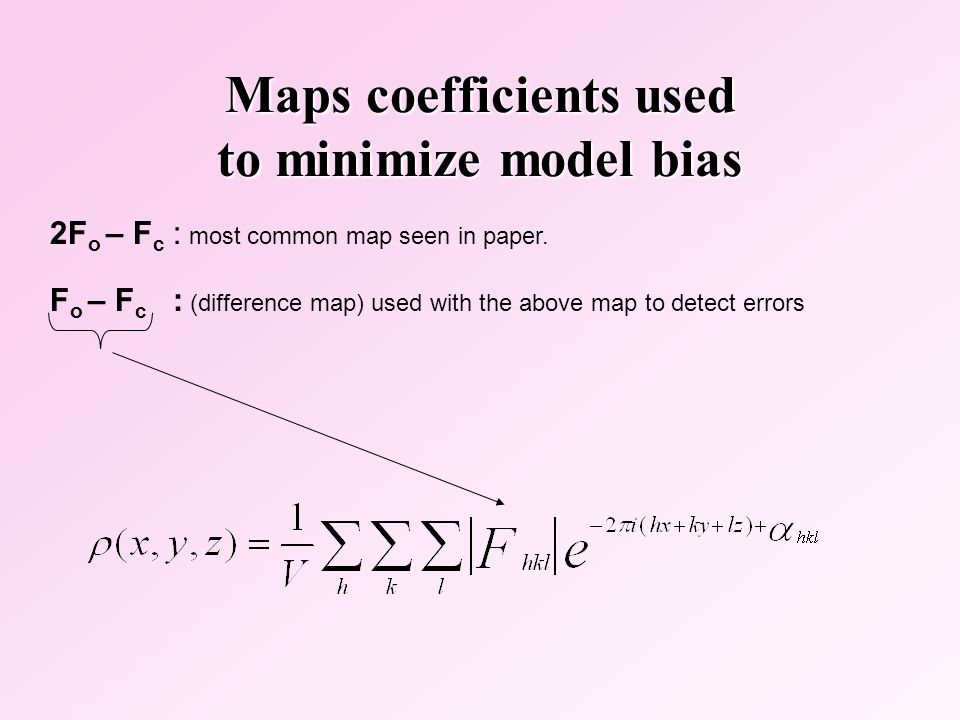

84. Maps coefficients used to minimize model bias 2F o – F c : most common map seen in paper. F o – F c : (difference map) used with the above map to detect errors

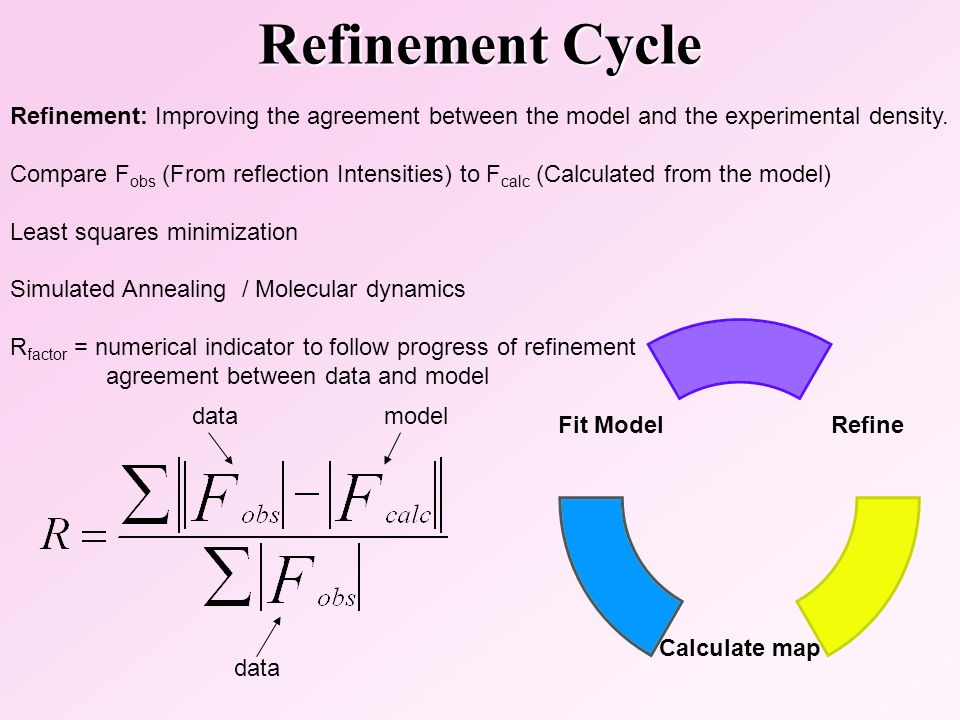

85. Refinement Cycle Refine Calculate map Fit Model Refinement: Improving the agreement between the model and the experimental density. Compare F obs (From reflection Intensities) to F calc (Calculated from the model) Least squares minimization Simulated Annealing / Molecular dynamics R factor = numerical indicator to follow progress of refinement agreement between data and model datamodel data

86. Refinement

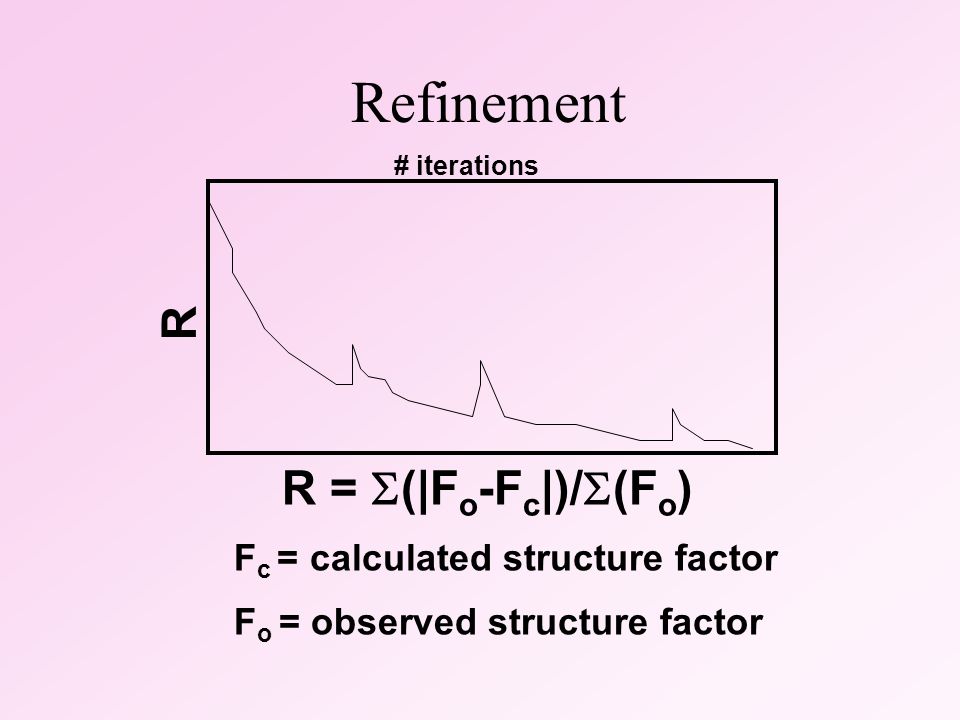

87. R =  (|F o -F c |)/  (F o ) F o = observed structure factor F c = calculated structure factor R # iterations

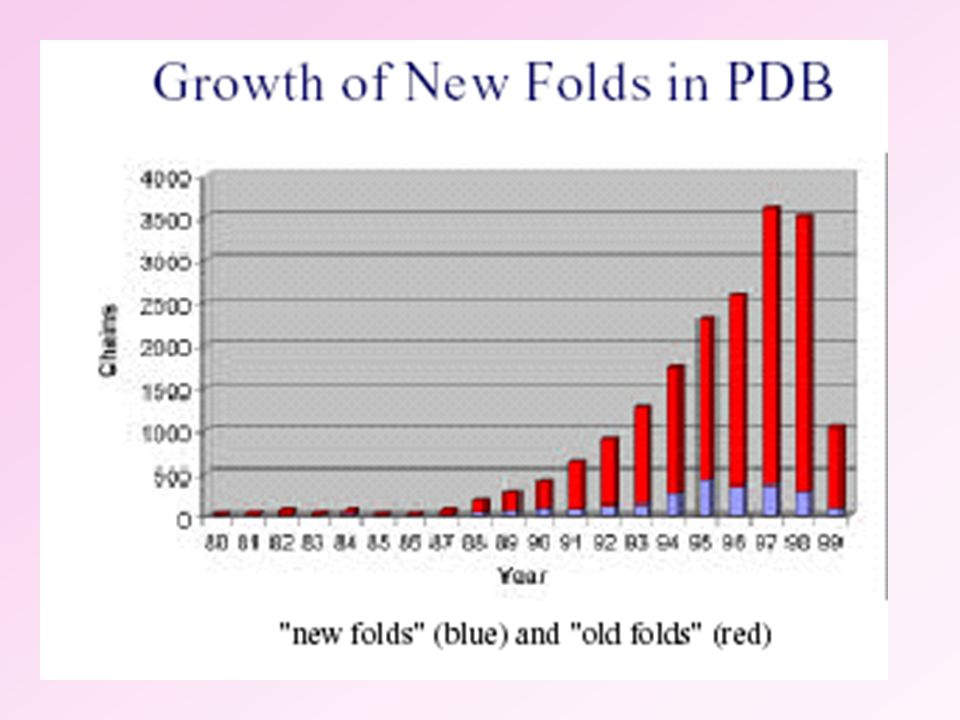

89. Protein Data Base growth Molecular Biology: cloning of genes / over expression of proteins Synchrotron Radiation: MAD phasing, smaller crystals Cryo-cooling of crystals: collect data from 1 crystal, increase order. Instrumentational and software improvements Increase in the number of labs using the technique

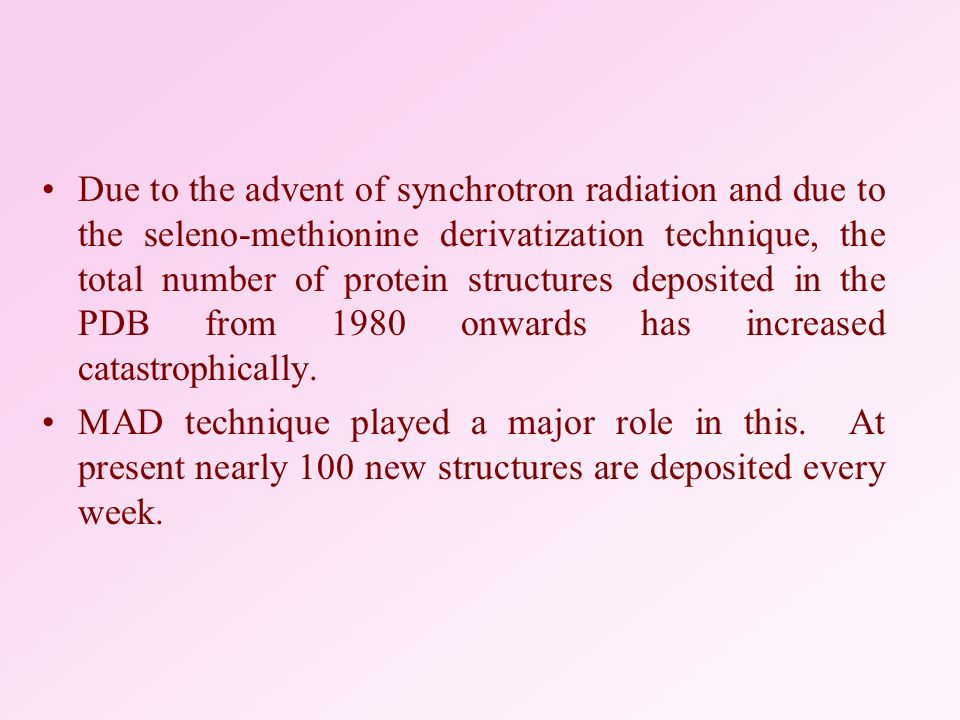

92. Due to the advent of synchrotron radiation and due to the seleno-methionine derivatization technique, the total number of protein structures deposited in the PDB from 1980 onwards has increased catastrophically. MAD technique played a major role in this. At present nearly 100 new structures are deposited every week.
