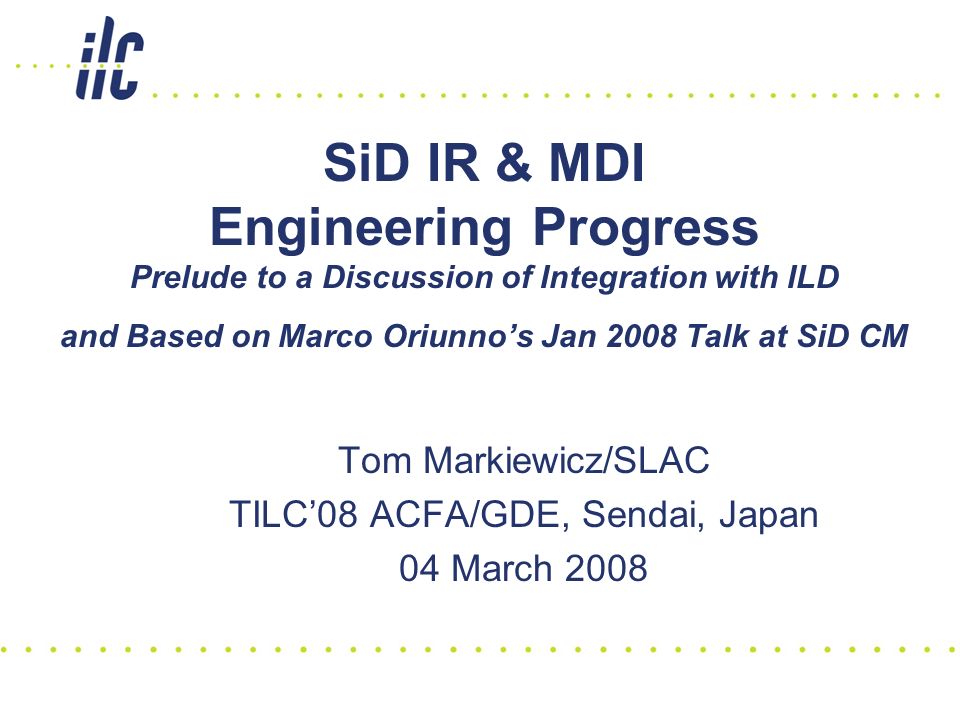

1. SiD IR & MDI Engineering Progress Prelude to a Discussion of Integration with ILD and Based on Marco Oriunno’s Jan 2008 Talk at SiD CM Tom Markiewicz/SLAC TILC’08 ACFA/GDE, Sendai, Japan 04 March 2008

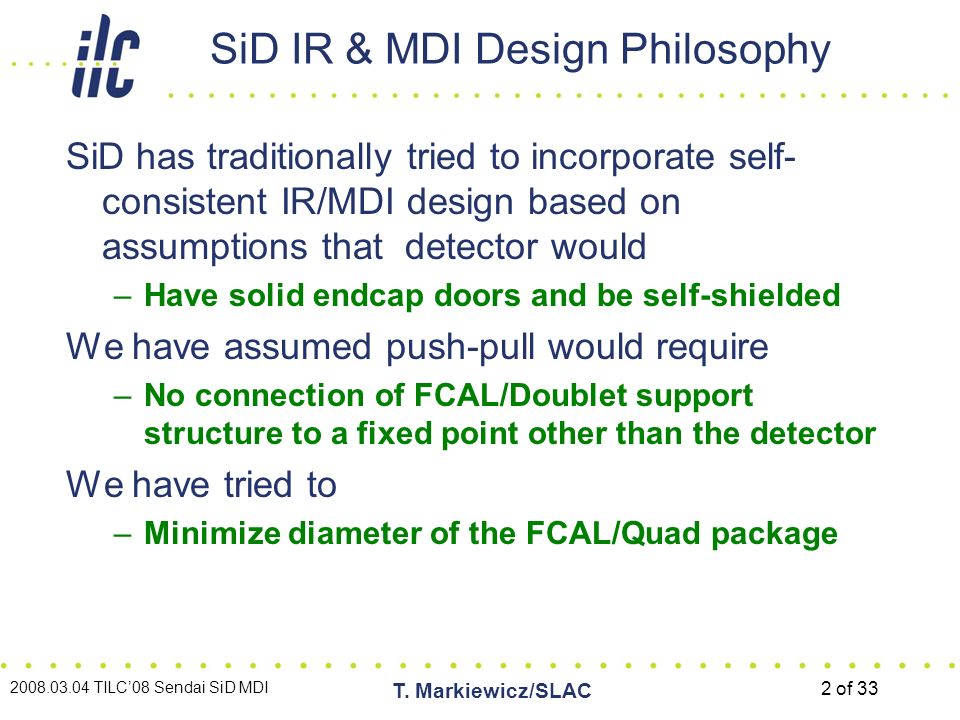

2. 2008.03.04 TILC’08 Sendai SiD MDI T. Markiewicz/SLAC 2 of 33 SiD IR & MDI Design Philosophy SiD has traditionally tried to incorporate self- consistent IR/MDI design based on assumptions that detector would –Have solid endcap doors and be self-shielded We have assumed push-pull would require –No connection of FCAL/Doublet support structure to a fixed point other than the detector We have tried to –Minimize diameter of the FCAL/Quad package

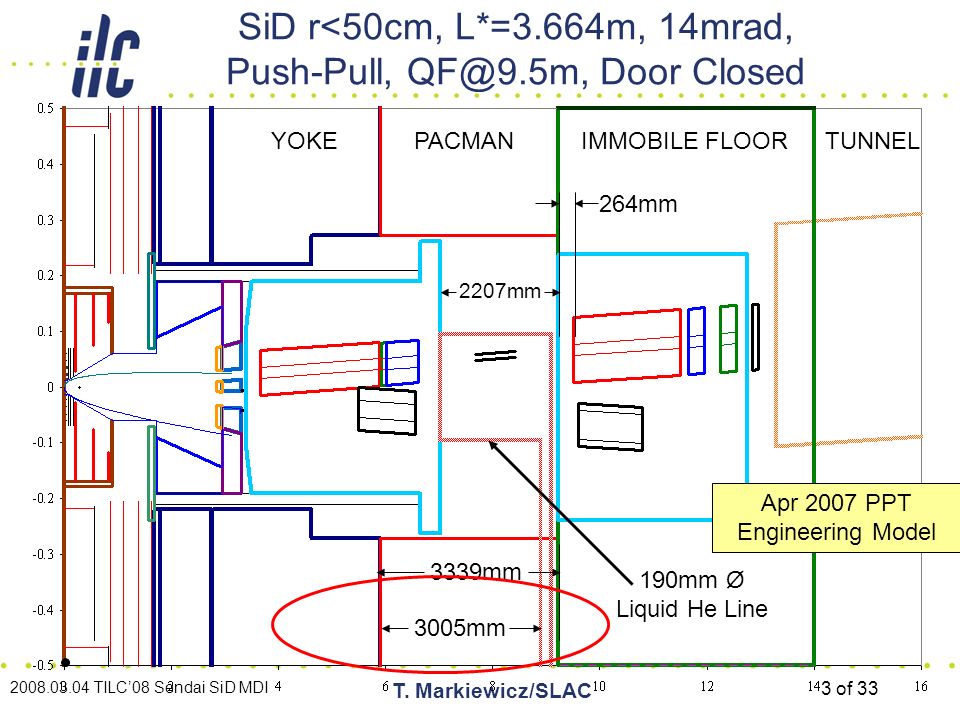

3. 2008.03.04 TILC’08 Sendai SiD MDI T. Markiewicz/SLAC 3 of 33 SiD r<50cm, L*=3.664m, 14mrad, Push-Pull, QF@9.5m, Door Closed 3339mm 190mm Ø Liquid He Line 264mm 2207mm PACMANIMMOBILE FLOORYOKETUNNEL 3005mm Apr 2007 PPT Engineering Model

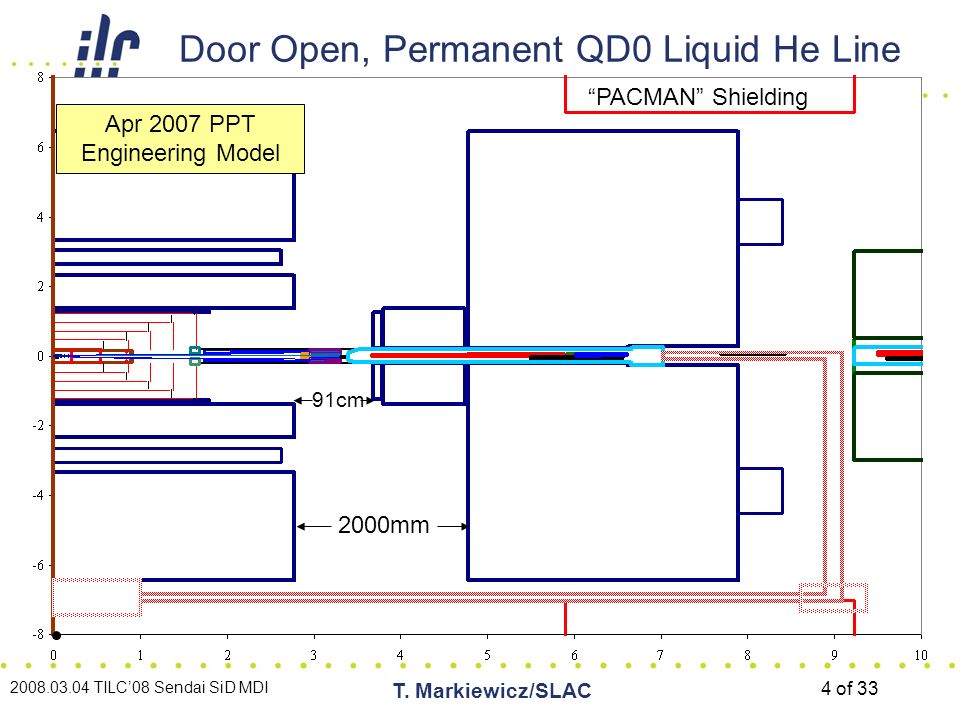

4. 2008.03.04 TILC’08 Sendai SiD MDI T. Markiewicz/SLAC 4 of 33 Door Open, Permanent QD0 Liquid He Line “PACMAN” Shielding 2000mm 91cm Apr 2007 PPT Engineering Model

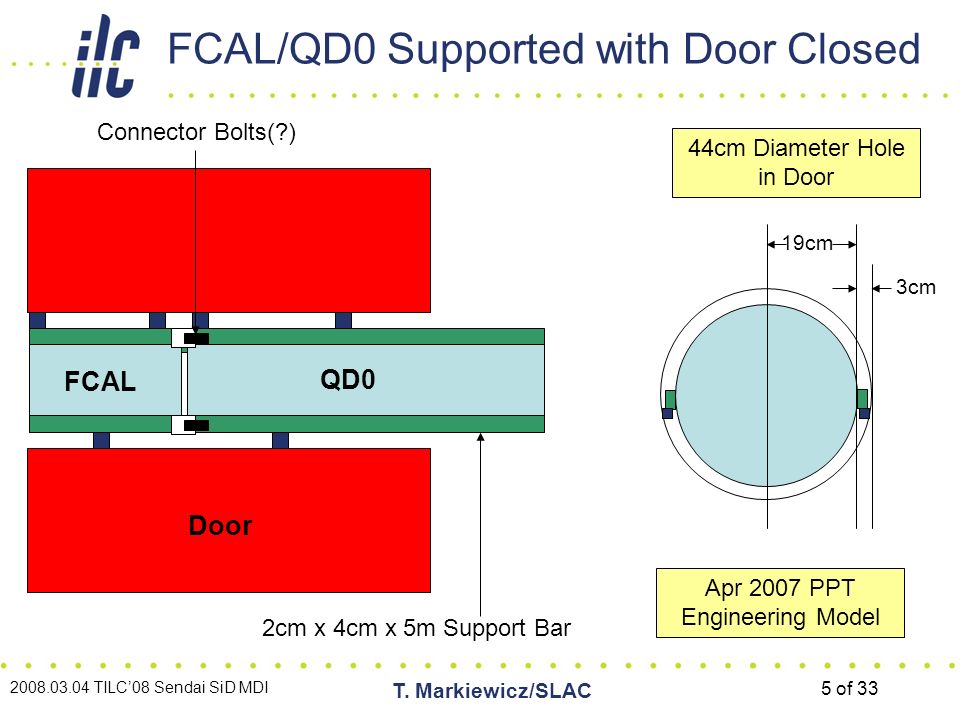

5. 2008.03.04 TILC’08 Sendai SiD MDI T. Markiewicz/SLAC 5 of 33 FCAL/QD0 Supported with Door Closed Door QD0 FCAL 2cm x 4cm x 5m Support Bar 19cm 3cm Connector Bolts(?) Apr 2007 PPT Engineering Model 44cm Diameter Hole in Door

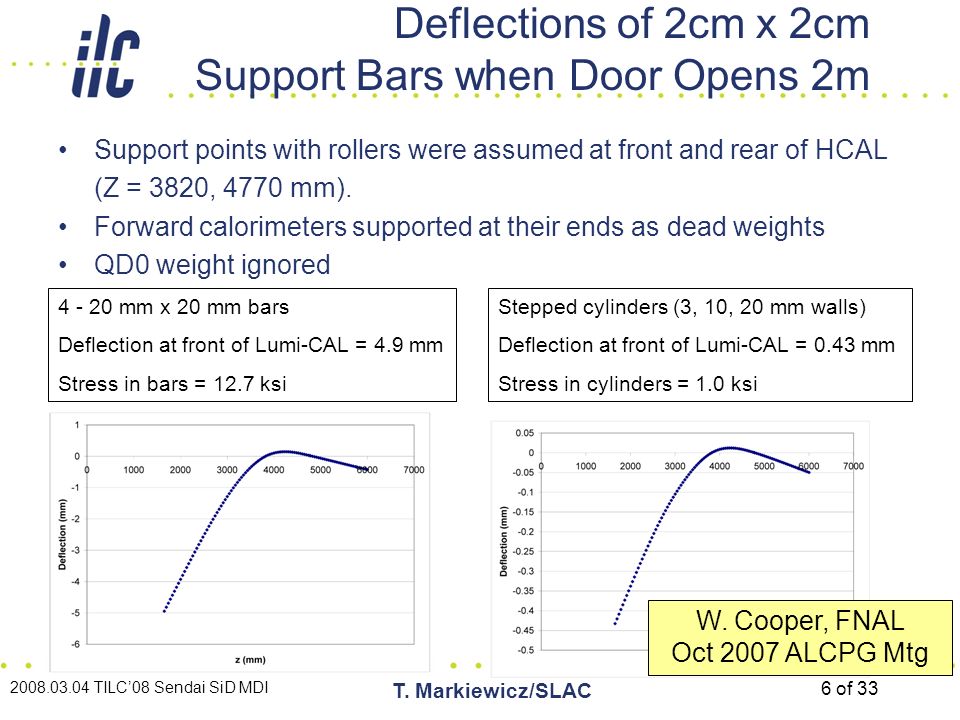

6. 2008.03.04 TILC’08 Sendai SiD MDI T. Markiewicz/SLAC 6 of 33 Deflections of 2cm x 2cm Support Bars when Door Opens 2m Support points with rollers were assumed at front and rear of HCAL (Z = 3820, 4770 mm). Forward calorimeters supported at their ends as dead weights QD0 weight ignored 4 - 20 mm x 20 mm bars Deflection at front of Lumi-CAL = 4.9 mm Stress in bars = 12.7 ksi Stepped cylinders (3, 10, 20 mm walls) Deflection at front of Lumi-CAL = 0.43 mm Stress in cylinders = 1.0 ksi W. Cooper, FNAL Oct 2007 ALCPG Mtg

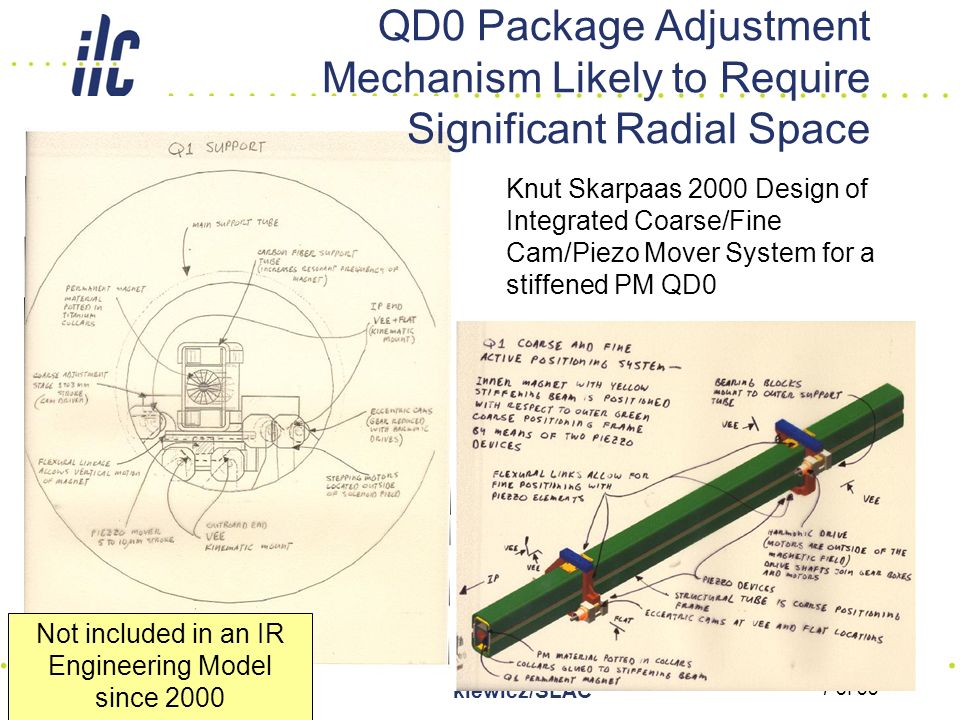

7. 2008.03.04 TILC’08 Sendai SiD MDI T. Markiewicz/SLAC 7 of 33 QD0 Package Adjustment Mechanism Likely to Require Significant Radial Space Knut Skarpaas 2000 Design of Integrated Coarse/Fine Cam/Piezo Mover System for a stiffened PM QD0 Not included in an IR Engineering Model since 2000

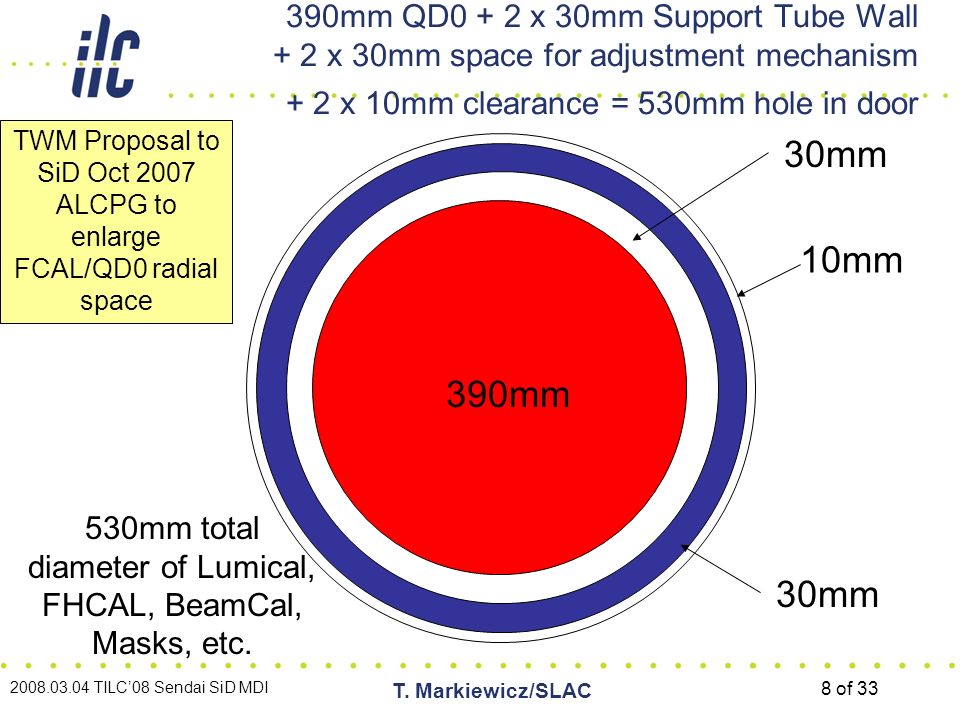

8. 2008.03.04 TILC’08 Sendai SiD MDI T. Markiewicz/SLAC 8 of 33 390mm QD0 + 2 x 30mm Support Tube Wall + 2 x 30mm space for adjustment mechanism + 2 x 10mm clearance = 530mm hole in door 390mm 30mm 530mm total diameter of Lumical, FHCAL, BeamCal, Masks, etc. 10mm TWM Proposal to SiD Oct 2007 ALCPG to enlarge FCAL/QD0 radial space

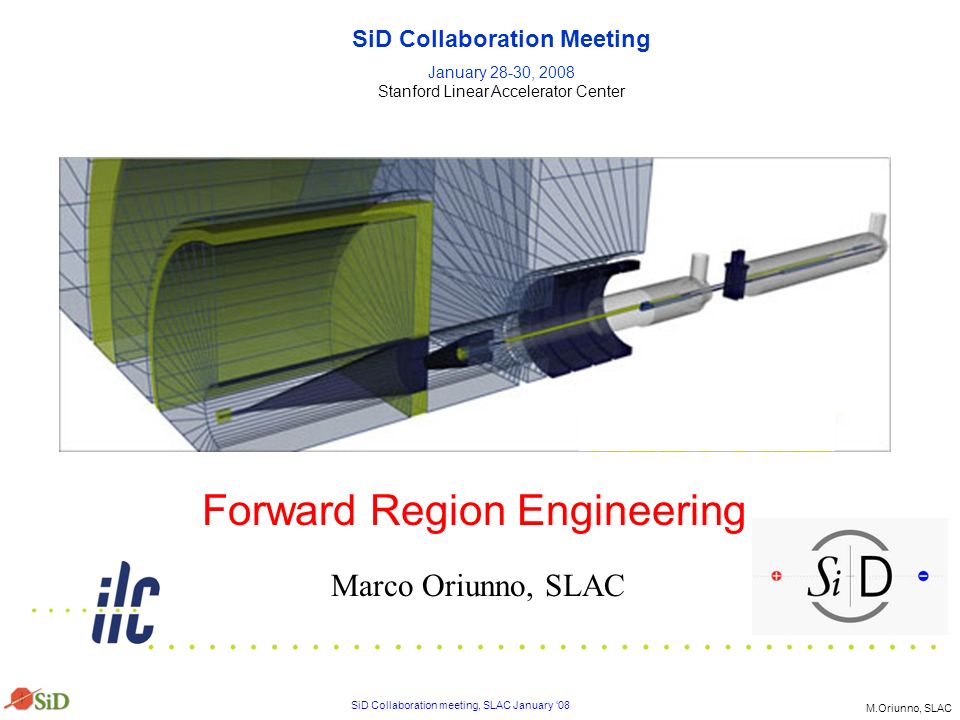

9. M.Oriunno, SLAC SiD Collaboration meeting, SLAC January ‘08 Forward Region Engineering Marco Oriunno, SLAC SiD Collaboration Meeting January 28-30, 2008 Stanford Linear Accelerator Center

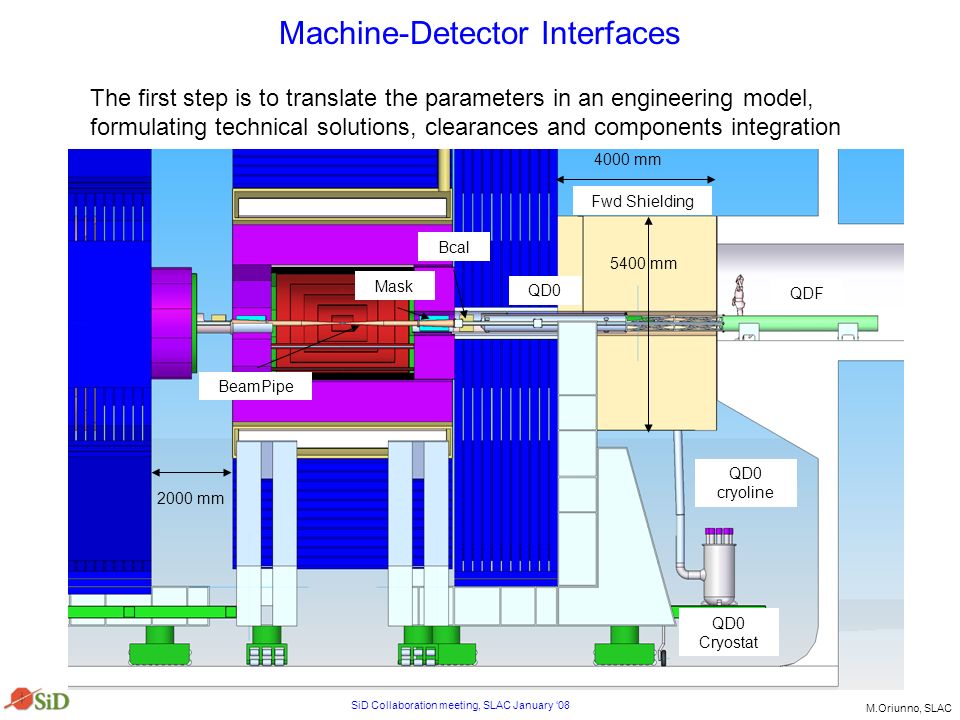

10. M.Oriunno, SLAC SiD Collaboration meeting, SLAC January ‘08 Machine-Detector Interfaces The first step is to translate the parameters in an engineering model, formulating technical solutions, clearances and components integration QD0 Mask Bcal BeamPipe QDF Fwd Shielding QD0 Cryostat QD0 cryoline 4000 mm 5400 mm 2000 mm

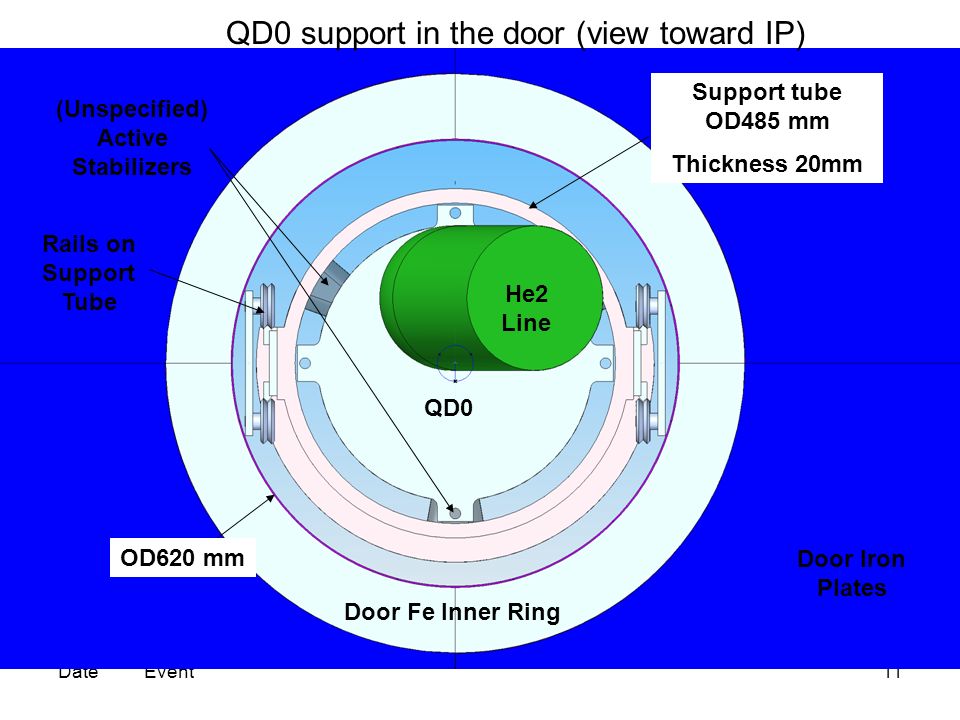

11. Date Event11 QD0 Support tube OD485 mm Thickness 20mm He2 Line (Unspecified) Active Stabilizers Door Iron Plates Rails on Support Tube Door Fe Inner Ring OD620 mm QD0 support in the door (view toward IP)

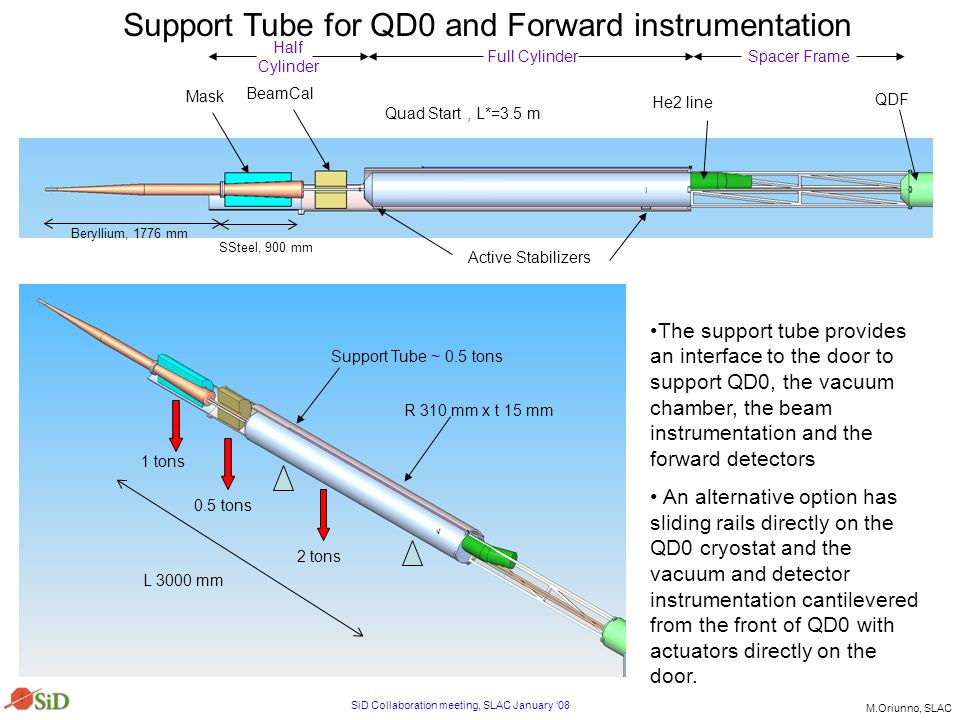

12. M.Oriunno, SLAC SiD Collaboration meeting, SLAC January ‘08 Beryllium, 1776 mm SSteel, 900 mm Quad Start, L*=3.5 m BeamCal Mask Support Tube ~ 0.5 tons Support Tube for QD0 and Forward instrumentation Active Stabilizers He2 line QDF The support tube provides an interface to the door to support QD0, the vacuum chamber, the beam instrumentation and the forward detectors An alternative option has sliding rails directly on the QD0 cryostat and the vacuum and detector instrumentation cantilevered from the front of QD0 with actuators directly on the door. 2 tons 0.5 tons 1 tons R 310 mm x t 15 mm L 3000 mm Half Cylinder Full CylinderSpacer Frame

13. M.Oriunno, SLAC SiD Collaboration meeting, SLAC January ‘08 2m Door opening Procedure, on the beam 2m Spacer structure QDF Shielding Rails on the support tube

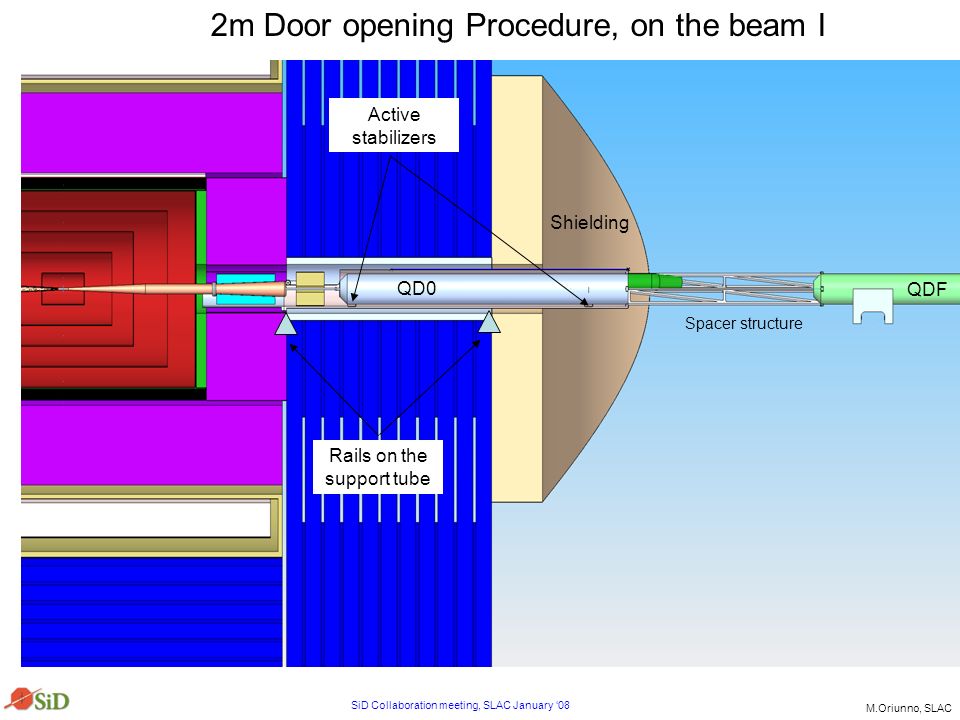

14. M.Oriunno, SLAC SiD Collaboration meeting, SLAC January ‘08 QD0 QDF Shielding Spacer structure Rails on the support tube Active stabilizers 2m Door opening Procedure, on the beam I

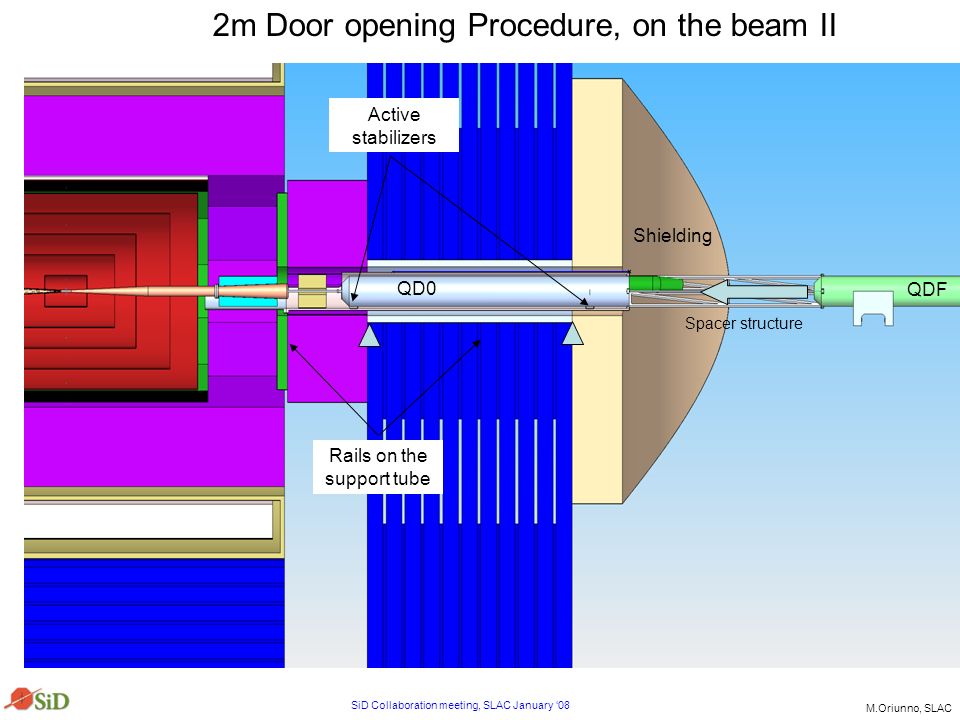

15. M.Oriunno, SLAC SiD Collaboration meeting, SLAC January ‘08 QDF Shielding Spacer structure QD0 Active stabilizers Rails on the support tube 2m Door opening Procedure, on the beam II

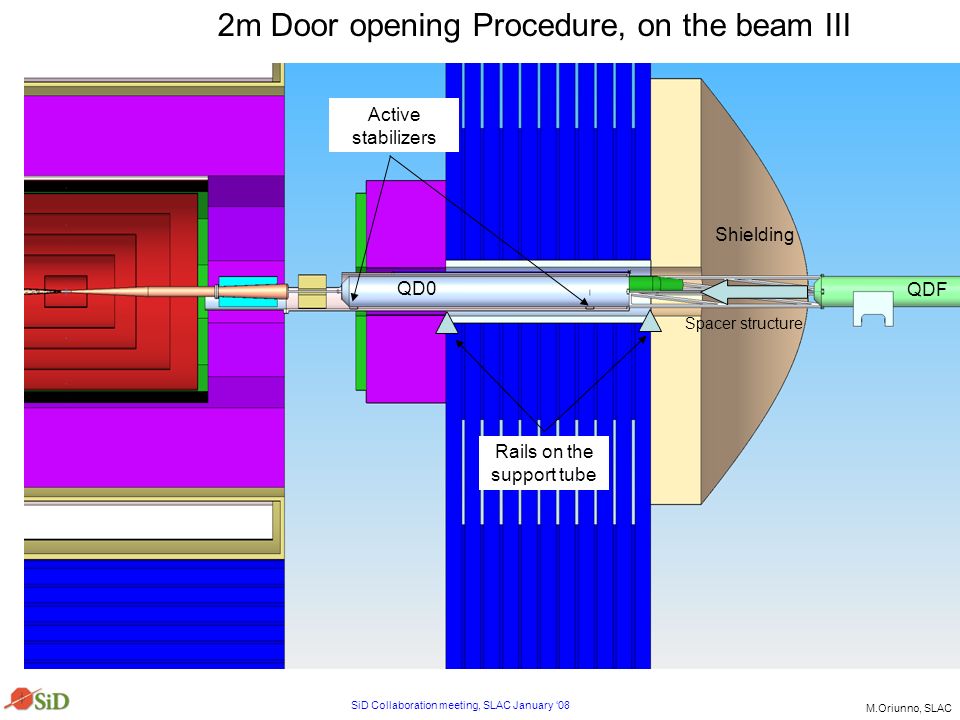

16. M.Oriunno, SLAC SiD Collaboration meeting, SLAC January ‘08 QDF Shielding Spacer structure QD0 Active stabilizers Rails on the support tube 2m Door opening Procedure, on the beam III

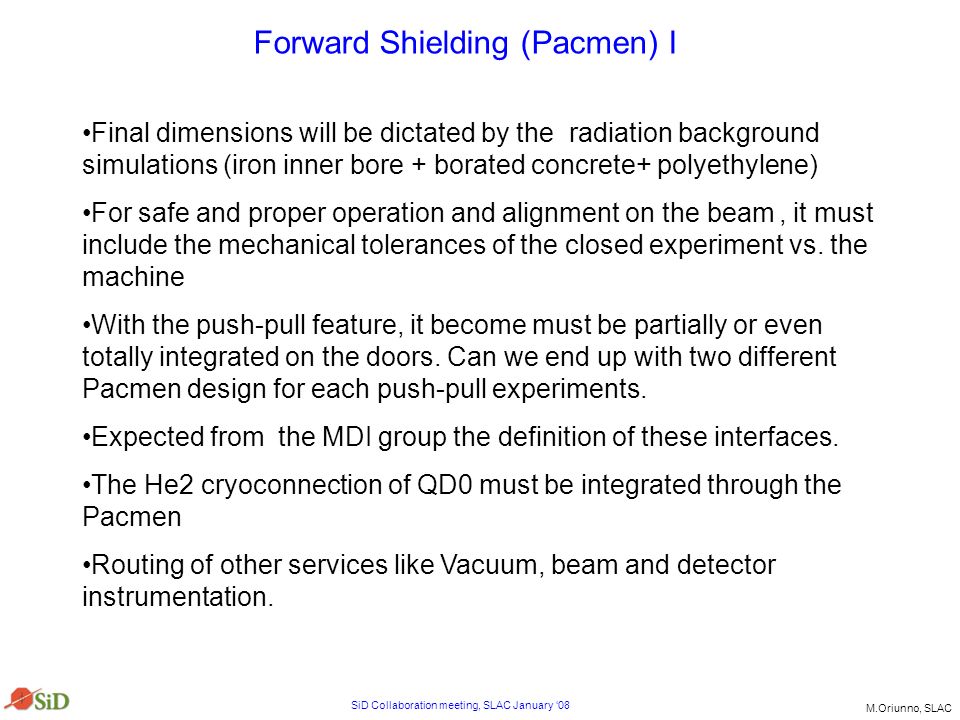

17. M.Oriunno, SLAC SiD Collaboration meeting, SLAC January ‘08 Forward Shielding (Pacmen) I Final dimensions will be dictated by the radiation background simulations (iron inner bore + borated concrete+ polyethylene) For safe and proper operation and alignment on the beam, it must include the mechanical tolerances of the closed experiment vs. the machine With the push-pull feature, it become must be partially or even totally integrated on the doors. Can we end up with two different Pacmen design for each push-pull experiments. Expected from the MDI group the definition of these interfaces. The He2 cryoconnection of QD0 must be integrated through the Pacmen Routing of other services like Vacuum, beam and detector instrumentation.

18. M.Oriunno, SLAC SiD Collaboration meeting, SLAC January ‘08 Forward Shielding (Pacmen) II SiD Design inspired by CMS Rotating Shielding X = + 600

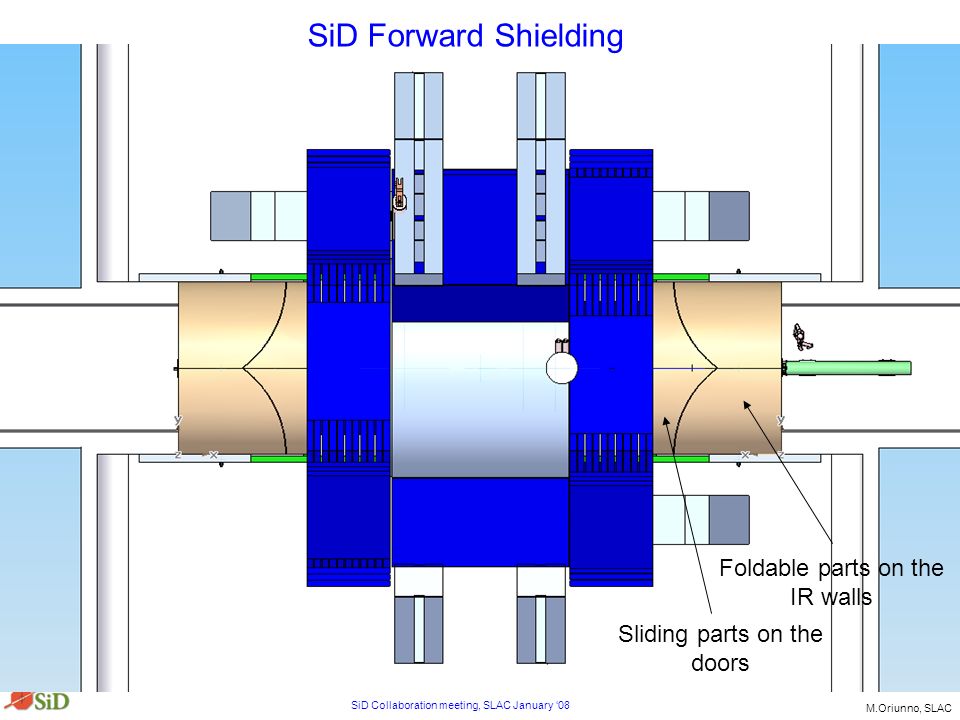

19. M.Oriunno, SLAC SiD Collaboration meeting, SLAC January ‘08 SiD Forward Shielding Foldable parts on the IR walls Sliding parts on the doors

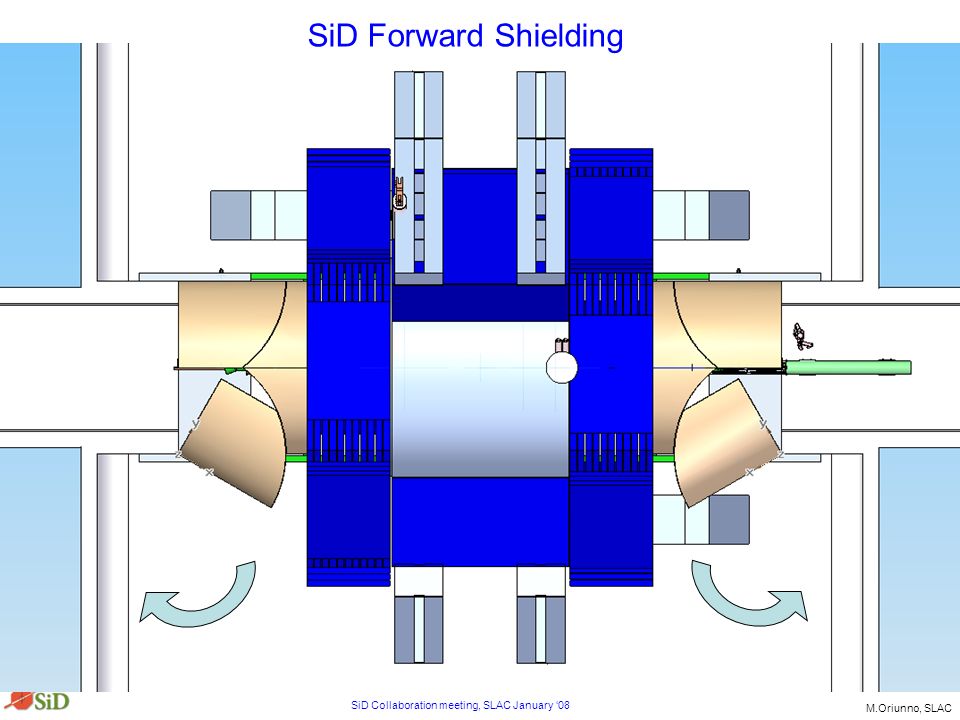

20. M.Oriunno, SLAC SiD Collaboration meeting, SLAC January ‘08 SiD Forward Shielding

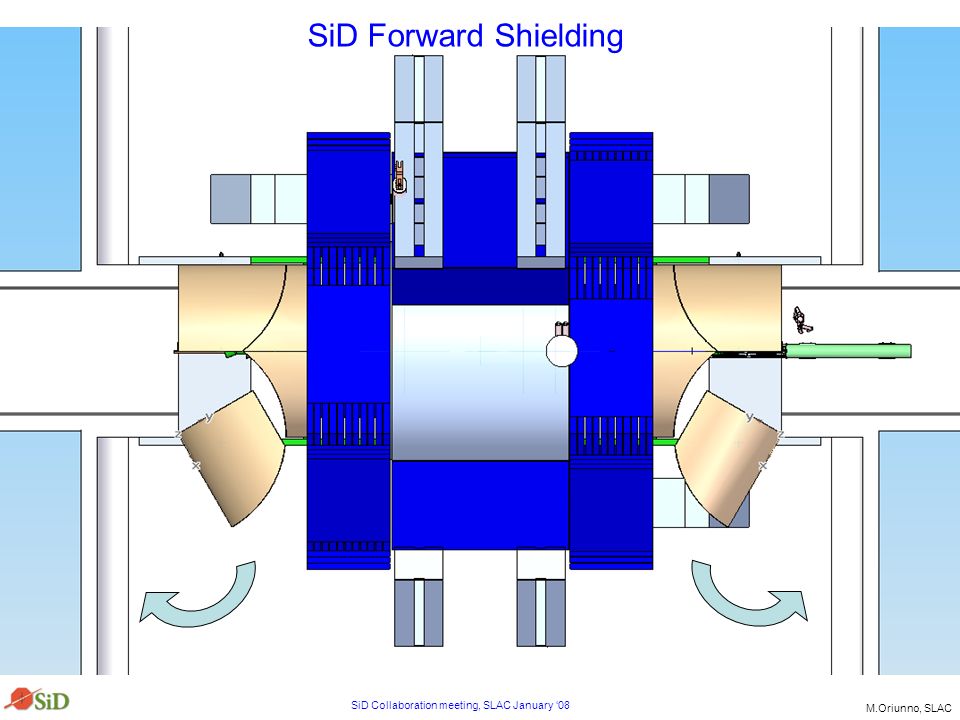

21. M.Oriunno, SLAC SiD Collaboration meeting, SLAC January ‘08 SiD Forward Shielding

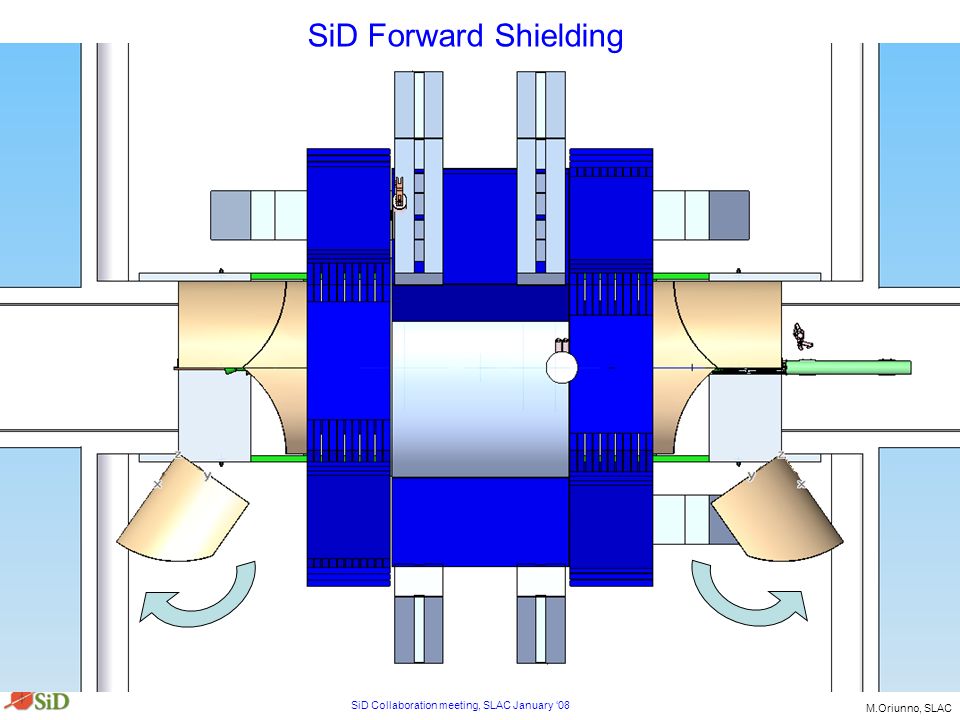

22. M.Oriunno, SLAC SiD Collaboration meeting, SLAC January ‘08 SiD Forward Shielding

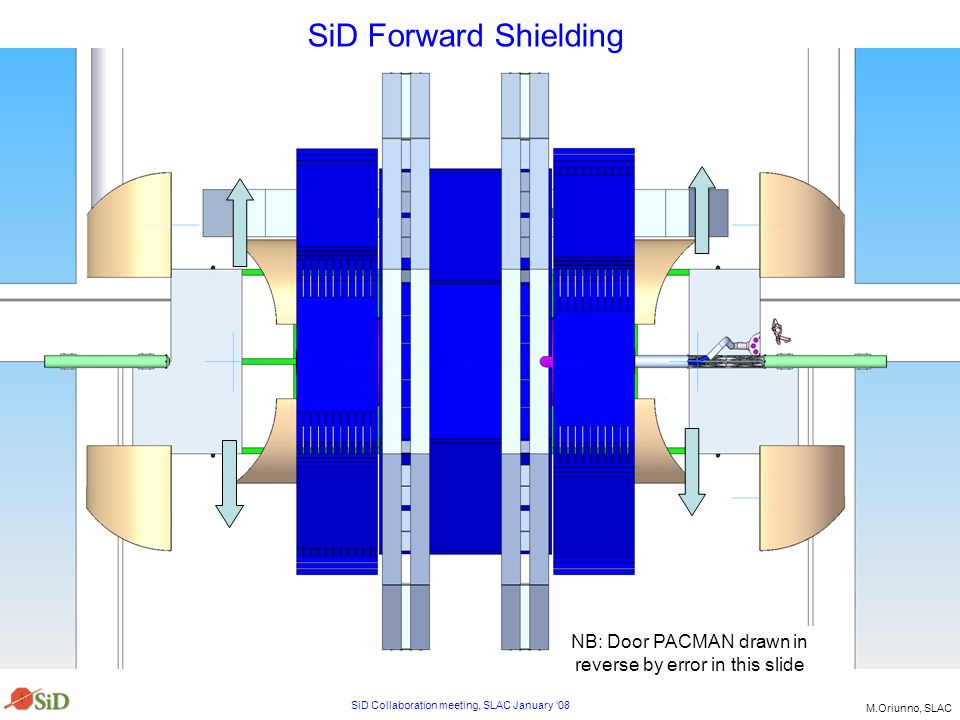

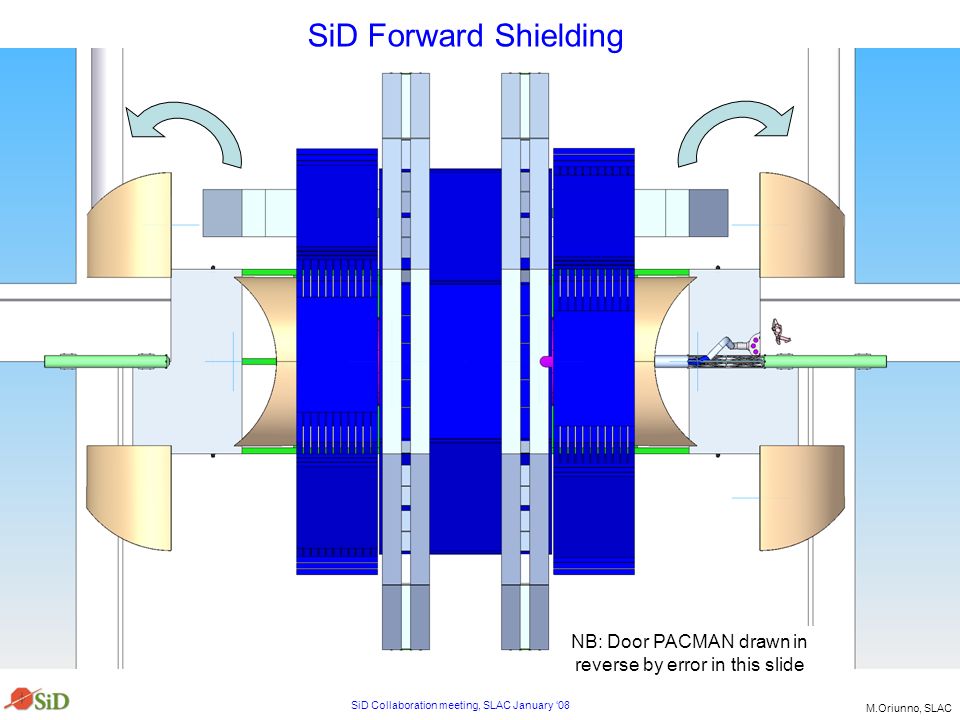

23. M.Oriunno, SLAC SiD Collaboration meeting, SLAC January ‘08 SiD Forward Shielding NB: Door PACMAN drawn in reverse by error in this slide

24. M.Oriunno, SLAC SiD Collaboration meeting, SLAC January ‘08 SiD Forward Shielding NB: Door PACMAN drawn in reverse by error in this slide

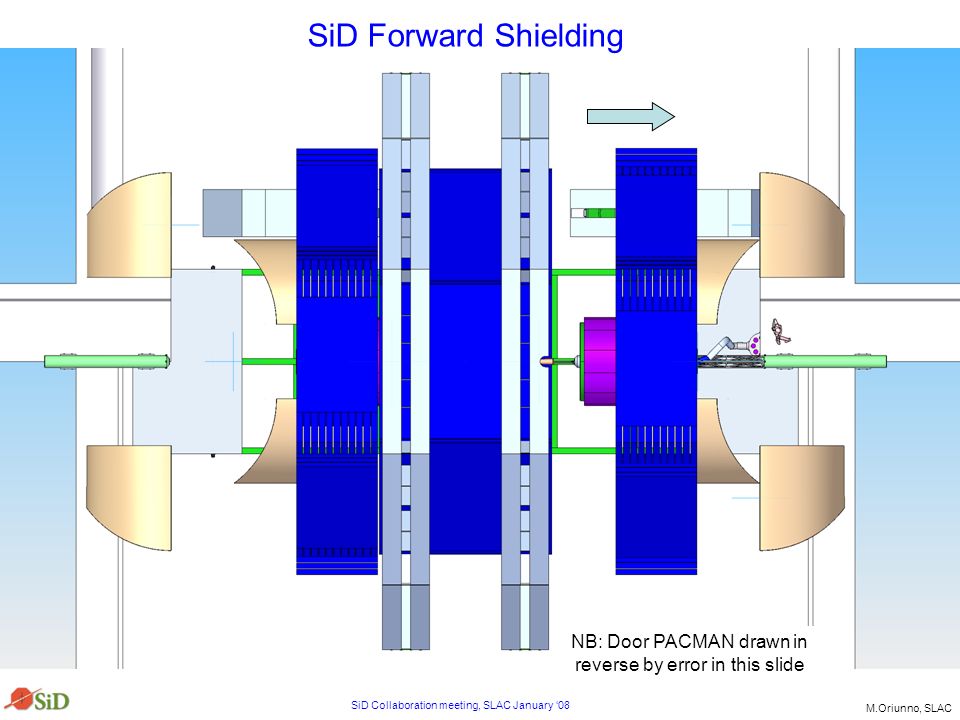

25. M.Oriunno, SLAC SiD Collaboration meeting, SLAC January ‘08 SiD Forward Shielding NB: Door PACMAN drawn in reverse by error in this slide

26. M.Oriunno, SLAC SiD Collaboration meeting, SLAC January ‘08 SiD Forward Shielding NB: Door PACMAN drawn in reverse by error in this slide

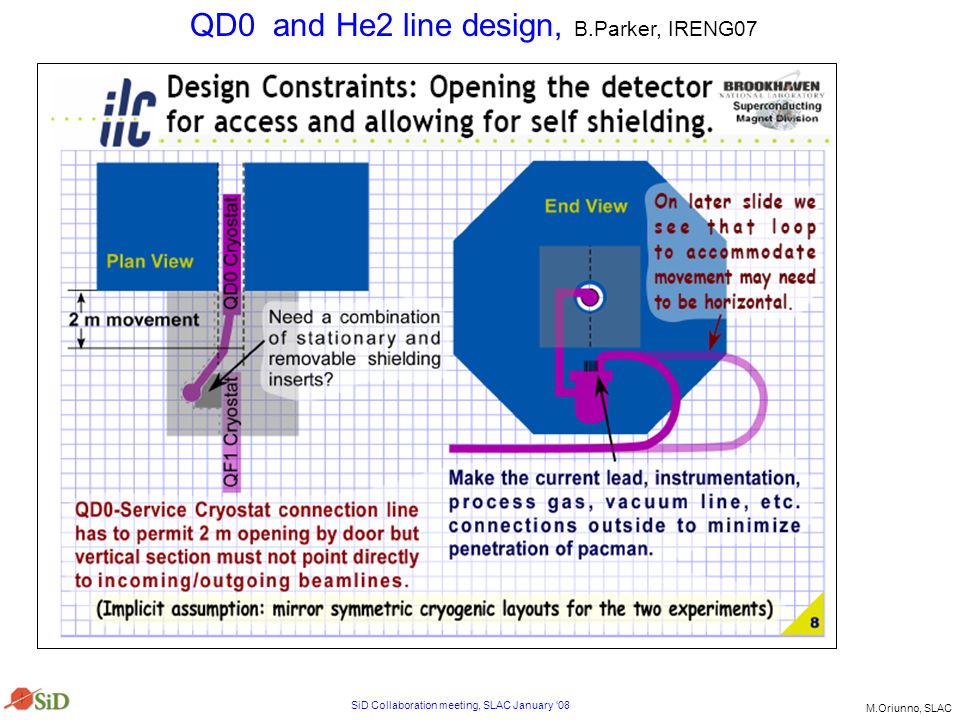

27. M.Oriunno, SLAC SiD Collaboration meeting, SLAC January ‘08 QD0 and He2 line design, B.Parker, IRENG07

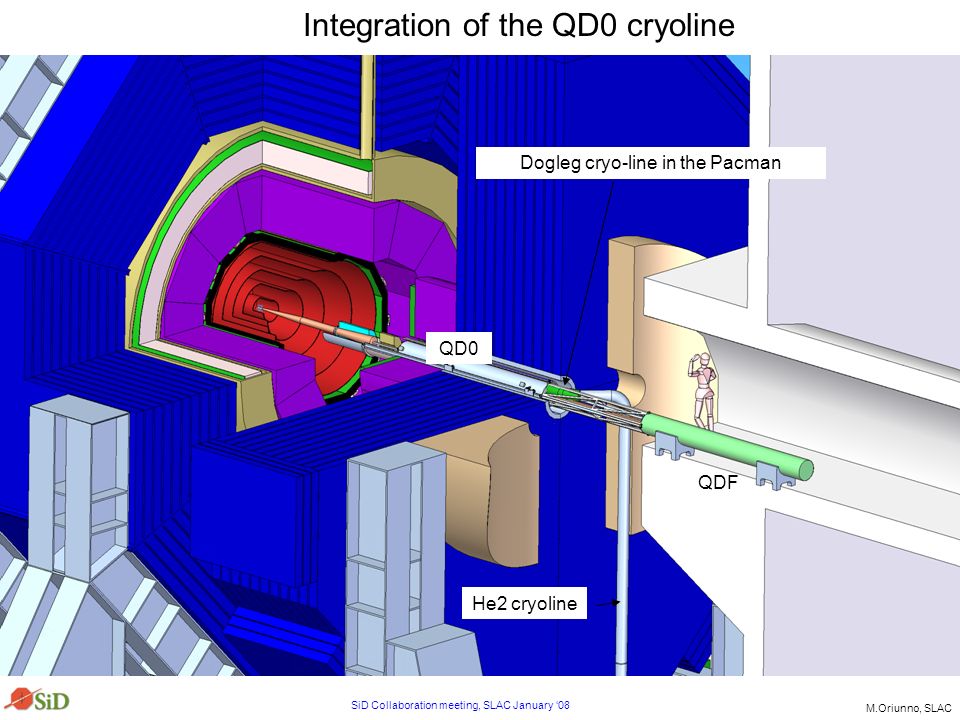

28. M.Oriunno, SLAC SiD Collaboration meeting, SLAC January ‘08 Integration of the QD0 cryoline QDF QD0 He2 cryoline Dogleg cryo-line in the Pacman

29. M.Oriunno, SLAC SiD Collaboration meeting, SLAC January ‘08 Integration of the QD0 cryoline Hilman Rollers QD0 service cryostat He2 cryoline Ancillary platform 2 m opening on the beam, 1.The QD0 service cryostat on ancillary platform, fixed to the SiD barrel infrastructure 2.He2 cryoline rigid connected to QD0 through the Pacman 3.No relative movement between QD0 and He2 line when door opens. 4.The ancillary platform allows the QD0 cryogenics to travel with detector during push- pull 5.Additional space for racks, controls et al.

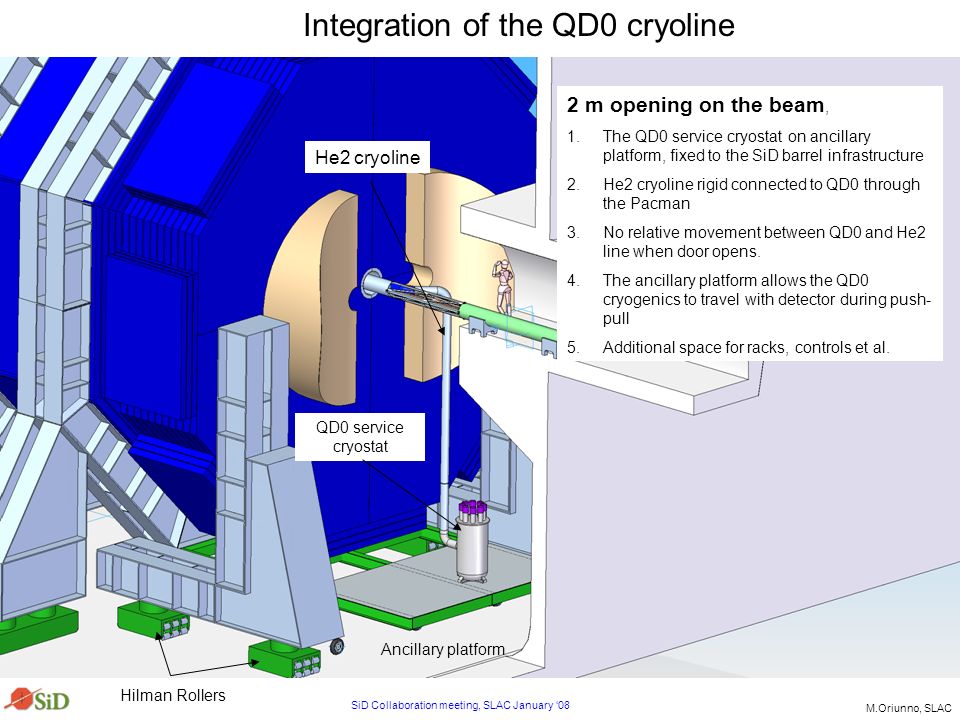

30. M.Oriunno, SLAC SiD Collaboration meeting, SLAC January ‘08 Integration of the QD0 cryoline Hilman Rollers QD0 service cryostat He2 cryoline Ancillary platform 2 m opening on the beam, 1.The QD0 service cryostat on ancillary platform, fixed to the SiD barrel infrastructure 2.He2 cryoline rigid connected to QD0 through the Pacman 3.No relative movement between QD0 and He2 line when door opens. 4.The ancillary platform allows the QD0 cryogenics to travel with detector during push- pull 5.Additional space for racks, controls et al.

31. M.Oriunno, SLAC SiD Collaboration meeting, SLAC January ‘08 Integration of the QD0 cryoline Hilman Rollers QD0 service cryostat He2 cryoline Ancillary platform 2 m opening on the beam, 1.The QD0 service cryostat on ancillary platform, fixed to the SiD barrel infrastructure 2.He2 cryoline rigid connected to QD0 through the Pacman 3.No relative movement between QD0 and He2 line when door opens. 4.The ancillary platform allows the QD0 cryogenics to travel with detector during push- pull 5.Additional space for racks, controls et al.

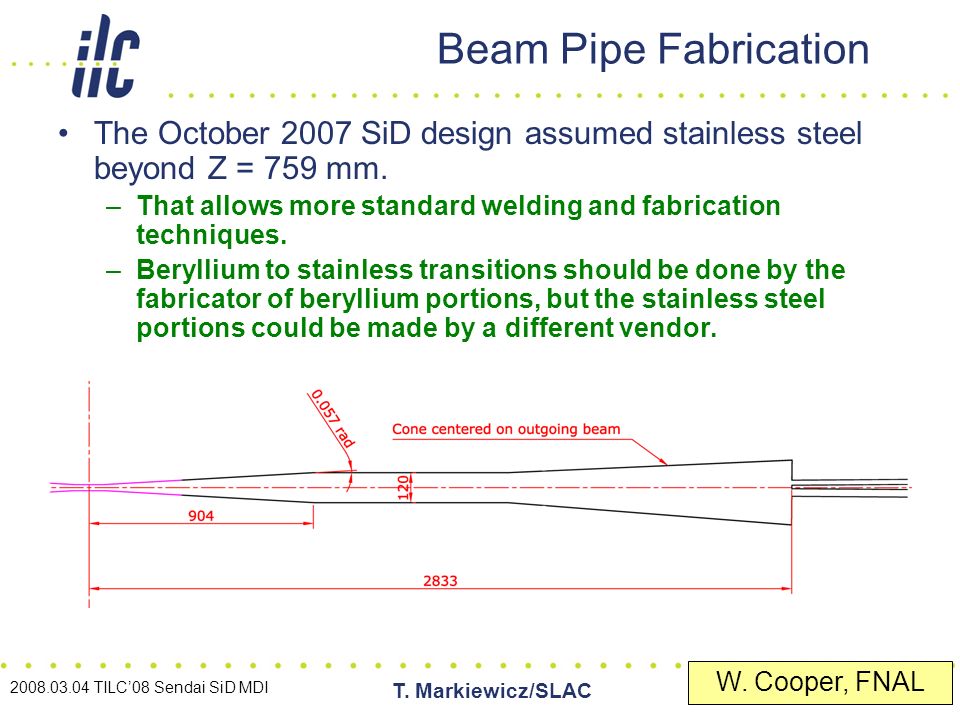

32. 2008.03.04 TILC’08 Sendai SiD MDI T. Markiewicz/SLAC 32 of 33 Beam Pipe Fabrication The October 2007 SiD design assumed stainless steel beyond Z = 759 mm. –That allows more standard welding and fabrication techniques. –Beryllium to stainless transitions should be done by the fabricator of beryllium portions, but the stainless steel portions could be made by a different vendor. W. Cooper, FNAL

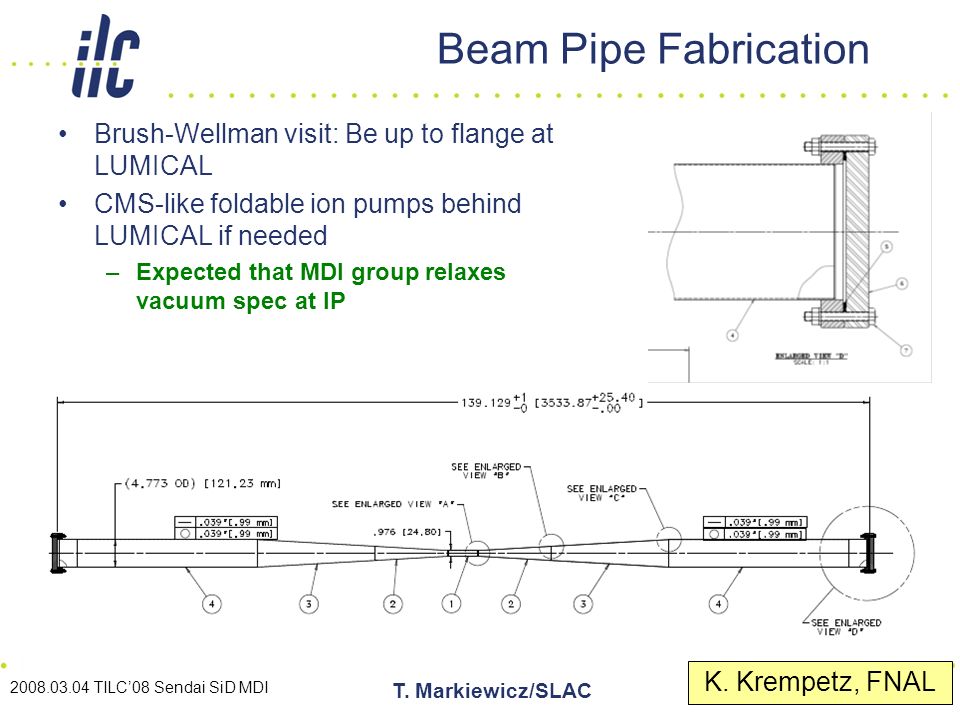

33. 2008.03.04 TILC’08 Sendai SiD MDI T. Markiewicz/SLAC 33 of 33 Beam Pipe Fabrication Brush-Wellman visit: Be up to flange at LUMICAL CMS-like foldable ion pumps behind LUMICAL if needed –Expected that MDI group relaxes vacuum spec at IP K. Krempetz, FNAL

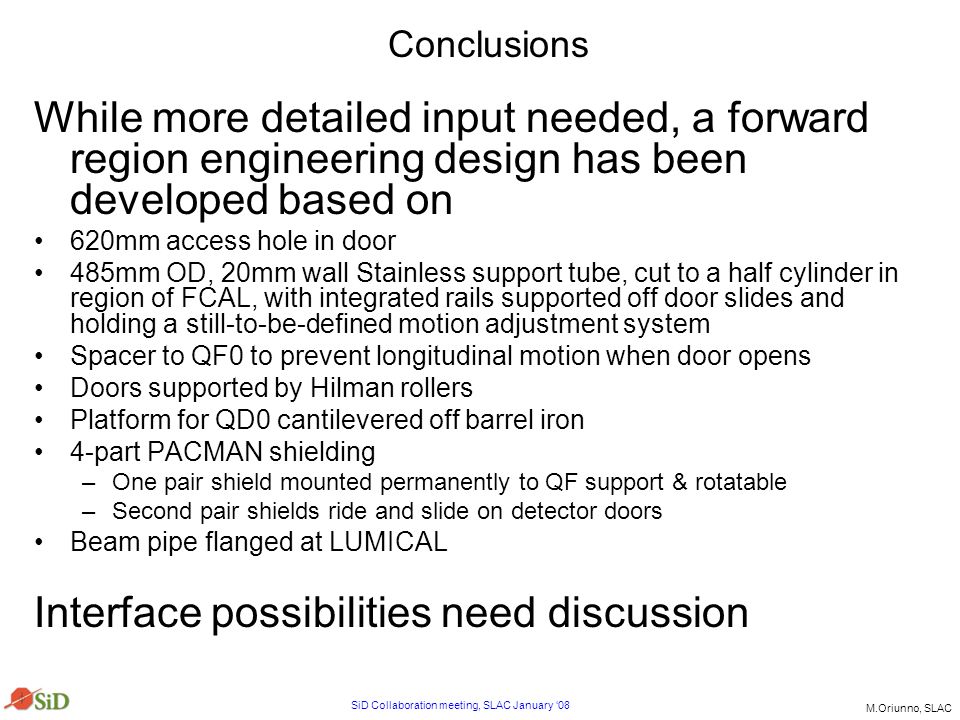

34. M.Oriunno, SLAC SiD Collaboration meeting, SLAC January ‘08 Conclusions While more detailed input needed, a forward region engineering design has been developed based on 620mm access hole in door 485mm OD, 20mm wall Stainless support tube, cut to a half cylinder in region of FCAL, with integrated rails supported off door slides and holding a still-to-be-defined motion adjustment system Spacer to QF0 to prevent longitudinal motion when door opens Doors supported by Hilman rollers Platform for QD0 cantilevered off barrel iron 4-part PACMAN shielding –One pair shield mounted permanently to QF support & rotatable –Second pair shields ride and slide on detector doors Beam pipe flanged at LUMICAL Interface possibilities need discussion

35. 2008.03.04 TILC’08 Sendai SiD MDI T. Markiewicz/SLAC 35 of 33 EXCEL pix of Marco’s Design LUMICAL Support & Acceptance “Open Space Preserve” FWD Tracker Interface
