Synchronizing and setting the clock on the Viking timepiece wall oven 12:15.

Published byLauren Harrell Modified over 8 years ago

Similar presentations

Presentation on theme: "Synchronizing and setting the clock on the Viking timepiece wall oven 12:15."— Presentation transcript:

1

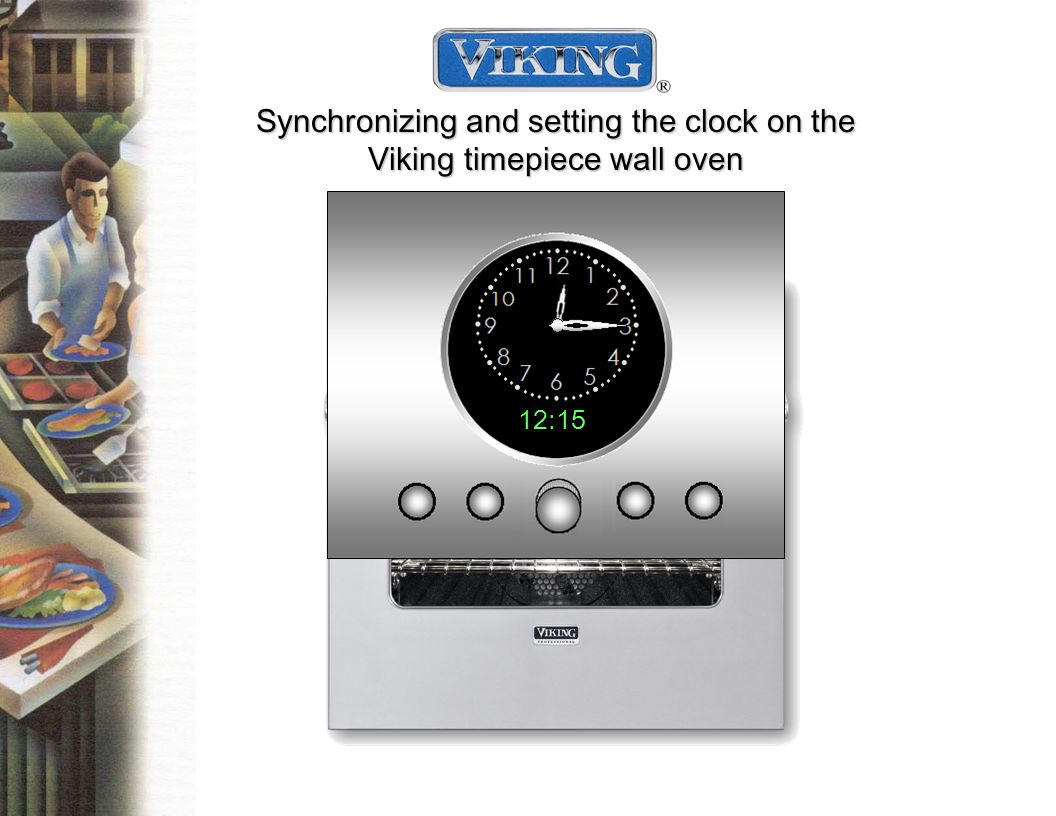

2 Synchronizing and setting the clock on the Viking timepiece wall oven 12:15

3 Synchronizing the clock 12:15

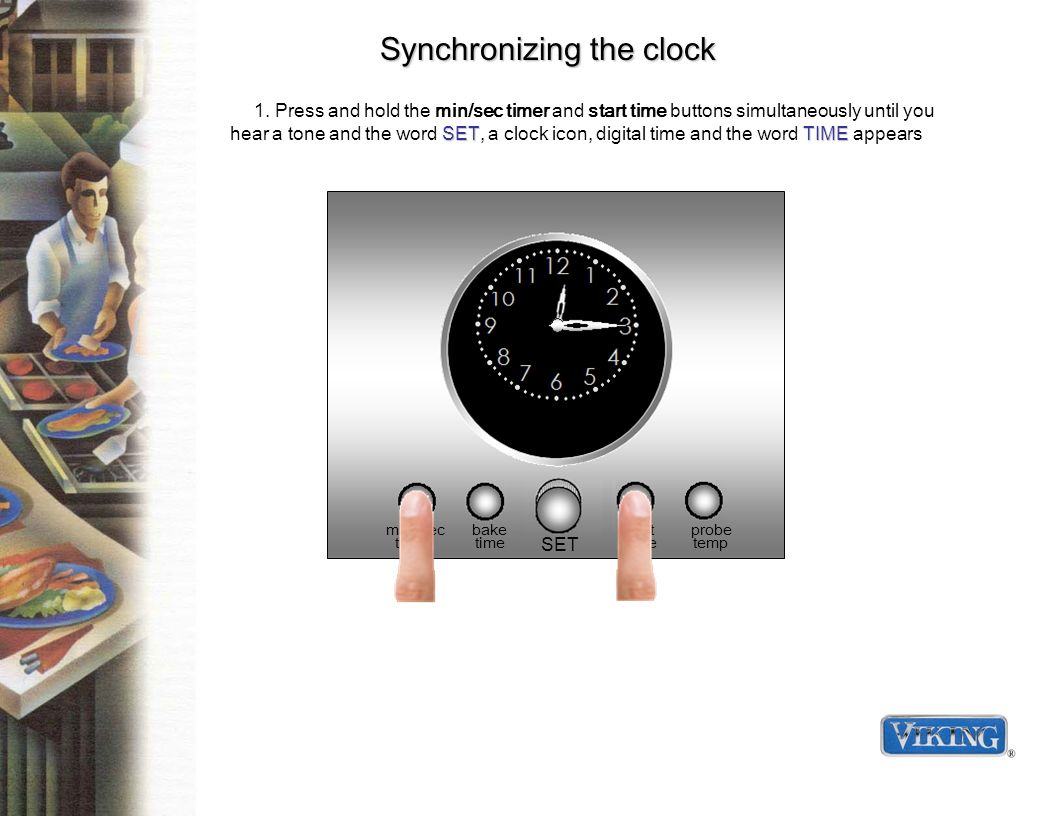

4 min /sec bake start probe timer time time temp SET SETTIME 1. Press and hold the min/sec timer and start time buttons simultaneously until you hear a tone and the word SET, a clock icon, digital time and the word TIME appears Synchronizing the clock

5 min /sec bake start probe timer time time temp SET SETTIME 1. Press and hold the min/sec timer and start time buttons simultaneously until you hear a tone and the word SET, a clock icon, digital time and the word TIME appears TIME 12:00 SET 2. Release the min/sec timer and start time buttons Synchronizing the clock

6 min /sec bake start probe timer time time temp SET 3. Using the SET knob, set the analog clock to the next hour position. In our example below, rotate the SET knob until the clock reads 1:00 Click on the SET button 4. With the analog clock set to 1:00, release the SET knob Continue Synchronizing the clock TIME 12:00 SET

7 min /sec bake start probe timer time time temp SET SET12:00TIME 5. After 5 seconds, a tone will sound. The CLOCK icon will disappear and the word SET, 12:00 and TIME will flash in the display Synchronizing the clock TIME 12:00 SET

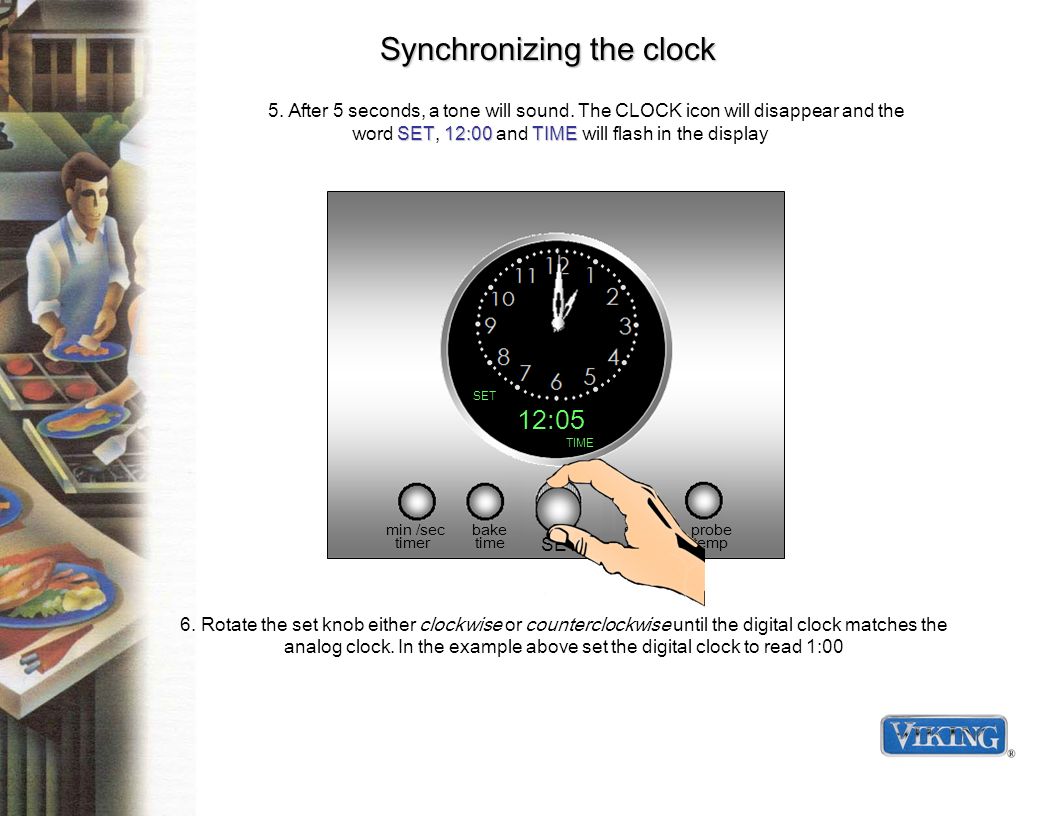

8 min /sec bake start probe timer time time temp SET SET12:00TIME 5. After 5 seconds, a tone will sound. The CLOCK icon will disappear and the word SET, 12:00 and TIME will flash in the display 6. Rotate the set knob either clockwise or counterclockwise until the digital clock matches the analog clock. In the example above set the digital clock to read 1:00 Click on the SET button Synchronizing the clock TIME 12:00 SET

9 min /sec bake start probe timer time time temp SET SET12:00TIME 5. After 5 seconds, a tone will sound. The CLOCK icon will disappear and the word SET, 12:00 and TIME will flash in the display 6. Rotate the set knob either clockwise or counterclockwise until the digital clock matches the analog clock. In the example above set the digital clock to read 1:00 Synchronizing the clock TIME 12:05 SET

10 min /sec bake start probe timer time time temp SET SET12:00TIME 5. After 5 seconds, a tone will sound. The CLOCK icon will disappear and the word SET, 12:00 and TIME will flash in the display 6. Rotate the set knob either clockwise or counterclockwise until the digital clock matches the analog clock. In the example above set the digital clock to read 1:00 Synchronizing the clock TIME 12:10 SET

11 min /sec bake start probe timer time time temp SET SET12:00TIME 5. After 5 seconds, a tone will sound. The CLOCK icon will disappear and the word SET, 12:00 and TIME will flash in the display 6. Rotate the set knob either clockwise or counterclockwise until the digital clock matches the analog clock. In the example above set the digital clock to read 1:00 Synchronizing the clock TIME 12:15 SET

12 min /sec bake start probe timer time time temp SET SET12:00TIME 5. After 5 seconds, a tone will sound. The CLOCK icon will disappear and the word SET, 12:00 and TIME will flash in the display 6. Rotate the set knob either clockwise or counterclockwise until the digital clock matches the analog clock. In the example above set the digital clock to read 1:00 Synchronizing the clock TIME 12:20 SET

13 min /sec bake start probe timer time time temp SET SET12:00TIME 5. After 5 seconds, a tone will sound. The CLOCK icon will disappear and the word SET, 12:00 and TIME will flash in the display 6. Rotate the set knob either clockwise or counterclockwise until the digital clock matches the analog clock. In the example above set the digital clock to read 1:00 Synchronizing the clock TIME 12:25 SET

14 min /sec bake start probe timer time time temp SET SET12:00TIME 5. After 5 seconds, a tone will sound. The CLOCK icon will disappear and the word SET, 12:00 and TIME will flash in the display 6. Rotate the set knob either clockwise or counterclockwise until the digital clock matches the analog clock. In the example above set the digital clock to read 1:00 Synchronizing the clock TIME 12:30 SET

15 min /sec bake start probe timer time time temp SET SET12:00TIME 5. After 5 seconds, a tone will sound. The CLOCK icon will disappear and the word SET, 12:00 and TIME will flash in the display 6. Rotate the set knob either clockwise or counterclockwise until the digital clock matches the analog clock. In the example above set the digital clock to read 1:00 Synchronizing the clock TIME 12:35 SET

16 min /sec bake start probe timer time time temp SET SET12:00TIME 5. After 5 seconds, a tone will sound. The CLOCK icon will disappear and the word SET, 12:00 and TIME will flash in the display 6. Rotate the set knob either clockwise or counterclockwise until the digital clock matches the analog clock. In the example above set the digital clock to read 1:00 Synchronizing the clock TIME 12:40 SET

17 min /sec bake start probe timer time time temp SET SET12:00TIME 5. After 5 seconds, a tone will sound. The CLOCK icon will disappear and the word SET, 12:00 and TIME will flash in the display 6. Rotate the set knob either clockwise or counterclockwise until the digital clock matches the analog clock. In the example above set the digital clock to read 1:00 Synchronizing the clock TIME 12:45 SET

18 min /sec bake start probe timer time time temp SET SET12:00TIME 5. After 5 seconds, a tone will sound. The CLOCK icon will disappear and the word SET, 12:00 and TIME will flash in the display 6. Rotate the set knob either clockwise or counterclockwise until the digital clock matches the analog clock. In the example above set the digital clock to read 1:00 Synchronizing the clock TIME 12:50 SET

19 min /sec bake start probe timer time time temp SET SET12:00TIME 5. After 5 seconds, a tone will sound. The CLOCK icon will disappear and the word SET, 12:00 and TIME will flash in the display 6. Rotate the set knob either clockwise or counterclockwise until the digital clock matches the analog clock. In the example above set the digital clock to read 1:00 Synchronizing the clock TIME 12:55 SET

20 min /sec bake start probe timer time time temp SET SET12:00TIME 5. After 5 seconds, a tone will sound. The CLOCK icon will disappear and the word SET, 12:00 and TIME will flash in the display 6. Rotate the set knob either clockwise or counterclockwise until the digital clock matches the analog clock. In the example above set the digital clock to read 1:00 Synchronizing the clock TIME 1:00 SET

21 min /sec bake start probe timer time time temp SET 7. With the digital clock now set to 1:00, release the SET knob Synchronizing the clock TIME 1:00 SET

22 min /sec bake start probe timer time time temp SET 7. With the digital clock now set to 1:00, release the SET knob SETTIME 8. After 5 seconds, a tone will sound and the word SET, TIME and time display will disappear Synchronizing the clock TIME 1:00 SET

23 min /sec bake start probe timer time time temp SET 7. With the digital clock now set to 1:00, release the SET knob Synchronizing the clock SETTIME 8. After 5 seconds, a tone will sound and the word SET, TIME and time display will disappear TIME 1:00 SET

24 min /sec bake start probe timer time time temp SET YOU HAVE NOW SUCCESFULLY SYNCHRONIZED THE CLOCK Now we will need to set the clock to the current time of day Continue Synchronizing the clock

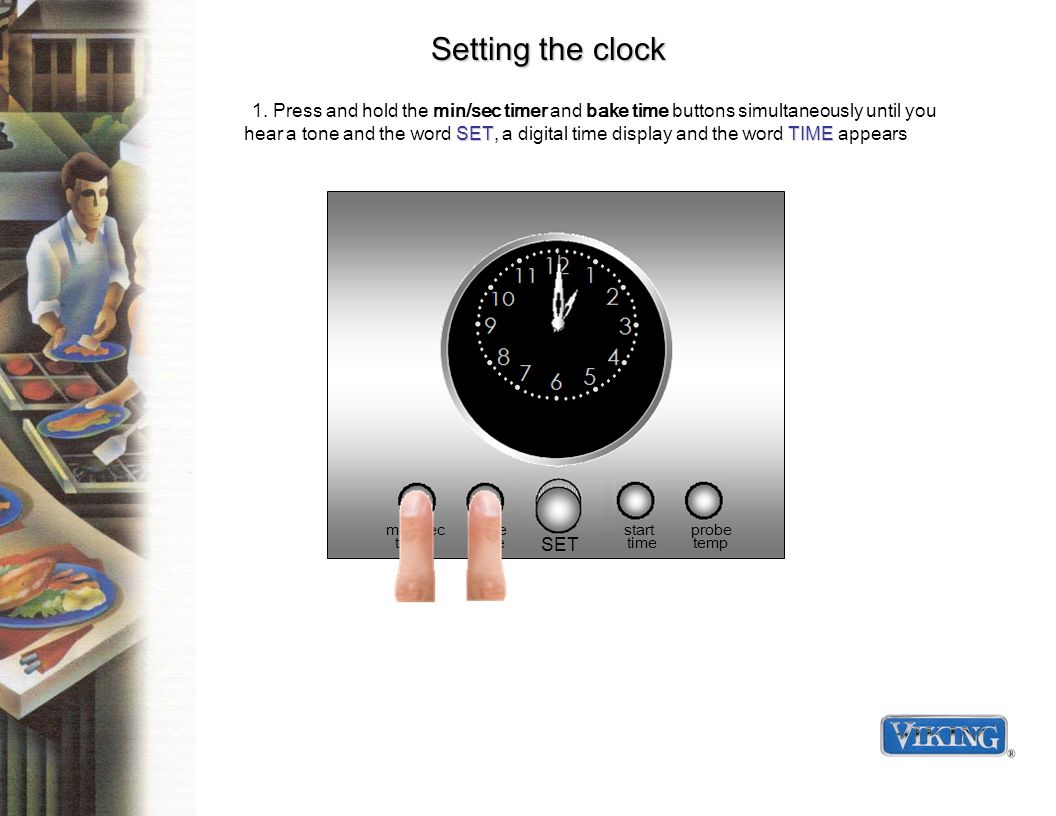

25 min /sec bake start probe timer time time temp SET Setting the clock SETTIME 1. Press and hold the min/sec timer and bake time buttons simultaneously until you hear a tone and the word SET, a digital time display and the word TIME appears

26 min /sec bake start probe timer time time temp SET Setting the clock SETTIME 1. Press and hold the min/sec timer and bake time buttons simultaneously until you hear a tone and the word SET, a digital time display and the word TIME appears 2. While holding the min/sec timer and bake time buttons, rotate the SET knob to adjust the digital display to the current time of day. For this example, lets assume it is 4:45 Click on the SET button TIME 1:00 SET

27 min /sec bake start probe timer time time temp SET Setting the clock SETTIME 3. Press and hold the min/sec timer and bake time buttons simultaneously until you hear a tone and the word SET, a digital time display and the word TIME appears 2. While holding the min/sec timer and bake time buttons, rotate the SET knob to adjust the digital display to the current time of day. For this example, lets assume it is 4:45 TIME 1:10 SET

28 min /sec bake start probe timer time time temp SET Setting the clock SETTIME 3. Press and hold the min/sec timer and bake time buttons simultaneously until you hear a tone and the word SET, a digital time display and the word TIME appears 2. While holding the min/sec timer and bake time buttons, rotate the SET knob to adjust the digital display to the current time of day. For this example, lets assume it is 4:45 TIME 1:15 SET

29 min /sec bake start probe timer time time temp SET Setting the clock SETTIME 3. Press and hold the min/sec timer and bake time buttons simultaneously until you hear a tone and the word SET, a digital time display and the word TIME appears 2. While holding the min/sec timer and bake time buttons, rotate the SET knob to adjust the digital display to the current time of day. For this example, lets assume it is 4:45 TIME 1:30 SET

30 min /sec bake start probe timer time time temp SET Setting the clock SETTIME 3. Press and hold the min/sec timer and bake time buttons simultaneously until you hear a tone and the word SET, a digital time display and the word TIME appears 2. While holding the min/sec timer and bake time buttons, rotate the SET knob to adjust the digital display to the current time of day. For this example, lets assume it is 4:45 TIME 1:45 SET

31 min /sec bake start probe timer time time temp SET Setting the clock SETTIME 3. Press and hold the min/sec timer and bake time buttons simultaneously until you hear a tone and the word SET, a digital time display and the word TIME appears 2. While holding the min/sec timer and bake time buttons, rotate the SET knob to adjust the digital display to the current time of day. For this example, lets assume it is 4:45 TIME 2:00 SET

32 min /sec bake start probe timer time time temp SET Setting the clock SETTIME 3. Press and hold the min/sec timer and bake time buttons simultaneously until you hear a tone and the word SET, a digital time display and the word TIME appears 2. While holding the min/sec timer and bake time buttons, rotate the SET knob to adjust the digital display to the current time of day. For this example, lets assume it is 4:45 TIME 2:15 SET

33 min /sec bake start probe timer time time temp SET Setting the clock SETTIME 3. Press and hold the min/sec timer and bake time buttons simultaneously until you hear a tone and the word SET, a digital time display and the word TIME appears 2. While holding the min/sec timer and bake time buttons, rotate the SET knob to adjust the digital display to the current time of day. For this example, lets assume it is 4:45 TIME 2:30 SET

34 min /sec bake start probe timer time time temp SET Setting the clock SETTIME 3. Press and hold the min/sec timer and bake time buttons simultaneously until you hear a tone and the word SET, a digital time display and the word TIME appears 2. While holding the min/sec timer and bake time buttons, rotate the SET knob to adjust the digital display to the current time of day. For this example, lets assume it is 4:45 TIME 2:45 SET

35 min /sec bake start probe timer time time temp SET Setting the clock SETTIME 3. Press and hold the min/sec timer and bake time buttons simultaneously until you hear a tone and the word SET, a digital time display and the word TIME appears 2. While holding the min/sec timer and bake time buttons, rotate the SET knob to adjust the digital display to the current time of day. For this example, lets assume it is 4:45 TIME 3:00 SET

36 min /sec bake start probe timer time time temp SET Setting the clock SETTIME 3. Press and hold the min/sec timer and bake time buttons simultaneously until you hear a tone and the word SET, a digital time display and the word TIME appears 2. While holding the min/sec timer and bake time buttons, rotate the SET knob to adjust the digital display to the current time of day. For this example, lets assume it is 4:45 TIME 3:15 SET

37 min /sec bake start probe timer time time temp SET Setting the clock SETTIME 3. Press and hold the min/sec timer and bake time buttons simultaneously until you hear a tone and the word SET, a digital time display and the word TIME appears 2. While holding the min/sec timer and bake time buttons, rotate the SET knob to adjust the digital display to the current time of day. For this example, lets assume it is 4:45 TIME 3:30 SET

38 min /sec bake start probe timer time time temp SET Setting the clock SETTIME 3. Press and hold the min/sec timer and bake time buttons simultaneously until you hear a tone and the word SET, a digital time display and the word TIME appears 2. While holding the min/sec timer and bake time buttons, rotate the SET knob to adjust the digital display to the current time of day. For this example, lets assume it is 4:45 TIME 3:45 SET

39 min /sec bake start probe timer time time temp SET Setting the clock SETTIME 3. Press and hold the min/sec timer and bake time buttons simultaneously until you hear a tone and the word SET, a digital time display and the word TIME appears 2. While holding the min/sec timer and bake time buttons, rotate the SET knob to adjust the digital display to the current time of day. For this example, lets assume it is 4:45 TIME 4:00 SET

40 min /sec bake start probe timer time time temp SET Setting the clock SETTIME 3. Press and hold the min/sec timer and bake time buttons simultaneously until you hear a tone and the word SET, a digital time display and the word TIME appears 2. While holding the min/sec timer and bake time buttons, rotate the SET knob to adjust the digital display to the current time of day. For this example, lets assume it is 4:45 TIME 4:15 SET

41 min /sec bake start probe timer time time temp SET Setting the clock SETTIME 3. Press and hold the min/sec timer and bake time buttons simultaneously until you hear a tone and the word SET, a digital time display and the word TIME appears 2. While holding the min/sec timer and bake time buttons, rotate the SET knob to adjust the digital display to the current time of day. For this example, lets assume it is 4:45 TIME 4:30 SET

42 min /sec bake start probe timer time time temp SET Setting the clock SETTIME 3. Press and hold the min/sec timer and bake time buttons simultaneously until you hear a tone and the word SET, a digital time display and the word TIME appears 2. While holding the min/sec timer and bake time buttons, rotate the SET knob to adjust the digital display to the current time of day. For this example, lets assume it is 4:45 TIME 4:45 SET

43 min /sec bake start probe timer time time temp SET Setting the clock 5. When the digital time has been set, release the SET knob TIME 4:45 SET

44 min /sec bake start probe timer time time temp SET Setting the clock 6. Now release both the min/sec and bake time buttons Continue 5. When the digital time has been set, release the SET knob TIME 4:45 SET

45 min /sec bake start probe timer time time temp SET Setting the clock 7. The analog clock will advance to synchronize with the digital time SETTIME 8. The word SET will disappear. After 5 seconds, a tone will sound and the word TIME and the digital time will disappear. 5. When the digital time has been set, release the SET knob 6. Now release both the min/sec and bake time buttons TIME 4:45 SET

46 min /sec bake start probe timer time time temp SET Setting the clock SETTIME 8. The word SET will disappear. After 5 seconds, a tone will sound and the word TIME and the digital time will disappear. 7. The analog clock will advance to synchronize with the digital timeYOU HAVE NOW SUCCESFULLY SET THE CLOCK Continue TIME 4:45
