1
Manganese Oxidizing Bacteria Cynthia McClain HMC 2012 July 19, 2012
2

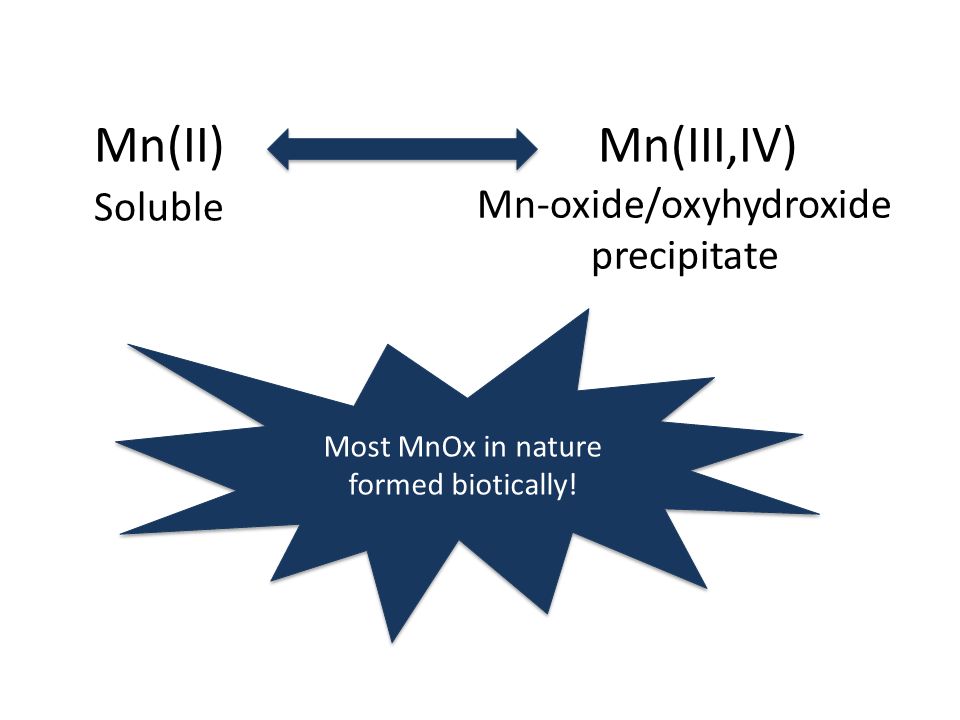

Mn(II) Mn(III,IV) Soluble Mn-oxide/oxyhydroxide precipitate Most MnOx in nature formed biotically!
3
Niche Physical and chemical gradients
4
Manganese Oxidizing Bacteria Multicopper oxidase or peroxidase proteins
5
Isolation 1.Collect water or sediment sample (slurry) 2.Streak 100-200µl supernatant on K media plate: MnCl 2, peptone, yeast extract 3.Incubate 1-3 weeks 4.Restreak brown colonies 5.Test with Leucoberbelin Blue (LBB)
6
Experimental Results Different morphologies – Color – Size Positive LBB – Soil – Sand from mouth of Elkhorn Slough (2) – Kirby Park oily sheen (1) – Baby seal beach sand (1)
7
Movie of LBB Test Sand from mouth of Elkhorn Slough
8
Soil
10
Kirby Park Oily Sheen
12
Baby Seal Beach
15
Manganese Oxidizing Bacteria Phylogeny Why oxidize Mn? Environmental Significance
16
Thank you!
