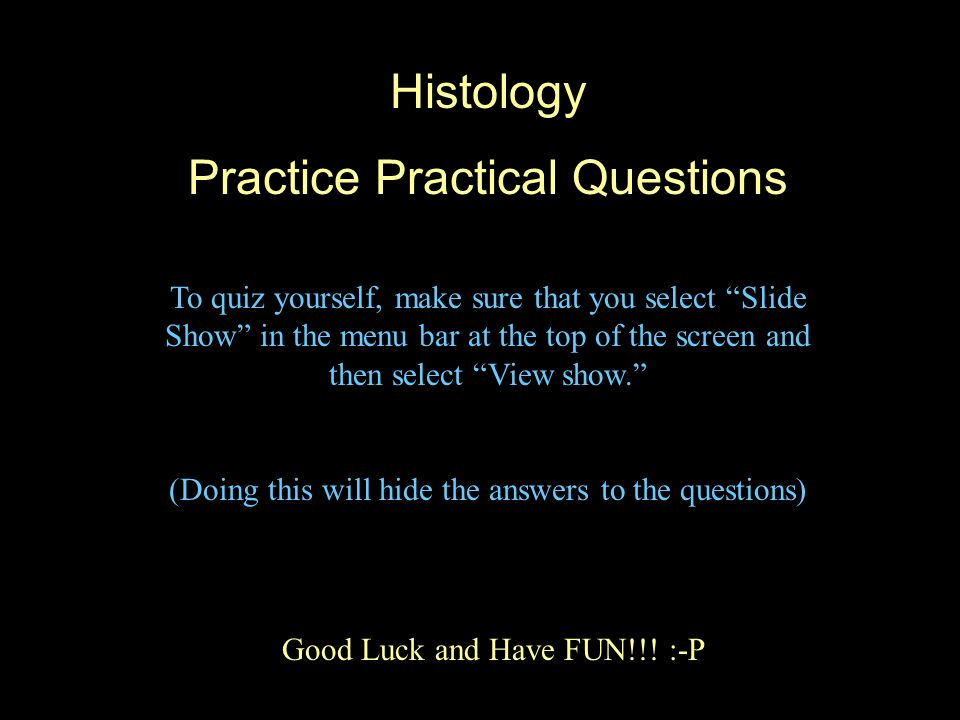

1. Histology Practice Practical Questions To quiz yourself, make sure that you select “Slide Show” in the menu bar at the top of the screen and then select “View show.” (Doing this will hide the answers to the questions) Good Luck and Have FUN!!! :-P

2. 1) What type of epithelium is this? (long arrow) Click here for Answers 1) Simple squamous epithelium

3. 1) Name the structure crossing the bottom half of the picture 2) Identify the cells indicated by the short arrows 3) Identify the light pink substance crossing the bottom of the slide Click here for Answers 1) Tendon 2) Fibroblasts 3) Collagen

4. 1) Name the structure the picture depicts. 2) Name the structure indicated by the arrow accompanying the “T” 3) Identify the structure indicated by the long arrow. 4) Identify the structure indicated by the short arrow head Click here for Answers 1) Lymph node 2) Trabeculae 3) Lymphatic nodule 4) CT capsule

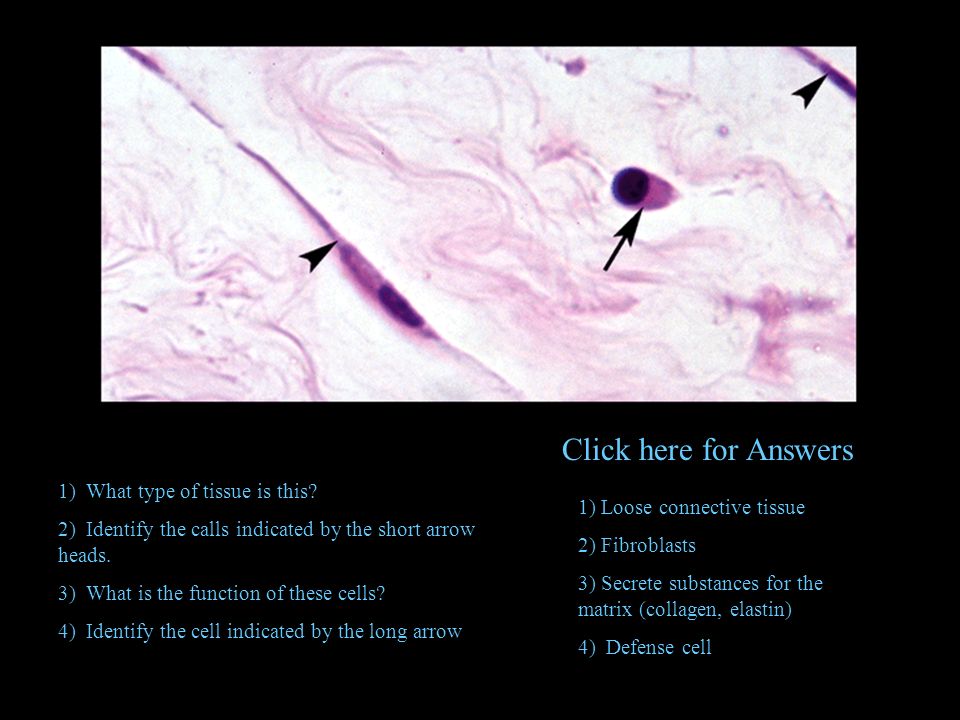

5. 1) What type of tissue is this? 2) Identify the calls indicated by the short arrow heads. 3) What is the function of these cells? 4) Identify the cell indicated by the long arrow Click here for Answers 1) Loose connective tissue 2) Fibroblasts 3) Secrete substances for the matrix (collagen, elastin) 4) Defense cell

6. 1) Identify the tissue 2) Identify the specific structure indicated by the arrow 3) What type of cells make up the lighter center of this structure? 4) Identify the structure indicated by the arrow. 5) Where in the body might you find this tissue? Click here for Answers 1) Mixed glandular 2) Serous demilune 3) Mucus secreting cells / Mucus gland 4) Serous 5) sub-maxillary or submandibular region # 1-3 # 4

7. 1) Identify this structure? 2) What type of epithelium is located on the outside of this structure? Click here for Answers 1) Palatine/Lingual Tonsil 2) Stratified squamous non- keratinized

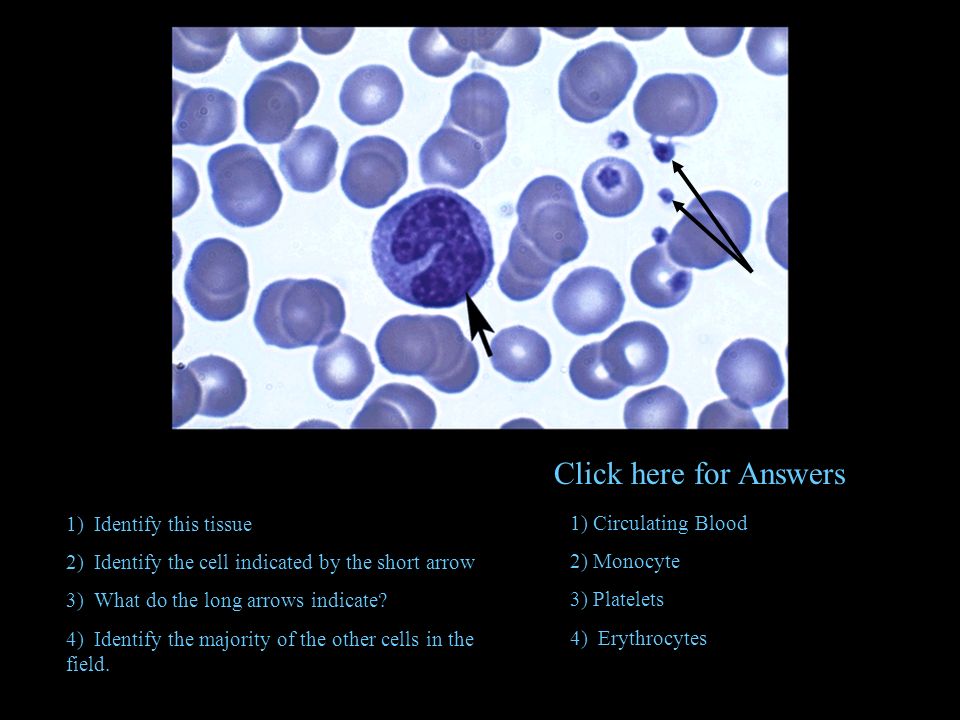

8. 1) Identify this tissue 2) Identify the cell indicated by the short arrow 3) What do the long arrows indicate? 4) Identify the majority of the other cells in the field. Click here for Answers 1) Circulating Blood 2) Monocyte 3) Platelets 4) Erythrocytes

9. 1) What is this structure? Click here for Answer 1) a desmosome

10. 1) Identify the structrues indicated by the arrows 2) Name the cells scattered thoughout these structures 3) Identify the cells lining these structures Click here for Answers 1) Spicules 2) Osteocytes 3) Osteogenic cells (osteoblasts if columanr in shape)

11. 1) Identify the tissue indicated by the short arrow. 2) Identify the tissue indicated by the yellow arrow 3) Identify the layer indicated by the long arrow 4) What type of cells are indicated by the short arrow 5) Bonus! What structure is depicted in the picture? Click here for Answers 1) Hyaline cartilage 2) Pseudostratified Ciliated Epithelium 3) Perichondrium 4) Chondrocytes 5) Trachea

12. 1) Name the structure the to which the short arrows are pointing. 2) What is the structure in the middle of the picture? 3) Name the structure the long arrow is indicating Click here for Answers 1) Golgi complex 2) Nucleus 3) Mitochondria

13. 1) What type of tissue is shown in the top picture? 2) What type of tissue is shown in the bottom picture? Click here for Answers 1) Elastic Cartilage 2) Fibrocartilage

14. 1) What tissue and preparation does this picture depict? 2) Identify the layer the arrows are identifying 3) Identify the structures indicated by the short arrowheads What is housed in these spaces? 4) Name the type of cells of the pink layer 5) Bonus! What tissue fills the far left of the picture? Click here for Answers 1) Decalicified bone 2) Periosteum 3) Lacunae / Blood vessels 4) Osteocytes 5) Bone Marrow with scattered adipocytes

15. 1) Name the structure the picture depicts. 2) Name the middle light purple layer of this structure. What is it made of? 3) Identify the substance to which the arrow heads are pointing Click here for Answers 1) Muscular artery 2) Tunica media / Muscle 3) Elastin

16. 1) Identify the structures indicated by the arrows What light colored centers of these structures called? 2) Where are these structures located in the body? 3) Identify the tissue indicted by the yellow arrow Click here for Answers 1) Peyer’s patches / germinal centers 2) In the intestine (the ilieum) 3) Simple columnar secretory and absorptive apitheleium

17. 1) Identify the tissue in the center of the image 2) What type of cell is indicated by the long arrow? 3) Where might this tissue be found? 4) Bonus! What type of cells are indicated by the short arrows? Click here for Answers 1) Simple columnar secretory and absorptive epithelium 2) Goblet cell 3) In the intestine 4) Defense cells

18. 1) Identify the layer indicated by the short arrow 2) What types of cells are found in this layer (from #1)? 3) Identify the layer indicated by the long arrows 4) Name the structures to which the long arrows are pointing 5) What is the tissue filling the far right of the picture? Click here for Answers 1) Fiberous Perichondruim 2) Chondroblasts 3) Chondrogenic 4) Cell nests 5) Adipose

19. 1) Identify the organ 2) Identify the structure indicated by the arrowhead 3) Identify the region indicated by the arrowhead 4) Name the area that surrounds the region named in the last question. 5) Identify the structures the long arrows are indicating Click here for Answers 1) Spleen 2) Lymphatic nodule 3) White pulp 4) Red Pulp 5) Trabeculae

20. Name these cells. Click here for Answers 1) Polychromatophilic erythroblasts 2) Normoblasts 3) Megakaryocyte 1 2 3
