1 Quit Tissues of The Body Part 1 Start

2 Quit Connective Tissue Epithelial Tissue TABLE OF CONTENTS Tissues of the Body Part 1

3 Quit EPITHELIAL TISSUE Pseudostratified Ciliated Columnar Epithelium Simple Columnar Epithelium Simple Cuboidal Epithelium Simple Squamous Epithelium 100x 40x 100x 400x 100x 400x 1000x 400x 1000x Tissues of the Body Part 1

4 Quit Simple Squamous Epithelial Tissue 100x Tissues of the Body Part 1

5 Quit Simple Squamous Epithelial Tissue 400x cells Tissues of the Body Part 1

6 Quit Simple Squamous Epithelial Tissue 1000x plasma membrane cytoplasm nucleus nucleolus organelles Tissues of the Body Part 1

7 Quit Simple Columnar Epithelial Tissue 40x Tissues of the Body Part 1

8 Quit Lumen Simple Columnar Epithelial Tissue 100x lumen epithelial cells connective tissue Tissues of the Body Part 1

9 Quit Simple Columnar Epithelial Tissue 400x cytoplasm nucleus cilia goblet cell basement membrane connective tissue cells Tissues of the Body Part 1

10 Quit Simple Cuboidal Epithelial Tissue 40x Tissues of the Body Part 1

11 Quit Simple Cuboidal Epithelial Tissue 100x simple cuboidal epithelial tissue lumen Tissues of the Body Part 1

12 Quit Simple Cuboidal Epithelial Tissue 400x cell cytoplasm nucleus lumen connective tissue connective tissue basement membrane basement membrane Tissues of the Body Part 1

13 Quit epithelial tissue connective tissue Pseudostratified Ciliated Columnar Epithelial Tissue 100x Tissues of the Body Part 1

14 Quit Pseudostratified Ciliated Columnar Epithelial Tissue 400x cilia epithelial cells connective tissue cuboidal epithelial cells lumen goblet cells Tissues of the Body Part 1

15 Quit Pseudostratified Ciliated Columnar Epithelial Tissue 1000x cilia goblet cell goblet cell nucleus epithelial cells basement membrane basement membrane basal cell lumen Tissues of the Body Part 1

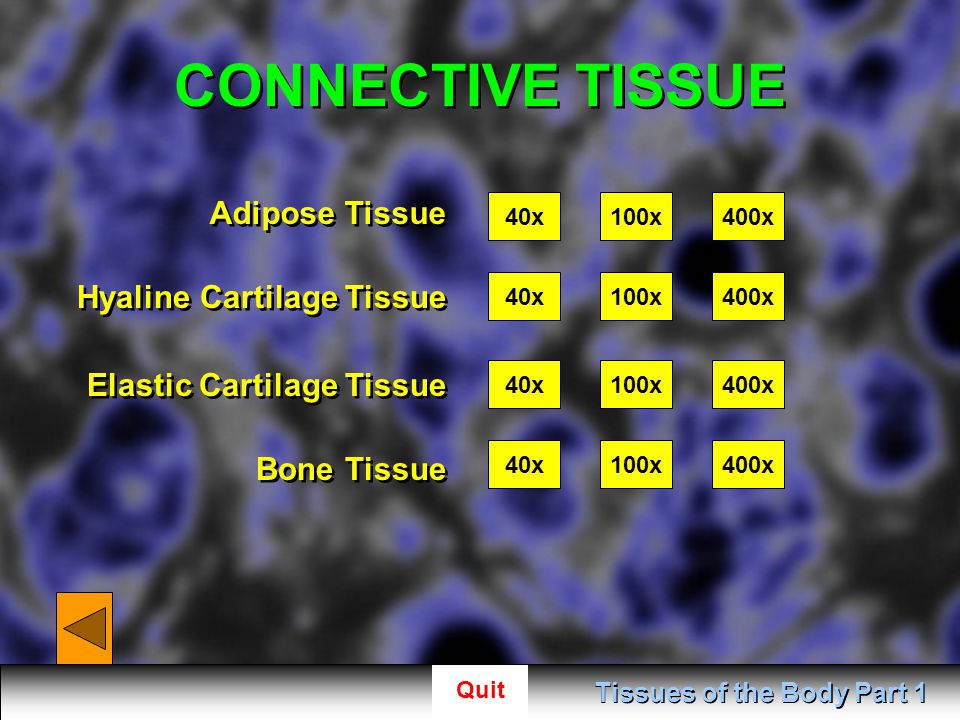

16 Quit CONNECTIVE TISSUE Bone Tissue Hyaline Cartilage Tissue Elastic Cartilage Tissue Adipose Tissue 40x 100x 400x Tissues of the Body Part 1

17 Quit Adipose Tissue 40x blood vessel adipocytes Tissues of the Body Part 1

18 Quit Adipose Tissue 100x adipocyte blood vessel Tissues of the Body Part 1

19 Quit Adipose Tissue 400x cytoplasm nucleus fat globule blood vessel Tissues of the Body Part 1

20 Quit Hyaline Cartilage Tissue 40x hyaline cartilage tissue columnar epithelial tissue Tissues of the Body Part 1

21 Quit Hyaline Cartilage Tissue 100x chondrocytes intercellular matrix Tissues of the Body Part 1

22 Quit Hyaline Cartilage Tissue 400x chondrocyte lacuna nucleus intercellular matrix empty lacuna cell in lacuna cell in lacuna Tissues of the Body Part 1

23 Quit Elastic Cartilage Tissue 40x adipose tissue perichondrium elastic cartilage tissue Tissues of the Body Part 1

24 Quit Elastic Cartilage Tissue 100x elastic cartilage tissue perichondrium Tissues of the Body Part 1

25 Quit chondrocytes lacuna nucleus elastic fibers intercellular matrix Elastic Cartilage Tissue 400x Tissues of the Body Part 1

26 Quit Bone Tissue 40x Haversian systems Tissues of the Body Part 1

27 Quit Bone Tissue 100x osteocytes intercellular matrix central (Haversian) canal central (Haversian) canal Tissues of the Body Part 1

28 Quit Bone Tissue 400x osteocyte lacuna canaliculi lamella central (Haversian) canal central (Haversian) canal Tissues of the Body Part 1
