1. SUNBURST TECHNOLOGY CORPORATION TEAM#1 SUNFLOWER Nil Tuğçe Patan İrem Akdaş Ali Öztaş Berkay Öğdük Betül Örün Tuğçe Kartalkanat INTERMEDIATE PRESENTATION

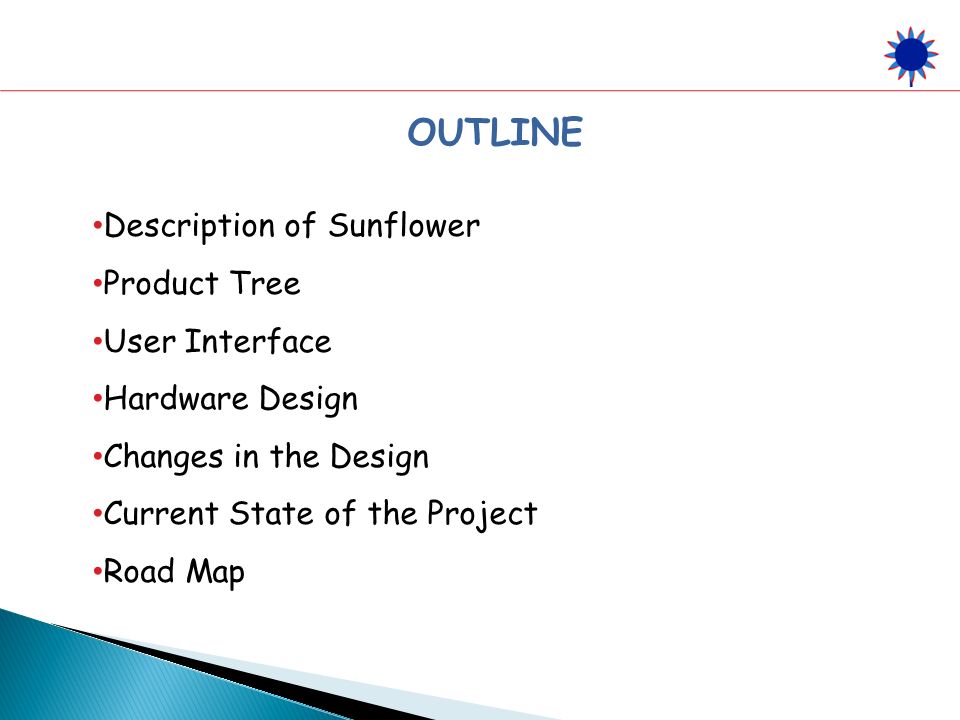

2. OUTLINE Description of Sunflower Product Tree User Interface Hardware Design Changes in the Design Current State of the Project Road Map

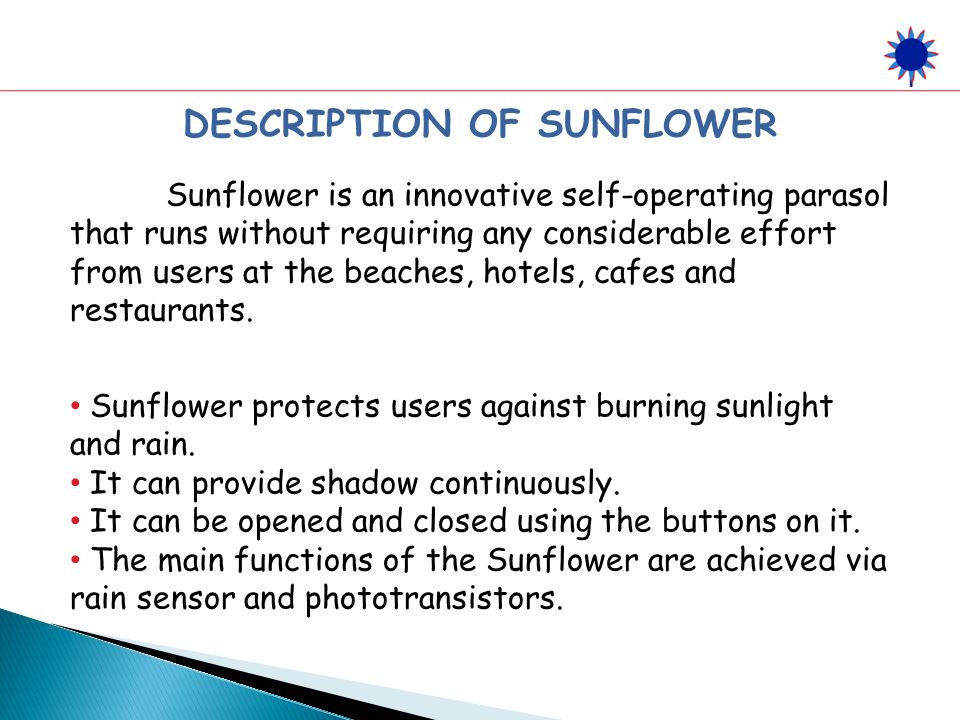

3. DESCRIPTION OF SUNFLOWER Sunflower is an innovative self-operating parasol that runs without requiring any considerable effort from users at the beaches, hotels, cafes and restaurants. Sunflower protects users against burning sunlight and rain. It can provide shadow continuously. It can be opened and closed using the buttons on it. The main functions of the Sunflower are achieved via rain sensor and phototransistors.

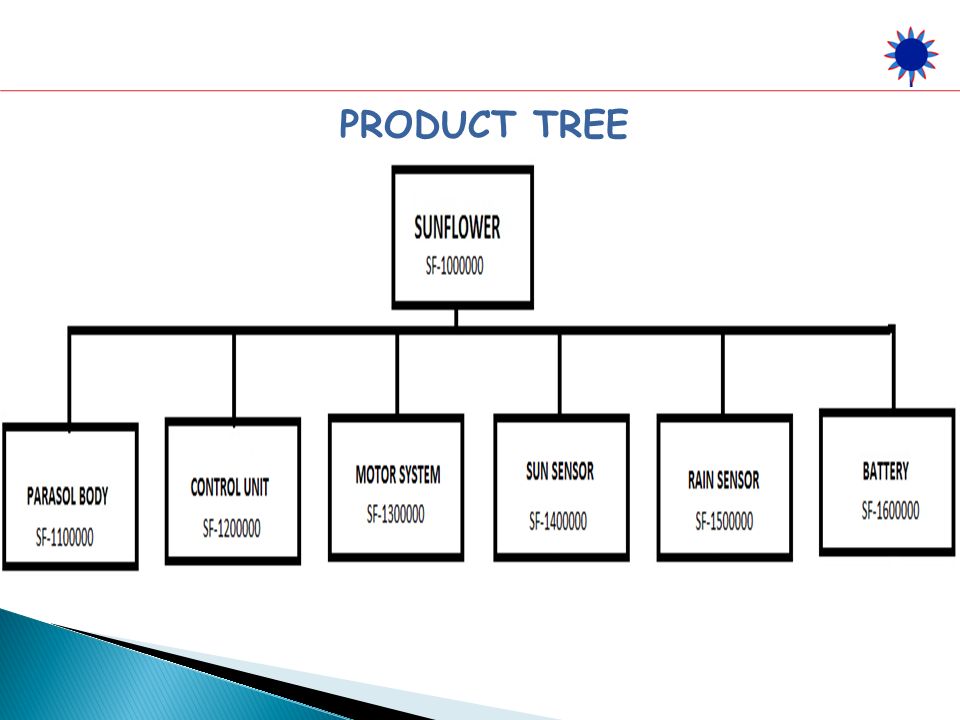

4. PRODUCT TREE

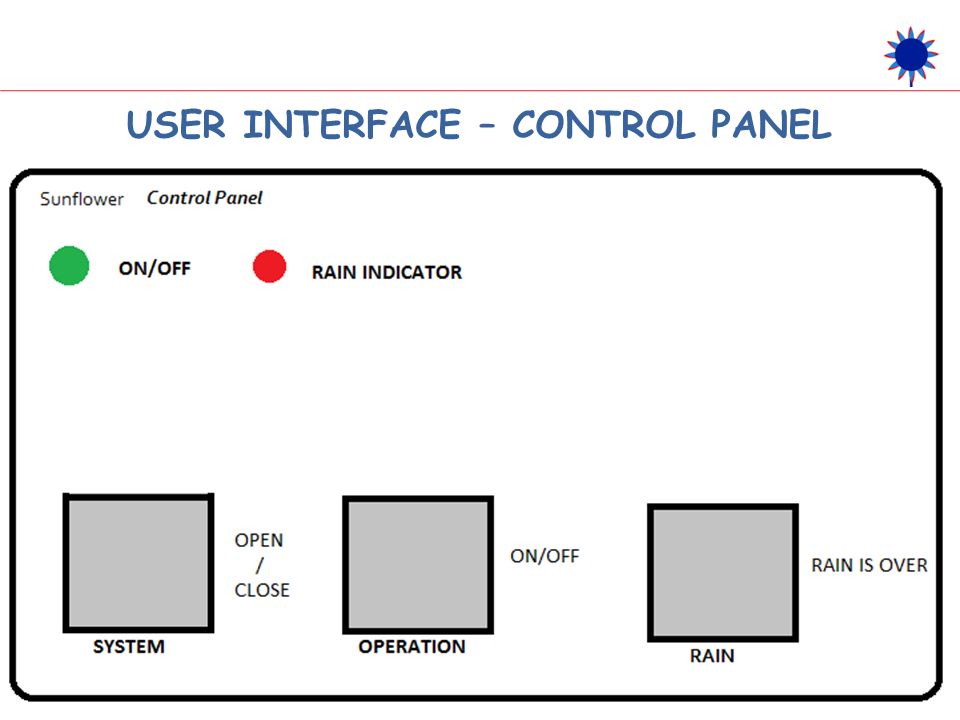

5. USER INTERFACE – CONTROL PANEL

6. FLOW CHART DIAGRAM

7. CIRCUIT DIAGRAM

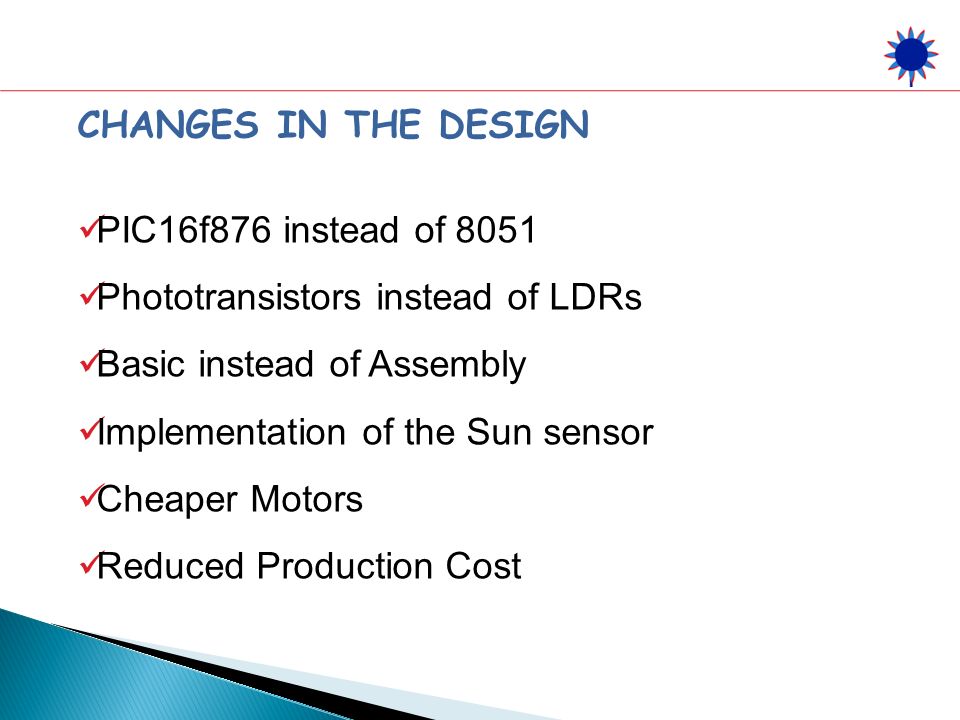

8. CHANGES IN THE DESIGN PIC16f876 instead of 8051 Phototransistors instead of LDRs Basic instead of Assembly Implementation of the Sun sensor Cheaper Motors Reduced Production Cost

9. CURRENT STATE OF THE PROJECT Electrical Design Software Design Mechanical Design Industrial Design Movement in one direction Printed Circuit Boards

10. ROAD MAP Week 1: Research and procurement of equipment Week 2: Configuration Management Week 3: Revisions of Documents Week 5: Electrical Design Package – Progress Report 1

11. ROAD MAP Week 6: Printed Circuit Boards Week 7: Trader’s Conference Week 8: Mechanical & Industrial Designs Week 9-10: Improving the prototype to operate in more directions Week 11-12: Implementation of Rain Sensor
