IBM Corporation © 2011 IBM Corporation Introduction to IBM Tivoli Composite Application Manager (ITCAM) for Application Diagnostics 7.1 Donna Martin

© 2011 IBM Corporation IBM Corporation03/14/11 2 Agenda ● Overview –Description –Architecture –Relationship to earlier ITCAM products ● User Interfaces –Tivoli Enterprise Portal (TEP) –Managing Server Visualization Engine (MSVE) ● Reference Materials

© 2011 IBM Corporation IBM Corporation03/14/11 4 Description ITCAM for Application Diagnostics: ● Is a monitoring and diagnostics tool for WebSphere, J2EE, and HTTP servers ● Helps isolate problems and performance bottlenecks in application code, server resources, and external system dependencies through real time problem determination ● Allows monitoring at different levels to avoid unnecessary overhead ● Provides in depth application analysis capability ● Integrates with other products –IBM Tivoli Monitoring –ITCAM for Transactions provides response time monitoring –Correlates transactions from WebSphere to CICS/IMS backends

© 2011 IBM Corporation IBM Corporation03/14/11 5 Description … ITCAM for Application Diagnostics can Monitor: ● WebSphere Servers –WebSphere Application Server (Network Deployment) –WebSphere Application Server (Extended Deployment) –WebSphere Process Server –WebSphere Portal Server –WebSphere ESB Server ● J2EE Servers (currently done via ITCAM for J2EE 6.1) –SAP Net Weaver –Oracle Application Server –JBoss Application Server –Apache Tomcat –BEA WebLogic Server –BEA WebLogic Portal Server –WebSphere Application Server CE –J2SE –Sun Java™ System Application Server Enterprise Edition ● HTTP Servers –Apache Web Server –IBM HTTP Server –Sun Java System Web Server

© 2011 IBM Corporation IBM Corporation03/14/11 6 Description … ITCAM for Application Diagnostics can diagnose: ● Hanging requests ● Lock contention problems ● Malfunctioning applications in a server farm ● Memory problems relating to garbage collection and JVM heap size ● Poorly performing transactions

© 2011 IBM Corporation IBM Corporation03/14/11 7 Architecture ITCAM for Application Diag. Managing Server DB2or Oracle Database ITM Tivoli Enterprise Monitoring Server(TEMS) Tivoli Enterprise Portal Server (TEPS) TEP (Tivoli Enterprise Portal) IBM Tivoli Monitoring v6.2.2 ITM Admin/Operator Tivoli Data Warehouse (TDW) SME ITCAM for WAS Web UI Portal Browser/Desktop Client ITCAM for Application Diagnostics v7.1 TEMA – Tivoli Enterprise Monitoring Agent Information collected by Data Collector is sent to ITM via the TEMA Data Collectors (e.g. WAS) Monitored Systems Monitoring System ITCAM for WS/J2EE Server Components ITCAM for WS/J2EE Visualization Engine Optional IBM Tivoli Monitoring

© 2011 IBM Corporation IBM Corporation03/14/11 8 Architecture … Agents - made up of 2 components: ● Data Collector –Runs on monitored WebSphere or J2EE Application Server * Web Servers do not have a Data Collector –Collects and routes data to the Monitoring Agent and Managing Server –Does not analyze or interpret data –When running in production mode –Minimum overhead –Non-intrusive data gathering ● TEMA - Tivoli Enterprise Monitoring Agent (aka Monitoring Agent) –Component of the IBM Tivoli Monitoring (ITM) architecture –Ships with ITCAM for Application Diagnostics –Routes information to ITM

© 2011 IBM Corporation IBM Corporation03/14/11 9 Architecture … ITM Architecture – TEMS, TEPS and TEP IBM Tivoli Monitoring monitors the performance and availability of operating systems and applications. Components include: ● Tivoli Enterprise Monitoring Server (TEMS) –Acts as a collection and control point for alerts that are received from the Monitoring Agents. –Tracks the heartbeat request interval for all Monitoring Agents connected to it. –Stores, initiates, and tracks all situations and policies, and is the central repository for storing all active conditions on every Monitoring Agent. –Initiates and tracks all generated actions that invoke a script or program on the Monitoring Agent. –Integrates with the Tivoli Data Warehouse (TDW) for long-term history.

© 2011 IBM Corporation IBM Corporation03/14/11 10 Architecture … ITM Architecture – TEMS, TEPS and TEP … ● Tivoli Enterprise Portal Server (TEPS) –Acts as a repository for all graphical presentations of monitoring data. –Provides the core presentation layer, which allows for the retrieval, manipulation, analysis, and reformatting of data. –Manages data access through user workspace consoles. ● Tivoli Enterprise Portal (TEP) –Java-based user interface that connects to the TEPS and displays monitoring data. –The TEP can be launched from an Internet Explorer browser, or can be installed as a client application on a workstation. –Provides a common look and feel for Tivoli products using TEP –Provides easy-to-customize workspaces that can combine data from multiple products

© 2011 IBM Corporation IBM Corporation03/14/11 12 Architecture … Managing Server Components … ● Kernel –Central controller of the ITCAM Application Monitor –Registers components as they join –Periodically renews connections –Collects availability information ● Visualization Engine –Provides web-based GUI to the end user –Provides access to graphics, reports and views of different slices of data –Provides access to command & event functions of ITCAM –J2EE application (ITCAM_Application) that runs on the AppServer within the WAS jvm ● Publish Server –Receives event data from Data Collectors –Computes request level information, such as response time –Implements trap monitoring and alerts

© 2011 IBM Corporation IBM Corporation03/14/11 13 Managing Server Components … ● Global Publish Server –Collects information from Publish Sever –Correlates multi-server requests, e.g., WAS to CICS transaction ● Archive Agent –Receives data from Publish Server –Stores data in Performance Analysis Database ● Message Dispatcher –Conduit for messages from ITCAM –Used for Email & SNMP Architecture …

© 2011 IBM Corporation IBM Corporation03/14/11 14 Earlier ITCAM Products ● ITCAM for WebSphere 6.1 –MS, DC, TEMA for WebSphere products –Distributed and z/OS platforms ● ITCAM for J2EE 6.1 –MS, DC, TEMA for non-WebSphere (e.g. WebLogic, JBoss) App Servers –Distributed platforms only ● ITCAM for Web Resources 6.2 –TEMA for WebSphere products and non-WebSphere App Servers –Uses ITCAM for WebSphere 6.1 and ITCAM for J2EE 6.1 DCs –TEMA for Web Servers –Distributed platforms only

© 2011 IBM Corporation IBM Corporation03/14/11 15 Earlier ITCAM Products … Old Agent Name and VersionNew Agent Name and Version ITCAM for WebSphere – WebSphere Monitoring Agent and Data Collector 6.1ITCAM Agent for WebSphere Applications 7.1 (distributed and z/OS) ITCAM for Web Resources – WebSphere Monitoring Agent 6.2 ITCAM for J2EE – J2EE Monitoring Agent and Data Collector 6.1ITCAM Agent for J2EE 6.1 FP4 or 6.2 FP4 (distributed only) ITCAM for Web Resources – J2EE Monitoring Agent 6.2 ITCAM for Web Resources – Web Server Monitoring Agent 6.2 ITCAM Agent for HTTP Servers 7.1 (distributed only)

© 2011 IBM Corporation IBM Corporation03/14/11 18 Tivoli Enterprise Portal (TEP) … View of status through the Application Server Summary workspace  Top view is Resource status  Bottom view is Application status

© 2011 IBM Corporation IBM Corporation03/14/11 20 Tivoli Enterprise Portal (TEP) … A description of the WebSphere App Server TEP Workspaces can be found at: http://publib.boulder.ibm.com/infocenter/tivihelp/v24r1/index.jsp?topic=/com.ibm.itcamfa d.doc_7101/itcam_71_was_tema_help/kyn_wksp_overview.html ● Application Health workspace The workspace displays the information about the real- time health status of applications monitored by the Tivoli Enterprise Monitoring Agent. ● Request Analysis workspace The workspace reports response times and functional decomposition information about requests (including servlets, JSPs, and EJB methods) that completed during the interval. ● Garbage Collection Analysis workspace This workspace summarizes all the Java Virtual Machine's (JVM) garbage-collector activity over a user-defined interval. ● Log Analysis workspace This workspace reports application server error and exception conditions as recorded in the application server's log file. ● Pool Analysis workspace This workspace displays information about the usage of several types of pools associated with each application server, including Web container pools, ORB pools, J2C connection pools, and database connection pools. This workspace helps you detect resource constraints and potential performance congestion. Pre-defined Workspaces Primary Workspaces

© 2011 IBM Corporation IBM Corporation03/14/11 21 Tivoli Enterprise Portal (TEP) … ● Datasources workspace This workspace displays information about datasource connections. ● JMS Summary workspace The JMS Summary workspace displays information about queues being used by your applications using the Java Message Service (JMS) interface. ● Web Applications workspace This workspace displays information about the Web applications running in J2EE application servers. ● EJB Containers workspace This workspace displays aggregated information about each defined EJB. ● DB Connection Pools workspace This workspace displays information about the database connection pools associated with each application server. ● J2C Connection Pools workspace This workspace reports information about resource adapters and connectors that adhere to J2C, the WebSphere Application Server implementation of the J2EE Connector Architecture (JCA). ● Thread Pools workspace This workspace reports information about the various thread pools that support the applications running in your Java Virtual Machine (JVM). Primary Workspaces …

© 2011 IBM Corporation IBM Corporation03/14/11 22 Tivoli Enterprise Portal (TEP) … ● Cache Analysis workspace This workspace reports information about the dynamic cache. ● Workload Management workspace This workspace displays information about the Workload Management (WLM) server and about the WLM client that initiates workload requests to that server. ● Scheduler workspace The Scheduler workspace contains data for the Scheduler service. The scheduler service schedules and tracks the starting and stopping of applications. ● Web Services workspace The Web Services workspace displays information about the data counters of the Web services ● Messaging Workspace View of performance counters of the Messaging Engines supported by a server Primary Workspaces …

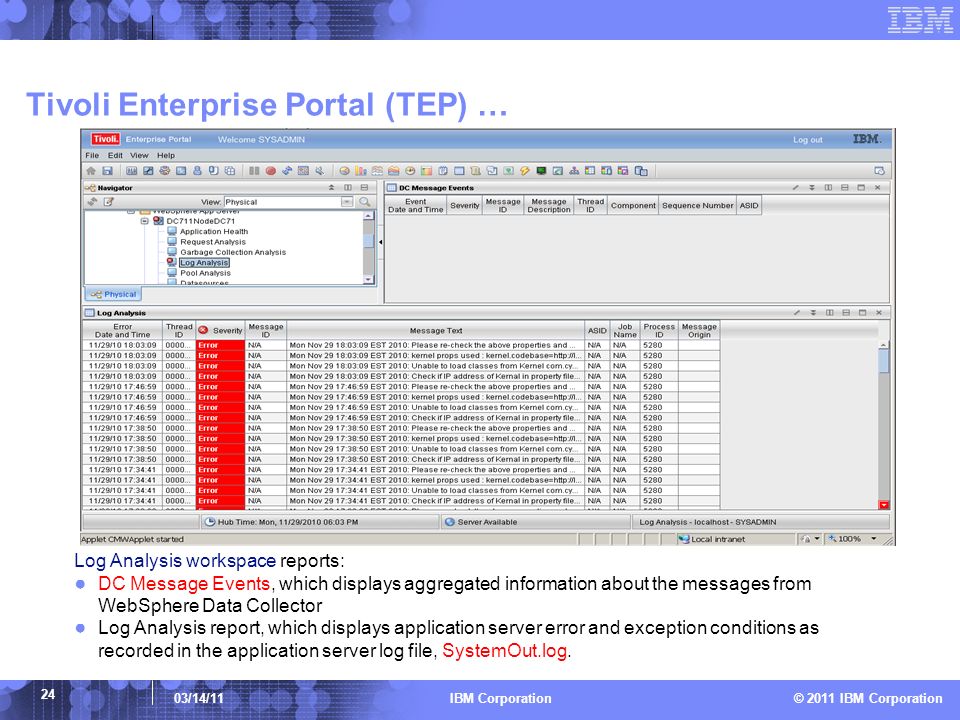

© 2011 IBM Corporation IBM Corporation03/14/11 24 Tivoli Enterprise Portal (TEP) … Log Analysis workspace reports: ● DC Message Events, which displays aggregated information about the messages from WebSphere Data Collector ● Log Analysis report, which displays application server error and exception conditions as recorded in the application server log file, SystemOut.log.

© 2011 IBM Corporation IBM Corporation03/14/11 25 Tivoli Enterprise Portal (TEP) … The Application Health workspace displays the information about the real-time health status of applications monitored by the Tivoli Enterprise Monitoring Agent.

© 2011 IBM Corporation IBM Corporation03/14/11 26 Tivoli Enterprise Portal (TEP) … ● Garbage collection (GC) is part of java automatic memory management whereby the Java Virtual Machine's (JVM) finds objects no longer referenced and cleans them up automatically through the GC process. ● This workspace summarizes all the JVM garbage-collector activity over a user-defined interval.

© 2011 IBM Corporation IBM Corporation03/14/11 29 Tivoli Enterprise Portal (TEP) … ITCAM for Application Diagnostics Integrates with ITCAM for Transaction Tracking Viewing Transaction Flow from TEP With ITCAM for WAS/J2EE and TTAPI integration, Users can use the following ITCAM for Transaction Tracking workspaces to view the transaction flow: ● Servers: This workspace provides aggregated data for all transactions and requests that occur in a physical computer over a period of time called the Aggregation Period. Transactions and requests can come from WebSphere Application Server, Web Servers, and WebSphere MQ products. The workspace is mainly used to isolate a performance problem to a physical computer. ● Components: This workspace provides aggregated data for all transactions and requests that occur in a major software component over a period of time. The main software components in a WebSphere production system may include WebSphere Application Server, WebSphere MQ, Web Server, and so on. Data reported by this workspace is mainly used to isolate a performance problem to a software component. ● Applications: This workspace provides aggregated data for all transactions and requests that occur in a major runtime instance within a period of time. For example, for the WebSphere Application Server component, the runtime instance is a WebSphere Application Server process; for WebSphere MQ, it is a queue manager process. The workspace is mainly used to isolate a performance problem to a runtime instance. ● Transactions: This workspace provides aggregated data for transaction instances. The aggregation is done over each distinctive Unit of Work (UOW) or Request. For example, in a WebSphere Application Server environment, a transaction or UOW is usually identified as a URI for a Servlet or JSP page. Data reported by this workspace can be used to isolate a performance problem to a specific transaction or request.

© 2011 IBM Corporation IBM Corporation03/14/11 31 Tivoli Enterprise Portal (TEP) … 31 ITCAM for TT Uses Dynamic Workspace Links to launch from ITCAM for Transaction Tracking to other products. Launch destinations depend on type on data source. For example: - MQ -> OMEGAMON XE for MSG - WAS/J2EE -> ITCAM for Application Diagnostics - CICS -> ITCAM for CICS - IMS -> ITCAM for IMS ITCAM for Application Diagnostics Launch In Context To ITCAM for Application Diagnostics MSVE Console

© 2011 IBM Corporation IBM Corporation03/14/11 33 MSVE - Availability ● Enterprise Overview displays information for all groups of servers. ● Group Overview provides a high-level overview of activity for each server in the group. The overview includes the response time and throughput for the last hour as well as the current monitoring level for each server. ● Server Overview displays comprehensive server information, activity and statistics for the selected server. ● Server Statistics Overview helps you compare activity and related platform data across servers so that you can recognize problems. ● Recent Activity Display helps you investigate potential memory problems relating to garbage collection and the JVM heap size. ● System Resources displays summary information for all resources on the selected application server. ITCAM captures the data for this page every five minutes for display. ● SMF Data View detailed information on Server, EJBs, Servlet Session Manager, Web applications, and Server Regions. The source of the data comes from the SMF records published by WebSphere on z/OS. The Application Monitor intercepts the transfer of the records and makes a copy in real time before writing it to the SMF dataset.

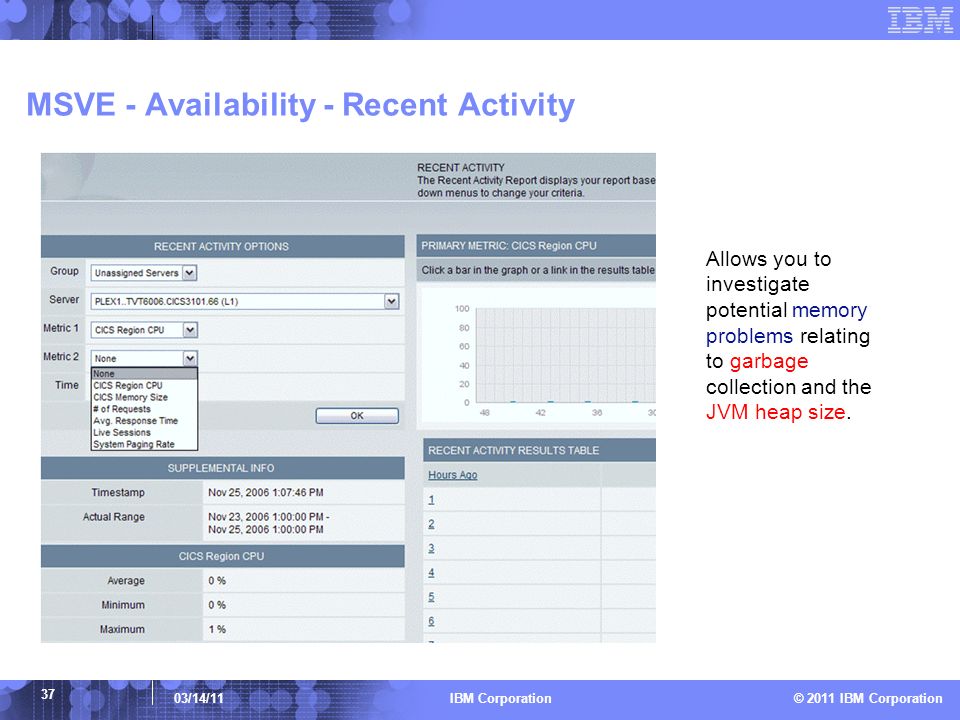

© 2011 IBM Corporation IBM Corporation03/14/11 39 MSVE - Problem Determination ● Alerts and Events Monitors high-priority trap alerts and Tivoli Enterprise Portal (TEP) events for the last 24 hours. From here, you can escalate events into the Problem Center for diagnosis and tracking. ● Problem Center All problems are escalated high-priority trap alerts and Tivoli Enterprise Portal (TEP) events. The details of each problem are available for your review. ● In-Flight Request Search lets you search for a request on your application servers by entering search data such as a URL. You may also view the stack trace, component trace, or method trace for a particular request. View, e-mail, or export the PDF file of the trace to other ITCAM users. ● Server Activity Display (SAD) provides thread data for an application server at a specific point in time, lock contention, or the 100 most recently completed requests. You may filter the threads by the type or thread status. After pinpointing a hung thread, click the Thread ID link to review its request detail. Click links to view the stack trace, component trace, or method trace. View, e-mail, or export the PDF file of the trace to other ITCAM users. ● Web Session Browser retrieves information on HTTP sessions. You can search a server, a group, or all servers and groups for a specific session. After activating the search, the system will take a snapshot of the server(s) and return a list of sessions.

© 2011 IBM Corporation IBM Corporation03/14/11 40 MSVE - Problem Determination … ● Memory Diagnosis The Memory Diagnosis section helps you discover memory related problems. Memory Analysis lets you create server activity analysis reports regarding memory. Heap Analysis captures the runtime heap of an application server and breaks it down by the class names of the objects residing in the heap at the time of the snapshot while providing the number of instances and the size of the information. Lastly, Memory Leak helps confirm the existence of a memory leak and identifies the most likely memory leak candidates. The Heap Dump Management provides a list of all the previously taken heap dumps. ● JVM Thread Display The JVM Thread Display shows all the threads running on the JVM, organized within thread groups. In addition, the JVM Thread Display provides a Thread Dump so you can view detailed information about resource consumption in a JVM. In addition, you can click on a thread to view the details for the thread, or to view a stack trace, change the thread priority, or cancel a thread. ● Trap and Alert Management Set software traps and alerts to monitor a group of servers or a selected server. Notifications are sent immediately when the system meets the conditions of the trap. Actions include sending an e-mail or an SNMP message, collecting Stack Trace, Component Trace, Method Trace, or Thread Dump. ● Software Consistency Check Use the software consistency check to troubleshoot atypical servers in an otherwise homogenous server group.

© 2011 IBM Corporation IBM Corporation03/14/11 41 MSVE – Problem Determination - Alerts & Events ● Centralized place to review all reported alerts ● Two sources of information –ITCAM for Application Diagnostics Trap Action History –TEP Console ● Escalate an alert to Problem Center for further diagnosis

© 2011 IBM Corporation IBM Corporation03/14/11 42 MSVE – Problem Determination - Problem Center ● Includes a summary of all the escalated problems and their status ● Users can add a problem manually ● Clicking the timestamp of the problem will bring the problem to the Problem Diagnosis Page.

© 2011 IBM Corporation IBM Corporation03/14/11 43 MSVE – Problem Determination - In-Flight Request Search ● Diagnose hung thread or slow response ● Change thread status & priority (one thread at a time) ● Cancel thread ● Determine request session object details Click on Thread/Task ID to view Request Detail page

© 2011 IBM Corporation IBM Corporation03/14/11 44 MSVE – Problem Determination - Server Activity Display ● Inflight & Active Request have similar uses ● Recent Requests 100 most recently completed requests ● Can filter Server Activity Display to show only EJB, Servlet, JSP, CICS

© 2011 IBM Corporation IBM Corporation03/14/11 45 MSVE – Problem Determination - Web Session Browser ● Retrieves information on HTTP sessions. ● You can search a server, a group, or all servers and groups for a specific session. ● After activating the search, the system will take a snapshot of the server(s) and return a list of sessions.

© 2011 IBM Corporation IBM Corporation03/14/11 46 MSVE – Problem Determination - Memory Diagnosis ● Heap Dump Tools –Heap Dump Management –Allow users to schedule heap dump –Available in DC running with IBM JDK only –Heap dump files can be analyzed by MDD4J under ISA –Heap Analysis –Provide class name, size and # of instances in the JVM ● Correlation Tools –Memory Analysis –Allow users to compare and correlate GC or JVM heap with other resource metrics –Examples are Average Response Time, Live Sessions and # of Requests ● Step-by-step Memory Leak diagnosis –Memory Leak –Predefined metrics in Memory Leak Confirm Report for users to determine whether a potential memory leak exists in the system –If so, schedule Heap Analysis Reports (Candidates)

© 2011 IBM Corporation IBM Corporation03/14/11 52 MSVE - Performance Analysis - Application Reports ● The Request/Transaction Analysis Report provides a whole picture about the behavior of the application server. ● The Method/Program Analysis Report shows you the performance of the methods in the requests that have been processed by the Application Servers. ● The SQL Analysis Report provides the information for the SQL calls’ performance in the requests that have been processed by the application server. ● The MQI Analysis Report provides the information for the MQI calls’ performance in the requests that have been processed by the application server. ● The Top Reports are a quick and convenient way to run a report for request, method, or SQL data. Top Reports provide the top 100 results records for the selected metric.

© 2011 IBM Corporation IBM Corporation03/14/11 53 MSVE - Performance Analysis - Server Reports ● The System Resource Analysis Report gives you the information of the utilization of the memory, and database connection pools for the application servers. You may also view: Note: This feature is not available for the z/OS data collector. ● The Server Availability Analysis Report shows the percentage of the server availability. In the group situation, availability is defined as the total amount of time when one or more servers of the group are up divided by the total elapsed time. ● The Capacity Analysis Report provides you with the necessary information to evaluate the capacity of your system using supply and demand metrics.

© 2011 IBM Corporation IBM Corporation03/14/11 54 MSVE - Performance Analysis – Method Profiling ● Method Profiling –Collect method level statistics at L2, rather than paying higher overhead to obtain method trace at L3 –Metrics: CPU Time and Elapsed Time for each application method

© 2011 IBM Corporation IBM Corporation03/14/11 56 Reference Material Software Base Code  ITCAM for Application Diagnostics 7.1 for distributed platforms -On Xtreme Leverage or Passport Advantage, search for ibm tivoli composite application manager diagnostics  ITCAM for Application Diagnostics 7.1 for z/OS - FMID HAAD71C – Common Services - FMID HAAD710 – z/OS Data Collector - FMID HKYN710 – z/OS TEMA

© 2011 IBM Corporation IBM Corporation03/14/11 57 Tivoli Enterprise Portal (TEP) … ● Missing TEP Data? If data is missing from the TEP, please review the following URL (which is written for ITCAM for WebSphere 6.1 but applies to ITCAM for Application Diagnostics 7.1 as well): http://www.ibm.com/developerworks/wikis/display/tivolimonitoring/Understanding+Tiv oli+Enterprise+Management+Agent+Workspaces+in+Tivoli+Enterprise+Portal+Versi on+6.1 ● TTAPI – ITCAM for Application Diagnostics Integration with ITCAM Transaction Tracking http://ausgsa.ibm.com/projects/t/ttec/public/ServiceAvailability_and_PerformanceMan agement/2009_09_09_GO_ITCAMfWebSphereJ2EE_ITCAMfTrxns_Integration/ ● Set up single signon between TEP and MSVE http://www.ibm.com/developerworks/wikis/display/tivolimonitoring/Implementing+Sing le+Sign-on+Between+the+Visualization+Engine+and+Tivoli+Enterprise+Portal ● ITCAM for WebSphere 6.1 Tuning and Best Practices http://www.ibm.com/support/docview.wss? &uid=swg27016319

© 2011 IBM Corporation IBM Corporation03/14/11 58 Other Sources of Information ● InfoCenter Publications –http://publib.boulder.ibm.com/infocenter/tivihelp/v24r1/index.jsp?topic=/com.ib m.itcamfad.doc_7101/ic-homepage.html ● L3 Wiki Site –http://www.ibm.com/developerworks/wikis/display/tivolimonitoring/Tivoli+Comp osite+Application+Manager+for+WebSphere ● IBM Electronic Support Portal (set this up for all products of interest) –https://www-947.ibm.com/support/entry/myportal ● External Wiki - IBM® Tivoli® Distributed Monitoring and Application Mgmt –http://www.ibm.com/developerworks/wikis/display/tivolimonitoring/home ● Internal Wiki - Virtual Community for AABSM –http://w3.tap.ibm.com/w3ki06/display/CAMVirtCom/Home ● System Requirements –http://www.ibm.com/support/docview.wss?uid=swg21433643 ● Recommended Fixes –http://www.ibm.com/support/docview.wss?uid=swg21439390 ● Must Gather Documentation –http://www.ibm.com/support/docview.wss?uid=swg21443620 ● Featured Documents –http://www.ibm.com/support/docview.wss?rs=4160&uid=swg21443618
