1. Pattern Recognition April 19, 2007 Suggested Reading: Horn Chapter 14

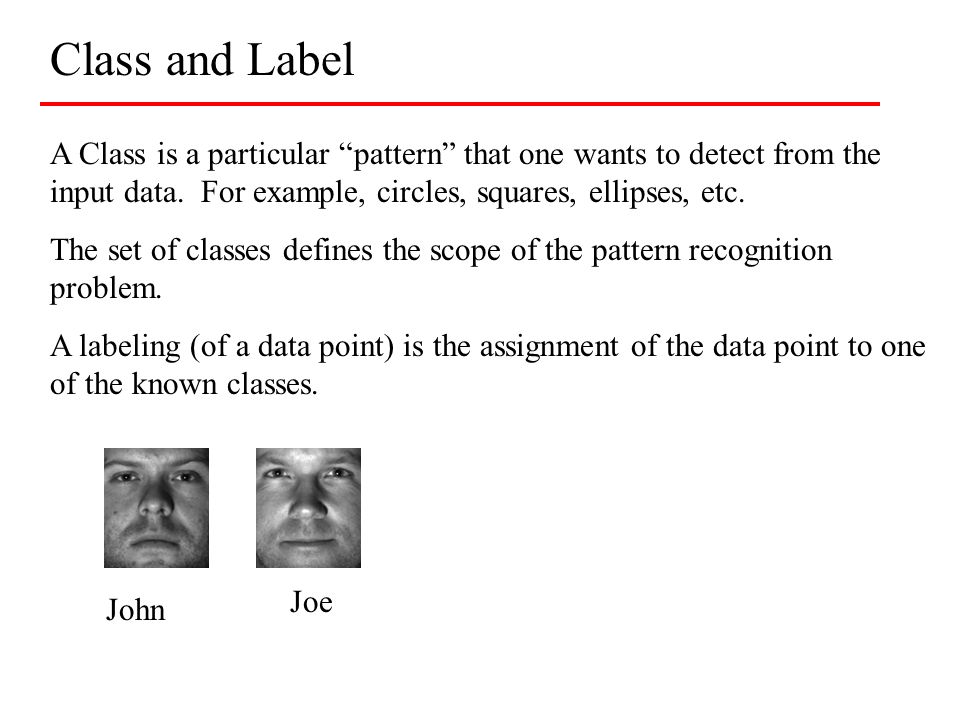

2. Class and Label A Class is a particular “pattern” that one wants to detect from the input data. For example, circles, squares, ellipses, etc. The set of classes defines the scope of the pattern recognition problem. A labeling (of a data point) is the assignment of the data point to one of the known classes. John Joe

3. Pattern Recognition Extract meaningful measurements from data points to form feature vectors. For face recognition, each pixel intensity can be considered as one measurement. The association: data point  its feature vector Allows us to work directly with vectors in vector space (mathematically tractable) Second important ingredient: How to compare features, i.e., we need (good) metrics.

4. Geometry in High Dimension Typically, this provides us with a collection of vectors in some high dimensional vector space. L 2 norm between two vectors

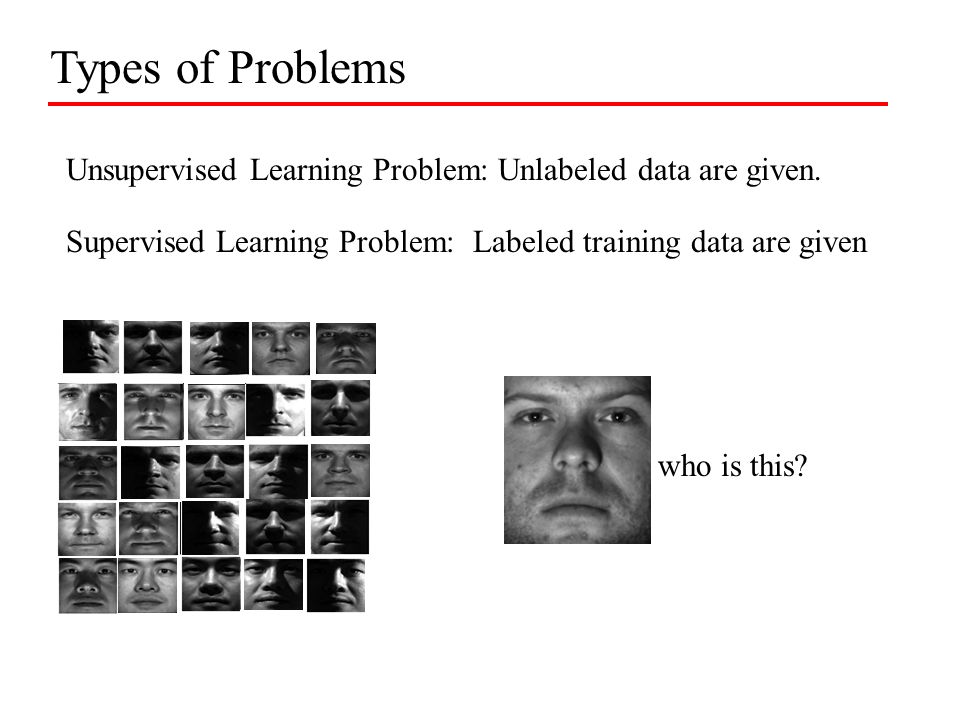

5. Types of Problems Supervised Learning Problem: Labeled training data are given Unsupervised Learning Problem: Unlabeled data are given. who is this?

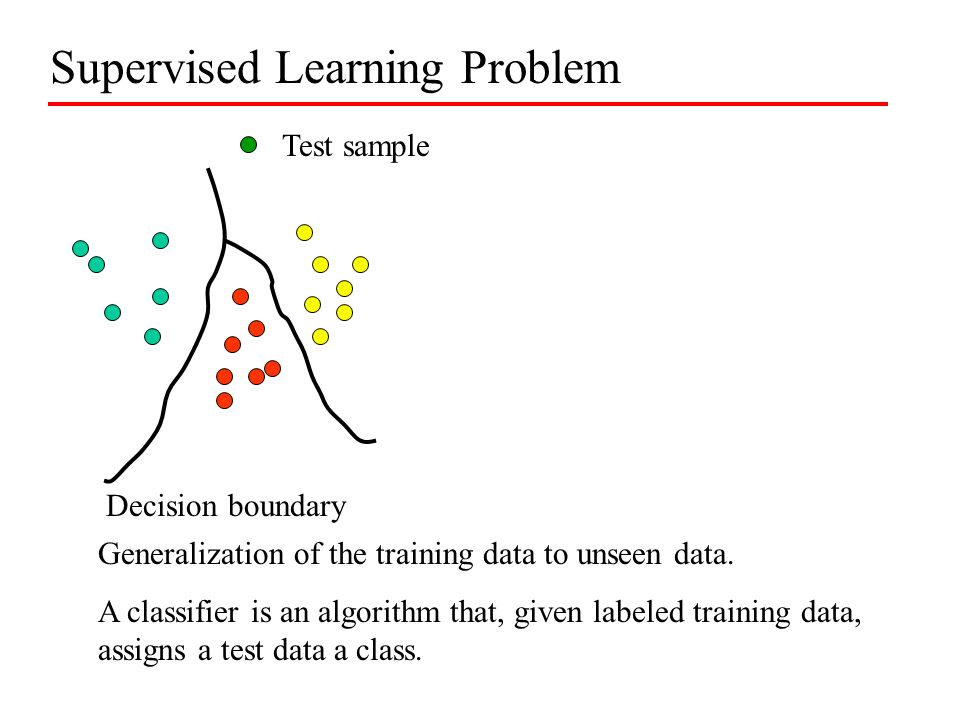

6. Supervised Learning Problem Decision boundary Test sample Generalization of the training data to unseen data. A classifier is an algorithm that, given labeled training data, assigns a test data a class.

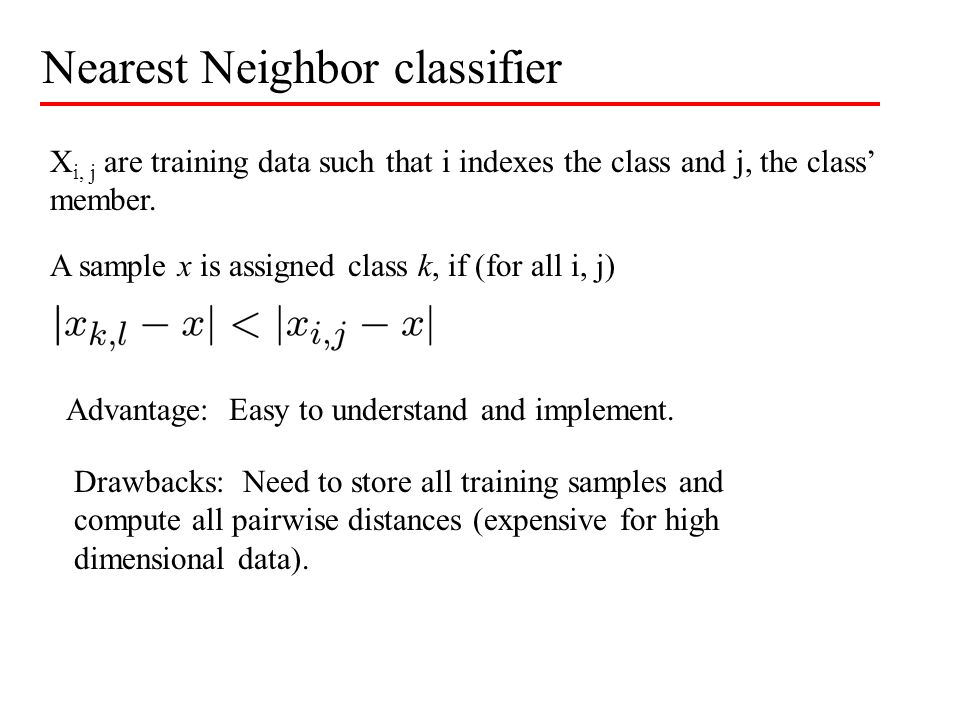

7. Nearest Neighbor classifier X i, j are training data such that i indexes the class and j, the class’ member. A sample x is assigned class k, if (for all i, j) Drawbacks: Need to store all training samples and compute all pairwise distances (expensive for high dimensional data). Advantage: Easy to understand and implement.

8. Nearest-Centroid Classifier Each class is now represented by its centroid. Each test data point is tested against only the centroids. Good for data such that each class form a nice round cluster. Connection with Gaussisan distribution A sample x is assigned class k, if (for all i)

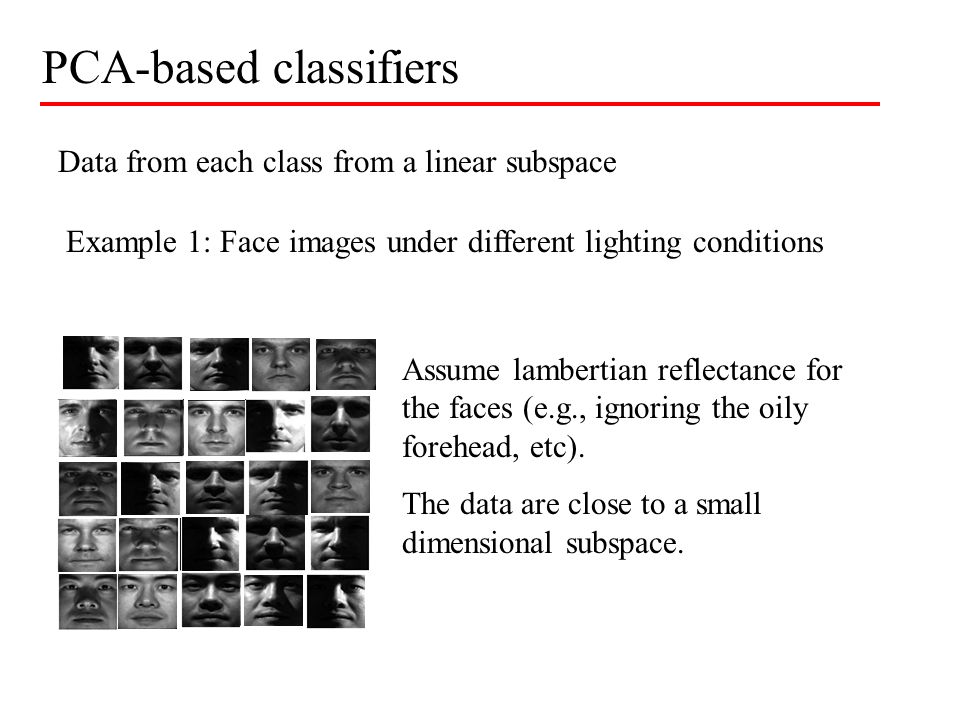

9. PCA-based classifiers Data from each class from a linear subspace Example 1: Face images under different lighting conditions Assume lambertian reflectance for the faces (e.g., ignoring the oily forehead, etc). The data are close to a small dimensional subspace.

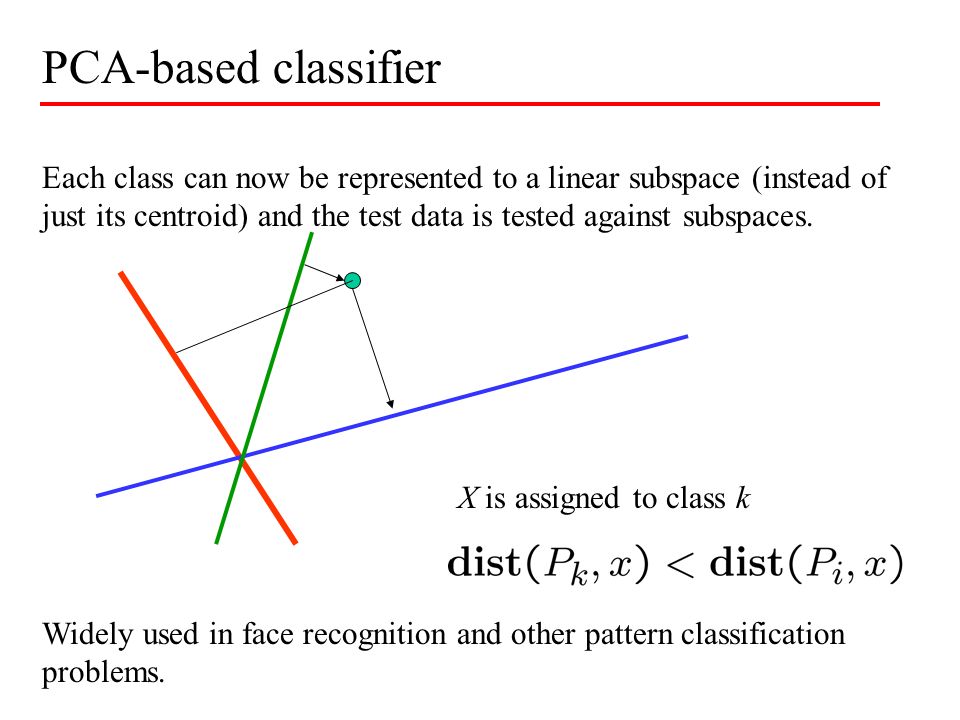

10. PCA-based classifier Each class can now be represented to a linear subspace (instead of just its centroid) and the test data is tested against subspaces. X is assigned to class k Widely used in face recognition and other pattern classification problems.
