1. Unit 2: The Atom Nuclear Decay

2. Band Of Stability  Atoms that lie outside the band of stability are unstable  Atoms 1-20 n 0 /p + ratio must be 1:1  Atoms 21-83 n 0 /p + ratio is ~ 1.5 : 1  Atoms 84 and up are ALL unstable  Unstable atoms will lose pieces of itself until it becomes stable. – This is Nuclear Decay

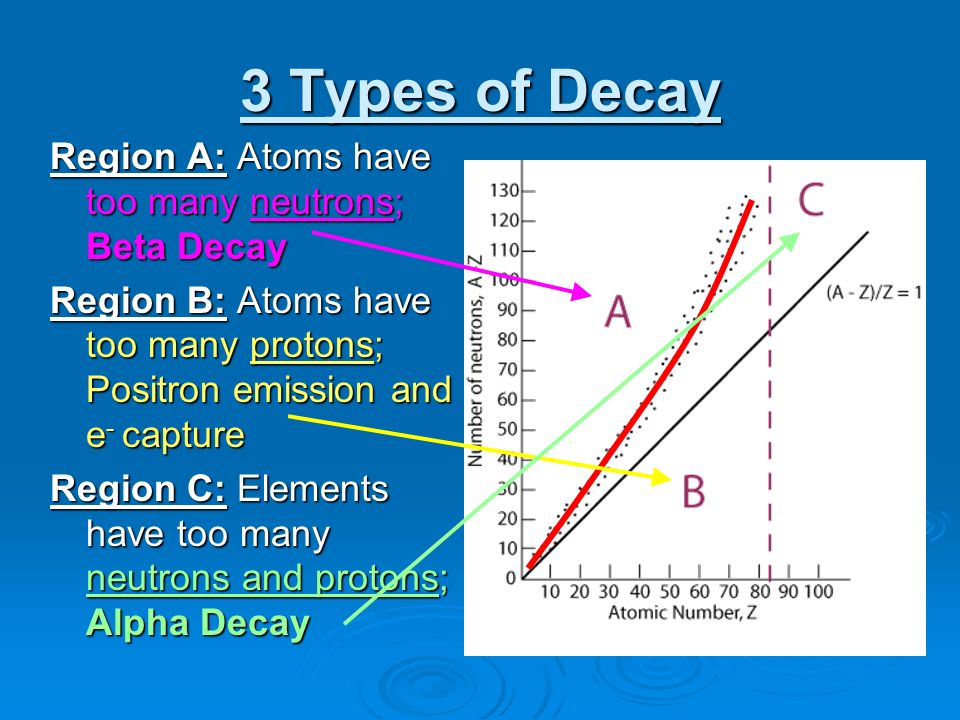

3. 3 Types of Decay Region A: Atoms have too many neutrons; Beta Decay Region B: Atoms have too many protons; Positron emission and e - capture Region C: Elements have too many neutrons and protons; Alpha Decay

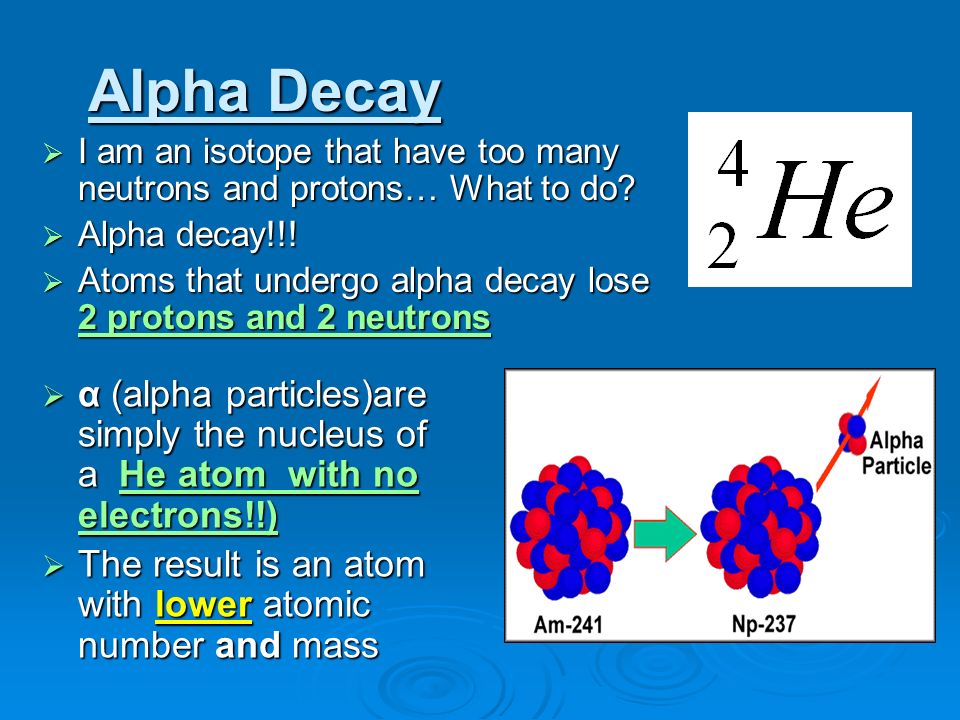

4. Alpha Decay  I am an isotope that have too many neutrons and protons… What to do?  Alpha decay!!!  Atoms that undergo alpha decay lose 2 protons and 2 neutrons  α (alpha particles)are simply the nucleus of a He atom with no electrons!!)  The result is an atom with lower atomic number and mass

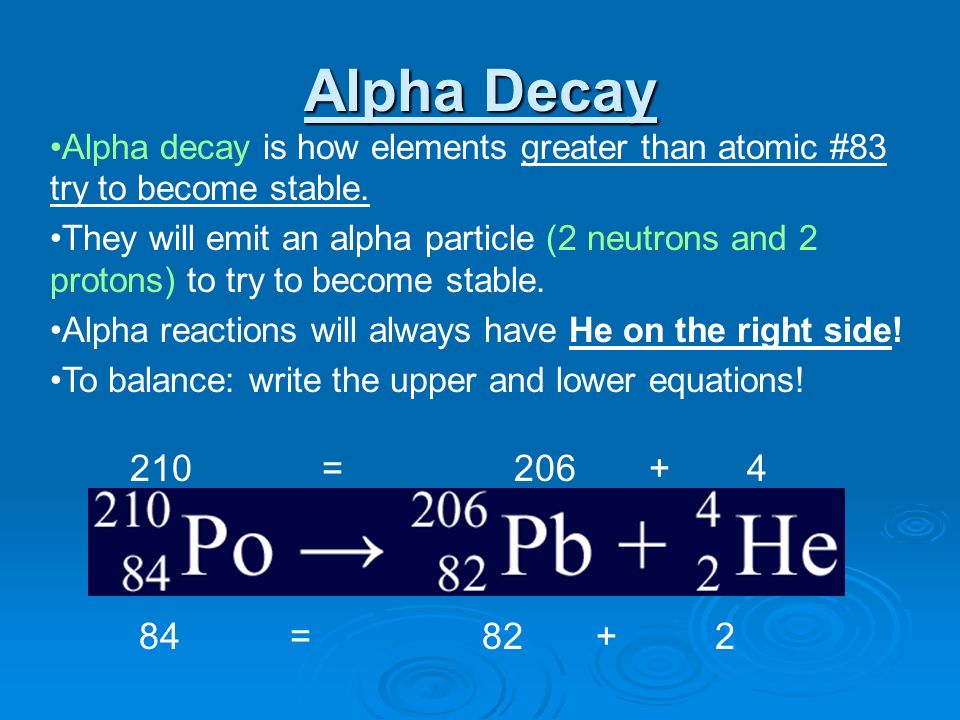

5. Alpha Decay Alpha decay is how elements greater than atomic #83 try to become stable. They will emit an alpha particle (2 neutrons and 2 protons) to try to become stable. Alpha reactions will always have He on the right side! To balance: write the upper and lower equations! 210=206 + 4 84=82 + 2

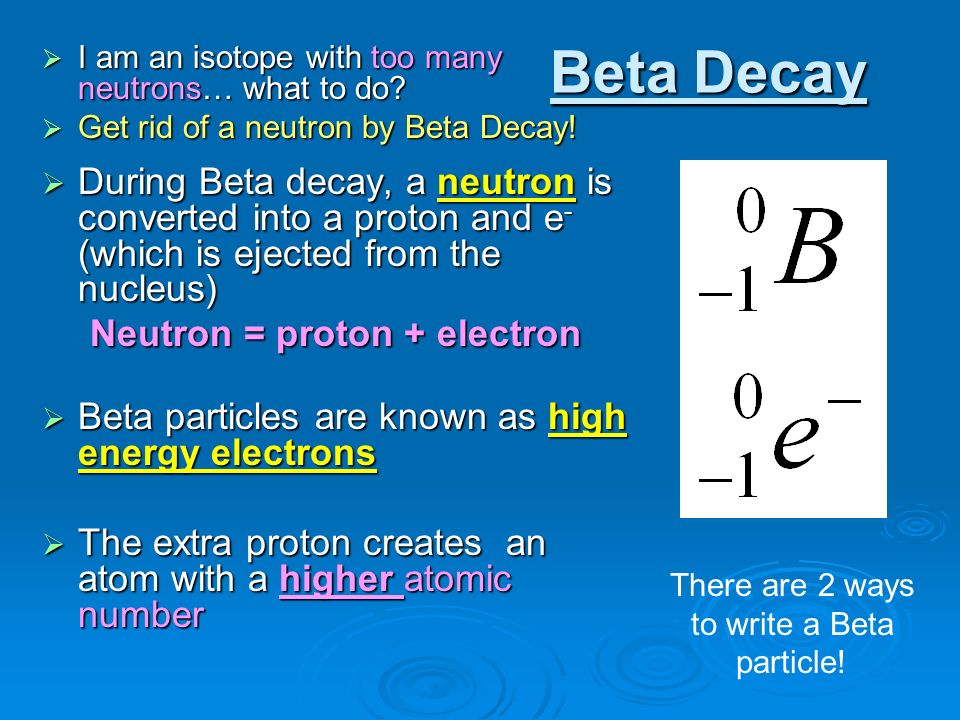

6. Beta Decay  I am an isotope with too many neutrons… what to do?  Get rid of a neutron by Beta Decay!  During Beta decay, a neutron is converted into a proton and e - (which is ejected from the nucleus) Neutron = proton + electron  Beta particles are known as high energy electrons  The extra proton creates an atom with a higher atomic number There are 2 ways to write a Beta particle!

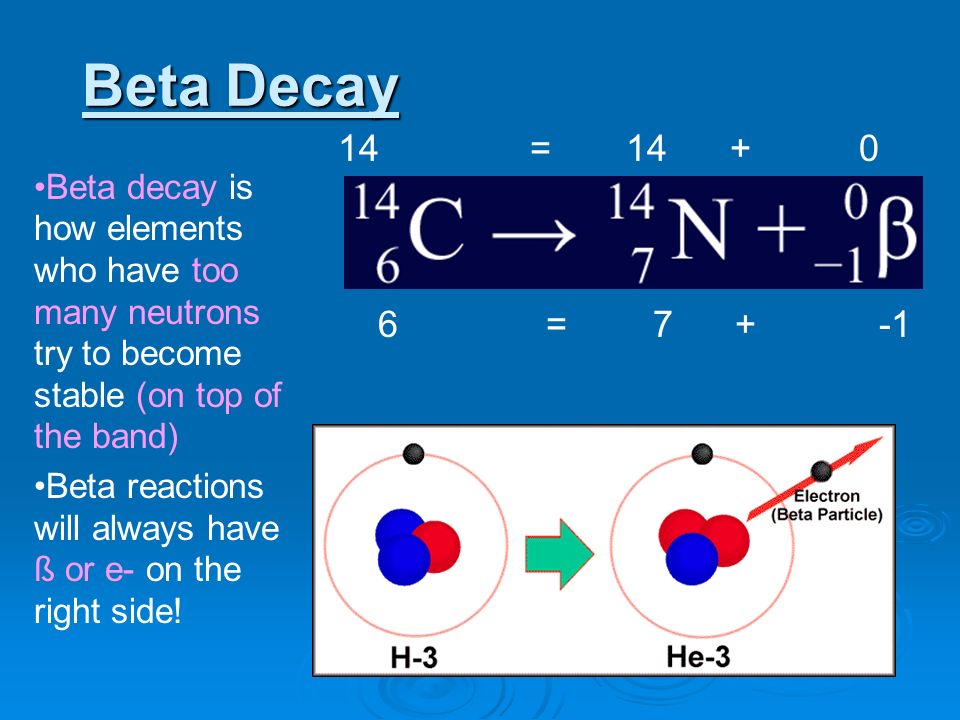

7. Beta Decay Beta decay is how elements who have too many neutrons try to become stable (on top of the band) Beta reactions will always have ß or e- on the right side! 14 =14 + 0 6 = 7 + -1

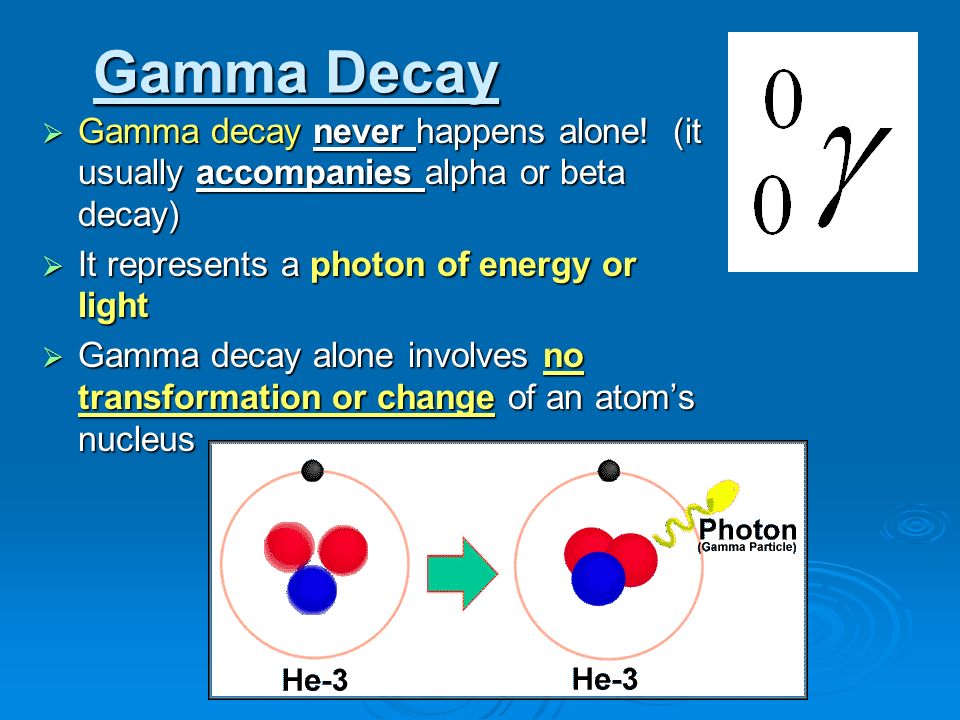

8. Gamma Decay  Gamma decay never happens alone! (it usually accompanies alpha or beta decay)  It represents a photon of energy or light  Gamma decay alone involves no transformation or change of an atom’s nucleus

9. Gamma Decay The * represents extra energy that will be lost. 93 = 91 + 2 + 0 233 = 229 + 4 + 0

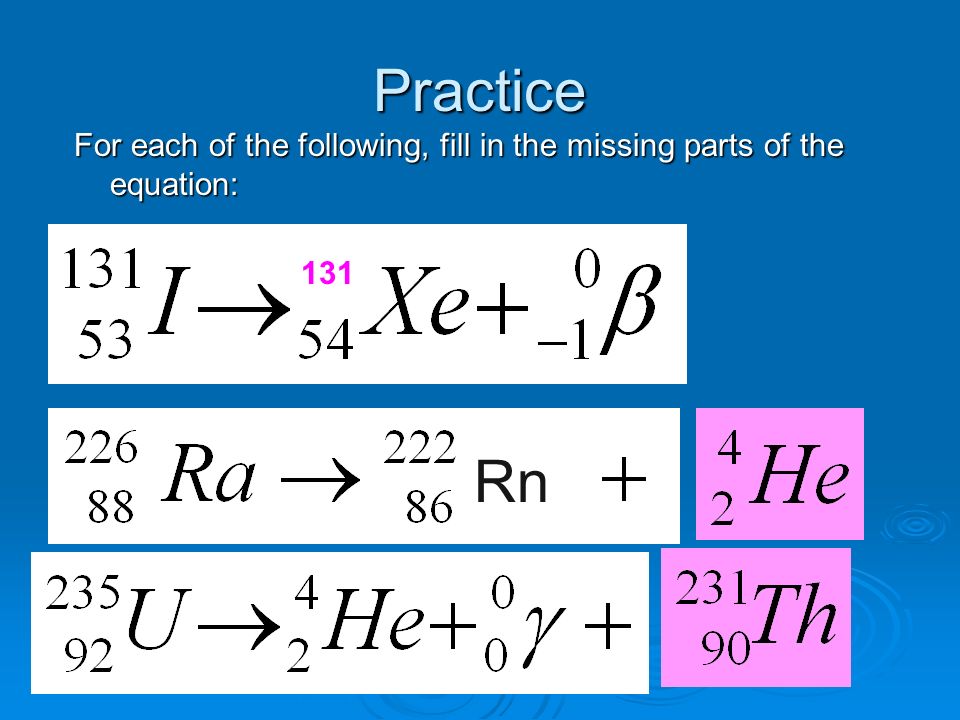

10. Practice For each of the following, fill in the missing parts of the equation: 131 Rn

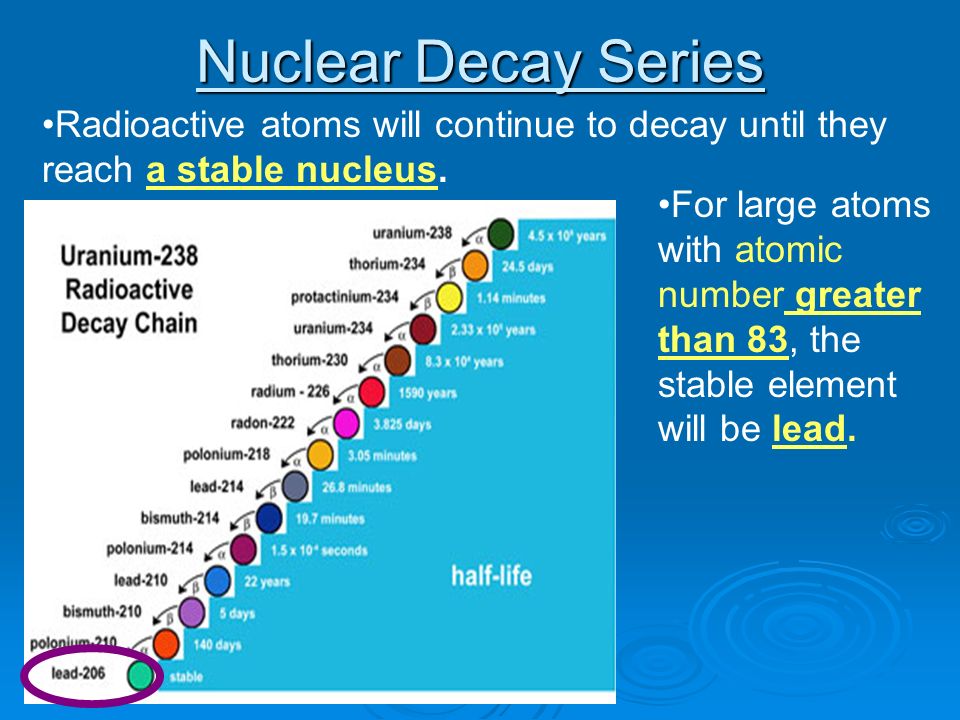

11. Nuclear Decay Series Radioactive atoms will continue to decay until they reach a stable nucleus. For large atoms with atomic number greater than 83, the stable element will be lead.

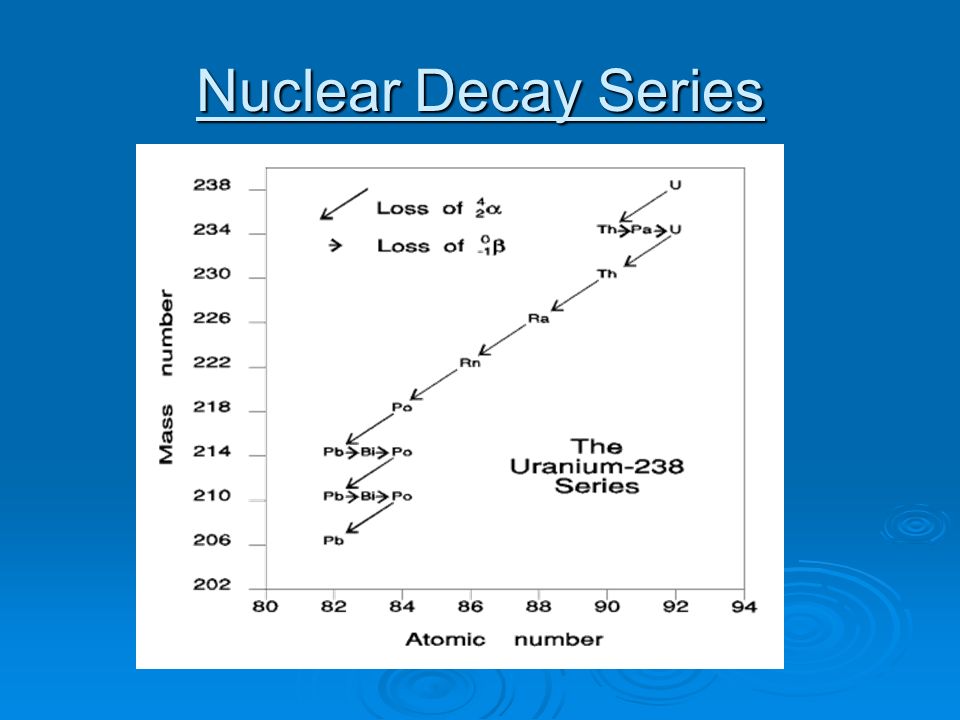

12. Nuclear Decay Series

13. Detecting Radiation  Radioactive particles can be detected by a Geiger Counter which gives a clicking sound for each particle detected.  Different types of radiation required different types of protection.  The greater the distance from a radioactive source will give better protection.

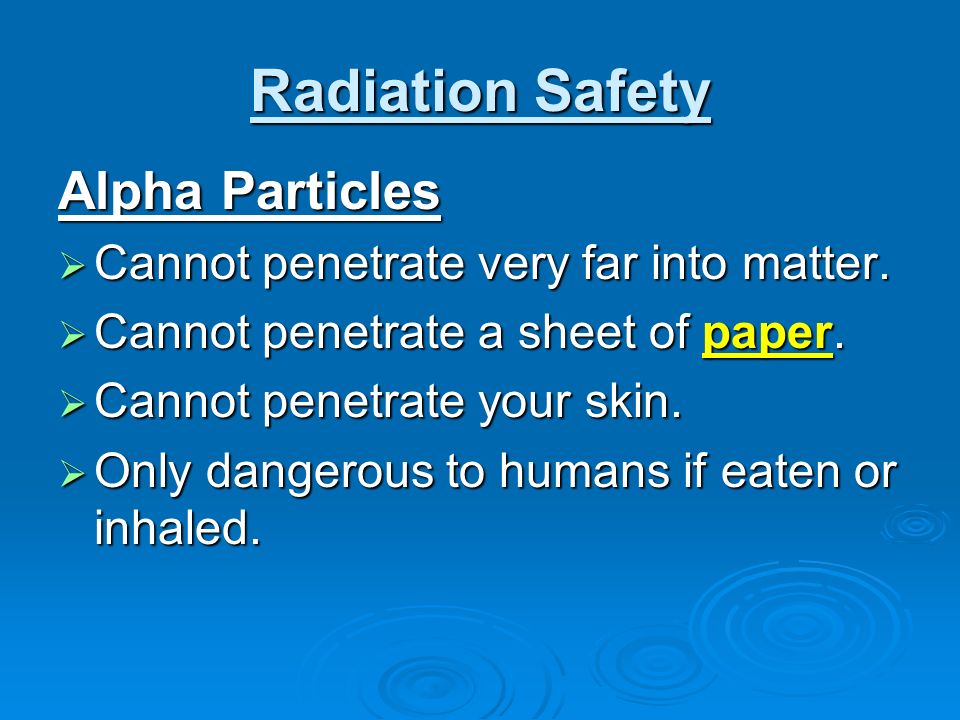

14. Radiation Safety Alpha Particles  Cannot penetrate very far into matter.  Cannot penetrate a sheet of paper.  Cannot penetrate your skin.  Only dangerous to humans if eaten or inhaled.

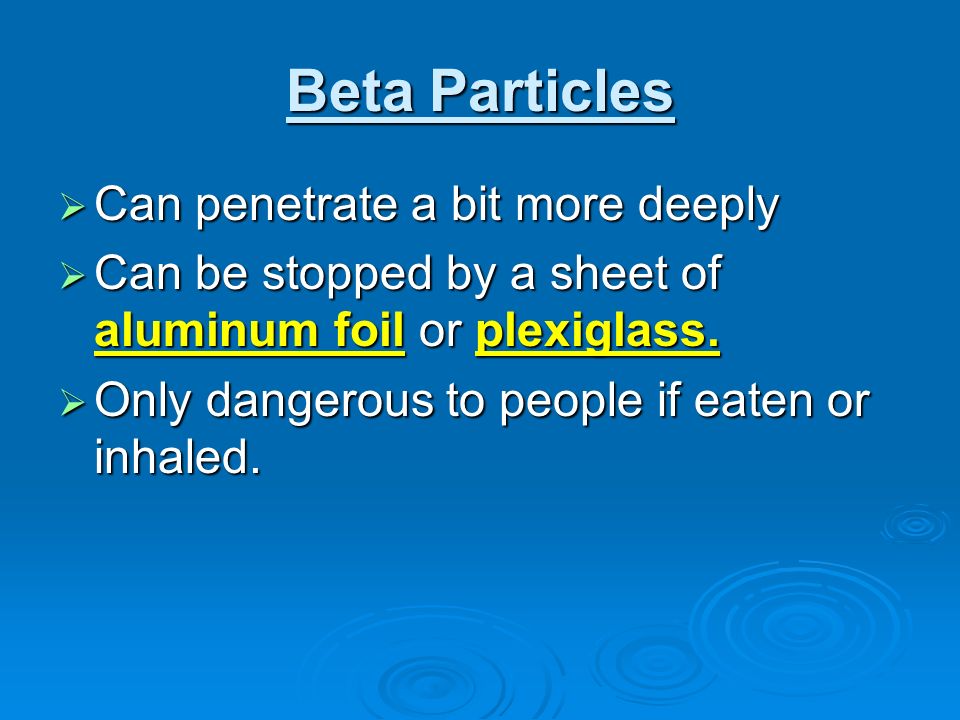

15. Beta Particles  Can penetrate a bit more deeply  Can be stopped by a sheet of aluminum foil or plexiglass.  Only dangerous to people if eaten or inhaled.

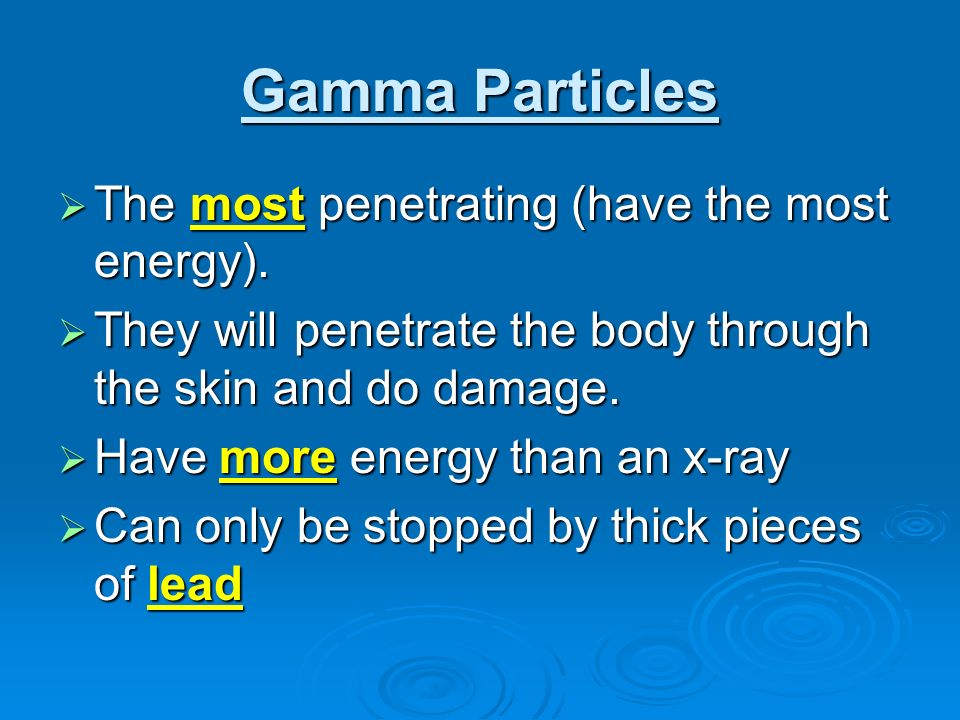

16. Gamma Particles  The most penetrating (have the most energy).  They will penetrate the body through the skin and do damage.  Have more energy than an x-ray  Can only be stopped by thick pieces of lead

17. Radiation Safety
