1. 3G HSDPA with VigorRouter DrayTek Corp 2010

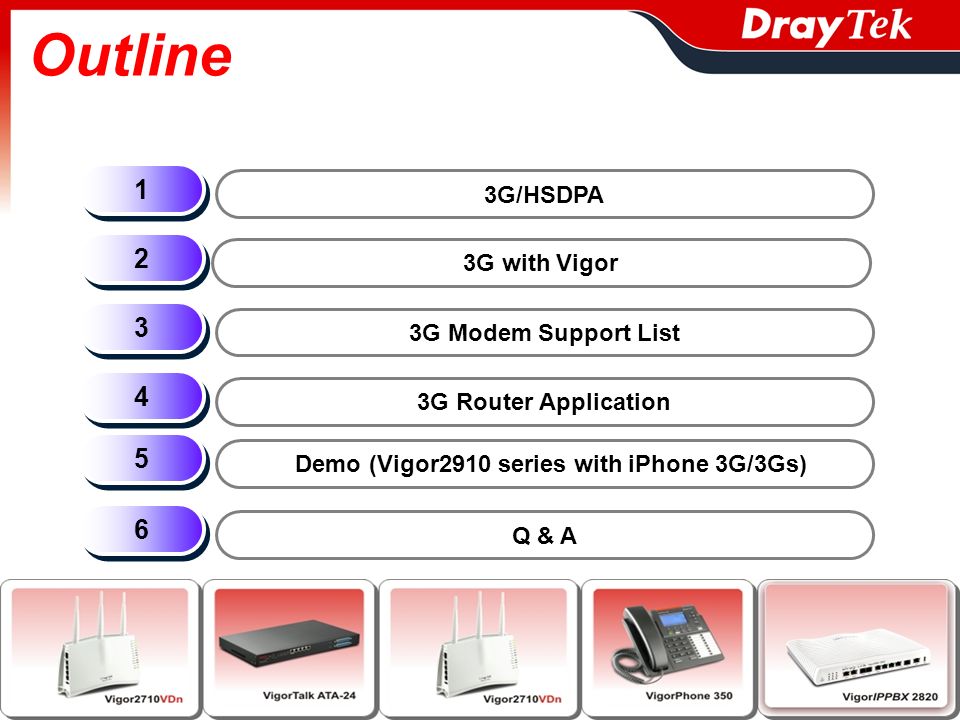

2. Outline 3G Router Application 3G Modem Support List Demo (Vigor2910 series with iPhone 3G/3Gs) 3 3 4 4 5 5 3G/HSDPA 1 1 2 2 3G with Vigor Q & A 6 6

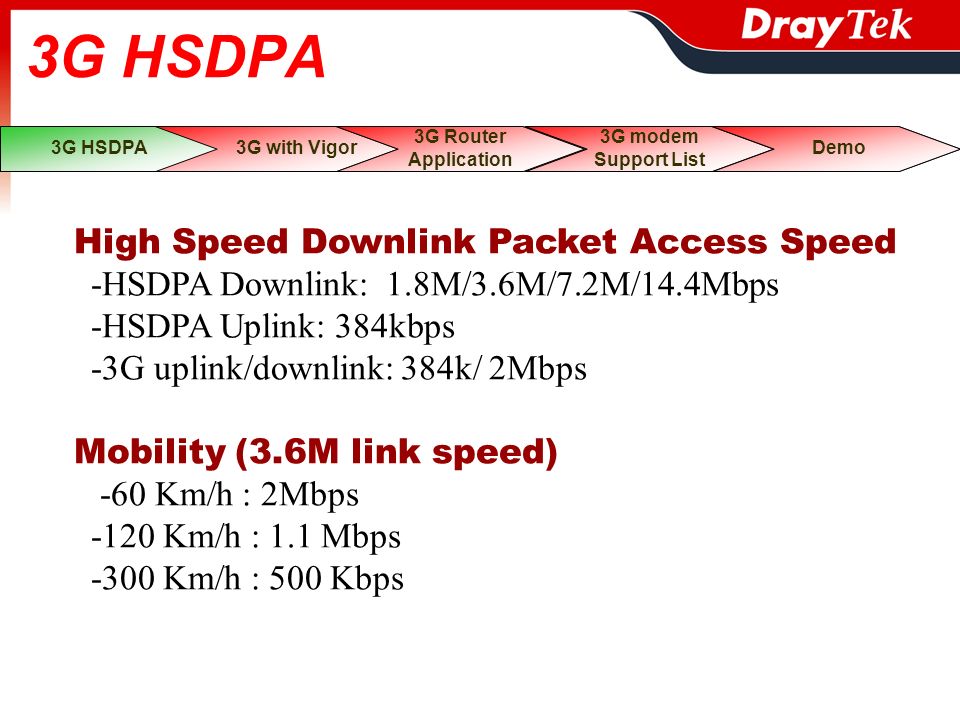

3. 3G HSDPA 3G with Vigor Current release Future plan Demo 3G modem Support List Demo 3G Router Application High Speed Downlink Packet Access Speed -HSDPA Downlink: 1.8M/3.6M/7.2M/14.4Mbps -HSDPA Uplink: 384kbps -3G uplink/downlink: 384k/ 2Mbps Mobility (3.6M link speed) ‏ -60 Km/h : 2Mbps -120 Km/h : 1.1 Mbps -300 Km/h : 500 Kbps

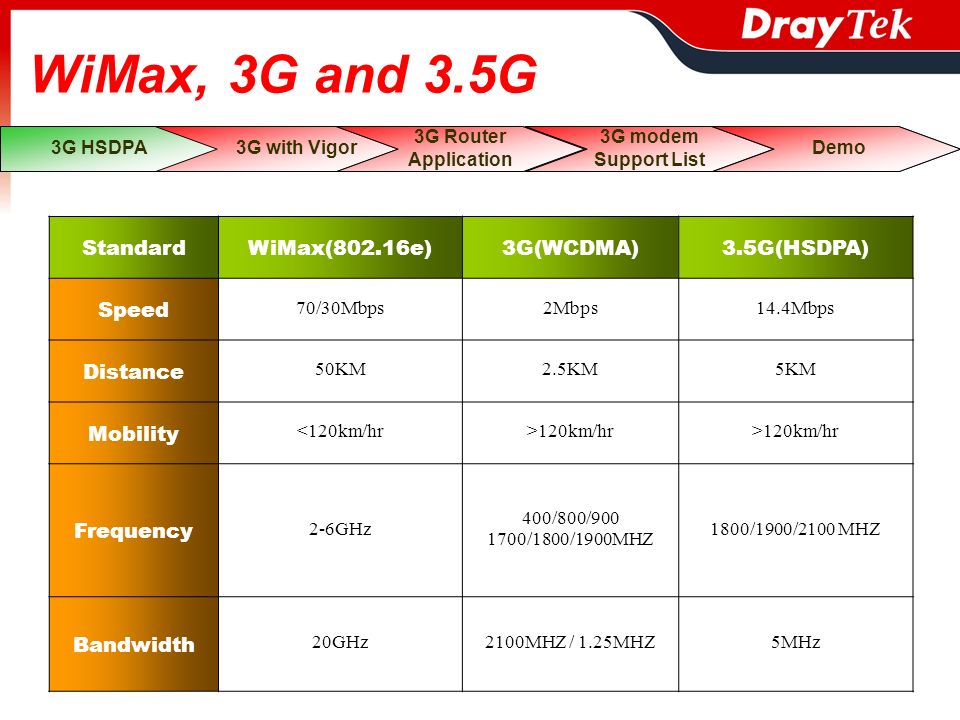

4. WiMax, 3G and 3.5G 3G HSDPA 3G with Vigor Current release Future plan Demo 3G modem Support List Demo 3G Router Application StandardWiMax(802.16e)3G(WCDMA)3.5G(HSDPA) Speed 70/30Mbps2Mbps14.4Mbps Distance 50KM2.5KM5KM Mobility <120km/hr>120km/hr Frequency 2-6GHz 400/800/900 1700/1800/1900MHZ 1800/1900/2100 MHZ Bandwidth 20GHz2100MHZ / 1.25MHZ5MHz

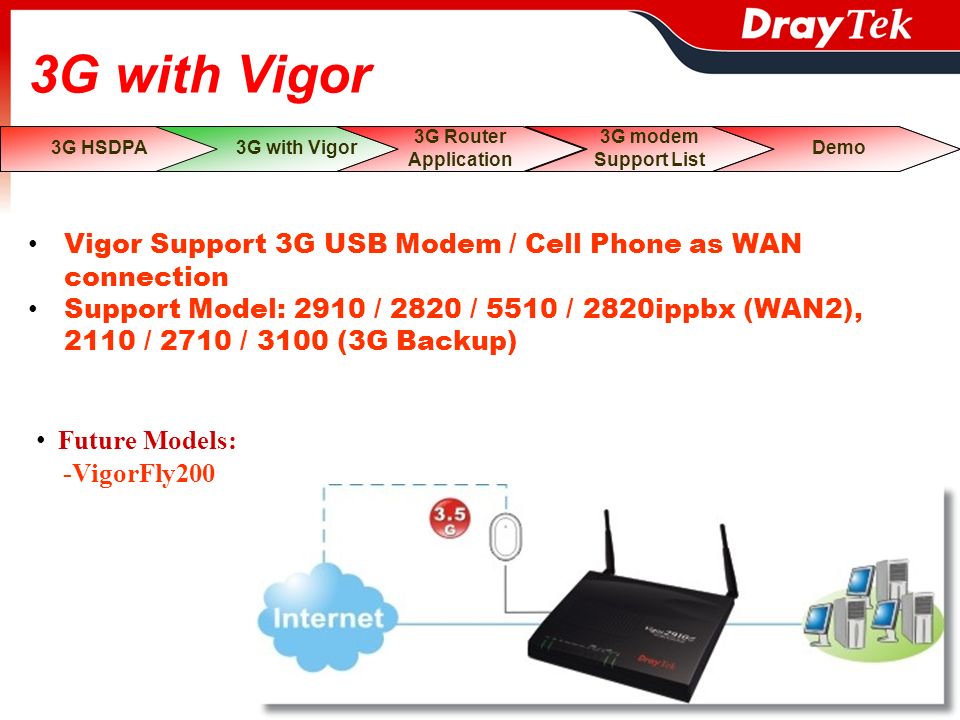

5. 3G HSDPA 3G with Vigor Current release Future plan Demo 3G modem Support List Demo 3G Router Application Vigor Support 3G USB Modem / Cell Phone as WAN connection Support Model: 2910 / 2820 / 5510 / 2820ippbx (WAN2), 2110 / 2710 / 3100 (3G Backup) Future Models: -VigorFly200 3G with Vigor

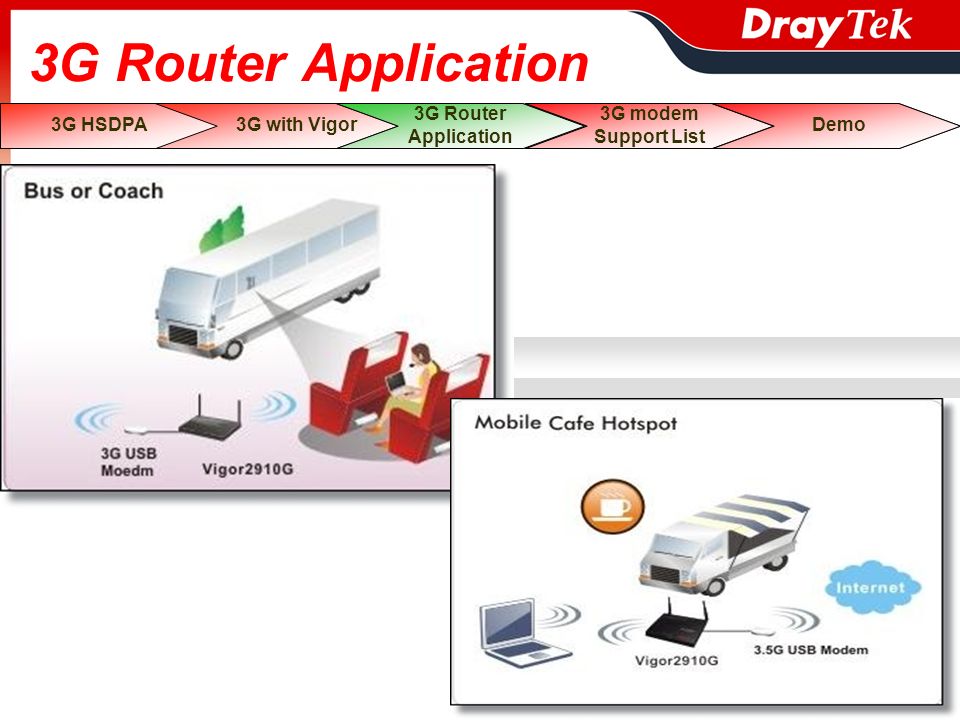

6. 3G Router Application 3G HSDPA 3G with Vigor Current release Future plan Demo 3G modem Support List Demo 3G Router Application

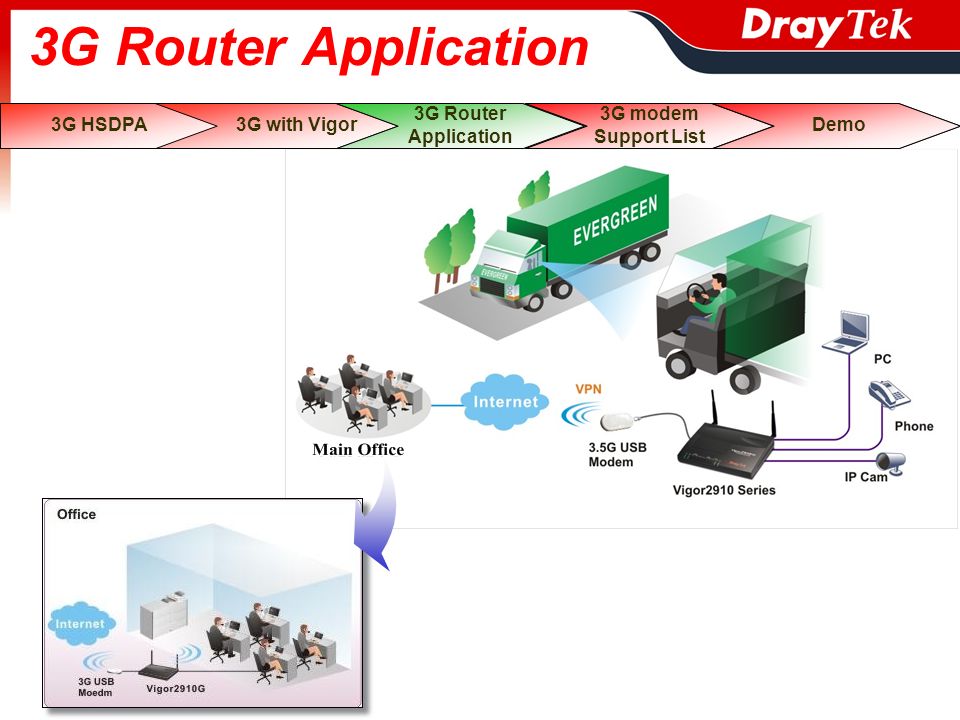

7. 3G Router Application 3G HSDPA 3G with Vigor Current release Future plan Demo 3G modem Support List Demo 3G Router Application

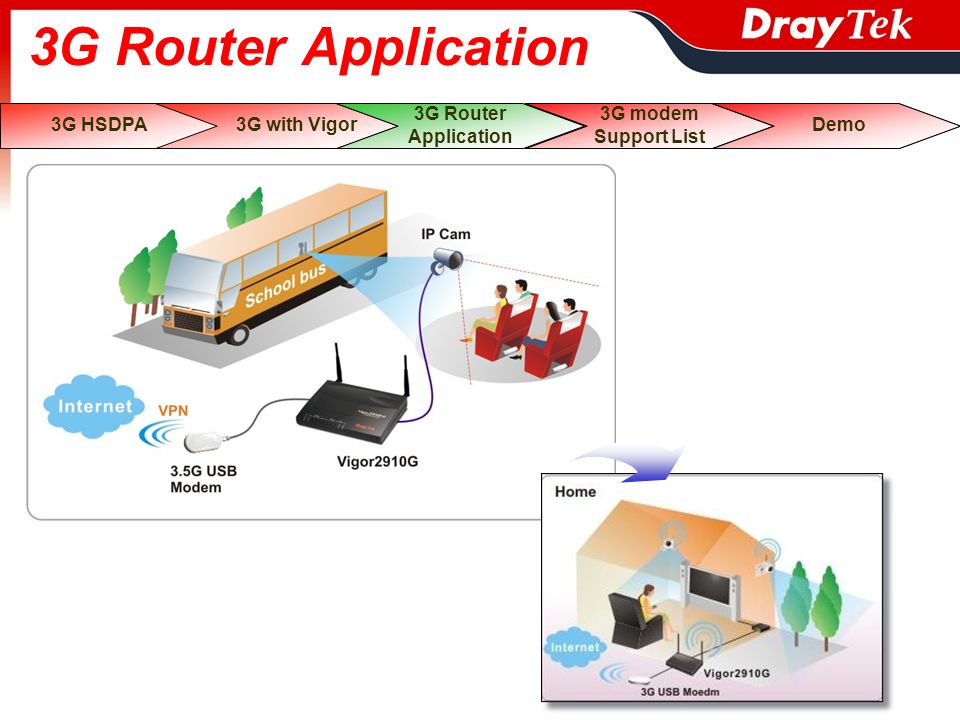

8. 3G Router Application 3G HSDPA 3G with Vigor Current release Future plan Demo 3G modem Support List Demo 3G Router Application

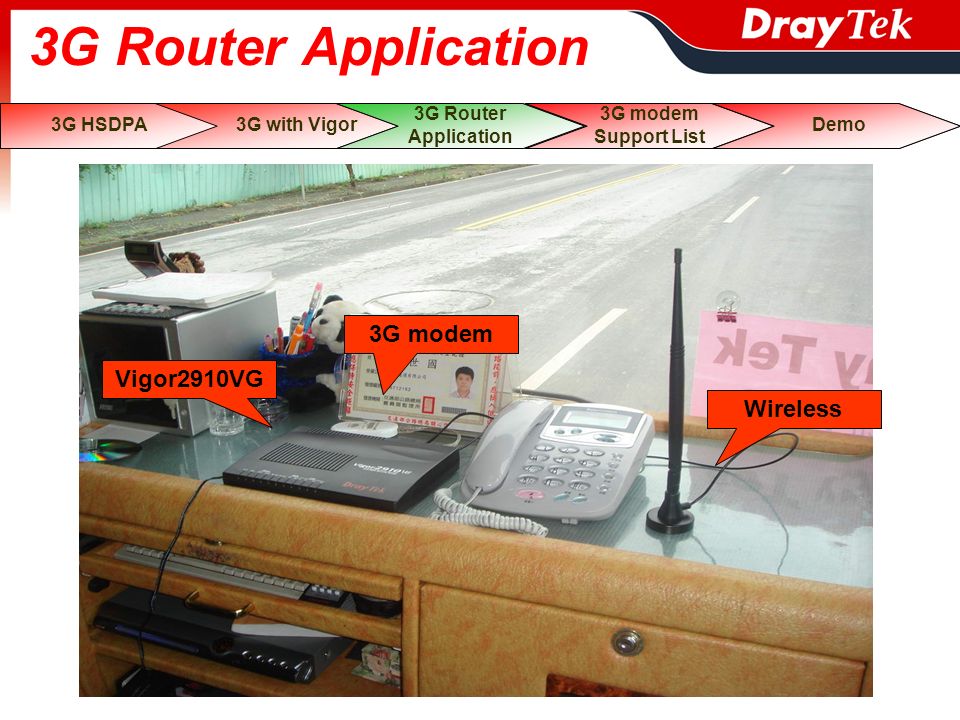

9. 3G Router Application 3G HSDPA 3G with Vigor Current release Future plan Demo 3G modem Support List Demo 3G Router Application Vigor2910VG 3G modem Wireless

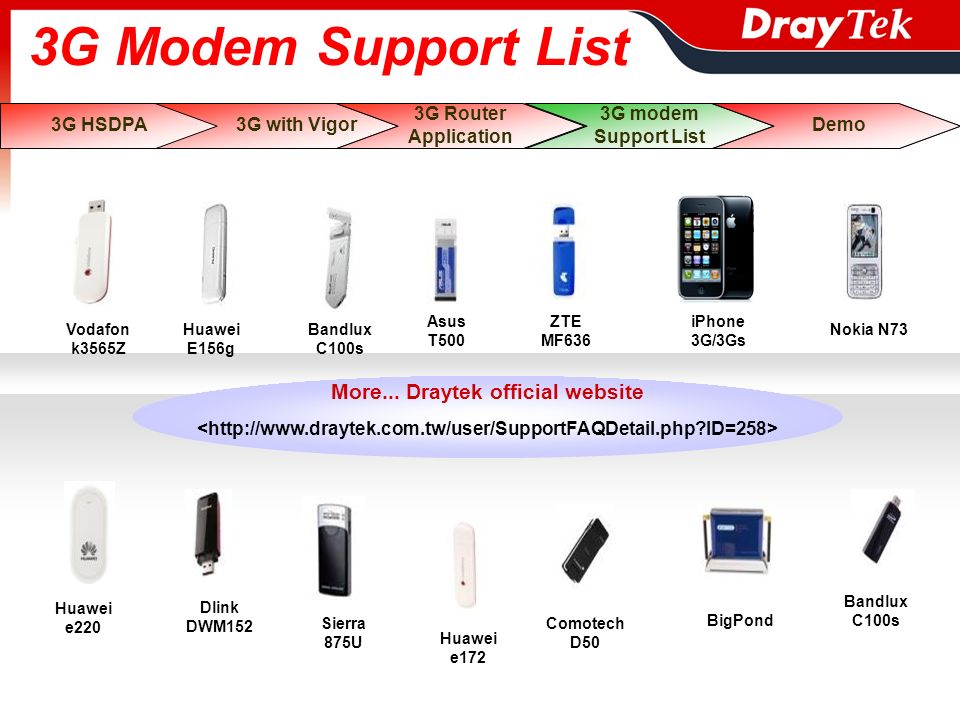

10. 3G Modem Support List 3G HSDPA 3G with Vigor Current release Future plan Demo 3G modem Support List Demo 3G Router Application BigPond Huawei e172 Comotech D50 Dlink DWM152 Sierra 875U Huawei e220 Bandlux C100s Vodafon k3565Z iPhone 3G/3Gs Nokia N73 Asus T500 ZTE MF636 Huawei E156g More... Draytek official website

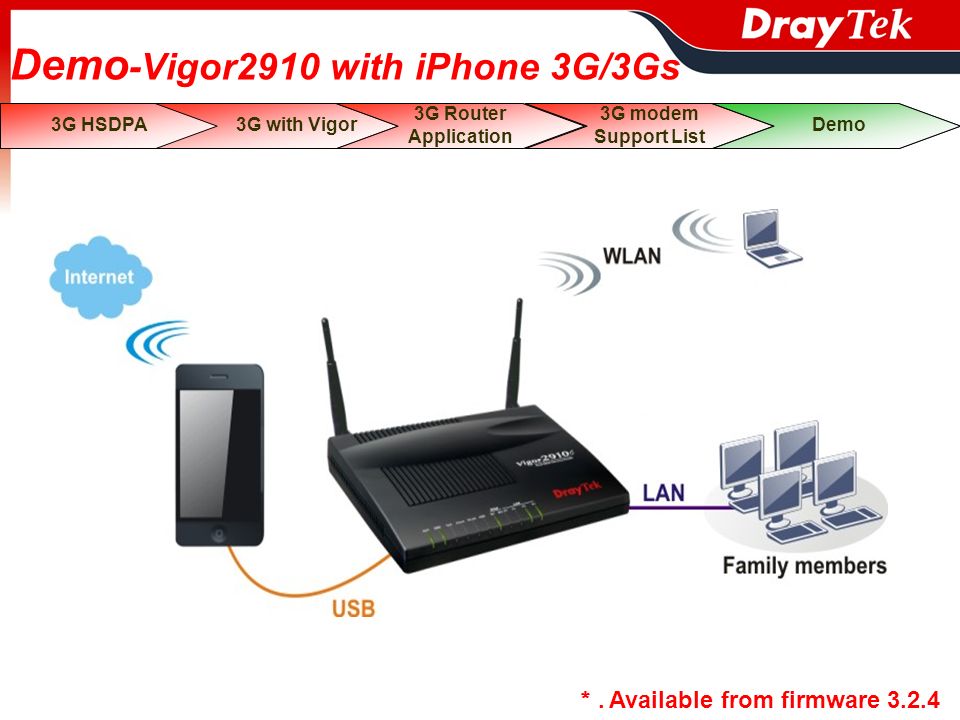

11. Demo -Vigor2910 with iPhone 3G/3Gs 3G HSDPA 3G with Vigor Current release Future plan Demo 3G modem Support List Demo 3G Router Application ＊. Available from firmware 3.2.4

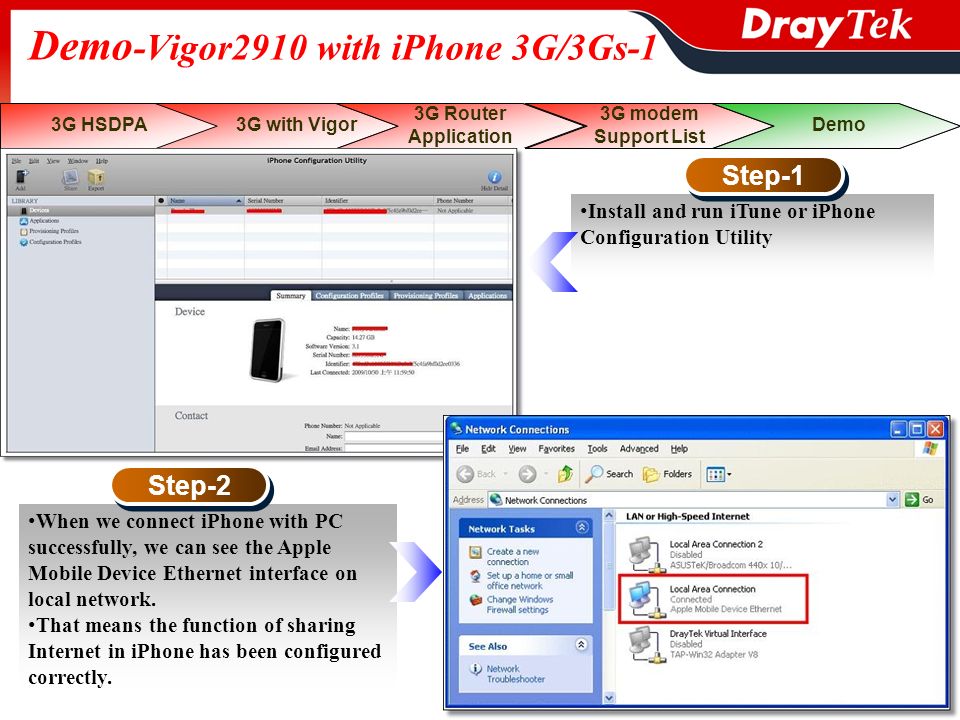

12. Demo -Vigor2910 with iPhone 3G/3Gs-1 3G HSDPA 3G with Vigor Current release Future plan Demo 3G modem Support List Demo 3G Router Application Install and run iTune or iPhone Configuration Utility When we connect iPhone with PC successfully, we can see the Apple Mobile Device Ethernet interface on local network. That means the function of sharing Internet in iPhone has been configured correctly. Step-1 Step-2

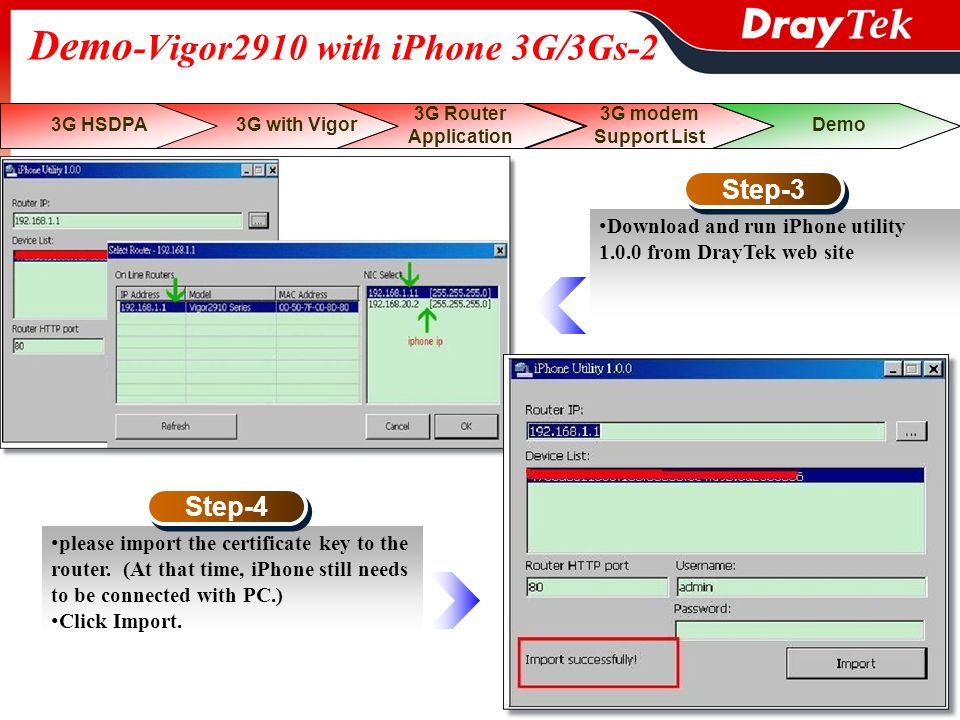

13. Demo -Vigor2910 with iPhone 3G/3Gs-2 3G HSDPA 3G with Vigor Current release Future plan Demo 3G modem Support List Demo 3G Router Application Download and run iPhone utility 1.0.0 from DrayTek web site please import the certificate key to the router. (At that time, iPhone still needs to be connected with PC.) Click Import. Step-3 Step-4

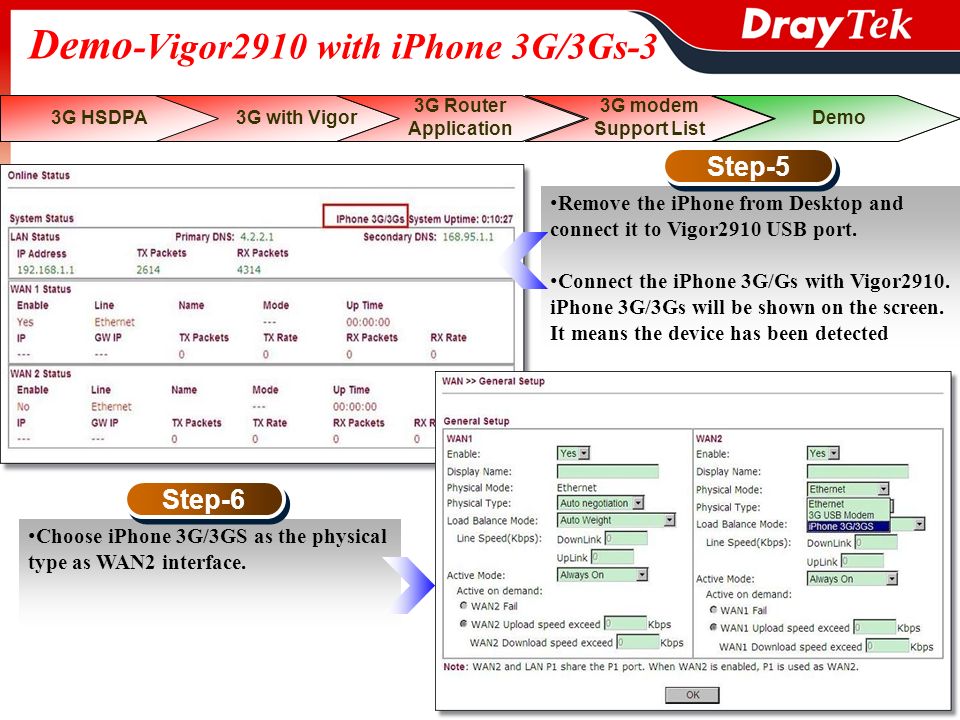

14. Demo -Vigor2910 with iPhone 3G/3Gs-3 3G HSDPA 3G with Vigor Current release Future plan Demo 3G modem Support List Demo 3G Router Application Choose iPhone 3G/3GS as the physical type as WAN2 interface. Step-6 Remove the iPhone from Desktop and connect it to Vigor2910 USB port. Connect the iPhone 3G/Gs with Vigor2910. iPhone 3G/3Gs will be shown on the screen. It means the device has been detected Step-5

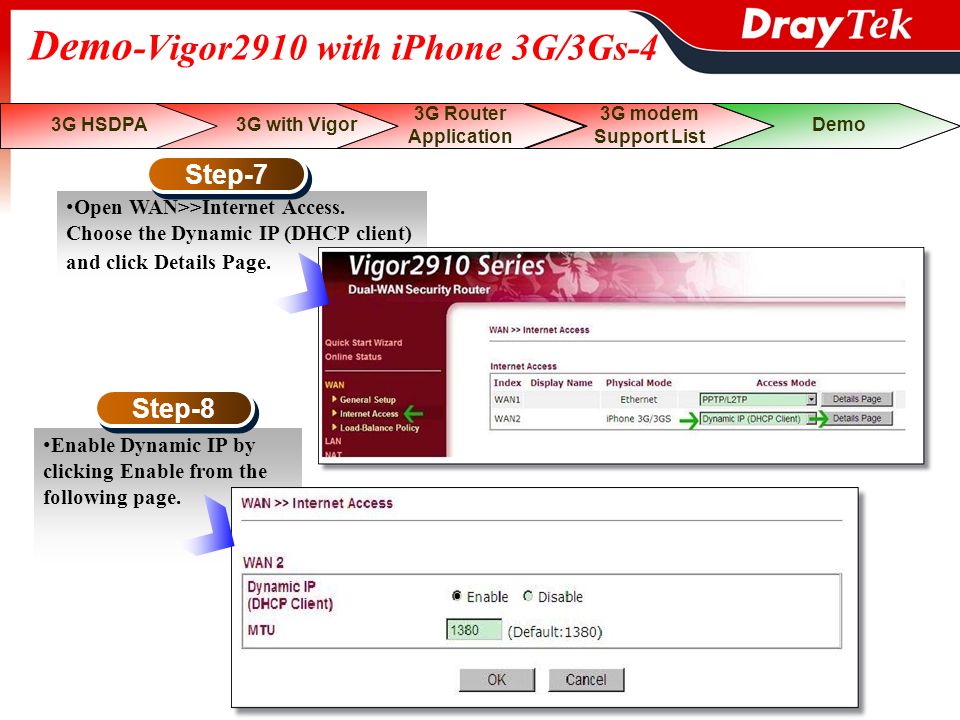

15. Demo -Vigor2910 with iPhone 3G/3Gs-4 3G HSDPA 3G with Vigor Current release Future plan Demo 3G modem Support List Demo 3G Router Application Enable Dynamic IP by clicking Enable from the following page. Step-8 Open WAN>>Internet Access. Choose the Dynamic IP (DHCP client) and click Details Page. Step-7

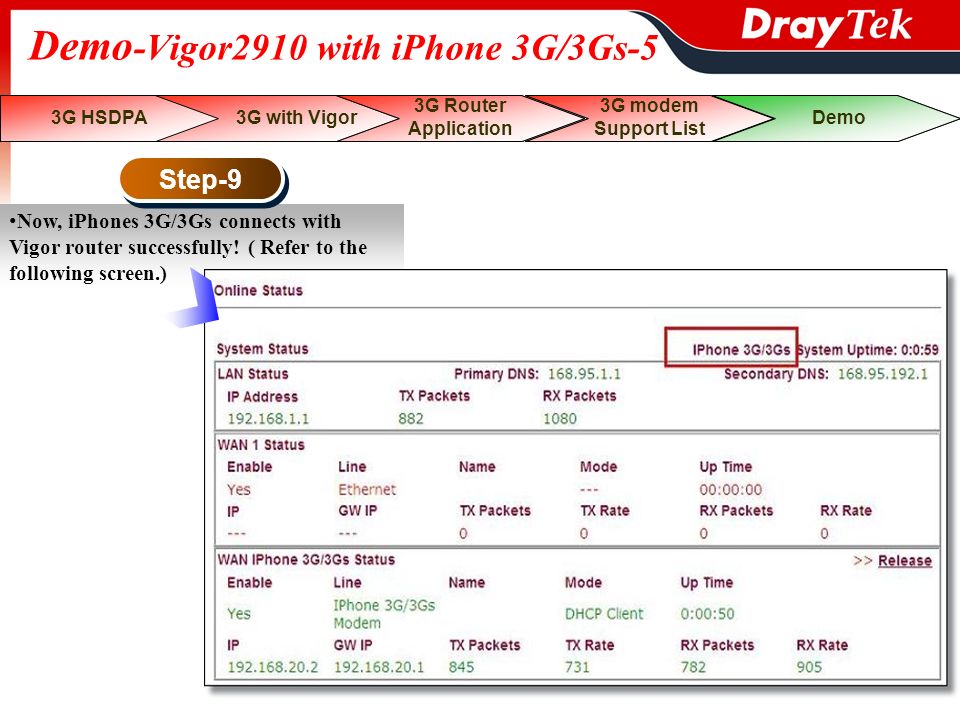

16. Demo -Vigor2910 with iPhone 3G/3Gs-5 3G HSDPA 3G with Vigor Current release Future plan Demo 3G modem Support List Demo 3G Router Application Now, iPhones 3G/3Gs connects with Vigor router successfully! ( Refer to the following screen.) Step-9

17. Demo -Video 3G HSDPA 3G with Vigor Current release Future plan Demo 3G modem Support List Demo 3G Router Application Video

18. Q & A
