Quantum Mechanical Model of the Atom Mathematical laws can identify the regions outside of the nucleus where electrons are most likely to be found. These laws are beyond the scope of this class…

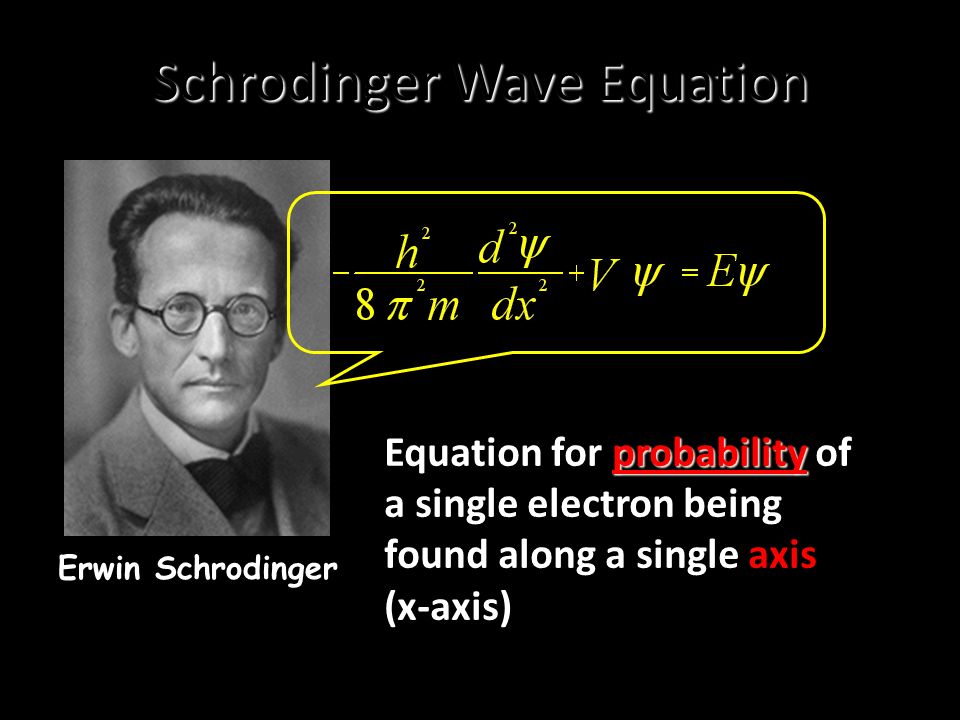

Schrodinger Wave Equation probability Equation for probability of a single electron being found along a single axis (x-axis) Erwin Schrodinger

Heisenberg Uncertainty Principle You can find out where the electron is, but not where it is going. OR… You can find out where the electron is going, but not where it is! “One cannot simultaneously determine both the position and momentum of an electron.” Werner Heisenberg

QUANTUM NUMBERS We will focus now on polyelectronic atoms – atoms with more than one electron. The shape, size, and energy of each orbital is a function of 3 quantum numbers which describe the location of an electron within an atom or ion n (principal) ---> energy level l (orbital) ---> shape of orbital m l (magnetic) ---> designates a particular suborbital The fourth quantum number is not derived from the wave function s(spin) ---> spin of the electron s (spin) ---> spin of the electron (clockwise or counterclockwise: ½ or – ½)

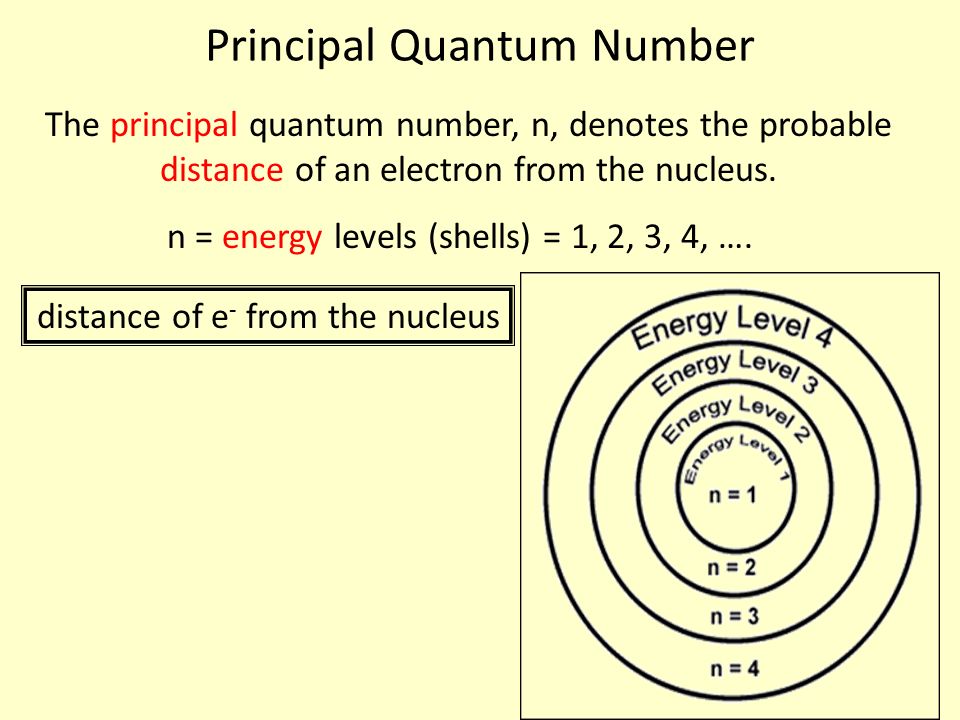

Principal Quantum Number The principal quantum number, n, denotes the probable distance of an electron from the nucleus. n = energy levels (shells) = 1, 2, 3, 4, …. distance of e - from the nucleus

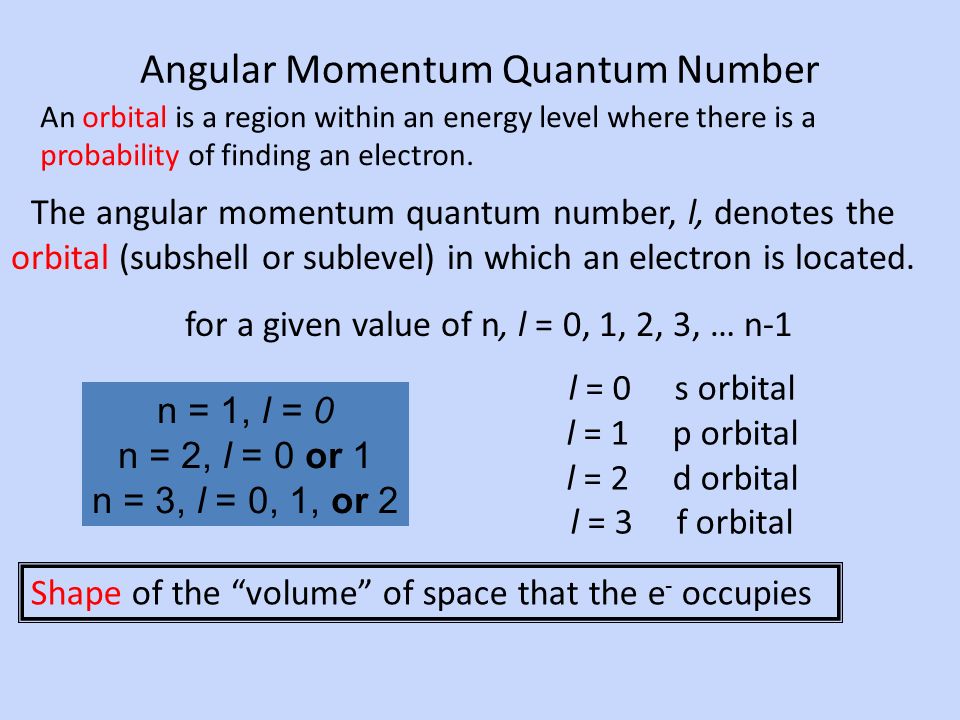

The angular momentum quantum number, l, denotes the orbital (subshell or sublevel) in which an electron is located. for a given value of n, l = 0, 1, 2, 3, … n-1 n = 1, l = 0 n = 2, l = 0 or 1 n = 3, l = 0, 1, or 2 Shape of the “volume” of space that the e - occupies l = 0 s orbital l = 1 p orbital l = 2 d orbital l = 3 f orbital Angular Momentum Quantum Number An orbital is a region within an energy level where there is a probability of finding an electron.

The s orbital (l = 0) has a spherical shape centered around the origin of the three axes in space. s Orbital shape

There are three dumbbell-shaped p orbitals (l = 1) in each energy level above n = 1, each assigned to its own axis (x, y and z) in space. Note: there is a planar node through the nucleus, which is a area of zero probability of finding an electron. p orbital shape Planar node

Things get a bit more complicated with the five d orbitals (l = 2) that are found in the d sublevels beginning with n = 3. To remember the shapes, think of “double dumbells” …and a “dumbell with a donut”! d orbital shapes

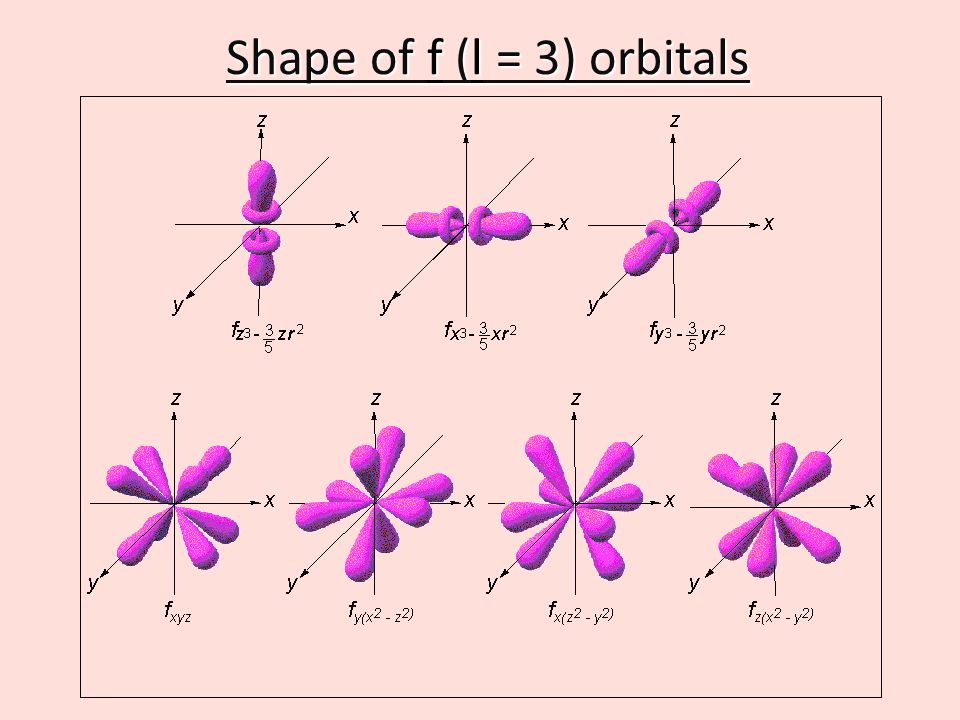

Shape of f (l = 3) orbitals

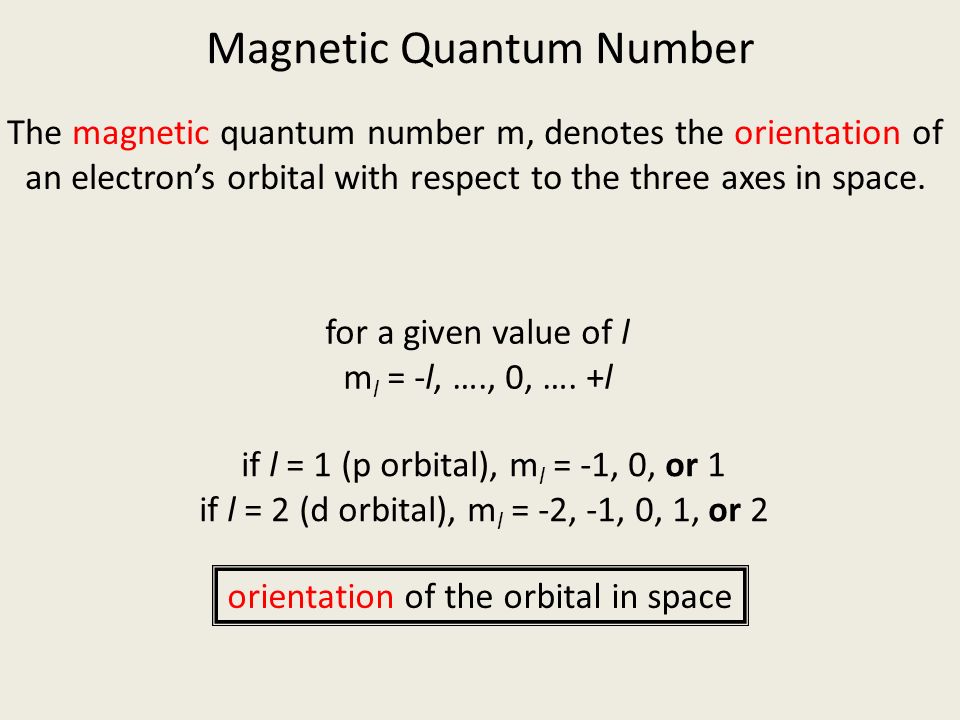

The magnetic quantum number m, denotes the orientation of an electron’s orbital with respect to the three axes in space. for a given value of l m l = -l, …., 0, …. +l orientation of the orbital in space if l = 1 (p orbital), m l = -1, 0, or 1 if l = 2 (d orbital), m l = -2, -1, 0, 1, or 2 Magnetic Quantum Number

Assigning the Numbers  The three quantum numbers (n, l, and m) are integers.  The principal quantum number (n) cannot be zero.  n must be 1, 2, 3, etc.  The angular momentum quantum number (l ) can be any integer between 0 and n - 1.  For n = 3, l can be either 0, 1, or 2.  The magnetic quantum number (m l ) can be any integer between -l and +l.  For l = 2, m can be either -2, -1, 0, +1, +2.

Quantum numbers for the first four levels of orbitals in the hydrogen atom n l Orbital designation mlml # of orbitals 101s01 202s01 12p-1, 0, 13 303s01 13p-1, 0, 13 23d-2, -1, 0, 1, 25 404s01 14p-1, 0, 13 24d-2, -1, 0, 1, 25 34f-3, -2, -1, 0, 1, 2, 37

spin quantum number m s m s = +½ or -½ Spin Quantum Number m s = -½m s = +½ The spin quantum number, m s, describes the behavior of an electron in a magnetic field.

Pauli exclusion principle - no two electrons in an atom can have the same four quantum numbers. Each seat is uniquely identified (E, R12, S8) Each seat can hold only one individual at a time

Shell – electrons with the same value of n Subshell or sublevel – electrons with the same values of n and l Orbital – electrons with the same values of n, l, and m l How many electrons can an orbital hold? If n, l, and m l are fixed, then m s = ½ or - ½ An orbital can hold 2 electrons

s orbitals d orbitals Number of orbitals Number of electrons 1 35 2 610 p orbitals f orbitals 7 14 How many electrons can be in a sublevel subshell? Remember: A maximum of two electrons can be placed in an orbital.
