1. 28 29 30 31 32 33 Stramenopiles

2. 1 3 4 5 STRAMENOPILES: Autotrophs (“Ochrophytes”) Brown Algae Yellow-Green Algae Synurans Golden-Brown Algae

3. 2 STRAMENOPILES: Autotrophs (“Ochrophytes”) Diatoms

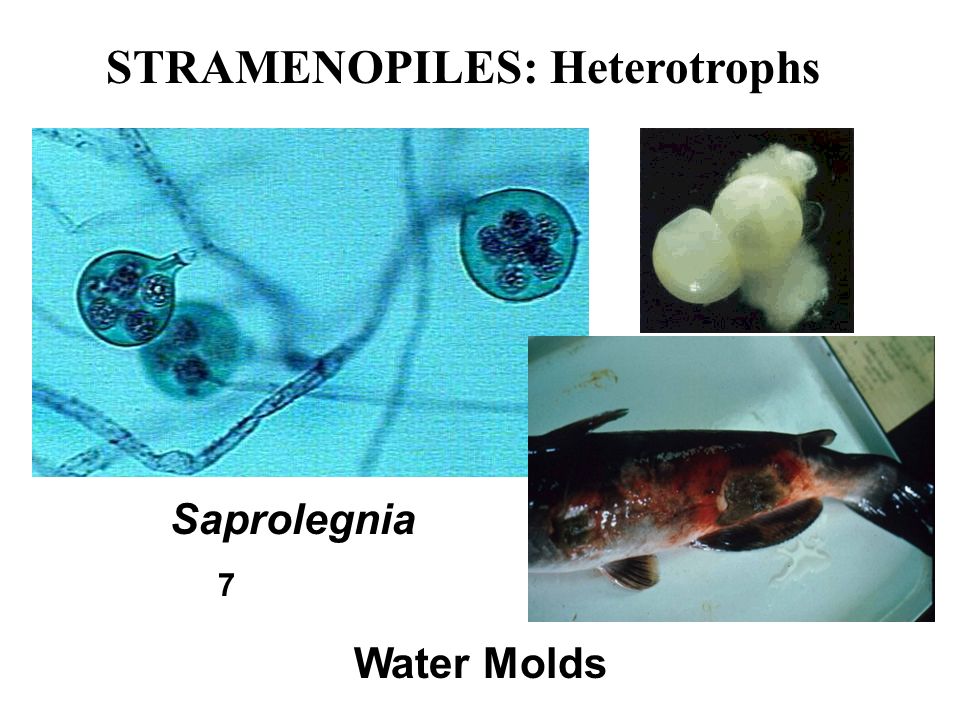

4. 6 7 Water Molds STRAMENOPILES: Heterotrophs Saprolegnia

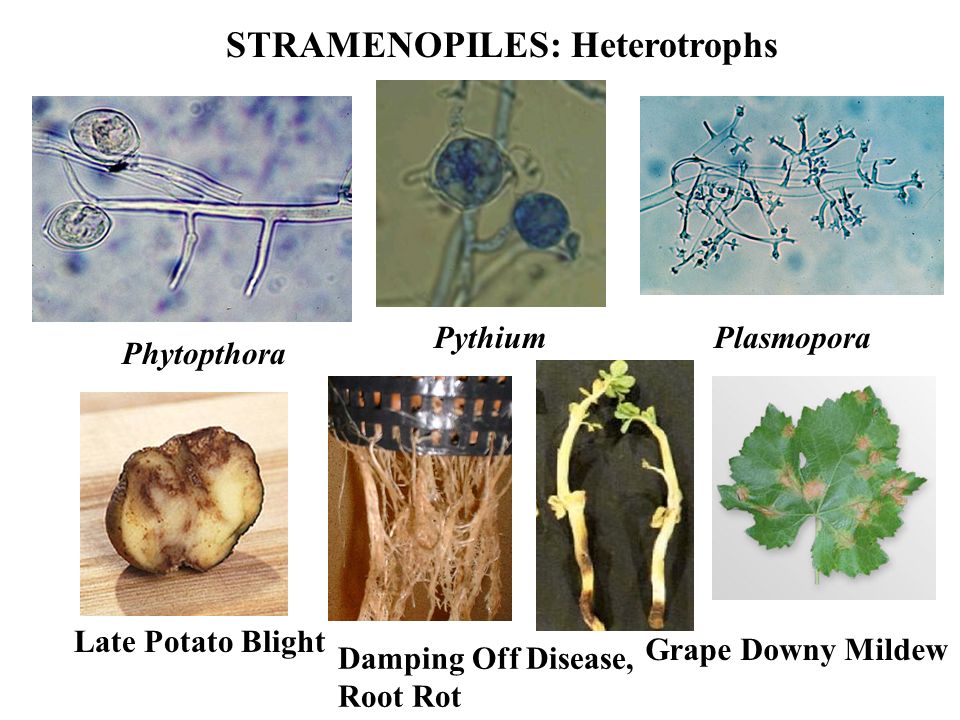

5. STRAMENOPILES: Heterotrophs Late Potato Blight Grape Downy Mildew Damping Off Disease, Root Rot PlasmoporaPythium Phytopthora

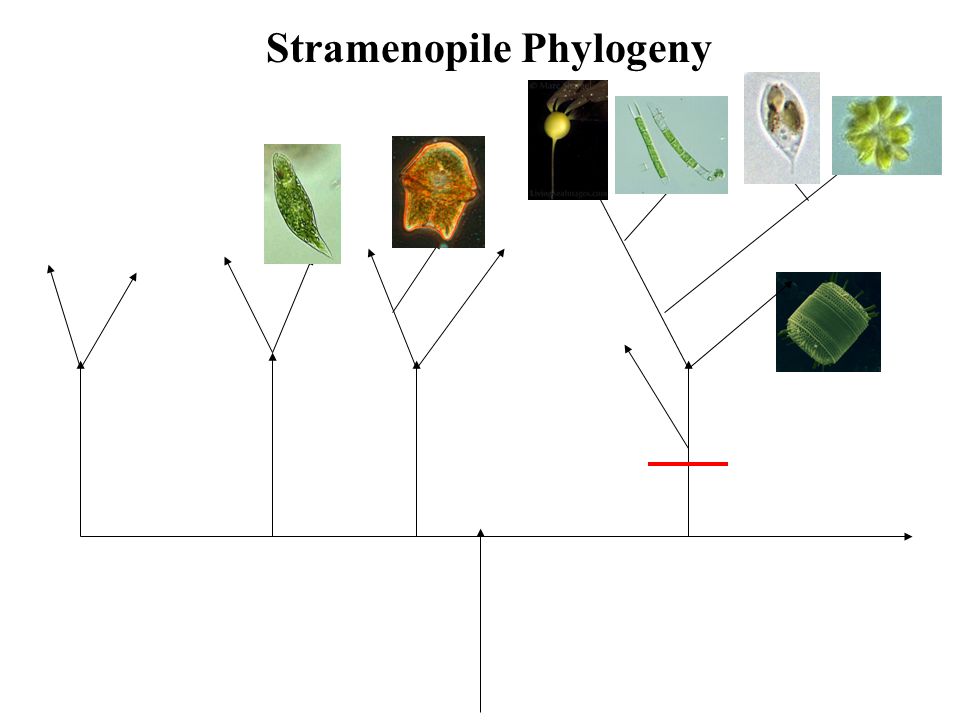

6. Stramenopile Phylogeny

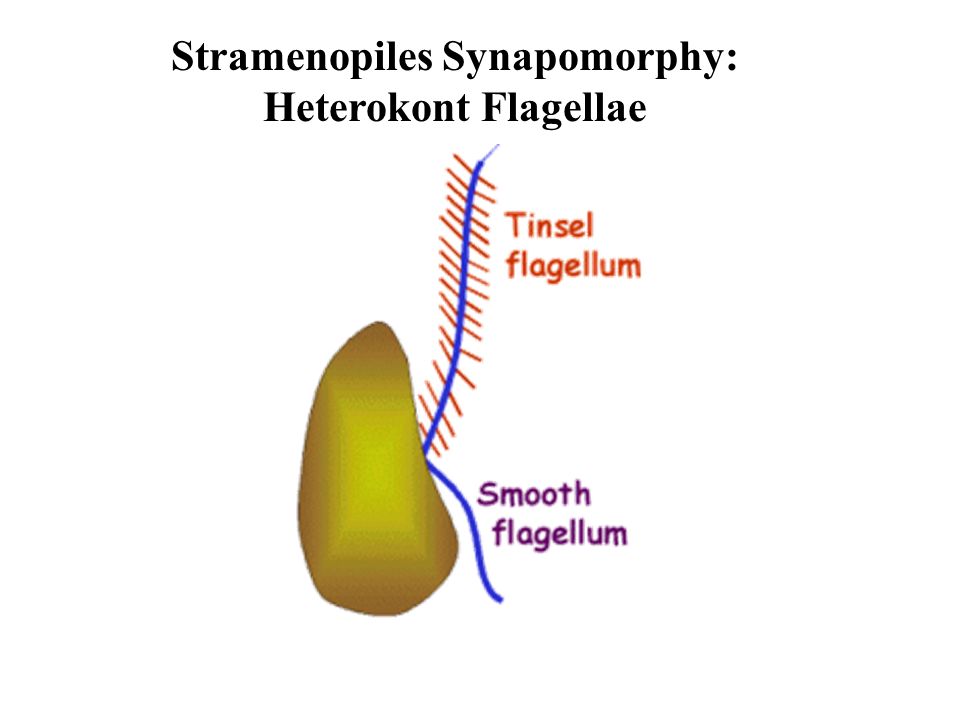

7. Stramenopiles Synapomorphy: Heterokont Flagellae

8. 1 3 4 5 Brown Algae Yellow-Green Algae Synurans Golden-Brown Algae Diatoms Stramenopiles: Ochrophytes

9. Putative Chloroplast Origin in “Ochrophytes” 10 11

10. 2 3 1 Diatoms

11. (Marine, Freshwater) Diatom Habitat

12. 7 8 PelagicBenthic Diatom Habitat

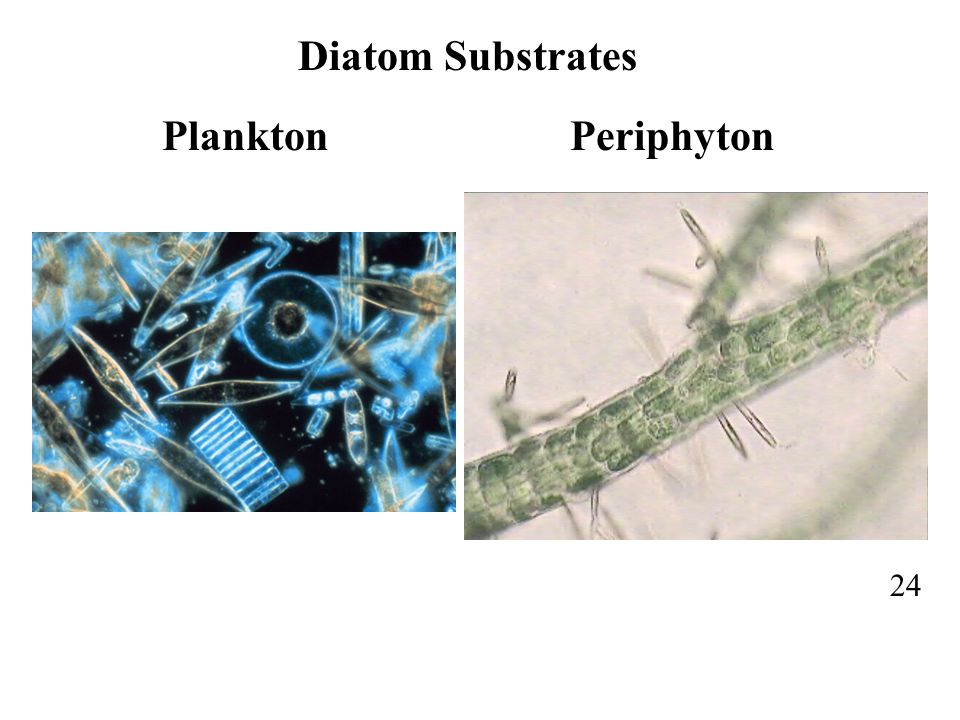

13. 24 PlanktonPeriphyton Diatom Substrates

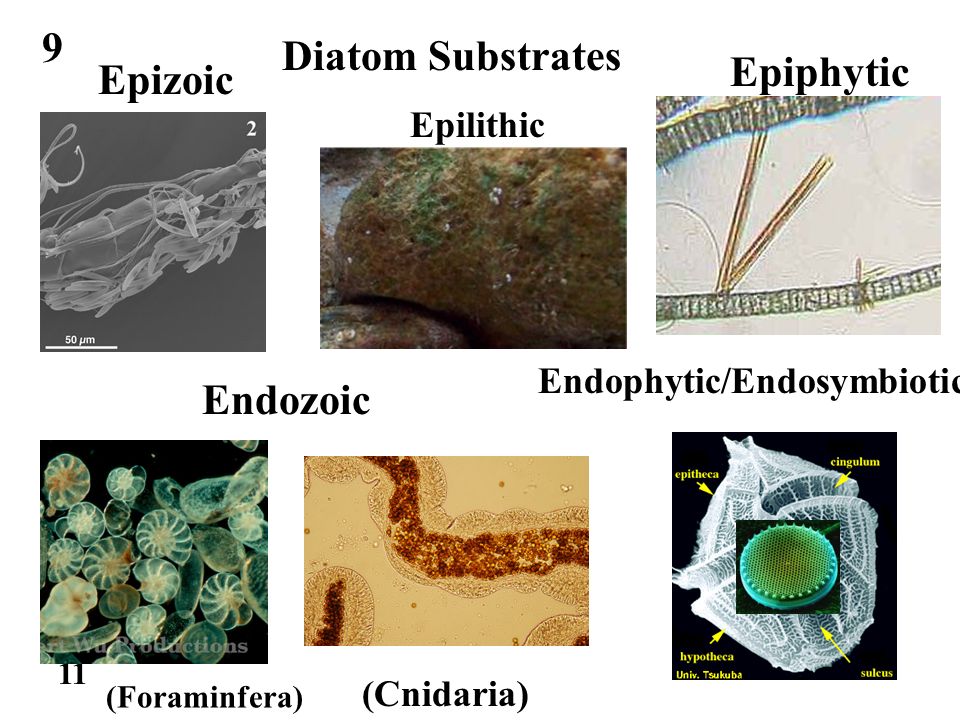

14. 9 Epizoic Endozoic 11 (Foraminfera) Epiphytic Endophytic/Endosymbiotic Epilithic (Cnidaria) Diatom Substrates

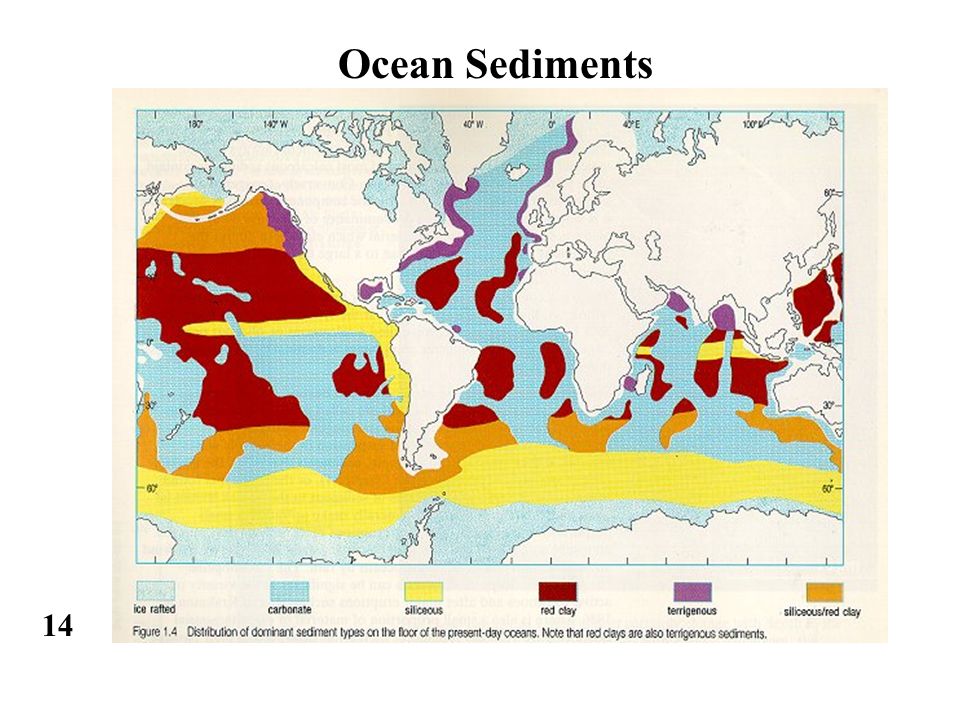

15. Ocean Sediments 14

16. 13 Primary Productivity: 20% of Global Carbon Fixation

17. 26 Diatomaceous Earth 27

18. Pseudo-nitzschia Amnesiac Shellfish Poisoning 15 Neurotoxin: Domoic Acid (Binds to Kainate Receptors Membranes of Nervous System)

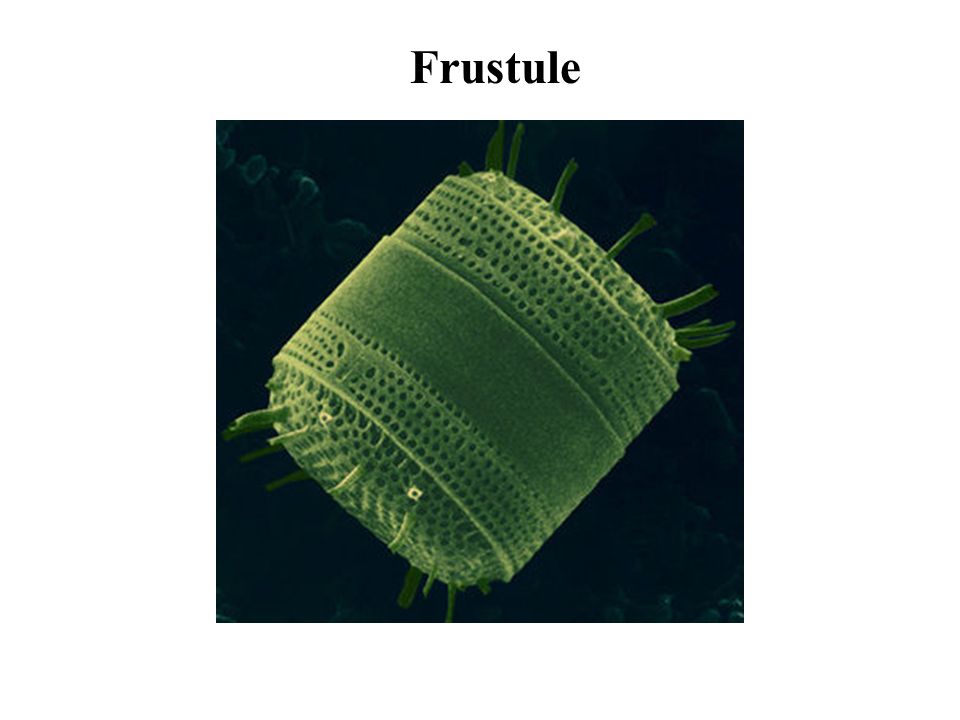

19. Frustule

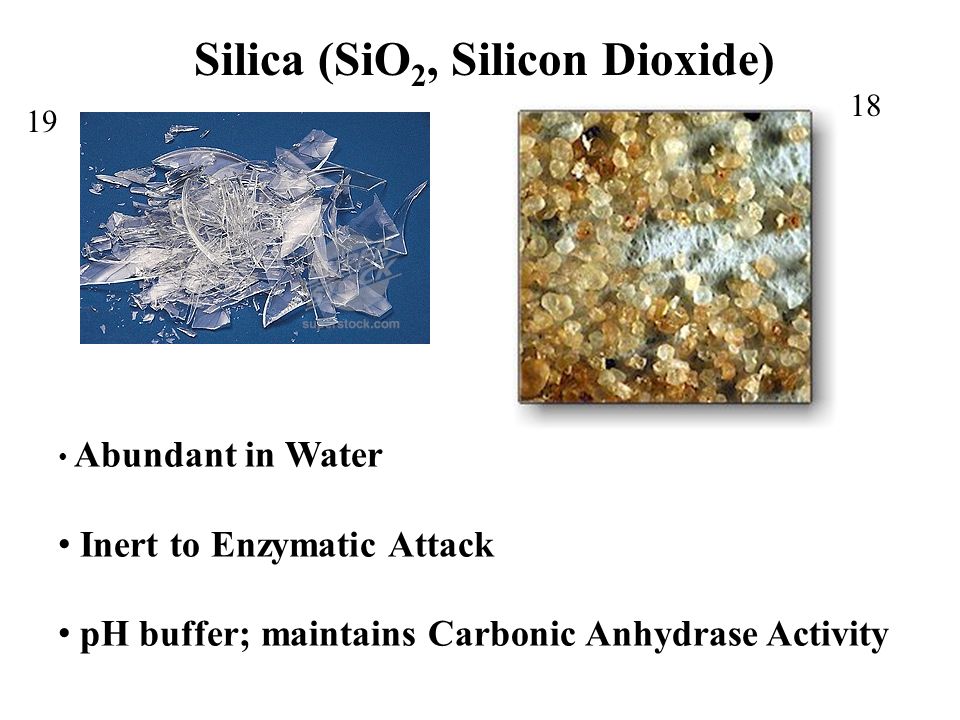

20. 18 Silica (SiO 2, Silicon Dioxide) 19 Abundant in Water Inert to Enzymatic Attack pH buffer; maintains Carbonic Anhydrase Activity

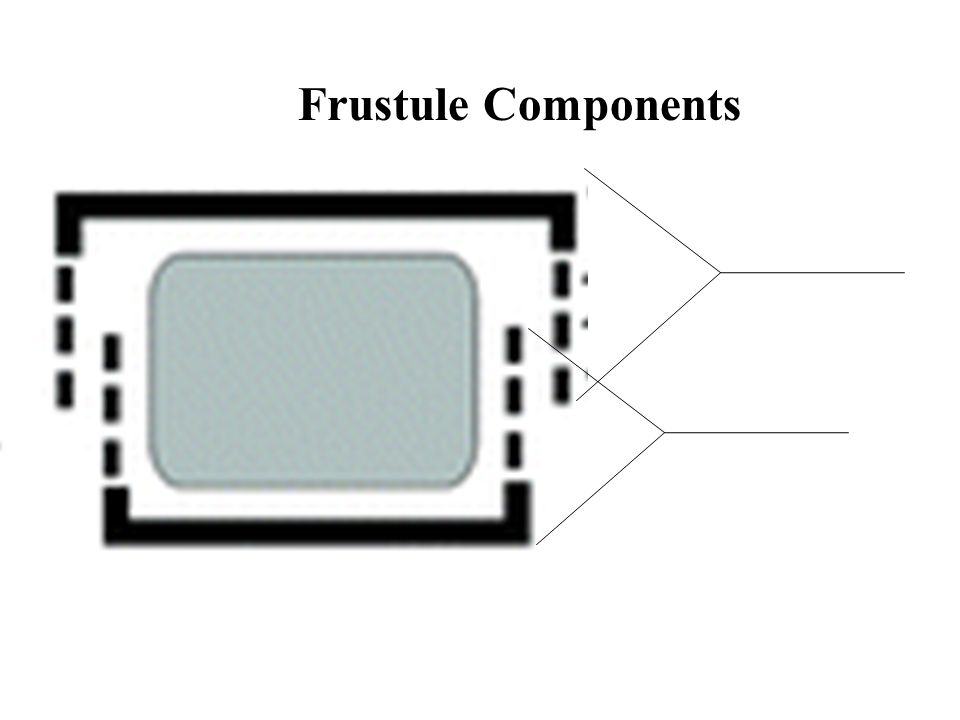

21. Frustule Components

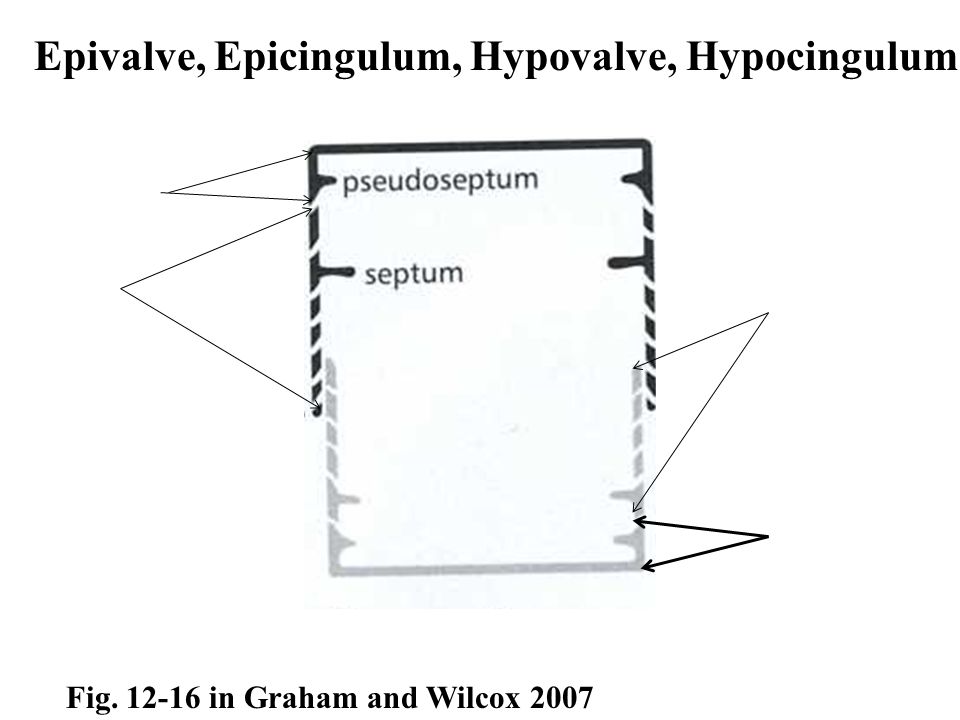

22. Fig. 12-16 in Graham and Wilcox 2007 Epivalve, Epicingulum, Hypovalve, Hypocingulum

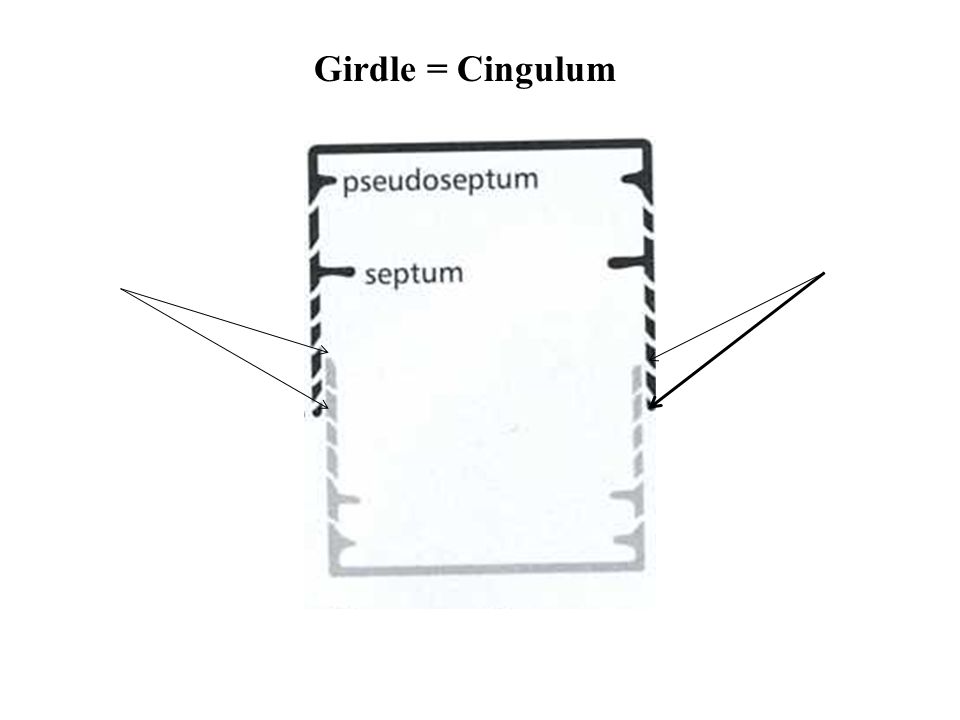

23. Girdle = Cingulum

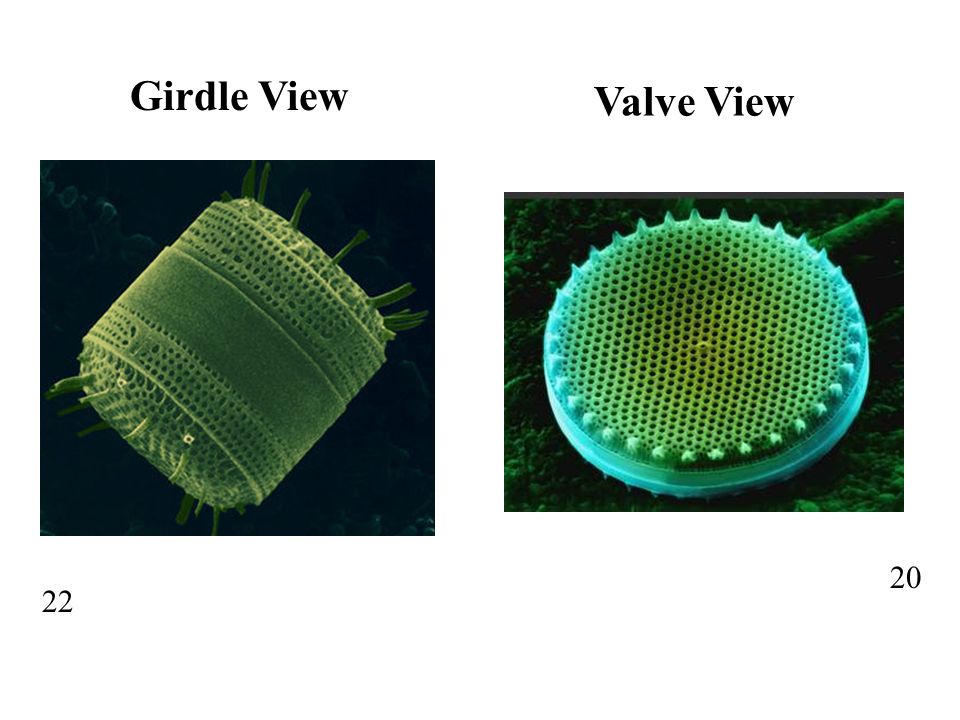

24. Girdle View 22 20 Valve View

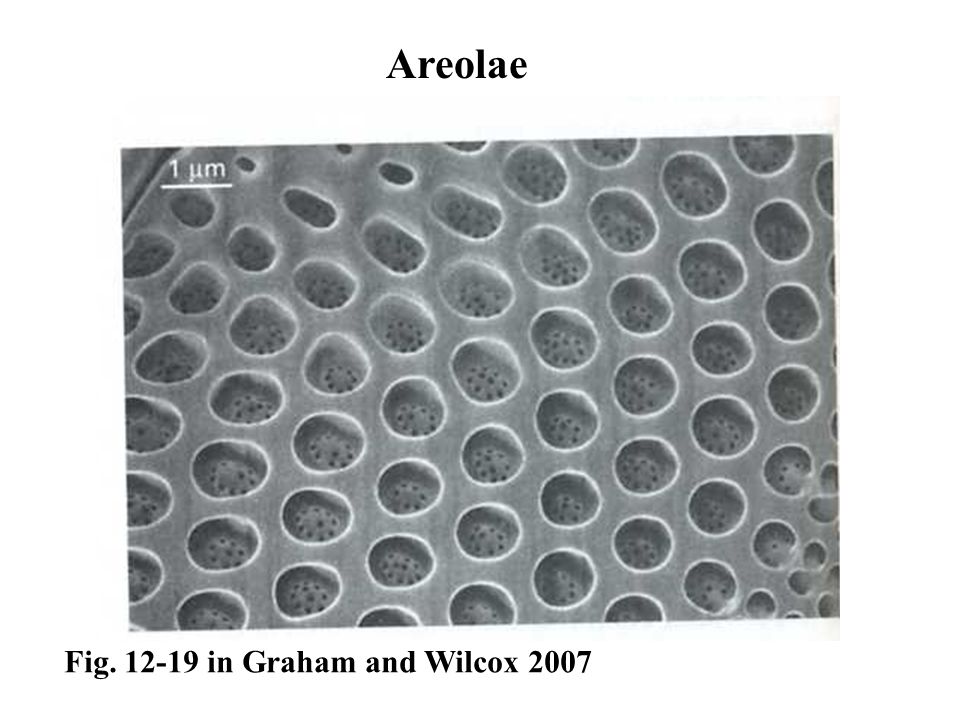

25. Areolae Fig. 12-19 in Graham and Wilcox 2007

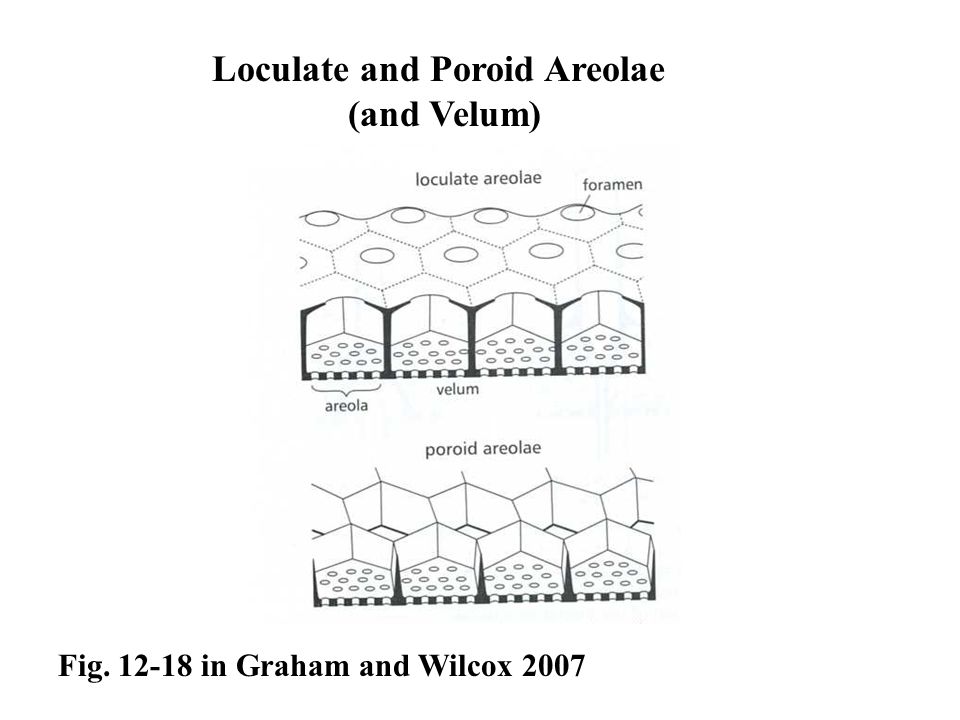

26. Fig. 12-18 in Graham and Wilcox 2007 Loculate and Poroid Areolae (and Velum)

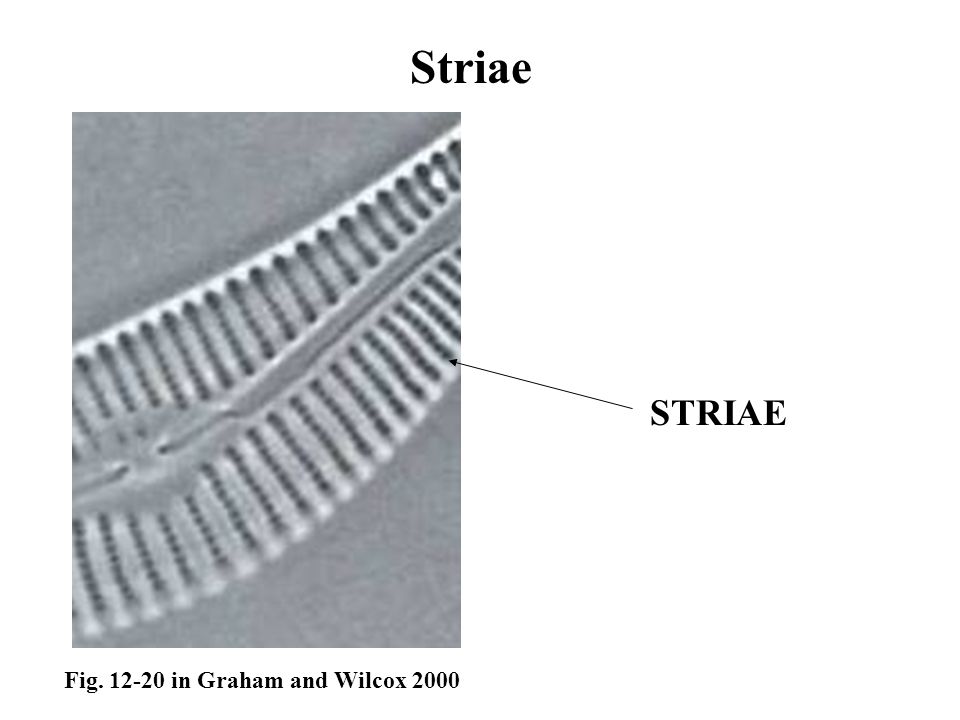

27. STRIAE Fig. 12-20 in Graham and Wilcox 2000 Striae

28. Ocellus: Mucilage Secretion Figs. 12-21, 12-22 in Graham and Wilcox 2007

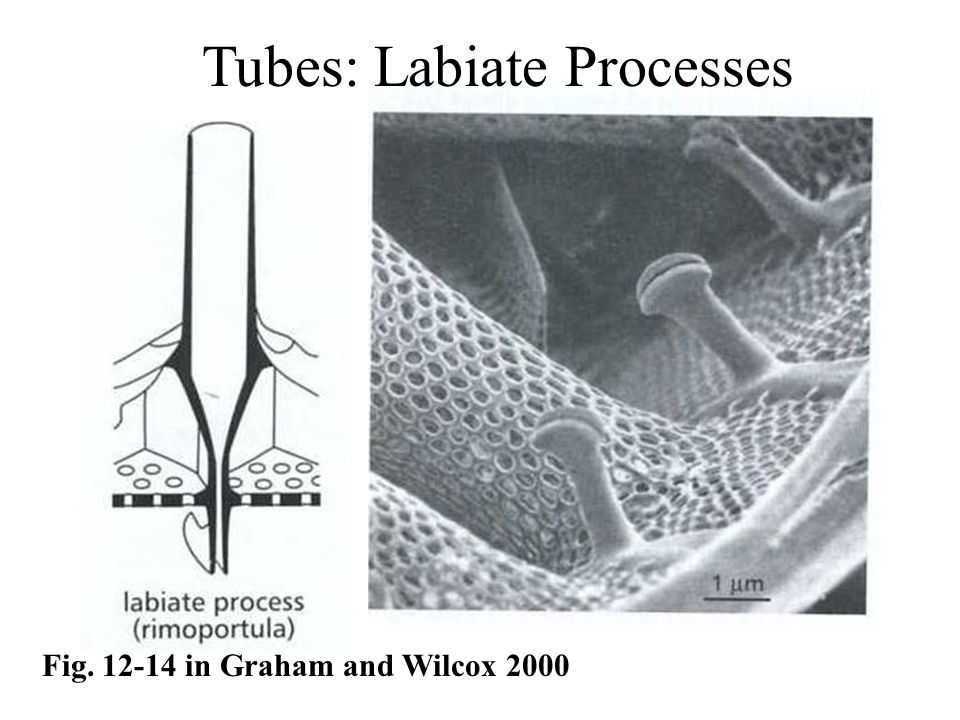

29. Fig. 12-14 in Graham and Wilcox 2000 Tubes: Labiate Processes

30. Tubes: Strutted Processes Figs. 12-14, 12-23 in Graham and Wilcox 2007

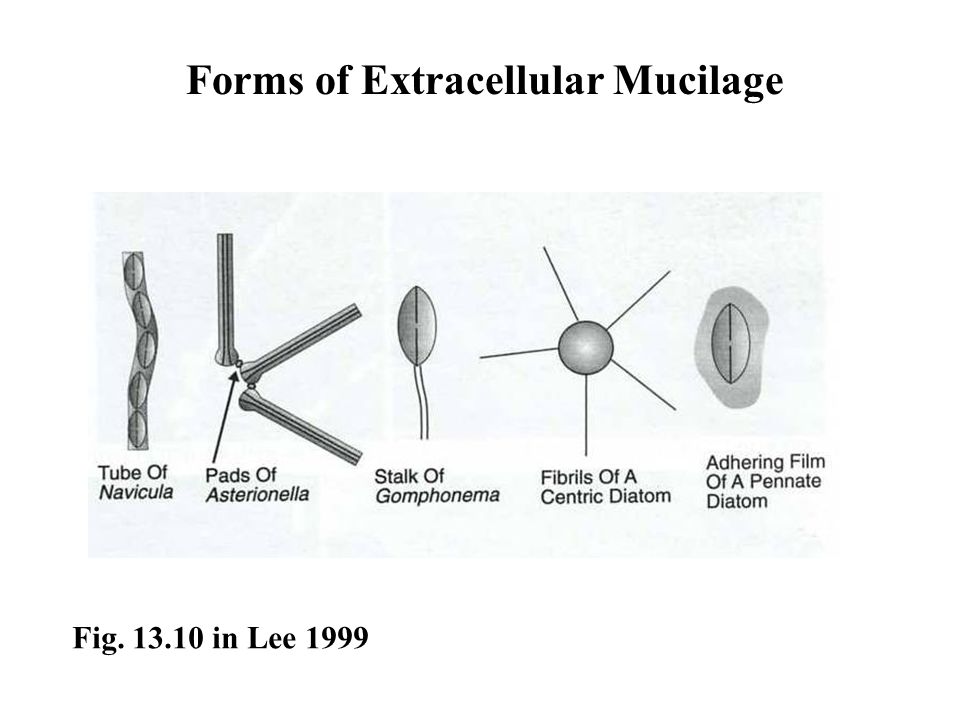

31. Forms of Extracellular Mucilage Fig. 13.10 in Lee 1999

32. Raphe, Central Nodule, Polar Nodules Fig. 12-25 in Graham and Wilcox 2000 Fig. 13.1 in Lee 1998 Fig. 13.3 in Lee 1999

33. Raphe System Figs. 12-24, 12-26 in Graham and Wilcox 2000 Valve View Girdle View

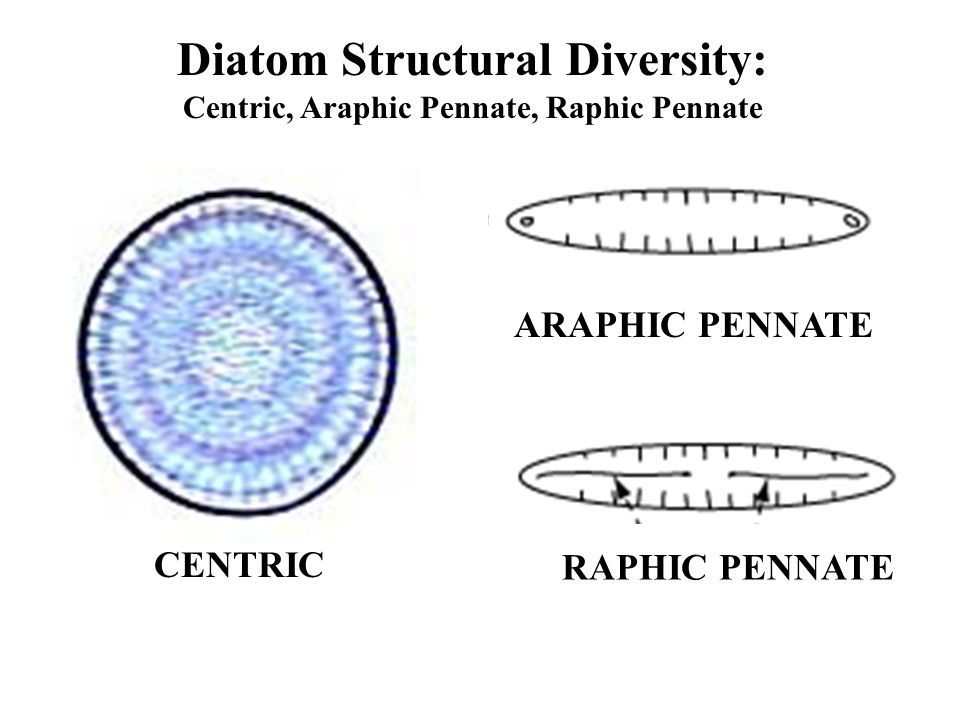

34. Diatom Structural Diversity: Centric, Araphic Pennate, Raphic Pennate CENTRIC ARAPHIC PENNATE RAPHIC PENNATE

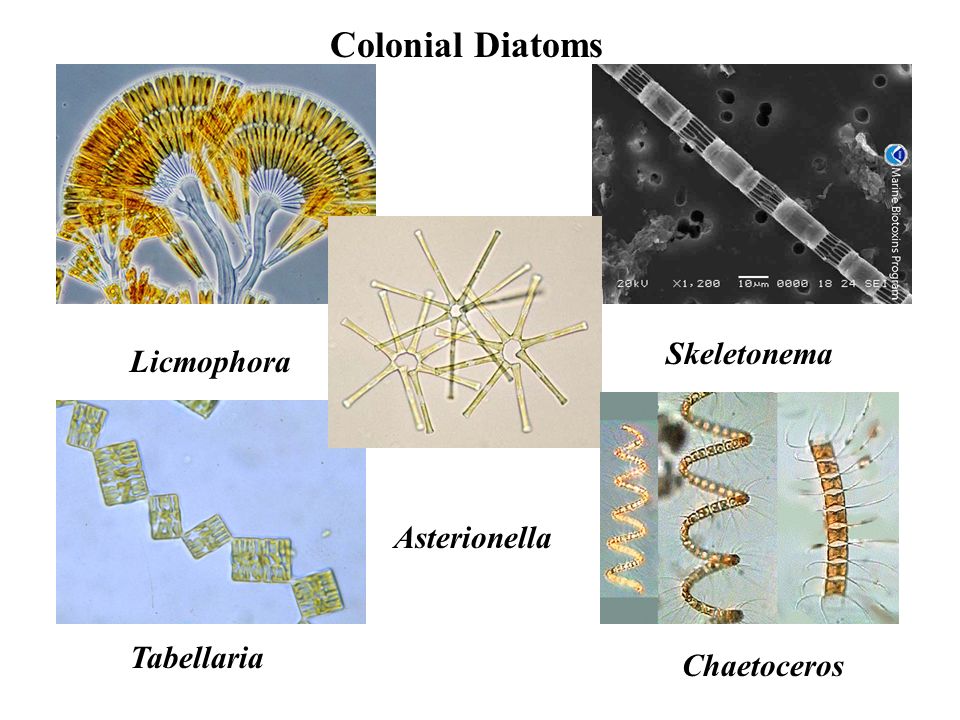

35. Licmophora Skeletonema Tabellaria Asterionella Chaetoceros Colonial Diatoms

36. Periphytic Diatoms Gomphonema

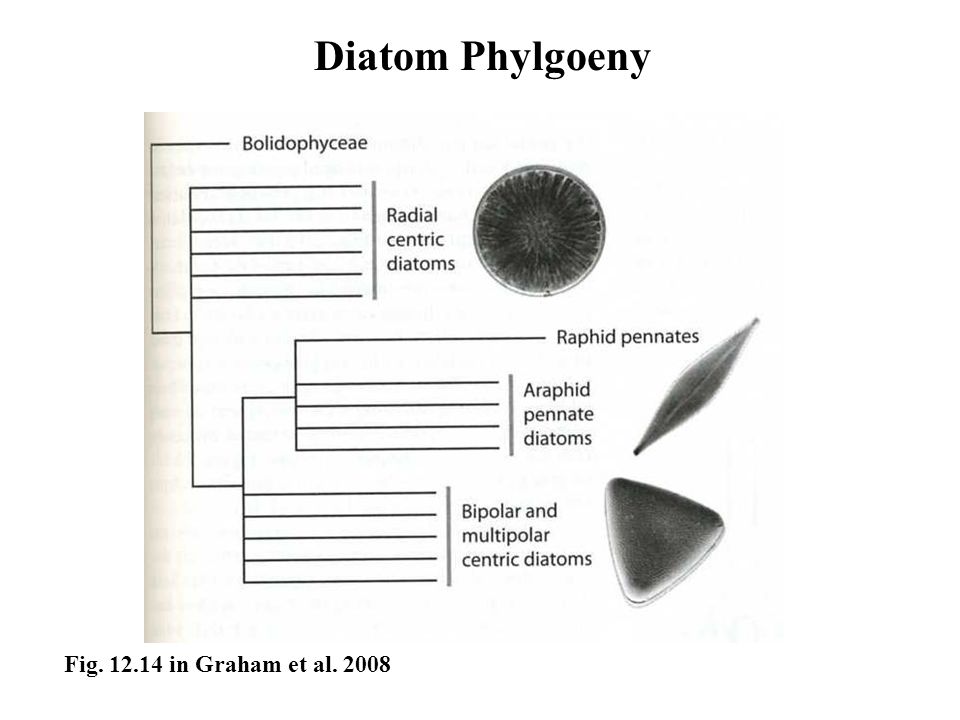

37. Diatom Phylgoeny Fig. 12.14 in Graham et al. 2008

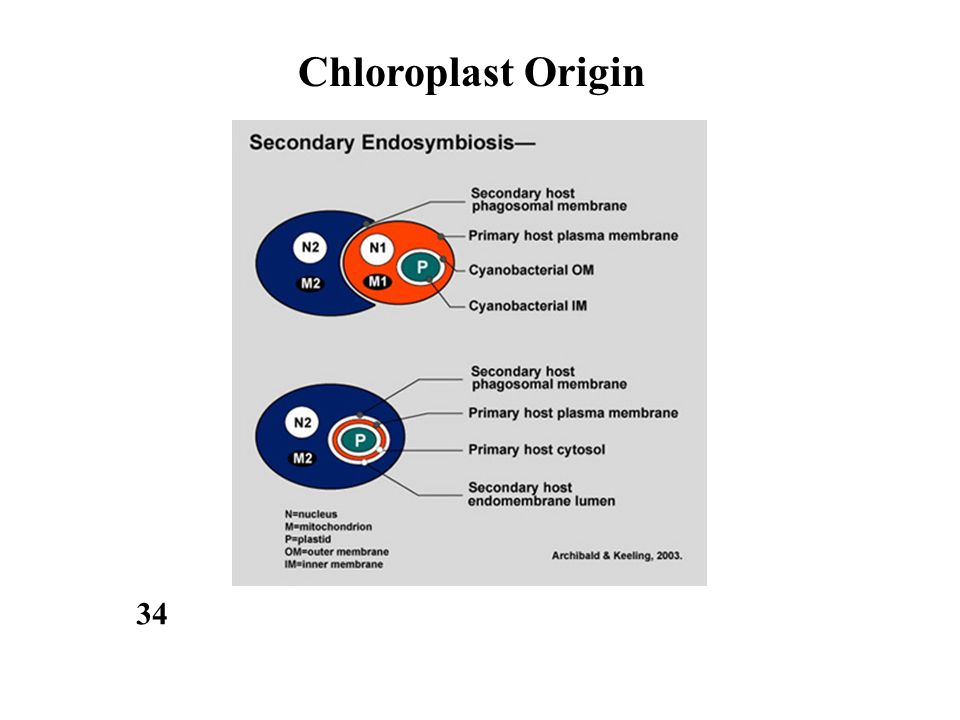

38. Chloroplast Origin 34

39. Fig. 12.24 in Graham et al. 2008 Diatom Cell Division

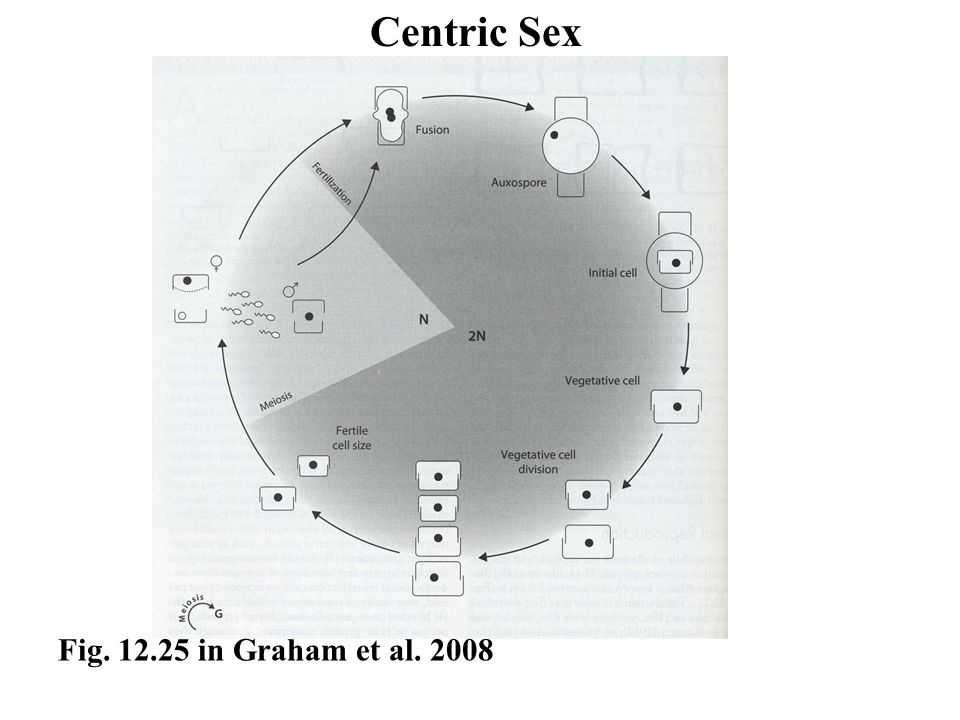

40. Centric Sex Fig. 12.25 in Graham et al. 2008

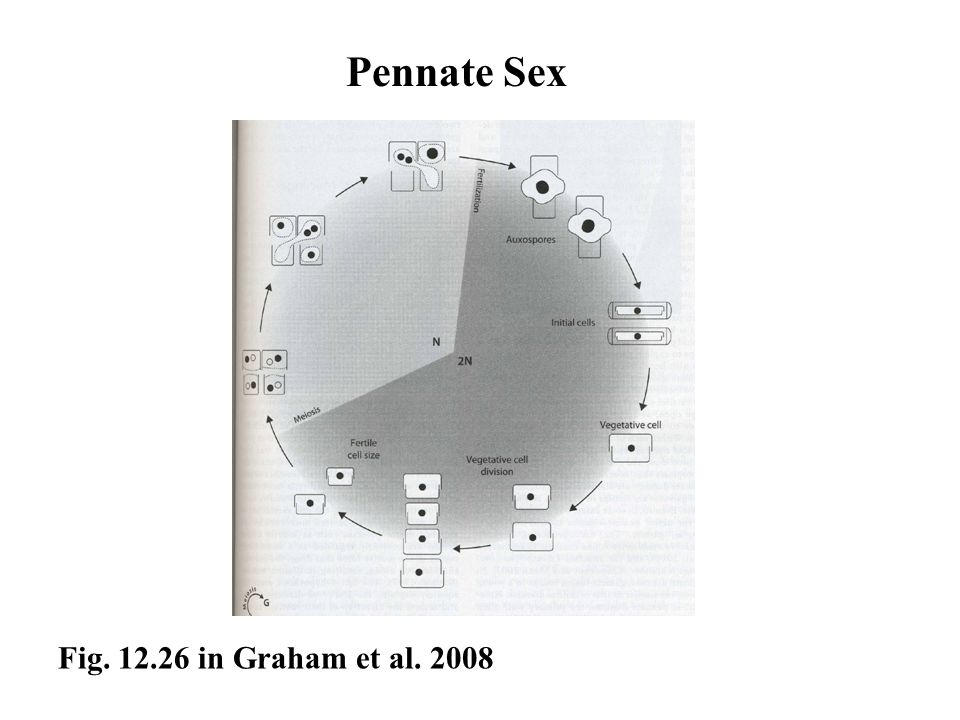

41. Pennate Sex Fig. 12.26 in Graham et al. 2008
