1. Generalized Linear Models All the regression models treated so far have common structure. This structure can be split up into two parts: The random part: The systematic part: These two elements are the basic building blocks of generalized linear models.

2. The systematic part Generalized linear model, systematic part: The covariates influence the distribution of response through the linear predictor: There is a link-function that links the expectation to the linear predictor:

3. The generalization from linear models to GLM GLMs are a generalization of linear normal models in two directions:

4. Example: binomial distribution Definition: the binomial distribution is the discrete probability distribution of the number of successes in a sequence of n independent yes/no experiments, each of which yields success with probability p.

5. Example For the binomial distribution The variance is a function of the mean: The linear model for the logit: ____________________ is a non-linear model for the probability ___________________.

6. The exponential family Many distributions encountered in practice (ex: normal, binomial, Poisson and Gamma distribution) share a common structure:

7. Example of the exponential family: Normal distribution

8. Example of the exponential family: Binomial

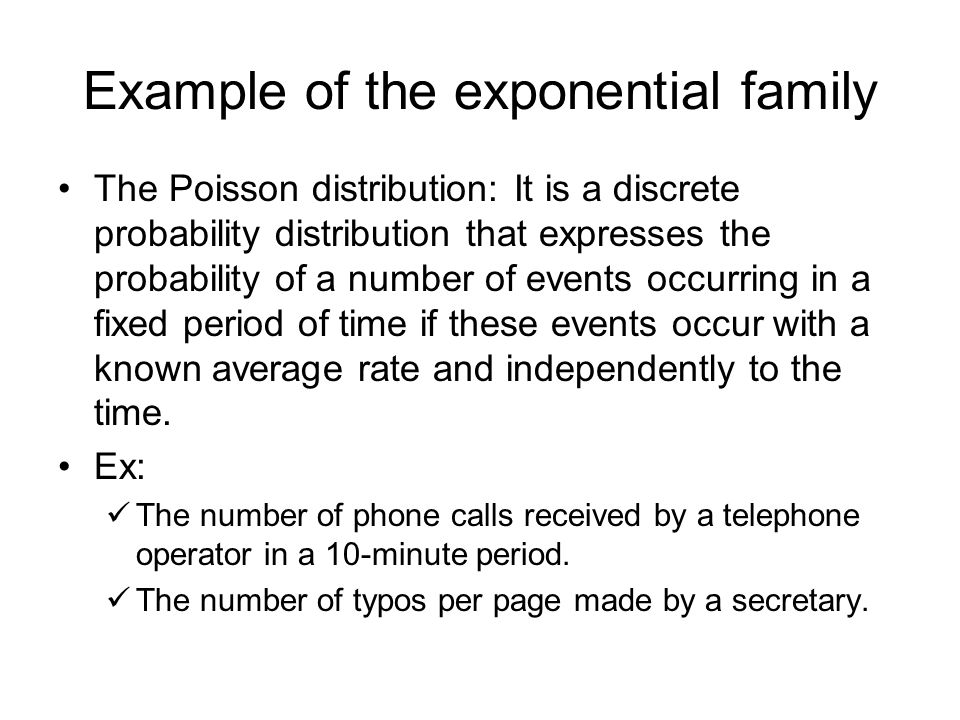

9. Example of the exponential family The Poisson distribution: It is a discrete probability distribution that expresses the probability of a number of events occurring in a fixed period of time if these events occur with a known average rate and independently to the time. Ex: The number of phone calls received by a telephone operator in a 10-minute period. The number of typos per page made by a secretary.

10. Poisson distribution The Poisson distribution belongs to the exponential family:

11. Mean and variance in the exponential family It can be shown that the mean and variance in the exponential family is:

12. Mean and variance example: Poisson For the Poisson model, mean and variance are: To summarize, for any given distribution we obtain a specific form of b which in turn determines the variance function. The converse is also true: Hence specifying a distribution and a variance function is two sides of the same coin as long as we work with exponential families.

13. Various variance functions

14. The link function The link function is a function which relates the mean to the linear predictor: Various link functions have been illustrated so far:

15. Canonical link For each distribution there is a specific link function which yields “nice” mathematical and numerical properties in connection with the estimation process. This link function is called the canonical link:

16. Specification of GLM In practice, a GLM is specified by three steps: In this connection it is important to be aware of the following: Most statistical packages will by default use the canonical link function unless another one is explicitly provided.

17. R code The glm function in R is used for fitting generalized linear models. Specification of the linear predictor: Specification of the distribution and the link function: e.g. family=Gamma(link=log)

18. Remember that the specification of a distribution yields a specific variance function. Not all possible combinations of a distribution and a link function are allowed in R.

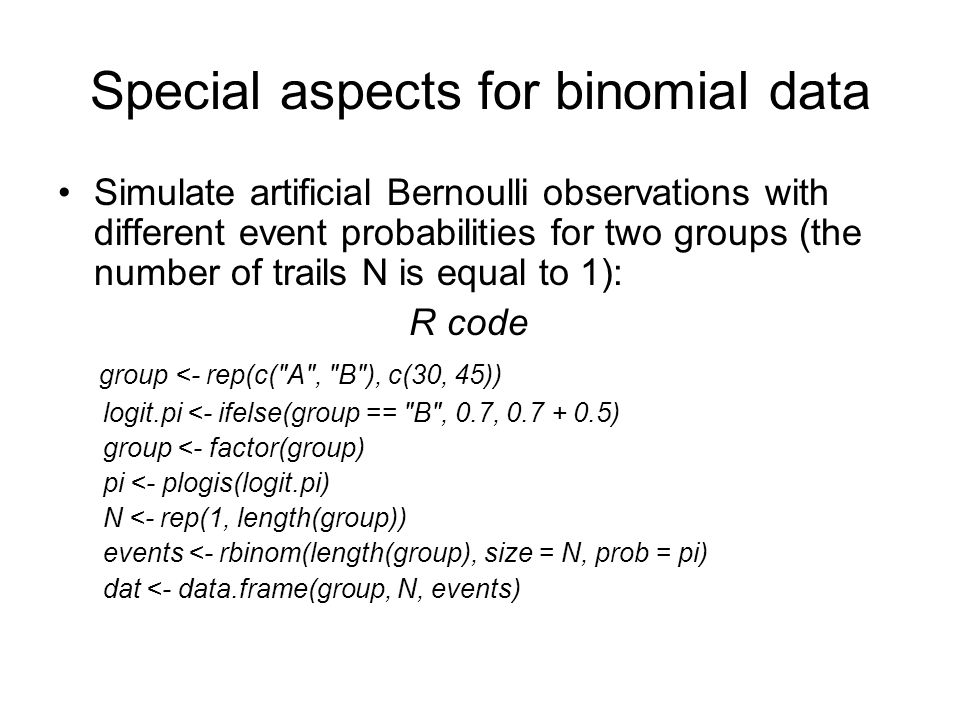

19. Special aspects for binomial data Simulate artificial Bernoulli observations with different event probabilities for two groups (the number of trails N is equal to 1): R code group <- rep(c("A", "B"), c(30, 45)) logit.pi <- ifelse(group == "B", 0.7, 0.7 + 0.5) group <- factor(group) pi <- plogis(logit.pi) N <- rep(1, length(group)) events <- rbinom(length(group), size = N, prob = pi) dat <- data.frame(group, N, events)

20. Analysis of simulated data Model: ___________________________________ The response is a two-column matrix containing events and non- events: f1<-glm(cbind(events,N-events)~group, family=binomial,data=dat) Define proportions: dat$prop<-with(dat, events/N) and use these as the response and the number of trails N as weights in the fit: f2<-glm(prop~group, family=binomial, weights=N, data=dat) Use the number of events directly as the response f3<-glm(events~group,family=binomial,data=dat)

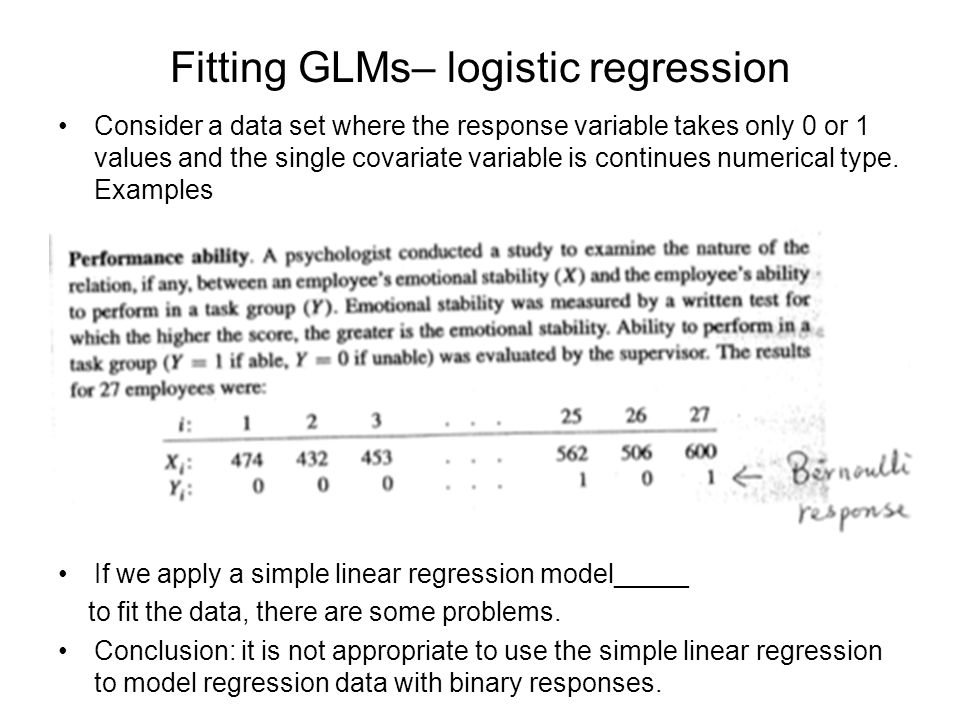

21. Fitting GLMs– logistic regression Consider a data set where the response variable takes only 0 or 1 values and the single covariate variable is continues numerical type. Examples If we apply a simple linear regression model_____ to fit the data, there are some problems. Conclusion: it is not appropriate to use the simple linear regression to model regression data with binary responses.

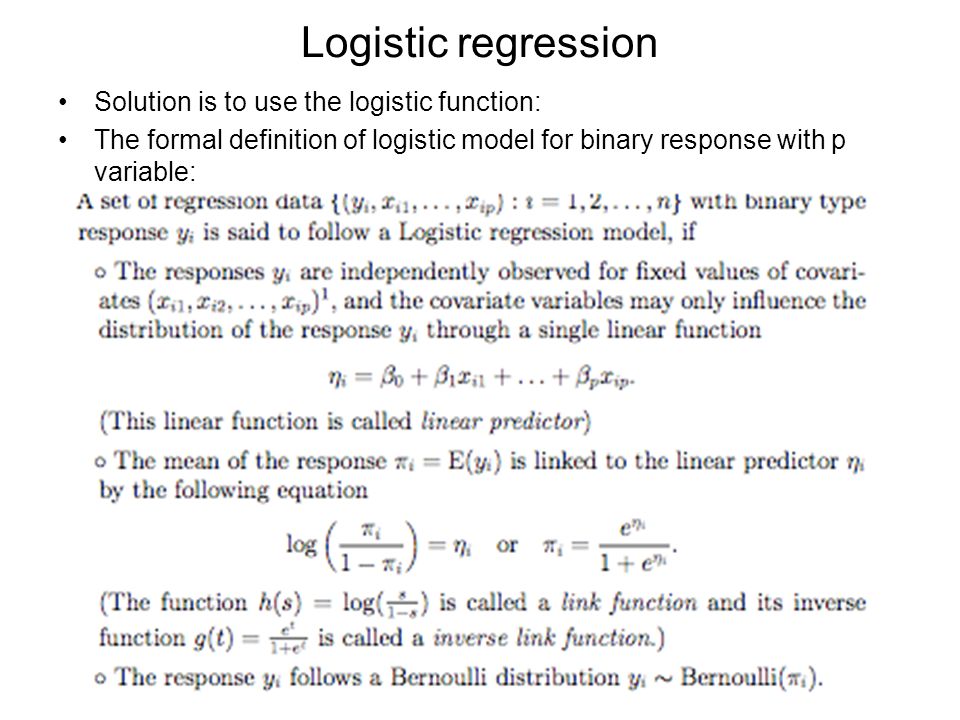

22. Logistic regression Solution is to use the logistic function: The formal definition of logistic model for binary response with p variable:

23. Logistic regression How to interpret the model? In logistic model, the odds of “success”: The logistic model for binary data can be slightly modified

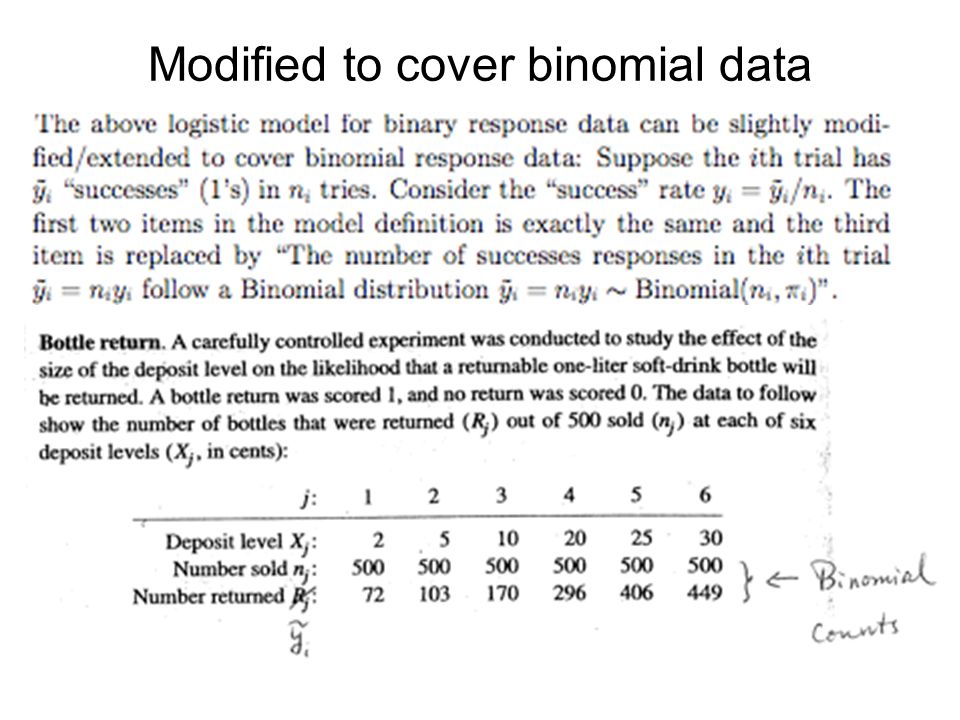

24. Modified to cover binomial data

25. Bernoulli and Poisson distribution Likelihood: MLE estimates:

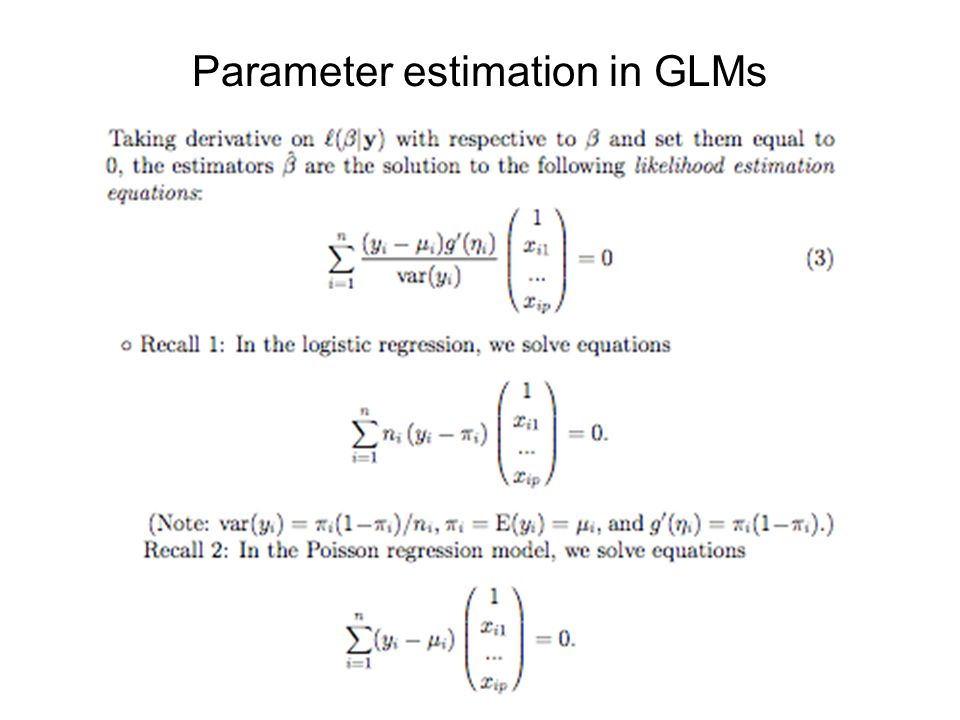

26. Parameter estimation in GLMs

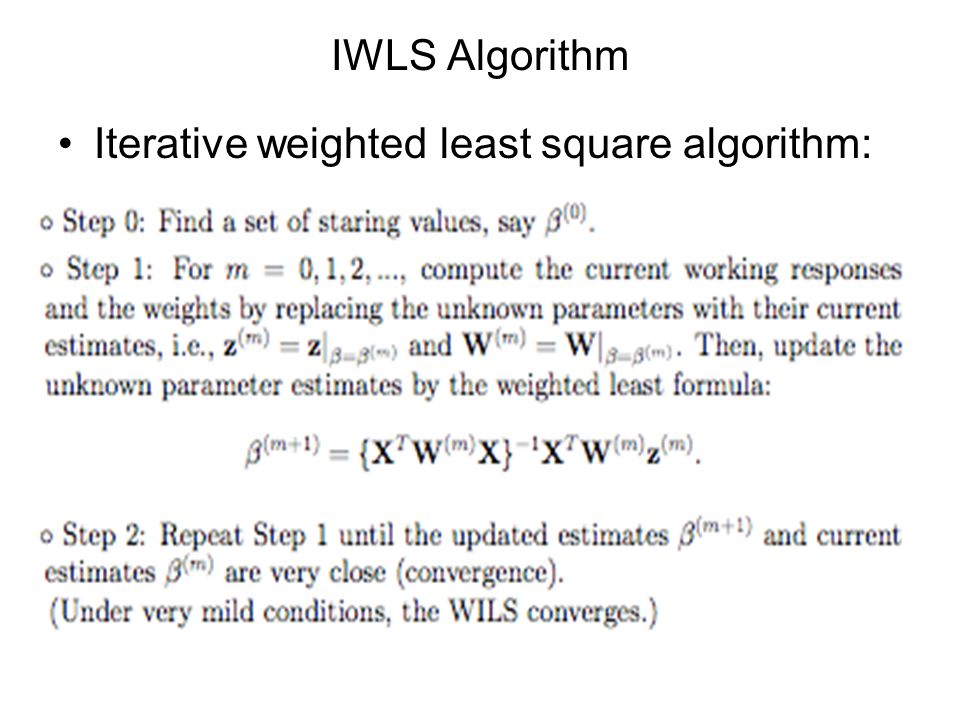

27. IWLS Algorithm Iterative weighted least square algorithm:
