1. OSTM/Jason2 - OSTST Hobart - March 12, 2007 1 OSTM/Jason2 Mission status J. Perbos/CNES, P. Vaze/NASA, W. Bannoura/NOAA, F. Parisot/Eumetsat OSTST meeting - Hobart Presented by G. Zaouche - CNES

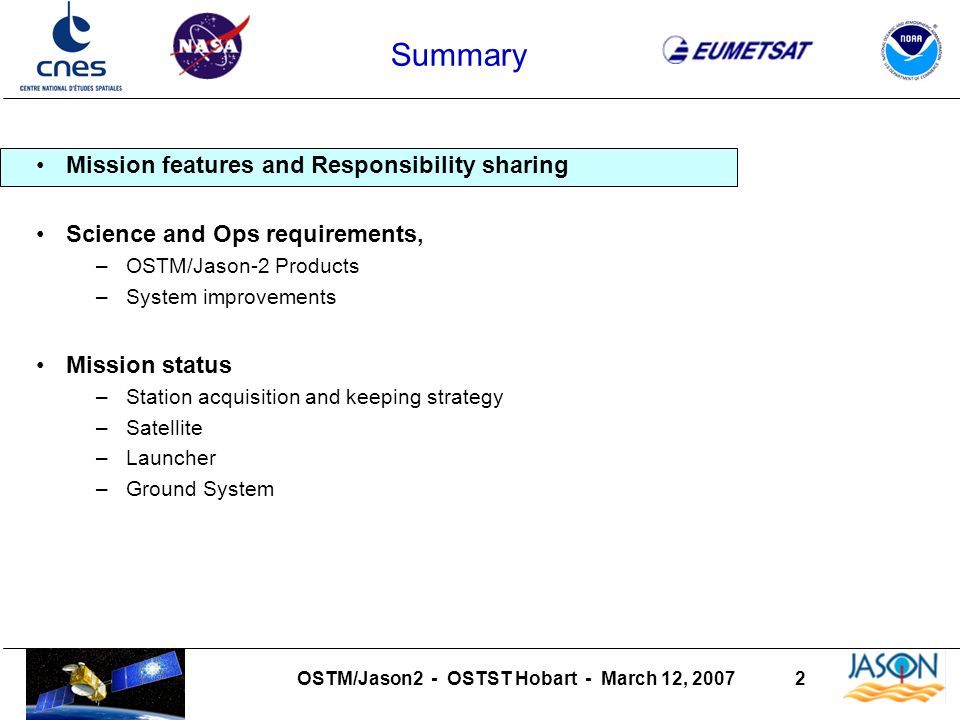

2. OSTM/Jason2 - OSTST Hobart - March 12, 2007 2 Summary Mission features and Responsibility sharing Science and Ops requirements, –OSTM/Jason-2 Products –System improvements Mission status –Station acquisition and keeping strategy –Satellite –Launcher –Ground System

3. OSTM/Jason2 - OSTST Hobart - March 12, 2007 3 Instruments Core Mission: Poseidon-3 Altimeter DORIS (Precise Orbit Determination System) Advanced Microwave Radiometer (AMR) GPS Payload (GPSP) Laser Retro-reflector Array (LRA) Passengers: T2L2 JRE (Carmen2 + LPT) Core Mission: Poseidon-3 Altimeter DORIS (Precise Orbit Determination System) Advanced Microwave Radiometer (AMR) GPS Payload (GPSP) Laser Retro-reflector Array (LRA) Passengers: T2L2 JRE (Carmen2 + LPT) Science Measurements Global sea surface height to an accuracy of < 4 cm every 10 days, for determining ocean circulation, climate change and sea level rise Mission Objectives Provide continuity of high precision ocean topography measurements beyond TOPEX/Poseidon and Jason-1 Provide a bridge to an operational mission to enable the continuation of multi-decadal ocean topography measurements Mission Overview Launch Date: mid June 2008 Launch Vehicle: Delta II 7320 Proteus Spacecraft Bus provided by CNES Mission life of 3 years (goal of 5 years) 1335 km Orbit, 66º Inclination Launch Date: mid June 2008 Launch Vehicle: Delta II 7320 Proteus Spacecraft Bus provided by CNES Mission life of 3 years (goal of 5 years) 1335 km Orbit, 66º Inclination Mission summary

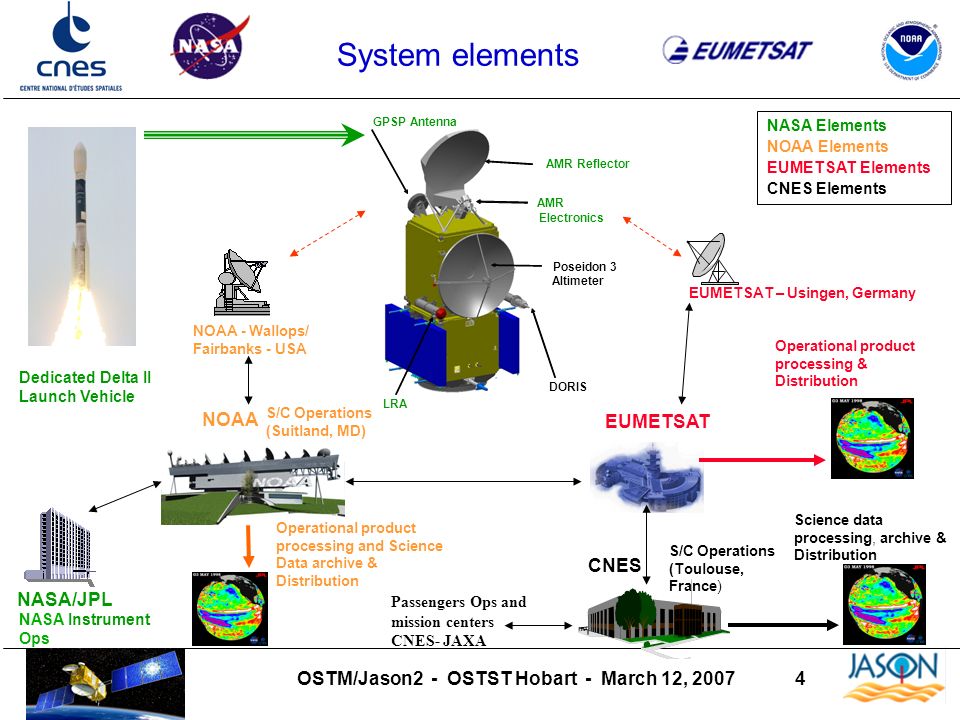

4. OSTM/Jason2 - OSTST Hobart - March 12, 2007 4 NASA/JPL NOAA CNES EUMETSAT EUMETSAT – Usingen, Germany NOAA - Wallops/ Fairbanks - USA Jason 2 Dedicated Delta II Launch Vehicle NASA Instrument Ops Operational product processing and Science Data archive & Distribution Operational product processing & Distribution Science data processing, archive & Distribution NASA Elements NOAA Elements EUMETSAT Elements CNES Elements S/C Operations (Suitland, MD) S/C Operations (Toulouse, France) Passengers Ops and mission centers CNES- JAXA AMR Reflector AMR Electronics GPSP Antenna LRA Poseidon 3 Altimeter DORIS System elements

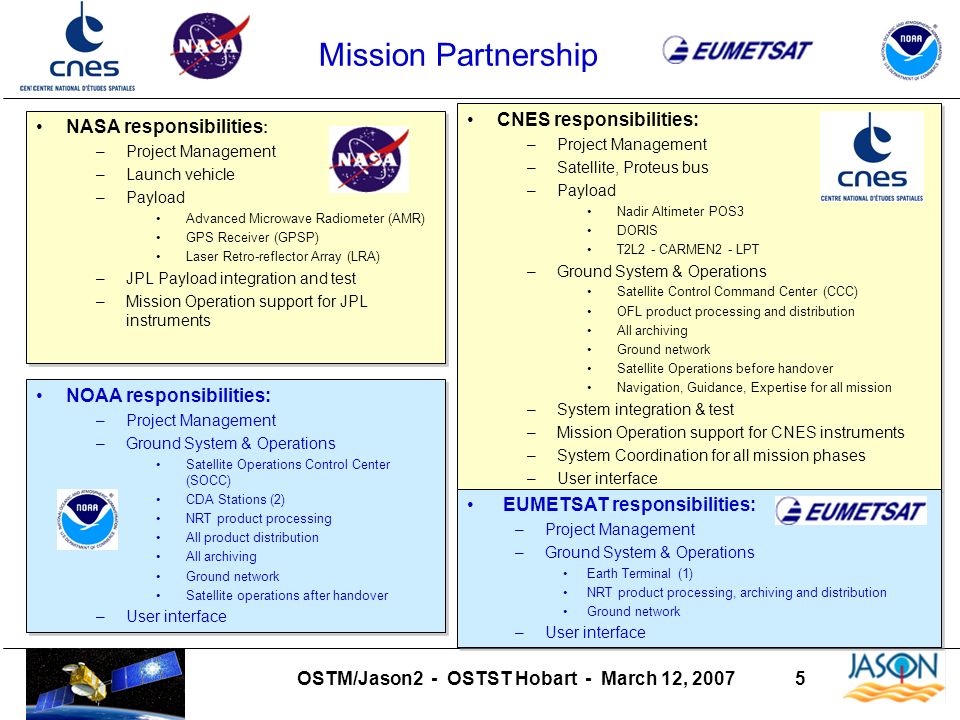

5. OSTM/Jason2 - OSTST Hobart - March 12, 2007 5 Mission Partnership CNES responsibilities: –Project Management –Satellite, Proteus bus –Payload Nadir Altimeter POS3 DORIS T2L2 - CARMEN2 - LPT –Ground System & Operations Satellite Control Command Center (CCC) OFL product processing and distribution All archiving Ground network Satellite Operations before handover Navigation, Guidance, Expertise for all mission –System integration & test –Mission Operation support for CNES instruments –System Coordination for all mission phases –User interface CNES responsibilities: –Project Management –Satellite, Proteus bus –Payload Nadir Altimeter POS3 DORIS T2L2 - CARMEN2 - LPT –Ground System & Operations Satellite Control Command Center (CCC) OFL product processing and distribution All archiving Ground network Satellite Operations before handover Navigation, Guidance, Expertise for all mission –System integration & test –Mission Operation support for CNES instruments –System Coordination for all mission phases –User interface NASA responsibilities : –Project Management –Launch vehicle –Payload Advanced Microwave Radiometer (AMR) GPS Receiver (GPSP) Laser Retro-reflector Array (LRA) –JPL Payload integration and test –Mission Operation support for JPL instruments NASA responsibilities : –Project Management –Launch vehicle –Payload Advanced Microwave Radiometer (AMR) GPS Receiver (GPSP) Laser Retro-reflector Array (LRA) –JPL Payload integration and test –Mission Operation support for JPL instruments NOAA responsibilities: –Project Management –Ground System & Operations Satellite Operations Control Center (SOCC) CDA Stations (2) NRT product processing All product distribution All archiving Ground network Satellite operations after handover –User interface NOAA responsibilities: –Project Management –Ground System & Operations Satellite Operations Control Center (SOCC) CDA Stations (2) NRT product processing All product distribution All archiving Ground network Satellite operations after handover –User interface EUMETSAT responsibilities: –Project Management –Ground System & Operations Earth Terminal (1) NRT product processing, archiving and distribution Ground network –User interface EUMETSAT responsibilities: –Project Management –Ground System & Operations Earth Terminal (1) NRT product processing, archiving and distribution Ground network –User interface

6. OSTM/Jason2 - OSTST Hobart - March 12, 2007 6 Summary Mission features and Responsibility sharing Science and Ops requirements, –OSTM/Jason-2 Products –System improvements Mission status –Station acquisition and keeping strategy –Satellite –Launcher –Ground System

7. OSTM/Jason2 - OSTST Hobart - March 12, 2007 7 Jason-2 shall pursue the scientific objectives of the T/P and Jason-1 missions and support the running operational services Jason-2 shall meet the better than 3.5 cm rms accuracy, at 1 Hz, on the fully validated sea surface height measurements and shall provide intermediate products with the required delay and accuracy In addition to wave height and wind speed, NRT products need to include SSH information, with the required accuracy, for monitoring and forecast ocean fast events Expectation of improving performances through off-line ground-processing updates Expectation of collecting a maximum of valid data near the coasts, over inland waters and sea-ice, in order to support emerging research in coastal dynamics, hydrology, sea-ice interactions… Summary of science and Ops requirements

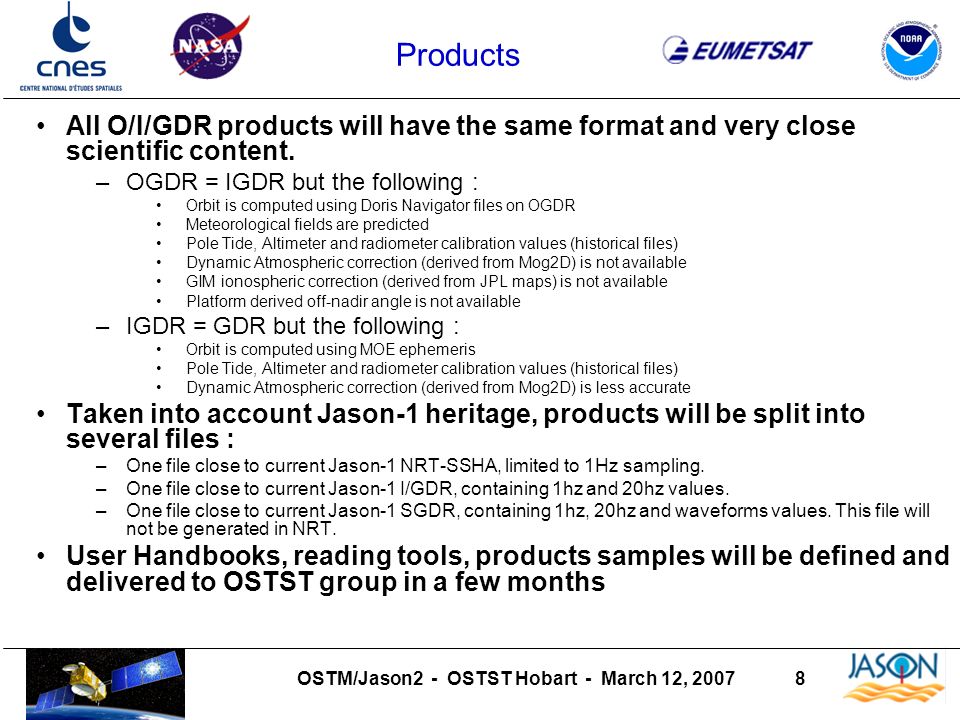

8. OSTM/Jason2 - OSTST Hobart - March 12, 2007 8 Products All O/I/GDR products will have the same format and very close scientific content. –OGDR = IGDR but the following : Orbit is computed using Doris Navigator files on OGDR Meteorological fields are predicted Pole Tide, Altimeter and radiometer calibration values (historical files) Dynamic Atmospheric correction (derived from Mog2D) is not available GIM ionospheric correction (derived from JPL maps) is not available Platform derived off-nadir angle is not available –IGDR = GDR but the following : Orbit is computed using MOE ephemeris Pole Tide, Altimeter and radiometer calibration values (historical files) Dynamic Atmospheric correction (derived from Mog2D) is less accurate Taken into account Jason-1 heritage, products will be split into several files : –One file close to current Jason-1 NRT-SSHA, limited to 1Hz sampling. –One file close to current Jason-1 I/GDR, containing 1hz and 20hz values. –One file close to current Jason-1 SGDR, containing 1hz, 20hz and waveforms values. This file will not be generated in NRT. User Handbooks, reading tools, products samples will be defined and delivered to OSTST group in a few months

9. OSTM/Jason2 - OSTST Hobart - March 12, 2007 9 OGDR products (Near Real Time) Description : –NRT geophysical product, data latency of 3 hours. –DORIS/DIODE onboard orbit : 10 cm rms for the radial component –Ground retracking is performed and all environmental and geophysical corrections computed. –Non fully validated product which contains data for both bands (Ku and C). –Two files : SSHA_OGDR : close to current Jason-1 NRT-SSHA, limited to 1Hz sampling. OGDR : close to current Jason-1 I/GDR, containing 1hz and 20hz values. Keys inputs : –Satellite telemetry –Auxiliary data Production requirement : –For the OGDR, 75% of the data taken shall be made available to the users within 3 hours from acquisition and 95% of the data within 5 hours. –No dynamical auxiliary data are mandatory input for OGDR processing. In case of lack of dynamical auxiliary data, the corresponding OGDR field will be computed with the most recent data available (none field being set to default).

10. OSTM/Jason2 - OSTST Hobart - March 12, 2007 10 NRT Products Quality Assessment System Quality Assessment System Developed by JPL under NOAA Contract has been installed & tested at NOAA Presently running on Jason-1 IGDRs, until Jason-2 OGDR is fully defined QA Package has been made available to EUMETSAT via JPL licensing Time Series (SSH)Asc/Des Maps (Iono)Histograms (Iono) Editing Time Series & Map (Wind)

11. OSTM/Jason2 - OSTST Hobart - March 12, 2007 11 OSTM Product Suite Product:OGDRIGDRGDR Latency:3-5 Hours< 1.5 Days~ 60 Days 1-Hz*OGDR-BUFR 1-HzOGDR-SSHAIGDR-SSHAGDR-SSHA 20-HzOGDRIGDRGDR WaveformsS-IGDRS-GDR * Compressed BUFR format; all other products in native netCDF format

12. OSTM/Jason2 - OSTST Hobart - March 12, 2007 12 OSS Nominal products Major characteristics of the product OGDR (NRT) IGDR (OFL) GDR (OFL) Content Not fully validated geophysical level 2 product fully validated geophysical level 2 product Alt. ground retracking Applied Orbit information source Better than 10 cm DORIS Navigator 2.5 cm preliminary orbit 1.5 cm Precise orbit Structure segmentpass Packaging segmentdaycycle Ground Processing mode systematic Data latency /availability 3 hours / 75% 5 hours / 95% <1.5 calendar days / 95% 60 days / 95% Format / Ground Processing centers Native and BUFR / NOAA and EUMETSAT Native / CNES Ground Archiving centers NOAA and CNES and EUMETSAT NOAA and CNES Dissemination centers NOAA and EUMETSATNOAA and CNES Dissemination mode Systematic Electronic & Satellite Systematic Electronic Systematic Electronic - Media

13. OSTM/Jason2 - OSTST Hobart - March 12, 2007 13 Some system improvements “Collecting a maximum of valid data near the coasts, over inland waters” Achieved through implementing new altimeter functional modes:  “Median Tracker algorithm ” in addition to the current Poseidon 2 “Split Gate Tracker algorithm” (adapted to ocean surfaces) should improve significantly echo tracking capability over non ocean surfaces  Use of satellite altitude data provided in real time by DORIS/Diode :  2 new experimental modes :  Signal acquisition using Diode altitude data + usual on-board tracker : should improve the delay to get echoes after a land-water transition (3 times better)  Range directly computed from : Diode altitude data + Digital Elevation Model data DEM data stored on-board, representative of oceans, lakes and rivers, and flat land areas should improve data collection near the coasts and over inland waters Final altimeter nominal mode will be selected after data evaluation during the assessment phase

14. OSTM/Jason2 - OSTST Hobart - March 12, 2007 14 Some system improvements New coastal & inland water product (demonstrative one) : –ITT has been issued by CNES to develop a new product suitable for applications in coastal and inland areas. –All current ground processing will be reviewed and analyzed. –We foresee : Dedicated retracking and radiometer algorithms Dedicated geophysical corrections (tides, ssb, …) Dedicated environmental corrections (wet tropo, iono, …) –Prototype shall be ready for Jason-2 launch, operated during CalVal phase and products made available to OSTST community for review. –Using OSTST feedbacks, this demonstrative product might become an official product during Jason-2 operation phase.

15. OSTM/Jason2 - OSTST Hobart - March 12, 2007 15 Summary Mission features and Responsibility sharing Science and Ops requirements, –OSTM/Jason-2 Products –System improvements Mission status –Station acquisition and keeping strategy –Satellite –Launcher –Ground System

16. OSTM/Jason2 - OSTST Hobart - March 12, 2007 16 Jason-2 Orbit target : 1 min Jason-2 is maintained in a control box of ± 1 km  1 km  Jason-1is maintained in a control box of ± 1 km Each satellite remains in its control box by controlling the equator crossing. The station keeping is made independently Improvement wrt Jason-1 : for Jason-2 station keeping, maneuvers will be made with only one thrust above earth on any orbit (no more on the last orbit of the 10-day cycle) Tandem flight with Jason-1 planned for both altimeters cross-calibration purposes Jason-2 final orbit characteristics : - semi axis = 1336 km; inclination = 66° (same ground tracks as Jason-1) - Jason-2 : 1 minute ahead Jason-1

17. OSTM/Jason2 - OSTST Hobart - March 12, 2007 17 Station acquisition strategy Injection orbit (same as Jason-1) –10 km below the nominal Jason-2 orbit : to avoid polluting the operational orbit by pieces of launcher and to create a drift to reach the right time phase between Jason-2 and Jason-1. Maximal duration for station acquisition : 1 month Number of rendezvous maneuvers and duration of the station acquisition depends on the launch date (day number in the Jason cycle). Test maneuver to check propulsion system (DV< 15 cm/s) 4 days Injection Trim maneuver if needed 30 days max. Second rendez-vous maneuver (DV ≤ 5 m/s) First rendez-vous maneuver (DV ≤ 5 m/s) 2 days One or two inclination maneuvers 2 days min.

18. OSTM/Jason2 - OSTST Hobart - March 12, 2007 18 9 to 10 months  Start of cycle 1  Start of OFL pdts delivery + data reprocessing Verification Phase 5 months  First Verification Workshop NRT Verif Phase  Near RT products delivery by NOAA and EUM Nominal satellite and instruments modes LEOP 3 days  In-Flight Assessment Meeting Orbit Acquisition 4 weeks  Orbit Acquisition key point Assessment Phase 2 months Resp : CNES with support of EUMETSAT, NASA, NOAA Resp : CNES with support of EUMETSAT, NASA, NOAA Resp : CNES, NASA with support of PIs Resp : CNES(generation and distribution), NOAA (distribution) Resp : EUMETSAT, NOAA (generation and distribution) NRT Operational Phase OFL Operational Phase Start of Satellite & Ground nominal operations  Sat Op Handover Review  Flight operations Hand over to NOAA Final Verification workshop  OFL Verif Phase Resp :CNES (Sat Operations) Resp : NOAA (Sat Operations) Resp : CNES for System coordination Operational Phase Sat Operational Phase 2 months CNES Mission Phases

19. OSTM/Jason2 - OSTST Hobart - March 12, 2007 19 Jason-2 satellite 8-instrument Payload –AMR (NASA/JPL) –GPSP (NASA/JPL) –LRA (NASA/JPL) –DORIS receiver (CNES) –POSEIDON 3 altimeter (CNES) –3 passengers : Carmen 2 (CNES), T2L2 (CNES), LPT (JAXA) 505kg/ 472W satellite

20. OSTM/Jason2 - OSTST Hobart - March 12, 2007 20 DORIS Provides accurate time-tagged Doppler measurements to meet Jason2 POD requirements –MOE/IGDR required accuracy : 2.5 cm on radial component –POE/GDR required accuracy : 1.5 cm (1cm goal) with Laser measurement Delivers on-board, in real time, an estimation of satellite position with an accuracy better than 10 cm RMS on the radial component Provides accurate TAI time-tagging of satellite PPS and payload measurements with an accuracy better than 7 microseconds Provides to both altimeter chains and to T2L2 equipment the 10 MHZ USO signal DGxx BDR corresponds to a new design of DORIS receivers –USO NG design (different from JASON1 USO design) but with a 5 MHz resonator (instead of 10 MHz) to improve short-term stability –Improvement of resonator selection and process method to reduce USO sensitivity to radiation in SAA area (DORIS/JASON1 lessons learned) Flight Model 4 delivered and assembled on the satellite Flight Model 3 will be delivered mid April and will replace FM4 DORIS 2 frequency antenna Doris DGxx BDR (including USO)

21. OSTM/Jason2 - OSTST Hobart - March 12, 2007 21 Altimeter (Poseidon3) Provides accurate range measurement between the satellite and the mean sea surface –measurement in Ku-band –C-band range data used to correct for ionosphere path delay Additional parameters : –Significant Wave Height (SWH) in Ku-band –Backscatter coefficient  0 related to the wind speed –Antenna mispointing Poseidon 3 design derived from both Poseidon 2 and SIRAL altimeters (CRYOSAT mission) 2 frequency antenna : copy of Jason-1 antenna Processing Units : built and testing completed Radiofrequency Units : built and testing completed Flight Software is validated Altimeter assembly and performance tests in progress Delivery for assembling on satellite : May 07 Poseidon3 two frequency antenna Poseidon3 FM on the payload module panel

22. OSTM/Jason2 - OSTST Hobart - March 12, 2007 22 The instrument is comprised of a 23.8 GHz water vapor sensing channel, an 18.7 GHz channel to estimate ocean surface contributions, and a 34.0 GHz channel to estimate cloud liquid content Measures single polarization, radiometric brightness temperatures in a nadir beam co-aligned with that of the CNES supplied Poseidon-3 altimeter, i.e. it provides “wet” tropospheric path delay correction for nadir altimeter range measurement. Critical to meeting OSTM science requirements. Same functional requirements as the JMR but different implementation which lead to a new generation design : less mass and power New antenna design with larger reflector (1m) and inherited JMR feed, significantly reduces calibration uncertainties and improves coastal resolution Instrument has completed testing and has been delivered to CNES/Alcatel (Feb ’07) and is integrated on the S/C Closure of one open point: Rework of Noise Source units and swap with existing flight HW is planned for April ‘07 Electronics Support Assembly Complete AMR Instrument Advanced Microwave Radiometer (AMR)

23. OSTM/Jason2 - OSTST Hobart - March 12, 2007 23 Choke-Ring Antenna ( 1 of 2) GPSP Electronics Unit (1 of 2) High performance GPS receiver designed to provide precise orbit determination as a validation to the primary DORIS system and to enhance the accuracy during nominal operations. HW is build to print of the Jason-1 GPS receiver As on Jason-1, the instrument is block-redundant with 2 identical single-string receivers and antennas Each redundant side of the GPSP subsystem consists of a dual- frequency L1/L2 patch antenna/choke-ring assembly, an electronics unit, and a coaxial RF cable Complete instrument was successfully delivered for S/C integration and fully integrated on S/C in Dec ‘07 Payload GPS receiver (primary ) Ant. #1 Ant. #2 coax GPSP Instrument Spacecraft chassis Skin connectors 155 3 RS-422 DHU Internal Bus Power A Power B Telemetry Interface B Telemetry Interface A Processor Module A Processor Module B Payload GPS receiver (redundant) Global Positioning System Payload (GPSP)

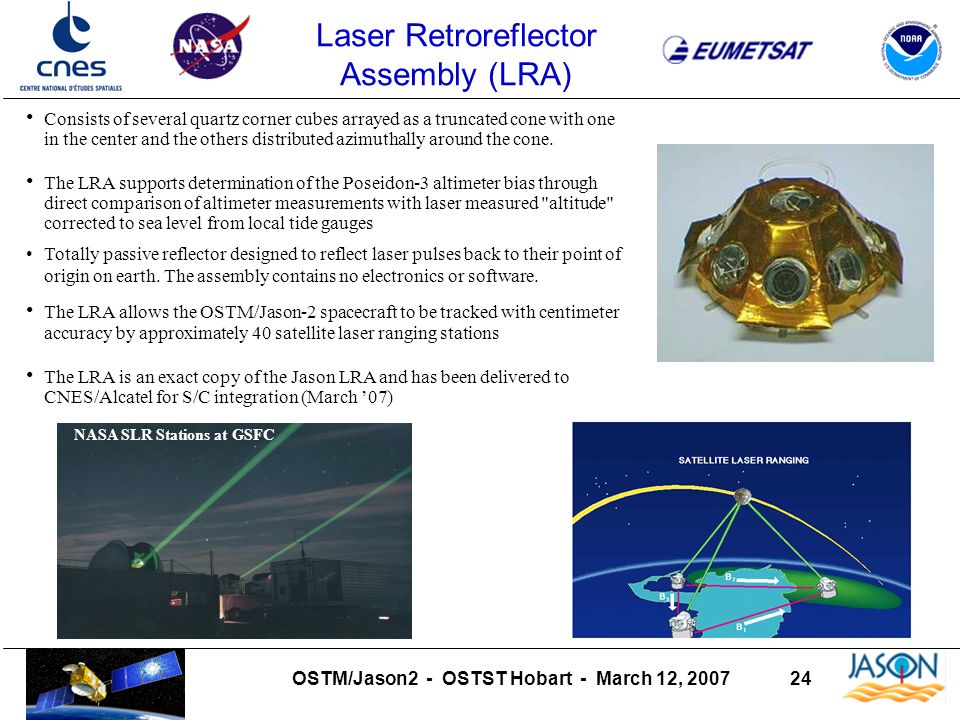

24. OSTM/Jason2 - OSTST Hobart - March 12, 2007 24 Consists of several quartz corner cubes arrayed as a truncated cone with one in the center and the others distributed azimuthally around the cone. The LRA supports determination of the Poseidon-3 altimeter bias through direct comparison of altimeter measurements with laser measured "altitude" corrected to sea level from local tide gauges Totally passive reflector designed to reflect laser pulses back to their point of origin on earth. The assembly contains no electronics or software. The LRA allows the OSTM/Jason-2 spacecraft to be tracked with centimeter accuracy by approximately 40 satellite laser ranging stations The LRA is an exact copy of the Jason LRA and has been delivered to CNES/Alcatel for S/C integration (March ’07) NASA SLR Stations at GSFC Laser Retroreflector Assembly (LRA)

25. OSTM/Jason2 - OSTST Hobart - March 12, 2007 25 Passengers : T2L2 Main mission objectives : –Compare distant clocks with an accuracy of a few picoseconds –Contribute to better characterize the Doris USO noise Environment testing completed Delivered to CNES, performance tests in progress Delivery for assembling on satellite : mid April 07 ElectronicsOptical Unit

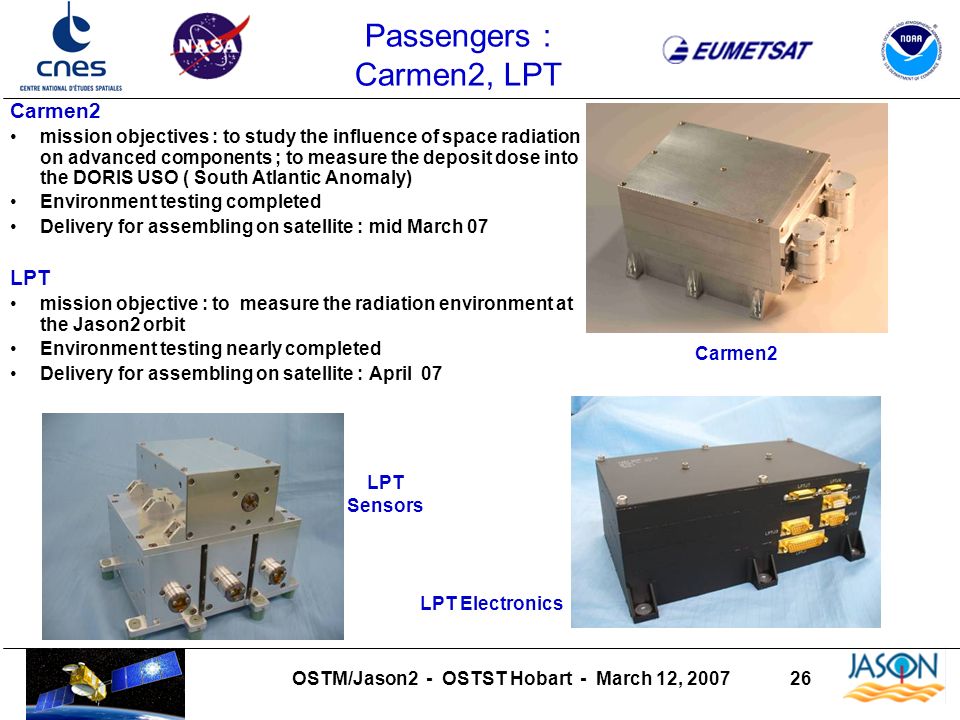

26. OSTM/Jason2 - OSTST Hobart - March 12, 2007 26 Passengers : Carmen2, LPT Carmen2 mission objectives : to study the influence of space radiation on advanced components ; to measure the deposit dose into the DORIS USO ( South Atlantic Anomaly) Environment testing completed Delivery for assembling on satellite : mid March 07 LPT mission objective : to measure the radiation environment at the Jason2 orbit Environment testing nearly completed Delivery for assembling on satellite : April 07 LPT Electronics Carmen2 LPT Sensors

27. OSTM/Jason2 - OSTST Hobart - March 12, 2007 27 Satellite Status Proteus Bus equipment fully qualified Proteus Platform has been integrated and delivered Platform integrated with Launch Vehicle Interface (LVA). Platform Safe to Mate (missionisation) completed.

28. OSTM/Jason2 - OSTST Hobart - March 12, 2007 28 Satellite Status All functional validation tests performed. Flight Software Validation completed Spacecraft Data Base available Payload Assembly and Integration Tests (AIT) has started Dec 06 Payload Instrument Module assembly completed

29. OSTM/Jason2 - OSTST Hobart - March 12, 2007 29 December 2006 : DORIS AIT Satellite Status

30. OSTM/Jason2 - OSTST Hobart - March 12, 2007 30 Satellite Status December 2006 : GPSP AIT

31. OSTM/Jason2 - OSTST Hobart - March 12, 2007 31 End January 2006 AMR AIT Satellite Status

32. OSTM/Jason2 - OSTST Hobart - March 12, 2007 32 February 2007 Altimeter antenna integration test Satellite Status

33. OSTM/Jason2 - OSTST Hobart - March 12, 2007 33 Boeing Delta II-7320 manifested as single payload launch Payload integration and launch from VAFB (Vandenberg Air Force Base), CA Implementation timetable based upon ATP (Authority To Proceed) at L-27 months (Mar 06) NASA Flight Planning Board has identified a launch date of 15 Jun 08 Single payload configuration will require a system that reduces vibration loads to the spacecraft Softride isolation system selected for implementation by Boeing Completed PDR in Feb ’07 with full delivery expected by end of 2007. Restarted Loads and Structures Working Group to ensure successful implementation Overall LV development is on schedule with no significant issues. Launch Vehicle

34. OSTM/Jason2 - OSTST Hobart - March 12, 2007 34 Jason2 Ground System : Earth stations HBK TM/TC SBAND Earth Terminal Hartebeesthoek, South Africa Resp : CNES - Phase : LEOP and Assessment, contingency in routine phase USG TM/TC Earth Station Usingen, Germany Resp : EUMETSAT - Phase : all FBK WPS Command and Data Acquisition Stations Fairbanks, Alaska, USA Wallops, Virginia, USA Resp : NOAA - Phases : all EUMETSAT Earth Station : built and accepted in 2006 integrated into Jason2 Ground System currently involved into System Tests NOAA stations : already existing adaptation to Jason2 : in progress to be integrated into Jason2 Ground System in summer 2007

35. OSTM/Jason2 - OSTST Hobart - March 12, 2007 35 FBK WPS USG HBK CNES J2CCC Jason-2 Command Control Center (J2CCC) Localisation : Toulouse, France Resp : CNES Phase : active control center for LEOP and assessment (-> handover), contingency in routine phase NOAA SOCC Satellite Operation Control Center (SOCC) Localisation : Suitland, USA Resp : NOAA Phase : active control center for routine phase (handover ->) EUMETSAT processing centre EUMETSAT processing center (EUMPC) Localisation : Darmstadt, Germany Resp : EUMETSAT Phase : all Role : routing non real-time exchanges between CNES and NOAA PRESTO Satellite simulator (PRESTO) Localisation : Toulouse, France Resp : CNES Phase : all Jason2 Ground System : Satellite command/control

36. OSTM/Jason2 - OSTST Hobart - March 12, 2007 36 Jason2 Ground System : CNES command/control center CNES Control Center : for LEOP & Assessment phases adaptation and integration to Jason2 Ground System: completed currently involved in the compatibility tests will participate to Operational System qualification from Summer 2007

37. OSTM/Jason2 - OSTST Hobart - March 12, 2007 37 Jason2 Ground System : NOAA command/control center NOAA Control Center : for satellite operational phase adaptation to Jason2 Ground System : in progress first compatibility tests : April 2007 to be integrated into Jason2 Ground System in summer 2007 will participate to Operational System qualification from Fall 2007

38. OSTM/Jason2 - OSTST Hobart - March 12, 2007 38 FBK WPS USG HBK CNES J2CCC NOAA SOCC EUMETSAT processing centre JPL instrument experts (Pasadena) CNES Mission Centre SSALTO (Toulouse) NOAA Mission Centre CNES Mission Centre : SSALTO (Segment Sol Multi-mission Altimétrie et Orbitographie) Localisation : Toulouse, France Resp : CNES EUMETSAT Processing Center (EUMPC) Localisation : Darmstadt (Germany) Resp : EUMETSAT NOAA Mission Center Localisation : Suitland (USA) Resp : NOAA JPL Payload command/control center Localisation : Pasadena, USA Resp : JPL Jason2 Ground System : Products Processing centers Users

39. OSTM/Jason2 - OSTST Hobart - March 12, 2007 39 EUMETSAT Near Real Time Product Center EUMETSAT Near Real Time Product Center : development in progress integration to Jason2 Ground System: summer 2007 will participate to Operational System qualification end 2007 for operational phases

40. OSTM/Jason2 - OSTST Hobart - March 12, 2007 40 NOAA Near Real Time Product Center NOAA Near Real Time Product Center : development in progress integration to Jason2 Ground System: summer 2007 will participate to Operational System qualification end 2007 for operational phases

41. OSTM/Jason2 - OSTST Hobart - March 12, 2007 41 CNES Off line Product Center CNES Off line Product Center (SSALTO) : adaptation to Jason2 ground system in progress new development in progress integration to Jason2 Ground System: summer 2007 will participate to Operational System qualification end 2007 for verification and operational phases

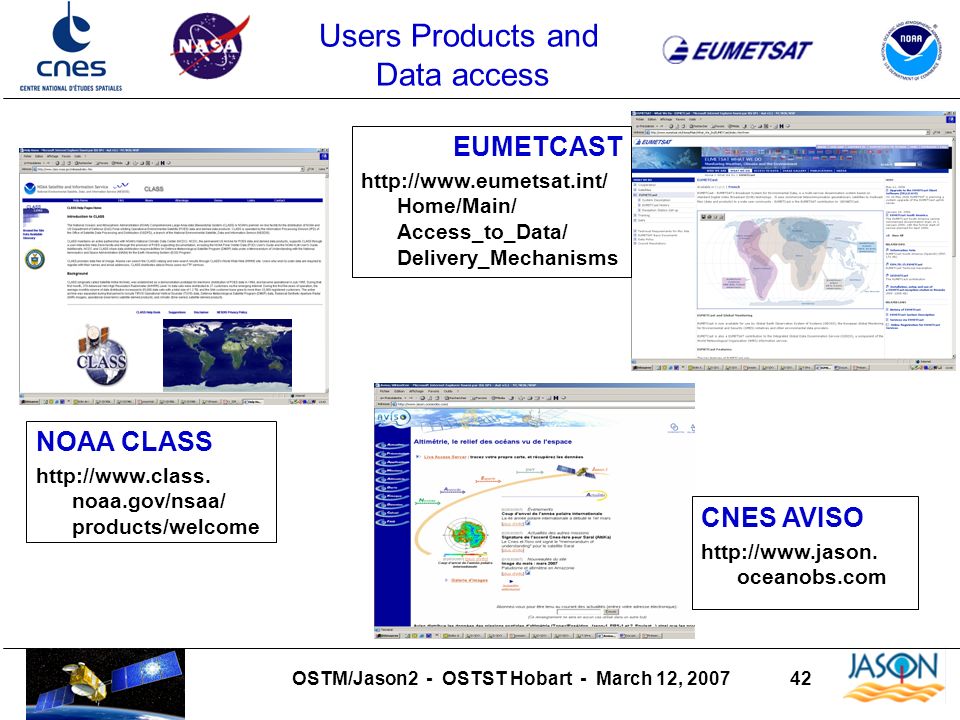

42. OSTM/Jason2 - OSTST Hobart - March 12, 2007 42 Users Products and Data access NOAA CLASS http://www.class. noaa.gov/nsaa/ products/welcome EUMETCAST http://www.eumetsat.int/ Home/Main/ Access_to_Data/ Delivery_Mechanisms CNES AVISO http://www.jason. oceanobs.com

43. OSTM/Jason2 - OSTST Hobart - March 12, 2007 43 Project Summary Successfully completed all mission reviews –Satellite Critical design Review October ’06 –System Interface Review December ’06 –Instruments level reviews Build and test of all instruments is nearly complete Current measured payload and satellite performance meets all requirements Several key risk items for System Safety and LV have been addressed with clear mitigation paths established. Payload instruments integration has started Dec ‘06 Satellite Assembly, Integration and Test: from June ‘07 to January 2008 Ground System qualification tests and End to End (Satellite-Ground) tests : from April ’07 to May ’08 Launch: mid June 2008 –2 months schedule margin for satellite and system development
