1. Logical Database Design (2 of 3) John Ortiz

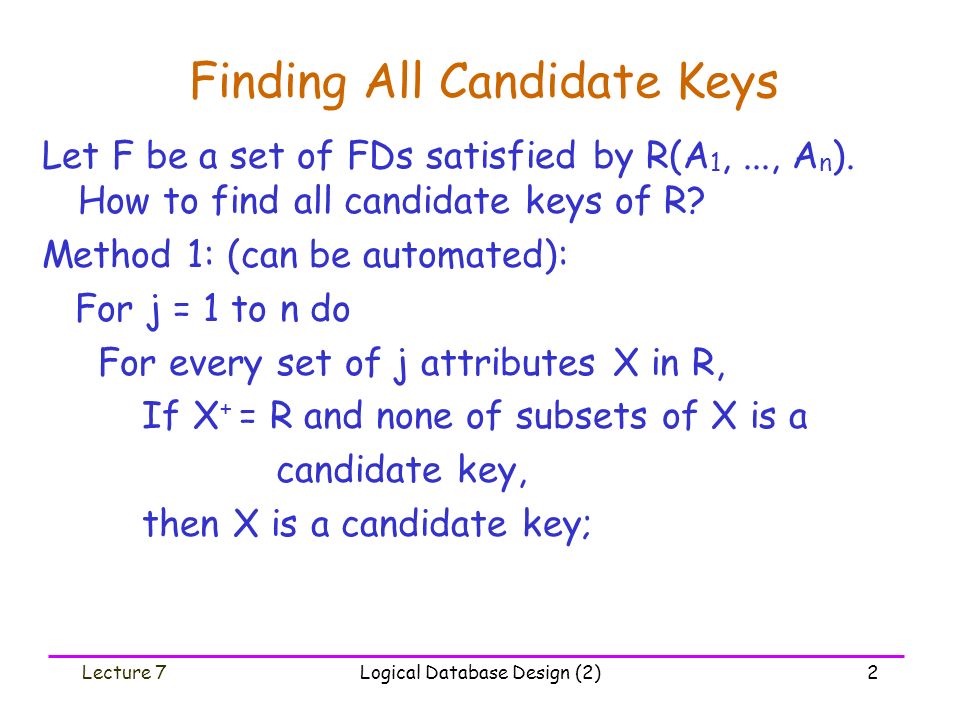

2. Lecture 7Logical Database Design (2)2 Finding All Candidate Keys Let F be a set of FDs satisfied by R(A 1,..., A n ). How to find all candidate keys of R? Method 1: (can be automated): For j = 1 to n do For every set of j attributes X in R, If X + = R and none of subsets of X is a candidate key, then X is a candidate key;

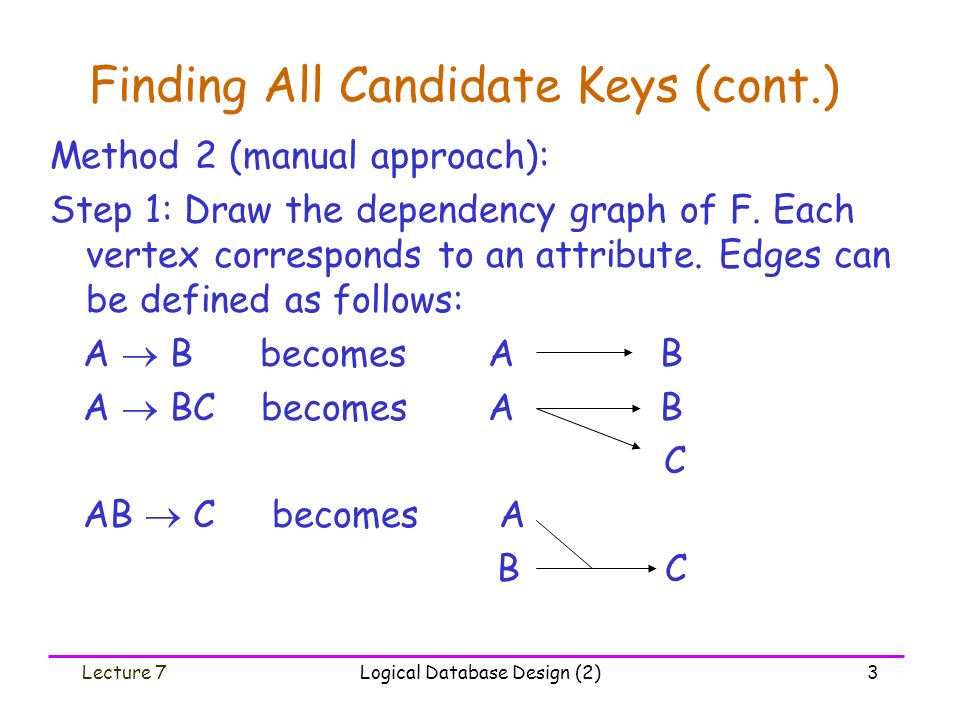

3. Lecture 7Logical Database Design (2)3 Finding All Candidate Keys (cont.) Method 2 (manual approach): Step 1: Draw the dependency graph of F. Each vertex corresponds to an attribute. Edges can be defined as follows: A  B becomes A B A  BC becomes A B C AB  C becomes A B C

4. Lecture 7Logical Database Design (2)4 Finding All Candidate Keys (cont.) Step 2: Identify the set of vertices V ni that have no incoming edges. Step 3: Identify the set of vertices V oi that have only incoming edges. Step 4: A candidate key is a set of attributes that  contains all attributes in V ni  contains no attribute in V oi  has no subset that is already a candidate key

5. Lecture 7Logical Database Design (2)5 An Example Using Method 2 Consider R(A, B, C, G, H, I), and F = {A  BC, CG  HI, B  H } V ni = {A, G}, V oi = {H, I}. Since (AG) + = ABCGHI, AG is the only candidate key of R. A B H CG I

6. Lecture 7Logical Database Design (2)6 Another Example Using Method 2 Consider R(A, B, C, D, E, H), and F = {A  B, AB  E, BH  C, C  D, D  A } V ni = { H }, V oi = { E }. Candidate keys: AH, BH, CH, DH. ABCD EH

7. Lecture 7Logical Database Design (2)7 Normal Forms  If a relation is in a certain normal form (BCNF, 3NF, …), certain types of redundancy is known to be avoided/eliminated.  A relation schema R is in First Normal Form (1NF) if every attribute of R takes only single and atomic values.  Every relation is in 1NF  1NF allows all kinds of redundancy  Higher normal forms are defined in terms of FDs.

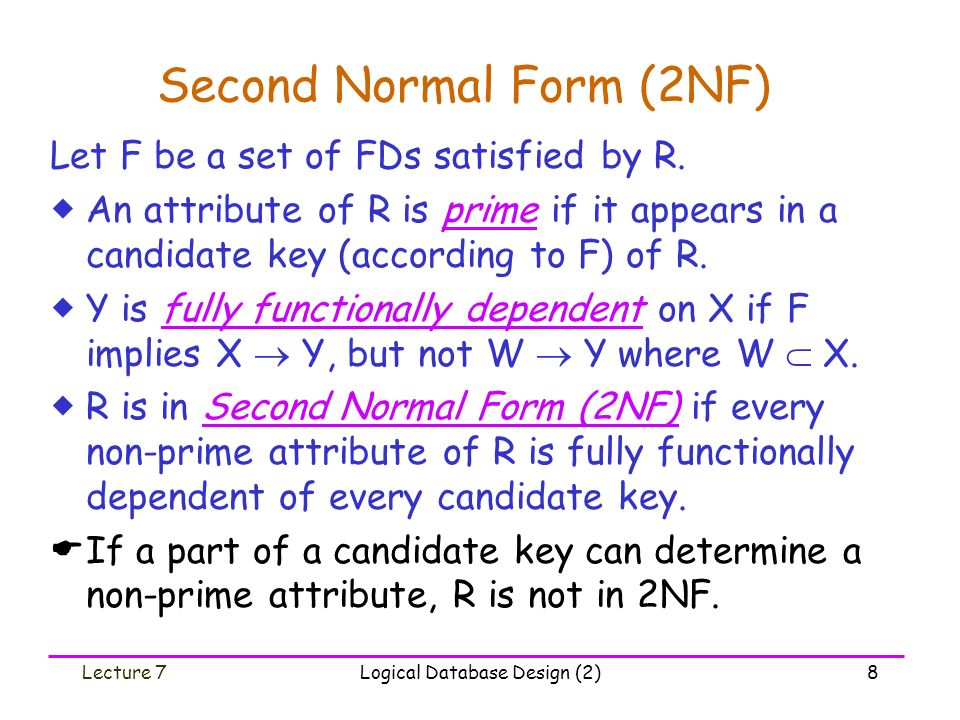

8. Lecture 7Logical Database Design (2)8 Second Normal Form (2NF) Let F be a set of FDs satisfied by R.  An attribute of R is prime if it appears in a candidate key (according to F) of R.  Y is fully functionally dependent on X if F implies X  Y, but not W  Y where W  X.  R is in Second Normal Form (2NF) if every non-prime attribute of R is fully functionally dependent of every candidate key.  If a part of a candidate key can determine a non-prime attribute, R is not in 2NF.

9. Lecture 7Logical Database Design (2)9 2NF: Examples (1) Consider F = {B  AH, L  CAt} over relation Bank-Loans (Bank, Assets, Headquarter, Loan#, Customer, Amount)  B  A is in F +, where A is non-prime, & B is not a candidate key. Bank-Loans is not in 2NF. (2) Consider F = {S  NMG, M  AO} over Students(SID,Name,Major,GPA,Advisor,Office)  S is the only candidate key, and has a single attribute. Students is in 2NF.  2NF relations still allow unwanted redundancy

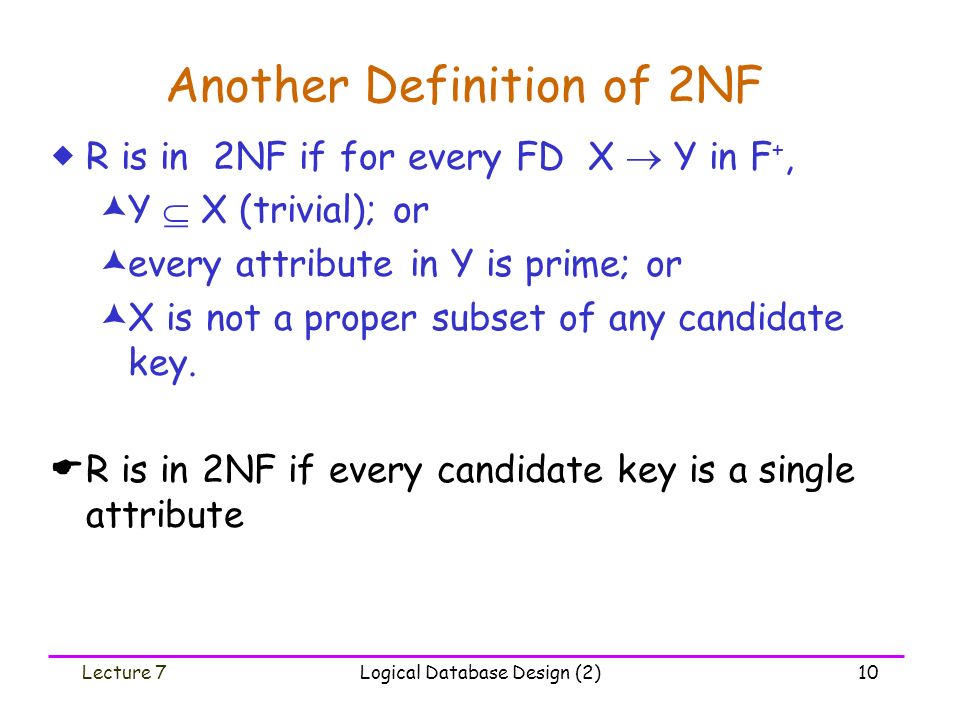

10. Lecture 7Logical Database Design (2)10 Another Definition of 2NF  R is in 2NF if for every FD X  Y in F +,  Y  X (trivial); or  every attribute in Y is prime; or  X is not a proper subset of any candidate key.  R is in 2NF if every candidate key is a single attribute

11. Lecture 7Logical Database Design (2)11 Third Normal Form (3NF) Let F be a set of FDs satisfied by R.  R is in Third Normal Form (3NF) if for every FD X  A in F +, (a) A  X (trivial); or (b) every attribute in A is prime; or (c) X is a superkey.  Let X be a candidate key. If Y  B  F +, B  Y, B is non-prime, and Y is not a super key, then B is non-trivially transitively dependent of X. 3NF removes this dependency.

12. Lecture 7Logical Database Design (2)12 3NF: Examples (1) Consider F = {S  NASaDn, Dn  Ds} over Employees (SSN, Name, Age, Salary, Dept_name, Dept_manager_SSN)  Employees is not in 3NF due to Dn  Ds. (2) Consider F = { CS  Z, Z  C } over R(City, Street, Zipcode)  R is in 3NF as each attribute is prime (How many candidate keys are there?).  3NF may still have redundancy (introduced by Z  C)

13. Lecture 7Logical Database Design (2)13 Boyce-Codd Normal Forms (BCNF) Let F be a set of FDs over R.  R is in Boyce-Codd Normal Form (BCNF) if for every FD X  A in F +, (a) A  X (trivial); or (b) X is a superkey. Example: Consider R(City, Street, Zipcode) and F = { CS  Z, Z  C }. R is in 3NF but not in BCNF because in Z  C, Z is not a superkey.

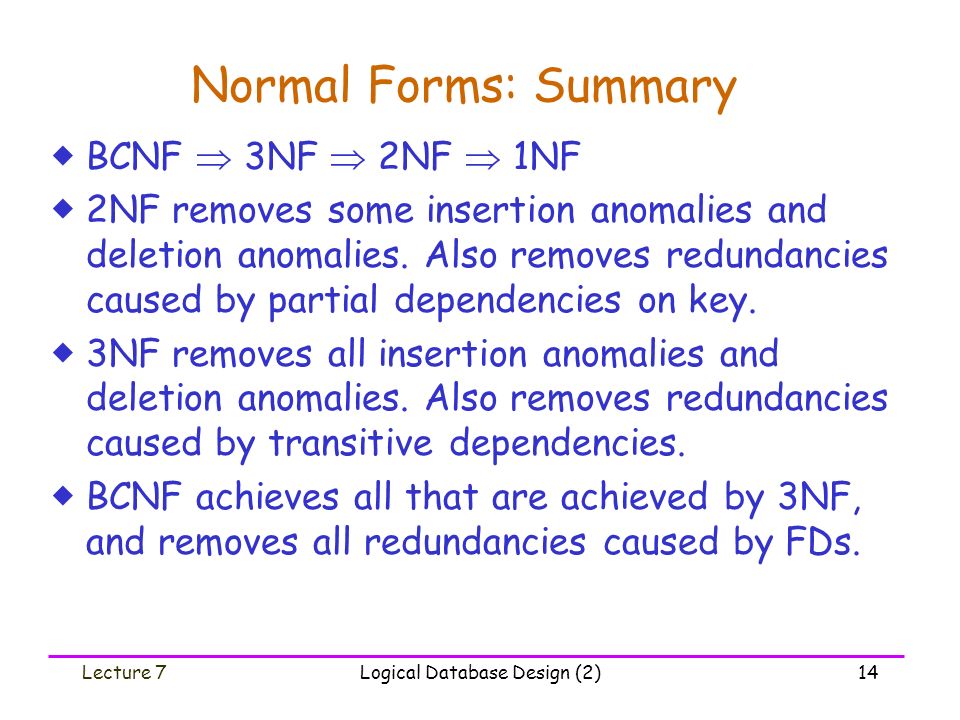

14. Lecture 7Logical Database Design (2)14 Normal Forms: Summary  BCNF  3NF  2NF  1NF  2NF removes some insertion anomalies and deletion anomalies. Also removes redundancies caused by partial dependencies on key.  3NF removes all insertion anomalies and deletion anomalies. Also removes redundancies caused by transitive dependencies.  BCNF achieves all that are achieved by 3NF, and removes all redundancies caused by FDs.

15. Unnormalized

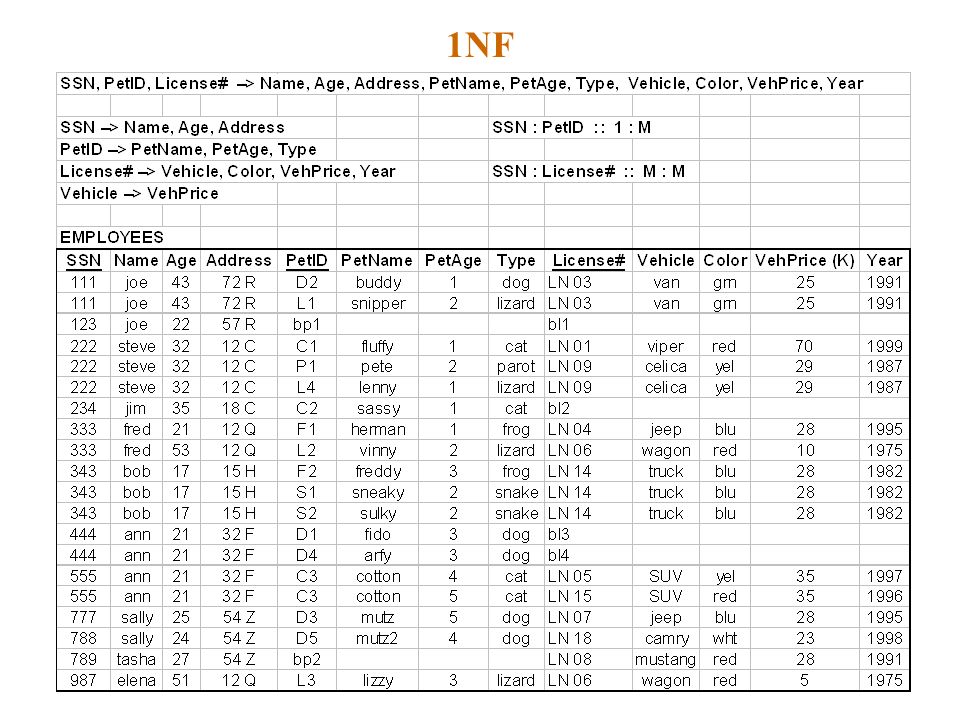

16. 1NF

17. Redundancy Unleashed

18. 2NF Raw – Part1

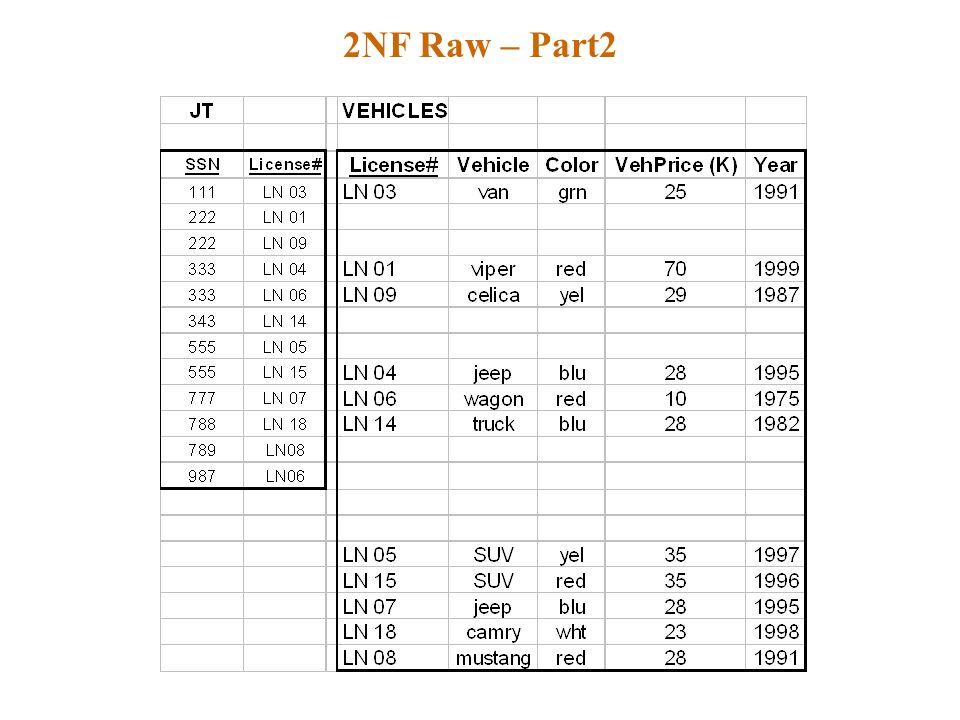

19. 2NF Raw – Part2

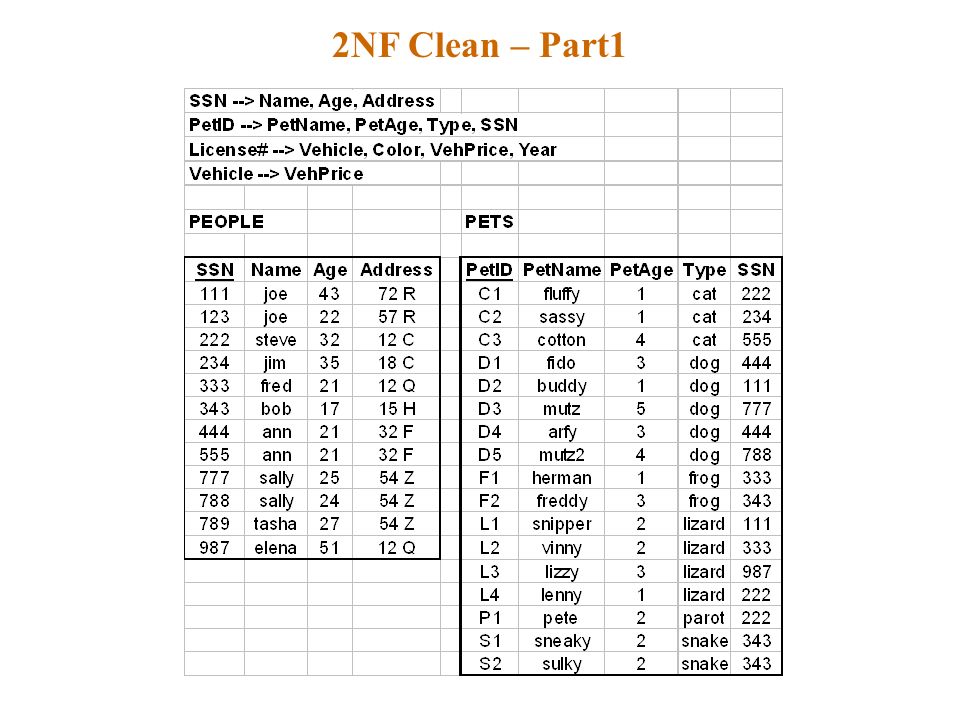

20. 2NF Clean – Part1

21. 2NF Clean – Part2

22. 3NF Clean – Part1

23. 3NF Clean – Part2

24. Lecture 7Logical Database Design (2)24 Normalize the Following Relation  Universal Relation R  (A, B, {C, D, K}, E, F(G, H, I), J)  Given:  A  B, C  DK, E  F, F  GHI, K  EJ  A:C is M:N, C:K is 1:M (C is the many), K:E is 1:M (E is the many)  What do the parenthesis indicate?  What do the braces indicate?

25. Lecture 7Logical Database Design (2)25 A R GHFB CDE IKJ E-R Diagram - Unnormalized

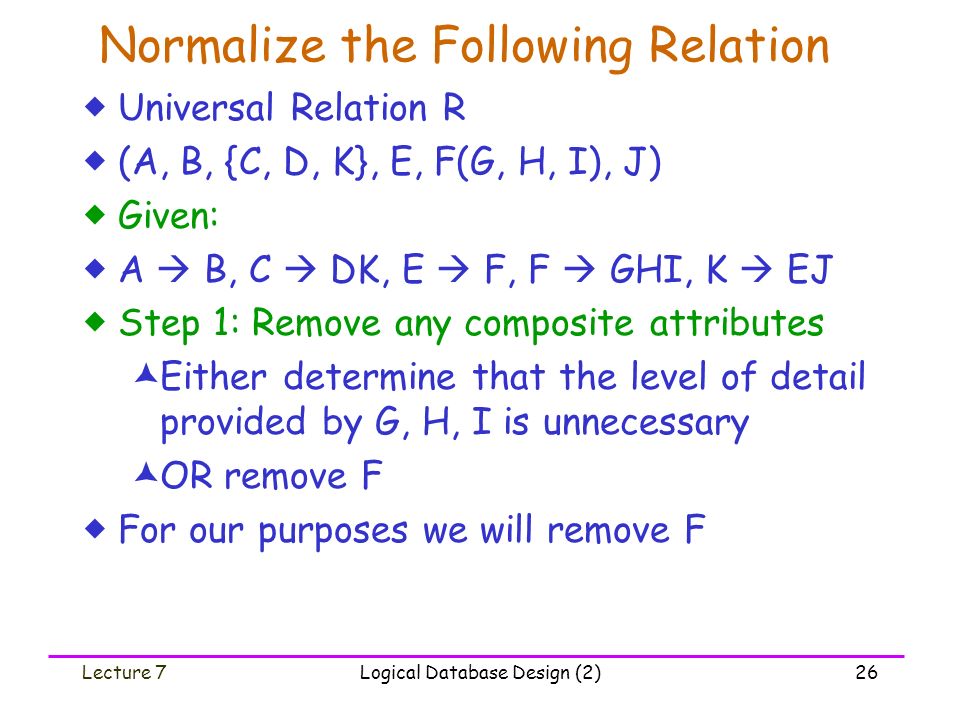

26. Lecture 7Logical Database Design (2)26 Normalize the Following Relation  Universal Relation R  (A, B, {C, D, K}, E, F(G, H, I), J)  Given:  A  B, C  DK, E  F, F  GHI, K  EJ  Step 1: Remove any composite attributes  Either determine that the level of detail provided by G, H, I is unnecessary  OR remove F  For our purposes we will remove F

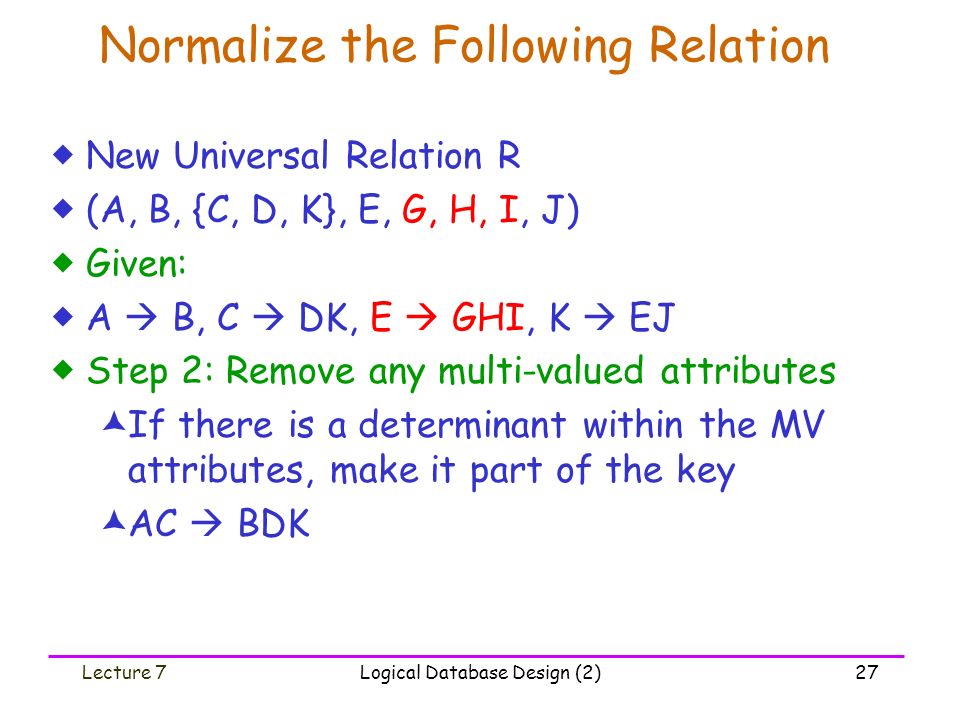

27. Lecture 7Logical Database Design (2)27 Normalize the Following Relation  New Universal Relation R  (A, B, {C, D, K}, E, G, H, I, J)  Given:  A  B, C  DK, E  GHI, K  EJ  Step 2: Remove any multi-valued attributes  If there is a determinant within the MV attributes, make it part of the key  AC  BDK

28. Lecture 7Logical Database Design (2)28 Proof  Given: A  B  (IR2) AC  BC(augmentation)  (IR4) AC  B(decomposition)  Given: C  DK  (IR2) AC  DK  (IR5) AC  BDK(union)

29. Lecture 7Logical Database Design (2)29 1NF  1NF Universal Relation R  R(A, B, C, D, E, G, H, I, J, K)  Given:  AC  BD, A  B, C  DK, E  GHI,  K  EJ  Find all Candidate Keys:  V ni (A C), V oi (B D G H I J), E, K have both  A determines BDK, in which K dets EJ, in which E dets GHI and C determines DK  Only Candidate Key is AC

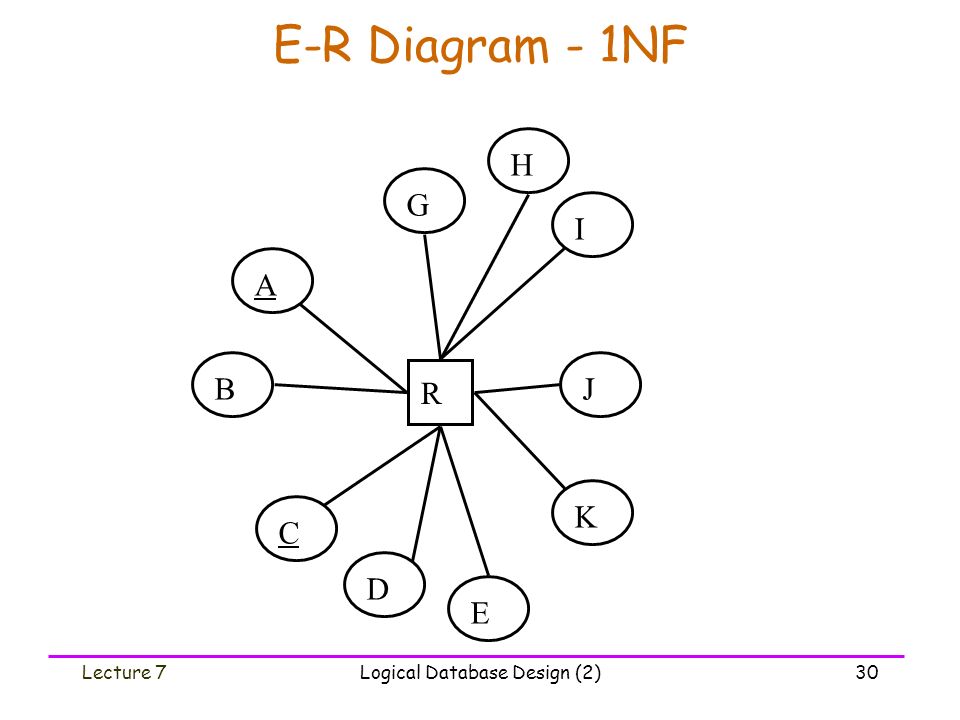

30. Lecture 7Logical Database Design (2)30 E-R Diagram - 1NF A R GHBIKJCDE

31. Lecture 7Logical Database Design (2)31 Update Anomalies in 1NF  R(A, B, C, D, E, G, H, I, J, K)  AC  BDK, A  B, C  DK, E  GHI,  K  EJ  Identify Partial Dependencies:  A  B, C  DK  Can’t insert an ‘A’ without a ‘C’ (vice/versa)  If you delete an ‘A’ may lose info about ‘C’  What info would you lose?  If you change a ‘B’, may have to change in multiple places

32. Lecture 7Logical Database Design (2)32 Going to 2NF  REMOVE PARTIAL DEPENDENCIES  R(A, B, C, D, E, G, H, I, J, K)  AC  BDK, A  B, C  DK, E  GHI, K  EJ  R1(A, B)  R2(C, D, K, E, G, H, I, J)  Given: A:C is M:N, therefore we need what?  R3(A, C) What is the PK for R3?  Identify the FK(s).  Check: Are we in 2NF?  Part. Deps. in R1?, R2?

33. Lecture 7Logical Database Design (2)33 E-R Diagram – 2NF A R1 B R2 GHIKJCDE R3 M N

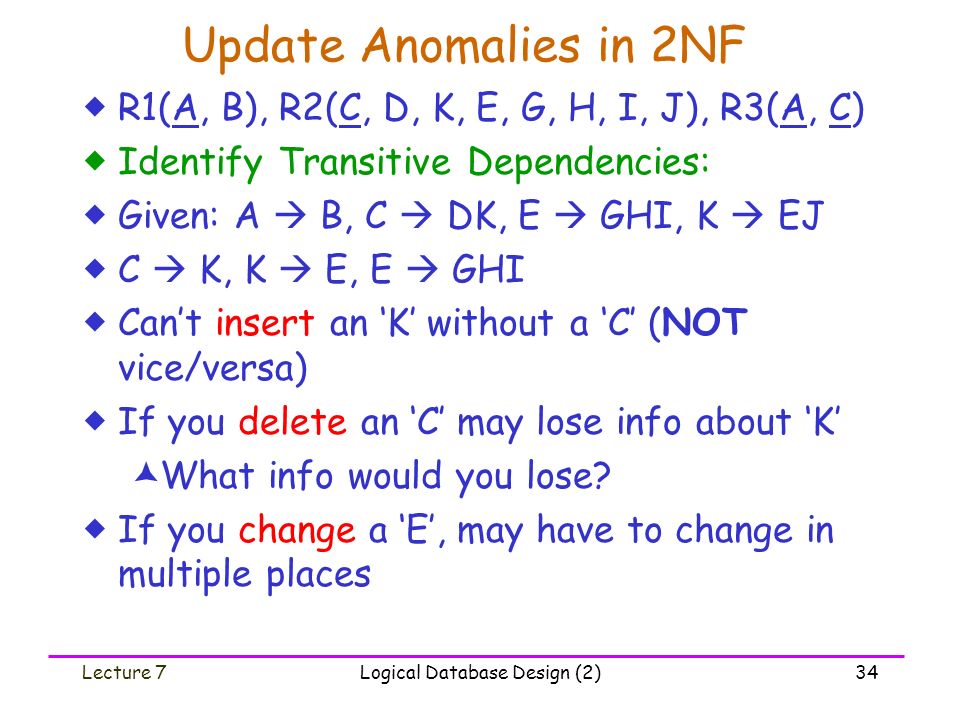

34. Lecture 7Logical Database Design (2)34 Update Anomalies in 2NF  R1(A, B), R2(C, D, K, E, G, H, I, J), R3(A, C)  Identify Transitive Dependencies:  Given: A  B, C  DK, E  GHI, K  EJ  C  K, K  E, E  GHI  Can’t insert an ‘K’ without a ‘C’ (NOT vice/versa)  If you delete an ‘C’ may lose info about ‘K’  What info would you lose?  If you change a ‘E’, may have to change in multiple places

35. Lecture 7Logical Database Design (2)35 Going to 3NF  REMOVE TRANSITIVE DEPENDENCIES  R1(A, B) – IN 3NF, only one attribute in PK so impossible to have transitive dependency!  R2(C, D, K, E, G, H, I, J)  R3(A, C)  A  B, C  DK, E  GHI, K  EJ  C:K is 1:M (C is the many), K:E is 1:M (E is the many)  R2 is replaced by:  R4(C, D, K), R5(K, J), R6(E, G, H, I, K)

36. Lecture 7Logical Database Design (2)36 E-R Diagram – 3NF A R1 B R4 GHIKJCDK R3 M N R5R6 KE R8R7 M 1 M 1

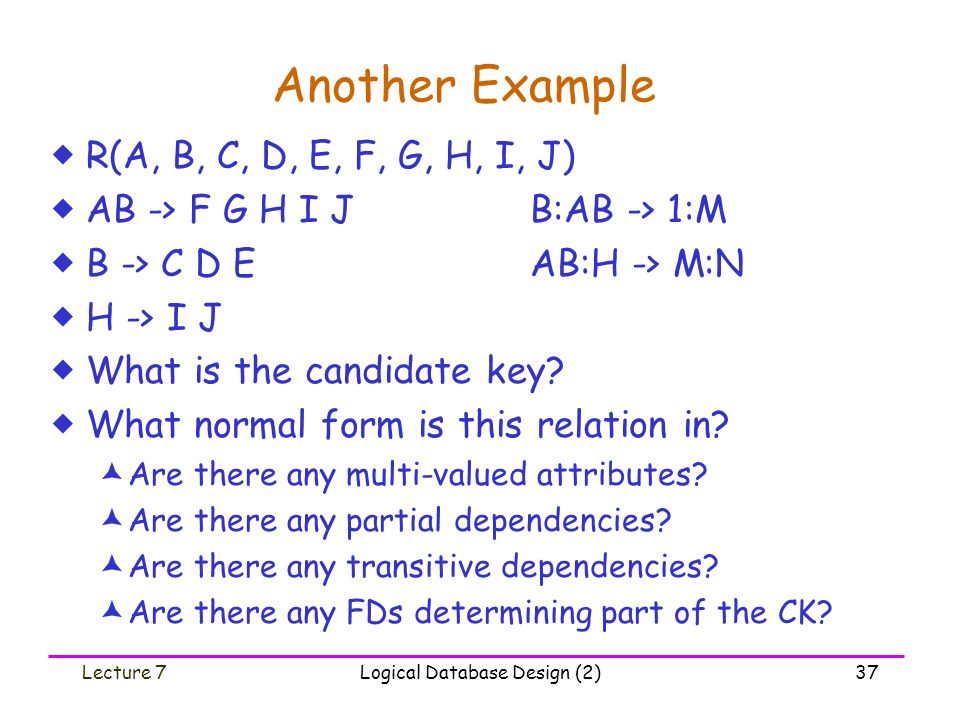

37. Lecture 7Logical Database Design (2)37 Another Example  R(A, B, C, D, E, F, G, H, I, J)  AB -> F G H I JB:AB -> 1:M  B -> C D EAB:H -> M:N  H -> I J  What is the candidate key?  What normal form is this relation in?  Are there any multi-valued attributes?  Are there any partial dependencies?  Are there any transitive dependencies?  Are there any FDs determining part of the CK?

38. Lecture 7Logical Database Design (2)38 1NF Anomalies  R(A, B, C, D, E, F, G, H, I, J)  AB -> F G H I JB:AB -> 1:M  B -> C D EAB:H -> M:N  H -> I J  Insertion Anomaly based on Part. Dep.?  Deletion Anomaly based on Part. Dep.?  Modification Anomaly based on Part. Dep.?  To go to 2NF, Decompose Partial Dependencies

39. Lecture 7Logical Database Design (2)39 2NF  R1(A, B, F, G, H, I, J)AB:H -> M:N  R2(B, C, D, E) B:AB -> 1:M  AB -> F G H I J, B -> C D E, H -> I J  What are the CKs now?  Are there any foreign keys?

40. Lecture 7Logical Database Design (2)40 2NF Anomalies  R1(A, B, F, G, H, I, J)AB:H -> M:N  R2(B, C, D, E) B:AB -> 1:M  AB -> F G H I J, B -> C D E, H -> I J  Insertion Anomaly based on Trans. Dep.?  Deletion Anomaly based on Trans. Dep.?  Modification Anomaly based on Trans. Dep.?  To go to 3NF, Decompose Transitive Dependencies FK 

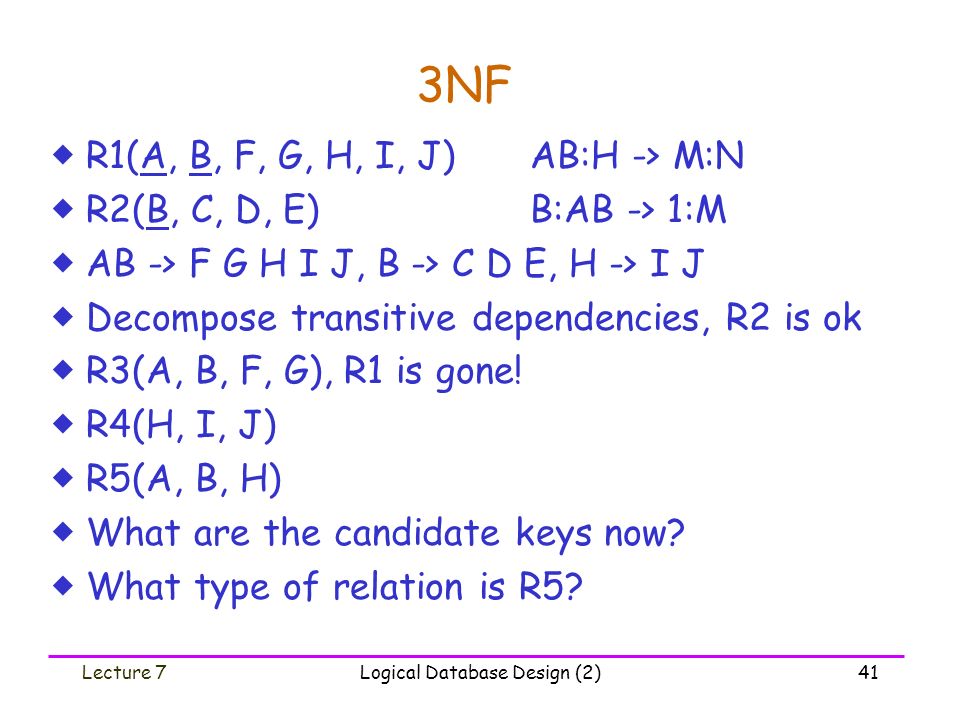

41. Lecture 7Logical Database Design (2)41 3NF  R1(A, B, F, G, H, I, J)AB:H -> M:N  R2(B, C, D, E) B:AB -> 1:M  AB -> F G H I J, B -> C D E, H -> I J  Decompose transitive dependencies, R2 is ok  R3(A, B, F, G), R1 is gone!  R4(H, I, J)  R5(A, B, H)  What are the candidate keys now?  What type of relation is R5?

42. Lecture 7Logical Database Design (2)42 BCNF  If G -> B then we would decompose further to achieve BCNF

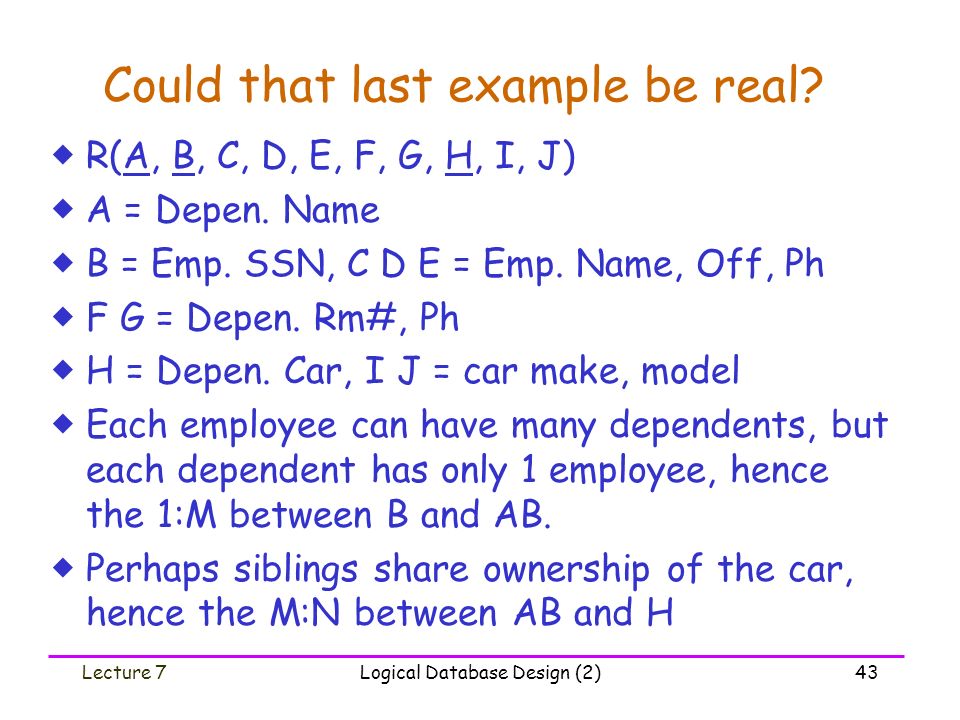

43. Lecture 7Logical Database Design (2)43 Could that last example be real?  R(A, B, C, D, E, F, G, H, I, J)  A = Depen. Name  B = Emp. SSN, C D E = Emp. Name, Off, Ph  F G = Depen. Rm#, Ph  H = Depen. Car, I J = car make, model  Each employee can have many dependents, but each dependent has only 1 employee, hence the 1:M between B and AB.  Perhaps siblings share ownership of the car, hence the M:N between AB and H
