1. User Authentication Using Keystroke Dynamics Jeff Hieb & Kunal Pharas ECE 614 Spring 2005 University of Louisville

2. Three types of authentication  Something you know. A password  Something you have. An ID card or badge  Something you are. Biometrics

3.  Biometrics measure physical or behavioral characteristics of an individual. –Physical (do not change over time): –Fingerprint, iris pattern, hand geometry –Behavioral (may change over time): –Signature, speech pattern, keystroke pattern

4. Keystroke biometrics  A keystroke dynamic is based on the assumption that each person has a unique keystroke rhythm.  Keystroke features are: –Latency between keystrokes. –Duration of key presses.  4 possible authentication outcomes: i)Genuine individual is accepted. ii)Genuine individual is rejected. iii)Imposter is accepted. iv)Imposter is rejected.  Biometric classification accuracy measures i)FRR – false rejection rate (ii) ii)FAR – false acceptance rate (iii) iii)EER – equal error rate FRR = FAR

5. Methods for classifying keystroke rhythms  Statistical / probabilistic approaches  Data Mining Techniques  Neural Networks a)EBP networks b)CPNN (based on SOM) c)ART2 networks (unsupervised learning) d)LVQ networks e)RBFN

6. Project Description  Authenticate users based on the keystroke times captured while typing their name.  Use EBP to train a neural network to generate a user identification that can be compared to a known user identification.  Result of the system will be either authentication failed or authentication successful.

7. Methodology flowchart

8. Implementation  Capturing keystrokes: GUI in C# –Requirements Near microsecond accuracy (HiPerfTimer) Enrollment times and labels Authentication using captured times. Remote call Matlab to processes times.  Processing Data, Matlab –Subroutines needed Error back propagation Evaluate a vector of authentication times using trained network Normalization of training times Normalization of authentication times

9. Capturing Training Times  Time the interval between successive key_up and key_down events, keystroke latency.  Maximum of 50 time intervals can be captured and stored.  Unused elements are set to 0.  User must correctly type name or trial is thrown out.  Training times are stored in a text file.  Additional training times are appended to this file.  An enrollment is comprised of 7 successful (correct name typed) captures.  After enrollment the neural network is retrained.

10. Labeling training times  Each user is represented by a binary string –Ex. User Jeff Hieb: 1 0 0 User Kunal Pharas:0 1 0 User Suman:0 0 1  Training labels are stored in a text file: Each line in the file is the user label for the same line in the training file. Additional training labels are appended to this file.  When a new user enrolls a 0 is appended to all existing user labels in the file.

11. Training Data Files  Sample of training times file:... 150 31 52 43 125 9 83 14 90 86 69 261 50 213 129 41 166 80 65 253 68 27 67 5 77 10 62 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 165 83 31 195 105 6 78 11 155 1 61 220 70 192 140 52 93 129 57 272 70 24 69 7 86 5 67 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 190 62 52 115 92 21 73 13 111 32 72 223 77 152 129 52 114 131 56 275 69 39 64 1 82 9 74 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 173 62 42 103 105 31 41 38 97 51 63 235 56 187 125 51 125 109 57 269 73 16 67 13 81 1 61 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 199 62 21 126 103 10 53 30 93 170 59 175 63 145 135 41 114 130 56 293 70 21 61 14 80 1 63 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 208 62 52 117 112 1 82 6 98 208 62 168 81 168 123 53 103 163 66 348 77 33 61 10 83 1 71 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 162 73 62 111 97 20 52 36 109 36 78 216 64 155 136 52 125 126 71 308 76 30 63 4 79 10 62 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0...  Sample of training labels file:... 0 1 0 0 0 0 0 0 0 1 0 0 0 0... 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0...

12. Training the Neural Network  GUI calls Matlab function EBP(filename) where filename denotes the training times and training labels.  EBP normalizes the data and stores the normalization parameters in a file  Number of output neurons is determined by the training labels, 5 users  5 output neurons.  Output layer uses uni-polar activation function.  Trained weights are stored in file.

13. Authentication  Capture keystrokes using same procedure as before.  If user mistypes name, authentication fails, but user is informed why and trial is discarded.  GUI calls matlab function evaluate(filename) where filename is a file containing the captured times.  Evaluate normalizes the data using the parameters stored during training  Evaluate then uses the stored weights to produce the output of the network, which are returned  The GUI maps the network output to a string of 0’s and 1’s.  If f(net) is greater than alpha (i.e..95) then the value is 1, otherwise the value is 0.  This string is then compared to the desired user string.  If there is a match, authentication is successful, other wise authentication fails.

14. Keystroke capture and authentication GUI

15. Testing and Results  Enrolled 7 users (49 training pairs).  Each user had at least 3 authentication attempts (total of 45 authentication trials).  42 imposter trials.  The majority of imposter authentication attempts were made by us.  Many authentication trials are for one user.

16. Plot of Normalized Training Times

17. Effect of hidden layers on accuracy Alpha =.95 C =.2 Emax =.0005

18. Effect of Training error on accuracy Alpha =.95 C =.2 Hidden Neurons = 24

19. Overall Classifier Accuracy Max error =.0005 C =.2 Hidden Neurons = 24 Best performance Alpha =.75 FRR = 7% FAR = 30%

20. Conclusions  For users short name (less than 8 characters) or with long latency (not proficient typists) circumvention was high.  Creating an interface that is acceptable and easy to use for a wide variety of users is not trivial.  Not allowing for typographical errors is irritating to users and may effect acceptance.  Don’t require imposter training samples.

21. Future Research Directions  Ways of handling typographical errors.  Ways to scale keystroke biometrics to large numbers of users.  Explore other methods of evaluations, particularly unsupervised learning.  Explore extraction of more sophisticated keystroke features.

22. Questions ?

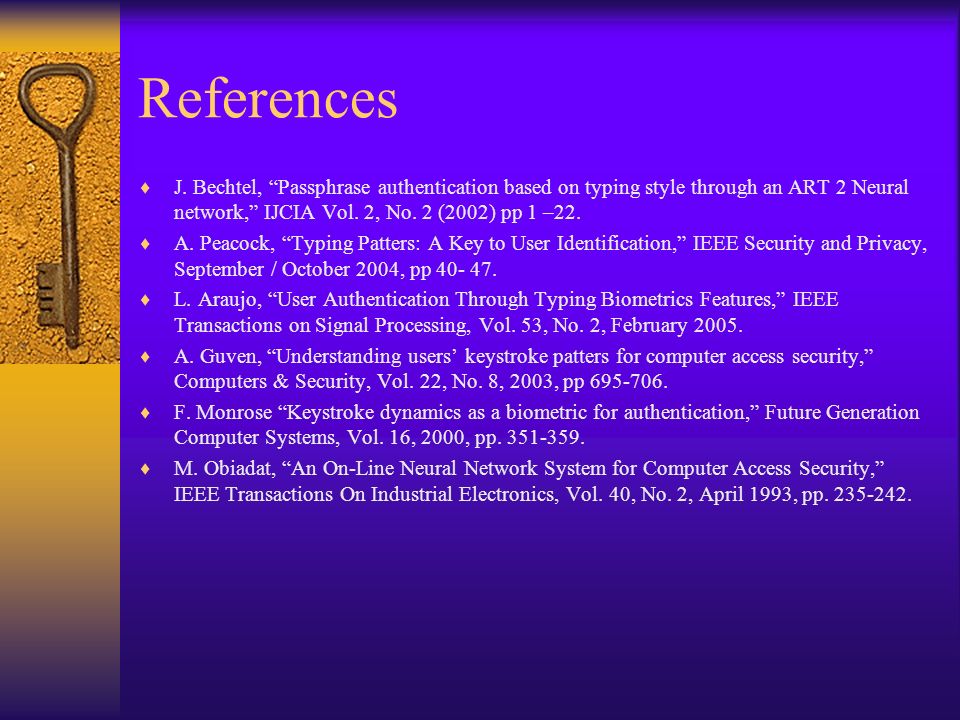

23. References  J. Bechtel, “Passphrase authentication based on typing style through an ART 2 Neural network,” IJCIA Vol. 2, No. 2 (2002) pp 1 –22.  A. Peacock, “Typing Patters: A Key to User Identification,” IEEE Security and Privacy, September / October 2004, pp 40- 47.  L. Araujo, “User Authentication Through Typing Biometrics Features,” IEEE Transactions on Signal Processing, Vol. 53, No. 2, February 2005.  A. Guven, “Understanding users’ keystroke patters for computer access security,” Computers & Security, Vol. 22, No. 8, 2003, pp 695-706.  F. Monrose “Keystroke dynamics as a biometric for authentication,” Future Generation Computer Systems, Vol. 16, 2000, pp. 351-359.  M. Obiadat, “An On-Line Neural Network System for Computer Access Security,” IEEE Transactions On Industrial Electronics, Vol. 40, No. 2, April 1993, pp. 235-242.
