1. RBSP Radiation Belt Storm Probes RBSP Radiation Belt Storm Probes 2533-4 Sept. 2008EFW INST+SOC PDR253 Data Controller Board FPGA Dorothy Gordon UC Berkeley Space Sciences Lab dag@ssl.berkeley.edu

2. 254 3-4 Sept. 2008EFW INST+SOC PDR EFW – Data Controller Board FPGA Introduction Data Controller Board FPGA –Block Diagrams –Basic Subsystems –Memories –Design/Verification Process –Schedule/Issues

3. 255 3-4 Sept. 2008EFW INST+SOC PDR EFW – Data Controller Board FPGA DCB Block Diagram

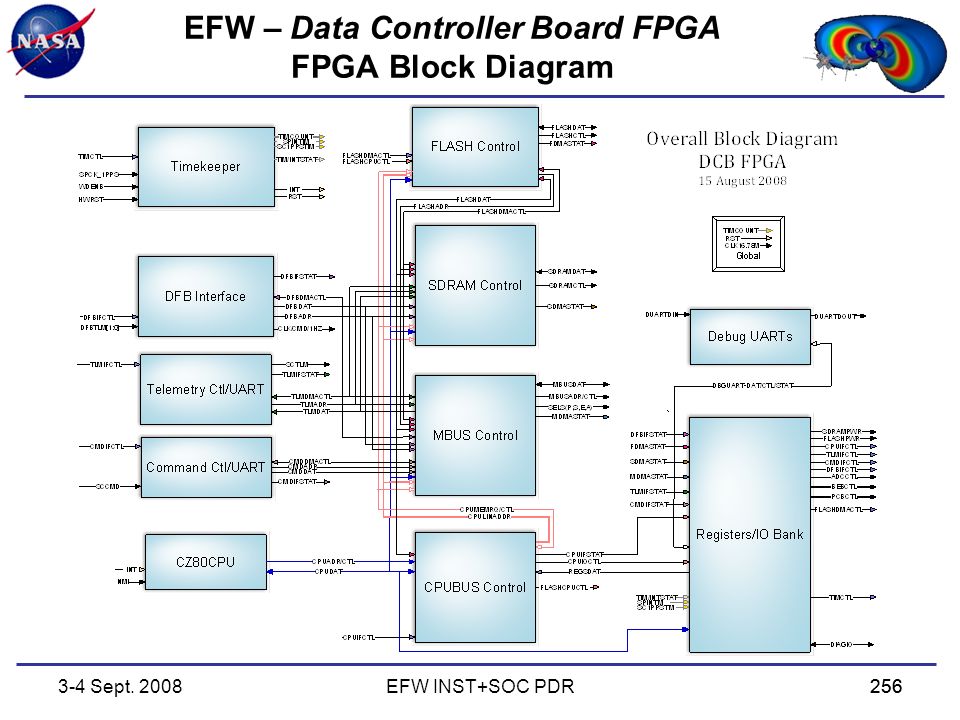

4. 256 3-4 Sept. 2008EFW INST+SOC PDR EFW – Data Controller Board FPGA FPGA Block Diagram

5. 257 3-4 Sept. 2008EFW INST+SOC PDR EFW – Data Controller Board FPGA Basic Subsystems (1) Relevant Documentation –Data Controller Board FPGA Specification (RBSP_EFW_DCB_001F_Specification.pdf) –Z80 Core Specification (RBSP_EFW_DCB_002_CZ80_Spec.pdf) –Data Controller Board Specification (RBSP_EFW_DCB_003C_Specification.pdf) –Backplane Specification (RBSP_EFW_BPL_001G_Specification.pdf) –ICD for the EFW Investigation (APL 7417-9083, Rev c) Basic Subsystems –CPU Core and Support Circuitry Z80 – Processor running at 16.78MHz –CPU starts up from ROM, copies data to SRAM; steady state operation from SRAM –Patching capability via EEPROM Memory Bus –MBUS houses SRAM, EEPROM, PROM –Paged memory map expands CPU addressing capability to 512Mbytes (2 29 ) –SRAM shared by CPU and DMA Clients

6. 258 EFW – Data Controller Board FPGA Basic Subsystems (2) –Spacecraft Interface Glitch filter applied to all inputs (pulses 200 nanoseconds or less rejected) 1PPS/SPINPULSE detection via pulse width Command Reception (115Kbaud UART) –Packetized data transferred to SRAM via DMA –Up to 4Kbytes/second allocation –Parity as per APL ICD (parity and framing errors flagged) Telemetry Transmission (115Kbaud UART) –CPU generates CCSDS packets –Telemetry subsystem generates Instrument Transfer Frame (ITF) Wrapper –ITFs are transferred from SRAM or SDRAM via DMA –Parity as per APL ICD –Timekeeping Internal 24 bit counter provides instrument timebase Timestamps Spin Pulse and 1PPS Generates CPU Interrupts and Watchdog Timer Reset Provides Instrument DMA Buffer Swap “ticks” 2583-4 Sept. 2008EFW INST+SOC PDR

7. 259 EFW – Data Controller Board FPGA Basic Subsystems (3) –BEB, PCB Interfaces Synchronous serial data interfaces operate at 1MHz CPU writes commands via I/O Interface; Logic handles serial protocol Management of DACs & Controls (relays, analog mux addresses, etc.) AC Test Stimulus Generation for BEB –DFB Interface - Mode Setup and Data Ingest Data transfer at 8.4MHz – 24 bit data/parity checked Command Interface – CPU writes as I/O; Logic handles serial protocol Instrument data received/transferred via DMA –Bulk Volatile Storage (Dynamic RAM) Management R/W and DMA access for a 256Mbyte SDRAM array Upper quadrant is devoted to ECC –Bulk Non-volatile Storage (FLASH) Management DMA access for a 32Gbyte FLASH array CPU or DMA accessible DMA mode incorporates ECC implemented over 512byte blocks 2593-4 Sept. 2008EFW INST+SOC PDR

8. 260 EFW – Data Controller Board FPGA Memory Paths 2603-4 Sept. 2008EFW INST+SOC PDR

9. 261 EFW – Data Controller Board FPGA Memories - SRAM MBUS Bus Dynamics –CPU allocated bus as highest priority device Clients obtain bus between processor r/w cycles, wait states added as necessary –SRAM DMA Loading: S/C Commands: 0.35% peak loading at 115200 bps –Average loading (depends on command volume): ~0.1% at 4Kbytes/sec S/C Telemetry: normally this transfer is from SDRAM –SRAM option included as a failure mode –Peak loading is 0.35%, average (based on 12kbps) is less (< 0.1%) DFB DMA: normally this transfer is to SDRAM –SRAM option included for housekeeping APID option, or as a failure mode –Housekeeping packet into SRAM -> <0.1% loading –Peak loading at maximum DFB transfer rate is 32% FLASH DMA: normally this transfer is to/from SDRAM –SRAM option included as failure mode –Transfer rate throttling option to limit loading to < 5% 2613-4 Sept. 2008EFW INST+SOC PDR

10. 262 EFW – Data Controller Board FPGA Memories – SDRAM SDRAM Memory –Heritage design (Themis Data controller board) During the ~1.5 years of operation, we have seen transient bit flips (ECC very effective in this respect) and one stuck bit (corrected with a power cycle); but otherwise no major problems –Consists of a stacked memory module (3D-Plus MMSD08256804S-C-1S) 256M x 8 configuration Uses four ELPIDA 64Mbyte die –Array is isolated -- switchable power Defaults to off at power on –Mode set every second Minimizes impact of Single Event Functional Interrupts (SEFI) –Error correction option Correction applied to 32 bit words, scrubbing occurs continuously when enabled –DMA clients include: DFB, S/C Telemetry, FLASH –CPU can read/write (with wait states) as a random access device Used for insertion of CCSDS packet headers 2623-4 Sept. 2008EFW INST+SOC PDR

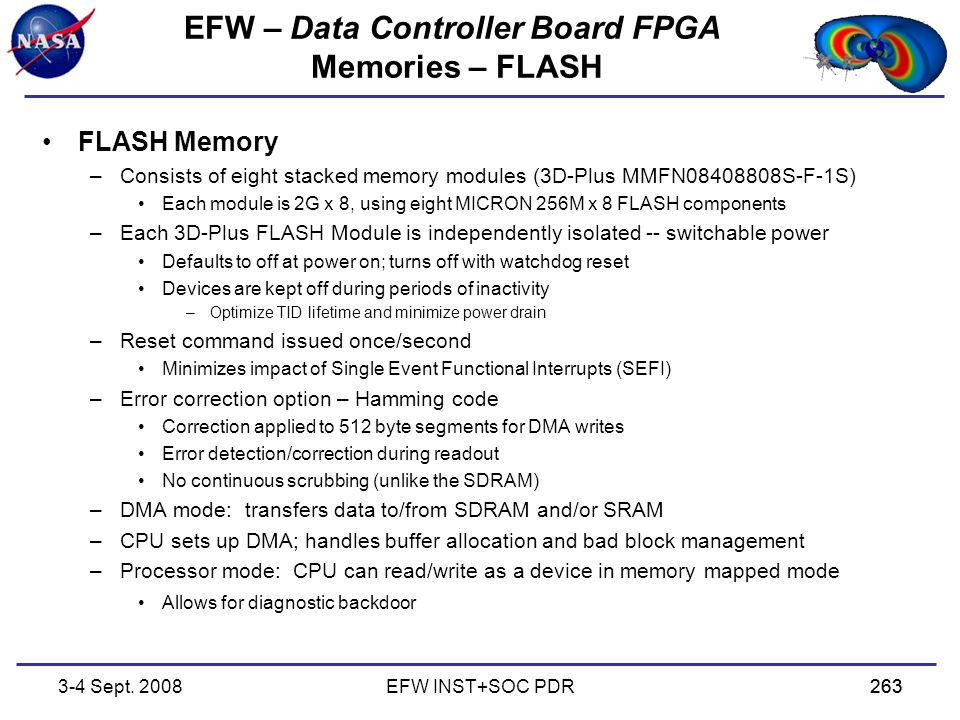

11. 263 EFW – Data Controller Board FPGA Memories – FLASH FLASH Memory –Consists of eight stacked memory modules (3D-Plus MMFN08408808S-F-1S) Each module is 2G x 8, using eight MICRON 256M x 8 FLASH components –Each 3D-Plus FLASH Module is independently isolated -- switchable power Defaults to off at power on; turns off with watchdog reset Devices are kept off during periods of inactivity –Optimize TID lifetime and minimize power drain –Reset command issued once/second Minimizes impact of Single Event Functional Interrupts (SEFI) –Error correction option – Hamming code Correction applied to 512 byte segments for DMA writes Error detection/correction during readout No continuous scrubbing (unlike the SDRAM) –DMA mode: transfers data to/from SDRAM and/or SRAM –CPU sets up DMA; handles buffer allocation and bad block management –Processor mode: CPU can read/write as a device in memory mapped mode Allows for diagnostic backdoor 2633-4 Sept. 2008EFW INST+SOC PDR

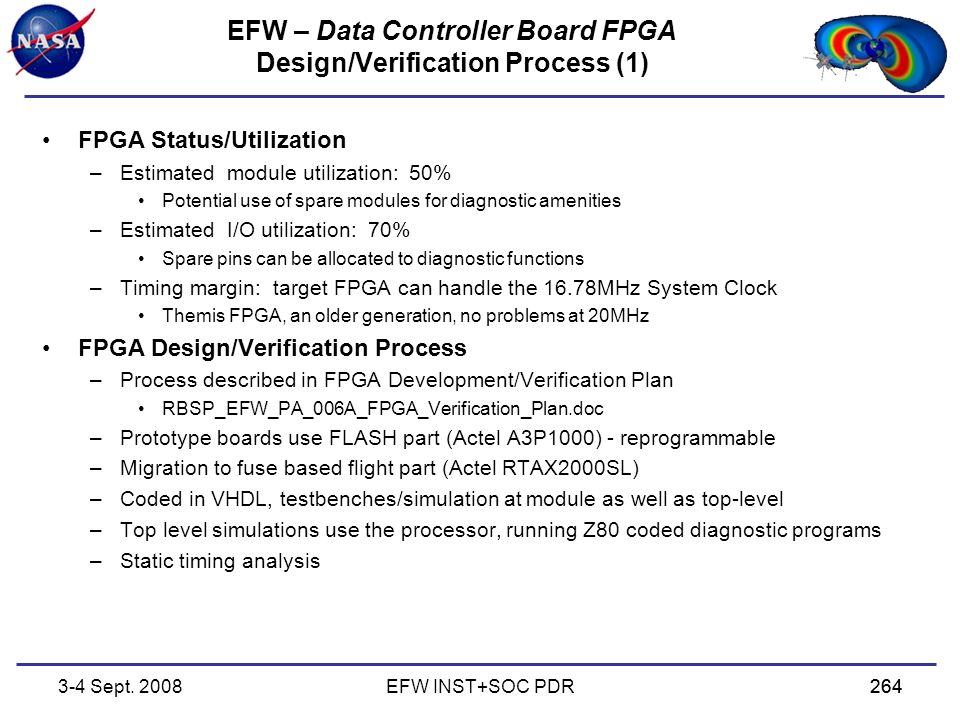

12. 264 3-4 Sept. 2008EFW INST+SOC PDR EFW – Data Controller Board FPGA Design/Verification Process (1) FPGA Status/Utilization –Estimated module utilization: 50% Potential use of spare modules for diagnostic amenities –Estimated I/O utilization: 70% Spare pins can be allocated to diagnostic functions –Timing margin: target FPGA can handle the 16.78MHz System Clock Themis FPGA, an older generation, no problems at 20MHz FPGA Design/Verification Process –Process described in FPGA Development/Verification Plan RBSP_EFW_PA_006A_FPGA_Verification_Plan.doc –Prototype boards use FLASH part (Actel A3P1000) - reprogrammable –Migration to fuse based flight part (Actel RTAX2000SL) –Coded in VHDL, testbenches/simulation at module as well as top-level –Top level simulations use the processor, running Z80 coded diagnostic programs –Static timing analysis

13. 265 3-4 Sept. 2008EFW INST+SOC PDR EFW – Data Controller Board FPGA Design/Verification Process (2) IP Core –Purchased from CAST, Inc. Delivering IP cores since 1996 Offering over 550 core licenses to approximately 400 customers (including commercial, military as well as NASA based projects) –Core is delivered as routed netlist for the target FPGA –VHDL Model used for functional simulation –Routed version reverified during top-level simulation Testing/Debug Environment (using the DCB Protoboard) –ROM Monitor successfully ported from Themis DCB Ability to download and run diagnostic programs –The following FPGA modules have been tested/verified –CPU CORE and CPUBUS control –MBUS control –UARTS (both S/C and diagnostic ports) –SDRAM Controller –Timekeeper (1PPS and Spin Clock reception logic verified with S/C Emulator)

14. 266 3-4 Sept. 2008EFW INST+SOC PDR EFW – Data Controller Board FPGA Schedule/Issues Status –Detailed design about 50% complete CPU Core has been exercised extensively –Detailed design completion (supporting DCB Protoboard) expected by the end of 2008 –Ongoing activities during DCB Protoboard and ETU Test/Verification Migration to engineering/flight DCB using FLASH FPGA Support flight software development Instrument Integration (verify DFB, BEB and PCB Interfaces) Spacecraft Integration (verify Command and Telemetry Interfaces) Retarget VHDL for flight part; simulate, test and verify Issues –ICD (Spacecraft Interface) – designing to the “working copy” No problems with current interface definitions
