1. User Services Presenter: Dr. Marvin Bienn 3GPP2 TSG-X Chair marvin.bienn@ericsson.com

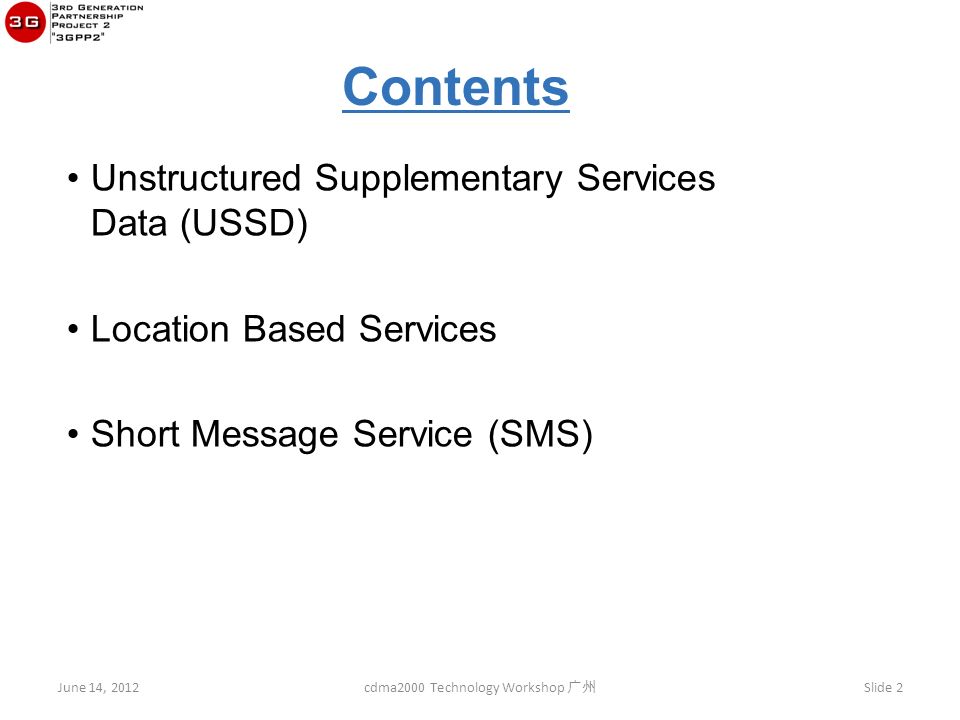

2. Contents June 14, 2012 cdma2000 Technology Workshop 广州 Slide 2 Unstructured Supplementary Services Data (USSD) Location Based Services Short Message Service (SMS)

3. Supplementary Services Data (USSD) Services June 14, 2012 cdma2000 Technology Workshop 广州 Slide 3 Mobile banking balance inquiry (*85#) Mobile Coupons Mobile Voting Mobile Advertising Call Me Service (requesting another party to call you – *333#his-number#)

4. USSD Overview June 14, 2012 cdma2000 Technology Workshop 广州 Slide 4 USSD is a real-time circuit-switched communication service that is used to send text between a mobile device (either the subscriber or an application on the device) and an application program in the network. –Means that if information is not delivered immediately, it won’t get delivered later. For example: recipient’s phone is out of range or recipient’s phone is turned off. Note there are implementation workarounds to offset this issue. Three main types of USSD sessions: –Mobile initiated session –Network initiated session –Network notification.

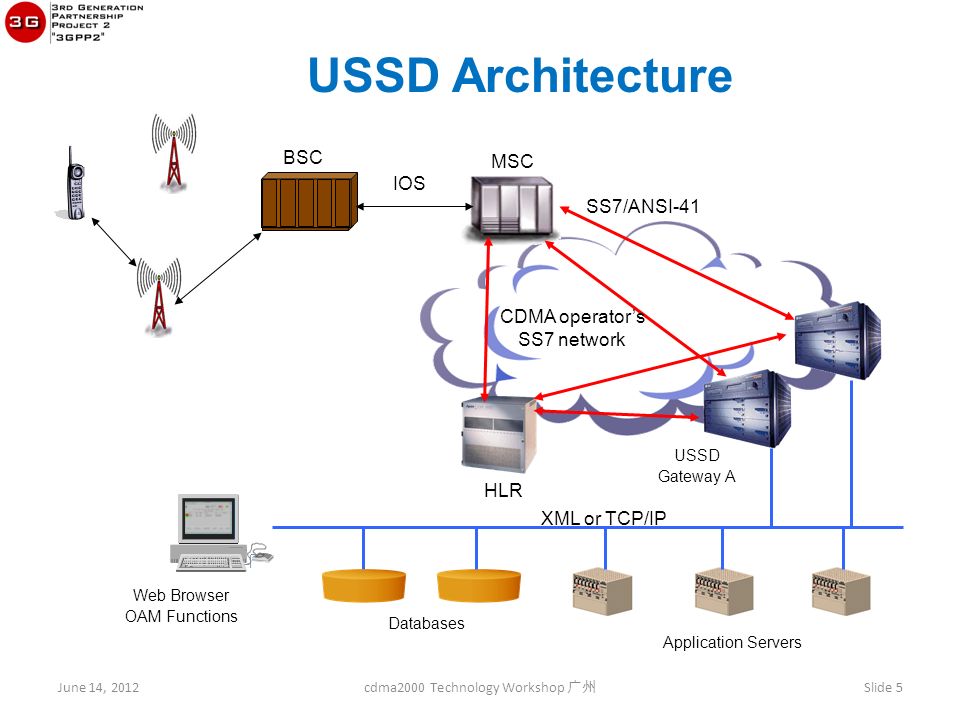

5. USSD Architecture June 14, 2012 cdma2000 Technology Workshop 广州 Slide 5 MSC HLR BSC USSD Gateway A SS7/ANSI-41 CDMA operator’s SS7 network Application Servers Web Browser OAM Functions Databases XML or TCP/IP IOS

6. USSD Mobile Initiated Banking Request: Subscriber Point of View June 14, 2012 cdma2000 Technology Workshop 广州 Slide 6 1. Subscriber initiate a USSD call to Mobile Banking Application -- *85# (Application) 2. Subscriber receives welcome message and menu from the USSD server asking for the inputs, to which subscriber responds with option 1 – Checking Account Balance 3. Subscriber receives the Checking Account Balance. Subscriber pressed 2 to exit the application. 4) Subscriber receives a thank you message for using the service. *85# 1) Checking Account Balance 2) Saving Account Balance 3) Money Transfer 4) Exit Welcome to The Bank of CDMA Menu Answer Cancel Checking Account Balance is 245,000,000 RMB Answer Cancel Thank you for using the Bank of CDMA Answer Cancel 1) For more options 2) For Exit CancelAnswer

7. USSD Mobile Initiated Banking Request: Simplified Information Flow June 14, 2012 cdma2000 Technology Workshop 广州 Slide 7

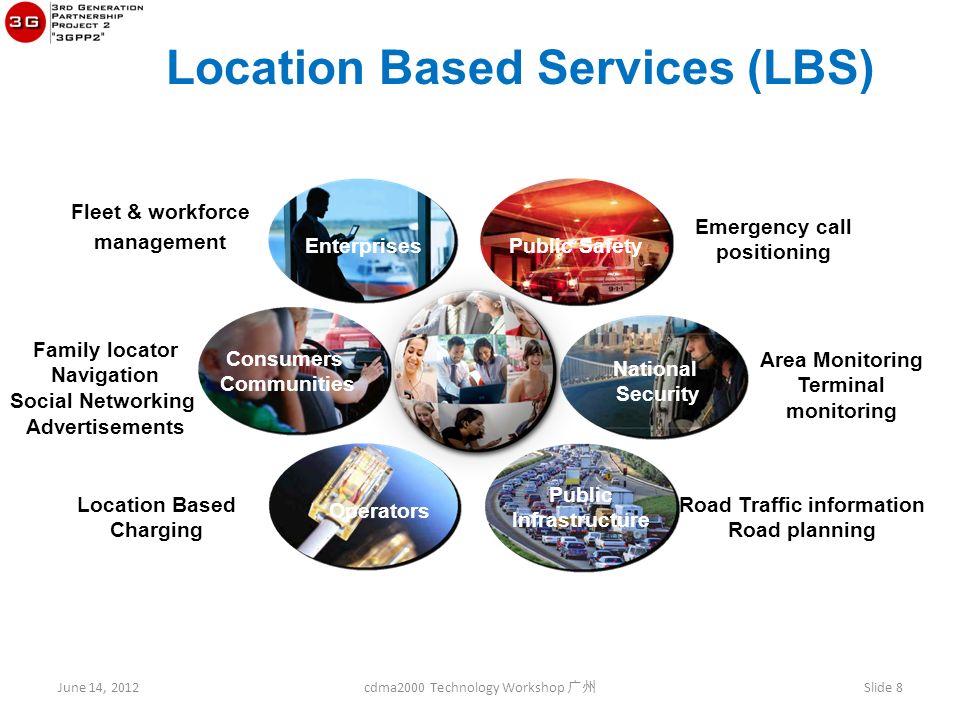

8. Location Based Services (LBS) June 14, 2012 cdma2000 Technology Workshop 广州 Slide 8 Consumers Communities Family locator Navigation Social Networking Advertisements Operators Location Based Charging Public Infrastructure Road Traffic information Road planning National Security Area Monitoring Terminal monitoring Public Safety Emergency call positioning Enterprises Fleet & workforce management

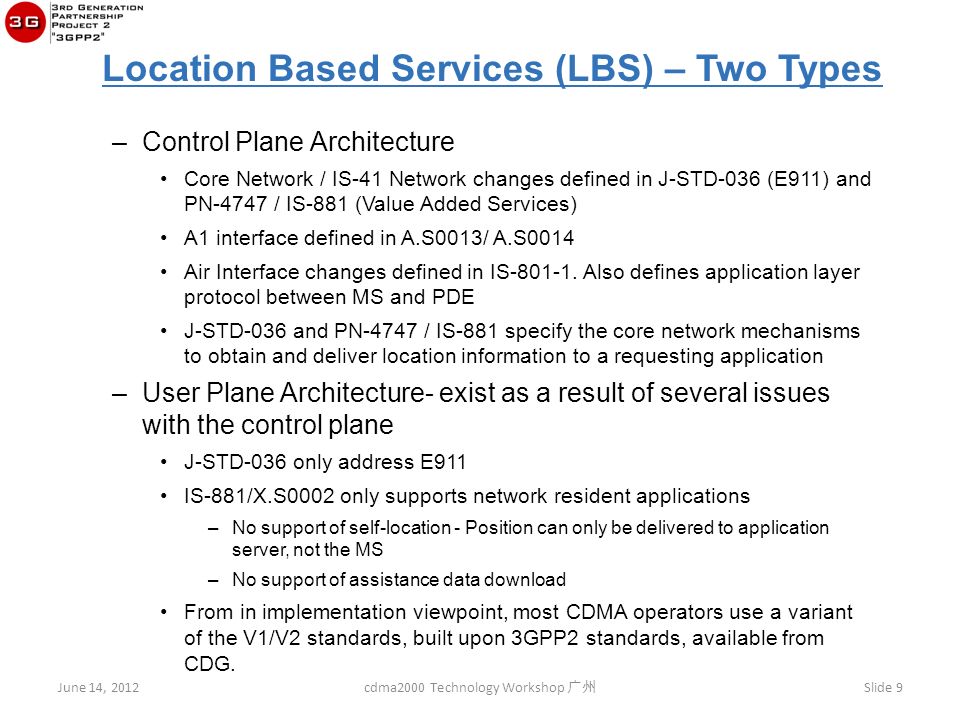

9. Location Based Services (LBS) – Two Types June 14, 2012 cdma2000 Technology Workshop 广州 Slide 9 –Control Plane Architecture Core Network / IS-41 Network changes defined in J-STD-036 (E911) and PN-4747 / IS-881 (Value Added Services) A1 interface defined in A.S0013/ A.S0014 Air Interface changes defined in IS-801-1. Also defines application layer protocol between MS and PDE J-STD-036 and PN-4747 / IS-881 specify the core network mechanisms to obtain and deliver location information to a requesting application –User Plane Architecture- exist as a result of several issues with the control plane J-STD-036 only address E911 IS-881/X.S0002 only supports network resident applications –No support of self-location - Position can only be delivered to application server, not the MS –No support of assistance data download From in implementation viewpoint, most CDMA operators use a variant of the V1/V2 standards, built upon 3GPP2 standards, available from CDG.

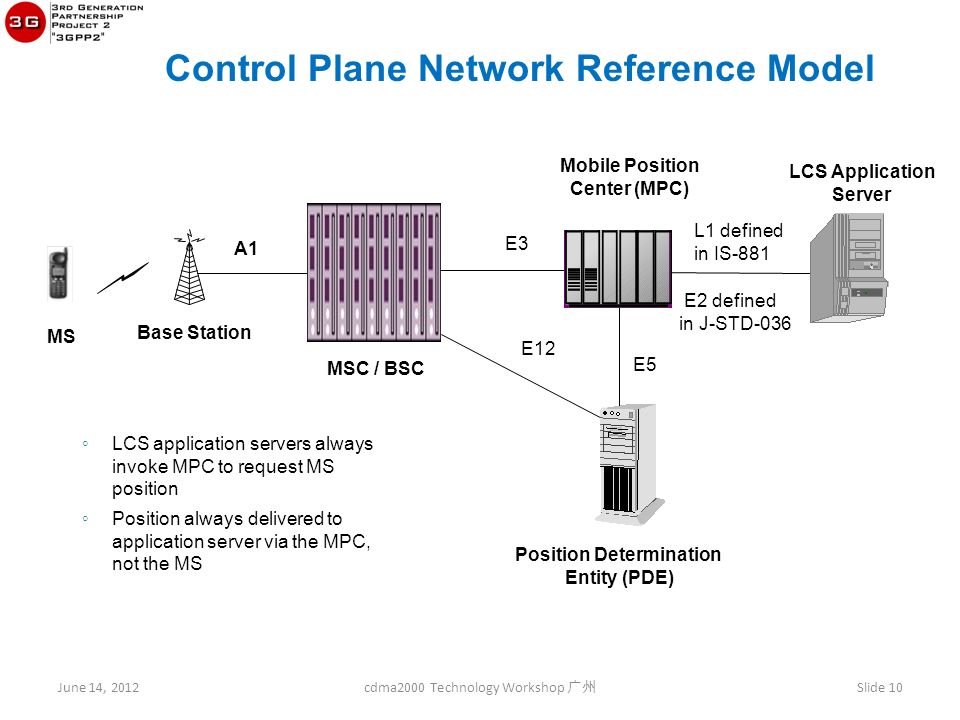

10. Control Plane Network Reference Model June 14, 2012 cdma2000 Technology Workshop 广州 Slide 10 Base Station LCS Application Server Position Determination Entity (PDE) Mobile Position Center (MPC) MSC / BSC MS E3 E12 E5 L1 defined in IS-881 A1 ◦ LCS application servers always invoke MPC to request MS position ◦ Position always delivered to application server via the MPC, not the MS E2 defined in J-STD-036

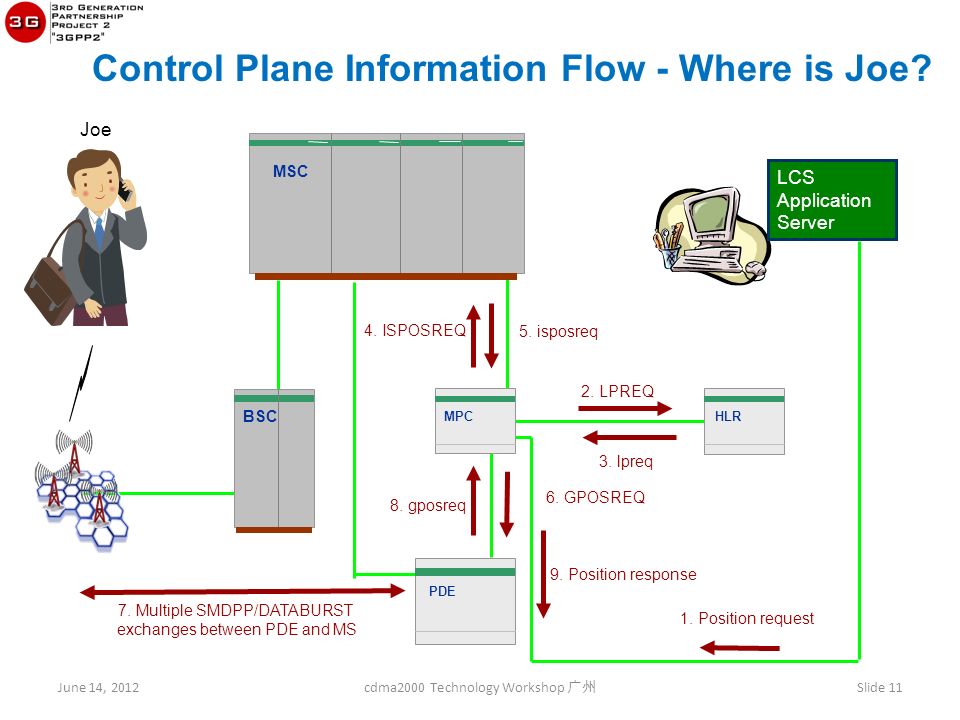

11. Control Plane Information Flow - Where is Joe? June 14, 2012 cdma2000 Technology Workshop 广州 Slide 11 MSC BSC MPC PDE 5. isposreq 6. GPOSREQ 4. ISPOSREQ 1. Position request 8. gposreq 9. Position response HLR 2. LPREQ 3. lpreq 7. Multiple SMDPP/DATABURST exchanges between PDE and MS LCS Application Server Joe

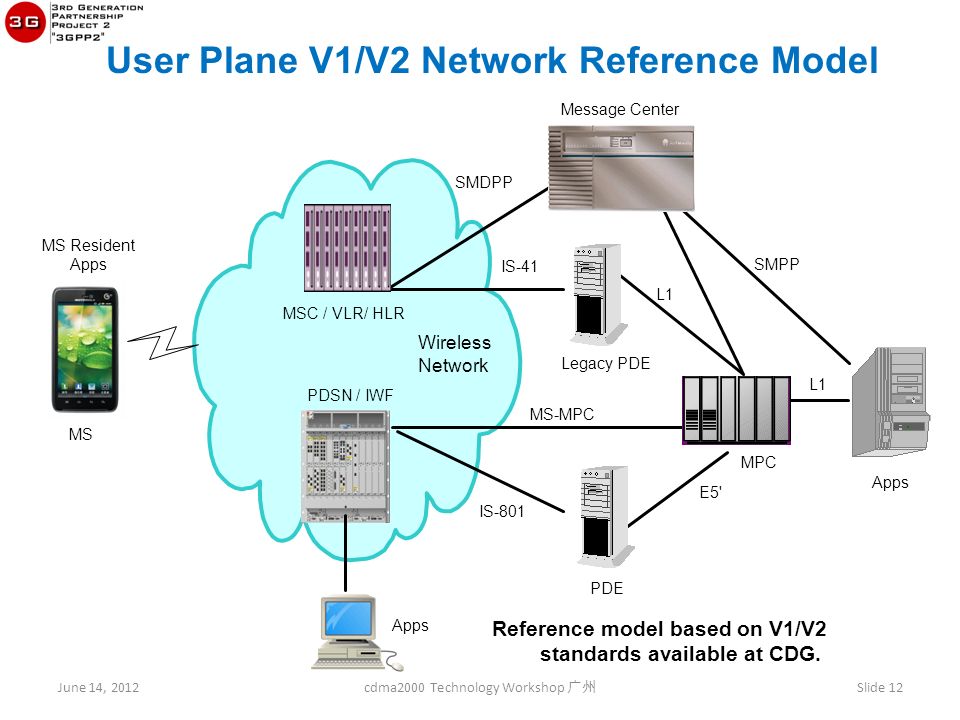

12. User Plane V1/V2 Network Reference Model June 14, 2012 cdma2000 Technology Workshop 广州 Slide 12 MS-MPC Wireless Network PDSN / IWF MSC / VLR/ HLR MPC E5' IS-801 Legacy PDE Message Center L1 SMPP SMDPP IS-41 Apps L1 Apps PDE MS Resident Apps Reference model based on V1/V2 standards available at CDG. MS

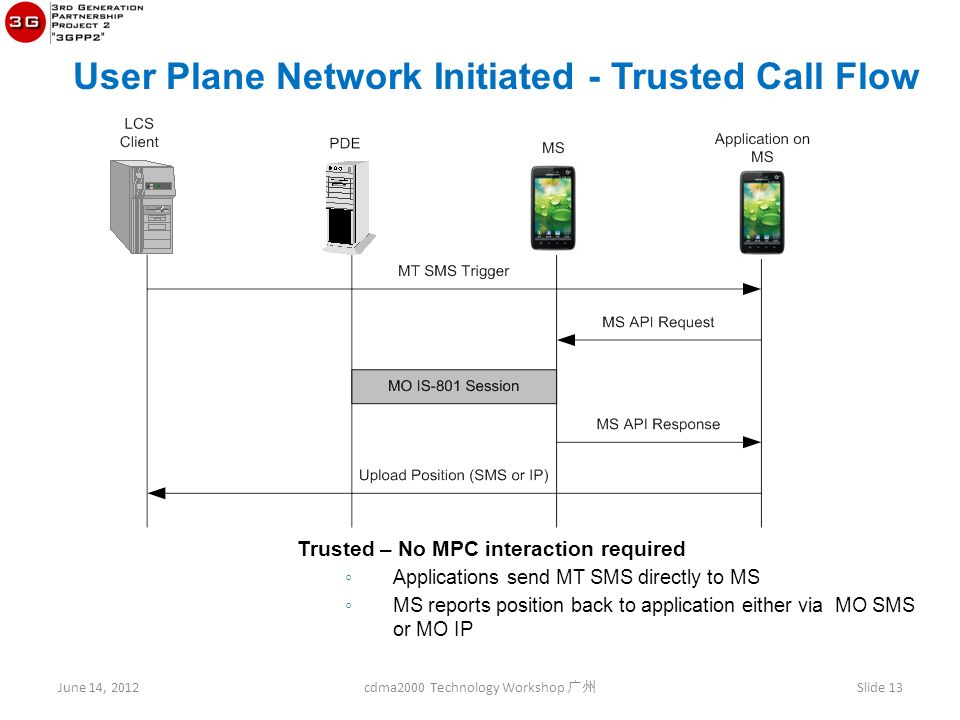

13. User Plane Network Initiated - Trusted Call Flow June 14, 2012 cdma2000 Technology Workshop 广州 Slide 13 Trusted – No MPC interaction required ◦ Applications send MT SMS directly to MS ◦ MS reports position back to application either via MO SMS or MO IP

14. Short Message Service (SMS) June 14, 2012 cdma2000 Technology Workshop 广州 Slide 14 Mobile Voting Emergency Alerts Person-to-Person M2M Slide 14 Dating

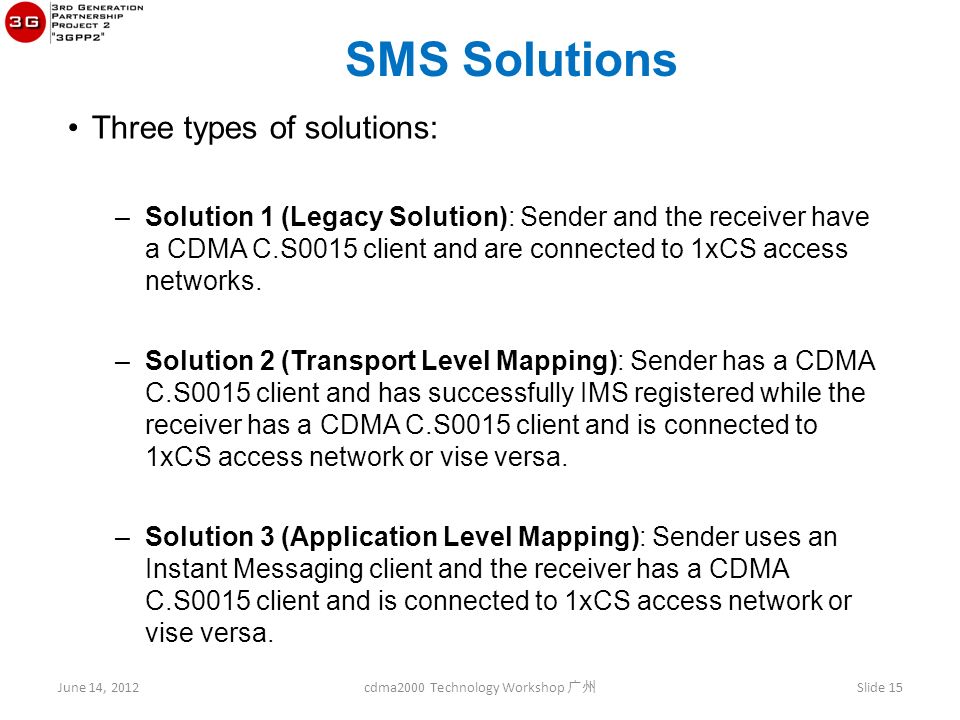

15. SMS Solutions June 14, 2012 cdma2000 Technology Workshop 广州 Slide 15 Three types of solutions: –Solution 1 (Legacy Solution): Sender and the receiver have a CDMA C.S0015 client and are connected to 1xCS access networks. –Solution 2 (Transport Level Mapping): Sender has a CDMA C.S0015 client and has successfully IMS registered while the receiver has a CDMA C.S0015 client and is connected to 1xCS access network or vise versa. –Solution 3 (Application Level Mapping): Sender uses an Instant Messaging client and the receiver has a CDMA C.S0015 client and is connected to 1xCS access network or vise versa.

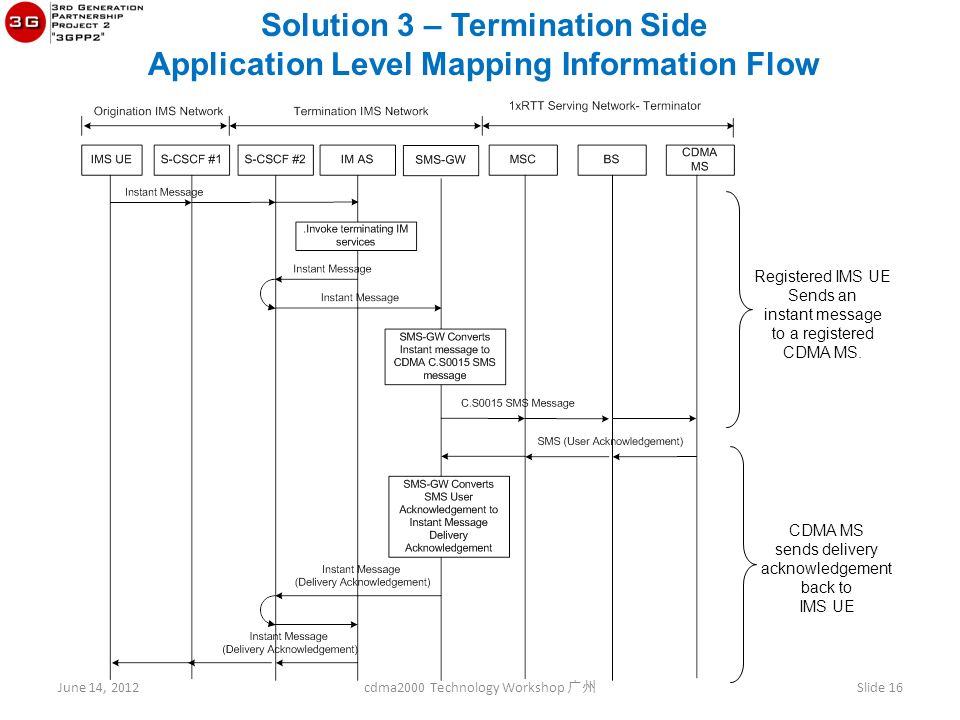

16. Solution 3 – Termination Side Application Level Mapping Information Flow June 14, 2012 cdma2000 Technology Workshop 广州 Slide 16 Registered IMS UE Sends an instant message to a registered CDMA MS. CDMA MS sends delivery acknowledgement back to IMS UE

17. 17

18. For more information, please visit http://www.3gpp2.org.http://www.3gpp2.org LINKS About 3GPP2 Partners Members Committees Specifications Procedures News/Events Contact us How to join Related Links 18 cdma2000 ® is the trademark for the technical nomenclature for certain specifications and standards of the Organizational Partners (OPs) of 3GPP2. Geographically (and as of the date of publication), cdma2000 ® is a registered trademark of the Telecommunications Industry Association (TIA-USA) in the United States.

19. USSD Additional Slides June 14, 2012 cdma2000 Technology Workshop 广州 Slide 19

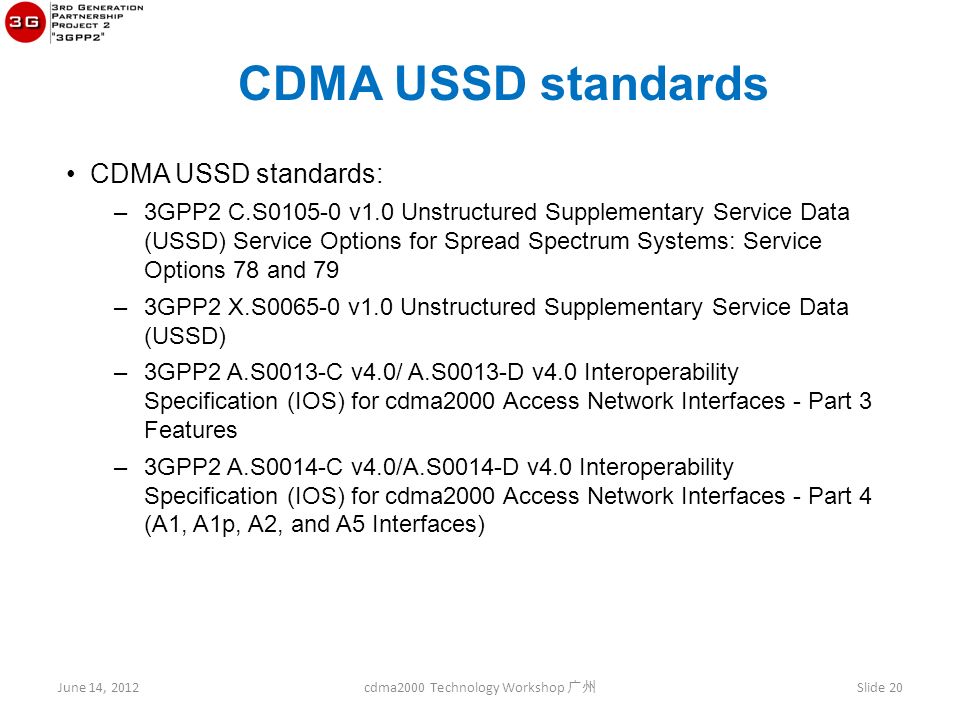

20. CDMA USSD standards June 14, 2012 cdma2000 Technology Workshop 广州 Slide 20 CDMA USSD standards: –3GPP2 C.S0105-0 v1.0 Unstructured Supplementary Service Data (USSD) Service Options for Spread Spectrum Systems: Service Options 78 and 79 –3GPP2 X.S0065-0 v1.0 Unstructured Supplementary Service Data (USSD) –3GPP2 A.S0013-C v4.0/ A.S0013-D v4.0 Interoperability Specification (IOS) for cdma2000 Access Network Interfaces - Part 3 Features –3GPP2 A.S0014-C v4.0/A.S0014-D v4.0 Interoperability Specification (IOS) for cdma2000 Access Network Interfaces - Part 4 (A1, A1p, A2, and A5 Interfaces)

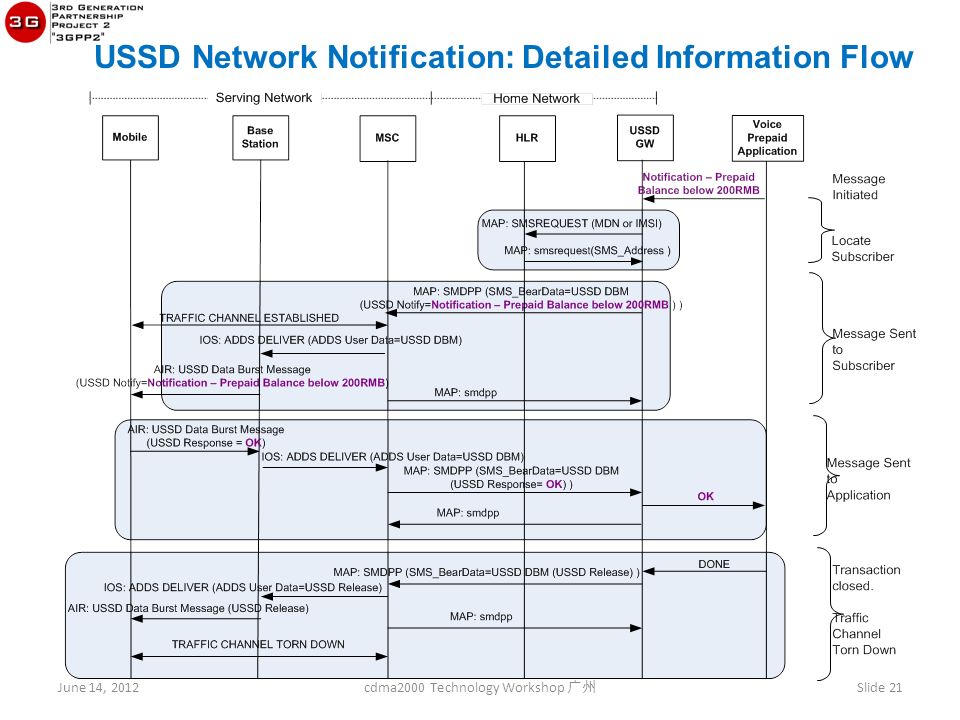

21. USSD Network Notification: Detailed Information Flow June 14, 2012 cdma2000 Technology Workshop 广州 Slide 21

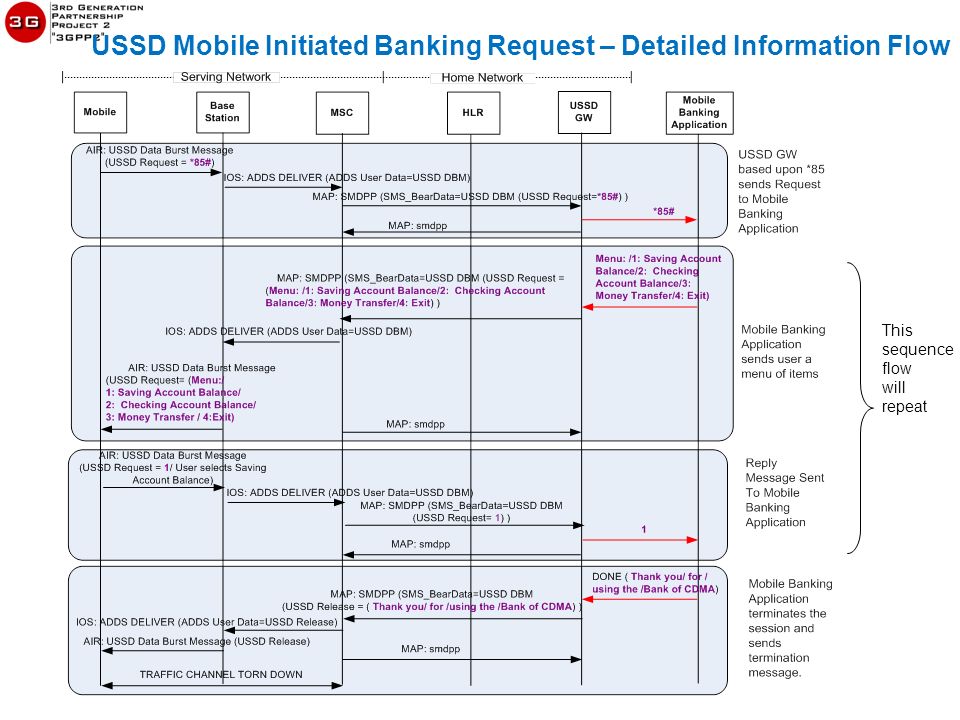

22. USSD Mobile Initiated Banking Request – Detailed Information Flow This sequence flow will repeat

23. LBS Additional Slides June 14, 2012 cdma2000 Technology Workshop 广州 Slide 23

24. User Plane Network Initiated - Non- Trusted Call Flow June 14, 2012 cdma2000 Technology Workshop 广州 Slide 24  Non-Trusted – No MPC interaction required ◦ Applications send MT SMS directly to MS ◦ MS reports position back to application either via MO SMS or MO IP

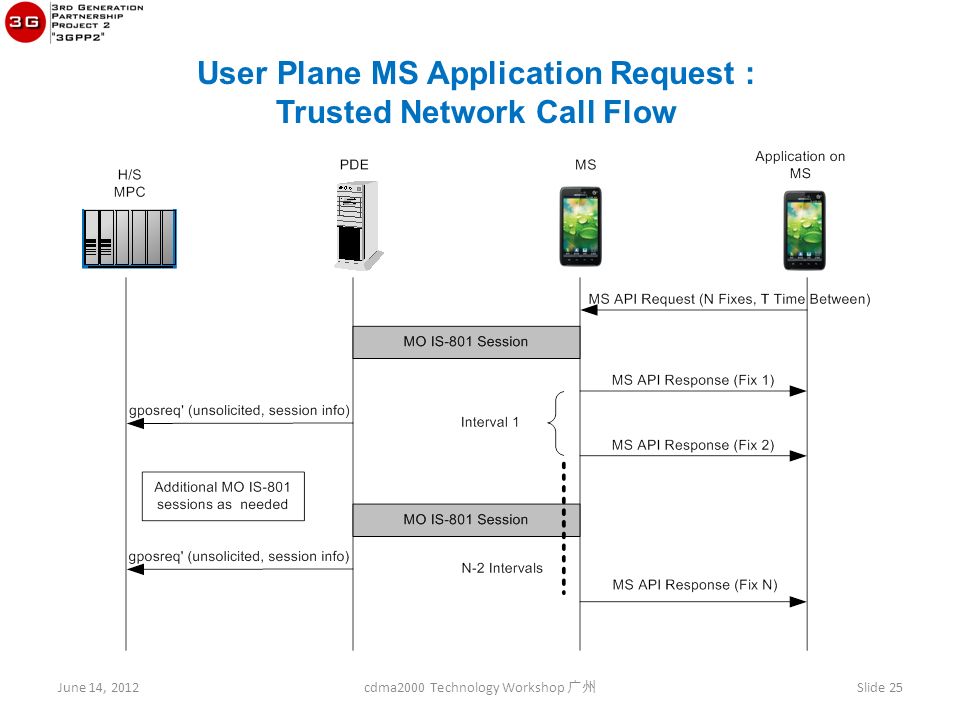

25. User Plane MS Application Request : Trusted Network Call Flow June 14, 2012 cdma2000 Technology Workshop 广州 Slide 25

26. SMS Additional Slides June 14, 2012 cdma2000 Technology Workshop 广州 Slide 26

27. SMS Standards June 14, 2012 cdma2000 Technology Workshop 广州 Slide 27 Solution 1 (Legacy Solution): For sender and receiver having a CDMA C.S0015 client and are connected to 1xCS access networks see: –3GPP2 C.S0015-B v2.0 Short Message Service (SMS) for Wideband Spread Spectrum Systems –3GPP2 A.S0013-C v4.0/ A.S0013-D v4.0 Interoperability Specification (IOS) for cdma2000 Access Network Interfaces - Part 3 Features –3GPP2 A.S0014-C v4.0/A.S0014-D v4.0 Interoperability Specification (IOS) for cdma2000 Access Network Interfaces - Part 4 (A1, A1p, A2, and A5 Interfaces) –3GPP2 X.S0004-641-E v2.0 Mobile Application Part (MAP) - SMS

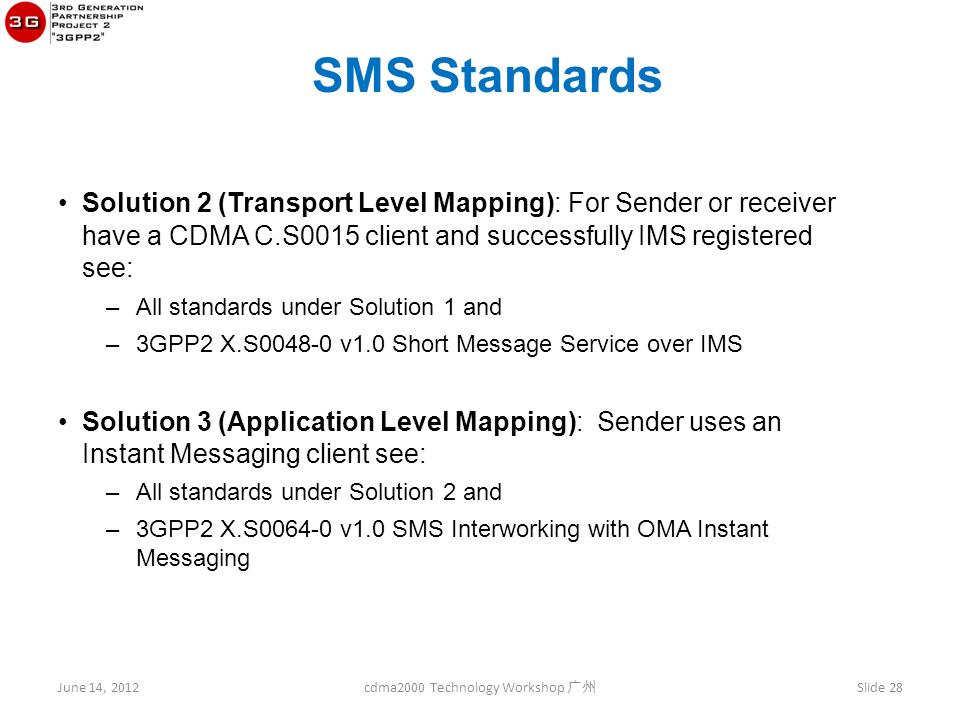

28. SMS Standards June 14, 2012 cdma2000 Technology Workshop 广州 Slide 28 Solution 2 (Transport Level Mapping): For Sender or receiver have a CDMA C.S0015 client and successfully IMS registered see: –All standards under Solution 1 and –3GPP2 X.S0048-0 v1.0 Short Message Service over IMS Solution 3 (Application Level Mapping): Sender uses an Instant Messaging client see: –All standards under Solution 2 and –3GPP2 X.S0064-0 v1.0 SMS Interworking with OMA Instant Messaging

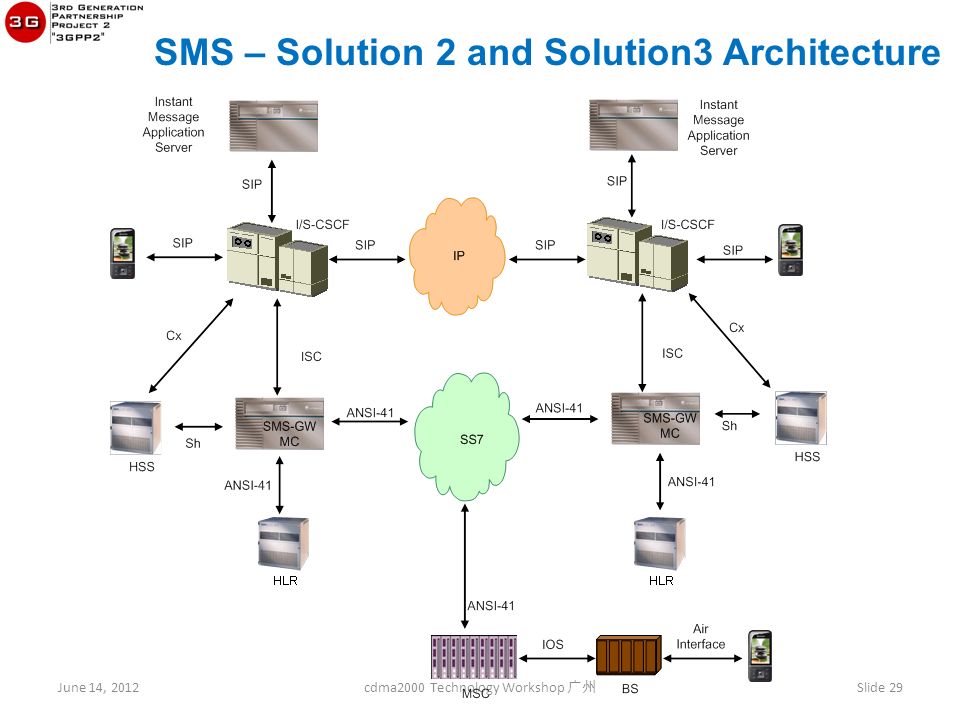

29. SMS – Solution 2 and Solution3 Architecture June 14, 2012 cdma2000 Technology Workshop 广州 Slide 29
