1. DSL 305E ADSL Modem

2. Characteristic of DSL305E DSL305E ADSL Modem  PPP Half-Bridge (Default)  Transparent Bridge

3. Characteristic of DSL305E Conexant Chipsets (CX82310) Web interface management SmartURL commands for DSL305E Firmware upgradeable Ethernet Interface

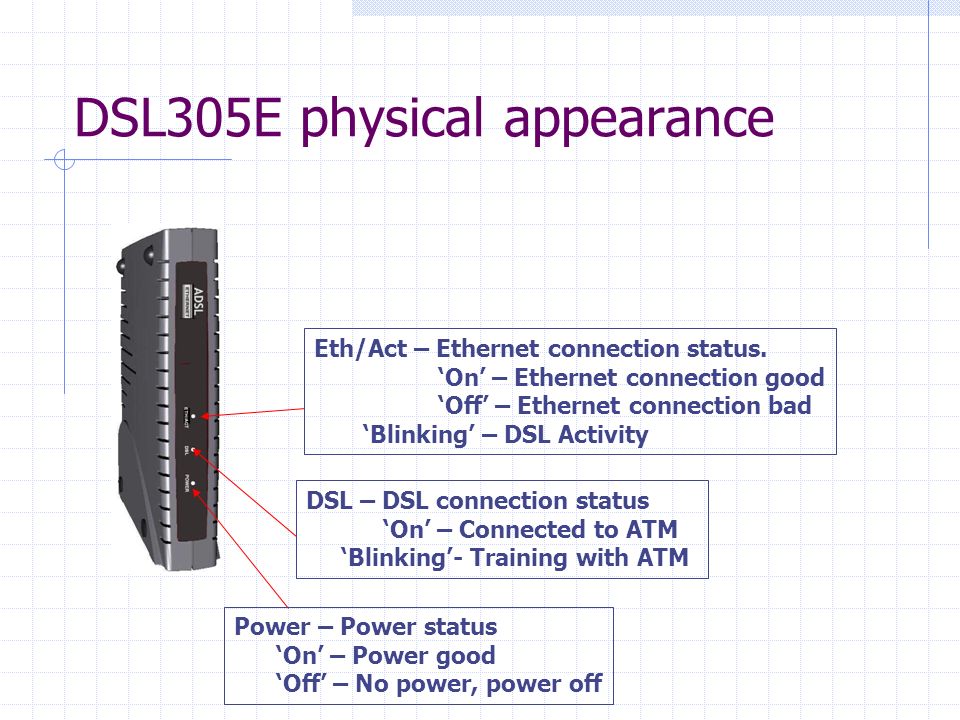

4. DSL305E physical appearance Eth/Act – Ethernet connection status. ‘On’ – Ethernet connection good ‘Off’ – Ethernet connection bad ‘Blinking’ – DSL Activity DSL – DSL connection status ‘On’ – Connected to ATM ‘Blinking’- Training with ATM Power – Power status ‘On’ – Power good ‘Off’ – No power, power off

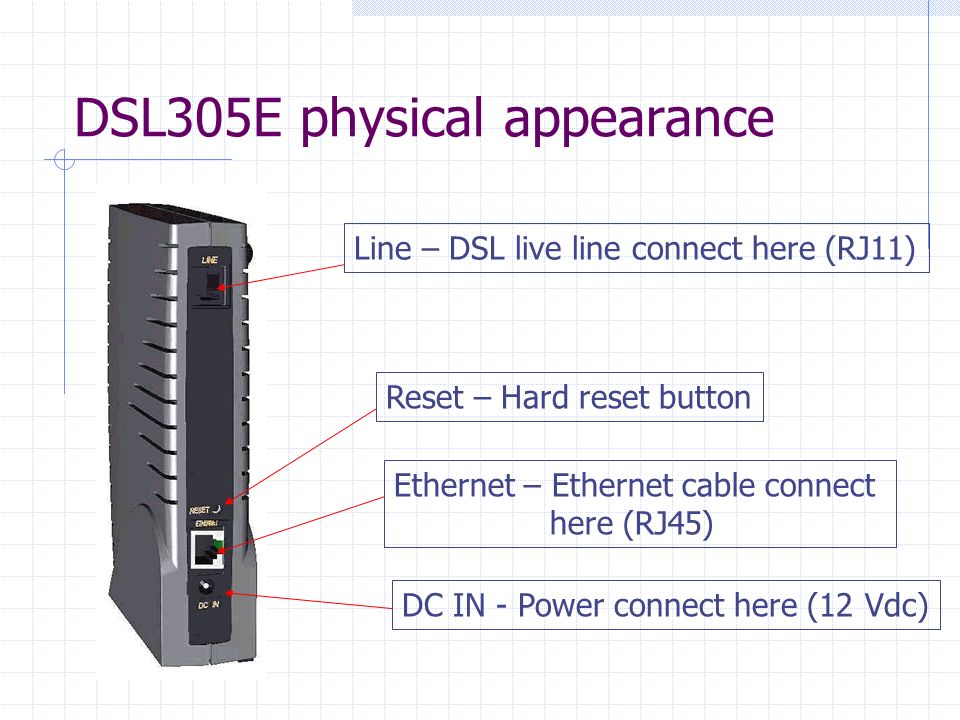

5. DSL305E physical appearance Line – DSL live line connect here (RJ11) Reset – Hard reset button Ethernet – Ethernet cable connect here (RJ45) DC IN - Power connect here (12 Vdc)

6. DSL305E Screen Shots SingNet Firmware: Current V20.6.4

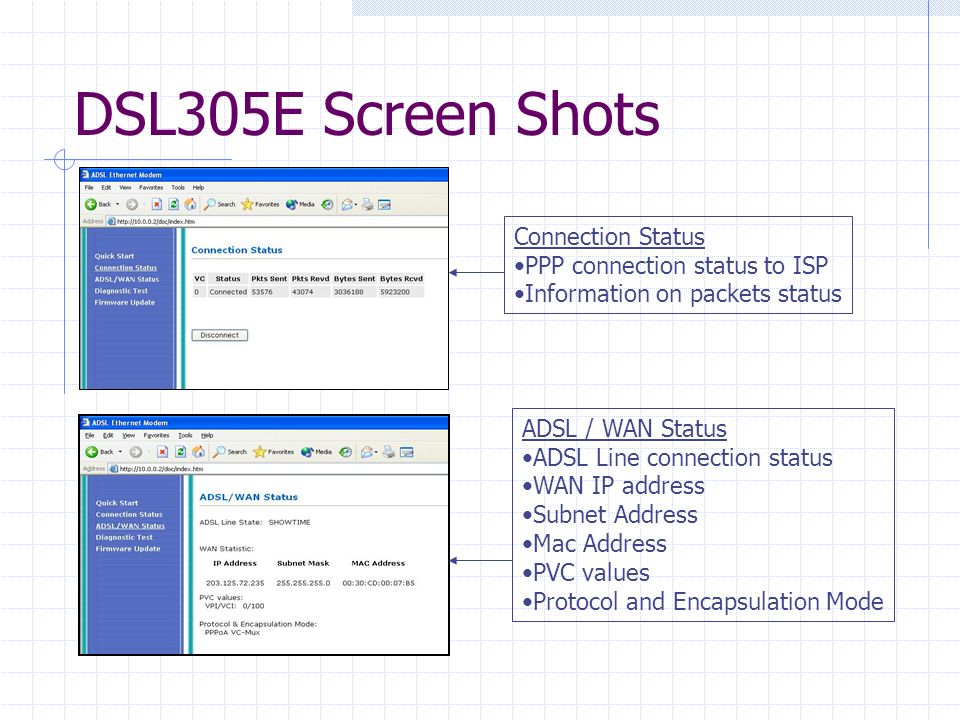

7. DSL305E Screen Shots Connection Status PPP connection status to ISP Information on packets status ADSL / WAN Status ADSL Line connection status WAN IP address Subnet Address Mac Address PVC values Protocol and Encapsulation Mode

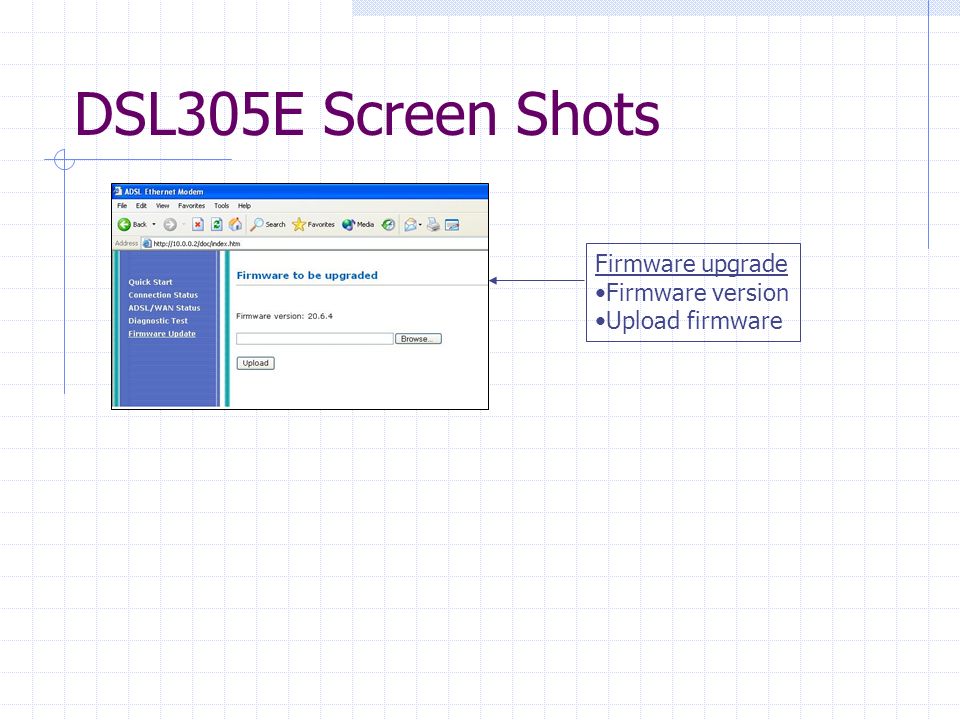

8. DSL305E Screen Shots Firmware upgrade Firmware version Upload firmware

9. SmartURL commands (DSL305E) startmodem / login – To go to the ‘Quick Start’ page. Logout – To log out of ISP ppp – To go to ‘Connection Status’ page. syslog – To go to ‘System Log’ page. connectrouter – To set the modem to transparent bridge mode. Once in this mode, you will not able to log in to the modem. Hard reset the modem to set it back to default factory mode. IP address of Modem : 10.0.0.2

10. Multi-user Mode for DSL305E Use ‘connectrouter’ SmartURL command to set modem to transparent bridge mode. Theoretically, we can connect DSL305E (in transparent bridge mode) to a broadband router. Note: User need to hard rest the modem to get back to single user mode. In Multi-user mode, SmartURL commands are not able to used.

11. Pros and Cons of DSL305E CONS Slow to connect to ISP. Take about 50sec to 60sec to get connected. The cause is due to the half-bridge mode of this modem. The modem will take some time to transfer the WAN IP address to the PC. Need external power source. Pros No driver is needed. Ethernet interface. No CD-installation is needed thus save cost.

12. Q&A for DSL305E Q: Can’t used SmartURL command. A: SmartURL uses DNS methodology. Check if there are two network cards. Check the DNS server. See below figure. Must be *.Hasbani.com to work

13. Q&A for DSL305E Q: Cannot Surf the Internet even connected to ISP. A: Check proxy is turn off. Make sure proxy is off. Q: Ethernet light is on but I can’t log in to the modem A: Check if the NIC is assign to Obtain an IP automatically. Q: Ethernet light is not on even cable is plug in. A: Check the type of cable used. Should be straight if connect to PC. Check driver of the NIC is properly installed.
