1. IIS Security Sridurga Mavram

2. Contents -Introduction -Security Consideration -Creating a web page -Drawbacks -Security Tools -Conclusion -References

3. - What is IIS? IIS, an acronym for Internet Information Services is a web application server program that handles HTTP requests The Internet Information Services is a suite of tools and services for creating, managing, and securing Web sites Popular because IIS sites are so easy to implement. - Why should you Secure it? Easy to use, easy to hack Default installation(comes with OS) is massively vulnerable and it is no wonder that attackers are finding IIS to be "the easiest pickings" of all Web servers. Introduction

4. Security Consideration - During Installation/Enabling - Post Installation

5. During Installation/Enabling DO NOT install IIS together with services that are of key importance for LAN functionality or security. Default/No Harm Services: Common Files Documentation Internet Information Services Snap-In World Wide Web Server Contd..

6. File Transfer Protocol (FTP) Server NNTP Service SMTP Service Risky: FrontPage 2000 Server Extensions Internet Service Manager (HTML)

8. -The first step in securing your server is to download the most updated Service Pack and current IIS patches. - Don't forget to register so that you will automatically receive Microsoft security bulletins Piece of Note

9. Post Installation  Before attempting to change settings, ensure that you make a backup copy of the metabase (i.e. the IIS configuration). To do this, in the "Internet Services Manager" application, click on "Backup/Restore Configuration". Give a name and create a backup Location of Storing : C:\WINNT\system32\inetsrv\MetaBack directory

12.  Details of the Logs “Enable Logging” Change the log time period from daily Put a dedicated drive(E:/LogFiles) Extended Properties (Select all)

14.  Home Directory Configuration Allows you to set up dynamic WWW pages(dlls) that are files with specific extensions. Example: C:\WINNT\System32\inetsrv\asp.dll, ism.dll, httpodbc.dll, ssinc.dll and C:\WINNT\System32\msw3prt.dll, idq.dll and webhits.dll Remove all these except asp.dll and ssinc.dll (Security Issues) Reason: These were used in the past for breaking into the IIS servers and infecting them with viruses Example : buffer overflow vulnerability contained in the idq.dll

16.  File Extension Mapping In order to setup the extension service via ISAPI applications, click on the "Add" button and then fill in the boxes: Executable:C:\WINNT\System32\inetsrv\asp.dll Extension:.inc Limit to: POST, GET, and HEAD

18.  Application Configuration Clear “Enable Parent Paths” Reason: Restrict the access to the Application’s Directory Clear “Session State” Reason: Overloads Server’s Memory  Debugging Enable "Send text error message to client" Reason: Prevents Hackers from knowing the detail

21.  Directory Security Commonly used pages – Uncheck Integrated Problem : username/password passed along the network.  Documents Add default documents Note: Home Directory settings - Read, Write, Directory Browsing should not be overlooked.

24. Creating Webpage -Partition your Internet data on different disk drives. Reason: Escaping from Hackers. -Create a virtual Directory and map it to the Local Directory -Enable only needed permissions For Administrators: Full Control, For Authenticated Users: Read and Execute For SYSTEM: Full Control -Disable Directory Browsing

27. Drawbacks -Managing large IIS server configurations or multiple servers over the Internet can be slow and cumbersome. -Hacker can enter as guest and take over the system privileges (due to insecure dll isolation). - Tools that are produced outside of Microsoft do not alert you when you set a property that requires supporting properties.

28. Security Tools  IIS Lockdown tool Installation Guide: http://www.iisanswers.com/articles/IIS_Lockdown/IISLockdown.htm Download: http://www.microsoft.com/windows2000/downloads/recommended/iislockd own/default.asp  URLScan Download: http://www.microsoft.com/technet/security/tools/URLscan.asp

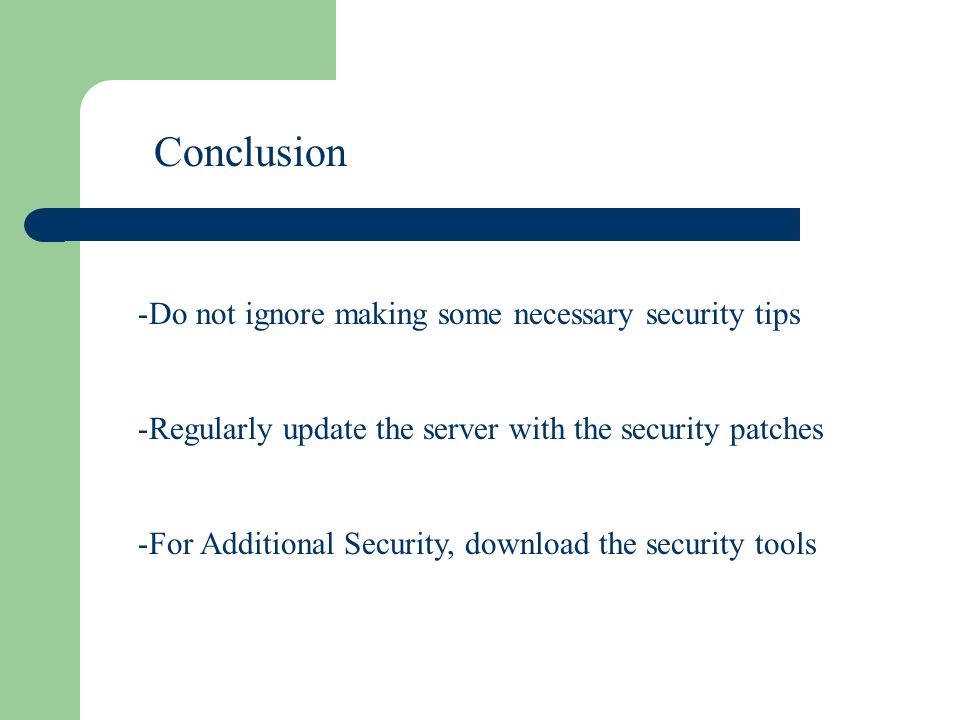

29. Conclusion -Do not ignore making some necessary security tips -Regularly update the server with the security patches -For Additional Security, download the security tools

30. References -Microsoft Windows Security Resourse Toolkit – Ben Smith and Brian Komar -http://www.windowsecurity.com/articles/Installing_Secur ing_IIS_Servers_Part1.htmlhttp://www.windowsecurity.com/articles/Installing_Secur ing_IIS_Servers_Part1.html -http://www.serverwatch.com/news/article.php/1400491http://www.serverwatch.com/news/article.php/1400491 -http://www.informit.com/articles/article.asp?p=29310&s eqNum=5&rl=1http://www.informit.com/articles/article.asp?p=29310&s eqNum=5&rl=1 -http://www.eeye.com/html/Research/Advisories/AD2002 0410.htmlhttp://www.eeye.com/html/Research/Advisories/AD2002 0410.html

31. Thank You
