1 INTD 59 universal & ergonomic design

2 definition of terms universal design: the design of products and environments to be usable by all people, to the greatest extent possible, without the need of adaptation or specialized design --Ron Mace, founder Center for Universal Design ergonomics: Human engineering, science of dealing with the application of information on physical and psychological characteristics to the design of devices and systems for human use. Its data and principles apply to activities of the home, the workplace, and recreation. both encourage spatial design that minimizes physical stress on the body

3 definition of terms anthropometric data: body dimensions—structural & static client specific data crucial posture & movement —poor posture & movement often lead to stress of neck, back, shoulders, and wrists function of bones —when you are standing erect with good posture, internal organs can function properly joints as levers —design to keep joints in the neutral position whenever possible (cooktop height for stirring)

4 definition of terms structural (static) dimensions— size of head, size of eye pupil, torso measurements & limb sizes have minimal impact on kitchen & bath design functional (dynamic) dimensions— body movement associated to certain tasks cabinet layout, appliance selection & placement, lighting, & clearances all affected by person’s ability to reach and move assessment gives designer necessary info to design a space that fits the client whether tall, short, young, old, wheelchair assisted or mobility- device-using

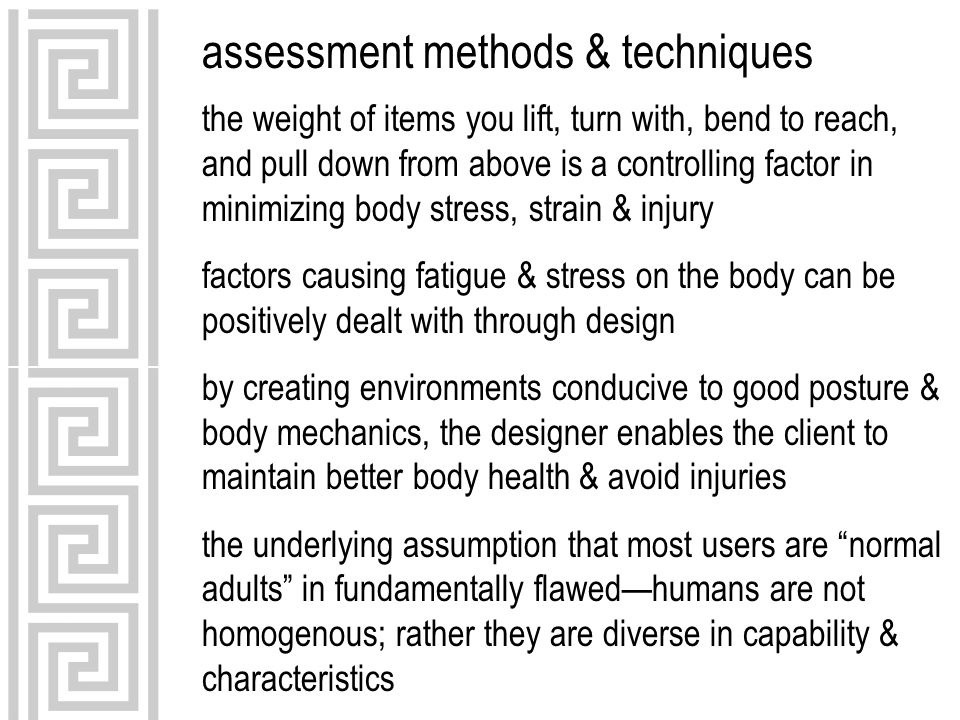

5 assessment methods & techniques the weight of items you lift, turn with, bend to reach, and pull down from above is a controlling factor in minimizing body stress, strain & injury factors causing fatigue & stress on the body can be positively dealt with through design by creating environments conducive to good posture & body mechanics, the designer enables the client to maintain better body health & avoid injuries the underlying assumption that most users are “normal adults” in fundamentally flawed—humans are not homogenous; rather they are diverse in capability & characteristics

6 assessment methods & techniques to gather necessary data, analyze movement for certain tasks—an individual’s ability to access space, and to work and move within that space greatly influences the design explain to your client the purpose of the measurements & the benefits of ergonomic design—set yourself apart from other designers line of sight: clear vision of control panels, appliance interiors, food being prepared & cooked, stored items, traffic patterns and furniture light levels? natural & artificial light? glasses?

7 assessment methods & techniques ability to reach: measure the distance from the floor to the elbow bent at 90 degrees—indicates the height best suited to use large muscle sets safe access into space in appliances, cabinetry, & counter surfaces is achieved with good balance & flexibility ability to stand? reach up, down & out? SCAN page 47

8 assessment methods & techniques agility: relates directly to his or her ability to perform tasks observe how clients move with the space—note any comments about what is not working for them & determine if this is spatial or motion related sound levels: ask how client perceives sound hearing aids? ventilation fans bothersome?

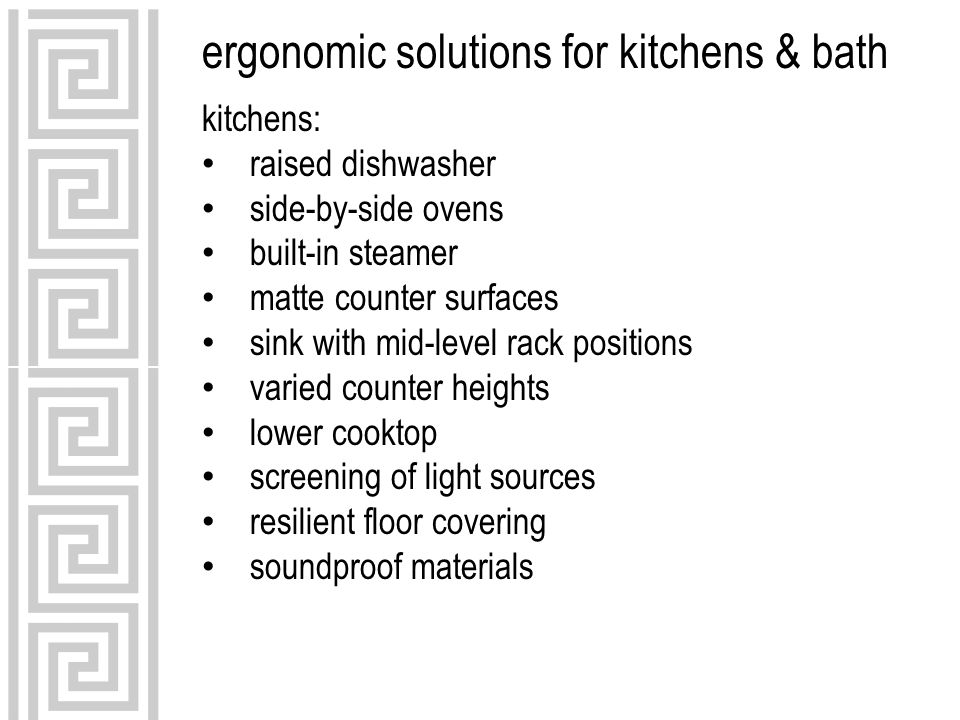

9 ergonomic solutions for kitchens & bath kitchens: raised dishwasher side-by-side ovens built-in steamer matte counter surfaces sink with mid-level rack positions varied counter heights lower cooktop screening of light sources resilient floor covering soundproof materials

10

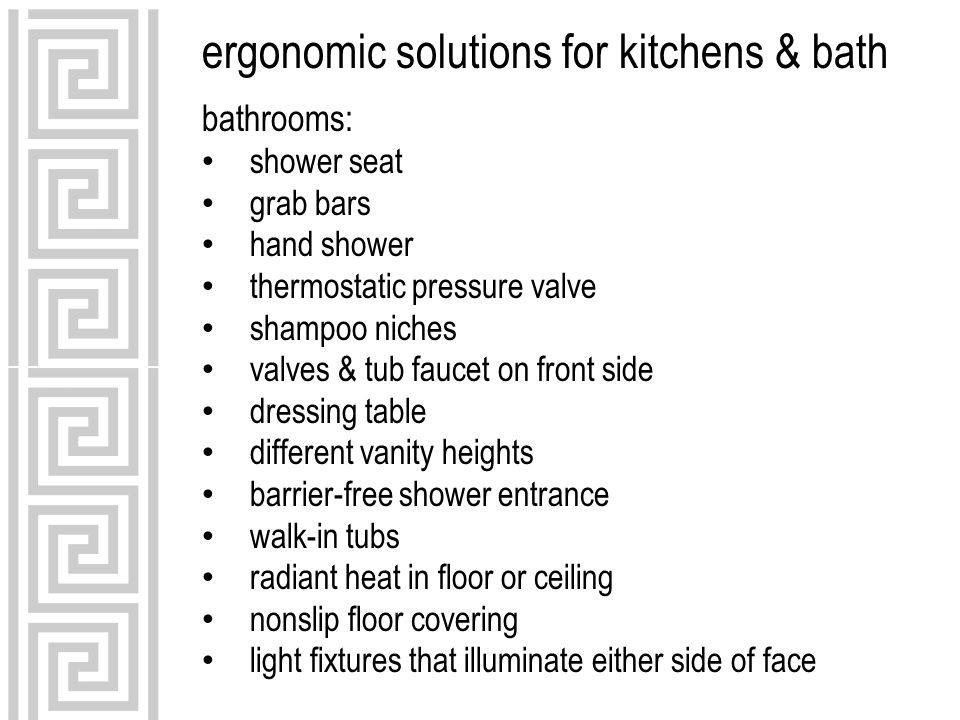

11 ergonomic solutions for kitchens & bath bathrooms: shower seat grab bars hand shower thermostatic pressure valve shampoo niches valves & tub faucet on front side dressing table different vanity heights barrier-free shower entrance walk-in tubs radiant heat in floor or ceiling nonslip floor covering light fixtures that illuminate either side of face

12

13

14 ergonomic storage solutions encourages good body mechanics when retrieving cookware, food and appliances improves safety by encouraging use of good posture & larger muscle sets SCAN page 50
