ITU-R Working Party 8B Thomas Ewers RegTP Germany Chairman WP8B.

Similar presentations


Presentation on theme: "ITU-R Working Party 8B Thomas Ewers RegTP Germany Chairman WP8B."— Presentation transcript:

1 ITU-R Working Party 8B Thomas Ewers RegTP Germany Chairman WP8B

2 ITU-R Study Group 8 Seminar Scope of WP8B (1) The Working Party is responsible for: Studies related to the maritime mobile service, including the Global Maritime Distress and Safety System (GMDSS) and the management of Maritime Mobile Service Identities (MMSI), the aeronautical mobile service and the radiodetermination service (radionavigation and radiolocation) Studies related to the maritime mobile service, including the Global Maritime Distress and Safety System (GMDSS) and the management of Maritime Mobile Service Identities (MMSI), the aeronautical mobile service and the radiodetermination service (radionavigation and radiolocation) Development and maintenance of Recommendations that enable protection for distress and safety applications of the above services while permitting sharing of the limited spectrum resources with other services Development and maintenance of Recommendations that enable protection for distress and safety applications of the above services while permitting sharing of the limited spectrum resources with other services

3 ITU-R Study Group 8 Seminar Scope of WP8B (2) Assessment of compatibility between the cognizant radiocommunication services of Working Party 8B and other services to determine the feasibility of sharing Assessment of compatibility between the cognizant radiocommunication services of Working Party 8B and other services to determine the feasibility of sharing Studies to enhance the effective and efficient use of the spectrum of services cognizant to Working Party 8B Studies to enhance the effective and efficient use of the spectrum of services cognizant to Working Party 8B

4 ITU-R Study Group 8 Seminar Scope of WP8B (3) The Working Party shall maintain strong cooperative efforts with other United Nations Specialized Operating Agencies such as the International Civil Aviation Organization (ICAO), International Maritime Organization (IMO) and World Meteorological Organization (WMO). The Working Party shall maintain strong cooperative efforts with other United Nations Specialized Operating Agencies such as the International Civil Aviation Organization (ICAO), International Maritime Organization (IMO) and World Meteorological Organization (WMO). The Working Party shall also maintain strong cooperative efforts with other Task Groups and Working Parties having an interest in the frequency bands allocated for the maritime mobile, aeronautical mobile and radiodetermination services. The Working Party shall also maintain strong cooperative efforts with other Task Groups and Working Parties having an interest in the frequency bands allocated for the maritime mobile, aeronautical mobile and radiodetermination services.

5 ITU-R Study Group 8 Seminar Ongoing Activities Further development of Recommendations on operational and technical characteristics of radiolocation and radionavigation radars, e.g. in the 9 GHz range Further development of Recommendations on operational and technical characteristics of radiolocation and radionavigation radars, e.g. in the 9 GHz range Further development of methodologies to asses the sharing with other services Further development of methodologies to asses the sharing with other services Consequential studies to WRC-03 (Sharing of RNSS and Radiodetermination, Compatibility between aeronautical systems and broadcast at 108 MHz) Consequential studies to WRC-03 (Sharing of RNSS and Radiodetermination, Compatibility between aeronautical systems and broadcast at 108 MHz) Preparation for WRC-07 Preparation for WRC-07 Studies on request of RRC-04 Studies on request of RRC-04

6 ITU-R Study Group 8 Seminar WRC-07 (1) WP8B has been identified as the responsible group for the following agenda items: 1.3in accordance with Resolution 747 (WRC-03), consider upgrading the radiolocation service to primary allocation status in the bands 9 000-9 200 MHz and 9 300 9 500 MHz, and extending by up to 200 MHz the existing primary allocations to the Earth exploration- satellite service (active) and the space research service (active) in the band 9 500-9 800 MHz without placing undue constraint on the services to which the bands are allocated. 1.3in accordance with Resolution 747 (WRC-03), consider upgrading the radiolocation service to primary allocation status in the bands 9 000-9 200 MHz and 9 300 9 500 MHz, and extending by up to 200 MHz the existing primary allocations to the Earth exploration- satellite service (active) and the space research service (active) in the band 9 500-9 800 MHz without placing undue constraint on the services to which the bands are allocated.

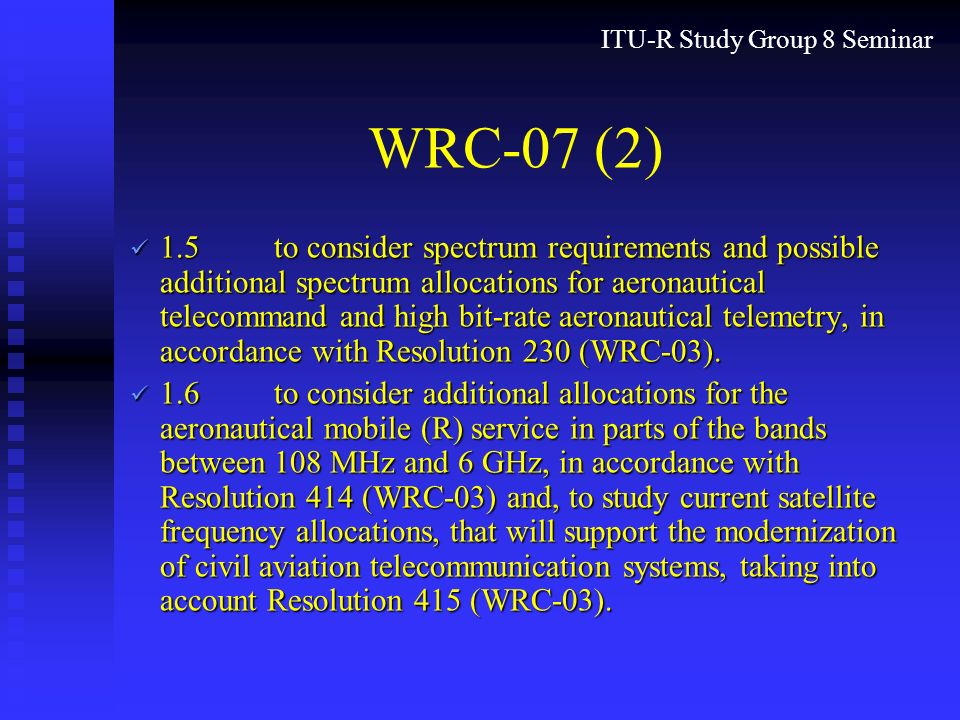

7 ITU-R Study Group 8 Seminar WRC-07 (2) 1.5to consider spectrum requirements and possible additional spectrum allocations for aeronautical telecommand and high bit-rate aeronautical telemetry, in accordance with Resolution 230 (WRC-03). 1.5to consider spectrum requirements and possible additional spectrum allocations for aeronautical telecommand and high bit-rate aeronautical telemetry, in accordance with Resolution 230 (WRC-03). 1.6to consider additional allocations for the aeronautical mobile (R) service in parts of the bands between 108 MHz and 6 GHz, in accordance with Resolution 414 (WRC-03) and, to study current satellite frequency allocations, that will support the modernization of civil aviation telecommunication systems, taking into account Resolution 415 (WRC-03). 1.6to consider additional allocations for the aeronautical mobile (R) service in parts of the bands between 108 MHz and 6 GHz, in accordance with Resolution 414 (WRC-03) and, to study current satellite frequency allocations, that will support the modernization of civil aviation telecommunication systems, taking into account Resolution 415 (WRC-03).

8 ITU-R Study Group 8 Seminar WRC-07 (3) 1.13taking into account Resolutions 729 (WRC- 97), 351 (WRC-03) and 544 (WRC-03), to review the allocations to all services in the HF bands between 4 MHz and 10 MHz, excluding those allocations to services in the frequency range 7 000-7 200 kHz and those bands whose allotment plans are in Appendices 25, 26 and 27 and whose channelling arrangements are in Appendix 17, taking account of the impact of new modulation techniques, adapting control techniques and the spectrum requirements for HF broadcasting. 1.13taking into account Resolutions 729 (WRC- 97), 351 (WRC-03) and 544 (WRC-03), to review the allocations to all services in the HF bands between 4 MHz and 10 MHz, excluding those allocations to services in the frequency range 7 000-7 200 kHz and those bands whose allotment plans are in Appendices 25, 26 and 27 and whose channelling arrangements are in Appendix 17, taking account of the impact of new modulation techniques, adapting control techniques and the spectrum requirements for HF broadcasting.

9 ITU-R Study Group 8 Seminar WRC-07 (4) 1.14to review the operational procedures and requirements of the Global Maritime Distress and Safety System (GMDSS) and other related provisions of the Radio Regulations, taking into account Resolutions 331 (Rev.WRC 03) and 342 (Rev.WRC 2000) and the continued transition to the GMDSS, the experience since its introduction and the needs of all classes of ships. 1.14to review the operational procedures and requirements of the Global Maritime Distress and Safety System (GMDSS) and other related provisions of the Radio Regulations, taking into account Resolutions 331 (Rev.WRC 03) and 342 (Rev.WRC 2000) and the continued transition to the GMDSS, the experience since its introduction and the needs of all classes of ships. 1.16to consider the regulatory and operational provisions for Maritime Mobile Service Identities (MMSIs) for equipment other than shipborne mobile equipment, taking into account Resolutions 344 (Rev.WRC 03) and 353 (WRC-03). 1.16to consider the regulatory and operational provisions for Maritime Mobile Service Identities (MMSIs) for equipment other than shipborne mobile equipment, taking into account Resolutions 344 (Rev.WRC 03) and 353 (WRC-03).
