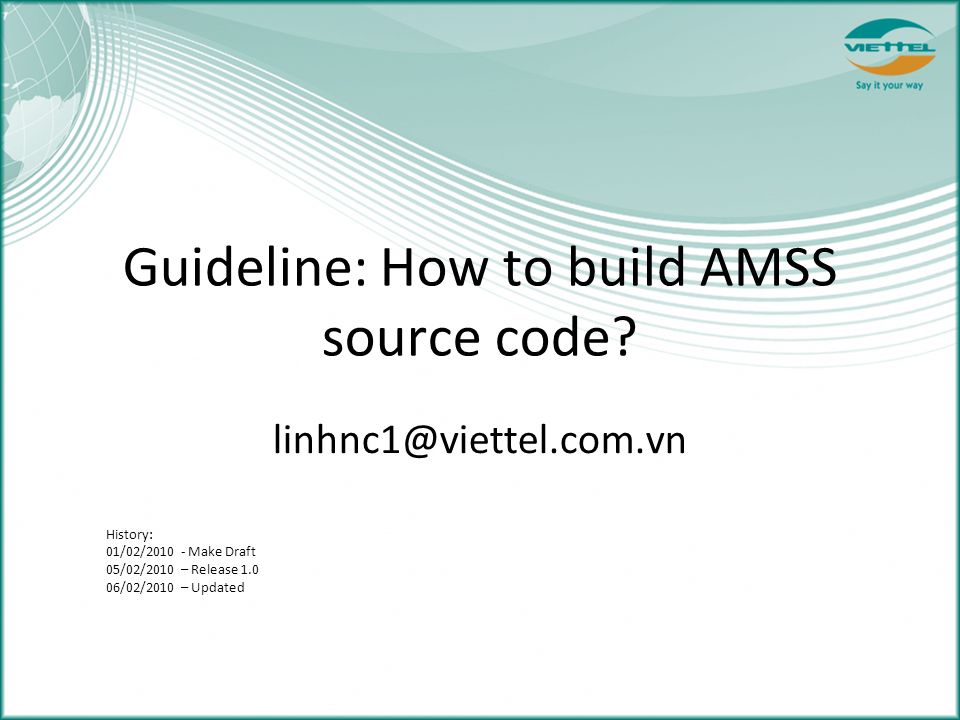

1. Guideline: How to build AMSS source code? linhnc1@viettel.com.vn History: 01/02/2010 - Make Draft 05/02/2010 – Release 1.0 06/02/2010 – Updated

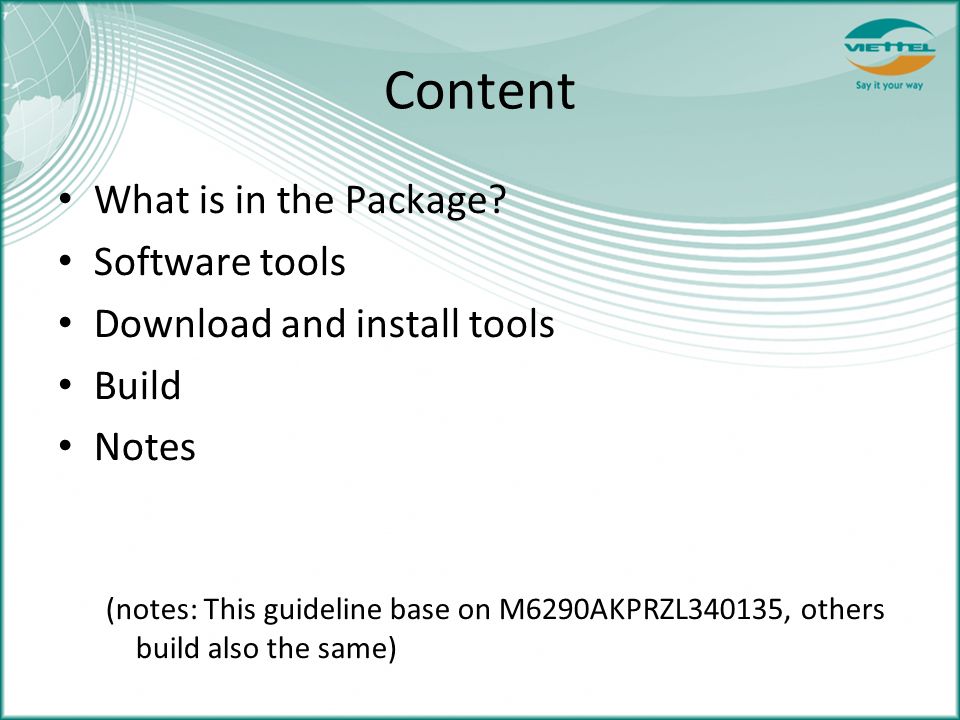

2. Content What is in the Package? Software tools Download and install tools Build Notes (notes: This guideline base on M6290AKPRZL340135, others build also the same)

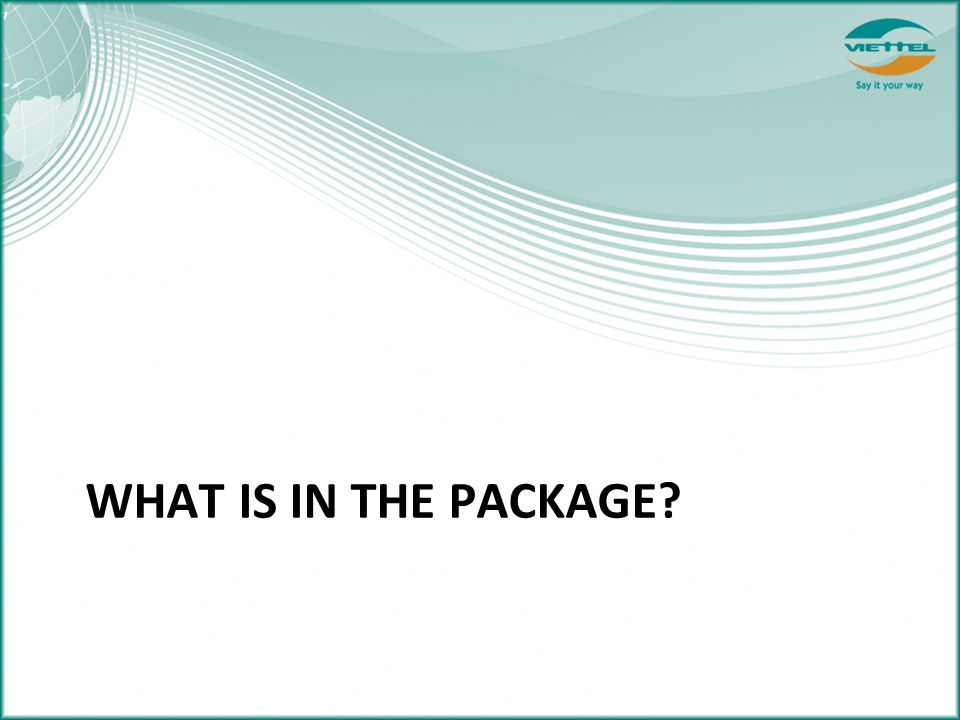

3. WHAT IS IN THE PACKAGE?

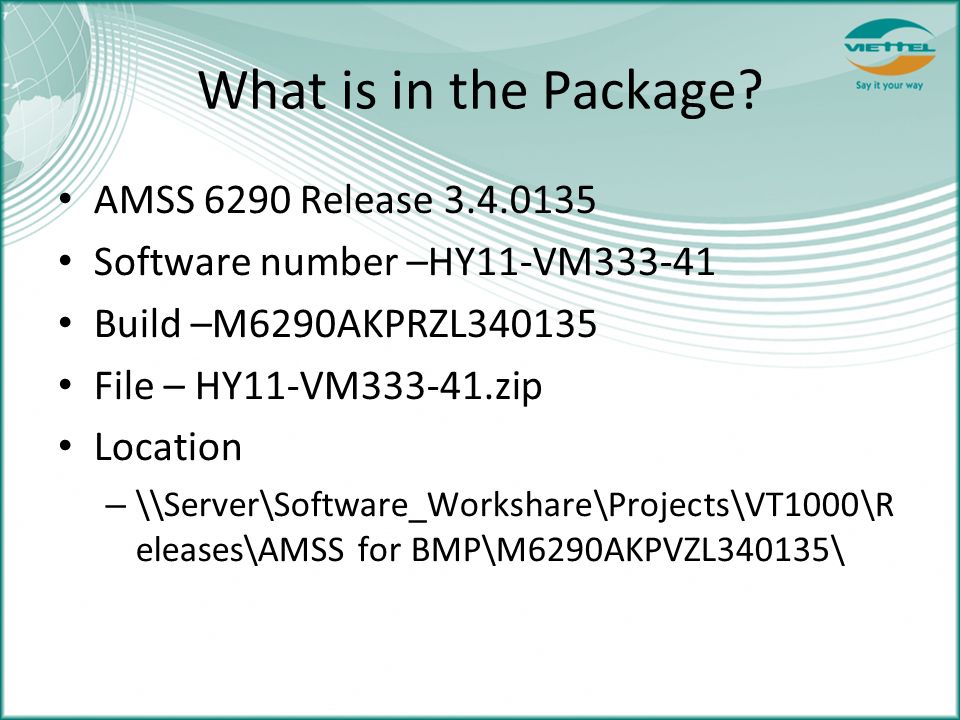

4. What is in the Package? AMSS 6290 Release 3.4.0135 Software number –HY11-VM333-41 Build –M6290AKPRZL340135 File – HY11-VM333-41.zip Location – \\Server\Software_Workshare\Projects\VT1000\R eleases\AMSS for BMP\M6290AKPVZL340135\

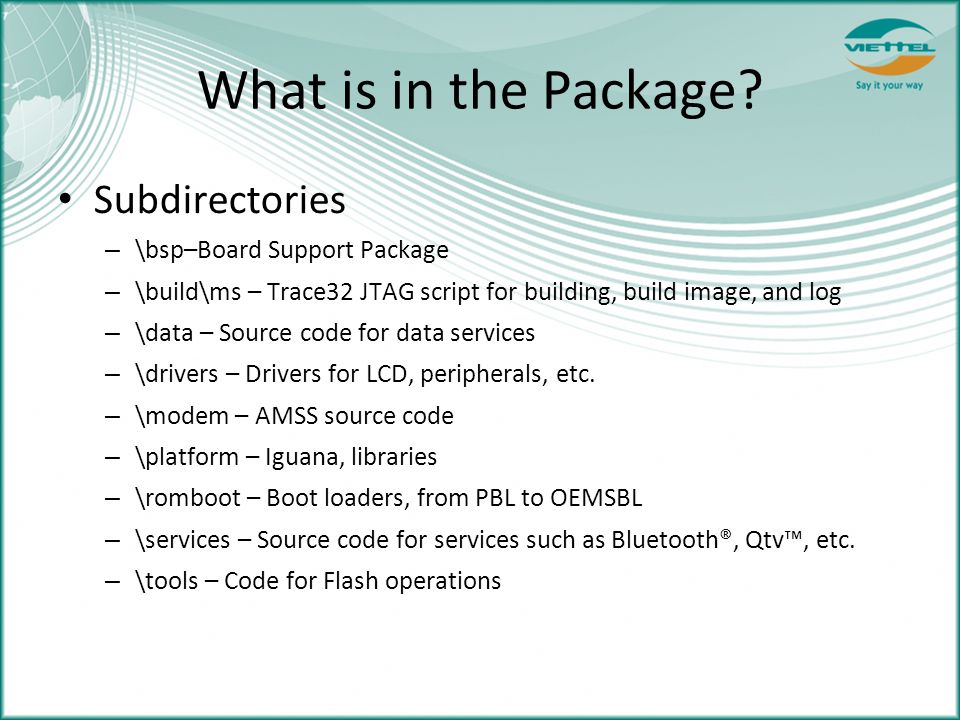

5. What is in the Package? Subdirectories – \bsp–Board Support Package – \build\ms – Trace32 JTAG script for building, build image, and log – \data – Source code for data services – \drivers – Drivers for LCD, peripherals, etc. – \modem – AMSS source code – \platform – Iguana, libraries – \romboot – Boot loaders, from PBL to OEMSBL – \services – Source code for services such as Bluetooth®, Qtv™, etc. – \tools – Code for Flash operations

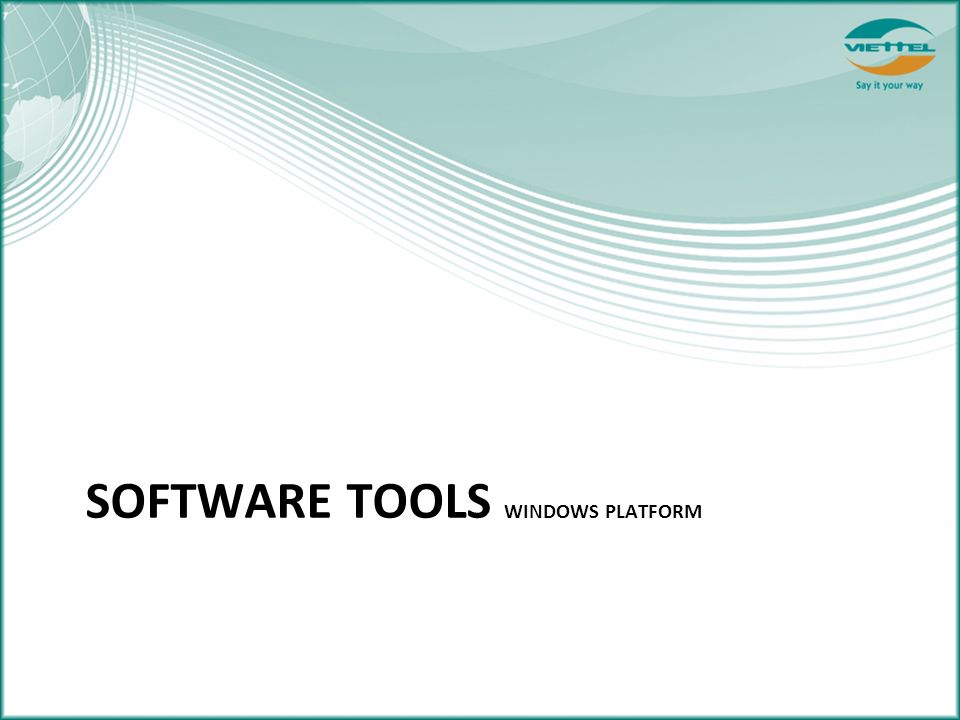

6. SOFTWARE TOOLS WINDOWS PLATFORM

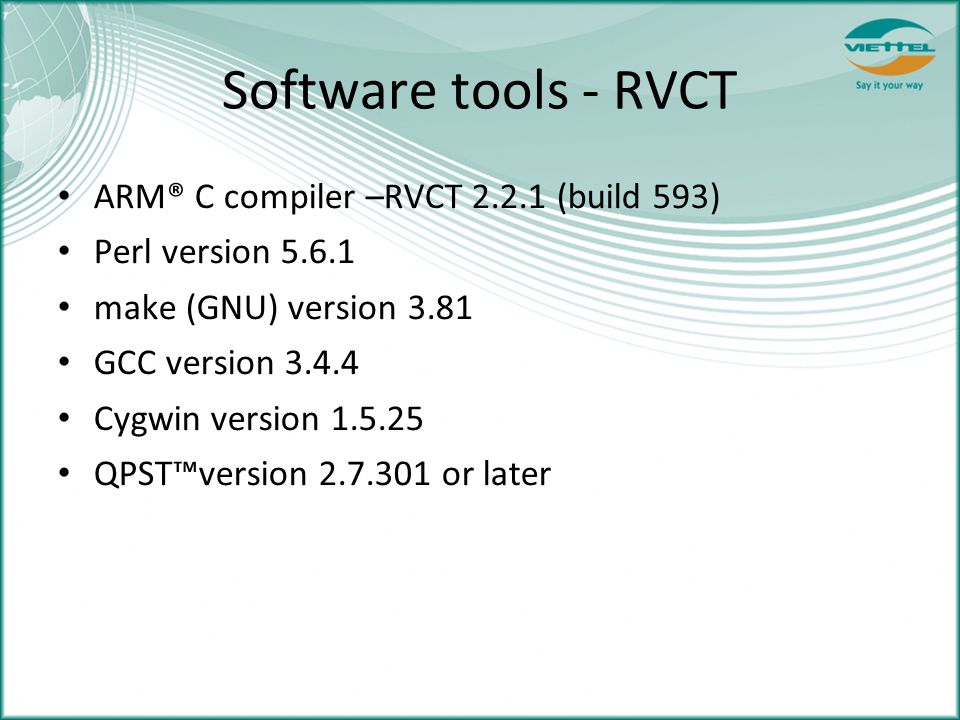

7. Software tools - RVCT ARM® C compiler –RVCT 2.2.1 (build 593) Perl version 5.6.1 make (GNU) version 3.81 GCC version 3.4.4 Cygwin version 1.5.25 QPST™version 2.7.301 or later

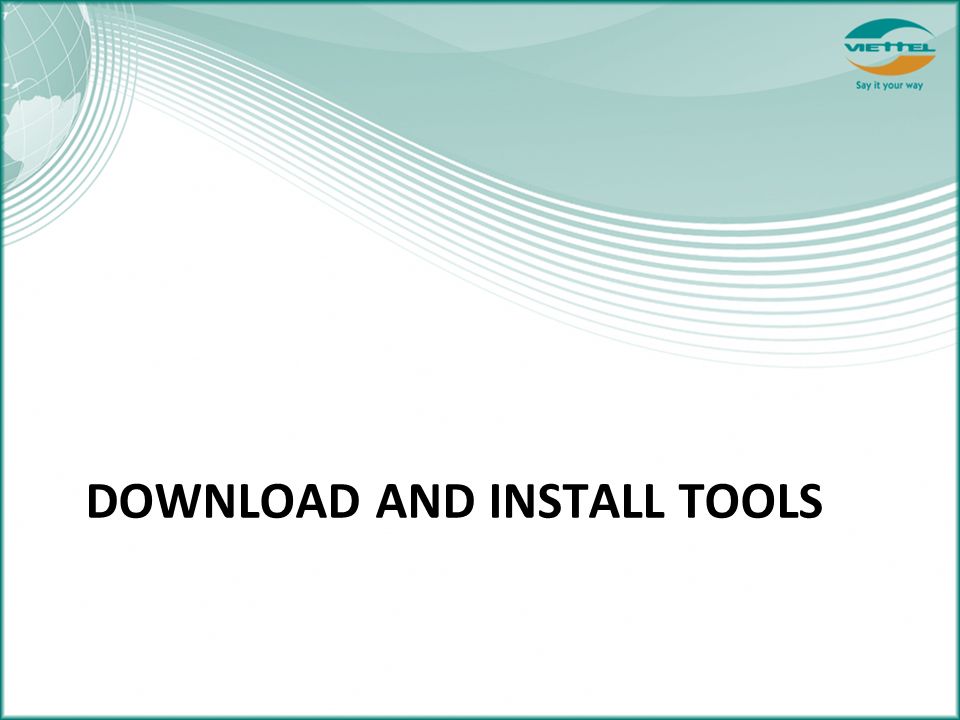

8. DOWNLOAD AND INSTALL TOOLS

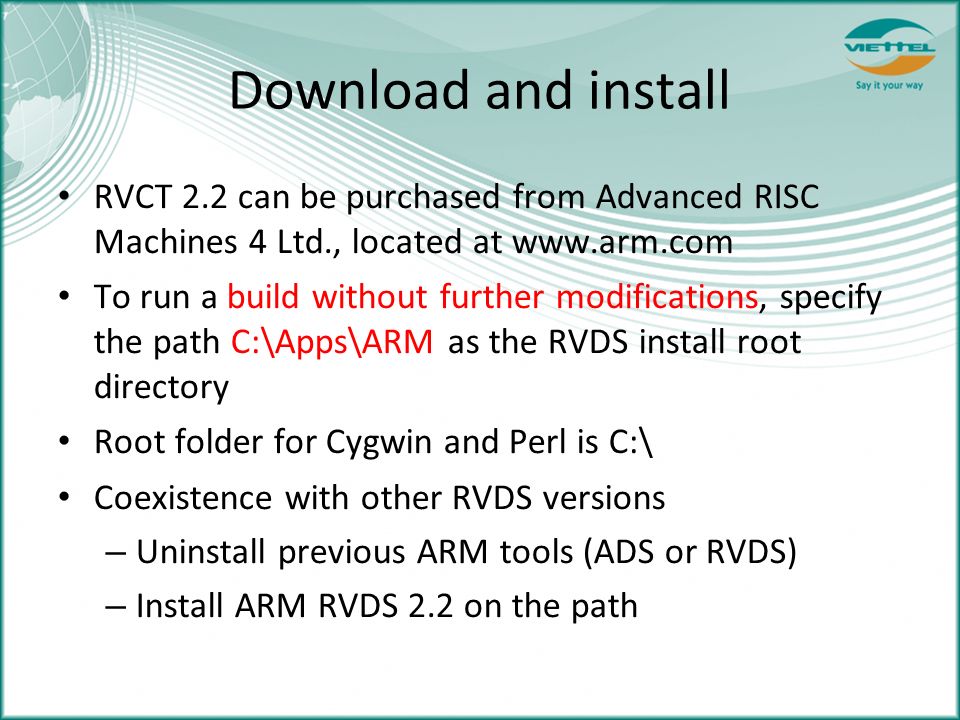

9. Download and install RVCT 2.2 can be purchased from Advanced RISC Machines 4 Ltd., located at www.arm.com To run a build without further modifications, specify the path C:\Apps\ARM as the RVDS install root directory Root folder for Cygwin and Perl is C:\ Coexistence with other RVDS versions – Uninstall previous ARM tools (ADS or RVDS) – Install ARM RVDS 2.2 on the path

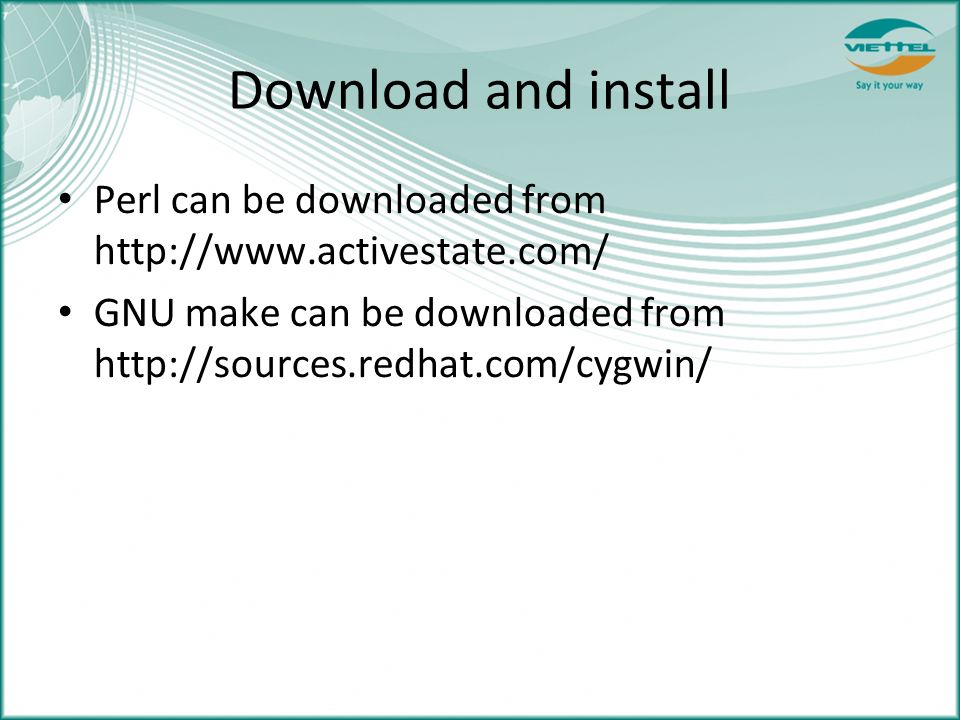

10. Download and install Perl can be downloaded from http://www.activestate.com/ GNU make can be downloaded from http://sources.redhat.com/cygwin/

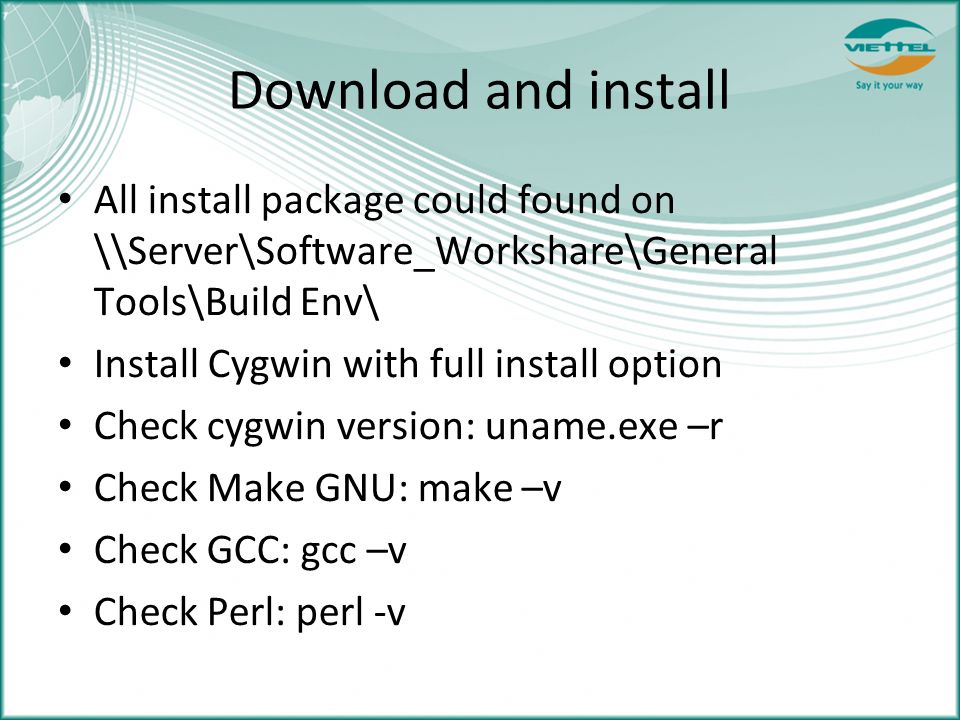

11. Download and install All install package could found on \\Server\Software_Workshare\General Tools\Build Env\ Install Cygwin with full install option Check cygwin version: uname.exe –r Check Make GNU: make –v Check GCC: gcc –v Check Perl: perl -v

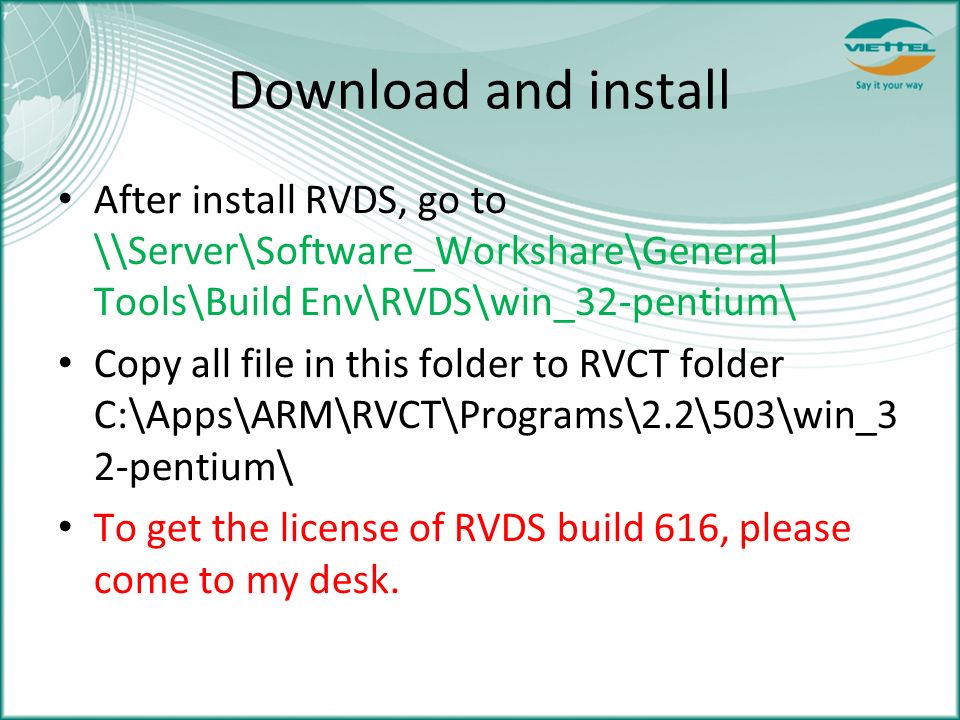

12. Download and install After install RVDS, go to \\Server\Software_Workshare\General Tools\Build Env\RVDS\win_32-pentium\ Copy all file in this folder to RVCT folder C:\Apps\ARM\RVCT\Programs\2.2\503\win_3 2-pentium\ To get the license of RVDS build 616, please come to my desk.

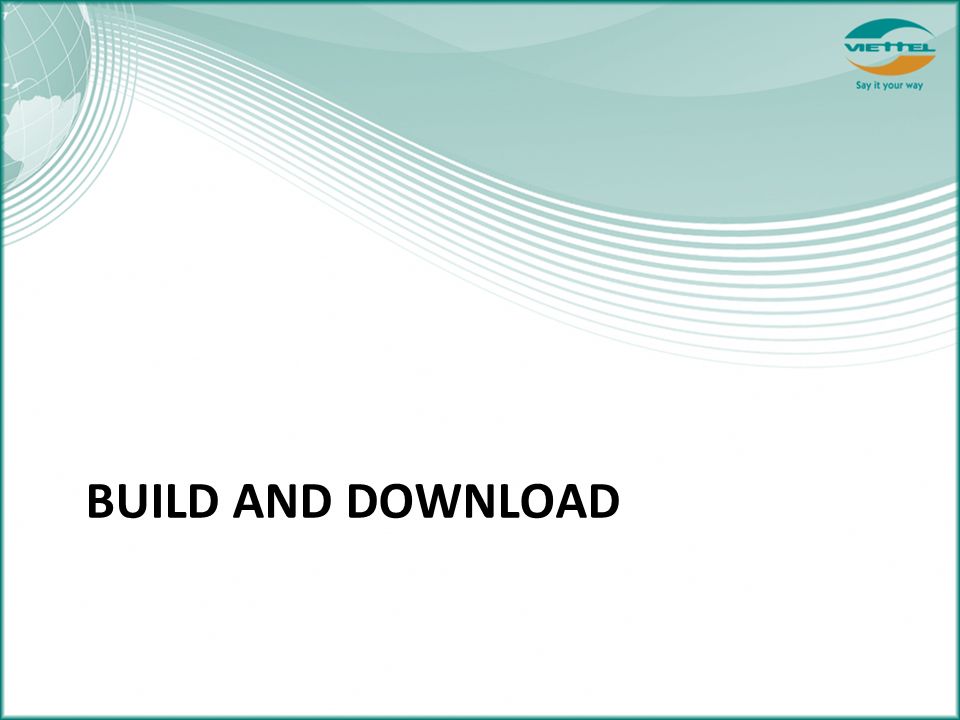

13. BUILD AND DOWNLOAD

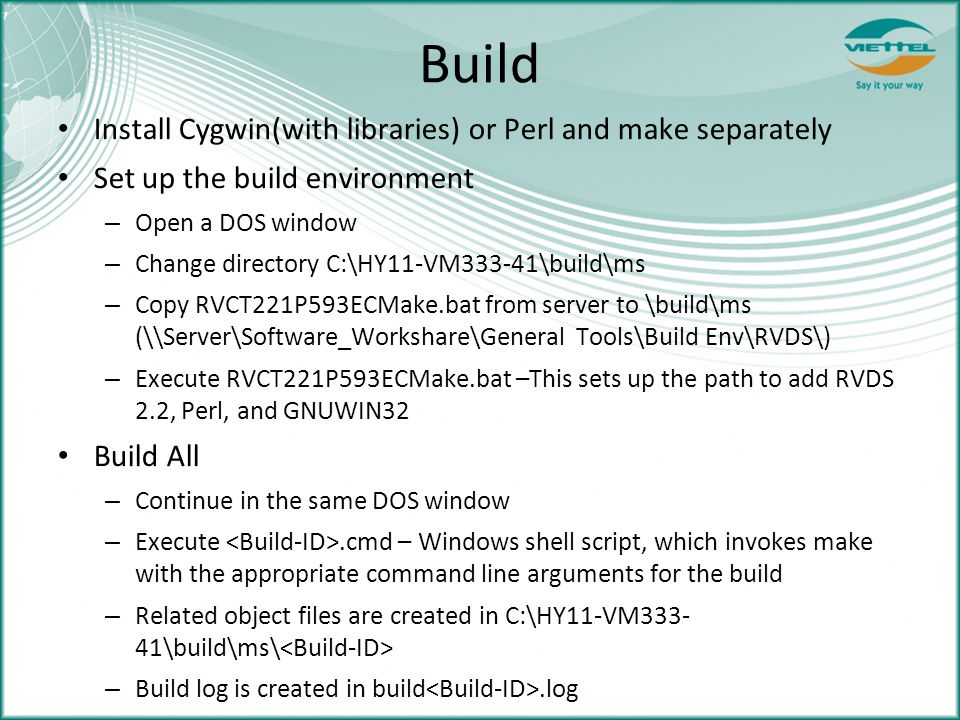

14. Build Install Cygwin(with libraries) or Perl and make separately Set up the build environment – Open a DOS window – Change directory C:\HY11-VM333-41\build\ms – Copy RVCT221P593ECMake.bat from server to \build\ms (\\Server\Software_Workshare\General Tools\Build Env\RVDS\) – Execute RVCT221P593ECMake.bat –This sets up the path to add RVDS 2.2, Perl, and GNUWIN32 Build All – Continue in the same DOS window – Execute.cmd – Windows shell script, which invokes make with the appropriate command line arguments for the build – Related object files are created in C:\HY11-VM333- 41\build\ms\ – Build log is created in build.log

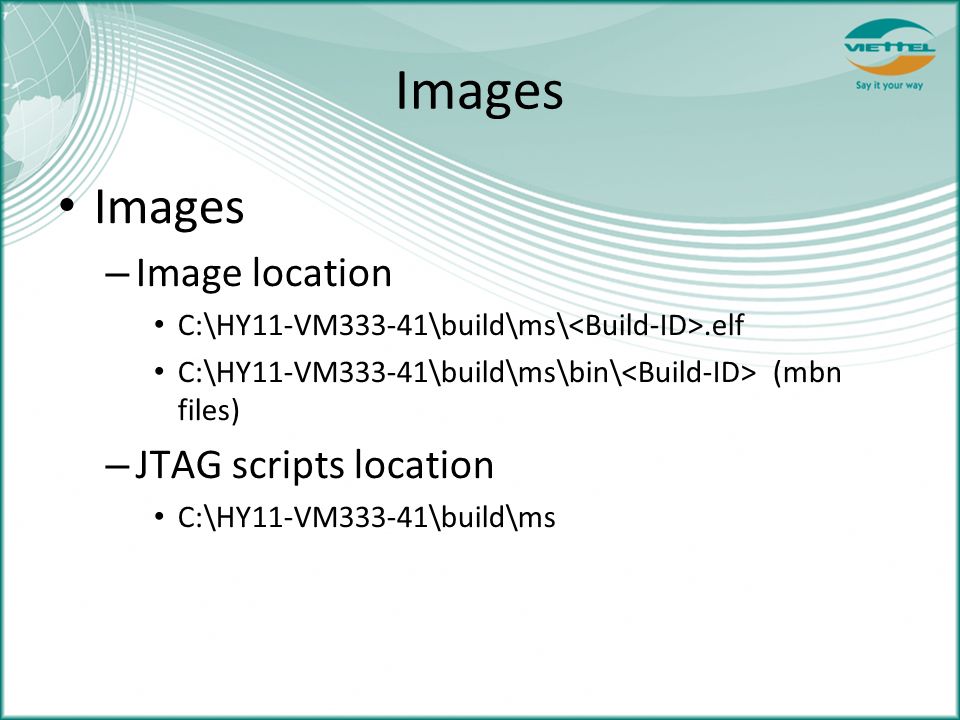

15. Images – Image location C:\HY11-VM333-41\build\ms\.elf C:\HY11-VM333-41\build\ms\bin\ (mbn files) – JTAG scripts location C:\HY11-VM333-41\build\ms

16. Download – Using QPST A working build should already be loaded on the target. A working build is, by definition, one that boots up, starts power-up execution without crashing, and communicates through to the QPST server. Connect the target to the QPST software download client through USB, and select the Multi-image tab from the first screen. This prompts for the Image Folder directory, which is C:\HY11-VM333- 41\build\ms\, where is the five-letter build identifier without the version number, e.g., KPVBL. Check the Trusted mode checkbox. This is done because the AMSS supports only secure boot architecture. Click START to begin loading.

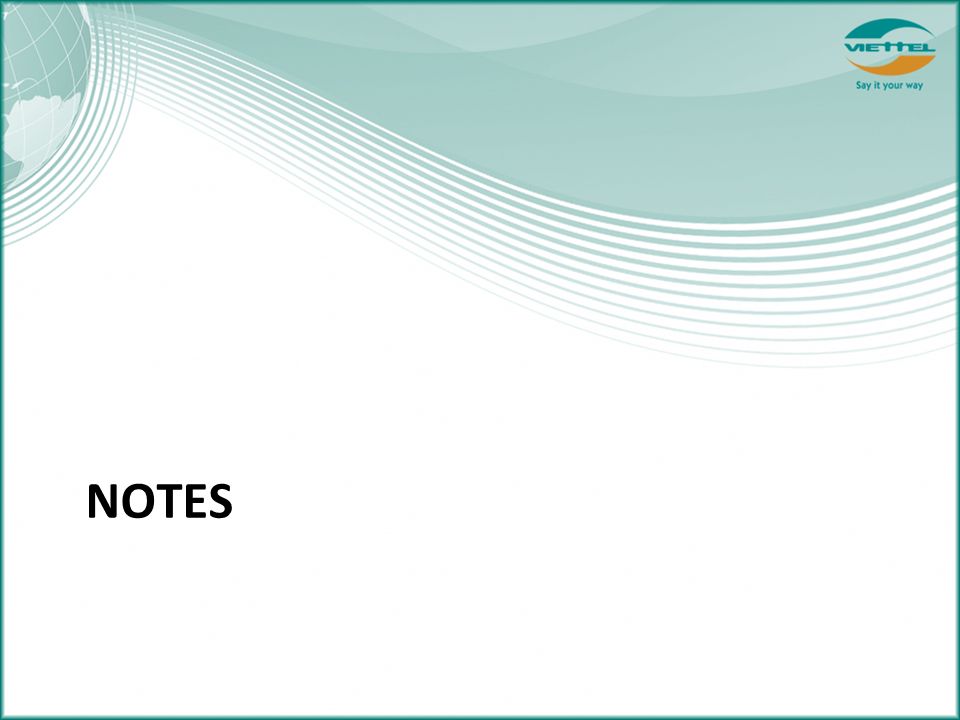

17. NOTES

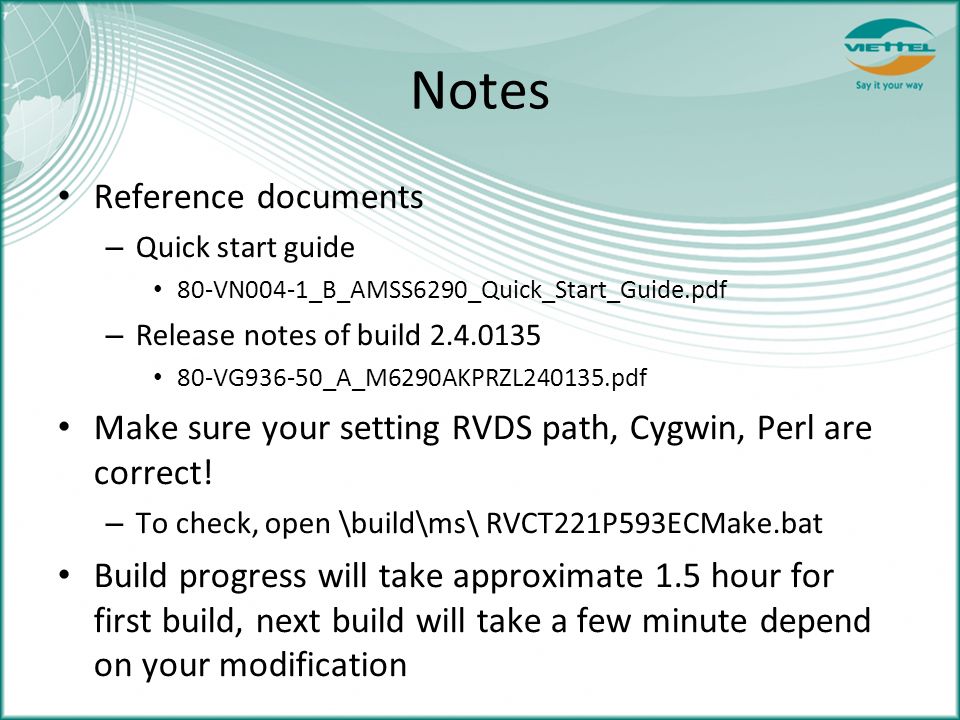

18. Notes Reference documents – Quick start guide 80-VN004-1_B_AMSS6290_Quick_Start_Guide.pdf – Release notes of build 2.4.0135 80-VG936-50_A_M6290AKPRZL240135.pdf Make sure your setting RVDS path, Cygwin, Perl are correct! – To check, open \build\ms\ RVCT221P593ECMake.bat Build progress will take approximate 1.5 hour for first build, next build will take a few minute depend on your modification

19. Thank you
