1. The Microsoft Baseline Security Analyzer A practical look….

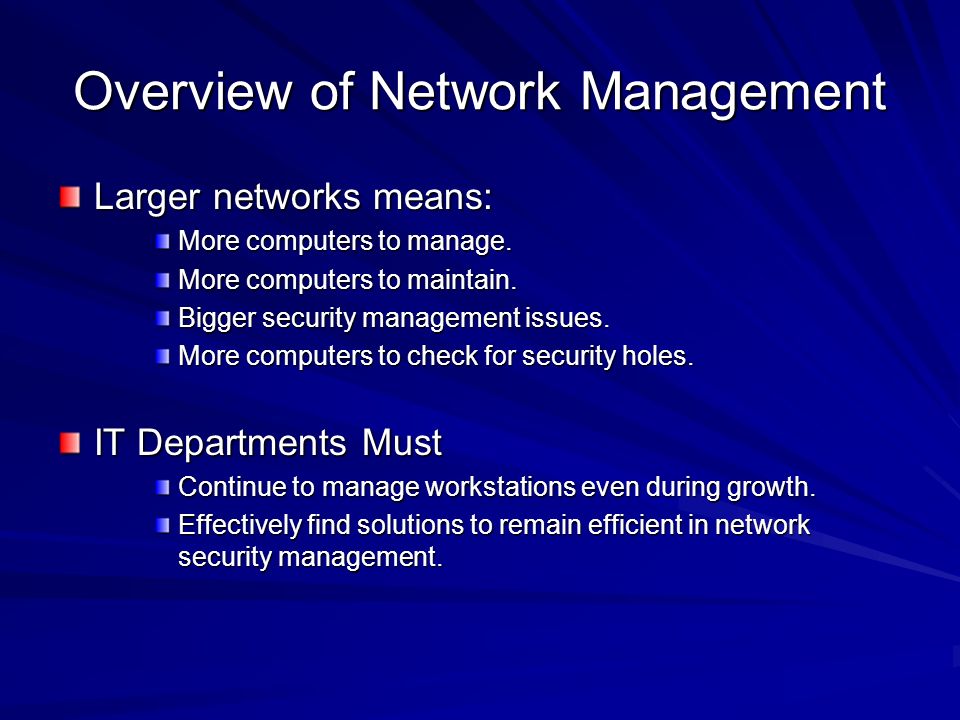

2. Overview of Network Management Larger networks means: More computers to manage. More computers to maintain. Bigger security management issues. More computers to check for security holes. IT Departments Must Continue to manage workstations even during growth. Effectively find solutions to remain efficient in network security management.

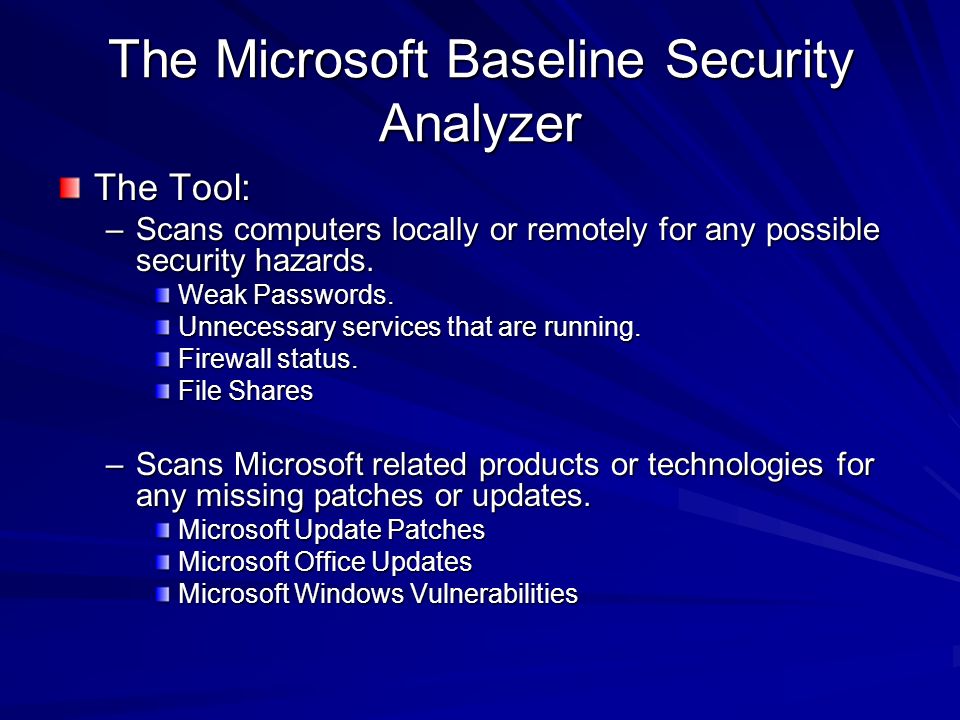

3. The Microsoft Baseline Security Analyzer The Tool: –Scans computers locally or remotely for any possible security hazards. Weak Passwords. Unnecessary services that are running. Firewall status. File Shares –Scans Microsoft related products or technologies for any missing patches or updates. Microsoft Update Patches Microsoft Office Updates Microsoft Windows Vulnerabilities

4. The Microsoft Baseline Security Analyzer The Tool: –Has the ability to scan itself or multiple computers. Up to 10,000 computers can be scanned.

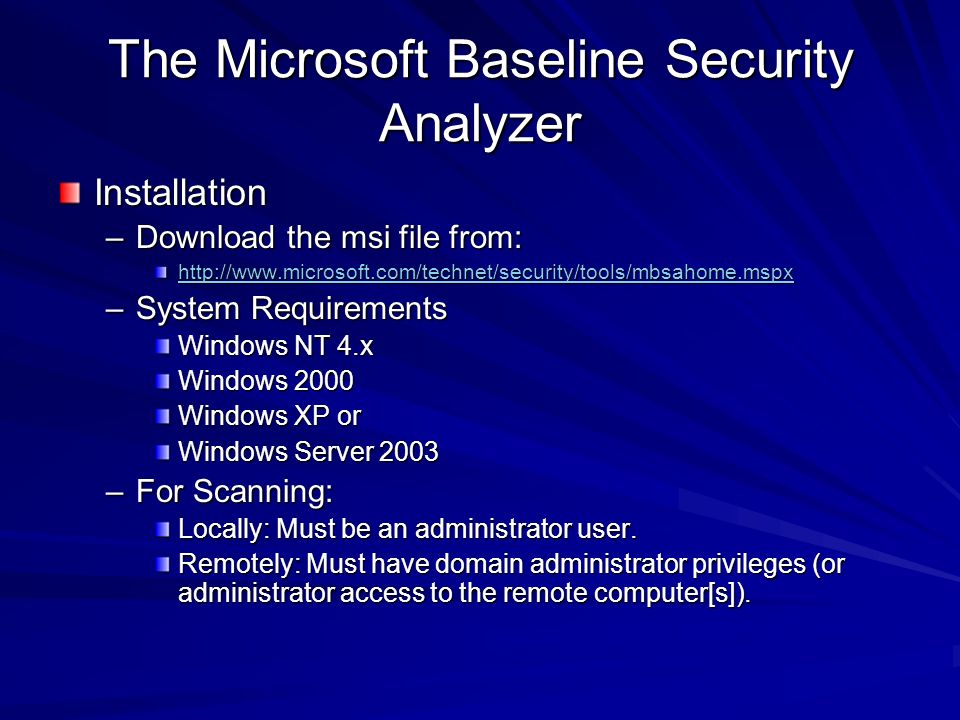

5. The Microsoft Baseline Security Analyzer Installation –Download the msi file from: http://www.microsoft.com/technet/security/tools/mbsahome.mspx –System Requirements Windows NT 4.x Windows 2000 Windows XP or Windows Server 2003 –For Scanning: Locally: Must be an administrator user. Remotely: Must have domain administrator privileges (or administrator access to the remote computer[s]).

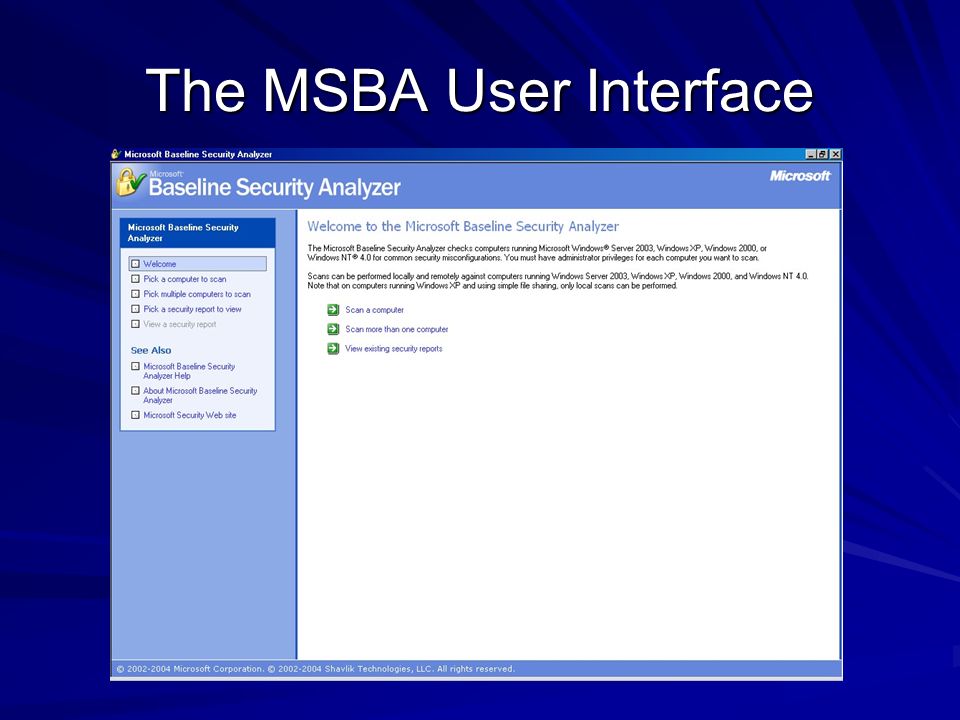

6. The MSBA User Interface

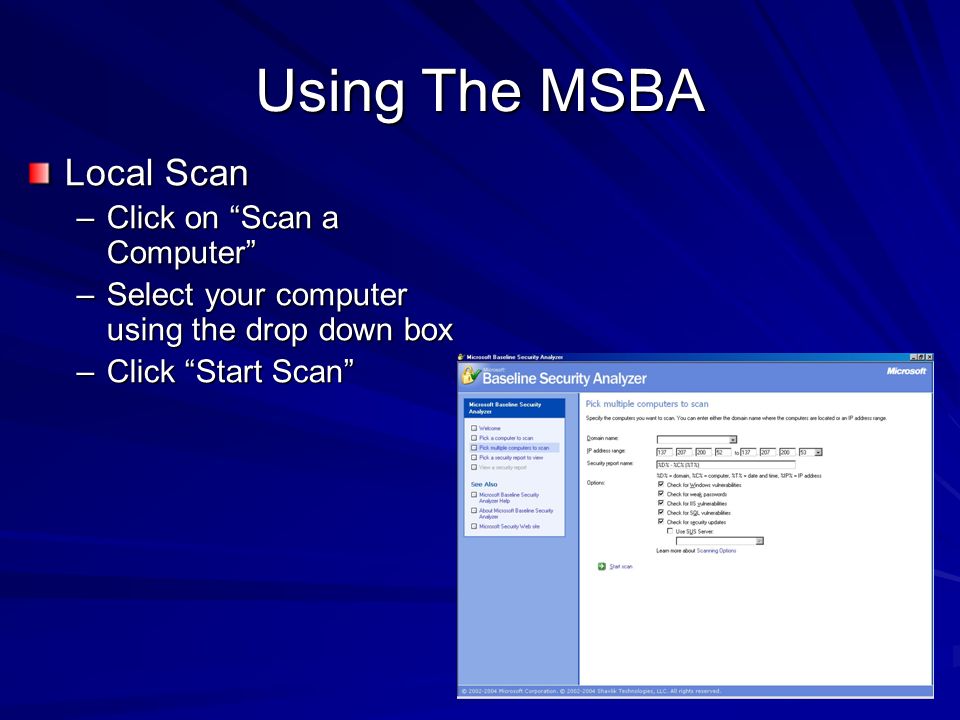

7. Using The MSBA Local Scan –Click on “Scan a Computer” –Select your computer using the drop down box –Click “Start Scan”

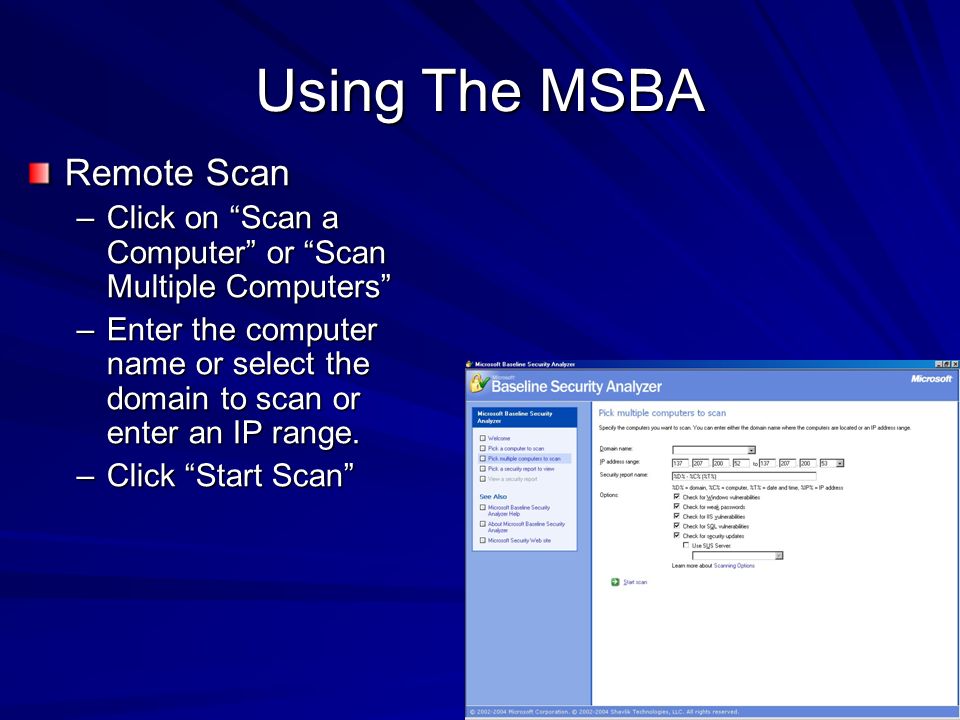

8. Using The MSBA Remote Scan –Click on “Scan a Computer” or “Scan Multiple Computers” –Enter the computer name or select the domain to scan or enter an IP range. –Click “Start Scan”

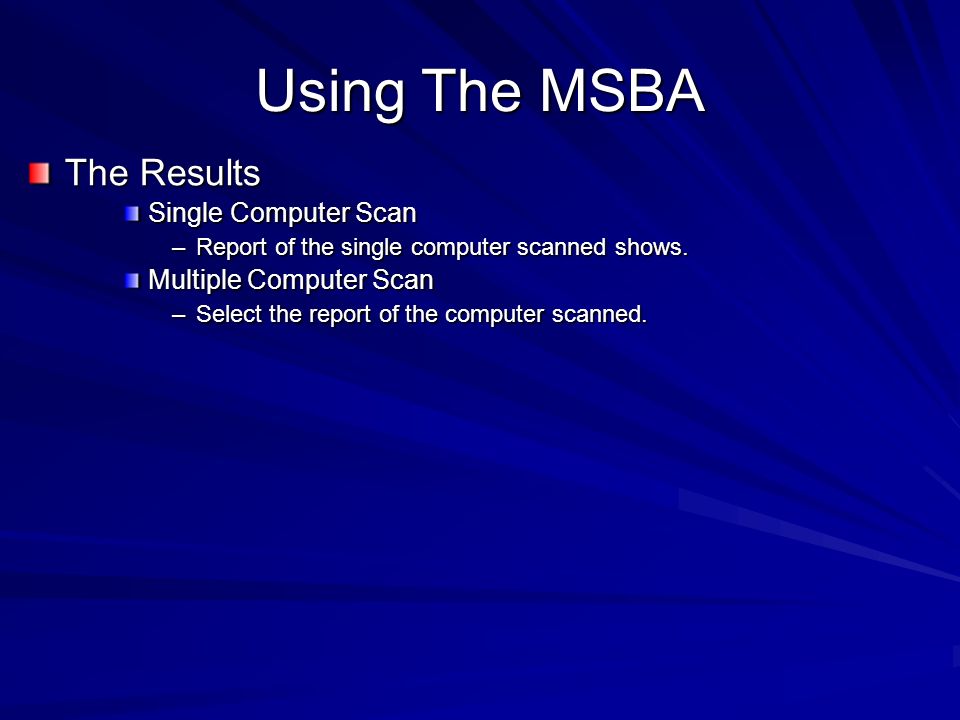

9. Using The MSBA The Results Single Computer Scan –Report of the single computer scanned shows. Multiple Computer Scan –Select the report of the computer scanned.

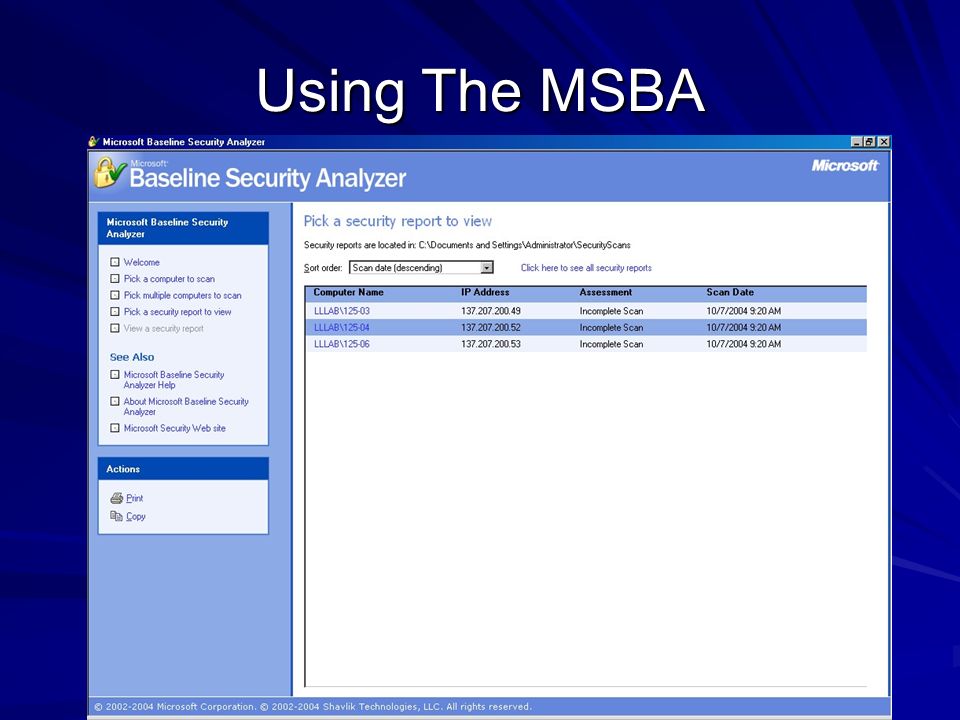

10. Using The MSBA

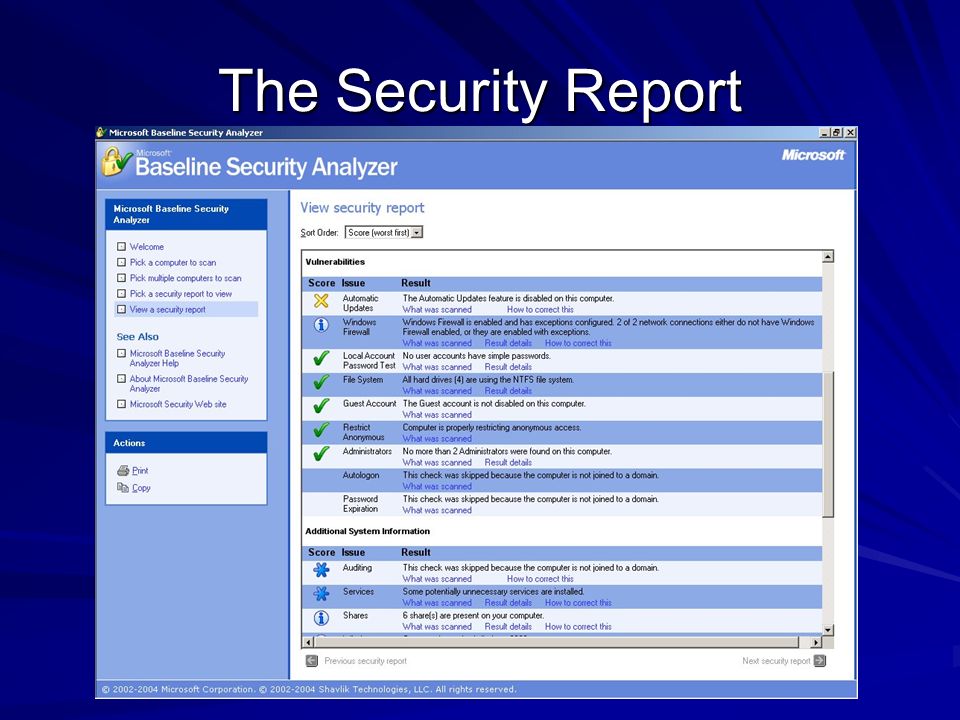

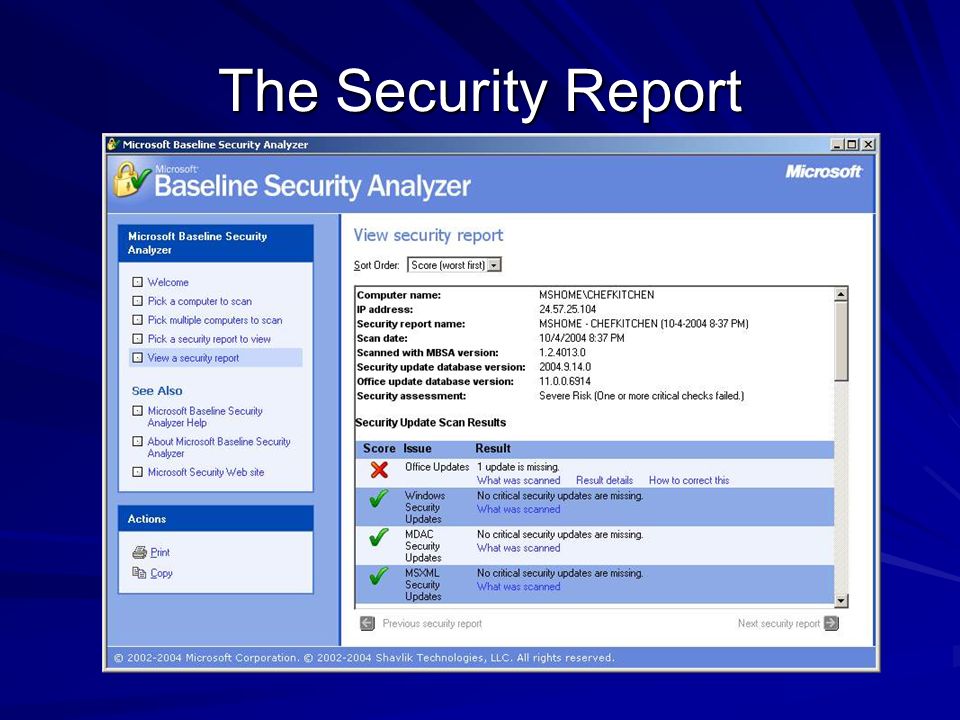

11. The Security Report

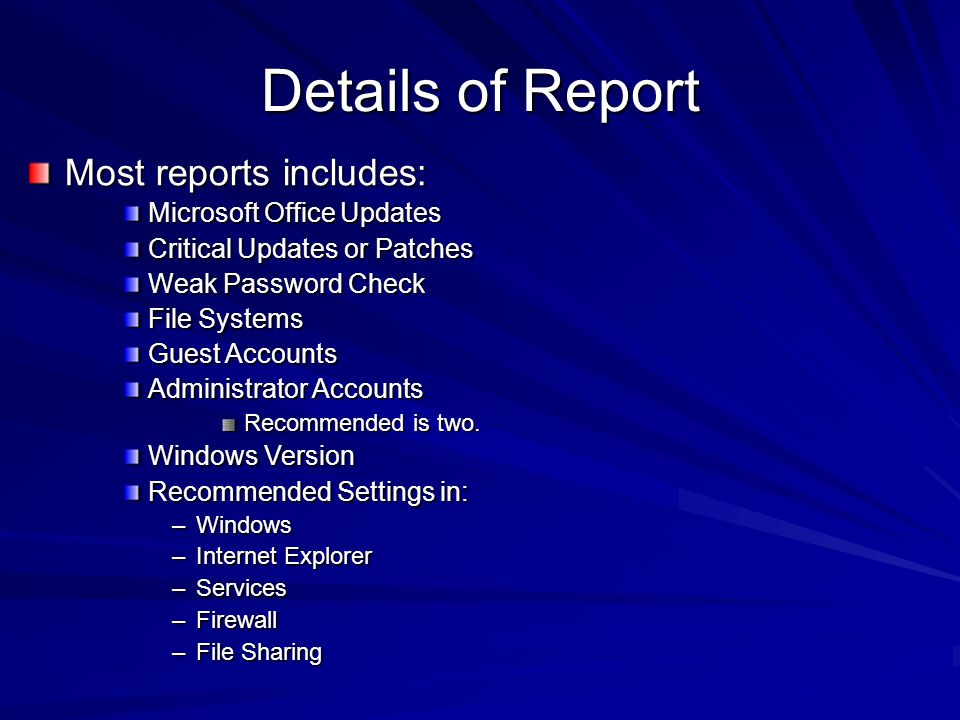

13. Details of Report Most reports includes: Microsoft Office Updates Critical Updates or Patches Weak Password Check File Systems Guest Accounts Administrator Accounts Recommended is two. Windows Version Recommended Settings in: –Windows –Internet Explorer –Services –Firewall –File Sharing

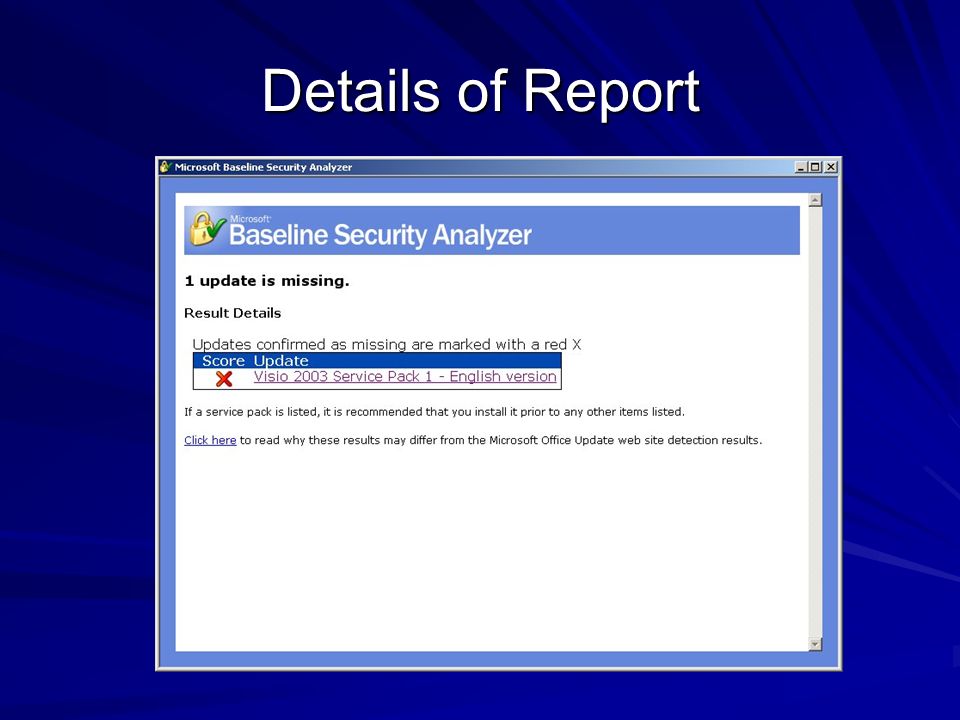

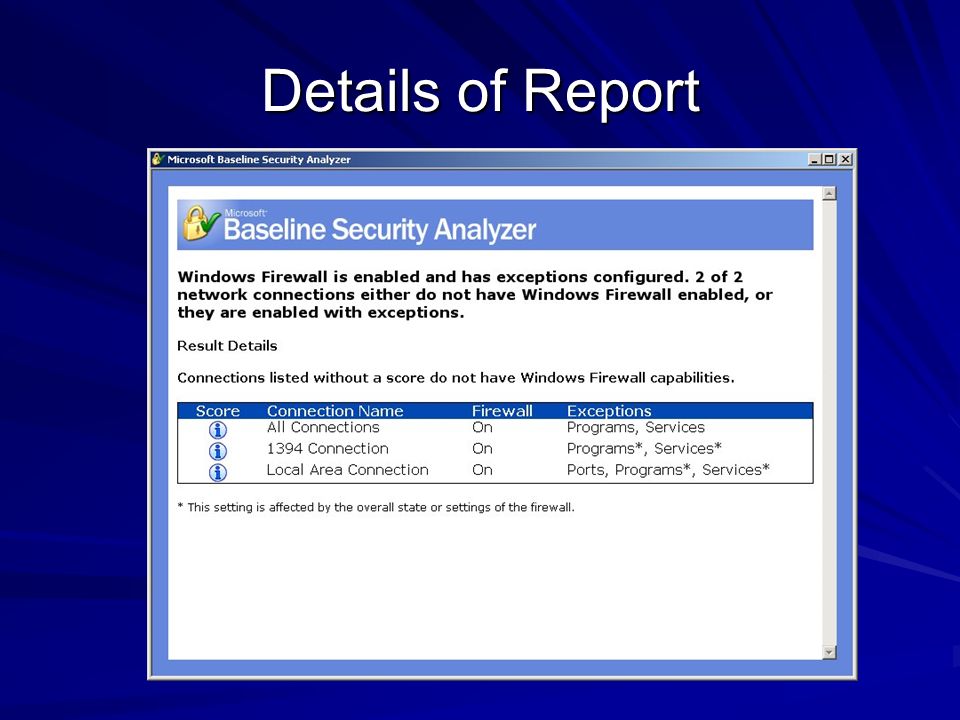

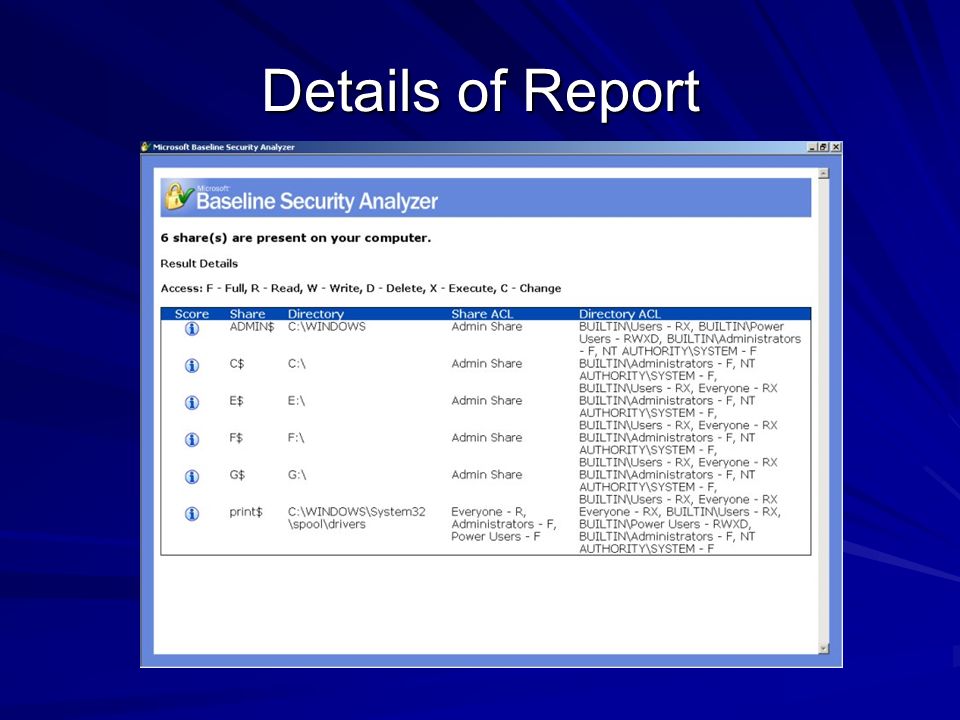

14. Details of Report

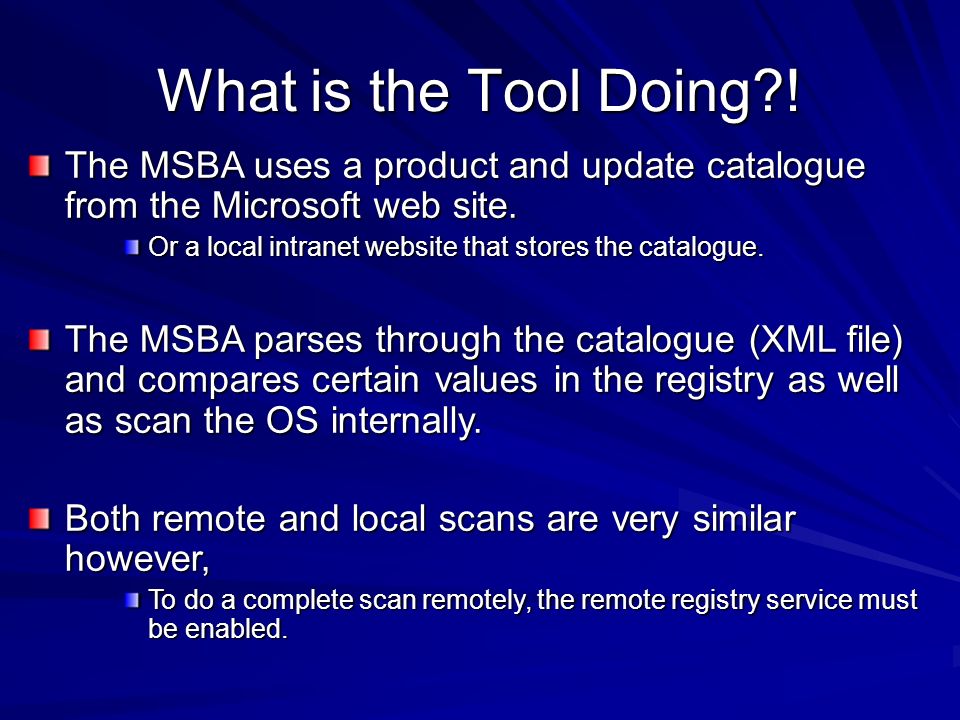

17. What is the Tool Doing?! The MSBA uses a product and update catalogue from the Microsoft web site. Or a local intranet website that stores the catalogue. The MSBA parses through the catalogue (XML file) and compares certain values in the registry as well as scan the OS internally. Both remote and local scans are very similar however, To do a complete scan remotely, the remote registry service must be enabled.

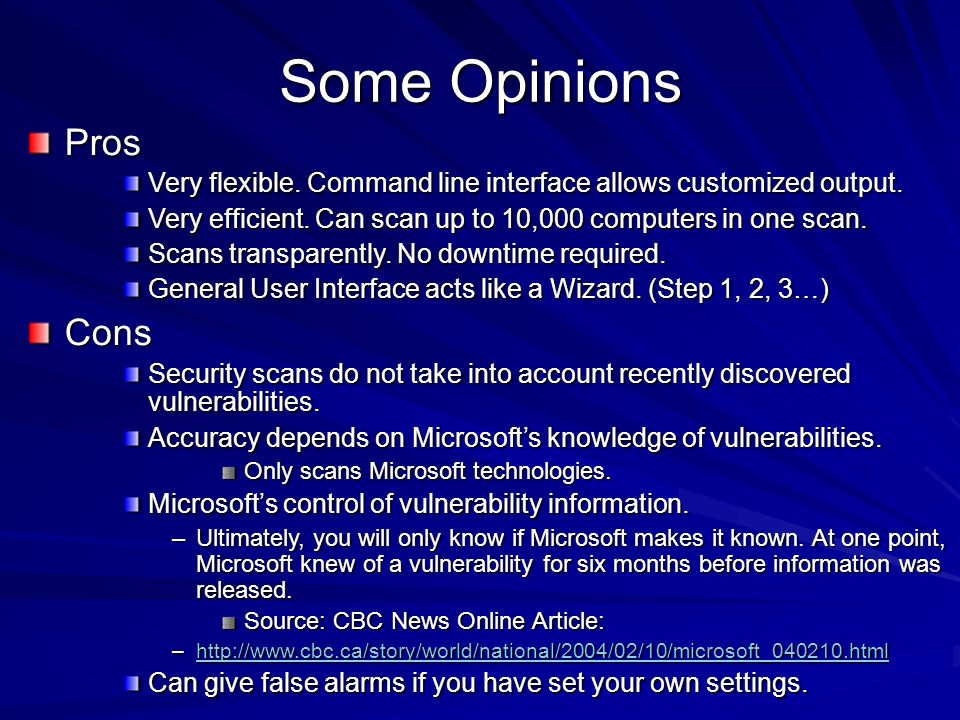

18. Some Opinions Pros Very flexible. Command line interface allows customized output. Very efficient. Can scan up to 10,000 computers in one scan. Scans transparently. No downtime required. General User Interface acts like a Wizard. (Step 1, 2, 3…) Cons Security scans do not take into account recently discovered vulnerabilities. Accuracy depends on Microsoft’s knowledge of vulnerabilities. Only scans Microsoft technologies. Microsoft’s control of vulnerability information. –Ultimately, you will only know if Microsoft makes it known. At one point, Microsoft knew of a vulnerability for six months before information was released. Source: CBC News Online Article: –http://www.cbc.ca/story/world/national/2004/02/10/microsoft_040210.html http://www.cbc.ca/story/world/national/2004/02/10/microsoft_040210.html Can give false alarms if you have set your own settings.

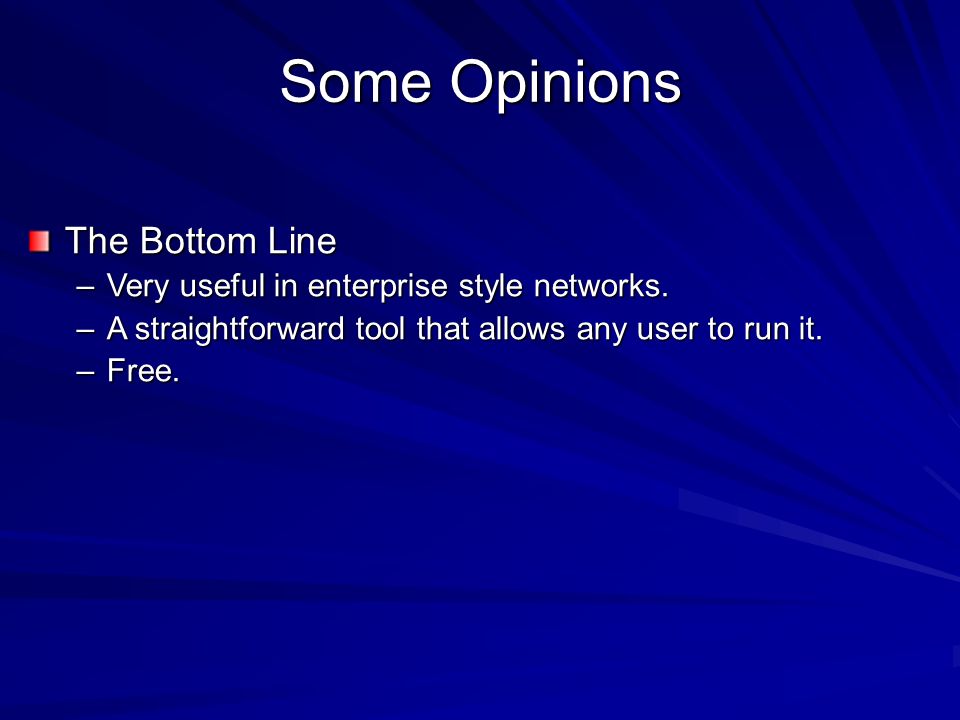

19. Some Opinions The Bottom Line –Very useful in enterprise style networks. –A straightforward tool that allows any user to run it. –Free.

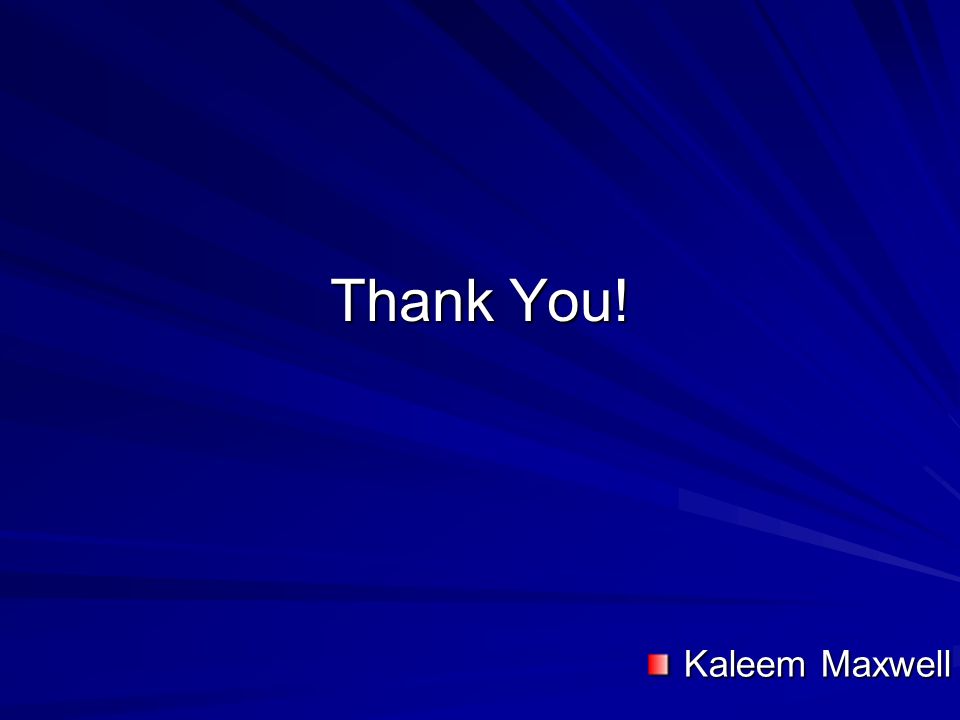

20. Thank You! Kaleem Maxwell
