1. World Class Lighting Technology ™ Made in U.S.A. DELTA TECH INDUSTRIES, LLC Since 1978

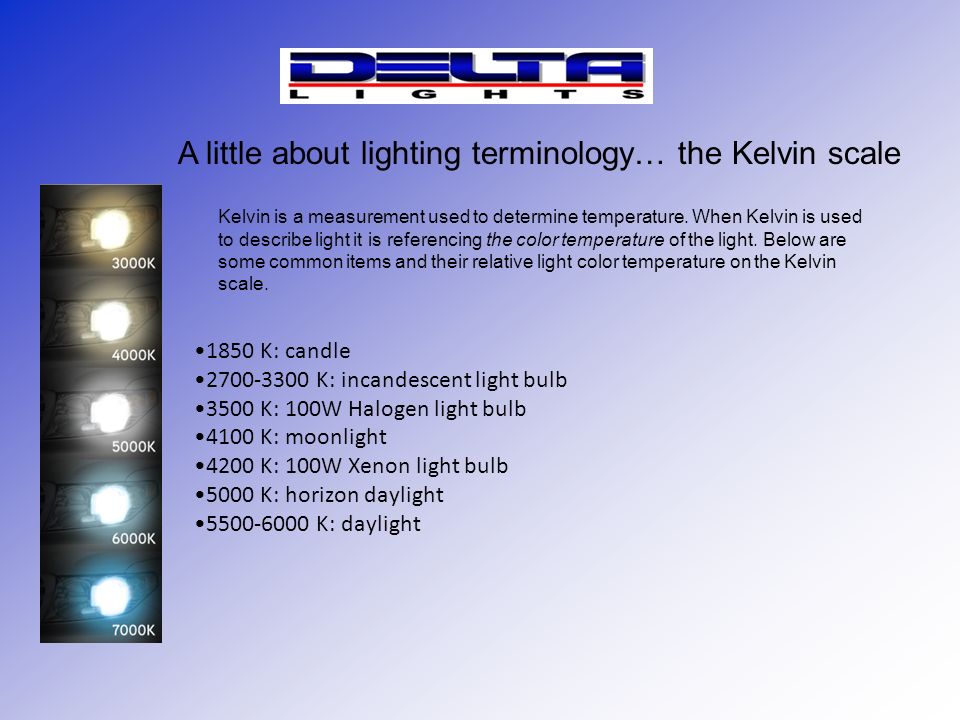

2. 1850 K: candle 2700-3300 K: incandescent light bulb 3500 K: 100W Halogen light bulb 4100 K: moonlight 4200 K: 100W Xenon light bulb 5000 K: horizon daylight 5500-6000 K: daylight A little about lighting terminology… the Kelvin scale Kelvin is a measurement used to determine temperature. When Kelvin is used to describe light it is referencing the color temperature of the light. Below are some common items and their relative light color temperature on the Kelvin scale.

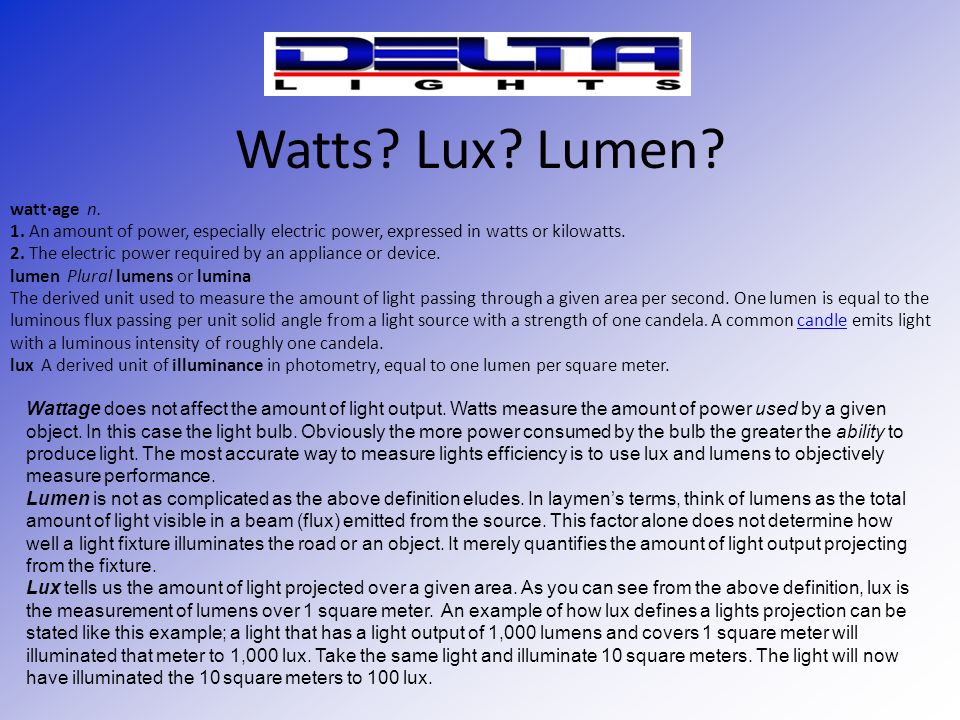

3. Watts? Lux? Lumen? watt·age n. 1. An amount of power, especially electric power, expressed in watts or kilowatts. 2. The electric power required by an appliance or device. lumen Plural lumens or lumina The derived unit used to measure the amount of light passing through a given area per second. One lumen is equal to the luminous flux passing per unit solid angle from a light source with a strength of one candela. A common candle emits light with a luminous intensity of roughly one candela.candle lux A derived unit of illuminance in photometry, equal to one lumen per square meter. Wattage does not affect the amount of light output. Watts measure the amount of power used by a given object. In this case the light bulb. Obviously the more power consumed by the bulb the greater the ability to produce light. The most accurate way to measure lights efficiency is to use lux and lumens to objectively measure performance. Lumen is not as complicated as the above definition eludes. In laymen’s terms, think of lumens as the total amount of light visible in a beam (flux) emitted from the source. This factor alone does not determine how well a light fixture illuminates the road or an object. It merely quantifies the amount of light output projecting from the fixture. Lux tells us the amount of light projected over a given area. As you can see from the above definition, lux is the measurement of lumens over 1 square meter. An example of how lux defines a lights projection can be stated like this example; a light that has a light output of 1,000 lumens and covers 1 square meter will illuminated that meter to 1,000 lux. Take the same light and illuminate 10 square meters. The light will now have illuminated the 10 square meters to 100 lux.

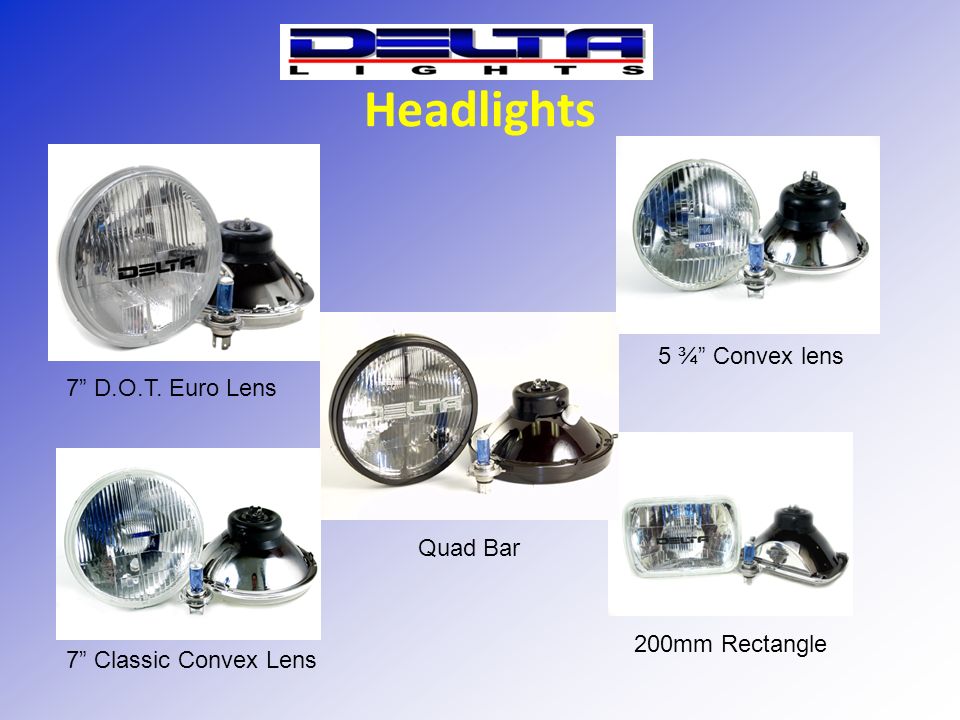

4. Headlights 7” D.O.T. Euro Lens 7” Classic Convex Lens Quad Bar 200mm Rectangle 5 ¾” Convex lens

5. Delta Headlight vs. Stock Headlight

6. 7” Quad Bar Headlight 1997-2006 Wranglers and 2007-2013 Wranglers Special Features: Built In Armor protects the element in the event of breakage. Prismatic “E” Mark Lead Crystal Lens Metal Reflector Silicone boot to protect from elements. IP-68 rated twist on waterproof cap now available. Equipped with LED “City Light” options. Integral headlight rings for a bolt in fit. JK Model comes with H4/H13 Adapters

7. JEEP LIGHTING

8. DELTA “SkyBar” ™ Light Bar For Jeep Wrangler JK and TJ Special Features: Billet Aluminum and Steel Construction. Well integrated with Jeep roof line. Chose 330 Watts of Xenon power with a battery of 6 driving lights or (4) 6,000K H.I.D. powered driving lights. Pre-wired. Includes weather pack connector. Dual Harness gives complete control of light usage. Easy installation – no drilling, uses existing bolt holes. Low profile.

9. DELTA “Combo Bar” ™ Ground Bar For Jeep Wrangler JK and TJ Special Features: Tough 13ga. plasma-cut steel design Easy installation – no drilling, uses existing bolts Built to protect the steering box 3-Light System: Driving, Fog & Rock Crawlers Fully pre-installed bar Dual Harness independently controls each function. Powered by powerful xenon bulbs or Hi Output LED lights.

10. DELTA Rear Ground Bar For Jeep Wrangler JK & TJ Special Features: Tough 13ga. plasma-cut steel design Direct bolt-on for 97-2013 Wranglers. Available in 3, 4 or 5 function systems: Backup, Stop and Turn Signals with optional low-light camera & reverse sensors. Available in Xenon/LED mix or all LED configurations Works with most OEM DVD/Navigation systems with Aux input, or with optional 7” TFT LCD Monitor/Mirror

11. DELTA “Hood-Light Bar” For Jeep Wrangler JK and TJ Special Features: Tough Billet Aluminum and steel design Easy installation – no drilling, using existing bolts Bolts directly to hood hinges (3) Xenon or H.I.D. Flood Lights Fully pre-wired and pre-assembled bar. Comes complete with wire harness

12. DELTA “Grill-Light Bar” For Jeep Wrangler JK Special Features: Tough 13ga. plasma-cut steel design Easy installation – no drilling, uses existing bolts Bolts directly to the frame horns. 3 Flood Lights in either Xenon or H.I.D. Fully pre-wired bar Comes complete with wire harness, relay and switch. Bullet Grill Bar Original Grill Bar

13. DELTA “Fender-Light” Kit For Jeep Wrangler JK & TJ Special Features: Tough 13ga. plasma-cut steel design Easy installation – no drilling, uses existing bolts Bolts directly to hood latches 3” Driving Lights in Xenon or H.I.D. light sources. Fully pre-wired and pre-assembled Comes with wire harness, switch and relay. Illumination of 1 lux is sufficient to read a newspaper Xenon Light Beam Pattern

14. DELTA Bumper Xenon Fog/Driving Lamp Kit For Jeep Wrangler JK Special Features: Replaces Factory Low Wattage System Easy installation – no drilling. Mounts into factory or aftermarket Bumper Comes with Billet Aluminum Bezels. 3” Xenon or LED Fog Lights Fully pre-wired and pre-assembled Comes complete with wire harness Micro adjustment aiming. Waterproof Design Xenon Fog Light Beam Xenon Driving Light Beam Illumination of 1 lux is sufficient to read a newspaper

15. Billet T-Bracket for 1997-2013 Wranglers for windshield mount application Special Features: Billet Aluminum Design. Mounts to existing bolts. Can be used with many Delta or competitors lights. 2 SKU’s cover 1997-2013.

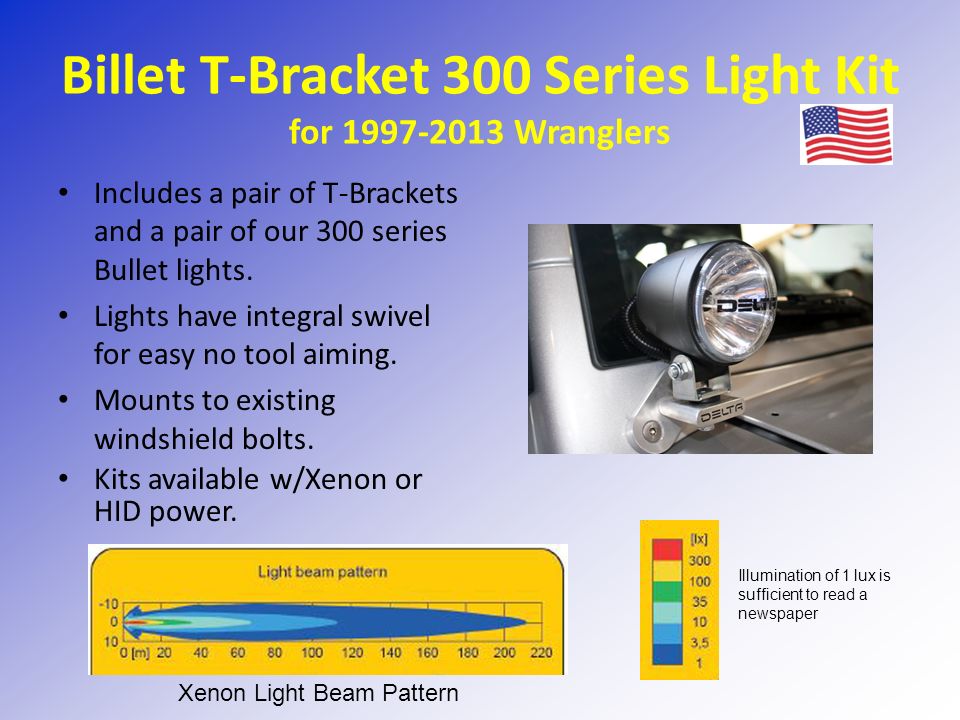

16. Billet T-Bracket 300 Series Light Kit for 1997-2013 Wranglers Includes a pair of T-Brackets and a pair of our 300 series Bullet lights. Lights have integral swivel for easy no tool aiming. Mounts to existing windshield bolts. Kits available w/Xenon or HID power. Xenon Light Beam Pattern Illumination of 1 lux is sufficient to read a newspaper

17. Billet T-Bracket 150 Series Light Kit for 1997-2013 Wranglers Special Features: Billet Aluminum Design Easy installation – no drilling. Mounts to existing bolts Kit includes complete wire harness w/switch and relay. Includes stone guards. Illumination of 1 lux is sufficient to read a newspaper

18. Lug-Nut Lite Kit Spare Tire LED 3rd Brake Lights Special Features: LED Third Brake Lights Easy installation – just insert into two vacant lug-nut holes in your spare tire and connect to your existing third brake wire lead. Eliminate the ugly factory “Lolly Pop” 3 rd brake light over the spare tire.

19. Silo 4 LED Searchlight Special Features: Four 10 watt HI Output Diodes. 6400 lumens. Waterproof die cast aluminum housing. Waterproof connector. Easy 2 wire hook up Single stud mount with thumb screw vertical adjustment. Use with our 01-6572 T-Brackets. Draws less than 4 amps

20. TRUCK LIGHTING

21. LIGHTING ACCESSORIES FOR FORD-F150

22. H.I.D. Universal Hood Bar for Trucks & SUV’s Special Features: Powered by three long range driving lights. Available with Xenon or H.I.D. light sources. H.I.D. systems feature built-in ballast. Billet Aluminum Arms Steel Cross Bar Comes with Universal Hood Mount Equipped with OEM Harness Hard light covers included Ea. Light w/Xenon bulbs

23. Universal Truck Combo Bar Special Features: Powered by 3 Function Xenon or LED Driving, Fog & Rock Crawlers Steel Construction Equipped with an OEM Dual Harness Mounts under factory or aftermarket bumper

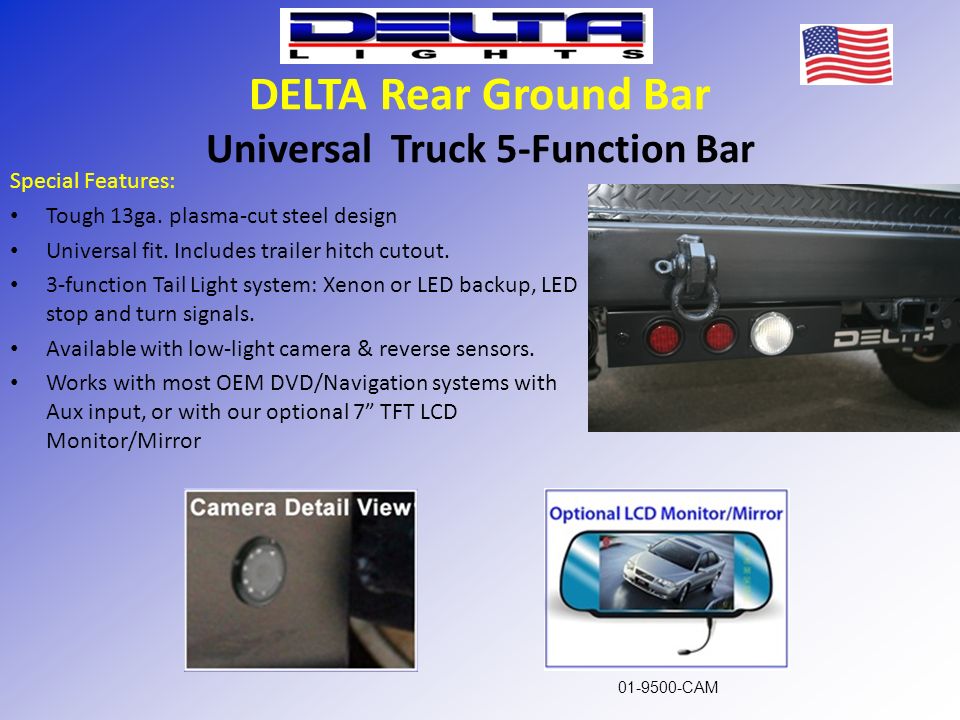

24. DELTA Rear Ground Bar Universal Truck 5-Function Bar Special Features: Tough 13ga. plasma-cut steel design Universal fit. Includes trailer hitch cutout. 3-function Tail Light system: Xenon or LED backup, LED stop and turn signals. Available with low-light camera & reverse sensors. Works with most OEM DVD/Navigation systems with Aux input, or with our optional 7” TFT LCD Monitor/Mirror 01-9500-CAM

25. DELTA Twin-Bar™ Rear Ground Bar Special Features: Powered by 2 Xenon or LED Backup Lights & LED Stop and Blinkers Steel Construction Equipped with an OEM Harness Mounts under factory or aftermarket bumper

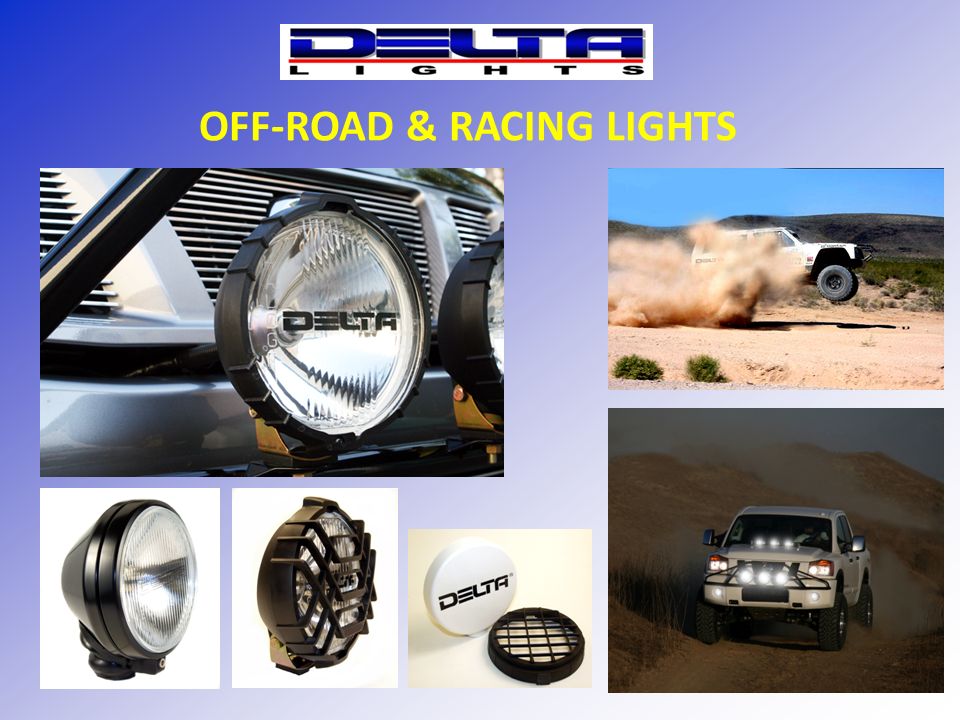

26. OFF-ROAD & RACING LIGHTS

27. Auxiliary Lights Round in sizes 6” thru 8” Rectangle in sizes from 4” wide thru 9” wide Single and dual beam auxiliary headlights Specialty Thinline and price point lights Industrial and work lights ATV bars and lights

28. LED LIGHTS

29. LED Accent & Safety Lighting

30. Delta Tech Industries, LLC 1901 S. Vineyard Ave Ontario, CA 91761 USA Phone: (909)673-1900 Fax: (909)673-1990 Email: sales@deltalights.comsales@deltalights.com www.deltalights.com © 2013 Delta Tech – TAP Training
