1. Satisfiability and State- Transition Systems: An AI Perspective Henry Kautz University of Washington

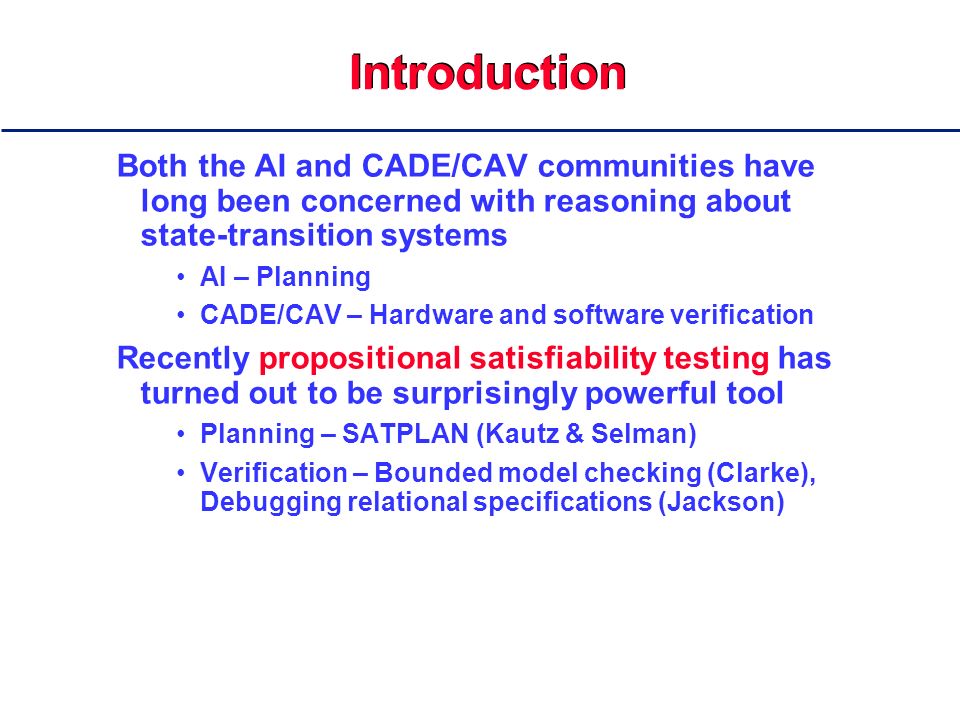

2. Introduction Both the AI and CADE/CAV communities have long been concerned with reasoning about state-transition systems AI – Planning CADE/CAV – Hardware and software verification Recently propositional satisfiability testing has turned out to be surprisingly powerful tool Planning – SATPLAN (Kautz & Selman) Verification – Bounded model checking (Clarke), Debugging relational specifications (Jackson)

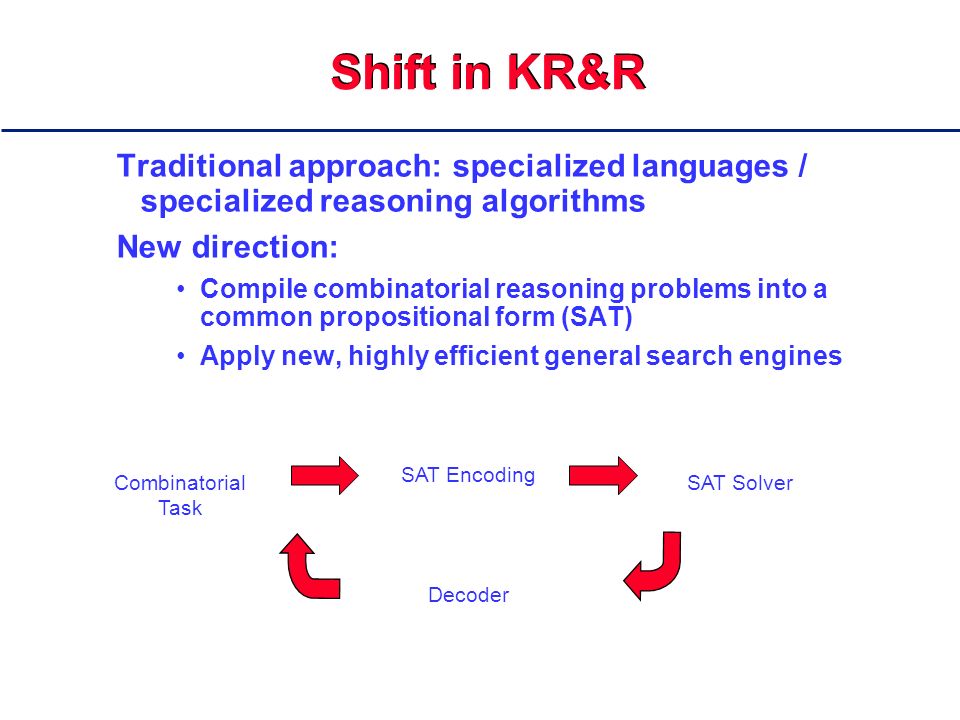

3. Shift in KR&R Traditional approach: specialized languages / specialized reasoning algorithms New direction: Compile combinatorial reasoning problems into a common propositional form (SAT) Apply new, highly efficient general search engines Combinatorial Task SAT Encoding SAT Solver Decoder

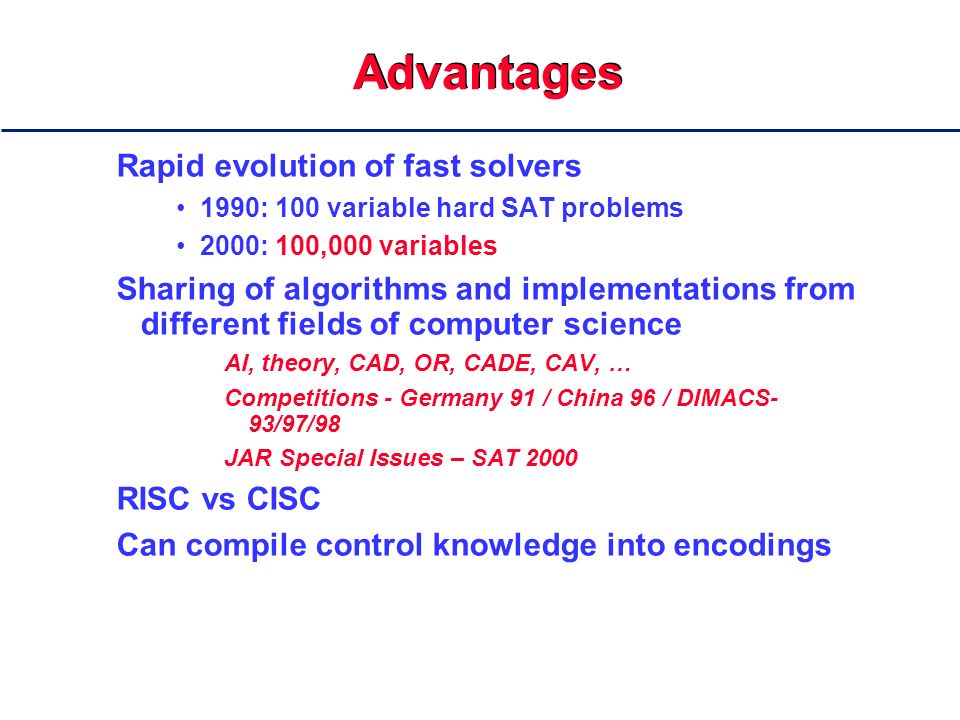

4. Advantages Rapid evolution of fast solvers 1990: 100 variable hard SAT problems 2000: 100,000 variables Sharing of algorithms and implementations from different fields of computer science AI, theory, CAD, OR, CADE, CAV, … Competitions - Germany 91 / China 96 / DIMACS- 93/97/98 JAR Special Issues – SAT 2000 RISC vs CISC Can compile control knowledge into encodings

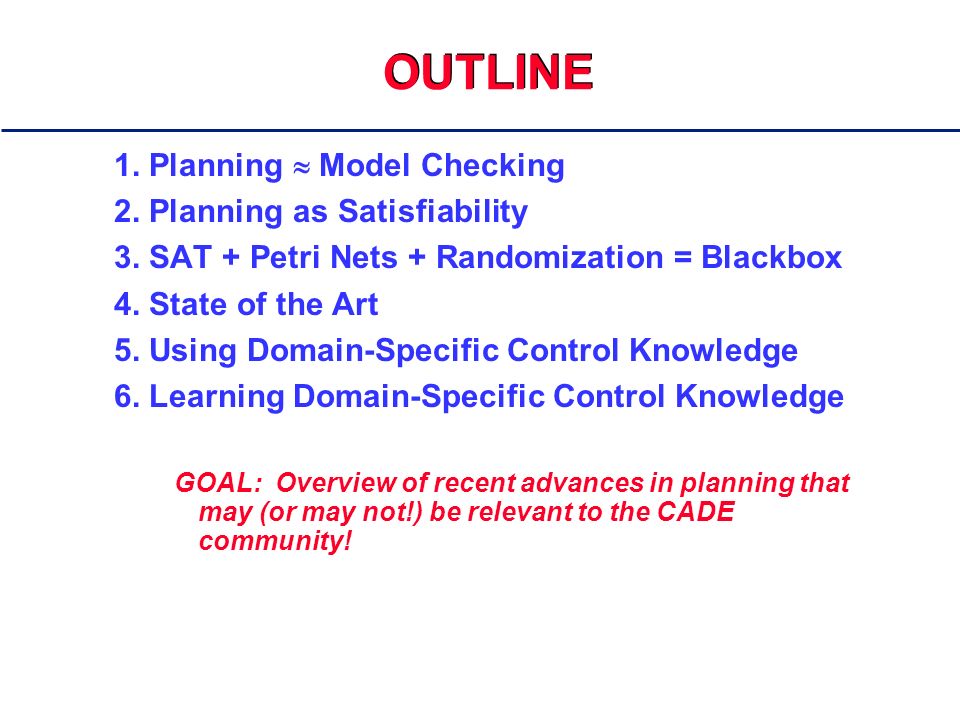

5. OUTLINE 1. Planning  Model Checking 2. Planning as Satisfiability 3. SAT + Petri Nets + Randomization = Blackbox 4. State of the Art 5. Using Domain-Specific Control Knowledge 6. Learning Domain-Specific Control Knowledge GOAL: Overview of recent advances in planning that may (or may not!) be relevant to the CADE community!

6. 1. Planning  Model Checking

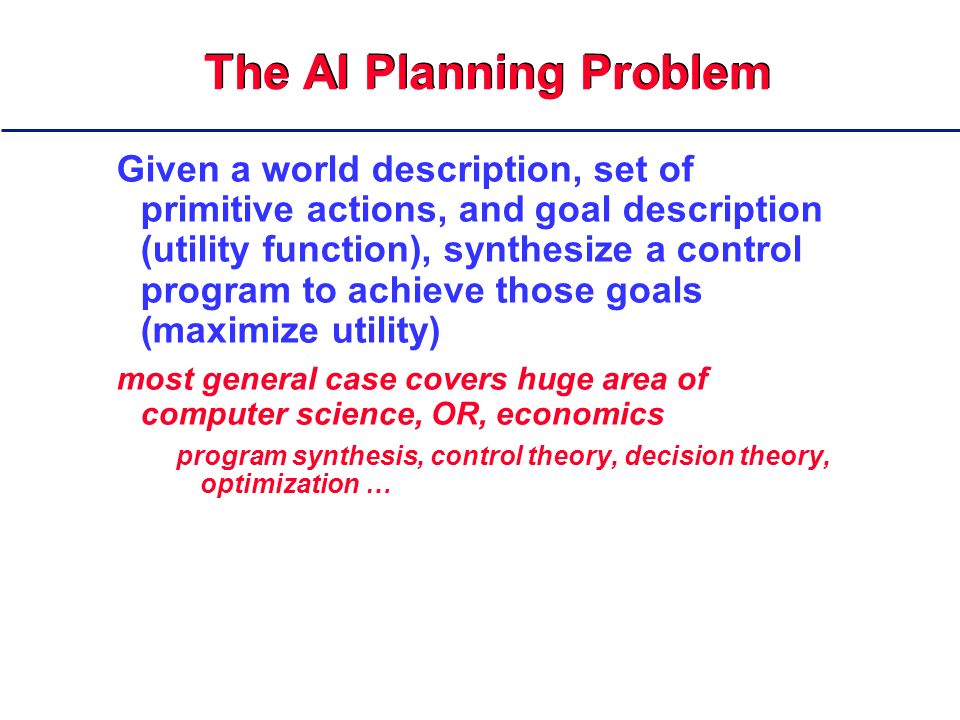

7. The AI Planning Problem Given a world description, set of primitive actions, and goal description (utility function), synthesize a control program to achieve those goals (maximize utility) most general case covers huge area of computer science, OR, economics program synthesis, control theory, decision theory, optimization …

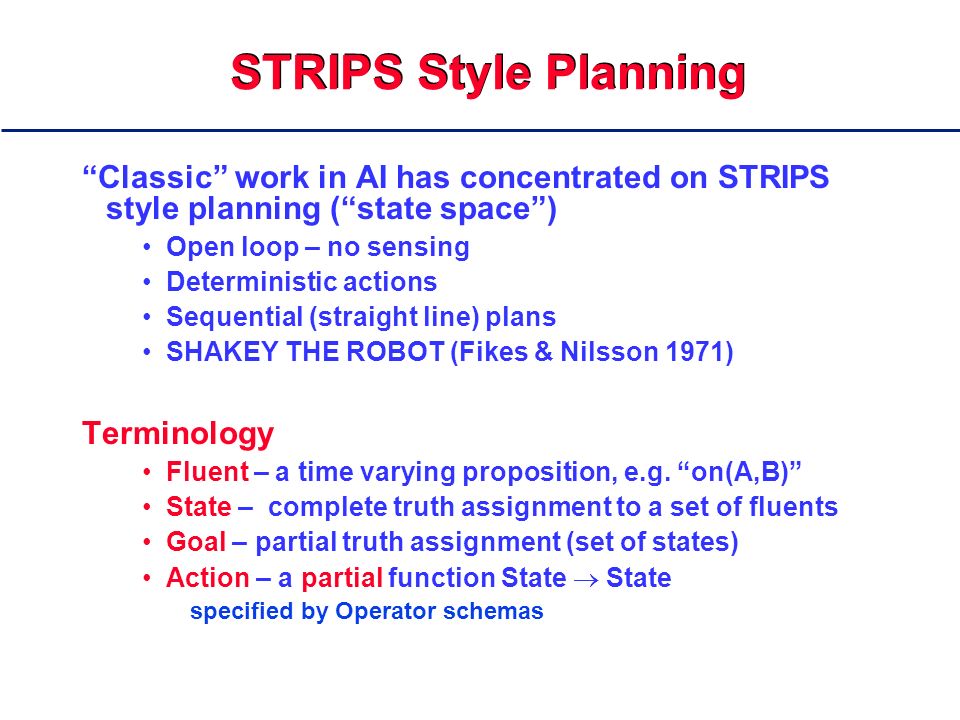

8. STRIPS Style Planning “Classic” work in AI has concentrated on STRIPS style planning (“state space”) Open loop – no sensing Deterministic actions Sequential (straight line) plans SHAKEY THE ROBOT (Fikes & Nilsson 1971) Terminology Fluent – a time varying proposition, e.g. “on(A,B)” State – complete truth assignment to a set of fluents Goal – partial truth assignment (set of states) Action – a partial function State  State specified by Operator schemas

9. Operator Schemas Each yields set of primitive actions, when instantiated over a given finite set of objects (constants) Pickup(x, y) precondition: on(x,y), clear(x), handempty delete: on(x,y), clear(x), handempty add: holding(x), clear(y) Plan: A (shortest) sequence of actions that transforms the initial state into a goal state E.g.: Pickup(A,B); Putdown(A,C)

10. Parallelism Useful extension: parallel composition of primitive actions Only allowed when all orderings are well defined and equivalent – no shared pre / effects (act1 || act2)(s) = act2(act1(s)) = act1(act2(s)) Can dramatically reduce size of search space Easy to serialize Distinguish: –number of actions in a plan – “sequential length” –number of sequentially composition operators in a plan – “parallel length”, “horizon” (a1 || a2); (a3 || a4 || a5) ; a6 - sequential length 6, parallel length 3

11. Some Applications of STRIPS- Style Planning Autonomous systems Deep Space One Remote Agent (Williams & Nayak 1997) Natural language understanding TRAINS (Allen 1998) Internet agents Rodney (Etzioni 1994) Manufacturing Supply chain management (Crawford 1998)

12. Abdundance of Negative Complexity Results Unbounded STRIPS planning: PSPACE-complete Exponentially long solutions (Bylander 1991 ; Backstrom 1993) Bounded STRIPS planning: NP-complete Is there a solution of (sequential/parallel) length N? ( Chenoweth 1991; Gupta and Nau 1992) Domain-specific planning: may depend on whether solutions must be the shortest such plan Blocks world – –Shortest plan – NP-hard –Approximately shortest plan – NP-hard (Selman 1994) –Plan of length 2 x number blocks – Linear time

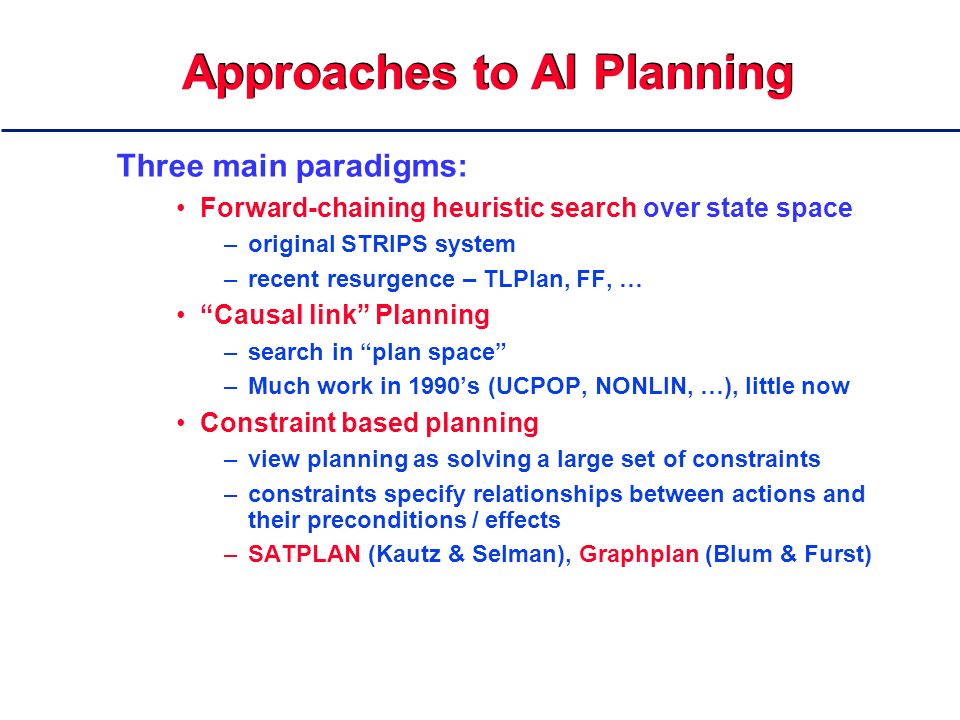

13. Approaches to AI Planning Three main paradigms: Forward-chaining heuristic search over state space –original STRIPS system –recent resurgence – TLPlan, FF, … “Causal link” Planning –search in “plan space” –Much work in 1990’s (UCPOP, NONLIN, …), little now Constraint based planning –view planning as solving a large set of constraints –constraints specify relationships between actions and their preconditions / effects –SATPLAN (Kautz & Selman), Graphplan (Blum & Furst)

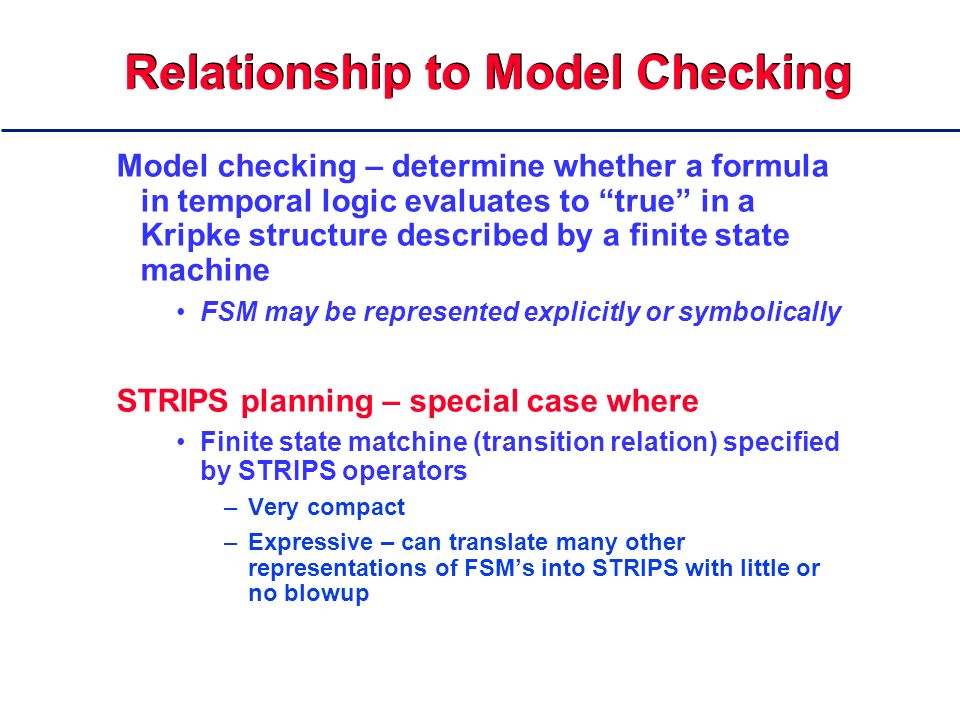

14. Relationship to Model Checking Model checking – determine whether a formula in temporal logic evaluates to “true” in a Kripke structure described by a finite state machine FSM may be represented explicitly or symbolically STRIPS planning – special case where Finite state matchine (transition relation) specified by STRIPS operators –Very compact –Expressive – can translate many other representations of FSM’s into STRIPS with little or no blowup

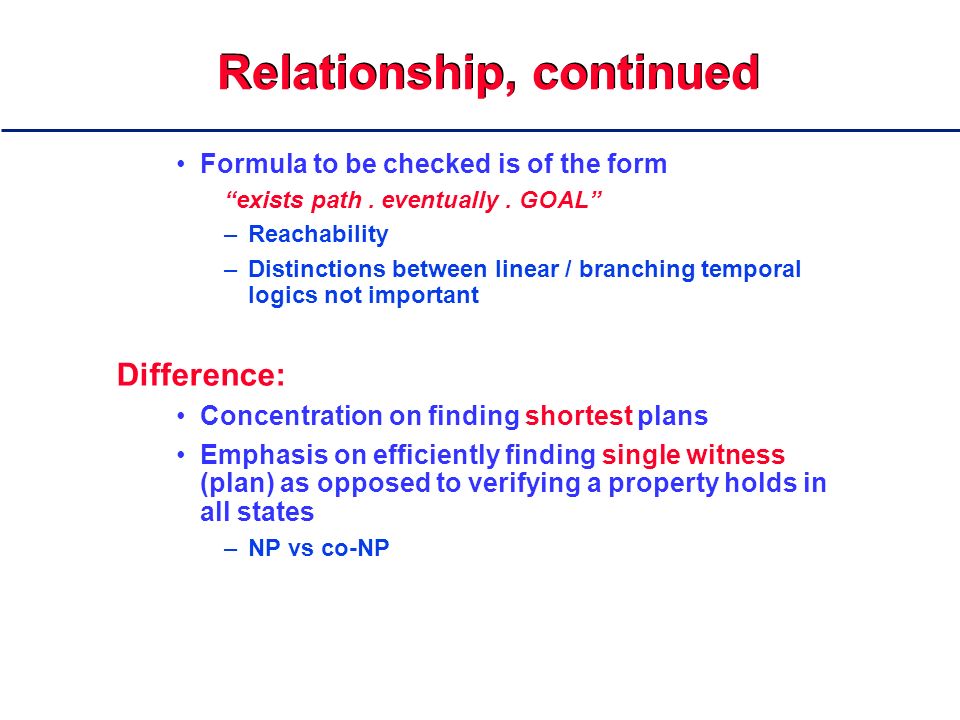

15. Relationship, continued Formula to be checked is of the form “exists path. eventually. GOAL” –Reachability –Distinctions between linear / branching temporal logics not important Difference: Concentration on finding shortest plans Emphasis on efficiently finding single witness (plan) as opposed to verifying a property holds in all states –NP vs co-NP

16. Why Not Use OBDD’s? Size of OBDD explodes for typical AI benchmark domains Overkill – need not / cannot check all states, even if they are represented symbolically! O( 2 n 2 ) states (But see recent work by M. Velosa on using OBDD’s for non-deterministic variant of STRIPS)

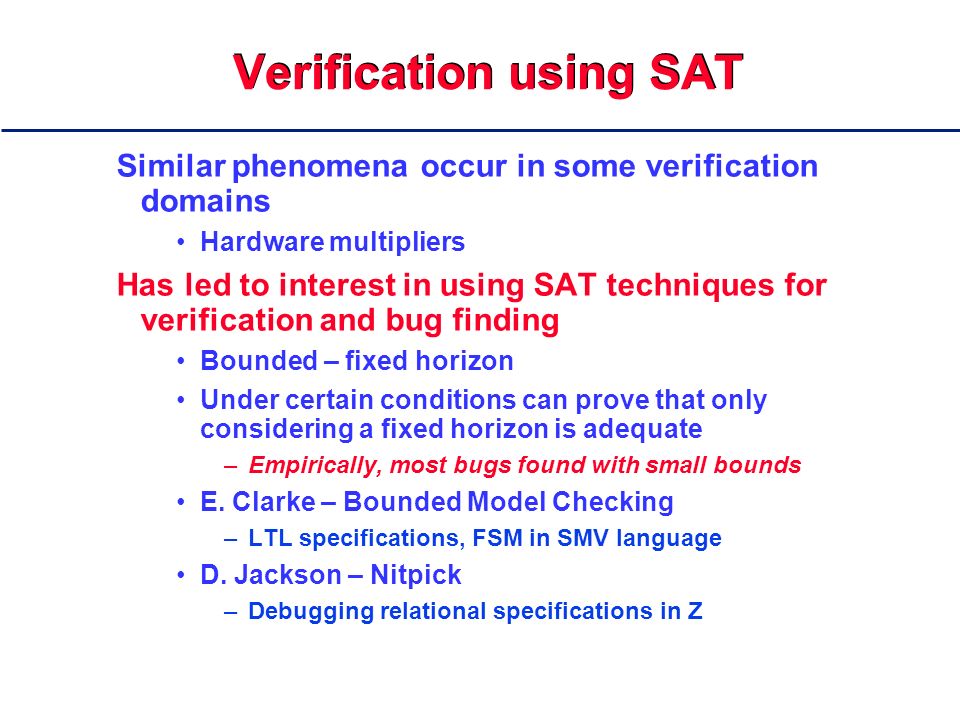

17. Verification using SAT Similar phenomena occur in some verification domains Hardware multipliers Has led to interest in using SAT techniques for verification and bug finding Bounded – fixed horizon Under certain conditions can prove that only considering a fixed horizon is adequate –Empirically, most bugs found with small bounds E. Clarke – Bounded Model Checking –LTL specifications, FSM in SMV language D. Jackson – Nitpick –Debugging relational specifications in Z

18. 2. Planning as Satisfiability

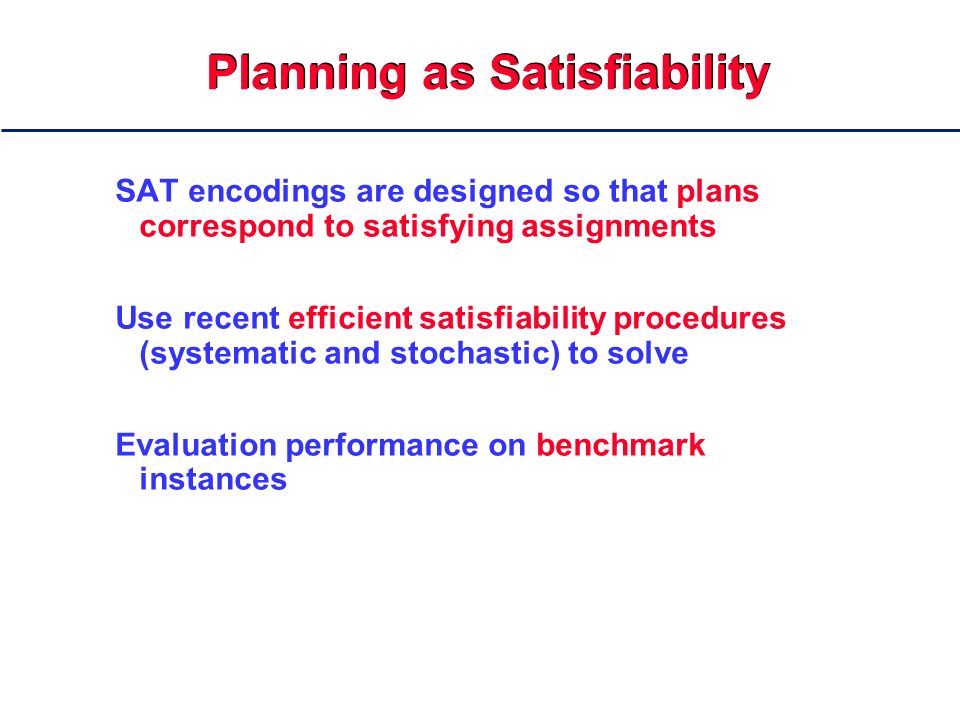

19. Planning as Satisfiability SAT encodings are designed so that plans correspond to satisfying assignments Use recent efficient satisfiability procedures (systematic and stochastic) to solve Evaluation performance on benchmark instances

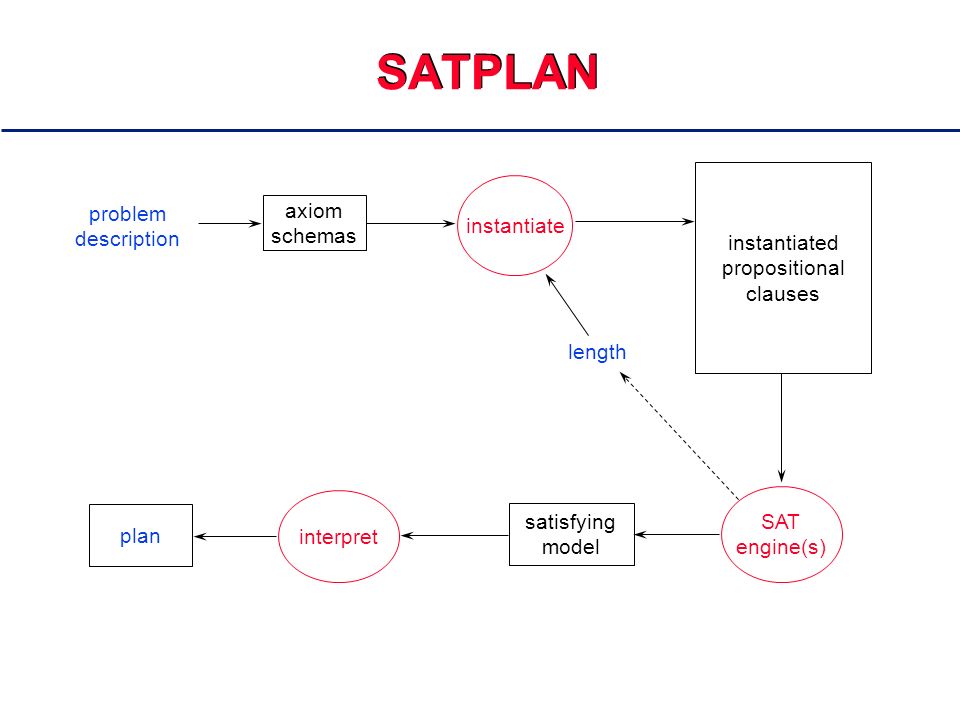

20. SATPLAN axiom schemas instantiated propositional clauses satisfying model plan length problem description SAT engine(s) instantiate interpret

21. SAT Encodings Target: Propositional conjunctive normal form Sets of clauses specified by axiom schemas 1.Create model by hand 2.Compile STRIPS operators Discrete time, modeled by integers upper bound on number of time steps predicates indexed by time at which fluent holds / action begins –each action takes 1 time step –many actions may occur at the same step fly(Plane, City1, City2, i)  at(Plane, City2, i +1)

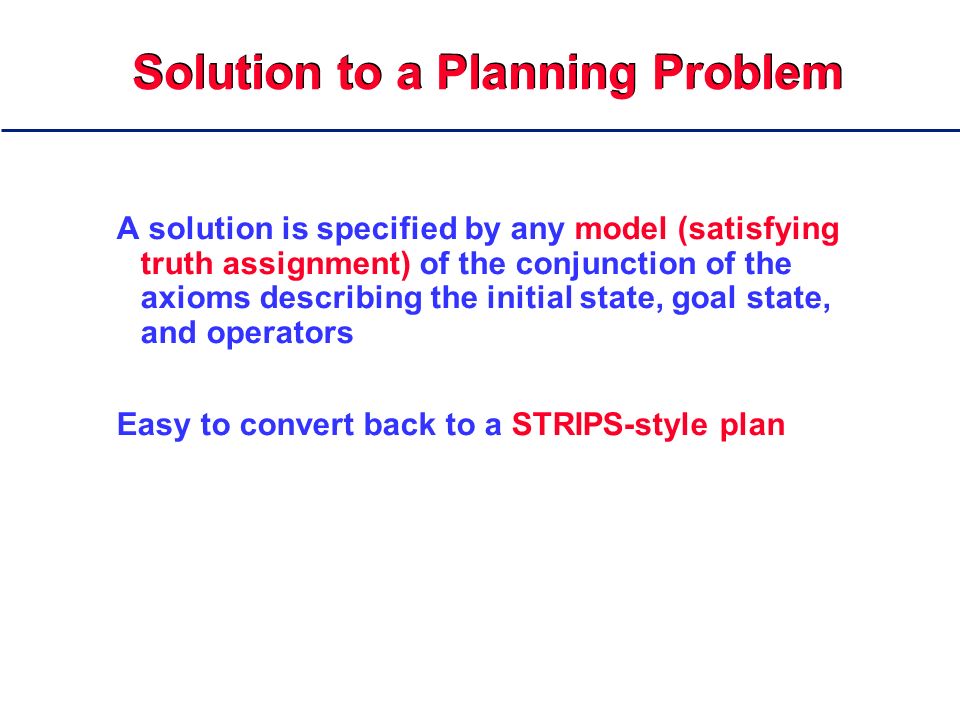

22. Solution to a Planning Problem A solution is specified by any model (satisfying truth assignment) of the conjunction of the axioms describing the initial state, goal state, and operators Easy to convert back to a STRIPS-style plan

23. Complete SAT Algorithms Davis-Putnam-Loveland-Logeman (DPLL) Depth-first backtrack search on partial truth assignments Basis of nearly all practical complete SAT algorithms –Exception: “Stahlmark’s method” Key to efficiency: good variable choice at branch points –1961 – unit propagation, pure literal rule –1993 - explosion of improved heuristics and implementations +MOM’s heuristic +satz (Chu Min Li) – lookhead to maximize rate of creation of binary clauses Dependency directed backtracking – derive new clauses during search – rel_sat (Bayardo), GRASP (di Silva) –See SATLIB 1998 / Hoos & Stutzle

24. Incomplete SAT Algorithms GSAT and Walksat (Kautz, Selman & Cohen 1993) Randomized local search over space of complete truth assignments Heuristic function: flip variables to minimize number of unsatisfied clauses Noisy “random walk” moves to escape local minima Provably solves 2CNF, empirically successful on a broad class of problems –random CNF, graph coloring, circuit synthesis encodings (DIMACS 1993, 1997)

25. Planning Benchmark Test Set Extension of Graphplan benchmark set logistics - transportation domain, ranging up to 14 time slots, unlimited parallelism 2,165 possible actions per time slot optimal solutions containing 74 primitive actions 2 2000 legal states (60,000 Boolean variables) Problems of this size not previously handled by any domain-independent planning system

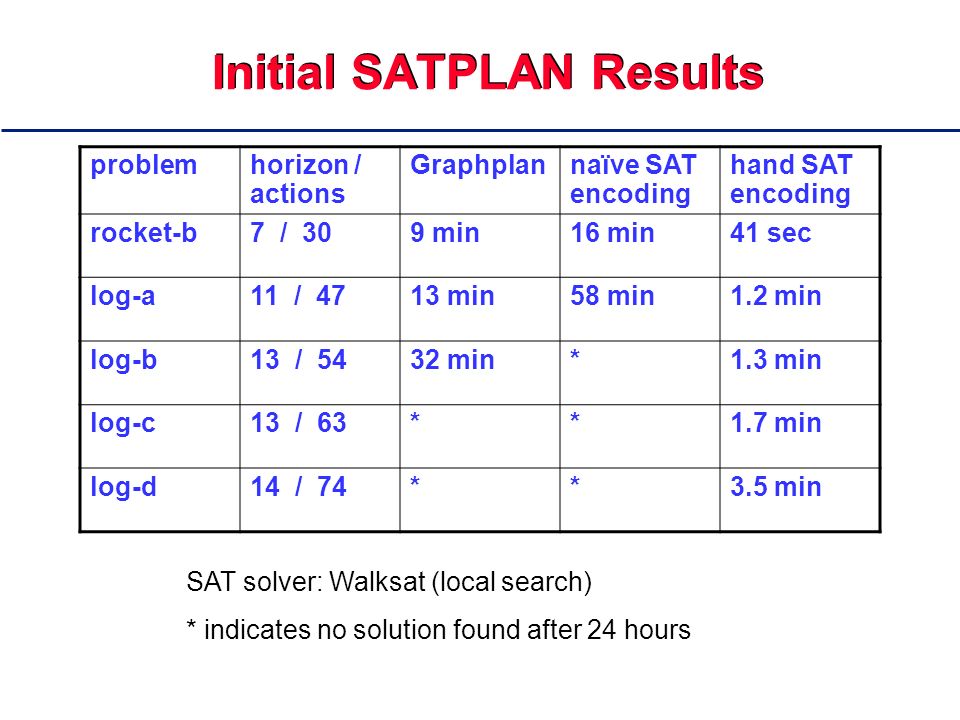

26. Initial SATPLAN Results problemhorizon / actions Graphplannaïve SAT encoding hand SAT encoding rocket-b7 / 309 min16 min41 sec log-a11 / 4713 min58 min1.2 min log-b13 / 5432 min*1.3 min log-c13 / 63**1.7 min log-d14 / 74**3.5 min SAT solver: Walksat (local search) * indicates no solution found after 24 hours

27. How SATPLAN Spent its Time probleminstantiationwalksatDPLLsatz rocket-b41 sec0.04 sec1.8 sec0.3 sec log-a1.2 min2.2 sec*1.7 min log-b1.3 min3.4 sec*0.6 sec log-c1.7 min2.1 sec*4.3 sec log-d3.5 min7.2 sec*1.8 hours Hand created SAT encodings * indicates no solution found after 24 hours

28. 3. SAT + Petri Nets + Randomization = Blackbox

29. Automating Encodings While SATPLAN proved the feasibility of planning using satisfiability, modeling the transition function was problematic Direct naïve encoding of STRIPS operators as axiom schemas gave poor performance Handcrafted encodings gave good performance, but were labor intensive to create –similar issues arise in work in verification – division of labor between user and model checker! GOAL: fully automatic generation and solution of planning problems from STRIPS specifications

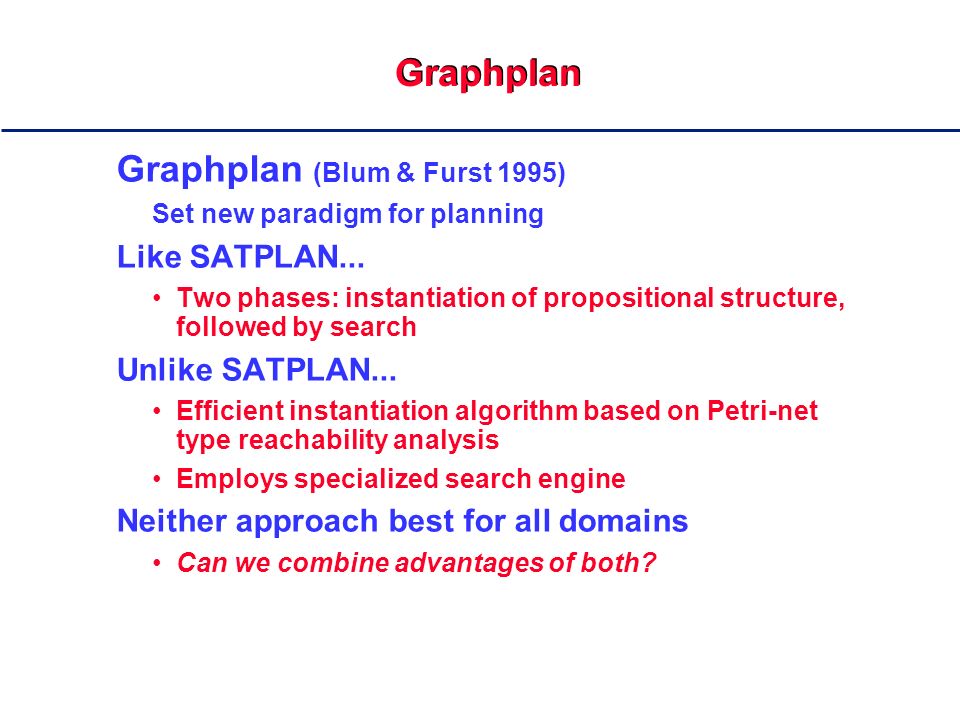

30. Graphplan Graphplan (Blum & Furst 1995) Set new paradigm for planning Like SATPLAN... Two phases: instantiation of propositional structure, followed by search Unlike SATPLAN... Efficient instantiation algorithm based on Petri-net type reachability analysis Employs specialized search engine Neither approach best for all domains Can we combine advantages of both?

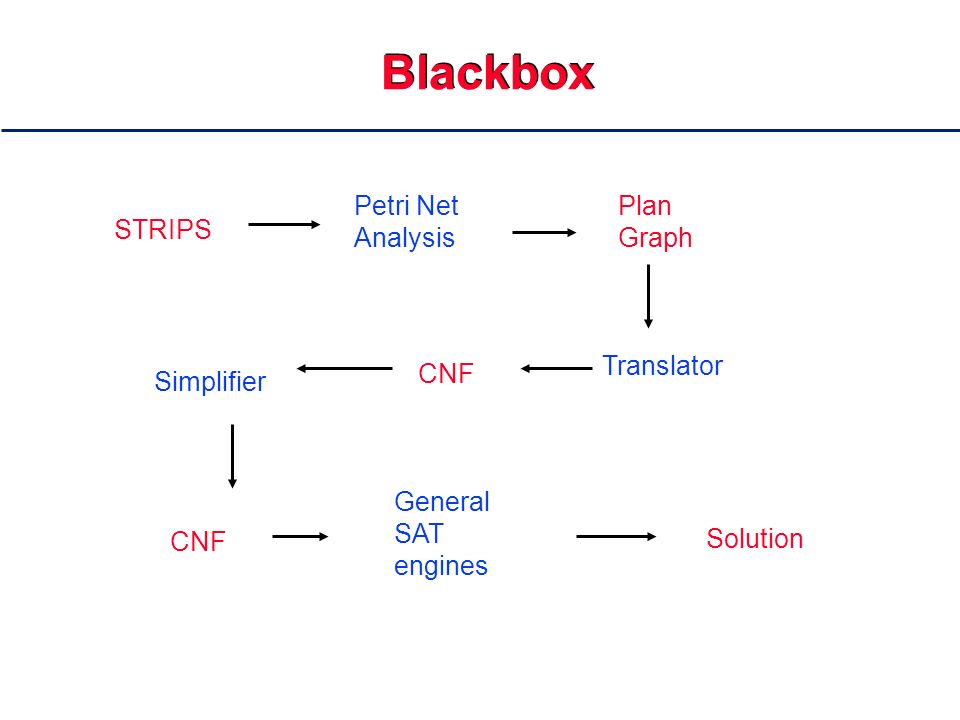

31. Blackbox STRIPS Plan Graph Petri Net Analysis CNF General SAT engines Solution Simplifier Translator CNF

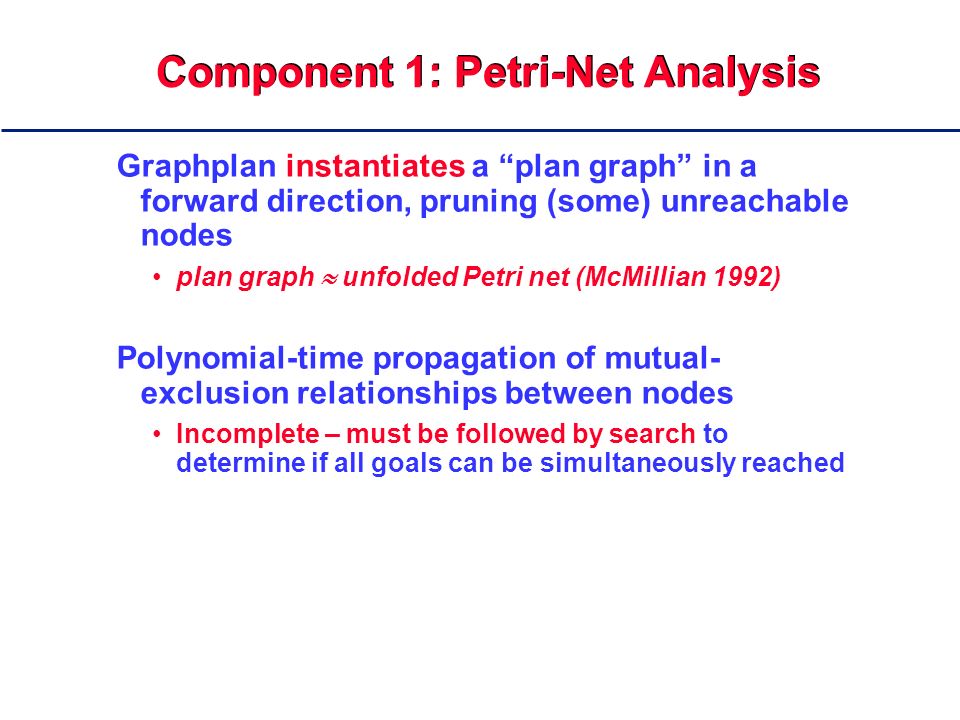

32. Component 1: Petri-Net Analysis Graphplan instantiates a “plan graph” in a forward direction, pruning (some) unreachable nodes plan graph  unfolded Petri net (McMillian 1992) Polynomial-time propagation of mutual- exclusion relationships between nodes Incomplete – must be followed by search to determine if all goals can be simultaneously reached

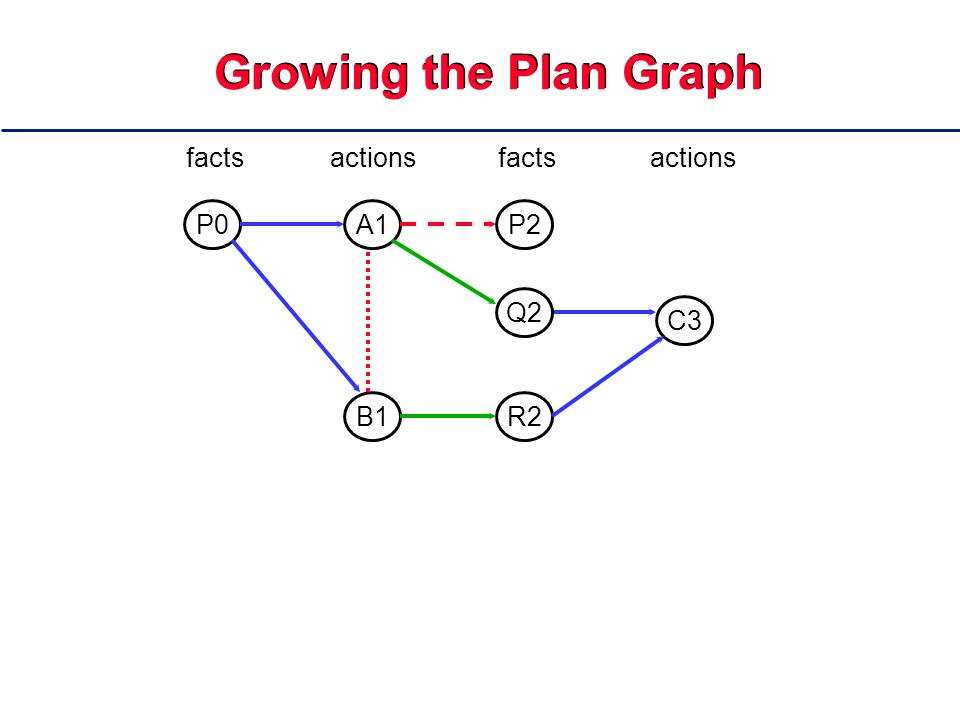

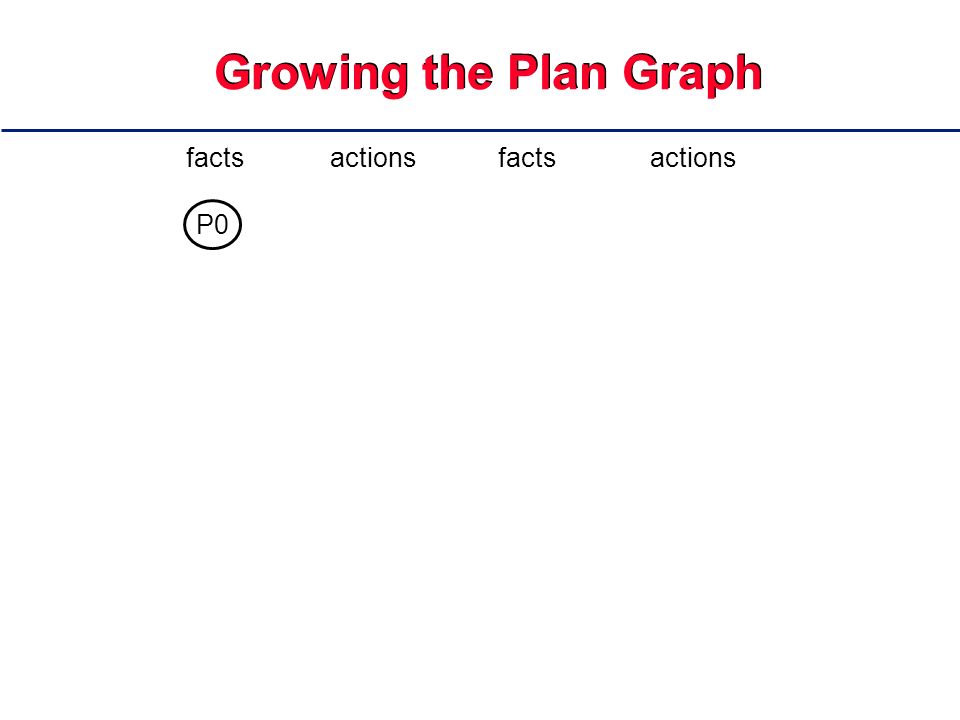

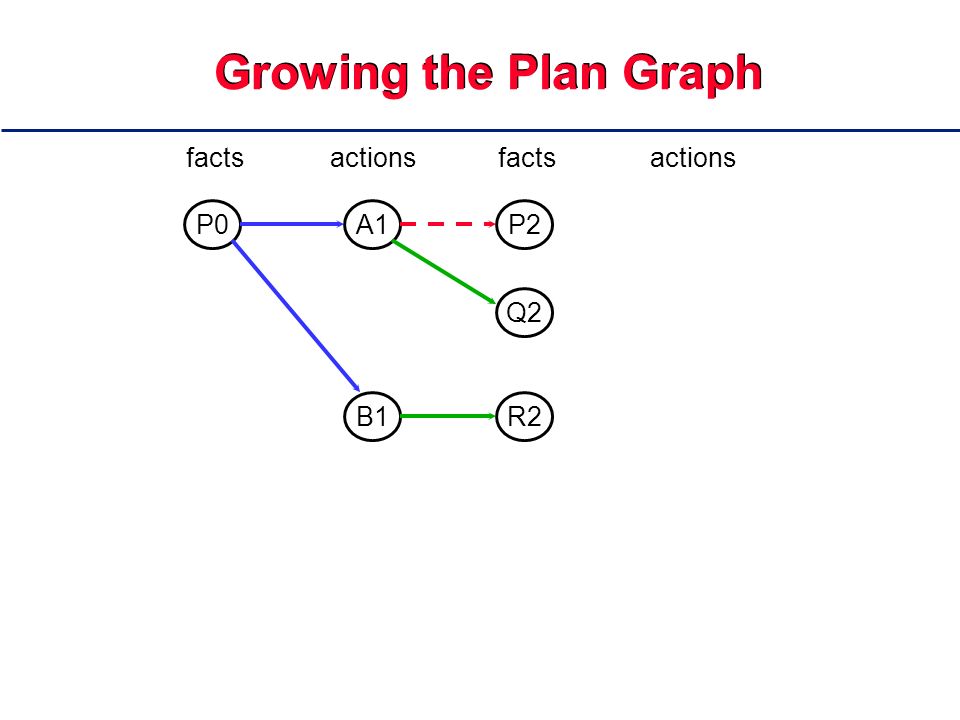

33. Growing the Plan Graph P0 facts actions

34. Growing the Plan Graph P0A1 B1 P2 R2 facts actions Q2

35. Growing the Plan Graph P0A1 B1 P2 R2 C3 facts actions Q2

36. Growing the Plan Graph P0A1 B1 P2 R2 C3 facts actions Q2

37. Growing the Plan Graph P0A1 B1 P2 R2 C3 facts actions Q2

38. Growing the Plan Graph P0A1 B1 P2 R2 facts actions Q2

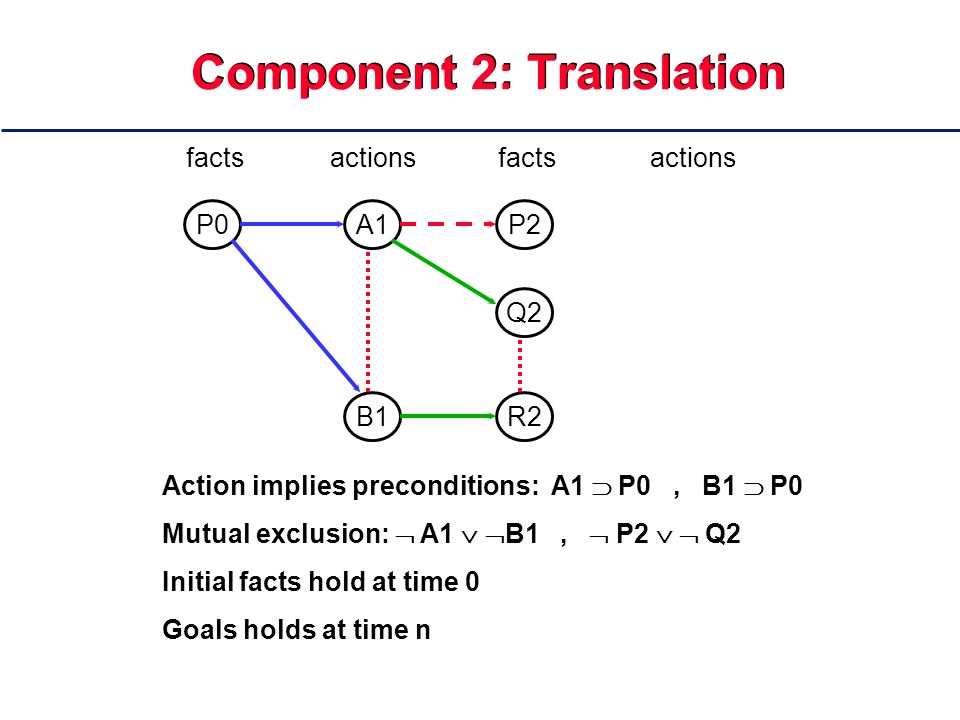

39. Component 2: Translation P0A1 B1 P2 R2 facts actions Q2 Action implies preconditions: A1  P0, B1  P0 Mutual exclusion:  A1   B1,  P2   Q2 Initial facts hold at time 0 Goals holds at time n

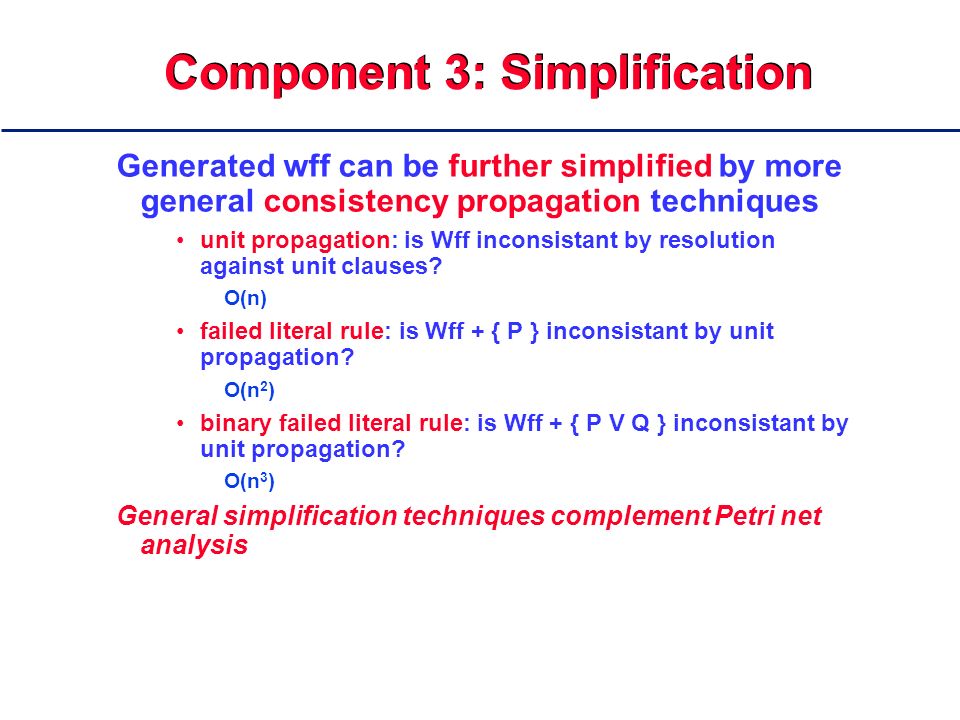

40. Component 3: Simplification Generated wff can be further simplified by more general consistency propagation techniques unit propagation: is Wff inconsistant by resolution against unit clauses? O(n) failed literal rule: is Wff + { P } inconsistant by unit propagation? O(n 2 ) binary failed literal rule: is Wff + { P V Q } inconsistant by unit propagation? O(n 3 ) General simplification techniques complement Petri net analysis

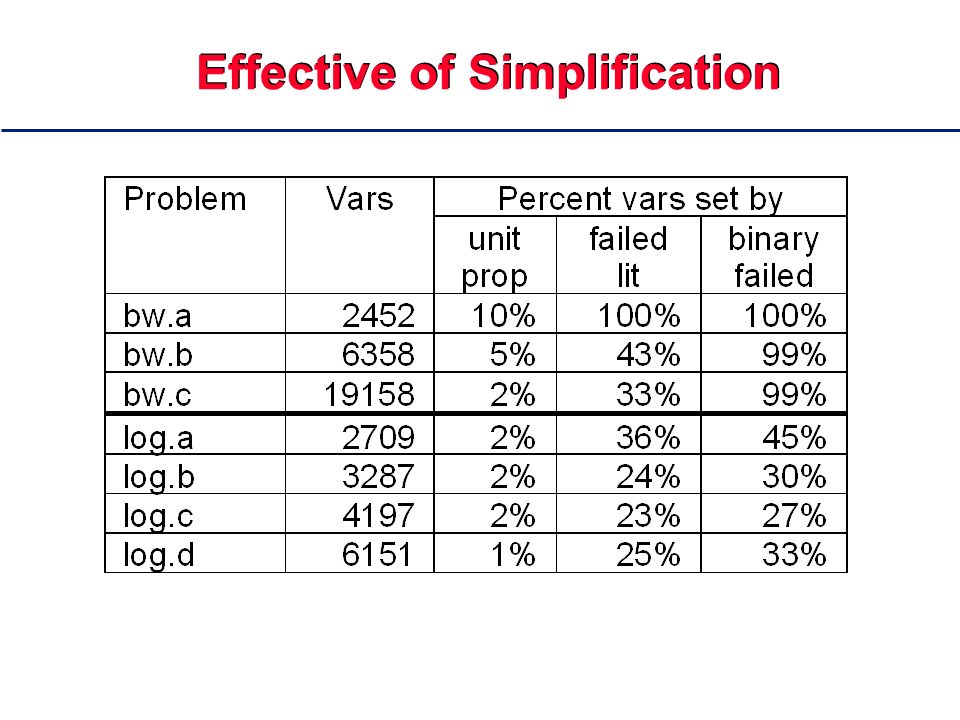

41. Effective of Simplification

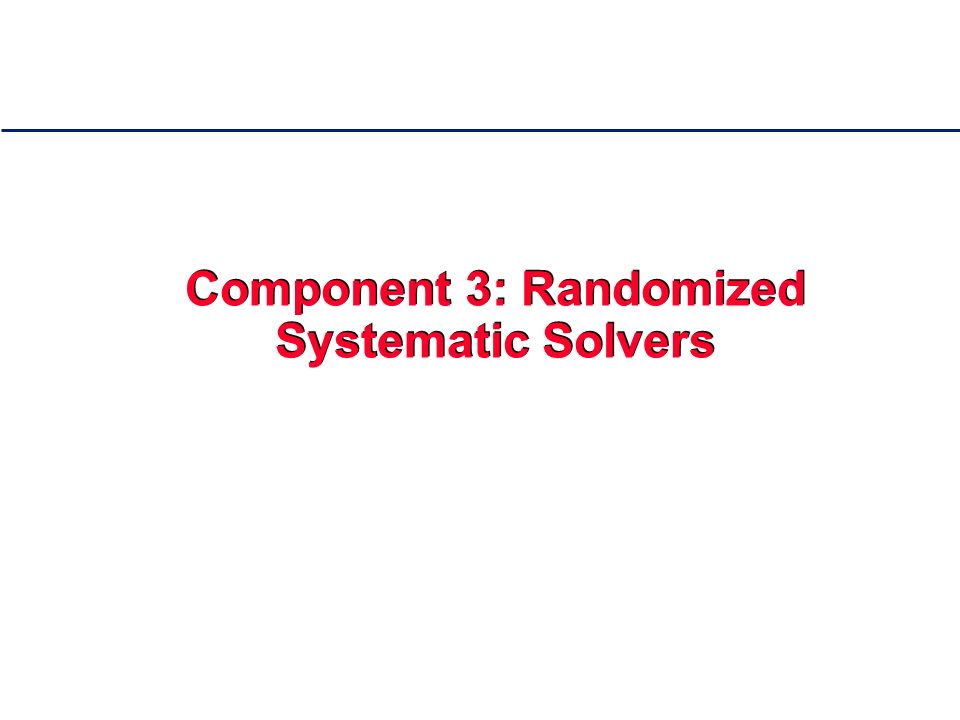

42. Component 3: Randomized Systematic Solvers

43. Background Combinatorial search methods often exhibit a remarkable variability in performance. It is common to observe significant differences between: different heuristics same heuristic on different instances different runs of same heuristic with different random seeds

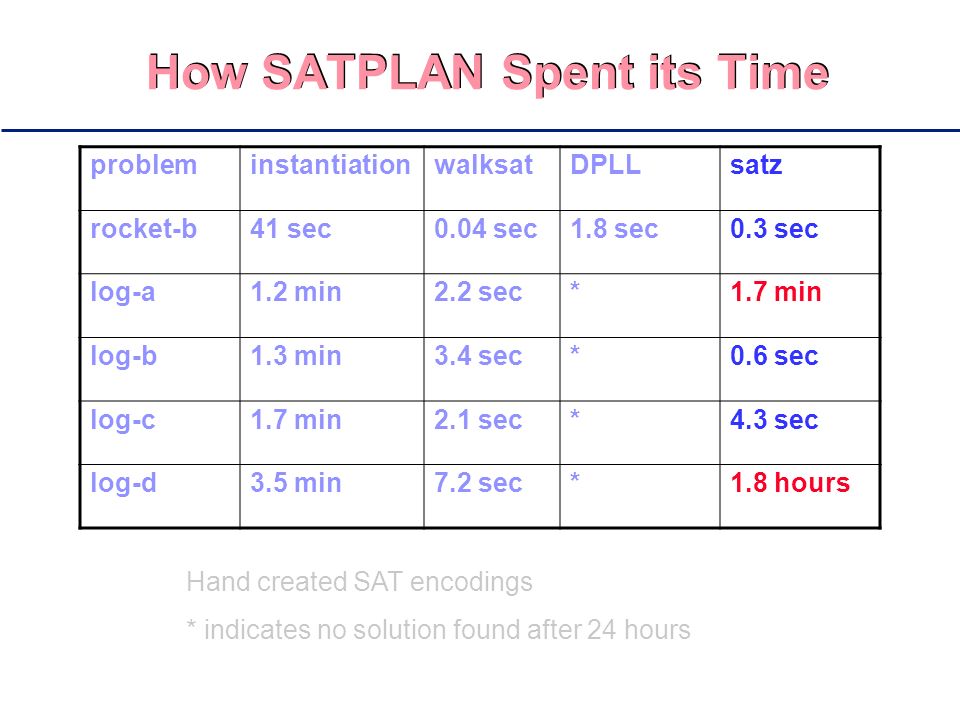

44. How SATPLAN Spent its Time probleminstantiationwalksatDPLLsatz rocket-b41 sec0.04 sec1.8 sec0.3 sec log-a1.2 min2.2 sec*1.7 min log-b1.3 min3.4 sec*0.6 sec log-c1.7 min2.1 sec*4.3 sec log-d3.5 min7.2 sec*1.8 hours Hand created SAT encodings * indicates no solution found after 24 hours

45. Preview of Strategy We’ll put variability / unpredictability to our advantage via randomization / averaging.

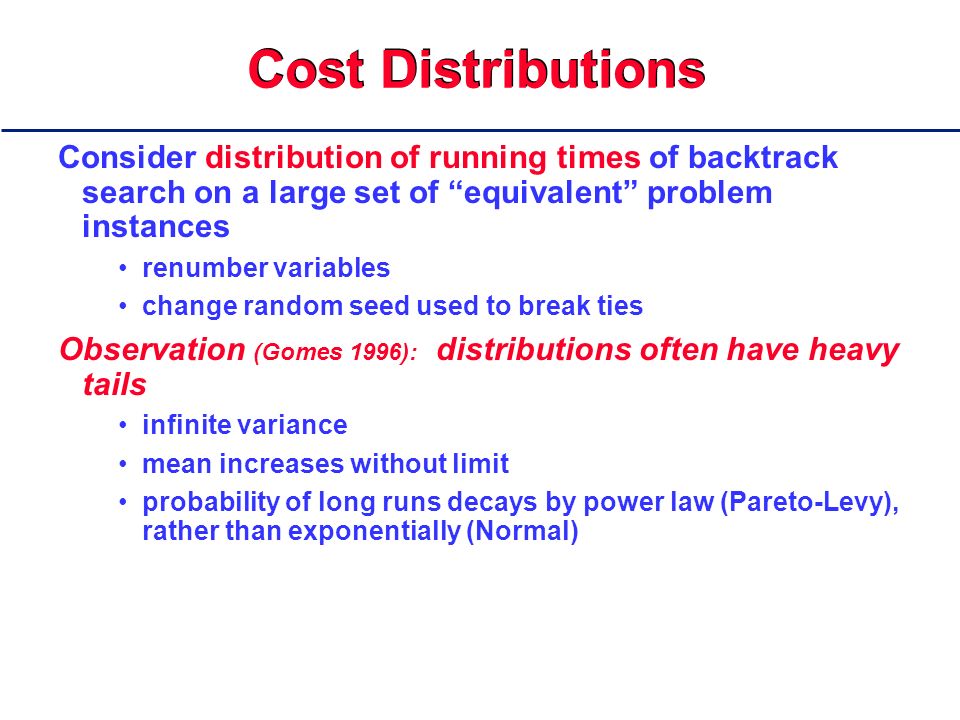

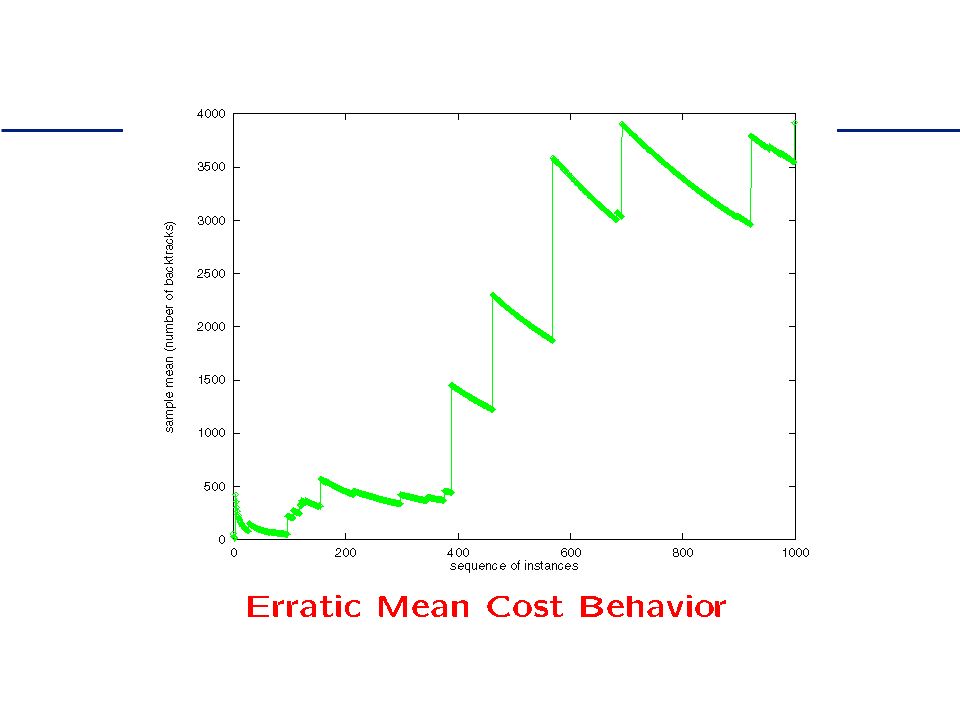

46. Cost Distributions Consider distribution of running times of backtrack search on a large set of “equivalent” problem instances renumber variables change random seed used to break ties Observation (Gomes 1996): distributions often have heavy tails infinite variance mean increases without limit probability of long runs decays by power law (Pareto-Levy), rather than exponentially (Normal)

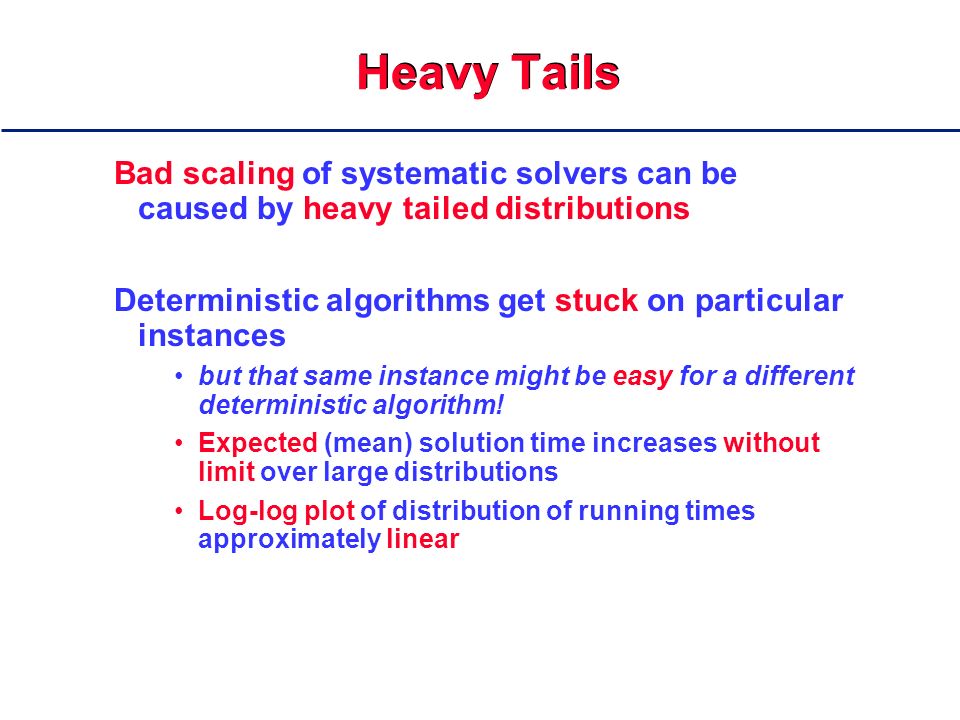

48. Heavy Tails Bad scaling of systematic solvers can be caused by heavy tailed distributions Deterministic algorithms get stuck on particular instances but that same instance might be easy for a different deterministic algorithm! Expected (mean) solution time increases without limit over large distributions Log-log plot of distribution of running times approximately linear

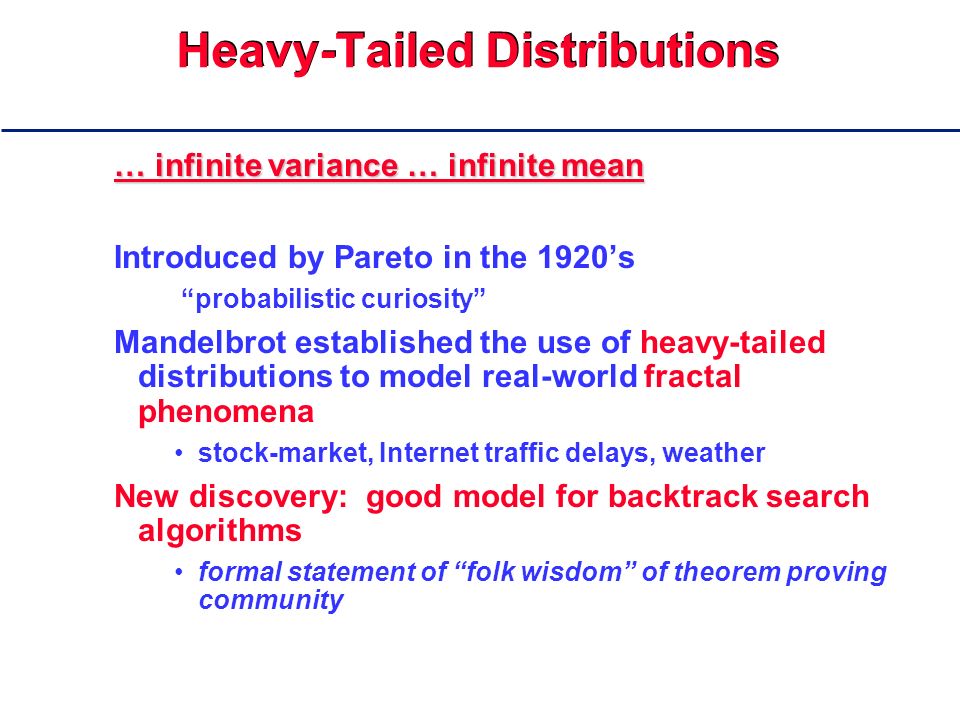

50. Heavy-Tailed Distributions … infinite variance … infinite mean Introduced by Pareto in the 1920’s “probabilistic curiosity” Mandelbrot established the use of heavy-tailed distributions to model real-world fractal phenomena stock-market, Internet traffic delays, weather New discovery: good model for backtrack search algorithms formal statement of “folk wisdom” of theorem proving community

51. Randomized Restarts Solution: randomize the systematic solver Add noise to the heuristic branching (variable choice) function Cutoff and restart search after a fixed number of backtracks Provably Eliminates heavy tails In practice: rapid restarts with low cutoff can dramatically improve performance (Gomes, Kautz, and Selman 1997, 1998) Related analysis: Luby & Zuckerman 1993; Alt & Karp 1996

52. Rapid Restart on LOG.D Note Log Scale: Exponential speedup!

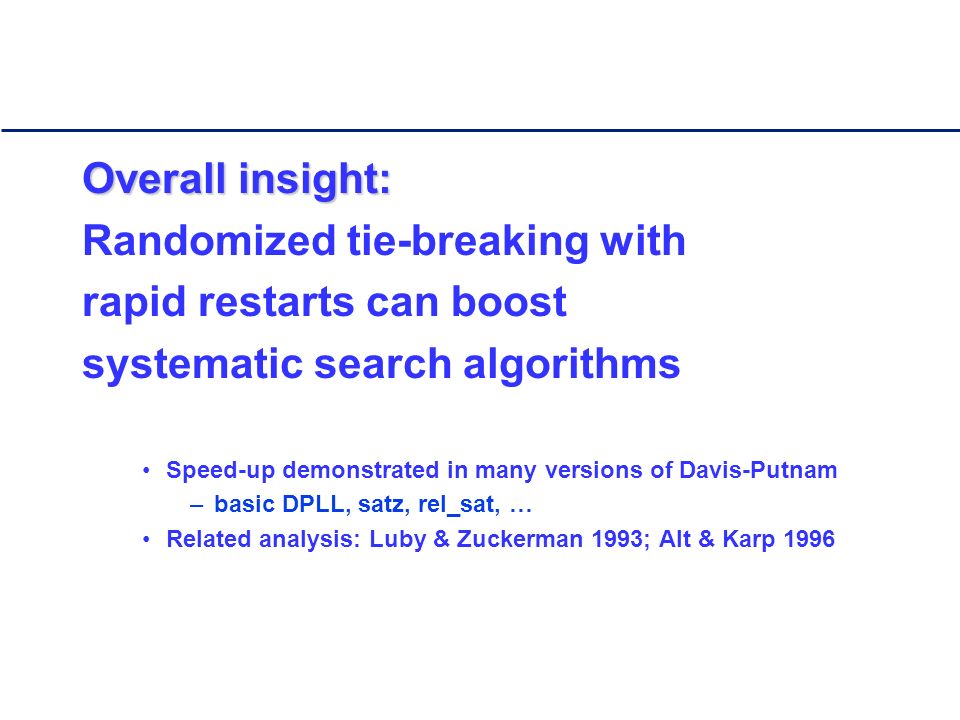

53. Overall insight: Randomized tie-breaking with rapid restarts can boost systematic search algorithms Speed-up demonstrated in many versions of Davis-Putnam –basic DPLL, satz, rel_sat, … Related analysis: Luby & Zuckerman 1993; Alt & Karp 1996

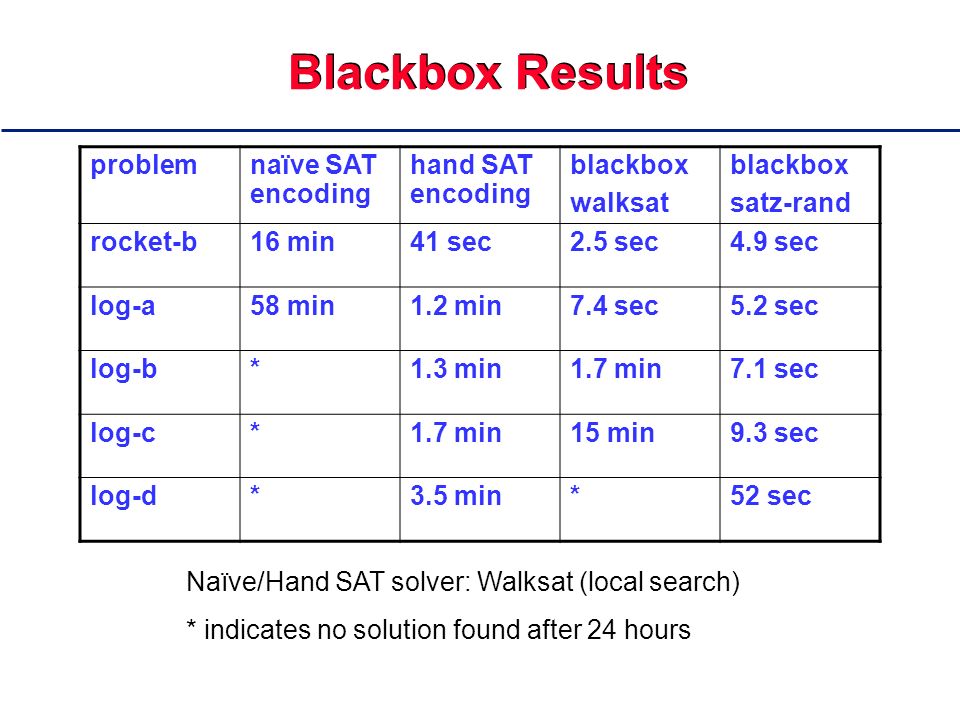

54. Blackbox Results problemnaïve SAT encoding hand SAT encoding blackbox walksat blackbox satz-rand rocket-b16 min41 sec2.5 sec4.9 sec log-a58 min1.2 min7.4 sec5.2 sec log-b*1.3 min1.7 min7.1 sec log-c*1.7 min15 min9.3 sec log-d*3.5 min*52 sec Naïve/Hand SAT solver: Walksat (local search) * indicates no solution found after 24 hours

55. 4. State of the Art

56. Which Strategies Work Best? Causal-link planning <5 primitive actions in solutions Works best if few interactions between goals Constraint-based planning Graphplan, SATPLAN, + descendents 100+ primitive actions in solutions Moderate time horizon <30 time steps Handles interacting goals well 1995 – 1999 Constraint-based approaches dominate AIPS 1996, AIPS 1998

57. Graph Search vs. SAT SATPLAN Graphplan Problem size / complexity Time Caveat: on some domains SAT approach can exhaust memory even though direct graph search is easy Blackbox with solver schedule

58. Resurgence of A* Search In most of 1980 – 1990’s forward chaining A* search was considered a non-starter for planning Voices in the wilderness: TLPlan (Bacchus) – hand-tuned heuristic function could make approach feasible LRTA (Geffner) – can automatically derive good heuristic functions Surprise – AIPS-2000 planning competition dominated by A* planners! What happened?

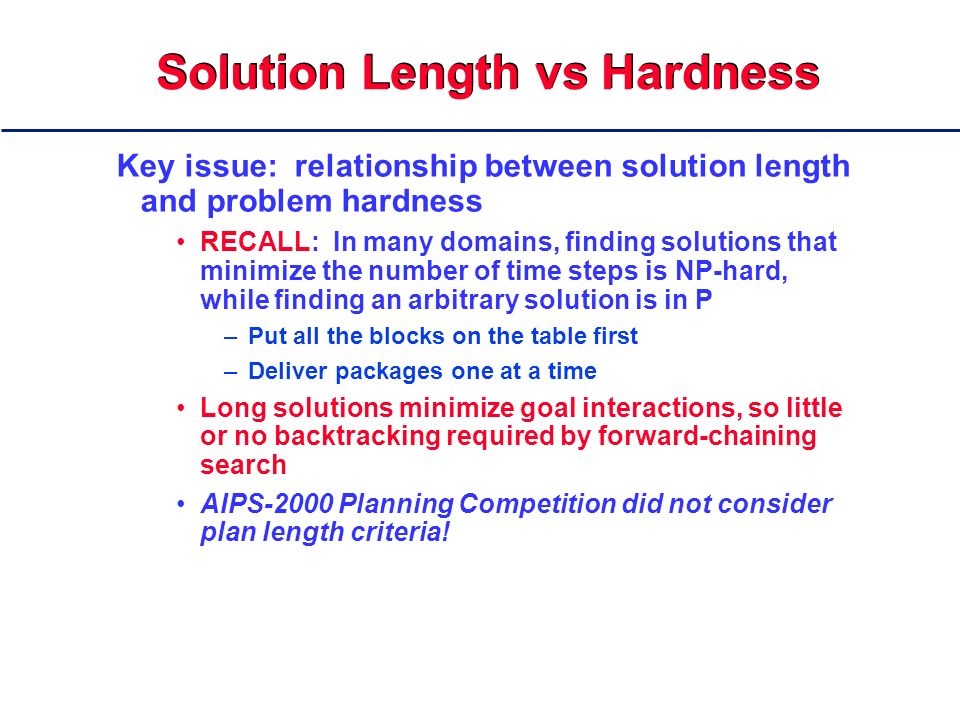

59. Solution Length vs Hardness Key issue: relationship between solution length and problem hardness RECALL: In many domains, finding solutions that minimize the number of time steps is NP-hard, while finding an arbitrary solution is in P –Put all the blocks on the table first –Deliver packages one at a time Long solutions minimize goal interactions, so little or no backtracking required by forward-chaining search AIPS-2000 Planning Competition did not consider plan length criteria!

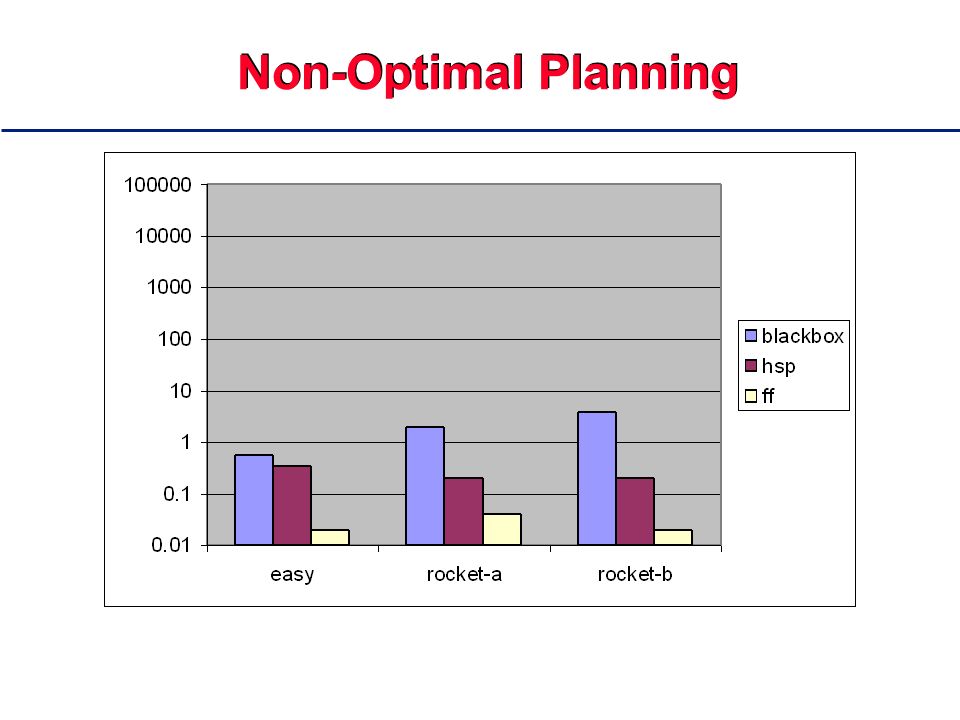

60. Non-Optimal Planning

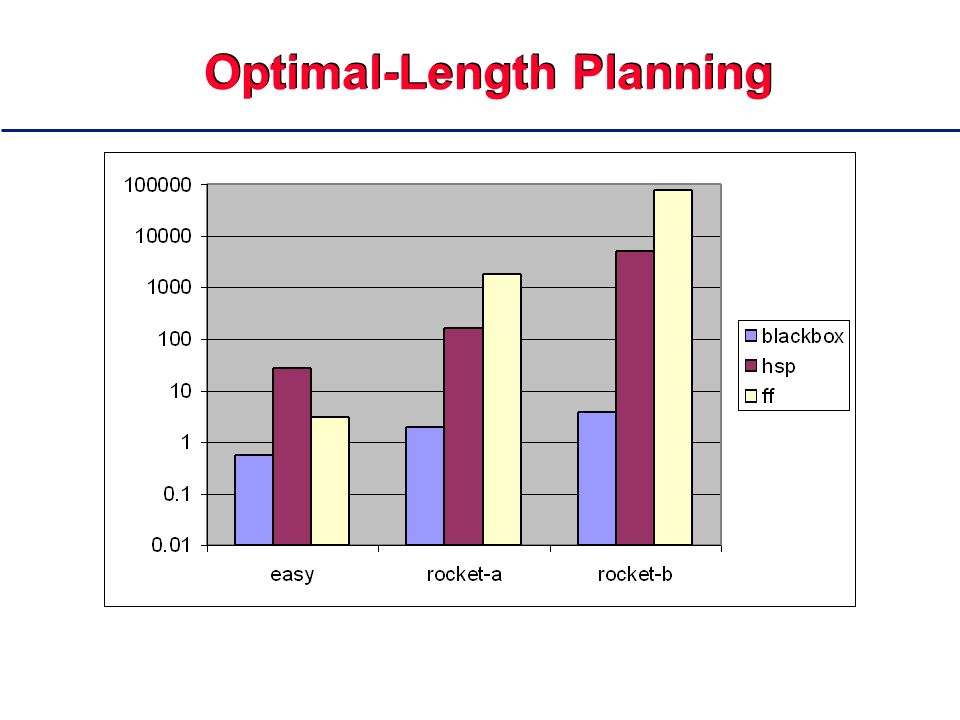

61. Optimal-Length Planning

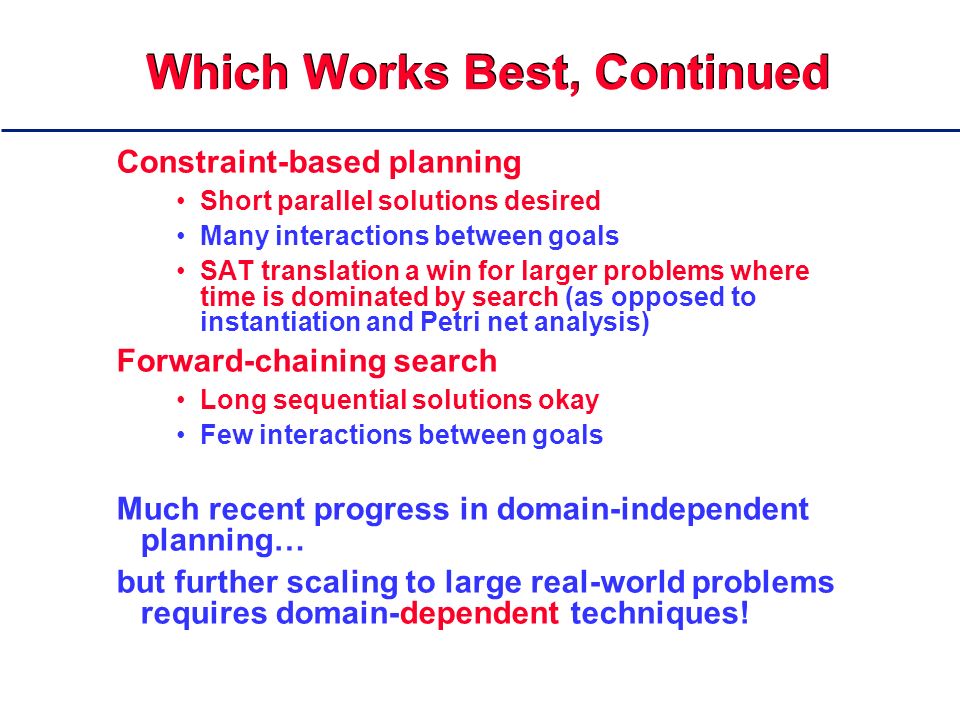

62. Which Works Best, Continued Constraint-based planning Short parallel solutions desired Many interactions between goals SAT translation a win for larger problems where time is dominated by search (as opposed to instantiation and Petri net analysis) Forward-chaining search Long sequential solutions okay Few interactions between goals Much recent progress in domain-independent planning… but further scaling to large real-world problems requires domain-dependent techniques!

63. 5. Using Domain-Specific Control Knowledge

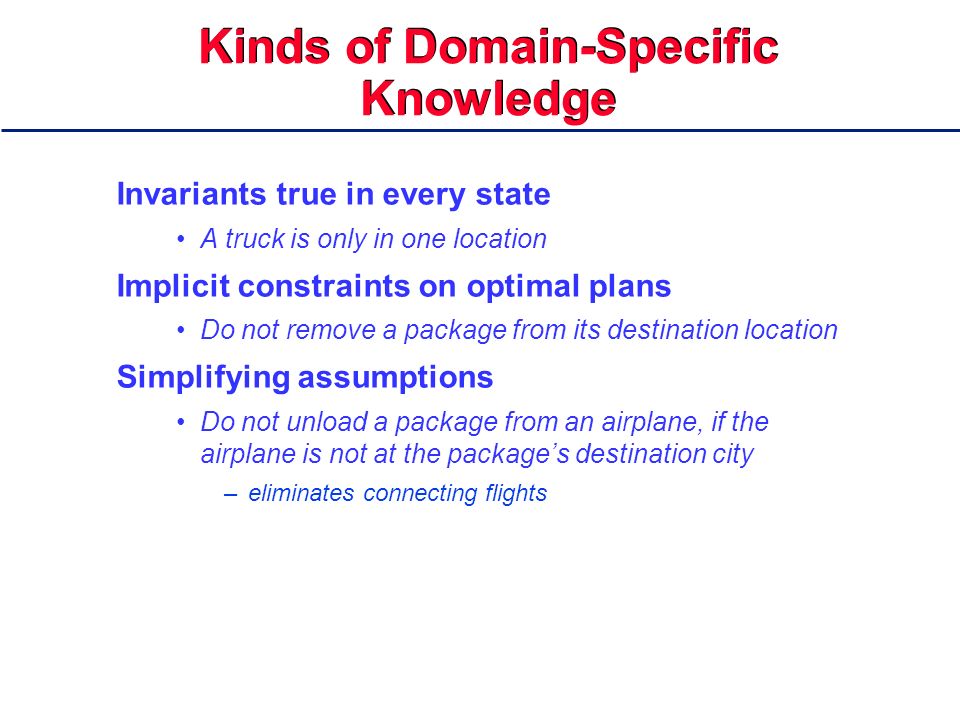

64. Kinds of Domain-Specific Knowledge Invariants true in every state A truck is only in one location Implicit constraints on optimal plans Do not remove a package from its destination location Simplifying assumptions Do not unload a package from an airplane, if the airplane is not at the package’s destination city –eliminates connecting flights

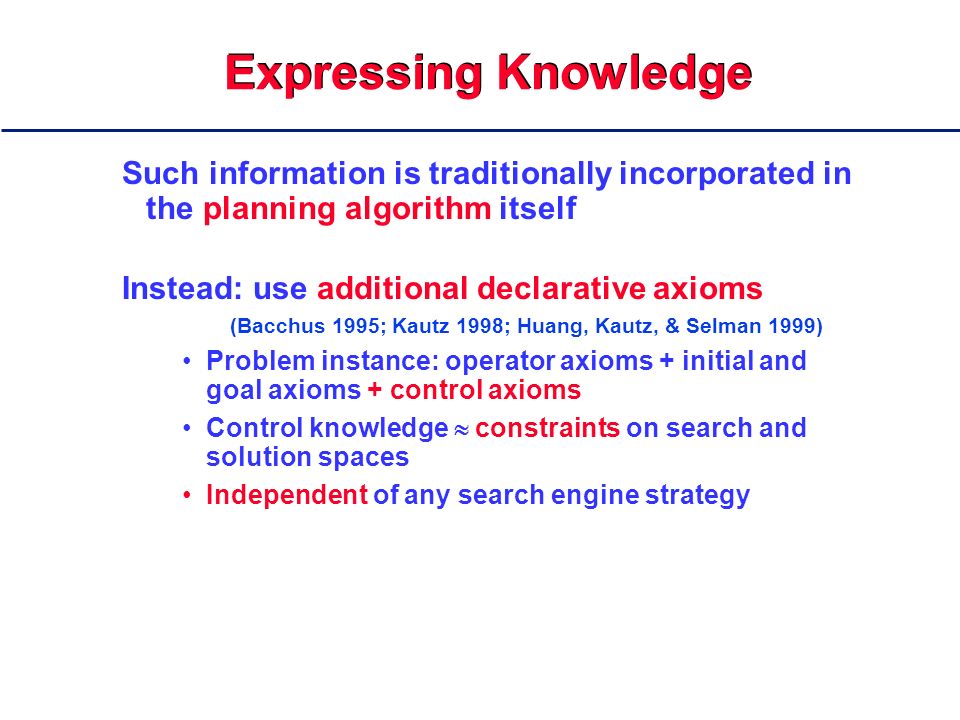

65. Expressing Knowledge Such information is traditionally incorporated in the planning algorithm itself Instead: use additional declarative axioms (Bacchus 1995; Kautz 1998; Huang, Kautz, & Selman 1999) Problem instance: operator axioms + initial and goal axioms + control axioms Control knowledge  constraints on search and solution spaces Independent of any search engine strategy

66. Axiomatic Form State Invariant: at(truck,loc1,i) & loc1  loc2   at(truck,loc2,i) Optimality: at(pkg,loc,i) &  at(pkg,loc,i+1) & i<j   at(pkg,loc,j) Simplifying Assumption incity(airport,city) & at(pkg,loc,goal) &  incity(airport,city)   unload(pkg,plane,airport)

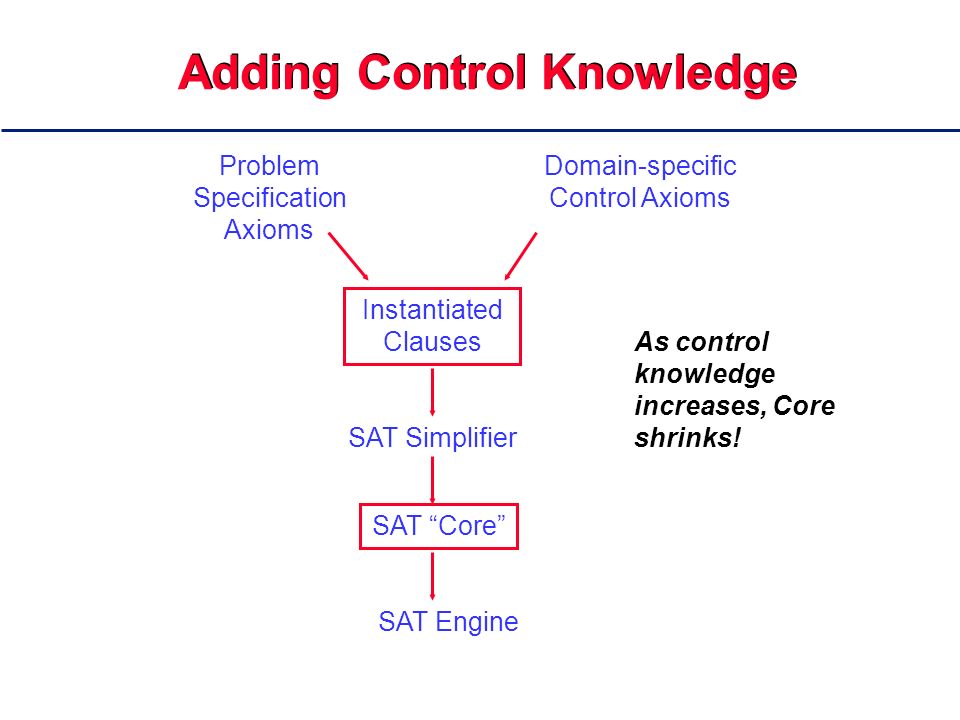

67. Adding Control Knowledge Problem Specification Axioms Domain-specific Control Axioms Instantiated Clauses SAT Simplifier SAT Engine SAT “Core” As control knowledge increases, Core shrinks!

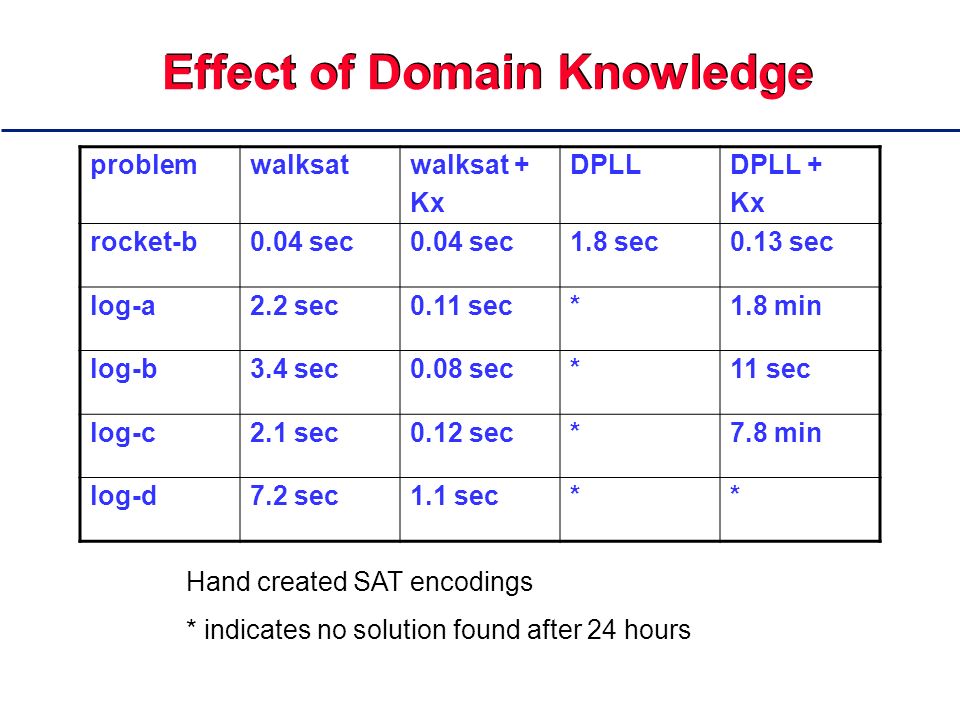

68. Effect of Domain Knowledge problemwalksatwalksat + Kx DPLLDPLL + Kx rocket-b0.04 sec 1.8 sec0.13 sec log-a2.2 sec0.11 sec*1.8 min log-b3.4 sec0.08 sec*11 sec log-c2.1 sec0.12 sec*7.8 min log-d7.2 sec1.1 sec** Hand created SAT encodings * indicates no solution found after 24 hours

69. 6. Learning Domain-Specific Control Knowledge

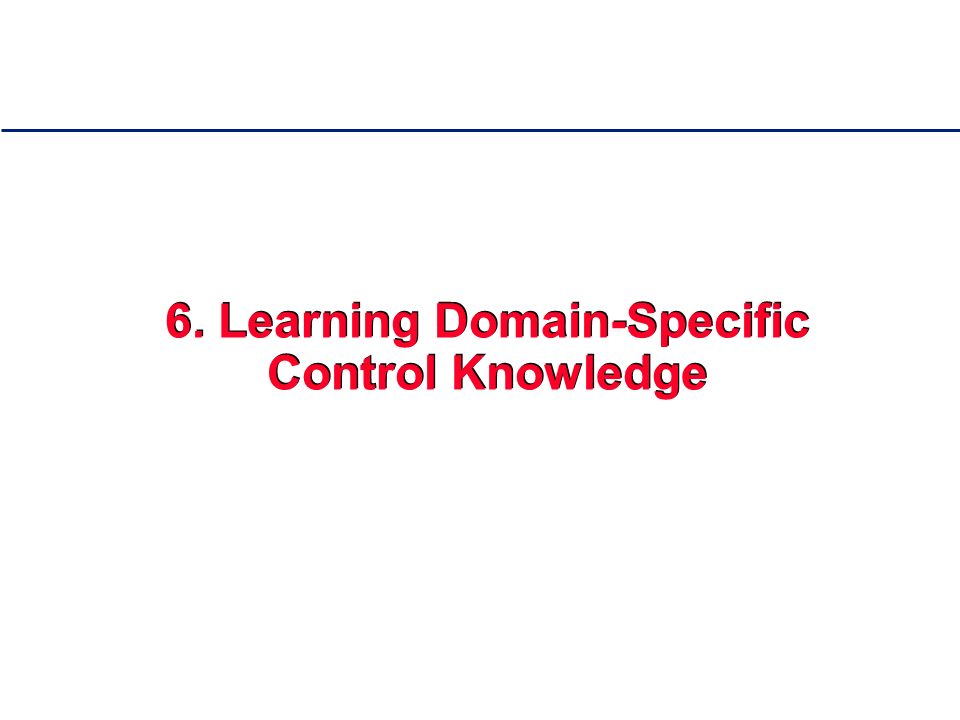

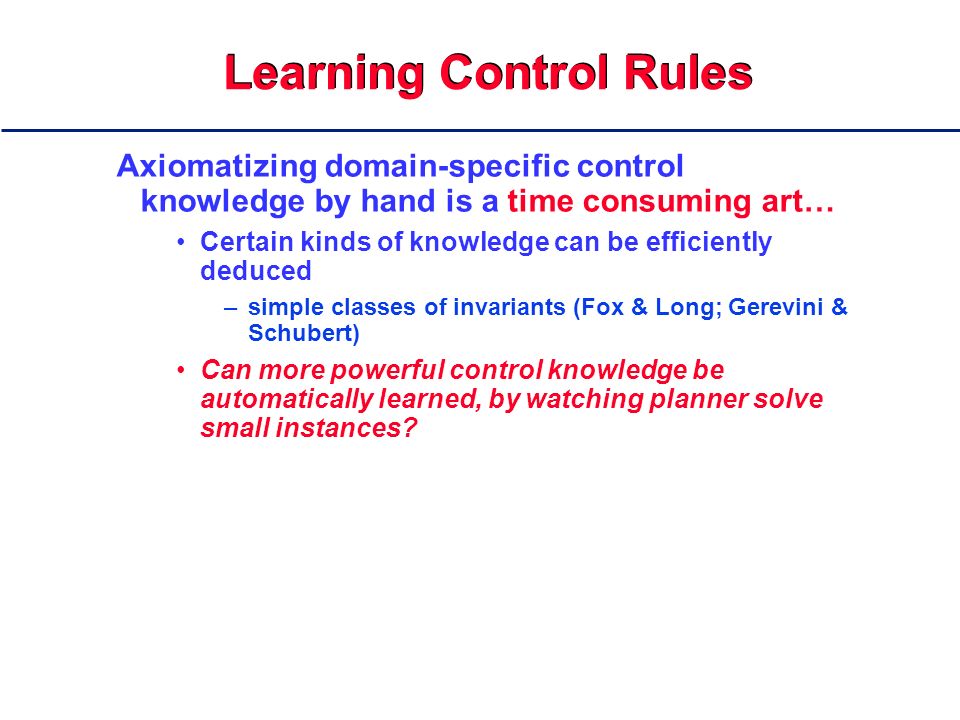

70. Learning Control Rules Axiomatizing domain-specific control knowledge by hand is a time consuming art… Certain kinds of knowledge can be efficiently deduced –simple classes of invariants (Fox & Long; Gerevini & Schubert) Can more powerful control knowledge be automatically learned, by watching planner solve small instances?

71. Form of Rules We will learn two kinds of control rules, specified as temporal logic programs –(Huang, Selman, & Kautz 2000) Select rule: conditions under which an action must be performed at the current time instance Reject rule: conditions under which an action must not be performed at the current time instance incity(airport,city) & GOAL(at(pkg,loc)) &  incity(airport,city)   unload(pkg,plane,airport)

72. Training Examples Blackbox initially solves a few small problem instances Each instance yields POSITIVE training examples – states at which actions occur in the solution NEGATIVE training examples – states at which an action does NOT occur, even though its preconditions hold in that state Note that this data is very noisy!

73. Rule Induction Rules are induced using a version of Quinlan’s FOIL inductive logic programming algorithm Generates rules one literal at time Select rules: maximize coverage of positive examples, but do not cover negative examples Reject rules: maximize coverage of negative examples, but do not cover positive examples Prune rules that are inconsistent with any of the problem instances –For details, see “Learning Declarative Control Rules for Constraint-Based Planning”, Huang, Selman, & Kautz, ICML 2000

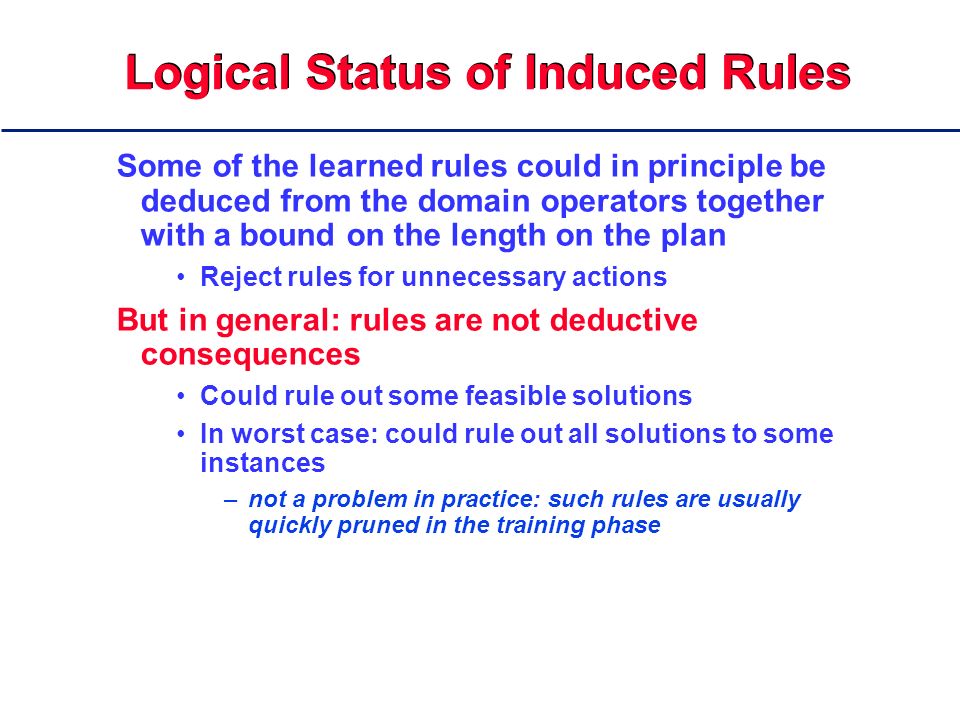

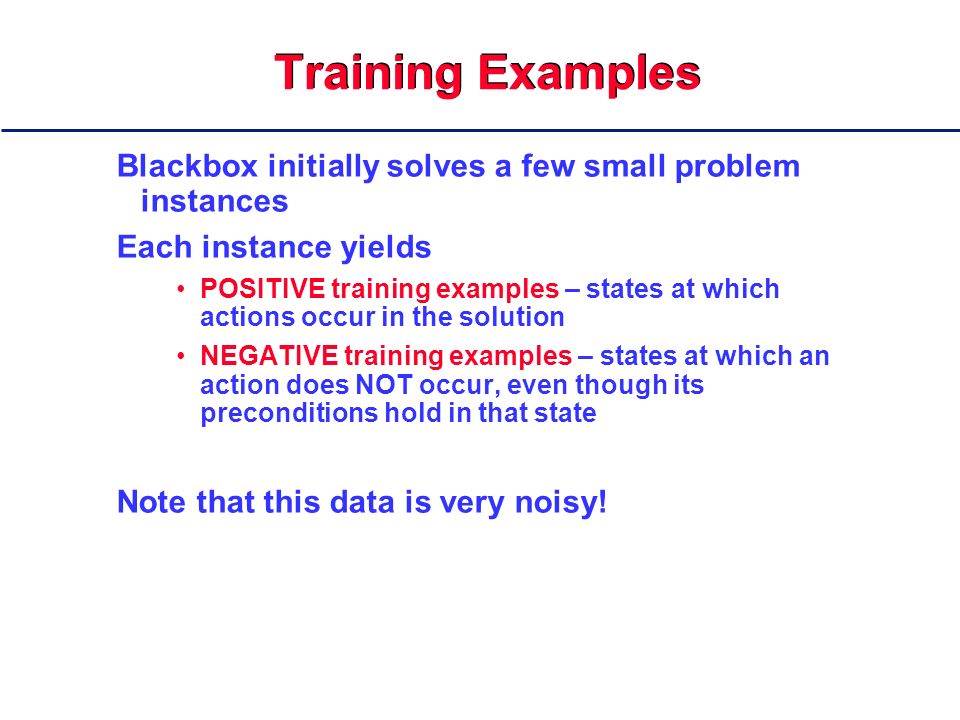

74. Logical Status of Induced Rules Some of the learned rules could in principle be deduced from the domain operators together with a bound on the length on the plan Reject rules for unnecessary actions But in general: rules are not deductive consequences Could rule out some feasible solutions In worst case: could rule out all solutions to some instances –not a problem in practice: such rules are usually quickly pruned in the training phase

75. Effect of Learning problemhorizonblackboxlearning blackbox grid-a13214.8 grid-b187416.6 gripper-315>72007.2 gripper-419>7200260 log-d1415.85.7 log-e153522291 mystery-108>720047.2 mystery-13816112.2 AIPS-98 competition benchmarks

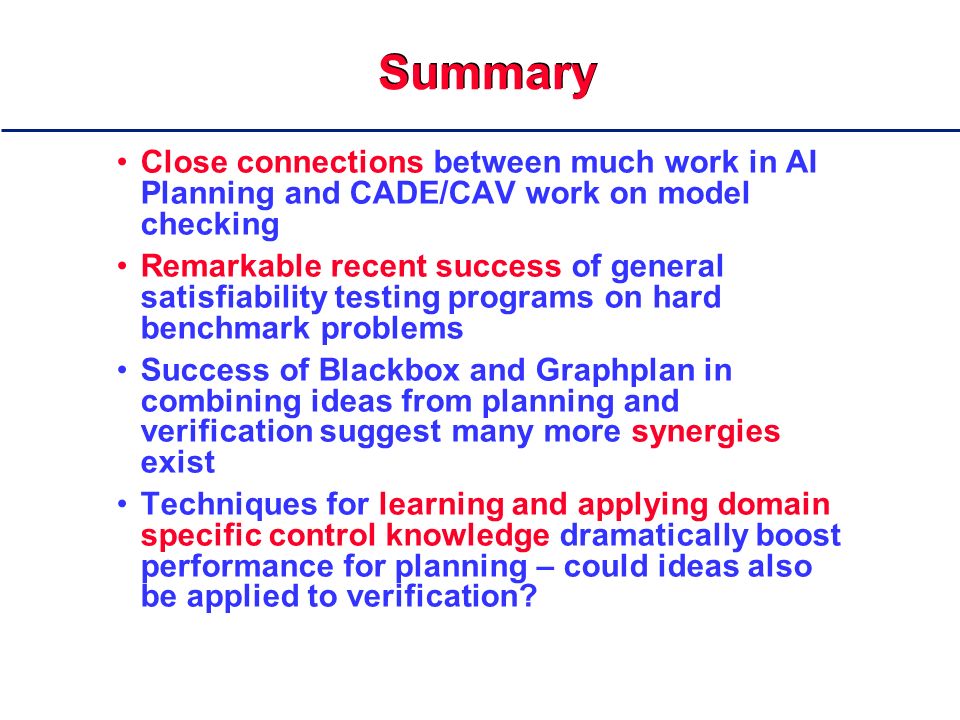

76. Summary Close connections between much work in AI Planning and CADE/CAV work on model checking Remarkable recent success of general satisfiability testing programs on hard benchmark problems Success of Blackbox and Graphplan in combining ideas from planning and verification suggest many more synergies exist Techniques for learning and applying domain specific control knowledge dramatically boost performance for planning – could ideas also be applied to verification?
