1. Advanced Results Processing Workshop 8

2. Training Manual Advanced Results Processing August 26, 2005 Inventory #002266 WS8-2 Workshop 8 - Goals In this workshop a high pressure vent assembly is analyzed for stress and deflection. Some of the results from the analysis will be difficult to interpret if all bodies are active during postprocessing. Our goal is to isolate parts of the model and use some of the advanced DS features for postprocessing.

3. Training Manual Advanced Results Processing August 26, 2005 Inventory #002266 WS8-3 Workshop 8 - Assumptions We will assume that gas is being vented through the inlet pipe into the expansion chamber. Inside the chamber the pressure drops to 20% of the inlet pressure. The expansion chamber is rigidly mounted to the inlet thus we will leave this contact region defined as bonded. The support bracket allows limited movement to the pipe so no separation contact will be used here. –See the contact description on the next page. The inlet pipe and bracket are modeled using structural steel while the expansion chamber is polyethylene.

4. Training Manual Advanced Results Processing August 26, 2005 Inventory #002266 WS8-4 Workshop 8 – Part/Contact Description Bonded Contact No Separation Contact Support Bracket Inlet Pipe Expansion Chamber

5. Training Manual Advanced Results Processing August 26, 2005 Inventory #002266 WS8-5 Workshop 8 - Start Page From the launcher start Simulation. Choose “Geometry > From File... “ and browse to the file “Pressure_System.x_t”. When DS starts, close the Template menu by clicking the ‘X’ in the corner of the window.

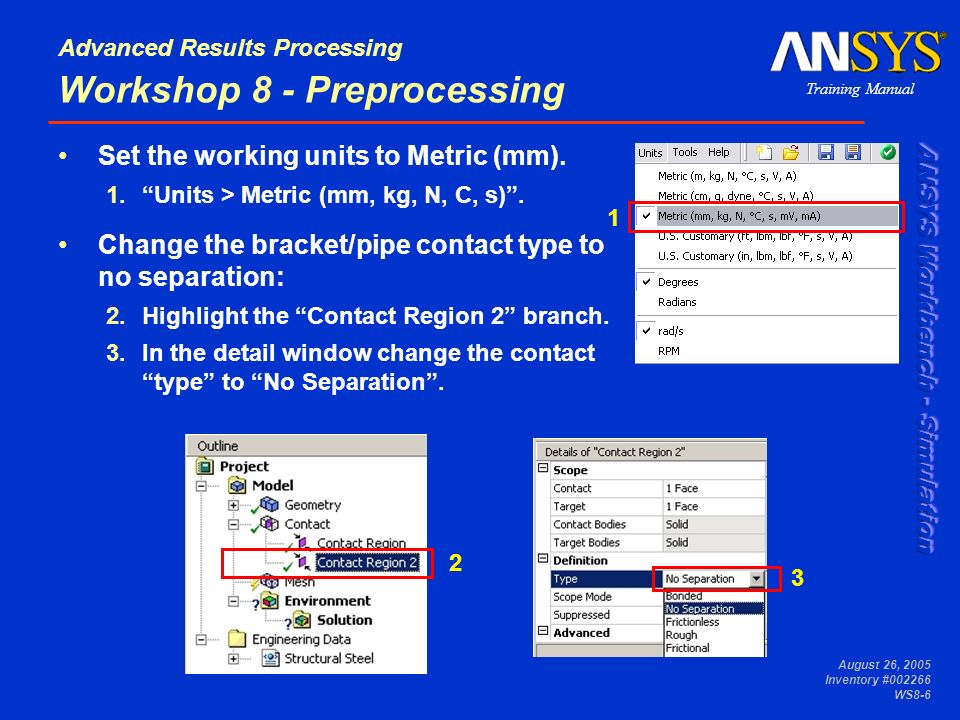

6. Training Manual Advanced Results Processing August 26, 2005 Inventory #002266 WS8-6 Workshop 8 - Preprocessing Set the working units to Metric (mm). 1.“Units > Metric (mm, kg, N, C, s)”. Change the bracket/pipe contact type to no separation: 2.Highlight the “Contact Region 2” branch. 3.In the detail window change the contact “type” to “No Separation”. 1 2 3

7. Training Manual Advanced Results Processing August 26, 2005 Inventory #002266 WS8-7... Workshop 8 – Preprocessing Change the material for the expansion chamber to polyethylene. 4.Highlight the part in the tree. 5.In the detail window click in the material field and “Import... > Polyethylene”. 4 5

8. Training Manual Advanced Results Processing August 26, 2005 Inventory #002266 WS8-8 Workshop 8 - Environment Apply pressure to the inside surfaces of the pipe: 6.Highlight the “Environment” branch. 7.Select the 5 interior surfaces of the pipe (use Extend to limits). 8.“RMB > Insert > Pressure”. 6 8 7

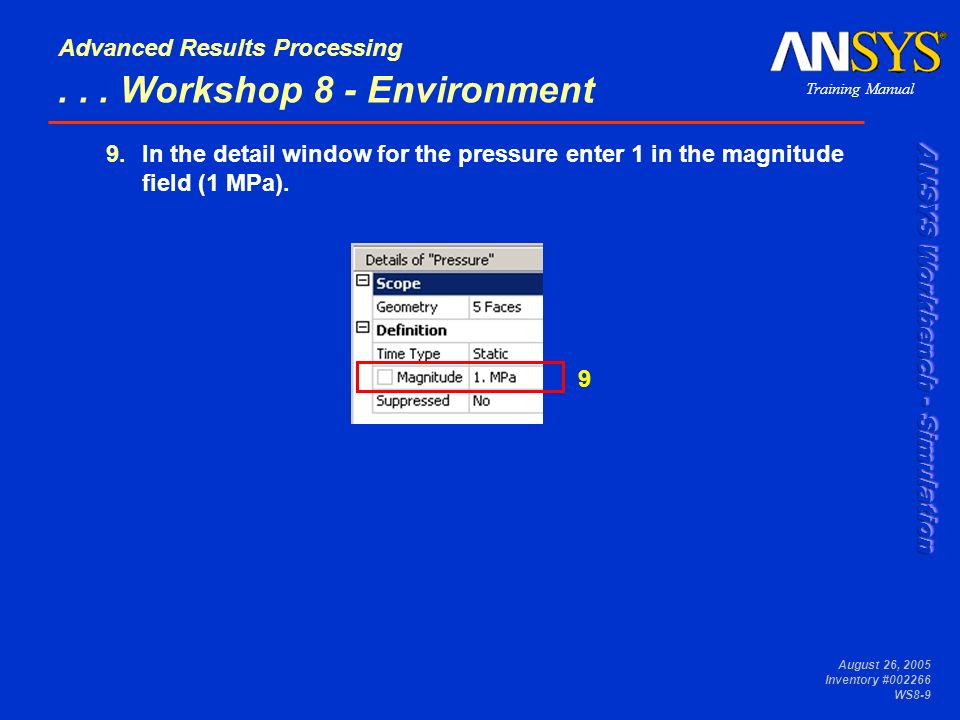

9. Training Manual Advanced Results Processing August 26, 2005 Inventory #002266 WS8-9... Workshop 8 - Environment 9.In the detail window for the pressure enter 1 in the magnitude field (1 MPa). 9

10. Training Manual Advanced Results Processing August 26, 2005 Inventory #002266 WS8-10... Workshop 8 - Environment 10.Select the 3 interior surfaces of the expansion chamber. Note, using the selection planes, the status bar and the CTRL key will simplify this selection. Alternately use “RMB > Hide All Other Bodies” 10 Selection planes Status Bar

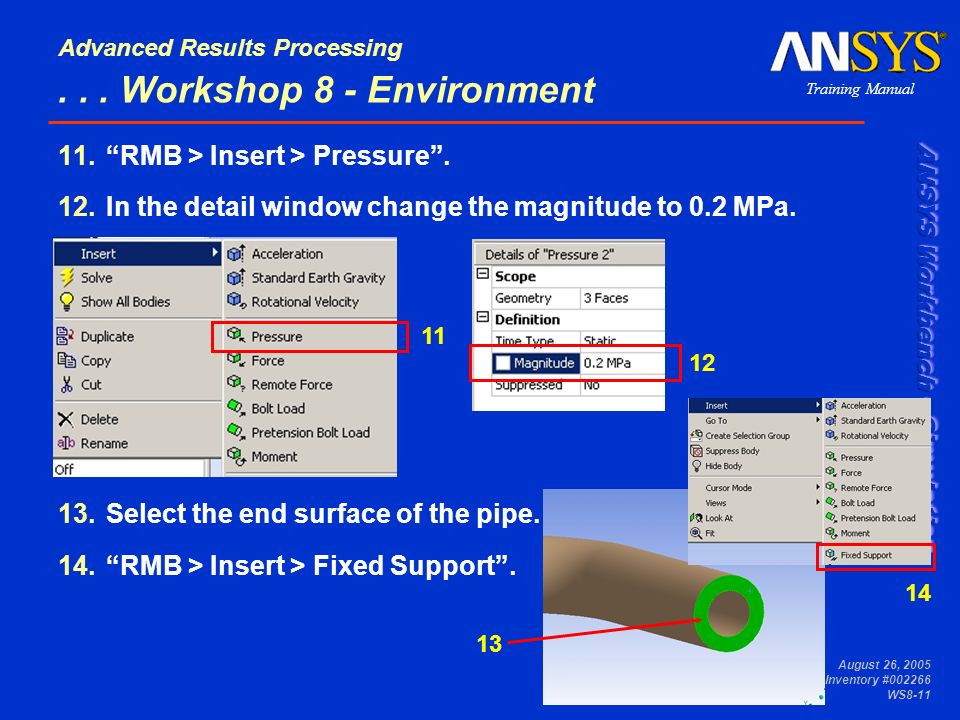

11. Training Manual Advanced Results Processing August 26, 2005 Inventory #002266 WS8-11... Workshop 8 - Environment 11.“RMB > Insert > Pressure”. 12.In the detail window change the magnitude to 0.2 MPa. 13.Select the end surface of the pipe. 14.“RMB > Insert > Fixed Support”. 12 11 13 14

12. Training Manual Advanced Results Processing August 26, 2005 Inventory #002266 WS8-12... Workshop 8 - Environment 15.Select the surface of the cylinder in the bracket. 16.“RMB > Insert > Cylindrical Support” (leave default fixed,fixed,fixed). 16 15

13. Training Manual Advanced Results Processing August 26, 2005 Inventory #002266 WS8-13... Workshop 8 - Environment 17.Select the back face of the bracket. 18.“RMB > Insert > Frictionless Support”. 17 18

14. Training Manual Advanced Results Processing August 26, 2005 Inventory #002266 WS8-14 Workshop 8 - Solution 19.Highlight the solution branch. 20.RMB > Insert > Stress > Equivalent (von Mises) 21.RMB > Insert > Deformation > Total Solve 20 21 19

15. Training Manual Advanced Results Processing August 26, 2005 Inventory #002266 WS8-15 Workshop 8 - Results When the solution is complete (OK the weak springs message), highlight the 2 result objects and view them. Notice the total deformation plot contains very little detail for the inlet pipe and support bracket parts of the assembly.

16. Training Manual Advanced Results Processing August 26, 2005 Inventory #002266 WS8-16... Workshop 8 - Results Scope a new total deformation to the expansion chamber 22. Highlight the solution branch. 23. Switch to body select mode and highlight the expansion chamber in the graphics window. 24. “RMB > Insert > Deformation > Total”. 22 24 23

17. Training Manual Advanced Results Processing August 26, 2005 Inventory #002266 WS8-17... Workshop 8 - Results Repeat the procedure on the previous page but choose “Equivalent stress” as the result. Repeat the procedure on the previous page and above for the remaining parts. Solve again to update the new result objects. Compare the overall result to the individual ones (as shown below). Note the increased detail shown in the individual plots.

18. Training Manual Advanced Results Processing August 26, 2005 Inventory #002266 WS8-18... Workshop 8 - Results Add a slice plane. –Plot the stress scoped to the expansion chamber then reorient the model to look into the Z axis as shown below. Note the triad at the bottom of the screen can be convenient to reorient the model. 25. Click on the slice plane icon and hold down the left mouse button and draw a line down the center of the plot. 25

19. Training Manual Advanced Results Processing August 26, 2005 Inventory #002266 WS8-19... Workshop 8 - Results In order to see the sliced plane you will need to rotate the model slightly (when first drawn) you are looking at the edge.

20. Training Manual Advanced Results Processing August 26, 2005 Inventory #002266 WS8-20... Workshop 8 - Results 26. To edit a slice plane first click on the “Edit Planes” icon. A “handle” will appear in the graphics window. Using the left mouse button you can click and drag the slice plane to a new location. 26 Handle

21. Training Manual Advanced Results Processing August 26, 2005 Inventory #002266 WS8-21... Workshop 8 - Results By clicking on one of the dashed lines on either end of the handle you can activate the result plot on one side of the slice plane. Note the dashed line then becomes solid. This is a toggle control.

22. Training Manual Advanced Results Processing August 26, 2005 Inventory #002266 WS8-22 Workshop 8 – Slice Plane Notes You may create as many slice planes as desired and each can be edited individually. This can be useful for things like plotting a quarter section of a result. –Note, use the Tab key to toggle between defined slice planes to modify each To hide the slice plane(s) use the drop down geometry type icon and return to an “exterior” plot. The slice plane(s) remains in its current location and can be reactivated whenever desired. Figures which contain slice planes will display slice planes regardless of the setting of the geometry icon. Geometry Icon

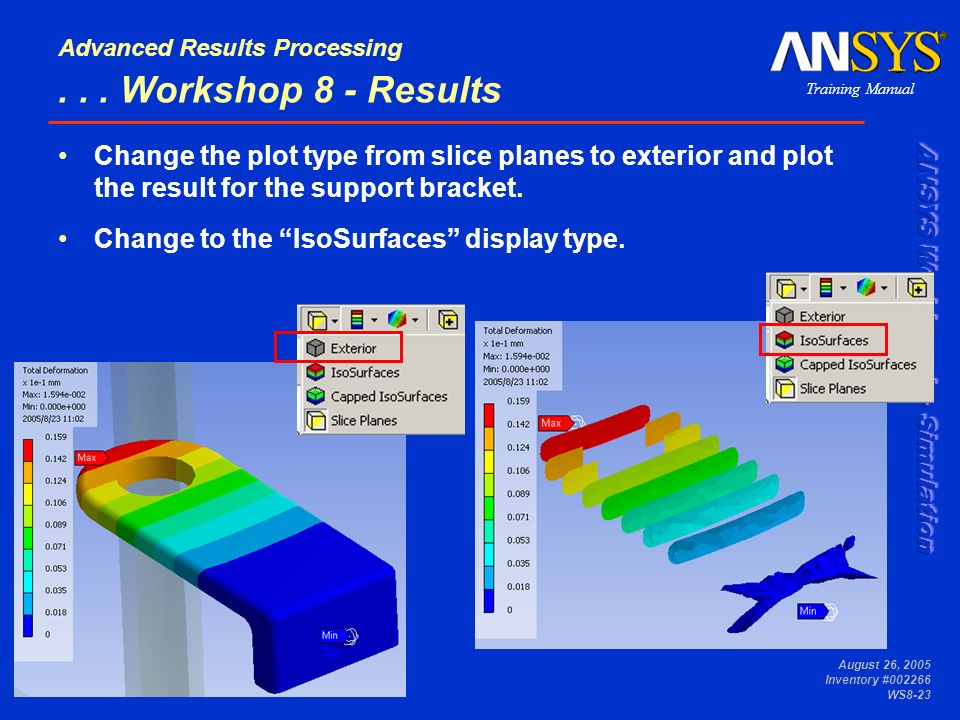

23. Training Manual Advanced Results Processing August 26, 2005 Inventory #002266 WS8-23... Workshop 8 - Results Change the plot type from slice planes to exterior and plot the result for the support bracket. Change to the “IsoSurfaces” display type.

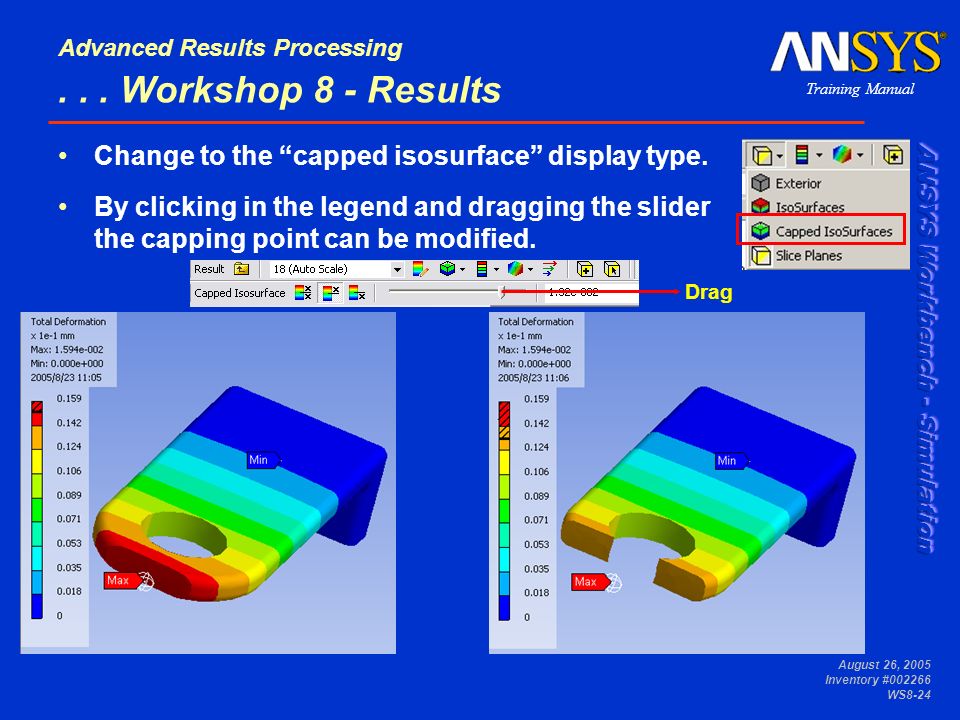

24. Training Manual Advanced Results Processing August 26, 2005 Inventory #002266 WS8-24... Workshop 8 - Results Change to the “capped isosurface” display type. By clicking in the legend and dragging the slider the capping point can be modified. Drag

25. Training Manual Advanced Results Processing August 26, 2005 Inventory #002266 WS8-25... Workshop 8 - Results Reactivate the exterior plot for the complete assembly stresses. From the “Edges” icon choose to “Show Elements”. Edges Icon

26. Training Manual Advanced Results Processing August 26, 2005 Inventory #002266 WS8-26... Workshop 8 - Results Finally add some annotations to pin point results. Plot the exterior stress plot for the assembly. Activate the “Probe” and click several locations on the model to add annotations. Note to remove annotations activate the “Label” icon and highlight the specific annotation. Use the keyboard “delete” key to remove the annotation.
