1. A Model for the Origin of Homochirality in Polymerization and β Sheet Formation Nathaniel Wagner, βoris Rubinov, Gonen Ashkenasy

2. Chirality

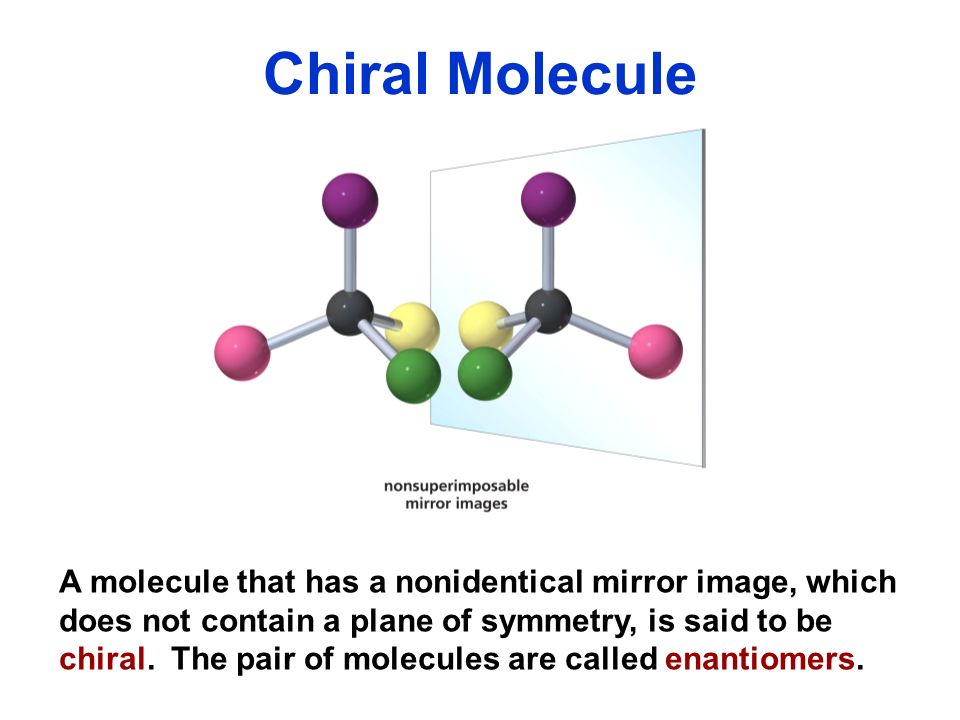

3. A molecule that has a nonidentical mirror image, which does not contain a plane of symmetry, is said to be chiral. The pair of molecules are called enantiomers. Chiral Molecule

4. Naming Conventions R (Rectus) vs. S (Sinister) D (Dextro) vs. L (Levo)

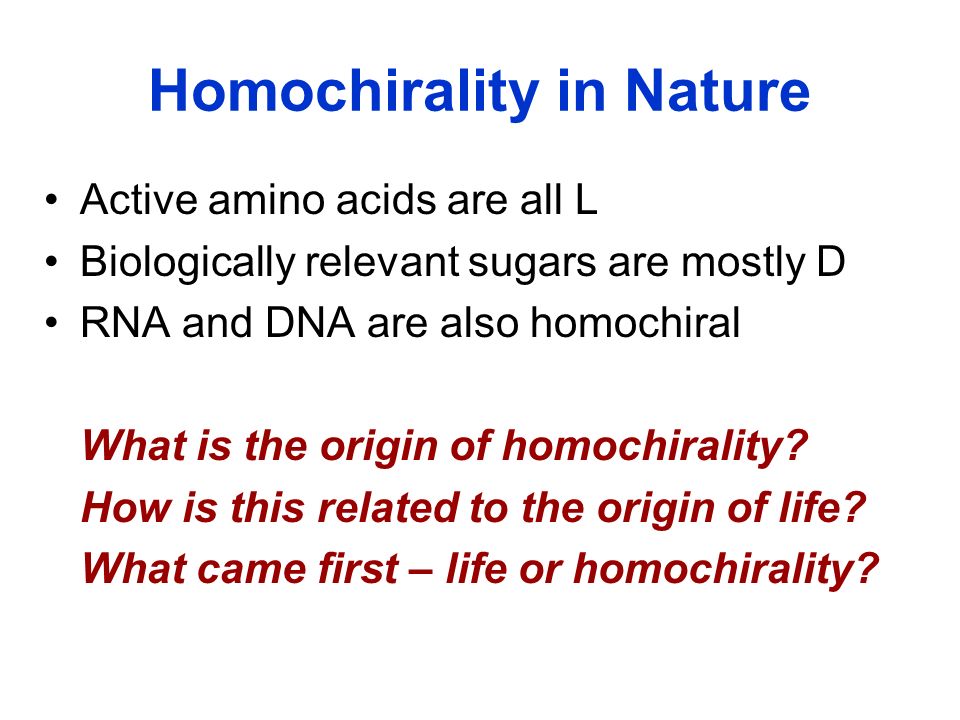

5. Homochirality in Nature Active amino acids are all L Biologically relevant sugars are mostly D RNA and DNA are also homochiral What is the origin of homochirality? How is this related to the origin of life? What came first – life or homochirality?

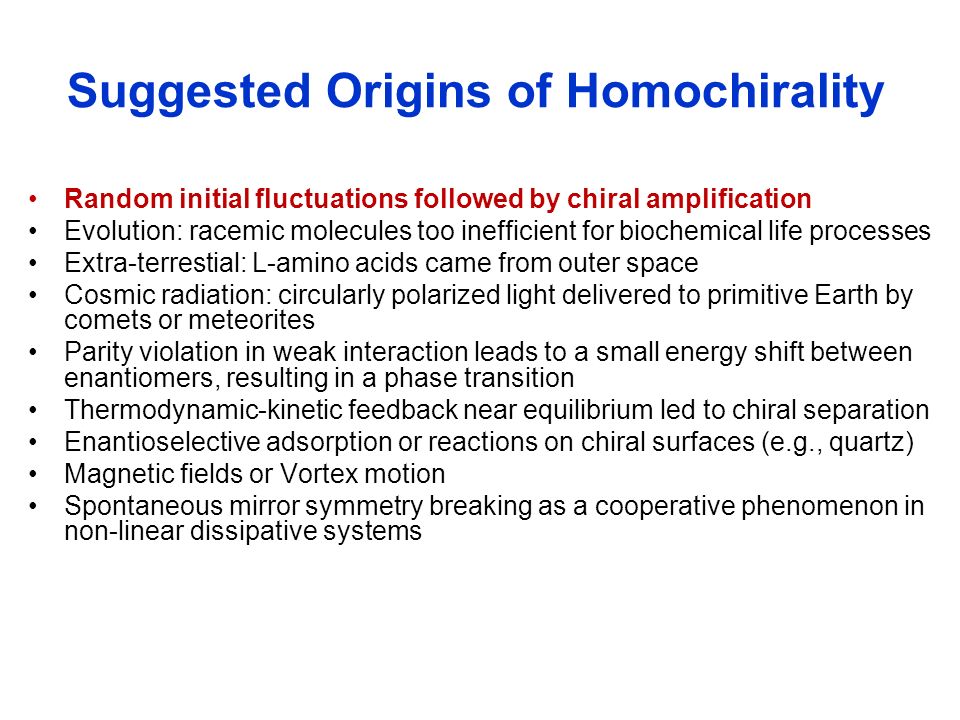

6. Suggested Origins of Homochirality Random initial fluctuations followed by chiral amplification Evolution: racemic molecules too inefficient for biochemical life processes Extra-terrestial: L-amino acids came from outer space Cosmic radiation: circularly polarized light delivered to primitive Earth by comets or meteorites Parity violation in weak interaction leads to a small energy shift between enantiomers, resulting in a phase transition Thermodynamic-kinetic feedback near equilibrium led to chiral separation Enantioselective adsorption or reactions on chiral surfaces (e.g., quartz) Magnetic fields or Vortex motion Spontaneous mirror symmetry breaking as a cooperative phenomenon in non-linear dissipative systems

7. Frank Model (1953) Proposed a reaction scheme where chiral autocatalysis – in which each enantiomer catalyzes its own formation and suppresses the production of the opposite enantiomer - amplifies small statistical fluctuations, leading to large enantiomeric excess. Concluded: “A laboratory demonstration may not be impossible.” Kondepudi (1990) Asakura (1995) Ghadiri (2001) Luisi (2001) Buhse (2003) Blackmond (2004) Plasson (2004, 2007) Viedma (2005) Ribo (2008) Chiral Amplification / Symmetry Breaking Models and Experiments Soai Reaction (1990, 1995) Designed and implemented an asymmetric autocatalytic reaction system, where a small enantiomeric excess yielded a much larger excess at the end of the reaction.

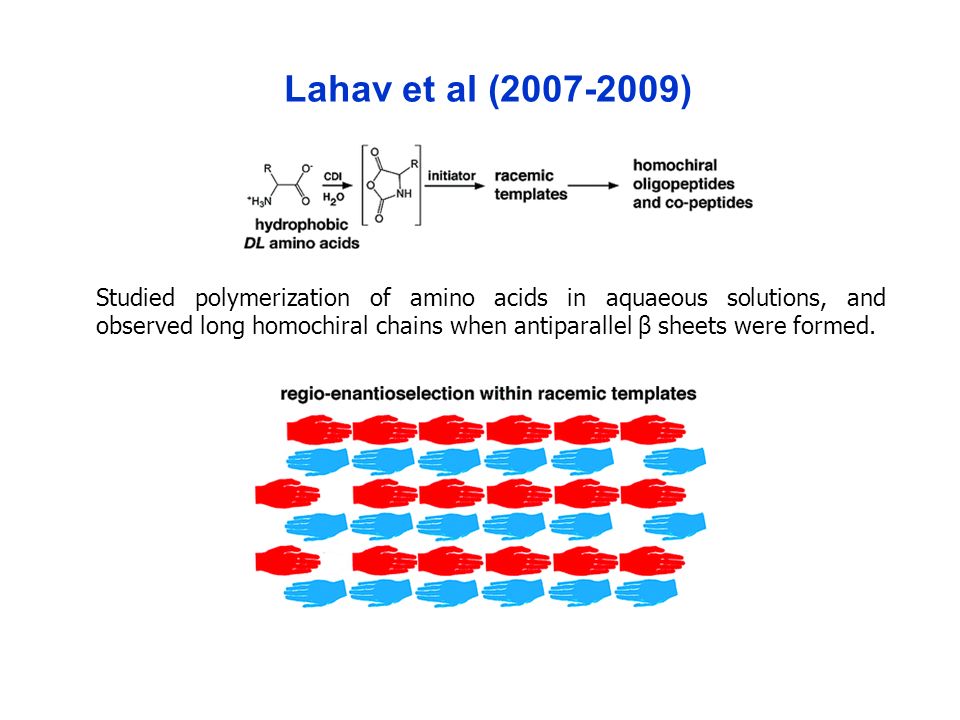

8. Lahav et al (2007-2009) Studied polymerization of amino acids in aquaeous solutions, and observed long homochiral chains when antiparallel β sheets were formed.

9. Theoretical Explanation of Lahav et al Goals: Gain insight into kinetic model Simulate the potential role of β sheets in peptide length distributions Highlight the parameters that affect homochiral polymerization Probe the interplay between the various competing processes Investigate open systems Provide “recipes” for further experiments Further speculation …

10. A toy model is a simplified set of objects and equations used to understand complex mechanisms. This is usually done by reducing the number of dimensions or variables, while leaving in the essential details, in order to reproduce the main qualitative effects. Sandars (2003) Wattis and Coveney (2005) Brandenburg et al (2005, 2007) Kafri, Markovitch, Lancet (2010) Chiral selection resulting from the GARD model Blanco and Hochberg (2011) Explained symmetry breaking in Lahav’s chiral crystallization experimental results Toy Models Polymerization leading to Homochirality

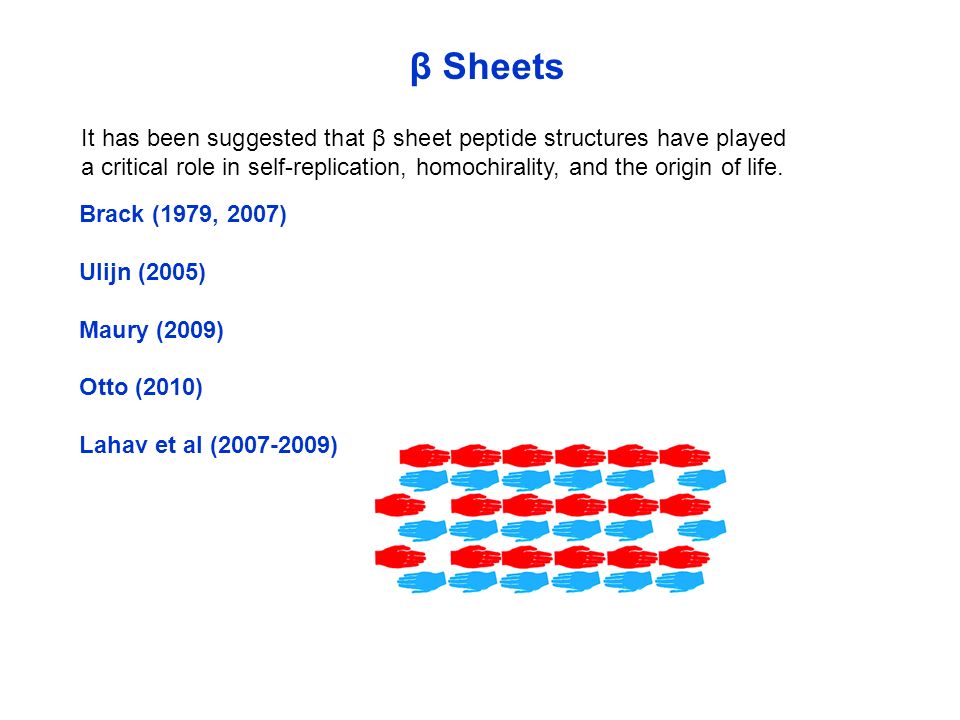

11. Brack (1979, 2007) Ulijn (2005) Maury (2009) Otto (2010) β Sheets It has been suggested that β sheet peptide structures have played a critical role in self-replication, homochirality, and the origin of life.

12. Brack (1979, 2007) Ulijn (2005) Maury (2009) Otto (2010) Lahav et al (2007-2009) β Sheets It has been suggested that β sheet peptide structures have played a critical role in self-replication, homochirality, and the origin of life.

13. Self Replicating β-Sheet Forming Peptides B. Rubinov, N. Wagner, H. Rapaport, G. Ashkenasy, Agnew. Chem. Int. Ed. 48, 6683 (2009) Suggested Mechanism: TnTn E●N●TnE●N●Tn T n+1 EN Simple peptides can form β sheets that serve as catalysts for self-replication.

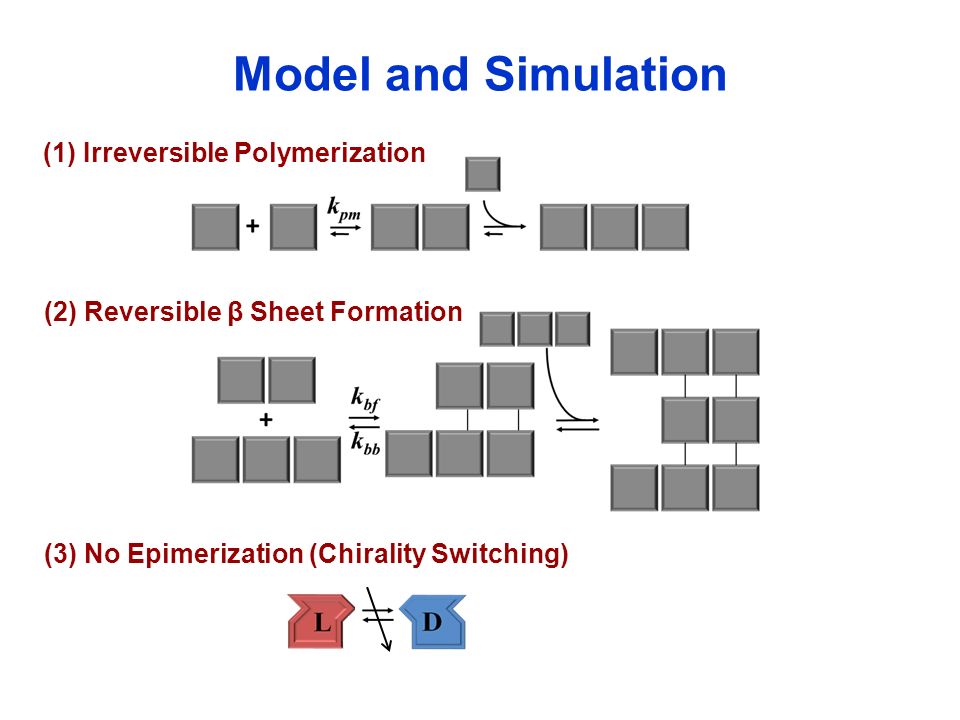

14. Model and Simulation (2) Reversible β Sheet Formation (1) Irreversible Polymerization (3) No Epimerization (Chirality Switching)

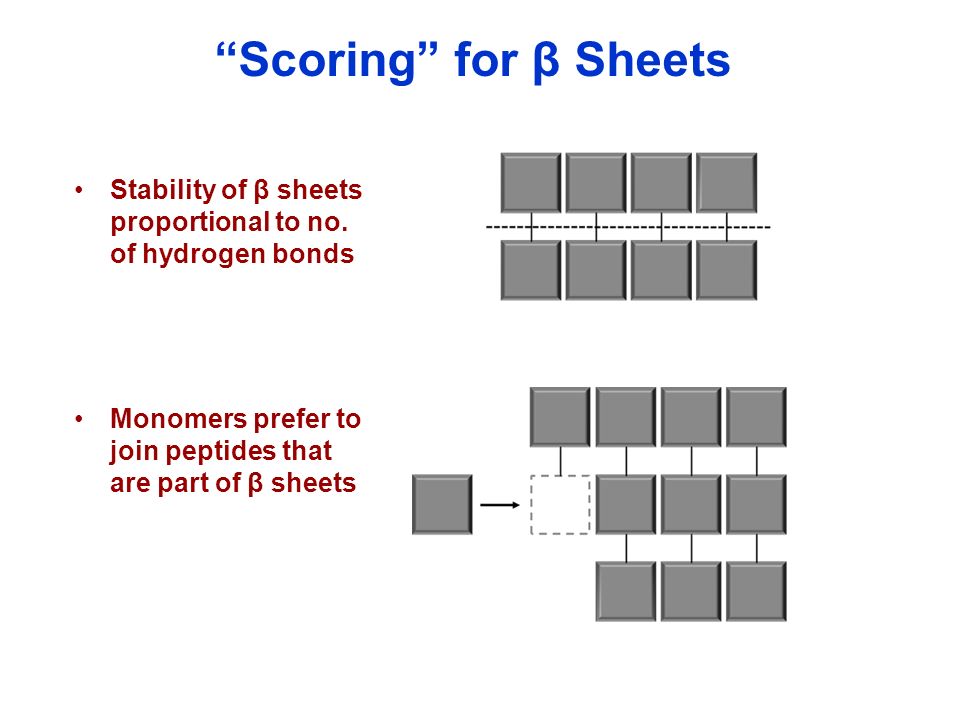

15. “Scoring” for β Sheets Monomers prefer to join peptides that are part of β sheets Stability of β sheets proportional to no. of hydrogen bonds

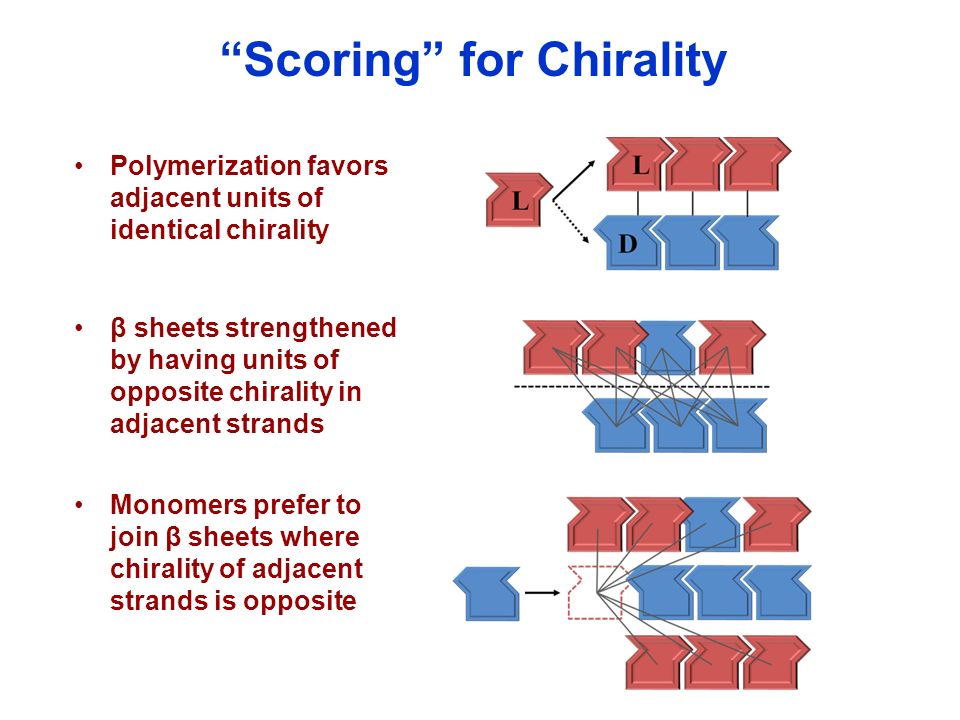

16. “Scoring” for Chirality Polymerization favors adjacent units of identical chirality β sheets strengthened by having units of opposite chirality in adjacent strands Monomers prefer to join β sheets where chirality of adjacent strands is opposite

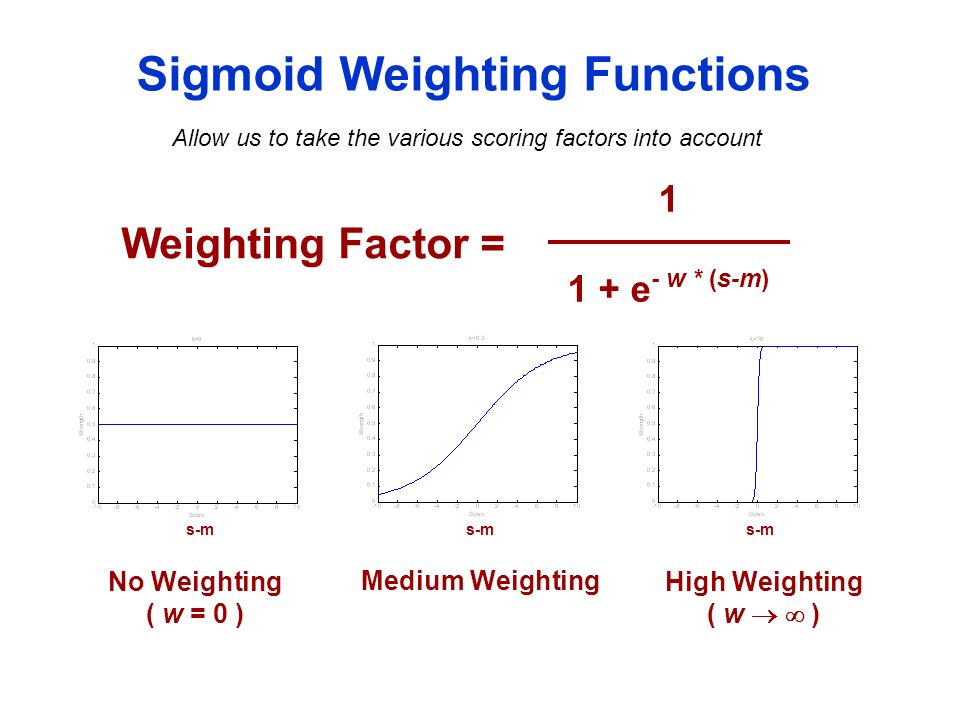

17. Sigmoid Weighting Functions 1 1 + e - w * (s-m) No Weighting ( w = 0 ) High Weighting ( w   ) Medium Weighting s-m Weighting Factor = Allow us to take the various scoring factors into account

18. Simulation Flow Chart Concurrent processes (until monomers run out): Polymerization β Sheet Formation β Sheet Breakup

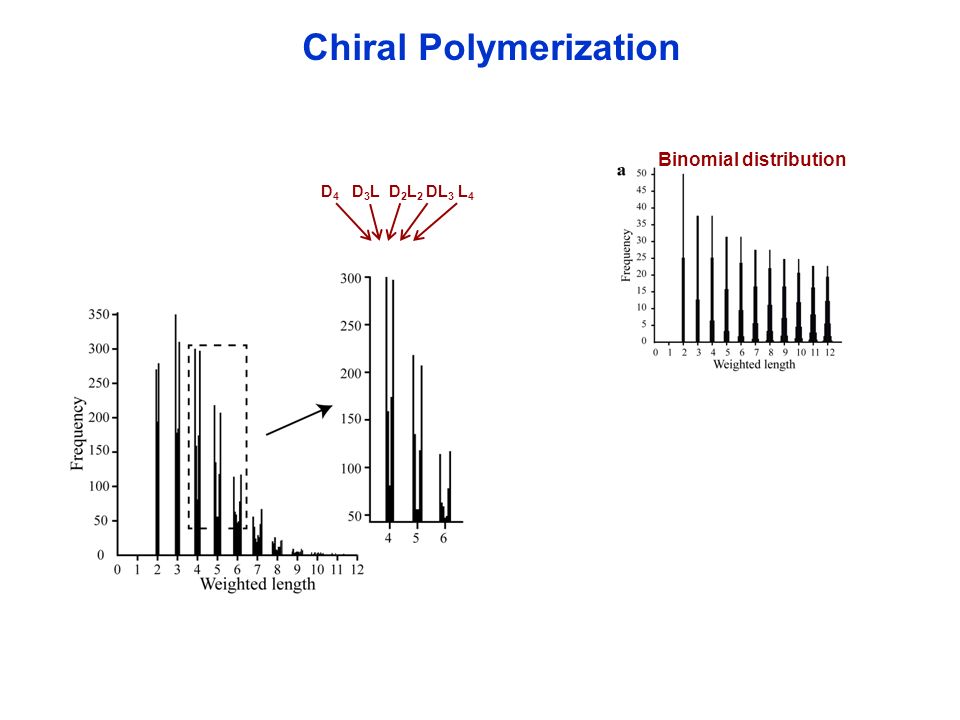

19. Chiral Polymerization D 4 D 3 L D 2 L 2 DL 3 L 4 Binomial distribution

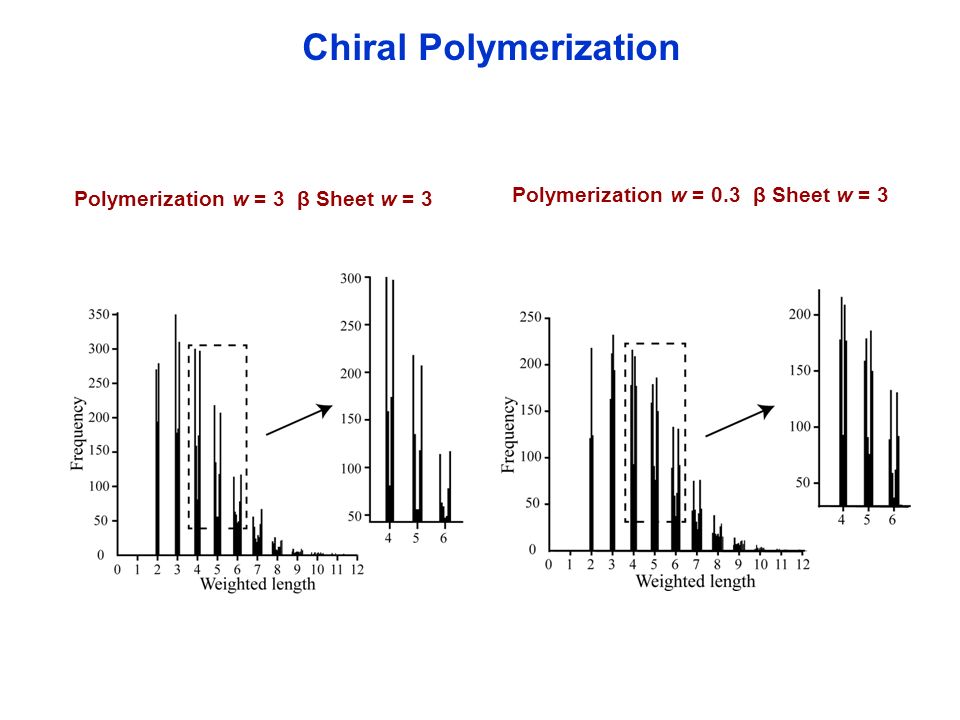

20. Chiral Polymerization Polymerization w = 3 β Sheet w = 3 Polymerization w = 0.3 β Sheet w = 3

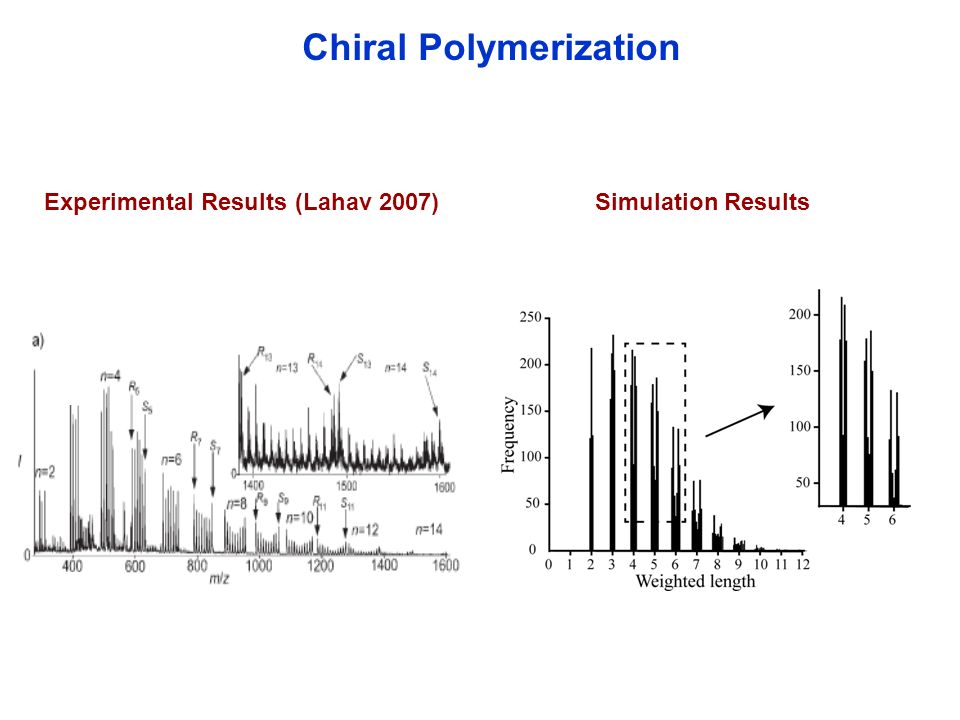

21. Chiral Polymerization Simulation Results Experimental Results (Lahav 2007)

22. Non-Racemic Initial Conditions (20% ee) ee = ([L]-[D])/([L]+[D]) 20% ee -20% ee enantiomeric excess: diastereomeric excess:

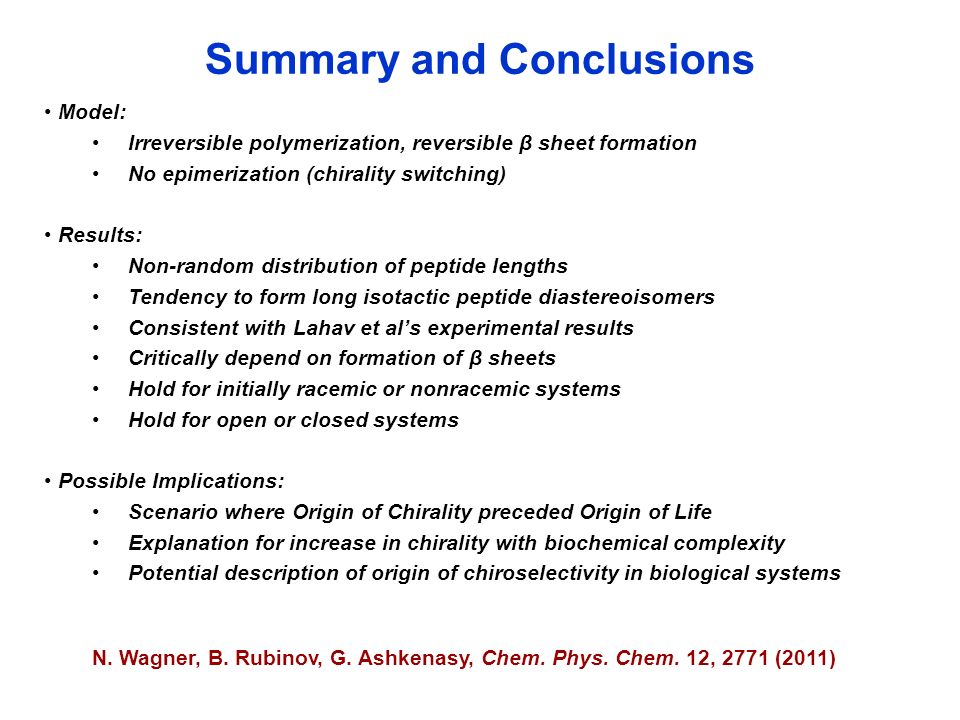

23. Model: Irreversible polymerization, reversible β sheet formation No epimerization (chirality switching) Results: Non-random distribution of peptide lengths Tendency to form long isotactic peptide diastereoisomers Consistent with Lahav et al’s experimental results Critically depend on formation of β sheets Hold for initially racemic or nonracemic systems Hold for open or closed systems Possible Implications: Scenario where Origin of Chirality preceded Origin of Life Explanation for increase in chirality with biochemical complexity Potential description of origin of chiroselectivity in biological systems Summary and Conclusions N. Wagner, B. Rubinov, G. Ashkenasy, Chem. Phys. Chem. 12, 2771 (2011)

24. Special Thanks to … Prof. Gonen Ashkenasy Prof. Meir Lahav Boris Rubinov Maya Kleiman Prof. Addy Pross ● Prof. Emmanuel Tannenbaum Dr. Rivka Cohen-Luria ● Dr. Dima Lukatsky Zehavit Dadon ● Rita Eisenberg ● Yosi Shamay ● Inbal Shumacher ● Lina Shtelman Samaa Alesebi ● Dennis Ivnitski ● Valery Bourbo ● Nadia Levin ● Vered Zavaro Yoav Raz ● Eran Itan Prof. Avshalom Elitzur Machon IYAR – Israel Institute for Advanced Study

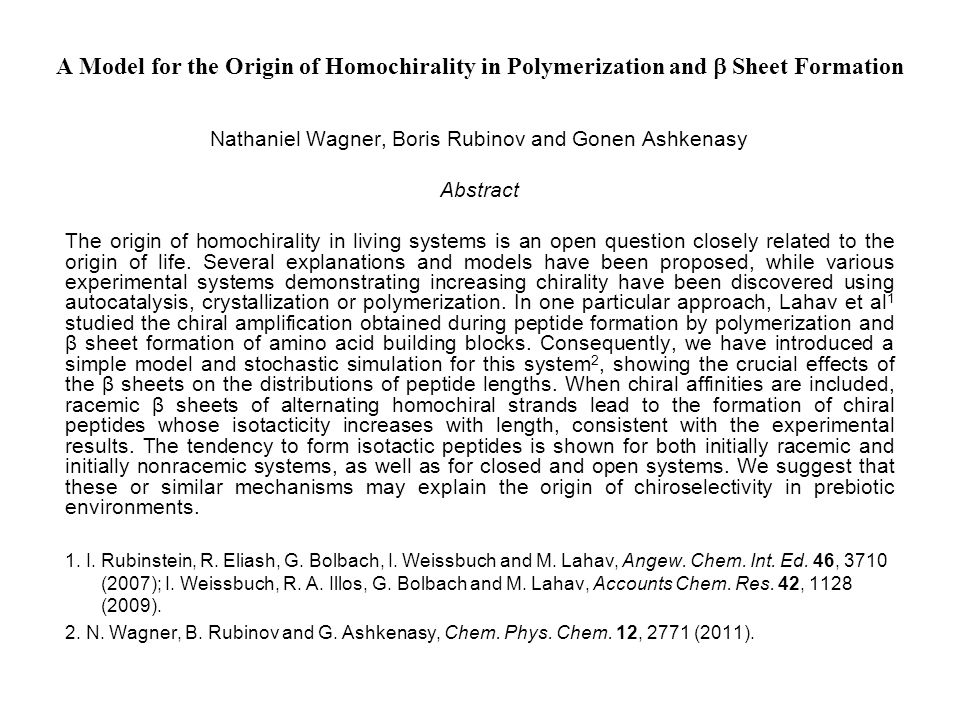

25. A Model for the Origin of Homochirality in Polymerization and  Sheet Formation Nathaniel Wagner, Boris Rubinov and Gonen Ashkenasy Abstract The origin of homochirality in living systems is an open question closely related to the origin of life. Several explanations and models have been proposed, while various experimental systems demonstrating increasing chirality have been discovered using autocatalysis, crystallization or polymerization. In one particular approach, Lahav et al 1 studied the chiral amplification obtained during peptide formation by polymerization and β sheet formation of amino acid building blocks. Consequently, we have introduced a simple model and stochastic simulation for this system 2, showing the crucial effects of the β sheets on the distributions of peptide lengths. When chiral affinities are included, racemic β sheets of alternating homochiral strands lead to the formation of chiral peptides whose isotacticity increases with length, consistent with the experimental results. The tendency to form isotactic peptides is shown for both initially racemic and initially nonracemic systems, as well as for closed and open systems. We suggest that these or similar mechanisms may explain the origin of chiroselectivity in prebiotic environments. 1. I. Rubinstein, R. Eliash, G. Bolbach, I. Weissbuch and M. Lahav, Angew. Chem. Int. Ed. 46, 3710 (2007); I. Weissbuch, R. A. Illos, G. Bolbach and M. Lahav, Accounts Chem. Res. 42, 1128 (2009). 2. N. Wagner, B. Rubinov and G. Ashkenasy, Chem. Phys. Chem. 12, 2771 (2011).

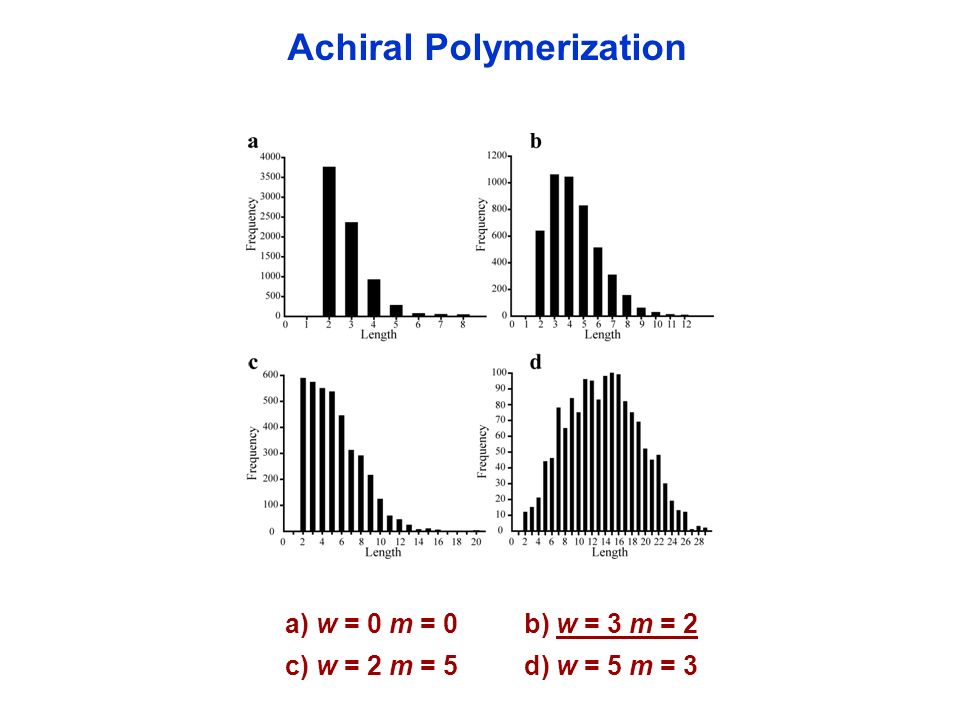

26. Achiral Polymerization a) w = 0 m = 0 b) w = 3 m = 2 c) w = 2 m = 5 d) w = 5 m = 3

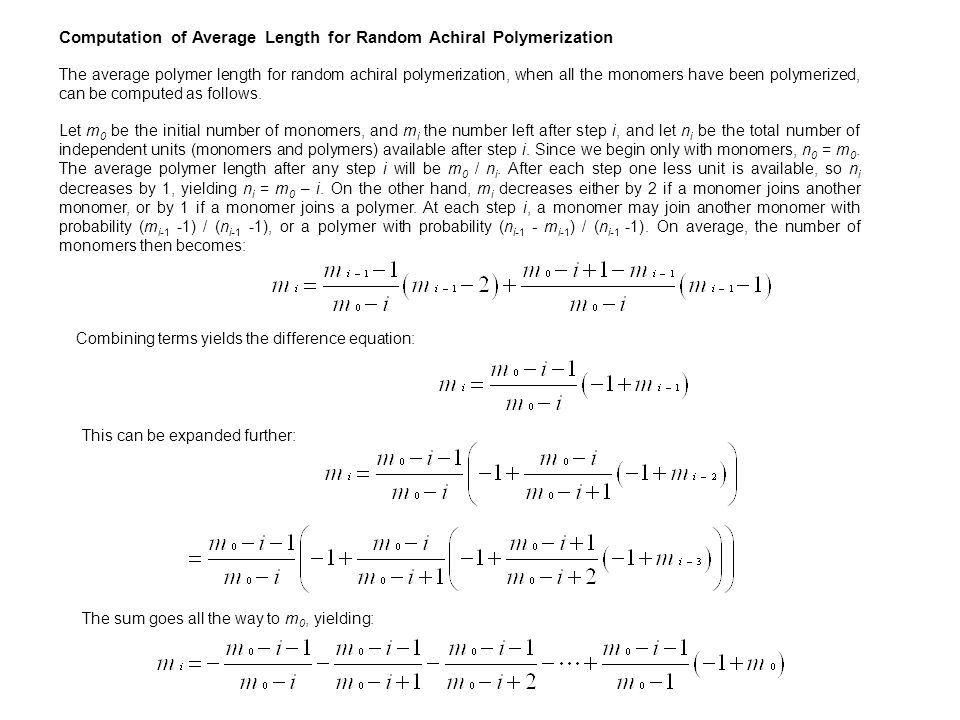

27. Computation of Average Length for Random Achiral Polymerization The average polymer length for random achiral polymerization, when all the monomers have been polymerized, can be computed as follows. Let m 0 be the initial number of monomers, and m i the number left after step i, and let n i be the total number of independent units (monomers and polymers) available after step i. Since we begin only with monomers, n 0 = m 0. The average polymer length after any step i will be m 0 / n i. After each step one less unit is available, so n i decreases by 1, yielding n i = m 0 – i. On the other hand, m i decreases either by 2 if a monomer joins another monomer, or by 1 if a monomer joins a polymer. At each step i, a monomer may join another monomer with probability (m i-1 -1) / (n i-1 -1), or a polymer with probability (n i-1 - m i-1 ) / (n i-1 -1). On average, the number of monomers then becomes: Combining terms yields the difference equation: This can be expanded further: The sum goes all the way to m 0, yielding:

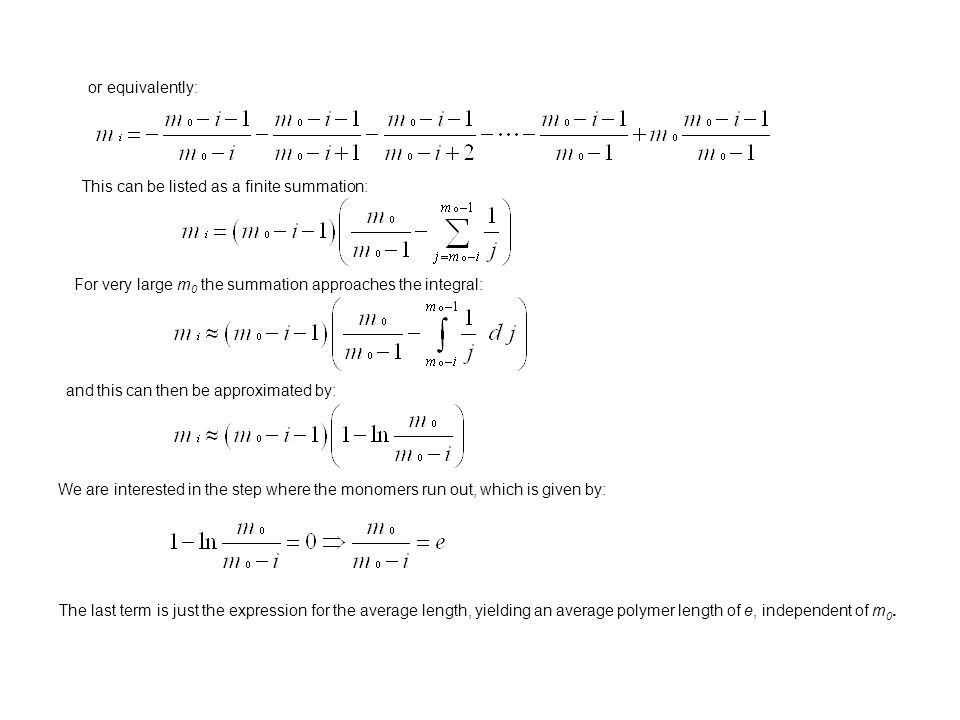

28. or equivalently: This can be listed as a finite summation: For very large m 0 the summation approaches the integral: and this can then be approximated by: We are interested in the step where the monomers run out, which is given by: The last term is just the expression for the average length, yielding an average polymer length of e, independent of m 0.

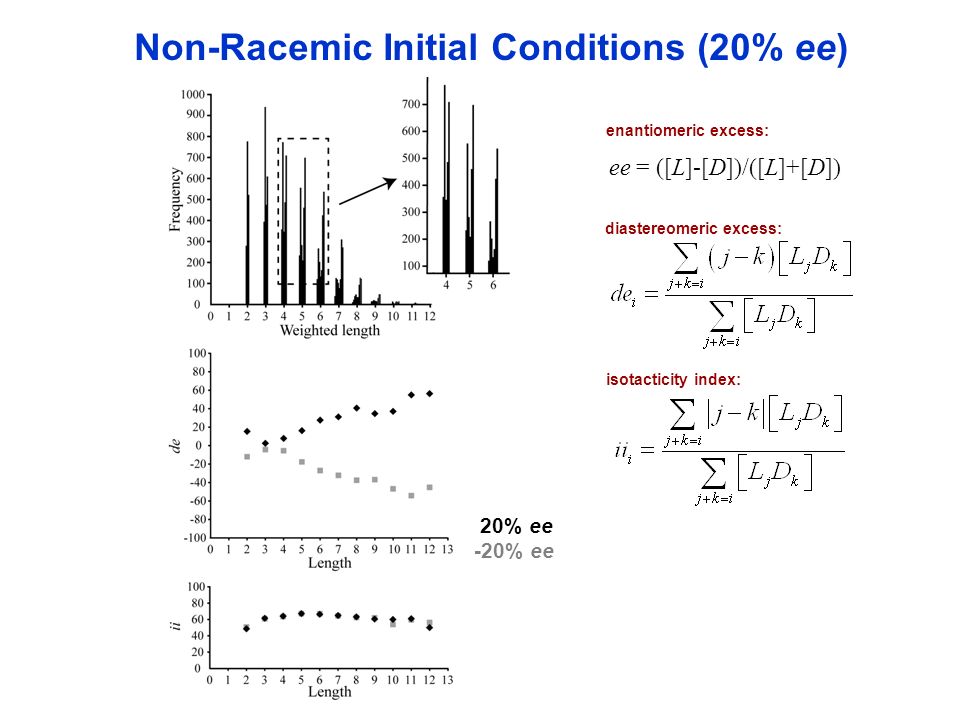

29. Non-Racemic Initial Conditions (20% ee) ee = ([L]-[D])/([L]+[D]) 20% ee -20% ee enantiomeric excess: diastereomeric excess: isotacticity index:

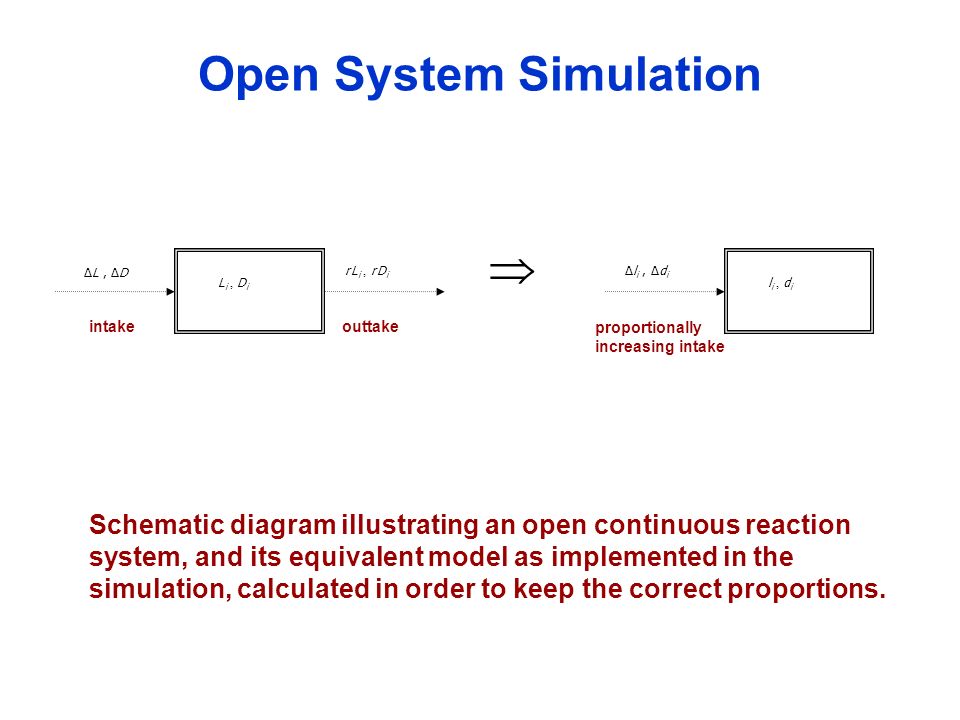

30. Open System Simulation L i, D i r L i, r D i  l i, d i ΔL, ΔD Δl i, Δd i Schematic diagram illustrating an open continuous reaction system, and its equivalent model as implemented in the simulation, calculated in order to keep the correct proportions. intake outtake proportionally increasing intake

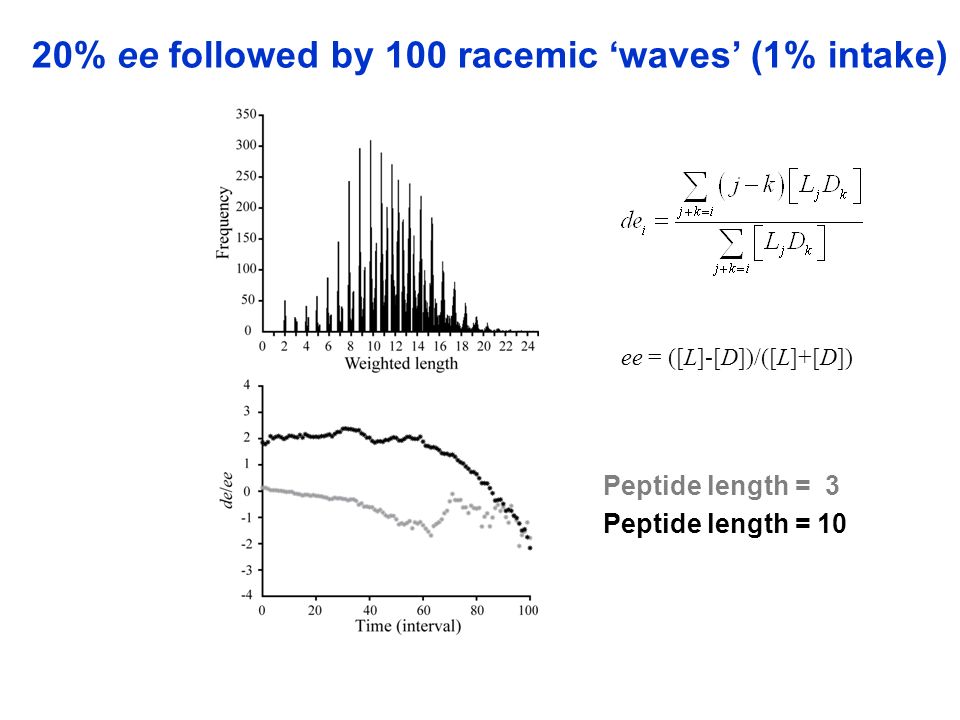

31. 20% ee followed by 100 racemic ‘waves’ (1% intake) ee = ([L]-[D])/([L]+[D]) Peptide length = 3 Peptide length = 10

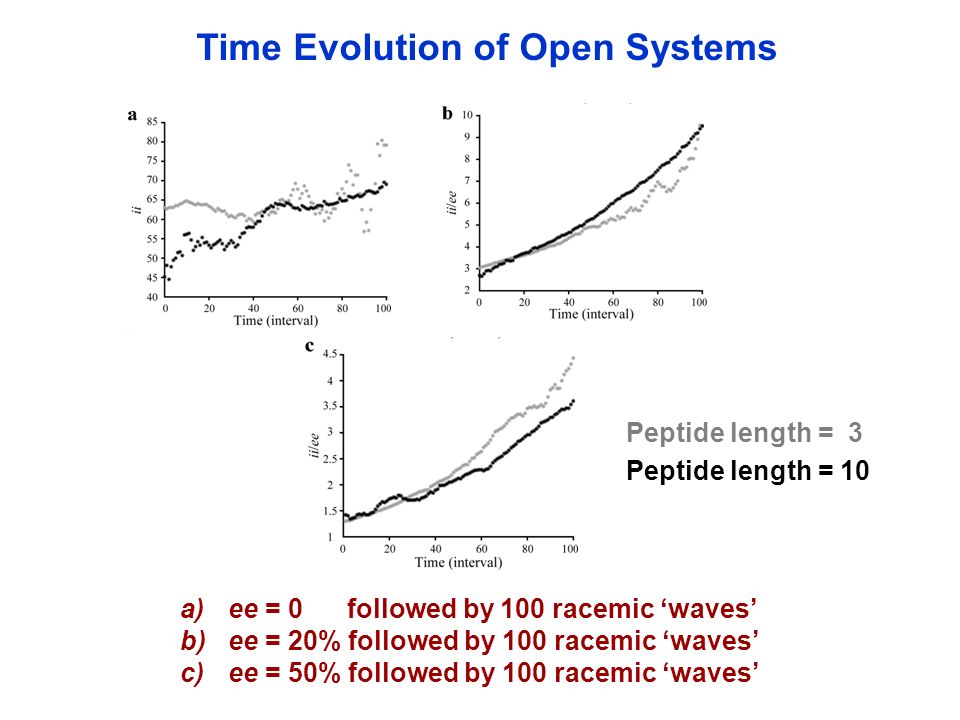

32. a)ee = 0 followed by 100 racemic ‘waves’ b)ee = 20% followed by 100 racemic ‘waves’ c)ee = 50% followed by 100 racemic ‘waves’ Time Evolution of Open Systems Peptide length = 3 Peptide length = 10
