1. Chapter 2 Essential Chemistry for Biology Laura Coronado Bio 10 Chapter 2

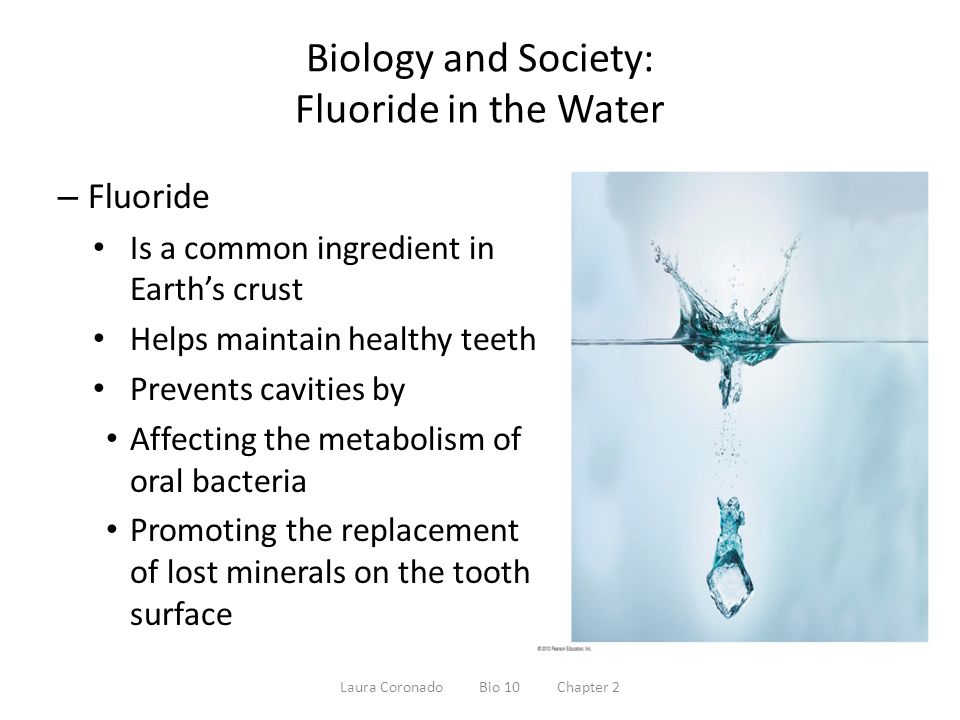

2. Biology and Society: Fluoride in the Water – Fluoride Is a common ingredient in Earth’s crust Helps maintain healthy teeth Prevents cavities by Affecting the metabolism of oral bacteria Promoting the replacement of lost minerals on the tooth surface Laura Coronado Bio 10 Chapter 2

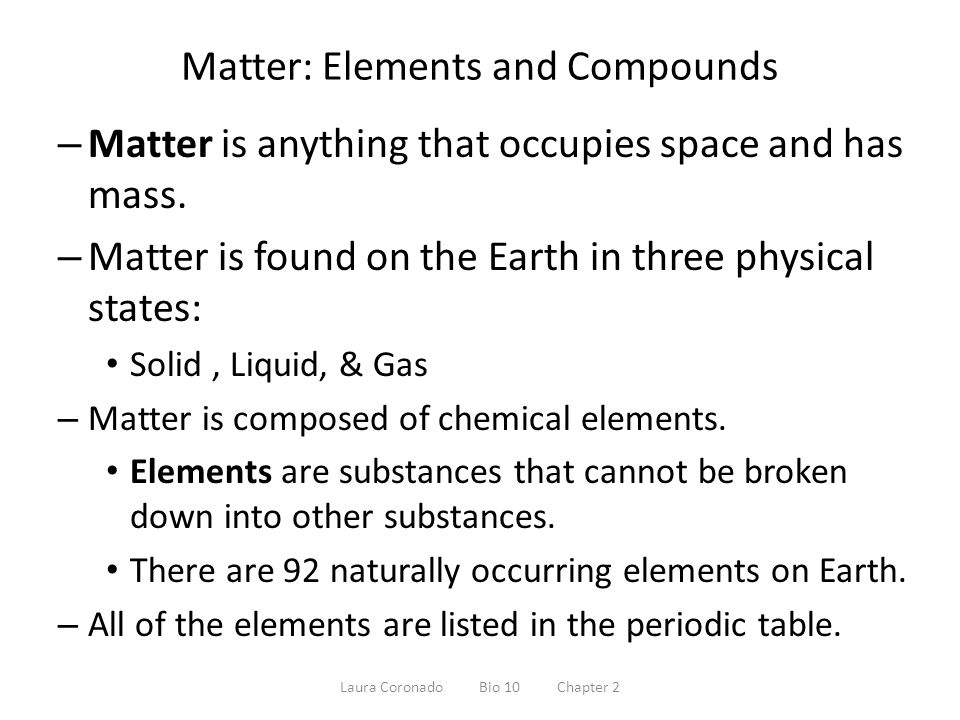

3. Matter: Elements and Compounds – Matter is anything that occupies space and has mass. – Matter is found on the Earth in three physical states: Solid, Liquid, & Gas – Matter is composed of chemical elements. Elements are substances that cannot be broken down into other substances. There are 92 naturally occurring elements on Earth. – All of the elements are listed in the periodic table. Laura Coronado Bio 10 Chapter 2

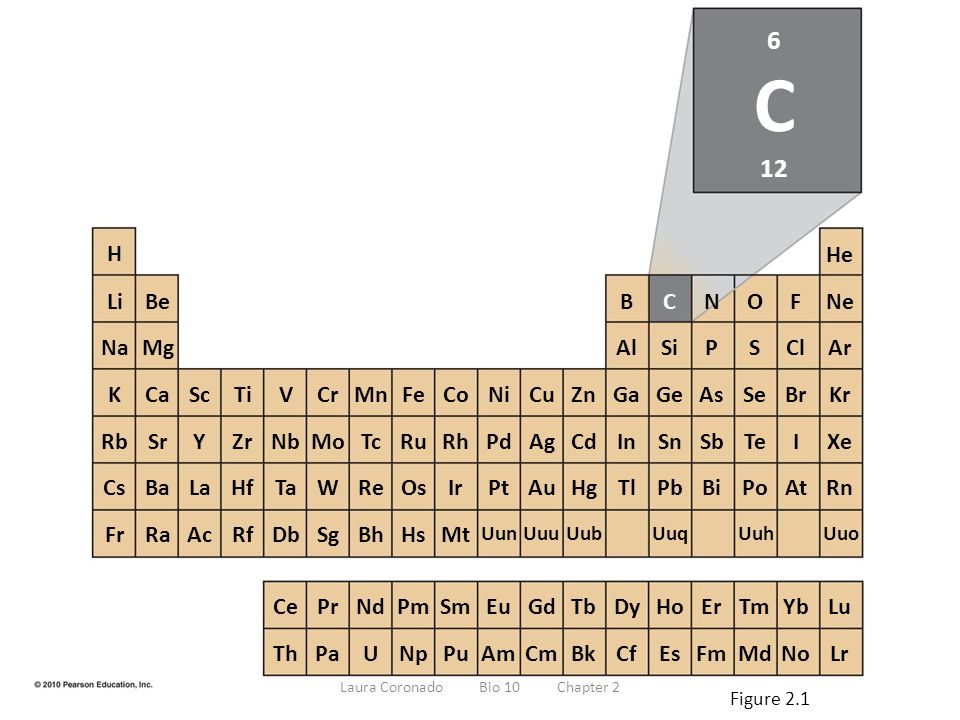

4. H Rb K Na Li Fr Cs Sr Ca Mg Be Ra Ba Y Sc Ac La Zr Ti Rf Hf Nb V Db Ta Mo Cr Sg W Tc Mn Bh Re Ru Fe Hs Os Rh Co Mt Ir Pd Ni Uun Pt Xe Kr Uuo Rn Ag Cu Uuu Au Cd Zn Uub Hg Ar Ne In Ga Tl Al B Sn Ge Uuq Pb Si C Sb As Bi P N Te Se Uuh Po S O I Br At Cl F He Th Ce Pa Pr U Nd Np Pm Pu Sm Am Eu Lr Lu Cm Gd Bk Tb Cf Dy Es Ho Fm Er Md Tm No Yb 6 C 12 Figure 2.1 Laura Coronado Bio 10 Chapter 2

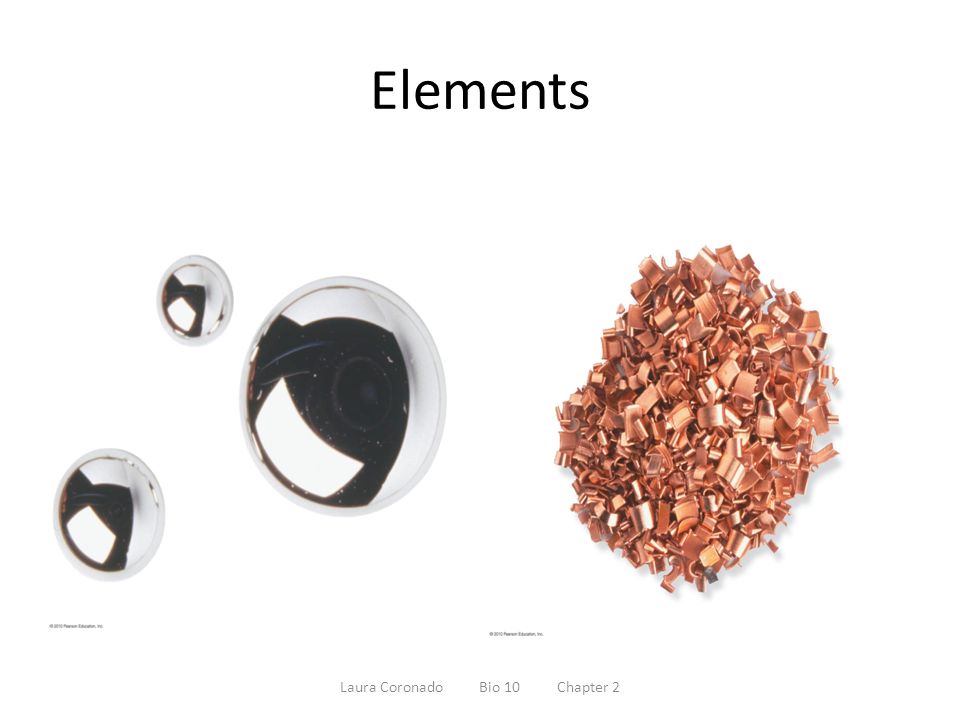

5. Elements Laura Coronado Bio 10 Chapter 2

6. Carbon  C  : 18.5% Hydrogen  H  : 9.5% Nitrogen  N  : 3.3% Calcium  Ca  : 1.5% Trace elements: less than 0.01% Boron  B  Manganese  Mn  Oxygen  O  : 65.0% Magnesium  Mg  : 0.1% Phosphorus  P  : 1.0% Potassium  K  : 0.4% Sulfur  S  : 0.3% Sodium  Na  : 0.2% Chlorine  Cl  : 0.2% Cobalt  Co  Chromium  Cr  Iron  Fe  Iodine  I  Fluorine  F  Copper  Cu  Silicon  Si  Zinc  Zn  Vanadium  V  Tin  Sn  Molybdenum  Mo  Selenium  Se  Figure 2.2 Laura Coronado Bio 10 Chapter 2

7. Elements – Twenty-five elements are essential to life. – Four elements make up about 96% of the weight of the human body: Oxygen, Carbon, Hydrogen, & Nitrogen – Trace elements Occur in smaller amounts Are essential for life – An iodine deficiency causes goiter. Laura Coronado Bio 10 Chapter 2

8. Figure 2.3 Laura Coronado Bio 10 Chapter 2

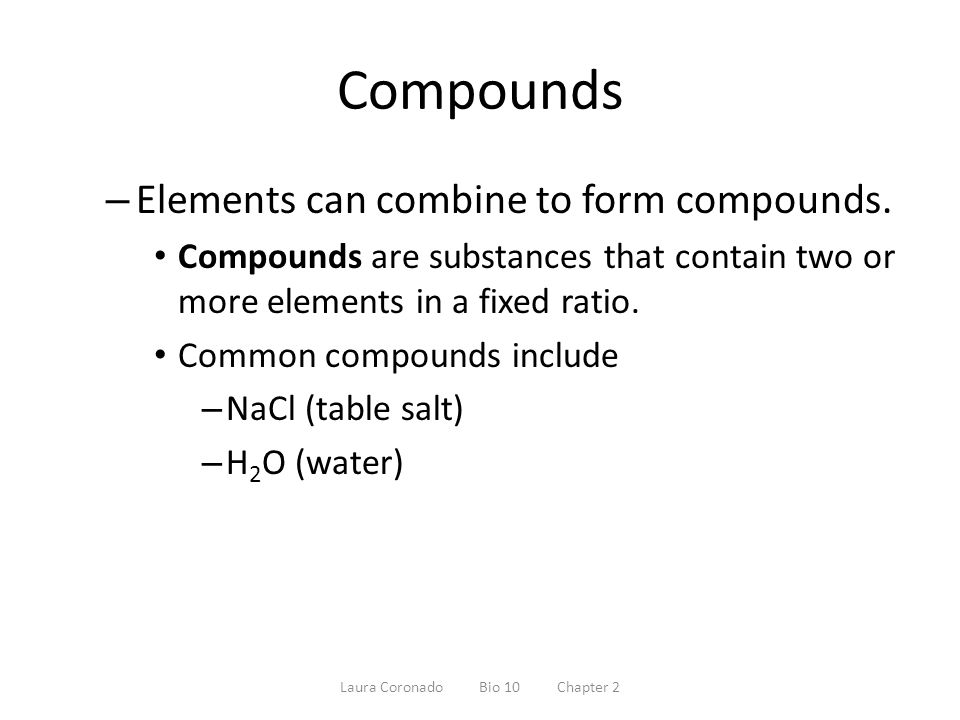

9. Compounds – Elements can combine to form compounds. Compounds are substances that contain two or more elements in a fixed ratio. Common compounds include – NaCl (table salt) – H 2 O (water) Laura Coronado Bio 10 Chapter 2

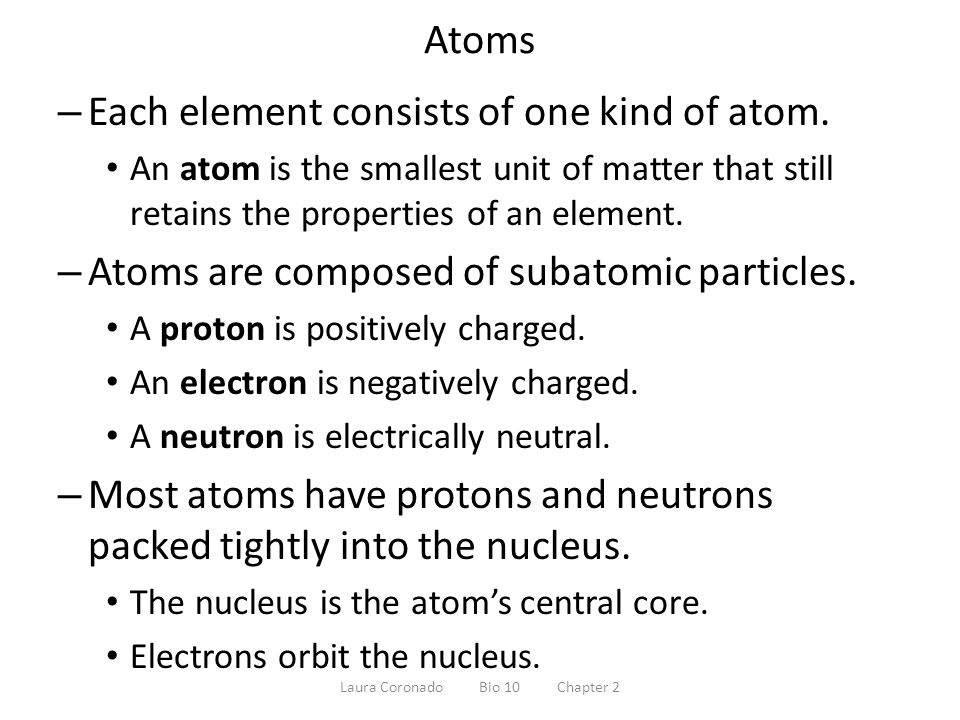

10. Atoms – Each element consists of one kind of atom. An atom is the smallest unit of matter that still retains the properties of an element. – Atoms are composed of subatomic particles. A proton is positively charged. An electron is negatively charged. A neutron is electrically neutral. – Most atoms have protons and neutrons packed tightly into the nucleus. The nucleus is the atom’s central core. Electrons orbit the nucleus. Laura Coronado Bio 10 Chapter 2

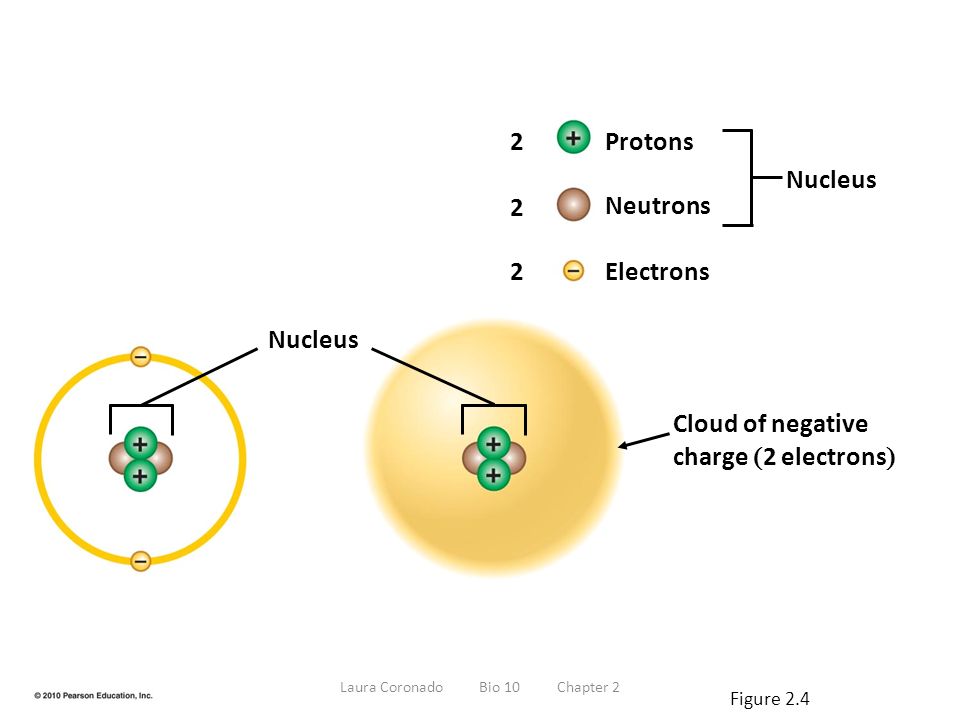

11. Nucleus Protons Neutrons Electrons Nucleus Cloud of negative charge  2 electrons  2 2 2 Figure 2.4 Laura Coronado Bio 10 Chapter 2

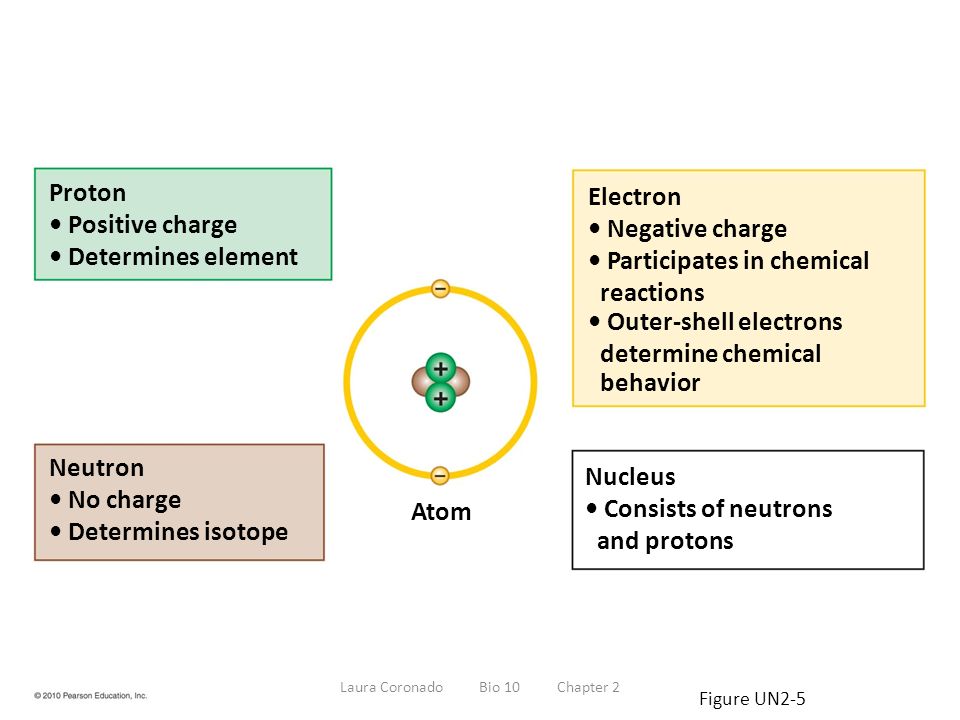

12. Proton Positive charge Determines element Neutron No charge Determines isotope Electron Negative charge Participates in chemical reactions Outer-shell electrons determine chemical behavior Nucleus Consists of neutrons and protons Atom Figure UN2-5 Laura Coronado Bio 10 Chapter 2

13. Subatomic Particles – Elements differ in the number of subatomic particles in their atoms. The number of protons, the atomic number, determines which element it is. An atom’s mass number is the sum of the number of protons and neutrons. Mass is a measure of the amount of matter in an object. Laura Coronado Bio 10 Chapter 2

14. Isotopes – Isotopes are alternate mass forms of an element. – Isotopes have the same number of protons and electrons, but they have a different number of neutrons. Laura Coronado Bio 10 Chapter 2

15. Table 2.1 Laura Coronado Bio 10 Chapter 2

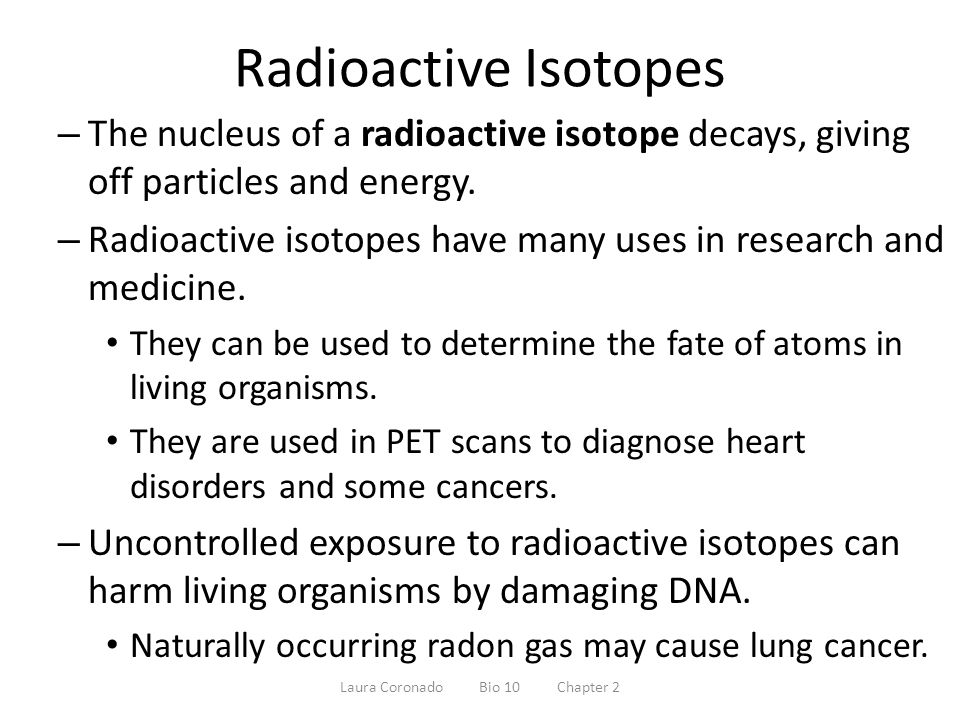

16. Radioactive Isotopes – The nucleus of a radioactive isotope decays, giving off particles and energy. – Radioactive isotopes have many uses in research and medicine. They can be used to determine the fate of atoms in living organisms. They are used in PET scans to diagnose heart disorders and some cancers. – Uncontrolled exposure to radioactive isotopes can harm living organisms by damaging DNA. Naturally occurring radon gas may cause lung cancer. Laura Coronado Bio 10 Chapter 2

17. Electron Arrangement and the Chemical Properties of Atoms – Electrons determine how an atom behaves when it encounters other atoms. – Electrons orbit the nucleus of an atom in specific electron shells. – The farther an electron is from the nucleus, the greater its energy. – The number of electrons in the outermost shell determines the chemical properties of an atom. Laura Coronado Bio 10 Chapter 2 © 2010 Pearson Education, Inc.

18. First electron shell  can hold 2 electrons  Outer electron shell  can hold 8 electrons  Hydrogen  H  Atomic number = 1 Carbon  C  Atomic number = 6 Nitrogen  N  Atomic number = 7 Oxygen  O  Atomic number = 8 Electron Figure 2.5 Laura Coronado Bio 10 Chapter 2

19. Chemical Bonding and Molecules – Chemical reactions enable atoms to give up or acquire electrons to complete their outer shells. – Chemical reactions usually result in atoms Staying close together Being held together by chemical bonds Laura Coronado Bio 10 Chapter 2

20. Ionic Bonds – When an atom loses or gains electrons, it becomes electrically charged. Charged atoms are called ions. Ionic bonds are formed between oppositely charged ions. Laura Coronado Bio 10 Chapter 2 Animation: Ionic Bonds

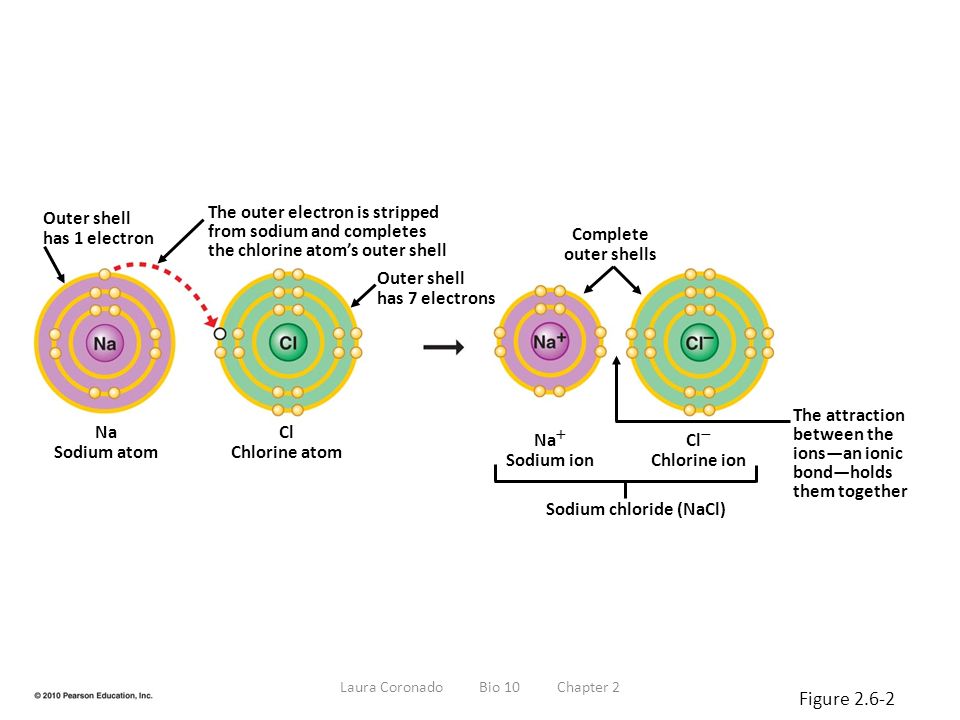

21. Outer shell has 1 electron Outer shell has 7 electrons The outer electron is stripped from sodium and completes the chlorine atom’s outer shell Na Sodium atom Cl Chlorine atom Complete outer shells The attraction between the ions—an ionic bond—holds them together Na  Sodium ion Cl  Chlorine ion Sodium chloride (NaCl) Figure 2.6-2 Laura Coronado Bio 10 Chapter 2

22. Covalent Bonds – A covalent bond forms when two atoms share one or more pairs of outer-shell electrons. – Atoms held together by covalent bonds form a molecule. – The number of covalent bonds an atom can form is equal to the number of additional electrons needed to fill its outer shell. Laura Coronado Bio 10 Chapter 2 Animation: Covalent Bonds Blast Animation: Covalent Bonds

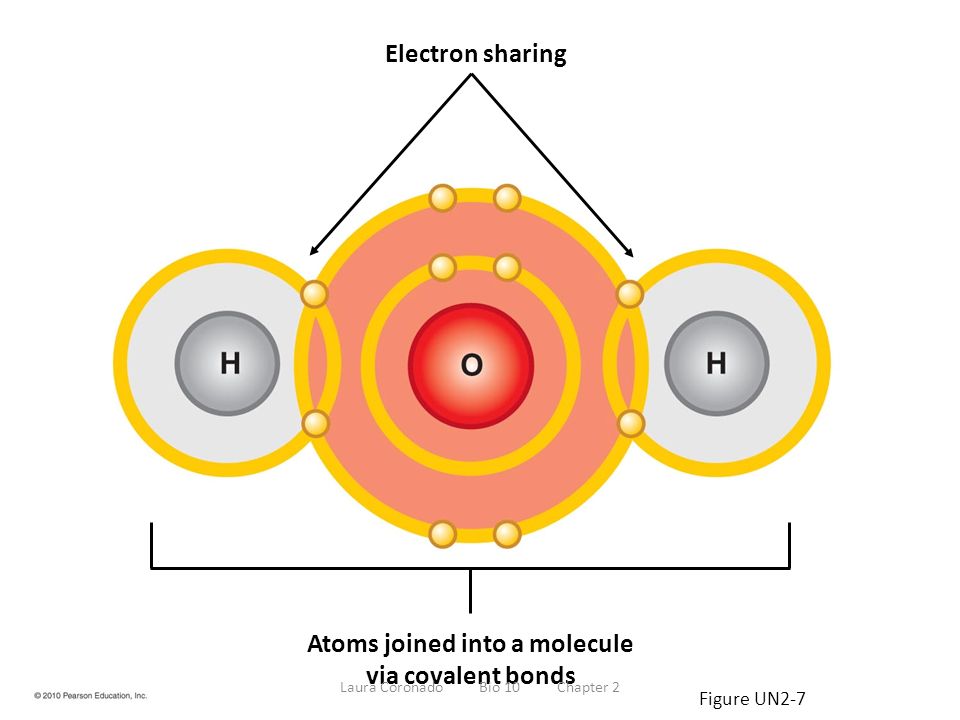

23. Electron sharing Atoms joined into a molecule via covalent bonds Figure UN2-7 Laura Coronado Bio 10 Chapter 2

24. Name  molecular formula  Hydrogen gas  H 2  Oxygen gas  O 2  Methane  CH 4  Electron configurationStructural formulaSpace-filling modelBall-and-stick model Single bond  a pair of shared electrons  Double bond  two pairs of shared electrons  Figure 2.7 Laura Coronado Bio 10 Chapter 2

25. Hydrogen Bonds – Water is a compound in which the electrons in its covalent bonds are shared unequally. This causes water to be a polar molecule, one with opposite charges on opposite ends. Laura Coronado Bio 10 Chapter 2 Animation: Water Structure Blast Animation: Hydrogen Bonds in Water

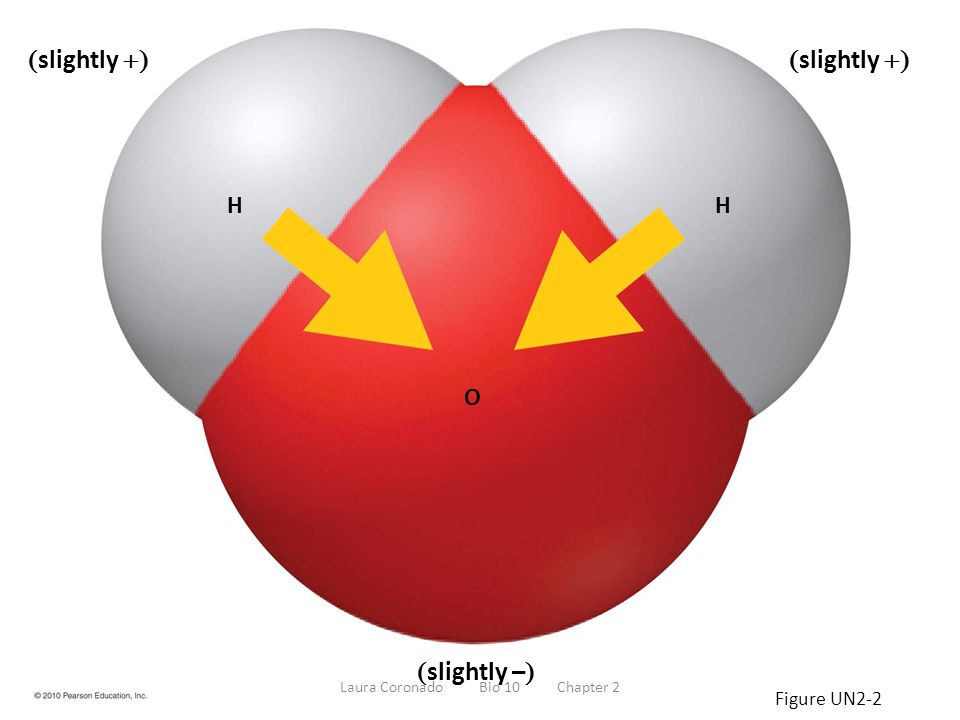

26. HH O  slightly   slightly –  Figure UN2-2 Laura Coronado Bio 10 Chapter 2

27. 2 H 2 2 H 2 O O2O2 Hydrogen gas Oxygen gas Water ProductsReactants   Figure UN2-3 Laura Coronado Bio 10 Chapter 2

28. Hydrogen Bonds – The polarity of water results in weak electrical attractions between neighboring water molecules. Laura Coronado Bio 10 Chapter 2 Hydrogen bond

29. Chemical Reactions – Cells constantly rearrange molecules by breaking existing chemical bonds and forming new ones. Such changes in the chemical composition of matter are called chemical reactions. – Chemical reactions include Reactants, the starting materials Products, the end materials Chemical reactions can rearrange matter but cannot create or destroy matter. Laura Coronado Bio 10 Chapter 2

30. WATER AND LIFE – Life on Earth began in water and evolved there for 3 billion years. Modern life remains tied to water. Your cells are composed of 70%–95% water. – The abundance of water is a major reason Earth is habitable. Laura Coronado Bio 10 Chapter 2

31. Water’s Life-Supporting Properties – The polarity of water molecules and the hydrogen bonding that results explain most of water’s life- supporting properties. Water molecules stick together. Water has a strong resistance to change in temperature. Frozen water floats. Water is a common solvent for life. – Water molecules stick together as a result of hydrogen bonding. This is called cohesion. Cohesion is vital for water transport in plants. Laura Coronado Bio 10 Chapter 2

32. Microscopic tubes Cohesion due to hydrogen bonds between water molecules Evaporation from the leaves SEM Flow of water Figure 2.10 Laura Coronado Bio 10 Chapter 2

33. Surface Tension – The measure of how difficult it is to stretch or break the surface of a liquid. Hydrogen bonds give water an unusually high surface tension. Laura Coronado Bio 10 Chapter 2

34. How Water Moderates Temperature – Because of hydrogen bonding, water has a strong resistance to temperature change. – Heat and temperature are related, but different. Heat is the amount of energy associated with the movement of the atoms and molecules in a body of matter. Temperature measures the intensity of heat. – Water can absorb and store large amounts of heat while only changing a few degrees in temperature. – Water can moderate temperatures. Earth’s giant water supply causes temperatures to stay within limits that permit life. Evaporative cooling removes heat from the Earth and from organisms. Laura Coronado Bio 10 Chapter 2

35. Figure 2.12 Laura Coronado Bio 10 Chapter 2

36. The Biological Significance of Ice Floating – When water molecules get cold enough, they move apart, forming ice. – A chunk of ice has fewer molecules than an equal volume of liquid water. – Ice floats because it is less dense than the liquid water around it. If ice did not float, ponds, lakes, and even the oceans would freeze solid. Life in water could not survive if bodies of water froze solid. Laura Coronado Bio 10 Chapter 2

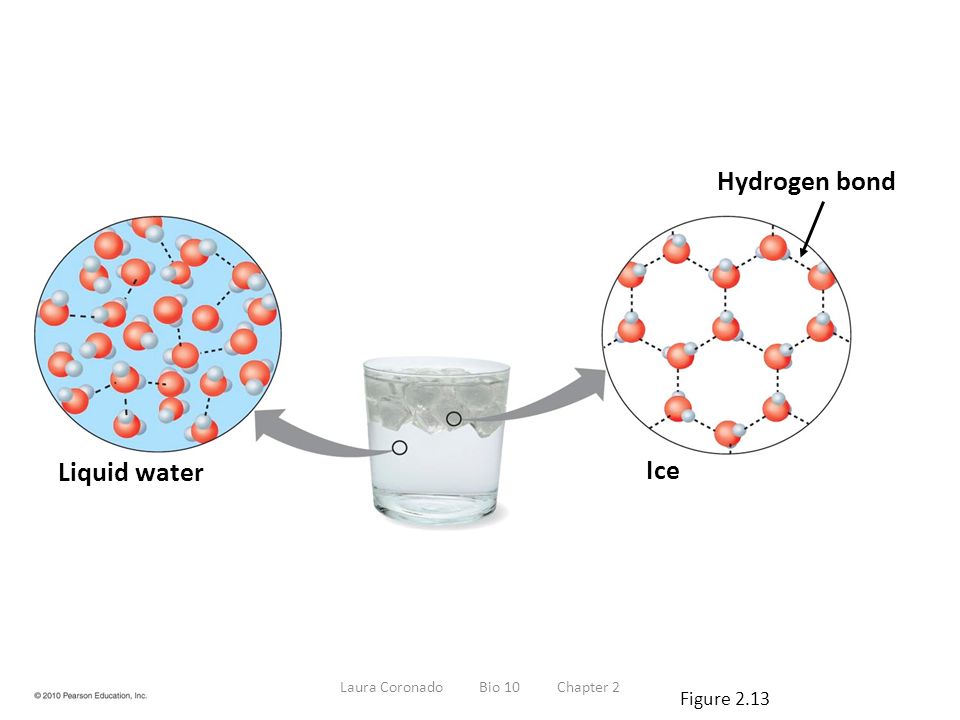

37. Hydrogen bond Liquid water Ice Figure 2.13 Laura Coronado Bio 10 Chapter 2

38. Water as the Solvent of Life – A solution is a liquid consisting of a homogeneous mixture of two or more substances. The dissolving agent is the solvent. The dissolved substance is the solute. – When water is the solvent, the result is an aqueous solution. Laura Coronado Bio 10 Chapter 2

39. Sodium ion in solution Chloride ion in solution Salt crystal Na  Cl – Figure 2.14 Laura Coronado Bio 10 Chapter 2

40. The Process of Science: Can Exercise Boost Your Brain Power? – Observation: Human brains shrink as we age. – Question: Can aerobic exercise slow or reverse brain loss? – Hypothesis: MRI scans would reveal differences between people who regularly exercised aerobically and those who did not. – Prediction: Brains of active people would shrink less than the brains of less active people. Laura Coronado Bio 10 Chapter 2

41. The Process of Science: Can Exercise Boost Your Brain Power? – Experiment: Twenty-nine people in their 60s and 70s exercised for three one-hour sessions per week. A control group of 29 people engaged in non-aerobic stretching exercises for the same periods. – Results: The aerobic group showed significant increases in brain volume compared to the non- aerobic group. Laura Coronado Bio 10 Chapter 2

42. Figure 2.15 Laura Coronado Bio 10 Chapter 2

43. Acids, Bases, pH & Buffers – A chemical compound that releases H + to solution is an acid. – A compound that accepts H + and removes it from solution is a base. – To describe the acidity of a solution, chemists use the pH scale. – Buffers are substances that resist pH change. Accept H + ions when they are in excess Donate H + ions when they are depleted – Increases in global CO 2 concentrations may lead to the acidification of the oceans. Laura Coronado Bio 10 Chapter 2

44. Basic solution Neutral solution Acidic solution Oven cleaner Household bleach Human blood Pure water Grapefruit juice, soft drink Lemon juice, gastric juice Household ammonia Milk of magnesia Seawater Tomato juice Urine pH scale 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Increasingly acidic  greater H  concentration  Increasingly basic  lower H  concentration  Neutral [ H + ]  [ OH – ] Figure 2.16 Laura Coronado Bio 10 Chapter 2

45. Basic solution Neutral solution Acidic solution Figure 2.16a Laura Coronado Bio 10 Chapter 2

46. Figure 2.17 Laura Coronado Bio 10 Chapter 2

47. Evolution Connection: The Search for Extraterrestrial Life – If life similar to ours has evolved elsewhere in the universe, then it too would depend upon water. – Recent NASA missions to Mars have detected evidence that liquid water flowed over the planet’s surface. Laura Coronado Bio 10 Chapter 2

48. Figure 2.18 Laura Coronado Bio 10 Chapter 2
