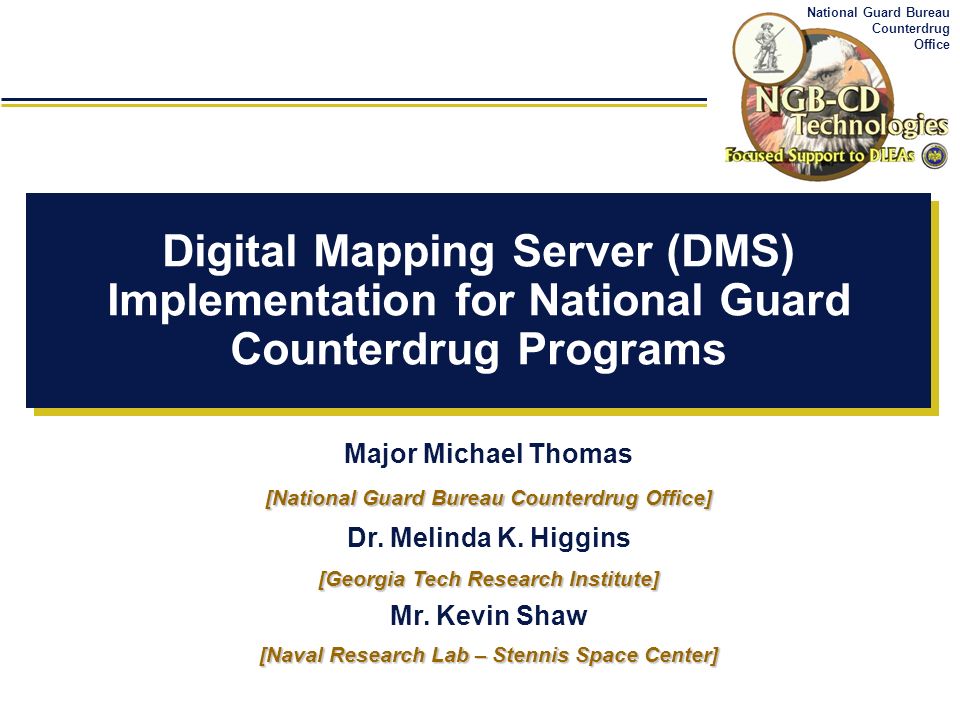

1. National Guard Bureau Counterdrug Office Digital Mapping Server (DMS) Implementation for National Guard Counterdrug Programs Major Michael Thomas [National Guard Bureau Counterdrug Office] Dr. Melinda K. Higgins [Georgia Tech Research Institute] Mr. Kevin Shaw [Naval Research Lab – Stennis Space Center]

2. National Guard Bureau Counterdrug Office D igital M apping S erver (DMS) DMS was initiated to address extensive GIS requirements of CD-GRASS and DMI. “Server” indicates access to GIS data from many sources (Federal, State, Local, etc.) NOT storage of data. Standard data sources (e.g. NSDI) and server protocols are key. Leverage from FGDC clearinghouse and framework, Open GIS Consortium programs, Digital Earth, and other GIS data sharing efforts (e.g. Geography Network).

3. National Guard Bureau Counterdrug Office GOTS + COTS DMS Portal - 2 Approaches Working in Concert: [Key is to Minimize Data and Training Costs]  Government-off-the-shelf (GOTS)  Geospatial Information Database (GIDB) – NRLSSC  Commercial-off-the-shelf (COTS)  ESRI’s ArcIMS – GTRI

4. Geospatial Information DB

5. National Guard Bureau Counterdrug Office Security Keys (as needed)

6. National Guard Bureau Counterdrug Office Working Links to ArcIMS (including GeographyNetwork)

7. Choose AOI

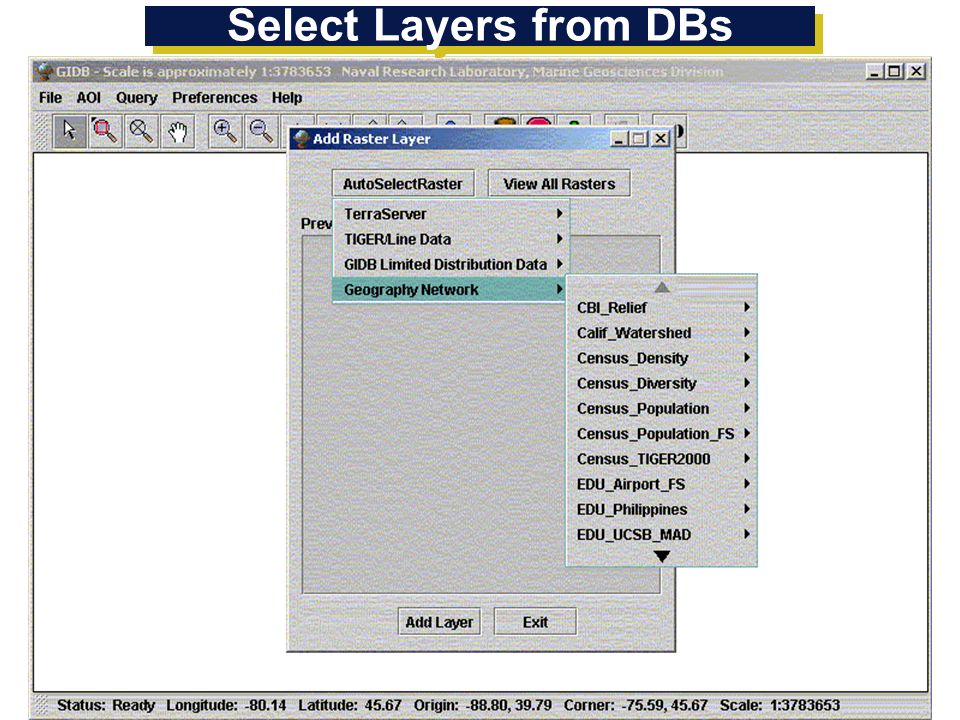

8. Select Layers from DBs

9. Selective Transparency

10. TIGER + CADRG

11. TIGER + DOQ

12. National Guard Bureau Counterdrug Office Address Lookup

13. National Guard Bureau Counterdrug Office Address Found and Mapped

17. National Guard Bureau Counterdrug Office ArcIMS Services (HIDTA Map)

18. National Guard Bureau Counterdrug Office ArcIMS Services (Lake County, IN HIDTA)

19. National Guard Bureau Counterdrug Office ArcIMS Services (Lake County, IN HIDTA) (Area of Interest)

22. National Guard Bureau Counterdrug Office DMC County Index NGB CD TECHNOLOGIES DIGITAL MAPPING CENTER (DMC) STATE and COUNTY INDEX DMC uses ESRI shape files for mapping. We understand that many departments won't have these files readily available, particularly small departments. We have put together packets of all the free map files we can for each county in the US. If you know of sources for more states than we have, please pass that along to us so we can update it for everyone. When you download the compressed package, it contains streets, streams, parks, municipal buildings, lakes, and boundaries. There is a readme file in the package to explain the naming conventions for the files.

23. National Guard Bureau Counterdrug Office Example: Shape file maps for Counties in Alabama (Alphabetic Listing) Autauga Baldwin Barbour Bibb Blount Bullock Butler Calhoun Chambers Cherokee Chilton Choctaw Clarke Clay Cleburne Coffee Colbert Conecuh Coosa Covington Crenshaw Cullman Dale Dallas De Kalb Elmore Escambia Etowah Fayette Franklin Geneva Greene Hale Henry Houston Jackson Jefferson Lamar Lauderdale Lawrence Lee Limestone Lowndes Macon Madison Marengo Marion Marshall Mobile Monroe Montgomery Morgan Perry Pickens Pike Randolph Russell St. Clair Shelby Sumter Talladega Tallapoosa Tuscaloosa Walker Washington Wilcox Winston

24. National Guard Bureau Counterdrug Office Imagery Combined with Vector Layers

25. National Guard Bureau Counterdrug Office Imagery Combined with Vector Layers

26. National Guard Bureau Counterdrug Office Imagery Combined with Vector Layers

27. National Guard Bureau Counterdrug Office DMS Portal Future Upgrades  FGDC Meta Data Import/Export  Add Web Feature Server Handling  Develop an ArcMap Interface (DMC County Index built as one db with layer selection)  Expand Servers connected to Portal  Add built-in Digital Mapping Center (DMC)-type functions/product generation with one click execution  Develop Broker layer to hide complexities of having so many servers connected simultaneously as well as rapidly allow a user to locate the information requested

28. National Guard Bureau Counterdrug Office DMS Portal Final Thoughts  Still in development – beta-testing in progress  Initial Version “to be deployed” (“being deployed”) Fall 2002  Optimize Access to Remote DBs – Increase Speed  Automated Re-Projection Issues Need Work with ArcIMS Servers  Welcome Opportunities to Connect, Share, Collaborate – Data, GUIs, Networking

29. National Guard Bureau Counterdrug Office Contact Information NGB-CDX-X http://ngbcdtech.gtri.gatech.edu http://ngbcdtech.gtri.gatech.edu (404) 894-0621 (Maj. Michael Thomas) Email: thomasm@cdmail.ngb.army.mil CD-GRASS http://cdgrass.gtri.gatech.edu (404) 894-4971 (Dr. Melinda Higgins) Email: Melinda.Higgins@gtri.gatech.eduMelinda.Higgins@gtri.gatech.edu NAVAL RESEARCH LAB (228) 688-4197 (Mr. Kevin Shaw) Email: shaw@nrlssc.navy.milshaw@nrlssc.navy.mil
