2. BPEL: Building Standards- Based Business Processes with Web Services Session id: 40024

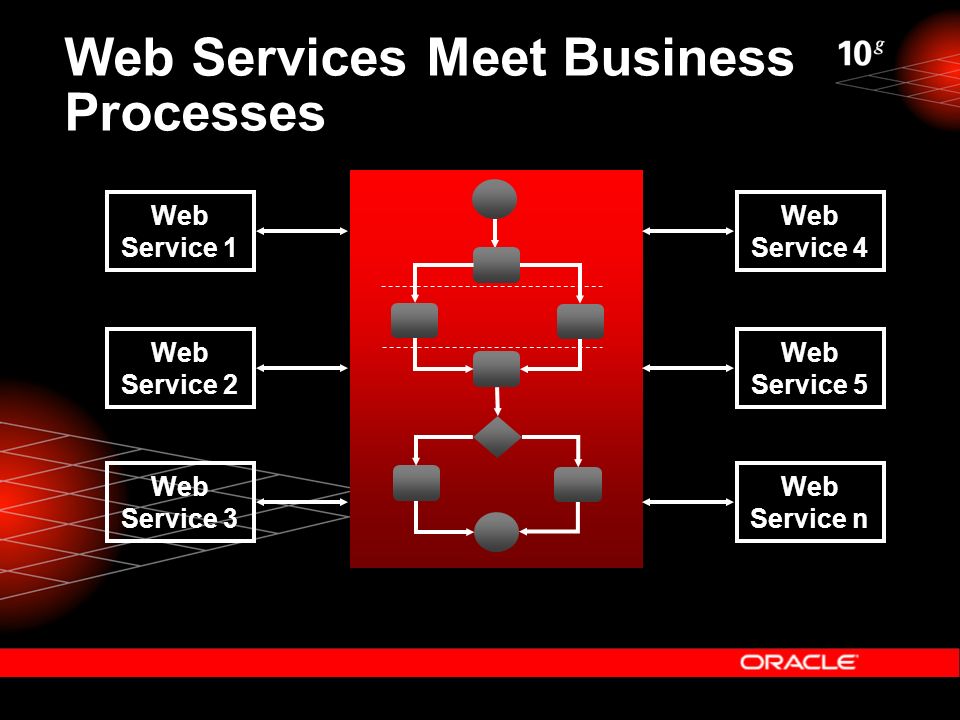

3. Web Services Meet Business Processes Web Service 1 Web Service 2 Web Service 3 Web Service 4 Web Service 5 Web Service n

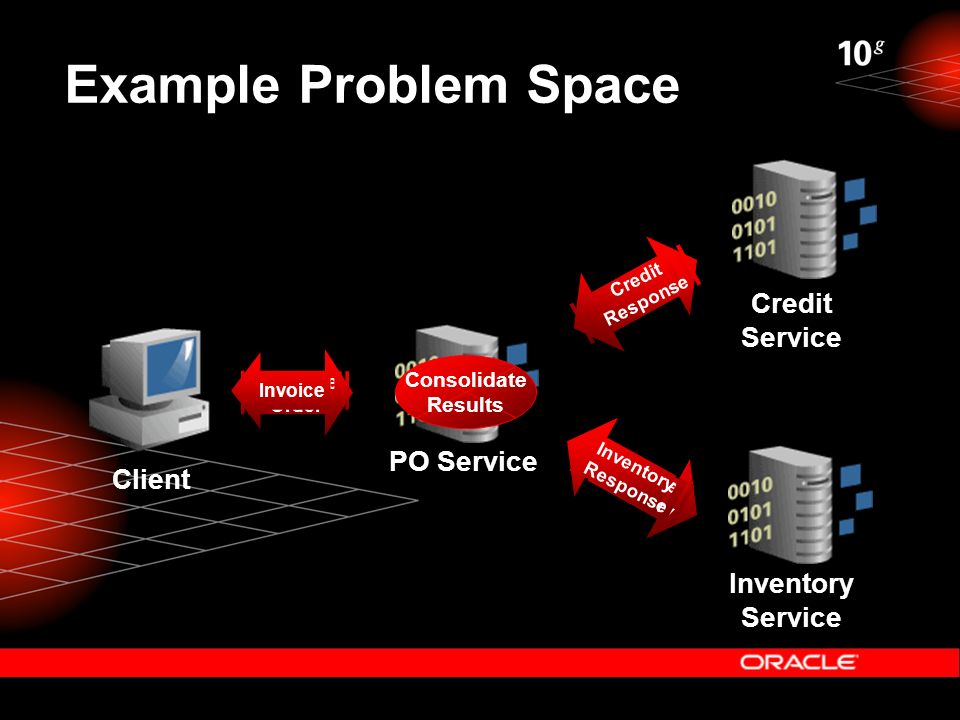

4. Example Problem Space Client PO Service Credit Service Inventory Service Purchase Order Credit Check Reserve Inventory Credit Response Inventory Response Invoice Consolidate Results

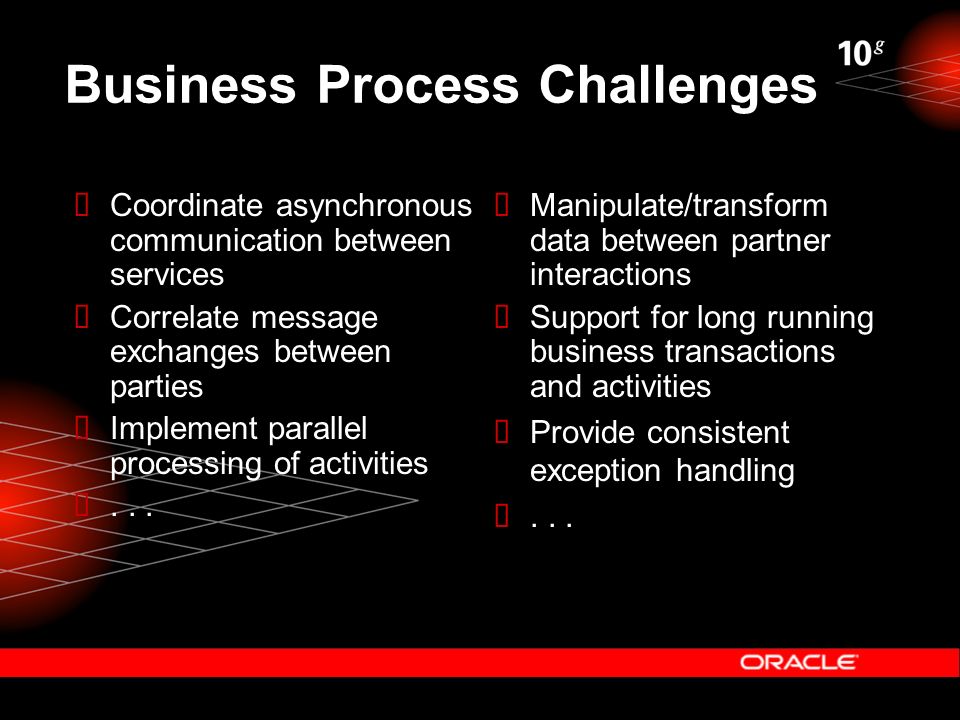

5. Business Process Challenges  Coordinate asynchronous communication between services  Correlate message exchanges between parties  Implement parallel processing of activities ...  Manipulate/transform data between partner interactions  Support for long running business transactions and activities  Provide consistent exception handling ...

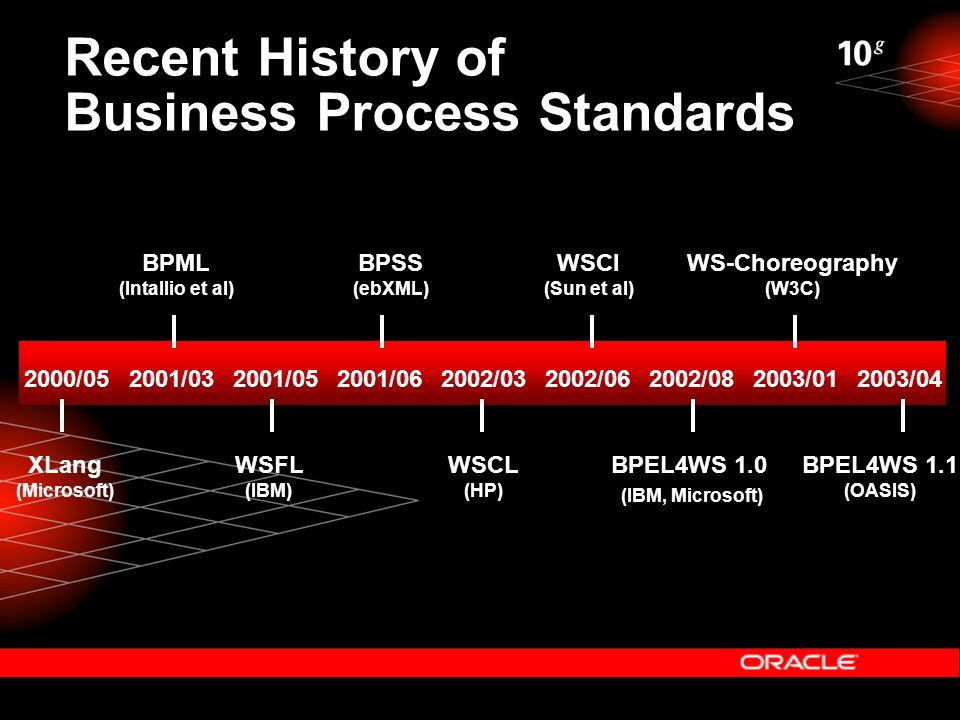

6. Recent History of Business Process Standards 2000/05 XLang (Microsoft) 2001/03 BPML (Intallio et al) 2001/05 WSFL (IBM) 2001/06 BPSS (ebXML) 2002/03 BPEL4WS 1.0 (IBM, Microsoft) BPEL4WS 1.1 (OASIS) 2002/062003/01 WS-Choreography (W3C) 2003/04 WSCI (Sun et al) WSCL (HP) 2002/08

7. Orchestration vs Choreography  Orchestration – An executable business process describing a flow from the perspective and under control of a single endpoint (commonly: Workflow)  Choreography – The observable public exchange of messages, rules of interaction and agreements between two or more business process endpoints

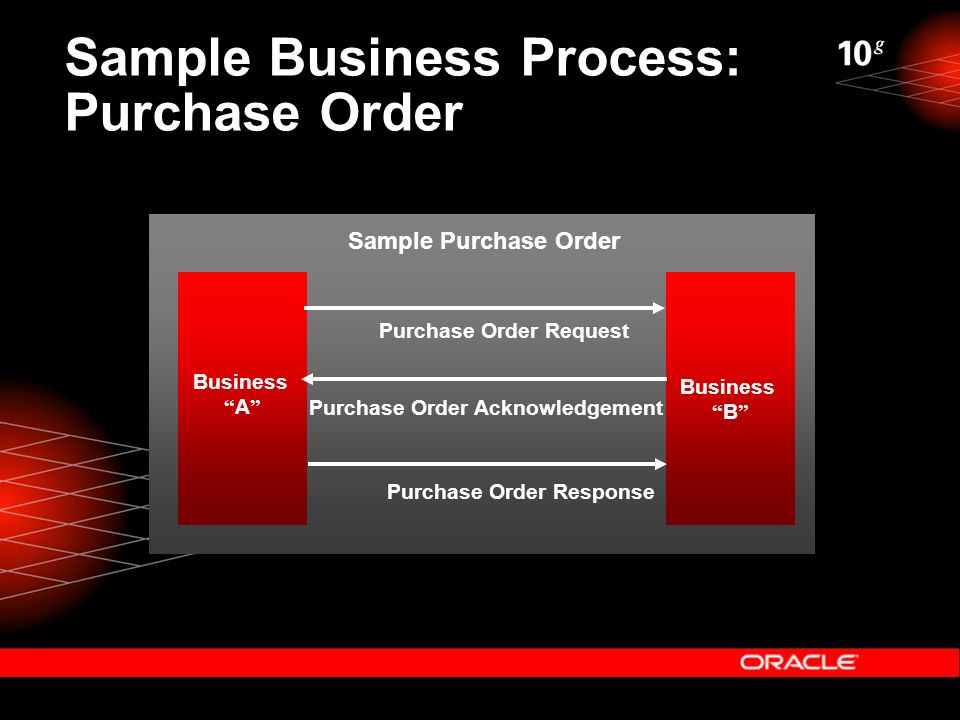

8. Sample Business Process: Purchase Order Sample Purchase Order Purchase Order Request Purchase Order Acknowledgement Purchase Order Response Business “ A ” Business “ B ”

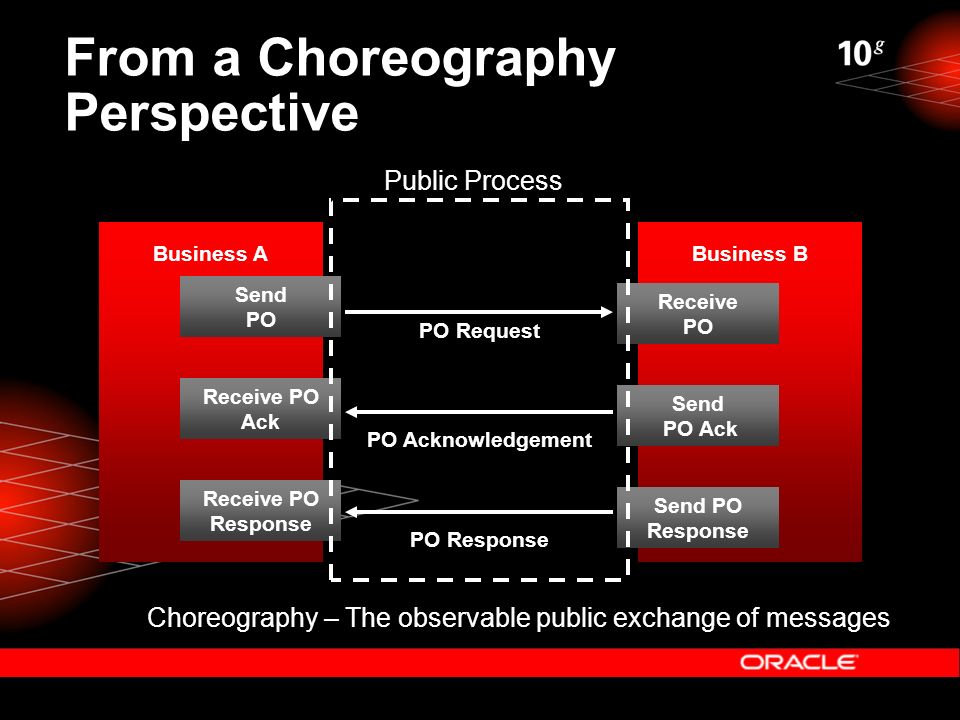

9. From a Choreography Perspective PO Request Send PO Receive PO Ack Receive PO Response Receive PO Send PO Ack Send PO Response PO Acknowledgement PO Response Choreography – The observable public exchange of messages Public Process Business ABusiness B

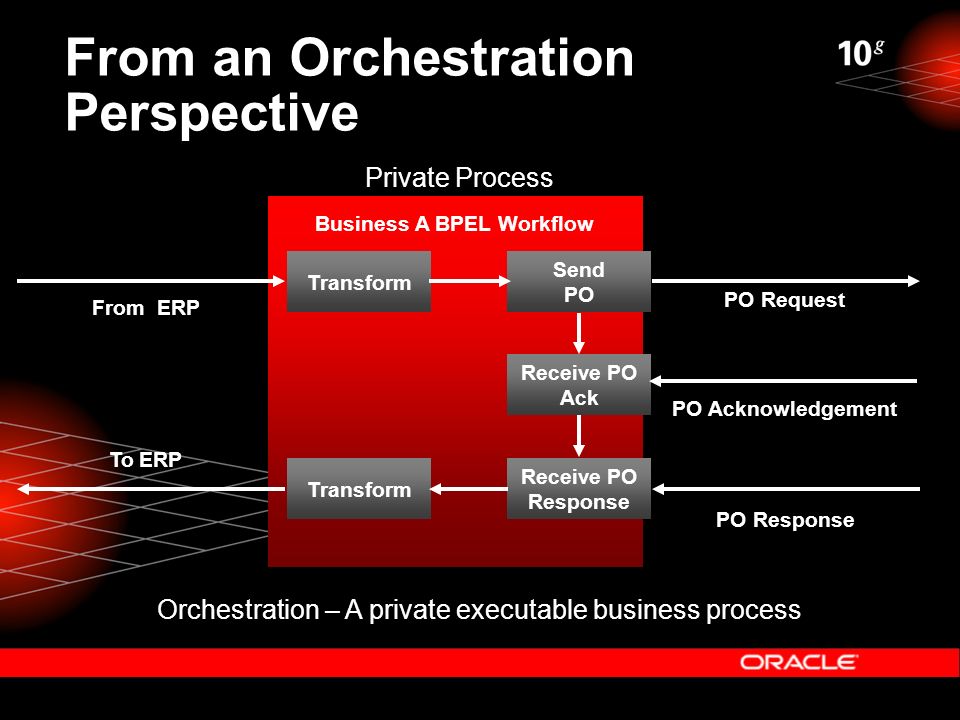

10. From an Orchestration Perspective Send PO Receive PO Ack Receive PO Response Transform From ERP To ERP PO Request PO Acknowledgement PO Response Orchestration – A private executable business process Private Process Business A BPEL Workflow

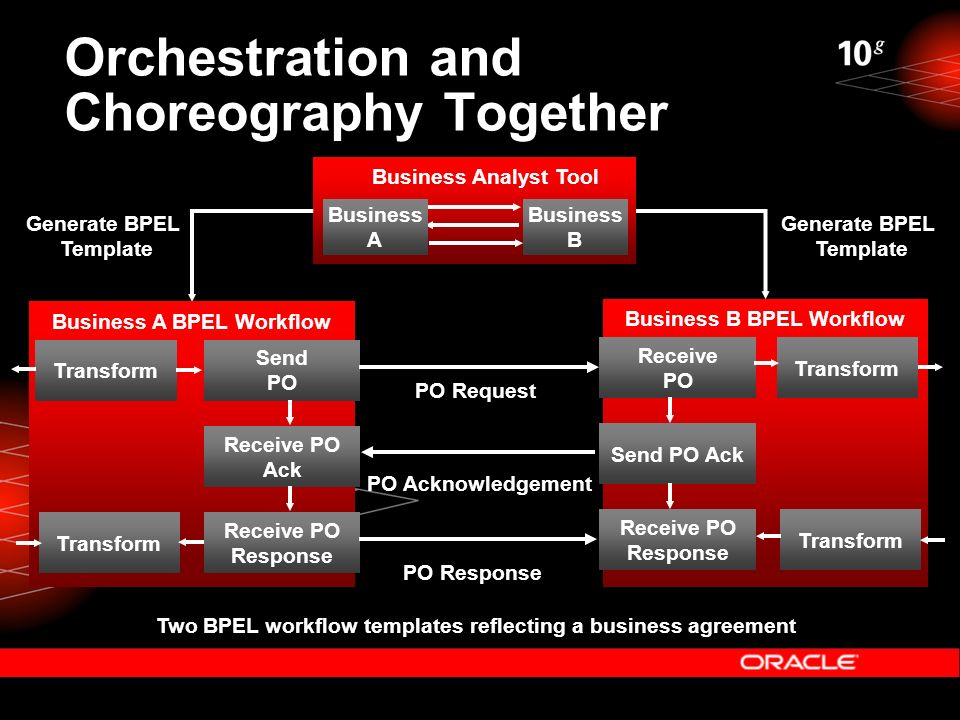

11. Orchestration and Choreography Together Business B Business Analyst Tool Business A Send PO Receive PO Ack Receive PO Response Transform Business A BPEL Workflow PO Request PO Acknowledgement PO Response Generate BPEL Template Receive PO Send PO Ack Receive PO Response Transform Business B BPEL Workflow Two BPEL workflow templates reflecting a business agreement

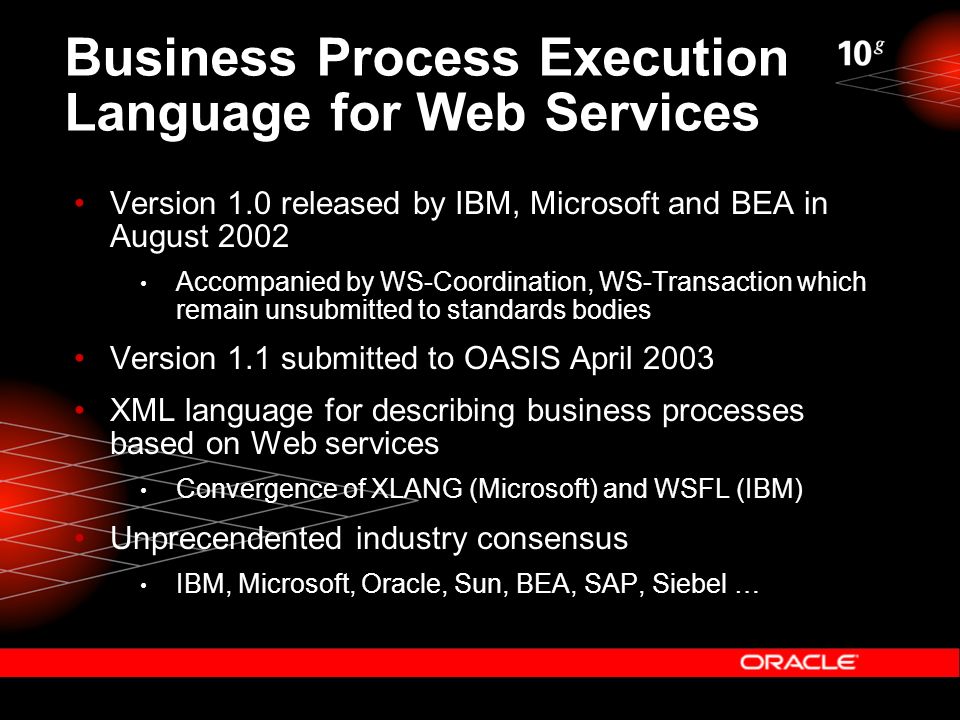

12. Business Process Execution Language for Web Services Version 1.0 released by IBM, Microsoft and BEA in August 2002 Accompanied by WS-Coordination, WS-Transaction which remain unsubmitted to standards bodies Version 1.1 submitted to OASIS April 2003 XML language for describing business processes based on Web services Convergence of XLANG (Microsoft) and WSFL (IBM) Unprecendented industry consensus IBM, Microsoft, Oracle, Sun, BEA, SAP, Siebel …

13. Value Proposition  Portable business processes – Built on top of an interoperable infrastructure of Web services  Industry wide language for business processes – Common skill set and language for developers  Choice of process engines – Standards lead to competitive offerings

14. Standards Building Blocks of BPEL Description HTTP,IIOP, JMS, SMTP Transport XML Message SOAP WSDL UDDI Discovery Transactions Coordination WS-Security WS-Reliability Quality of Service Orchestration - BPEL4WS Business Processes Context Description Management Choreography - CDL4WS

15. BPEL Depends on WSDL and WSDL Extensions Service Implementation Definition Service Interface Definition Service Port Binding Port types define Operations Message Type

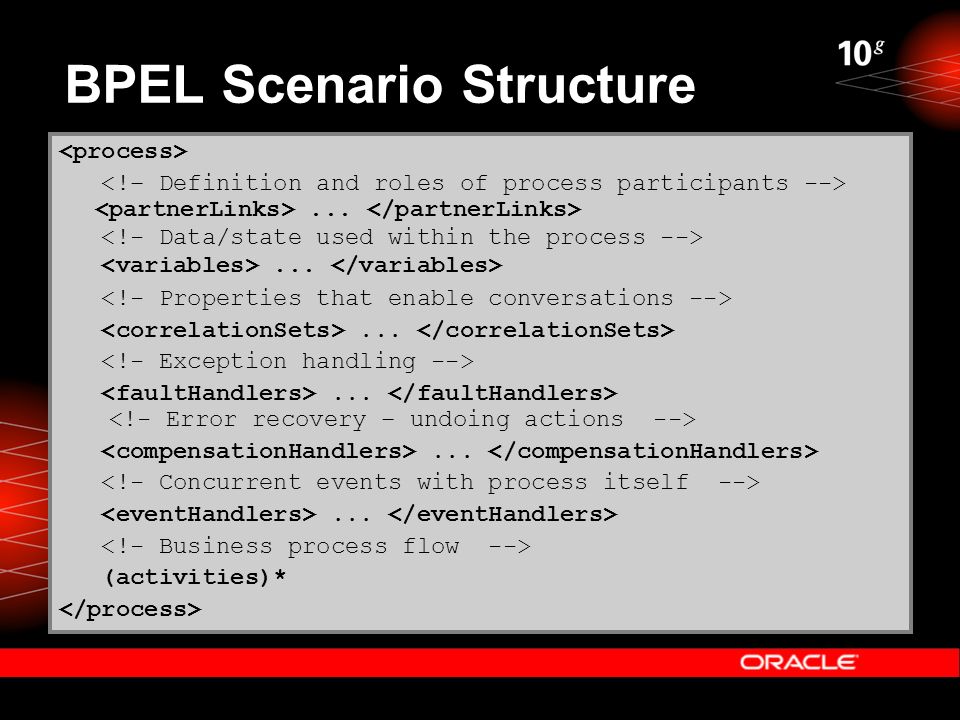

16. BPEL Scenario Structure............... (activities)*

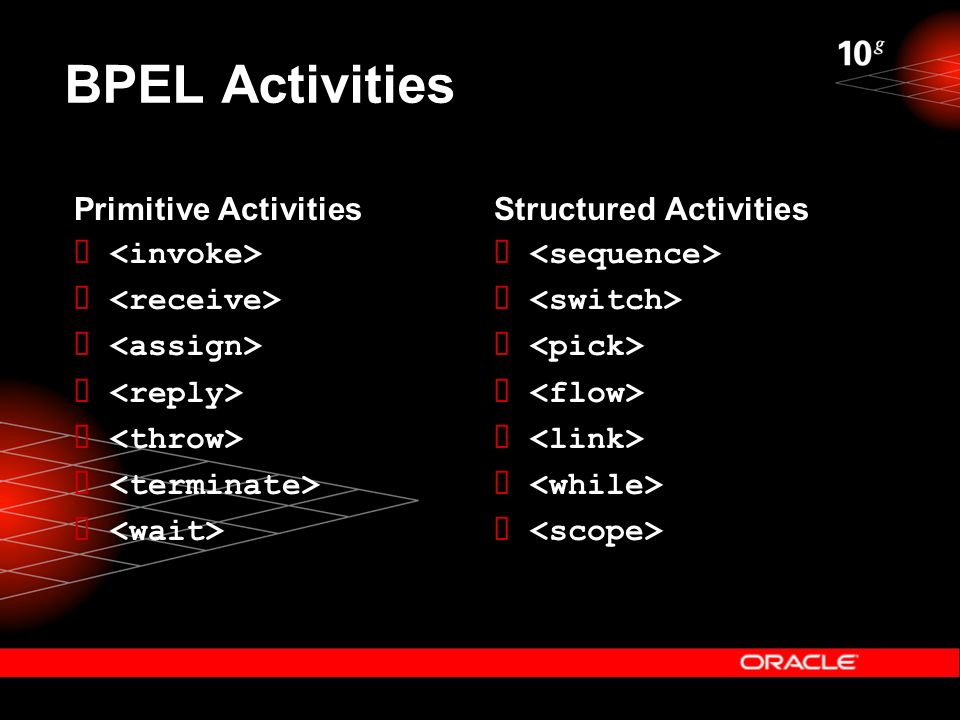

17. BPEL Activities Primitive Activities  Structured Activities 

18. Partners  Declare the Web services and roles used by the process  Tied to WSDL of the process itself and the participating Web services by service link types Credit Service Partner 2 Inventory Service Partner 3 Partner 1 (the process) Purchase Service

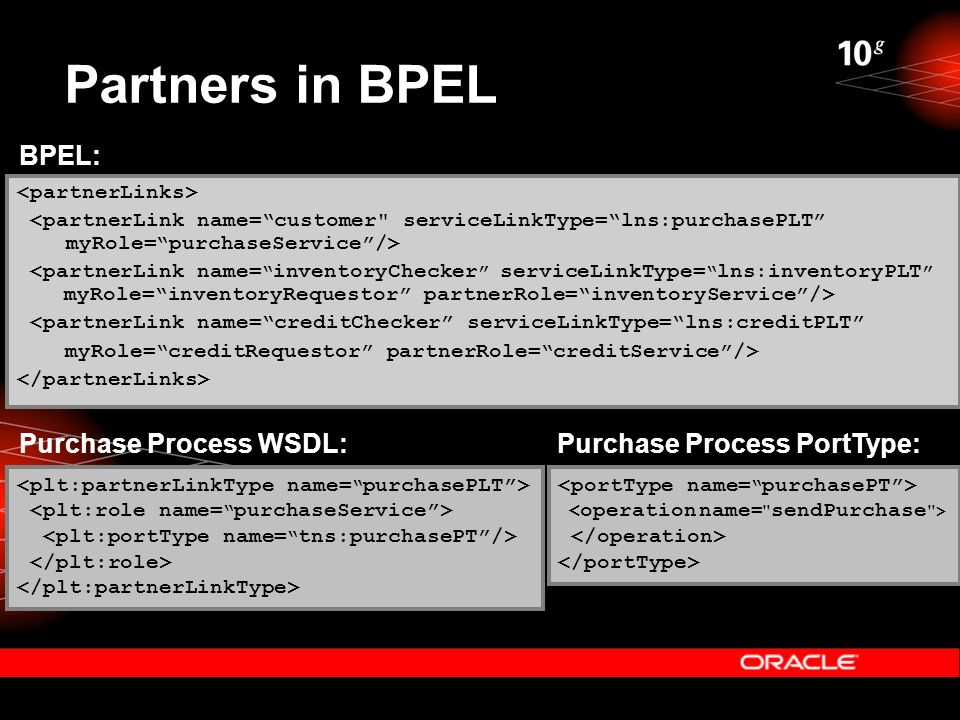

19. Partners in BPEL <partnerLink name=“creditChecker” serviceLinkType=“lns:creditPLT” myRole=“creditRequestor” partnerRole=“creditService”/> Purchase Process WSDL: BPEL: Purchase Process PortType:

20. Variables  Messages sent and received from partners – Persisted for long running interactions – Defined in WSDL types and messages Customer Service Process Persist Persist/ Retrieve Customer Service Persist/ Retrieve

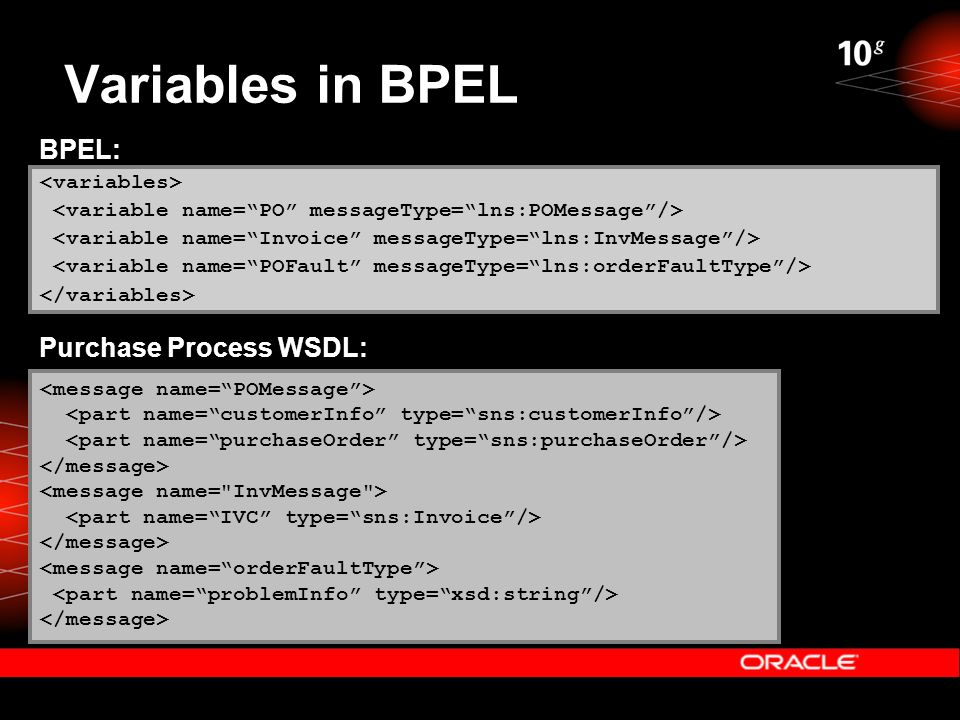

21. Variables in BPEL Purchase Process WSDL: BPEL:

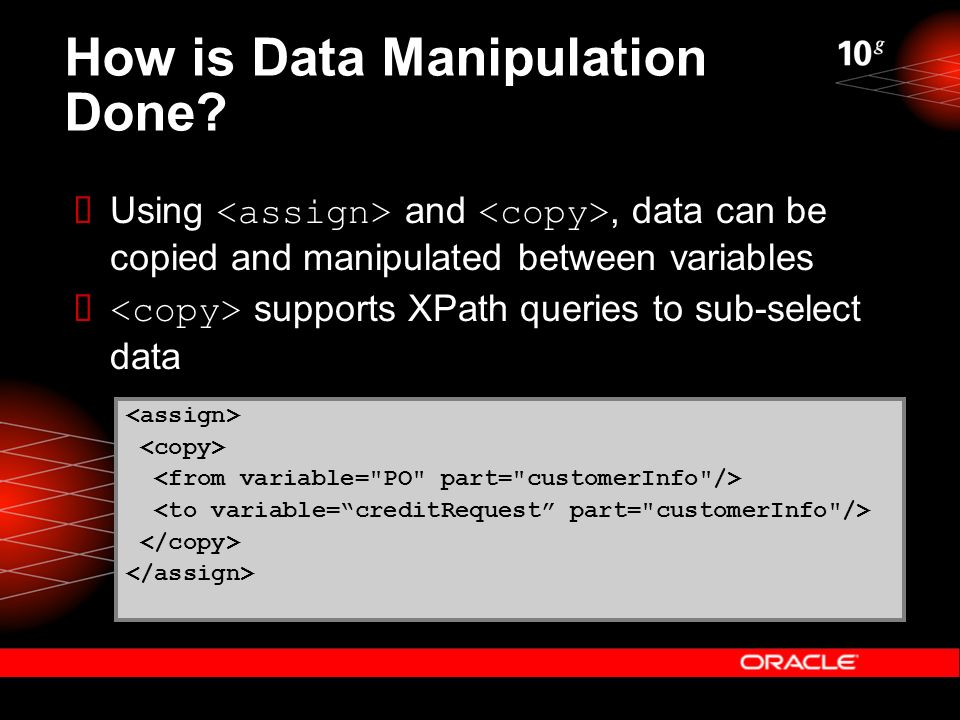

22. How is Data Manipulation Done?  Using and, data can be copied and manipulated between variables  supports XPath queries to sub-select data

23. Simple Activities  Receive – Wait for a partner inbound message – Can be the instantiator of the business process  Reply – Synchronous response to a receive activity – Response to the inbound receive from a partner  Invoke – Issue a request synchronously *or* asynchronously  Pick – Specify an inbound set of messages – Can be the instantiator of the business process – Activity completes when one of the messages arrives

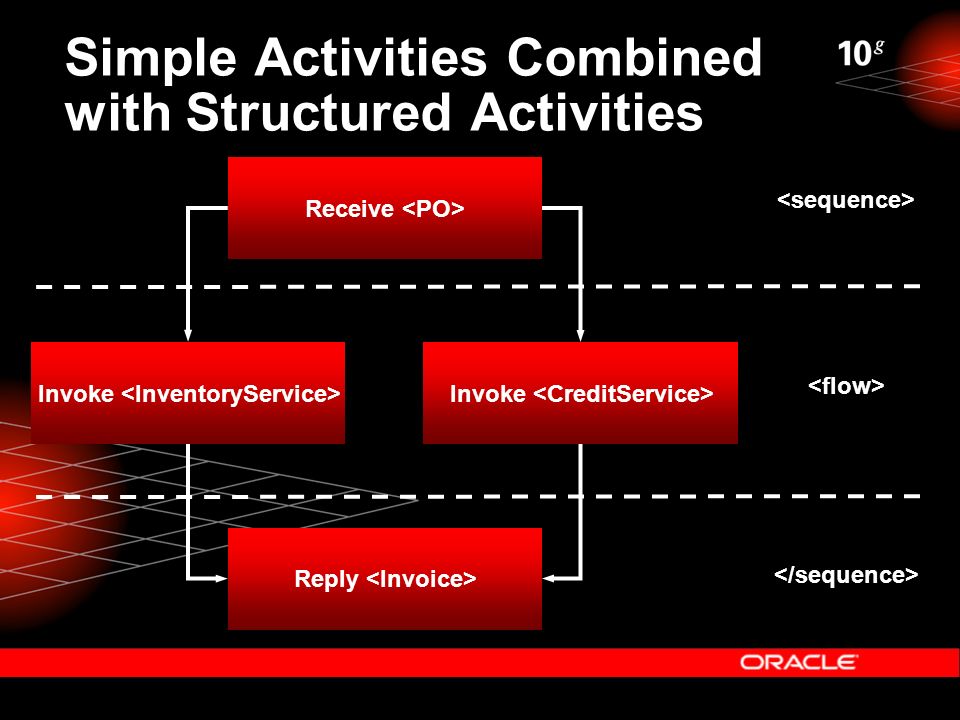

24. Simple Activities Combined with Structured Activities Invoke Reply Receive

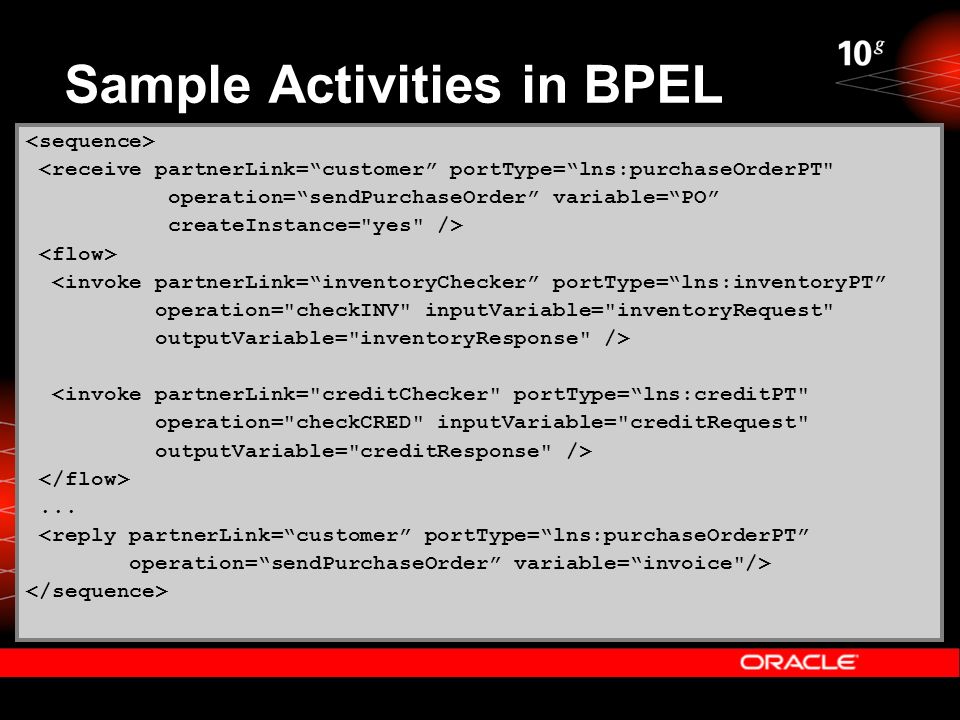

25. Sample Activities in BPEL <receive partnerLink=“customer” portType=“lns:purchaseOrderPT" operation=“sendPurchaseOrder” variable=“PO” createInstance="yes" /> <invoke partnerLink=“inventoryChecker” portType=“lns:inventoryPT” operation="checkINV" inputVariable="inventoryRequest" outputVariable="inventoryResponse" /> <invoke partnerLink="creditChecker" portType=“lns:creditPT" operation="checkCRED" inputVariable="creditRequest" outputVariable="creditResponse" />... <reply partnerLink=“customer” portType=“lns:purchaseOrderPT” operation=“sendPurchaseOrder” variable=“invoice"/>

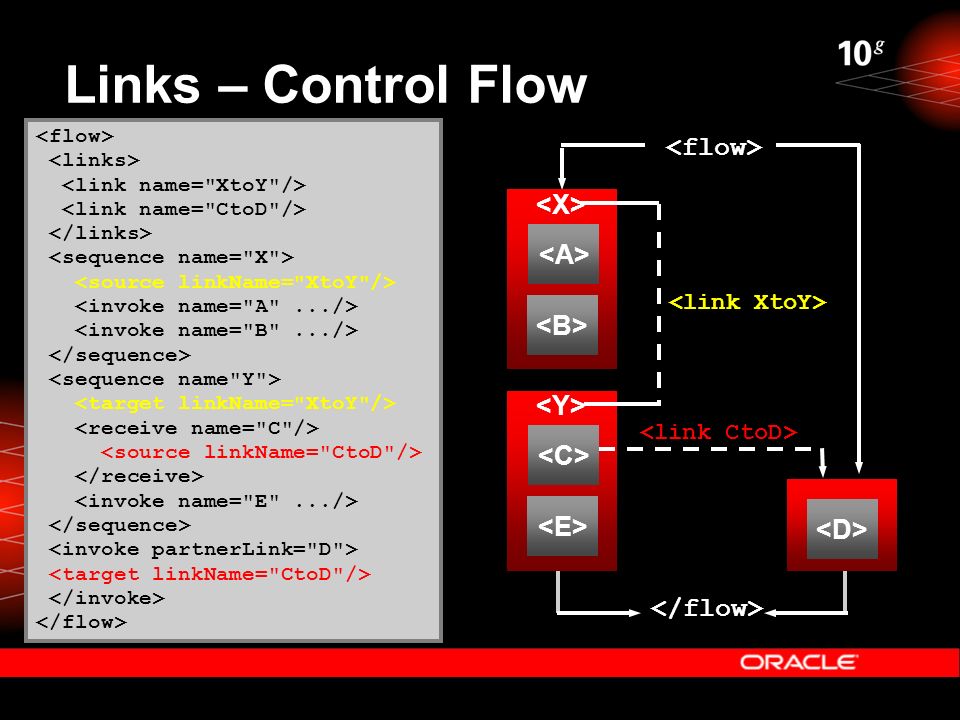

26. Links – Control Flow

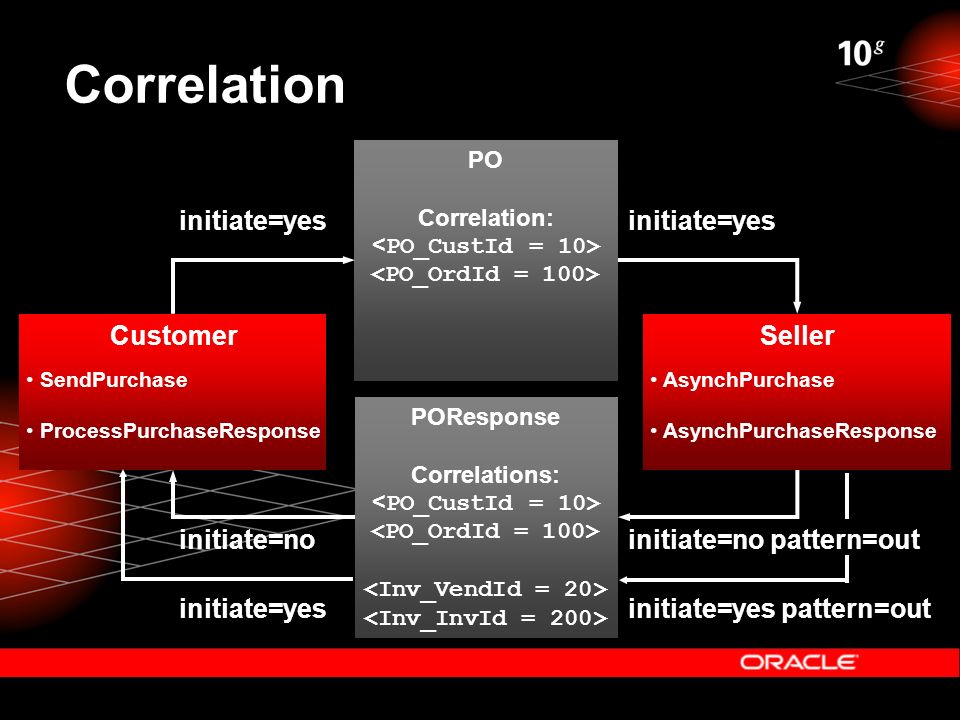

27. Correlation Customer SendPurchase ProcessPurchaseResponse PO Correlation: POResponse Correlations: Seller AsynchPurchase AsynchPurchaseResponse initiate=yes initiate=yes pattern=out initiate=no pattern=out initiate=yes initiate=no

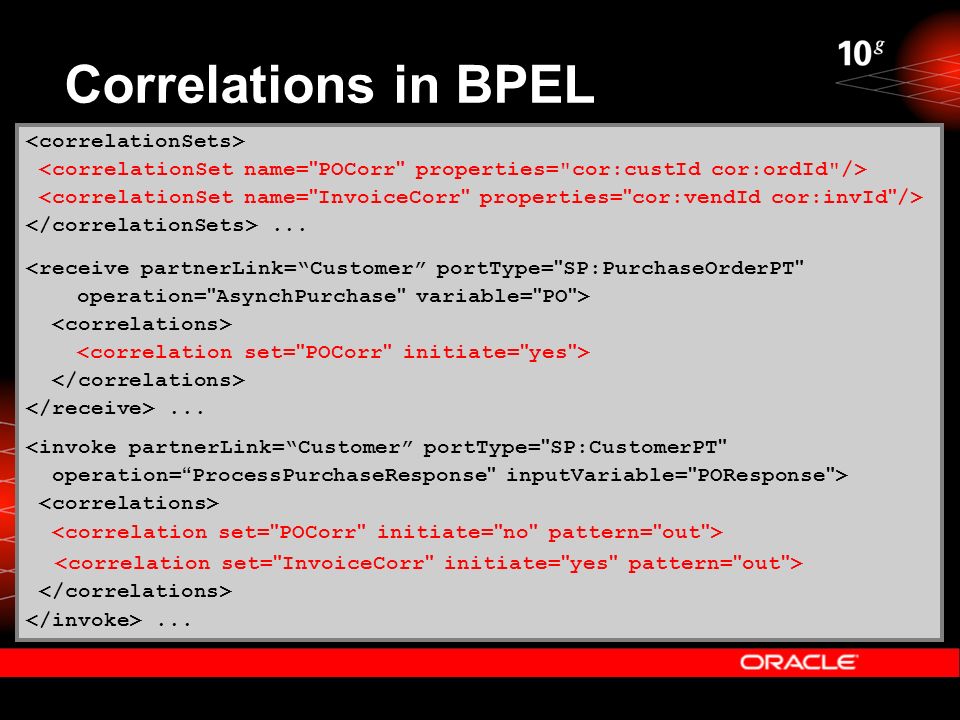

28. Correlations in BPEL... <receive partnerLink=“Customer” portType= " SP:PurchaseOrderPT " operation= " AsynchPurchase " variable= " PO " >... <invoke partnerLink=“Customer” portType= " SP:CustomerPT " operation= “ ProcessPurchaseResponse " inputVariable= " POResponse " >...

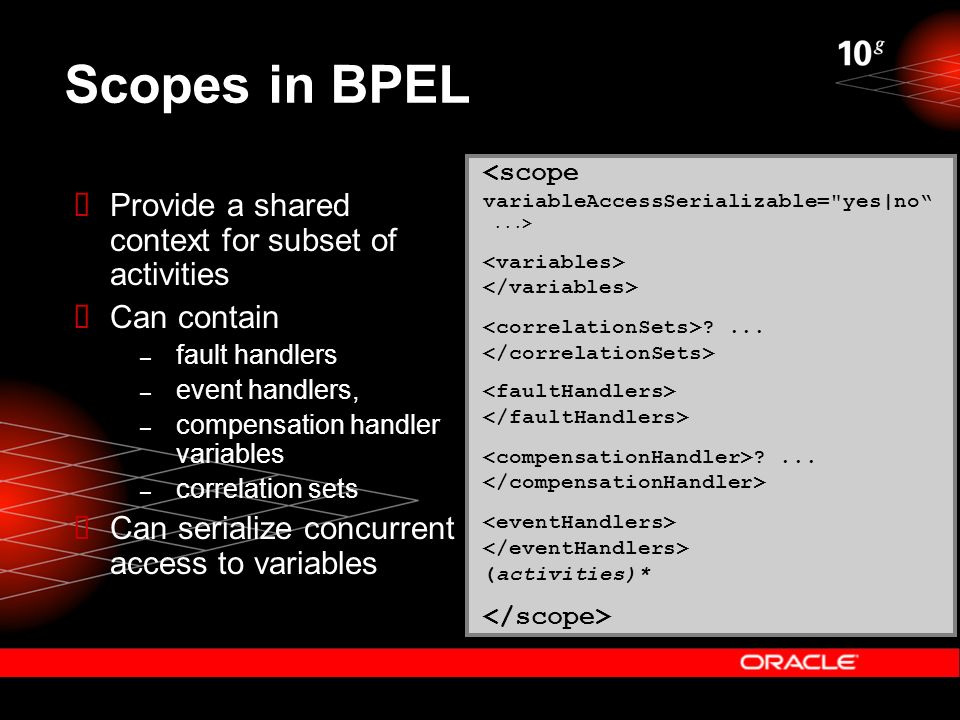

29. Scopes in BPEL  Provide a shared context for subset of activities  Can contain – fault handlers – event handlers, – compensation handler variables – correlation sets  Can serialize concurrent access to variables ?... ?... (activities)*

30. Long Running Transactions and Compensation Undo Reserve Inventory ReserveInventory CancelReserveInv InventoryService CheckCredit ChargeHoldFee CancelHoldFee CreditService Undo Charge Hold Fee

31. Compensation Handlers in BPEL <invoke partnerLink= " Seller " portType= " SP:Purchasing " operation= " CancelPurchase " inputVariable="getResponse" outputVariable="getConfirmation"> <invoke partnerLink="Seller" portType="SP:Purchasing" operation="SyncPurchase" inputVariable="sendPO" outputVariable="getResponse">

32. Exception Handling in BPEL  catch exception – Based on WSDL port defining fault  can perform activities upon invocation <catch faultName="lns:cannotCompleteOrder" faultVariable="POFault"> <reply partnerLink="customer" portType="lns:purchaseOrderPT" operation="sendPurchaseOrder" variable="POFault" faultName="cannotCompleteOrder"/>

33. Just Show Me How to Do it! Partner WSDL 1 Process WSDL Partner WSDL n... BPEL Scenario 1.Compile 2.Package 3.Deploy Application Server BPEL Runtime Compiled BPEL Scenario

34. Tooling Requirements  IDE – build your Web services  WSDL authoring – model your interfaces  Schema authoring – model your messages  Process modeling – model your orchestration  Packaging and deployment  Debugging  Monitoring  Analyzing

35. What Happened to Java?  JSR 207 - Process Definition Language for Java  Make business processes natural for Java programmers MessagingTransactions Pooling Naming Security Application Server ServletEJB Process Definition for Java Based on JSR 207 Session at JavaOne 2003

36. What Happened to J2EE?  JSR 208 – Java Business Integration  Make business processes a first class citizen in J2EE containers Based on JSR 208 Session at JavaOne 2003... Routing Engine Transform Engine BPEL Engine Normalized Message Bus JSR 208 Binding SPI EDIJCA Web Services JMS... Binding Framework JSR 208 Machine SPI

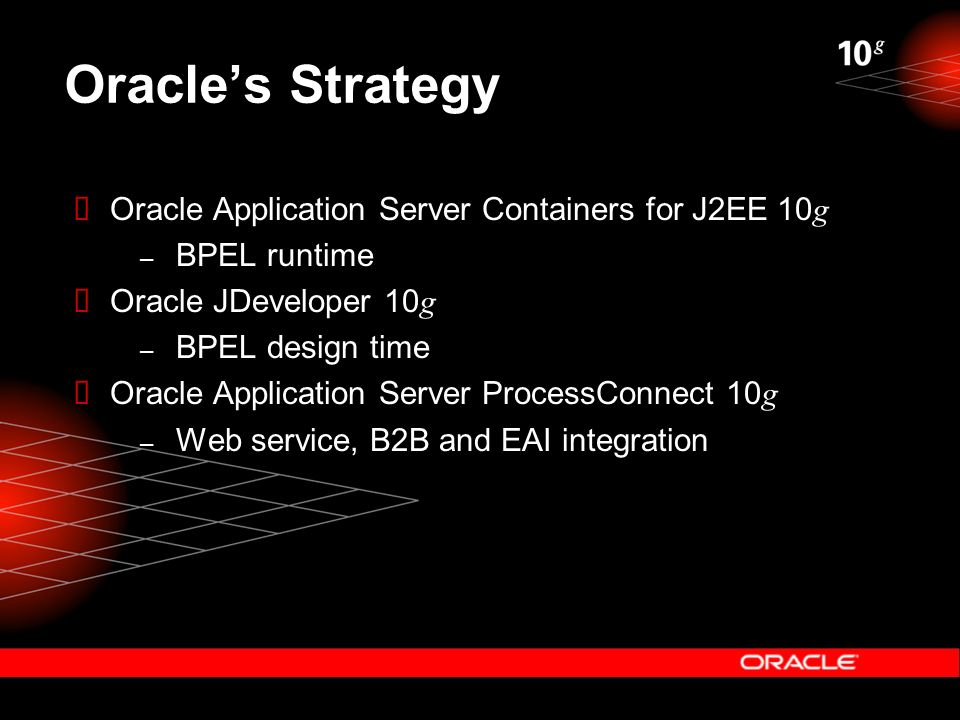

37. Oracle’s Strategy  Oracle Application Server Containers for J2EE 10 g – BPEL runtime  Oracle JDeveloper 10 g – BPEL design time  Oracle Application Server ProcessConnect 10 g – Web service, B2B and EAI integration

38. Remember BPEL Does Not Solve “World Hunger”  No data transformation  No data translation (EDI, binary formats …)  No human workflow  No trading partner agreements  Silent on existing business protocols (ebXML, RosettaNet …)  Silent on non Web service interactions (e.g. java to java) ...

39. But Remember: People Are Trying to Solve “World Hunger”  W3C: WS-Choreography  Spec: WS-Transaction  Spec: WS-Coordination  Spec: WS-Composite Application Framework  OASIS: WS-Reliability  Spec: ReliableMessaging  Spec: WS-Addressing  OASIS: WS-Security  …

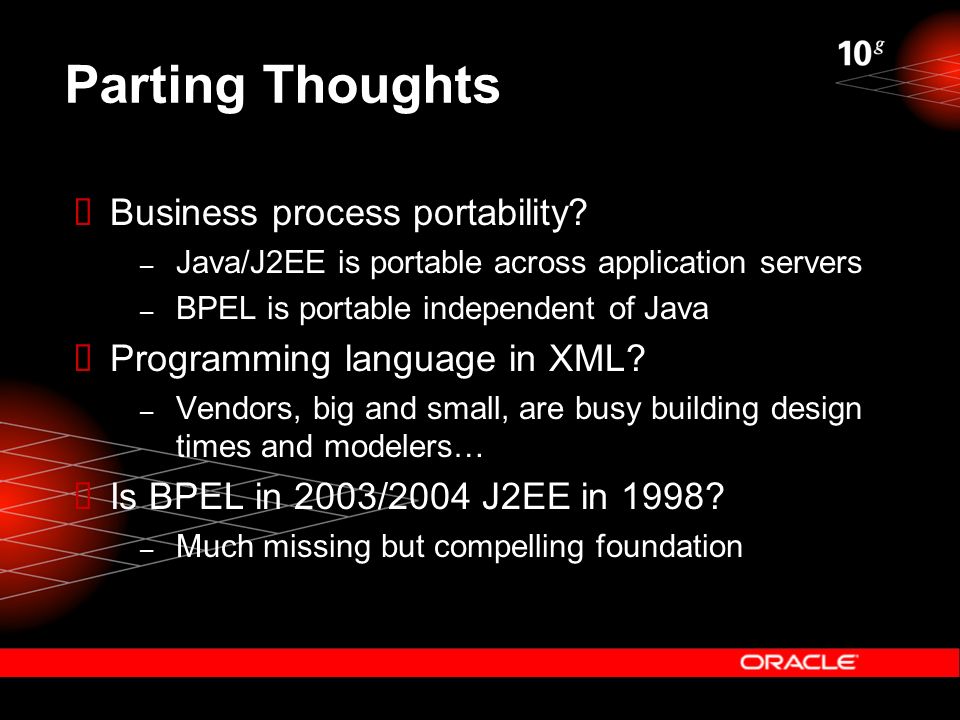

40. Parting Thoughts  Business process portability? – Java/J2EE is portable across application servers – BPEL is portable independent of Java  Programming language in XML? – Vendors, big and small, are busy building design times and modelers…  Is BPEL in 2003/2004 J2EE in 1998? – Much missing but compelling foundation
