1. European Space Astronomy Centre (ESAC) Villafranca del Castillo, MADRID (SPAIN) Aurélien Stébé DALToolKit Ingestor & Server September 2006, Moscow DALToolKit Ingestor & Server Create simple DAL servers easily Aurélien Stébé ESAVO - European Space Astronomy Centre (ESAC)

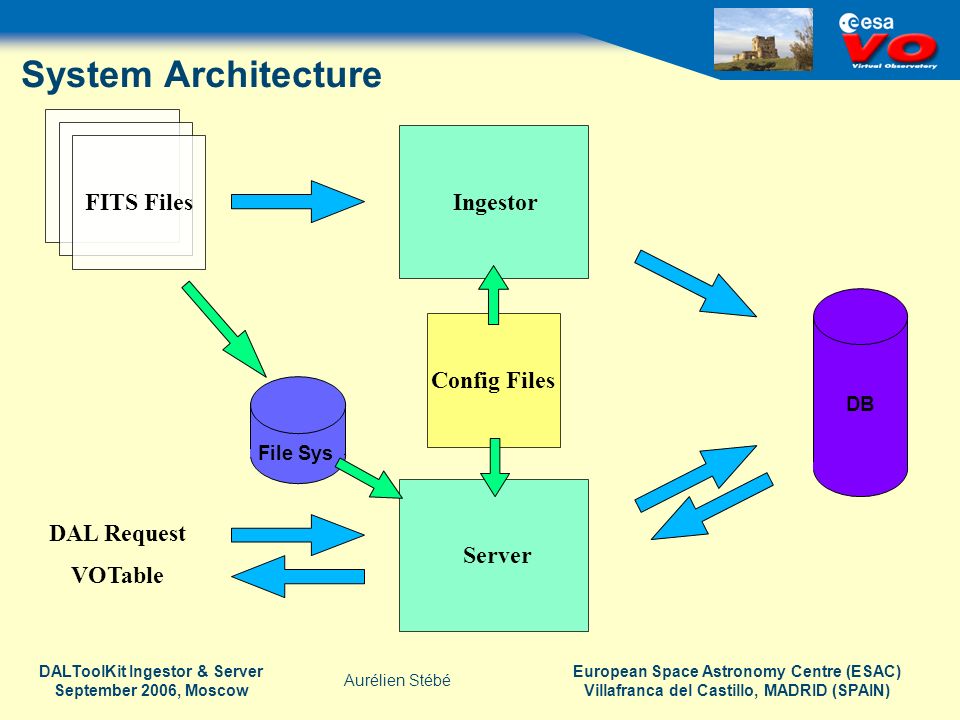

2. European Space Astronomy Centre (ESAC) Villafranca del Castillo, MADRID (SPAIN) Aurélien Stébé DALToolKit Ingestor & Server September 2006, Moscow System Architecture Config Files FITS FilesIngestor DB Server DAL Request VOTable File Sys

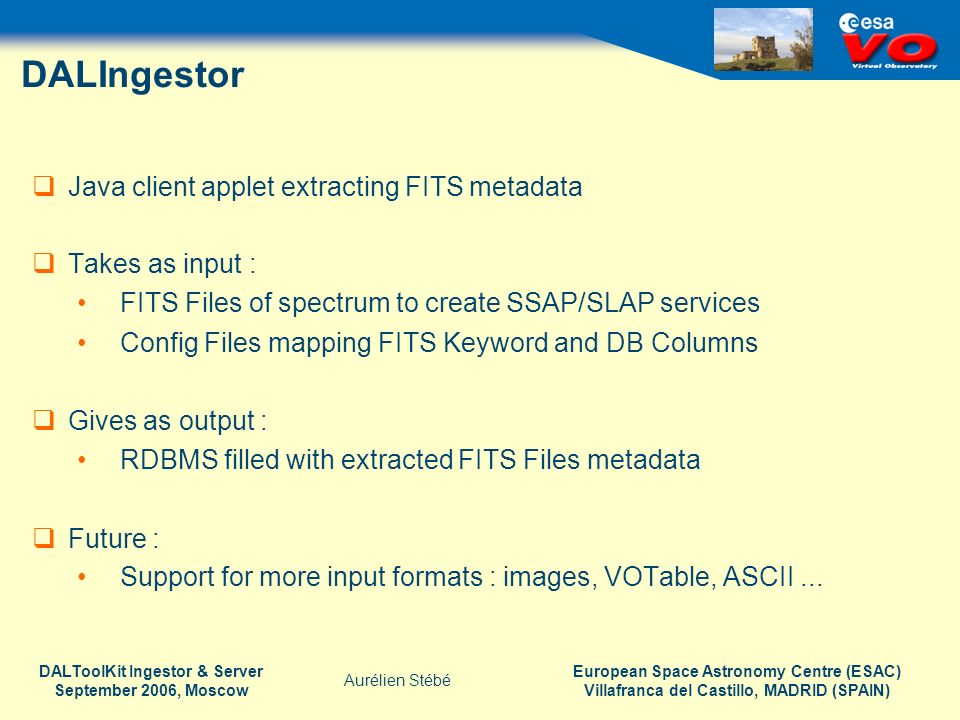

3. European Space Astronomy Centre (ESAC) Villafranca del Castillo, MADRID (SPAIN) Aurélien Stébé DALToolKit Ingestor & Server September 2006, Moscow DALIngestor Java client applet extracting FITS metadata Takes as input : FITS Files of spectrum to create SSAP/SLAP services Config Files mapping FITS Keyword and DB Columns Gives as output : RDBMS filled with extracted FITS Files metadata Future : Support for more input formats : images, VOTable, ASCII...

4. European Space Astronomy Centre (ESAC) Villafranca del Castillo, MADRID (SPAIN) Aurélien Stébé DALToolKit Ingestor & Server September 2006, Moscow DALIngestor - GUI

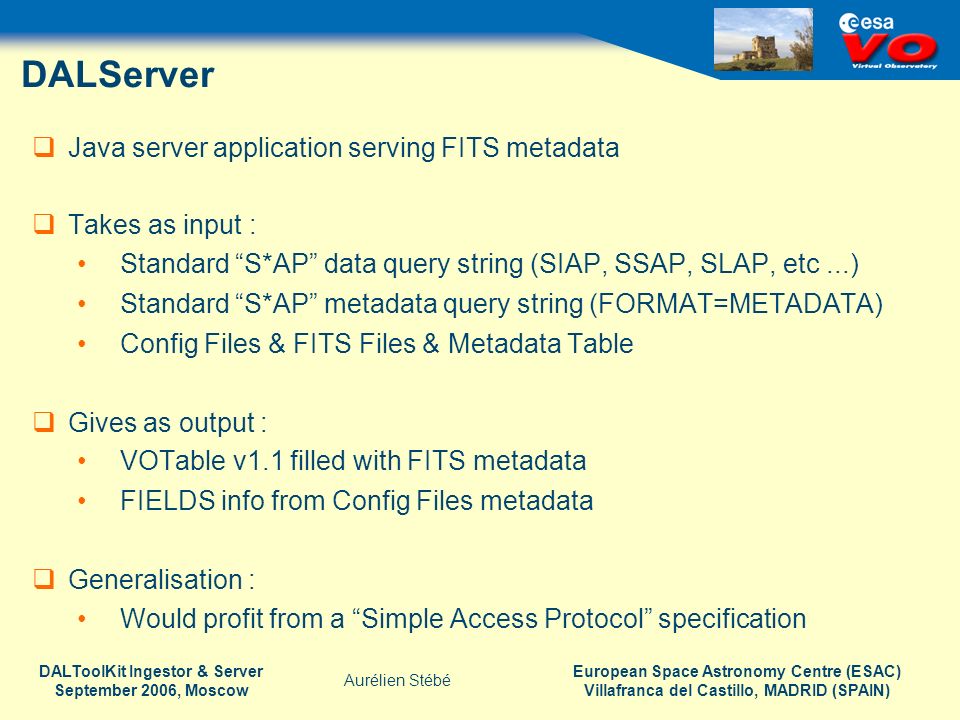

5. European Space Astronomy Centre (ESAC) Villafranca del Castillo, MADRID (SPAIN) Aurélien Stébé DALToolKit Ingestor & Server September 2006, Moscow DALServer Java server application serving FITS metadata Takes as input : Standard S*AP data query string (SIAP, SSAP, SLAP, etc...) Standard S*AP metadata query string (FORMAT=METADATA) Config Files & FITS Files & Metadata Table Gives as output : VOTable v1.1 filled with FITS metadata FIELDS info from Config Files metadata Generalisation : Would profit from a Simple Access Protocol specification

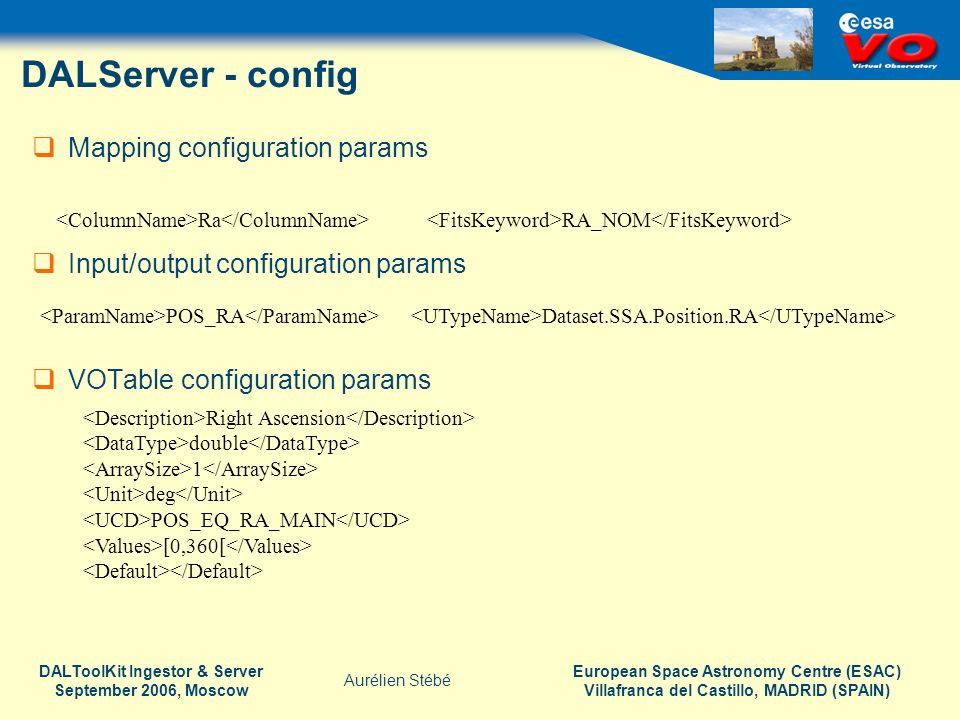

6. European Space Astronomy Centre (ESAC) Villafranca del Castillo, MADRID (SPAIN) Aurélien Stébé DALToolKit Ingestor & Server September 2006, Moscow DALServer - config Mapping configuration params Input/output configuration params VOTable configuration params Ra RA_NOM POS_RA Dataset.SSA.Position.RA Right Ascension double 1 deg POS_EQ_RA_MAIN [0,360[

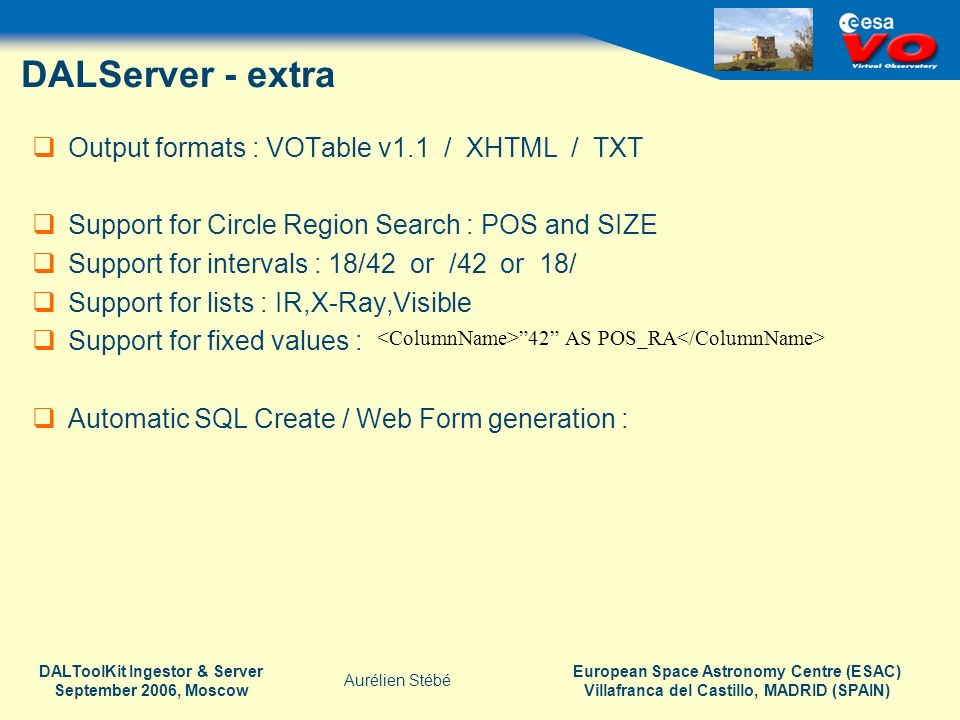

7. European Space Astronomy Centre (ESAC) Villafranca del Castillo, MADRID (SPAIN) Aurélien Stébé DALToolKit Ingestor & Server September 2006, Moscow DALServer - extra Output formats : VOTable v1.1 / XHTML / TXT Support for Circle Region Search : POS and SIZE Support for intervals : 18/42 or /42 or 18/ Support for lists : IR,X-Ray,Visible Support for fixed values : Automatic SQL Create / Web Form generation : 42 AS POS_RA

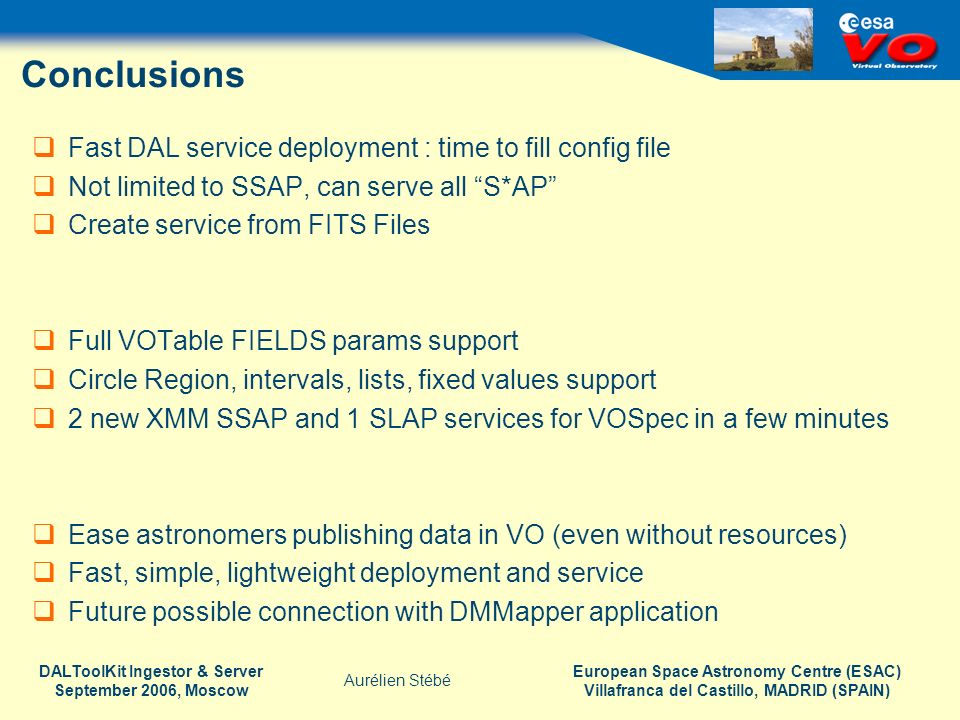

8. European Space Astronomy Centre (ESAC) Villafranca del Castillo, MADRID (SPAIN) Aurélien Stébé DALToolKit Ingestor & Server September 2006, Moscow Conclusions Fast DAL service deployment : time to fill config file Not limited to SSAP, can serve all S*AP Create service from FITS Files Full VOTable FIELDS params support Circle Region, intervals, lists, fixed values support 2 new XMM SSAP and 1 SLAP services for VOSpec in a few minutes Ease astronomers publishing data in VO (even without resources) Fast, simple, lightweight deployment and service Future possible connection with DMMapper application
