1. Bacterial Morphology and Structure
Chapter 2.
Bacterial Morphology and Structure

2. Methods to study bacterial morphology and structure
Optical methods
The light microscope 100-power objective lens with a 10-power ocular lens magnifying the specimen 1000 times
The electron microscopes
Transmission electron microscope (TEM)
can resolve particles with μm in size
Scanning electron microscope (SEM)
is particularly providing three-dimensional images of
the surface structure of microscopic objects
Phase microscope observe living cells

3. Treponemes are recognized by their characteristic corkscrew shape and deliberate forward and backward movement with rotation about the longitudinal axis.
Electron micrograph of Spirillum serpens, showing lophotrichous flagellation (9000 x ).

4. Methods to study bacterial morphology and structure
Staining methods
Simple staining methods
Differential staining methods (Gram stain, Acid-fast stain)
Special staining methods
The spore staining method
The flagella staining method
The capsule staining
Negative staining

5. Size of bacteria
Unit for measurement: Micron or micrometer, μm: 1μm=10-3 mm
Size:
Varies with kinds of bacteria, and also related to their age and external environment.

6. Shape of bacteria Spherical (Cocci, sing. Coccus )
Rods (Bacilli, sing. Bacillus)
Spiral (Spiral bacteria)
vibrio
helicobacterium
spirillum

7. Spherical bacteria Diplococci: Pair of cells divide in one plane
Different arrangements depending on the plane of division
Streptococci: Chain of cells formed by dividing in one plane several times
Tetrad: Divide in two planes
Sarcinae: Divide in three planes
Staphylococci: Divide in many planes and remain together as a cluster

8. Rod-shaped bacteria
Considerable variation in length and diameter: um in width and 2-5 um in length.
Most of rod-shaped bacteria are single arrangement.
Diplobacilli: Bacilli that remain in pairs after they divide.
Streptobacilli: Bacilli that remain in chains after they divide.
Coccobacilli: A short Bacilli that nearly looks like a cocci.

9. Spiral-shaped bacteria
Divided into:
Vibrio: comma shaped
Spirillum: helical rigid (spirillum) or flexible (spirochete)
Helicobacterium: curved rod-shaped

10. Structure of Bacteria

11. Bacteria are prokaryotes
Except ribosomes, lack membrane-bound cytoplasmic organelles
The plasma membrane performs many of the functions carried out by membranous organelles in eukaryotes
Have a nucleoid (nuclear body) rather than an enveloped nucleus

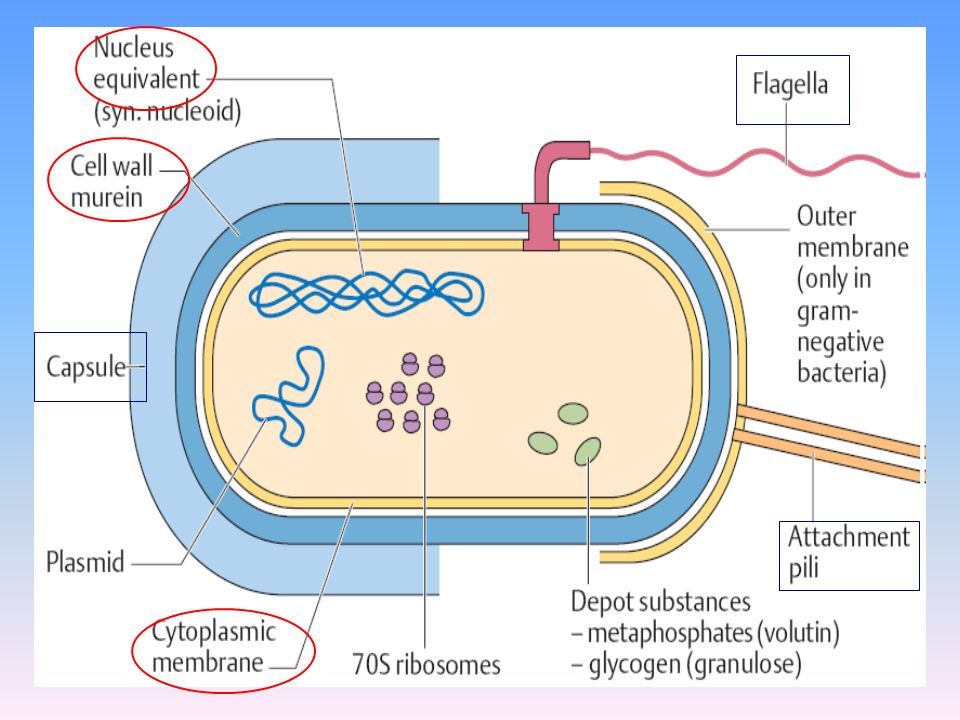

12. Basic structure: Cell wall Specific structure:
Despite their lack of complexity compared to eukaryotes, a number of bacterial structures may be defined:
Basic structure:
Cell wall
Cell membrane
Cytoplasm
Nucleoid
Specific structure:
Flagellum Pilus
Capsules and slime layers
Endospores (spores)
Only plasma membrane, which belonging to cell envelope, is the essential component for any bacteria.

14. Important bacterial structures

15. Cell envelope
The cell envelope may be defined as the cell membrane and cell wall.
Usually, bacterial cell envelopes fall into two major categories:
Gram positive and Gram negative.
This is based on Gram staining characteristics that reflect major structural differences between the two bacterial groups.

16. 1884: Christian Gram: First publication for the Gram stain method
Editor's note: I would like to testify that I have found the Gram method to be one of the best and for many cases the best method which I have ever used for staining Schizomycetes.
Gram-positive cocci
Gram-negative bacilli

17. periplasmic space
Simplified diagram and electronic microscopy pictures of the cell envelope of G+ and G- bacteria

18. Cell wall Situation: outmost portion. 15-30 nm in thickness
10%-25% of dry weight.
The cell wall consists of the peptidoglycan (murein) layer and attached structures.
nanometer

21. peptidoglycan
The peptidoglycan is a single bag-shaped, highly cross-linked macromolecule that surrounds the bacterial cytoplasmic membrane and provides rigidity (which decides the shape of a bacterium) .
It is huge (billions in molecular weight).
Peptidoglycan is found in all eubacteria except Chlamydia and Mycoplasma.

22. peptidoglycan
Peptidoglycan consists of a glycan (polysaccharide) backbone consisting of alternatively residues of N-acetyl muramic acid and N-acetyl glucosamine connected by -1,4 linkage.
with tetrapeptide side chains usually containing D- and L- amino acid residuals, and in some instances containing diaminopimelic acid (DAP) residual.
The side chains are cross-linked by peptide bridges. These peptide bridges vary in structure among bacterial species (gram-negative bacteria have no peptide bridges)

23. Lysozyme can block the -1,4 linkage.
So lysozyme can kill G+ and G- bacteria by destroying their glycan backbone .

24. Penicillin can block the linkage of tetrapeptide side chains and peptide bridges.
So penicillin can kill G+ bacteria by inhibiting their peptidoglycan synthesis.

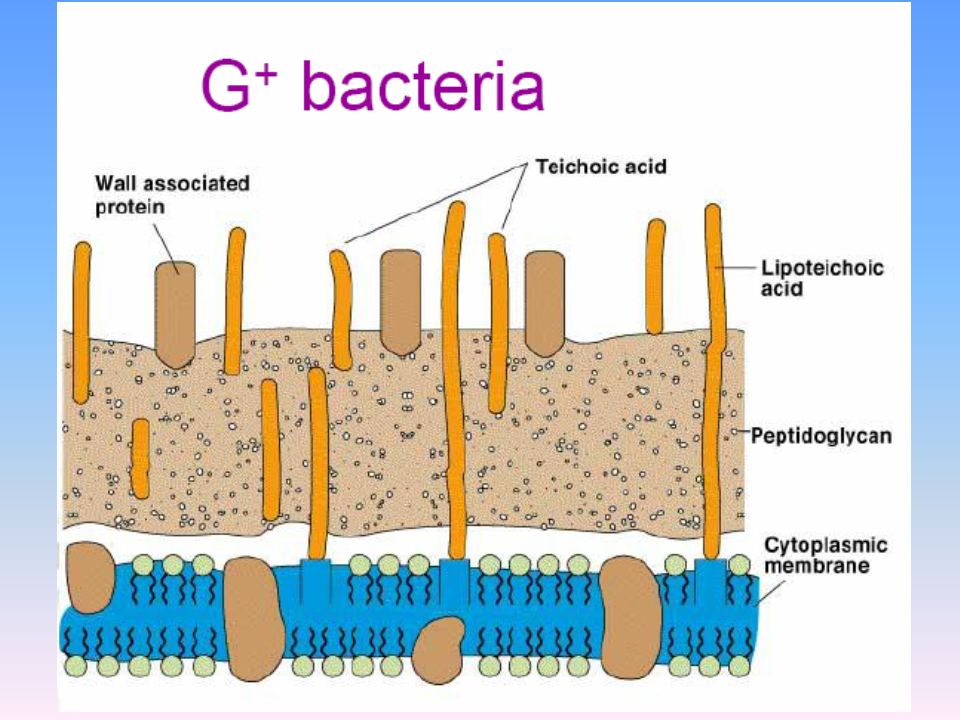

25. Cell wall: characteristics of gram-positive bacteria
A gram-positive bacterium has a thick cell wall (20-80 nm).
The peptidoglycan layer of it is thick (15-50 layers).
It may also include special components such as teichoic acids and proteins.
Teichoic acids are water-soluble, a polymer of polyphosphates.
Wall teichoic acids are linked to the peptidoglyacan.
Membrane teichoic acids are anchored in the cytoplasmic membrane. Lipoteichoic acids

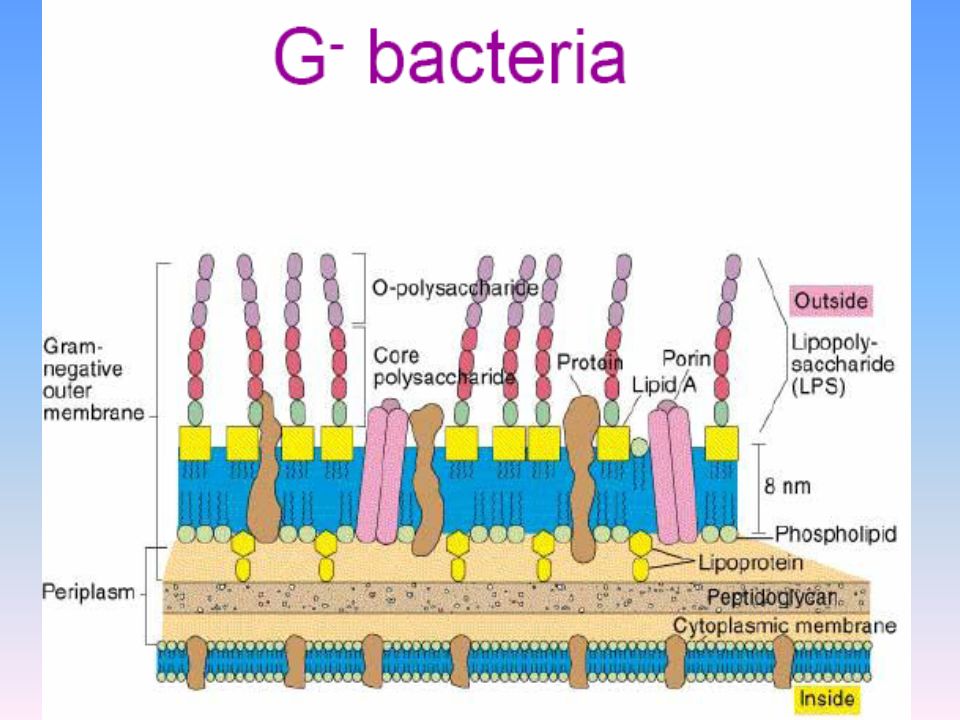

26. Cell wall: characteristics of gram-negative bacteria
A gram-negative cell has a thin (10-15 nm) cell wall but it is more complex than gram-positive cell walls, both structurally and chemically.
The peptidoglycan layer of it is thin (1-2 layers).
It has no any teichoic acids but has an unique outer membrane which is external to the peptidoglycan layer.
The space between cytoplasm and outer membrane is periplasmic space. It contains transport, degradative, and cell wall synthesis proteins.

27. Outer membrane
Outer membrane of a G- bacterium contains lipopolysaccharide (LPS), Phospholipids and lipoproteins.
A group of transmembrane proteins is known as porins which form channels to allow passage of small hydrophilic nutrients (such as sugars, amino acids and certain ions) through the outer membrane.
phospholipids

28. Lipopolysaccharide (LPS)
LPS is also called endotoxin because it is poisonous to mammal cells.
It consists of 3 regions: an external O antigen, a middle core, and an inner lipid A.
The O antigen (somatic antigen) is a specific polysaccharide region composed of repeating units by some specific monosaccharides. Highly variable
The core polysaccharide is similar within a single genus.
lipid A contains β hydroxy fatty acids (uncommon in nature). This molecule displays endotoxin activity.

29. What is the difference between G+ cell wall and G- cell wall?

30. Property
Gram positive
Gram negative
Number of layers in wall 1 2
Peptidoglycan content
>50%
10-20%
Teichoic acid + -
Outer membrane
lipopolysaccharide
Sensitive to penicillin
yes
Less sensitive
Digested by lysozyme
weakly

31. Cell wall: function Maintaining a bacterial characteristic shape
Possessing the resistance to osmotic pressure
Providing a platform for surface appendages such as flagella and pili.
Providing a pathogenic function to adhere host cells
For G+ bacteria, the major adhering molecular is teichoic acids.
For G- bacteria, the major adhering molecular is the pili as well as some of the outer membrane proteins).

32. Cell wall: function Providing attachment sites for bacteriophages
Play an essential role in cell division
Participating the bacterial material exchange
Be the sites of major antigenic determinants of the cell surface.
For G+ bacteria, the major surface antigen is the teichoic acids and then the polysaccharides and the peptidoglycan.
For G- bacteria, the major surface antigen is the LPS and then the outer membrane proteins.

33. Wall-less forms of bacteria
When bacteria are treated with 1) enzymes that are lytic for the cell wall e.g. lysozyme or 2) antibiotics that interfere with biosynthesis of peptidoglycan, wall-less bacteria are often produced.
Usually these treatments generate non-viable organisms. Wall-less bacteria that can not propagate are referred to as spheroplast (G-) or protoplast ( G+).
Occasionally, some wall-less bacteria can propagate (so called as L forms of bacteria).

34. Bacterial L form
L-forms  of bacteria are artificial cell wall-less organisms (means they are different from Mycoplasma)  first  found by the Lister institute in 1935.
Can be produced from normal bacteria by damaging the cell wall (by Penicillin, salt solutions, antisera etc.).
L-form cells are difficult to cultivate and usually require a medium with a right osmotic strength.
They can  reconvert  to  wild  type. Rarely they can develop to stable L-forms.
May cause chronic infections which are relatively resistant to antibiotic treatment and difficulty to detectable using routing serological diagnosis methods, because the target sites of some antibiotics (penicillin) and somatic antigens (O antigen) are absent.

35. Electron micrograph of Staphylococcus
A: L-form
B: Reconvert to wild type
Because of the lack of a rigid cell wall, L-form cells generally show various shapes (such as filar) compared to the original shapes and gram-negative staining.

36. Important bacterial structures

37. Cell membrane
Site of biosynthesis of DNA, cell wall polymers and membrane lipids.
Selective permeability and transport of solutes into cells
Electron transport and oxidative phosphorylation
Excretion of hydrolytic exoenzymes

38. Mesosomes
Mesosomes are specialized structures folded invaginations in the plasma membrane of bacteria
divided into septal and lateral mesosome.
They were first observed in the samples prepared for electron microscopy in 1953, but in 1980s, it is proved that mesosomes are artifacts formed trhough damage to the membrane during the process of chemical fixation and do not occur in living cells.

39. Functions of the cytoplasmic membrane
(1) selective permeability and transport of solutes;
(2) electron transport and oxidative phosphorylation, in aerobic species;
(3) excretion of hydrolytic exoenzymes;
(4) bearing the enzymes and carrier molecules that function in the biosynthesis of DNA, cell wall polymers, and membrane lipids;
(5) bearing the receptors and other proteins of the chemotactic and other sensory transduction systems.
that function in the biosynthesis of DNA, cell wall polymers, and membrane lipids;

40. Important bacterial structures

41. Cytoplasm
Composed largely of water, together with proteins, nucleic acid, lipids and small amount of sugars and salts
Ribosomes:
Plasmids: extrachromosomal genetic elements capable of autonomous replication
Inclusions: sources of stored energy, e,g volutin

42. Ribosomes
15-20 nm in diameter with 70S, distributed throughout the cytoplasm
sensitive to streptomycin and erythromycin
a workbench for protein synthesis, numerous
the target of antimicrobial agents:
Streptomycin
Tetracyline

43. Plasmids
Plasmids are small, circular / line, extra-chromosomal double-stranded DNA.
Usually present in multiple copies and are capable of self-replication.
Often code for pathogenic factors and antibiotic resistant factors.
Are not essential for bacterial survival

44. Inclusions of Bacteria
are aggregates of various compounds that are normally involved in storing energy reserves or building blocks for the cell. Inclusions accumulate when a cell is grown in the presence of excess nutrients and they are often observed under laboratory conditions.
Inclusions of Bacteria
granulose

45. Important bacterial structures

46. caryoplasm
Lacking nuclear membrane, absence of nucleoli, hence known as nucleic material or nucleoid, one to several per bacterium.

47. Special bacterial structures

48. Capsules and slime layers
Are structures surrounding the outside of the cell envelope.
Usually, slime layer is thinner than capsule.
They are usually demonstrated by the negative staining or “capsule stain” which gives color to the background.

49. Capsules and slime layers
They are usually composed of polysaccharide, however, in certain bacilli they are composed of a polypeptide.
Some strains within a species can produce a capsule, whereas the others can not.
They are not essential to bacterial viability.
Capsules are often lost during in vitro culture.
The capsules contribute to the invasiveness (virulence) of pathogenic bacteria by protecting them from phagocytosis by phagocytes.

50. Special bacterial structures

51. Flagellum: general description
a thin, threadlike appendage on many bacterial cells that is responsible for their motility
Flagellum consist of a number of proteins including flagellin
Are embedded in the cell membrane, extend through the cell envelope and project as a long strand.
The diameter of a flagellum is thin (20 nm) and long with a length 10 times of the bacterial cell diameter. Due to their small diameter, flagellum cannot be seen under light microscope unless a special stain is applied.

52. Flagellum: types Three types of arrangement are known:
monotrichous single polar flagellum
lophotrichous in one plane with cell
peritrichous flagella distributed over the entire cell
Electron graph
monotrichous
lophotrichous
peritrichous
Flagella stain
Light microscopy graph

53. Flagellum: composition
Composition: protein
A bacterial flagellum is made up of several thousand molecules of a protein subunit called as flagellin. They move the bacterial cell by rotating with a propeller like action.
Flagellins are highly antigenic (H antigens).

54. Flagella: function Motility of bacteria: Identification of bacteria:
Flagella enable bacteria to taste their environment and respond to specific chemical foodstuffs or toxic materials and move towards or away from them (chemotaxis).
Identification of bacteria:
According to the mobility and antigenicity of flagellins (H antigen).
Possible Pathogenesis:
In the past, flagella were considered not to be relative to bacterial pathogenicity. In the recent data, the flagella of some bacterial species have adhering ability to host cells.

55. Special bacterial structures

56. Pilus Pili are hair-like appendages of many bacterial cells.
shorter and thinner than flagella, only visible under electron microscope.
receptors for certain bacterial viruses. Chemical nature is pilin

57. Pilus Pili are composed of structural protein subunits termed pilins.
Two types can be distinguished:
Common pili
Shorter, thinner, numerous for one bacterium
Relative to bacterial adhesion (adhering to host cells)
Contribute to virulence of some pathogenic bacteria
Sex pili
Longer, coarser, only 1-4 for one bacterium
Relative to bacterial conjugation (a pattern of bacterial genetic material exchanges)
The recent data revealed that sex pili of some bacteria has the ability to adhere host cells.

58. Common pili
Sex pili
Donor bacterium
Recipient
Electron graph of pili

59. Special bacterial structures
Endospores (spores)

60. Endospores (Spores)
Under adverse conditions, such as nutrient/water depletion, some bacteria form a thick wall inside the cytoplasmic membrane leading to a resting stage known as spores.

61. Endospores (spores)
Spore is an intracellular body which found in some species of bacteria. One spore-forming bacterium can only produce one spore. Spore can be seen after staining with dyes by heating the preparation. Sometimes, it can also be seen as a colorless area by using conventional bacterial staining methods.

62. Endospores (Spores)
A highly resistant resting structure produced within a bacterium. It enables the bacterium in soil to survive many years. It can withstand heating, freezing, chemicals and radiation.
Spore has no ability for propagation (multiplication).
Under favorable conditions, one spore germinates into one vegetative bacterial cell (propagation / multiplication). But spore has no ability for proliferation.
Spores are commonly found gram-positive bacilli in the genera Bacillus and Clostridium.
The different sizes, shapes and positions of spores will help us to identify spore-forming bacteria.

63. Contents of endospore
Core
spore wall /core
Cortex
Coat
exosporium

64. Process of endospore formation: Sporogenesis/sporulation

66. Classification of bacteria
Since there is the diversity of organisms including bacteria, it is necessary to group similar organisms together and organize these groups in a non-overlapping hierarchical arrangement.
Taxonomy is the science of biological classification, which includes the two disciplines of classification and nomenclature.

67. Classification of bacteria
The bacteria are classified in a hierarchic system based on phenotypic characteristics (morphological, physiological, and chemical characteristics).
The basic unit is the species. Similar and related species are classified in a single genus and related genera are placed in a single family.

68. Classification of bacteria
In formal terms, the prokaryotes are classified in phyla, classes, orders, families, genera, and species, plus subtaxa if any:
Family (familia) Enterobacteriaceae
Genus Escherichia
Species E. coli
Variety or type Serovar O157:H7
Strain xyz

69. nomenclature of bacteria
Scientifically, species is named by a Latin binominal. Each species receives a name of two parts, and the first is the genus name and the second is the species name.
The genus name is always capitalized but the species name is not. Both species and genus are usually in italics.
The genus name may be abbreviated by just using its initial letter.
While described in Chinese, the genus is followed by species name.
Staphylococcus aureus
S. aureus
Genus species
reverse

70. Oxygen Obligate aerobe Microaerophile Facultative anaerobe
an organism that grows only in the presence of oxygen
Microaerophile
an organism that requires a low concentration of oxygen for growth
Facultative anaerobe
an organism that grows with or without oxygen
Oblige anaerobe
an organism that grows only in the absence of oxygen

71. Temperature Mesophile Thermophile (50-60 ℃ ) Psychrophile (15-20 ℃ )
an organism that grows best at cold temperatures
Mesophile
an organism that grows best at moderate temperatures
Thermophile (50-60 ℃ )
an organism that grows best at high temperatures

72. pH Neutrophile Alkalophile Acidophile
an organism that grows best at a pH below 6
Neutrophile
an organism that grows best at a pH between 6 and 8
Alkalophile
an organism that grows best at a pH above 8

73. Some other features that have been used to classify bacteria
Gram stain (G+/G-)
Cell shape
(coccus/ bacillus/ spiral bacterium)
Ability to form spores
(spore-forming/non-spore-forming clostridia)
Mole percent G+C in the genome
Electron acceptors for respiration
Ability to use various carbon and nitrogen sources
Special nutritional requirements (e.g., vitamins)
Motility (Flagellum)

74. Summary
Structure of bacteria include essential structures of cell wall, cell membrane, cytoplasm, and nuclear material (nucleoid).
Some bacteria also have one or more of the particular structures of capsule, flagella, pili, endospores.
The difference between G+ cell wall and G- cell wall
Medical importance of four special structures
