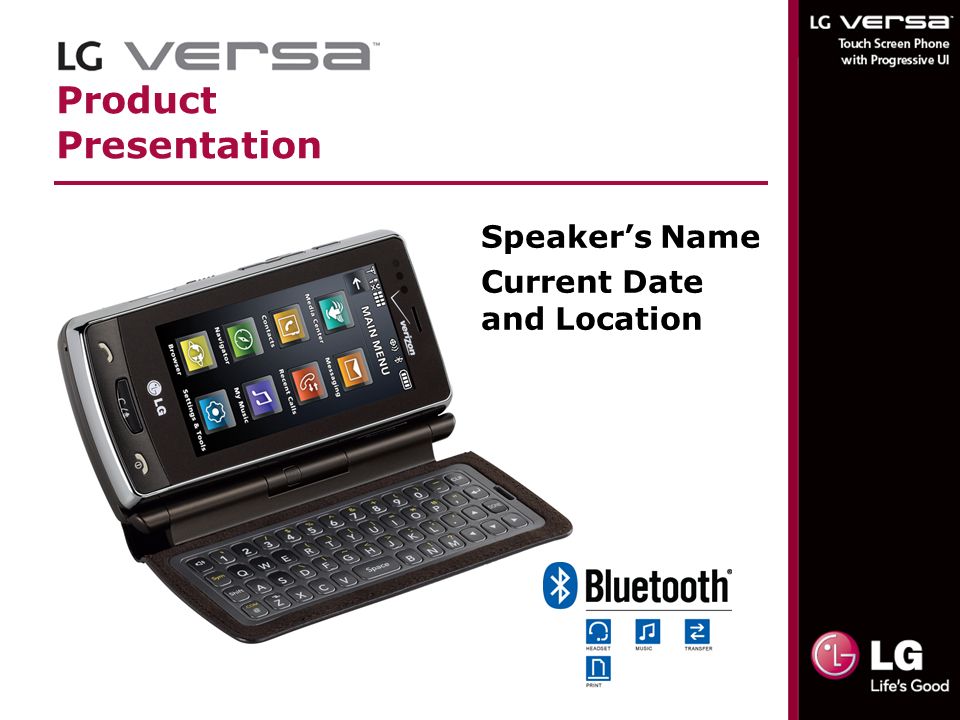

1 Speaker’s Name Current Date and Location Product Presentation

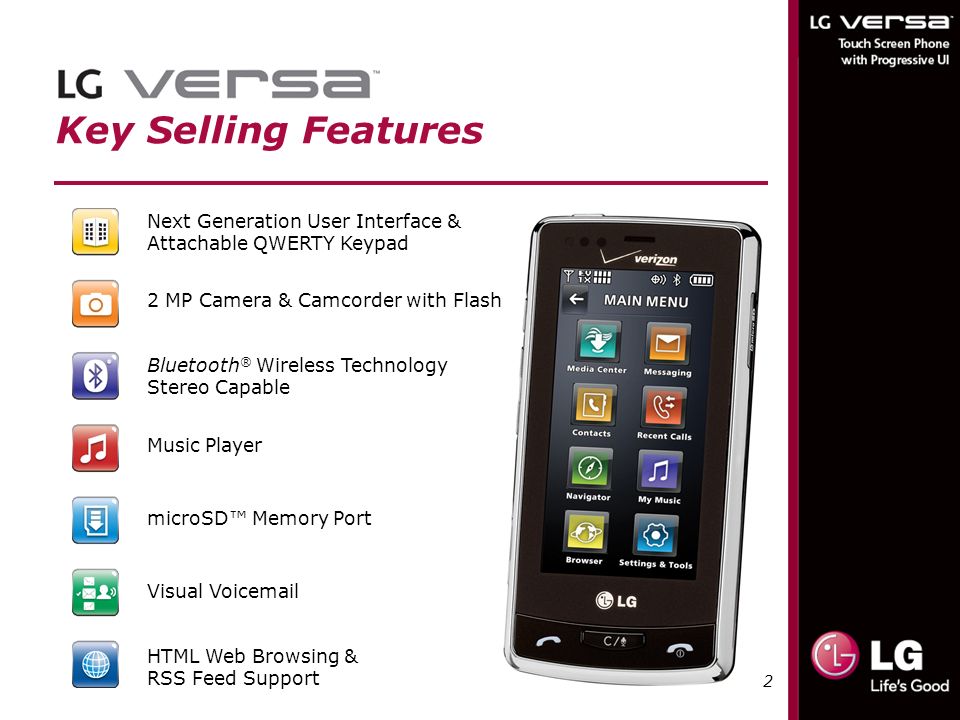

2 Key Selling Features Next Generation User Interface & Attachable QWERTY Keypad 2 MP Camera & Camcorder with Flash Bluetooth ® Wireless Technology Stereo Capable Music Player microSD™ Memory Port Visual Voicemail HTML Web Browsing & RSS Feed Support 2

3 3 Key Functions Front Main Menu Proximity Sensor Light Sensor Touch Screen Earpiece Power/End Key Unlock/Lock Key Send Key MicrophoneClear & Back/Voice Command/ Voice Recording Key Shortcut Menu Touch Key MessagingCallMenuContacts Touch Soft Keys

4 Key Functions Back & Sides 4 microSD Port Flash Camera Lens Speaker 2.5mm Headset Jack Camera Key Volume Keys Micro USB/ Charging Port Cover Lock Latch BACKSIDES

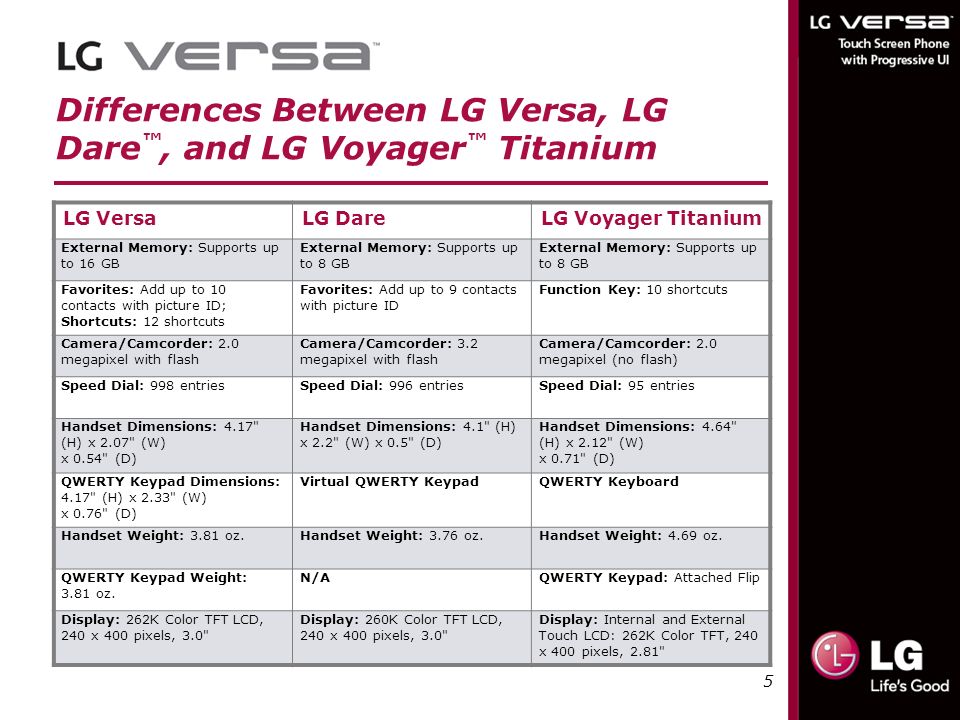

5 Differences Between LG Versa, LG Dare ™, and LG Voyager ™ Titanium 5 LG VersaLG DareLG Voyager Titanium External Memory: Supports up to 16 GB External Memory: Supports up to 8 GB Favorites: Add up to 10 contacts with picture ID; Shortcuts: 12 shortcuts Favorites: Add up to 9 contacts with picture ID Function Key: 10 shortcuts Camera/Camcorder: 2.0 megapixel with flash Camera/Camcorder: 3.2 megapixel with flash Camera/Camcorder: 2.0 megapixel (no flash) Speed Dial: 998 entriesSpeed Dial: 996 entries Speed Dial: 95 entries Handset Dimensions: 4.17" (H) x 2.07" (W) x 0.54" (D) Handset Dimensions: 4.1" (H) x 2.2" (W) x 0.5" (D) Handset Dimensions: 4.64" (H) x 2.12" (W) x 0.71" (D) QWERTY Keypad Dimensions: 4.17" (H) x 2.33" (W) x 0.76" (D) Virtual QWERTY KeypadQWERTY Keyboard Handset Weight: 3.81 oz.Handset Weight: 3.76 oz.Handset Weight: 4.69 oz. QWERTY Keypad Weight: 3.81 oz. N/AQWERTY Keypad: Attached Flip Display: 262K Color TFT LCD, 240 x 400 pixels, 3.0" Display: 260K Color TFT LCD, 240 x 400 pixels, 3.0" Display: Internal and External Touch LCD: 262K Color TFT, 240 x 400 pixels, 2.81"

6 Differences Between LG Versa, LG Dare ™, and LG Voyager ™ Titanium (cont’d) 6 LG VersaLG DareLG Voyager Titanium Web Browsing: Up to 3 windows open simultaneously Web Browsing: Yes Home screens: 4 with 3 customizable (Favorites, Shortcuts, Media) and 1 module home screen with QWERTY keypad attached Home screen: 1Home screen: 1 external touch screen and 1 internal Visual Voicemail: YesN/AVisual Voicemail: Yes Threaded MessagingN/A Accelerometer: Multidirectional rotation, highly responsive Accelerometer: Horizontal and vertical responsiveness Accelerometer: No Gaming: Advanced with multidirectional accelerometer Gaming: Standard Usage Time: Up to 290 minutes (4 hours & 50 minutes) Usage Time: Up to 280 minutes (4 hours & 40 minutes) Usage Time: Up to 240 minutes (4 hours) Standby Time: Up to 430 hours (17 days & 22 hours) Standby Time: Up to 360 hours (15 days) Standby Time: Up to 480 hours (20 days)

7 Sleek bar design. Ultra Slim Attachable QWERTY Keypad: answer and end calls, have conversations, and use the speakerphone with the attachment open or closed. Auto Screen & Key Lock – prevents unwanted key actions. Large 3" Touch Screen with Tactile Feedback: adjust the vibration, effect, and calibration. Animated 3D Screen Interface – navigate between 3 customizable home screens for favorites, shortcuts, media and the module screen. * Customizable font size for dialing, menu and lists, and messages. Enhanced Flash UI for clear images/text and fun animations. Touch Soft Keys on each home screen for easy navigation. Key Features Design 7 *Attaching the QWERTY keypad activates the non-customizable module screen.

8 1.Use the tip of your finger or the stylus to select icons on the touch screen. It’s not necessary to press hard. A light tap will do. 2.To move from one home screen to another, press and drag your finger/ stylus horizontally across the touch screen. The display will rotate to the next home screen. Key Features – Demo Navigate the Home Screens 8 Note: The touch screen automatically locks after periods of inactivity. To unlock the touch screen, touch the Unlock icon or press the Unlock/Lock Key located on the top of the phone. Unlock/Lock Key

9 1.From standby mode, touch the Contacts icon. 2.Touch the highlighted letters on the virtual keypad to search for a name in your contacts. Highlighted letters represent currently stored contacts in your phone book. Key Features – Demo Search Contacts 9

10 Add frequently used contacts to the Favorites home screen. Touch a Favorite’s picture ID to place a call, send him/her a text message, view your threaded message history, or edit contact information. Set shortcuts to tools, features, and menus through the customizable Shortcuts home screen. The Media home screen hosts customizable shortcuts to multimedia files such as pictures, videos, music, and web bookmarks. Key Features – Demo Customizing the Home Screens 10 Note: A fourth, non-customizable Module home screen is available when the QWERTY keypad is attached. To access items found on this home screen if the keypad is unattached, browse the main menu or set shortcuts on the Shortcuts home screen. Shortcut Menu Touch Key

11 1.To use the QWERTY keypad, first remove the back cover of the phone. 2.Place your LG Versa in the QWERTY keypad, aligning the phone with the metal contacts on the side of the housing and then pressing the phone and keypad housing together. 3.When the keypad is attached, you can access the Module home screen to view shortcuts to features that use text entry, such as text messaging, instant messaging, email, and the notepad. 4.To remove your LG Versa from the QWERTY keypad, pull down on the Cover Lock Latch and lift the phone out of the keypad’s housing. You may then reattach the back cover in lieu of the QWERTY keypad. Key Features – Demo Attaching the QWERTY Keypad 11 Cover Lock Latch Note: When the QWERTY keypad is attached, you can use either the keypad or the touch screen to input commands.

12 To use the accelerometer, simply rotate the phone. The vertical view is ideal for placing calls and adjusting settings. The horizontal view gives you a wide screen for easy messaging, web browsing, listening to music, and browsing pictures. Key Features – Demo Accelerometer 12 Note: With LG Versa’s accelerometer, rotation movements serve as controllers when playing games (depending on the type of game)!

13 2.0 megapixel camera with flash. Camera Resolutions: 1600 x 1200 (default), 1280 x 960, 800 x 400, 640 x 480, and 320 x 240 pixels. SmartPic technology for improved image quality. Face Detection – automatically detects a face when taking a picture. Zoom: up to 2x. * Image Editor: zoom, rotate, crop, add frames, icons, and write over images. Customizable brightness, white balance, shutter sound, color effects, photometry, and self-timer. Key Features Camera 13 *Varies by image size. Camera setting of 1600 x 1200 pixels does not support zoom function.

14 1.You can hold your LG Versa vertically or horizontally when taking a picture. From standby mode, press the Camera Key to access the camera. 2.Touch the screen to access a variety of customizable options. 3.When you’re ready, press the Camera Key to take your picture. 4.Touch the Send icon to send the picture to someone. Key Features – Demo Taking a Picture 14 Camera Key

15 Built-in camcorder. Zoom: Up to 2x. Video Resolutions: 640 x 480, 320 x 240, and 176 x 144 pixels (default). Video Recording Time: 30 seconds (for sending) or up to 1 hour (for saving) *. Video player for WMV, MP4, 3GP, and 3G2 formats. Customizable brightness, white balance, and color effects. Key Features Camcorder 15 *Depends on available memory.

16 1.You can hold your LG Versa vertically or horizontally when recording video. From standby mode, press and hold the Camera Key to access the camcorder. 2.Touch the screen to access a variety of customizable options. 3.When you’re ready, press the Camera Key to begin recording your video. You can record for up to 30 seconds for video messages, or press the Camera Key to stop. 4.Touch the Send icon to send the video to someone. Key Features – Demo Recording a Video 16

17 *For Bluetooth vehicle/accessory compatibility, go to www.verizonwireless.com/bluetoothchart. www.verizonwireless.com/bluetoothchart Version: 2.1 + EDR (Enhanced Data Rate). Listen to music with optional stereo Bluetooth headset. Send contacts and calendar events via Bluetooth wireless technology. Print and send user-generated pictures (JPEG) via Bluetooth wireless technology. Save up to 20 Bluetooth pairings. Supported Profiles: headset, hands-free *, dial-up networking, stereo Bluetooth, phone book access, basic printing, object push, file transfer, basic imaging, and human interface device. Key Features Bluetooth Wireless Technology 17

18 Sync music from V CAST Music with Rhapsody ® to phone. * Music player for MP3, WMA, unprotected AAC, and unprotected AAC+. Multitask While Playing Music — hide player to send messages, edit contacts, and browse the web. Create and manage playlists. Music Library – organized by artist, genre, and album. Music Only Mode (RF off except Bluetooth wireless technology). Key Features Music 18 *A compatible USB cable is required for syncing. Verizon | Rhapsody will work with Windows Vista ® or XP. Not available for Mac ® or Linux ®.

19 microSD memory port with up to 16GB support. * USB Mass Storage – transfer files between microSD card and PC. ** Micro USB/charging port. USB charging via computer. 19 microSD Port *Not all downloaded content may be moved to the microSD card. **Requires microSD card and USB cable. Key Features microSD

20 Use a visual interface to manage your voicemail. Listen to specific messages in any order you like. Save messages in an archive. Reply through calls and text messages quickly and easily. Verizon Wireless service required. Key Features Visual Voicemail 20

21 V CAST videos. HTML web browsing with touch navigation and Favorites. Multiple Window Browsing – open up to 3 windows at the same time. In Line Flash – enjoy real Flash content. RSS (Rich Site Summary) Feed Support – quick access to updates on regularly changing web content. Text, picture, video, and voice messaging. Threaded Messaging – displays messages in time-order from a contact accessed via favorites. Mobile e-mail, instant messaging, and My Verizon. Key Features Mobile Media 21

22 1.From standby mode, touch the Menu icon. 2. Touch Browser. 3.Touch the Options icon and then www. 4.Touch the URL field, and then use the virtual QWERTY keyboard to enter a web address. When you are finished, touch Done. 5.If you’d like to view another website without closing the current one, touch the Options icon and then touch the next blank browser tab at the top of the screen. You can then enter another URL following the same steps as previously outlined. Key Features – Demo Browsing the Web 22 BackRefreshHomeGo to www ForwardZoomBookmarksMenu

23 One-touch speakerphone. Speaker-independent voice commands. Voice Recording: 1 minute or 1 hour (standby), depending on available memory. Music ringer support (clips from hit songs). 26 unique ringtones plus vibrate and silent modes. TTY/TDD support. Hearing aid compatible (M4/T4-rating). Key Features Voice/Audio 23

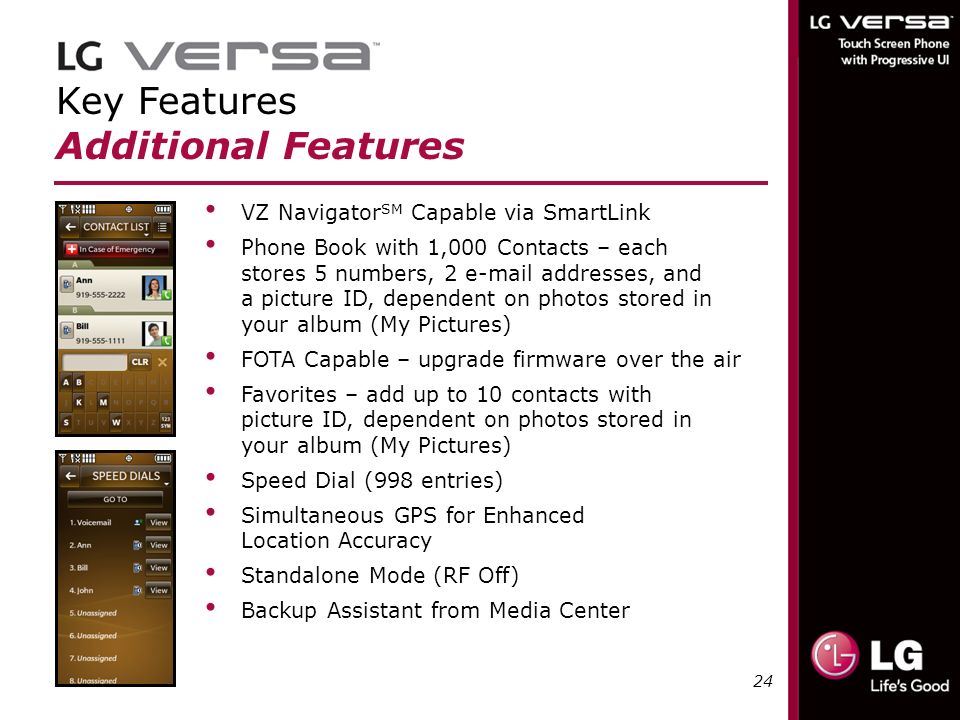

24 VZ Navigator SM Capable via SmartLink Phone Book with 1,000 Contacts – each stores 5 numbers, 2 e-mail addresses, and a picture ID, dependent on photos stored in your album (My Pictures) FOTA Capable – upgrade firmware over the air Favorites – add up to 10 contacts with picture ID, dependent on photos stored in your album (My Pictures) Speed Dial (998 entries) Simultaneous GPS for Enhanced Location Accuracy Standalone Mode (RF Off) Backup Assistant from Media Center Key Features Additional Features 24

25 Phone Overview Specifications 25 *Certain features may use more power and cause actual usage and standby times to vary. TechnologyCDMA Frequency 1.9 GHz CDMA PCS, 800 MHz CDMA (Digital Dual-Band) Data Transmission EVDO Rev-A Internal Memory 310MB Dimensions 4.17" (H) x 2.07" (W) x 0.54" (D) QWERTY Keypad Dimensions 4.17" (H) x 2.33" (W) x 0.76" (D) Handset Weight 3.81 oz. QWERTY Keypad Weight2.01 oz. Handset Display262K Color TFT LCD, 480 x 240 Pixels, 3.0" QWERTY Keypad DisplayMonochrome OLED, 56 x 120 Pixels, 0.96” Standard Battery1,100 mAh Usage TimeUp to 290 Minutes * Standby TimeUp to 430 Hours *

26 Phone Overview Accessories 26 *Included with phone. QWERTY Keypad * Standard Battery * Wall/USB Charger * Stylus *

27 Phone Overview Accessories 27 Bluetooth Solar Speakerphone (HFB-500) Bluetooth Headsets (HBM-520) (HBM-770) (HBM-760) (HBM-310) Bluetooth Stereo Headset (HBS-250) Bluetooth Stereo Speakers (MSB-100)

28 Phone Overview Accessories 28 Swivel Holster Extended Battery (1,500 mAh) Vehicle Power Charger Stereo Headset

29 Resources Support LG Electronics MobileComm U.S.A., Inc. 10101 Old Grove Road San Diego, CA 92131-1639 http://www.lgmobilephones.com/versa http://www.lgmobilephones.com/versa Customer Support: 800-793-8896 customerservice@lge.com customerservice@lge.com Gain access to our Partner Resource Center: www.thinkLG.com www.thinkLG.com 29 All materials in this presentation including, without limitation, the design, the text, and any marks are the property of LG Electronics, Inc. Copyright © 2009 LG Electronics, Inc. ALL RIGHTS RESERVED. LG is a registered trademark of LG Electronics, Inc. Versa™ is a trademark of LG Electronics, Inc. Dare™ is a Verizon Wireless trademark. Voyager™ is a trademark of Plantronics, Inc. used under license by Verizon Wireless. microSD™ is a trademark of SanDisk. The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by LG Electronics MobileComm, U.S.A., Inc. is under license. All other marks are proprietary to their respective owners. Features and specifications are subject to change without prior notice. The use of non-LG or non-Verizon Wireless approved accessories will void the warranty and may result in damage to the phone, the phone exploding, or other dangerous conditions. Unless otherwise specified herein, all accessories referenced herein are sold separately.
