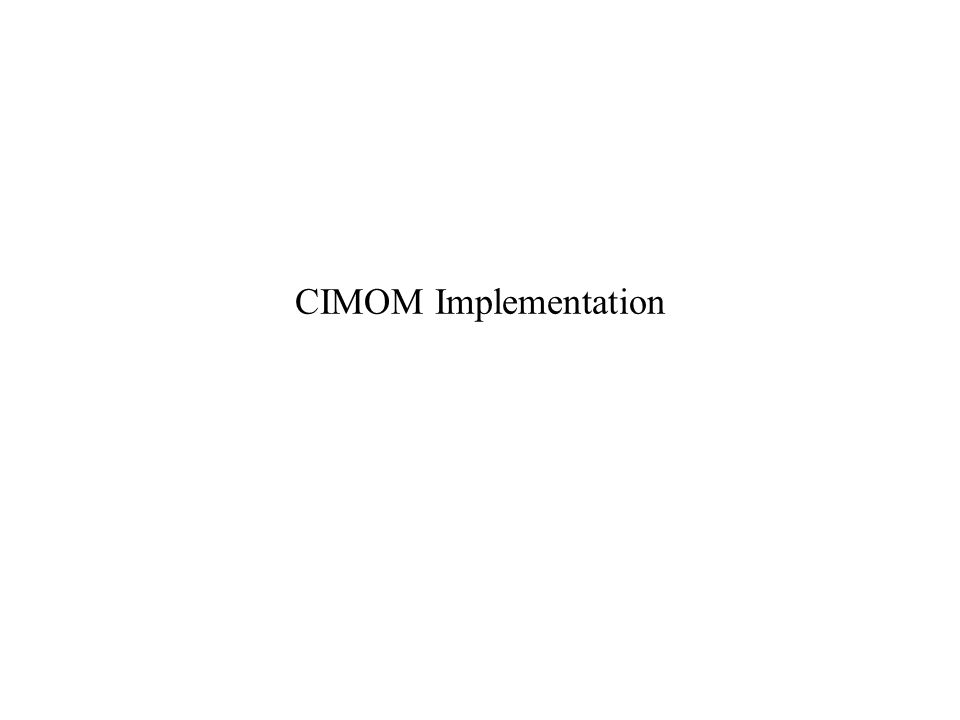

1. CIMOM Implementation

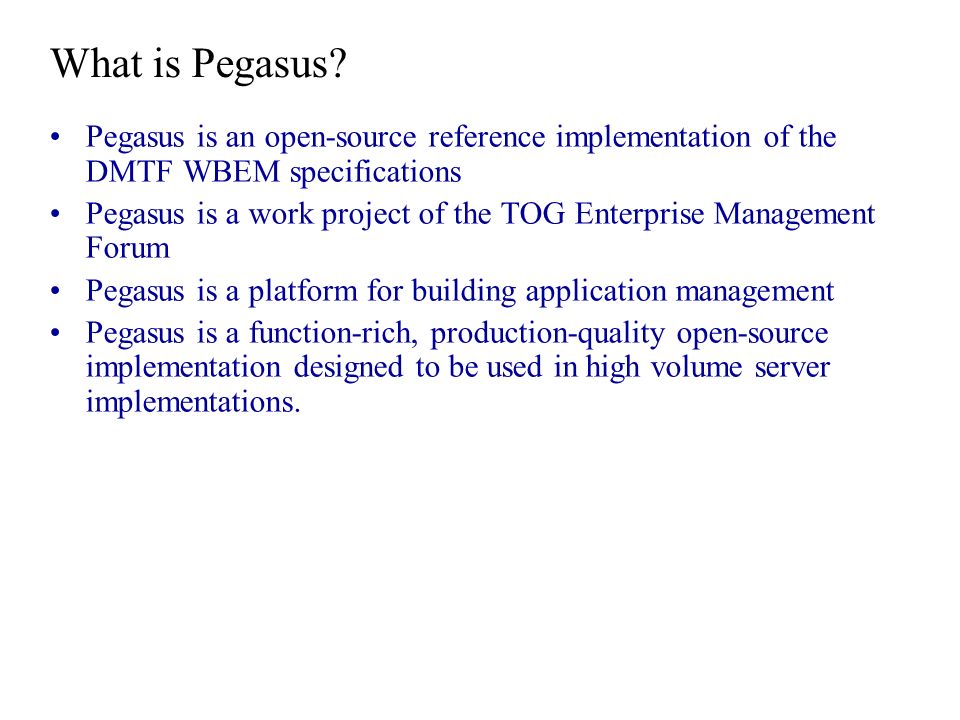

2. What is Pegasus? Pegasus is an open-source reference implementation of the DMTF WBEM specifications Pegasus is a work project of the TOG Enterprise Management Forum Pegasus is a platform for building application management Pegasus is a function-rich, production-quality open-source implementation designed to be used in high volume server implementations.

3. Why Produce Pegasus? Demonstrate manageability concepts. Provide additional standards for WBEM Provide a working implementation of WBEM technologies Provide an effective modular implementation Support other Open Group manageability standards Base Platform for Open Group Application management Projects Help make WBEM real Pegasus was Initiated in 2000 by the Open Group in collaboration with:  BMC Software  IBM  Tivoli Systems

4. Key Pegasus Objectives Pegasus Open Source Portable Efficient And Lightweight Standards Based Continuity Modular And Extensible Production Quality

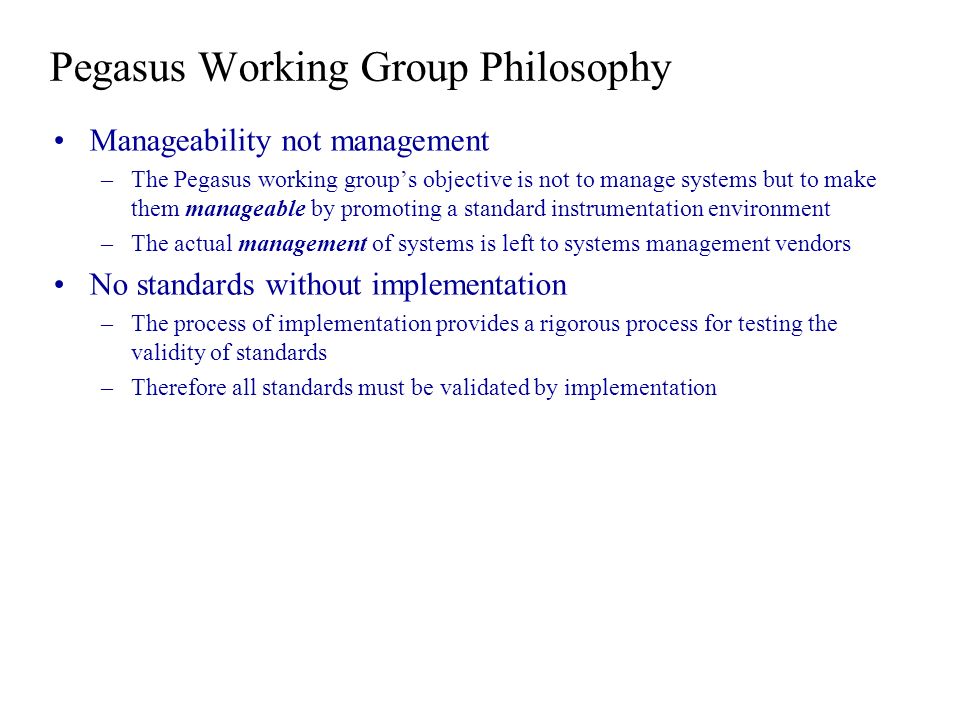

5. Pegasus Working Group Philosophy Manageability not management –The Pegasus working group’s objective is not to manage systems but to make them manageable by promoting a standard instrumentation environment –The actual management of systems is left to systems management vendors No standards without implementation –The process of implementation provides a rigorous process for testing the validity of standards –Therefore all standards must be validated by implementation

6. Open Source Code and documentation freely available –Open Group and Source Forge MIT source license Open to contributions No commitment to Open Group to use code

7. Portable Designed for multi-platform, multi-OS, multi-compiler implementation Platforms ported today –UNIX (AIX, HPUX, Solaris, Tru-Unix) –Linux –Windows Platforms (NT, 2000, 9x) –Compaq Himalaya (Tandem)

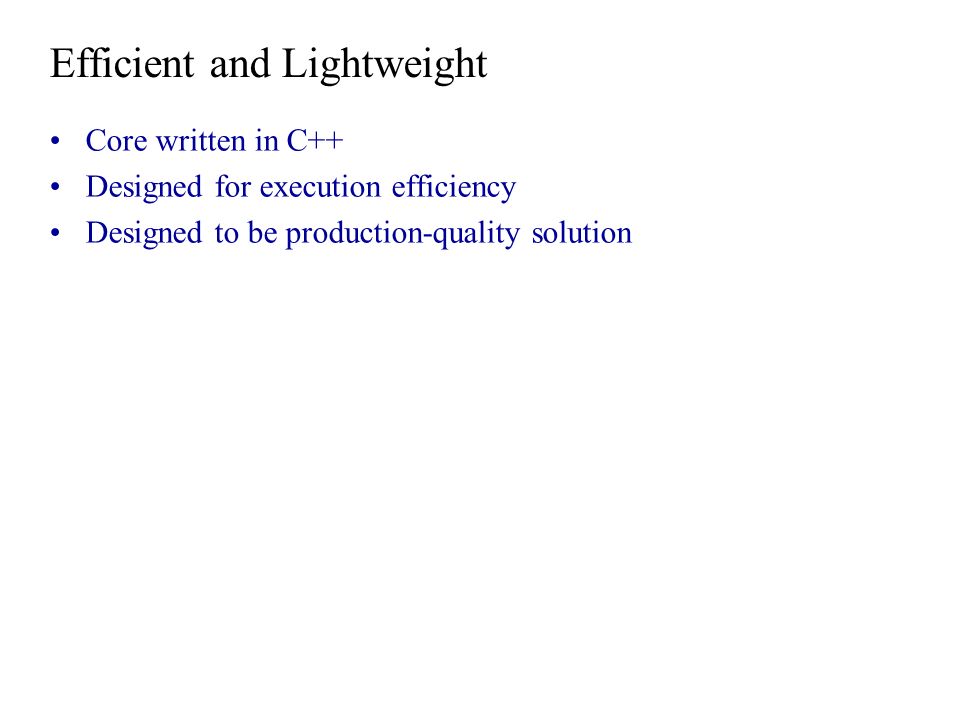

8. Efficient and Lightweight Core written in C++ Designed for execution efficiency Designed to be production-quality solution

9. Standards Based Based on DMTF CIM and CIM-XML specifications Open Group is active partner in DMTF Growth through participation in specification growth Commitment to continue DMTF compliance

10. Modular and Extensible Minimize core object broker. Maximize extensibility through plug-in components Component types –Providers –Provider interfaces –Clients –Repositories (additional repository handlers) –Manageability service extensions –Protocol Adapters –Modules (extend and modify core functions) Modularity is key to doing parallel development and allowto extensibility

11. Project for Continued Development WBEM will continue to develop functionality and standards Open Group will develop application management partly around Pegasus Pegasus Development will continue beyond current versions –Integrate contributions –Add basic new functionality –Etc.

12. The Open Group Enterprise Management Forum –Projects include: Pegasus Ex-SNIA Java Based open-source Implementation Application Management APIs –ARM –AIC Software Licensing Standards QoS Task Force –User/Supplier interaction forum to advance QoS and Service Level Standards –Working with DMTF, IETF, TMN

13. 2. The Pegasus Environment

14. Pegasus Architecture Consumers Clients CIM Server Consumers Providers CIM/HTTP Interoperable* CIM/HTTP In-Process Services Standard Interfaces MOF Compiler MOF Compiler

15. CIMOM Capabilities Respond to Operations defined in “CIM Operations” spec. –Create, Modify, Delete operations on Class, Instance, Property, Qualifier Handle Provider Registration Forward Requests to Providers, repositories, etc. Read/Write access to Management Information –Maintain Class/Instance Information Traversal of Associations Use of WBEM Query Language Syntax/Semantic checking (with Qualifiers) Available Implementations –Microsoft (in Windows2000), Sun WBEM SDK, SNIA, Open Group Pegasus, …

16. Key Interoperability Interfaces CIM Object Manager CIM Object Manager CIM Providers Application Manageability to Manager Multiple management systems Common open manageability Object Manager / Providers Multiple Providers Encourage common providers Management System Enterprise Management Console Enterprise Management Console Application Provider / Resource Interface Protect Applications Make application management easy

17. The CIM Operations Consumers Clients CIM Object Mgr Consumers Providers CIM/HTTP Interoperable* CIM/HTTP In-Process Services Standard Interfaces Repository CIM Operations CIM Operations Repository

18. Operations Routing Class Operations –Routed to the Class Repository Instance Operations –To Provider if Provider Qualifier exists –To Instance repository if no Provider Instance routing at Class Level Today –Issues – Routing at instance level

19. The CIM Indications Consumers Clients CIM Object Mgr Consumers Providers CIM/HTTP Interoperable* CIM/HTTP In-Process Services Standard Interfaces Repository Indicators Indication Handlers SNMP, cim-xml, etc.

20. Modularity and Extensibility Providers –Grow with DMTF provider concepts Provider Interfaces Protocol Adapters (connectors) –Client - Xml-cim today (Soap, etc. in future) –Provider, service, repository, etc. Modules –Modularize core so it can be extended and modified through attachable modules Manageability Service Extensions –Think super providers

21. Building A Modular Manageability Environment Core Object Broker Core Object Broker XML-CIM Module Connector Provider Connector Provider Connector CIM Client Connector... Resources Service Extension Service Extension Service Extension Service Extension Service Extension Service Extension Service Extension Service Extension Repository Undefined CIM Client Repository Service Extension Service Extension Service Extension Service Extension Service Extension Service Extension Service Extension Service Extension

22. Management System Connector Management System Connector Pegasus Manageability Environment CIM Object Broker Provider Registration Service Registration Request Routing Securiy CIM Object Broker Provider Registration Service Registration Request Routing Securiy Consumers Providers AIC Provider AIC Provider AppsOSEtc. ARM Provider ARM Provider Resource Providers Broker Consumers Gateways Apps XML/CIM Connector XML/CIM Connector Management System Connector Management System Connector Application Consumer Application Consumer Class Repository Class Repository Services core*** additional Interface For Spec CIMOM Management System... SNMP Provider SNMP Provider Management System Application Consumer Application Consumer Application Consumer Application Consumer Instance Repository Instance Repository

23. Provider Interoperability In the classical architecture, interoperability is only supported between the client and server. In addition, the Pegasus architecture aims to support provider/server interoperability. Goal –Write a provider once and run it under any CIM server implementation. Provider/Server Interoperability: –Participating in efforts to standardize the Provider/Server protocol. –Proposing provider API standards. –Writing adapters enabling Pegasus providers to run under other CIM servers. –Adapters enabling other providers to run under Pegasus

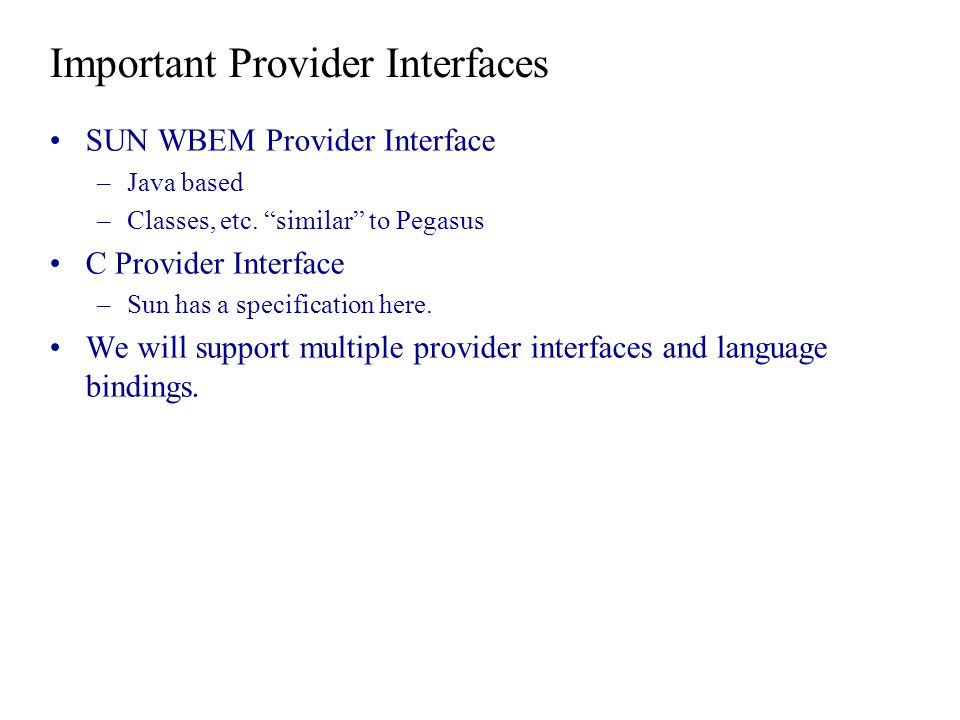

24. Important Provider Interfaces SUN WBEM Provider Interface –Java based –Classes, etc. “similar” to Pegasus C Provider Interface –Sun has a specification here. We will support multiple provider interfaces and language bindings.

25. In-Process and Out-of-process Providers Today Pegasus based on shared Library Providers Extend to –Internal Providers –IPC based Providers –Providers in Remotes systems Objectives: –Write Provider once and compile/link for different environments Technique –Use connectors as basis for provider/CIMOM communication Issues –Security, discovery

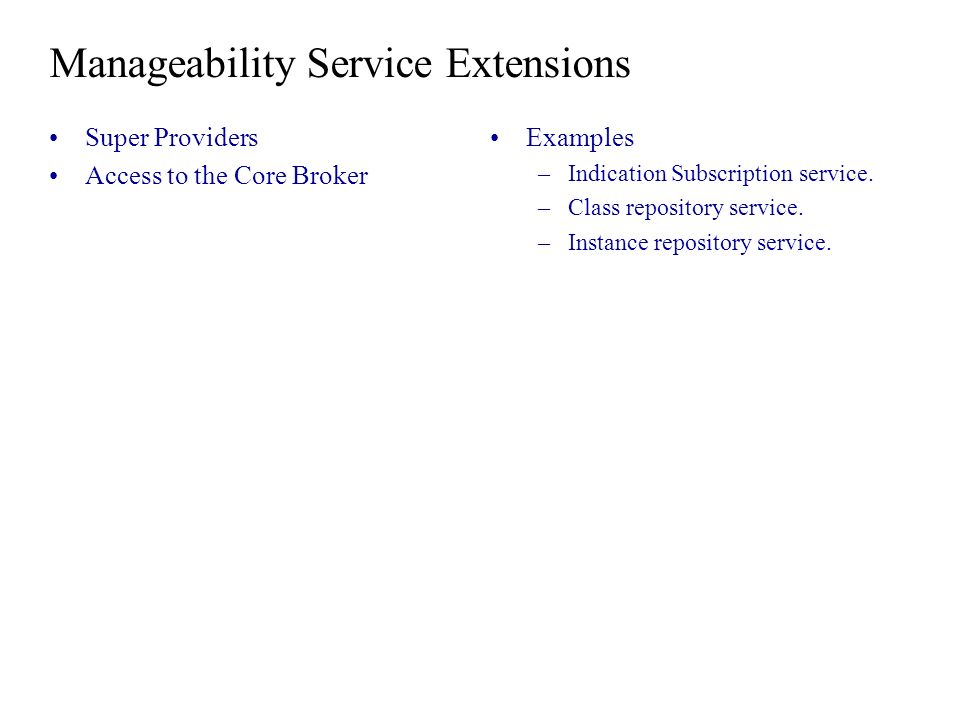

26. Manageability Service Extensions Super Providers Access to the Core Broker Examples –Indication Subscription service. –Class repository service. –Instance repository service.

27. Connectors (Protocol Adapters) Functions –Adapt to different protocols Characteristics –Protocol –Encoding –Security –Discovery Examples –Xml-CIM –Local Protocols –Soap –WMI –Corba environment interface Pegasus Core Xml-cim Connector Xml-cim Connector Pegasus Provider Pegasus Provider Connector Remote Provider Xml-cim Client Xml-cim Client Soap Connector Soap Connector Soap Client Soap Client Corba Connector Corba Connector External Corba Environment

28. Service Extension Service Extension Service Extension Service Extension Service Extension Service Extension Service Extension Service Extension Repository Pegasus Interfaces Common Interface base for –Clients, providers, services, connectors Based on CIM Operations over HTTP Additional functions for each interface Interfaces separated from implementation Core Object Broker Core Object Broker Provider Connector CIM Client Connector

29. 3. The Pegasus Software Architecture

30. Major Components Client CIM Server Repository Client CIM Clients Client CIM Providers

31. Topics Communication. Representation of CIM Elements. The Client Interface. The CIM Object Manager. The Provider Interface. The Repository Interface.

32. Pathways of Communication Client CIM Server CIM Repository Client CIM Clients Client CIM Providers

33. Component Location A component may be located in one of three places with respect to the CIM Server. –In-process. –Local out-of-process (on the same machine). –Remote out-of-process (on another machine). For example, a provider may be in-process, local, or remote.

34. Component Location in Pegasus Today

35. Possible Communication Mechanisms Components could potentially communicate with the CIM Server using the following mechanisms: –CIM/HTTP (remote). –Proprietary TCP-based protocol (remote). –Direct call (in process). –Shared memory (local). –Named pipes (local).

36. Communication Mechanisms in Pegasus

37. Client Communication Uses CIM/HTTP as sole protocol. Asynchronous socket I/O. An efficient XML parser. Fast enough to eliminate the need for a proprietary protocol.

38. An Efficient XML Parser No memory heap usage during parsing. Modifies message in place to avoid copying. Non-validating parser (“loose validation”).

39. HTTP Implementation Uses asynchronous socket I/O in conjunction with message queues to achieve optimal throughput. Provides entry points to adding web server capabilities such as putting and getting of documents (to support remote upgrade and deployment later on).

40. Proposals Support out-of-process providers (local and remote). Support out-of-process repositories (local and remote). Location independent provider development.

41. Representation of CIM Elements Representing CIM Elements in Pegasus with C++

42. CIM Data Types in C++ Uint8 Sint8 Uint16 Sint16 Uint32 Sint32 Uint64 Sint64 Real32 Real64 Boolean Char16 String CIMDateTime CIMReference

43. CIM Values in C++ CIM values (property, parameter, and qualifier values) are represented using the CIMValue class. This class: –Encapsulates a union of all CIM data types. –Has a type member indicating the type currently being represented. –Provides access/modifier methods overloaded for each CIM data type.

44. CIM Elements in C++ CIMClass CIMInstance CIMProperty CIMMethod CIMParameter CIMQualifierDecl CIMQualifier

45. Class Declaration Example (Part 1) Consider the following MOF class declaration: class Alarm { [key] uint64 id; string message = “none”; }; This class is defined in C++ as follows: CIMClass alarmClass(“Alarm”); CIMProperty id(“id”, Uint32(0)); id.addQualifier(CIMQualifier(“key”, true)); CIMProperty message(“message”, “none”); alarmClass.addProperty(id); alarmClass.addProperty(message); Or more succinctly like this: CIMClass alarmClass(“Alarm”); alarmClass.addProperty(CIMProperty(“id”, Uint32(0)).addQualifier(CIMQualifier(“key”, true))).addProperty(CIMProperty(“message”, “none”));

46. Property Iteration Example: The properties of a class may be iterated like this: CIMClass c; … for (Uint32 i = 0, n = c.getPropertyCount(); i < n; i++) { CIMProperty p = c.getProperty(i); }

47. The Client Interface Client CIM Server Repository Client CIM Clients Client CIM Providers

48. The Client Interface A C++ interface for interacting with the Pegasus Server (or any CIM Server). Uses CIM/HTTP to communicate. Provides a method for each CIM operation defined in the “CIM Operations over HTTP, V1.0” specification.

49. The CIM Operations GetClass GetInstance DeleteClass DeleteInstance CreateClass CreateInstance ModifyClass ModifyInstance EnumerateClasses EnumerateClassNames EnumerateInstances EnumerateInstanceNames ExecQuery Associators AssociatorNames References ReferenceNames GetProperty SetProperty GetQualifier SetQualifier InvokeMethod

50. CIM Operation Example virtual CIMInstance getInstance( const String& nameSpace, const CIMReference& instanceName, Boolean localOnly = true, Boolean includeQualifiers = false, Boolean includeClassOrigin = false, const Array & propertyList = NULL_PROPERTY_LIST); GetInstance ( [IN] InstanceName, [IN,OPTIONAL] boolean LocalOnly = true, [IN,OPTIONAL] boolean IncludeQualifiers = false, [IN,OPTIONAL] boolean IncludeClassOrigin = false, [IN,OPTIONAL,NULL] string PropertyList [] = NULL ) CIM Operations Specification Pegasus Class Method

51. Client Connection Example A client connects to the CIM Server on the host called “saturn” at port 5988 like this: Selector selector; CIMClient client(&selector); client.connect(“saturn:5988”);

52. GetClass Example A client gets a class like this: CIMClass alarmClass = client.getClass(“root/cimv2”, “Alarm”);

53. Client Proposals Asynchronous Interface APIs Interface independent of local/remote client

54. The Pegasus CIMOM Client CIM Server Repository Client CIM Clients Client CIM Providers

55. Request Lifecycle Channel Protocol Encodings Dispatcher Providers Repository 1. Receive TCP Message 2. Process HTTP Request 3. Decode from XML 4. Dispatch Request Incoming Request Channel Protocol Encodings Aggregator 8. Transmit TCP Message 7. Form HTTP Response 6. Encode to XML 5. Aggregate Results Outgoing Response

56. CIMOM Modules Channel - Implements transport mechanism (e.g., TCP). Protocol - Implement application protocol (e.g., HTTP). Encodings - Implements encoding and decoding of messages (e.g., CIM-XML). Dispatcher - Dispatches messages to provider(s)/repository. Repository - Implements CIM Repository. Aggregator - Aggregates results.

57. Module Concept The internal CIMOM architecture is being refined into a set of modules. Each module handles part of the request lifecycle. Alternative implementations may be provided for each module type. New module implementations can be used to modify or refine the behavior of the CIMOM and to facilitate porting.

58. Module Implementations Channel - provide a named-pipe implementation. Protocol - provide a proprietary binary protocol. Encodings - provide a binary encoding scheme. Repository - provide a relational-based implementation. Traffic Encryption - SSL implementation. Authentication – Challenge and response

59. Queued Operation Model Internal representation of operations/Indications is messages Major components are queue driven Mapped to direct interfaces (ex. getClass) at provider manager. Message manager controls flows, priorities, etc. Advantages –Efficiency –Threading –Extensible interfaces –Flow Control

60. Module Definition and Loading Modules implement one of the module interfaces (e.g., Repository). Modules are configured as dynamic libraries. Modules listed in modules file. Modules loaded by CIMOM on startup.

61. Provider Mgr Subsystem CIM XML Comm Module CIM Operations Processing subsystem Services Subsystem PegasusMsgDispatcher Indication Handler Manager CIM-XML Indication handler Repository Provider Manager provider CIM Control Services Start/Stop Function Provider registration Function User/Auth. Function jj Jj __Namespace Subscription Service and Indication Processor Indication Import provider Client Interface (cim-xml today) Acceptor Http Delegator Authentication XML Decoder XML Encoder Authorization Operations Request Processor Operations Response Processor Response generator Formal Provider Interface Indication Consumer Manager Indication Consumer Manager CIM Export Request Processor CIM Export Request Decoder Export Indication Pegasus Module Organization Local Destination SNMP Indication handler Http xxx

62. The Provider Interface Client CIM Server Repository Client CIM Clients Client CIM Providers

63. Provider Proposals Interoperability with SUN Wbem providers proposal We are extending other interoperability ideas Pegasus CIMOM Pegasus CIMOM SUN WBEM CIMOM SUN WBEM CIMOM Microsoft CIMOM Microsoft CIMOM Pegasus Providers Pegasus Providers SUN WBEM Providers SUN WBEM Providers Microsoft WMI Providers Microsoft WMI Providers

64. The Repository Interface Client CIM Server Repository Client CIM Clients Client CIM Providers

65. The Repository Interface Defines the interface to manipulating the CIM repository. Alternative implementations of this interface may be provided. Pegasus provides a simple default implementation.

66. Default Repository Implementation Each CIM Class object is stored in its own file. Instance objects stored in single file for each class CIM objects are encoded as XML in files. Namespaces are represented using file system directories. Single reader/writer at a time. Example: the class X (subclass of Y) which resides in the root/cimv2 namespace would be stored in this file: /root#cimv20/classes/X.Y

67. Default Repository Limitations Adequate for classes and qualifiers (which tend to be few). Okay for a few hundred instances. Not intended to scale to thousands of instances (uses a lot of disk space due to internal fragmentation). Good for scenario in which a few instances come from the repository and many instances come from providers.

68. Proposed Repository Implementation A new repository implementation is under consideration to improve scalability: –Encode objects in binary on disk (rather than XML). This will reduce size by three to one. –Combine like objects into a single file rather than separate files (this will reduce internal fragmentation). –Provide a fast indexing scheme for keys (disk hashing or B+-Trees). This will improve lookup time.

69. Alternative Repository Modules Repository modules may be developed to achieve a highly scalable repository. Possibilities include: –Basing repository on a relational database. –Basing repository on Unix DB. –Making the repository remote. –Improving space utilization of existing implementation by storing objects in binary format (rather than as XML).
