1. Chapter Presentation Transparencies Image and Math Focus Bank Bellringers Standardized Test Prep CNN Videos Visual Concepts Resources

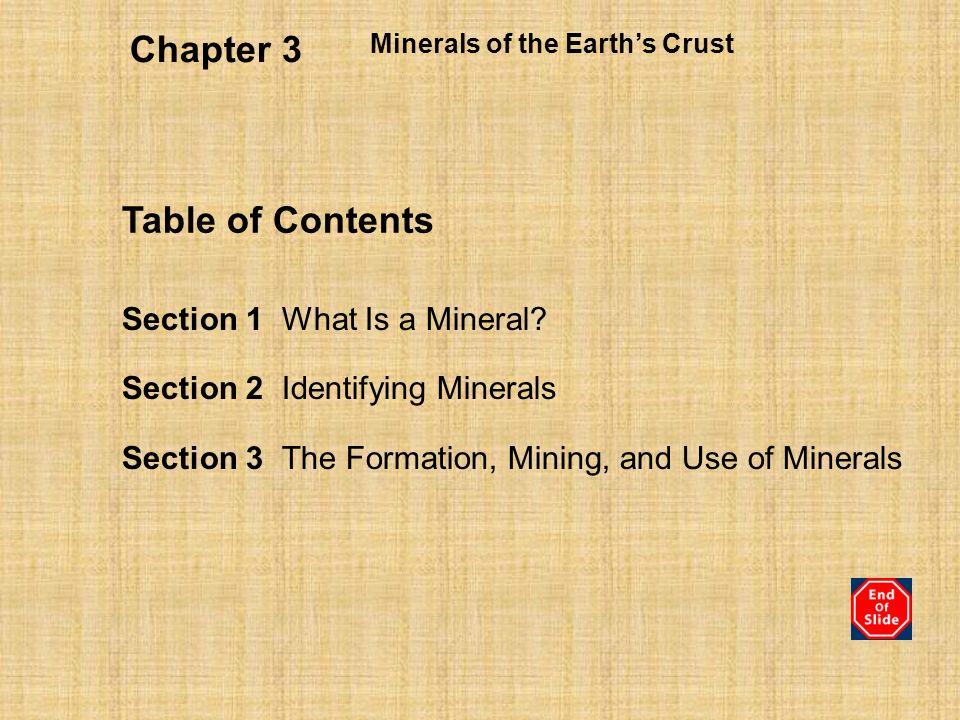

2. Minerals of the Earth’s Crust Section 1 What Is a Mineral? Section 2 Identifying Minerals Section 3 The Formation, Mining, and Use of Minerals Chapter 3 Table of Contents

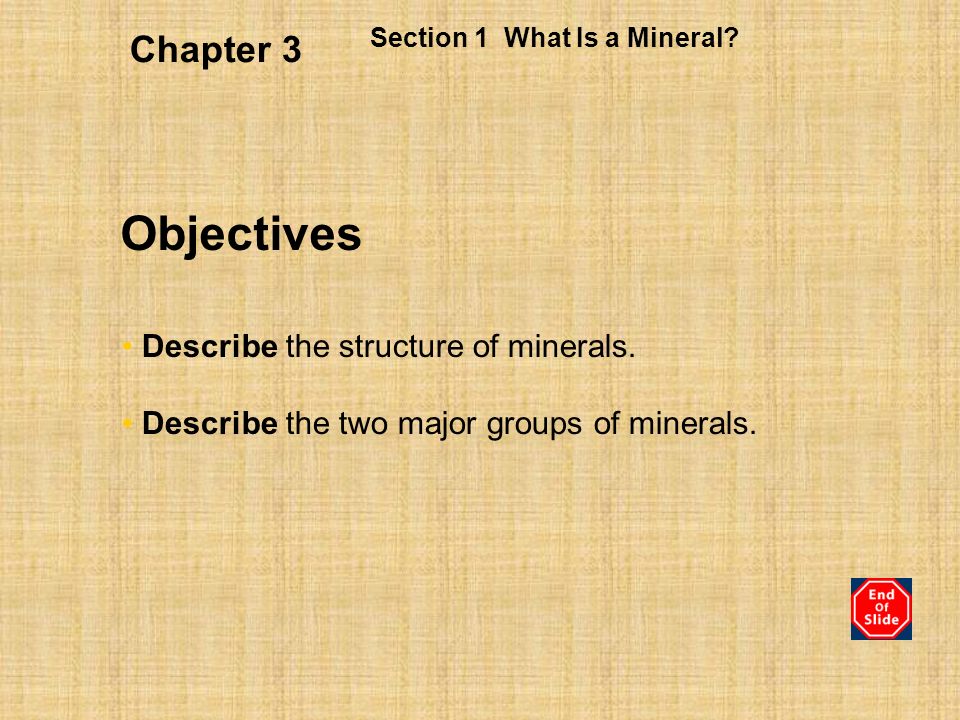

3. Section 1 What Is a Mineral? Chapter 3 Describe the structure of minerals. Describe the two major groups of minerals. Objectives

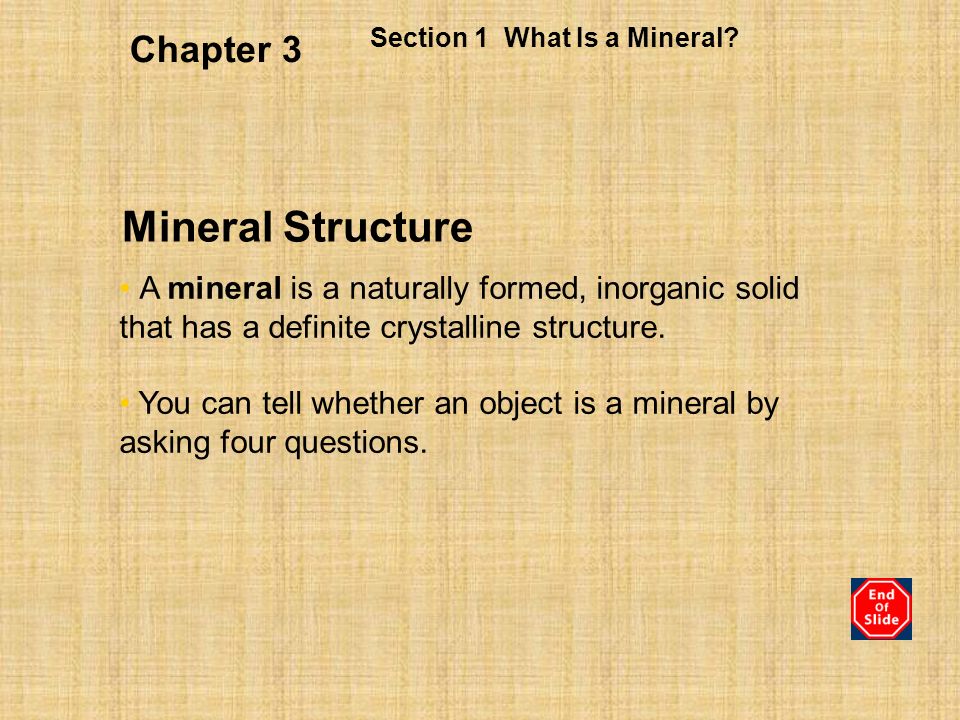

4. Section 1 What Is a Mineral? Chapter 3 Mineral Structure A mineral is a naturally formed, inorganic solid that has a definite crystalline structure. You can tell whether an object is a mineral by asking four questions.

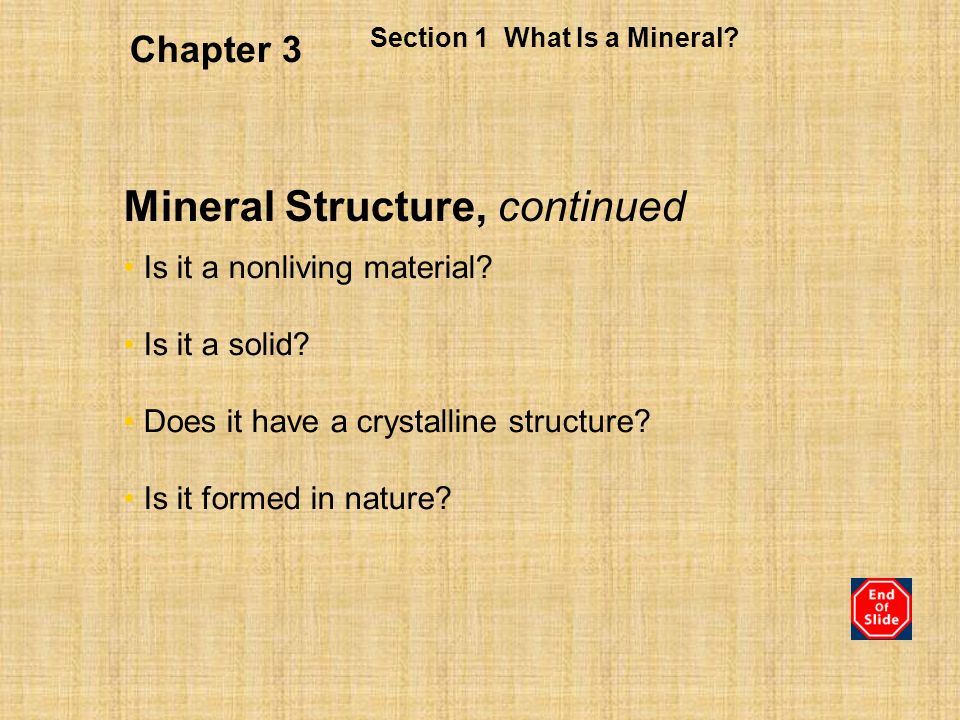

5. Section 1 What Is a Mineral? Chapter 3 Mineral Structure, continued Is it a nonliving material? Is it a solid? Does it have a crystalline structure? Is it formed in nature?

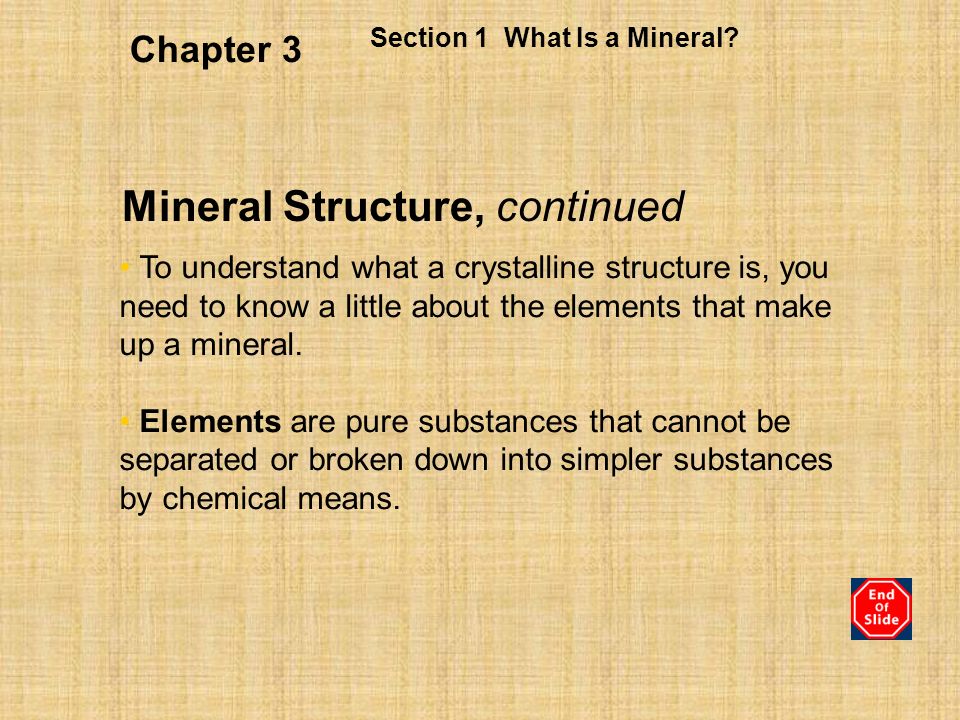

6. Section 1 What Is a Mineral? Chapter 3 Mineral Structure, continued To understand what a crystalline structure is, you need to know a little about the elements that make up a mineral. Elements are pure substances that cannot be separated or broken down into simpler substances by chemical means.

7. Section 1 What Is a Mineral? Chapter 3 Elements Click below to watch the Visual Concept. You may stop the video at any time by pressing the Esc key. Visual Concept

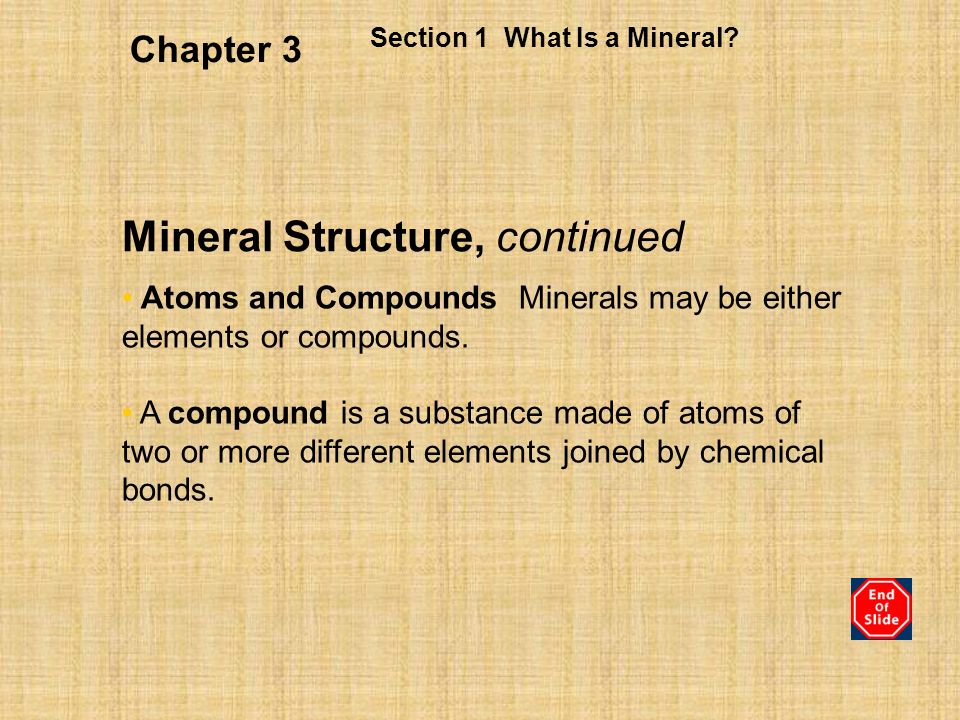

8. Section 1 What Is a Mineral? Chapter 3 Mineral Structure, continued Atoms and Compounds Minerals may be either elements or compounds. A compound is a substance made of atoms of two or more different elements joined by chemical bonds.

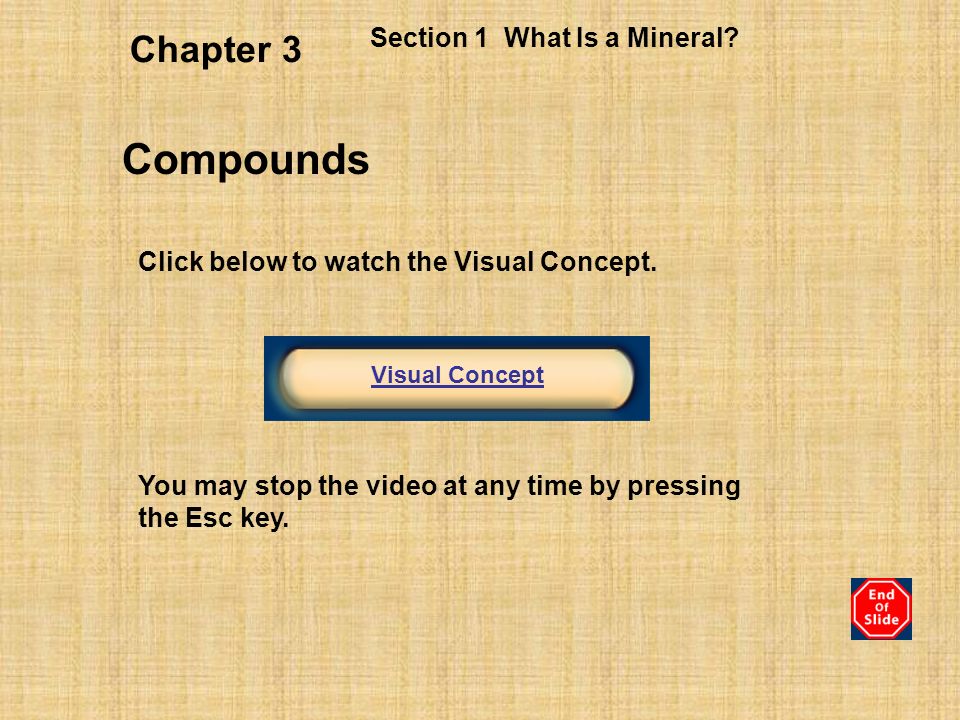

9. Section 1 What Is a Mineral? Chapter 3 Compounds Click below to watch the Visual Concept. You may stop the video at any time by pressing the Esc key. Visual Concept

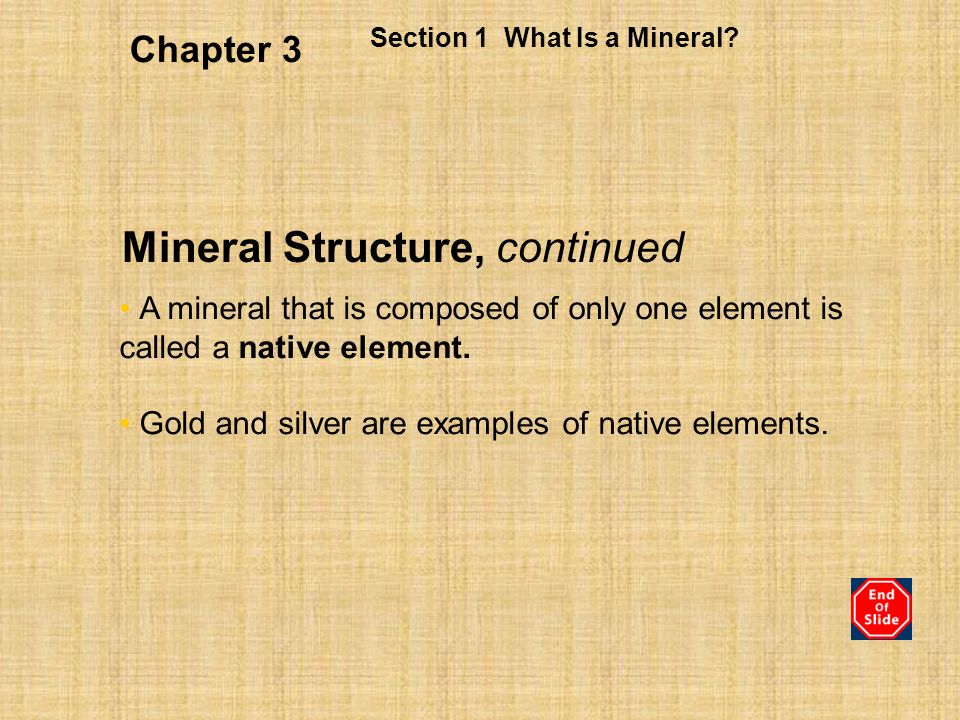

10. Section 1 What Is a Mineral? Chapter 3 Mineral Structure, continued A mineral that is composed of only one element is called a native element. Gold and silver are examples of native elements.

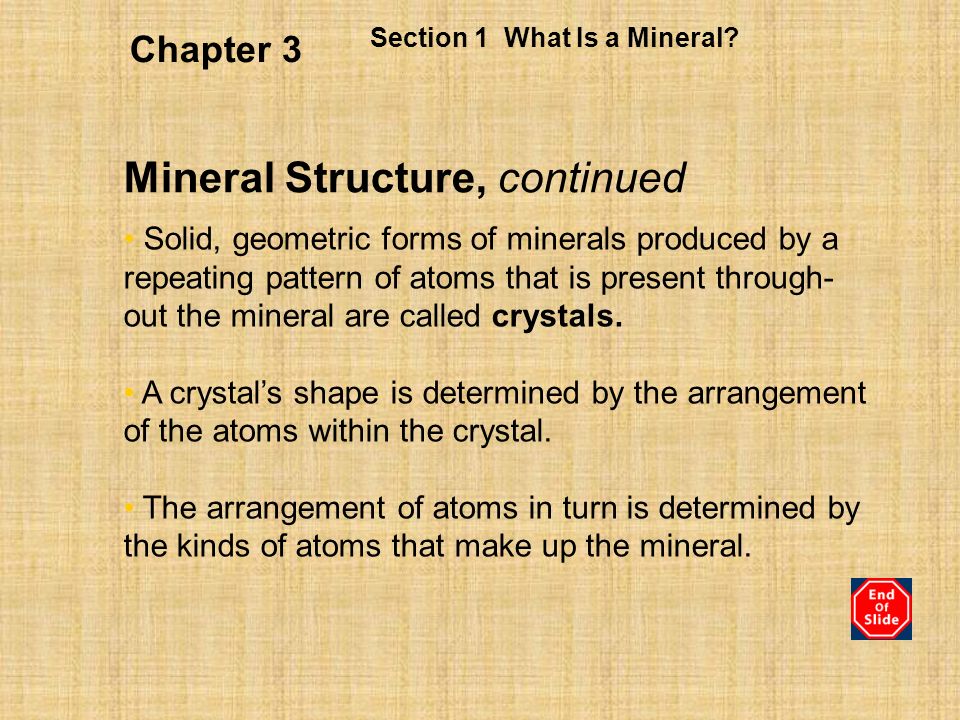

11. Section 1 What Is a Mineral? Chapter 3 Mineral Structure, continued Solid, geometric forms of minerals produced by a repeating pattern of atoms that is present through- out the mineral are called crystals. A crystal’s shape is determined by the arrangement of the atoms within the crystal. The arrangement of atoms in turn is determined by the kinds of atoms that make up the mineral.

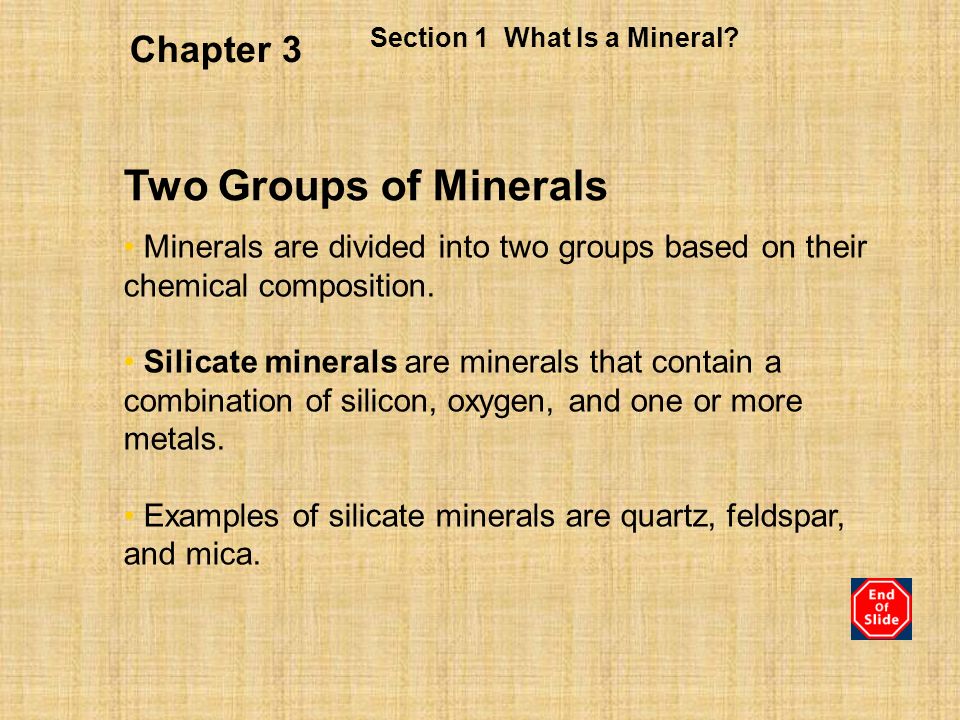

12. Section 1 What Is a Mineral? Chapter 3 Two Groups of Minerals Minerals are divided into two groups based on their chemical composition. Silicate minerals are minerals that contain a combination of silicon, oxygen, and one or more metals. Examples of silicate minerals are quartz, feldspar, and mica.

13. Section 1 What Is a Mineral? Chapter 3 Two Groups of Minerals, continued Nonsilicate minerals are minerals that do not contain compounds of silicon and oxygen. There are six main classes of nonsilicate minerals. Native Elements Carbonates Halides Oxides Sulfates Sulfides

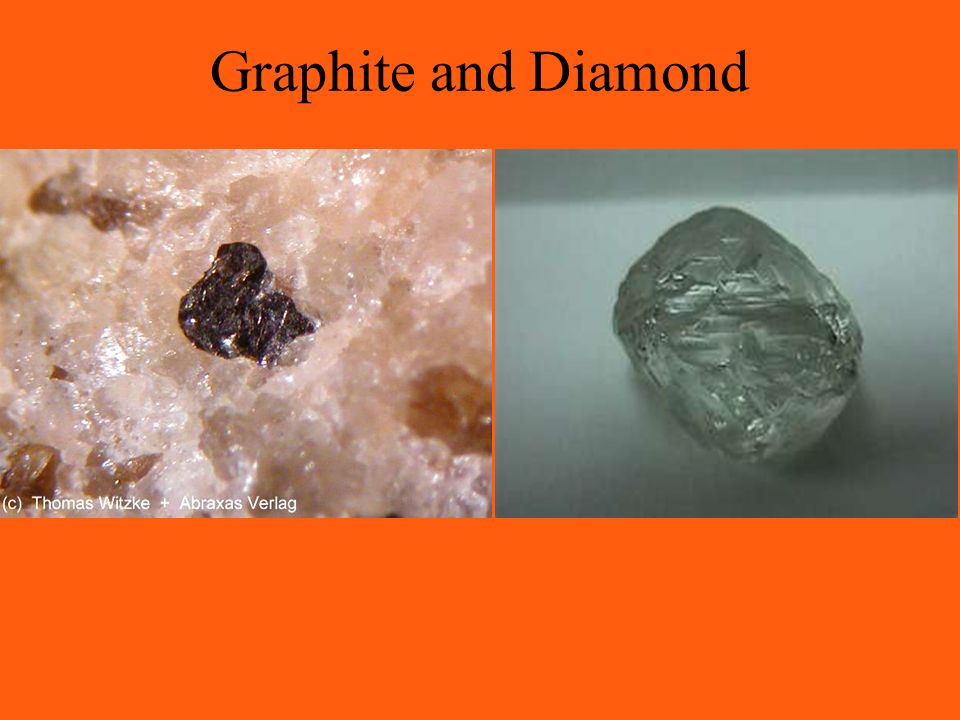

14. Section 1 What Is a Mineral? Bellringer Compare the piece of graphite (used in pencil lead) and the diamond in the photograph provided by your teacher. Both substances are composed of carbon. How can the same element form two substances with such different properties? Record your response in your Interactive notebook. Chapter 3

15. Graphite and Diamond

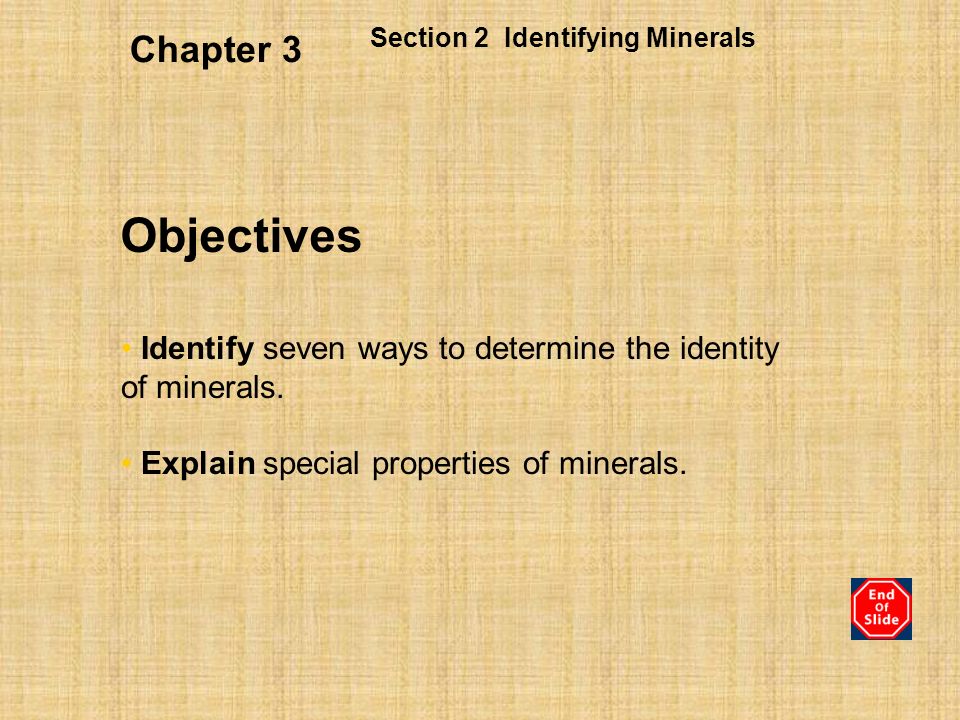

16. Section 2 Identifying Minerals Chapter 3 Identify seven ways to determine the identity of minerals. Explain special properties of minerals. Objectives

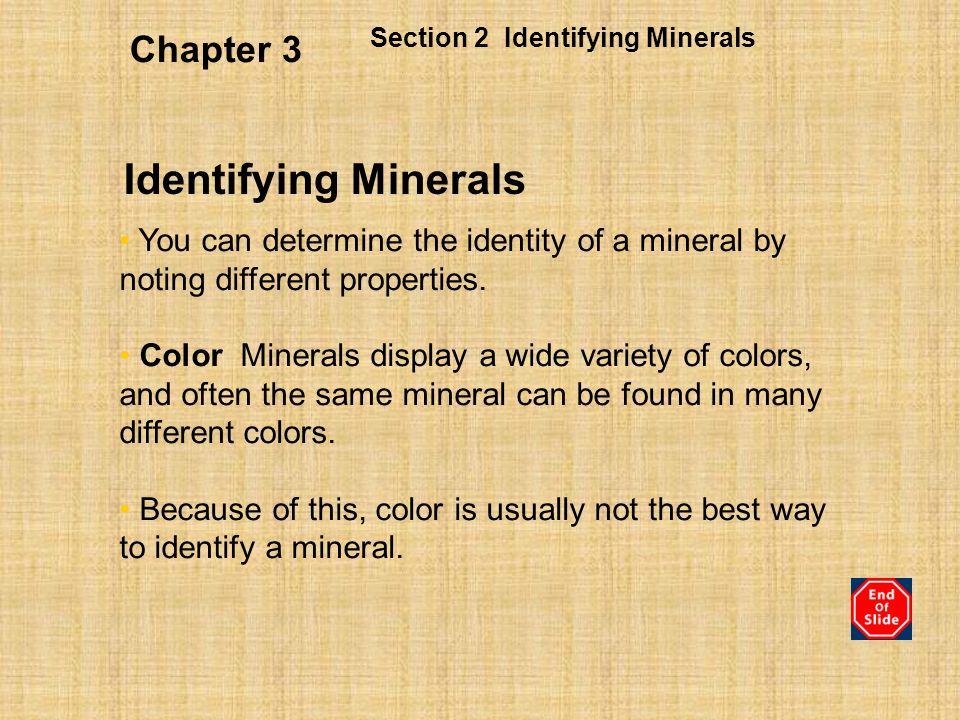

17. Section 2 Identifying Minerals Chapter 3 Identifying Minerals You can determine the identity of a mineral by noting different properties. Color Minerals display a wide variety of colors, and often the same mineral can be found in many different colors. Because of this, color is usually not the best way to identify a mineral.

18. Section 2 Identifying Minerals Chapter 3 Identifying Minerals, continued The way a mineral reflects light is called luster. There are three types of mineral luster: Metallic Submetallic Nonmetallic

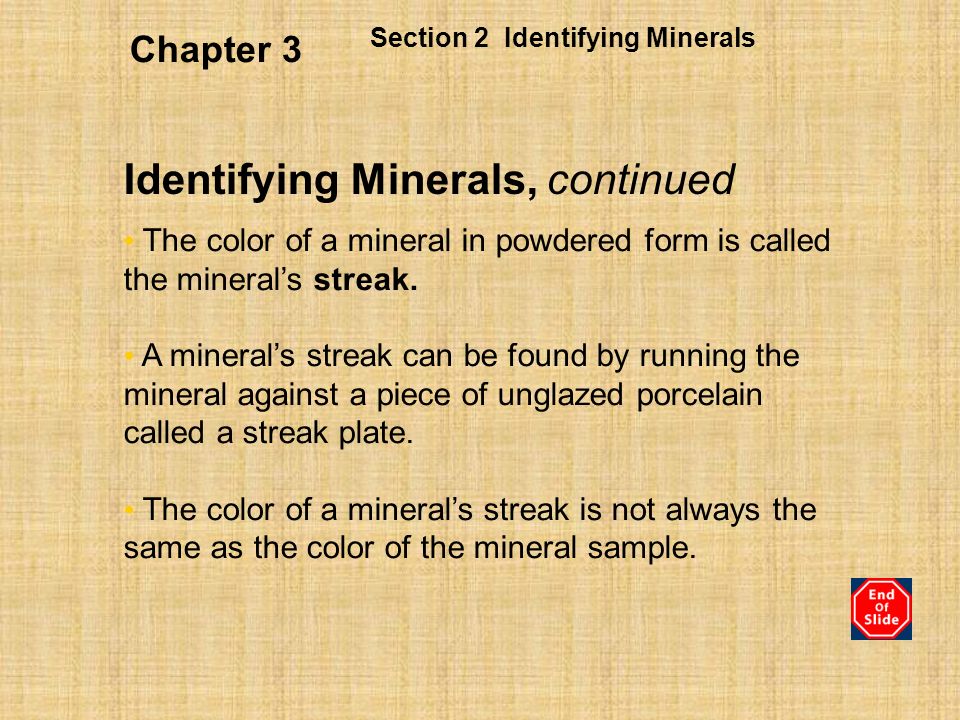

19. Section 2 Identifying Minerals Chapter 3 Identifying Minerals, continued The color of a mineral in powdered form is called the mineral’s streak. A mineral’s streak can be found by running the mineral against a piece of unglazed porcelain called a streak plate. The color of a mineral’s streak is not always the same as the color of the mineral sample.

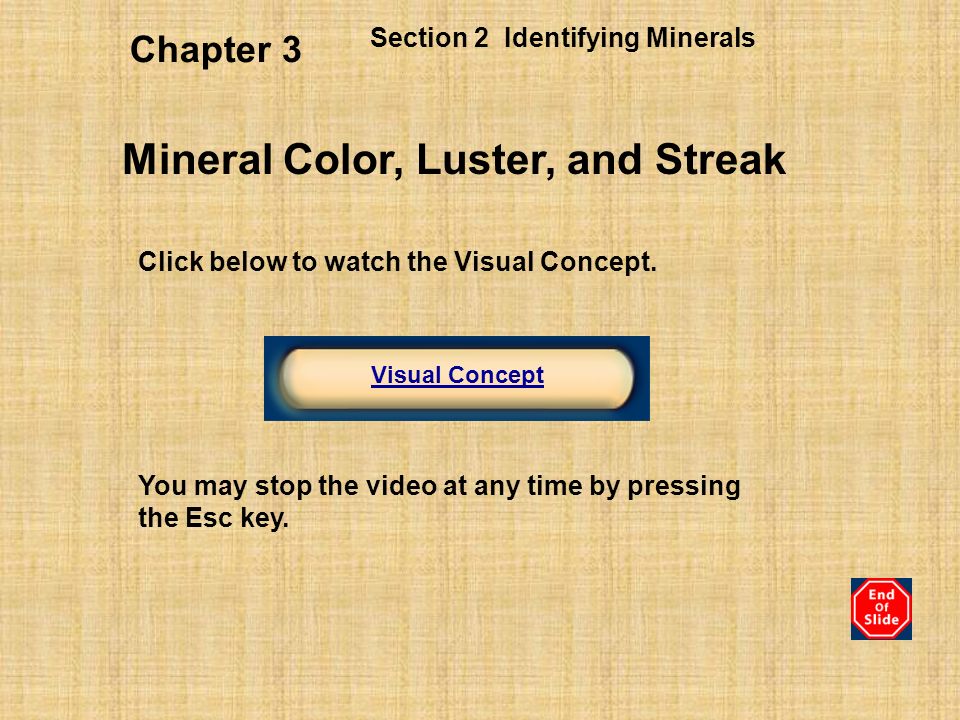

20. Section 2 Identifying Minerals Chapter 3 Mineral Color, Luster, and Streak Click below to watch the Visual Concept. You may stop the video at any time by pressing the Esc key. Visual Concept

21. Section 2 Identifying Minerals Chapter 3 Cleavage and Fracture Different types of minerals break in different ways. Cleavage is the tendency of some minerals to break along smooth, flat surfaces. Fracture is the tendency of some minerals to break unevenly along curved or irregular surfaces.

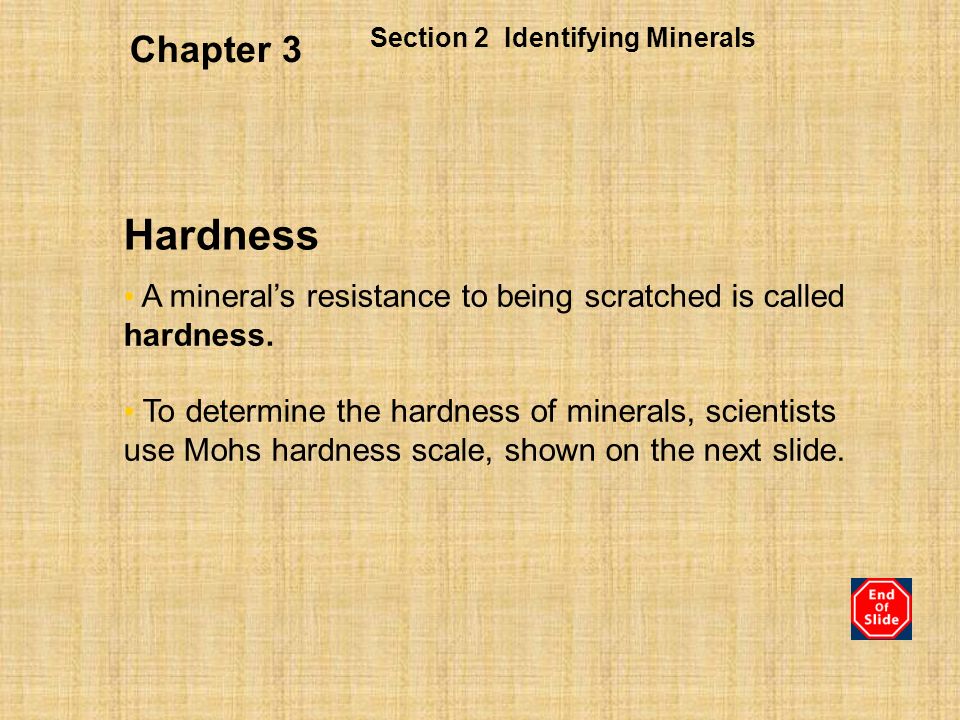

22. Section 2 Identifying Minerals Chapter 3 Hardness A mineral’s resistance to being scratched is called hardness. To determine the hardness of minerals, scientists use Mohs hardness scale, shown on the next slide.

23. Section 2 Identifying Minerals Chapter 3

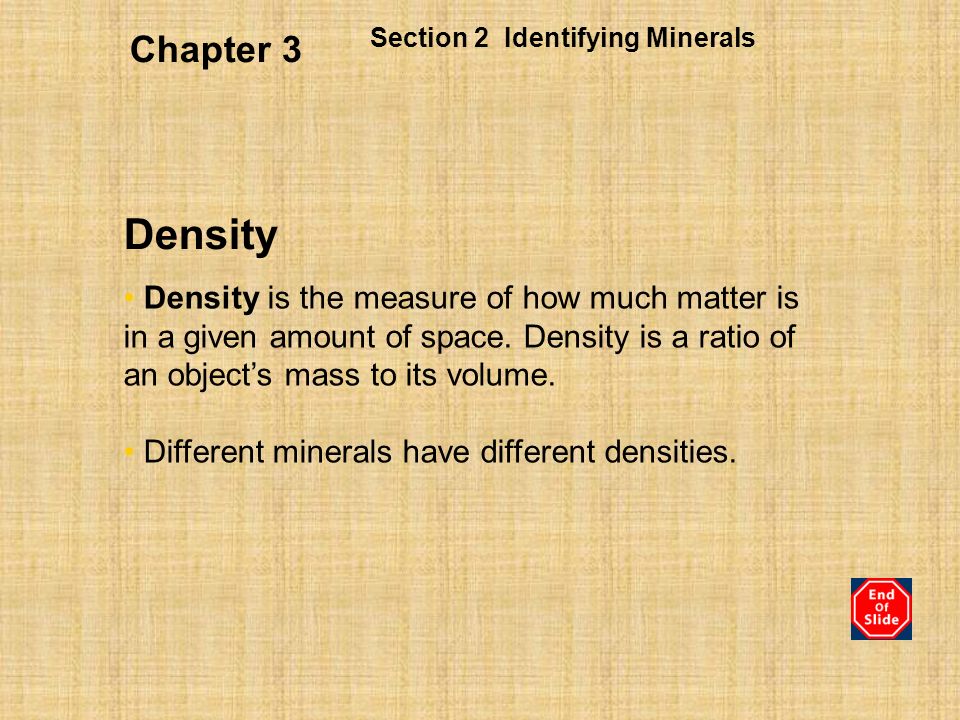

24. Section 2 Identifying Minerals Chapter 3 Density Density is the measure of how much matter is in a given amount of space. Density is a ratio of an object’s mass to its volume. Different minerals have different densities.

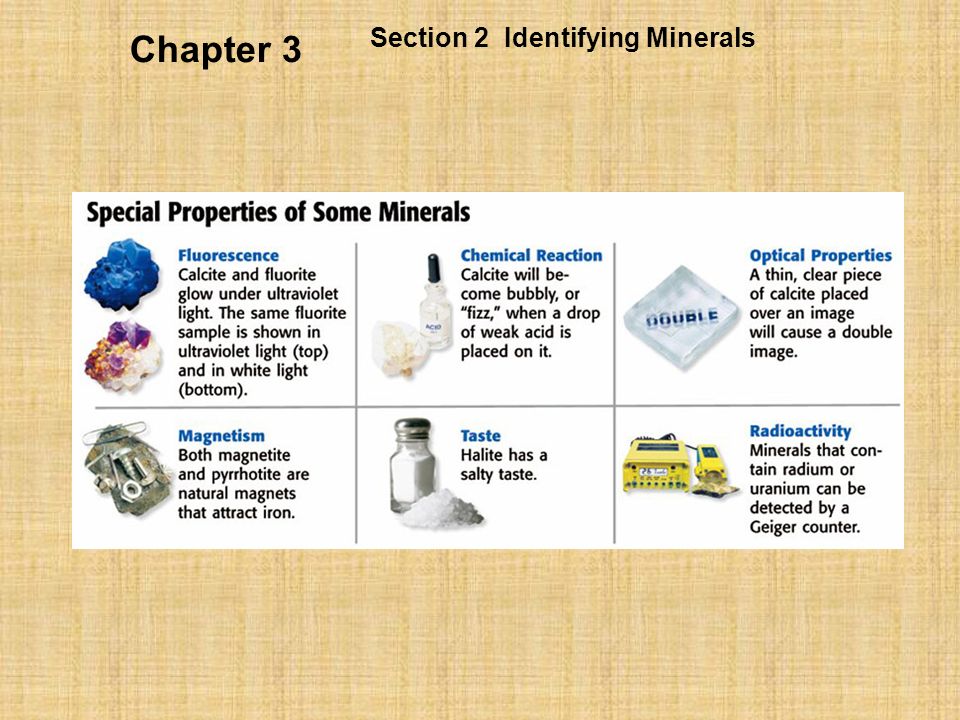

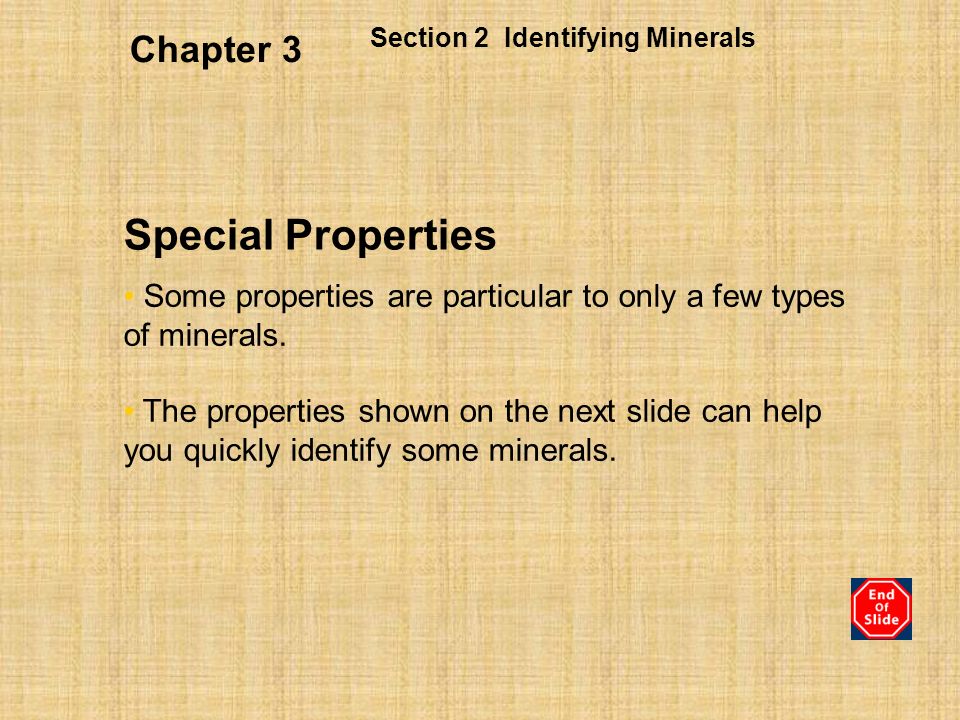

25. Section 2 Identifying Minerals Chapter 3 Special Properties Some properties are particular to only a few types of minerals. The properties shown on the next slide can help you quickly identify some minerals.

26. Section 2 Identifying Minerals Chapter 3

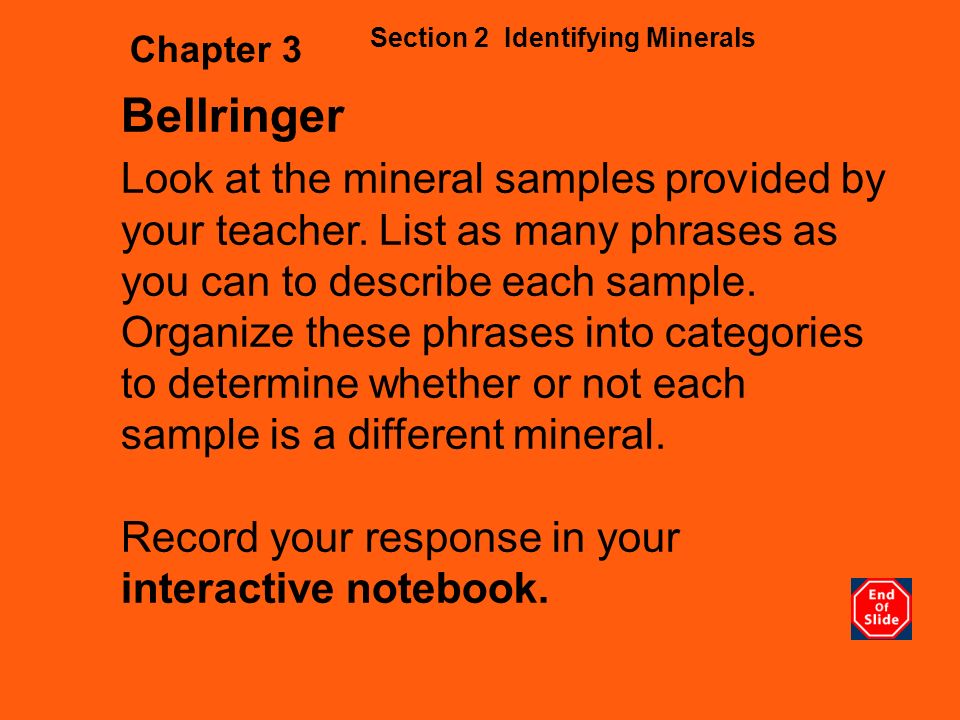

27. Section 2 Identifying Minerals Bellringer Look at the mineral samples provided by your teacher. List as many phrases as you can to describe each sample. Organize these phrases into categories to determine whether or not each sample is a different mineral. Record your response in your interactive notebook. Chapter 3

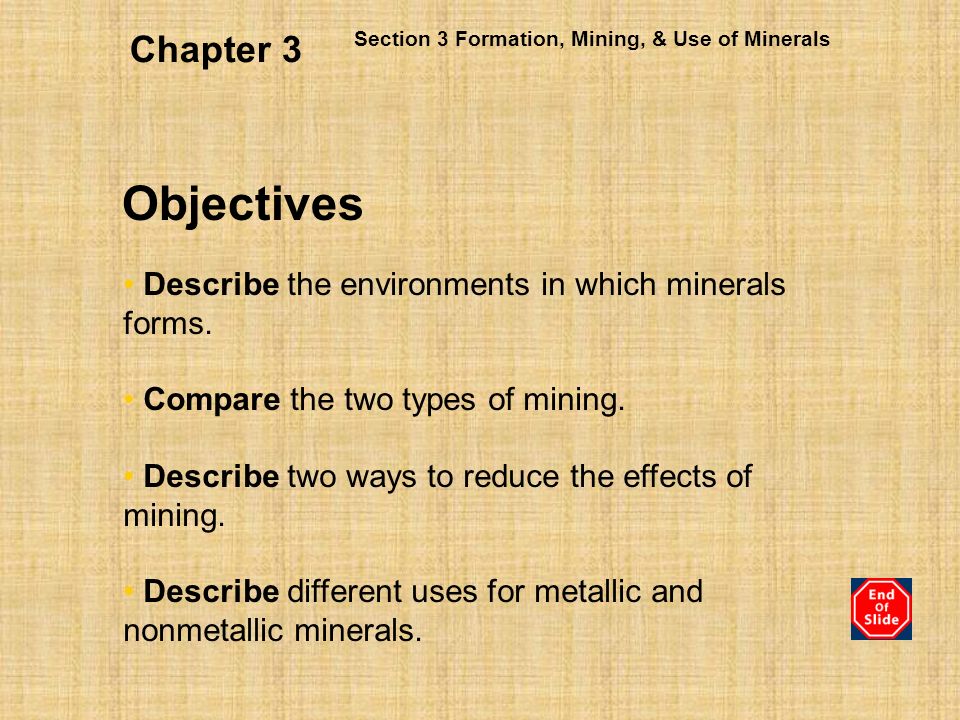

28. Describe the environments in which minerals forms. Compare the two types of mining. Describe two ways to reduce the effects of mining. Describe different uses for metallic and nonmetallic minerals. Objectives Section 3 Formation, Mining, & Use of Minerals

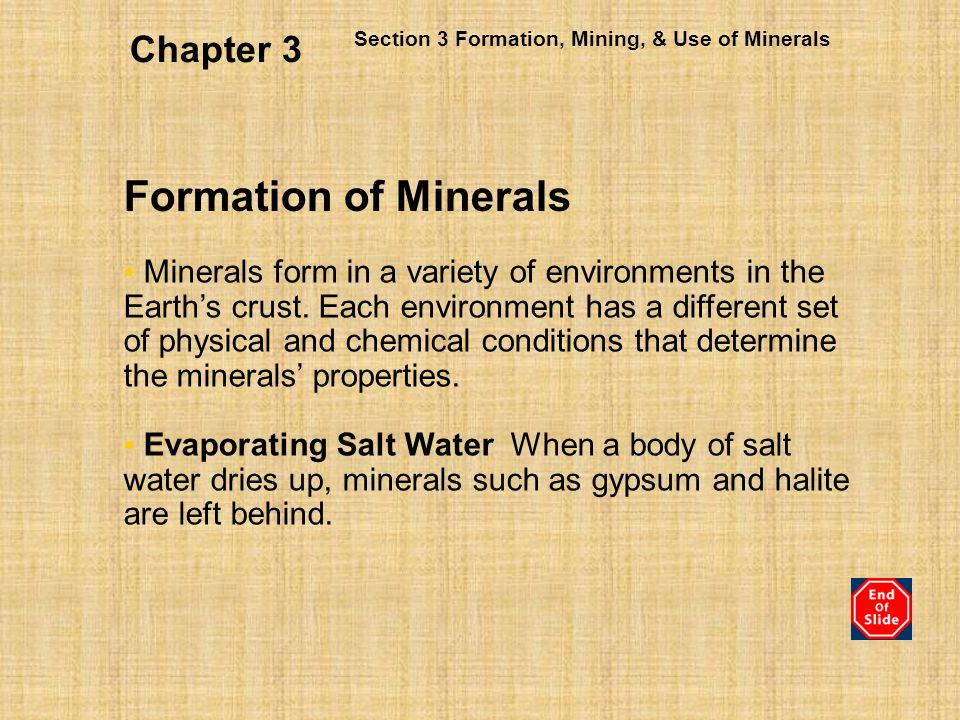

29. Chapter 3 Formation of Minerals Minerals form in a variety of environments in the Earth’s crust. Each environment has a different set of physical and chemical conditions that determine the minerals’ properties. Evaporating Salt Water When a body of salt water dries up, minerals such as gypsum and halite are left behind. Section 3 Formation, Mining, & Use of Minerals

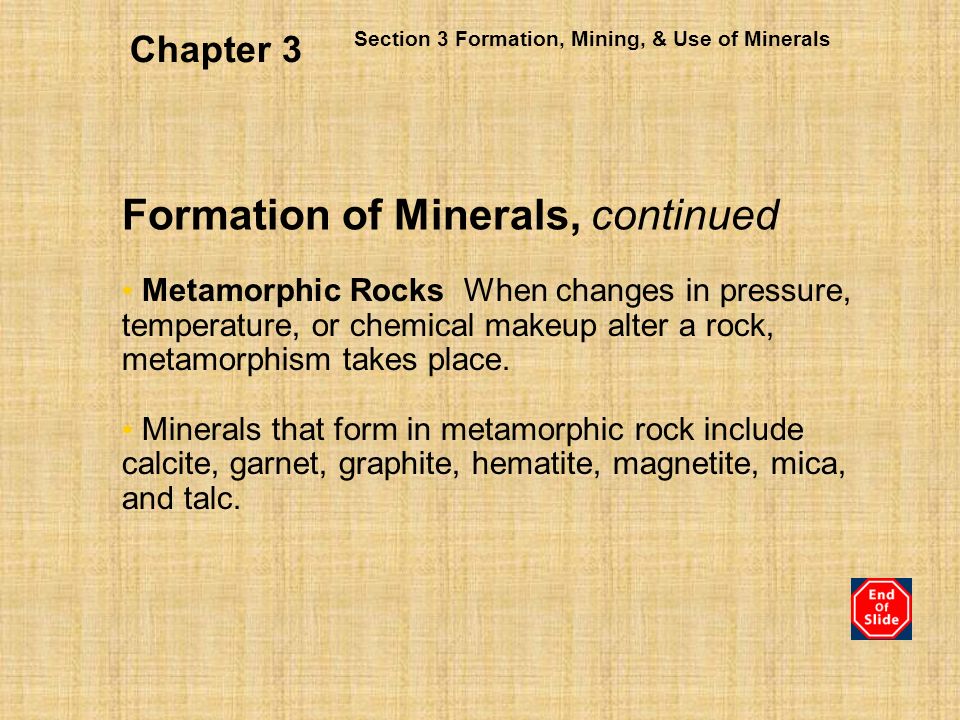

30. Chapter 3 Formation of Minerals, continued Metamorphic Rocks When changes in pressure, temperature, or chemical makeup alter a rock, metamorphism takes place. Minerals that form in metamorphic rock include calcite, garnet, graphite, hematite, magnetite, mica, and talc. Section 3 Formation, Mining, & Use of Minerals

31. Chapter 3 Formation of Minerals, continued Limestones Surface water and groundwater carry dissolved materials into lakes and seas, where they crystallized on the bottom. Minerals that form in this environment include calcite and dolomite. Section 3 Formation, Mining, & Use of Minerals

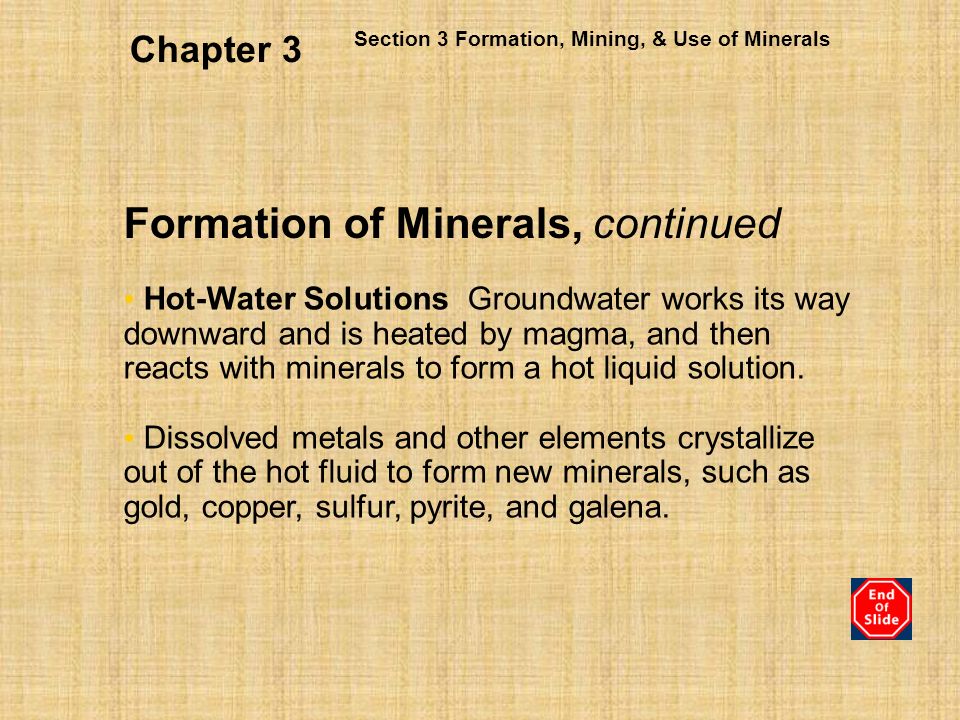

32. Chapter 3 Formation of Minerals, continued Hot-Water Solutions Groundwater works its way downward and is heated by magma, and then reacts with minerals to form a hot liquid solution. Dissolved metals and other elements crystallize out of the hot fluid to form new minerals, such as gold, copper, sulfur, pyrite, and galena. Section 3 Formation, Mining, & Use of Minerals

33. Chapter 3 Formation of Minerals, continued Pegmatites As magma rises upward from the Earth’s crust, it can form teardrop-shaped bodies called pegmatites. Many gemstones such as topaz and tourmaline, form in pegmatites. Section 3 Formation, Mining, & Use of Minerals

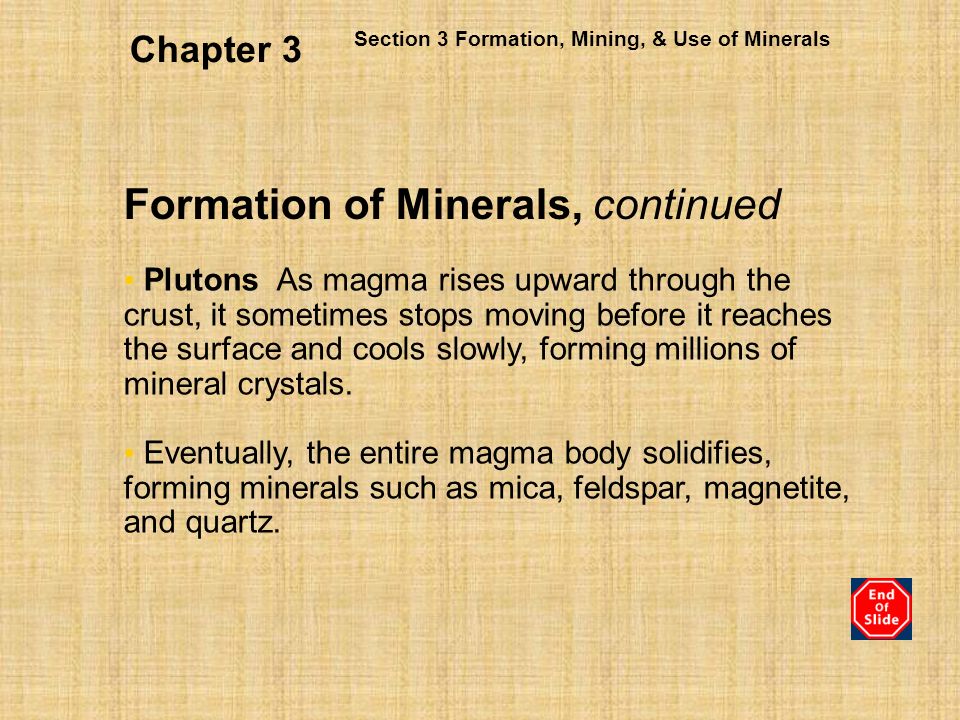

34. Chapter 3 Formation of Minerals, continued Plutons As magma rises upward through the crust, it sometimes stops moving before it reaches the surface and cools slowly, forming millions of mineral crystals. Eventually, the entire magma body solidifies, forming minerals such as mica, feldspar, magnetite, and quartz. Section 3 Formation, Mining, & Use of Minerals

35. Chapter 3 Mining Many kinds of rocks and minerals must be mined to extract the valuable elements they contain. Geologists use the term ore to describe a mineral deposit large enough and pure enough to be mined for profit. Rocks and minerals are removed from the ground by one of two methods. Section 3 Formation, Mining, & Use of Minerals

36. Chapter 3 Mining, continued Surface Mining When mineral deposits are located at or near the surface of the Earth, surface- mining methods are used to remove the minerals. Types of surface mines include open pits, surface coal mines, and quarries. Section 3 Formation, Mining, & Use of Minerals

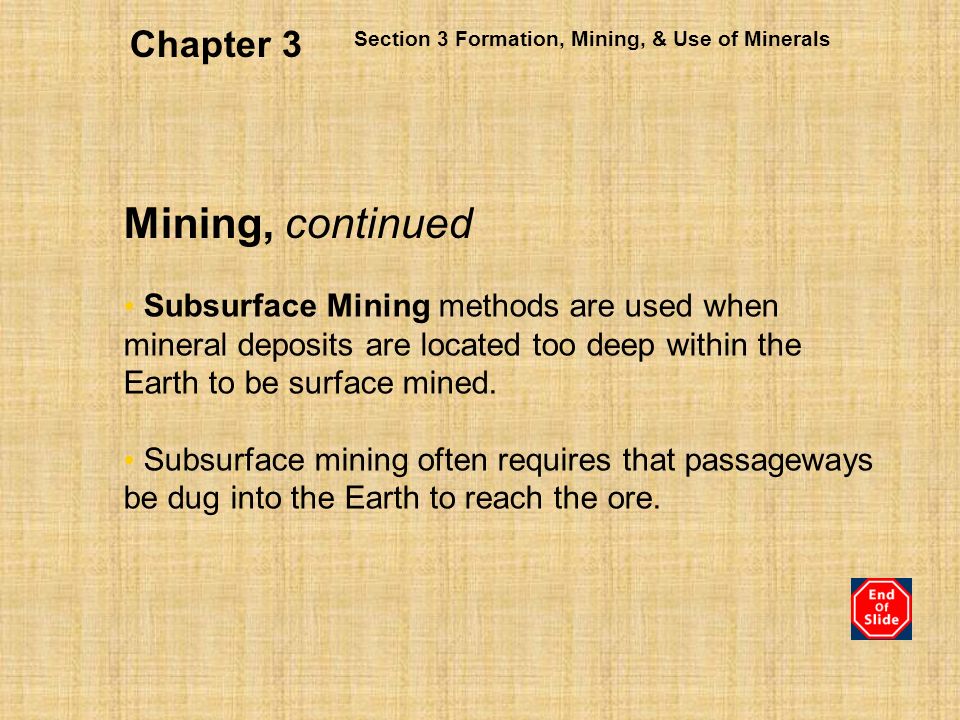

37. Chapter 3 Mining, continued Subsurface Mining methods are used when mineral deposits are located too deep within the Earth to be surface mined. Subsurface mining often requires that passageways be dug into the Earth to reach the ore. Section 3 Formation, Mining, & Use of Minerals

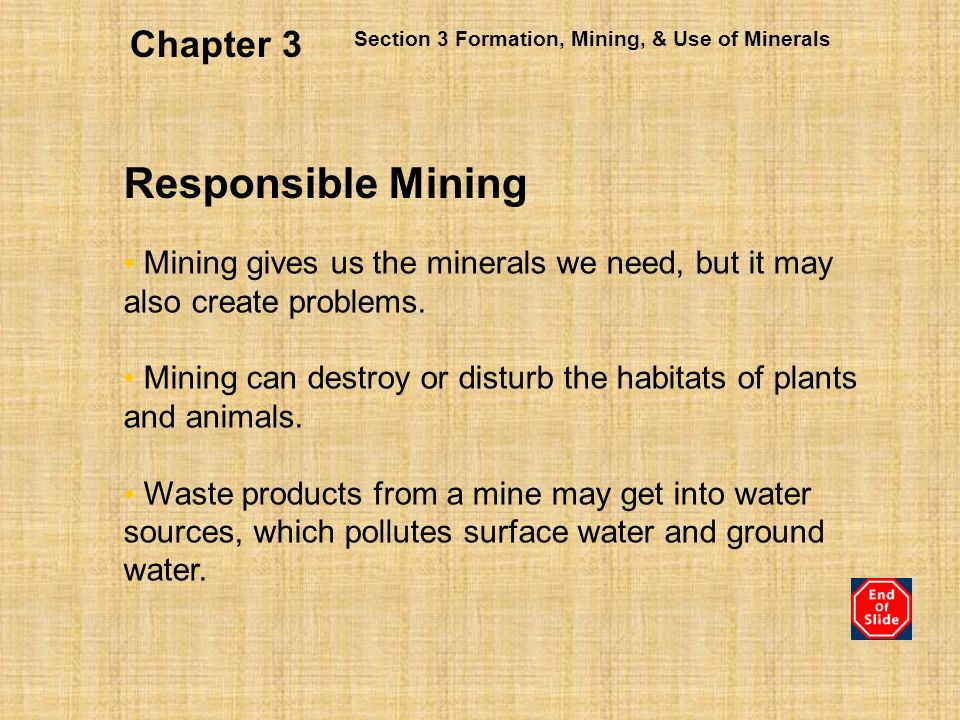

38. Chapter 3 Responsible Mining Mining gives us the minerals we need, but it may also create problems. Mining can destroy or disturb the habitats of plants and animals. Waste products from a mine may get into water sources, which pollutes surface water and ground water. Section 3 Formation, Mining, & Use of Minerals

39. Chapter 3 Responsible Mining, continued One way to reduce the potential harmful effects of mining is to return the land to its original state after the mining is completed. Reclamation is the process by which land used for mining is returned to its original state. Reducing our need for minerals by recycling is another way to reduce the effects of mining. Section 3 Formation, Mining, & Use of Minerals

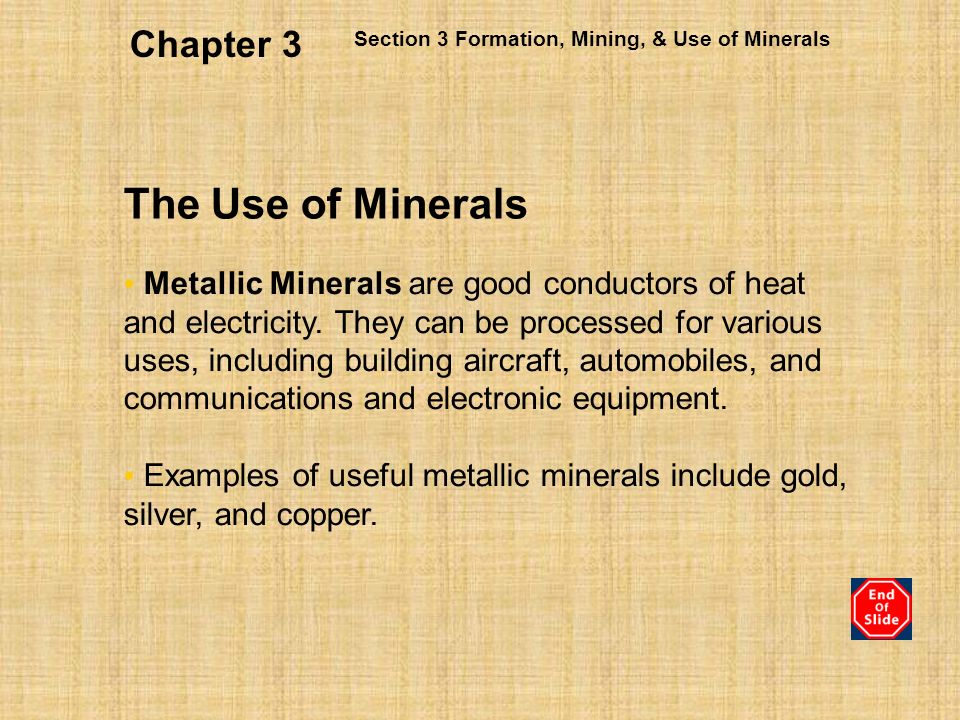

40. Chapter 3 The Use of Minerals Metallic Minerals are good conductors of heat and electricity. They can be processed for various uses, including building aircraft, automobiles, and communications and electronic equipment. Examples of useful metallic minerals include gold, silver, and copper. Section 3 Formation, Mining, & Use of Minerals

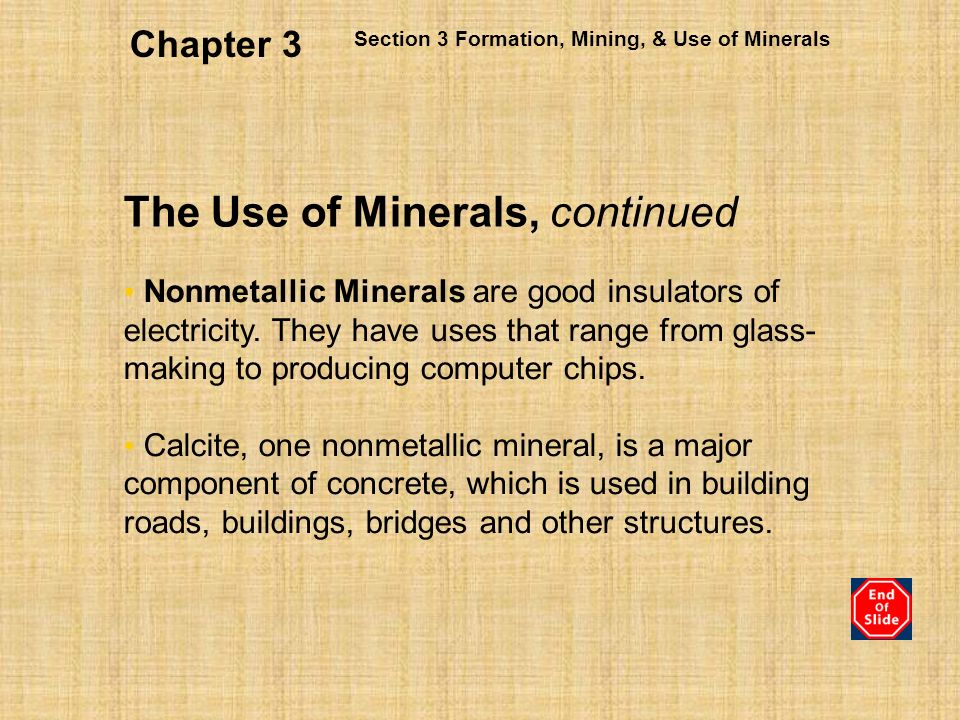

41. Chapter 3 The Use of Minerals, continued Nonmetallic Minerals are good insulators of electricity. They have uses that range from glass- making to producing computer chips. Calcite, one nonmetallic mineral, is a major component of concrete, which is used in building roads, buildings, bridges and other structures. Section 3 Formation, Mining, & Use of Minerals

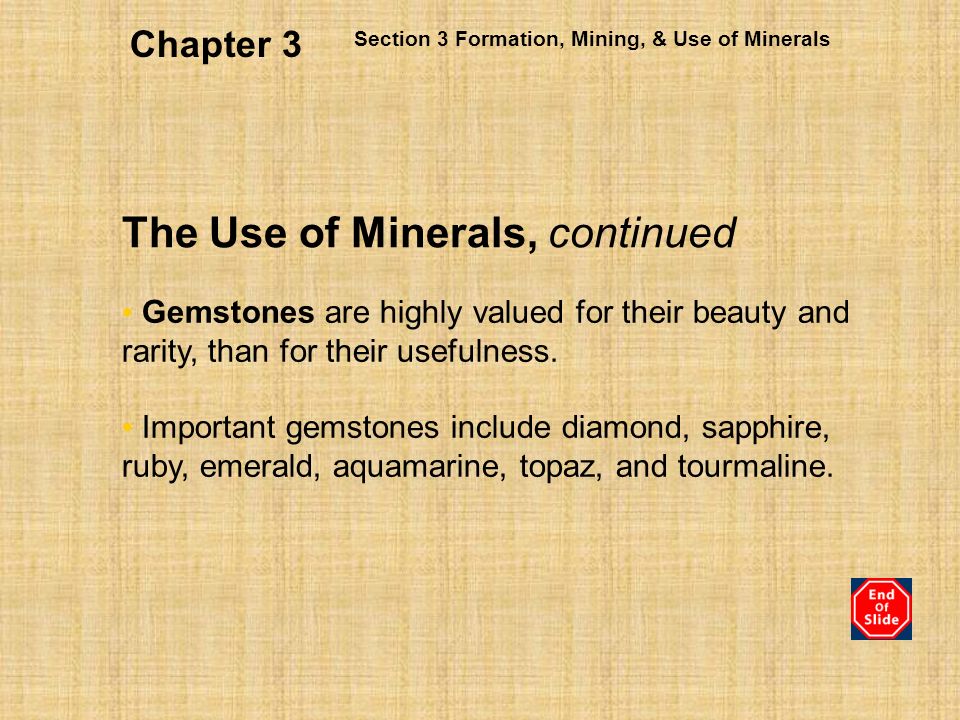

42. Chapter 3 The Use of Minerals, continued Gemstones are highly valued for their beauty and rarity, than for their usefulness. Important gemstones include diamond, sapphire, ruby, emerald, aquamarine, topaz, and tourmaline. Section 3 Formation, Mining, & Use of Minerals

43. Bellringer Look at a mineral resource map of your state and locate the mines closest to where you live. Which mineral commodities are mined there? Write your response in your science journal. Chapter 3

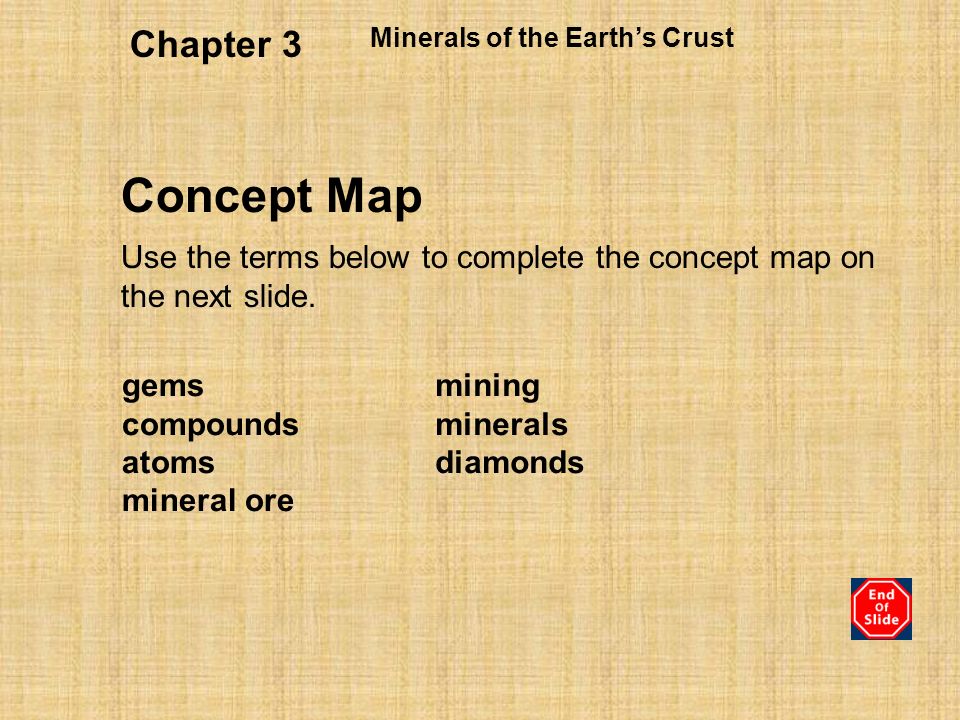

44. Minerals of the Earth’s Crust Concept Map Use the terms below to complete the concept map on the next slide. Chapter 3 gems compounds atoms mineral ore mining minerals diamonds

45. Minerals of the Earth’s Crust Chapter 3

46. Minerals of the Earth’s Crust Chapter 3

47. End of Chapter 3 Show

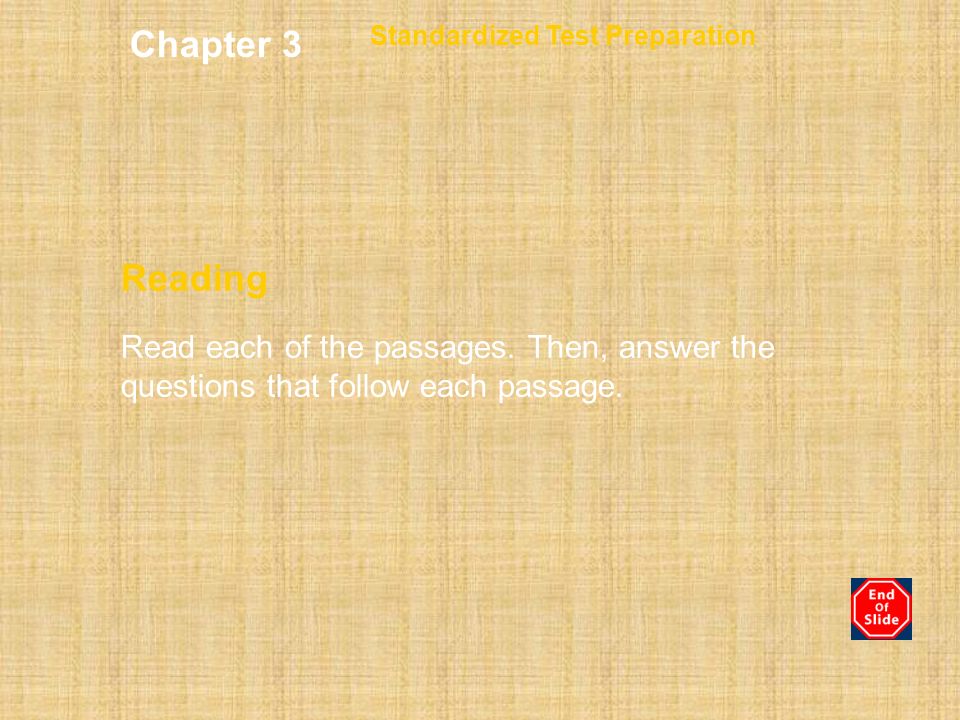

48. Reading Read each of the passages. Then, answer the questions that follow each passage. Chapter 3 Standardized Test Preparation

49. Passage 1 In North America, copper was mined at least 6,700 years ago by the ancestors of the Native Americans who live on Michigan’s upper peninsula. Much of this mining took place on Isle Royale, an island in Lake Superior. These ancient people removed copper from the rock by using stone hammers and wedges. The rock was sometimes heated first to make breaking it up easier. Continued on the next slide Chapter 3 Standardized Test Preparation

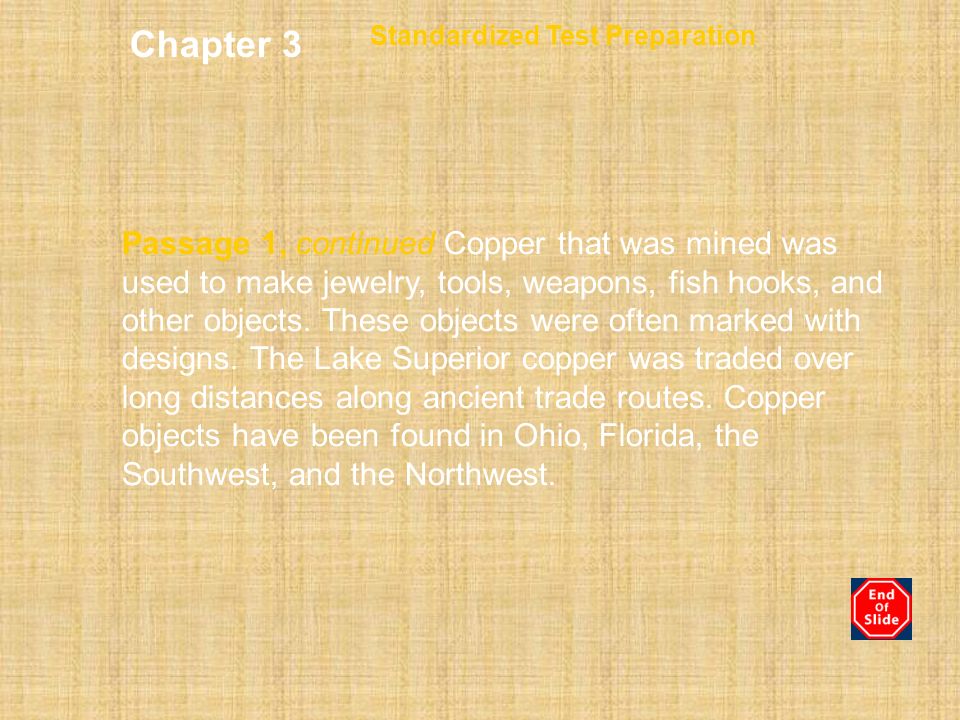

50. Passage 1, continued Copper that was mined was used to make jewelry, tools, weapons, fish hooks, and other objects. These objects were often marked with designs. The Lake Superior copper was traded over long distances along ancient trade routes. Copper objects have been found in Ohio, Florida, the Southwest, and the Northwest. Chapter 3 Standardized Test Preparation

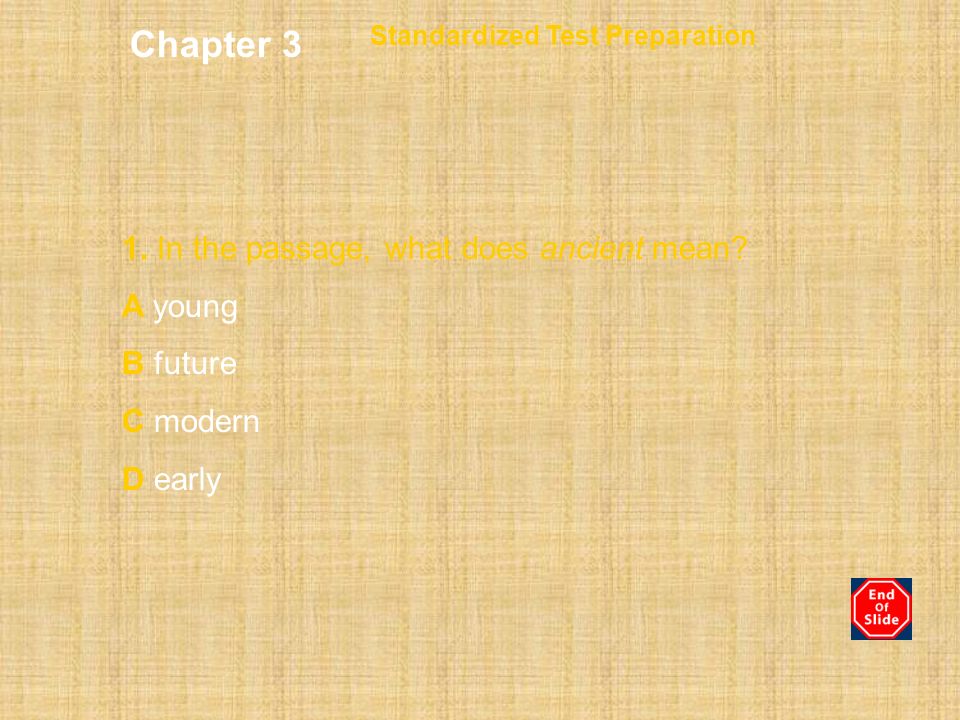

51. 1. In the passage, what does ancient mean? A young B future C modern D early Chapter 3 Standardized Test Preparation

52. 1. In the passage, what does ancient mean? A young B future C modern D early Chapter 3 Standardized Test Preparation

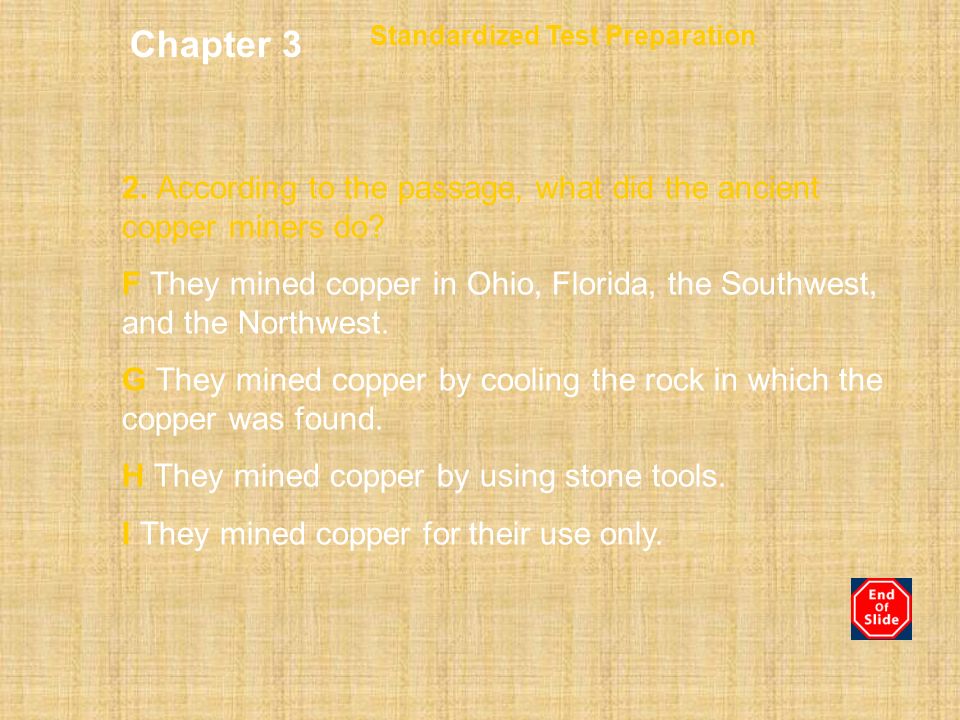

53. 2. According to the passage, what did the ancient copper miners do? F They mined copper in Ohio, Florida, the Southwest, and the Northwest. G They mined copper by cooling the rock in which the copper was found. H They mined copper by using stone tools. I They mined copper for their use only. Chapter 3 Standardized Test Preparation

54. 2. According to the passage, what did the ancient copper miners do? F They mined copper in Ohio, Florida, the Southwest, and the Northwest. G They mined copper by cooling the rock in which the copper was found. H They mined copper by using stone tools. I They mined copper for their use only. Chapter 3 Standardized Test Preparation

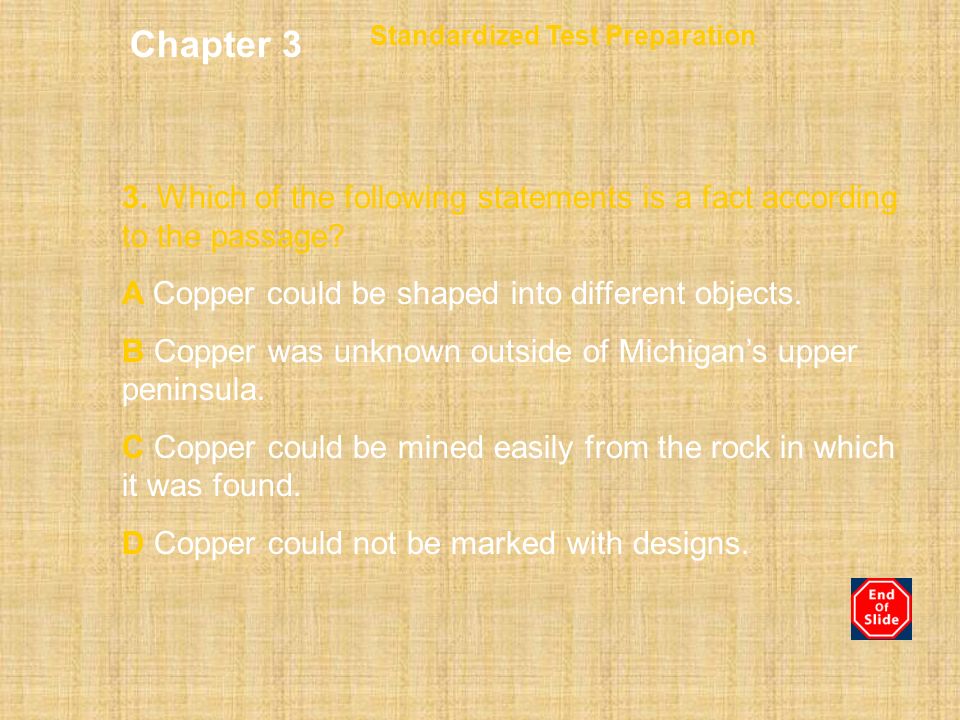

55. 3. Which of the following statements is a fact according to the passage? A Copper could be shaped into different objects. B Copper was unknown outside of Michigan’s upper peninsula. C Copper could be mined easily from the rock in which it was found. D Copper could not be marked with designs. Chapter 3 Standardized Test Preparation

56. 3. Which of the following statements is a fact according to the passage? A Copper could be shaped into different objects. B Copper was unknown outside of Michigan’s upper peninsula. C Copper could be mined easily from the rock in which it was found. D Copper could not be marked with designs. Chapter 3 Standardized Test Preparation

57. Passage 2 Most mineral names end in -ite. The practice of so naming minerals dates back to the ancient Romans and Greeks, who added -ites and -it is to common words to indicate a color, a use, or the chemistry of a mineral. More recently, mineral names have been used to honor people, such as scientists, mineral collectors, and even rulers of countries. Other minerals have been named after the place where they were discovered. These place names include mines, quarries, hills, mountains, towns, regions, and even countries. Finally, some minerals have been named after gods in Greek, Roman, and Scandinavian mythology. Chapter 3 Standardized Test Preparation

58. 1. In the passage, what does practice mean? A skill B custom C profession D use Chapter 3 Standardized Test Preparation

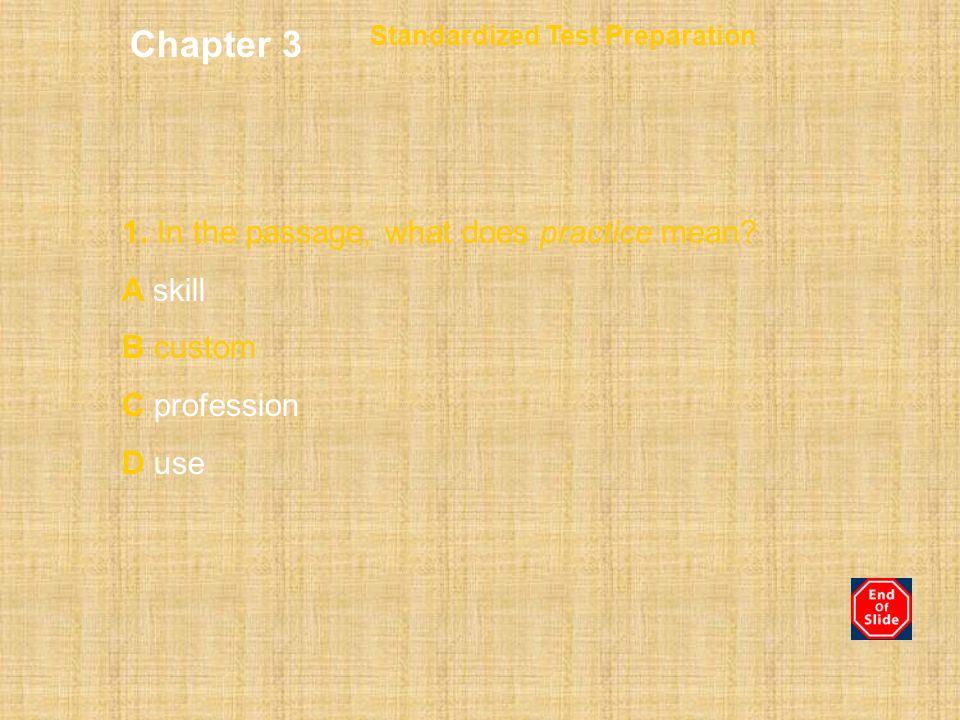

59. 1. In the passage, what does practice mean? A skill B custom C profession D use Chapter 3 Standardized Test Preparation

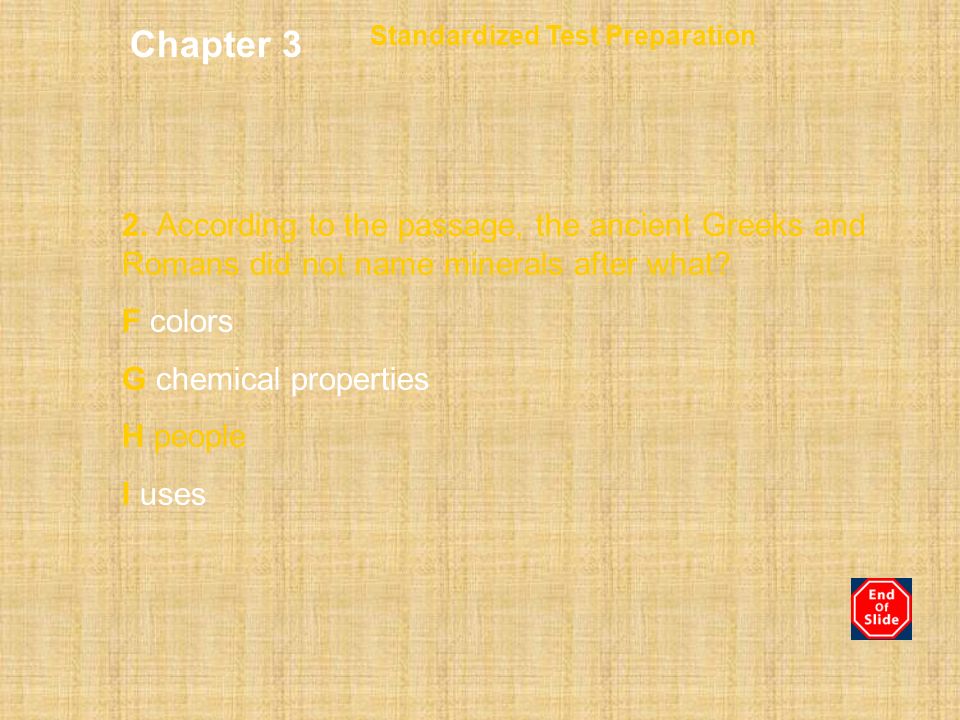

60. 2. According to the passage, the ancient Greeks and Romans did not name minerals after what? F colors G chemical properties H people I uses Chapter 3 Standardized Test Preparation

61. 2. According to the passage, the ancient Greeks and Romans did not name minerals after what? F colors G chemical properties H people I uses Chapter 3 Standardized Test Preparation

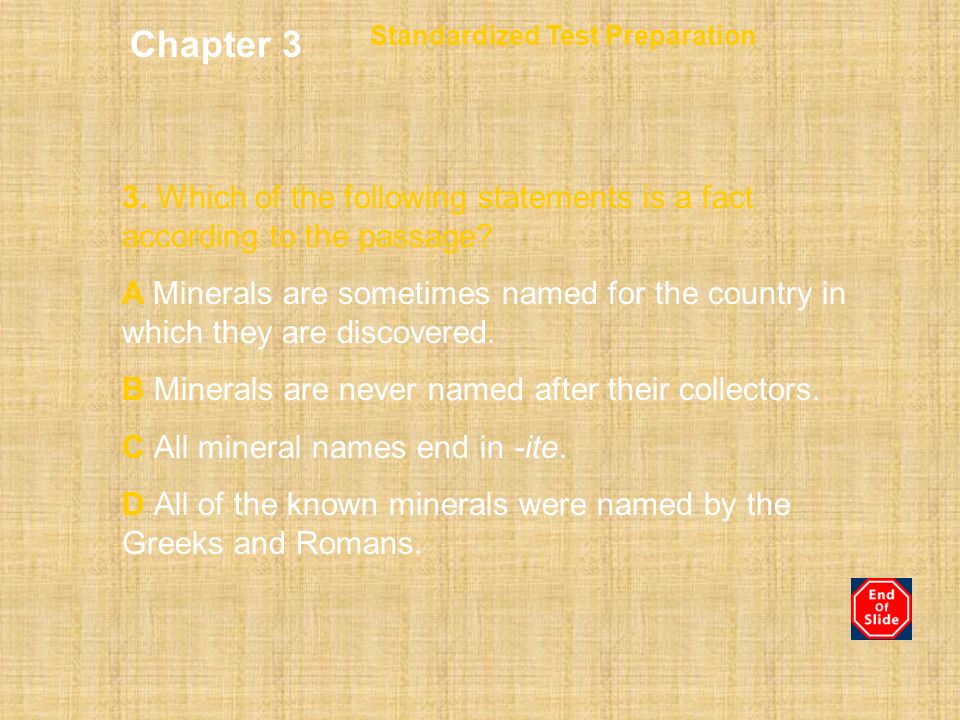

62. 3. Which of the following statements is a fact according to the passage? A Minerals are sometimes named for the country in which they are discovered. B Minerals are never named after their collectors. C All mineral names end in -ite. D All of the known minerals were named by the Greeks and Romans. Chapter 3 Standardized Test Preparation

63. 3. Which of the following statements is a fact according to the passage? A Minerals are sometimes named for the country in which they are discovered. B Minerals are never named after their collectors. C All mineral names end in -ite. D All of the known minerals were named by the Greeks and Romans. Chapter 3 Standardized Test Preparation

64. Interpreting Graphics A sample of feldspar was analyzed to find out what it was made of. The graph below shows the results of the analysis. Use the graph below to answer the questions that follow. Chapter 3 Standardized Test Preparation

65. 1. The sample consists of four elements: potassium, K, aluminum, Al, silicon, Si, and oxygen, O. Which element makes up the largest percentage of your sample? A potassium B aluminum C silicon D oxygen Chapter 3 Standardized Test Preparation

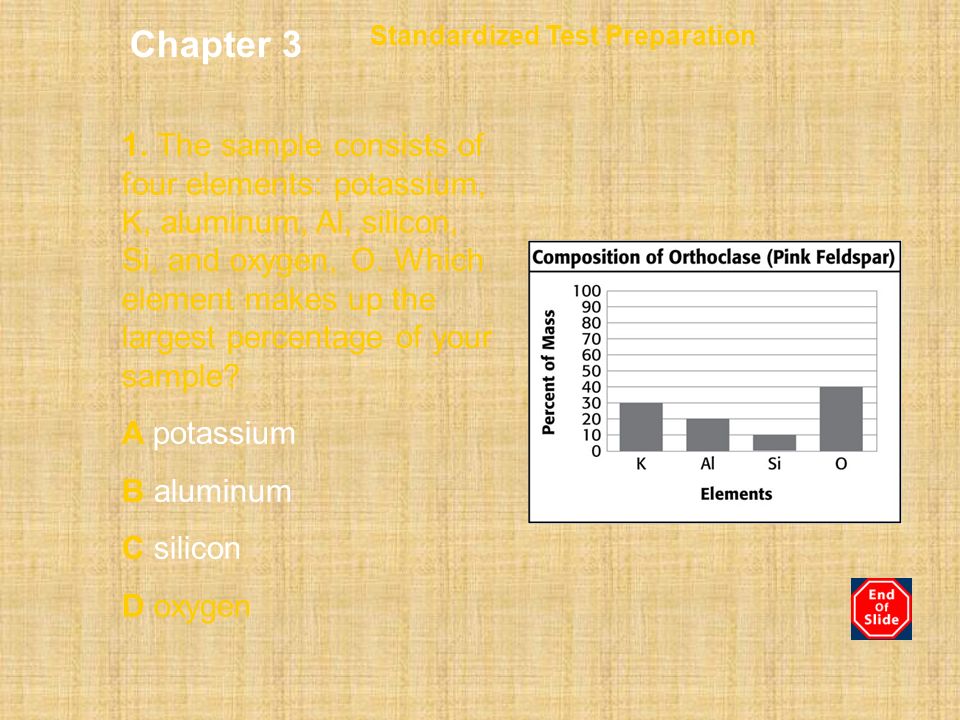

66. 1. The sample consists of four elements: potassium, K, aluminum, Al, silicon, Si, and oxygen, O. Which element makes up the largest percentage of your sample? A potassium B aluminum C silicon D oxygen Chapter 3 Standardized Test Preparation

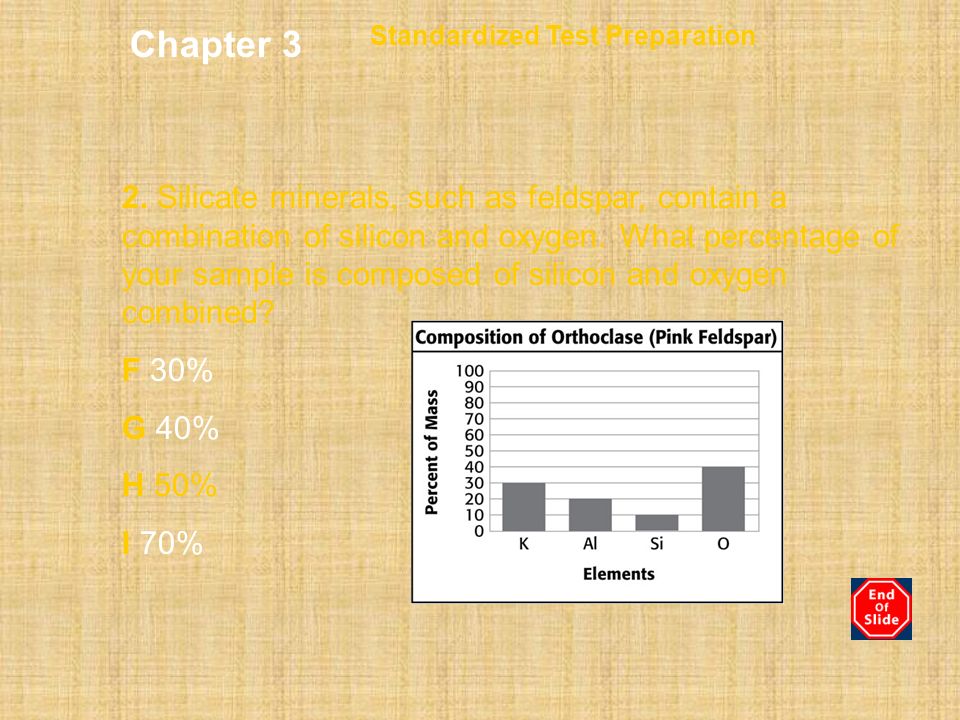

67. 2. Silicate minerals, such as feldspar, contain a combination of silicon and oxygen. What percentage of your sample is composed of silicon and oxygen combined? F 30% G 40% H 50% I 70% Chapter 3 Standardized Test Preparation

68. 2. Silicate minerals, such as feldspar, contain a combination of silicon and oxygen. What percentage of your sample is composed of silicon and oxygen combined? F 30% G 40% H 50% I 70% Chapter 3 Standardized Test Preparation

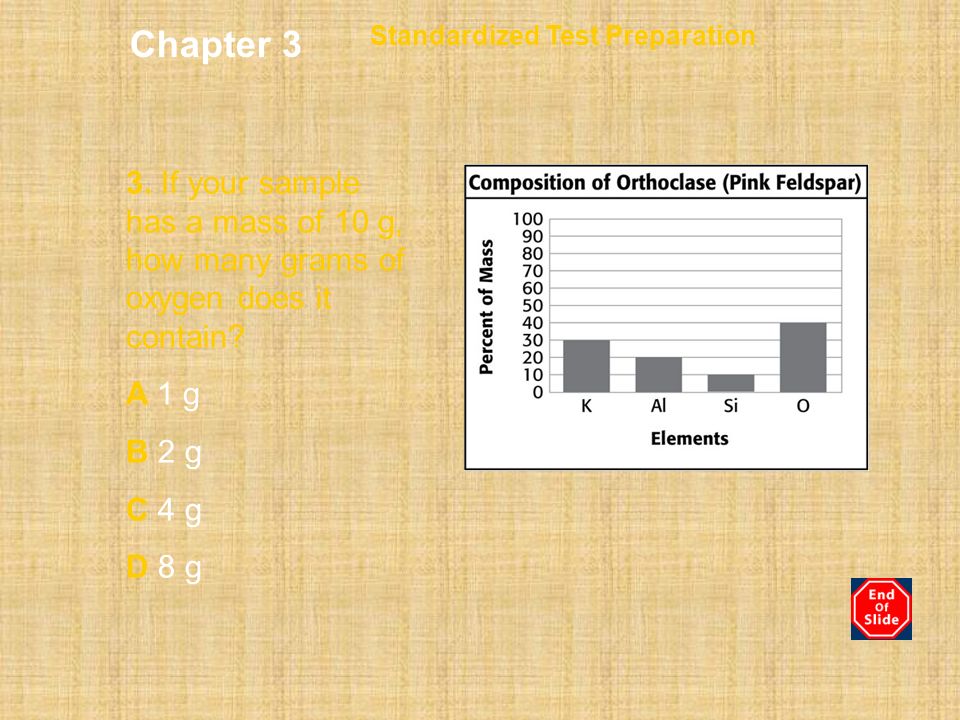

69. 3. If your sample has a mass of 10 g, how many grams of oxygen does it contain? A 1 g B 2 g C 4 g D 8 g Chapter 3 Standardized Test Preparation

70. 3. If your sample has a mass of 10 g, how many grams of oxygen does it contain? A 1 g B 2 g C 4 g D 8 g Chapter 3 Standardized Test Preparation

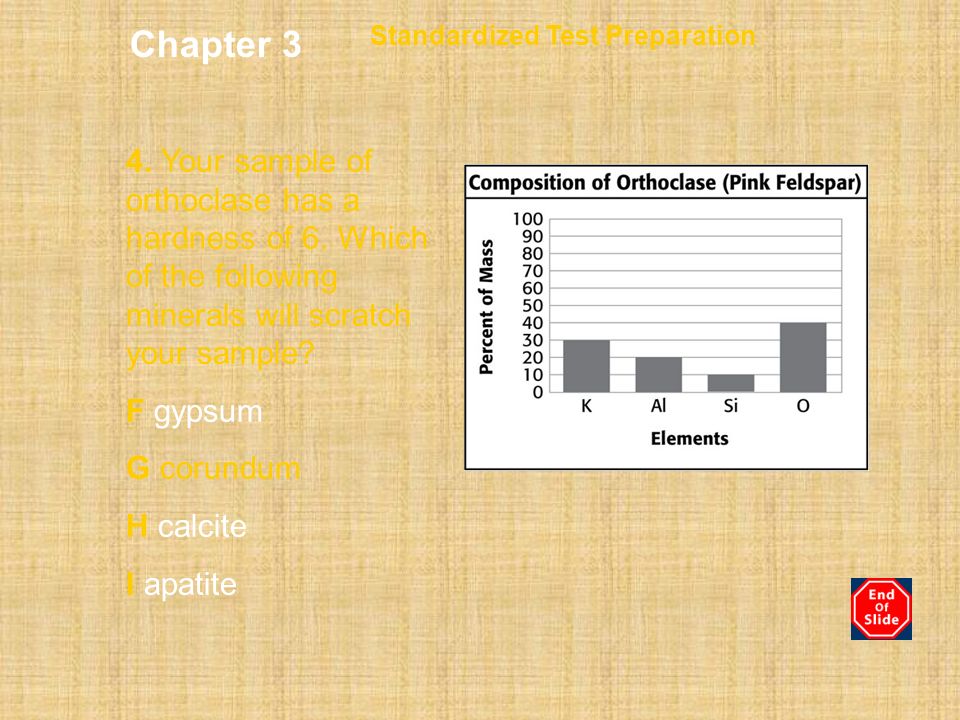

71. 4. Your sample of orthoclase has a hardness of 6. Which of the following minerals will scratch your sample? F gypsum G corundum H calcite I apatite Chapter 3 Standardized Test Preparation

72. 4. Your sample of orthoclase has a hardness of 6. Which of the following minerals will scratch your sample? F gypsum G corundum H calcite I apatite Chapter 3 Standardized Test Preparation

73. Math Read each question, and choose the best answer. Chapter 3 Standardized Test Preparation

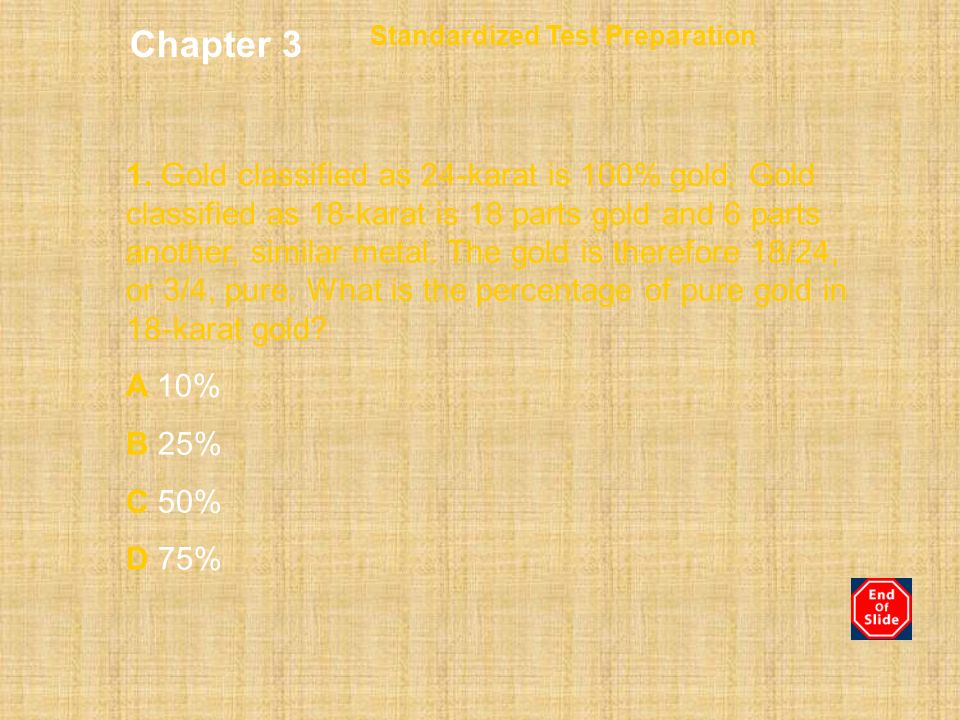

74. 1. Gold classified as 24-karat is 100% gold. Gold classified as 18-karat is 18 parts gold and 6 parts another, similar metal. The gold is therefore 18/24, or 3/4, pure. What is the percentage of pure gold in 18-karat gold? A 10% B 25% C 50% D 75% Chapter 3 Standardized Test Preparation

75. 1. Gold classified as 24-karat is 100% gold. Gold classified as 18-karat is 18 parts gold and 6 parts another, similar metal. The gold is therefore 18/24, or 3/4, pure. What is the percentage of pure gold in 18-karat gold? A 10% B 25% C 50% D 75% Chapter 3 Standardized Test Preparation

76. 2. Gold’s specific gravity is 19. Pyrite’s specific gravity is 5. What is the difference in the specific gravities of gold and pyrite? F 8 g/cm 3 G 10 g/cm 3 H 12 g/cm 3 I 14 g/cm 3 Chapter 3 Standardized Test Preparation

77. 2. Gold’s specific gravity is 19. Pyrite’s specific gravity is 5. What is the difference in the specific gravities of gold and pyrite? F 8 g/cm 3 G 10 g/cm 3 H 12 g/cm 3 I 14 g/cm 3 Chapter 3 Standardized Test Preparation

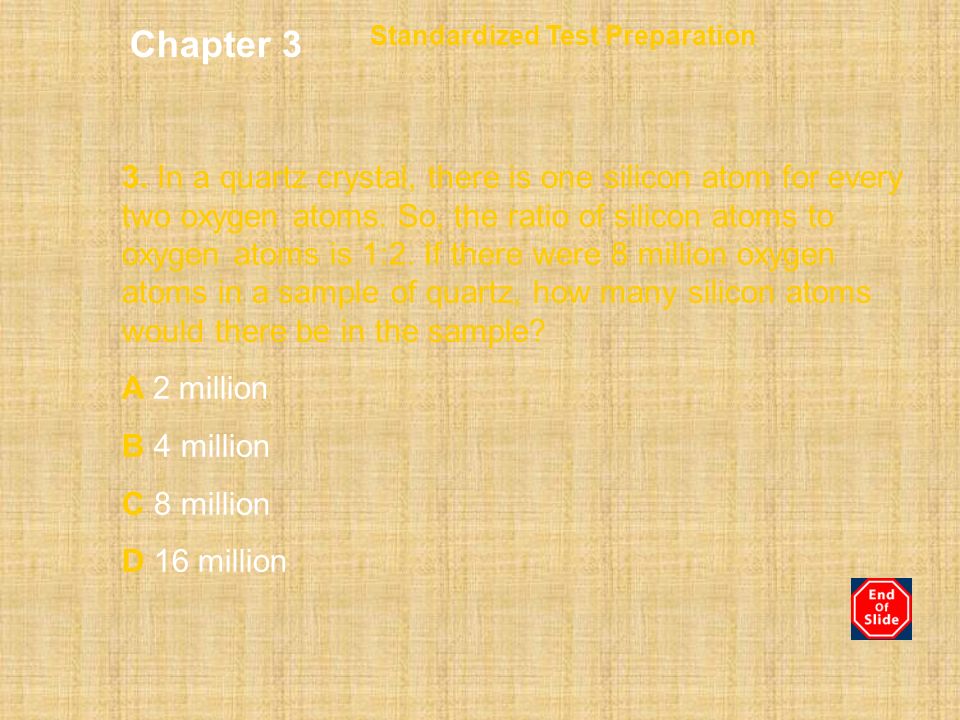

78. 3. In a quartz crystal, there is one silicon atom for every two oxygen atoms. So, the ratio of silicon atoms to oxygen atoms is 1:2. If there were 8 million oxygen atoms in a sample of quartz, how many silicon atoms would there be in the sample? A 2 million B 4 million C 8 million D 16 million Chapter 3 Standardized Test Preparation

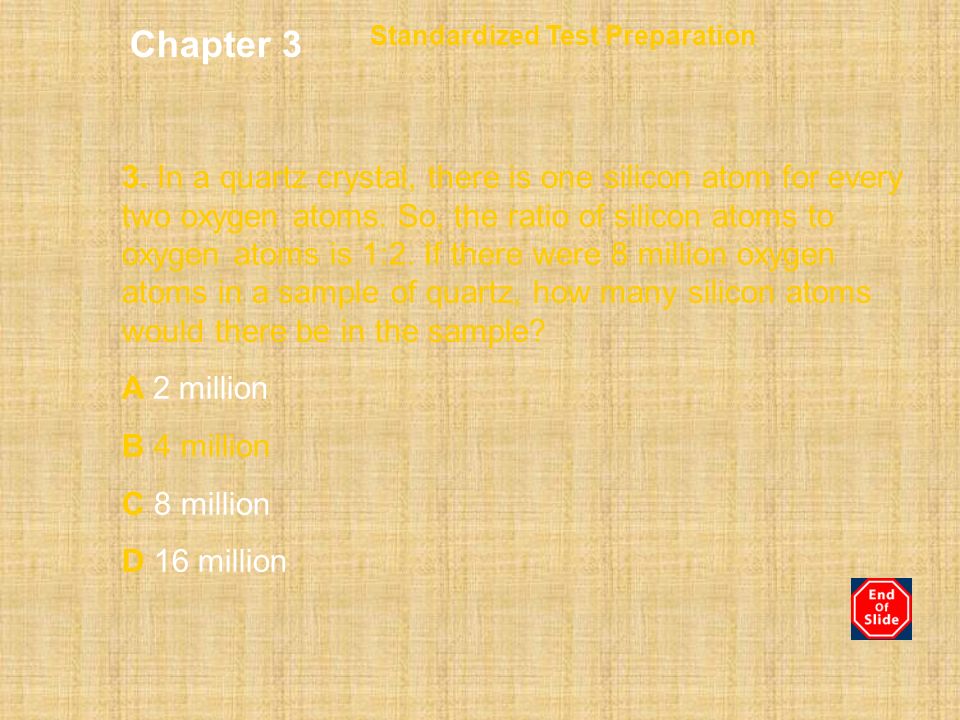

79. 3. In a quartz crystal, there is one silicon atom for every two oxygen atoms. So, the ratio of silicon atoms to oxygen atoms is 1:2. If there were 8 million oxygen atoms in a sample of quartz, how many silicon atoms would there be in the sample? A 2 million B 4 million C 8 million D 16 million Chapter 3 Standardized Test Preparation

80. Chapter 3 Standardized Test Preparation

81. Chapter 3 CNN Videos Greening Sudbury Meteor Collision Geologist
