2.4 Trends, Interpolation and Extrapolation. Line of Best Fit a line that approximates a trend for the data in a scatter plot shows pattern and direction.

Similar presentations


Presentation on theme: "2.4 Trends, Interpolation and Extrapolation. Line of Best Fit a line that approximates a trend for the data in a scatter plot shows pattern and direction."— Presentation transcript:

1 2.4 Trends, Interpolation and Extrapolation

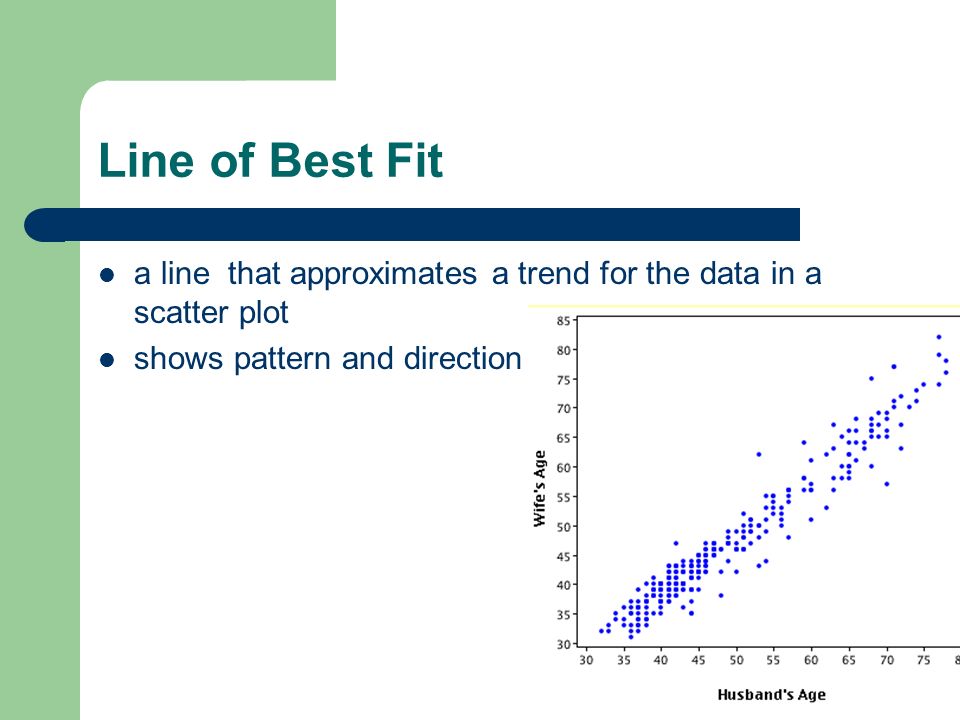

2 Line of Best Fit a line that approximates a trend for the data in a scatter plot shows pattern and direction

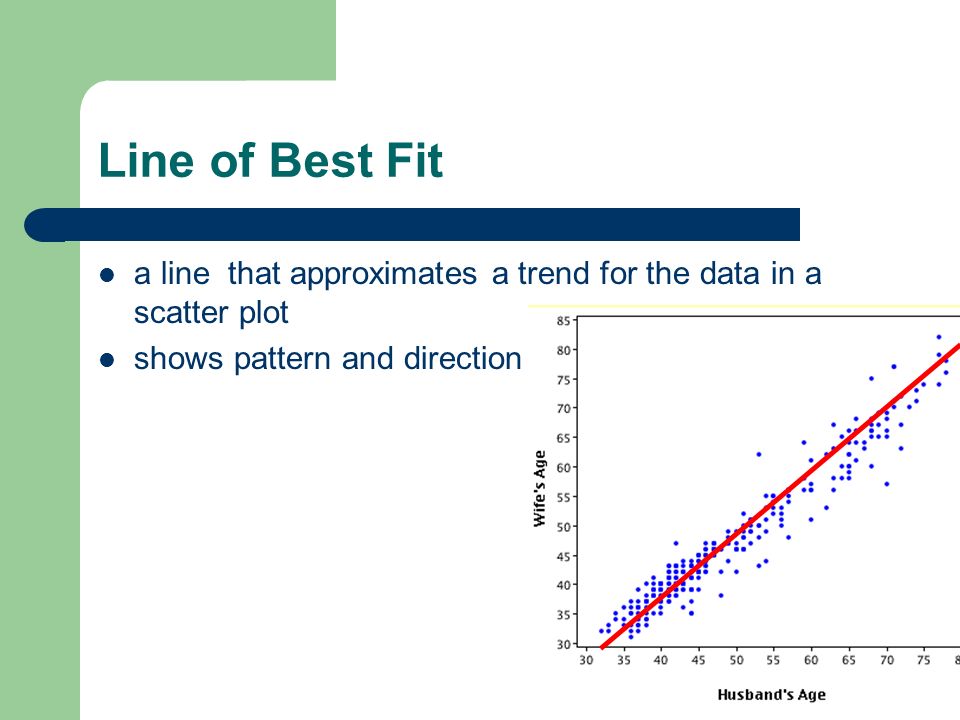

3 Line of Best Fit a line that approximates a trend for the data in a scatter plot shows pattern and direction

4 How to Find the Line of Best Fit The line of best fit should: – pass through as many points as possible – allow remaining points to be grouped equally above and below the line

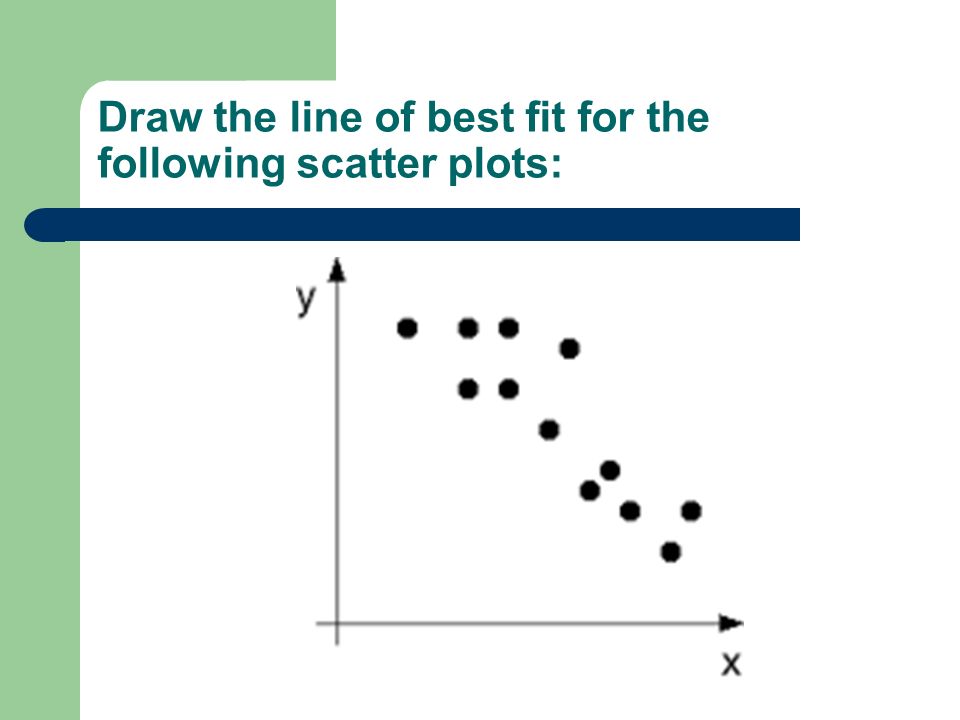

5 Draw the line of best fit for the following scatter plots:

6

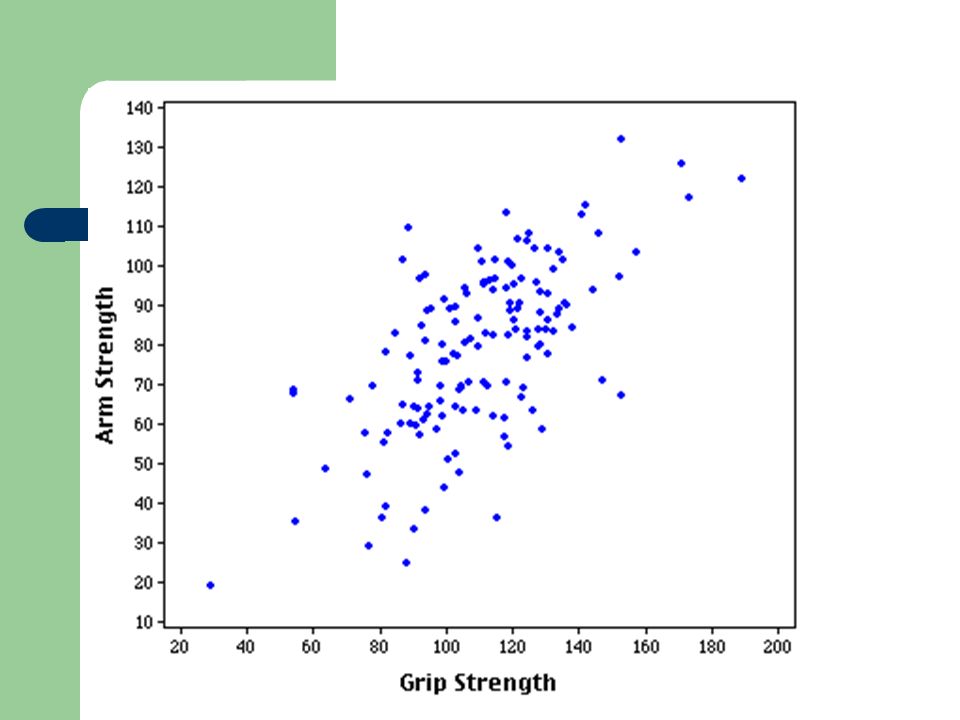

7

8

9 Why make a Line of Best Fit?  Helps us to make predictions by  INTERPOLATING  EXTRAPOLATING

10 Interpolating: Estimating a value BETWEEN two measurements in a set of data Extrapolating: Estimating a value BEYOND the range of a set of data

11 Interpolating – what would the wife’s age be of a husband who is 57? Extrapolating - what would the wife’s age be of a husband who is 84?

12 The table below shows the sales of bottled water at a refreshment booth at the Canadian National Exhibition in Toronto for different days during a heat wave one summer. Temperature (°C) 23252829242827303235 373637 Bottles Sold3250112147193223312390286250357364321335 Dependent variable: Bottles sold Independent Variable: Temperature

13 20 24 28 32 36 40 44 500 450 400 350 300 250 200 150 100 50

14 20 24 28 32 36 40 44 500 450 400 350 300 250 200 150 100 50

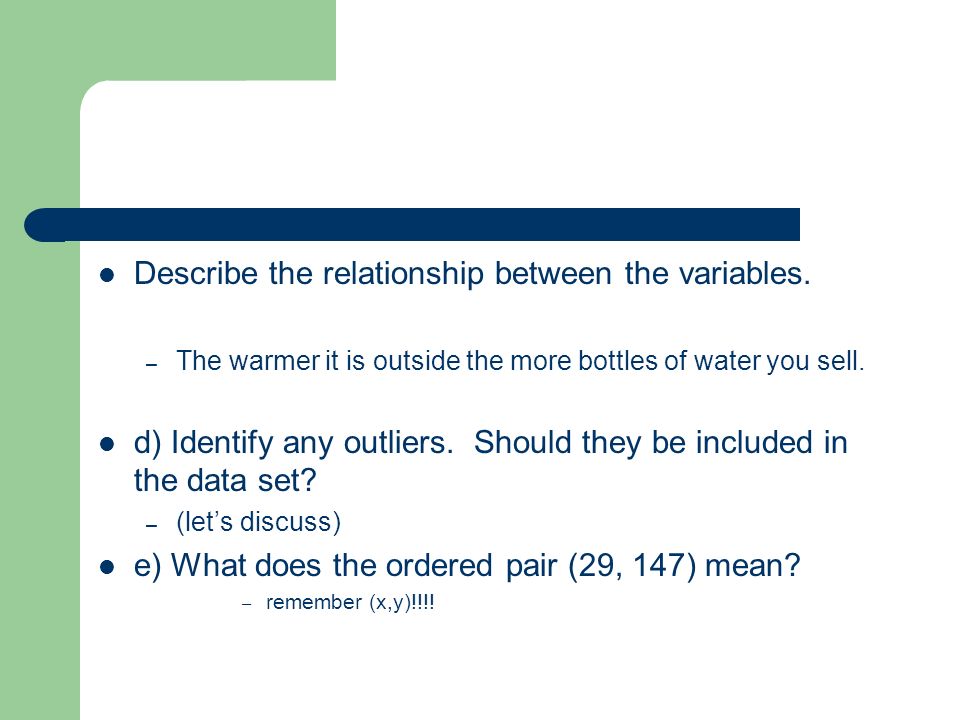

15 Describe the relationship between the variables. – The warmer it is outside the more bottles of water you sell. d) Identify any outliers. Should they be included in the data set? – (let’s discuss) e) What does the ordered pair (29, 147) mean? – remember (x,y)!!!!

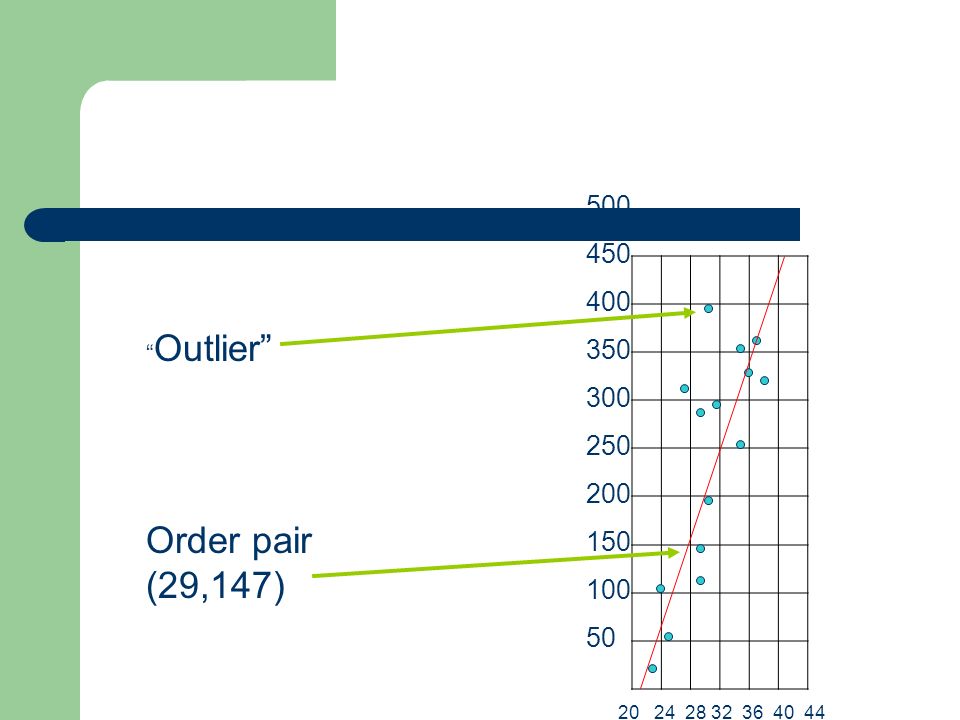

16 20 24 28 32 36 40 44 500 450 400 350 300 250 200 150 100 50 “ Outlier” Order pair (29,147)

17 Predict how many bottles of water will be sold on a day when the temperature reaches 25°C. This is an example of ___________________. g) Predict how many bottles of water will be sold on a day when the temperature reaches 42°C. This is an example of ___________________. HW. p. 73 #2, 4, 6-8
