Minerals Mineral – a natural, inorganic solid with a definite chemical composition and a particular crystalline structure. Selected minerals can be found on ESRT page 16. This page will be used for any mineral question in class or lab.

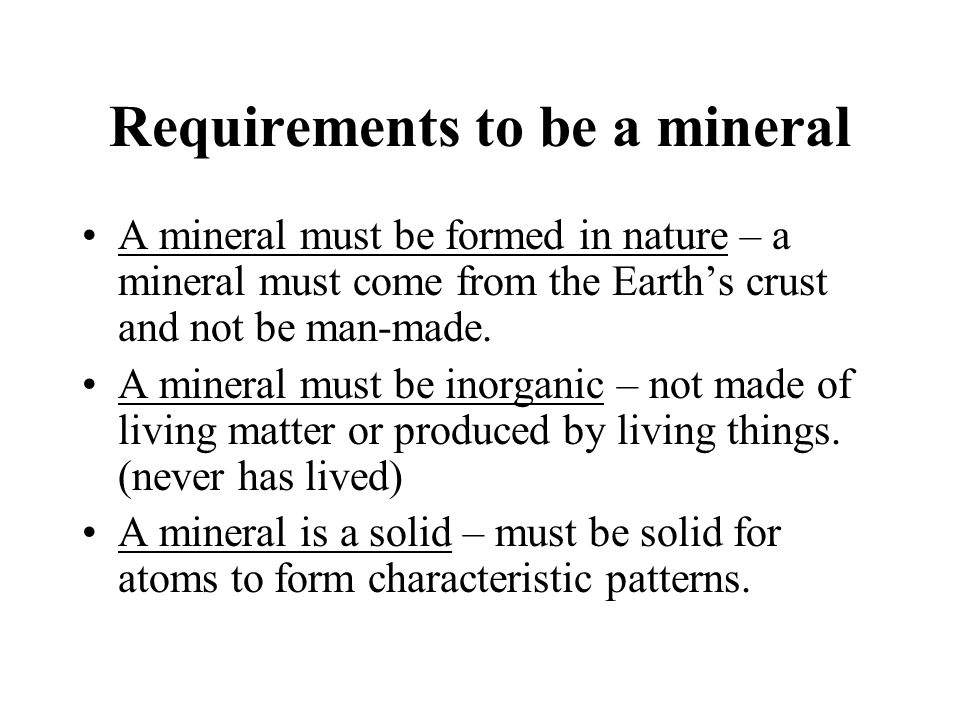

Requirements to be a mineral A mineral must be formed in nature – a mineral must come from the Earth’s crust and not be man-made. A mineral must be inorganic – not made of living matter or produced by living things. (never has lived) A mineral is a solid – must be solid for atoms to form characteristic patterns.

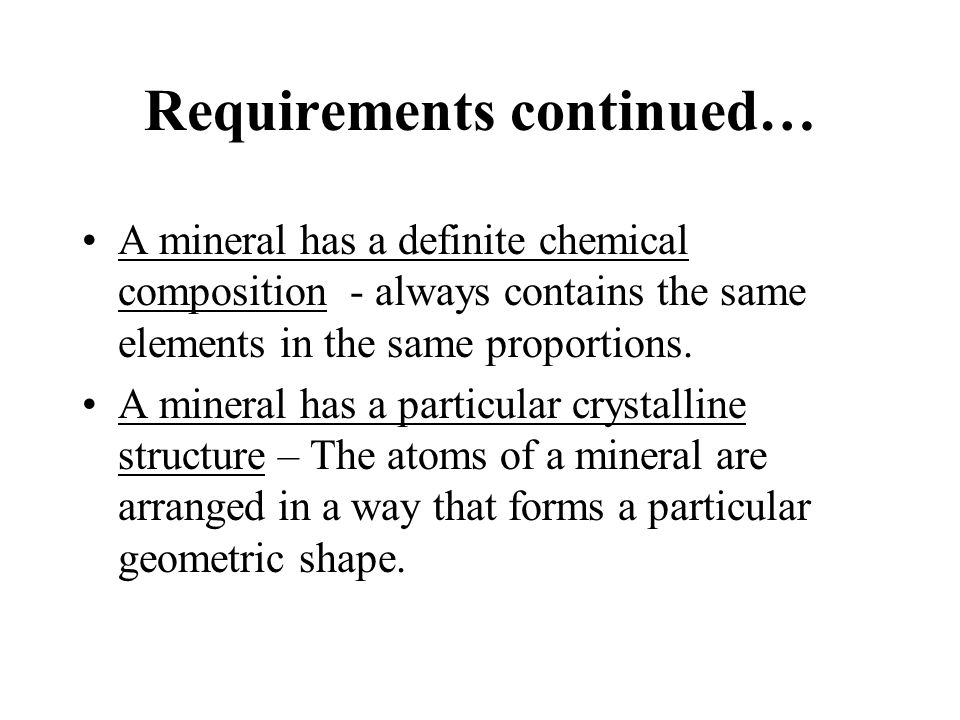

Requirements continued… A mineral has a definite chemical composition - always contains the same elements in the same proportions. A mineral has a particular crystalline structure – The atoms of a mineral are arranged in a way that forms a particular geometric shape.

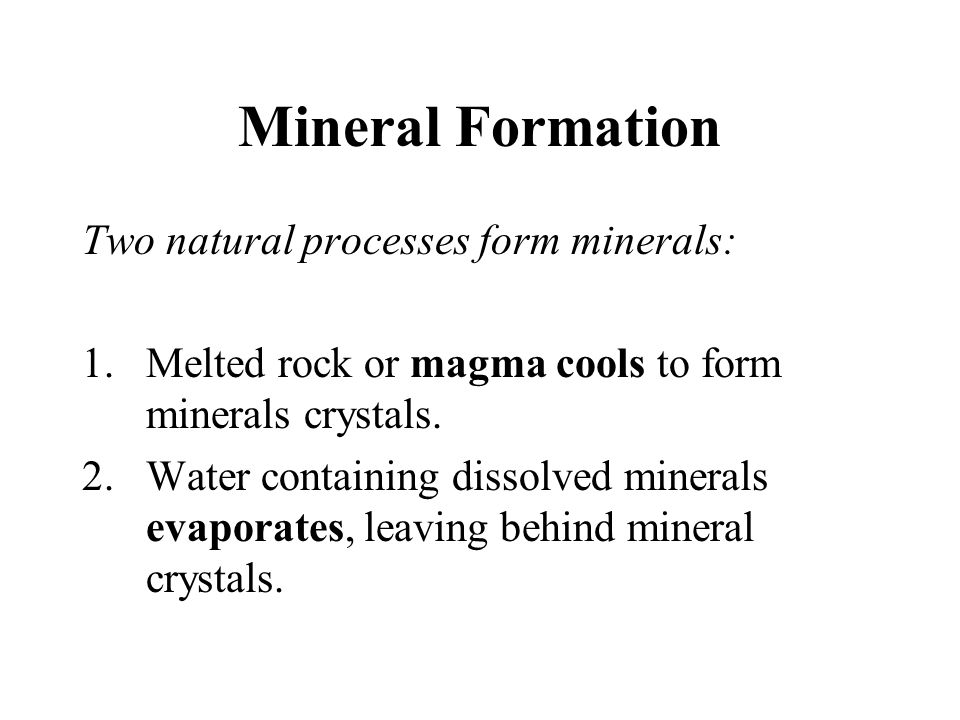

Mineral Formation Two natural processes form minerals: 1.Melted rock or magma cools to form minerals crystals. 2.Water containing dissolved minerals evaporates, leaving behind mineral crystals.

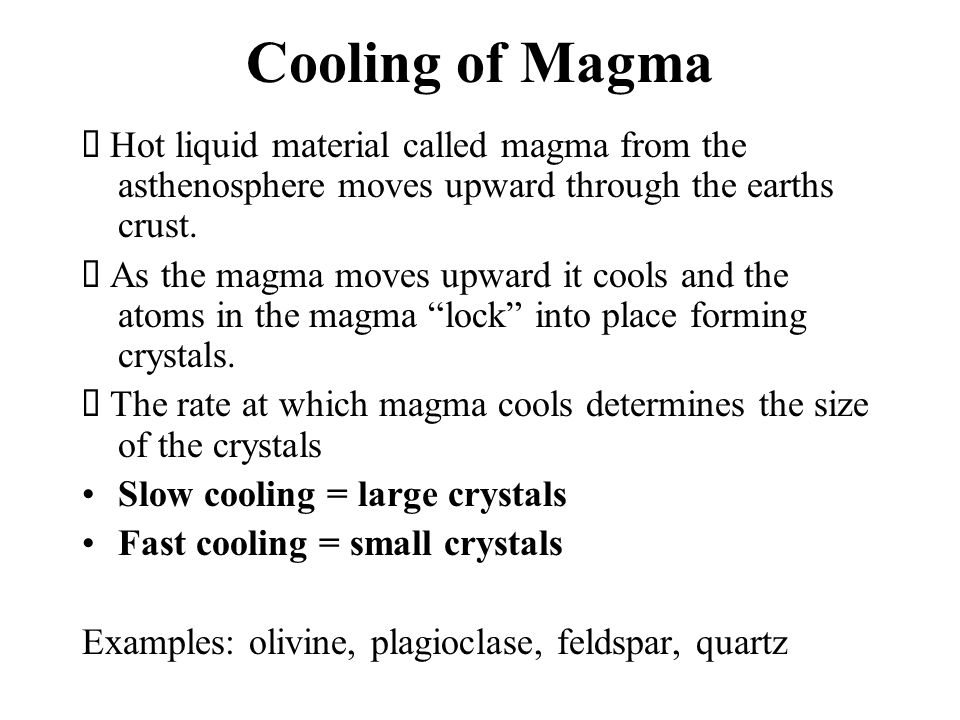

Cooling of Magma Hot liquid material called magma from the asthenosphere moves upward through the earths crust. As the magma moves upward it cools and the atoms in the magma “lock” into place forming crystals. The rate at which magma cools determines the size of the crystals Slow cooling = large crystals Fast cooling = small crystals Examples: olivine, plagioclase, feldspar, quartz

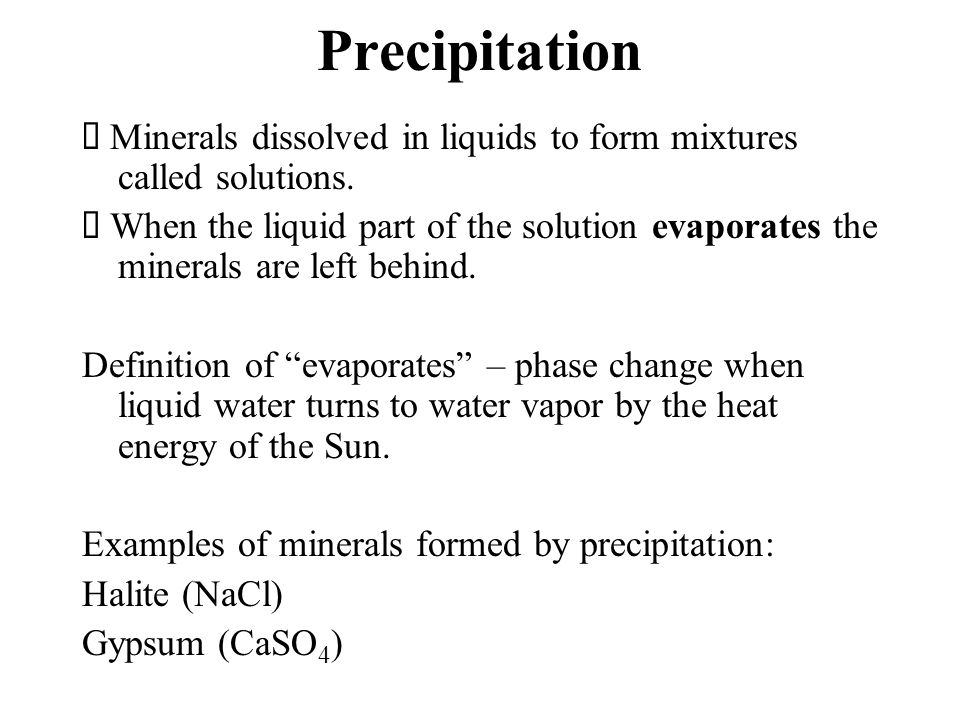

Precipitation Minerals dissolved in liquids to form mixtures called solutions. When the liquid part of the solution evaporates the minerals are left behind. Definition of “evaporates” – phase change when liquid water turns to water vapor by the heat energy of the Sun. Examples of minerals formed by precipitation: Halite (NaCl) Gypsum (CaSO 4 )

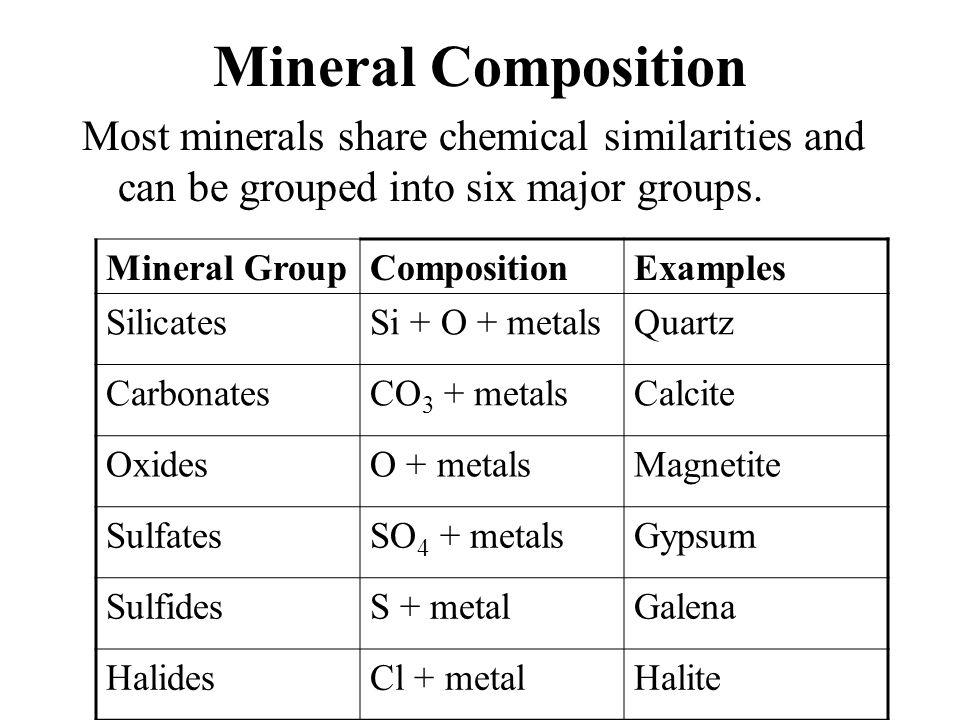

Mineral Composition Most minerals share chemical similarities and can be grouped into six major groups. Mineral GroupCompositionExamples SilicatesSi + O + metalsQuartz CarbonatesCO 3 + metalsCalcite OxidesO + metalsMagnetite SulfatesSO 4 + metalsGypsum SulfidesS + metalGalena HalidesCl + metalHalite
Crystal Structure The crystal shape of minerals is determined by the arrangement of atoms that make up the mineral. We will study six main crystal shaped based on 3 or 4 lines that run through the mineral called axes. x y z
Cubic - three axes of equal length intersect at 90-degree angles. Examples: halite, galena, pyrite

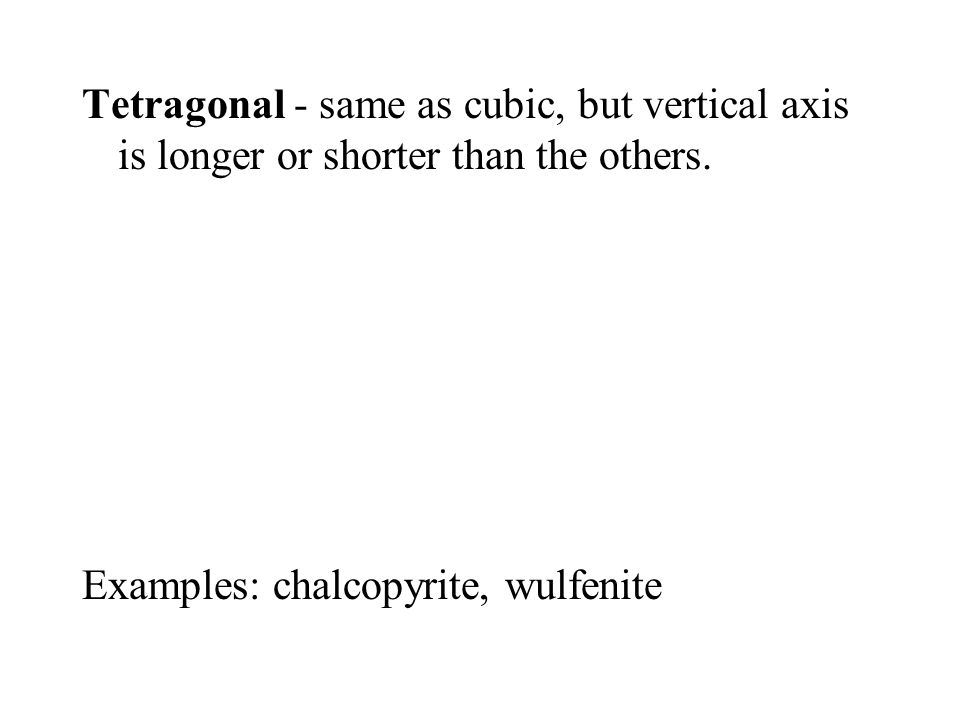

Tetragonal - same as cubic, but vertical axis is longer or shorter than the others. Examples: chalcopyrite, wulfenite

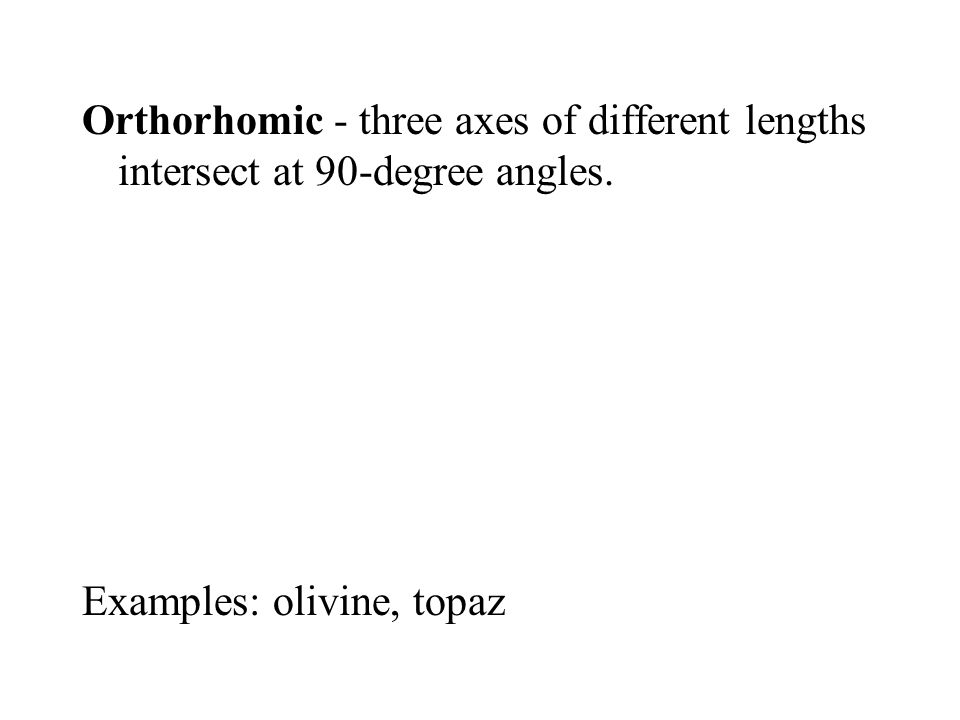

Orthorhomic - three axes of different lengths intersect at 90-degree angles. Examples: olivine, topaz
Monoclinic - same as orthorhombic, except one axis is tilted. Examples: mica, gypsum
Triclinic - three unequal axes intersect at titled angles to each other. Example: plagioclase feldspar
Hexagonal - three equal horizontal axes intersect at 60-degree angles. The vertical axis is longer or shorter than others. Example: pyromorphite
Mineral Identification Certain physical properties are used to identify minerals. Six main properties will help use identify minerals. MUST use page 16 of the ESRT! 1.Luster 2.Streak 3.Specific gravity 4.Cleavage and fracture 5.Hardness 6.Color

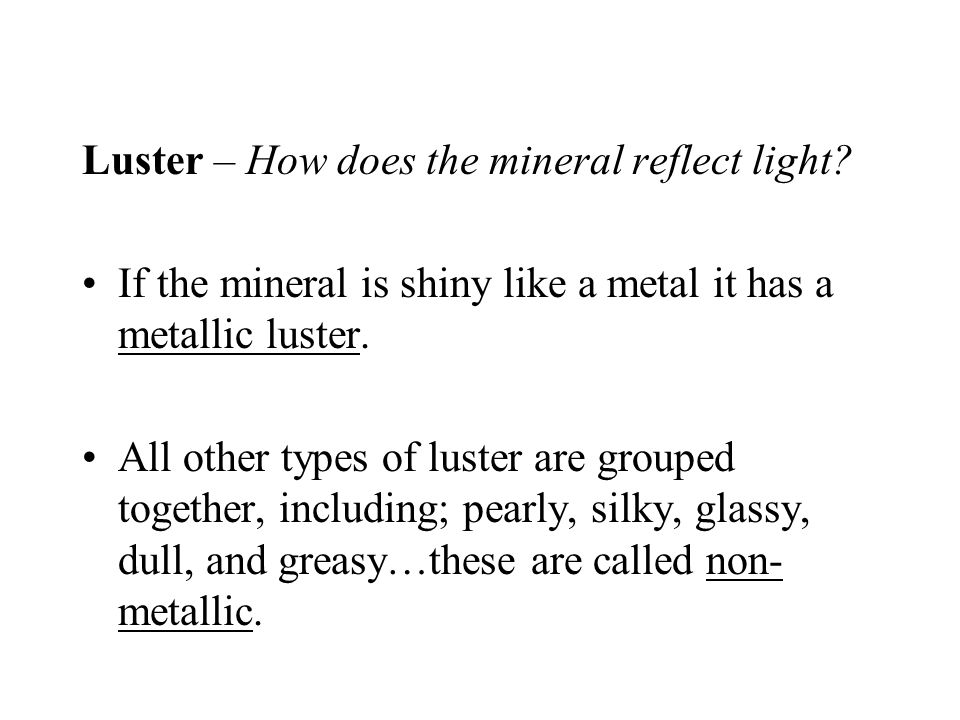

Luster – How does the mineral reflect light? If the mineral is shiny like a metal it has a metallic luster. All other types of luster are grouped together, including; pearly, silky, glassy, dull, and greasy…these are called non- metallic.
Streak – What color does a mineral leave on a porcelain tile? The mineral is actually scratched off on the tile leaving behind the powder of the mineral. This is a very good test because the streak is always the same, even if color varies.

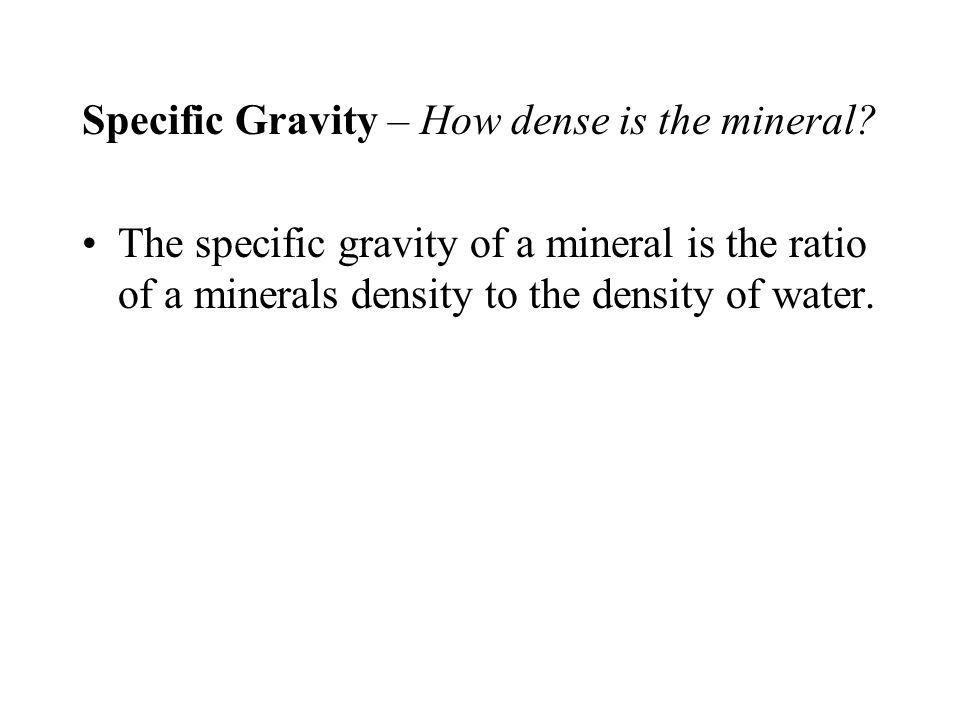

Specific Gravity – How dense is the mineral? The specific gravity of a mineral is the ratio of a minerals density to the density of water.

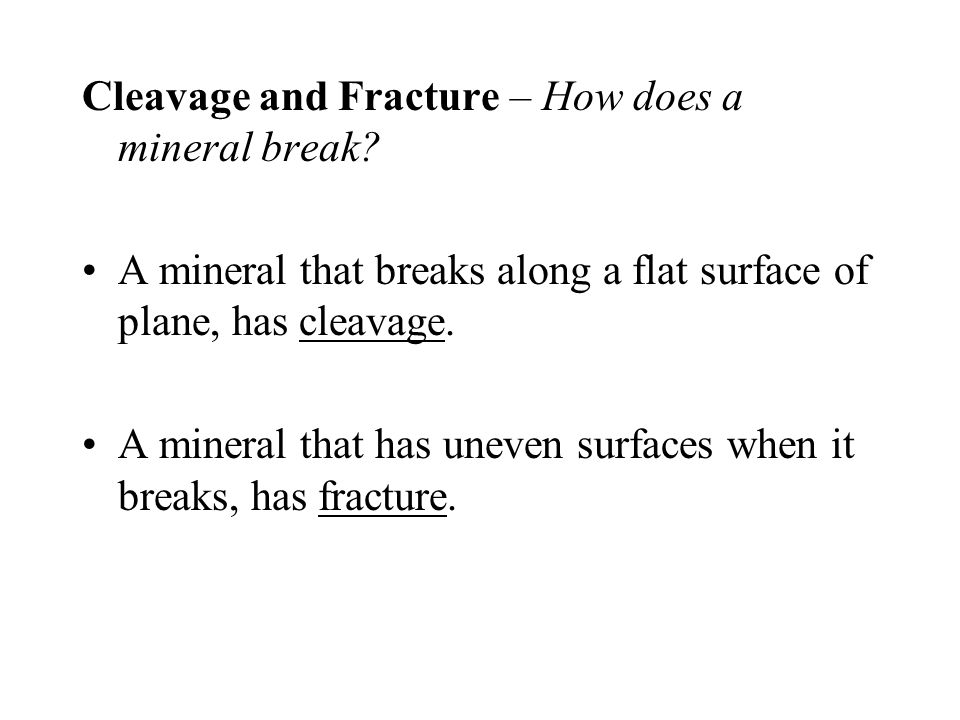

Cleavage and Fracture – How does a mineral break? A mineral that breaks along a flat surface of plane, has cleavage. A mineral that has uneven surfaces when it breaks, has fracture.

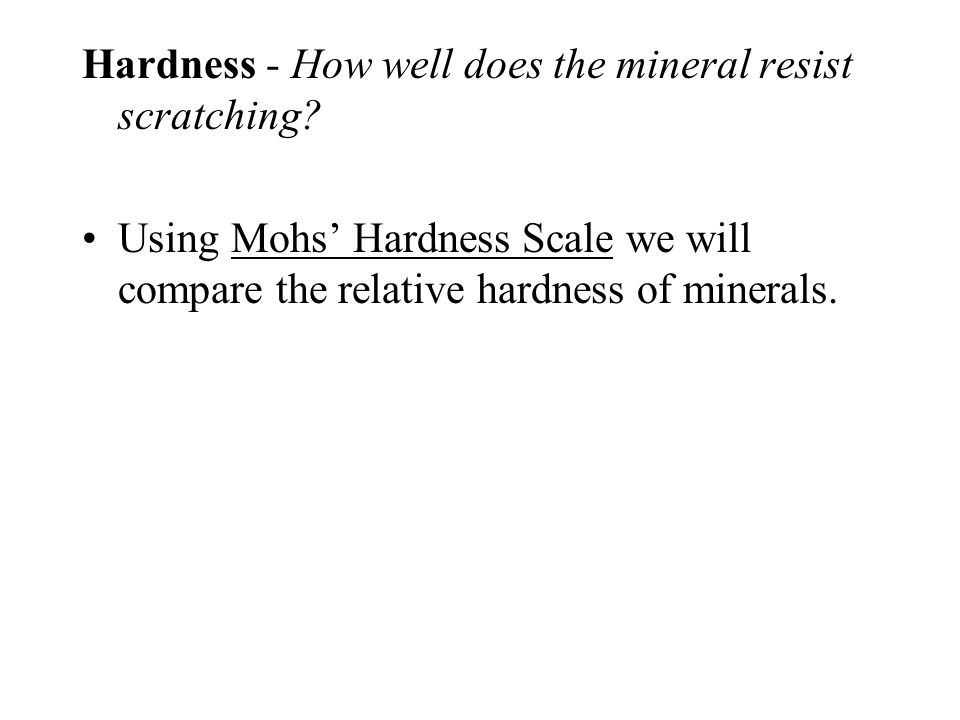

Hardness - How well does the mineral resist scratching? Using Mohs’ Hardness Scale we will compare the relative hardness of minerals.
