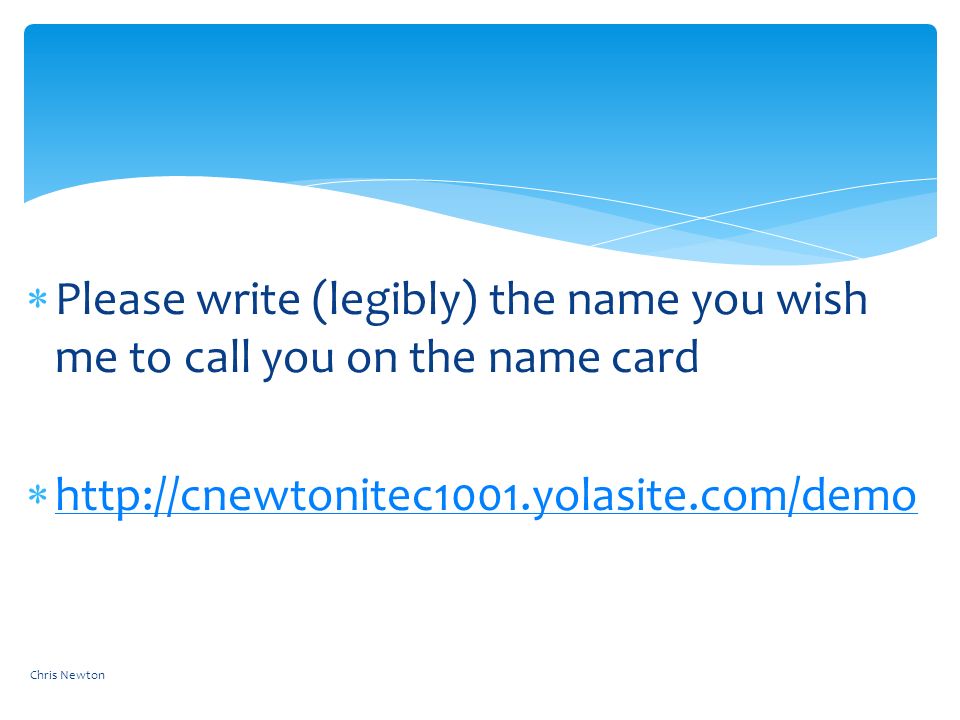

1.  Please write (legibly) the name you wish me to call you on the name card  http://cnewtonitec1001.yolasite.com/demo http://cnewtonitec1001.yolasite.com/demo Chris Newton

2. TV Everywhere What I want When I want it Where I want it Chris Newton

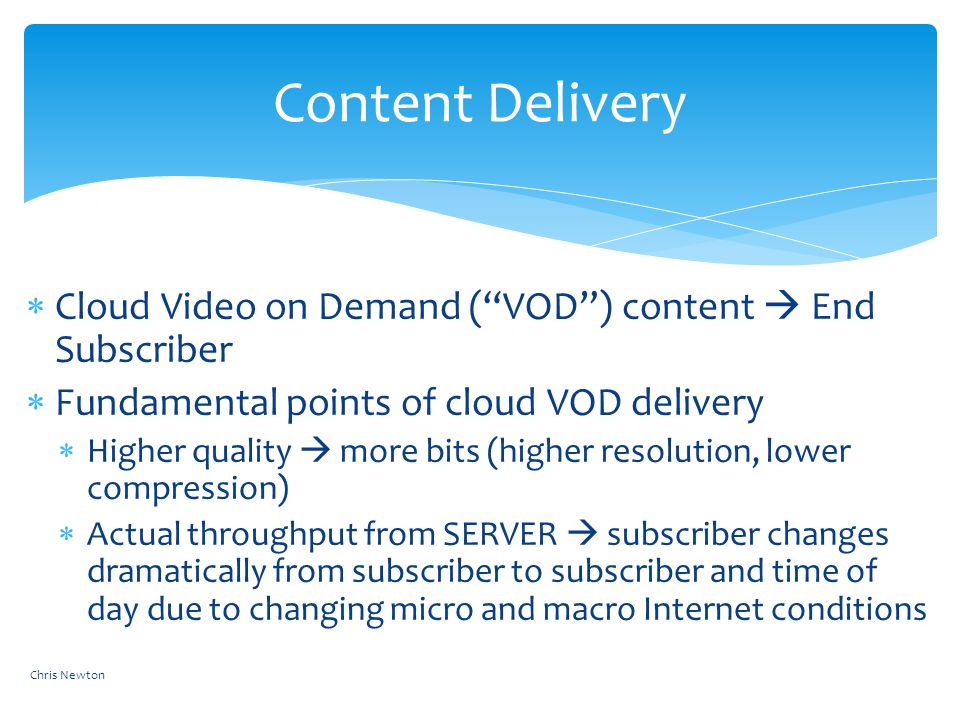

3.  Cloud Video on Demand (“VOD”) content  End Subscriber  Fundamental points of cloud VOD delivery  Higher quality  more bits (higher resolution, lower compression)  Actual throughput from SERVER  subscriber changes dramatically from subscriber to subscriber and time of day due to changing micro and macro Internet conditions Content Delivery Chris Newton

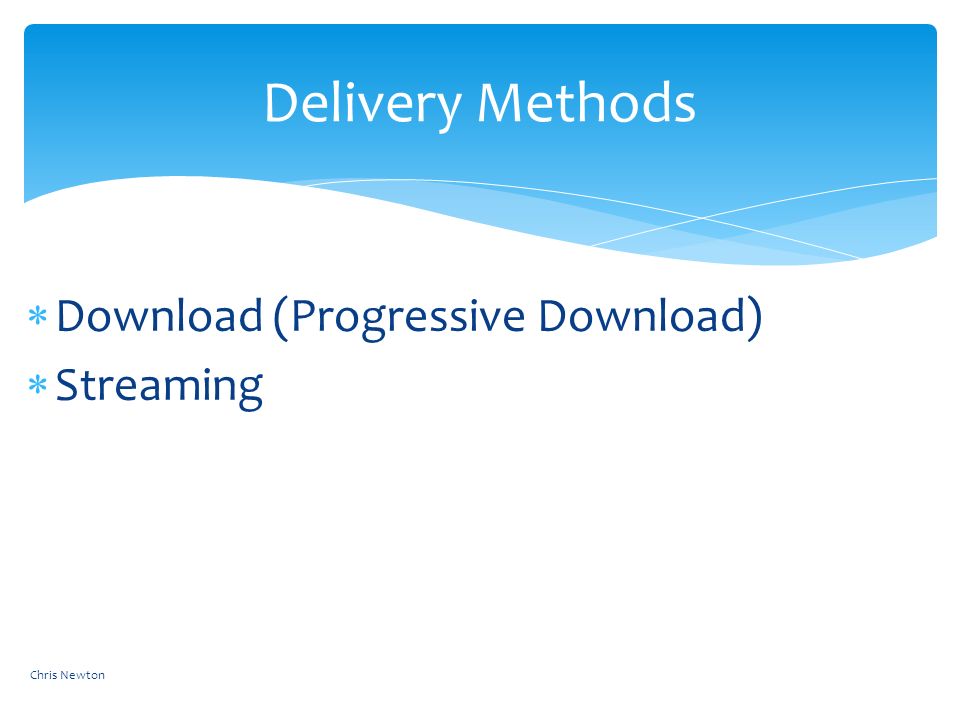

4.  Download (Progressive Download)  Streaming Delivery Methods Chris Newton

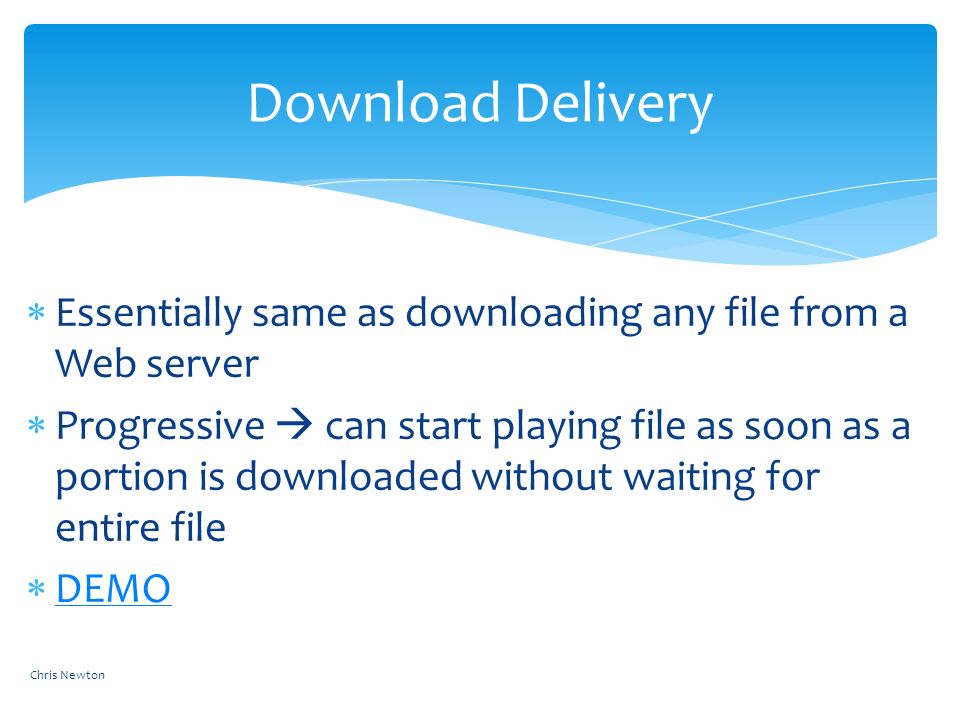

5.  Essentially same as downloading any file from a Web server  Progressive  can start playing file as soon as a portion is downloaded without waiting for entire file  DEMO DEMO Download Delivery Chris Newton

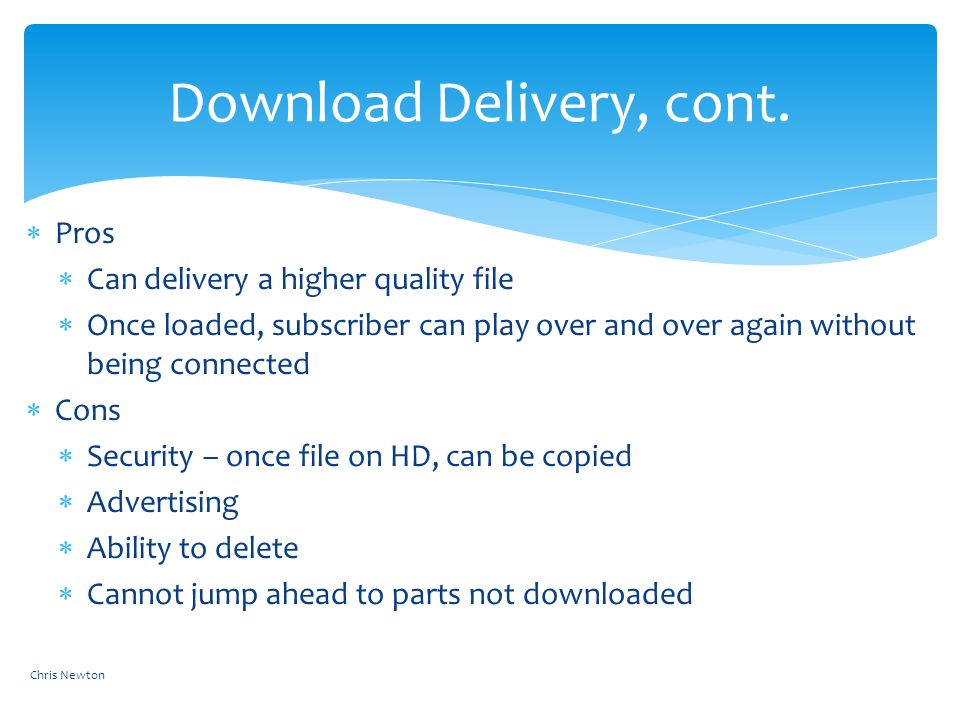

6.  Pros  Can delivery a higher quality file  Once loaded, subscriber can play over and over again without being connected  Cons  Security – once file on HD, can be copied  Advertising  Ability to delete  Cannot jump ahead to parts not downloaded Download Delivery, cont. Chris Newton

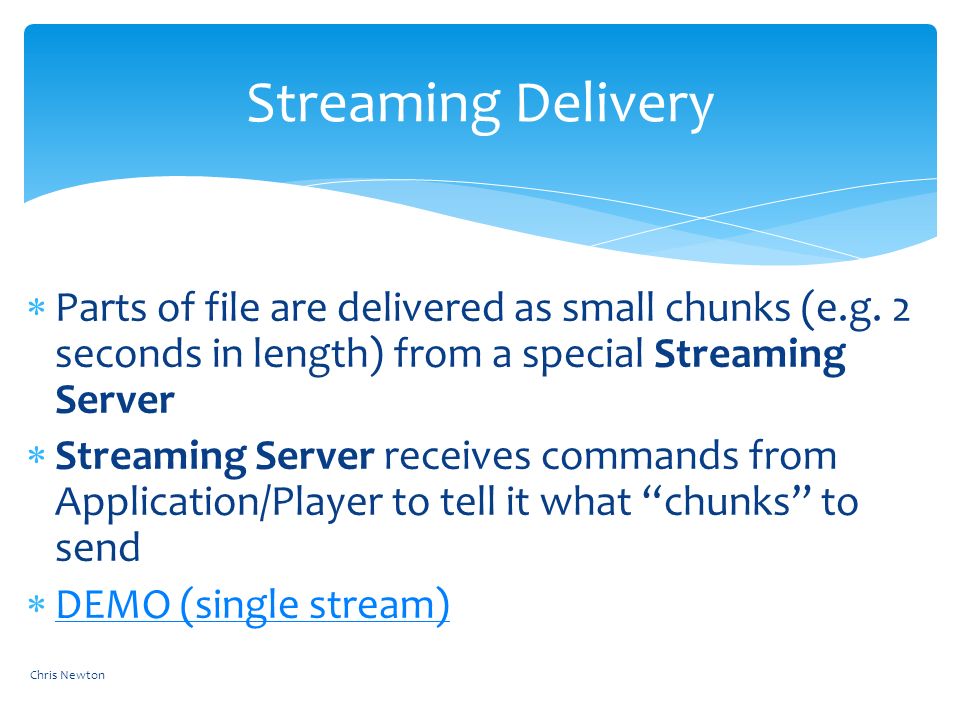

7.  Parts of file are delivered as small chunks (e.g. 2 seconds in length) from a special Streaming Server  Streaming Server receives commands from Application/Player to tell it what “chunks” to send  DEMO (single stream) DEMO (single stream) Streaming Delivery Chris Newton

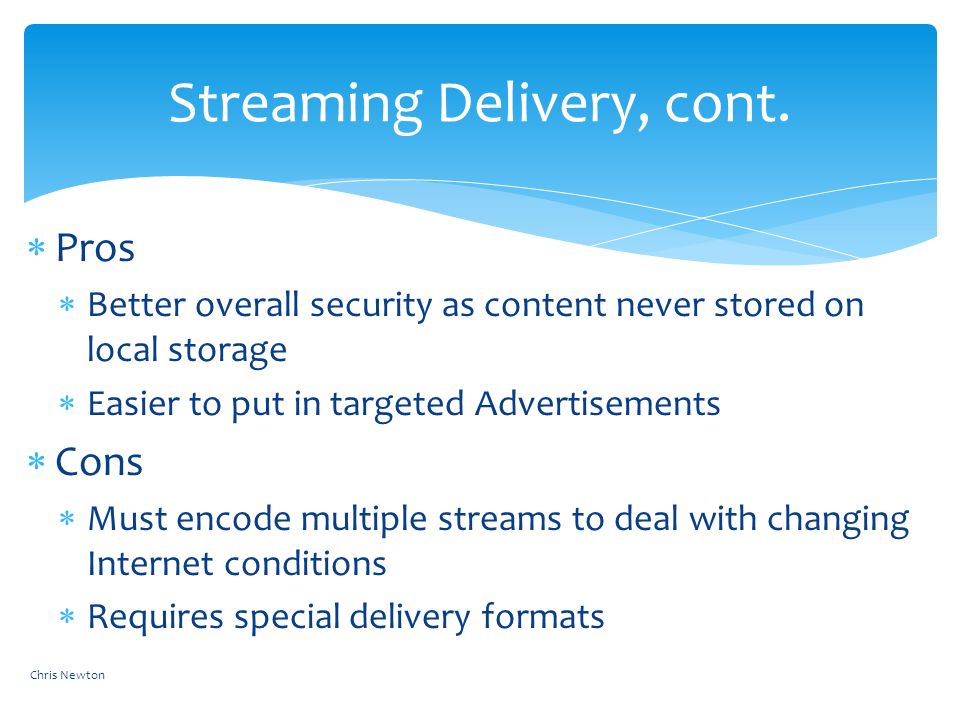

8.  Pros  Better overall security as content never stored on local storage  Easier to put in targeted Advertisements  Cons  Must encode multiple streams to deal with changing Internet conditions  Requires special delivery formats Streaming Delivery, cont. Chris Newton

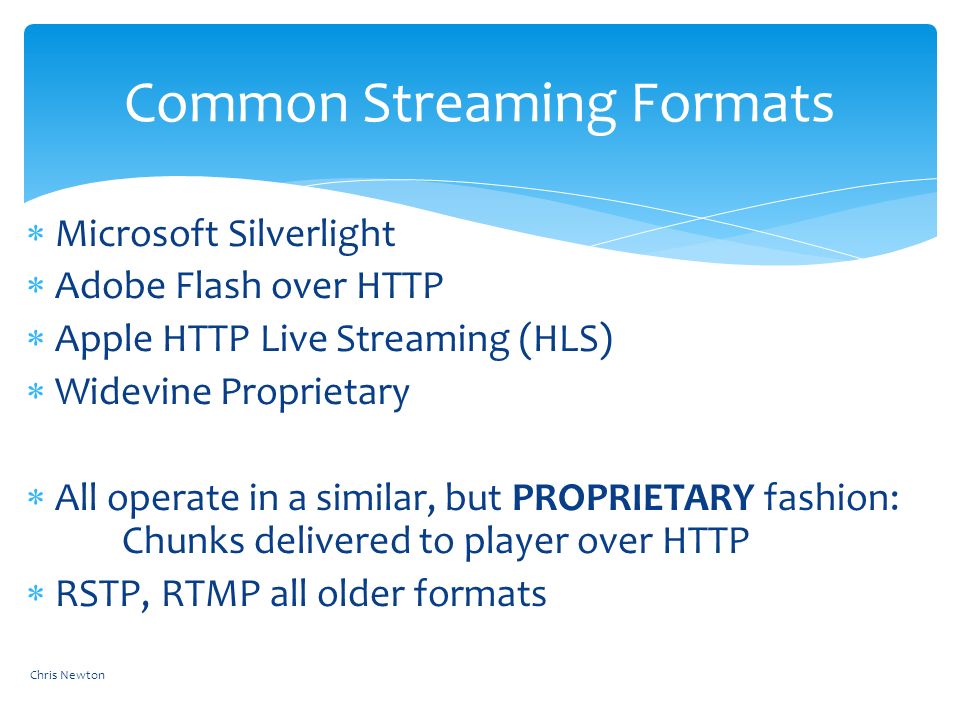

9.  Microsoft Silverlight  Adobe Flash over HTTP  Apple HTTP Live Streaming (HLS)  Widevine Proprietary  All operate in a similar, but PROPRIETARY fashion: Chunks delivered to player over HTTP  RSTP, RTMP all older formats Common Streaming Formats Chris Newton

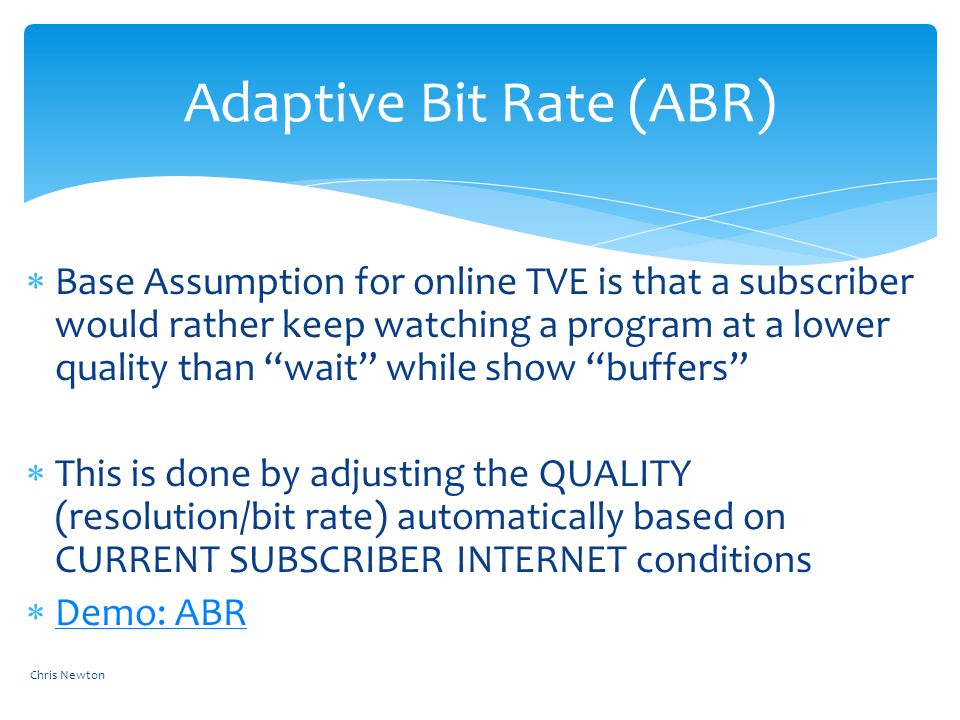

10.  Base Assumption for online TVE is that a subscriber would rather keep watching a program at a lower quality than “wait” while show “buffers”  This is done by adjusting the QUALITY (resolution/bit rate) automatically based on CURRENT SUBSCRIBER INTERNET conditions  Demo: ABR Demo: ABR Adaptive Bit Rate (ABR) Chris Newton

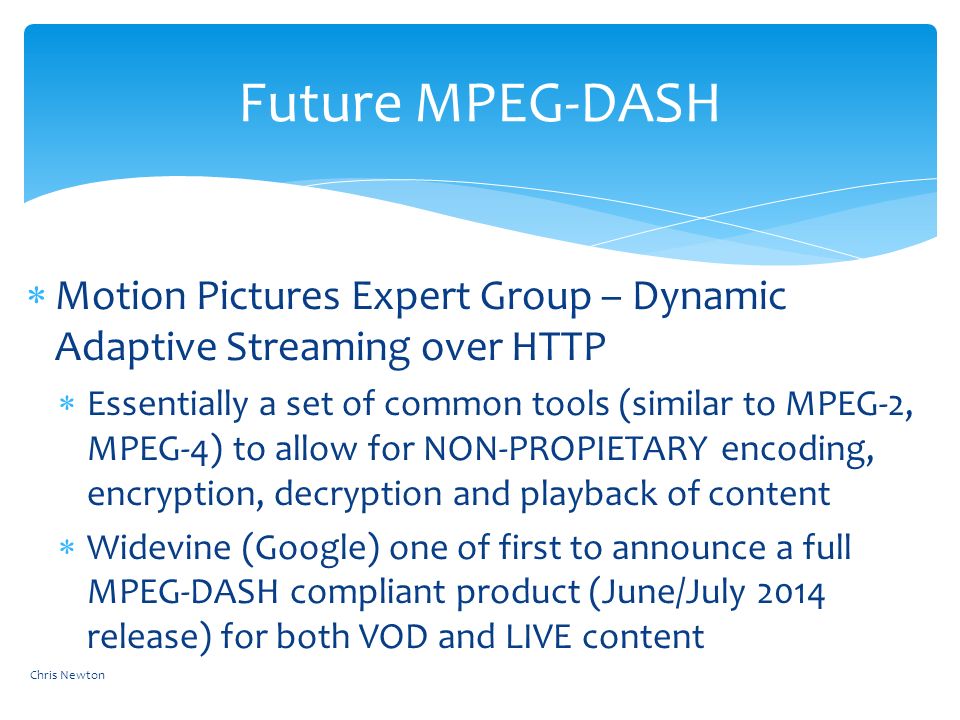

11.  Motion Pictures Expert Group – Dynamic Adaptive Streaming over HTTP  Essentially a set of common tools (similar to MPEG-2, MPEG-4) to allow for NON-PROPIETARY encoding, encryption, decryption and playback of content  Widevine (Google) one of first to announce a full MPEG-DASH compliant product (June/July 2014 release) for both VOD and LIVE content Future MPEG-DASH Chris Newton
