Altiris Deployment Solution for Dell Servers v2.0 SP1
3
Agenda Dell IT Success Story Deployment Solution for Dell Servers Overview Single Image for Dell PowerEdge Servers White Paper KeyLabs Study Demo Rip and Replace Process Flow / Blade Change Rule Options Where to Go for More Information?
4
Dell IT Success Story Dell IT global rollout of Deployment Solution: –Japan, China, Ireland, Amsterdam Training Center, etc. –Solution to drive global standardization and efficiency for server deployment Typical Build –Update components pre-OS (BIOS, ESM, DRAC, etc.) –Config BIOS, DRAC, BMC, RAID, etc. –Unattended install of Windows/Linux (slipstream hotfixes, etc.) –Server apps and agents Results –Part of a project that reduced server deployment operations staff from 40 to 5! –Admin Time: 6 hours per server to 20 minutes (includes cabling) –Build time 2-4 hrs. per server (unattended by admin) –Performed up to 80 simultaneous deployments
5

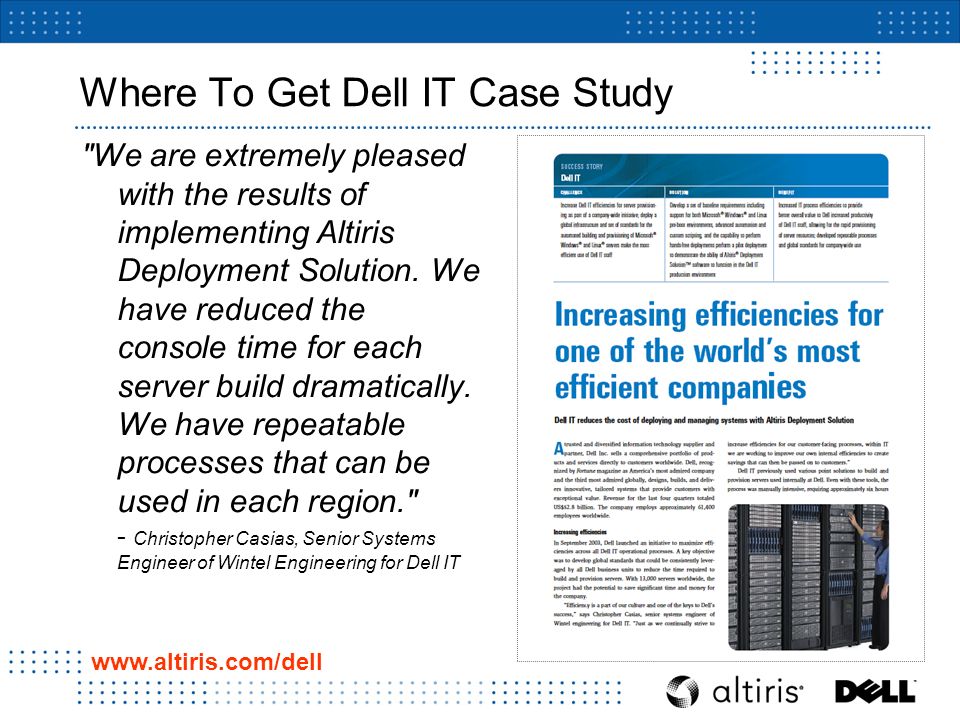

Where To Get Dell IT Case Study "We are extremely pleased with the results of implementing Altiris Deployment Solution. We have reduced the console time for each server build dramatically. We have repeatable processes that can be used in each region." - Christopher Casias, Senior Systems Engineer of Wintel Engineering for Dell IT www.altiris.com/dell
6

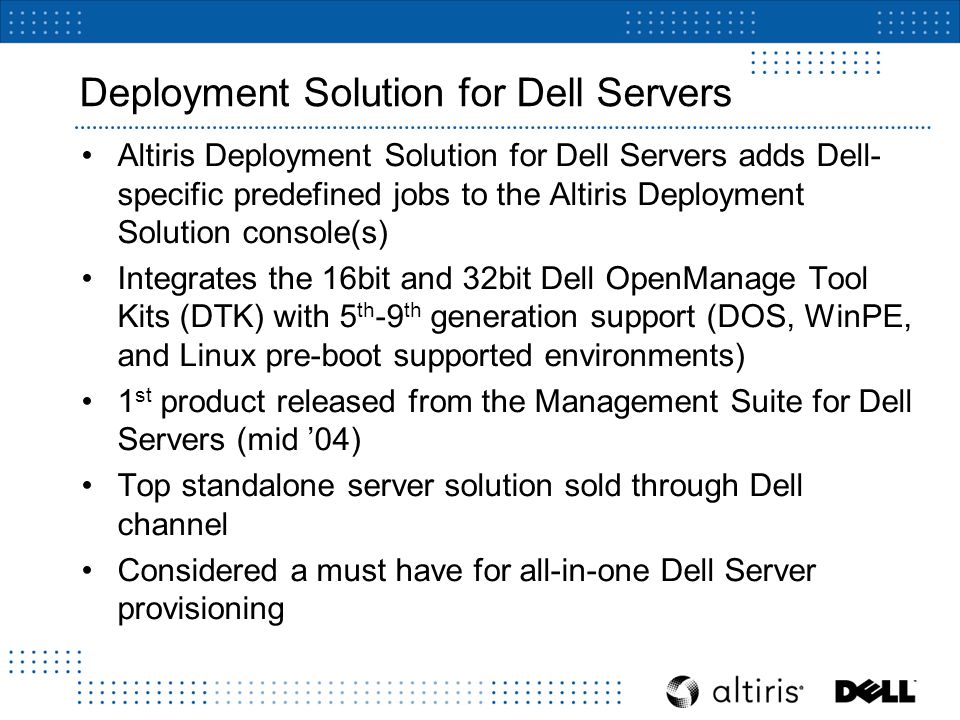

Deployment Solution for Dell Servers Altiris Deployment Solution for Dell Servers adds Dell- specific predefined jobs to the Altiris Deployment Solution console(s) Integrates the 16bit and 32bit Dell OpenManage Tool Kits (DTK) with 5 th -9 th generation support (DOS, WinPE, and Linux pre-boot supported environments) 1 st product released from the Management Suite for Dell Servers (mid ’04) Top standalone server solution sold through Dell channel Considered a must have for all-in-one Dell Server provisioning
7
Benefits Reduce administrator deployment time from hours to minutes Pre-provision Dell Servers using MAC, Asset Tag, or Service Tag Capture/Configure/Redeploy BIOS/BMC/RAID/DRAC (non-blade) settings as 1:many application –Tokenization of DRAC and BMC settings –Define IP address pools for DRAC and BMC configuration Deploy Windows/Linux operating systems via image or scripted installs –Scripted install now uses common directory for mass storage and PnP drivers –Ability to import drivers from Dell Server Assistant (DSA) CD Power management through DRAC and BMC (IPMI) –Discover DRAC devices based on IP range and/or ability to manually add DRAC and BMC IP addresses to database and associate with managed node Install server applications (such as OMSA, SQL Server, Oracle 10g, ESX Server, etc.), service packs, hotfixes, etc. Ability to download Dell Update Packages (DUPs) from internet and/or import from Dell Server Update Utility (SUU) CD (published quarterly) to patch HW as part of provisioning process Rip and replace support for PE1655MC, PE1855, and PE1955 Blade Servers
8
Updated! - Single Image for Dell PowerEdge Servers How to Build a Single Image for Dell PowerEdge Servers –Overview –Best practices –Methodologies used –Step by step instructions –Support files Download white paper: www.altiris.com/dell www.altiris.com/dell
9

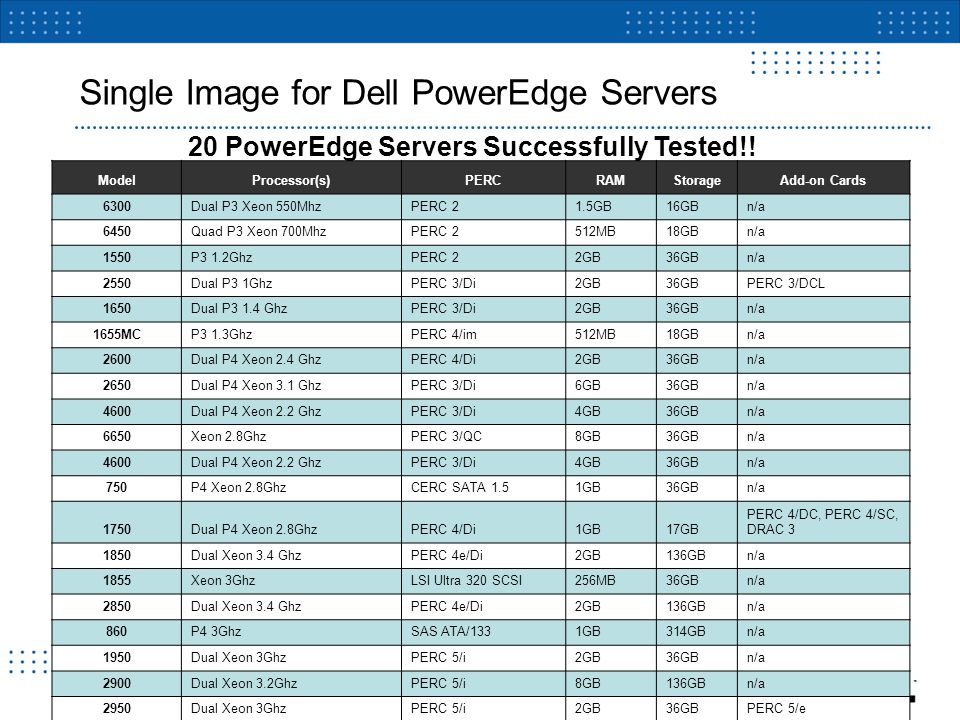

Single Image for Dell PowerEdge Servers 20 PowerEdge Servers Successfully Tested!! ModelProcessor(s)PERCRAMStorageAdd-on Cards 6300Dual P3 Xeon 550MhzPERC 21.5GB16GBn/a 6450Quad P3 Xeon 700MhzPERC 2512MB18GBn/a 1550P3 1.2GhzPERC 22GB36GBn/a 2550Dual P3 1GhzPERC 3/Di2GB36GBPERC 3/DCL 1650Dual P3 1.4 GhzPERC 3/Di2GB36GBn/a 1655MCP3 1.3GhzPERC 4/im512MB18GBn/a 2600Dual P4 Xeon 2.4 GhzPERC 4/Di2GB36GBn/a 2650Dual P4 Xeon 3.1 GhzPERC 3/Di6GB36GBn/a 4600Dual P4 Xeon 2.2 GhzPERC 3/Di4GB36GBn/a 6650Xeon 2.8GhzPERC 3/QC8GB36GBn/a 4600Dual P4 Xeon 2.2 GhzPERC 3/Di4GB36GBn/a 750P4 Xeon 2.8GhzCERC SATA 1.51GB36GBn/a 1750Dual P4 Xeon 2.8GhzPERC 4/Di1GB17GB PERC 4/DC, PERC 4/SC, DRAC 3 1850Dual Xeon 3.4 GhzPERC 4e/Di2GB136GBn/a 1855Xeon 3GhzLSI Ultra 320 SCSI256MB36GBn/a 2850Dual Xeon 3.4 GhzPERC 4e/Di2GB136GBn/a 860P4 3GhzSAS ATA/1331GB314GBn/a 1950Dual Xeon 3GhzPERC 5/i2GB36GBn/a 2900Dual Xeon 3.2GhzPERC 5/i8GB136GBn/a 2950Dual Xeon 3GhzPERC 5/i2GB36GBPERC 5/e
10

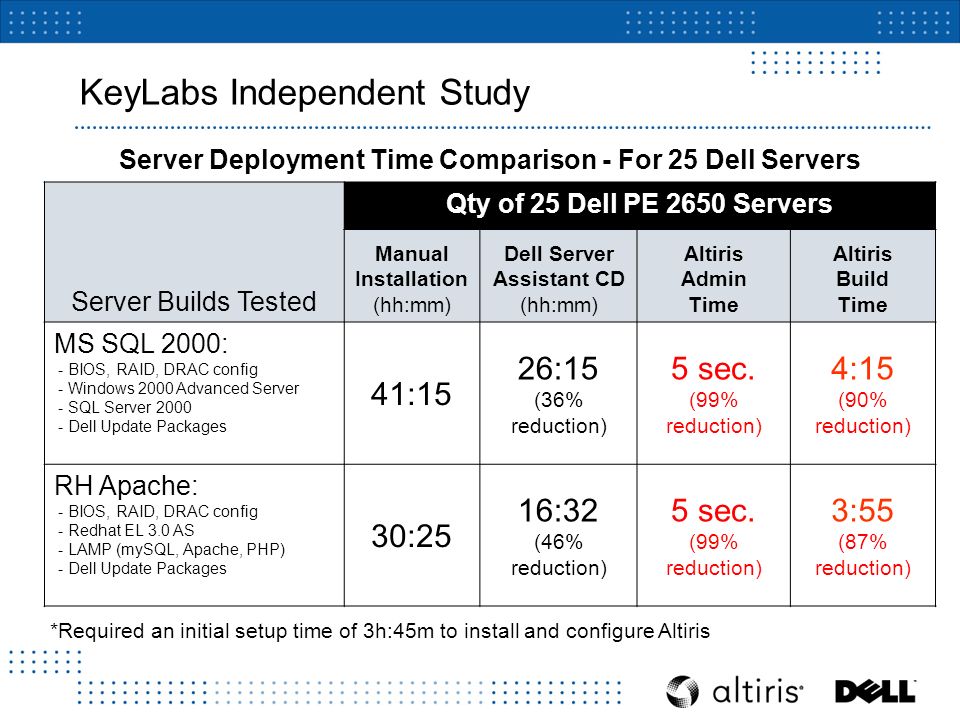

KeyLabs Independent Study Server Deployment Time Comparison - For 25 Dell Servers Server Builds Tested Qty of 25 Dell PE 2650 Servers Manual Installation (hh:mm) Dell Server Assistant CD (hh:mm) Altiris Admin Time Altiris Build Time MS SQL 2000: - BIOS, RAID, DRAC config - Windows 2000 Advanced Server - SQL Server 2000 - Dell Update Packages 41:15 26:15 (36% reduction) 5 sec. (99% reduction) 4:15 (90% reduction) RH Apache: - BIOS, RAID, DRAC config - Redhat EL 3.0 AS - LAMP (mySQL, Apache, PHP) - Dell Update Packages 30:25 16:32 (46% reduction) 5 sec. (99% reduction) 3:55 (87% reduction) *Required an initial setup time of 3h:45m to install and configure Altiris
11

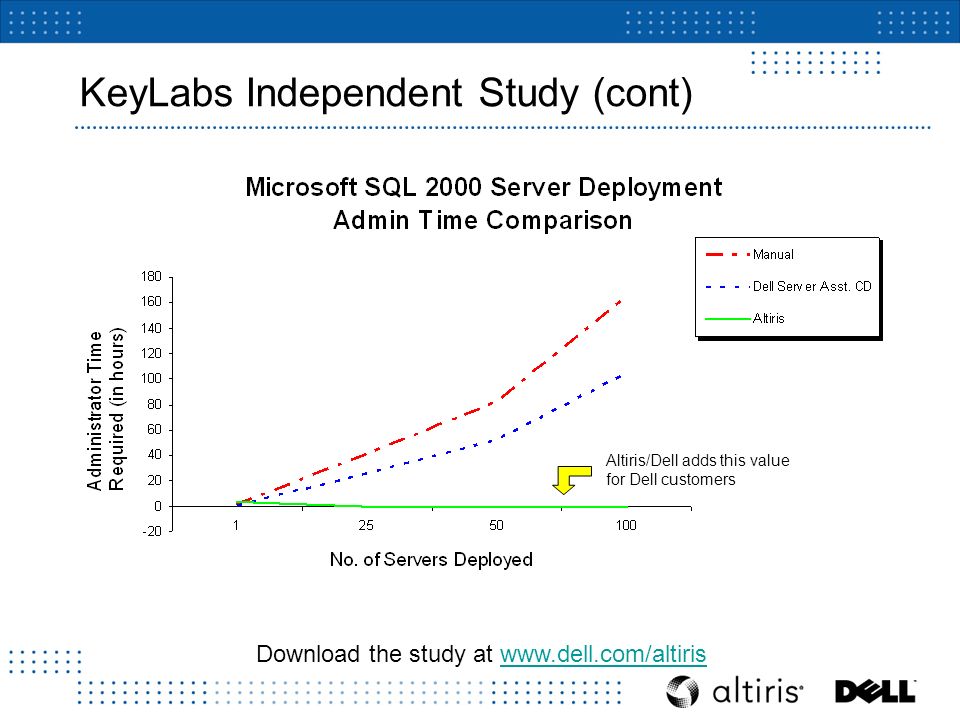

KeyLabs Independent Study (cont) Download the study at www.dell.com/altiriswww.dell.com/altiris Altiris/Dell adds this value for Dell customers
12

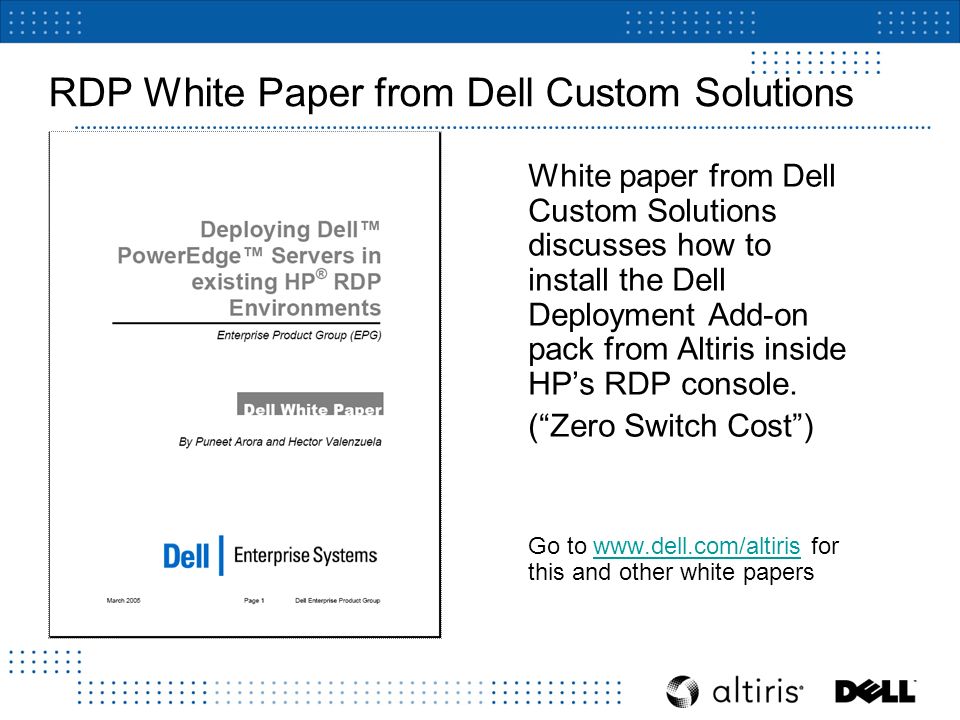

RDP White Paper from Dell Custom Solutions White paper from Dell Custom Solutions discusses how to install the Dell Deployment Add-on pack from Altiris inside HP’s RDP console. (“Zero Switch Cost”) Go to www.dell.com/altiris for this and other white paperswww.dell.com/altiris
13

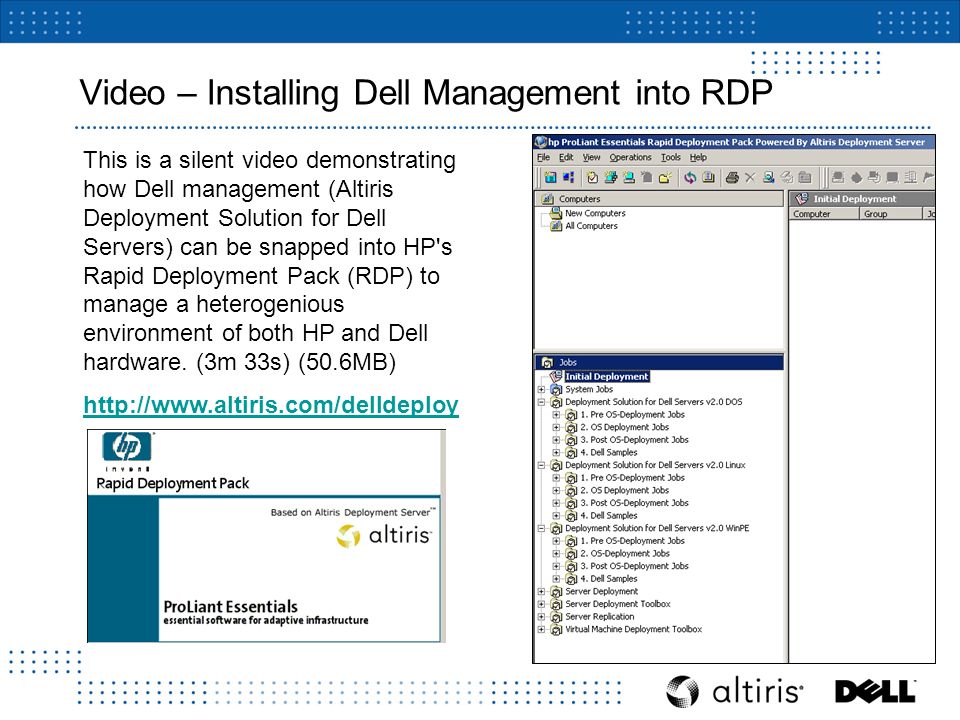

Video – Installing Dell Management into RDP This is a silent video demonstrating how Dell management (Altiris Deployment Solution for Dell Servers) can be snapped into HP's Rapid Deployment Pack (RDP) to manage a heterogenious environment of both HP and Dell hardware. (3m 33s) (50.6MB) http://www.altiris.com/delldeploy
14
DEMO (Screen Shots)
15
Imported Predefined Dell Jobs Predefined Dell jobs import into DS Console Jobs Pane Integrated Dell OpenManage Tool Kits with support for DOS, Linux, and WinPE Pre-OS environments Full provisioning support for 5-9G PowerEdge rack and tower models
16
Dell Config Utility - “Server Models” Tab Select OS type and type of DUPs to be downloaded from published catalog (internet connection required). Multiple selections can be made by enabling corresponding checkbox here Get DUP Catalog – Download published DUP catalog from Dell’s support website (internet connection required) 1 1 2 2 3 3 Add to System – Select PE models are added to system out of the box. This button allows you to add legacy “Supported by DTK” servers to system for provisioning support Remove From System – Removes selected PE models from system Copy Utility Partition Image – Copies the upimg.bin file from DSA CD to install 32MB Dell utility partition as part of provisioning process Edit Configuration File – Edit configuration files captured from running jobs in the predefined “1. Pre-OS Deployment Jobs” folder. Config files are now “tokenized” and allow easier 1:many deployments using custom and built-in DS tokens Download DUPs – Downloads single or multiple selection of DUPs to appropriate PE model directories.\Dell\Toolkit\Systems…
17

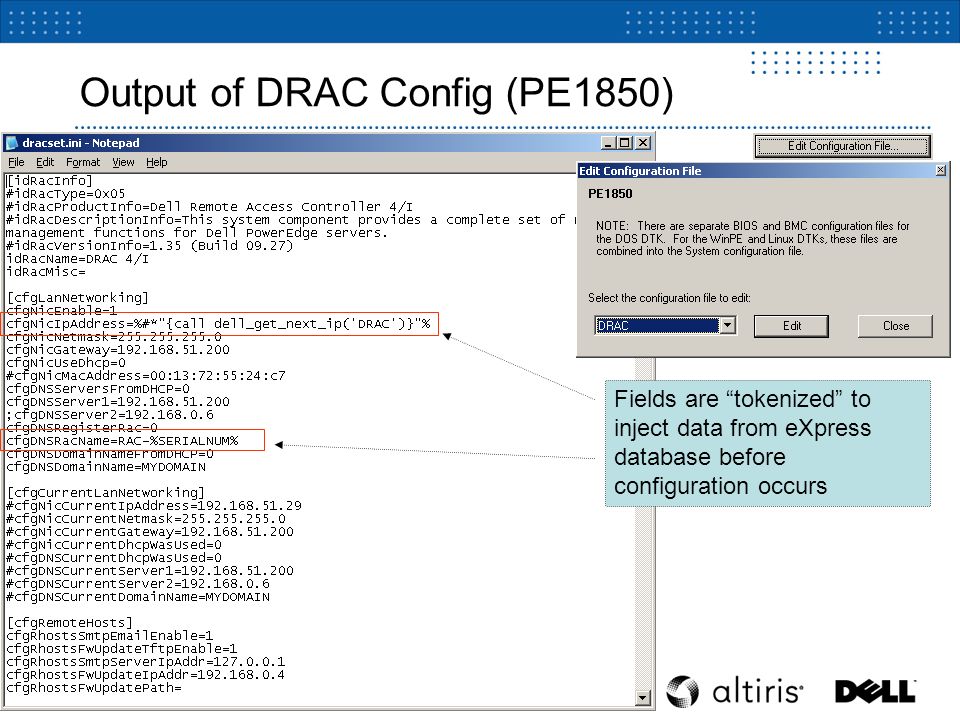

Output of DRAC Config (PE1850) Fields are “tokenized” to inject data from eXpress database before configuration occurs
18
Output of BIOS/BMC Config (PE1850) Field is “tokenized” to inject data from eXpress database before configuration occurs *Note – When using the Linux or WinPE jobs, the BIOS/BMC is captured as a single file (sysset.ini). When using the DOS jobs, the BIOS and BMC are captured separately (biosset.ini, bmcset.ini)
19
Dell Config Utility - “Server Models” Tab Get catalog on startup – Automatically download published DUP catalog when Dell Configuration Utility is launched (internet connection required). Get catalog and packages from – Specifies source of imported DUPs, Online from Dell’s support website or Local from Dell’s Server Update Utility (SUU) CD. ISO image of SUU CD can be downloaded from support.dell.com. CD is published on quarterly basis. Supported by DTK – Allows you to filter PE models based on the pre-OS environment the DTK supports for bare metal provisioning. *To filter, check only the “Supported by DTK” box on the main screen of the “Server Models” tab. Then check the desired checkbox for the pre-OS environment on this screen. The results are displayed in the window of the main screen below the “Server Models to Display”. 4 4
20
Dell Config Utility - “IP Ranges” Tab 1 Add – Adds user defined IP address pools for 1:many DRAC and BMC configuration. Works just like DHCP. Once IP address is used, it’s removed from pool. Remove – Removes selected IP address range Move Up – Moves selected IP address range up for higher priority Move Down – Moves selected IP address range down for lower priority 1
21
Dell Config Utility - “Power Control” Tab Discovery Method – Discover DRAC (PE1655) / Non- Blade or IPMI devices. *PE1855/PE1955 DRAC IP’s and chassis positions have to be manually entered to enable power control Begin IP – Starting IP range End IP – Ending IP range User name – User name configured for out of band management access. Default from factory is “root” Password – Password configured for out of band management access. Default from factory is “calvin” 1 1 2 Timeout per IP address – 10 seconds is the optimal interval to allow sufficient time for credentials to be verified Verify existing power control entries – Initiates verification of entries in database vs. actual connectivity. If connectivity is not established, entries are removed from database 2 3 Computer ID from Deployment database – Computer ID from Deployment database Power control IP address – IP address of DRAC or BMC devices Power control type – 1855 Blade (will work for PE1955 as well), DRAC (non-Blade), 1655 Blade, IPMI (BMC) Chassis position – (1-10) Power control user name – User name configured for out of band management access Power control password – Password configured for out of band management access 3
22

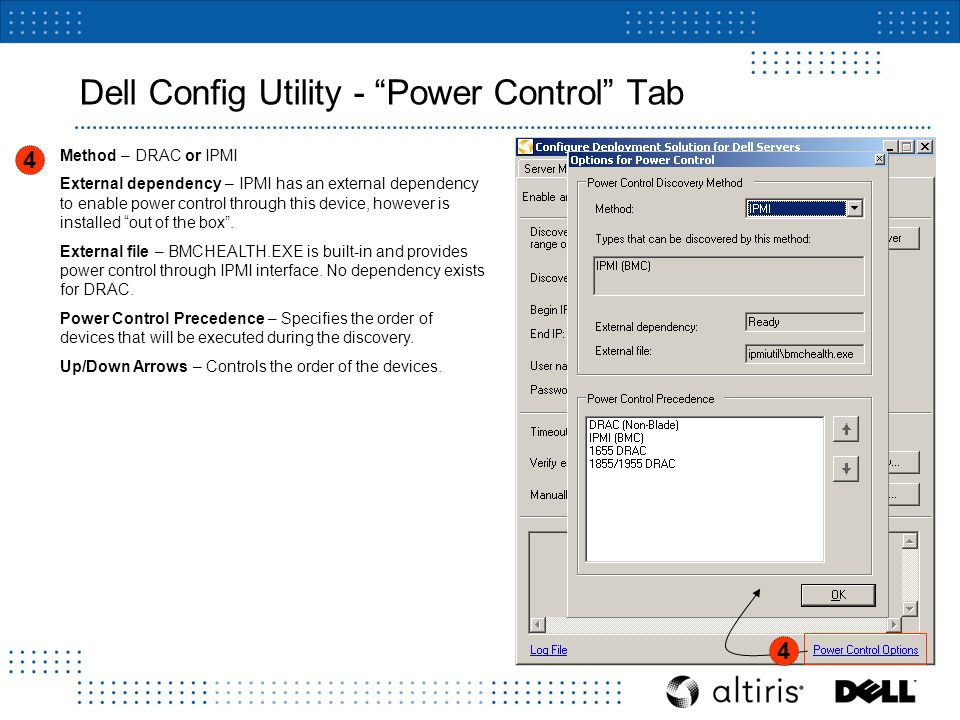

Dell Config Utility - “Power Control” Tab Method – DRAC or IPMI External dependency – IPMI has an external dependency to enable power control through this device, however is installed “out of the box”. External file – BMCHEALTH.EXE is built-in and provides power control through IPMI interface. No dependency exists for DRAC. Power Control Precedence – Specifies the order of devices that will be executed during the discovery. Up/Down Arrows – Controls the order of the devices. 4 4
23
Power Control from DS Console When DRAC or IPMI entries are added to database you go from this To this “Dell – Launch Interface” option is not available through IPMI interface, only DRAC. Option will be grayed out if BMC IP address is entered in database for managed node
24

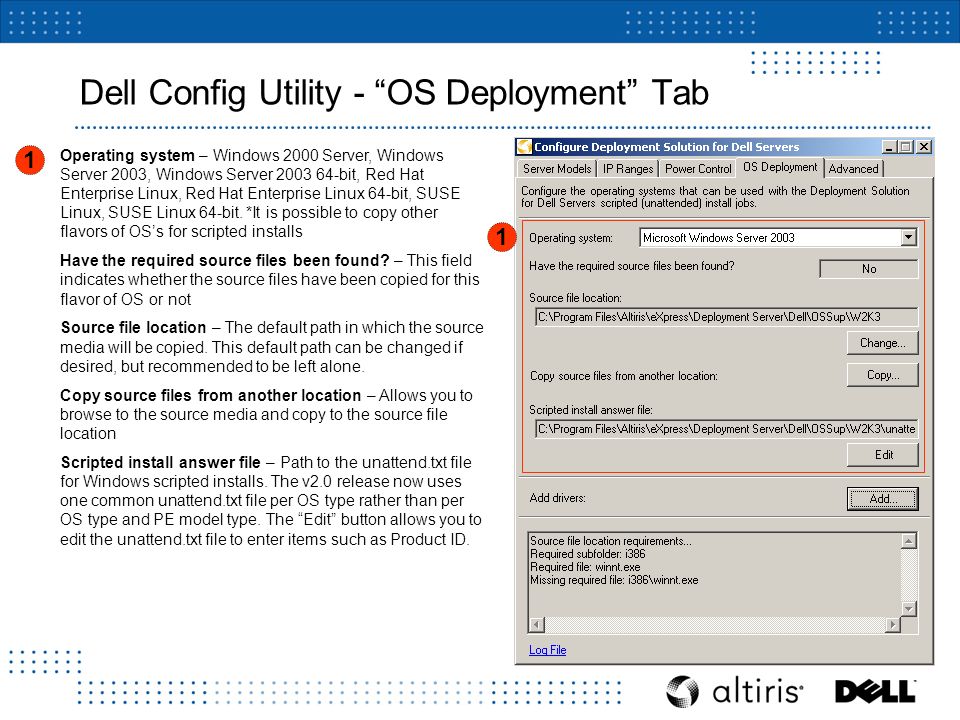

Dell Config Utility - “OS Deployment” Tab Operating system – Windows 2000 Server, Windows Server 2003, Windows Server 2003 64-bit, Red Hat Enterprise Linux, Red Hat Enterprise Linux 64-bit, SUSE Linux, SUSE Linux 64-bit. *It is possible to copy other flavors of OS’s for scripted installs Have the required source files been found? – This field indicates whether the source files have been copied for this flavor of OS or not Source file location – The default path in which the source media will be copied. This default path can be changed if desired, but recommended to be left alone. Copy source files from another location – Allows you to browse to the source media and copy to the source file location Scripted install answer file – Path to the unattend.txt file for Windows scripted installs. The v2.0 release now uses one common unattend.txt file per OS type rather than per OS type and PE model type. The “Edit” button allows you to edit the unattend.txt file to enter items such as Product ID. 1 1
25

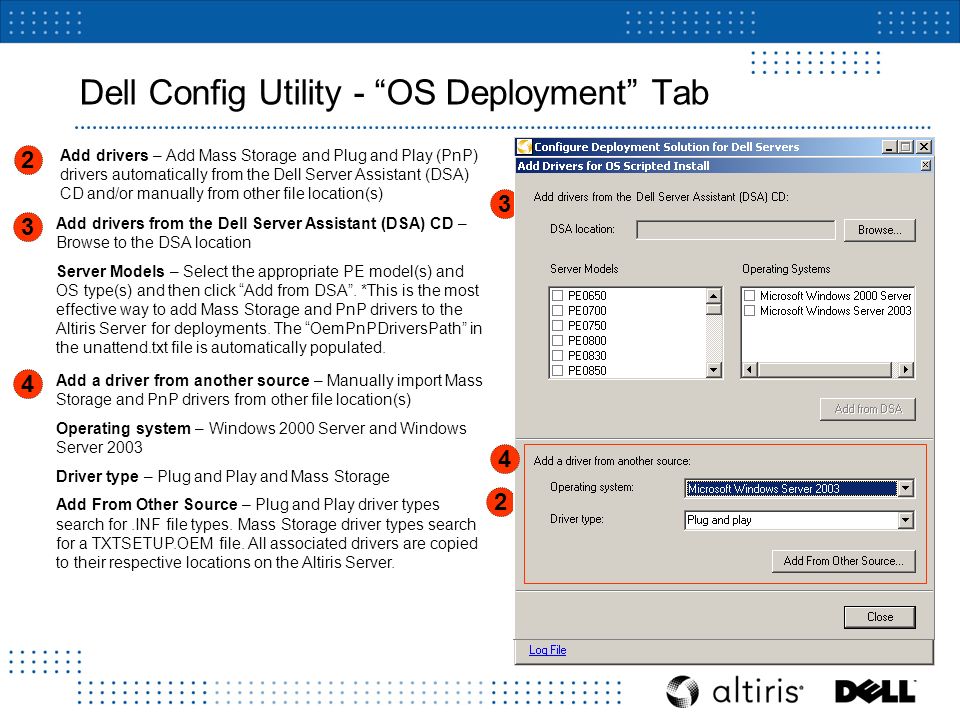

Dell Config Utility - “OS Deployment” Tab Add drivers – Add Mass Storage and Plug and Play (PnP) drivers automatically from the Dell Server Assistant (DSA) CD and/or manually from other file location(s) 2 3 Add drivers from the Dell Server Assistant (DSA) CD – Browse to the DSA location Server Models – Select the appropriate PE model(s) and OS type(s) and then click “Add from DSA”. *This is the most effective way to add Mass Storage and PnP drivers to the Altiris Server for deployments. The “OemPnPDriversPath” in the unattend.txt file is automatically populated. 4 Add a driver from another source – Manually import Mass Storage and PnP drivers from other file location(s) Operating system – Windows 2000 Server and Windows Server 2003 Driver type – Plug and Play and Mass Storage Add From Other Source – Plug and Play driver types search for.INF file types. Mass Storage driver types search for a TXTSETUP.OEM file. All associated drivers are copied to their respective locations on the Altiris Server. 2 3 4
26

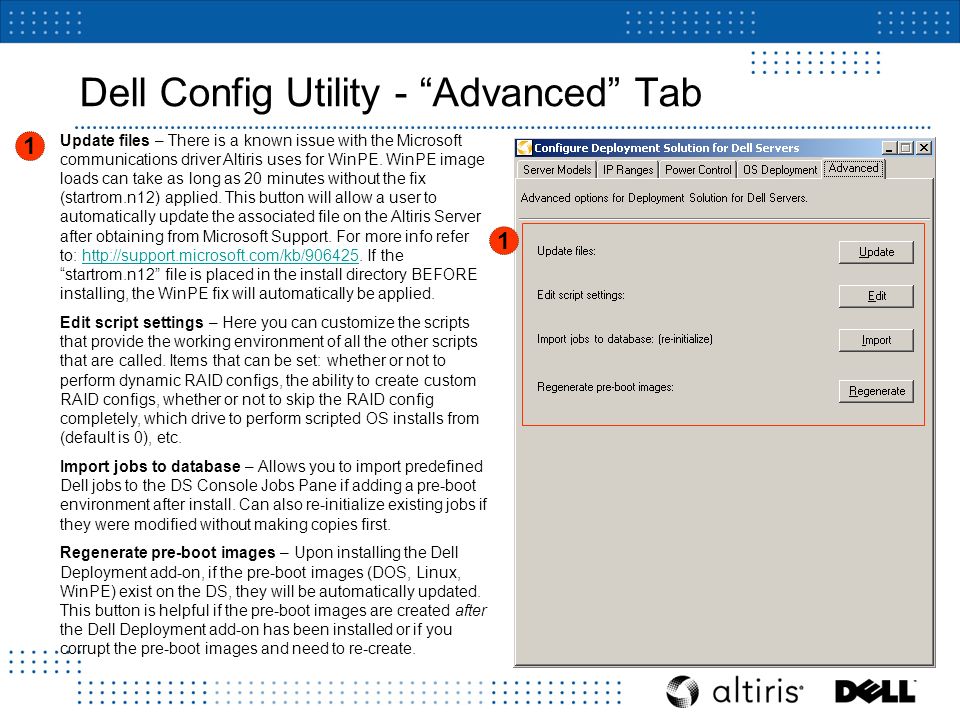

Dell Config Utility - “Advanced” Tab Update files – There is a known issue with the Microsoft communications driver Altiris uses for WinPE. WinPE image loads can take as long as 20 minutes without the fix (startrom.n12) applied. This button will allow a user to automatically update the associated file on the Altiris Server after obtaining from Microsoft Support. For more info refer to: http://support.microsoft.com/kb/906425. If the “startrom.n12” file is placed in the install directory BEFORE installing, the WinPE fix will automatically be applied.http://support.microsoft.com/kb/906425 Edit script settings – Here you can customize the scripts that provide the working environment of all the other scripts that are called. Items that can be set: whether or not to perform dynamic RAID configs, the ability to create custom RAID configs, whether or not to skip the RAID config completely, which drive to perform scripted OS installs from (default is 0), etc. Import jobs to database – Allows you to import predefined Dell jobs to the DS Console Jobs Pane if adding a pre-boot environment after install. Can also re-initialize existing jobs if they were modified without making copies first. Regenerate pre-boot images – Upon installing the Dell Deployment add-on, if the pre-boot images (DOS, Linux, WinPE) exist on the DS, they will be automatically updated. This button is helpful if the pre-boot images are created after the Dell Deployment add-on has been installed or if you corrupt the pre-boot images and need to re-create. 1 1
27

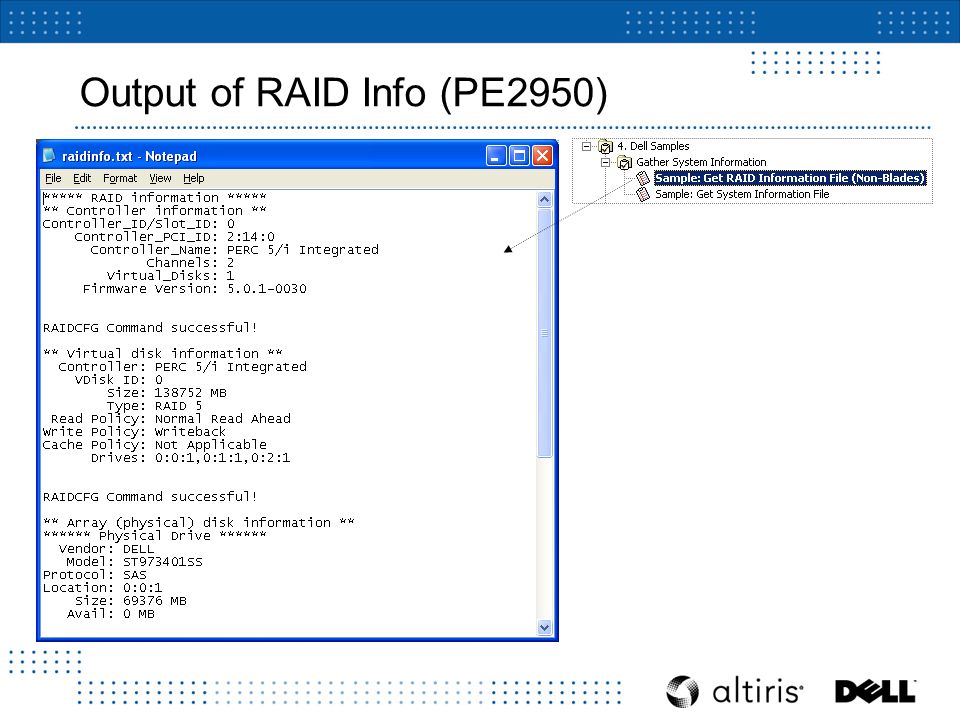

Output of RAID Info (PE2950)
28
Output of System Info (PE2950)
29
Job history per blade. Blade view
30
Rip and Replace Process Flow PXE 1. Blade removed from slot 2 2. New blade inserted into slot 2 3. New blade powered on 4. PXE server does not recognize the new blade as “managed” in it’s local cache 5. PXE server requests any pending job assignments from DS 6. DS determines the blade is new and executes the blade change rule (which is set to Re-deploy computer) 7. DS replays bay's history from the last Distribute Disk Image task forward (or a Run Script task with rem deployment start) 8. New blade is provisioned w/o a trip to the Altiris console
31
Blade Change Rule Options OptionsAction Re-Deploy Computer All deployment tasks in the bay's history will be executed starting from the last Distributing a Disk Image task or Scripted OS Install task, or from any script (in a Run Script task) with this command: rem deployment start. Run Predefined Job The server will process any specified job to run automatically when a new server is detected in the bay. Ignore the Change The new server blade placed in the bay is not identified as a new server and no jobs are initiated. If the server existed in a previous bay, the history and parameters for the server are moved or associated with the new bay. Wait for User Interaction (default) No job is performed (the Deployment Agent on the server blade is instructed to wait). The icon on the console changes to reflect that the server is waiting.
32
For More information User community: –www.altiris.com/juicewww.altiris.com/juice –Other URLs: –www.dell.com/altiriswww.dell.com/altiris –www.dell.com/altiris/ whitepaperswww.dell.com/altiris/ whitepapers –www.altiris.com/dellwww.altiris.com/dell Weekly webinars schedule Joint success stories Data sheets –www.altiris.com/delldeploywww.altiris.com/delldeploy Videos White papers Product documentation To download: –www.altiris.com/eval/dellwww.altiris.com/eval/dell
