1. 70-270: MCSE Guide to Microsoft Windows XP Professional Second Edition, Enhanced Chapter 2: Installing Windows XP Professional

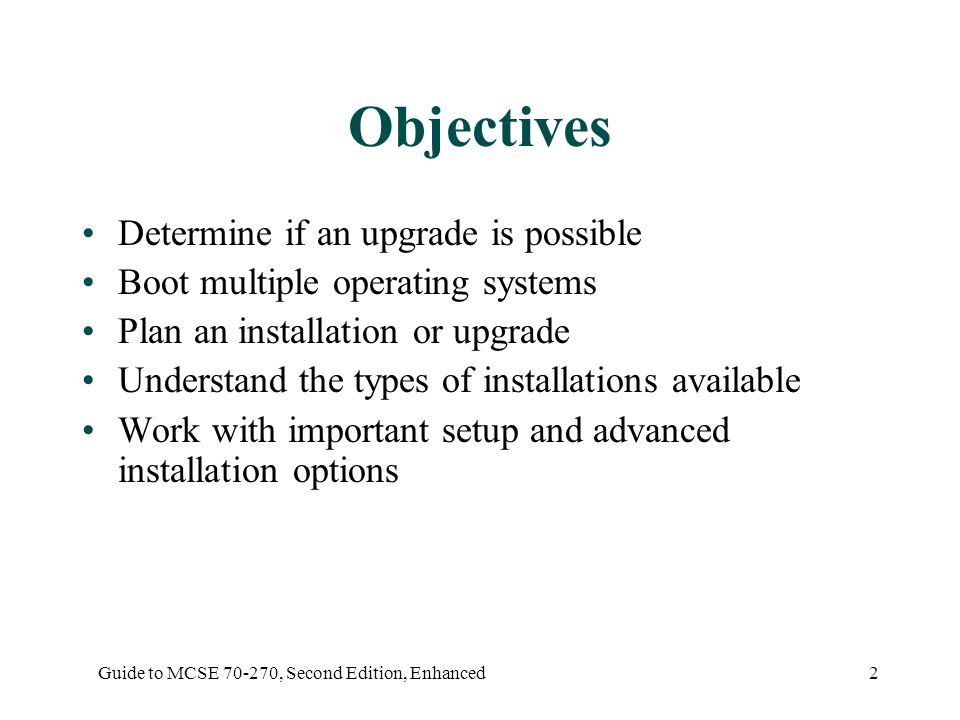

2. Guide to MCSE 70-270, Second Edition, Enhanced2 Objectives Determine if an upgrade is possible Boot multiple operating systems Plan an installation or upgrade Understand the types of installations available Work with important setup and advanced installation options

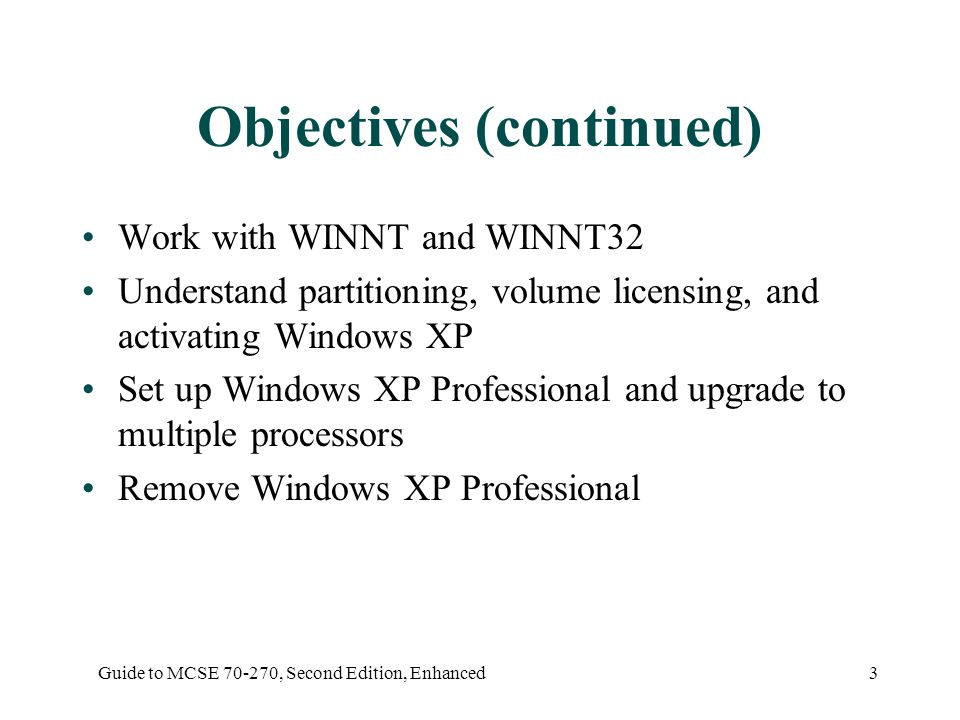

3. Guide to MCSE 70-270, Second Edition, Enhanced3 Objectives (continued) Work with WINNT and WINNT32 Understand partitioning, volume licensing, and activating Windows XP Set up Windows XP Professional and upgrade to multiple processors Remove Windows XP Professional

4. Guide to MCSE 70-270, Second Edition, Enhanced4 Upgrading Versus Installing Choose between: Upgrading Clean installation

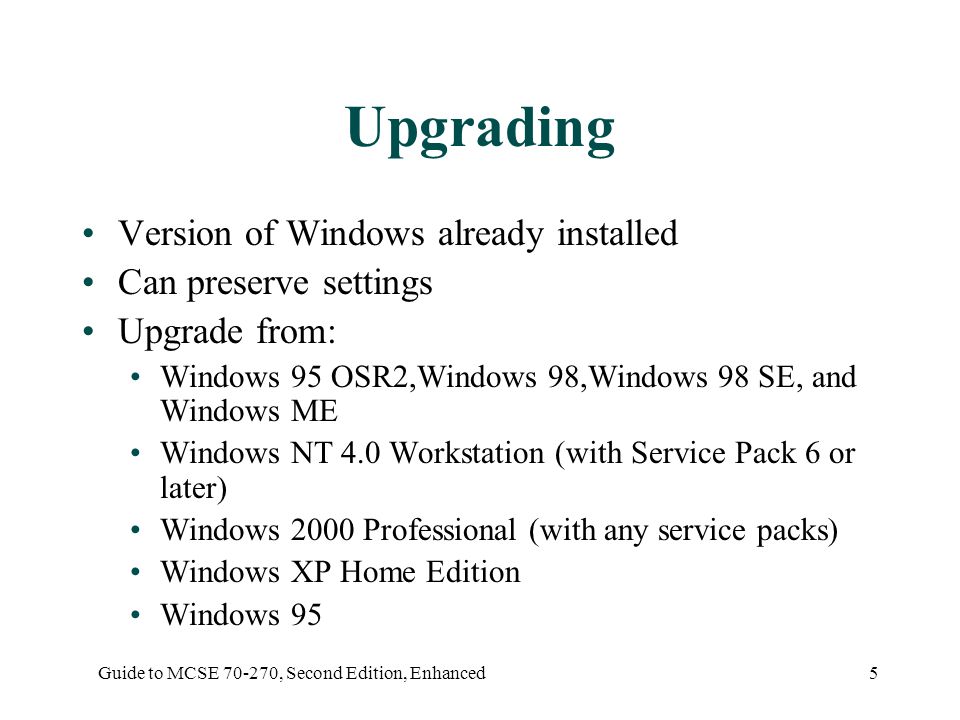

5. Guide to MCSE 70-270, Second Edition, Enhanced5 Upgrading Version of Windows already installed Can preserve settings Upgrade from: Windows 95 OSR2,Windows 98,Windows 98 SE, and Windows ME Windows NT 4.0 Workstation (with Service Pack 6 or later) Windows 2000 Professional (with any service packs) Windows XP Home Edition Windows 95

6. Guide to MCSE 70-270, Second Edition, Enhanced6 Upgrade Option From Setup Wizard

7. Guide to MCSE 70-270, Second Edition, Enhanced7 Clean Installation Installs new version No settings maintained Good option for system with problems

8. Guide to MCSE 70-270, Second Edition, Enhanced8 Windows XP Upgrade Advisor Inspects computer to determine if hardware and software are compatible with Windows XP Can only be used on a system with an existing Windows OS Report can be saved to a file for future reference

9. Guide to MCSE 70-270, Second Edition, Enhanced9 Booting Multiple Operating Systems Install more than one OS on the same computer Should be installed in chronological order XP can be dual-booted with any Microsoft OS Boot loader: Software that shows all currently available operating systems

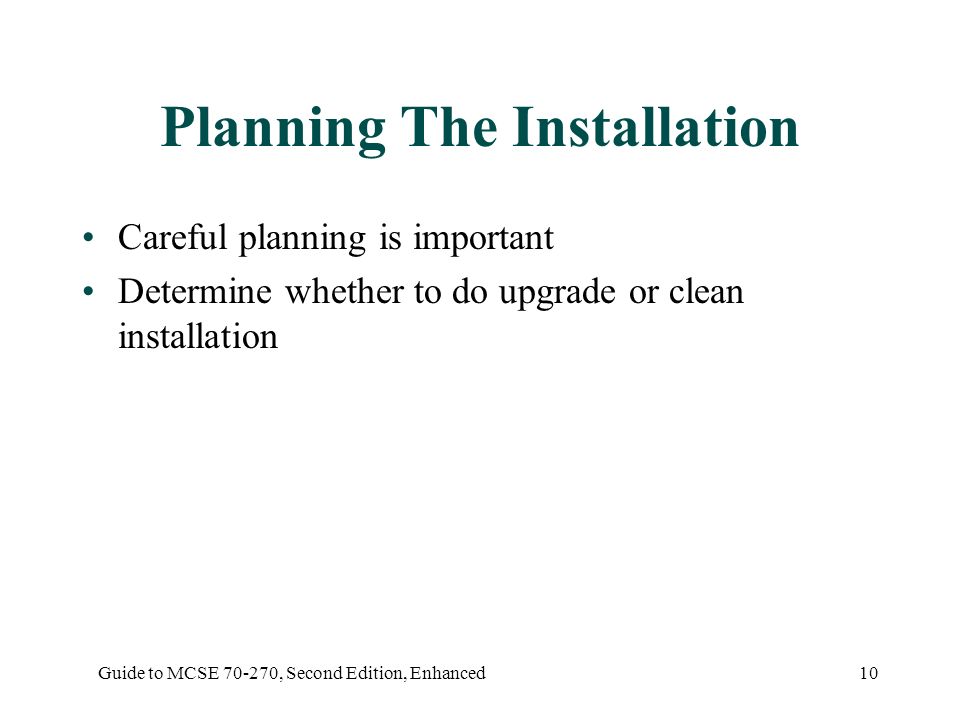

10. Guide to MCSE 70-270, Second Edition, Enhanced10 Planning The Installation Careful planning is important Determine whether to do upgrade or clean installation

11. Guide to MCSE 70-270, Second Edition, Enhanced11 Types Of Attended Installations Choice between: Network installation CD installation Local CD-ROM faster

12. Guide to MCSE 70-270, Second Edition, Enhanced12 Installing over the Network Launch setup routine from network share \I386 folder on CD contains files Execute WINNT or WINNT32 command

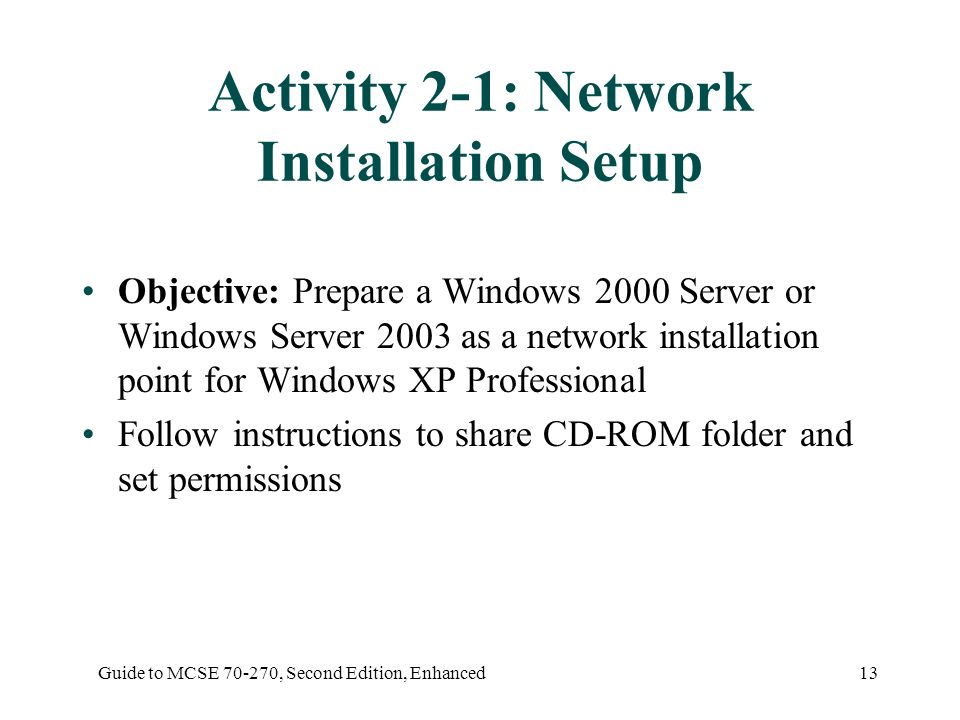

13. Guide to MCSE 70-270, Second Edition, Enhanced13 Activity 2-1: Network Installation Setup Objective: Prepare a Windows 2000 Server or Windows Server 2003 as a network installation point for Windows XP Professional Follow instructions to share CD-ROM folder and set permissions

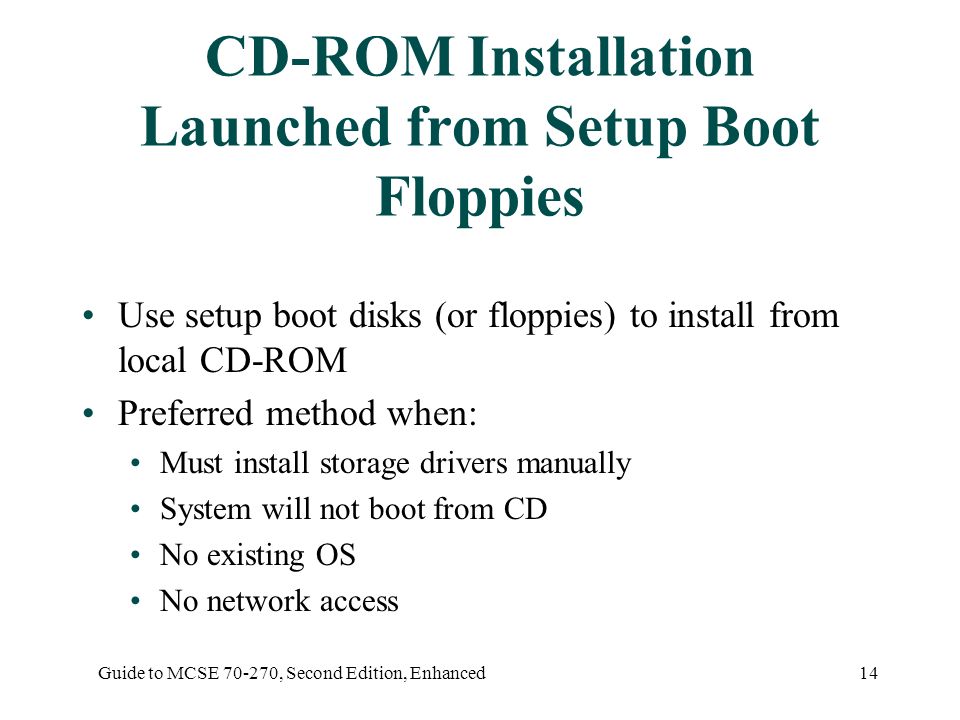

14. Guide to MCSE 70-270, Second Edition, Enhanced14 CD-ROM Installation Launched from Setup Boot Floppies Use setup boot disks (or floppies) to install from local CD-ROM Preferred method when: Must install storage drivers manually System will not boot from CD No existing OS No network access

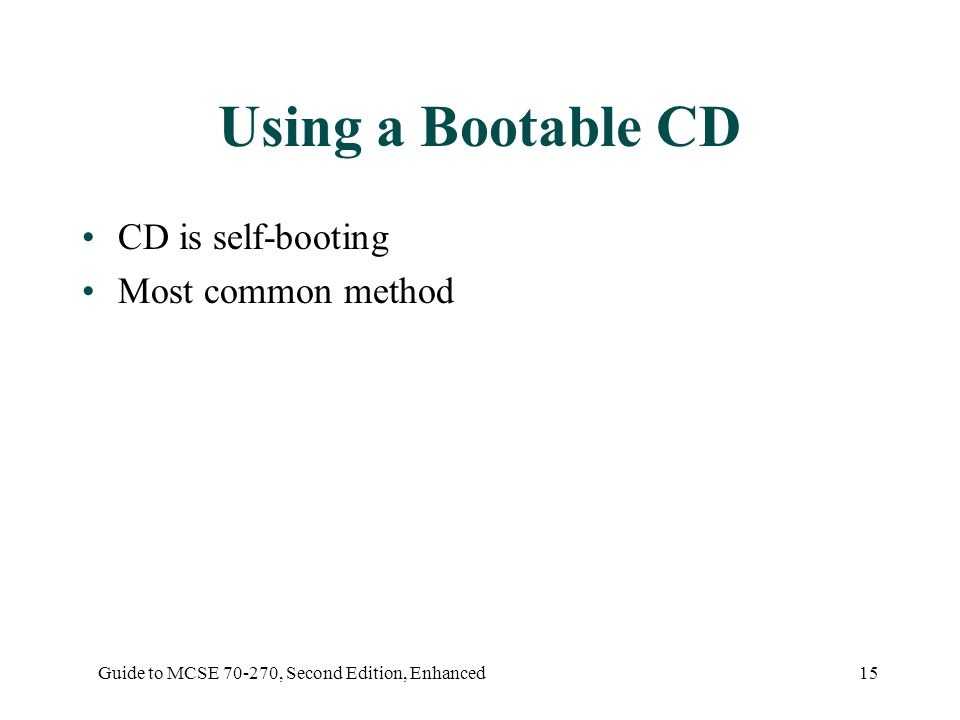

15. Guide to MCSE 70-270, Second Edition, Enhanced15 Using a Bootable CD CD is self-booting Most common method

16. Guide to MCSE 70-270, Second Edition, Enhanced16 Text Mode Setup Used when initializing the setup from any method other than launching Setup from a preexisting Windows OS

17. Guide to MCSE 70-270, Second Edition, Enhanced17 GUI Setup Method Employs initialization Setup Wizard Advanced Options for: Source path Systemroot Whether to copy all files from the CD before rebooting Whether to allow manual selection of destination partition during Setup

18. Guide to MCSE 70-270, Second Edition, Enhanced18 GUI Setup Method (continued) Decide if you want to upgrade drive with NTFS Dynamic Update: New feature Enables Setup to download updates and patches for Windows XP before installation begins

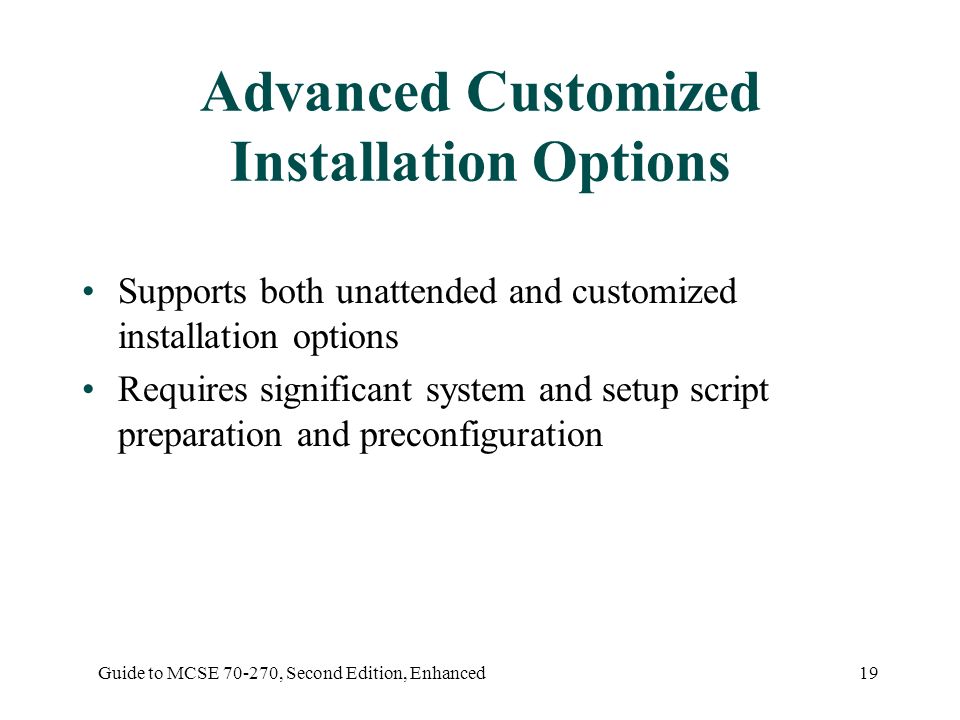

19. Guide to MCSE 70-270, Second Edition, Enhanced19 Advanced Customized Installation Options Supports both unattended and customized installation options Requires significant system and setup script preparation and preconfiguration

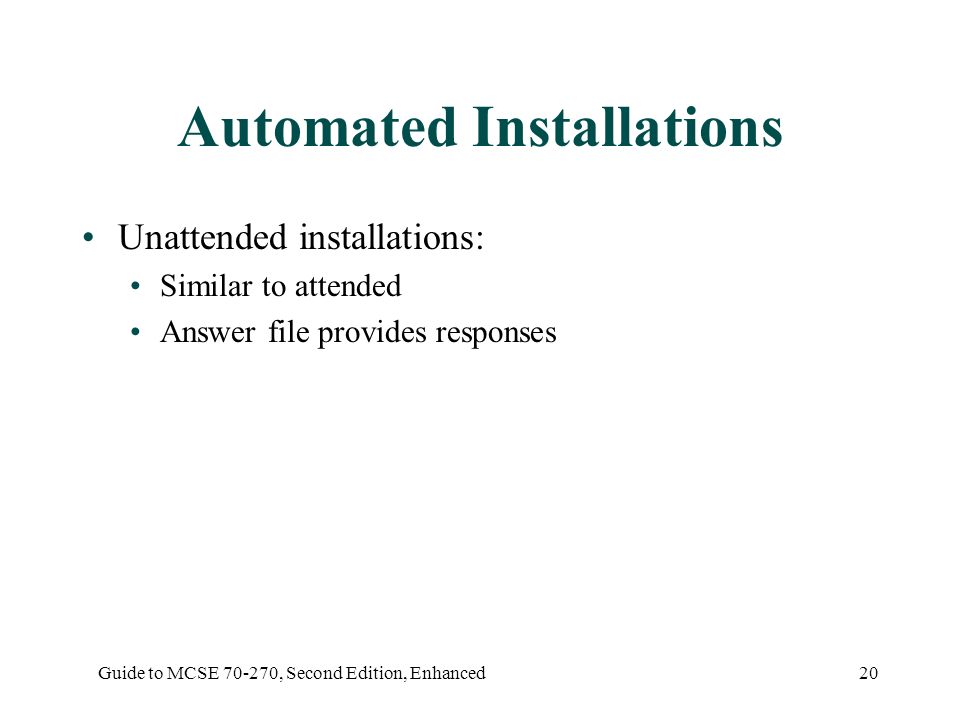

20. Guide to MCSE 70-270, Second Edition, Enhanced20 Automated Installations Unattended installations: Similar to attended Answer file provides responses

21. Guide to MCSE 70-270, Second Edition, Enhanced21 Uniqueness Database File (UDF) Allows override of answer file settings Can be created in notepad

22. Guide to MCSE 70-270, Second Edition, Enhanced22 UNATTEND.TXT File Contains default settings Modify with Setup Manager Wizard

23. Guide to MCSE 70-270, Second Edition, Enhanced23 Activity 2-2: Windows XP Support Tools Objective: Install the Windows XP support tools. Follow instructions to install tools

24. Guide to MCSE 70-270, Second Edition, Enhanced24 Activity 2-3: Unattended Installation Preparation Objective: Create an answer file for an unattended installation of Windows XP using the Setup Manager Wizard Launch Setup Manager Wizard Create and save answer file

25. Guide to MCSE 70-270, Second Edition, Enhanced25 Using Remote Installation Service (RIS) Windows Server-based service Allows operating systems to be automatically installed onto target systems over network Admin only needs to power on client Takes advantage of DHCP

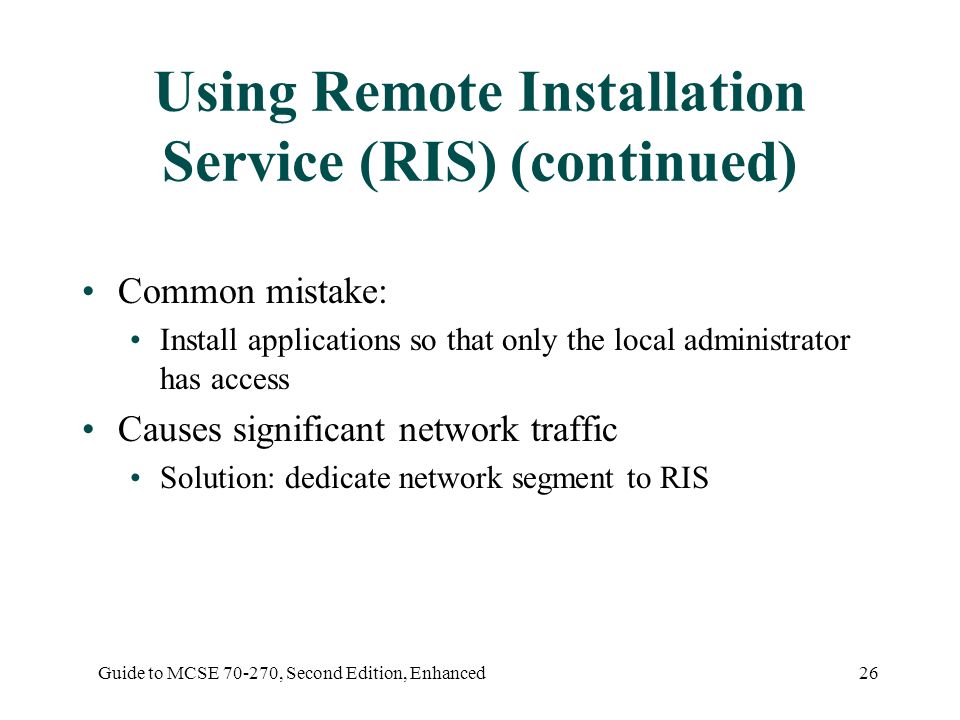

26. Guide to MCSE 70-270, Second Edition, Enhanced26 Using Remote Installation Service (RIS) (continued) Common mistake: Install applications so that only the local administrator has access Causes significant network traffic Solution: dedicate network segment to RIS

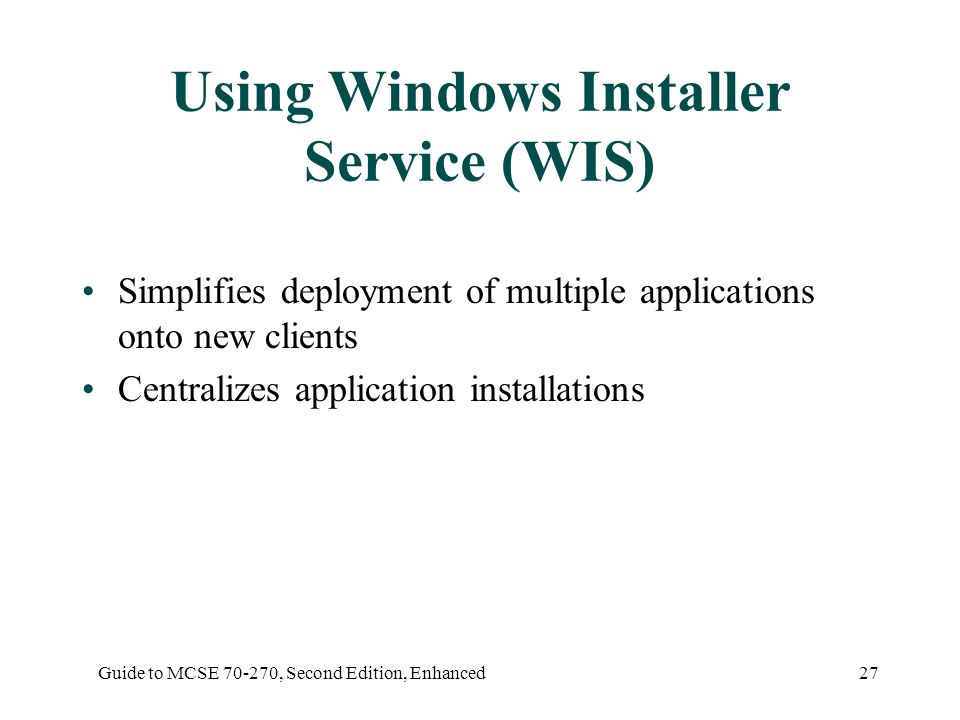

27. Guide to MCSE 70-270, Second Edition, Enhanced27 Using Windows Installer Service (WIS) Simplifies deployment of multiple applications onto new clients Centralizes application installations

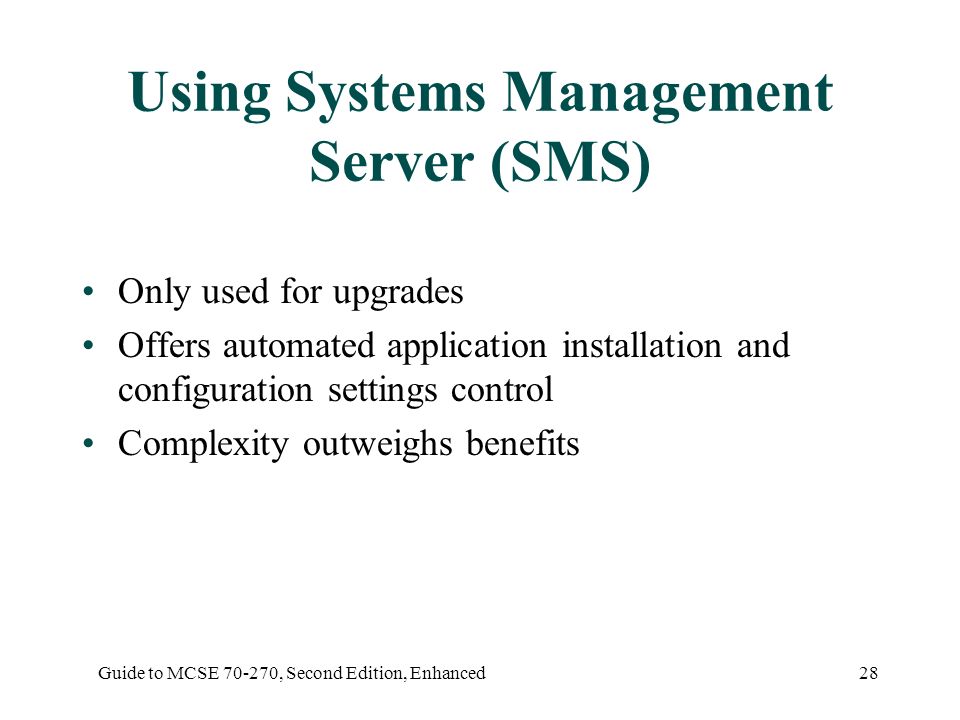

28. Guide to MCSE 70-270, Second Edition, Enhanced28 Using Systems Management Server (SMS) Only used for upgrades Offers automated application installation and configuration settings control Complexity outweighs benefits

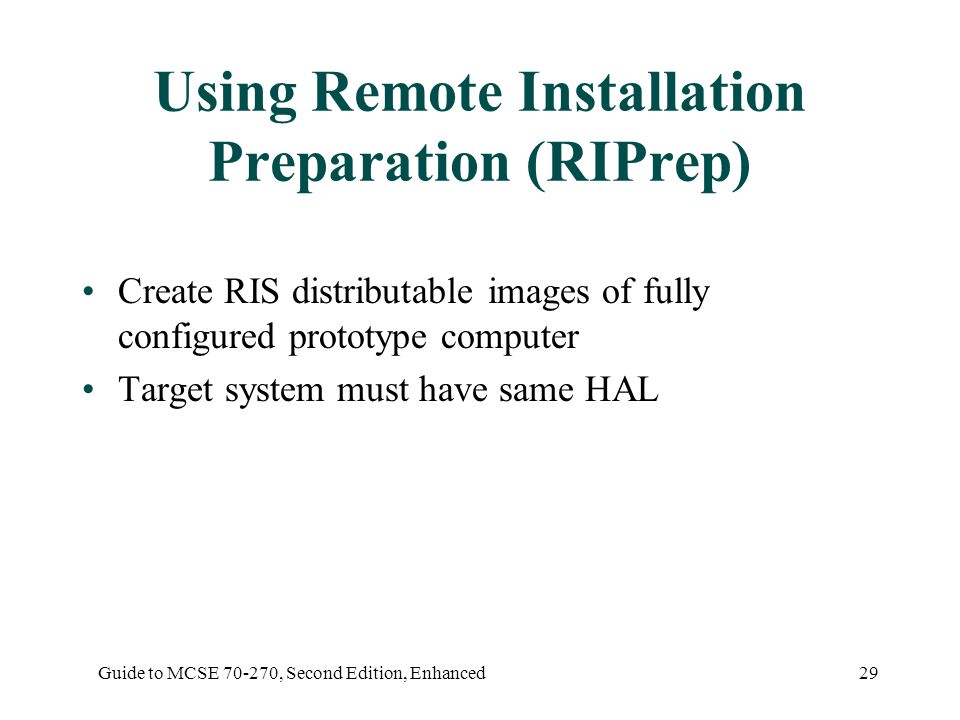

29. Guide to MCSE 70-270, Second Edition, Enhanced29 Using Remote Installation Preparation (RIPrep) Create RIS distributable images of fully configured prototype computer Target system must have same HAL

30. Guide to MCSE 70-270, Second Edition, Enhanced30 Using SYSPREP System duplication tool Duplicates entire hard drive Systems must have similar core hardware configurations Cannot be used for upgrades Must be used with a third-party disk-imaging product

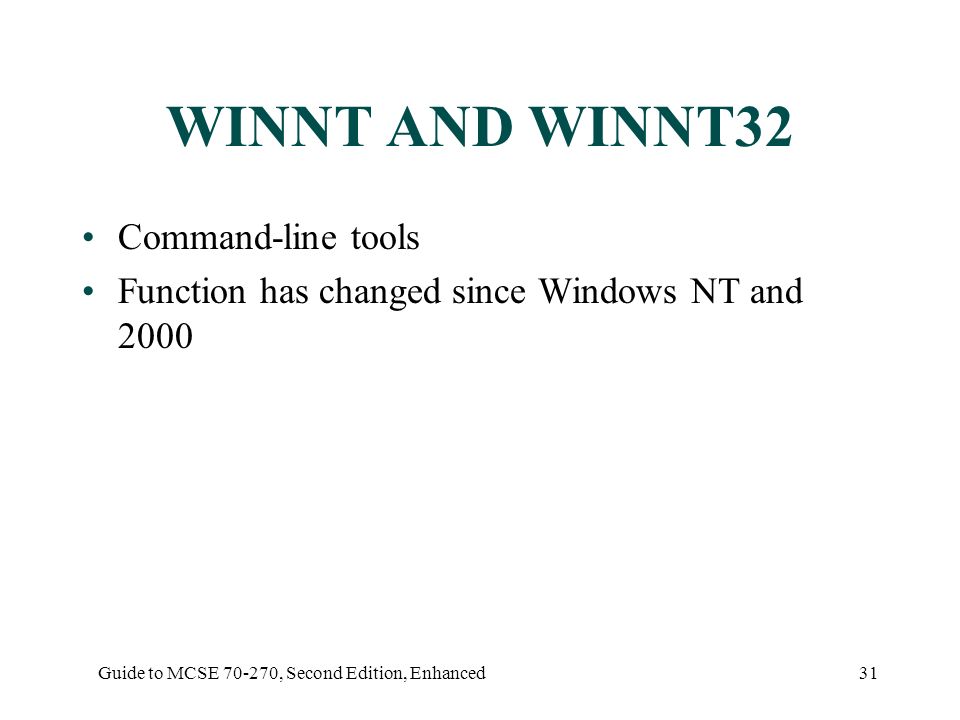

31. Guide to MCSE 70-270, Second Edition, Enhanced31 WINNT AND WINNT32 Command-line tools Function has changed since Windows NT and 2000

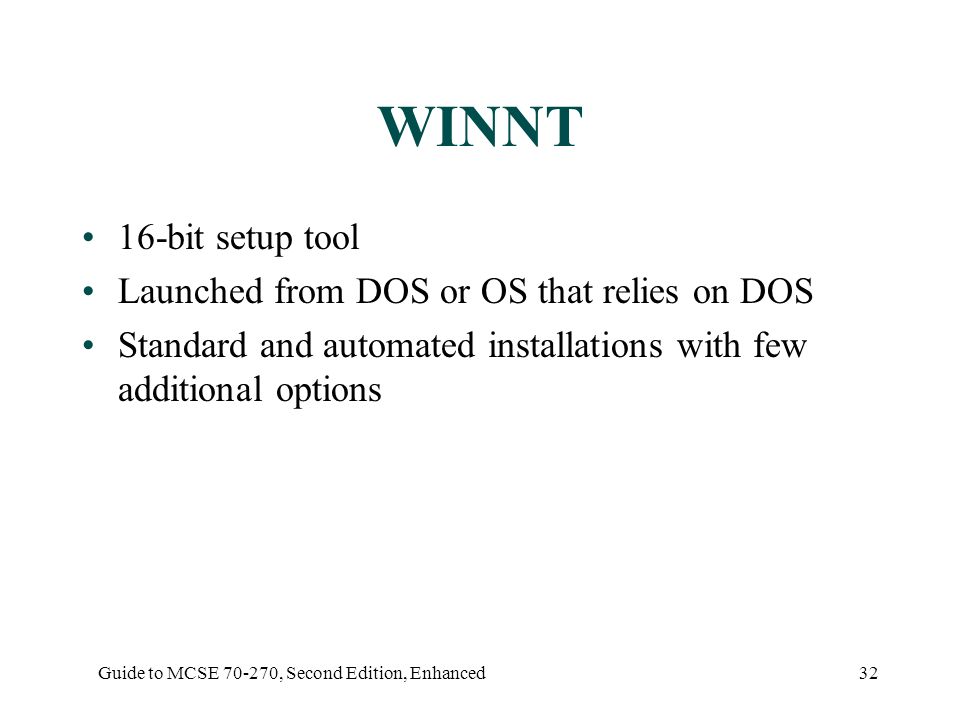

32. Guide to MCSE 70-270, Second Edition, Enhanced32 WINNT 16-bit setup tool Launched from DOS or OS that relies on DOS Standard and automated installations with few additional options

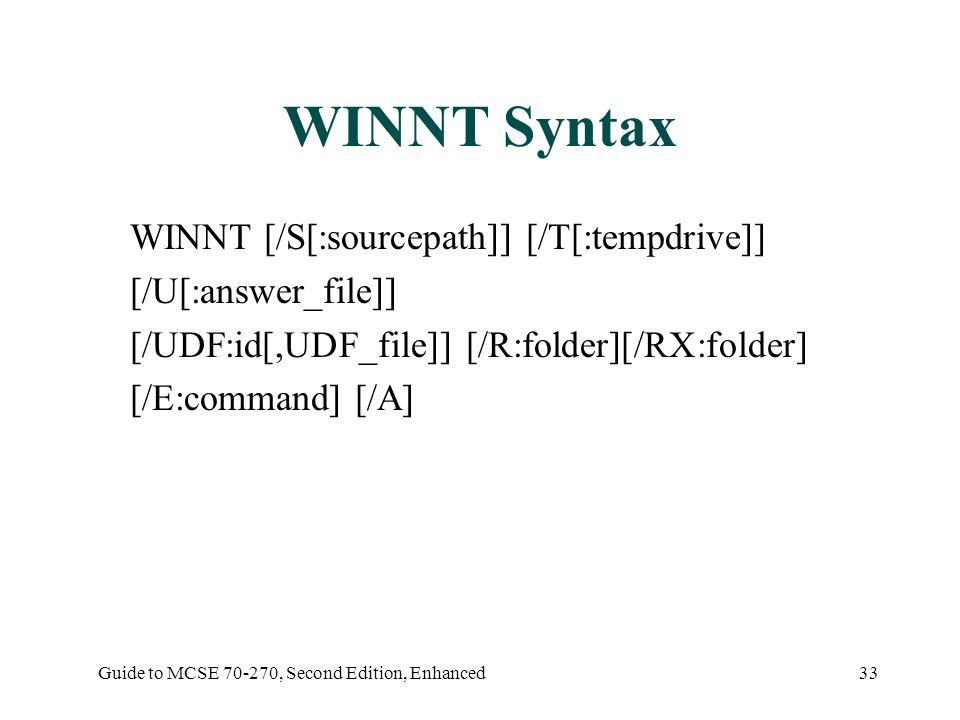

33. Guide to MCSE 70-270, Second Edition, Enhanced33 WINNT Syntax WINNT [/S[:sourcepath]] [/T[:tempdrive]] [/U[:answer_file]] [/UDF:id[,UDF_file]] [/R:folder][/RX:folder] [/E:command] [/A]

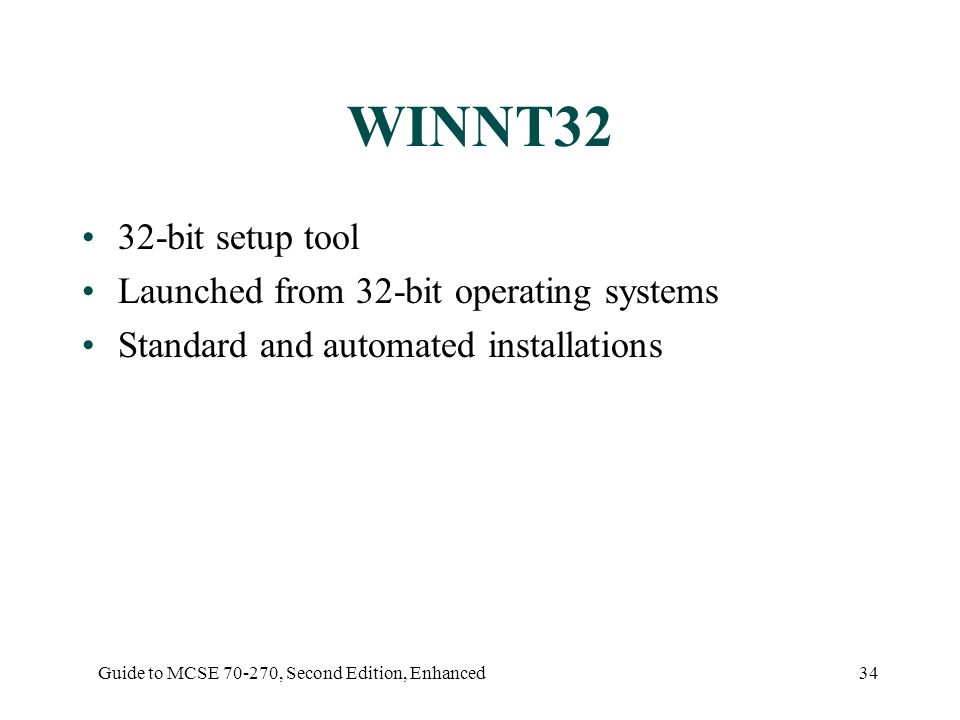

34. Guide to MCSE 70-270, Second Edition, Enhanced34 WINNT32 32-bit setup tool Launched from 32-bit operating systems Standard and automated installations

35. Guide to MCSE 70-270, Second Edition, Enhanced35 WINNT32 Syntax winnt32 [/checkupgradeonly] [/cmd:command_line] [/cmdcons] [/copydir:i386\folder_name] [/copysource:folder_name] [/debug[level]:[filename]] [/dudisable][/duprepare:pathname] [/dushare:pathname] [/m:folder_name][/makelocalsource] [/noreboot] [/s:sourcepath] [/syspart:drive_letter] [/tempdrive:drive_letter] [/udf:id [,UDB_file]] [/unattend[num]:[answer_file]]

36. Guide to MCSE 70-270, Second Edition, Enhanced36 Partitioning The Hard Disk Active partition Houses Windows XP boot files To partition: Use the DOS FDISK before installation Or can partition during setup To remove partitions: Use DELPART command

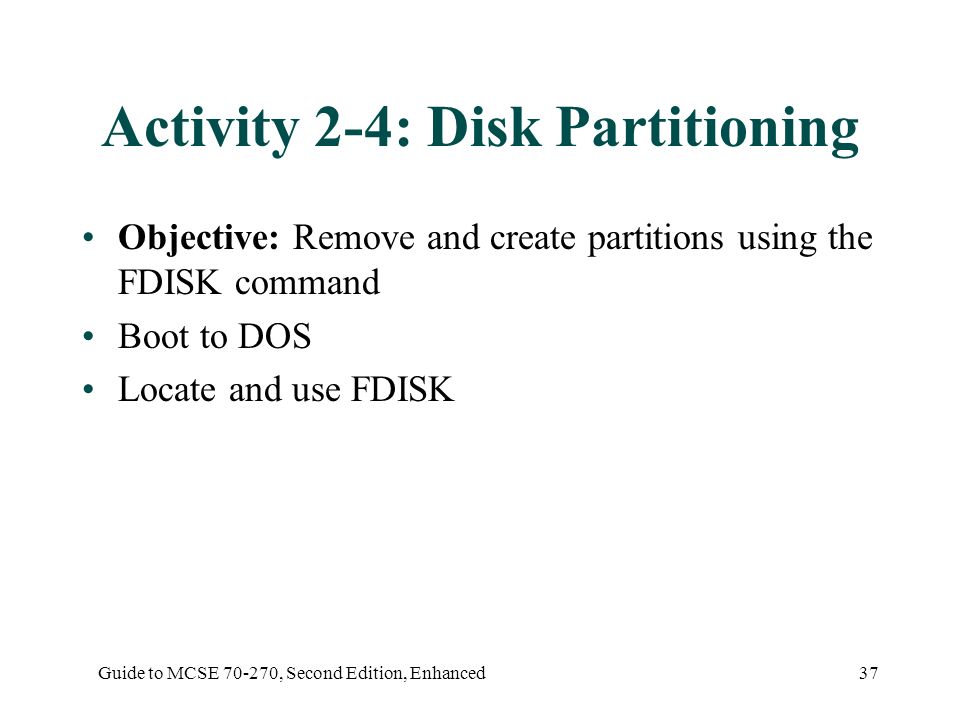

37. Guide to MCSE 70-270, Second Edition, Enhanced37 Activity 2-4: Disk Partitioning Objective: Remove and create partitions using the FDISK command Boot to DOS Locate and use FDISK

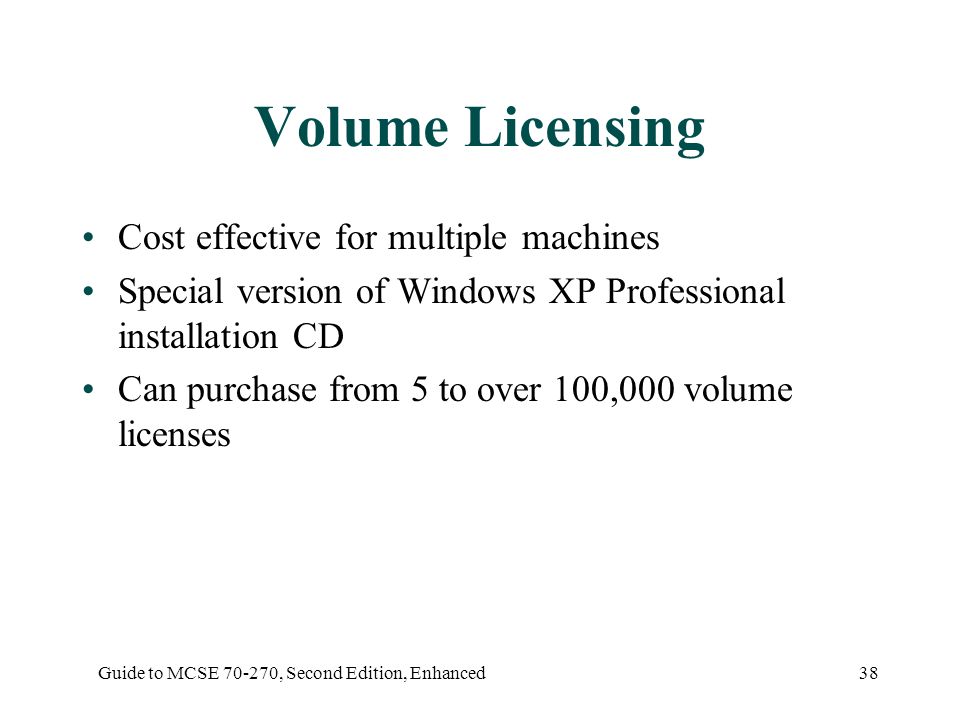

38. Guide to MCSE 70-270, Second Edition, Enhanced38 Volume Licensing Cost effective for multiple machines Special version of Windows XP Professional installation CD Can purchase from 5 to over 100,000 volume licenses

39. Guide to MCSE 70-270, Second Edition, Enhanced39 Activating Windows XP Product has finite initial functional lifetime After 30 days must be activated to function Product activation: Type of registration where system hardware is identified and matched with product license

40. Guide to MCSE 70-270, Second Edition, Enhanced40 Activating Windows XP (continued) Drawbacks: Hardware changes may invalidate activation Difficult if lacking Internet access Can be completed during or after setup

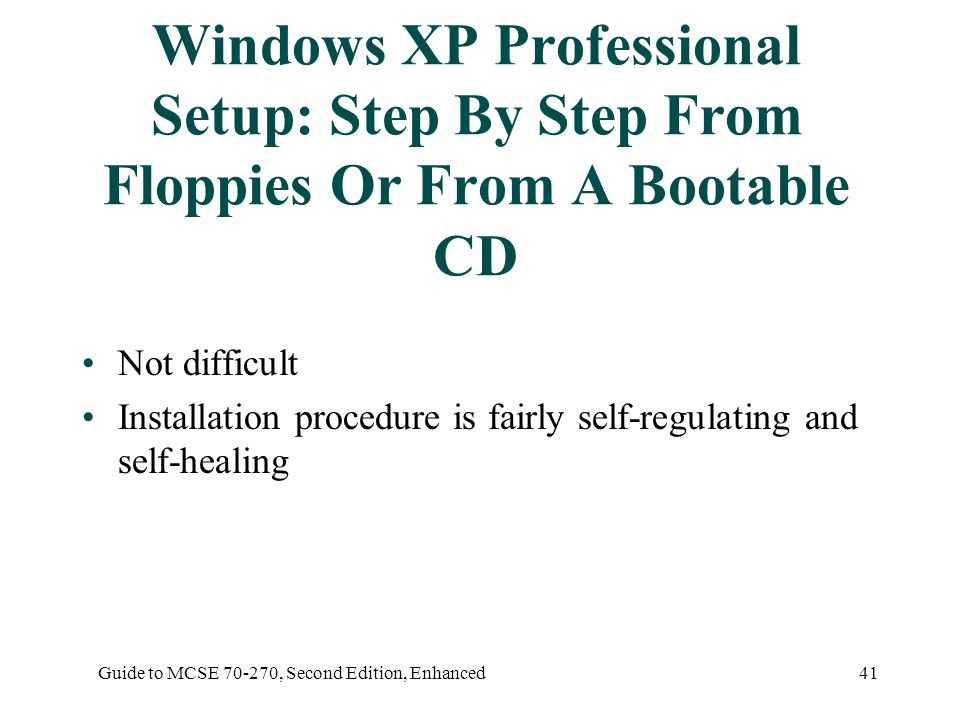

41. Guide to MCSE 70-270, Second Edition, Enhanced41 Windows XP Professional Setup: Step By Step From Floppies Or From A Bootable CD Not difficult Installation procedure is fairly self-regulating and self-healing

42. Guide to MCSE 70-270, Second Edition, Enhanced42 Activity 2-5: Manual Install of Windows XP Objective: Install Windows XP without using any of the automated features (unattend file, RIS, imaging, etc.) Follow instructions to perform installation

43. Guide to MCSE 70-270, Second Edition, Enhanced43 Upgrading To Multiple Processors Update the HAL before installing second CPU into the system Fail to properly update the HAL: STOP error indicating a HAL mismatch occurs upon attempted reboot

44. Guide to MCSE 70-270, Second Edition, Enhanced44 Removing Windows XP Professional Supported: When upgrade is performed over Windows 95/98/OSR2/SE/ME If installation fails, rollback restores system state Use the Add or Remove Programs applet for uninstall Easiest method for older previous OS: Destroy installation and start fresh with another OS

45. Guide to MCSE 70-270, Second Edition, Enhanced45 Activity 2-6: Removing Windows XP Objective: Remove Windows XP and prepare the computer for another operating system Follow instructions to remove XP Warning: need to install another OS to use computer

46. Guide to MCSE 70-270, Second Edition, Enhanced46 Summary Choose hardware for a successful installation Can be installed locally or across network Can use RIS to install from server Must be activated using Product Activation before 30 days Clean install vs. upgrade have different installation options
