1. 01/20141 EPI 5344: Survival Analysis in Epidemiology Introduction to concepts and basic methods February 25, 2014 Dr. N. Birkett, Department of Epidemiology & Community Medicine, University of Ottawa

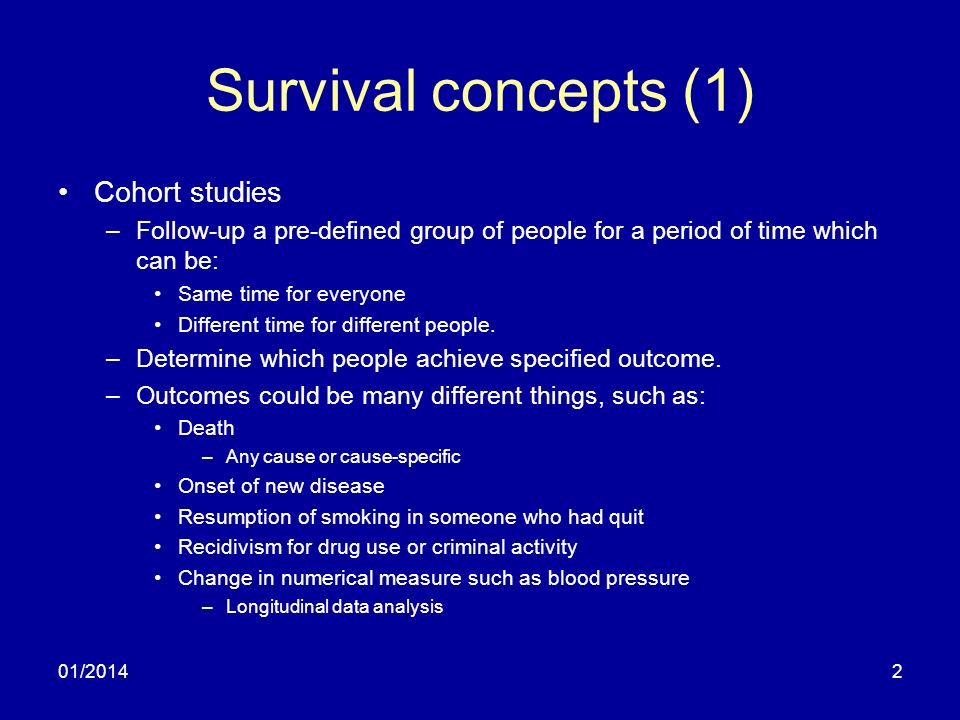

2. 01/20142 Survival concepts (1) Cohort studies –Follow-up a pre-defined group of people for a period of time which can be: Same time for everyone Different time for different people. –Determine which people achieve specified outcome. –Outcomes could be many different things, such as: Death –Any cause or cause-specific Onset of new disease Resumption of smoking in someone who had quit Recidivism for drug use or criminal activity Change in numerical measure such as blood pressure –Longitudinal data analysis

3. 01/20143 Survival concepts (2) Cohort studies –Traditional approach to cohorts assumes everyone is followed for the same time incidence proportion logistic regression modeling –If follow-up time varies, what do you do with subjects who don’t make it to the end of the study? Censoring –Cohort studies can provide more information than presence/absence of outcome. Time when outcome occurred Type of outcome (competing outcomes) –Can look at rate or speed of development of outcome incidence rate person-time

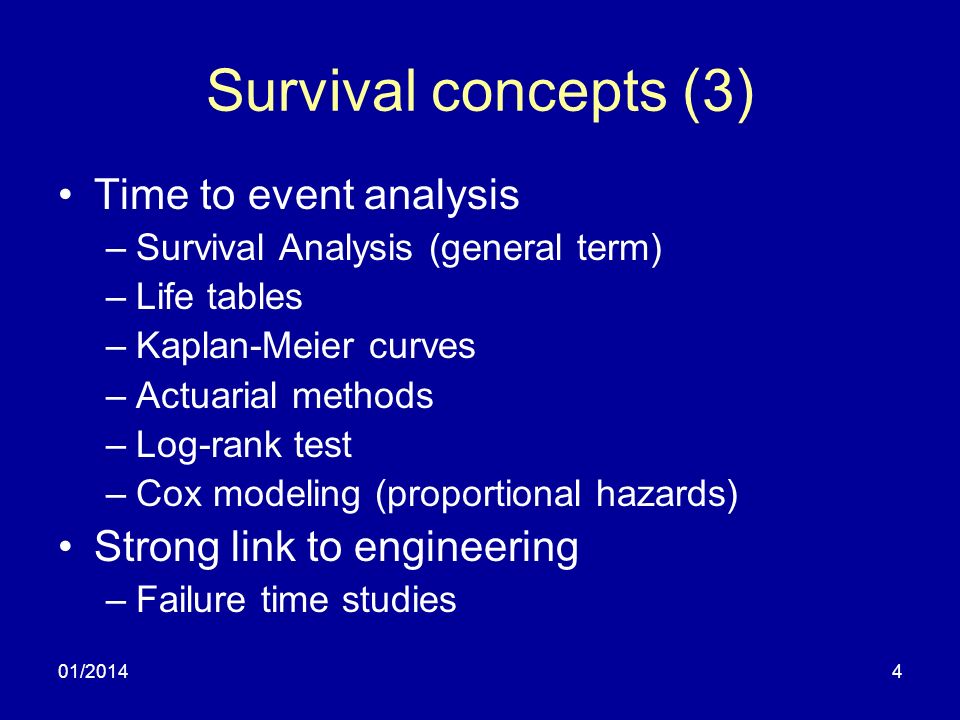

4. 01/20144 Survival concepts (3) Time to event analysis –Survival Analysis (general term) –Life tables –Kaplan-Meier curves –Actuarial methods –Log-rank test –Cox modeling (proportional hazards) Strong link to engineering –Failure time studies

5. 01/20145 Survival concepts (4) Analysis of Cohort studies (from epidemiology) –Incidence proportion (cumulative incidence) Select a point in time as the end of follow-up. Compare groups using t-test, CIR (RR) Issues include: –What point in time to use? –What if not all subjects remain under follow-up that long? –Ignores information from subjects who don’t get outcome or reach the time point –What is incidence proportion for the outcome ‘death’ if we set the follow-up time to 200 years? »Will always be 100%

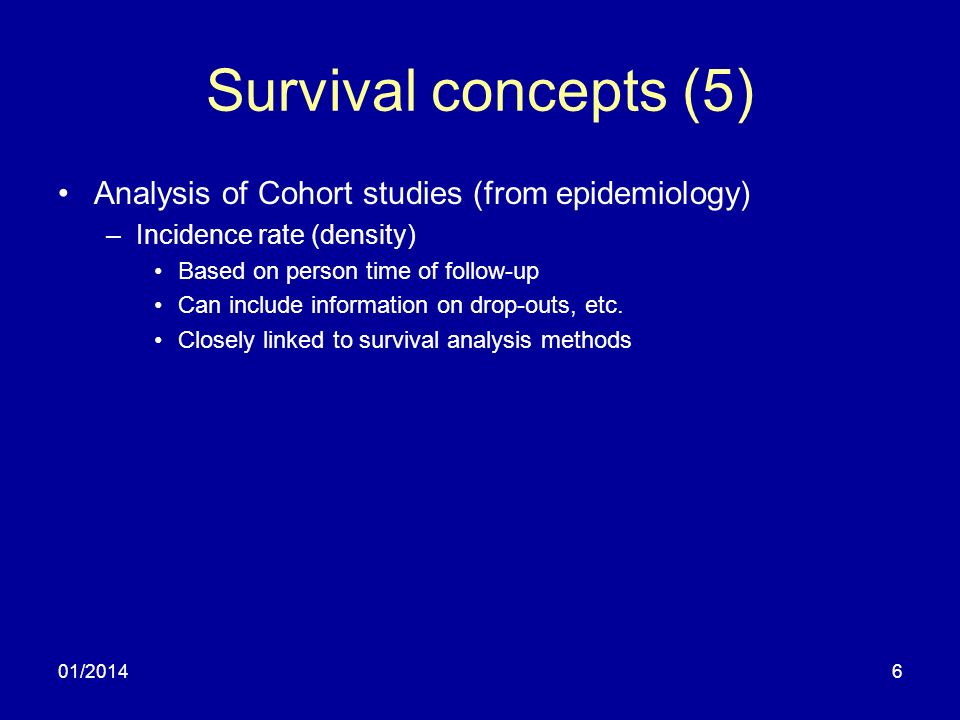

6. 01/20146 Survival concepts (5) Analysis of Cohort studies (from epidemiology) –Incidence rate (density) Based on person time of follow-up Can include information on drop-outs, etc. Closely linked to survival analysis methods

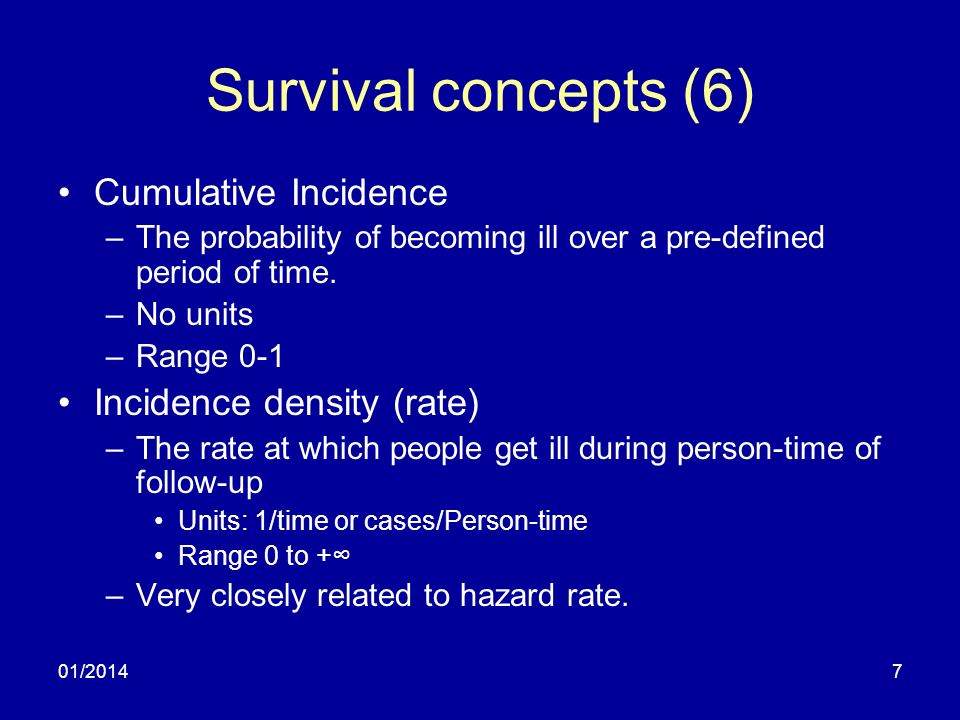

7. 01/20147 Survival concepts (6) Cumulative Incidence –The probability of becoming ill over a pre-defined period of time. –No units –Range 0-1 Incidence density (rate) –The rate at which people get ill during person-time of follow-up Units: 1/time or cases/Person-time Range 0 to +∞ –Very closely related to hazard rate.

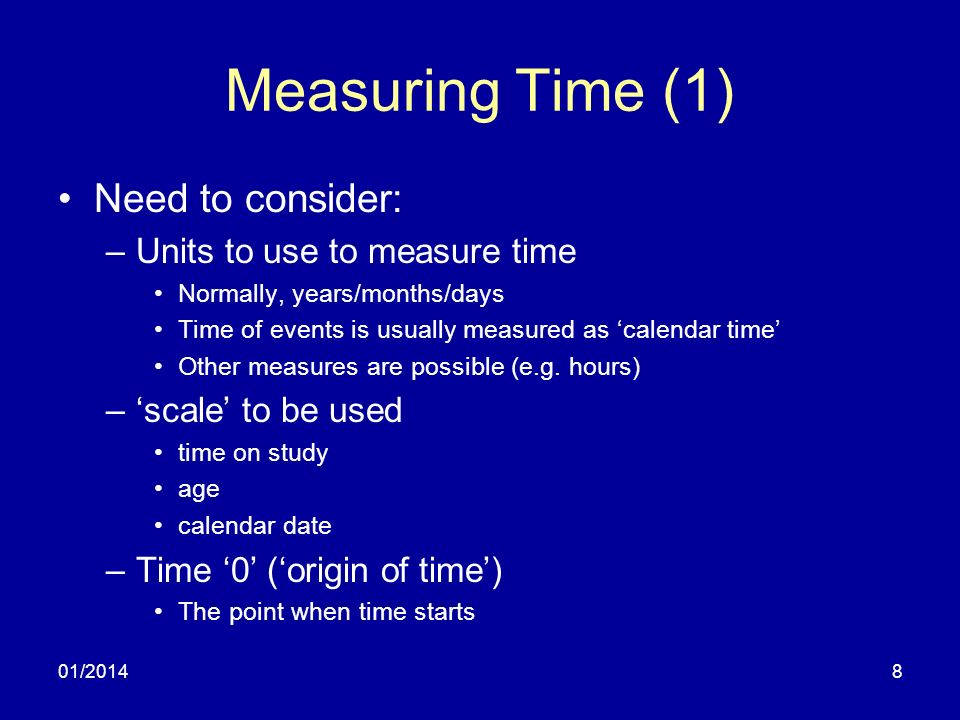

8. 01/20148 Measuring Time (1) Need to consider: –Units to use to measure time Normally, years/months/days Time of events is usually measured as ‘calendar time’ Other measures are possible (e.g. hours) –‘scale’ to be used time on study age calendar date –Time ‘0’ (‘origin of time’) The point when time starts

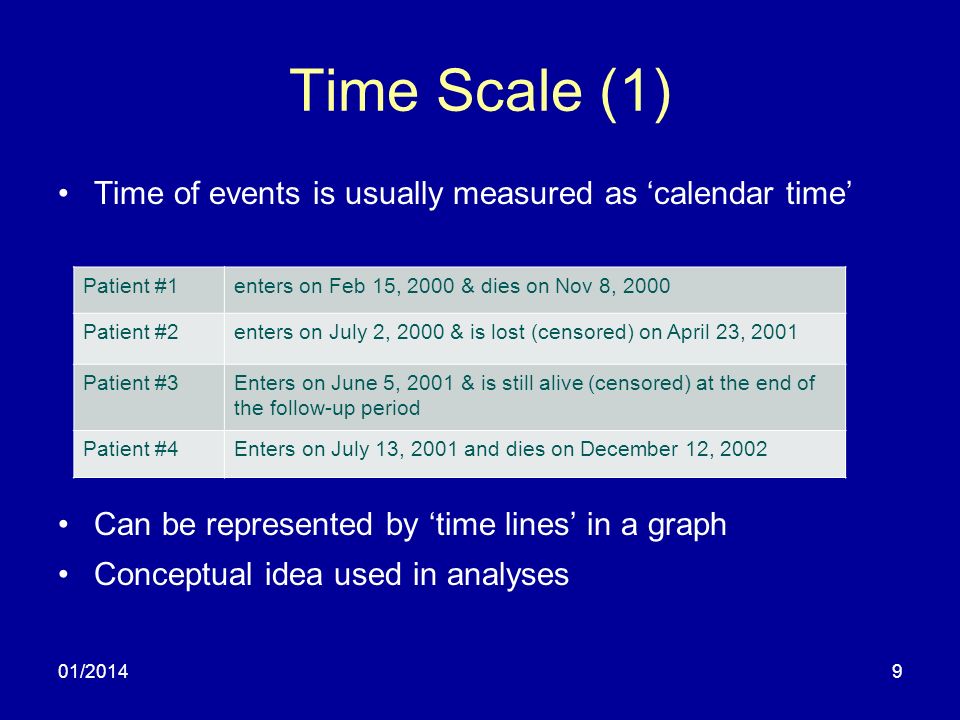

9. 01/20149 Time Scale (1) Time of events is usually measured as ‘calendar time’ Can be represented by ‘time lines’ in a graph Conceptual idea used in analyses Patient #1enters on Feb 15, 2000 & dies on Nov 8, 2000 Patient #2enters on July 2, 2000 & is lost (censored) on April 23, 2001 Patient #3Enters on June 5, 2001 & is still alive (censored) at the end of the follow-up period Patient #4Enters on July 13, 2001 and dies on December 12, 2002

10. 01/201410 D D C C

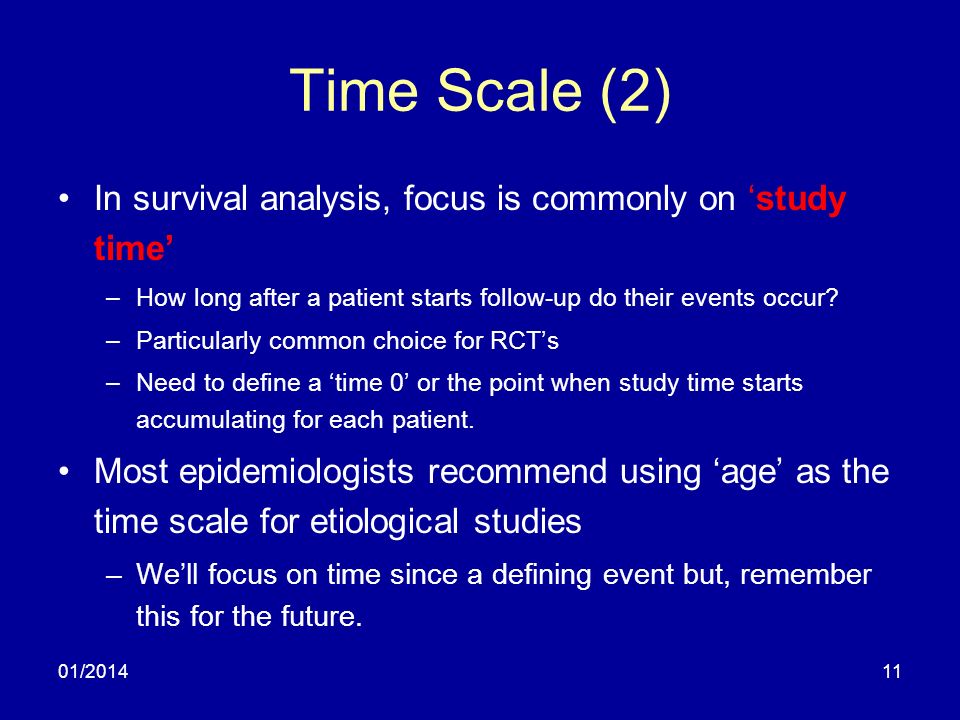

11. 01/201411 Time Scale (2) In survival analysis, focus is commonly on ‘study time’ –How long after a patient starts follow-up do their events occur? –Particularly common choice for RCT’s –Need to define a ‘time 0’ or the point when study time starts accumulating for each patient. Most epidemiologists recommend using ‘age’ as the time scale for etiological studies –We’ll focus on time since a defining event but, remember this for the future.

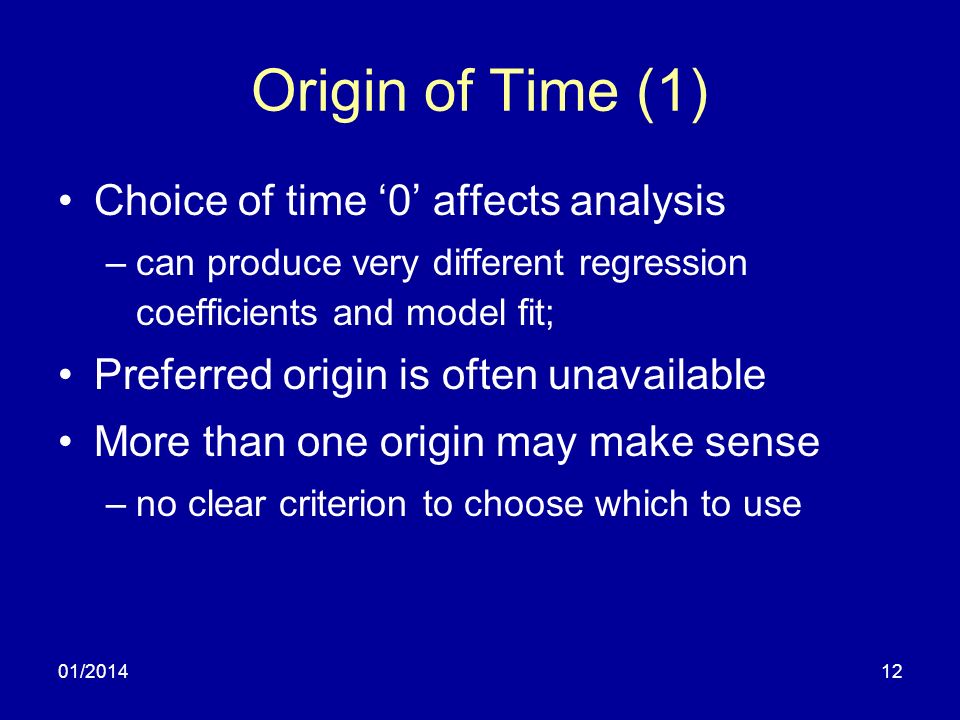

12. 01/201412 Origin of Time (1) Choice of time ‘0’ affects analysis –can produce very different regression coefficients and model fit; Preferred origin is often unavailable More than one origin may make sense –no clear criterion to choose which to use

13. 01/201413 Time ‘0’ (2) No best time ‘0’ for all situations –Depends on study objectives and design RCT of Rx –‘0’ = date of randomization Prognostic study –‘0’ = date of disease onset –Inception cohort –Often use: date of disease diagnosis

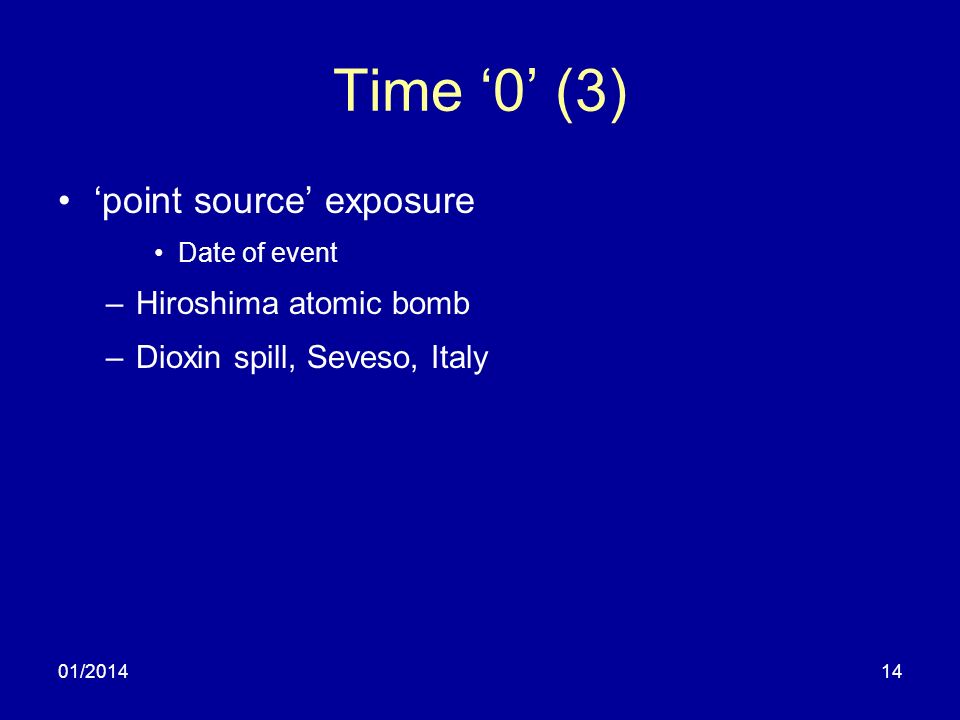

14. 01/201414 Time ‘0’ (3) ‘point source’ exposure Date of event –Hiroshima atomic bomb –Dioxin spill, Seveso, Italy

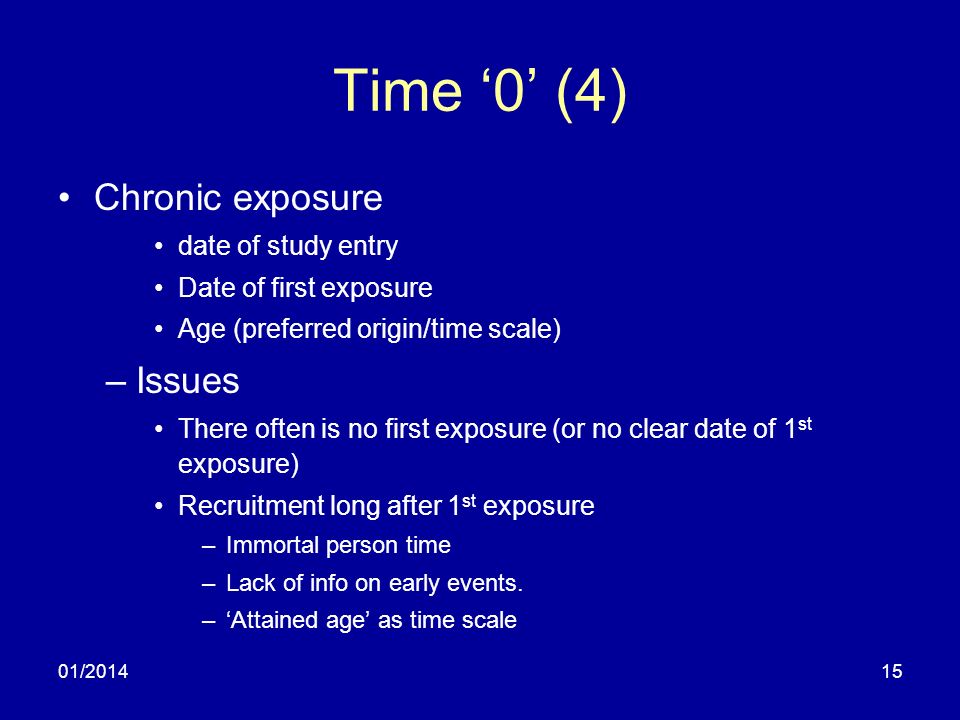

15. 01/201415 Time ‘0’ (4) Chronic exposure date of study entry Date of first exposure Age (preferred origin/time scale) –Issues There often is no first exposure (or no clear date of 1 st exposure) Recruitment long after 1 st exposure –Immortal person time –Lack of info on early events. –‘Attained age’ as time scale

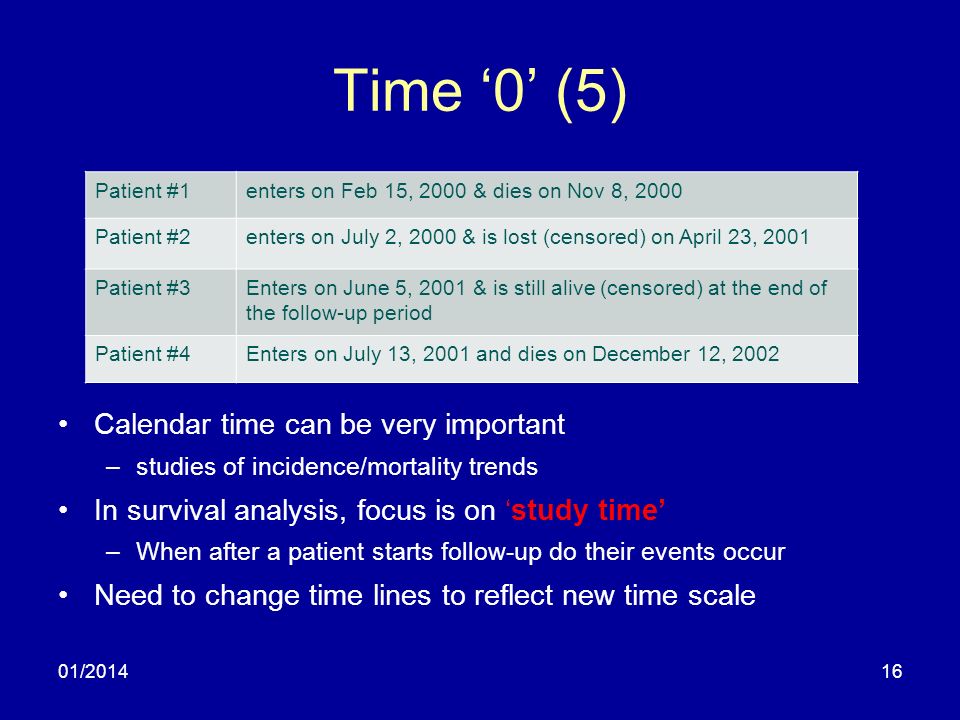

16. 01/201416 Time ‘0’ (5) Calendar time can be very important –studies of incidence/mortality trends In survival analysis, focus is on ‘study time’ –When after a patient starts follow-up do their events occur Need to change time lines to reflect new time scale Patient #1enters on Feb 15, 2000 & dies on Nov 8, 2000 Patient #2enters on July 2, 2000 & is lost (censored) on April 23, 2001 Patient #3Enters on June 5, 2001 & is still alive (censored) at the end of the follow-up period Patient #4Enters on July 13, 2001 and dies on December 12, 2002

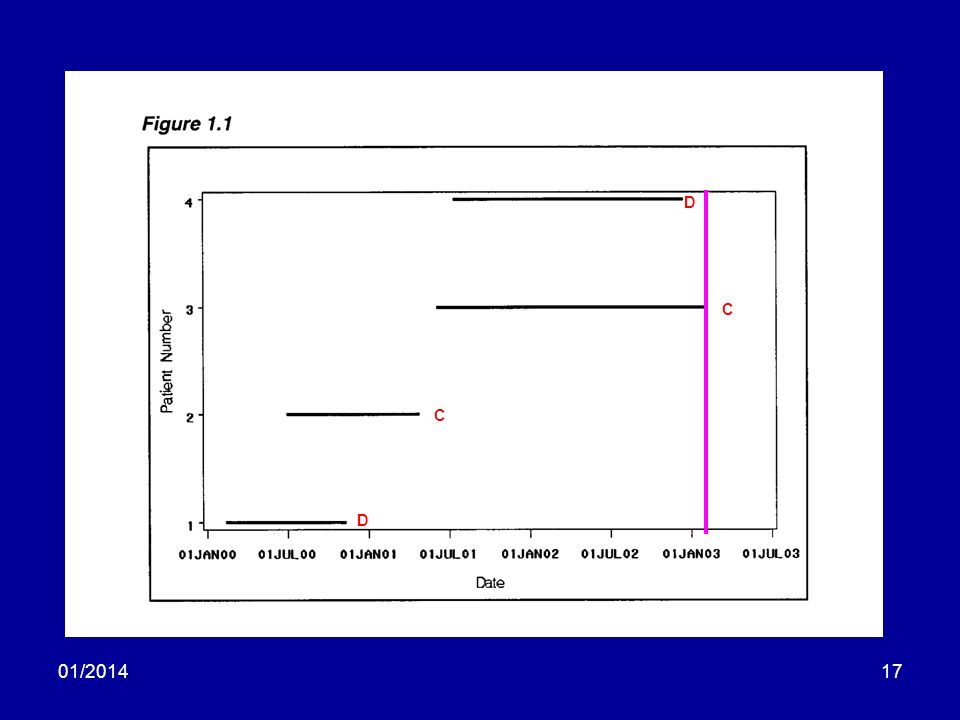

17. 01/201417 D D C C

18. 01/201418 D D C C

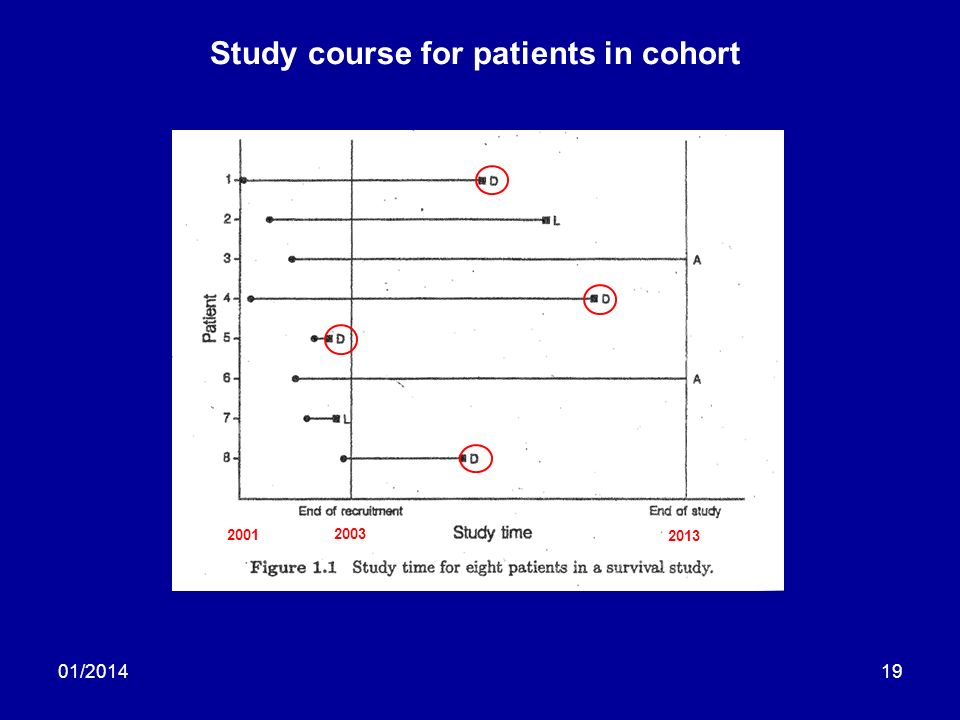

19. 01/201419 Study course for patients in cohort 2001 2003 2013

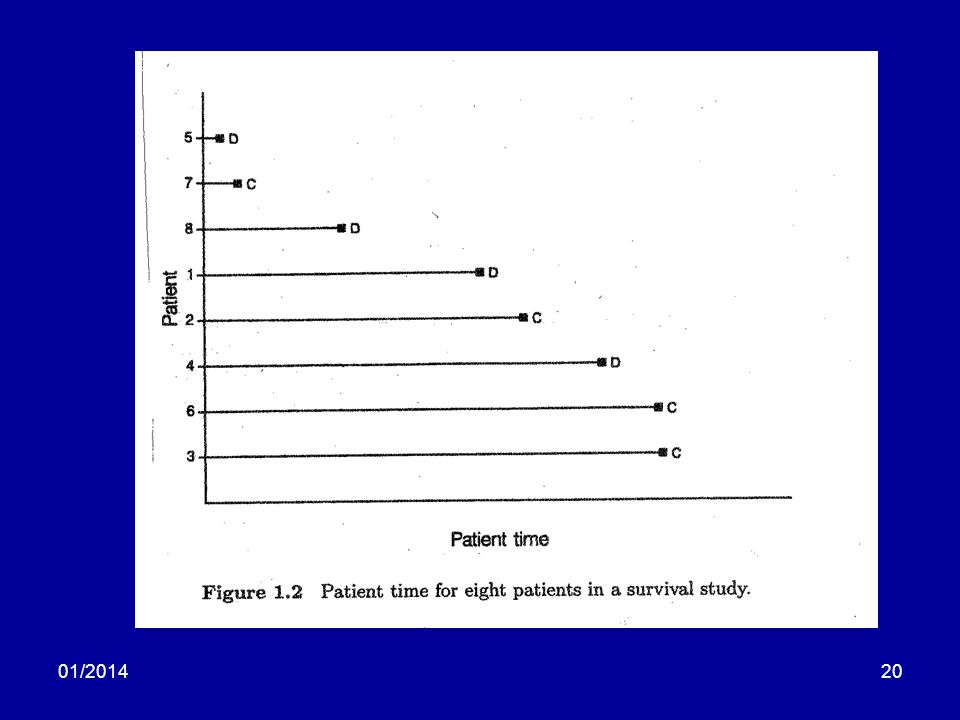

20. 01/201420

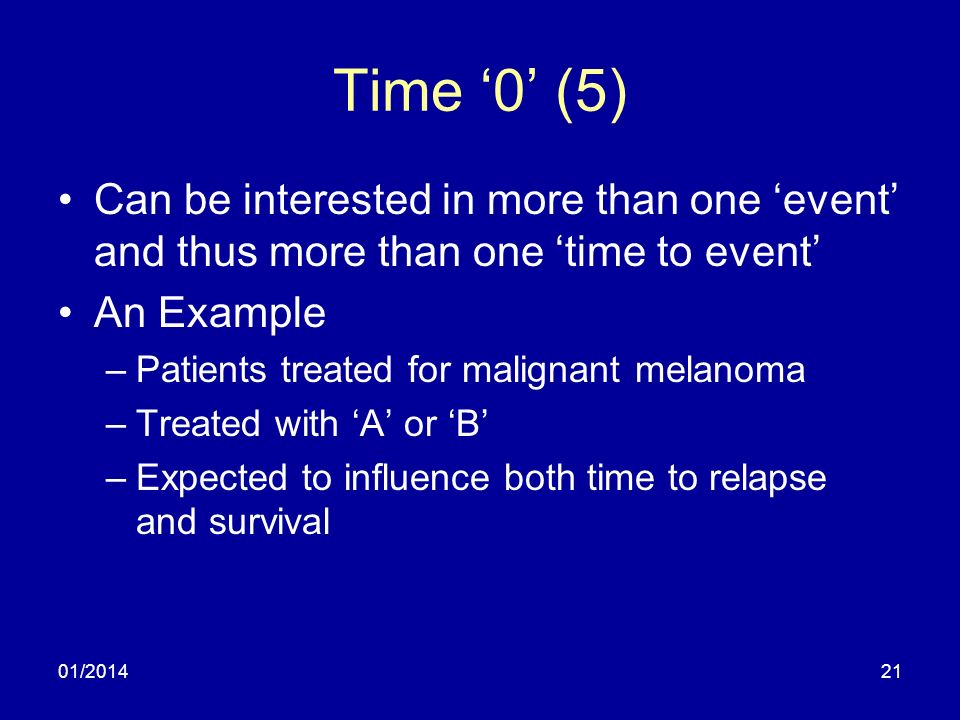

21. 01/201421 Time ‘0’ (5) Can be interested in more than one ‘event’ and thus more than one ‘time to event’ An Example –Patients treated for malignant melanoma –Treated with ‘A’ or ‘B’ –Expected to influence both time to relapse and survival

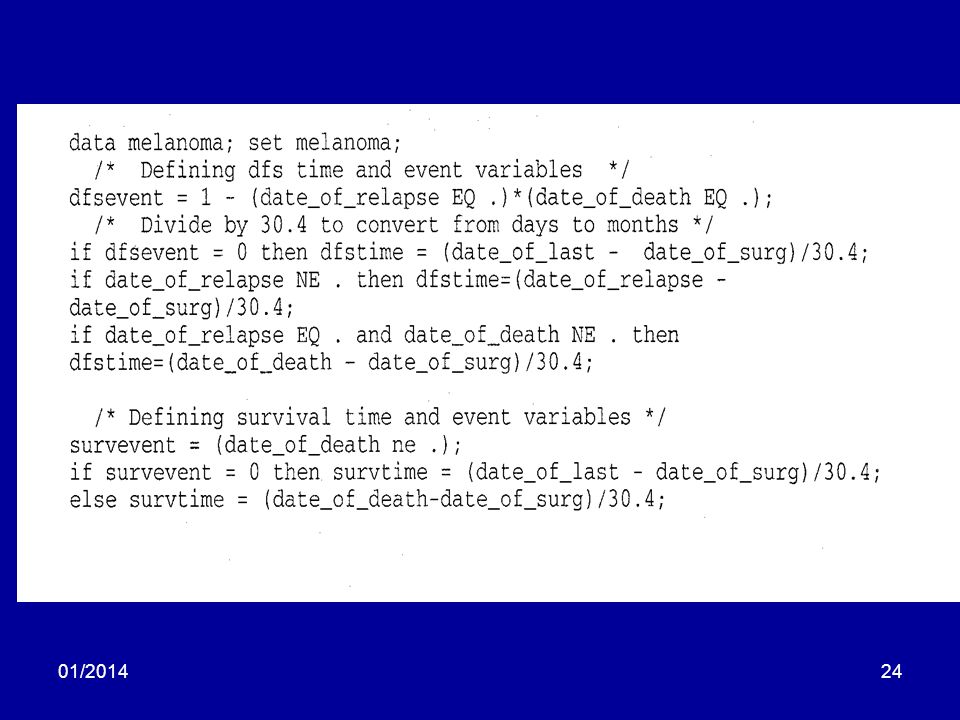

22. 01/201422 Time ‘0’ (6) Some studies have more than one outcome event Let’s use this to illustrate SAS code to compute time- to-event. Four time points: –Date of surgery: Time ‘0’ –Relapse –Death –Last follow-up (if still alive without relapse.) Event #1: earliest of relapse/death/end Event #2: Earliest of death/end

23. 01/201423 Time ‘0’ How do we compute the ‘time on study’ for each of these events? Convert to days (weeks, months, years) from time ‘0’ for each person SAS reads date data using ‘date format’ stored as # days since Jan 1, 1960.

24. 01/201424

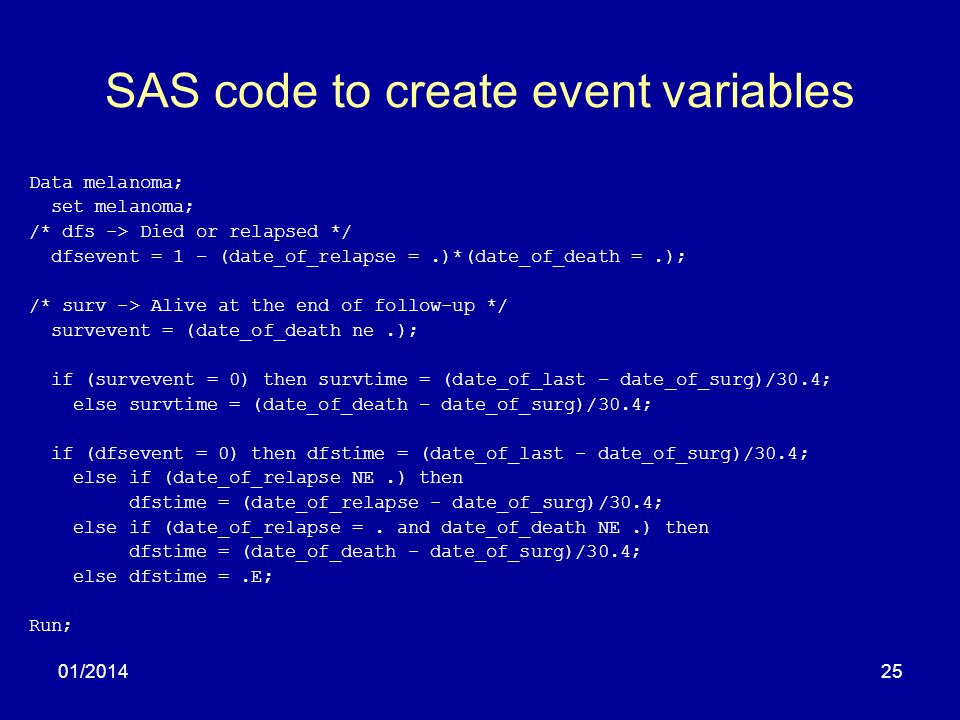

25. SAS code to create event variables Data melanoma; set melanoma; /* dfs -> Died or relapsed */ dfsevent = 1 – (date_of_relapse =.)*(date_of_death =.); /* surv -> Alive at the end of follow-up */ survevent = (date_of_death ne.); if (survevent = 0) then survtime = (date_of_last – date_of_surg)/30.4; else survtime = (date_of_death – date_of_surg)/30.4; if (dfsevent = 0) then dfstime = (date_of_last - date_of_surg)/30.4; else if (date_of_relapse NE.) then dfstime = (date_of_relapse - date_of_surg)/30.4; else if (date_of_relapse =. and date_of_death NE.) then dfstime = (date_of_death - date_of_surg)/30.4; else dfstime =.E; Run; 01/201425

26. 01/201426

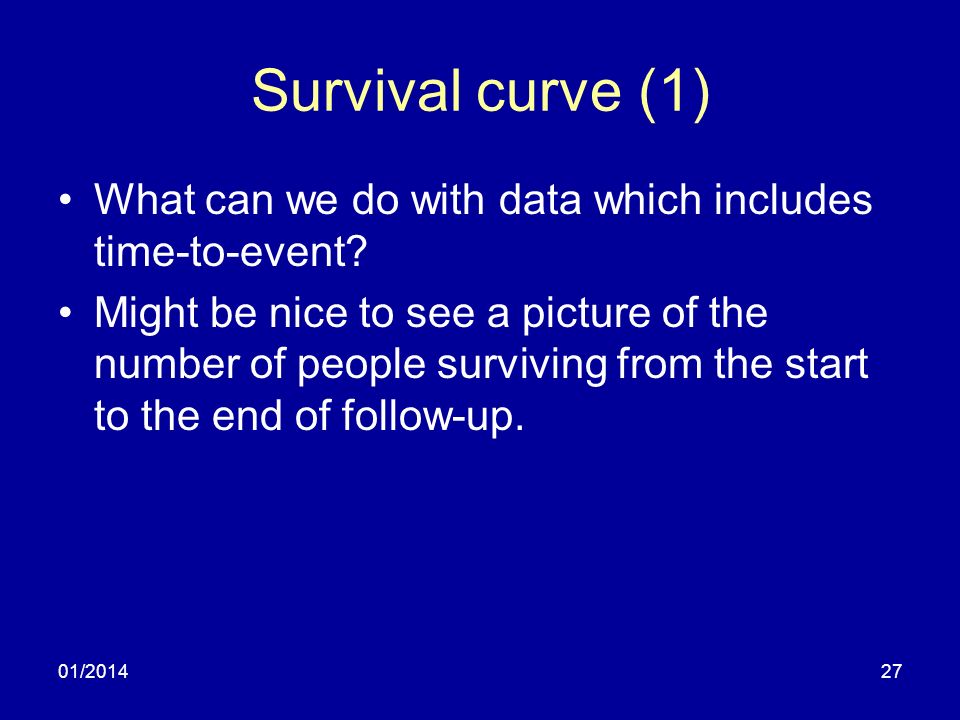

27. 01/201427 Survival curve (1) What can we do with data which includes time-to-event? Might be nice to see a picture of the number of people surviving from the start to the end of follow-up.

28. Sample Data: Mortality, no losses Year# still alive# dying in the year 200010,0002,000 2001 8,0001,600 2002 6,4001,280 2003 5,1201,024 2004 4,096 820 01/201428

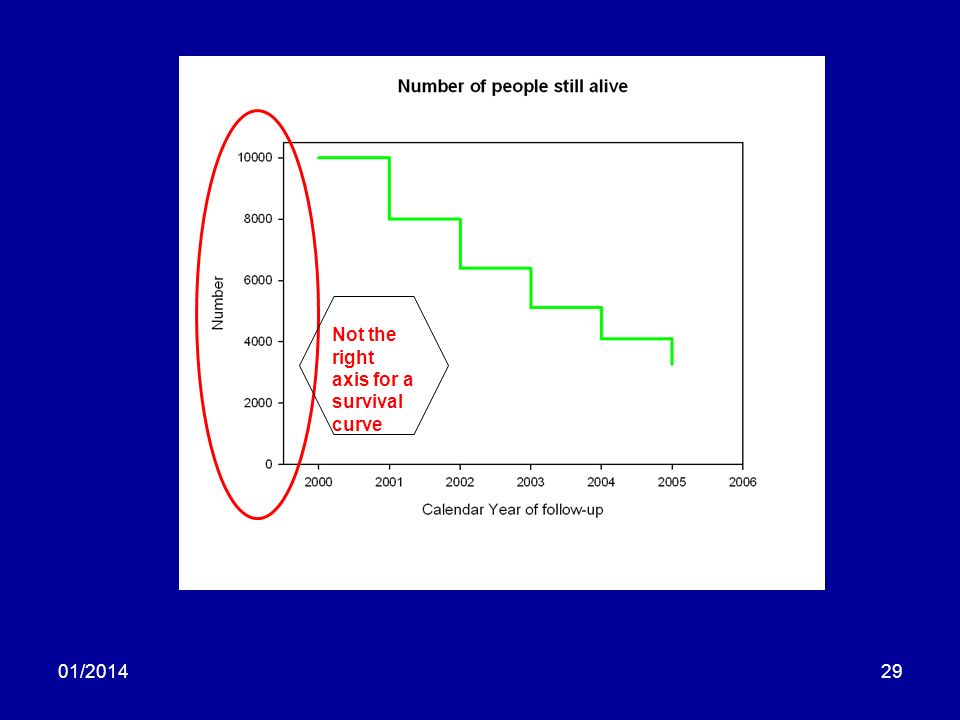

29. 01/201429 Not the right axis for a survival curve

30. 01/201430 Survival curve (2) Previous graph has a problem –What if some people were lost to follow-up? –Plotting the number of people still alive would effectively say that the lost people had all died.

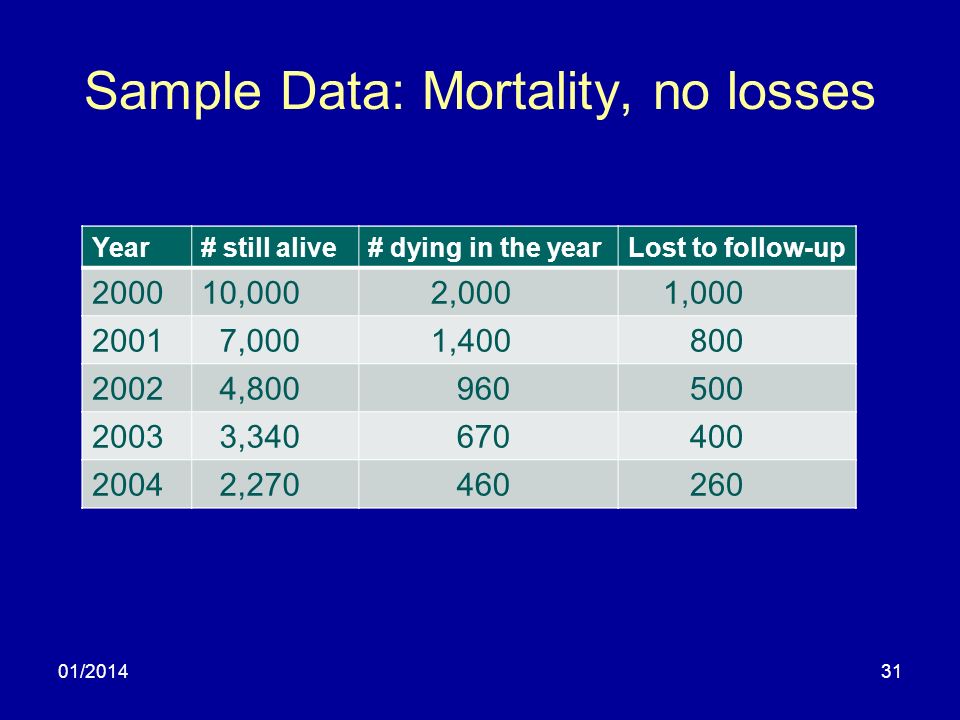

31. Sample Data: Mortality, no losses 01/201431 Year# still alive# dying in the yearLost to follow-up 200010,000 2,000 1,000 2001 2002 2003 2004 Year# still alive# dying in the yearLost to follow-up 200010,000 2,000 1,000 2001 7,000 2002 2003 2004 Year# still alive# dying in the yearLost to follow-up 200010,000 2,000 1,000 2001 7,000 1,400 800 2002 4,800 960 500 2003 3,340 670 400 2004 2,270 460 260

32. 01/201432

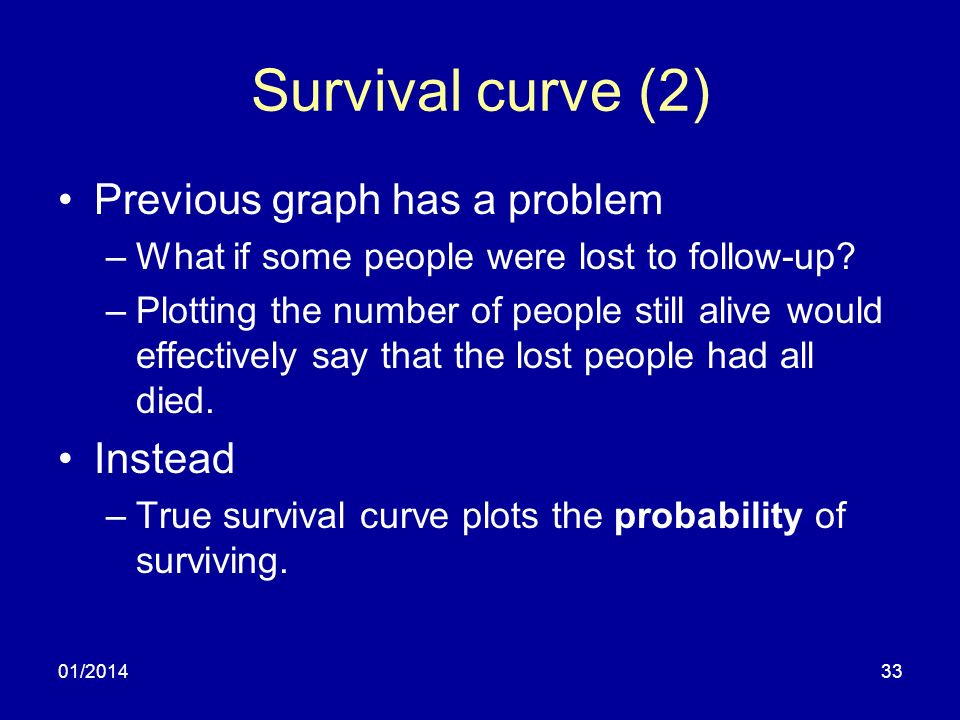

33. 01/201433 Survival curve (2) Previous graph has a problem –What if some people were lost to follow-up? –Plotting the number of people still alive would effectively say that the lost people had all died. Instead –True survival curve plots the probability of surviving.

34. 01/201434

35. 01/201435

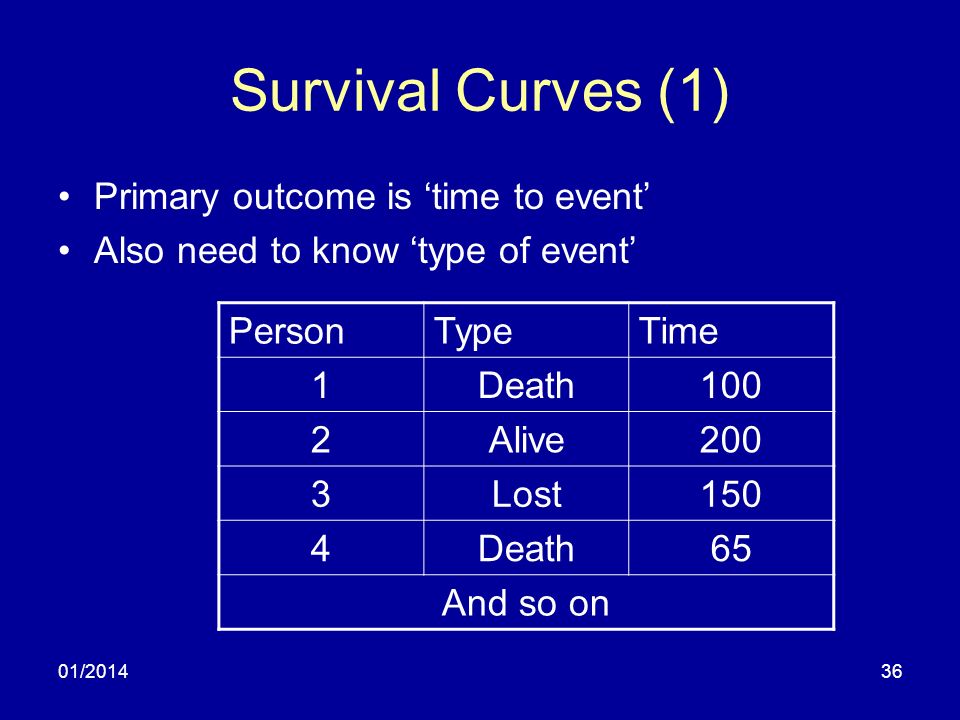

36. 01/201436 Survival Curves (1) Primary outcome is ‘time to event’ Also need to know ‘type of event’ PersonTypeTime 1Death100 2Alive200 3Lost150 4Death65 And so on

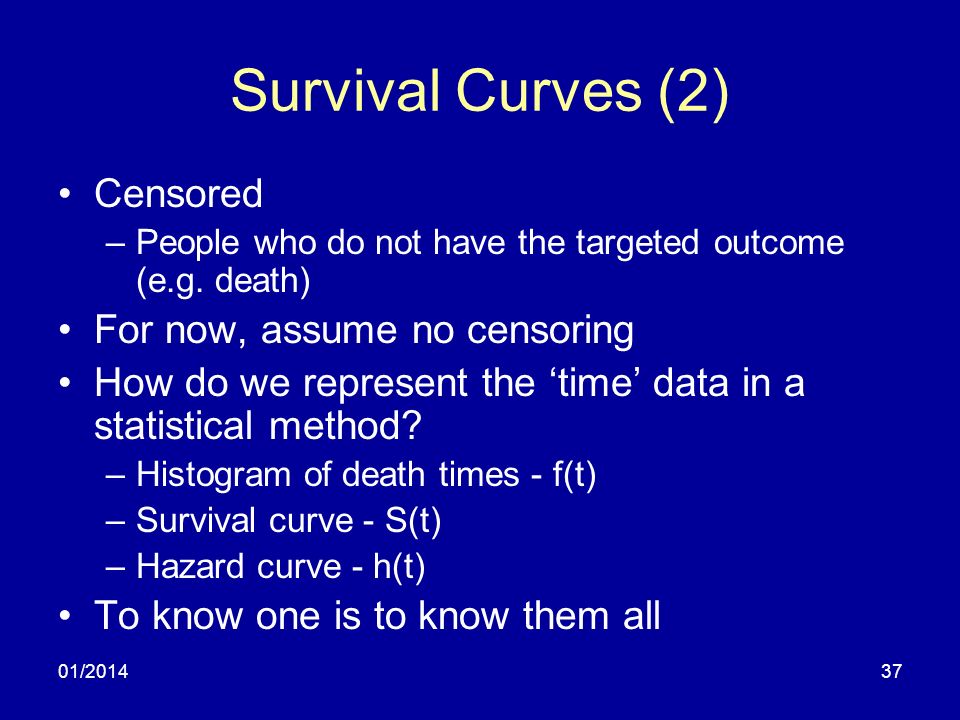

37. 01/201437 Survival Curves (2) Censored –People who do not have the targeted outcome (e.g. death) For now, assume no censoring How do we represent the ‘time’ data in a statistical method? –Histogram of death times - f(t) –Survival curve - S(t) –Hazard curve - h(t) To know one is to know them all

38. 01/201438 Histogram of death time -Skewed to right -pdf or f(t) -CDF or F(t) -Area under ‘pdf’ from ‘0’ to ‘t’ t F(t)

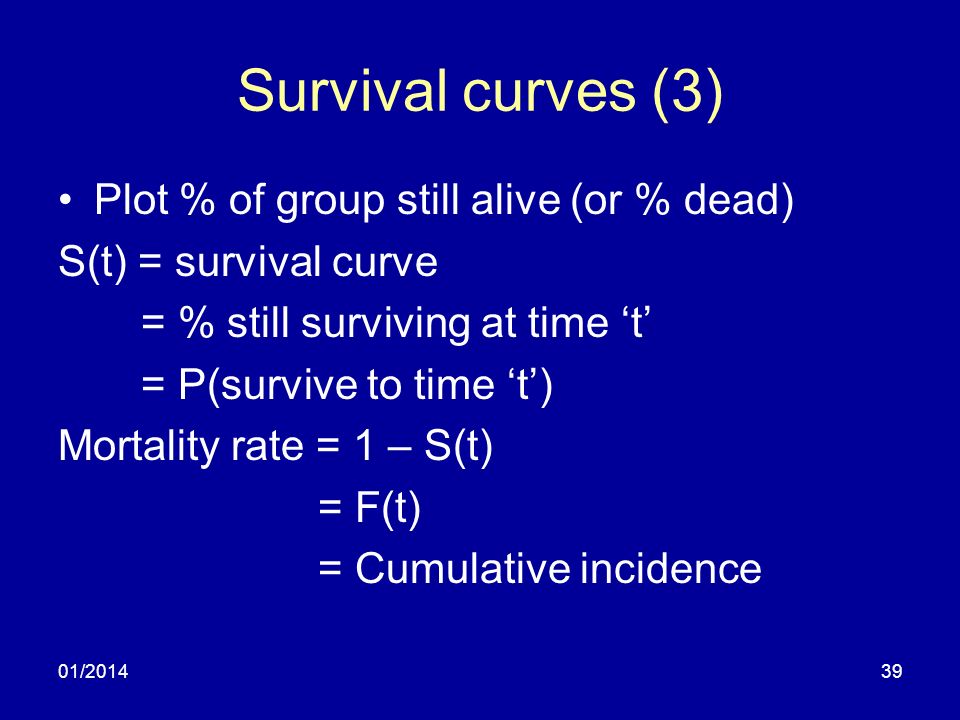

39. 01/201439 Survival curves (3) Plot % of group still alive (or % dead) S(t) = survival curve = % still surviving at time ‘t’ = P(survive to time ‘t’) Mortality rate = 1 – S(t) = F(t) = Cumulative incidence

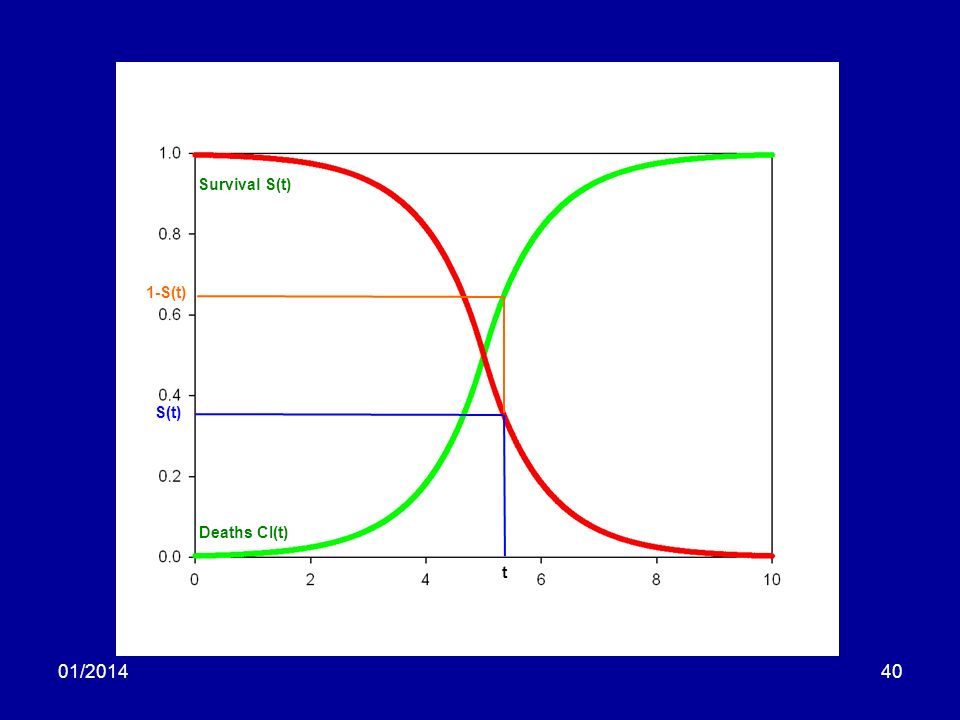

40. 01/201440 Deaths CI(t) Survival S(t) t S(t) 1-S(t)

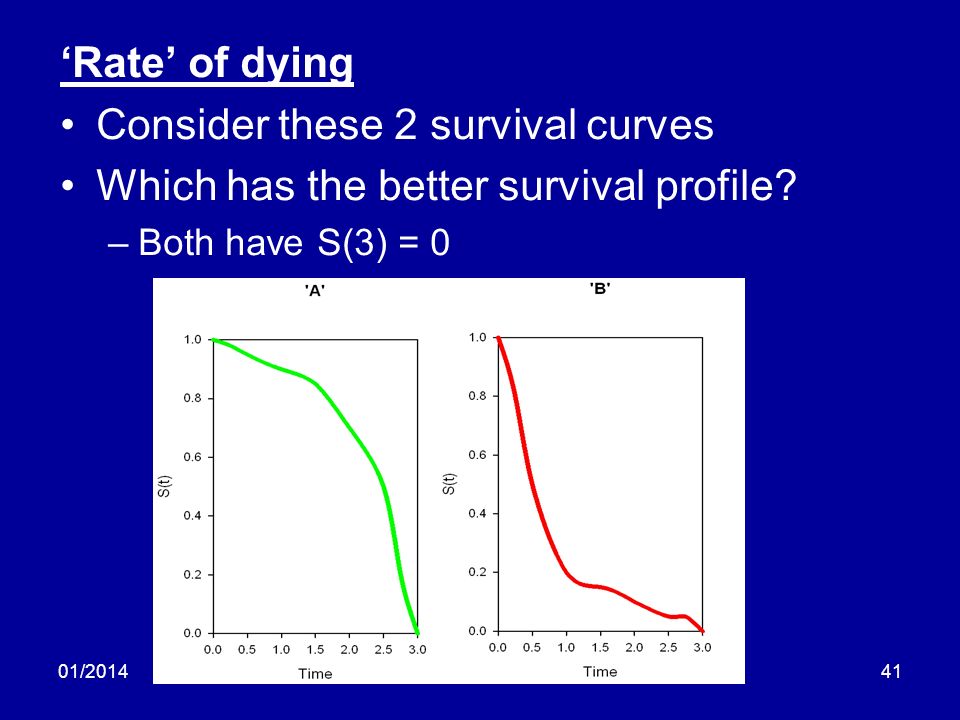

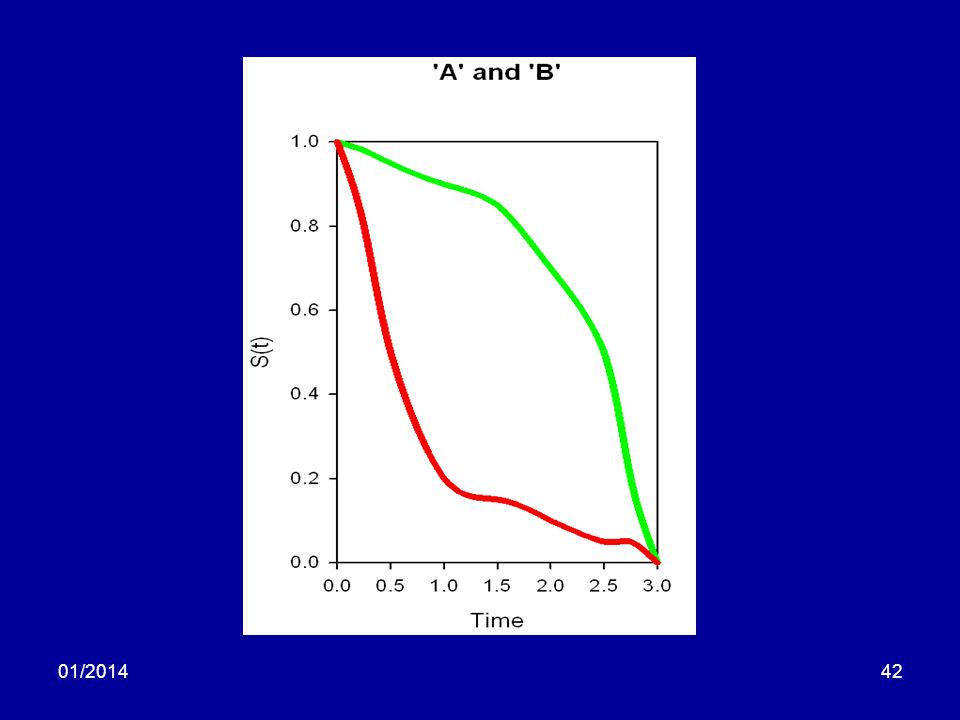

41. 01/201441 ‘Rate’ of dying Consider these 2 survival curves Which has the better survival profile? –Both have S(3) = 0

42. 01/201442

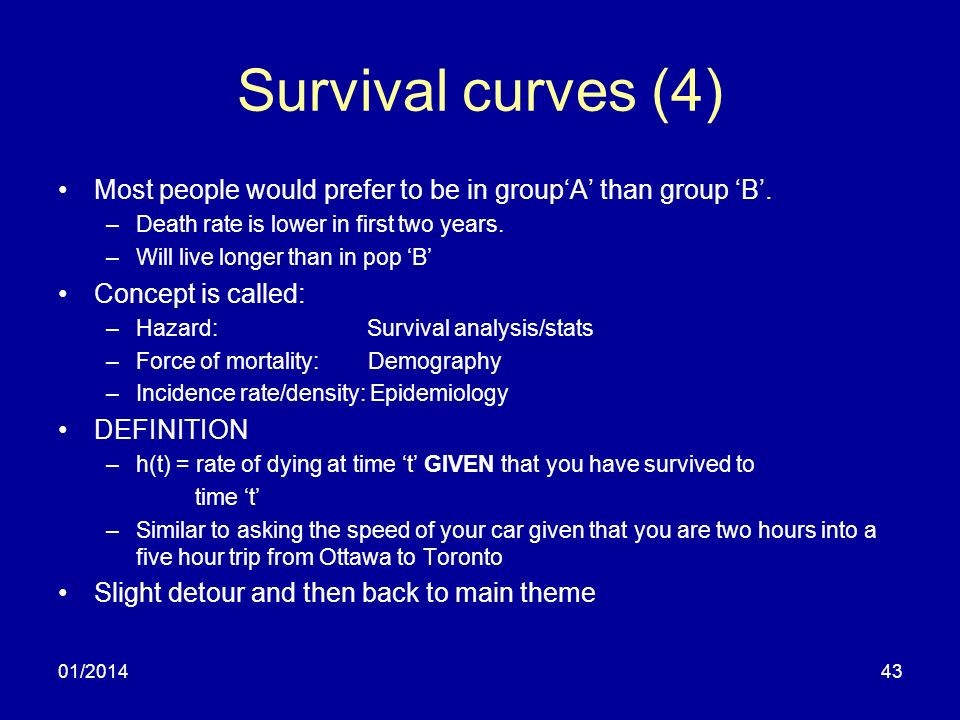

43. 01/201443 Survival curves (4) Most people would prefer to be in group‘A’ than group ‘B’. –Death rate is lower in first two years. –Will live longer than in pop ‘B’ Concept is called: –Hazard: Survival analysis/stats –Force of mortality: Demography –Incidence rate/density: Epidemiology DEFINITION –h(t) = rate of dying at time ‘t’ GIVEN that you have survived to time ‘t’ –Similar to asking the speed of your car given that you are two hours into a five hour trip from Ottawa to Toronto Slight detour and then back to main theme

44. 01/201444 Conditional Probability h(t 0 ) = rate of failing at ‘t 0 ’ conditional on surviving to t 0 Requires the ‘conditional survival curve’: Essentially, you are re-scaling S(t) so that S * (t 0 ) = 1.0 Survival Curves (5)

45. 01/201445 S(t 0 ) t0t0 t0t0

46. 01/201446 S * (t) = survival curve conditional on surviving to ‘t 0 ‘ CI * (t) = failure/death/cumulative incidence at ‘t’ conditional on surviving to ‘t 0 ‘ Hazard at t 0 is defined as: ‘the slope of CI * (t) at t 0 ’ Hazard (instantaneous) Force of Mortality Incidence rate Incidence density Range: 0  ∞

47. 01/201447 Some relationships If the rate of disease is small: CI(t) ≈ H(t) If we assume h(t) is constant (= ID): CI(t)≈ID*t

48. 01/201448 Some survival functions (1) Exponential –h(t) = λ –S(t) = exp (- λt) Underlies most of the ‘standard’ epidemiological formulae. Assumes that the hazard is constant over time –Big assumption which is not usually true

49. 01/201449

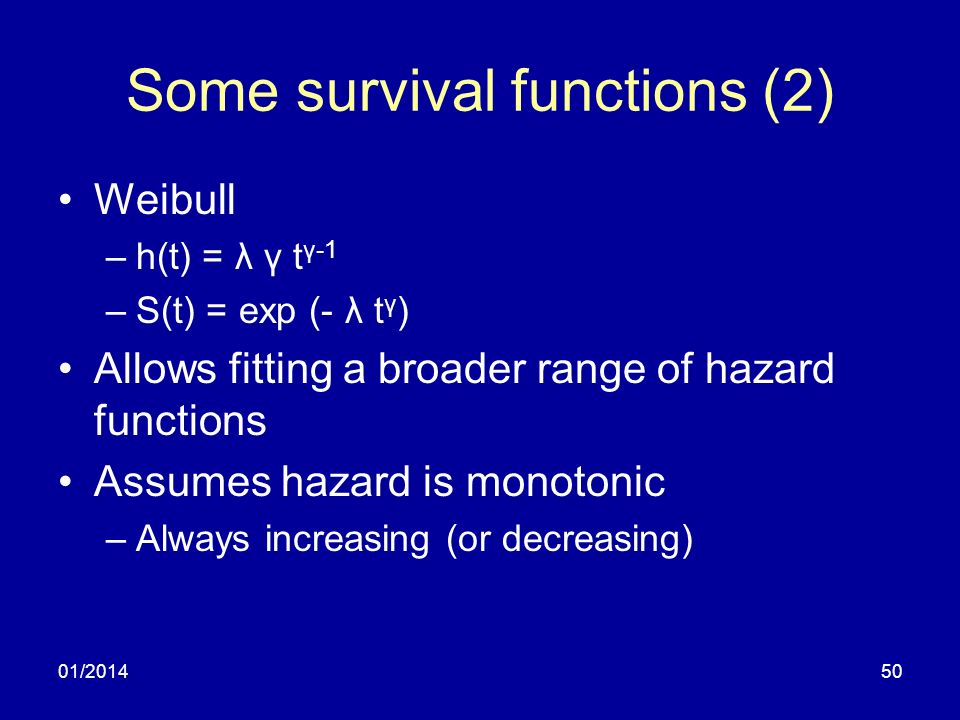

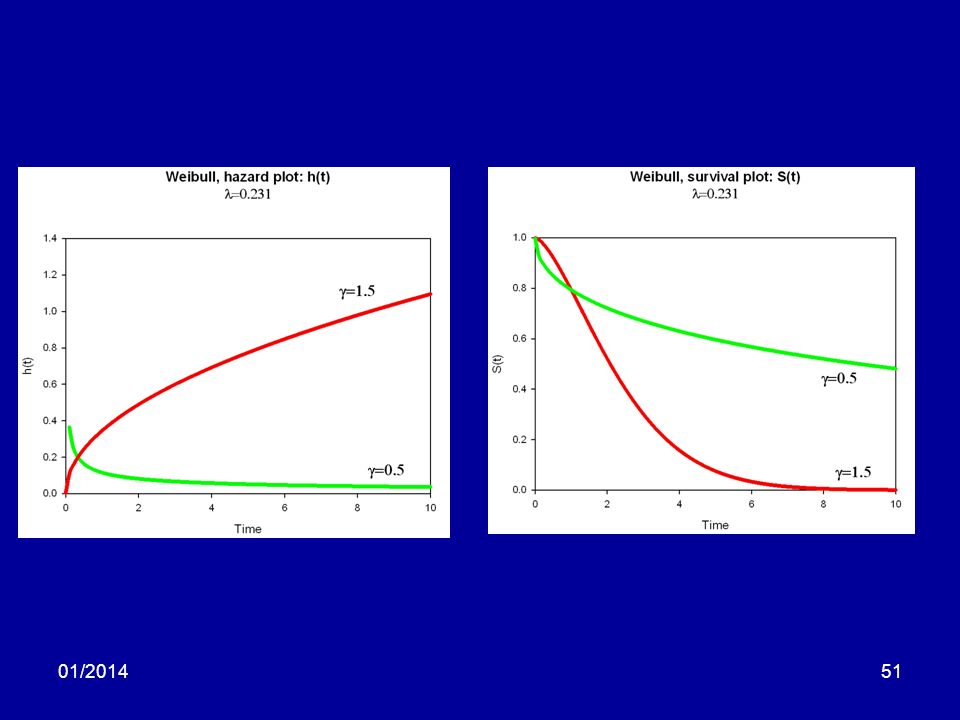

50. 01/201450 Some survival functions (2) Weibull –h(t) = λ γ t γ-1 –S(t) = exp (- λ t γ ) Allows fitting a broader range of hazard functions Assumes hazard is monotonic –Always increasing (or decreasing)

51. 01/201451

52. 01/201452 Hazard curves (2)

53. 01/201453 Hazard curves (3)

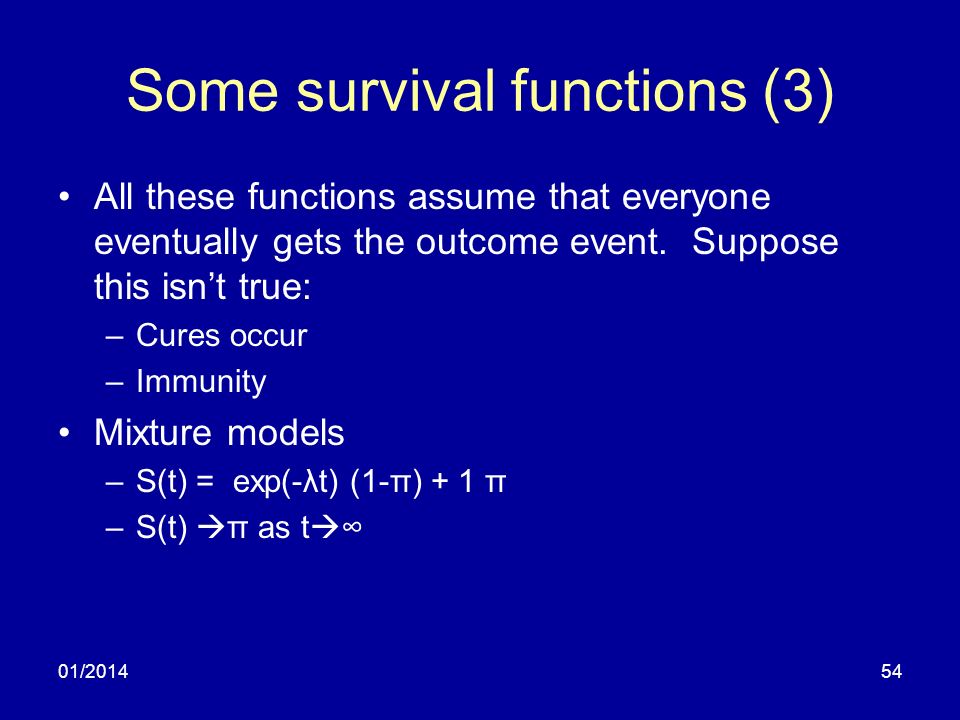

54. 01/201454 Some survival functions (3) All these functions assume that everyone eventually gets the outcome event. Suppose this isn’t true: –Cures occur –Immunity Mixture models –S(t) = exp(-λt) (1-π) + 1 π –S(t)  π as t  ∞

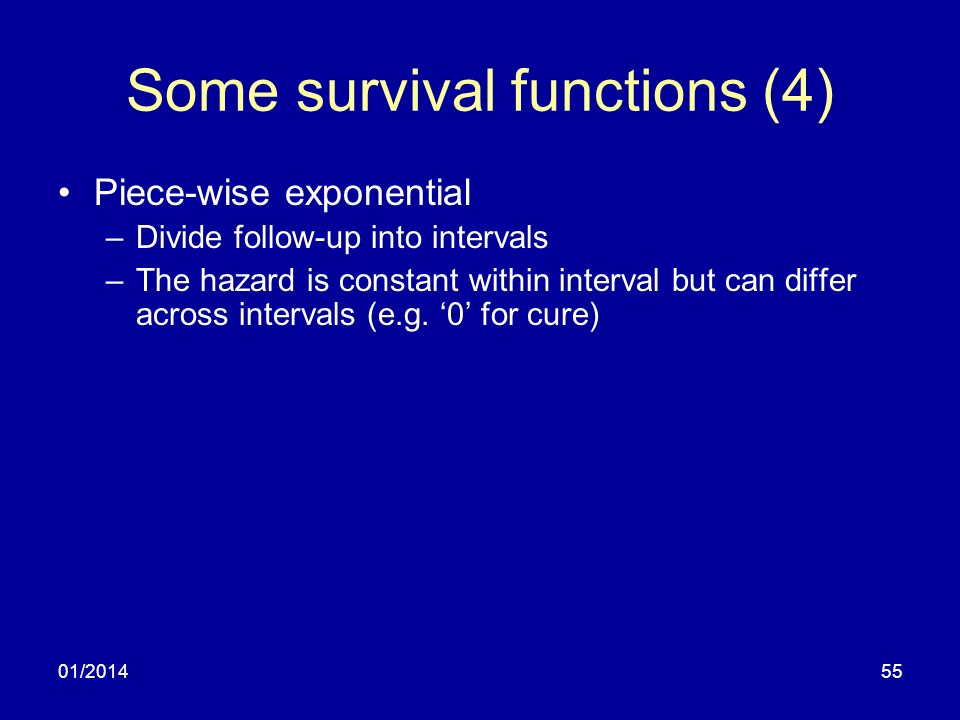

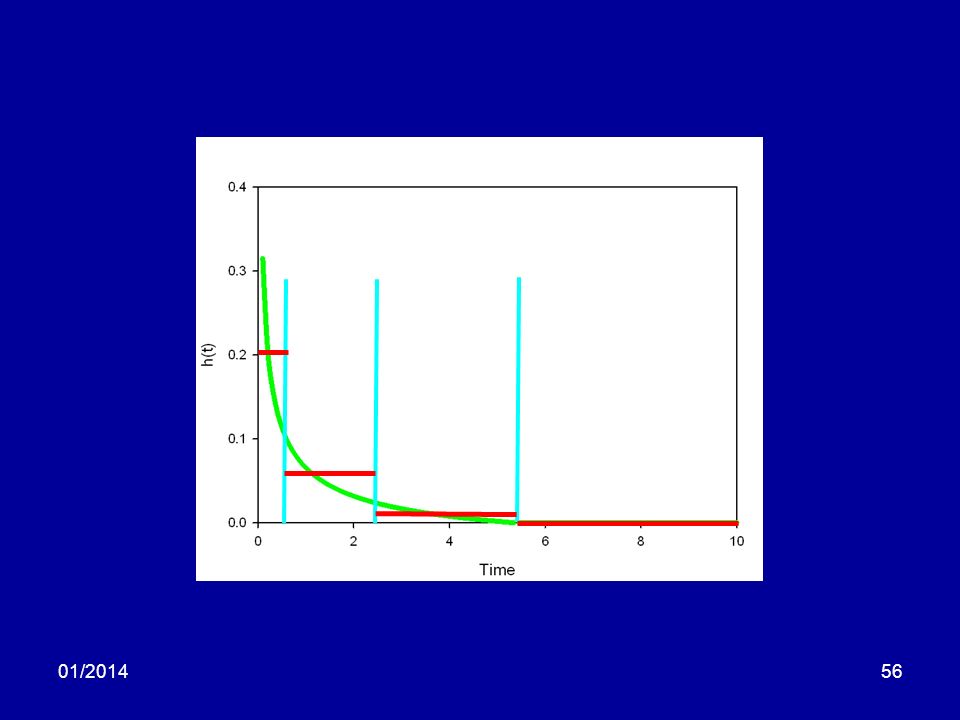

55. 01/201455 Some survival functions (4) Piece-wise exponential –Divide follow-up into intervals –The hazard is constant within interval but can differ across intervals (e.g. ‘0’ for cure)

56. 01/201456

57. 01/201457 Some survival functions (5) Piece-wise exponential –Divide follow-up into intervals –The hazard is constant within interval but can differ across intervals (e.g. ‘0’ for cure) Gompertz Model –Uses a functional form for S(t) which goes to a fixed, non-zero value after a finite time

58. 01/201458 Censoring (1) So much for theory In real world, we run into practical issues: –May only know that subject was disease-free up to time ‘t’ but then you lost track of them –May only know subject got disease before time ‘t’ –May only know subject got disease between two exam dates. –May know subject must have been outcome-free for the first ‘x’ years of follow-up (immortal person-time) –Can’t measure time to infinite precision Often only know year of event –Exact time of event might not even exist in theory

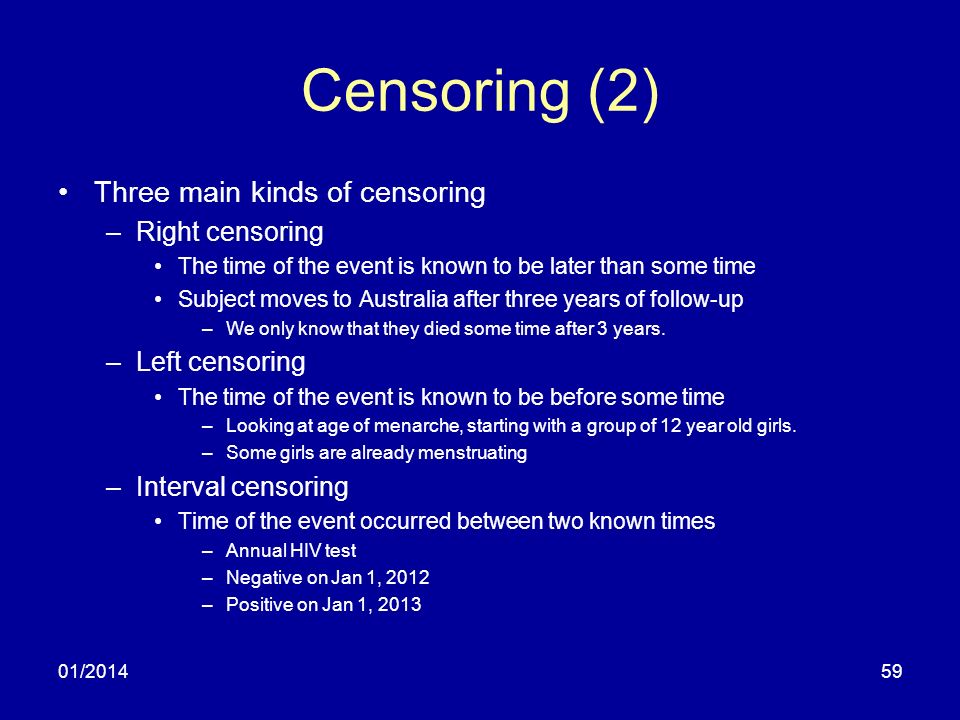

59. Censoring (2) Three main kinds of censoring –Right censoring The time of the event is known to be later than some time Subject moves to Australia after three years of follow-up –We only know that they died some time after 3 years. –Left censoring The time of the event is known to be before some time –Looking at age of menarche, starting with a group of 12 year old girls. –Some girls are already menstruating –Interval censoring Time of the event occurred between two known times –Annual HIV test –Negative on Jan 1, 2012 –Positive on Jan 1, 2013 01/201459

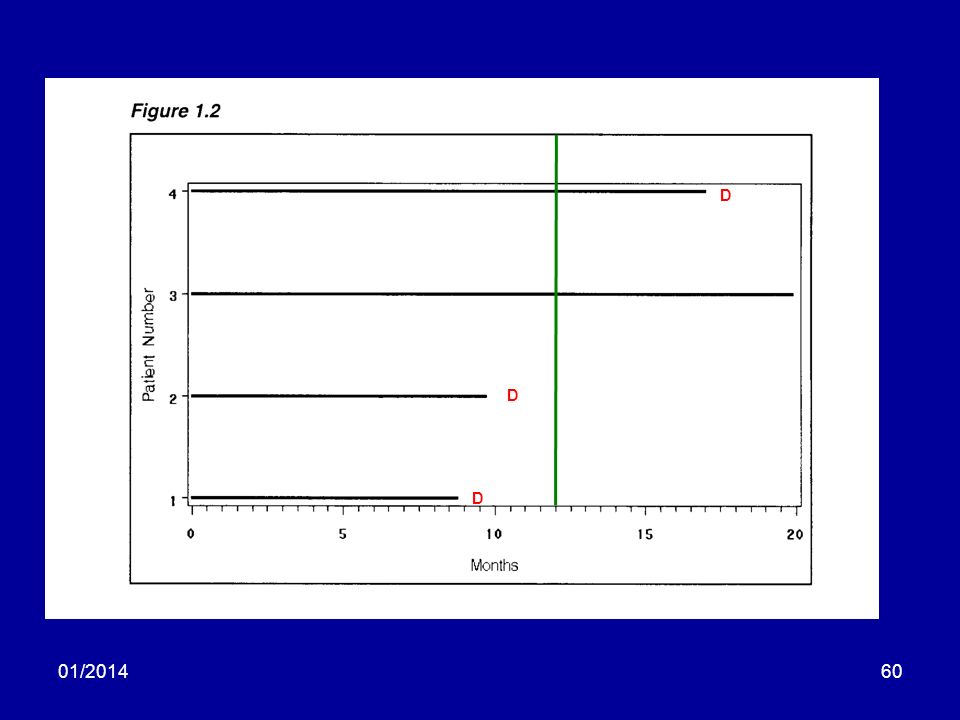

60. 01/201460 D D D

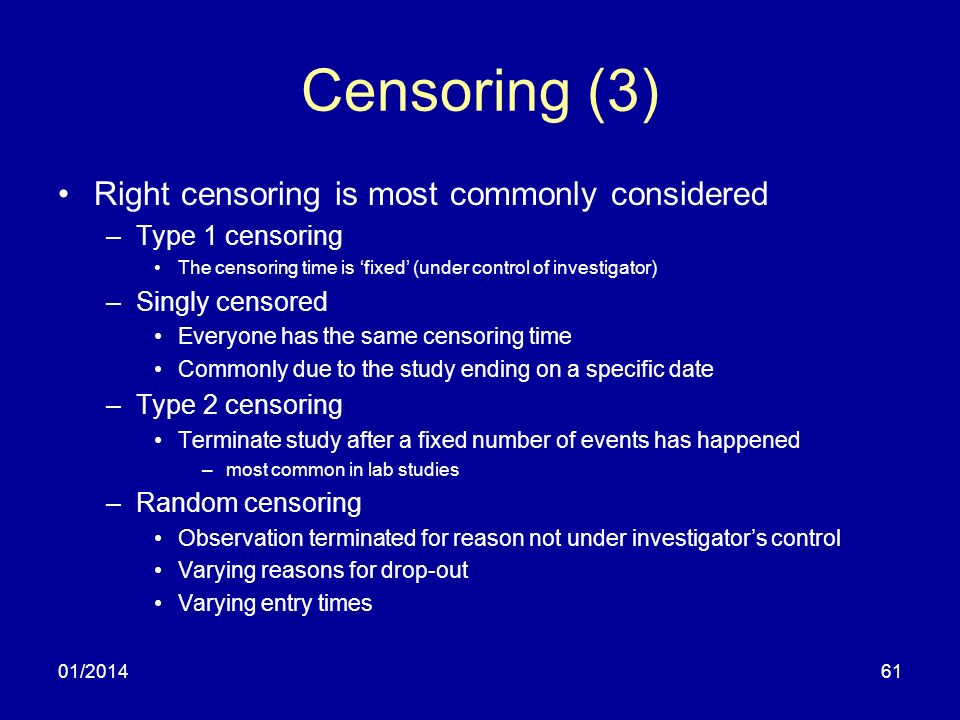

61. 01/201461 Censoring (3) Right censoring is most commonly considered –Type 1 censoring The censoring time is ‘fixed’ (under control of investigator) –Singly censored Everyone has the same censoring time Commonly due to the study ending on a specific date –Type 2 censoring Terminate study after a fixed number of events has happened –most common in lab studies –Random censoring Observation terminated for reason not under investigator’s control Varying reasons for drop-out Varying entry times

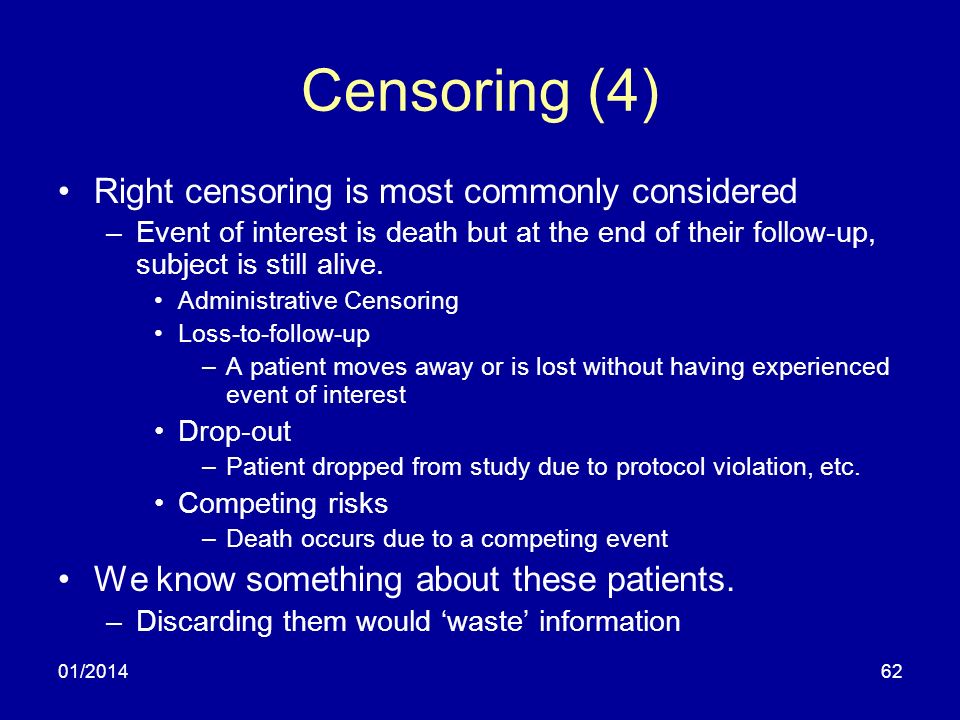

62. 01/201462 Censoring (4) Right censoring is most commonly considered –Event of interest is death but at the end of their follow-up, subject is still alive. Administrative Censoring Loss-to-follow-up –A patient moves away or is lost without having experienced event of interest Drop-out –Patient dropped from study due to protocol violation, etc. Competing risks –Death occurs due to a competing event We know something about these patients. –Discarding them would ‘waste’ information

63. 01/201463 Study course for patients in cohort 2001 2003 2013

64. 01/201464 Censoring (5) Standard analysis ignores method used to generate censoring. Type 1/2 methods are fine ‘Random’ censoring can be a problem. –Informative vs. uninformative censoring Standard analyses require ‘uninformative’ censoring –The development of the outcome in subjects who are censored must be the same as in the subjects who remained in follow-up

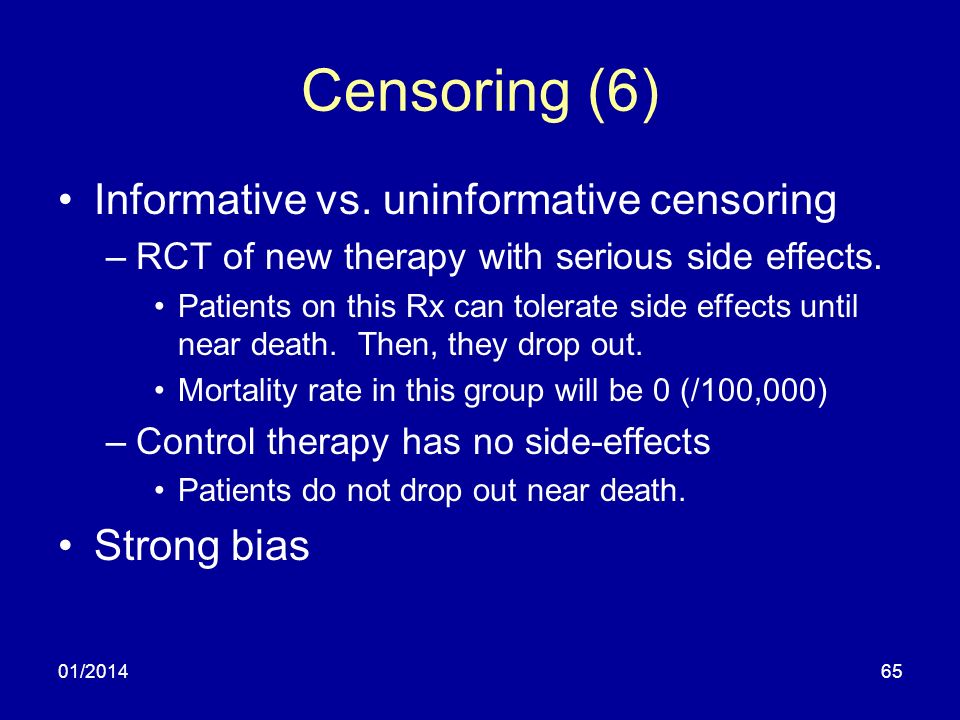

65. 01/201465 Censoring (6) Informative vs. uninformative censoring –RCT of new therapy with serious side effects. Patients on this Rx can tolerate side effects until near death. Then, they drop out. Mortality rate in this group will be 0 (/100,000) –Control therapy has no side-effects Patients do not drop out near death. Strong bias

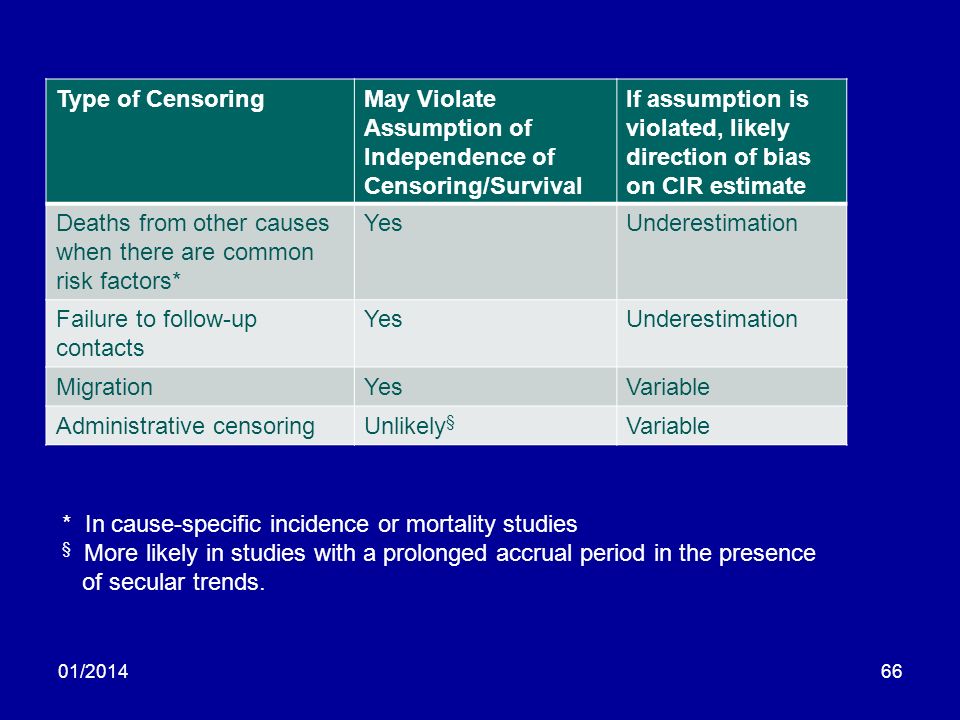

66. 01/201466 Type of CensoringMay Violate Assumption of Independence of Censoring/Survival If assumption is violated, likely direction of bias on CIR estimate Deaths from other causes when there are common risk factors* YesUnderestimation Failure to follow-up contacts YesUnderestimation MigrationYesVariable Administrative censoringUnlikely § Variable * In cause-specific incidence or mortality studies § More likely in studies with a prolonged accrual period in the presence of secular trends.

67. 01/201467
