1. Video Optical Multiplexer 2008-4-9

2. Raisecom Video Optical Multiplexer Video Optical Multiplexer Product Line Product Features How to deploy an order

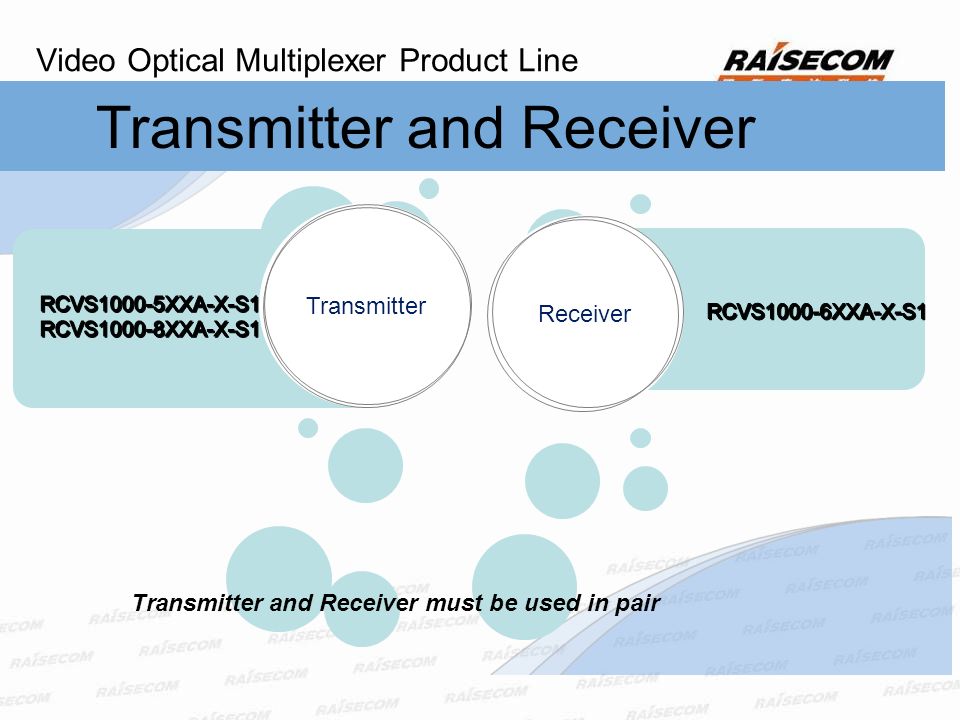

3. Video Optical Multiplexer Product Line Transmitter Elliot Glausiusz Strategy Receiver Transmitter and Receiver Transmitter and Receiver must be used in pair

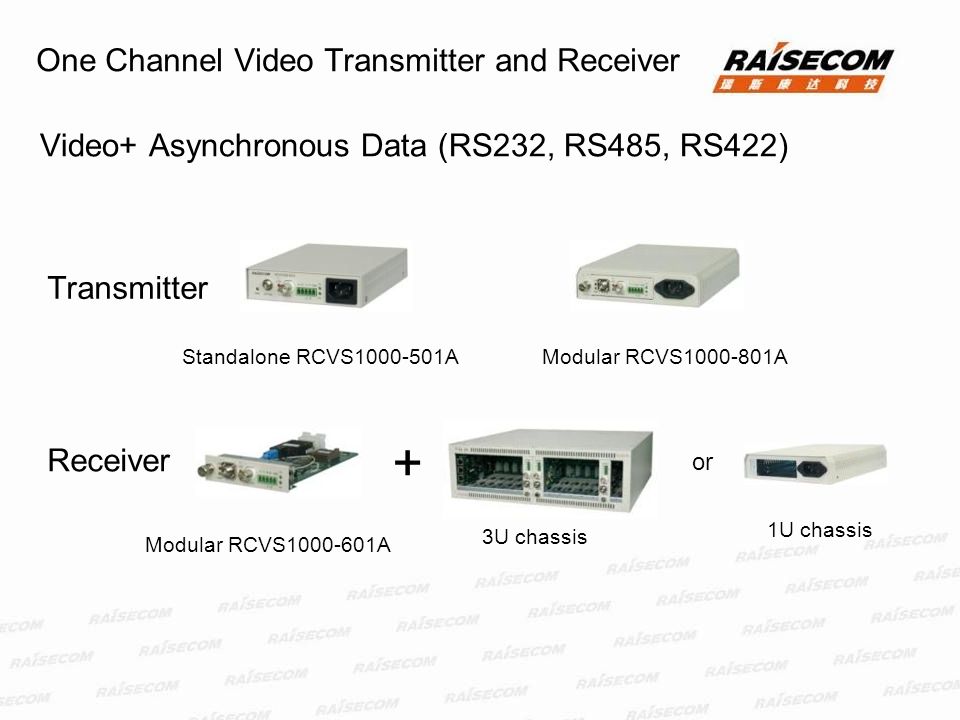

4. One Channel Video Transmitter and Receiver Video+ Asynchronous Data (RS232, RS485, RS422) Transmitter Receiver Standalone RCVS1000-501AModular RCVS1000-801A Modular RCVS1000-601A + or 3U chassis 1U chassis

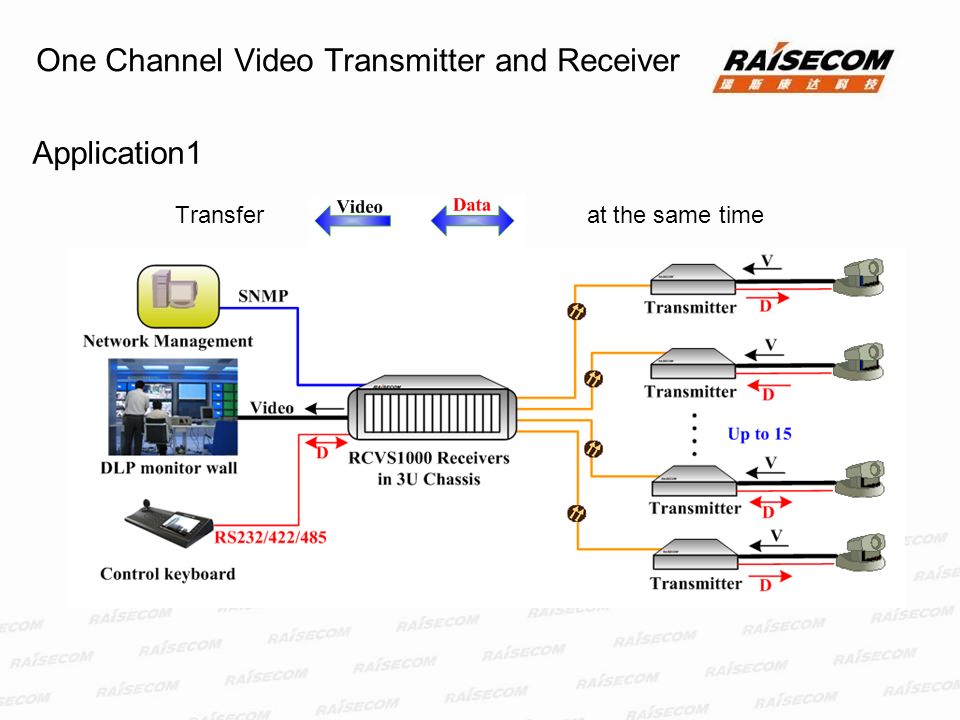

5. One Channel Video Transmitter and Receiver Application1 Transfer at the same time

6. One Channel Video Transmitter and Receiver Ordering Information TransmitterReceiverService Description RCVS1000-501A-DD-X-YRCVS1000-601A-1DD-XOne channel video, one bidirectional data RCVS1000-501A-D-X-YRCVS1000-601A-1D-XOne channel video, one reverse directional data RCVS1000-501A-SD-X-YRCVS1000-601A-1SD-XOne channel video, one forward directional data RCVS1000-801A-1DD-XRCVS1000-601A-1DD-XOne channel video, one bidirectional data RCVS1000-801A-1D-XRCVS1000-601A-1D-XOne channel video, one reverse directional data RCVS1000-801A-1SD-XRCVS1000-601A-1SD-XOne channel video, one forward directional data XS1: transmission distance 0-30Km S2: transmission distance 10-60Km YAC: AC power supply DC:DC power supply

7. 3-in-1 Aggregated One Channel Video Receiver 3 Video+ 3 Asynchronous Data (RS232, RS485, RS422) over 3 optical ports Receiver Modular RCVS1000-601A*3 + 6U chassis Use with Transmitter RCVS1000-501A or RCVS1000-801A or 1U chassis

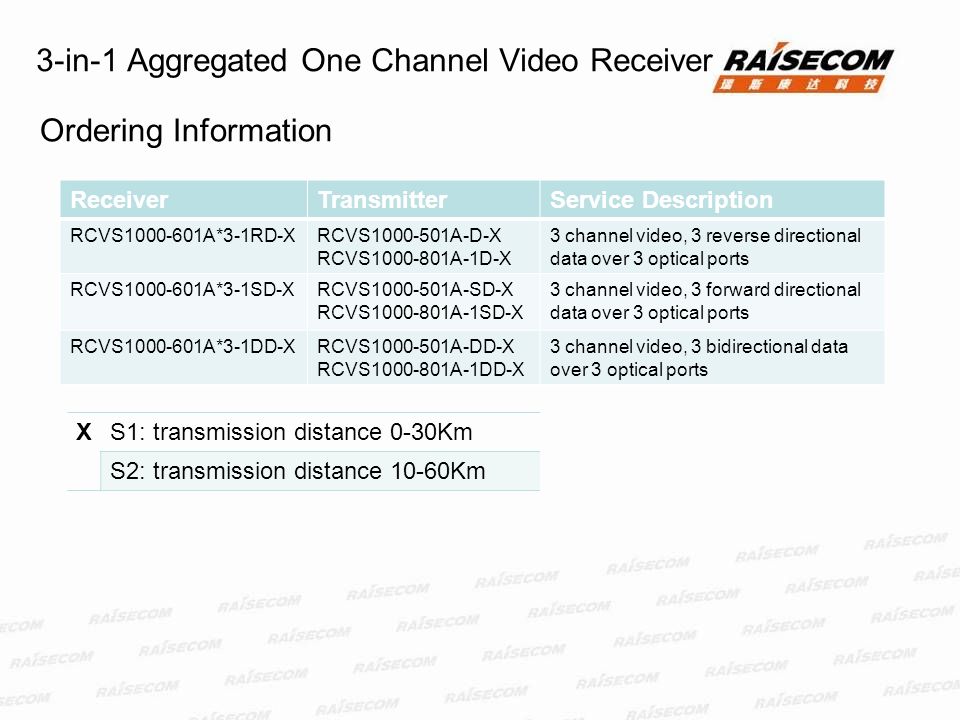

8. 3-in-1 Aggregated One Channel Video Receiver Ordering Information ReceiverTransmitterService Description RCVS1000-601A*3-1RD-XRCVS1000-501A-D-X RCVS1000-801A-1D-X 3 channel video, 3 reverse directional data over 3 optical ports RCVS1000-601A*3-1SD-XRCVS1000-501A-SD-X RCVS1000-801A-1SD-X 3 channel video, 3 forward directional data over 3 optical ports RCVS1000-601A*3-1DD-XRCVS1000-501A-DD-X RCVS1000-801A-1DD-X 3 channel video, 3 bidirectional data over 3 optical ports XS1: transmission distance 0-30Km S2: transmission distance 10-60Km

9. Multiple channel Video Transmitter and Receiver Video+ Audio+ FE+ Contact Closure+ Voice+ Asynchronous data (RS232, RS485, RS422) Transmitter Receiver 4 channel RCVS1000-504A 8 channel RCVS1000-508A Modular RCVS1000-602A/604A/608A + 6U chassis 2 channel RCVS1000-504A

10. Multiple Channel Video Transmitter and Receiver Application2 Transfer at the same time

11. Multiple Channel Video Transmitter and Receiver Ordering Information

12. Multiple Channel Video Transmitter and Receiver Ordering Information Part Number ValueMeaning ARCVS1000Raisecom digital video optical multiplexer B1,2,3,4,5,6, 7,8,9 1 standalone transmitter 2 modular receiver 3 standalone receiver 4 modular transmitter 5 manageable standalone transmitter 6 manageable modular receiver 7 manageable standalone receiver 8 manageable modular transmitter 9 manageable standalone bidirectional video device C01,02,04,0801 one channel video 02 two channel video 04 four channel video 08 eight channel video

13. Multiple Channel Video Transmitter and Receiver Ordering Information Part Number ValueMeaning DA,BA Enhanced version video optical multiplexer B Standard version video optical multiplexer ERD3nRD3 (n=1,2,3,4,5,6,7,8) n channel reverse directional RS232 data SD3nSD3 (n=1,2,3,4,5,6,7,8) n channel forward directional RS232 data DD3nDD3 (n=1,2,3,4,5,6,7,8) n channel bidirectional RS232 data FRD4nRD4 (n=1,2,3,4,5,6,7,8) n channel reverse directional RS422 data SD4nSD4 (n=1,2,3,4,5,6,7,8) n channel forward directional RS422 data DD4nDD4 (n=1,2,3,4,5,6,7,8) n channel bidirectional RS422 data

14. Multiple Channel Video Transmitter and Receiver Ordering Information Part NumberValueMeaning GRD5nRD5 (n=1,2,3,4,5,6,7,8) n channel reverse directional RS485 data SD5nSD5 (n=1,2,3,4,5,6,7,8) n channel forward directional RS485 data DD5nDD5 (n=1,2,3,4,5,6,7,8) n channel bidirectional RS485 data HRAnRD4 (n=1,2,3,4,5,6,7,8) n channel reverse directional audio SAnSD4 (n=1,2,3,4,5,6,7,8) n channel forward directional audio DAnDD4 (n=1,2,3,4,5,6,7,8) n channel bidirectional audio IFXSnFXS (n=1,2,3,4) n channel Foreign Exchange Station interface

15. Multiple Channel Video Transmitter and Receiver Ordering Information Part NumberValueMeaning JFXOnFXO (n=1,2,3,4) n channel Foreign Exchange Office interface KFE10/100M Fast Ethernet interface GE1000M Gigabit Ethernet interface LRKnRK (n=1,2,3,4,5,6,7,8) n channel reverse direction Contact Closure service SKnSK (n=1,2,3,4,5,6,7,8) n channel forward direction Contact Closure service DKnDK (n=1,2,3,4,5,6,7,8) n channel bidirectional Contact Closure service MS1,S2S1 single strand single mode, 0-30Km S2 single strand single mode, 10-60Km NAC, DC AC, power supply 220Vac DC, power supply 48Vdc

16. Raisecom Video Optical Multiplexer Video Optical Multiplexer Product Line Product Features How to deploy an order

17. Product Features 1. Broadcast quality video and CD level audio 2. Dying Gasp Function 3. Anti-Surge Function on power supply interface 4. Lighting-proof and ESD function on video and data interface 5. SNMP management: Configure and monitor the remote end unit through local module, this feature greatly decreases the truck roll and logistic costs. 6. Uniform interface Uniform interface of the multi-service of Audio, data, voice, contact closure makes it easy to change service 7. Same chassis with other Raisecom device Deploy in same chassis with other Raisecom device such as: media converter, inverse multiplexer, G.shdsl modem, CWDM device, PDH optical multiplexer and PCM device.

18. Raisecom Video Optical Multiplexer Video Optical Multiplexer Product Line Product Features How to deploy an order

19. Order Table—Only need to fill this table Product Description Interface TypeService TypeQuantityRemark videoForward direction Reverse direction Asynchronous DataForward direction RS_485 Reverse direction RS_485 Bidirectional RS_485 Forward direction RS_232 Reverse direction RS_232 Bidirectional RS_232 Forward direction RS_422 Reverse direction RS_422 Bidirectional RS_422 AudioForward direction Reverse direction Bidirectional VoiceForward telephone Reverse telephone Contact ClosureForward contact closure Reverse contact closure Bidirectional Contact closure FE (10/100M) InterfaceNeed ( ) No need ( ) Optical PortFC/S1 ( ) FC/S2 ( ) Power SupplyAC ( ) DC ( ) Structure TypeStandalone ( ) Modular( ) Network ManagementNeed ( ) No need ( ) Customer signatureDate: Note: 1.Forward direction telephone means that FXS located on video transmitter and FXO on receiver; Reverse direction telephone means that FXO located on video transmitter and FXS on receiver. 2. Input the quantity in the required line and input N/A in the no need rows. 3. Input “Y” in the correct ( ).
