1. SCADA FOR WATER DISTRIBUTION IC DEPT. GECGn SEC28

2. WATER DISTRIBUTION SYSTEM

3. Traditional SCADA for pipelines, power distribution or anything that spans great distances – Typical – Stand-Alone – Networked Local control SCADA for plant or unit operations or any architecture that is within a defined boundary – DCS – PC based – HMI / PLC

4. A SCADA system performs four functions: 1. Data acquisition 2. Networked data communication 3. Data presentation 4. Control These functions are performed by four kinds of SCADA components: 1.Sensors (either digital or analogue) and control relays that directly interface with the managed system. 2.Remote telemetry units (RTUs). These are small computerized units deployed in the field at specific sites and locations. RTUs serve as local collection points for gathering reports from sensors and delivering commands to control relays. 3.SCADA master units. These are larger computer consoles that serve as the central processor for the SCADA system. Master units provide a human interface to the system and automatically regulate the managed system in response to sensor inputs. 4.The communications network that connects the SCADA master unit to the RTUs in the field.

5. Electric power generation, transmission and distribution: Electric utilities detect current flow and line voltage, to monitor the operation of circuit breakers, and to take sections of the power grid online or offline. Buildings, facilities and environments: Facility managers use SCADA to control HVAC, refrigeration units, lighting and entry systems. Traffic signals: regulates traffic lights, controls traffic flow and detects out-of- order signals. Manufacturing: manage parts inventories for just-in-time manufacturing, regulate industrial automation and robots, and monitor process and quality control. Water and sewage: State and municipal water utilities use SCADA to monitor and regulate water flow, reservoir levels, pipe pressure and other factors. Mass transit: regulate electricity to subways, trams and trolley buses; to automate traffic signals for rail systems; to track and locate trains and buses; and to control railroad crossing gates. SCADA control

6. Dial-up remote Access Sites 1-8 16 Digital i/o 2 Analogue inputs 2 control outputs 1 RS232 port Alarms from remote equipment SNMP monitoring SITE monitoring Rs232 10 RouteT LAN Time Sync Pager Notification MASTER Controller Remote Telemetry Units (RTU) DPS TELECOM SCADA SYSTEMS

7. TRANSPORT SYSTEM Remote Telemetry Unit (RTU) SCADA MASTER UNITS HUMAN COMPUTER INTERFACE POWER DISTRIBUTIO N SYSTEM WATER DISTRIBUTIO N SYSTEM PROCESS PLANT PETROCHEMICAL PLANT

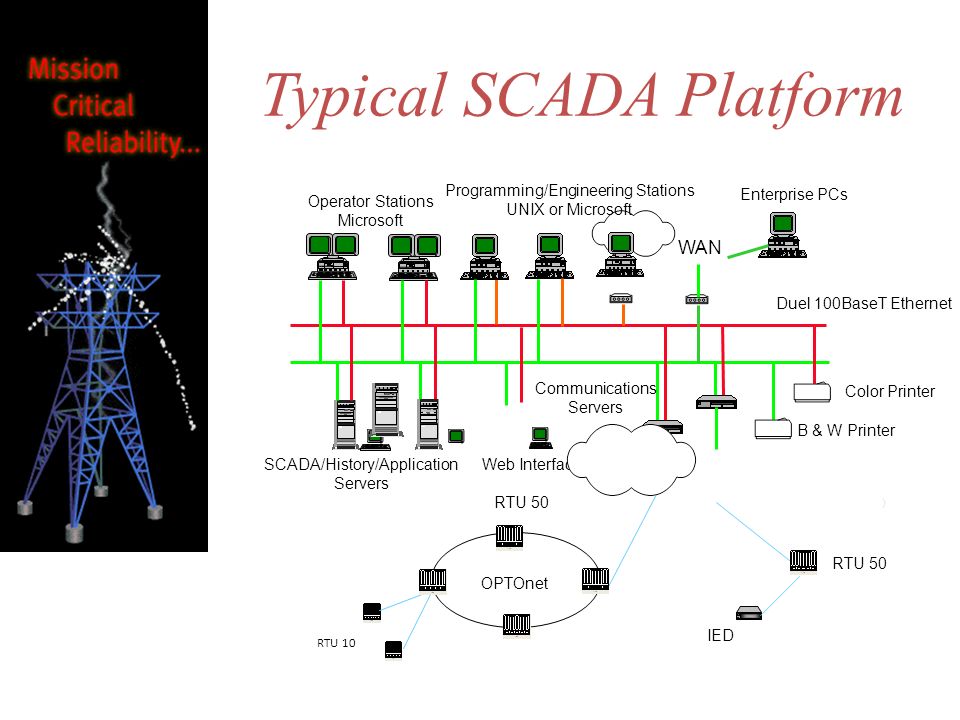

8. Typical SCADA Platform RTU 10 WAN Operator Stations Microsoft Programming/Engineering Stations UNIX or Microsoft Enterprise PCs Communications Servers OPTOnet RTU 50 IED RTU 50 SCADA/History/Application Servers B & W Printer Color Printer Duel 100BaseT Ethernet Web Interface Server Telecommunications Circuits (Multiple Protocols )

9. Wiring

10. Today’s issues Distributed Control into the field Distributed Computing Distributed I/O into the field Services, Applications, Solutions Industry Standards Configurator tools Asset Management Performance guarantees ($) Life Cycle Costs (scalability / migration / upgrades) Digital bus selection
