1. U.S. Department of the Interior U.S. Geological Survey Assessing Watershed Scale Responses to BMP Implementation - Fairfax County, VA - John Jastram Hydrologist USGS Virginia Water Science Center

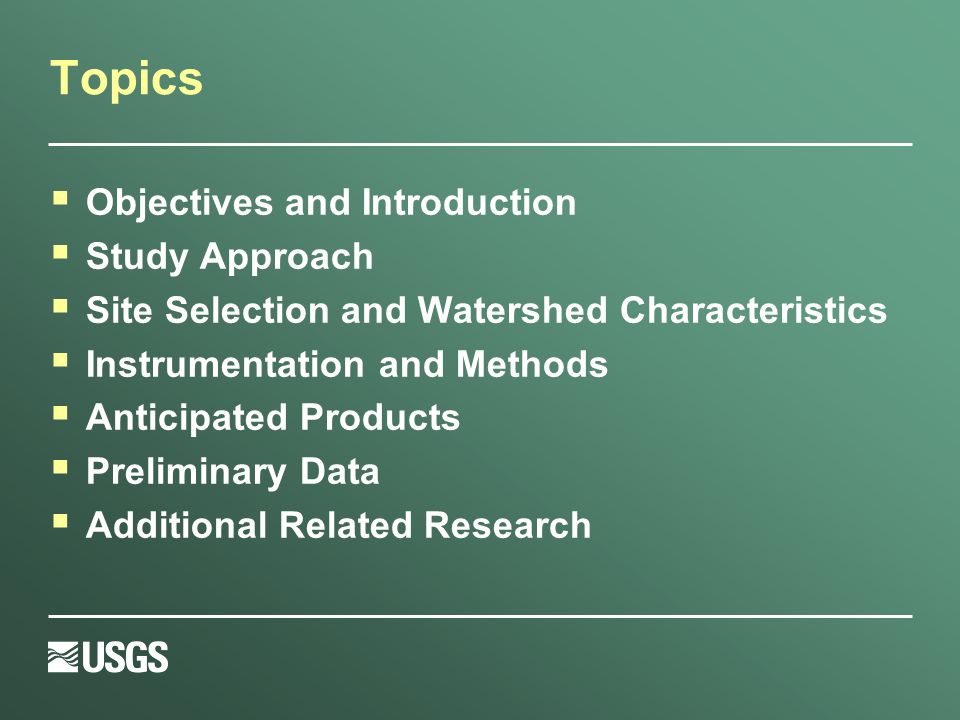

2. Topics  Objectives and Introduction  Study Approach  Site Selection and Watershed Characteristics  Instrumentation and Methods  Anticipated Products  Preliminary Data  Additional Related Research

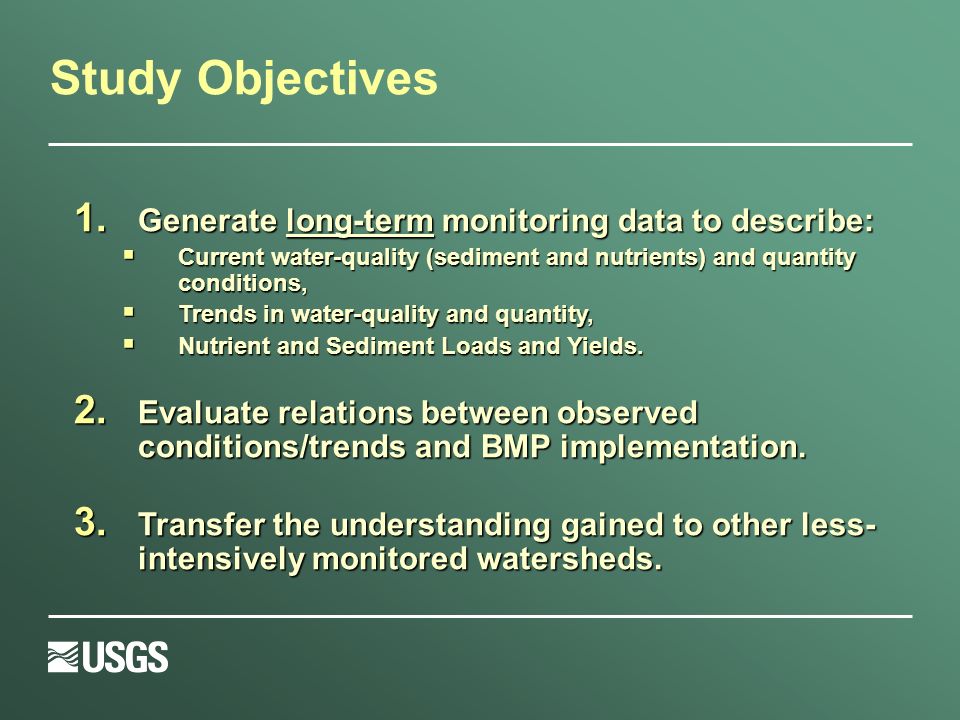

3. Study Objectives 1. Generate long-term monitoring data to describe:  Current water-quality (sediment and nutrients) and quantity conditions,  Trends in water-quality and quantity,  Nutrient and Sediment Loads and Yields. 2. Evaluate relations between observed conditions/trends and BMP implementation. 3. Transfer the understanding gained to other less- intensively monitored watersheds.

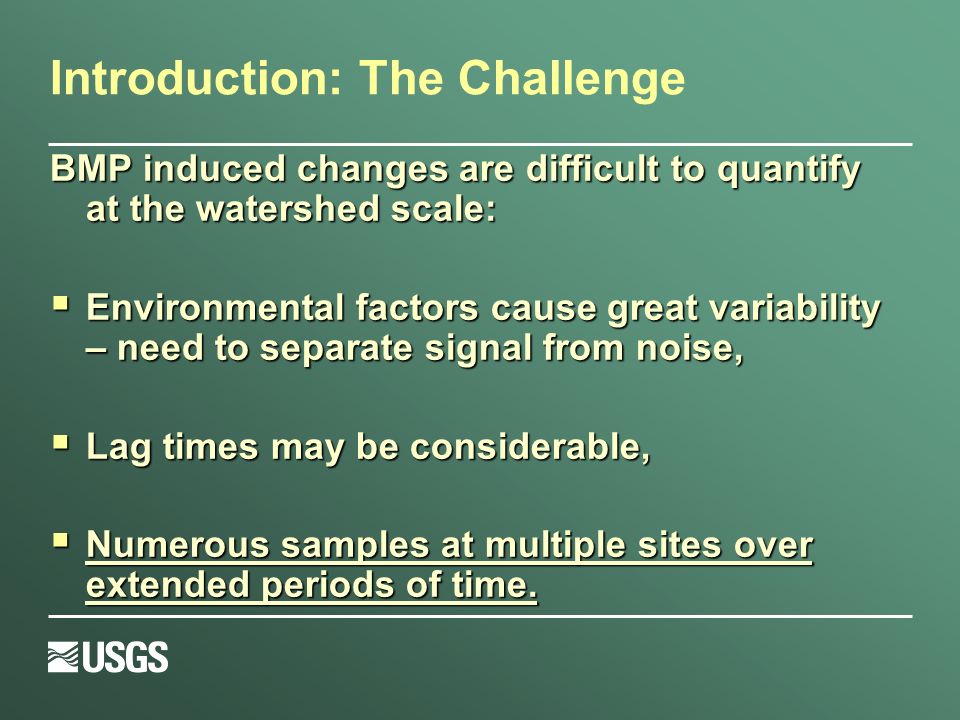

4. Introduction: The Challenge BMP induced changes are difficult to quantify at the watershed scale:  Environmental factors cause great variability – need to separate signal from noise,  Lag times may be considerable,  Numerous samples at multiple sites over extended periods of time.

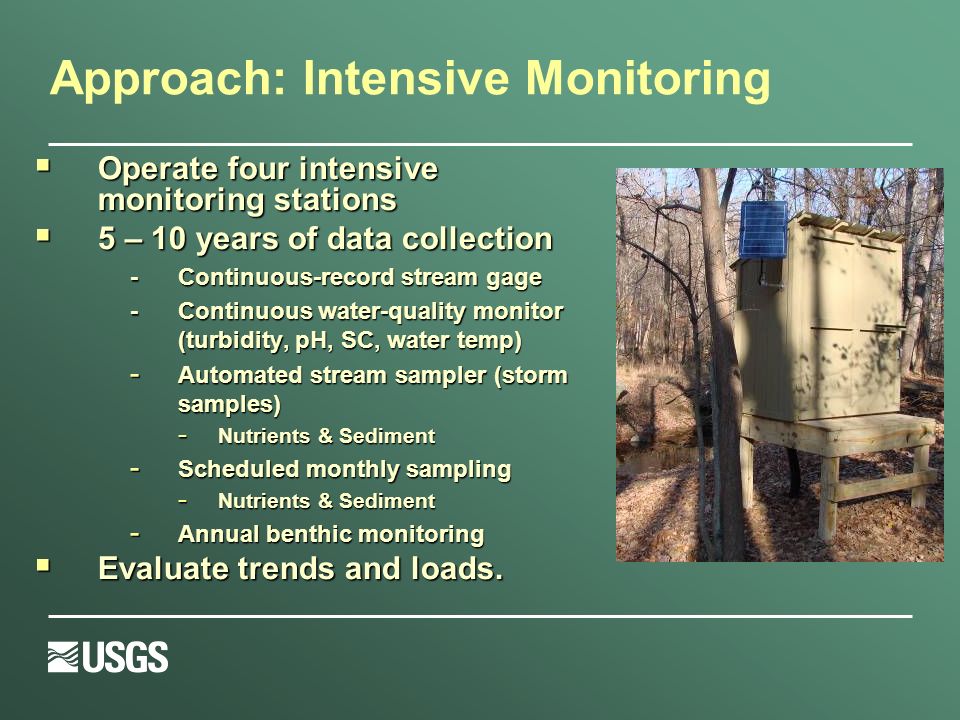

5.  Operate four intensive monitoring stations  5 – 10 years of data collection - Continuous-record stream gage - Continuous water-quality monitor (turbidity, pH, SC, water temp) - Automated stream sampler (storm samples) - Nutrients & Sediment - Scheduled monthly sampling - Nutrients & Sediment - Annual benthic monitoring  Evaluate trends and loads. Approach: Intensive Monitoring

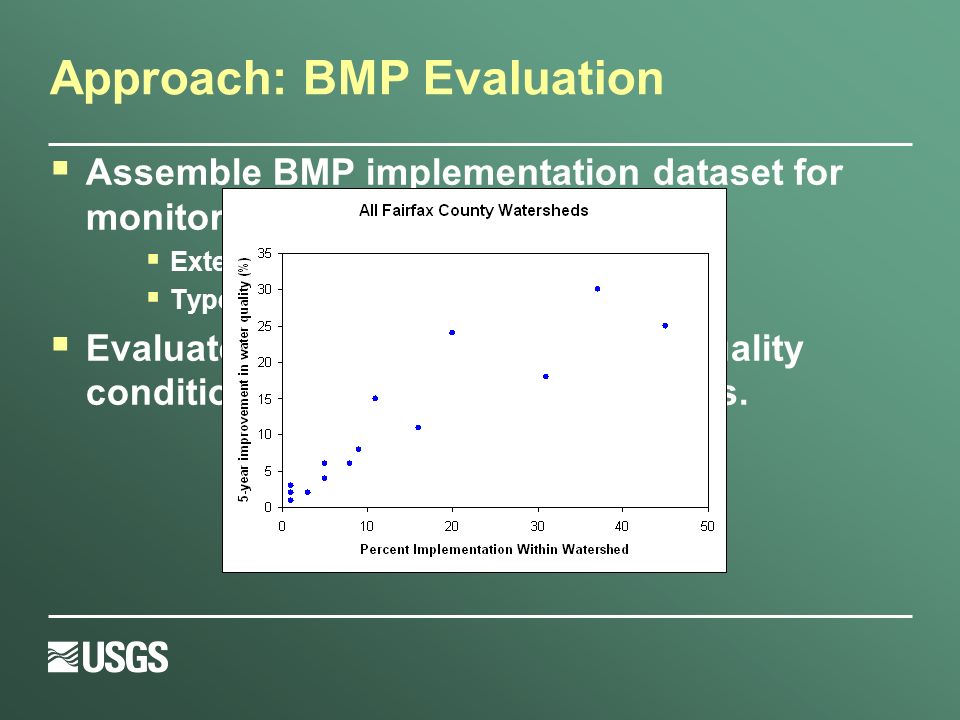

6. Approach: BMP Evaluation  Assemble BMP implementation dataset for monitored watersheds.  Extent of BMP implementation.  Types of BMPs installed.  Evaluate relations between water-quality conditions/trends and BMP activities.

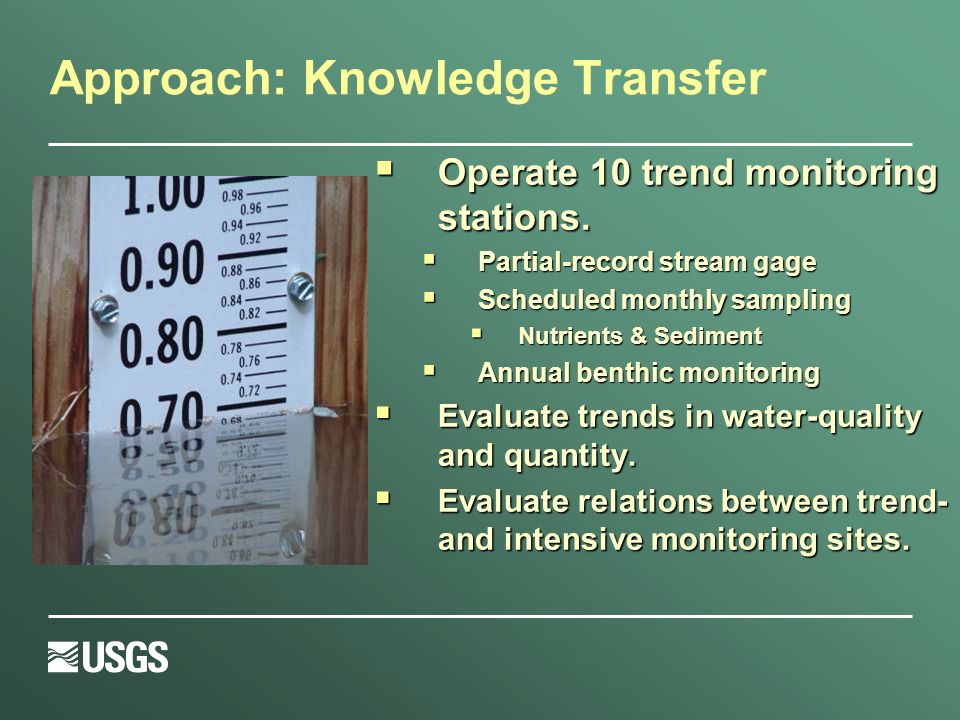

7.  Operate 10 trend monitoring stations.  Partial-record stream gage  Scheduled monthly sampling  Nutrients & Sediment  Annual benthic monitoring  Evaluate trends in water-quality and quantity.  Evaluate relations between trend- and intensive monitoring sites. Approach: Knowledge Transfer

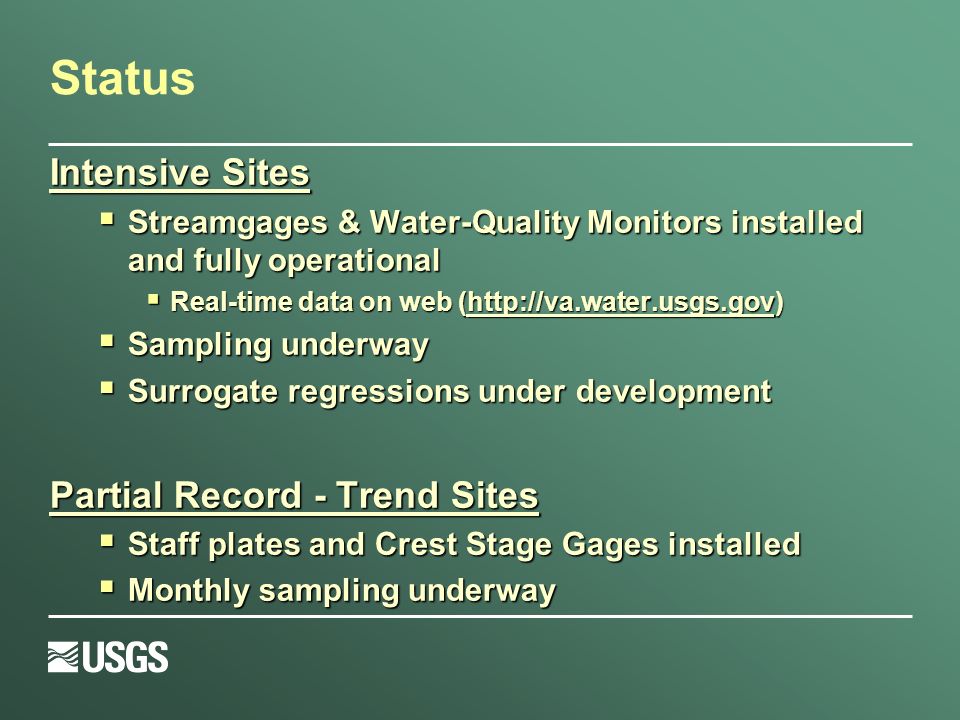

8. Status Intensive Sites  Streamgages & Water-Quality Monitors installed and fully operational  Real-time data on web (http://va.water.usgs.gov)  Sampling underway  Surrogate regressions under development Partial Record - Trend Sites  Staff plates and Crest Stage Gages installed  Monthly sampling underway

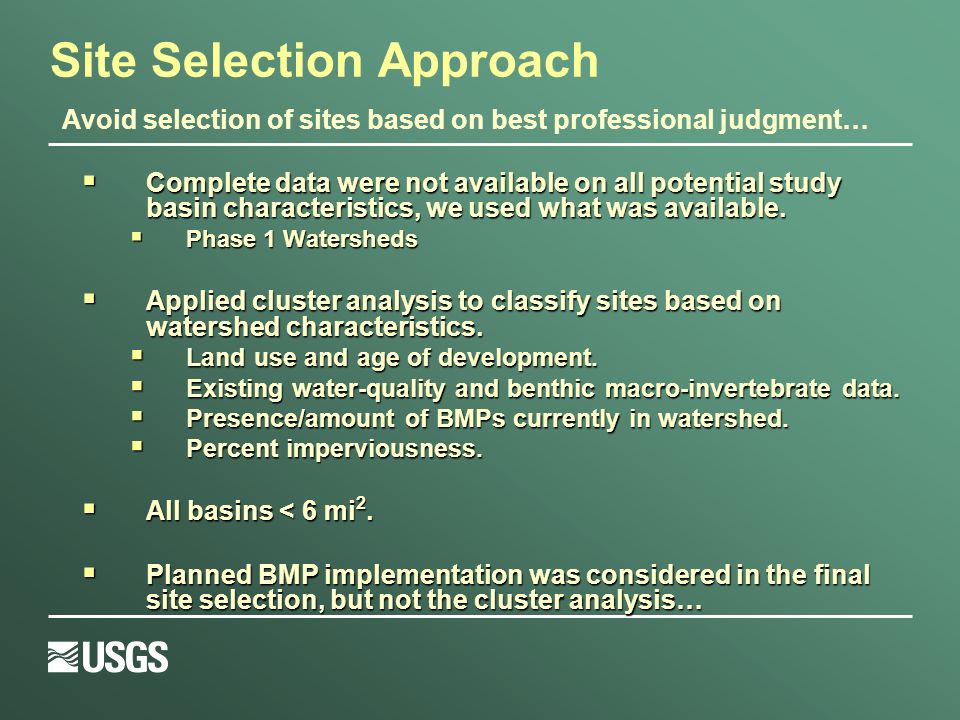

9.  Complete data were not available on all potential study basin characteristics, we used what was available.  Phase 1 Watersheds  Applied cluster analysis to classify sites based on watershed characteristics.  Land use and age of development.  Existing water-quality and benthic macro-invertebrate data.  Presence/amount of BMPs currently in watershed.  Percent imperviousness.  All basins < 6 mi 2.  Planned BMP implementation was considered in the final site selection, but not the cluster analysis… Site Selection Approach Avoid selection of sites based on best professional judgment…

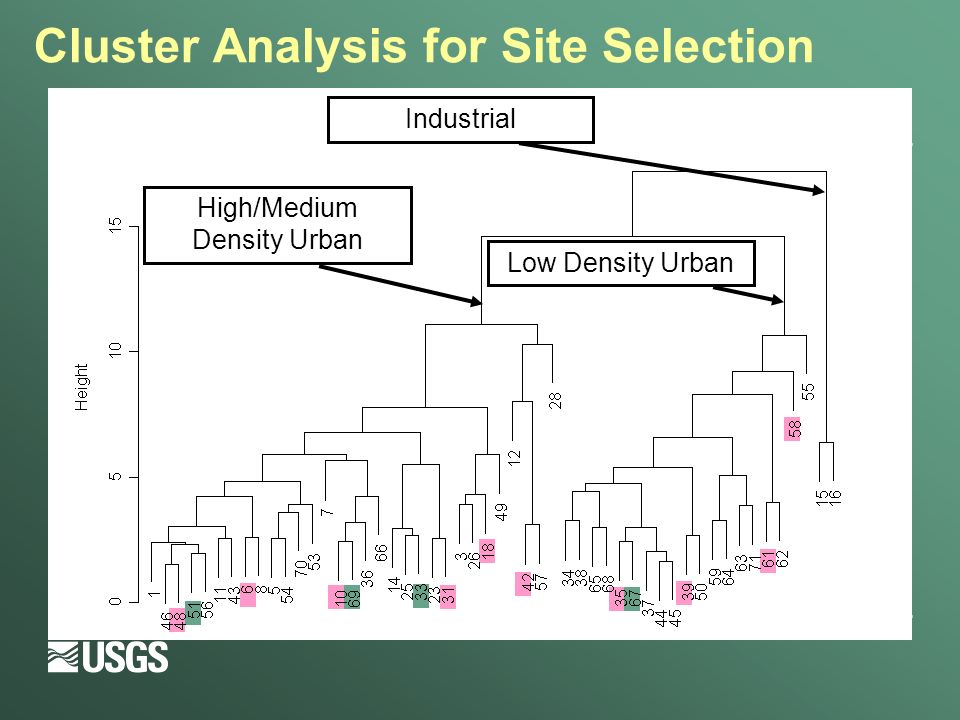

10. Industrial High/Medium Density Urban Low Density Urban Cluster Analysis for Site Selection

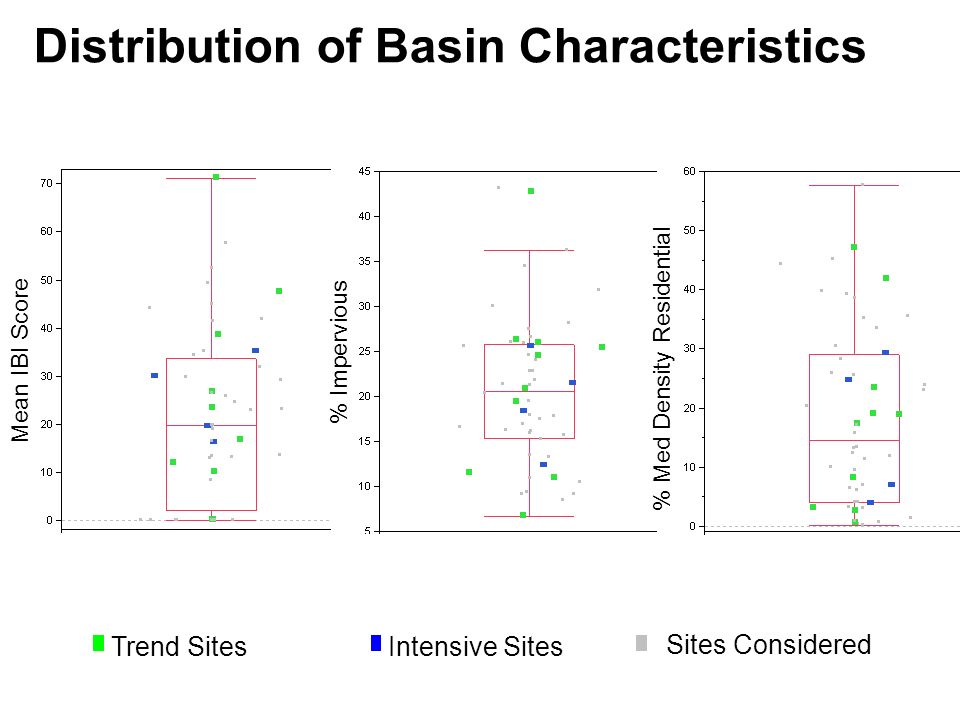

11. Mean IBI Score % Impervious % Med Density Residential Distribution of Basin Characteristics Intensive SitesTrend Sites Sites Considered

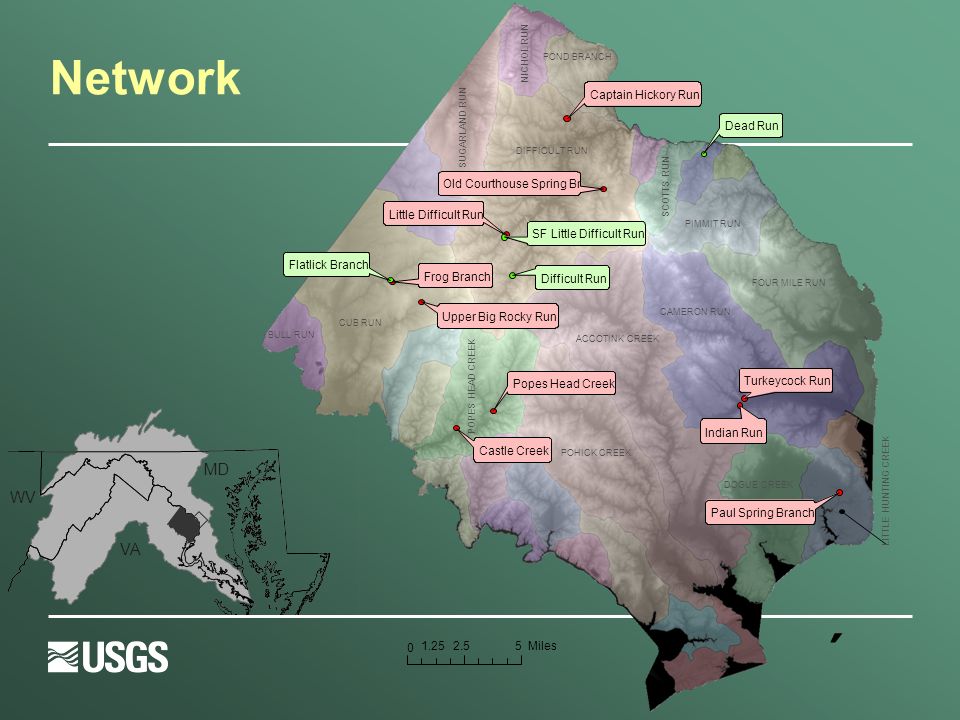

12. Network VA MD WV

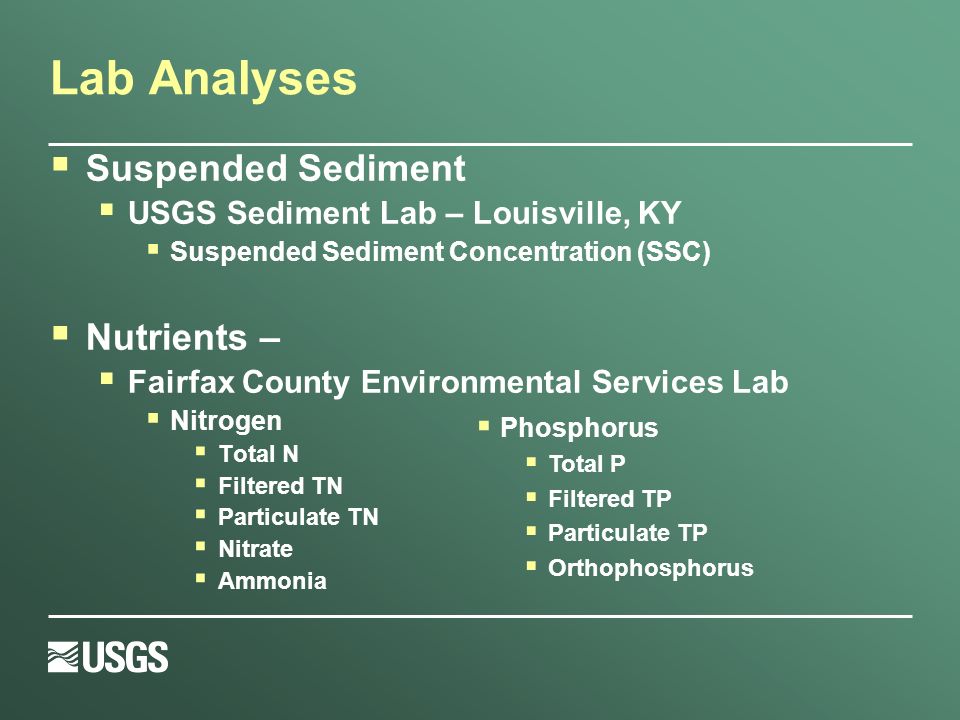

13. Lab Analyses  Suspended Sediment  USGS Sediment Lab – Louisville, KY  Suspended Sediment Concentration (SSC)  Nutrients –  Fairfax County Environmental Services Lab  Nitrogen  Total N  Filtered TN  Particulate TN  Nitrate  Ammonia  Phosphorus  Total P  Filtered TP  Particulate TP  Orthophosphorus

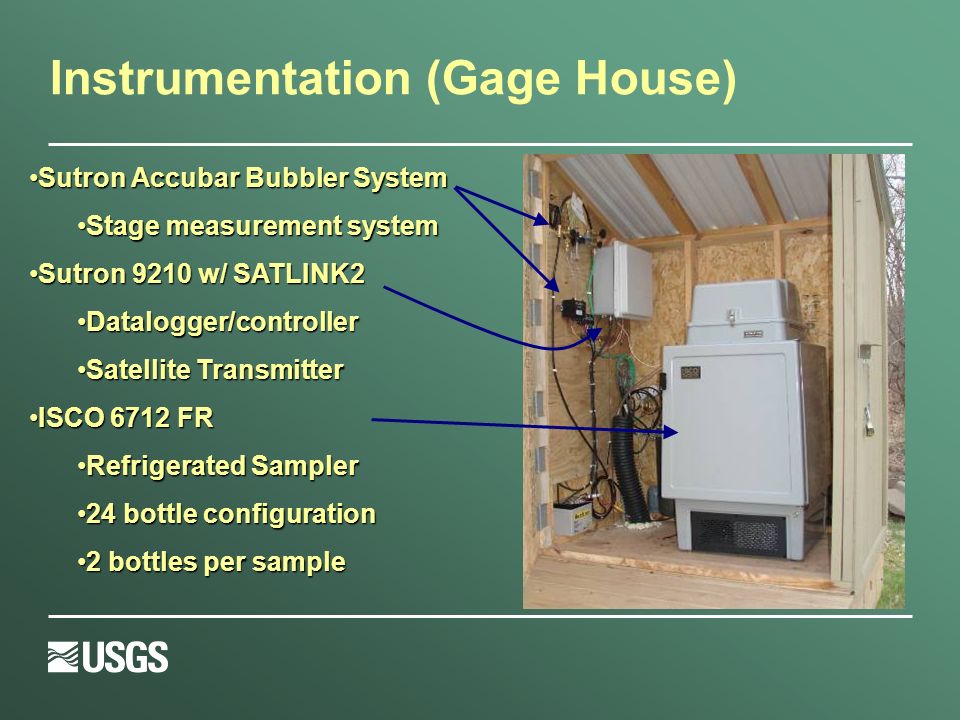

14. Instrumentation (Gage House) Sutron Accubar Bubbler SystemSutron Accubar Bubbler System Stage measurement systemStage measurement system Sutron 9210 w/ SATLINK2Sutron 9210 w/ SATLINK2 Datalogger/controllerDatalogger/controller Satellite TransmitterSatellite Transmitter ISCO 6712 FRISCO 6712 FR Refrigerated SamplerRefrigerated Sampler 24 bottle configuration24 bottle configuration 2 bottles per sample2 bottles per sample

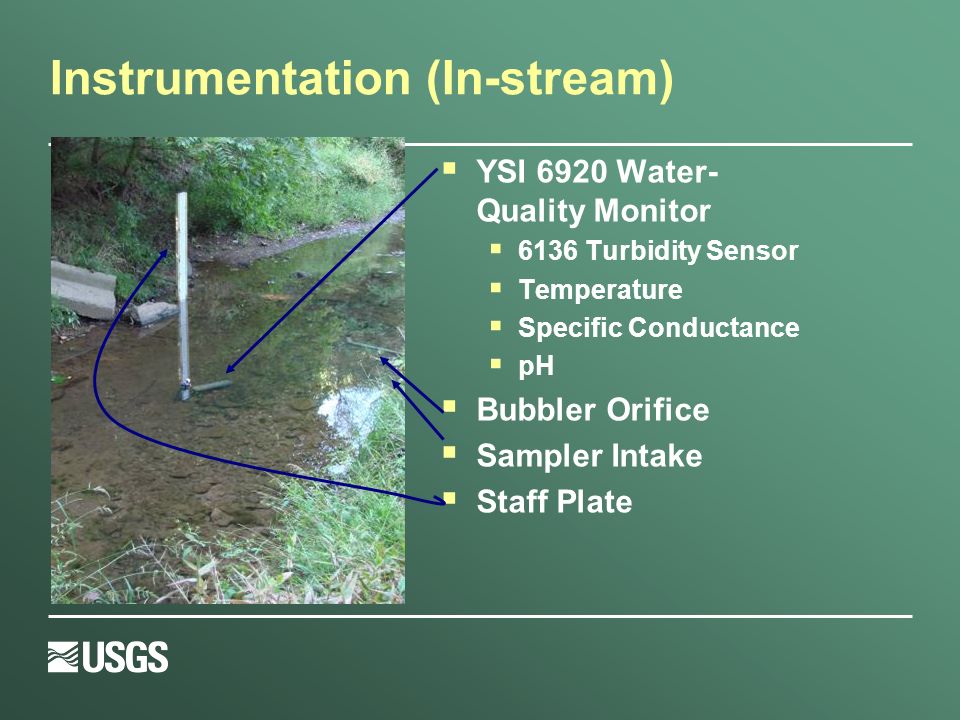

15. Instrumentation (In-stream)  YSI 6920 Water- Quality Monitor  6136 Turbidity Sensor  Temperature  Specific Conductance  pH  Bubbler Orifice  Sampler Intake  Staff Plate

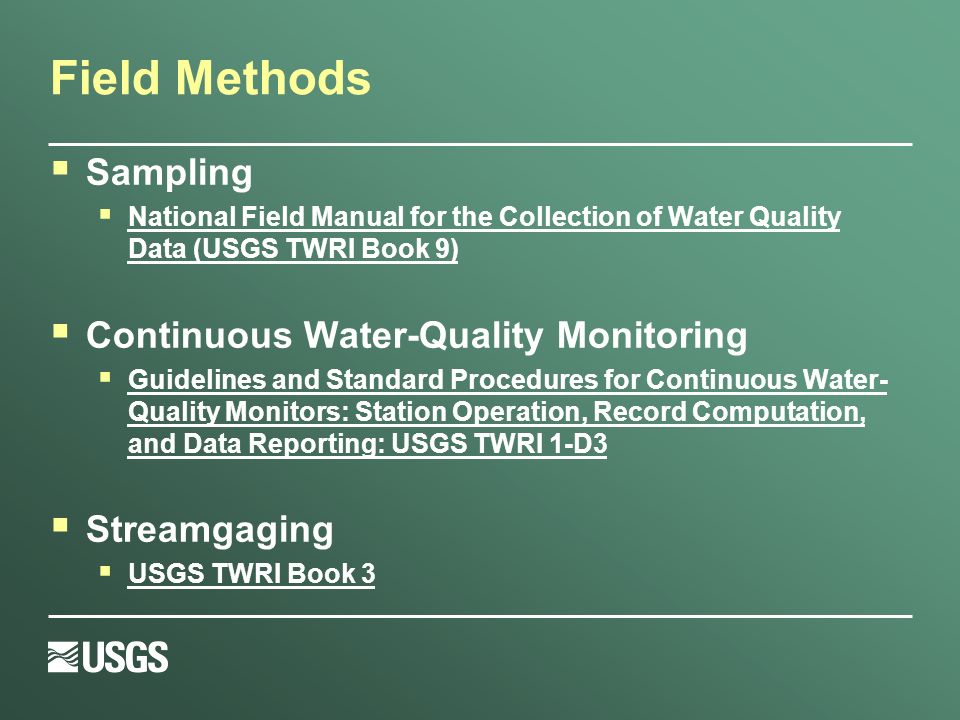

16. Field Methods  Sampling  National Field Manual for the Collection of Water Quality Data (USGS TWRI Book 9)  Continuous Water-Quality Monitoring  Guidelines and Standard Procedures for Continuous Water- Quality Monitors: Station Operation, Record Computation, and Data Reporting: USGS TWRI 1-D3  Streamgaging  USGS TWRI Book 3

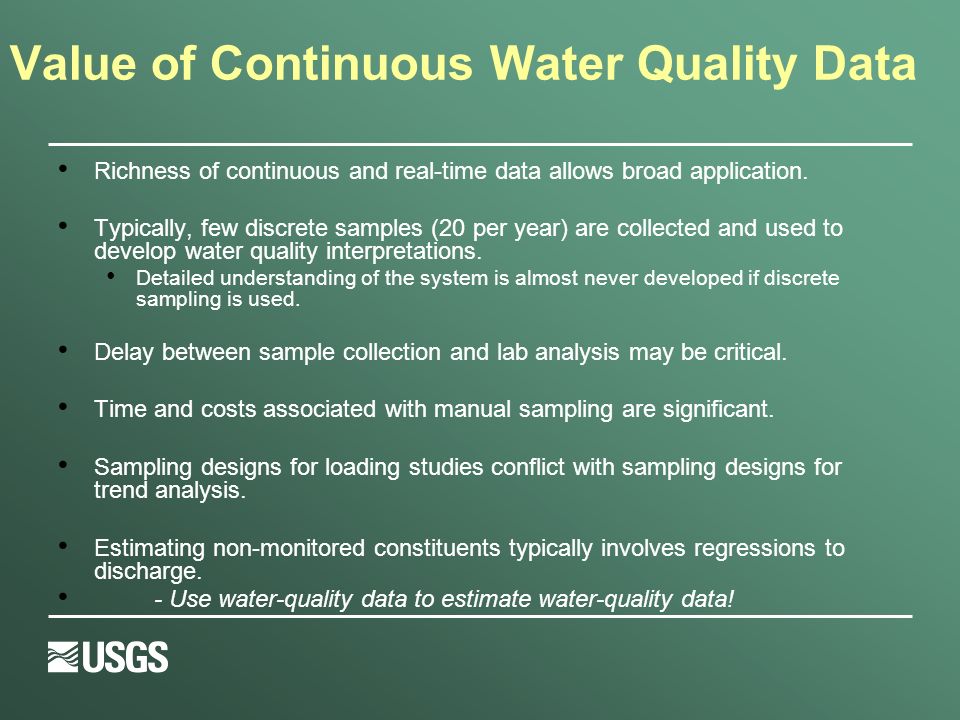

17. Value of Continuous Water Quality Data Richness of continuous and real-time data allows broad application. Typically, few discrete samples (20 per year) are collected and used to develop water quality interpretations. Detailed understanding of the system is almost never developed if discrete sampling is used. Delay between sample collection and lab analysis may be critical. Time and costs associated with manual sampling are significant. Sampling designs for loading studies conflict with sampling designs for trend analysis. Estimating non-monitored constituents typically involves regressions to discharge. - Use water-quality data to estimate water-quality data!

18. Surrogate Methods Continuously measure (15 min. interval) parameters related to constituent of interest (Turbidity, SC, etc.) Manually collect discrete samples of constituent to be estimated (sediment, dissolved solids, nutrients, etc.) Develop regression to estimate constituent concentrations/loads during non-sampled periods This approach provides the ability to generate a time- series of constituent concentrations – improving load estimations.

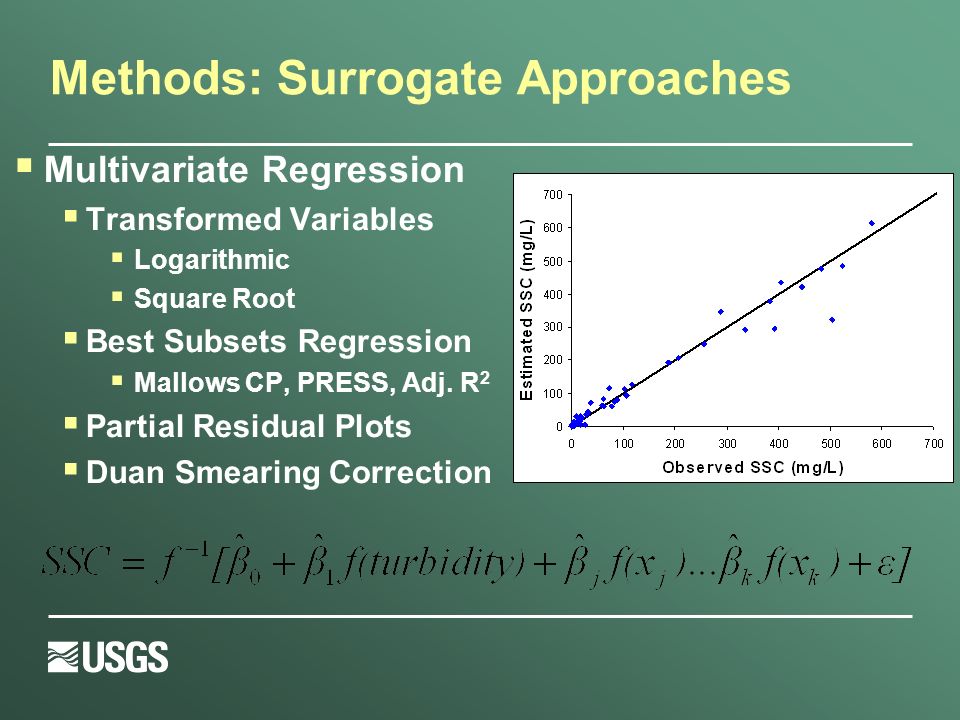

19. Methods: Surrogate Approaches  Multivariate Regression  Transformed Variables  Logarithmic  Square Root  Best Subsets Regression  Mallows CP, PRESS, Adj. R 2  Partial Residual Plots  Duan Smearing Correction

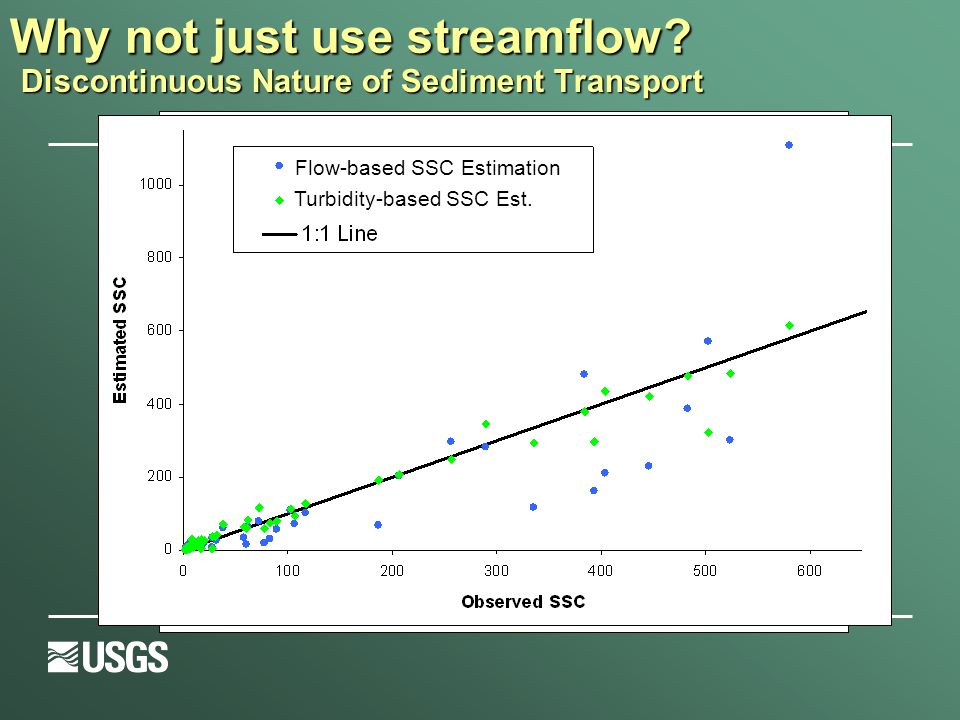

20. Discontinuous Nature of Sediment Transport Why not just use streamflow? 300 fnu 450 mg/L 235fnu 350 mg/l 22,000 cfs Flow-based SSC Estimation Turbidity-based SSC Est.

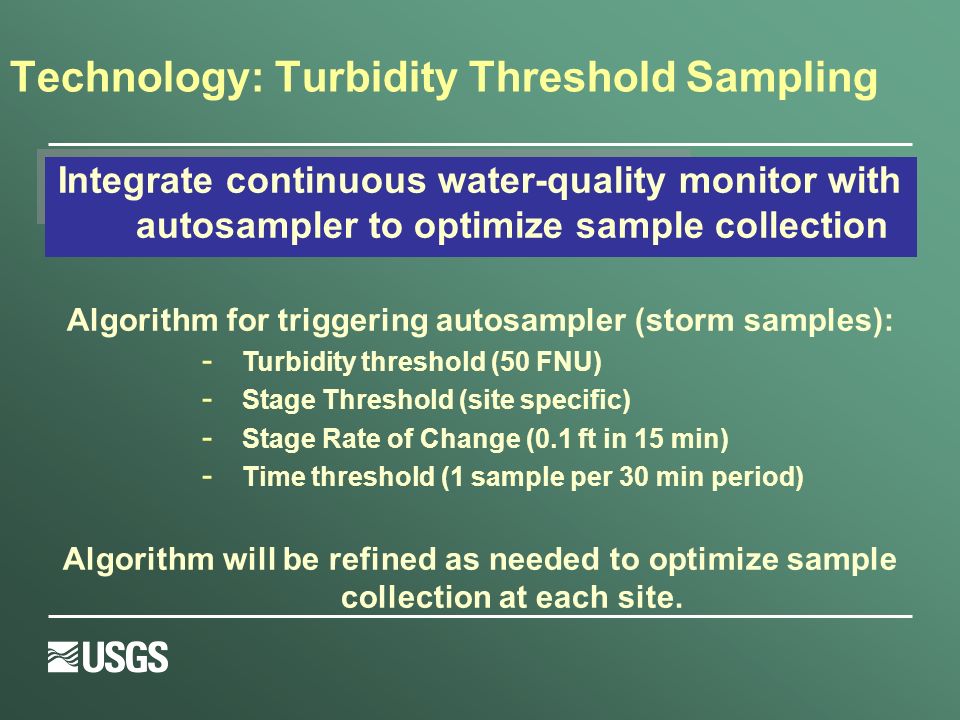

21. Integrate continuous water-quality monitor with autosampler to optimize sample collection Algorithm for triggering autosampler (storm samples): - Turbidity threshold (50 FNU) - Stage Threshold (site specific) - Stage Rate of Change (0.1 ft in 15 min) - Time threshold (1 sample per 30 min period) Algorithm will be refined as needed to optimize sample collection at each site. Technology: Turbidity Threshold Sampling

22. Turbidity Threshold Sampling Dead Run 9/27 00:00, 210 9/27 00:30, 220 9/27 01:15, 160 9/27 04:30, 90 9/27 05:00, 570 9/27 05:30, 520 9/27 06:00, 310 9/27 06:30, 250 9/27 07:00, 180 9/27 07:30, 120 9/27 15:30, 62 9/27 16:15, 180 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 9/26 12:009/26 18:00 9/27 0:009/27 6:00 9/27 12:009/27 18:00 9/28 0:009/28 6:00 9/28 12:00 Stage (ft) 0 100 200 300 400 500 600 Turbidity (FNU) Stage Turbidity Sample

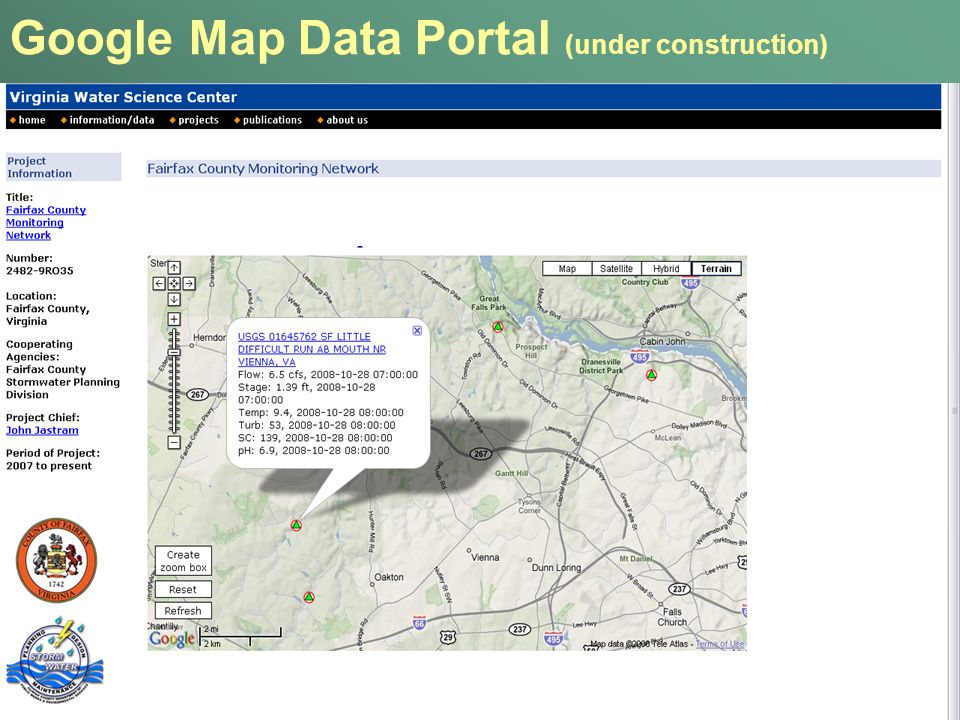

23. Google Map Data Portal (under construction)

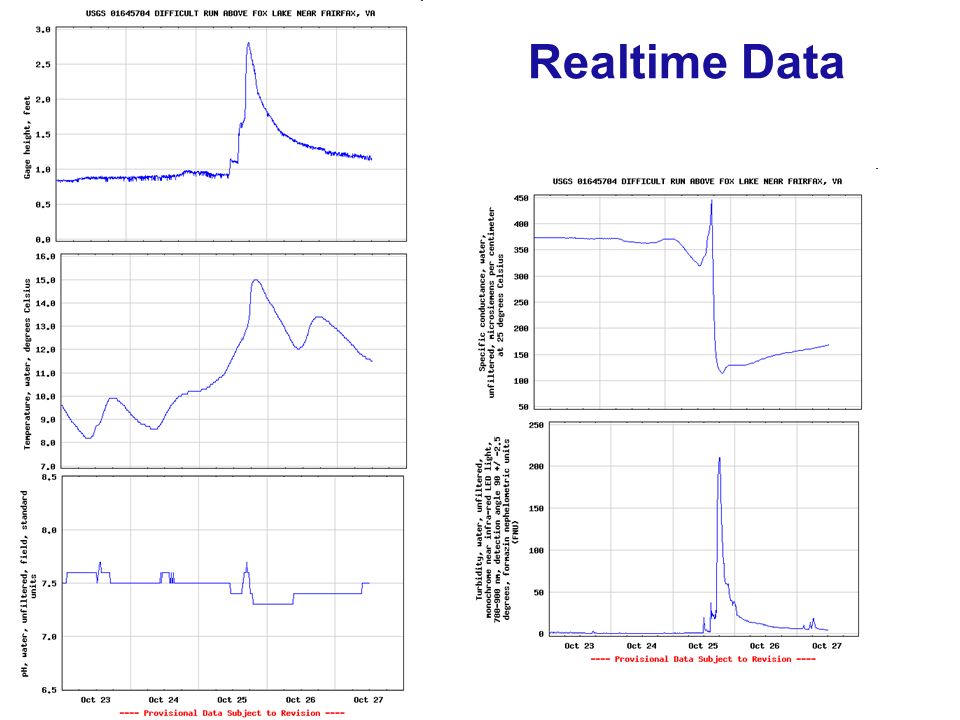

24. Realtime Data

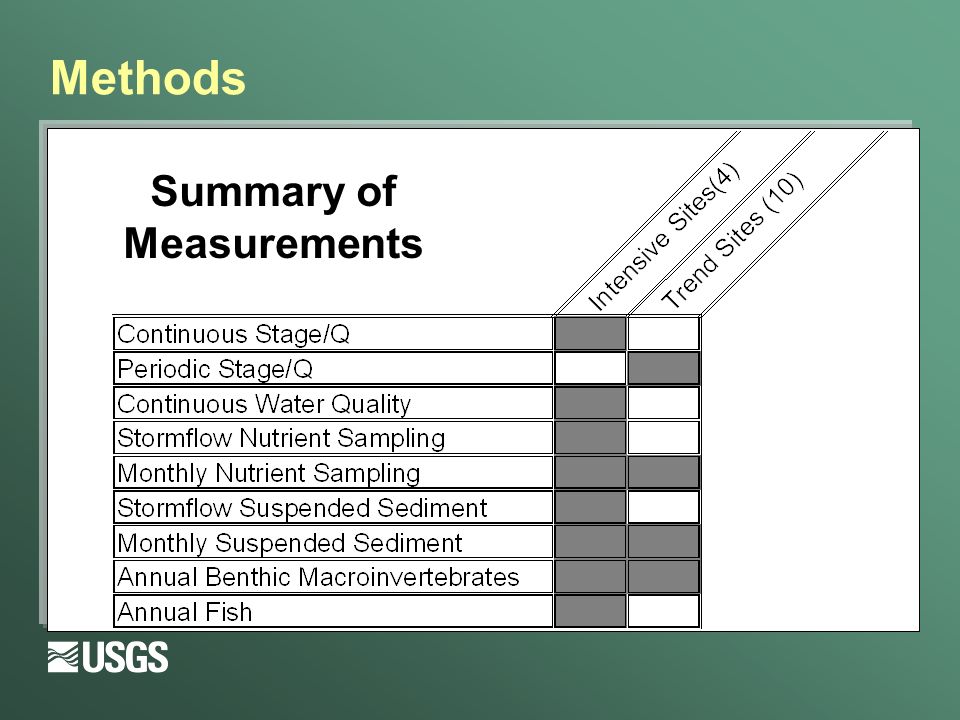

25. Methods Summary of Measurements

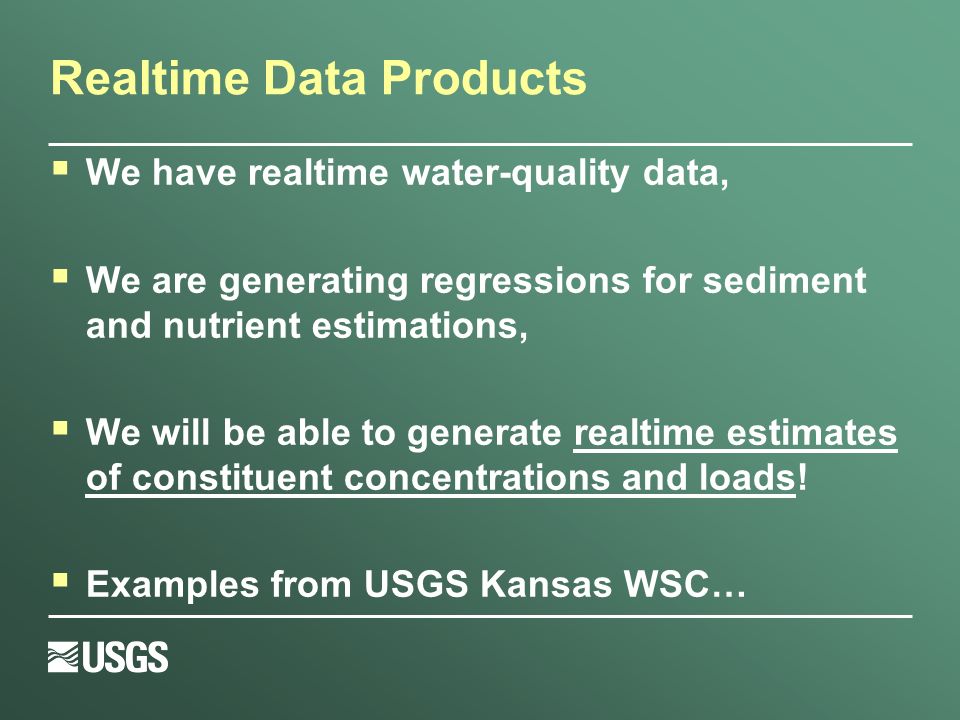

26. Realtime Data Products  We have realtime water-quality data,  We are generating regressions for sediment and nutrient estimations,  We will be able to generate realtime estimates of constituent concentrations and loads!  Examples from USGS Kansas WSC…

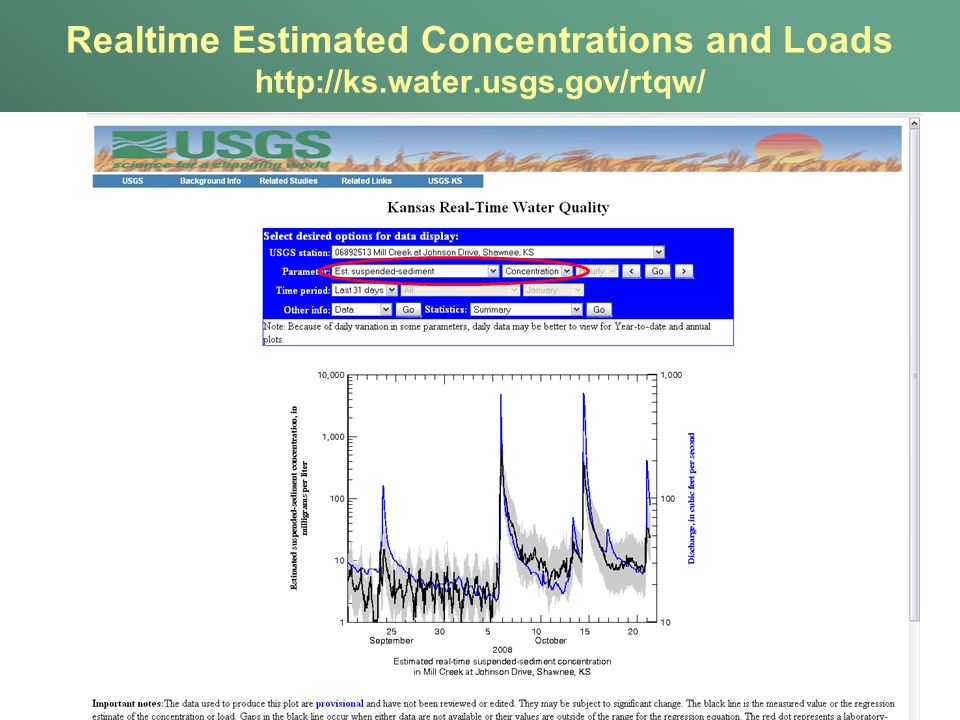

27. Realtime Estimated Concentrations and Loads http://ks.water.usgs.gov/rtqw/

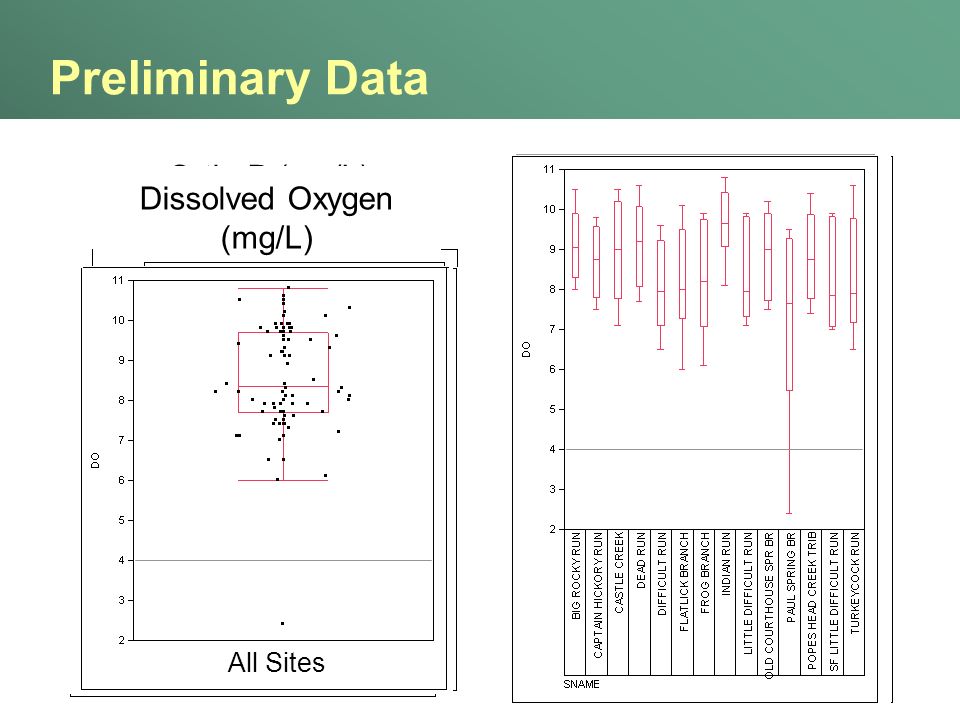

28.  Monthly Sampling Results  April through September 2008 Ortho P (mg/L) All Sites OrthoP (mg/L) Total N (mg/L) All Sites Total Nitrogen (mg/L) All Sites Nitrate (mg/L) Total P (mg/L) All Sites Total P (mg/L) Preliminary Data Nitrate (mg/L) All Sites Specific Conductance (us/cm) All Sites Dissolved Oxygen (mg/L)

29. Challenges!!!  $$$  Access/Permission  Electricity  Sample collection –500+ per year  Very flashy streams and dynamic channels

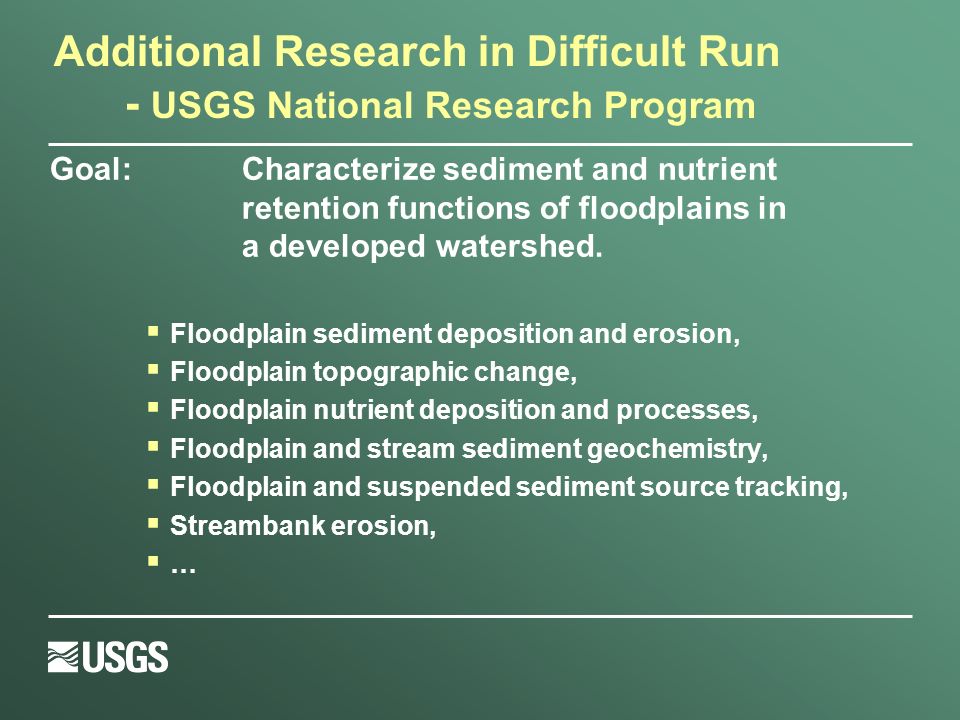

30. Additional Research in Difficult Run - USGS National Research Program Goal:Characterize sediment and nutrient retention functions of floodplains in a developed watershed.  Floodplain sediment deposition and erosion,  Floodplain topographic change,  Floodplain nutrient deposition and processes,  Floodplain and stream sediment geochemistry,  Floodplain and suspended sediment source tracking,  Streambank erosion,  …

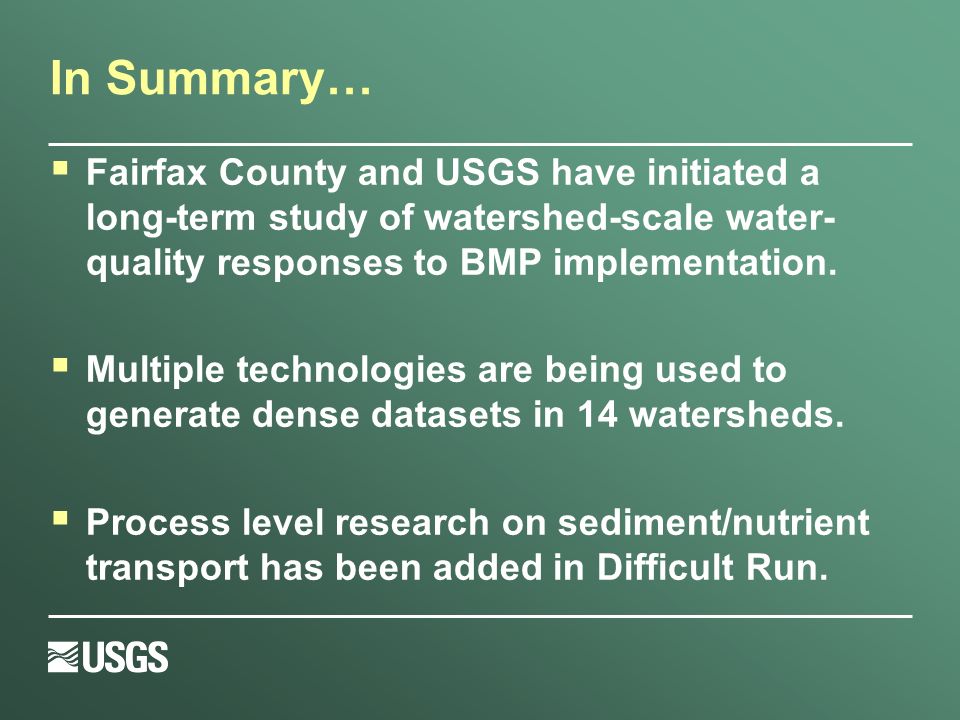

31. In Summary…  Fairfax County and USGS have initiated a long-term study of watershed-scale water- quality responses to BMP implementation.  Multiple technologies are being used to generate dense datasets in 14 watersheds.  Process level research on sediment/nutrient transport has been added in Difficult Run.

32. U.S. Department of the Interior U.S. Geological Survey John Jastram 804-261-2648 jdjastra@usgs.gov Shannon Curtis 703-324-5211 Shannon.Curtis @ fairfaxcounty.gov http://va.water.usgs.gov/projects/ffx_co_monitoring.htm
