1. Astronomy PMM 2012

2. End of 3 rd Form At the end of last school year many of you covered the topic of Astronomy. During the next few lessons I am going to check you fully understood the concepts before moving on. You will have a test on Chapter 6 next week. You will receive a revision handout this lesson.

3. Key words- quick test Star Planet Luminous/non-luminous Orbit Ellipse Solar system Comet Asteroid Moon Satellite (Artificial/non-artificial) Galaxy Milky way galaxy Galaxy cluster Gravity Weight Period T Circular motion Centripetal force

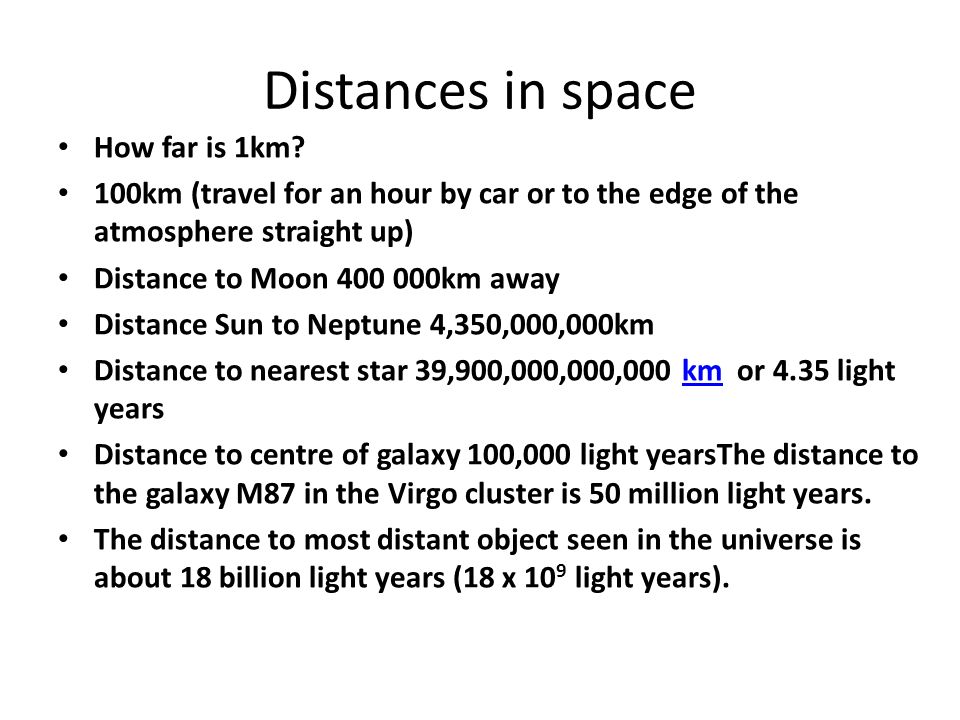

4. Distances in space How far is 1km? 100km (travel for an hour by car or to the edge of the atmosphere straight up) Distance to Moon 400 000km away Distance Sun to Neptune 4,350,000,000km Distance to nearest star 39,900,000,000,000 km or 4.35 light yearskm Distance to centre of galaxy 100,000 light yearsThe distance to the galaxy M87 in the Virgo cluster is 50 million light years. The distance to most distant object seen in the universe is about 18 billion light years (18 x 10 9 light years).

5. Gravity Any object that has mass has gravity Any object that has mass has a gravitational field around it which can be pictured as The lines show the direction of the force of gravity The size of the gravitational field is given by the symbol ‘g’ The size of ‘g’ depends on the mass of the planet and how close you are to the planet

6. Weight By Weight=mass x g W=mg W in Newtons Mass in kg g in N/kg ‘g’ varies on other planets e.g. it is 1.67N/kg on the Moon ‘g’ a long way from any planets is zero

7. Star Stars begin as a huge cloud of dust, ice and gas which are brought together by gravity until they are hot enough for fusion to begin. They then give off huge amounts of energy. 7PMM 2011

8. The Sun is a star 8PMM 2011

9. Planet The heat of the Sun pushed some matter outwards which formed the planets of the solar system. 9PMM 2011

10. Solar system 10PMM 2011

11. Solar system All the planets orbit the Sun All the planets orbit the Sun in the same direction All the planets take a different time to orbit the Sun. This time is called the PERIOD. Symbol T The planets were formed at the same time as the Sun The Sun and planets were made from a cloud which was left over when a star exploded. 11PMM 2011

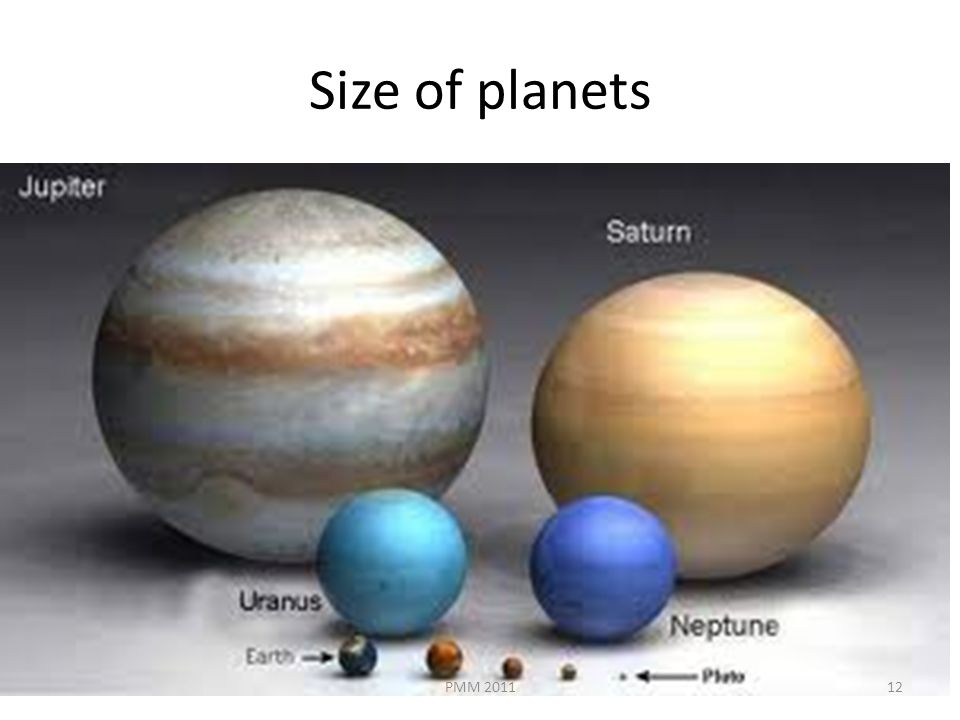

12. Size of planets 12PMM 2011

13. 13

14. Luminous/non-luminous The Sun and other stars give off light due to fusion. They are called luminous. All other objects in the Universe do not give off their own light. We see them by reflection only and they are non- luminous. 14PMM 2011

15. Ellipse 15PMM 2011 Wait on this slide! The Earth is at one focus of the Sun!

16. Planets in ellipses 16PMM 2011

17. Comet 17PMM 2011

18. Comet details Comets orbit the Sun 1-30km across Made of dust and ice Very elliptical Tail of comet always points away from the Sun Tail forms when ice melts when the comet is nearest the Sun 18PMM 2011

19. Comet tails PMM 201119

20. Asteroid 20PMM 2011

21. Asteroid details Minor planets or rocks that orbit the Sun Belt between Mars and Jupiter Formed when Solar system formed May have been a planet that then broke up 21PMM 2011

22. Moon 22PMM 2011

23. 23PMM 2011

24. Satellite Natural satellites are moons Artificial satellites are put into space and have many uses e.g. communications, weather, spying, geological surveys 24PMM 2011

25. Types of orbit PMM 201125

26. Galaxy 26PMM 2011

27. Milky Way Galaxy 27PMM 2011

28. Milky Way from Earth PMM 201128

29. PMM 201129

30. Galaxy Clusters 30PMM 2011

31. Structure of the Solar system We have already looked at the structure of the Solar system and the orbits of Planets around the Sun Moon around planets Comets and Asteroids around the Sun Satellites around the Earth Question: How do they stay in orbit? 31PMM May 2011

32. Circular motion PMM May 201132 Don’t try this at home! When the petrol-soaked ball is lit we have to keep swinging it around. Don’t stand too close!

33. Where will the fireball hit if the juggler lets go at X? X Here?

34. A double-decker roundabout in Paris. Someone sitting on the horses will be constantly accelerating because they are constantly changing direction. What happens if they try to get off while it is moving?

35. What direction will the passenger travel if they get off the roundabout at X? X Here?

36. Circular Motion Key points 1.Object moving in a circle at constant speed, is changing direction and is therefore changing velocity. We call this acceleration. 2.This is a special acceleration as it is always toward the centre of the circle. It does not cause the object to go any faster, but it causes it to change direction. 3.We call this a centripetal acceleration. 4. Centripetal acceleration is caused by a force which we call centripetal force. 5. Both the force and the acceleration are towards the centre of the circle.

37. http://web.ics.purdue.edu/~mjcarl so/ST/ST016_Circular_Motion.m4v http://web.ics.purdue.edu/~mjcarl so/ST/ST016_Circular_Motion.m4v mad American!! http://www.youtube.com/watch?v =L6-kn2tB-9E

38. Show video clips in folder f1, f2 f3 PMM May 201138

39. Facts to know: Each planet has a different orbital speed. The year for each planet gets longer as you go out from the sun The speed of each planet is different. A planet must have a particular speed for each orbit. Too slow= spiral in Too fast = fly out of orbit

40. Period Time it takes a satellite to make one orbit of earth. Higher orbit, slower speed, travels further so period is longer Lower orbit, faster speed, travels less far so period shorter

42. PMM May 201142 The Maths bit How far is it around the circle? Answer = 2 x π x radius How long does it take to complete one orbit? This is called the period and the symbol is T How fast does it travel? Speed = distance time
