SEASR Analytics and Zotero University of Illinois at Urbana-Champaign.

Similar presentations


Presentation on theme: "SEASR Analytics and Zotero University of Illinois at Urbana-Champaign."— Presentation transcript:

1 SEASR Analytics and Zotero University of Illinois at Urbana-Champaign

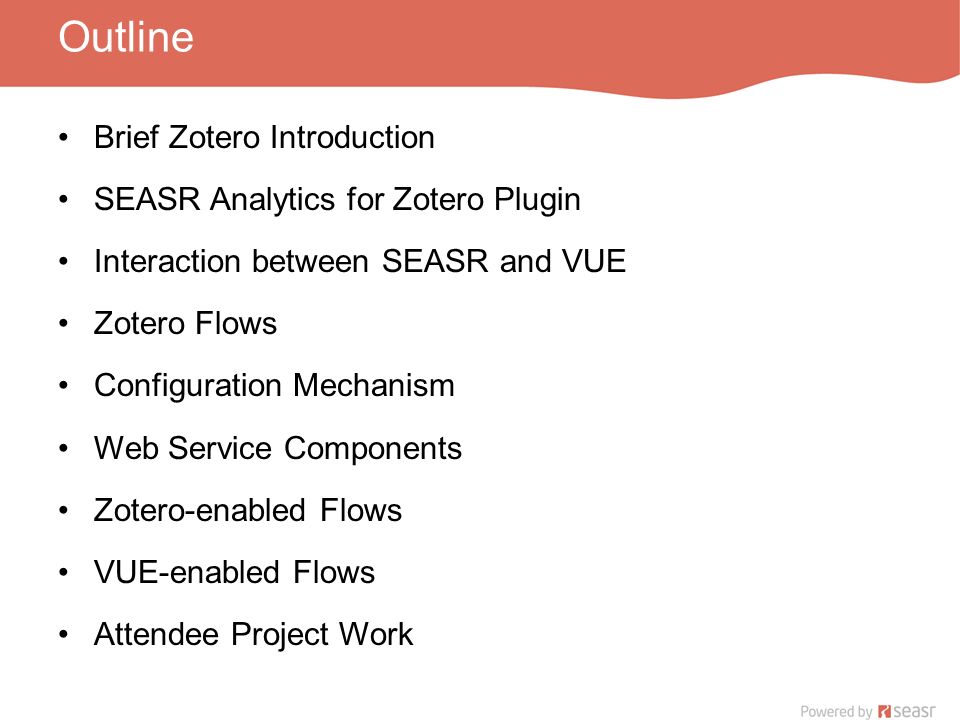

2 Outline Brief Zotero Introduction SEASR Analytics for Zotero Plugin Interaction between SEASR and VUE Zotero Flows Configuration Mechanism Web Service Components Zotero-enabled Flows VUE-enabled Flows Attendee Project Work

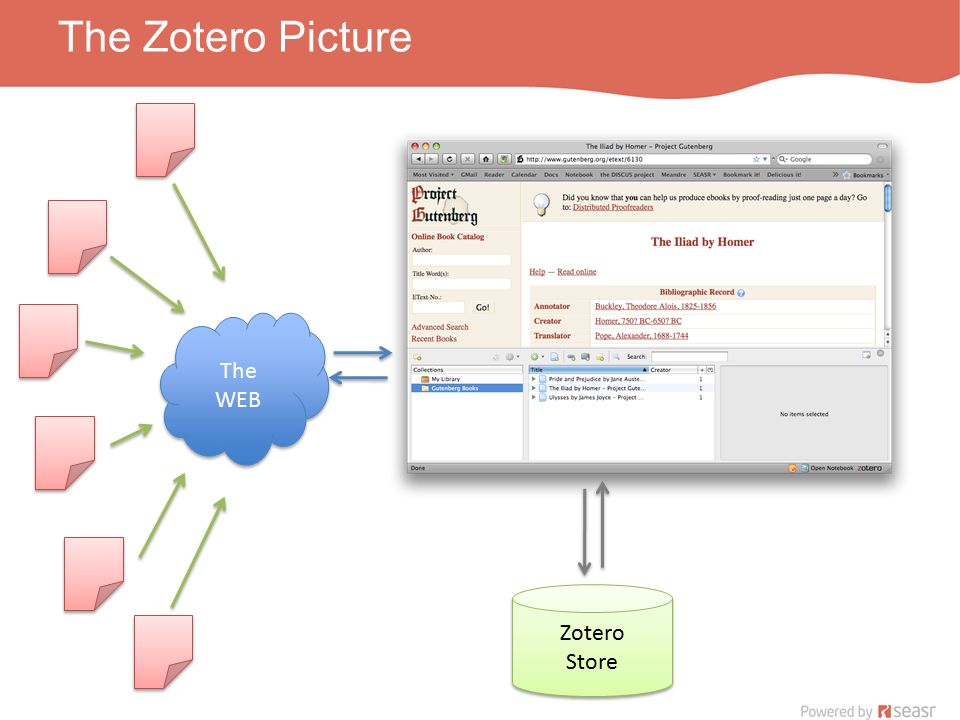

3 The Zotero Picture The WEB The WEB Zotero Store

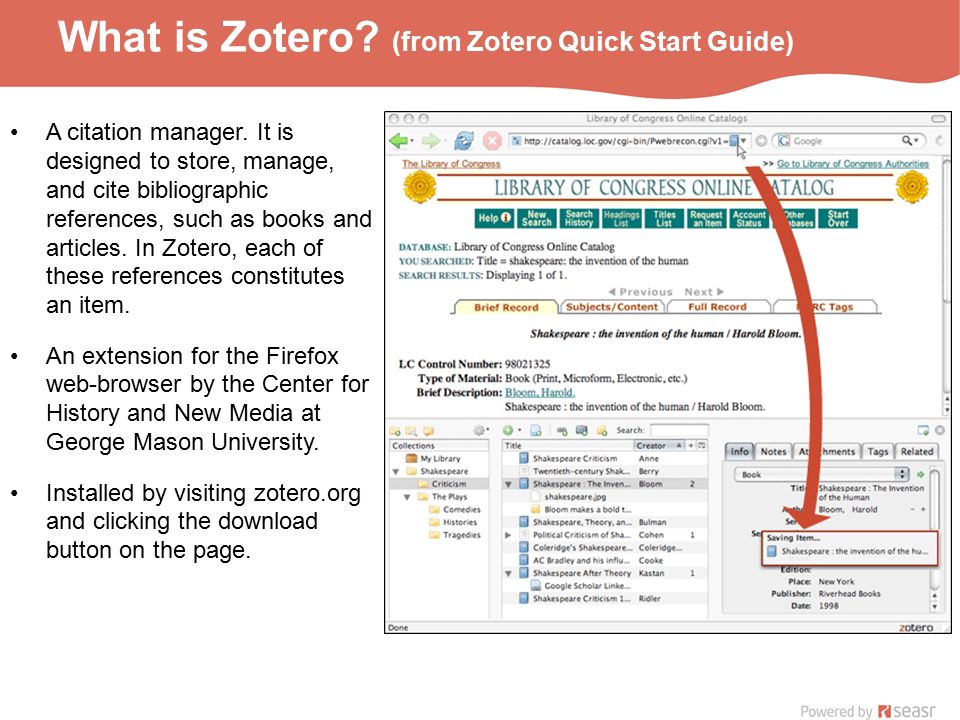

4 What is Zotero? (from Zotero Quick Start Guide) A citation manager. It is designed to store, manage, and cite bibliographic references, such as books and articles. In Zotero, each of these references constitutes an item. An extension for the Firefox web-browser by the Center for History and New Media at George Mason University. Installed by visiting zotero.org and clicking the download button on the page.

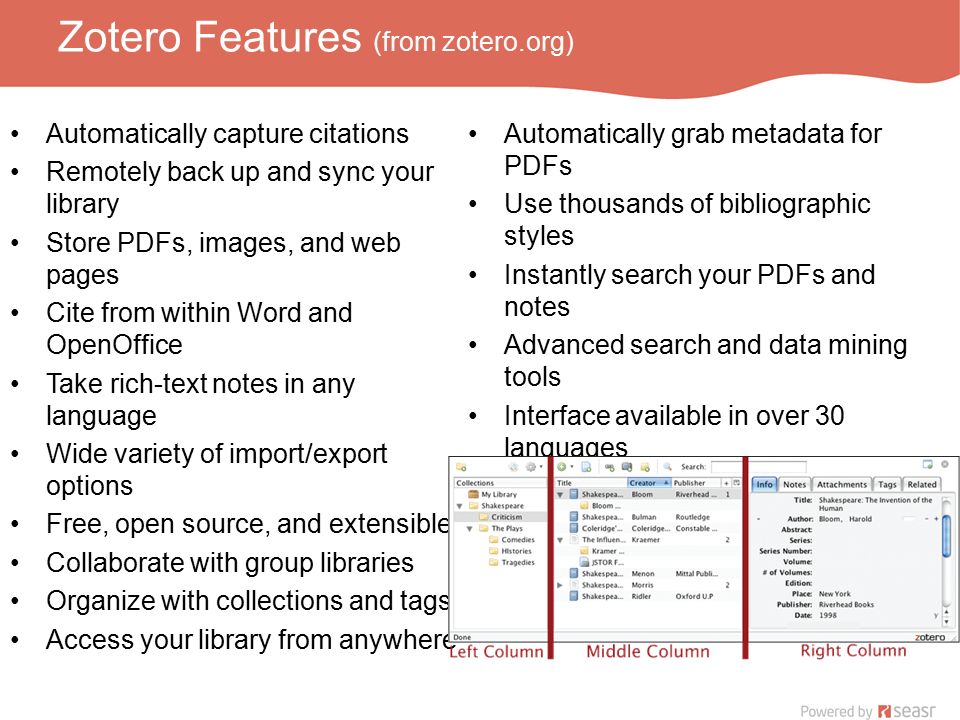

5 Zotero Features (from zotero.org) Automatically capture citations Remotely back up and sync your library Store PDFs, images, and web pages Cite from within Word and OpenOffice Take rich-text notes in any language Wide variety of import/export options Free, open source, and extensible Collaborate with group libraries Organize with collections and tags Access your library from anywhere Automatically grab metadata for PDFs Use thousands of bibliographic styles Instantly search your PDFs and notes Advanced search and data mining tools Interface available in over 30 languages

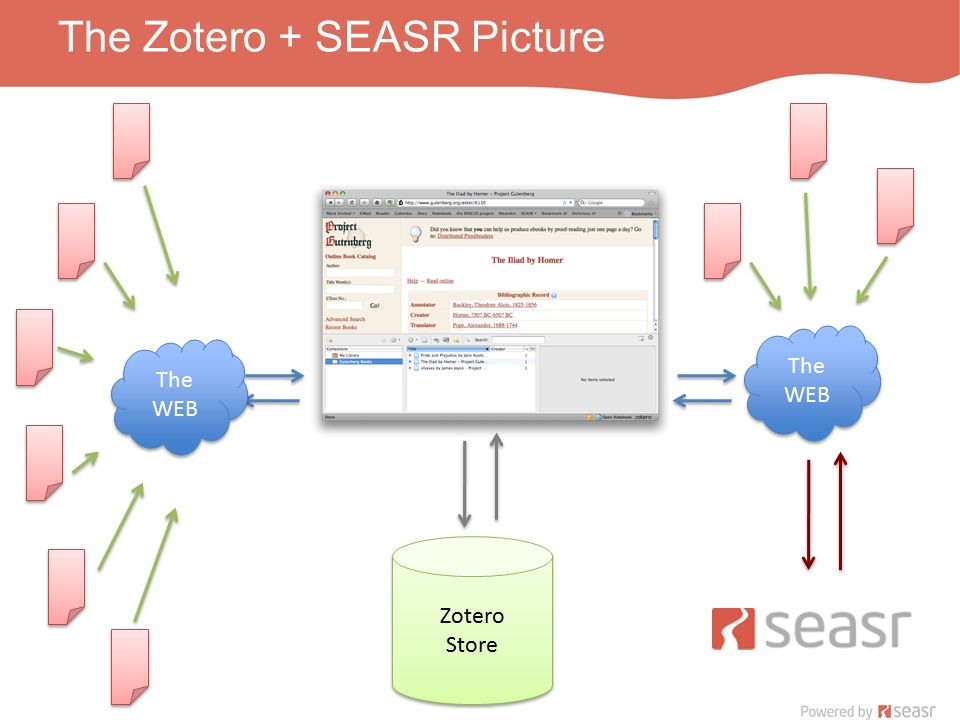

6 The Zotero + SEASR Picture The WEB Zotero Store The WEB

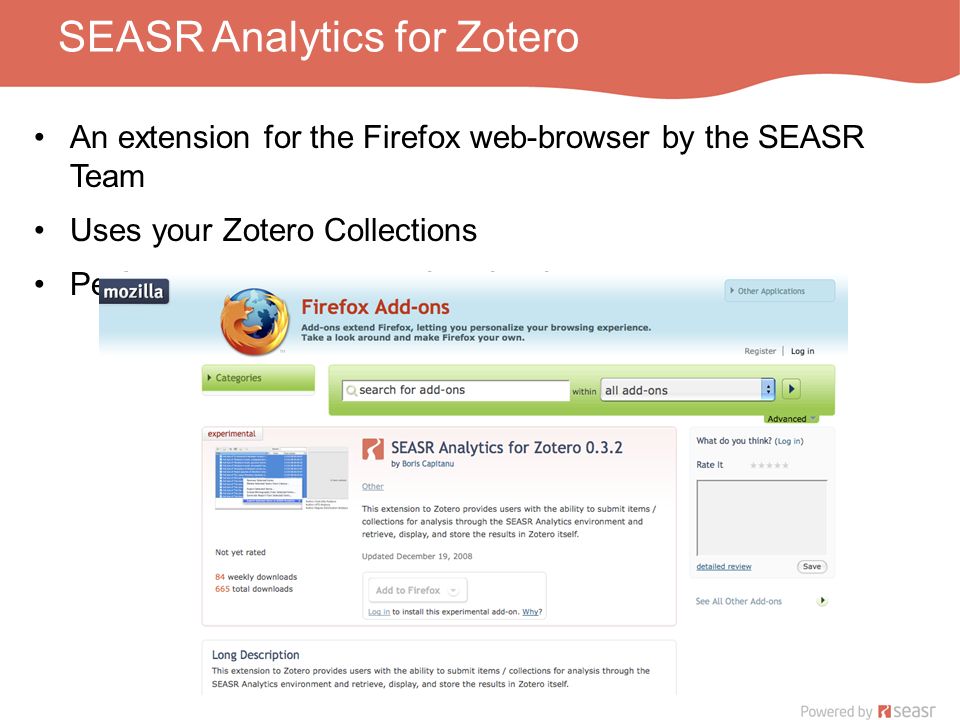

7 SEASR Analytics for Zotero An extension for the Firefox web-browser by the SEASR Team Uses your Zotero Collections Performs analysis using SEASR Services

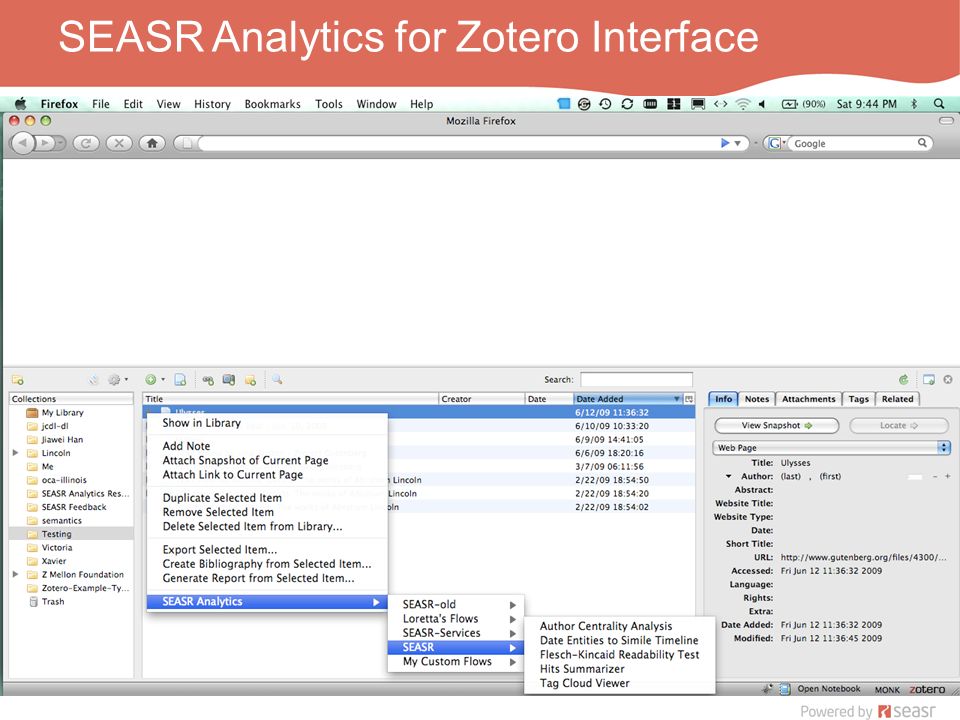

8 SEASR Analytics for Zotero Interface

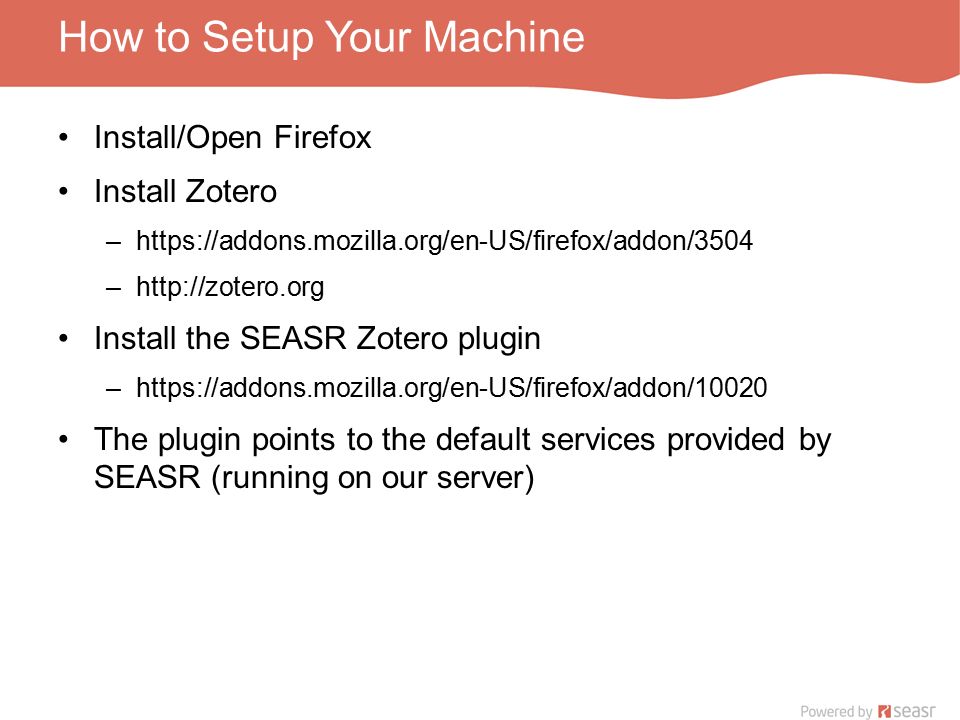

9 How to Setup Your Machine Install/Open Firefox Install Zotero –https://addons.mozilla.org/en-US/firefox/addon/3504 –http://zotero.org Install the SEASR Zotero plugin –https://addons.mozilla.org/en-US/firefox/addon/10020 The plugin points to the default services provided by SEASR (running on our server)

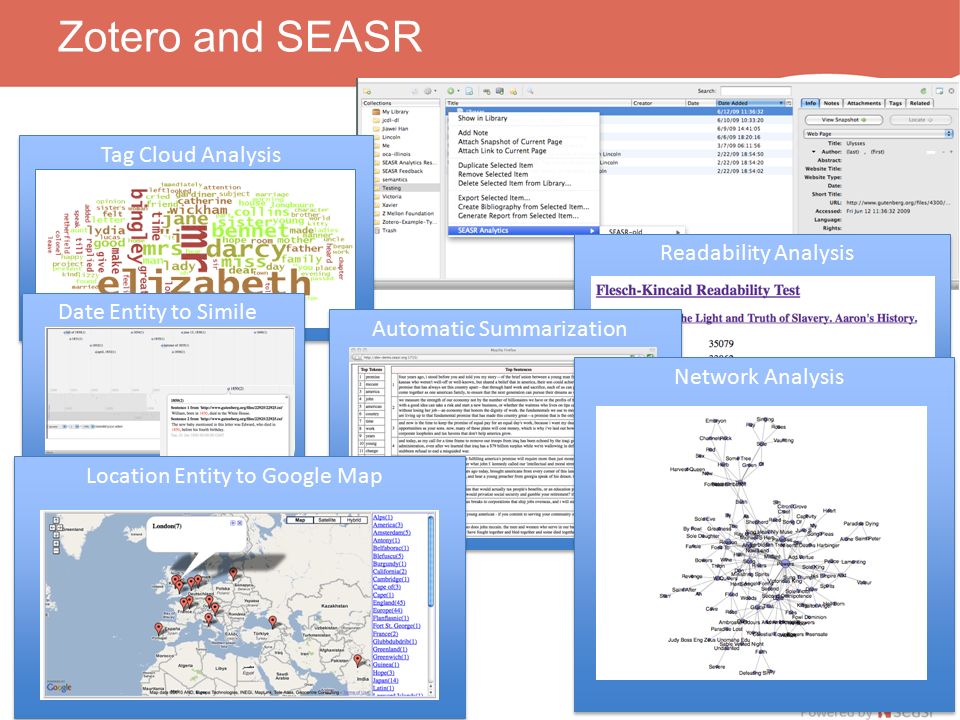

10 Zotero and SEASR Tag Cloud Analysis Readability Analysis Automatic Summarization Network Analysis Date Entity to Simile Timeline Example: Zotero, SEASR, Protovis, Google Maps, Simile Location Entity to Google Map

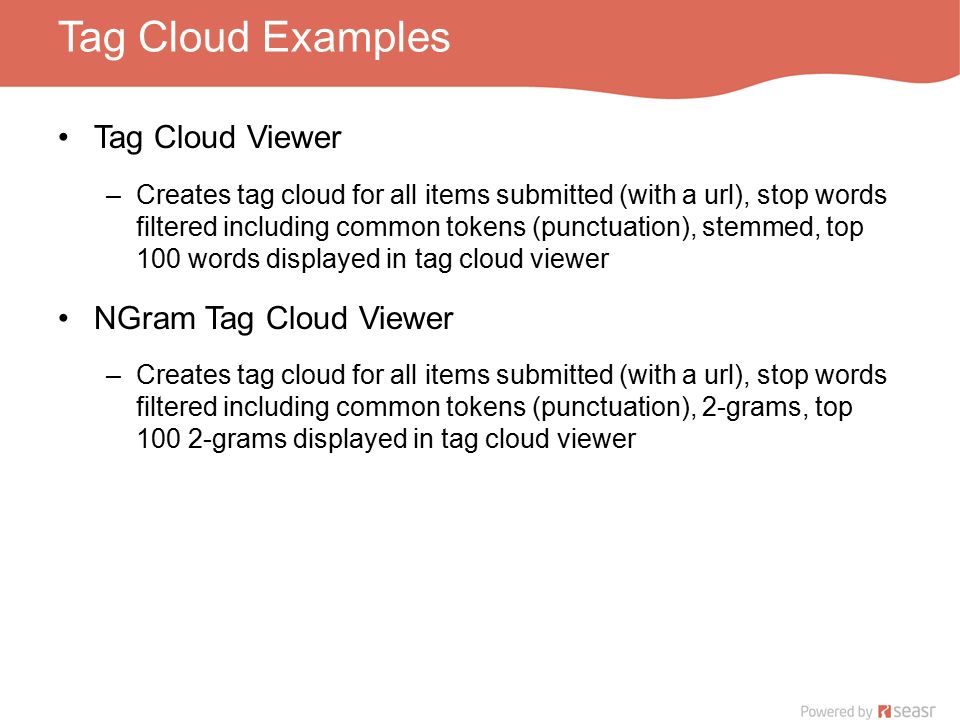

11 Tag Cloud Examples Tag Cloud Viewer –Creates tag cloud for all items submitted (with a url), stop words filtered including common tokens (punctuation), stemmed, top 100 words displayed in tag cloud viewer NGram Tag Cloud Viewer –Creates tag cloud for all items submitted (with a url), stop words filtered including common tokens (punctuation), 2-grams, top 100 2-grams displayed in tag cloud viewer

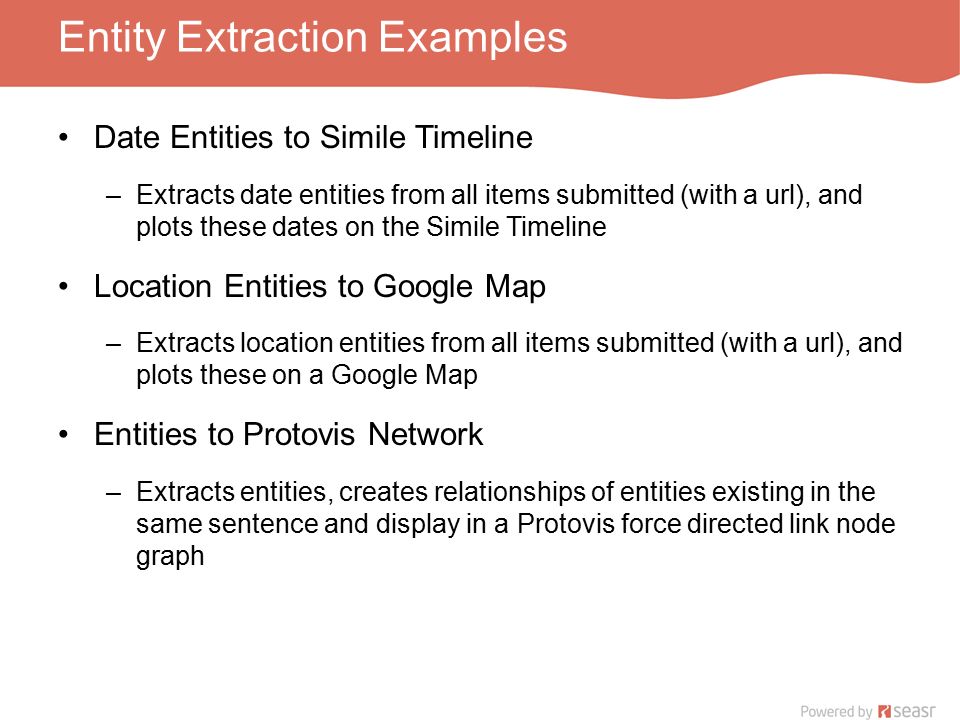

12 Entity Extraction Examples Date Entities to Simile Timeline –Extracts date entities from all items submitted (with a url), and plots these dates on the Simile Timeline Location Entities to Google Map –Extracts location entities from all items submitted (with a url), and plots these on a Google Map Entities to Protovis Network –Extracts entities, creates relationships of entities existing in the same sentence and display in a Protovis force directed link node graph

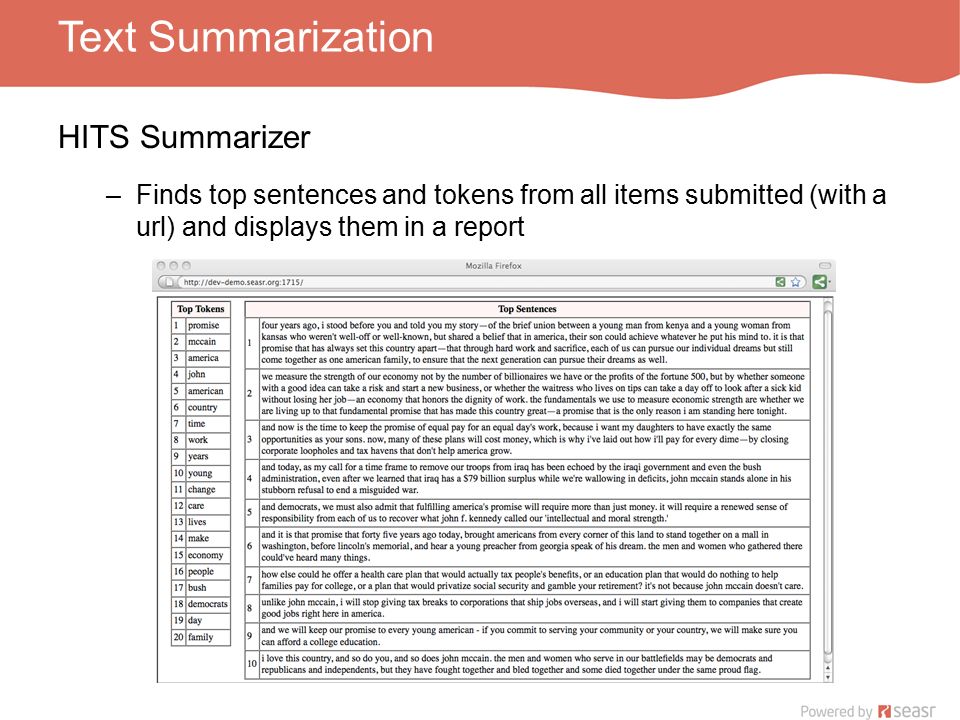

13 Text Summarization HITS Summarizer –Finds top sentences and tokens from all items submitted (with a url) and displays them in a report

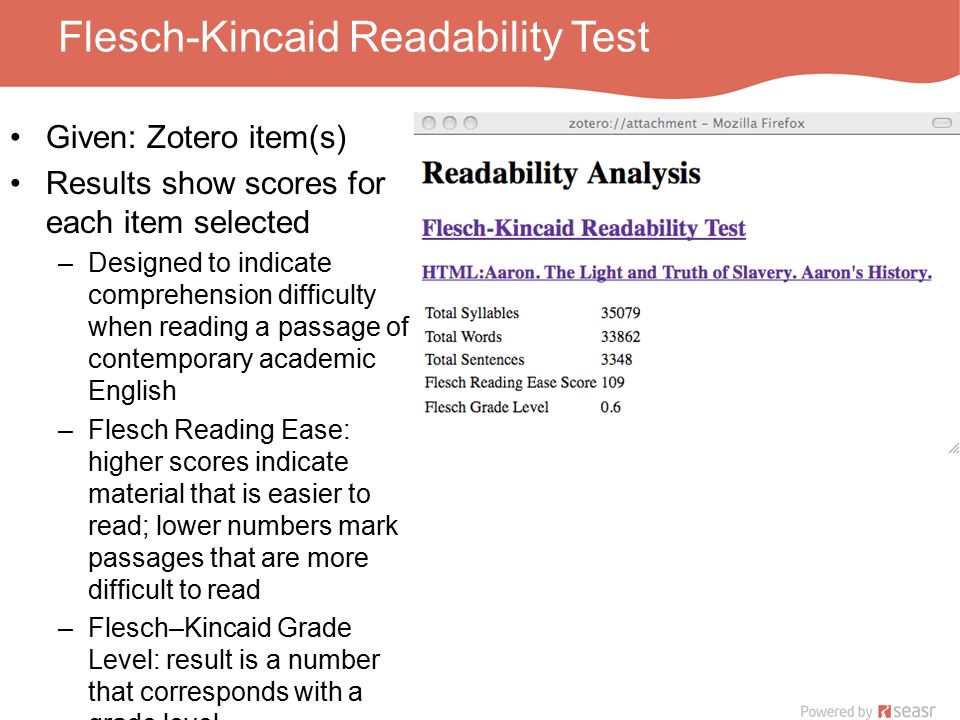

14 Flesch-Kincaid Readability Test Given: Zotero item(s) Results show scores for each item selected –Designed to indicate comprehension difficulty when reading a passage of contemporary academic English –Flesch Reading Ease: higher scores indicate material that is easier to read; lower numbers mark passages that are more difficult to read –Flesch–Kincaid Grade Level: result is a number that corresponds with a grade level

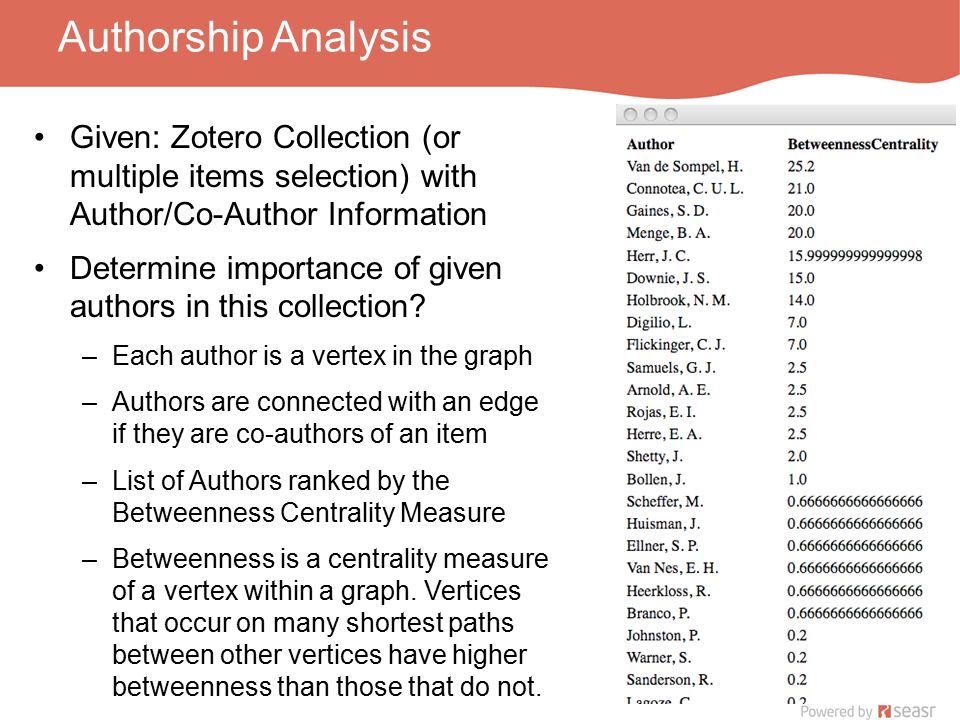

15 Authorship Analysis Given: Zotero Collection (or multiple items selection) with Author/Co-Author Information Determine importance of given authors in this collection? –Each author is a vertex in the graph –Authors are connected with an edge if they are co-authors of an item –List of Authors ranked by the Betweenness Centrality Measure –Betweenness is a centrality measure of a vertex within a graph. Vertices that occur on many shortest paths between other vertices have higher betweenness than those that do not.

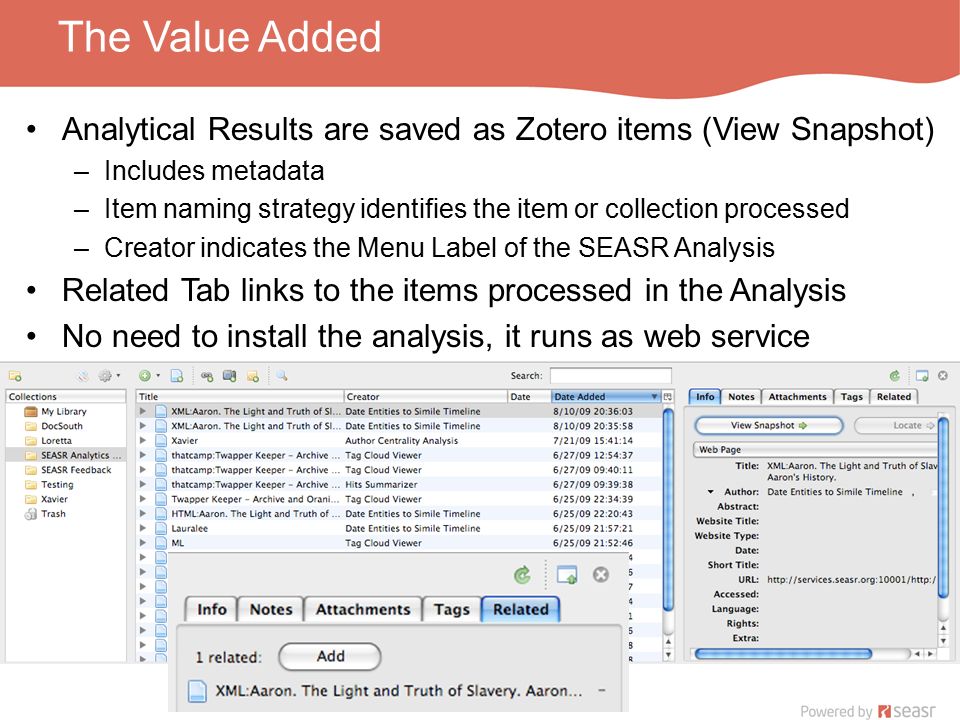

16 The Value Added Analytical Results are saved as Zotero items (View Snapshot) –Includes metadata –Item naming strategy identifies the item or collection processed –Creator indicates the Menu Label of the SEASR Analysis Related Tab links to the items processed in the Analysis No need to install the analysis, it runs as web service

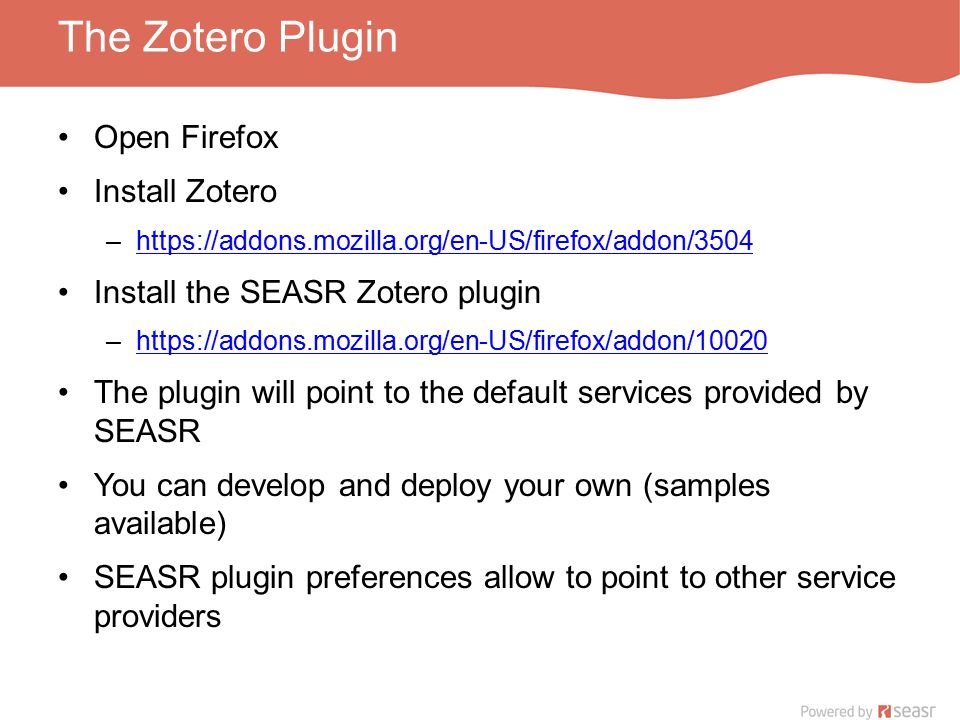

17 The Zotero Plugin Open Firefox Install Zotero –https://addons.mozilla.org/en-US/firefox/addon/3504https://addons.mozilla.org/en-US/firefox/addon/3504 Install the SEASR Zotero plugin –https://addons.mozilla.org/en-US/firefox/addon/10020https://addons.mozilla.org/en-US/firefox/addon/10020 The plugin will point to the default services provided by SEASR You can develop and deploy your own (samples available) SEASR plugin preferences allow to point to other service providers

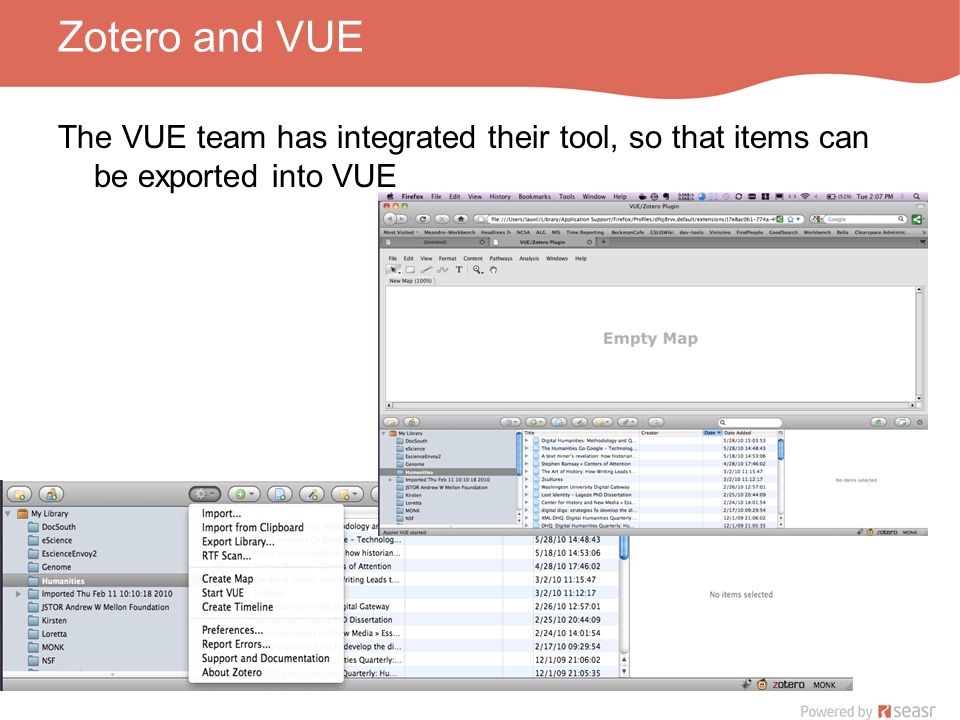

18 Zotero and VUE The VUE team has integrated their tool, so that items can be exported into VUE

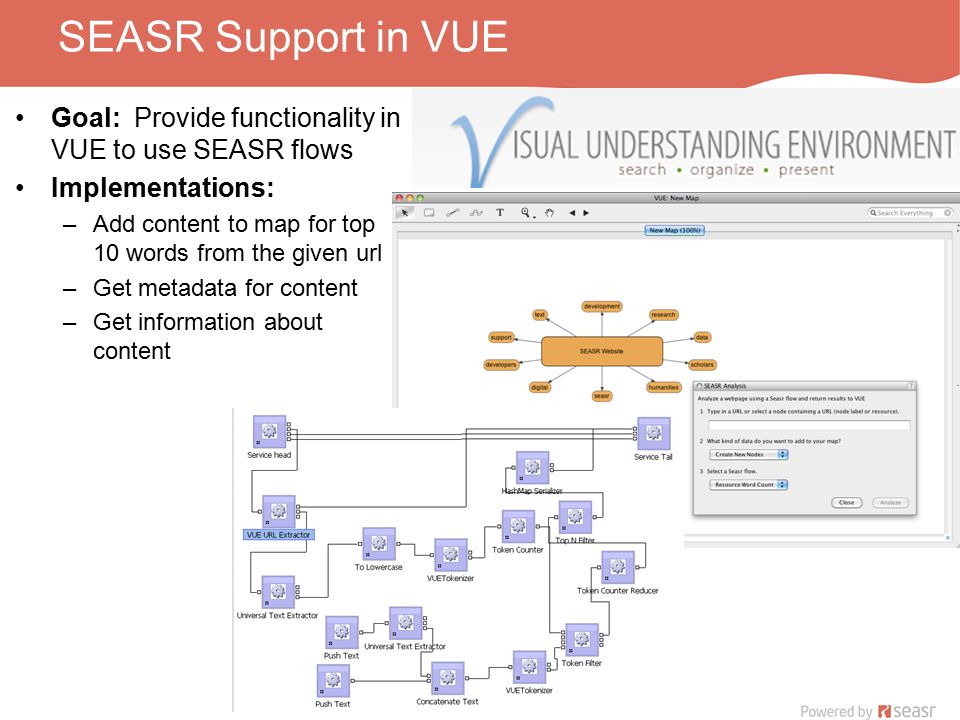

19 SEASR Support in VUE Goal: Provide functionality in VUE to use SEASR flows Implementations: –Add content to map for top 10 words from the given url –Get metadata for content –Get information about content

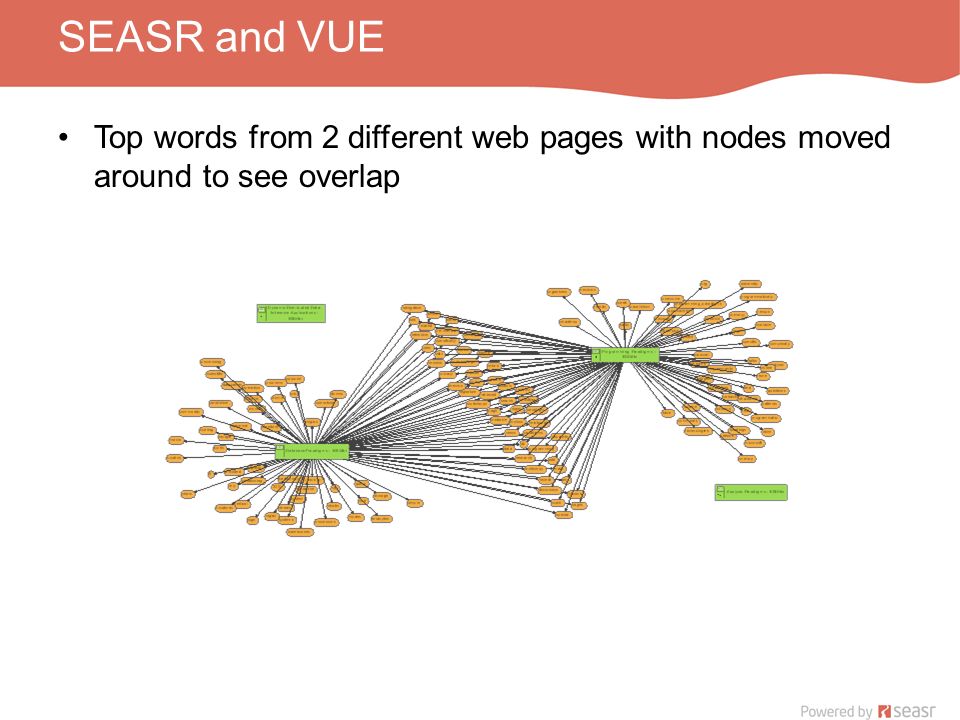

20 SEASR and VUE Top words from 2 different web pages with nodes moved around to see overlap

21 SEASR and VUE

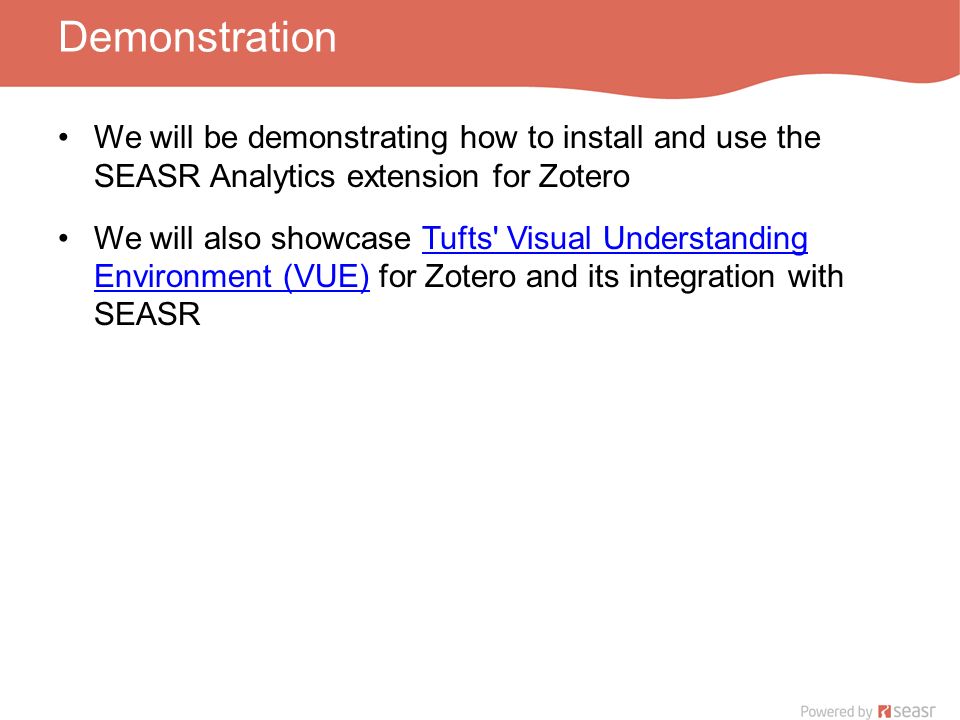

22 Demonstration We will be demonstrating how to install and use the SEASR Analytics extension for Zotero We will also showcase Tufts' Visual Understanding Environment (VUE) for Zotero and its integration with SEASRTufts' Visual Understanding Environment (VUE)

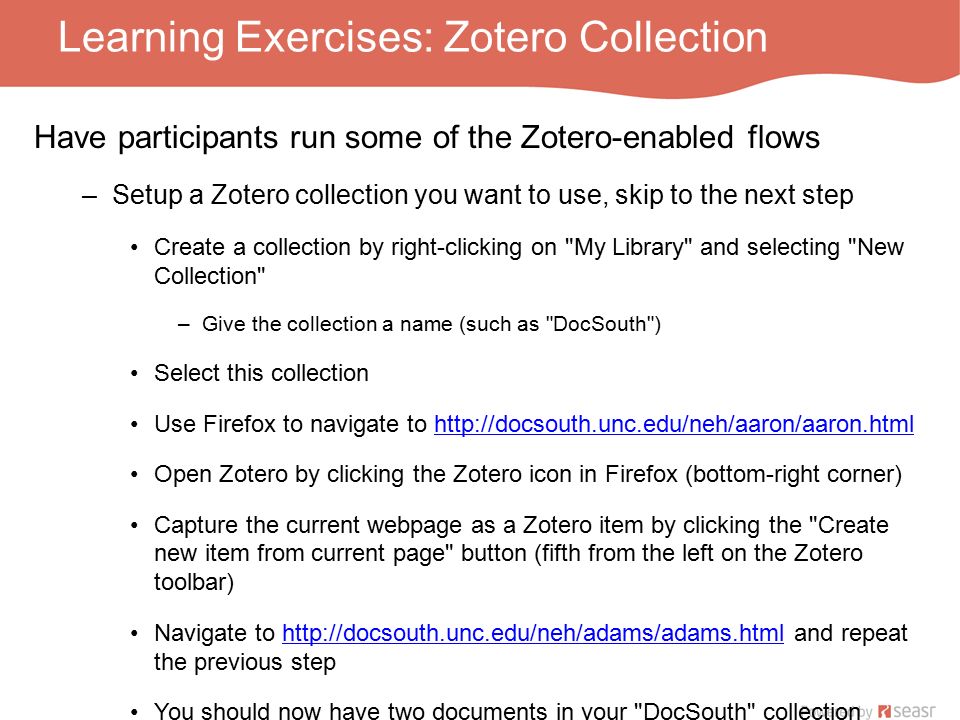

23 Learning Exercises: Zotero Collection Have participants run some of the Zotero-enabled flows –Setup a Zotero collection you want to use, skip to the next step Create a collection by right-clicking on "My Library" and selecting "New Collection" –Give the collection a name (such as "DocSouth") Select this collection Use Firefox to navigate to http://docsouth.unc.edu/neh/aaron/aaron.htmlhttp://docsouth.unc.edu/neh/aaron/aaron.html Open Zotero by clicking the Zotero icon in Firefox (bottom-right corner) Capture the current webpage as a Zotero item by clicking the "Create new item from current page" button (fifth from the left on the Zotero toolbar) Navigate to http://docsouth.unc.edu/neh/adams/adams.html and repeat the previous stephttp://docsouth.unc.edu/neh/adams/adams.html You should now have two documents in your "DocSouth" collection

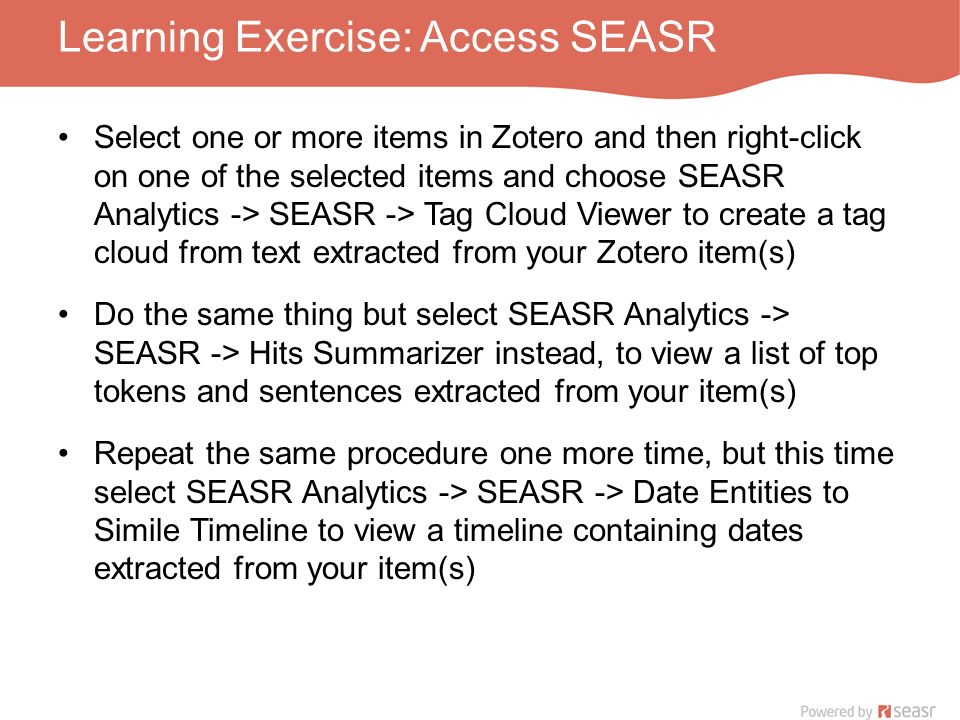

24 Learning Exercise: Access SEASR Select one or more items in Zotero and then right-click on one of the selected items and choose SEASR Analytics -> SEASR -> Tag Cloud Viewer to create a tag cloud from text extracted from your Zotero item(s) Do the same thing but select SEASR Analytics -> SEASR -> Hits Summarizer instead, to view a list of top tokens and sentences extracted from your item(s) Repeat the same procedure one more time, but this time select SEASR Analytics -> SEASR -> Date Entities to Simile Timeline to view a timeline containing dates extracted from your item(s)

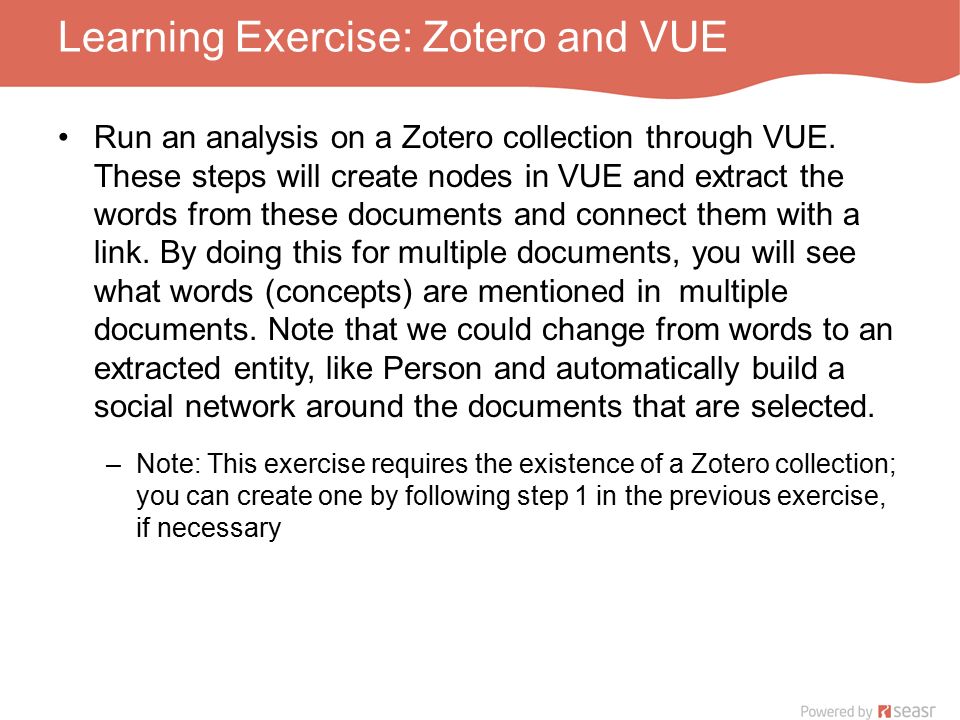

25 Learning Exercise: Zotero and VUE Run an analysis on a Zotero collection through VUE. These steps will create nodes in VUE and extract the words from these documents and connect them with a link. By doing this for multiple documents, you will see what words (concepts) are mentioned in multiple documents. Note that we could change from words to an extracted entity, like Person and automatically build a social network around the documents that are selected. –Note: This exercise requires the existence of a Zotero collection; you can create one by following step 1 in the previous exercise, if necessary

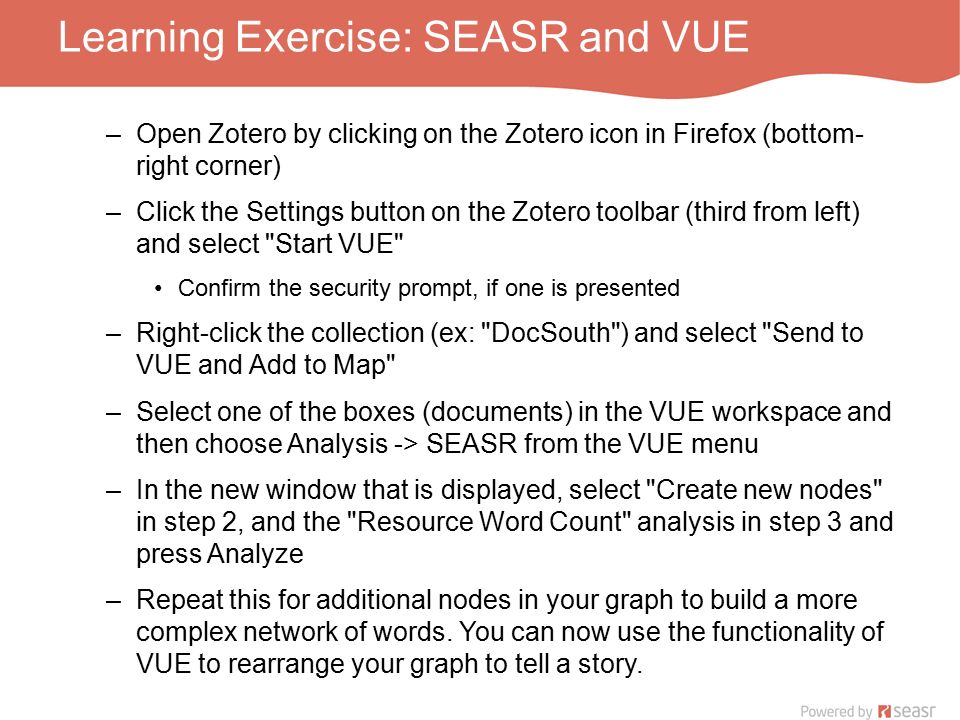

26 Learning Exercise: SEASR and VUE –Open Zotero by clicking on the Zotero icon in Firefox (bottom- right corner) –Click the Settings button on the Zotero toolbar (third from left) and select "Start VUE" Confirm the security prompt, if one is presented –Right-click the collection (ex: "DocSouth") and select "Send to VUE and Add to Map" –Select one of the boxes (documents) in the VUE workspace and then choose Analysis -> SEASR from the VUE menu –In the new window that is displayed, select "Create new nodes" in step 2, and the "Resource Word Count" analysis in step 3 and press Analyze –Repeat this for additional nodes in your graph to build a more complex network of words. You can now use the functionality of VUE to rearrange your graph to tell a story.

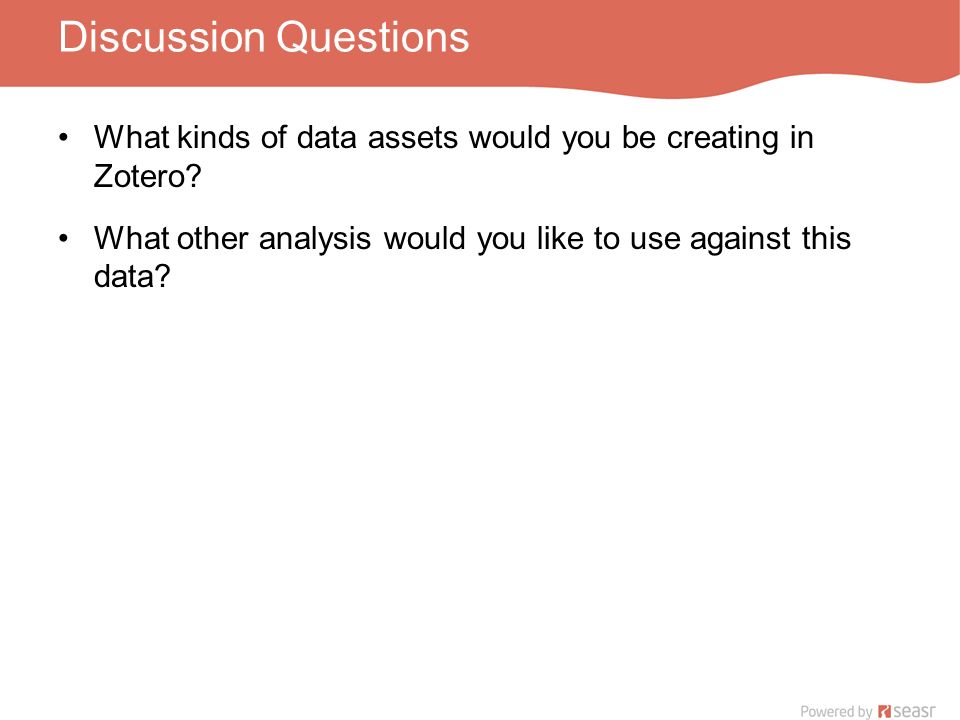

27 Discussion Questions What kinds of data assets would you be creating in Zotero? What other analysis would you like to use against this data?

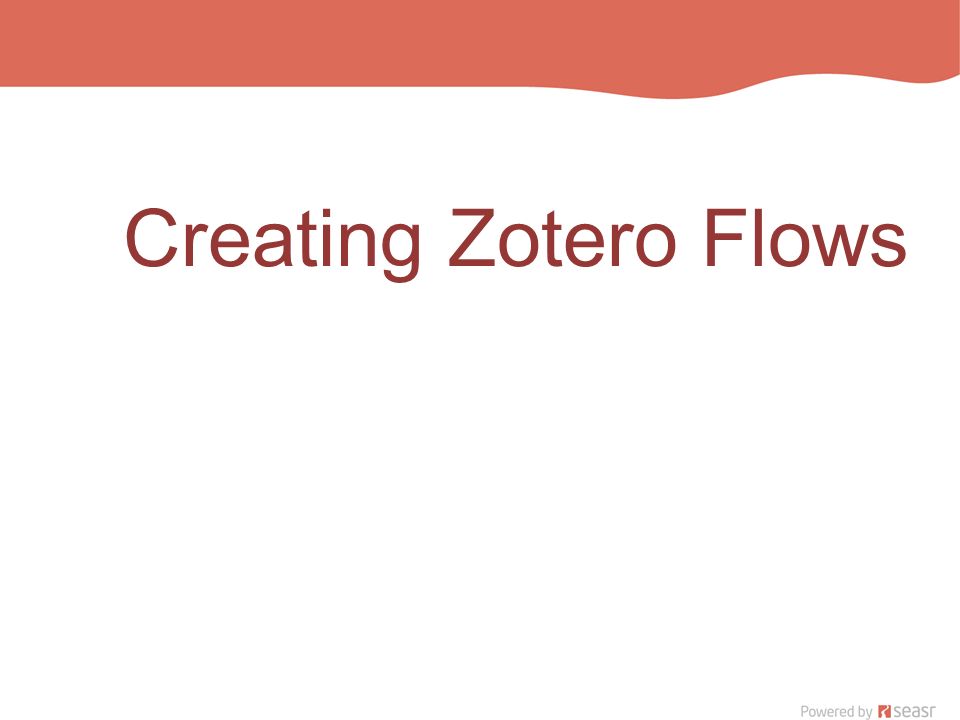

28 Creating Zotero Flows

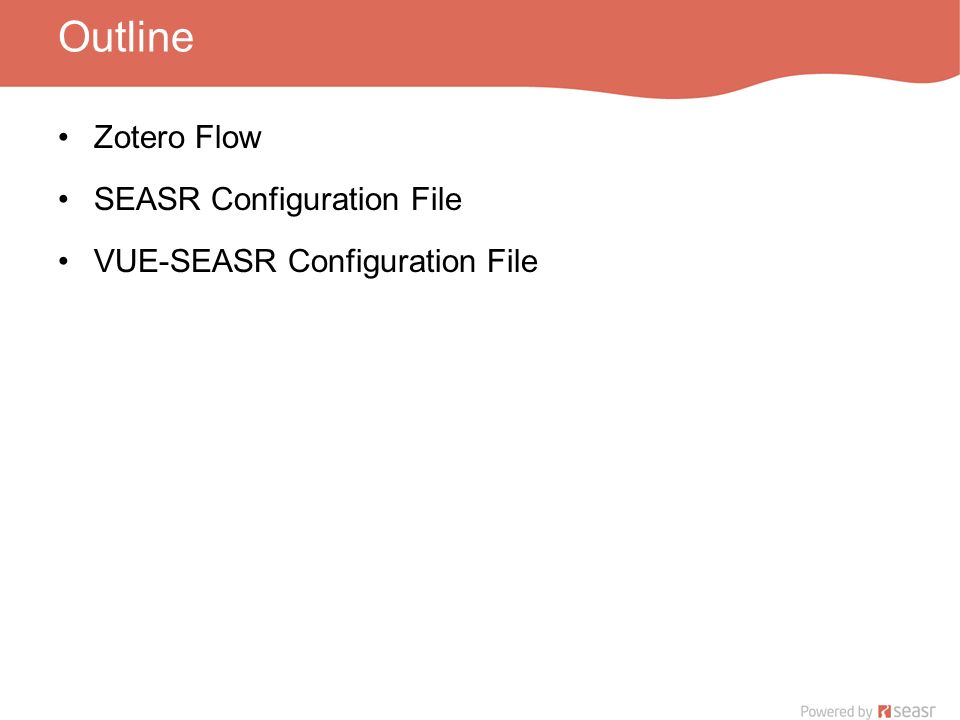

29 Outline Zotero Flow SEASR Configuration File VUE-SEASR Configuration File

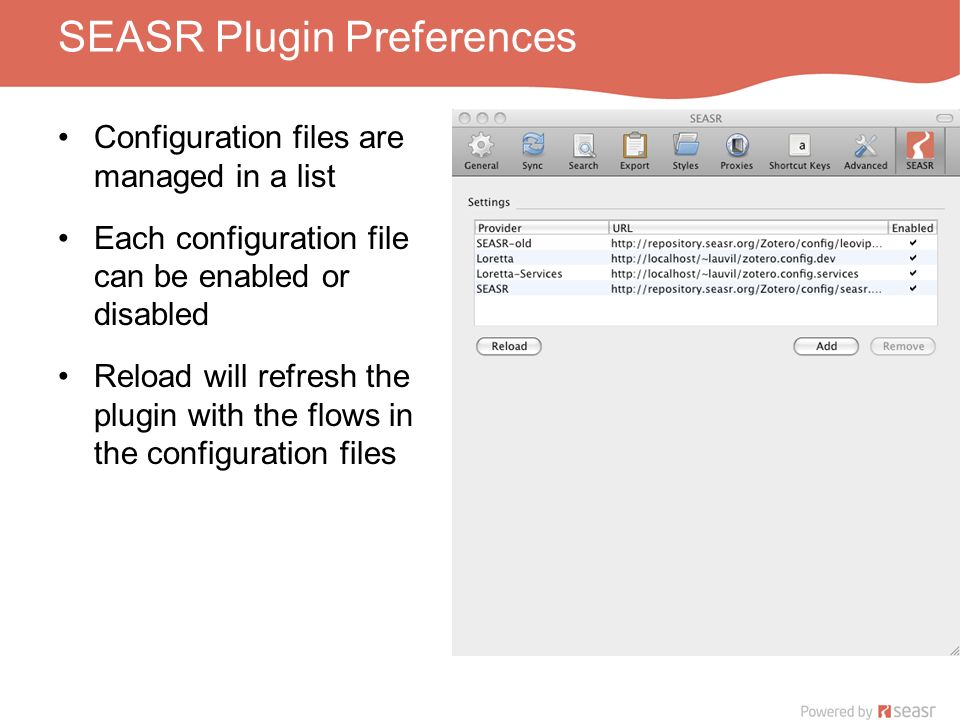

30 SEASR Plugin Preferences Configuration files are managed in a list Each configuration file can be enabled or disabled Reload will refresh the plugin with the flows in the configuration files

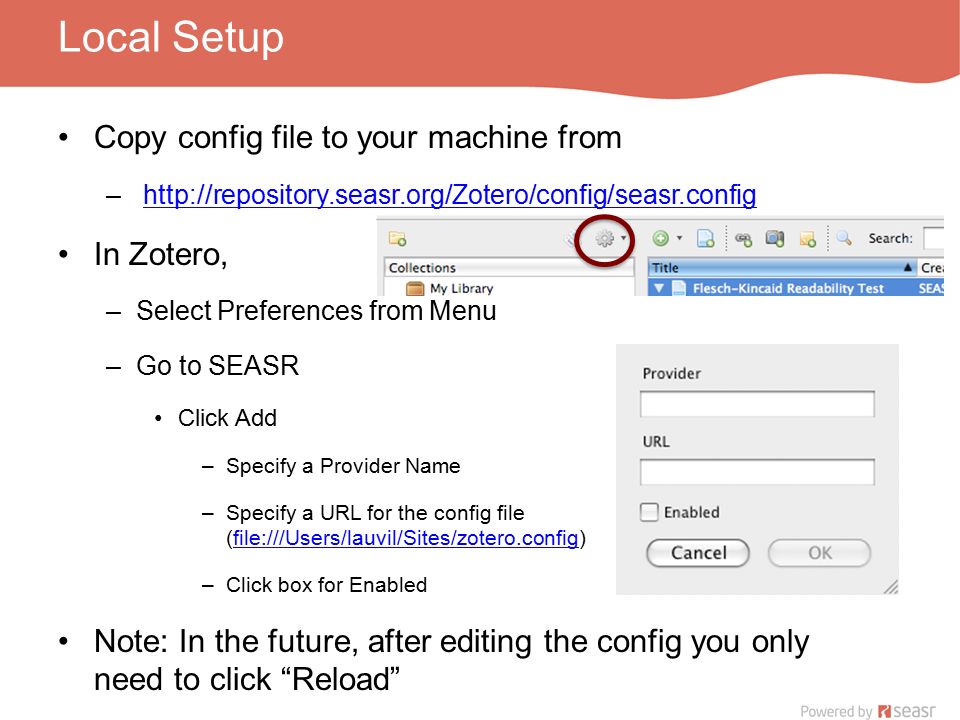

31 Local Setup Copy config file to your machine from – http://repository.seasr.org/Zotero/config/seasr.confighttp://repository.seasr.org/Zotero/config/seasr.config In Zotero, –Select Preferences from Menu –Go to SEASR Click Add –Specify a Provider Name –Specify a URL for the config file (file:///Users/lauvil/Sites/zotero.config)file:///Users/lauvil/Sites/zotero.config –Click box for Enabled Note: In the future, after editing the config you only need to click “Reload”

32 Extensible to Analysis that You Create You can deploy the flows we have on your server or request your university to host this analysis You can modify these flows and redeploy You can create new flows –Perhaps you want to see only nouns or verbs –Perhaps you want to see a list of extracted entities You can share these flows back to the community

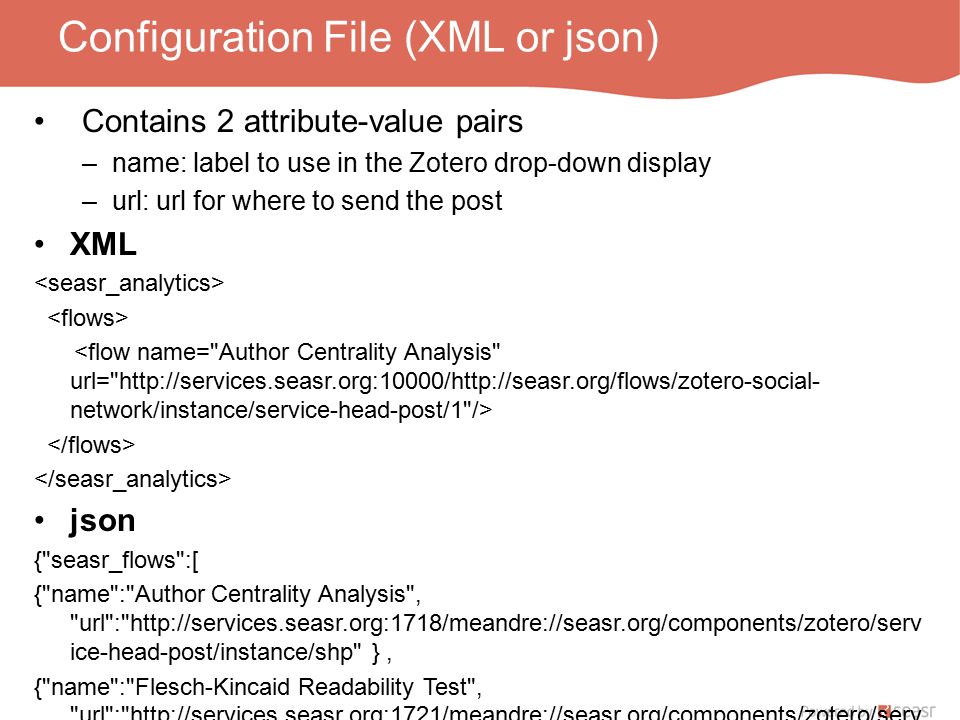

33 Configuration File (XML or json) Contains 2 attribute-value pairs –name: label to use in the Zotero drop-down display –url: url for where to send the post XML json {"seasr_flows":[ {"name":"Author Centrality Analysis", "url":"http://services.seasr.org:1718/meandre://seasr.org/components/zotero/serv ice-head-post/instance/shp" }, {"name":"Flesch-Kincaid Readability Test", "url":"http://services.seasr.org:1721/meandre://seasr.org/components/zotero/serv ice-head-post/instance/shp" } ]}

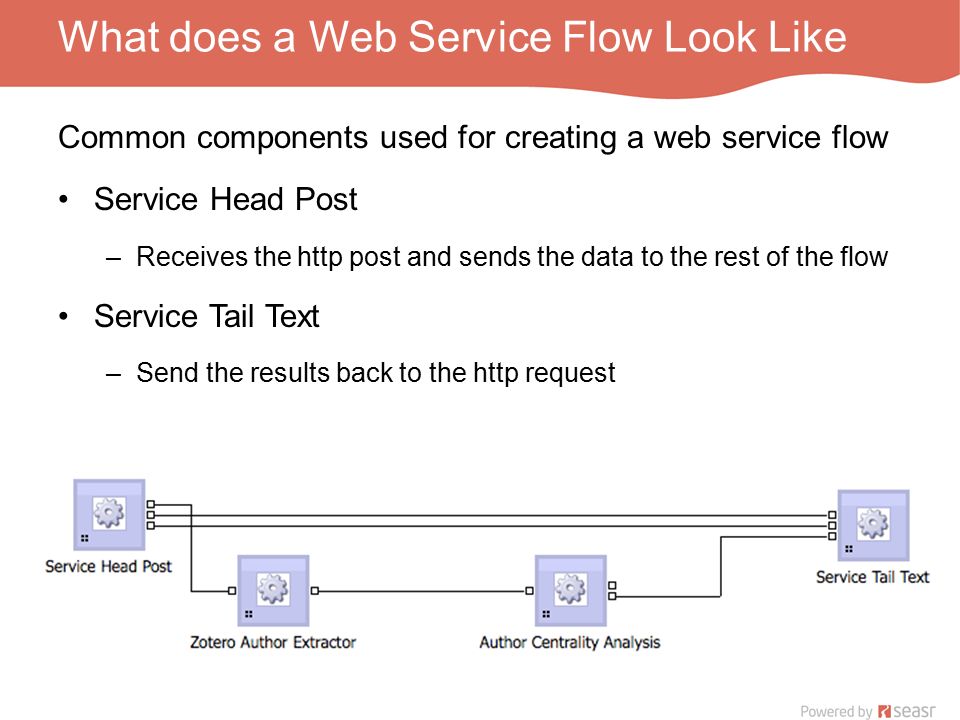

34 What does a Web Service Flow Look Like Common components used for creating a web service flow Service Head Post –Receives the http post and sends the data to the rest of the flow Service Tail Text –Send the results back to the http request

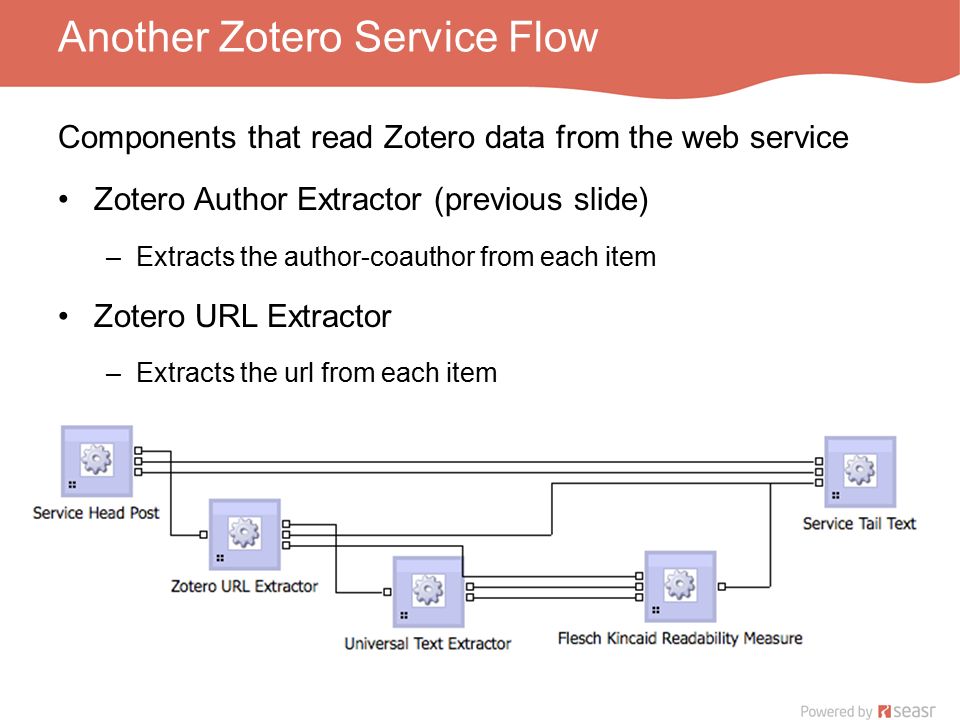

35 Another Zotero Service Flow Components that read Zotero data from the web service Zotero Author Extractor (previous slide) –Extracts the author-coauthor from each item Zotero URL Extractor –Extracts the url from each item

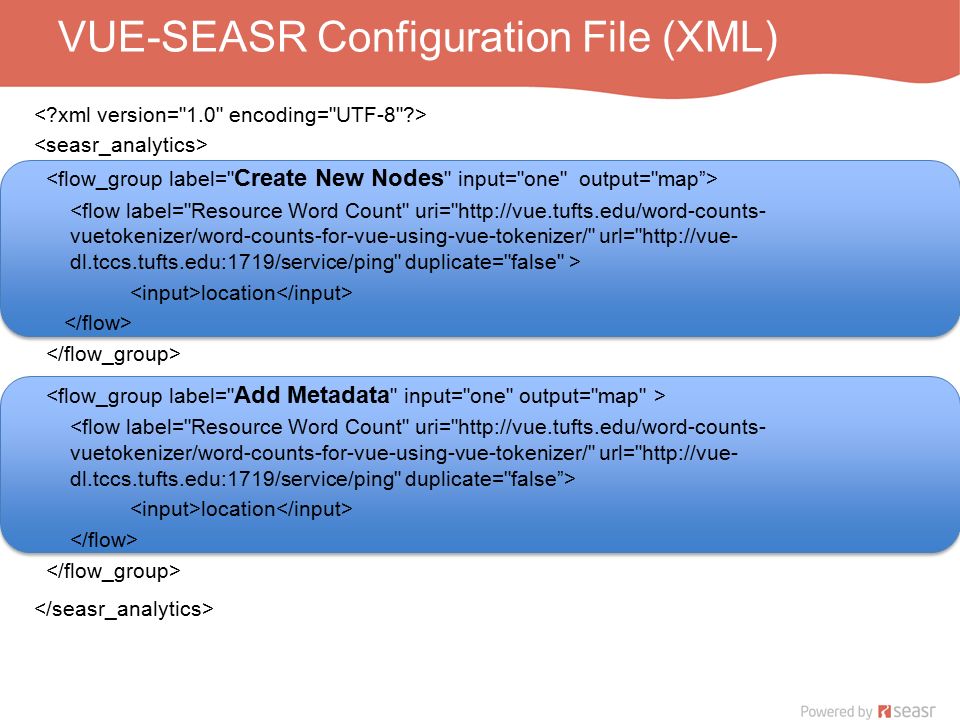

36 VUE-SEASR Configuration File (XML) location location

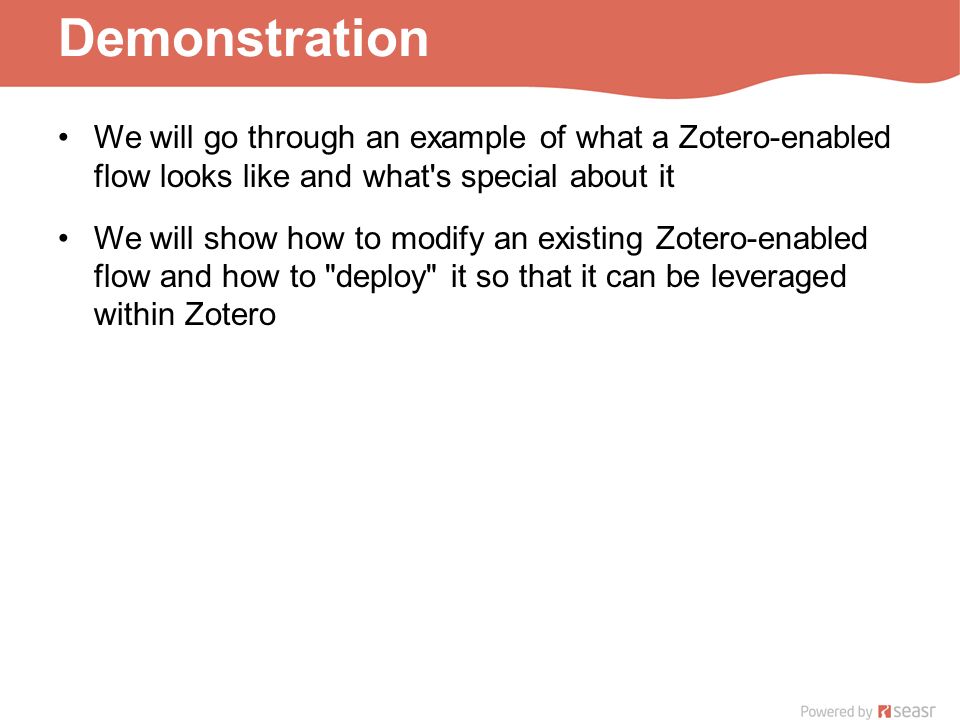

37 Demonstration We will go through an example of what a Zotero-enabled flow looks like and what's special about it We will show how to modify an existing Zotero-enabled flow and how to "deploy" it so that it can be leveraged within Zotero

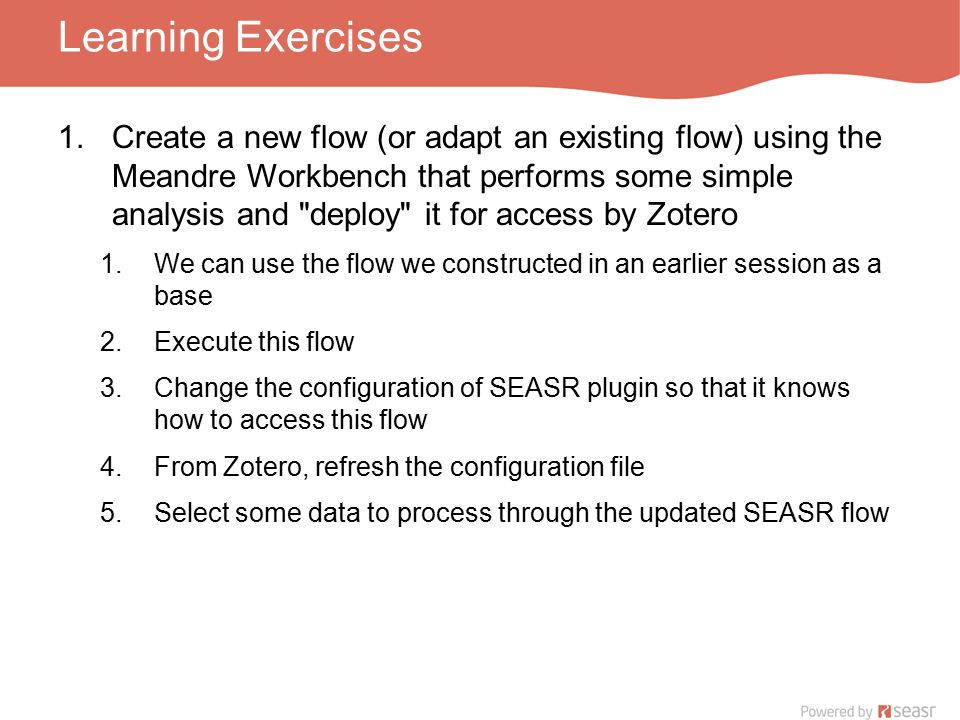

38 Learning Exercises 1.Create a new flow (or adapt an existing flow) using the Meandre Workbench that performs some simple analysis and "deploy" it for access by Zotero 1.We can use the flow we constructed in an earlier session as a base 2.Execute this flow 3.Change the configuration of SEASR plugin so that it knows how to access this flow 4.From Zotero, refresh the configuration file 5.Select some data to process through the updated SEASR flow

39 Discussion Questions What kinds of data assets would you be creating in Zotero? What other analysis would you like to use against this data?
