Immune Hematology L Bonstien PhD E J Dann MD. RED BLOOD CELL SURFACE MAMBRANE.

Similar presentations

Presentation on theme: "Immune Hematology L Bonstien PhD E J Dann MD. RED BLOOD CELL SURFACE MAMBRANE."— Presentation transcript:

1 Immune Hematology L Bonstien PhD E J Dann MD

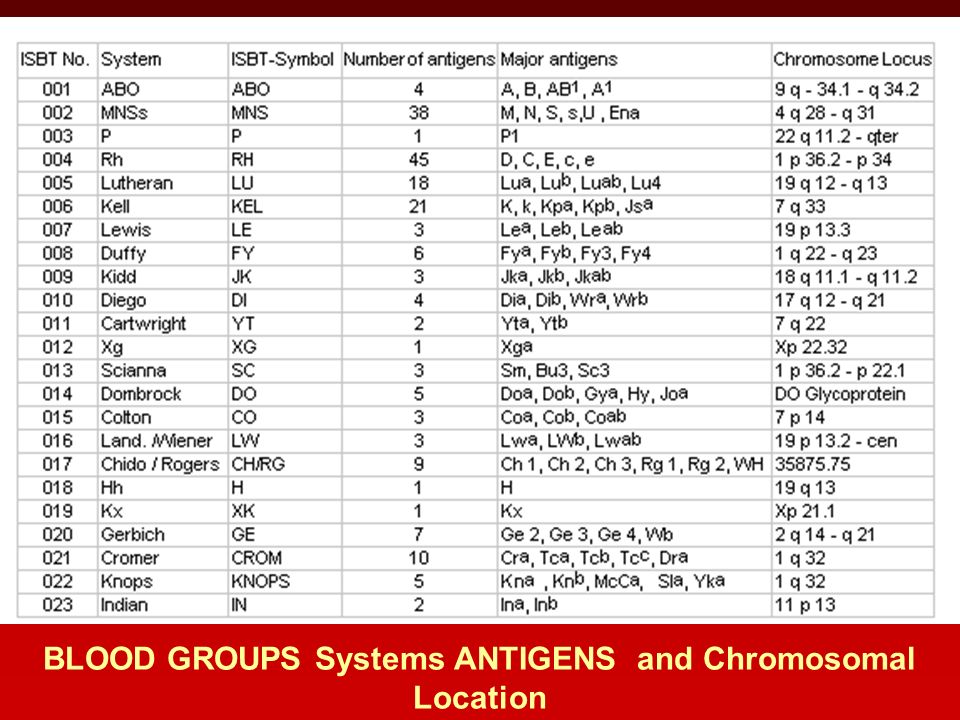

4 BLOOD GROUPS Systems ANTIGENS and Chromosomal Location

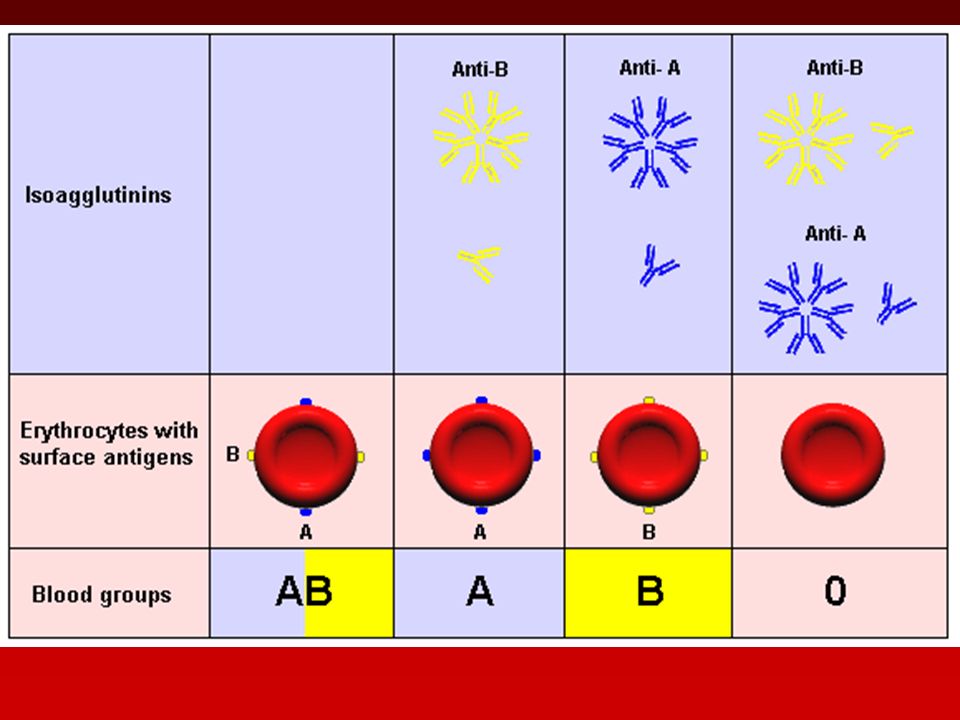

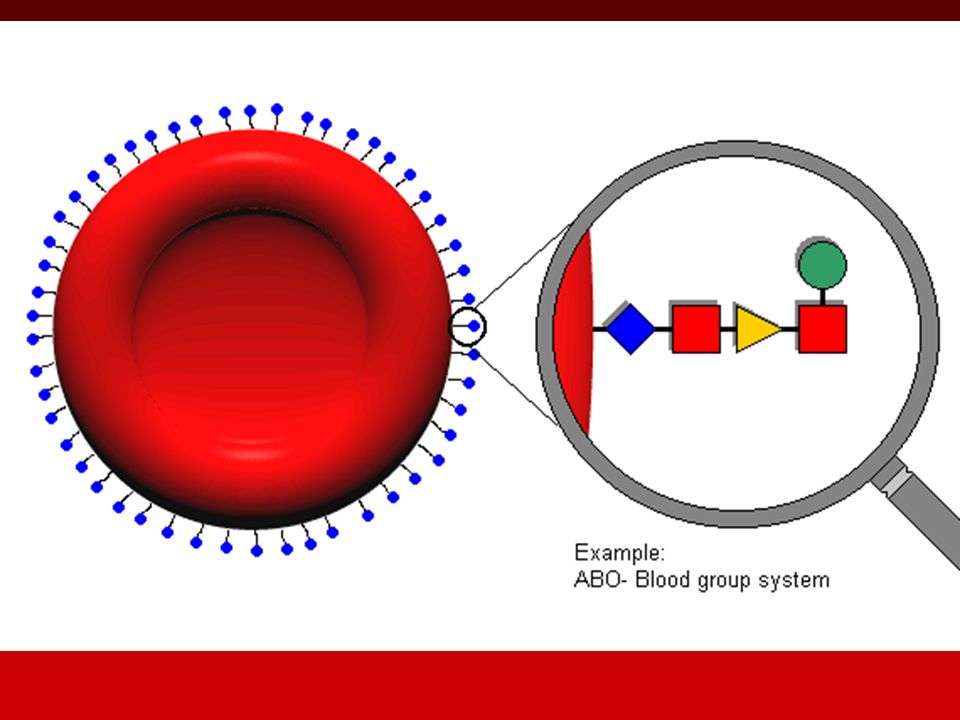

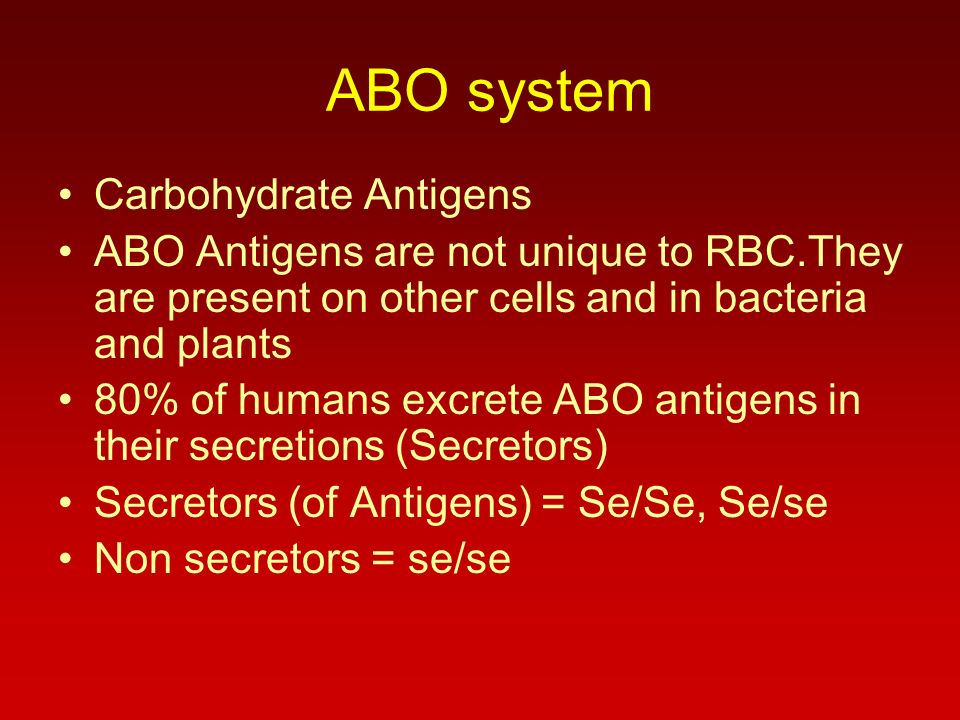

5 ABO system Carbohydrate Antigens ABO Antigens are not unique to RBC.They are present on other cells and in bacteria and plants 80% of humans excrete ABO antigens in their secretions (Secretors) Secretors (of Antigens) = Se/Se, Se/se Non secretors = se/se

6 Incidence of ABO blood groups in Israeli population שכיחות INCIDECE סוג TYPE שכיחות INCIDECE סוג TYPE 4%-A-A38%+A+A 2%-B-B16%+B+B 1%-AB6%+AB 3%-O-O30%+O+O D- are 15 % of the population less then world prevalence

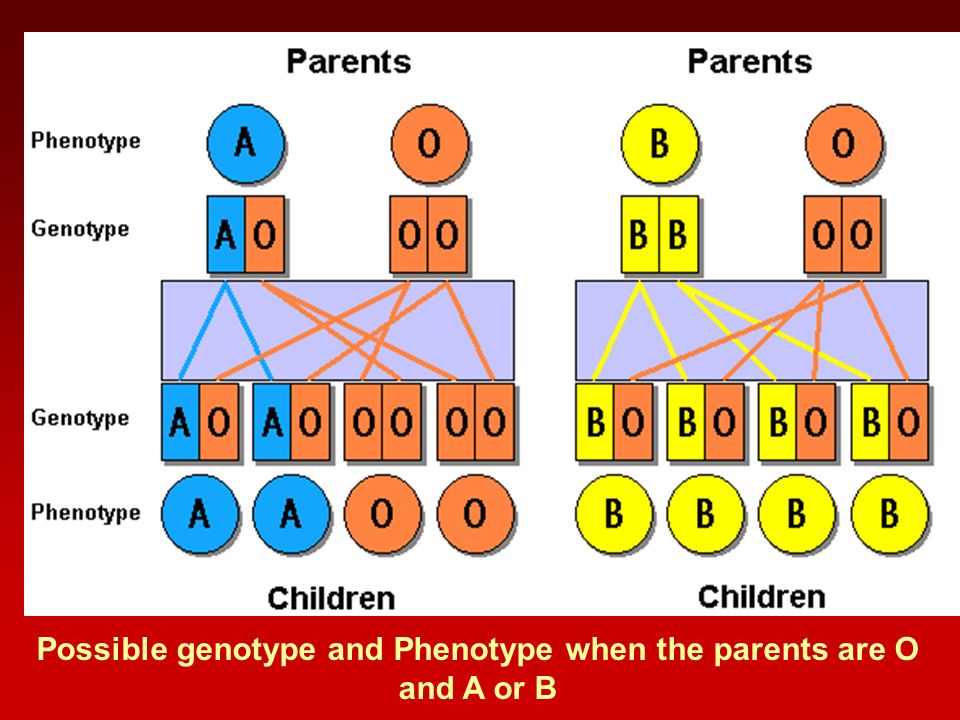

7 Possible genotype and Phenotype when the parents are O and A or B

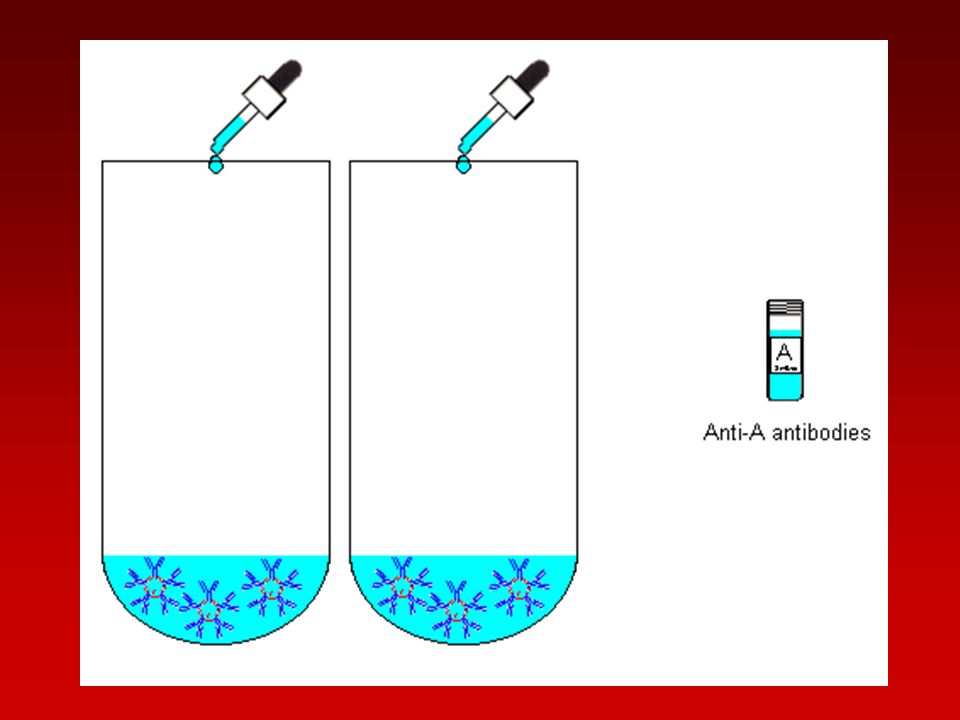

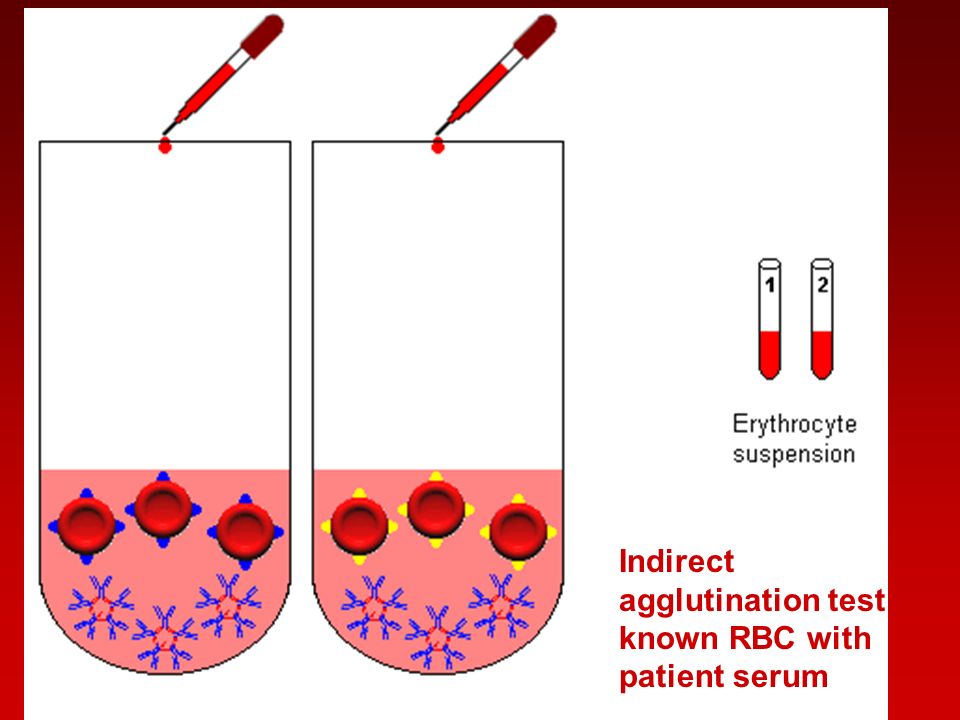

12 Indirect agglutination test known RBC with patient serum



15 Intra Vascular Hemolysis Due to infusion of A RBC to O recipient

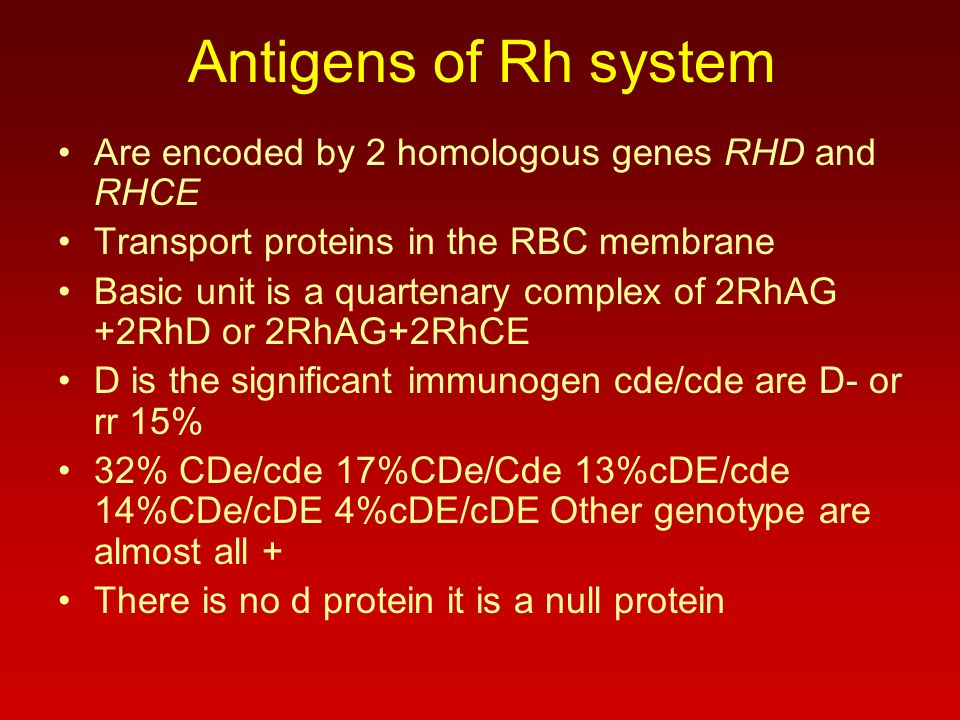

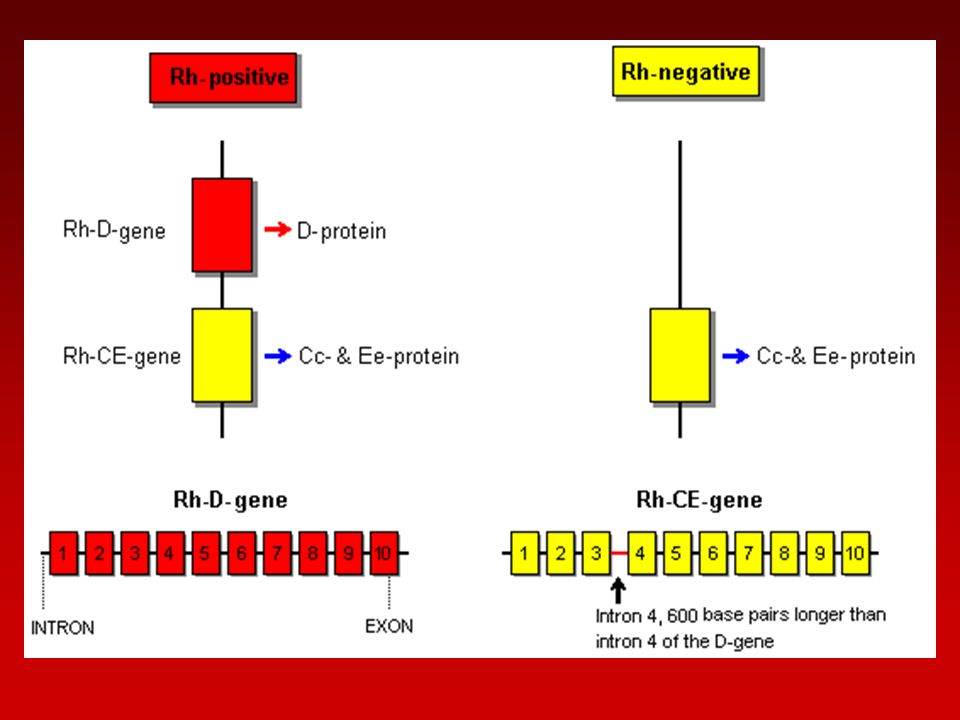

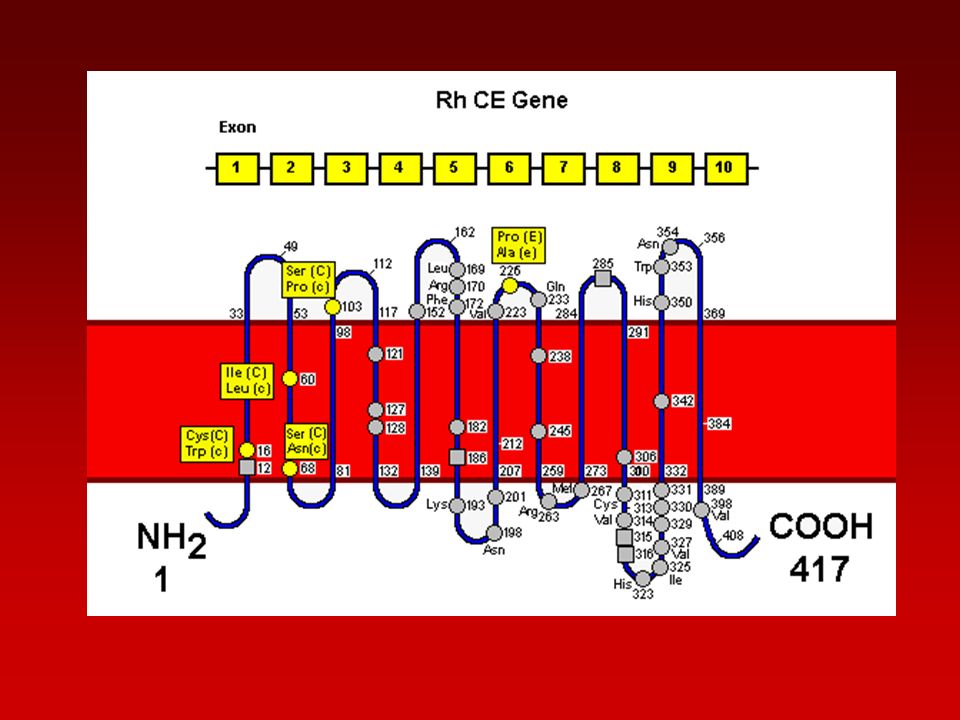

16 Antigens of Rh system Are encoded by 2 homologous genes RHD and RHCE Transport proteins in the RBC membrane Basic unit is a quartenary complex of 2RhAG +2RhD or 2RhAG+2RhCE D is the significant immunogen cde/cde are D- or rr 15% 32% CDe/cde 17%CDe/Cde 13%cDE/cde 14%CDe/cDE 4%cDE/cDE Other genotype are almost all + There is no d protein it is a null protein

17 Rh system 15% of caucasian and 5% of black are Rh- 1% of asian popularion are Rh- D+ are marked D and negative are d are Rh+ D/D or D/d, are Rh- d/d




21 BLOOD TYPING 1.ABO and Rh blood group is determined 2.USE of sera of anti A B sera anti D with patients erythrocytes 3.Use of Pt serum to check for anti A and anti B with known A1 and B RBC 4.Serum is screened for important antibodies by an indirect antiglobulin test on a large panel of antigenically-typed red cells

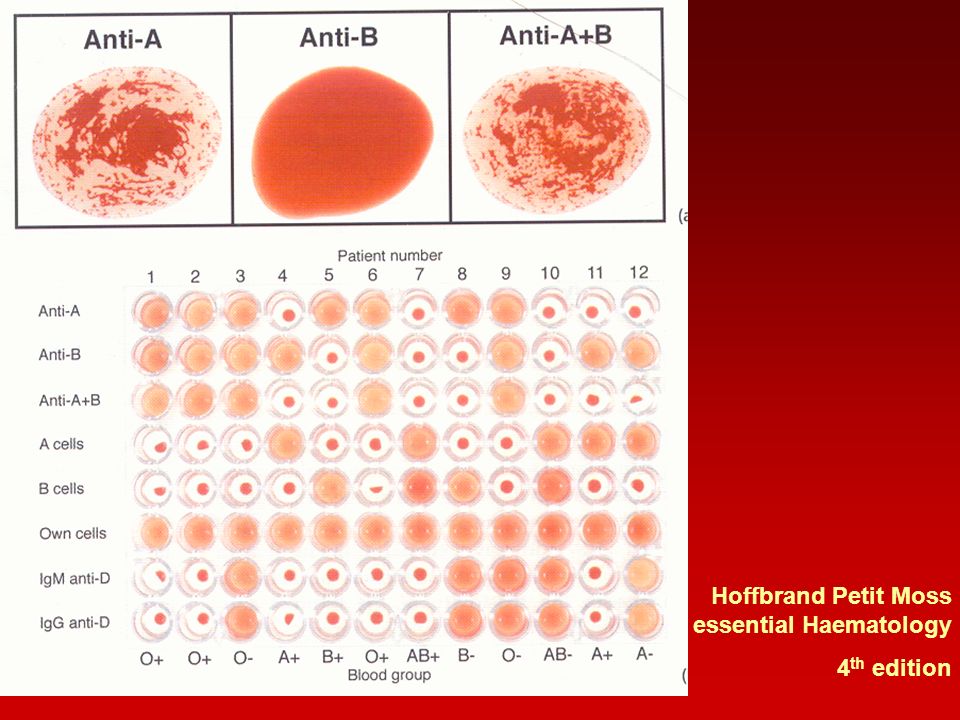

23 patient RBC with commercial sera serum Patient Anti A Anti B Anti D A RBC B RBC + -- + -- + A+A+ + + + -- --AB+AB+ -- + -- + -- B - -- -- + +O+O+

24 Hoffbrand Petit Moss essential Haematology 4 th edition

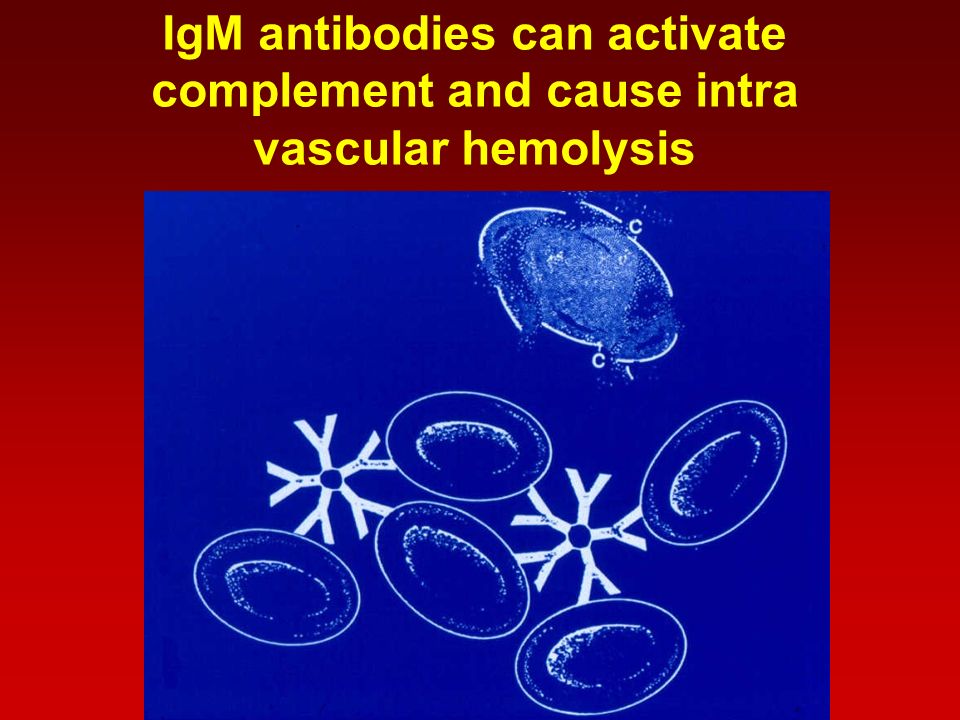

26 IgM antibodies can activate complement and cause intra vascular hemolysis

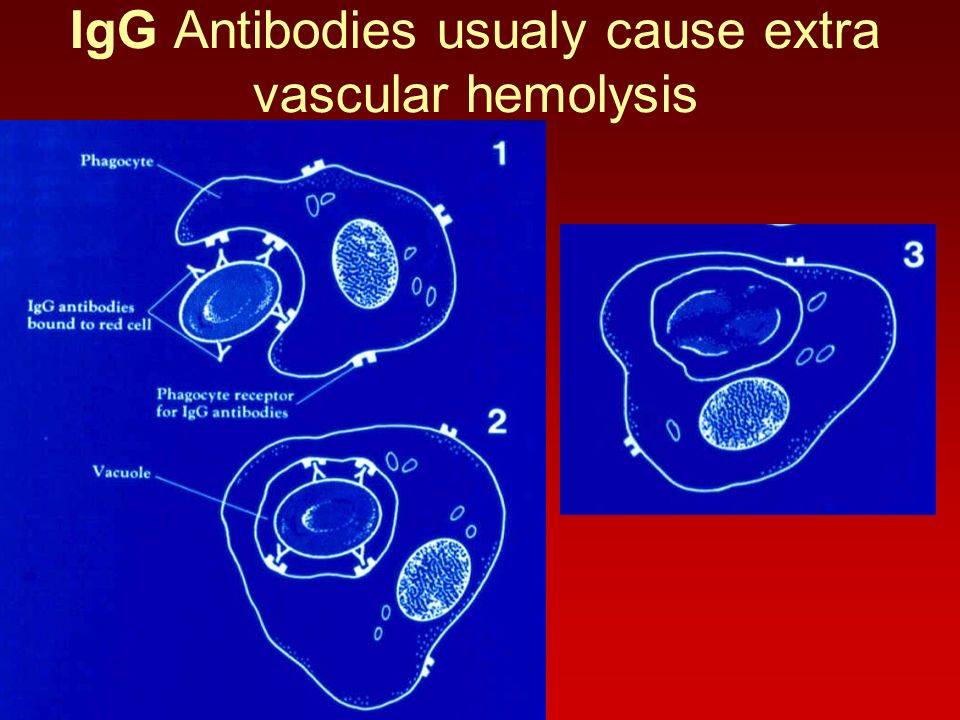

27 IgG Antibodies usualy cause extra vascular hemolysis

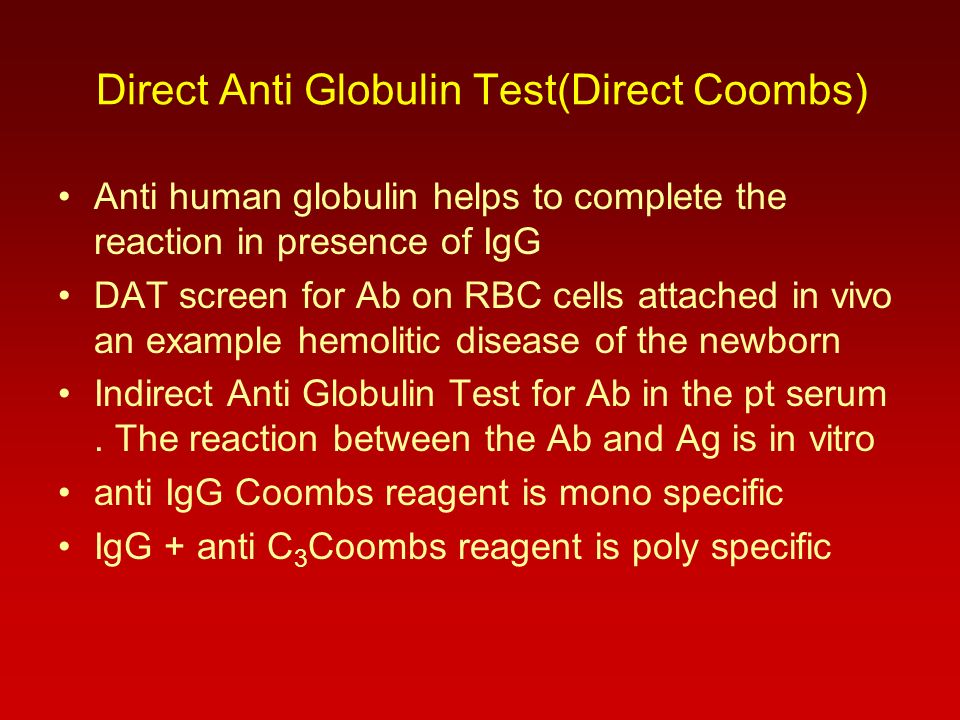

30 Direct Anti Globulin Test(Direct Coombs) Anti human globulin helps to complete the reaction in presence of IgG DAT screen for Ab on RBC cells attached in vivo an example hemolitic disease of the newborn Indirect Anti Globulin Test for Ab in the pt serum. The reaction between the Ab and Ag is in vitro anti IgG Coombs reagent is mono specific IgG + anti C 3 Coombs reagent is poly specific

31 RBC Antibody is attached to Antigen on Erythrocyte surface membrane RBC Adding anti Human Globulin In Vitro Direct Anti Globulin Test(Coombs’)




35 Indirect Anti Globulin Test (Indirect coombs) survey of acquired antibodies in patient serum

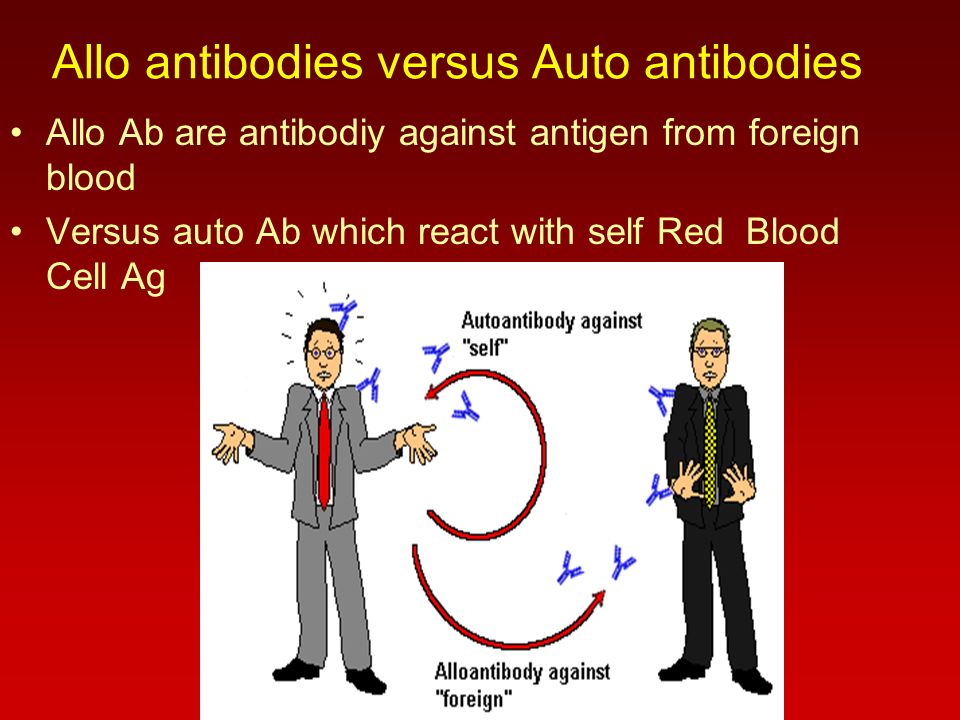

36 Allo antibodies versus Auto antibodies Allo Ab are antibodiy against antigen from foreign blood Versus auto Ab which react with self Red Blood Cell Ag

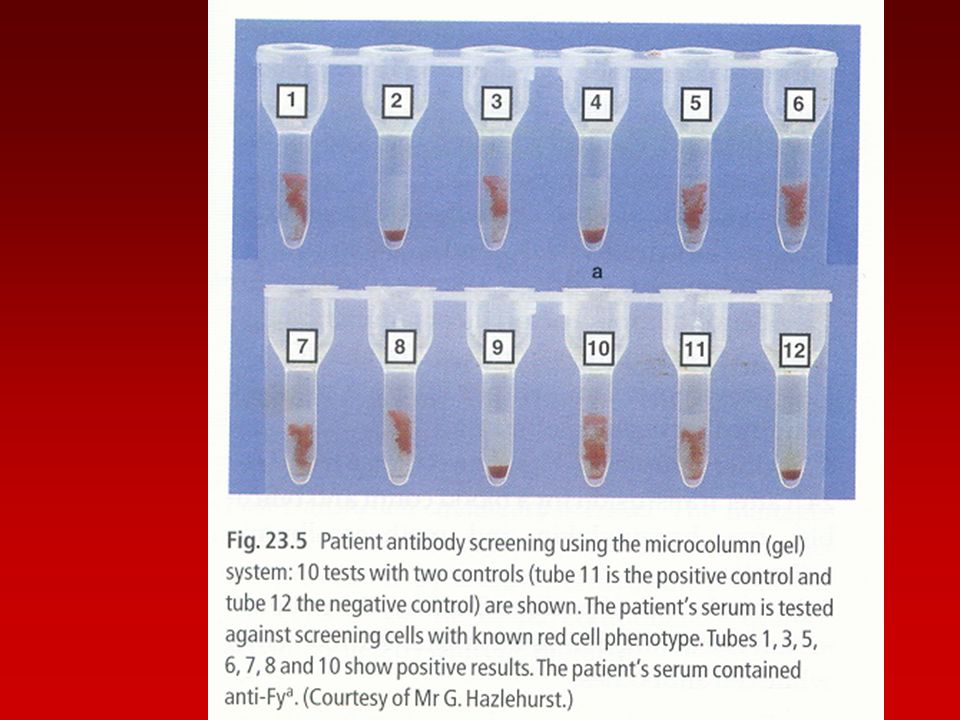

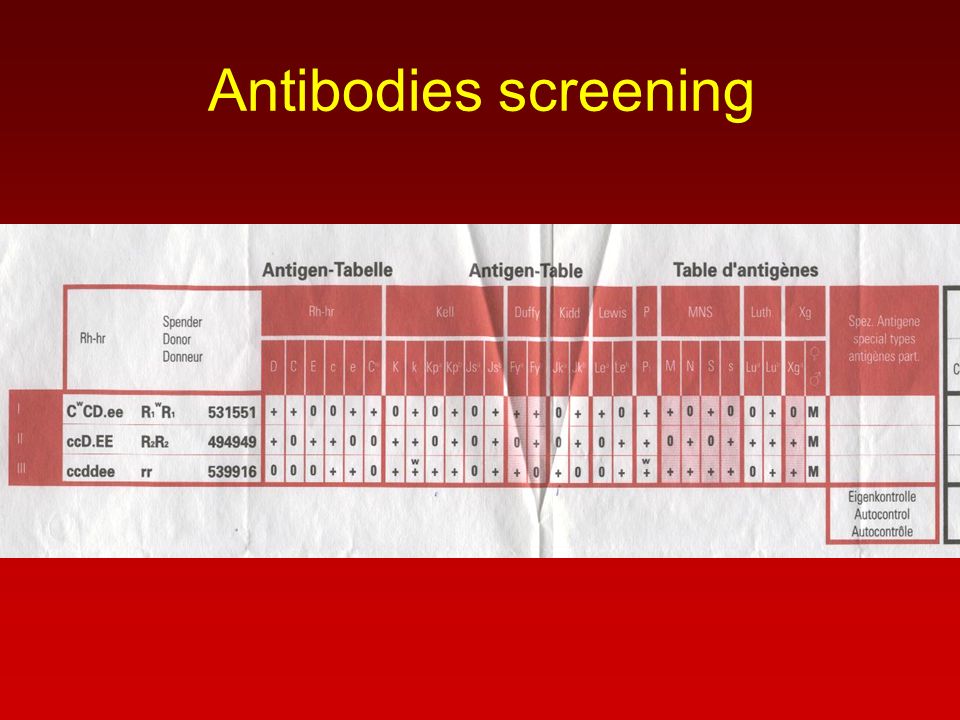

38 Antibodies screening


40 Indirect Anti Globulin Test

41 Positive test in Presence of Ag

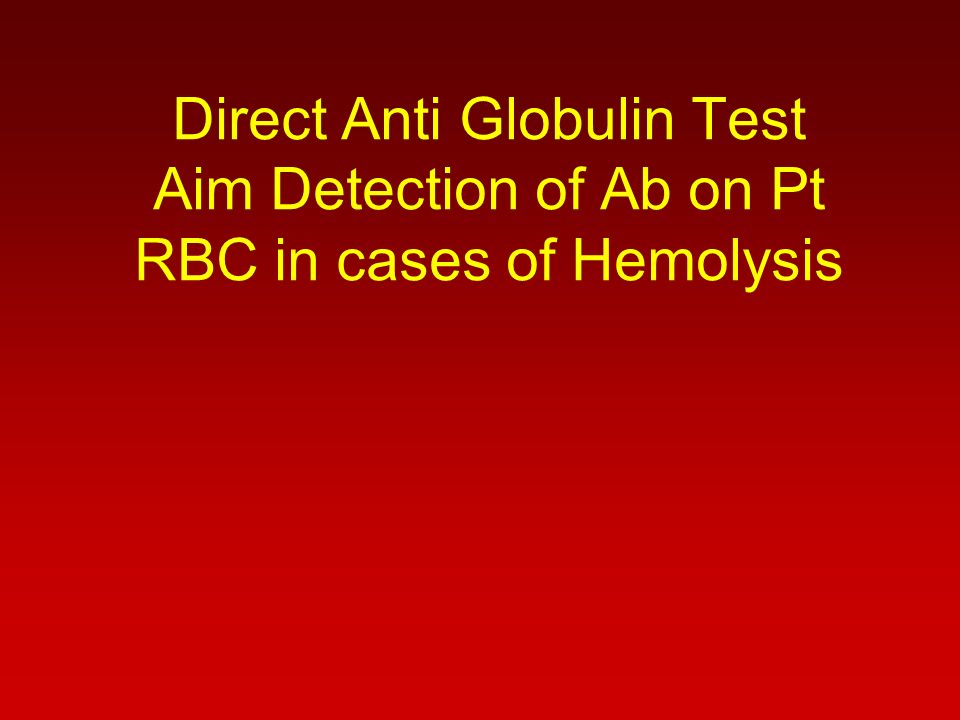

44 Direct Anti Globulin Test Aim Detection of Ab on Pt RBC in cases of Hemolysis

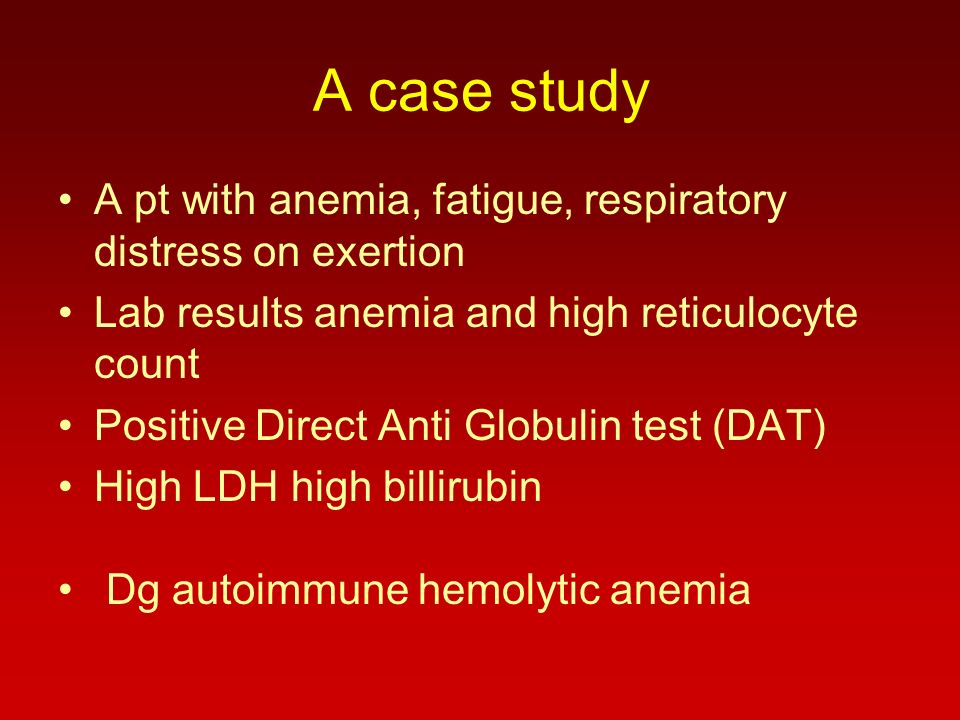

45 A case study A pt with anemia, fatigue, respiratory distress on exertion Lab results anemia and high reticulocyte count Positive Direct Anti Globulin test (DAT) High LDH high billirubin Dg autoimmune hemolytic anemia

46 Rx steroids, packed red blood cells folic acid

47 Hemolytic disease of the new born - HDN Appearance of Ab in the blood stream of a pregnant woman against paternal Ag present in fetal blood

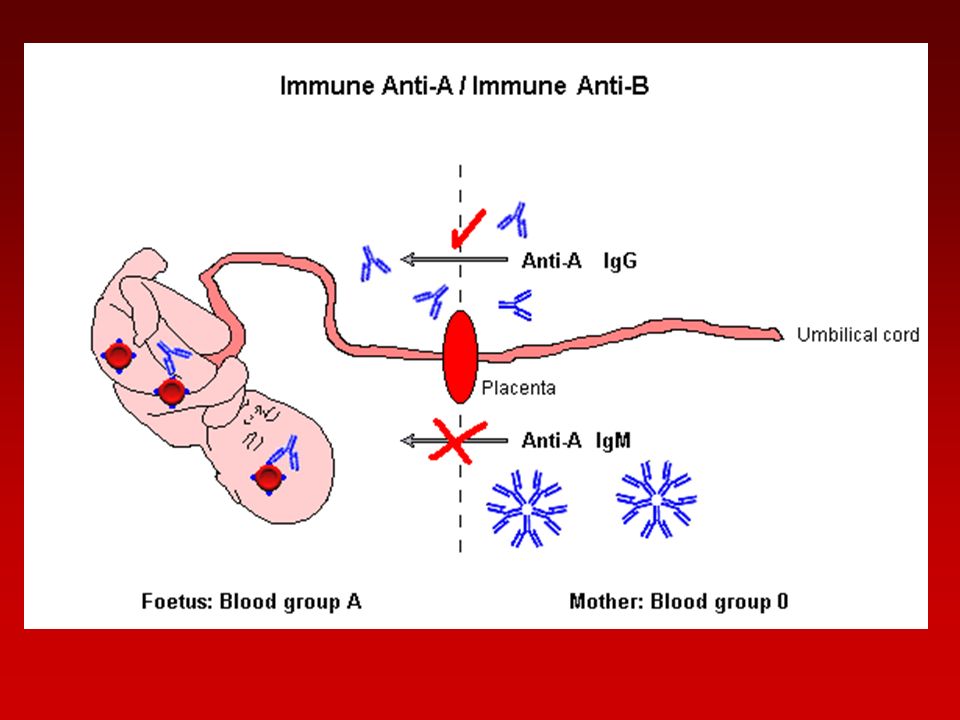

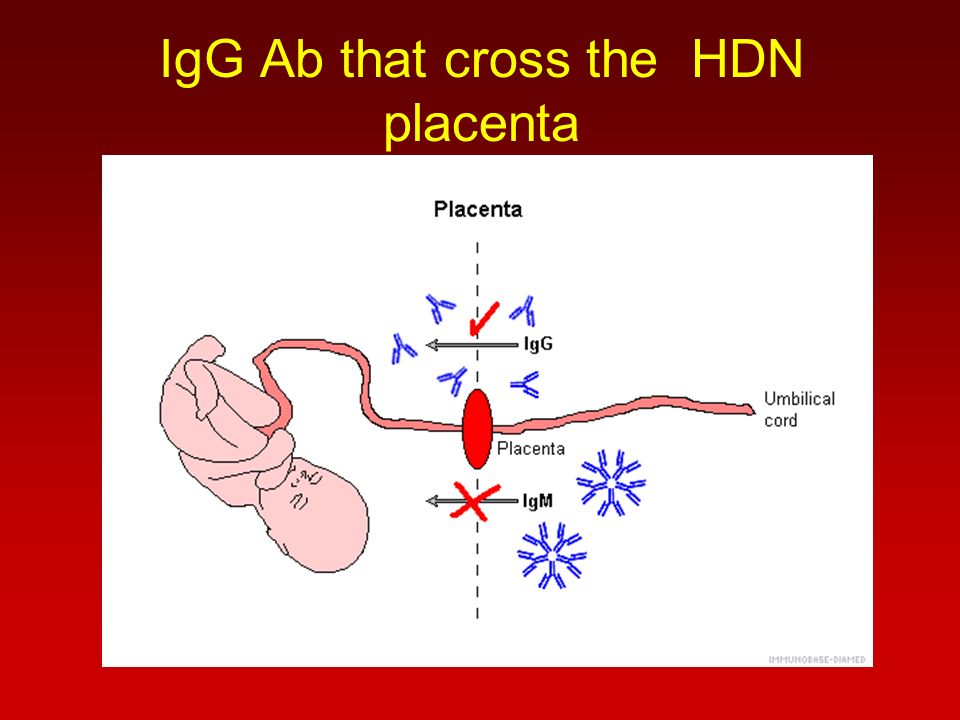

48 HDN IgG Ab that cross the placenta

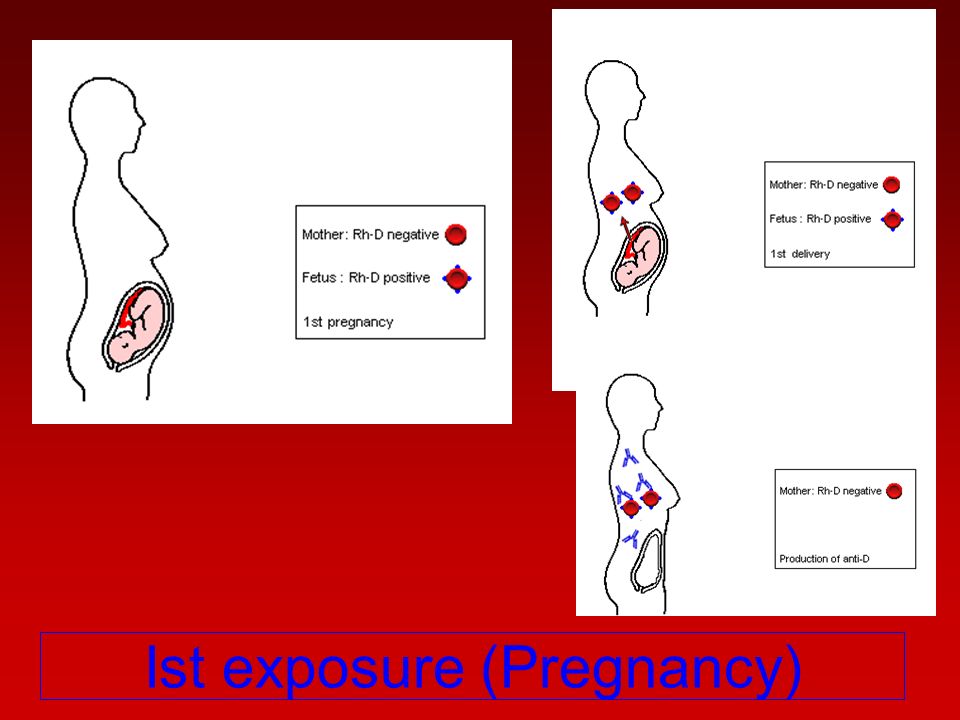

49 Ist exposure (Pregnancy)

50 Second exposure (Second preg) or post infusion of Rh + blood

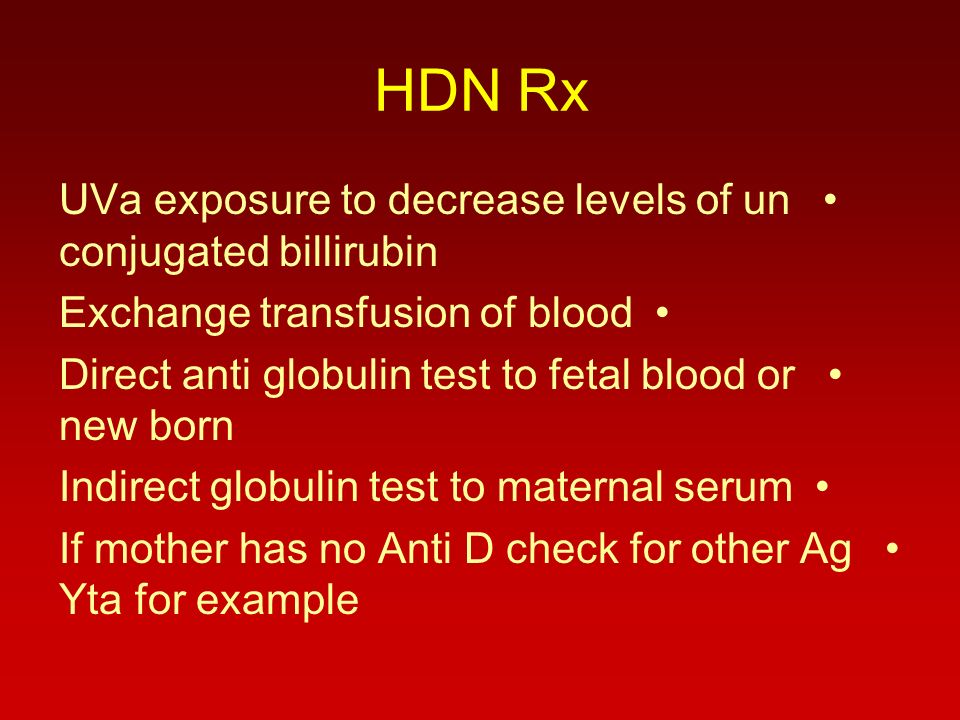

51 HDN Rx UVa exposure to decrease levels of un conjugated billirubin Exchange transfusion of blood Direct anti globulin test to fetal blood or new born Indirect globulin test to maternal serum If mother has no Anti D check for other Ag Yta for example

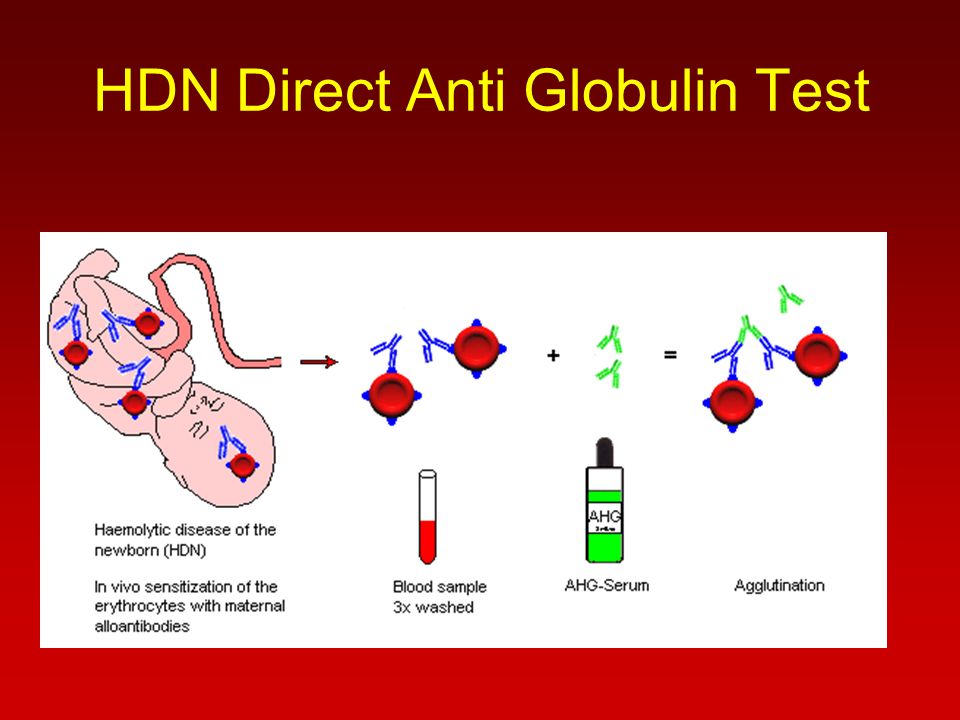

52 HDN Direct Anti Globulin Test

53 HDN prevention by injection of anti D (Proginin) 500 iu during pregnancy at week 28 and 34 at birth if baby is having a Rh+ another dose is indicated within 72 hours

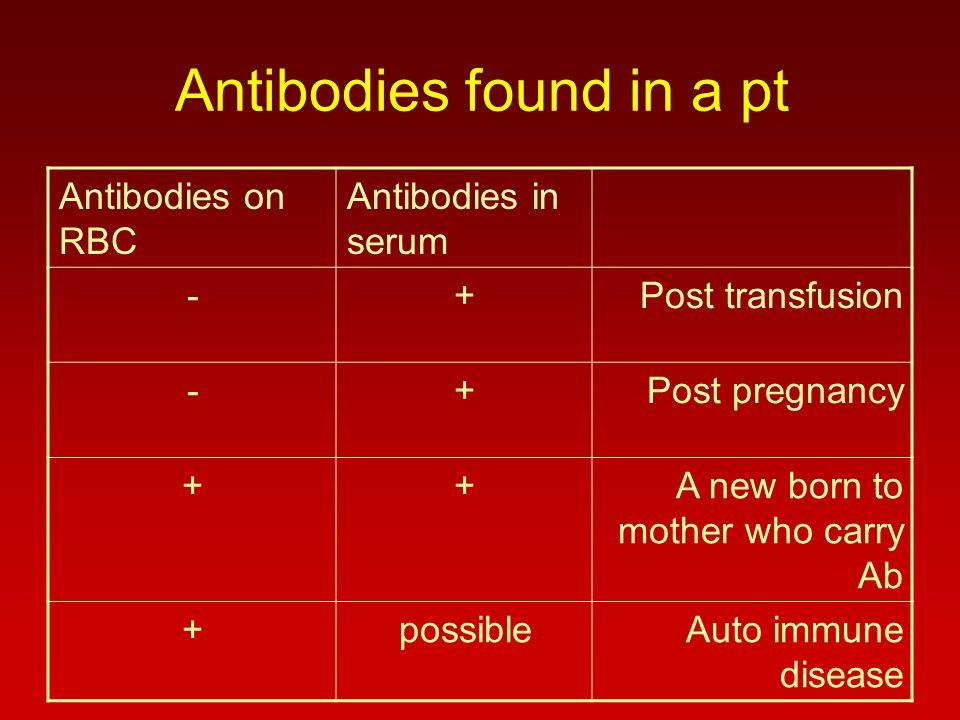

55 Antibodies found in a pt Antibodies in serum Antibodies on RBC Post transfusion+- Post pregnancy+- A new born to mother who carry Ab ++ Auto immune disease possible+

56 Thank You Uribamba Valley Peru 5/2004
